Ophthalmology instruments By Prof.Dr.R.R.Deshpande
This document describes various ophthalmology instruments used in eye examinations and surgeries. It provides details on scissors, forceps, needle holders, speculums, cautery, knives, and other tools. The document also provides contact information for Dr. R.R. Deshpande who presented on these instruments and links to additional educational resources on ophthalmology.
More Related Content
Similar to Ophthalmology instruments By Prof.Dr.R.R.Deshpande
![Ophthalmology INSTRUMENtS 2 [Autosaved]-1.pptx](https://cdn.slidesharecdn.com/ss_thumbnails/instruments2autosaved-1-240729155141-32d36116-thumbnail.jpg?width=640&height=640&fit=bounds)
Ophthalmology instruments By Prof.Dr.R.R.Deshpande

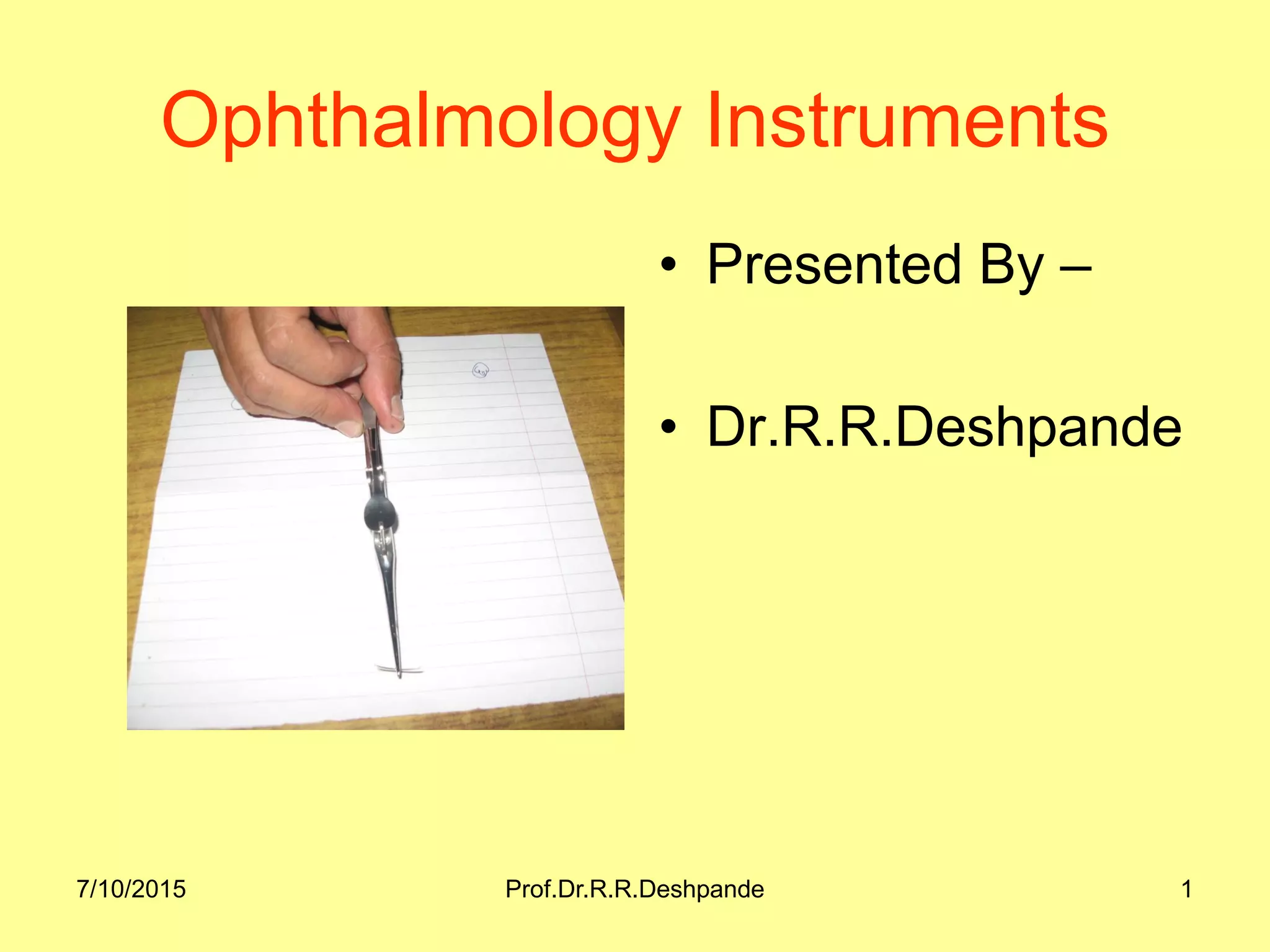

- 1. Ophthalmology Instruments • PresentedBy – • Dr.R.R.Deshpande 7/10/2015 Prof.Dr.R.R.Deshpande 1

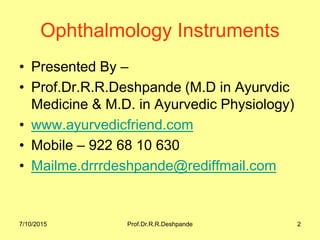

- 2. 7/10/2015 Prof.Dr.R.R.Deshpande 2 OphthalmologyInstruments • Presented By – • Prof.Dr.R.R.Deshpande (M.D in Ayurvdic Medicine & M.D. in Ayurvedic Physiology) • www.ayurvedicfriend.com • Mobile – 922 68 10 630 • Mailme.drrrdeshpande@rediffmail.com
- 3. Special Thanks • AyurvedCollege ,Nigdi ,Pune 44 • Dr.Rohini Bhadane ,Past student & Topper 7/10/2015 Prof.Dr.R.R.Deshpande 3
- 4. Utility of thisPPT • Final Year BAMS students can make many time revisions ,if they download this PPT & save in their Smart Phone • This is very useful for spotting & oral of University Examination • Teachers can get helping hand of this PPT for teaching with LCD projector 7/10/2015 Prof.Dr.R.R.Deshpande 4
- 5. 7/10/2015 Prof.Dr.R.R.Deshpande 5 Ayurvedfor General Practioner • Very very popular Book in Medical Practioners • 100 common symptoms of General Practice with causes,Investigations & Ayurvedic Treatments
- 6. 7/10/2015 Prof.Dr.R.R.Deshpande 6 ClinicalExamination • Systemic Examination of 8 systems • Ayurvedic Srotas Examination • Clinical significance of Lab Tests & Radiology,USG,2D Echo
- 7. 7/10/2015 Prof.Dr.R.R.Deshpande 7 Noteson Medicine Part 1 • Very very useful Book for all Medical Practioners • Guidelines with causes,symptoms,Ay urvedic & Modern Treatments to treat Fever,Pain in Abdomen & Arthritis
- 8. 7/10/2015 Prof.Dr.R.R.Deshpande 8 BestBook for Medical Students & Practioners

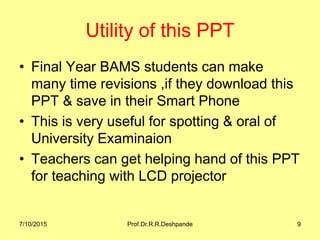

- 9. Utility of thisPPT • Final Year BAMS students can make many time revisions ,if they download this PPT & save in their Smart Phone • This is very useful for spotting & oral of University Examinaion • Teachers can get helping hand of this PPT for teaching with LCD projector 7/10/2015 Prof.Dr.R.R.Deshpande 9
- 10. Pathology Hand Book •Very Good Book for ready reference to Medical Students & Practioners • Costs only Rs.70/- • For Home Delivery call Mr.Shantanu on • 98 22 08 55 06
- 11. Concept of Prakruti& Life Style • How to Diagnose Prakruti ? • Detailed advice for each Prakruti about Diet, Daily regimen, Exercise,Occuption • Menu for Breakfast,Lunch,Dinn er • Chaukhamba Publication
- 12.

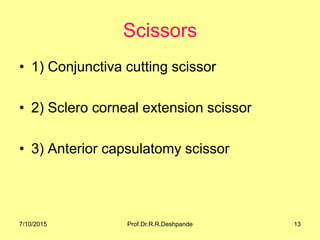

- 13. Scissors • 1) Conjunctivacutting scissor • 2) Sclero corneal extension scissor • 3) Anterior capsulatomy scissor 7/10/2015 13Prof.Dr.R.R.Deshpande

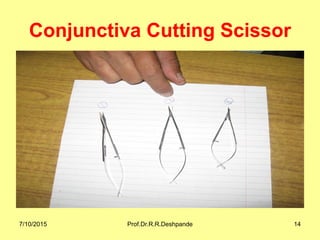

- 14. Conjunctiva Cutting Scissor 7/10/201514Prof.Dr.R.R.Deshpande

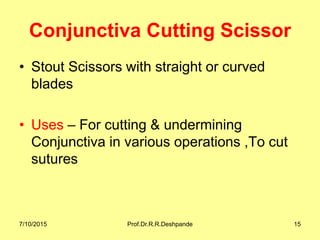

- 15. Conjunctiva Cutting Scissor •Stout Scissors with straight or curved blades • Uses – For cutting & undermining Conjunctiva in various operations ,To cut sutures 7/10/2015 Prof.Dr.R.R.Deshpande 15
- 16. Sclero Corneal ExtensionScissor • Curved Scissors . • Their cutting blades are kept apart by spring action. • Uses – Used to enlarge corneal or sclera corneal incision in Cataract Surgery ,Extend incision in Keratoplasty 7/10/2015 Prof.Dr.R.R.Deshpande 16

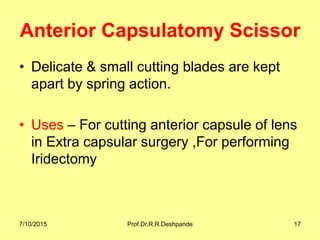

- 17. Anterior Capsulatomy Scissor •Delicate & small cutting blades are kept apart by spring action. • Uses – For cutting anterior capsule of lens in Extra capsular surgery ,For performing Iridectomy 7/10/2015 Prof.Dr.R.R.Deshpande 17

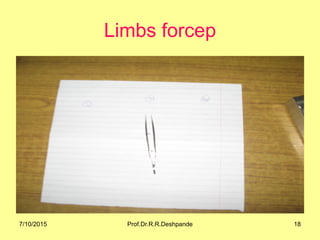

- 18.

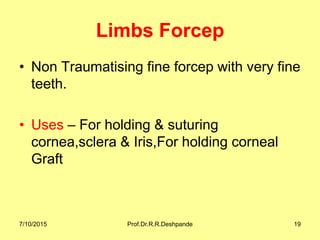

- 19. Limbs Forcep • NonTraumatising fine forcep with very fine teeth. • Uses – For holding & suturing cornea,sclera & Iris,For holding corneal Graft 7/10/2015 Prof.Dr.R.R.Deshpande 19

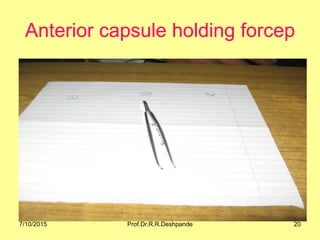

- 20. Anterior capsule holdingforcep 7/10/2015 20Prof.Dr.R.R.Deshpande

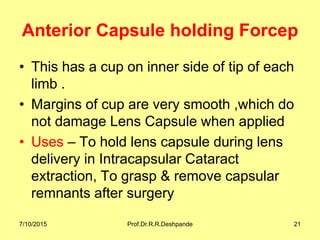

- 21. Anterior Capsule holdingForcep • This has a cup on inner side of tip of each limb . • Margins of cup are very smooth ,which do not damage Lens Capsule when applied • Uses – To hold lens capsule during lens delivery in Intracapsular Cataract extraction, To grasp & remove capsular remnants after surgery 7/10/2015 Prof.Dr.R.R.Deshpande 21
- 22.

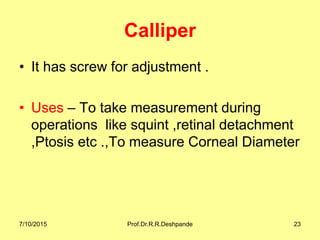

- 23. Calliper • It hasscrew for adjustment . • Uses – To take measurement during operations like squint ,retinal detachment ,Ptosis etc .,To measure Corneal Diameter 7/10/2015 Prof.Dr.R.R.Deshpande 23

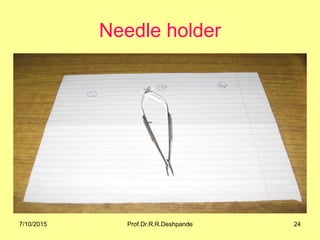

- 24.

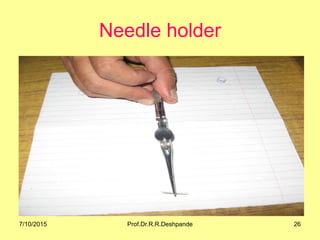

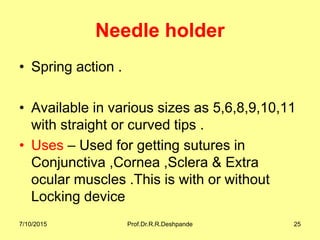

- 25. Needle holder • Springaction . • Available in various sizes as 5,6,8,9,10,11 with straight or curved tips . • Uses – Used for getting sutures in Conjunctiva ,Cornea ,Sclera & Extra ocular muscles .This is with or without Locking device 7/10/2015 Prof.Dr.R.R.Deshpande 25
- 26.

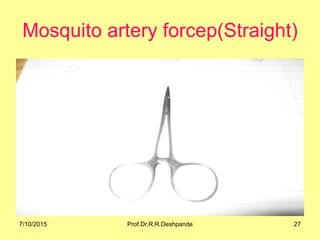

- 27. Mosquito artery forcep(Straight) 7/10/201527Prof.Dr.R.R.Deshpande

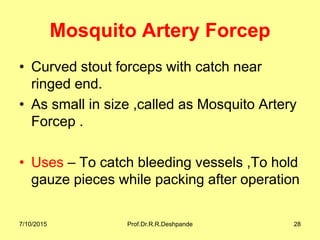

- 28. Mosquito Artery Forcep •Curved stout forceps with catch near ringed end. • As small in size ,called as Mosquito Artery Forcep . • Uses – To catch bleeding vessels ,To hold gauze pieces while packing after operation 7/10/2015 Prof.Dr.R.R.Deshpande 28

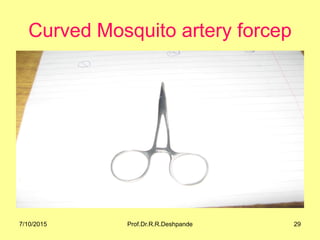

- 29. Curved Mosquito arteryforcep 7/10/2015 29Prof.Dr.R.R.Deshpande

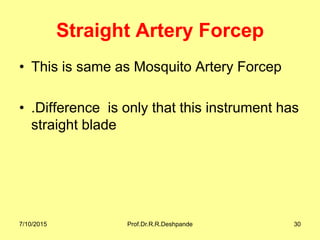

- 30. Straight Artery Forcep •This is same as Mosquito Artery Forcep • .Difference is only that this instrument has straight blade 7/10/2015 Prof.Dr.R.R.Deshpande 30
- 31.

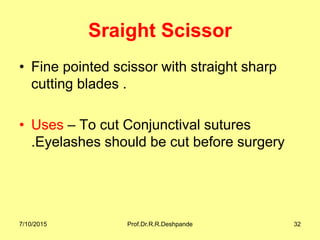

- 32. Sraight Scissor • Finepointed scissor with straight sharp cutting blades . • Uses – To cut Conjunctival sutures .Eyelashes should be cut before surgery 7/10/2015 Prof.Dr.R.R.Deshpande 32

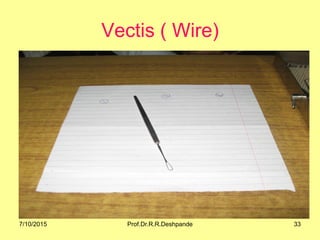

- 33. Vectis ( Wire) 7/10/201533Prof.Dr.R.R.Deshpande

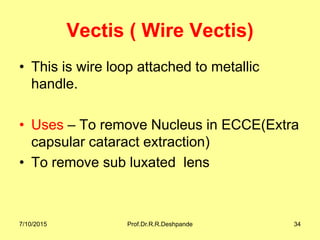

- 34. Vectis ( WireVectis) • This is wire loop attached to metallic handle. • Uses – To remove Nucleus in ECCE(Extra capsular cataract extraction) • To remove sub luxated lens 7/10/2015 Prof.Dr.R.R.Deshpande 34

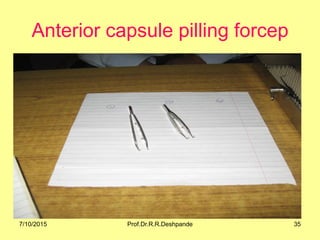

- 35. Anterior capsule pillingforcep 7/10/2015 35Prof.Dr.R.R.Deshpande

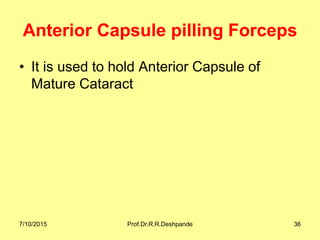

- 36. Anterior Capsule pillingForceps • It is used to hold Anterior Capsule of Mature Cataract 7/10/2015 Prof.Dr.R.R.Deshpande 36

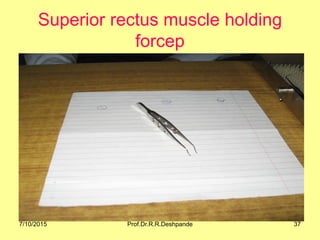

- 37. Superior rectus muscleholding forcep 7/10/2015 37Prof.Dr.R.R.Deshpande

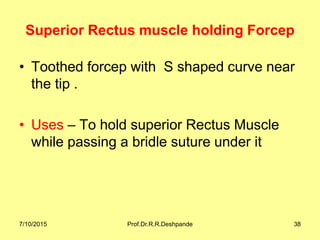

- 38. Superior Rectus muscleholding Forcep • Toothed forcep with S shaped curve near the tip . • Uses – To hold superior Rectus Muscle while passing a bridle suture under it 7/10/2015 Prof.Dr.R.R.Deshpande 38

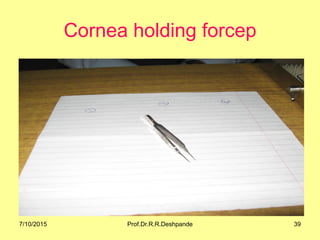

- 39. Cornea holding forcep 7/10/201539Prof.Dr.R.R.Deshpande
- 40. Cornea holding Forcep •Toothed forcep . • Use – To hold cornea or Sclera or Conjunctiva during surgery 7/10/2015 Prof.Dr.R.R.Deshpande 40

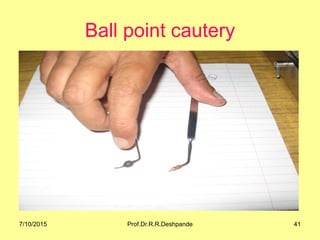

- 41. Ball point cautery 7/10/201541Prof.Dr.R.R.Deshpande

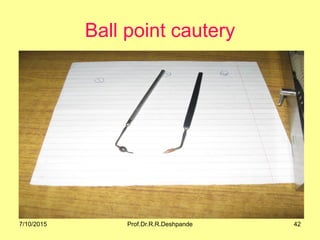

- 42. Ball point cautery 7/10/201542Prof.Dr.R.R.Deshpande
- 43. Ball Point Cautery •It has rounded projection at tip . • Use – To coagulate small bleeding points during any surgery of eye 7/10/2015 Prof.Dr.R.R.Deshpande 43
- 44.

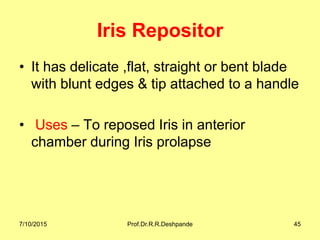

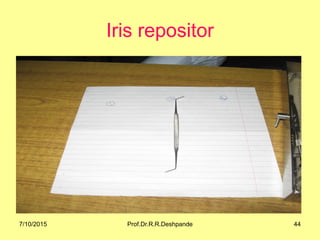

- 45. Iris Repositor • Ithas delicate ,flat, straight or bent blade with blunt edges & tip attached to a handle • Uses – To reposed Iris in anterior chamber during Iris prolapse 7/10/2015 Prof.Dr.R.R.Deshpande 45

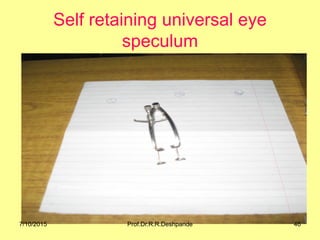

- 46. Self retaining universaleye speculum 7/10/2015 46Prof.Dr.R.R.Deshpande

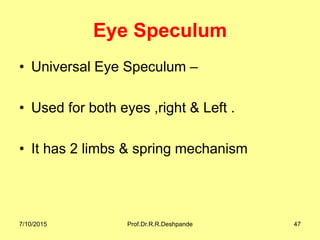

- 47. Eye Speculum • UniversalEye Speculum – • Used for both eyes ,right & Left . • It has 2 limbs & spring mechanism 7/10/2015 Prof.Dr.R.R.Deshpande 47

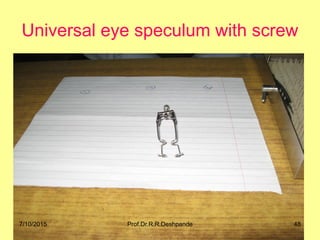

- 48. Universal eye speculumwith screw 7/10/2015 48Prof.Dr.R.R.Deshpande
- 49. Wire Eye Speculum •Uses – Eye Speculums are used to keep lids apart during any Intraocular surgery ,Enucleation & Evisceration surgery • During examination of eye in patient with Blepharospasm 7/10/2015 Prof.Dr.R.R.Deshpande 49

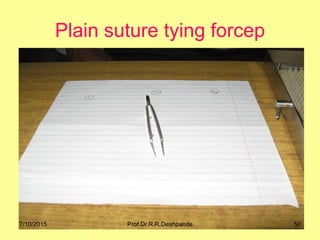

- 50. Plain suture tyingforcep 7/10/2015 50Prof.Dr.R.R.Deshpande

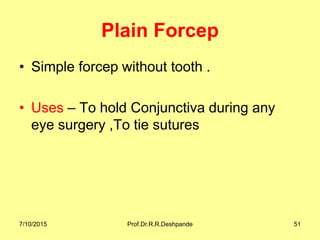

- 51. Plain Forcep • Simpleforcep without tooth . • Uses – To hold Conjunctiva during any eye surgery ,To tie sutures 7/10/2015 Prof.Dr.R.R.Deshpande 51

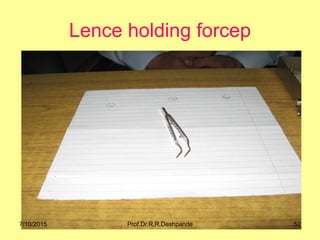

- 52. Lence holding forcep 7/10/201552Prof.Dr.R.R.Deshpande

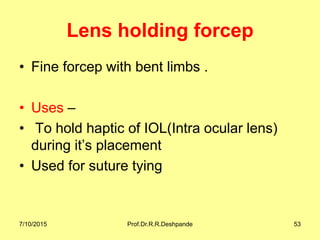

- 53. Lens holding forcep •Fine forcep with bent limbs . • Uses – • To hold haptic of IOL(Intra ocular lens) during it’s placement • Used for suture tying 7/10/2015 Prof.Dr.R.R.Deshpande 53
- 54.

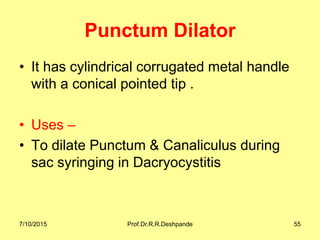

- 55. Punctum Dilator • Ithas cylindrical corrugated metal handle with a conical pointed tip . • Uses – • To dilate Punctum & Canaliculus during sac syringing in Dacryocystitis 7/10/2015 Prof.Dr.R.R.Deshpande 55
- 56.

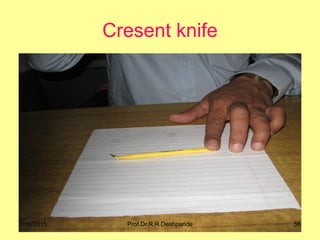

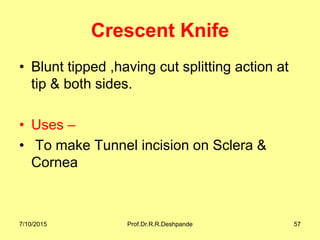

- 57. Crescent Knife • Blunttipped ,having cut splitting action at tip & both sides. • Uses – • To make Tunnel incision on Sclera & Cornea 7/10/2015 Prof.Dr.R.R.Deshpande 57

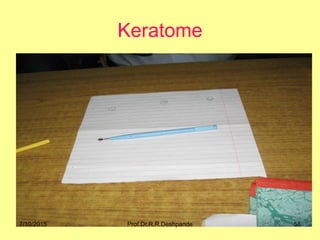

- 58.

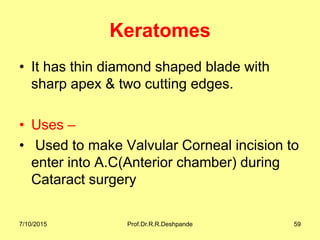

- 59. Keratomes • It hasthin diamond shaped blade with sharp apex & two cutting edges. • Uses – • Used to make Valvular Corneal incision to enter into A.C(Anterior chamber) during Cataract surgery 7/10/2015 Prof.Dr.R.R.Deshpande 59

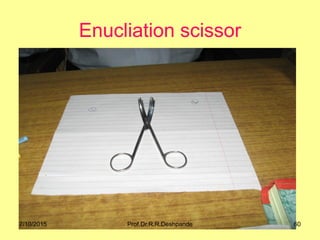

- 60.

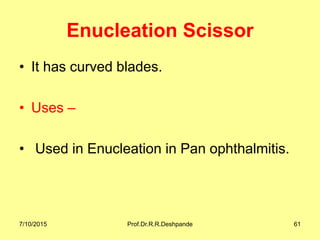

- 61. Enucleation Scissor • Ithas curved blades. • Uses – • Used in Enucleation in Pan ophthalmitis. 7/10/2015 Prof.Dr.R.R.Deshpande 61

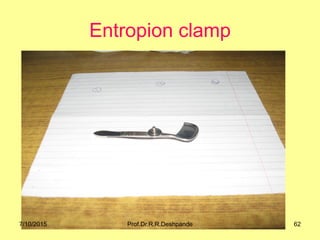

- 62.
- 63. Entropion Clamp • Ithas D shaped plate opposed by U shaped rim with screw. • Uses – • Used in Lid surgeries like Entropion, Ectropion corrections 7/10/2015 Prof.Dr.R.R.Deshpande 63
- 64.

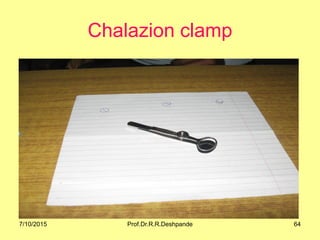

- 65. Chalazion Clamp • Itis consist of two limbs like Forceps, which can be clamped with the help of screw. • Uses – • To fix Chalazion & achieve Homeostasis during Incision & Curetting 7/10/2015 Prof.Dr.R.R.Deshpande 65

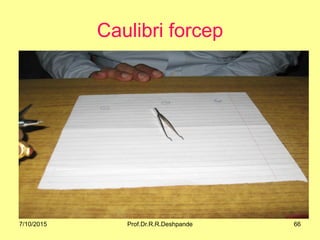

- 66.

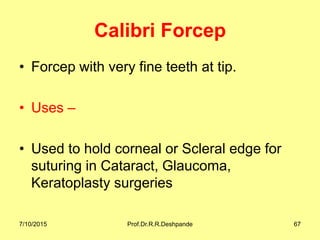

- 67. Calibri Forcep • Forcepwith very fine teeth at tip. • Uses – • Used to hold corneal or Scleral edge for suturing in Cataract, Glaucoma, Keratoplasty surgeries 7/10/2015 Prof.Dr.R.R.Deshpande 67

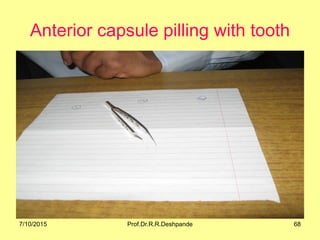

- 68. Anterior capsule pillingwith tooth 7/10/2015 68Prof.Dr.R.R.Deshpande

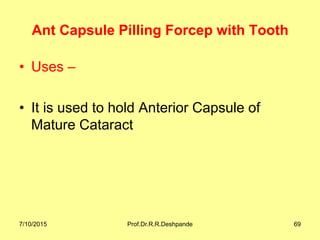

- 69. Ant Capsule PillingForcep with Tooth • Uses – • It is used to hold Anterior Capsule of Mature Cataract 7/10/2015 Prof.Dr.R.R.Deshpande 69

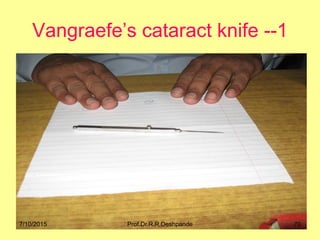

- 70. Vangraefe’s cataract knife--1 7/10/2015 70Prof.Dr.R.R.Deshpande
- 71. Von Graefe’s Knife •It is long, narrow,thin,straight blade with sharp tip & cutting edge on one side . • Uses – • Used for taking incision on Sclero - corneal Junction from 3 ‘ 0 Clock to 9’o Clock 7/10/2015 Prof.Dr.R.R.Deshpande 71

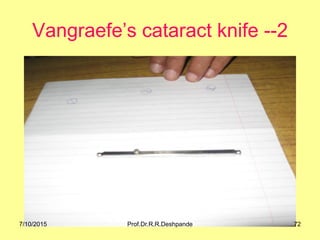

- 72. Vangraefe’s cataract knife--2 7/10/2015 72Prof.Dr.R.R.Deshpande

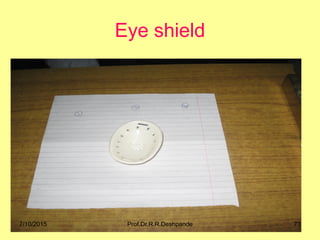

- 73.

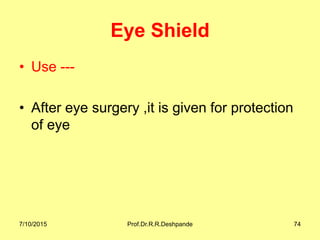

- 74. Eye Shield • Use--- • After eye surgery ,it is given for protection of eye 7/10/2015 Prof.Dr.R.R.Deshpande 74

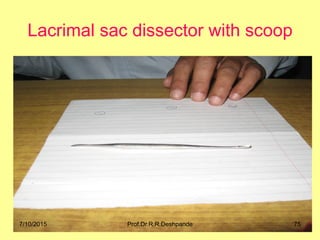

- 75. Lacrimal sac dissectorwith scoop 7/10/2015 75Prof.Dr.R.R.Deshpande

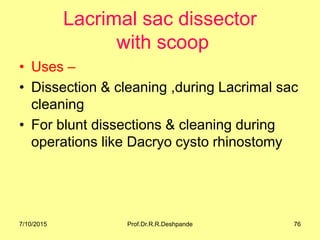

- 76. Lacrimal sac dissector withscoop • Uses – • Dissection & cleaning ,during Lacrimal sac cleaning • For blunt dissections & cleaning during operations like Dacryo cysto rhinostomy 7/10/2015 Prof.Dr.R.R.Deshpande 76
- 77.

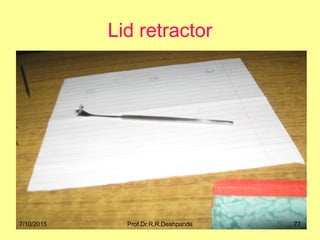

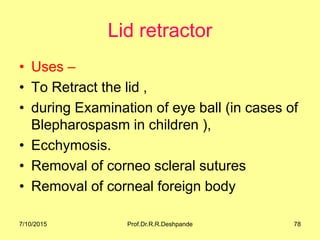

- 78. Lid retractor • Uses– • To Retract the lid , • during Examination of eye ball (in cases of Blepharospasm in children ), • Ecchymosis. • Removal of corneo scleral sutures • Removal of corneal foreign body 7/10/2015 Prof.Dr.R.R.Deshpande 78
- 79. Prof.Dr.Deshpande’s Popular Links onInternet • Just Start Internet on Desk top or Lap top or on your mobile . Copy Following Link & Paste as Web address –URL • http://www.youtube.com/user/deshpande1 959 • http://www.slideshare.net/rajendra9a/ • http://www.mixcloud.com/jamdadey/ 7/10/2015 Prof.Dr.R.R.Deshpande 79

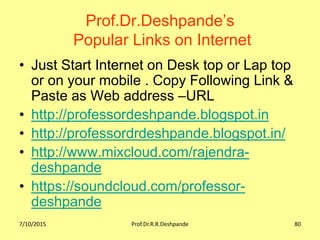

- 80. Prof.Dr.Deshpande’s Popular Links onInternet • Just Start Internet on Desk top or Lap top or on your mobile . Copy Following Link & Paste as Web address –URL • http://professordeshpande.blogspot.in • http://professordrdeshpande.blogspot.in/ • http://www.mixcloud.com/rajendra- deshpande • https://soundcloud.com/professor- deshpande 7/10/2015 Prof.Dr.R.R.Deshpande 80
- 81. Prof.Dr.R.R.Deshpande • Sharing ofKnowledge • FOR • Propagating Ayurved
