I/O System and
Case Study
By
Prakash.G
14BIT035

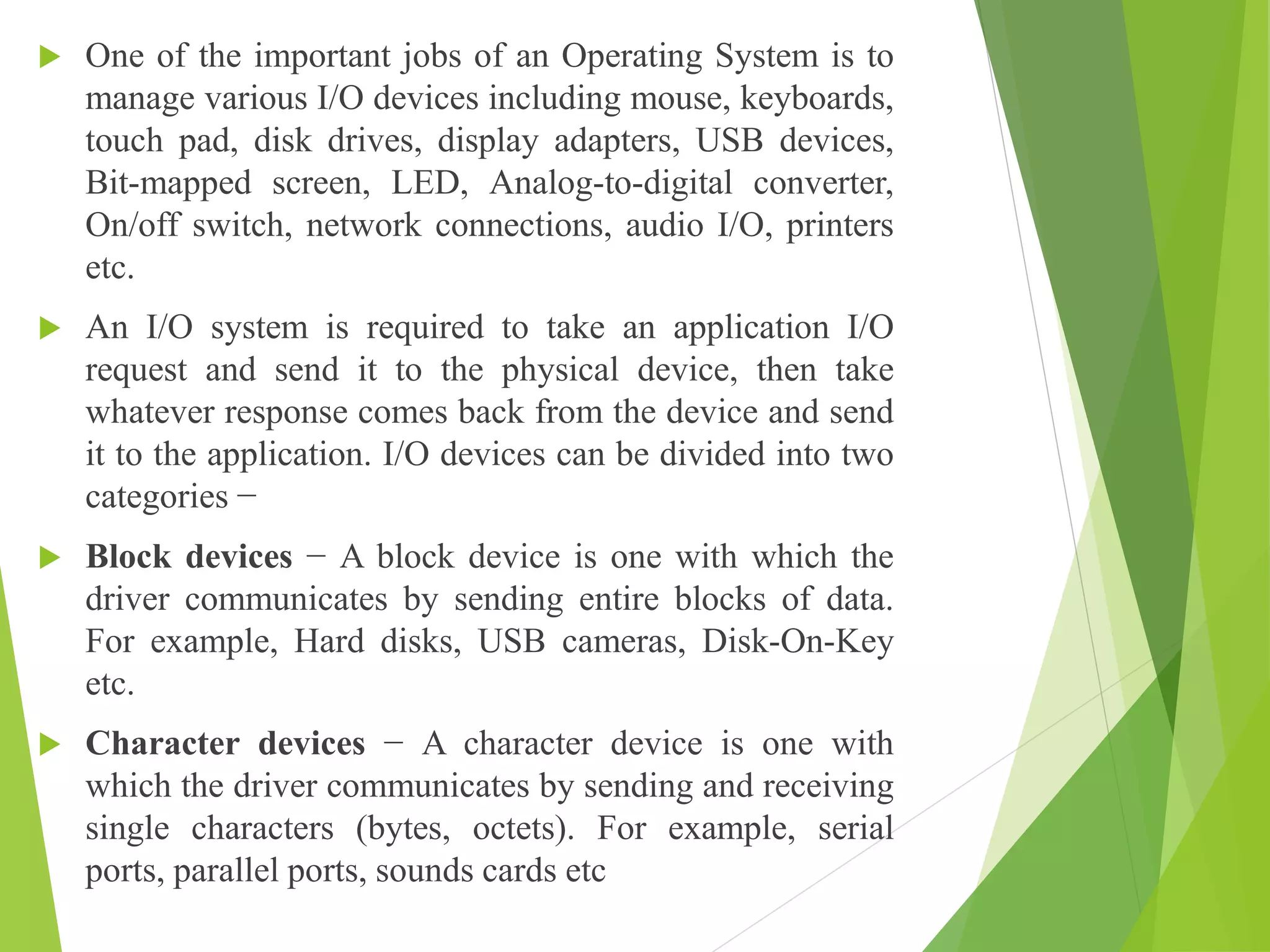

 One of the important jobs of an Operating System is to
manage various I/O devices including mouse, keyboards,
touch pad, disk drives, display adapters, USB devices,
Bit-mapped screen, LED, Analog-to-digital converter,
On/off switch, network connections, audio I/O, printers
etc.
 An I/O system is required to take an application I/O
request and send it to the physical device, then take
whatever response comes back from the device and send
it to the application. I/O devices can be divided into two
categories −
 Block devices − A block device is one with which the
driver communicates by sending entire blocks of data.
For example, Hard disks, USB cameras, Disk-On-Key
etc.
 Character devices − A character device is one with
which the driver communicates by sending and receiving
single characters (bytes, octets). For example, serial
ports, parallel ports, sounds cards etc

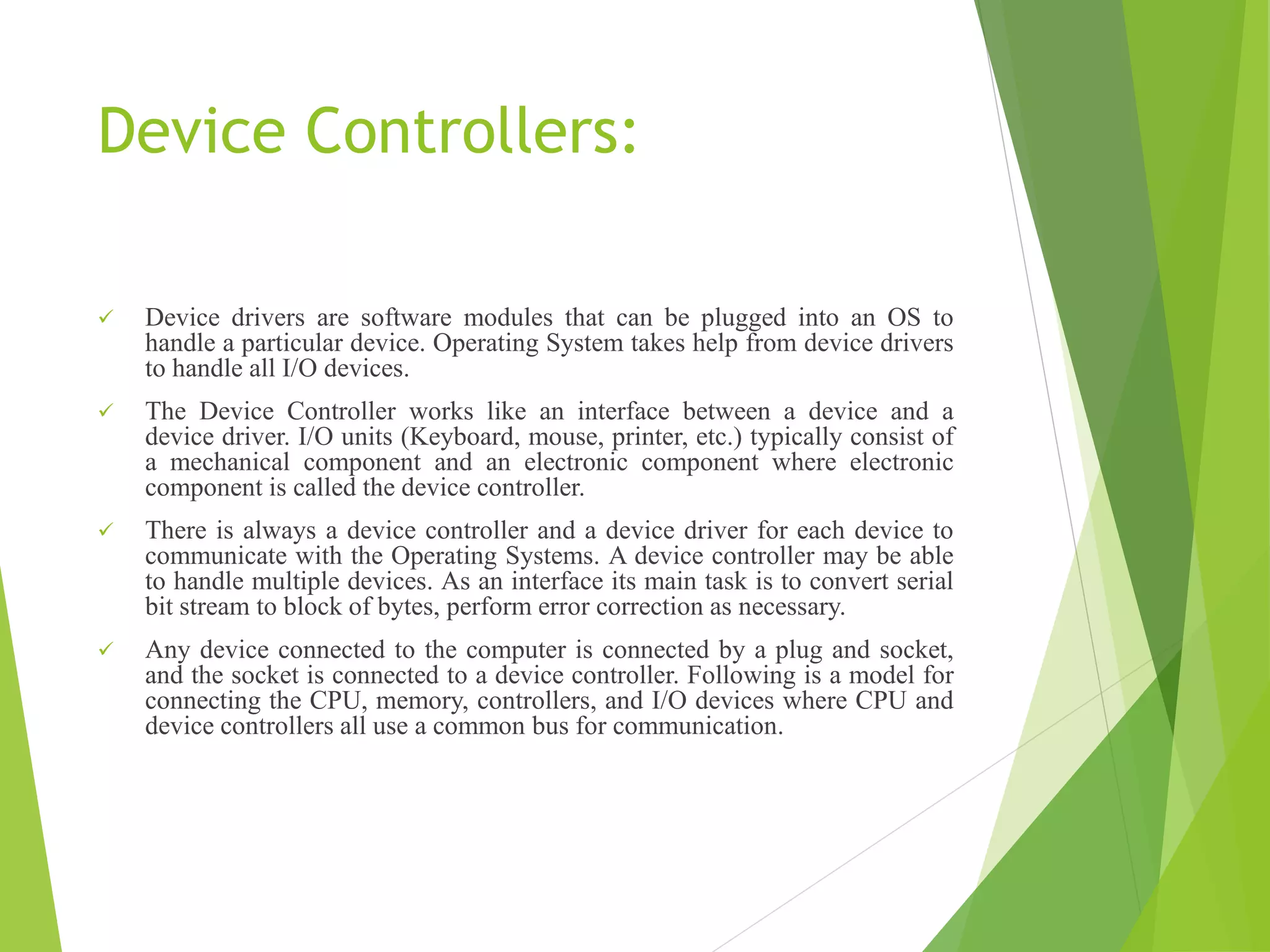

Device Controllers:
 Device drivers are software modules that can be plugged into an OS to
handle a particular device. Operating System takes help from device drivers
to handle all I/O devices.
 The Device Controller works like an interface between a device and a
device driver. I/O units (Keyboard, mouse, printer, etc.) typically consist of
a mechanical component and an electronic component where electronic
component is called the device controller.
 There is always a device controller and a device driver for each device to
communicate with the Operating Systems. A device controller may be able
to handle multiple devices. As an interface its main task is to convert serial
bit stream to block of bytes, perform error correction as necessary.

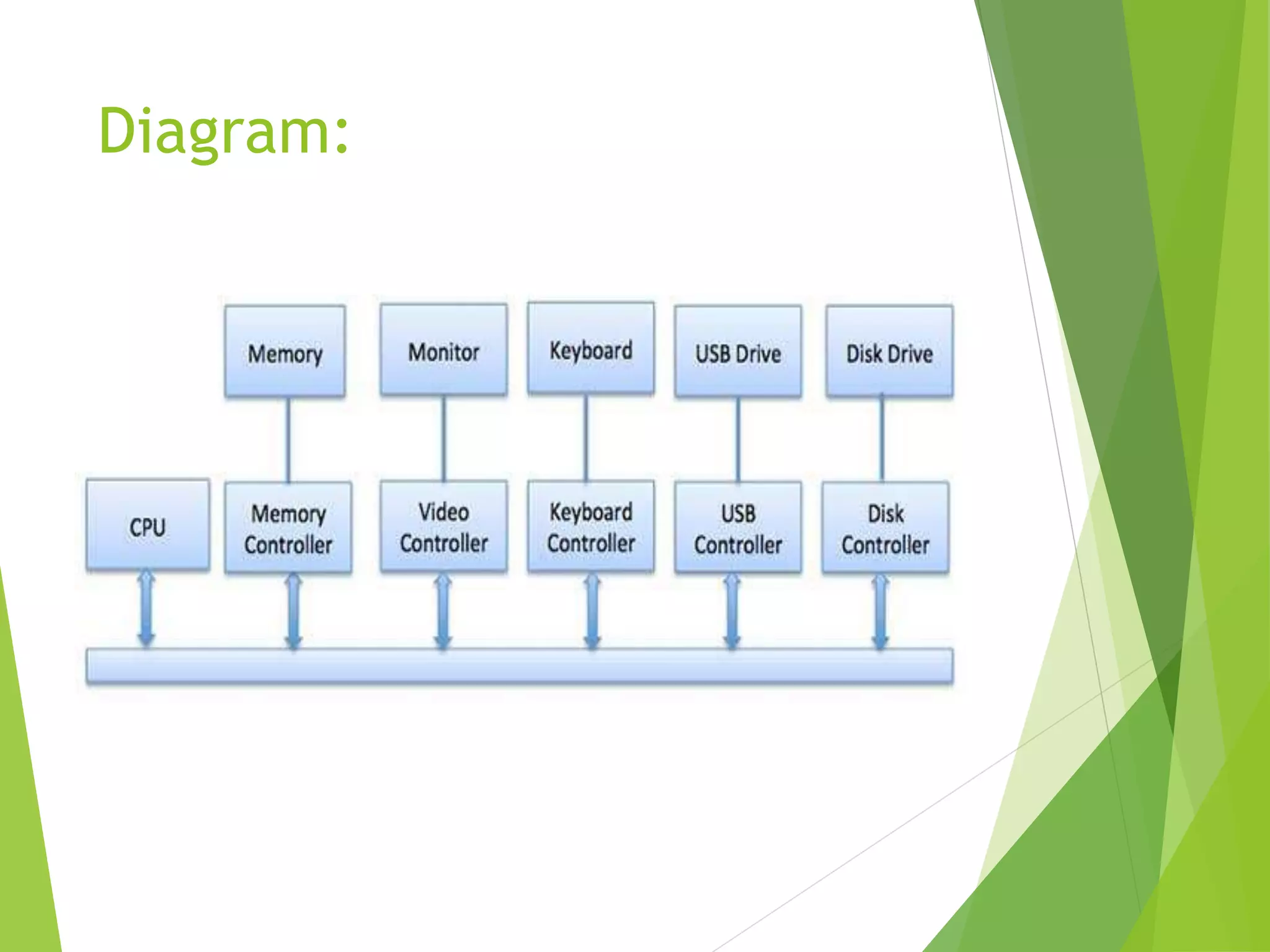

 Any device connected to the computer is connected by a plug and socket,
and the socket is connected to a device controller. Following is a model for
connecting the CPU, memory, controllers, and I/O devices where CPU and
device controllers all use a common bus for communication.
Diagram:

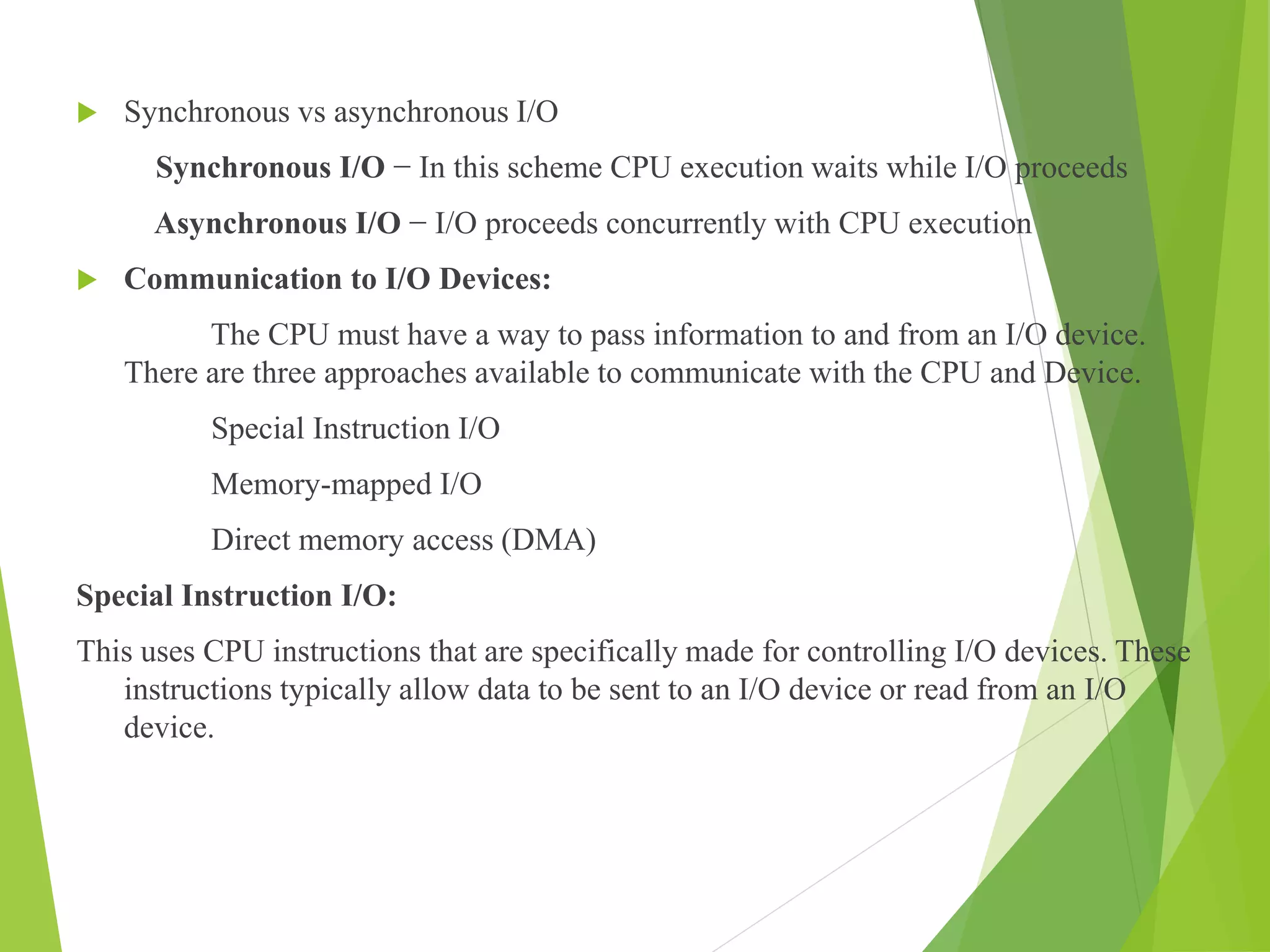

 Synchronous vs asynchronous I/O
Synchronous I/O − In this scheme CPU execution waits while I/O proceeds
Asynchronous I/O − I/O proceeds concurrently with CPU execution
 Communication to I/O Devices:
The CPU must have a way to pass information to and from an I/O device.
There are three approaches available to communicate with the CPU and Device.
Special Instruction I/O
Memory-mapped I/O
Direct memory access (DMA)
Special Instruction I/O:
This uses CPU instructions that are specifically made for controlling I/O devices. These
instructions typically allow data to be sent to an I/O device or read from an I/O
device.

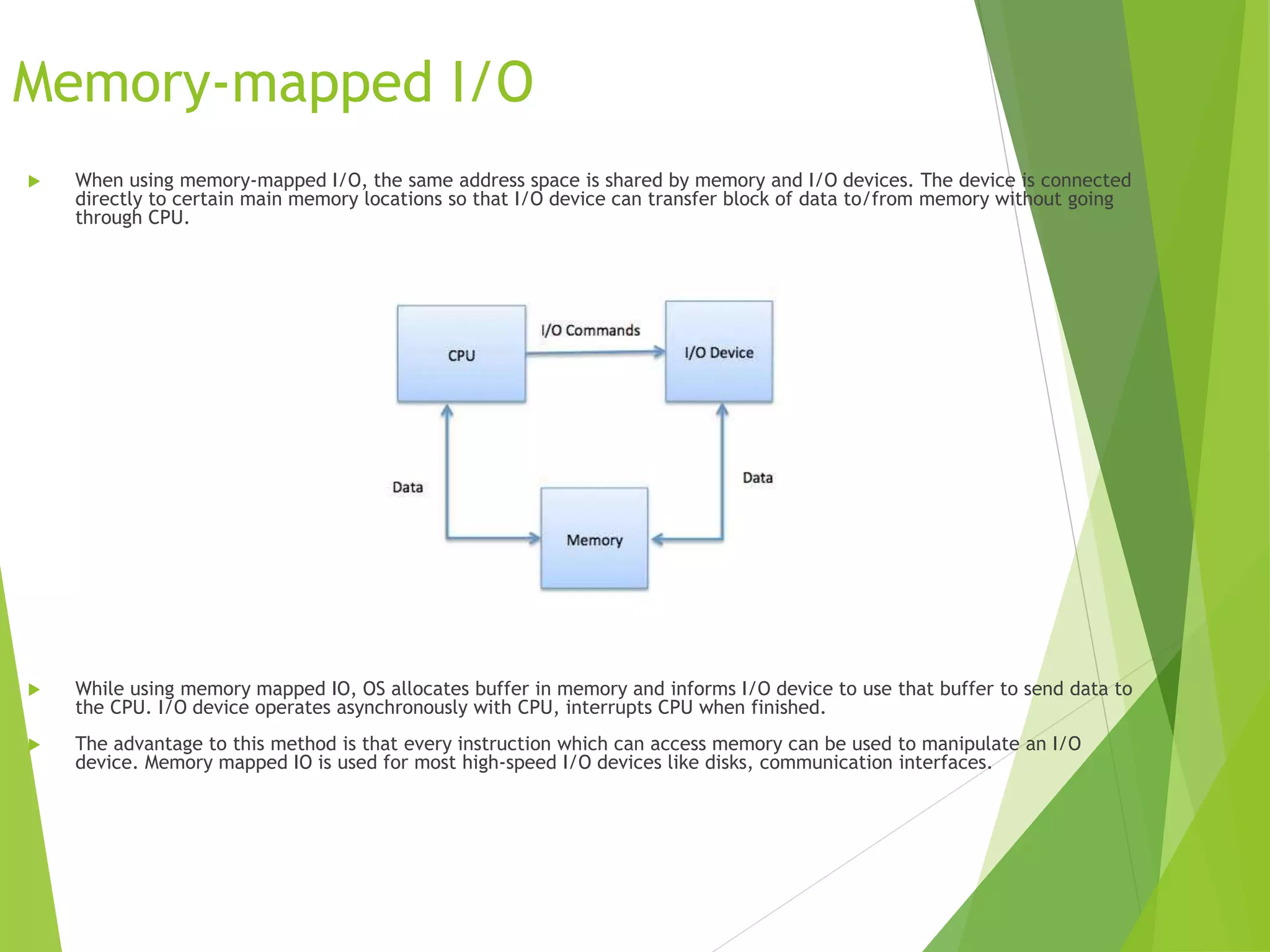

Memory-mapped I/O
 When using memory-mapped I/O, the same address space is shared by memory and I/O devices. The device is connected
directly to certain main memory locations so that I/O device can transfer block of data to/from memory without going
through CPU.
 While using memory mapped IO, OS allocates buffer in memory and informs I/O device to use that buffer to send data to
the CPU. I/O device operates asynchronously with CPU, interrupts CPU when finished.
 The advantage to this method is that every instruction which can access memory can be used to manipulate an I/O
device. Memory mapped IO is used for most high-speed I/O devices like disks, communication interfaces.

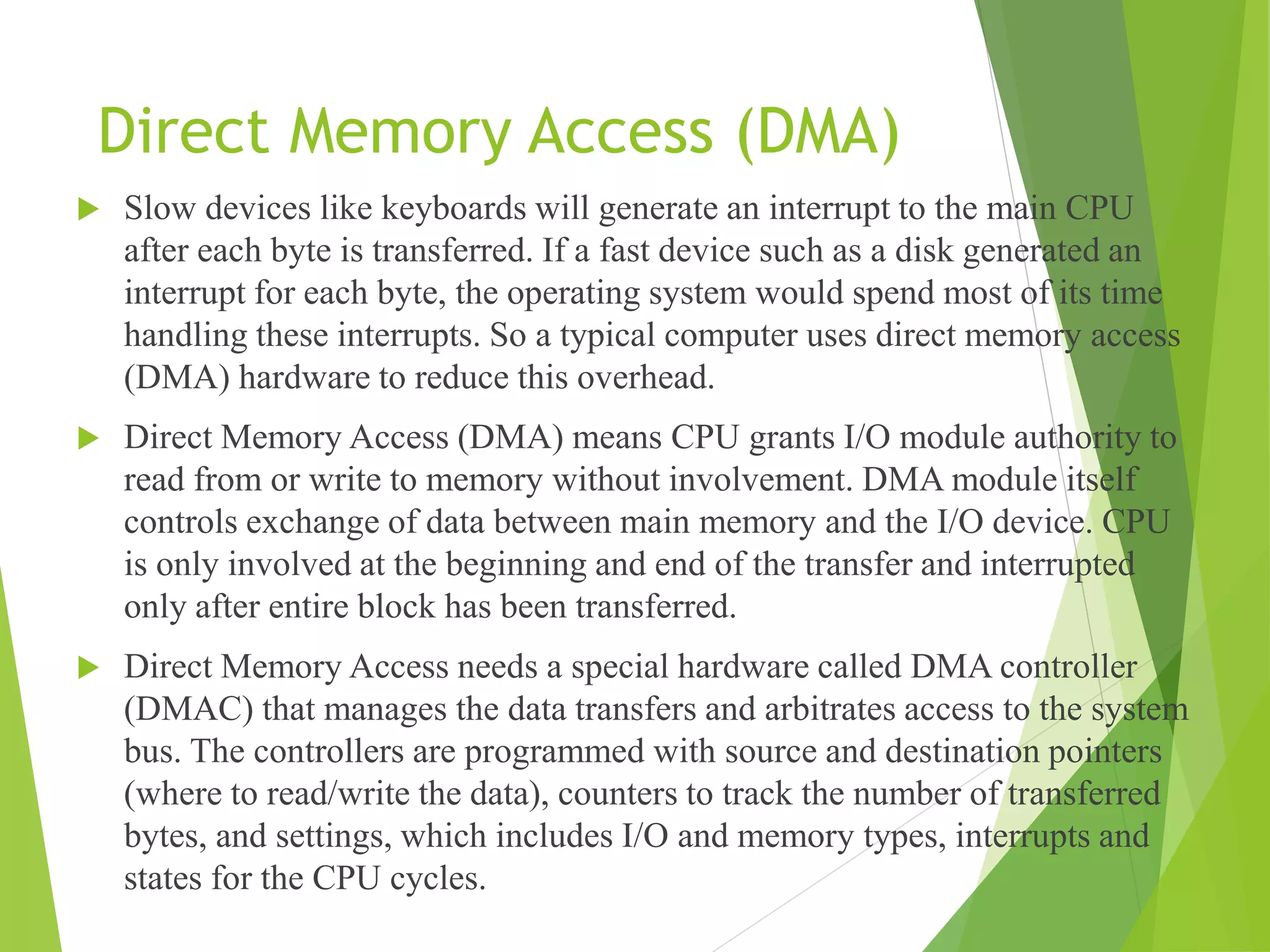

Direct Memory Access (DMA)
 Slow devices like keyboards will generate an interrupt to the main CPU
after each byte is transferred. If a fast device such as a disk generated an
interrupt for each byte, the operating system would spend most of its time
handling these interrupts. So a typical computer uses direct memory access
(DMA) hardware to reduce this overhead.
 Direct Memory Access (DMA) means CPU grants I/O module authority to
read from or write to memory without involvement. DMA module itself
controls exchange of data between main memory and the I/O device. CPU
is only involved at the beginning and end of the transfer and interrupted
only after entire block has been transferred.

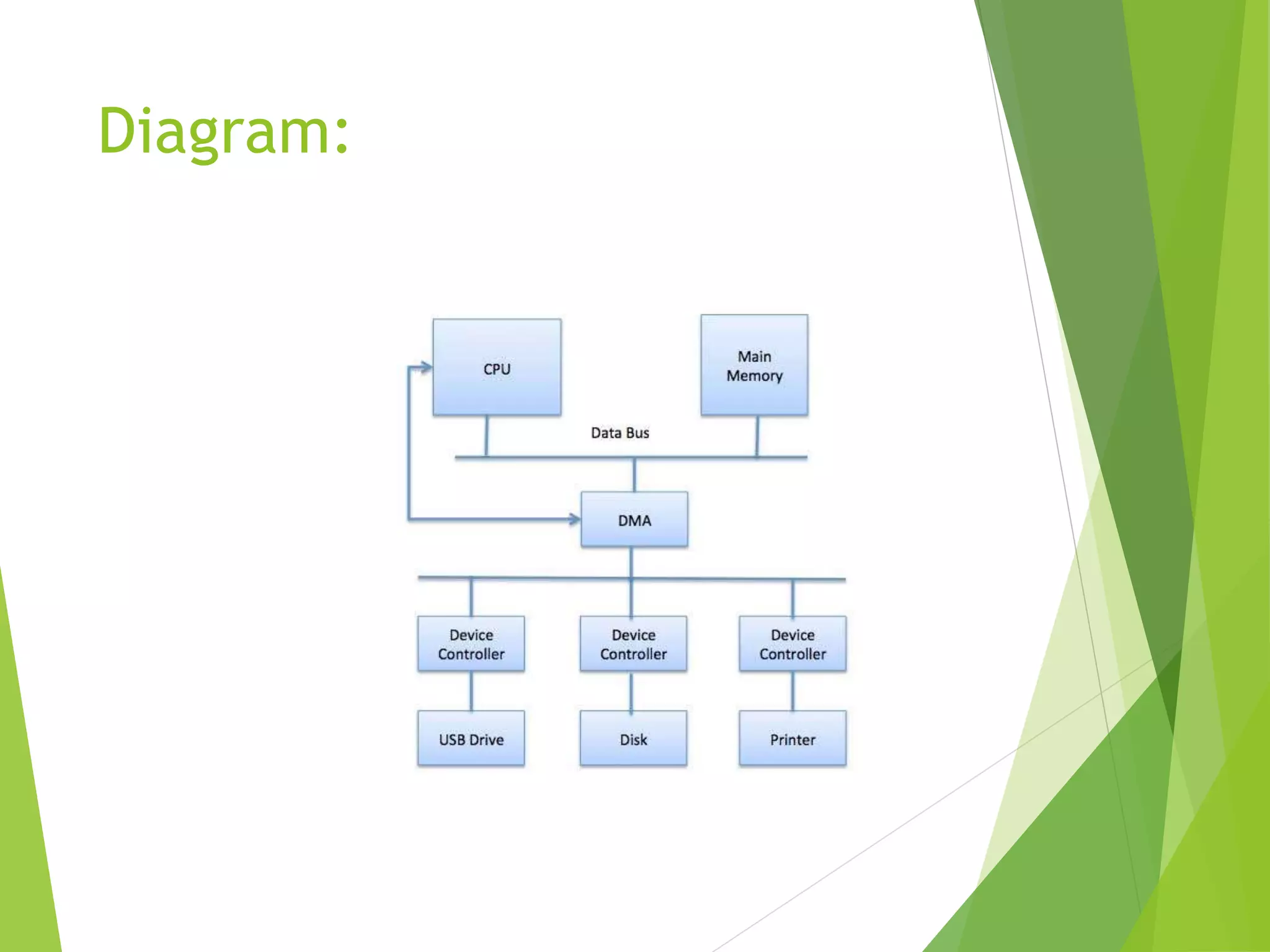

 Direct Memory Access needs a special hardware called DMA controller
(DMAC) that manages the data transfers and arbitrates access to the system
bus. The controllers are programmed with source and destination pointers
(where to read/write the data), counters to track the number of transferred
bytes, and settings, which includes I/O and memory types, interrupts and
states for the CPU cycles.
Diagram:
Polling vs Interrupts I/O
 A computer must have a way of detecting the arrival of any type of
input. There are two ways that this can happen, known
as polling and interrupts. Both of these techniques allow the
processor to deal with events that can happen at any time and that
are not related to the process it is currently running.
 Polling I/O:
 Polling is the simplest way for an I/O device to
communicate with the processor the processor. The process of
periodically checking status of the device to see if it is time for the
next I/O operation, is called polling.
 The I/O device simply puts the information in a Status
register, and the processor must come and get the information.

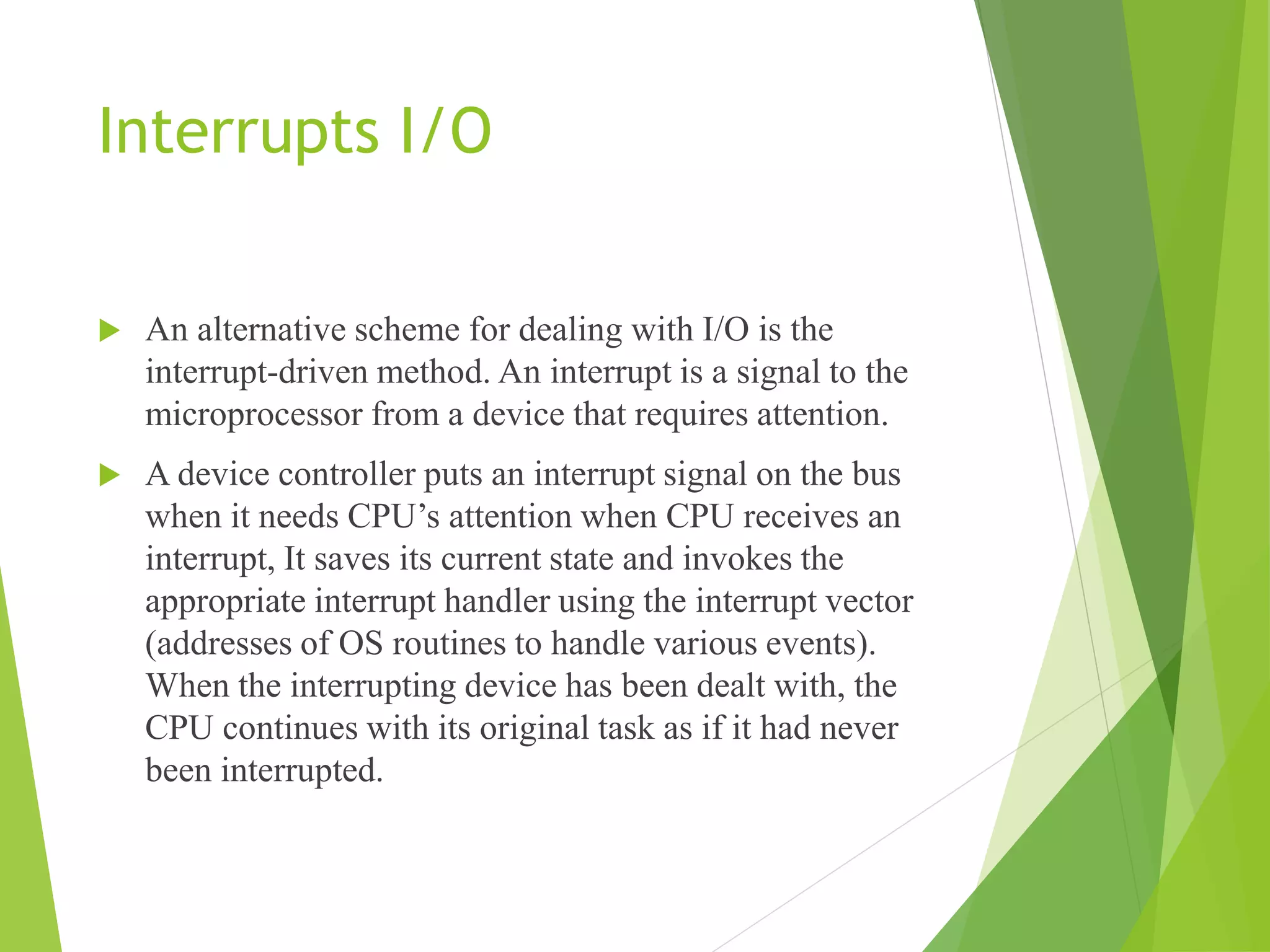

Interrupts I/O
 An alternative scheme for dealing with I/O is the
interrupt-driven method. An interrupt is a signal to the
microprocessor from a device that requires attention.
 A device controller puts an interrupt signal on the bus
when it needs CPU’s attention when CPU receives an
interrupt, It saves its current state and invokes the
appropriate interrupt handler using the interrupt vector
(addresses of OS routines to handle various events).
When the interrupting device has been dealt with, the
CPU continues with its original task as if it had never
been interrupted.
Case Study Operating Systems: Windows

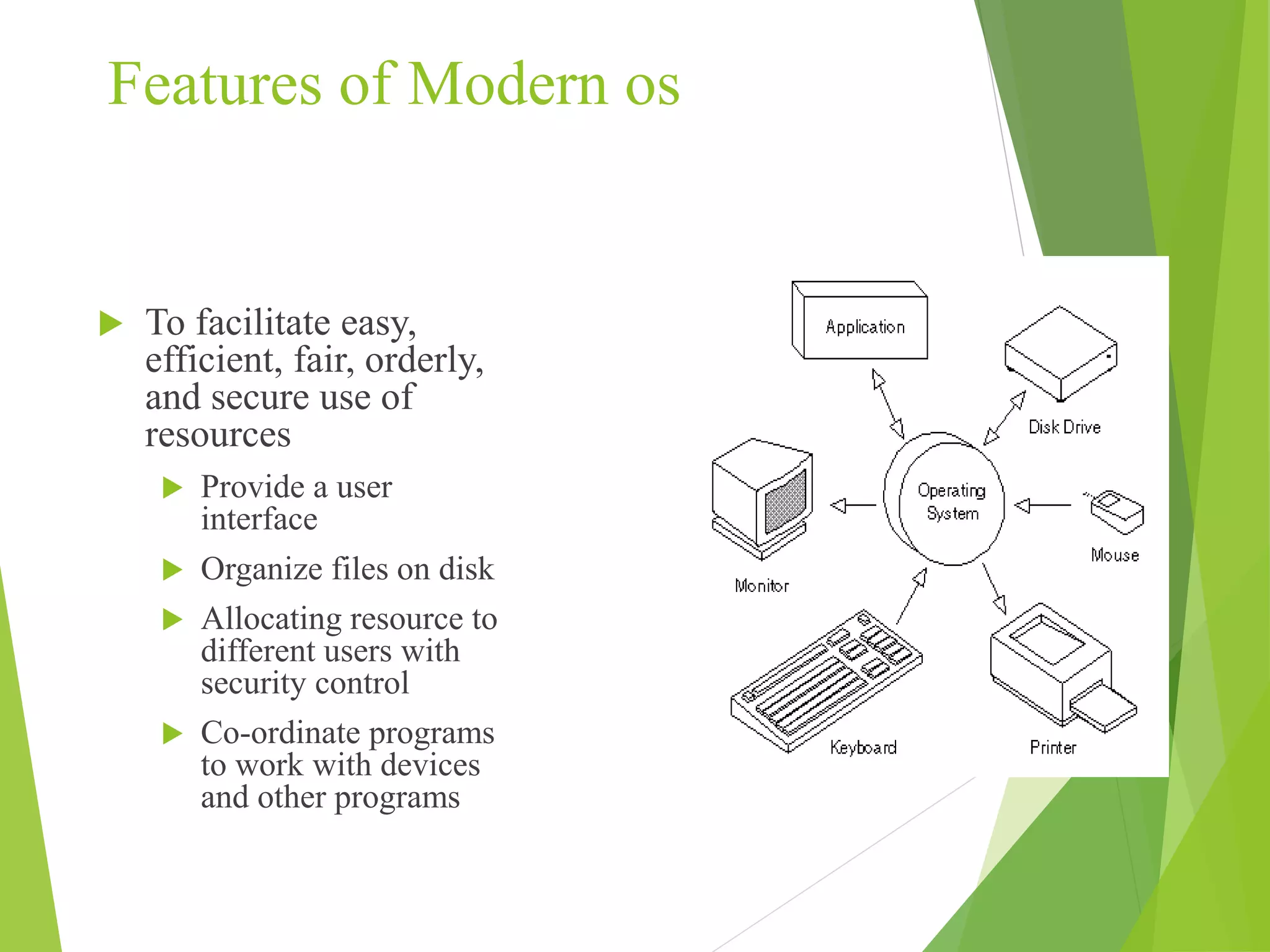

Features of Modern os
 To facilitate easy,
efficient, fair, orderly,
and secure use of
resources
 Provide a user
interface
 Organize files on disk
 Allocating resource to
different users with
security control
 Co-ordinate programs
to work with devices
and other programs

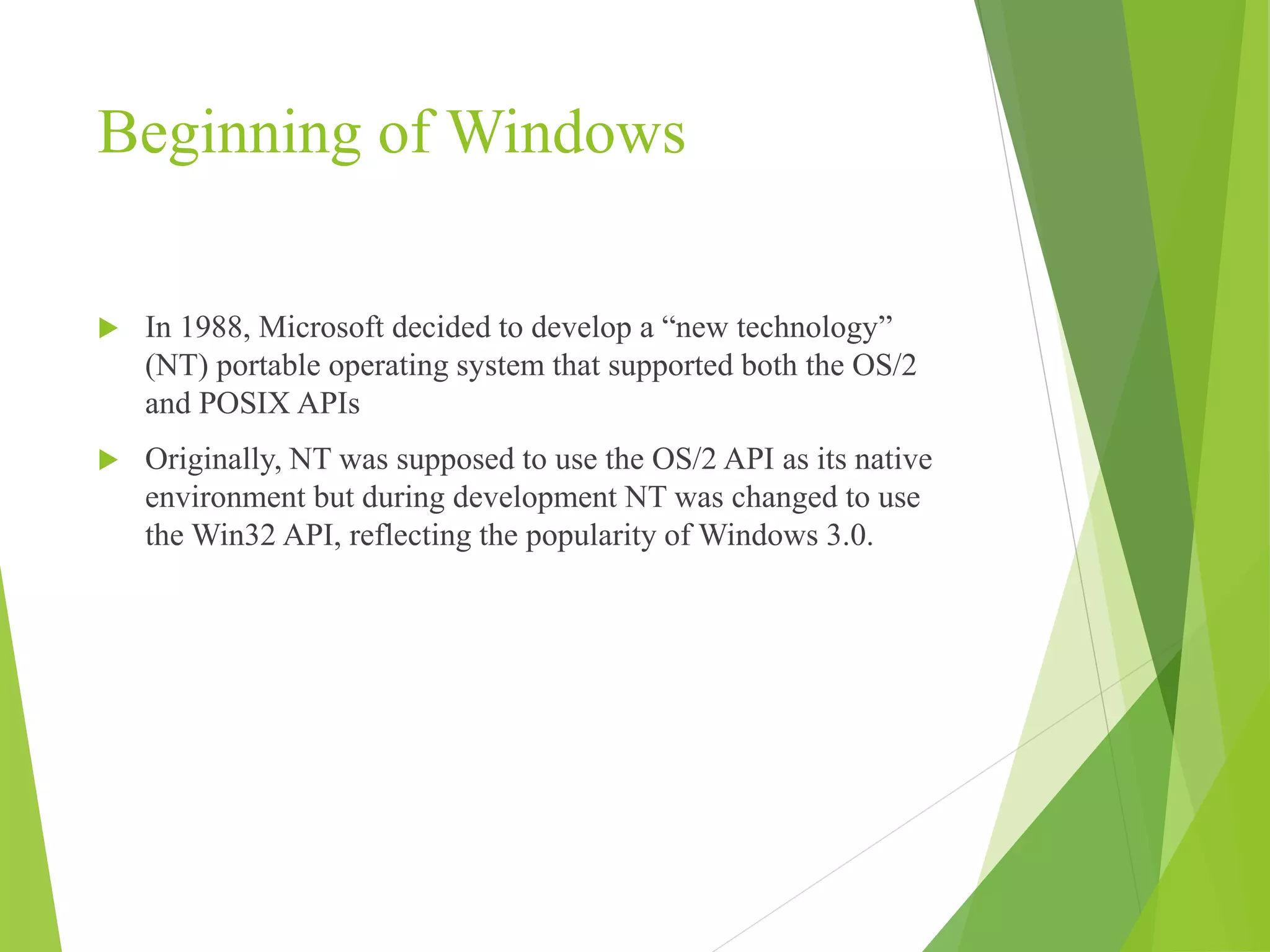

Beginning of Windows
 In 1988, Microsoft decided to develop a “new technology”
(NT) portable operating system that supported both the OS/2
and POSIX APIs
 Originally, NT was supposed to use the OS/2 API as its native
environment but during development NT was changed to use
the Win32 API, reflecting the popularity of Windows 3.0.

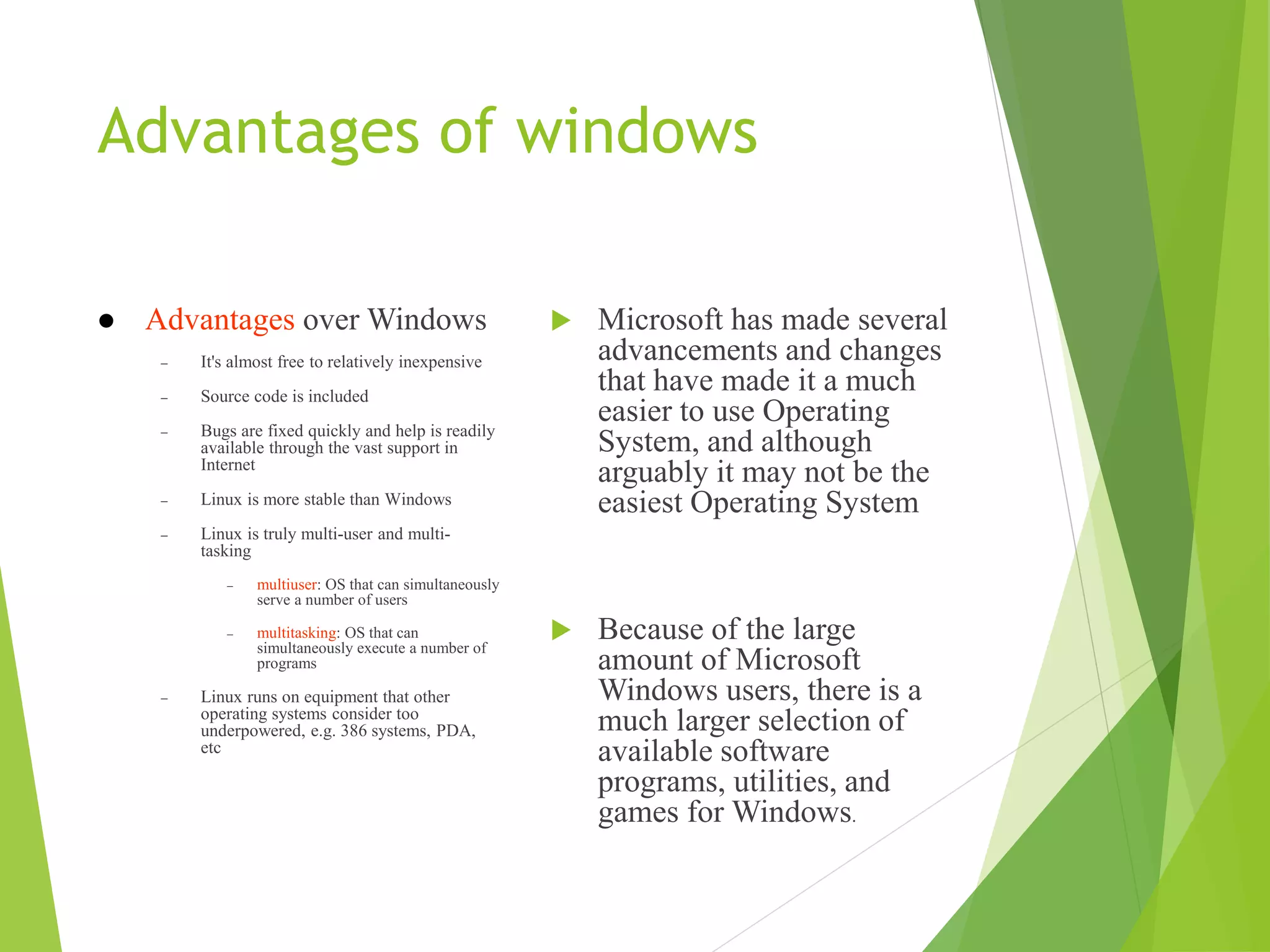

Advantages of windows
 Advantages over Windows
– It's almost free to relatively inexpensive
– Source code is included
– Bugs are fixed quickly and help is readily
available through the vast support in
Internet
– Linux is more stable than Windows
– Linux is truly multi-user and multi-
tasking
– multiuser: OS that can simultaneously
serve a number of users
– multitasking: OS that can
simultaneously execute a number of
programs
– Linux runs on equipment that other
operating systems consider too
underpowered, e.g. 386 systems, PDA,
etc
 Microsoft has made several
advancements and changes
that have made it a much
easier to use Operating
System, and although
arguably it may not be the
easiest Operating System
 Because of the large
amount of Microsoft
Windows users, there is a
much larger selection of
available software
programs, utilities, and
games for Windows.

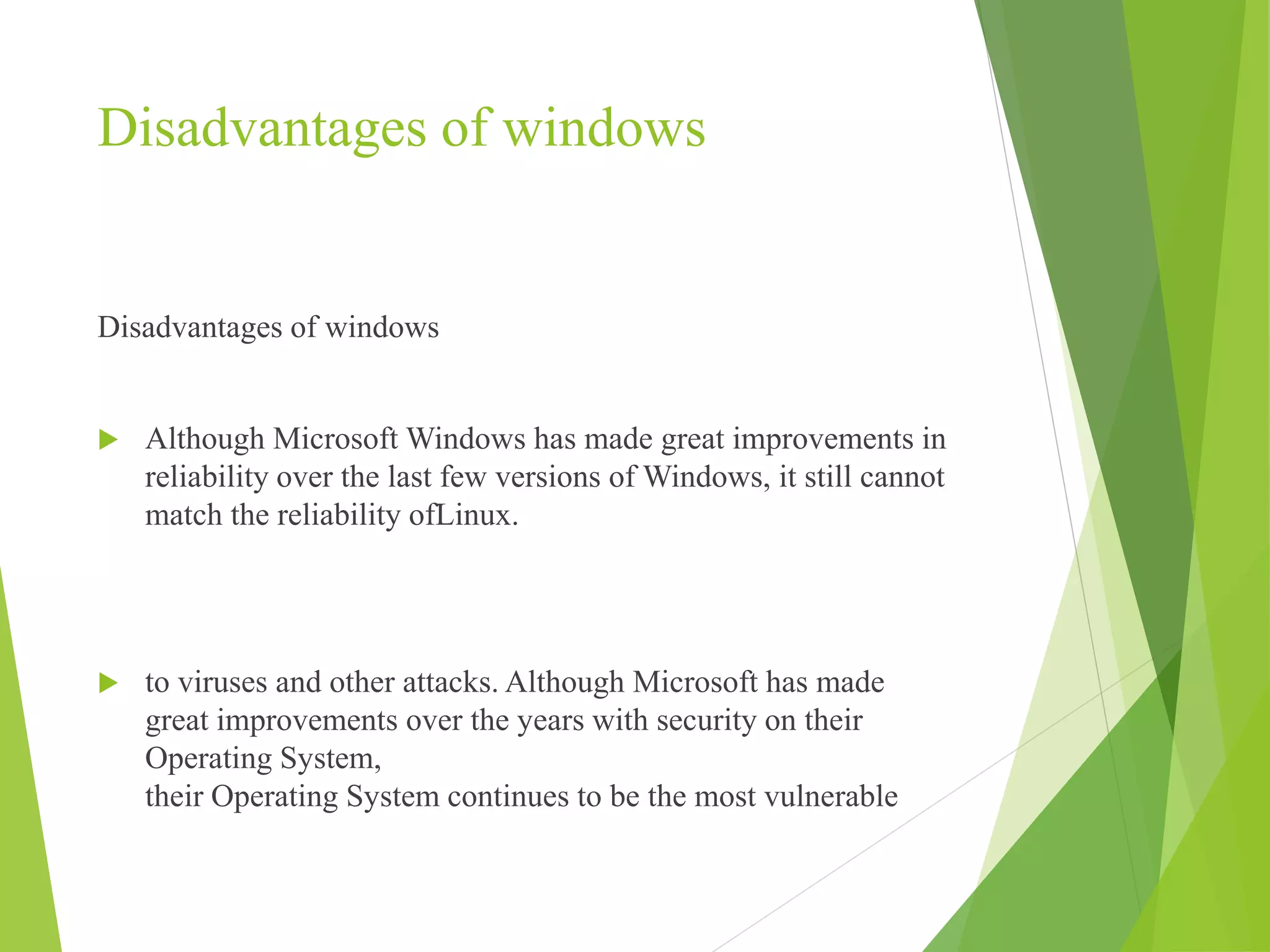

Disadvantages of windows
Disadvantages of windows
 Although Microsoft Windows has made great improvements in
reliability over the last few versions of Windows, it still cannot
match the reliability ofLinux.
 to viruses and other attacks. Although Microsoft has made
great improvements over the years with security on their
Operating System,
their Operating System continues to be the most vulnerable

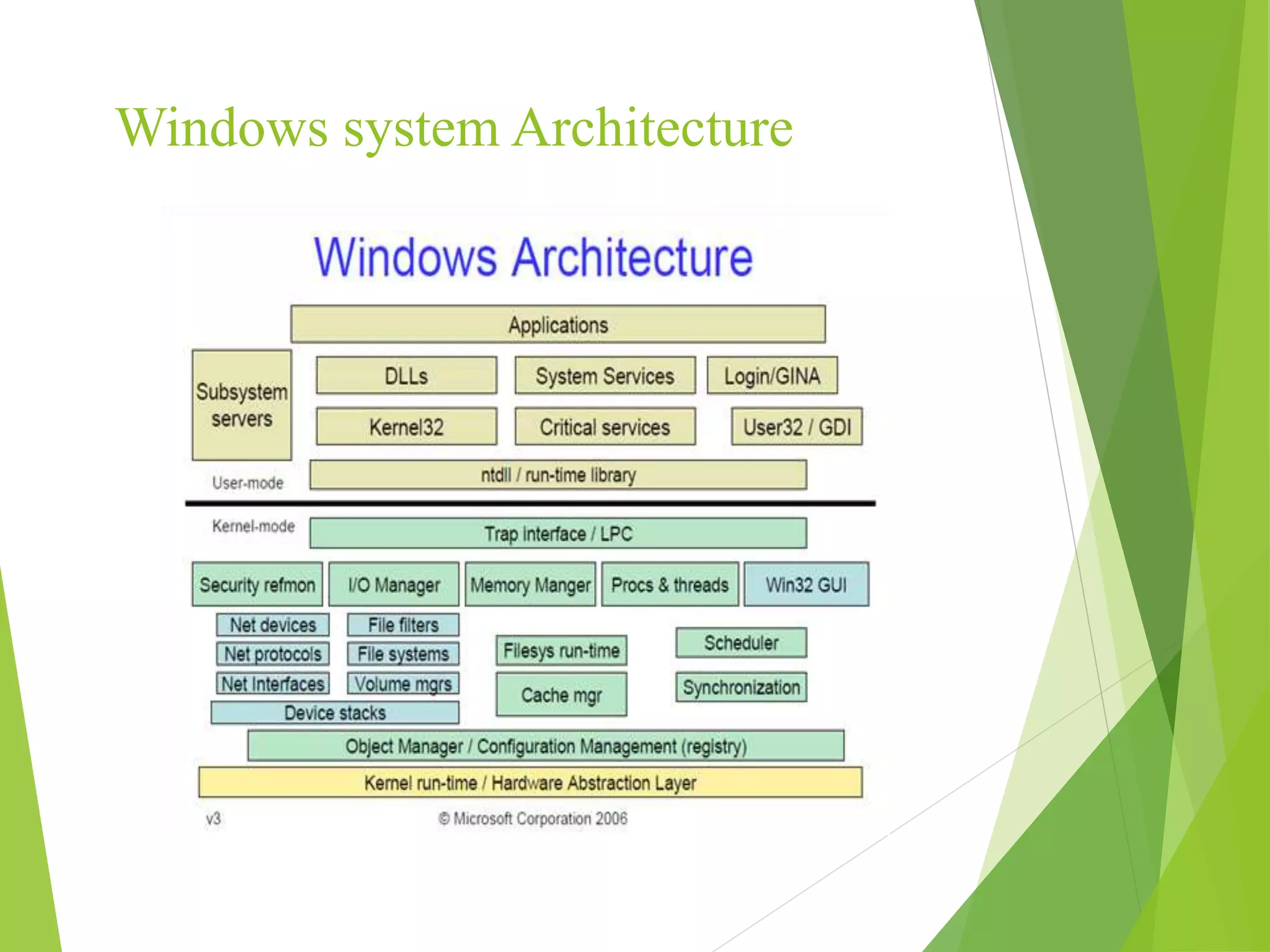

Windows system Architecture

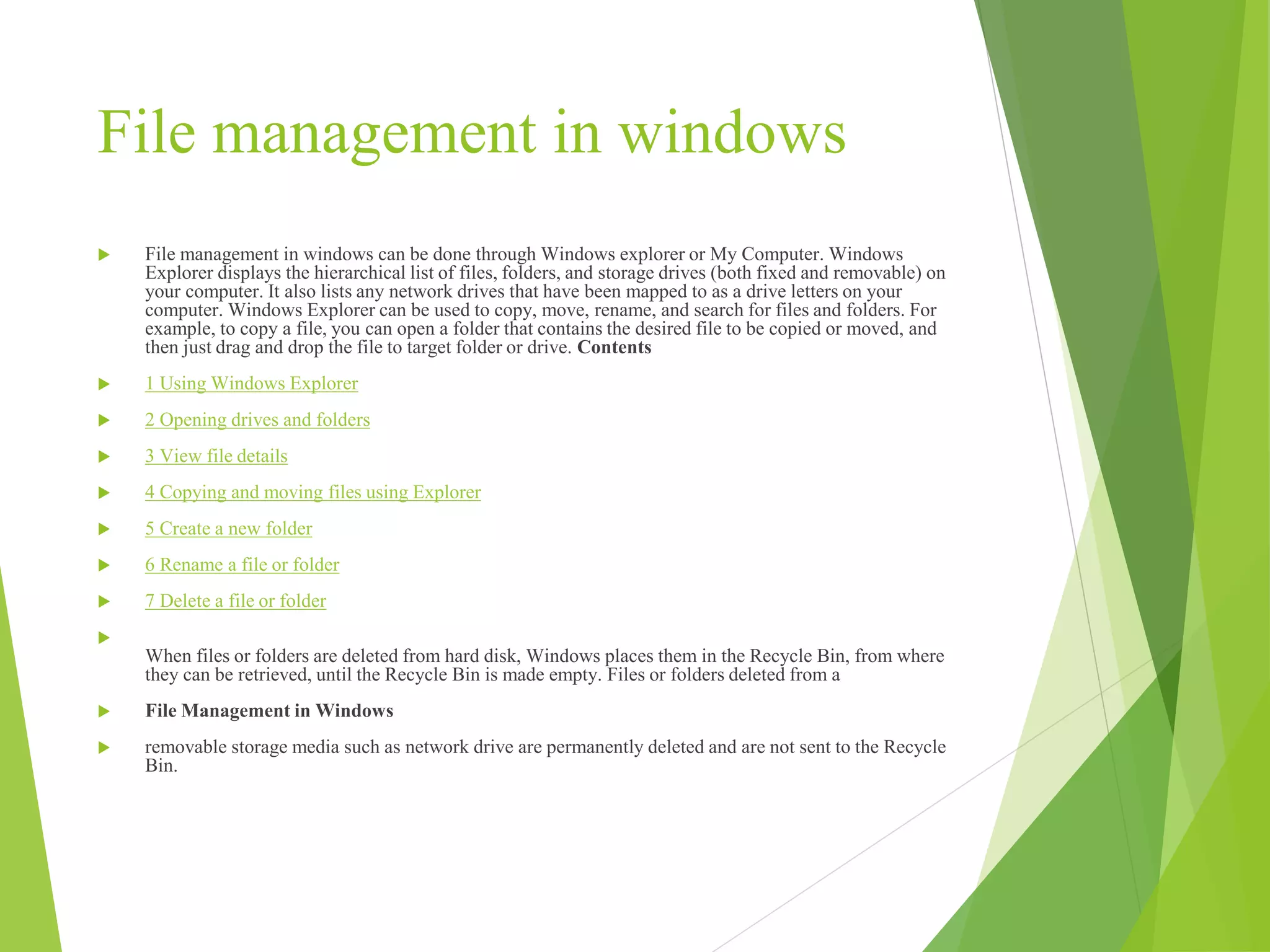

File management in windows
 File management in windows can be done through Windows explorer or My Computer. Windows
Explorer displays the hierarchical list of files, folders, and storage drives (both fixed and removable) on
your computer. It also lists any network drives that have been mapped to as a drive letters on your
computer. Windows Explorer can be used to copy, move, rename, and search for files and folders. For
example, to copy a file, you can open a folder that contains the desired file to be copied or moved, and
then just drag and drop the file to target folder or drive. Contents
 1 Using Windows Explorer
 2 Opening drives and folders
 3 View file details
 4 Copying and moving files using Explorer
 5 Create a new folder
 6 Rename a file or folder
 7 Delete a file or folder

When files or folders are deleted from hard disk, Windows places them in the Recycle Bin, from where
they can be retrieved, until the Recycle Bin is made empty. Files or folders deleted from a
 File Management in Windows
 removable storage media such as network drive are permanently deleted and are not sent to the Recycle
Bin.

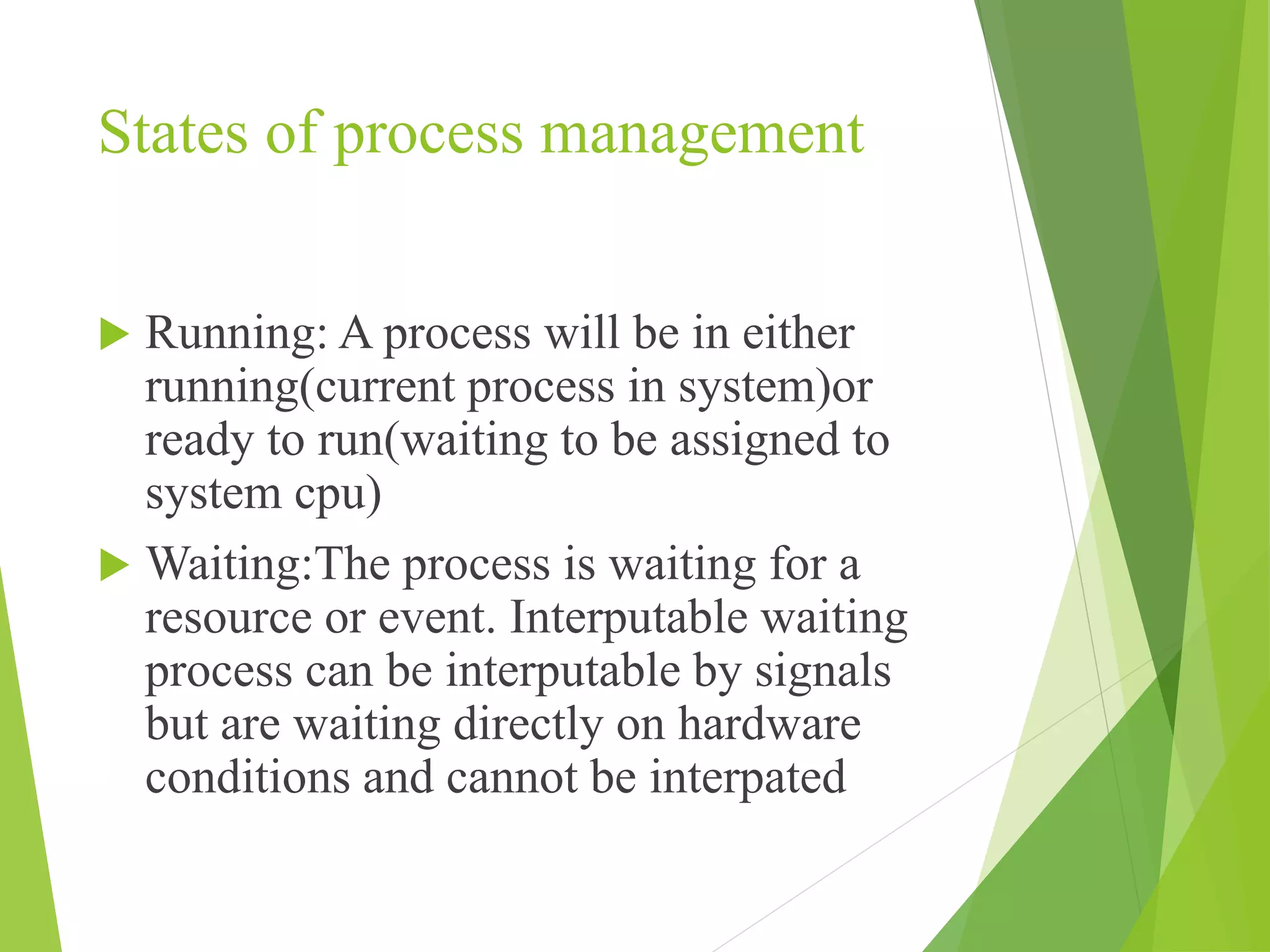

States of process management
 Running: A process will be in either
running(current process in system)or
ready to run(waiting to be assigned to
system cpu)
 Waiting:The process is waiting for a
resource or event. Interputable waiting
process can be interputable by signals
but are waiting directly on hardware
conditions and cannot be interpated

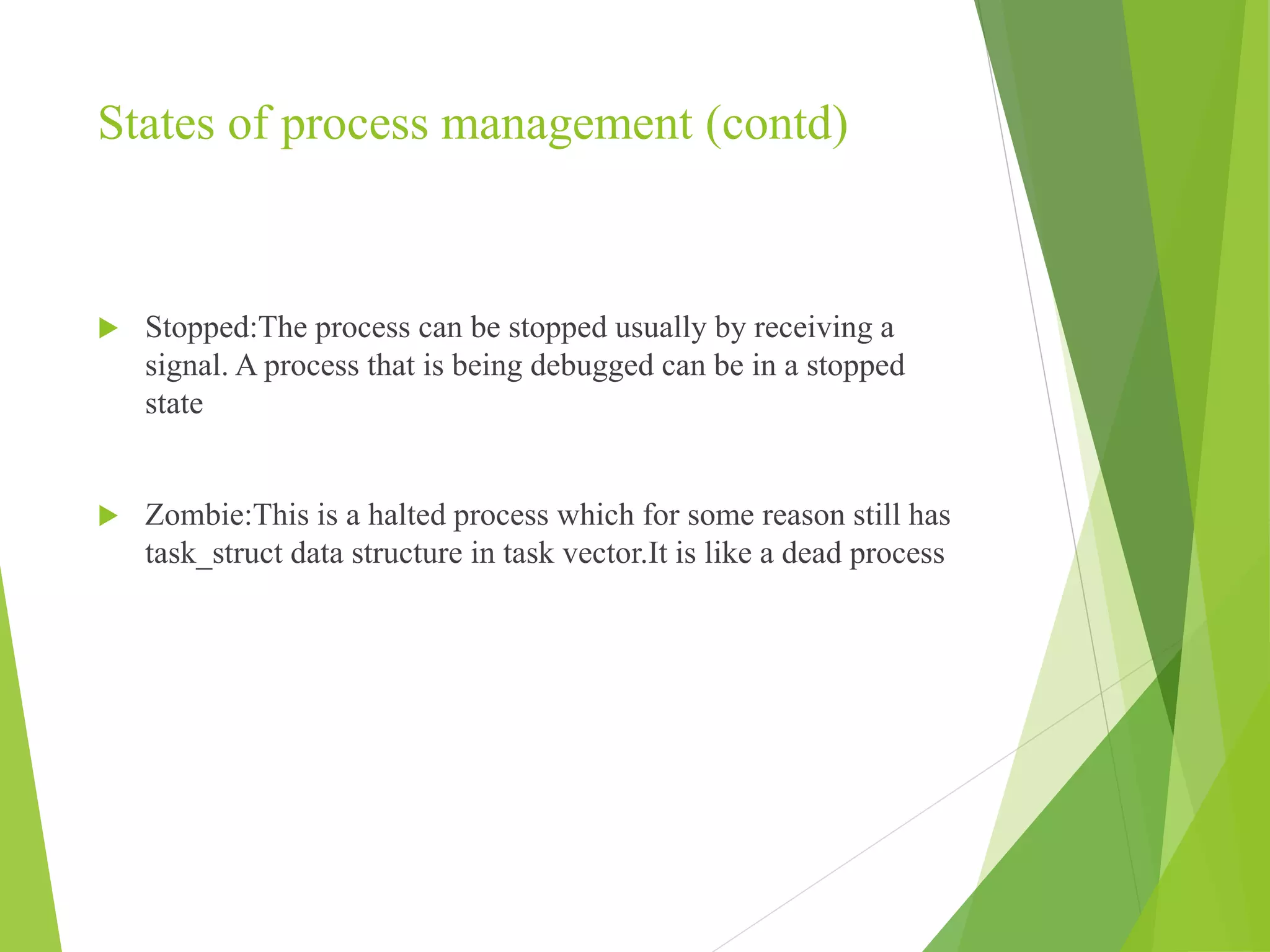

States of process management (contd)
 Stopped:The process can be stopped usually by receiving a
signal. A process that is being debugged can be in a stopped
state
 Zombie:This is a halted process which for some reason still has
task_struct data structure in task vector.It is like a dead process

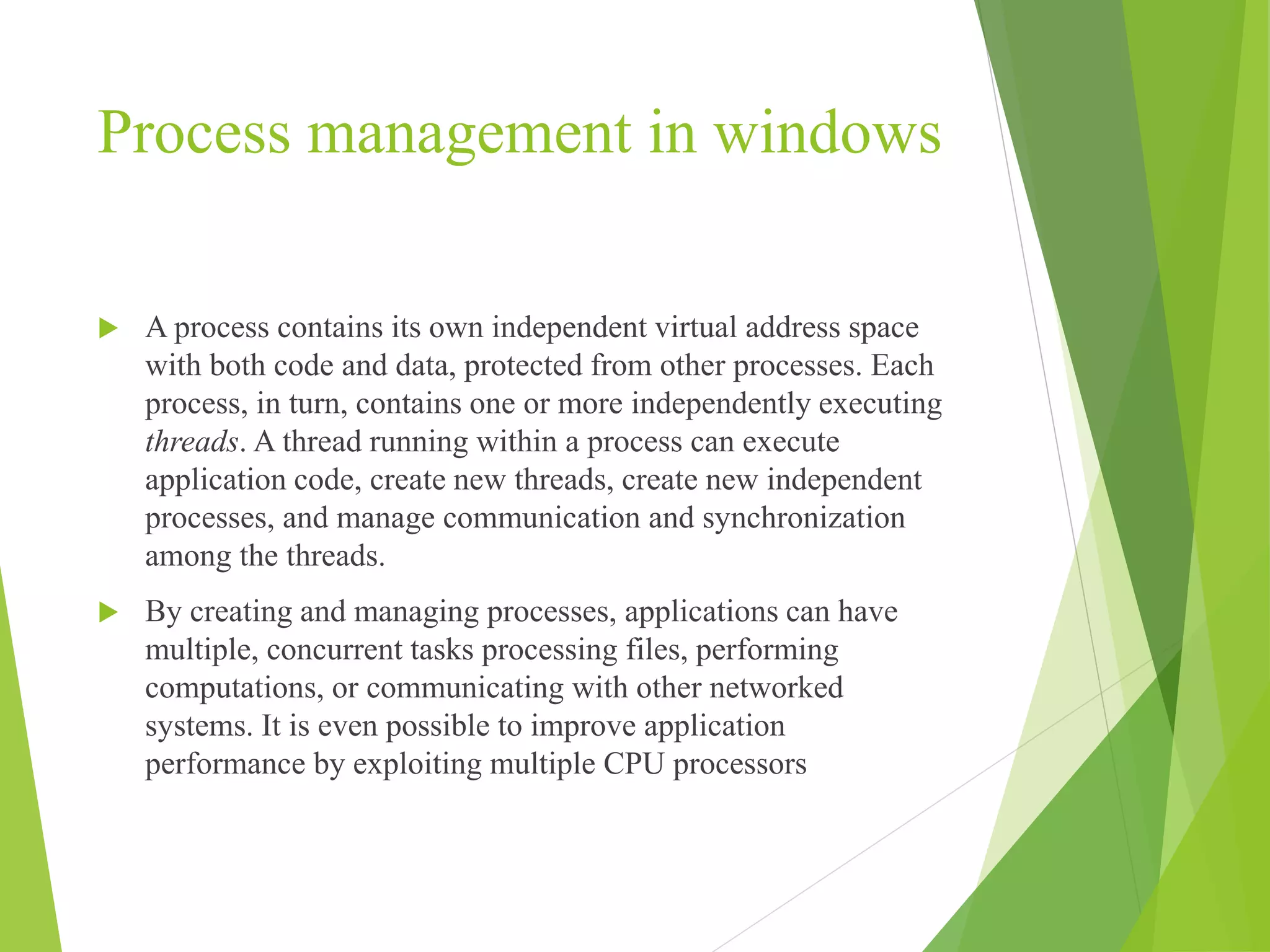

Process management in windows
 A process contains its own independent virtual address space
with both code and data, protected from other processes. Each
process, in turn, contains one or more independently executing
threads. A thread running within a process can execute
application code, create new threads, create new independent
processes, and manage communication and synchronization
among the threads.
 By creating and managing processes, applications can have
multiple, concurrent tasks processing files, performing
computations, or communicating with other networked
systems. It is even possible to improve application
performance by exploiting multiple CPU processors

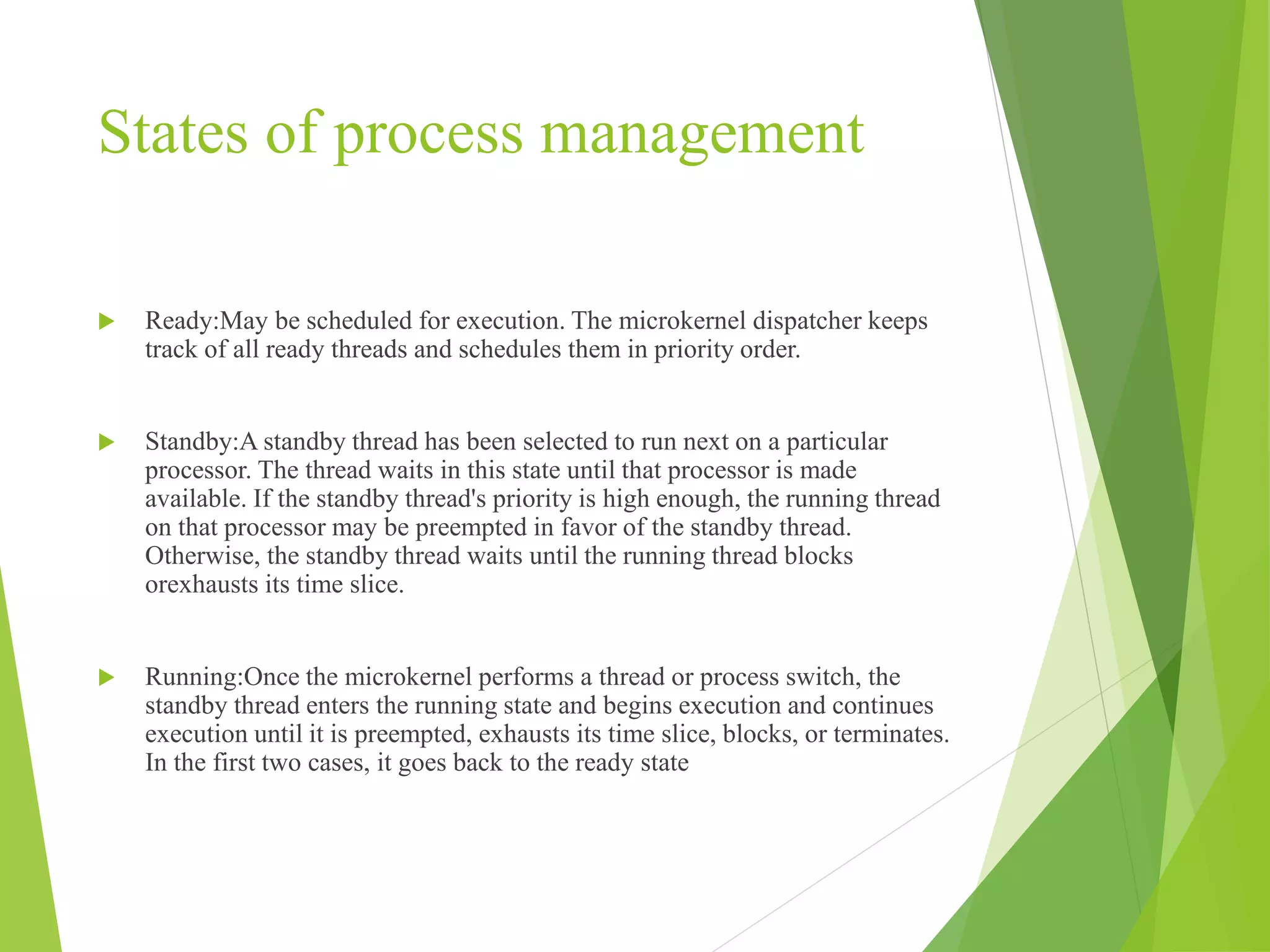

States of process management
 Ready:May be scheduled for execution. The microkernel dispatcher keeps
track of all ready threads and schedules them in priority order.
 Standby:A standby thread has been selected to run next on a particular
processor. The thread waits in this state until that processor is made
available. If the standby thread's priority is high enough, the running thread
on that processor may be preempted in favor of the standby thread.
Otherwise, the standby thread waits until the running thread blocks
orexhausts its time slice.
 Running:Once the microkernel performs a thread or process switch, the
standby thread enters the running state and begins execution and continues
execution until it is preempted, exhausts its time slice, blocks, or terminates.
In the first two cases, it goes back to the ready state

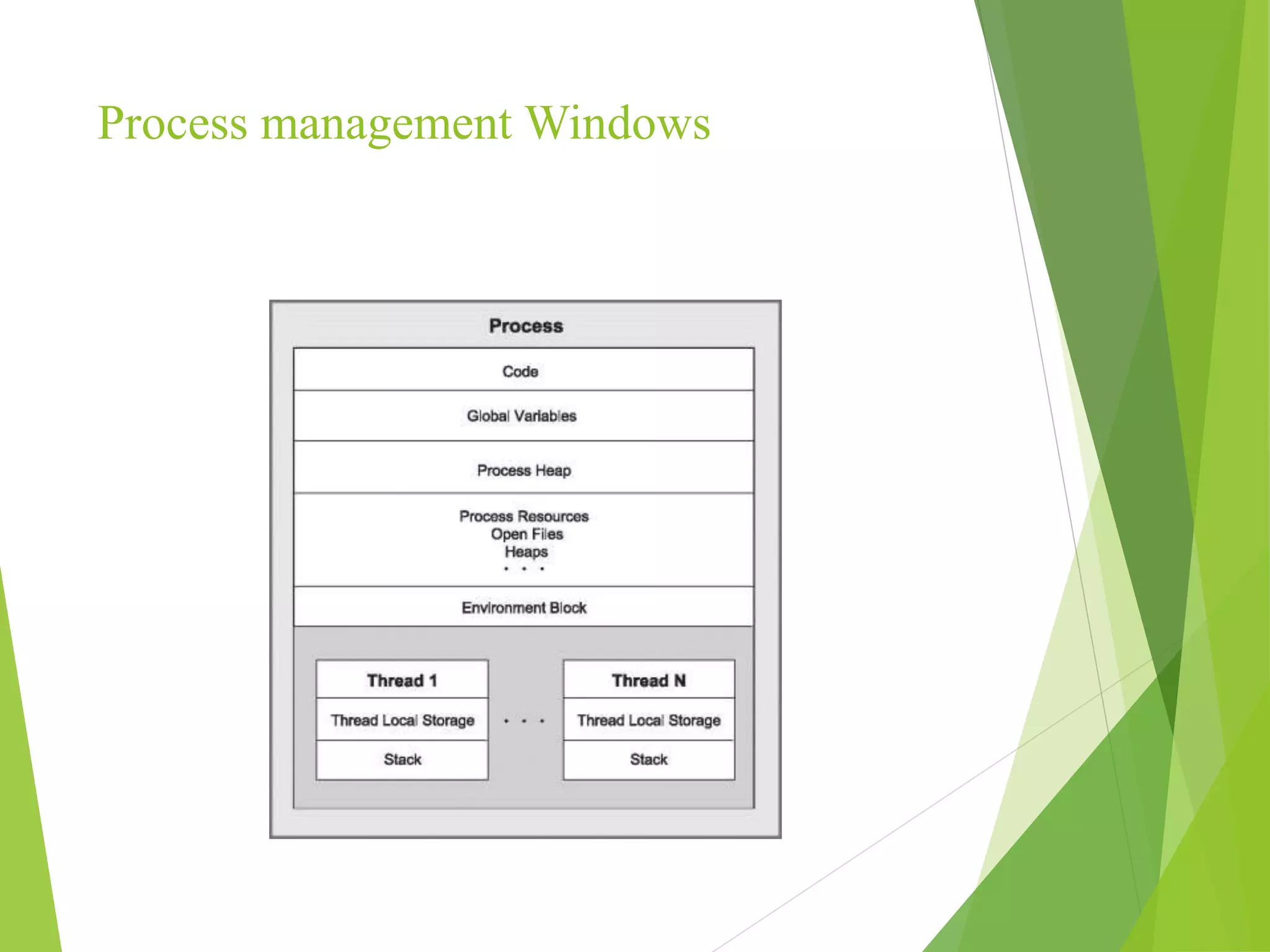

Process management Windows

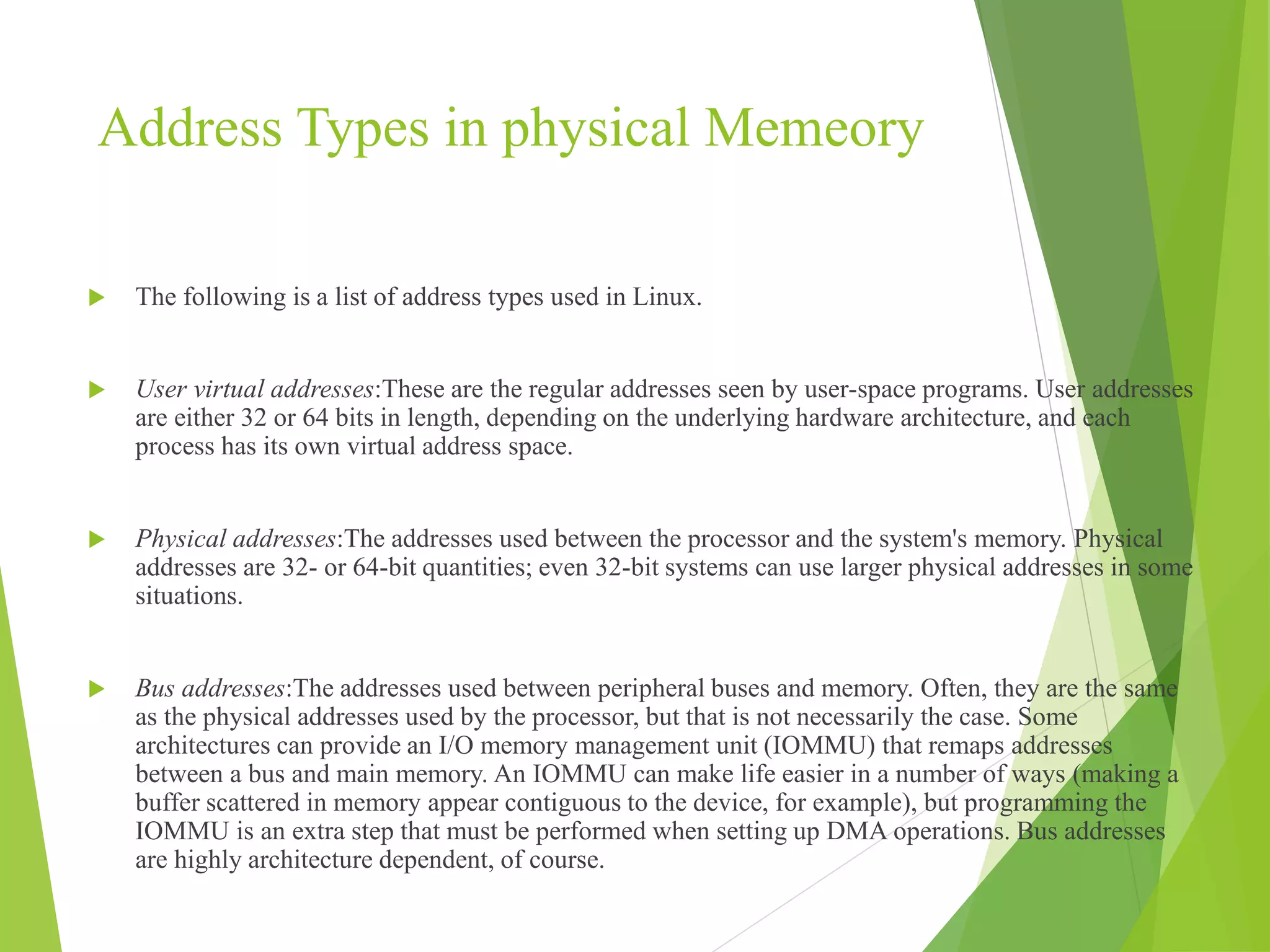

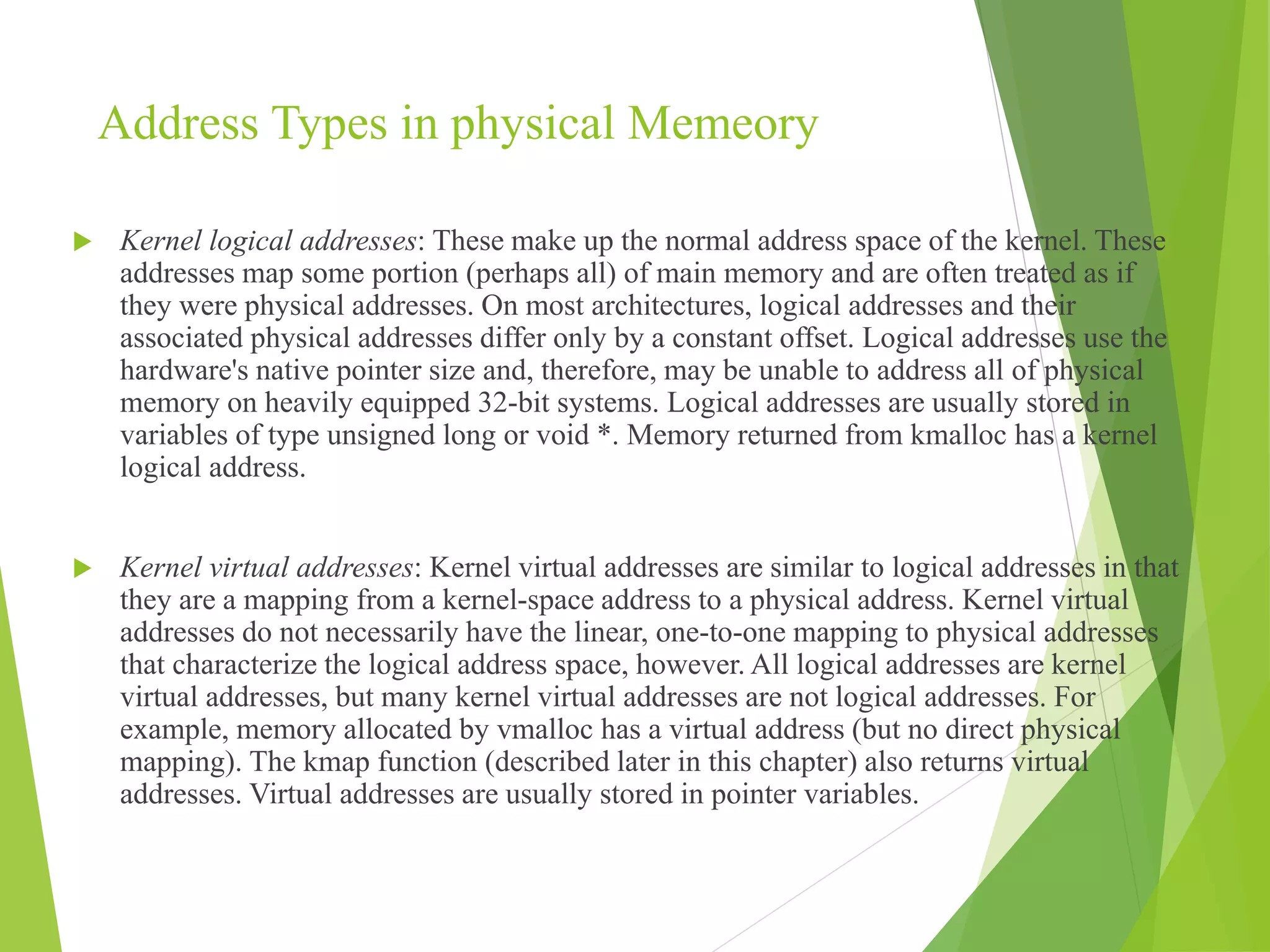

Address Types in physical Memeory
 The following is a list of address types used in Linux.
 User virtual addresses:These are the regular addresses seen by user-space programs. User addresses
are either 32 or 64 bits in length, depending on the underlying hardware architecture, and each
process has its own virtual address space.
 Physical addresses:The addresses used between the processor and the system's memory. Physical
addresses are 32- or 64-bit quantities; even 32-bit systems can use larger physical addresses in some
situations.
 Bus addresses:The addresses used between peripheral buses and memory. Often, they are the same
as the physical addresses used by the processor, but that is not necessarily the case. Some
architectures can provide an I/O memory management unit (IOMMU) that remaps addresses
between a bus and main memory. An IOMMU can make life easier in a number of ways (making a
buffer scattered in memory appear contiguous to the device, for example), but programming the
IOMMU is an extra step that must be performed when setting up DMA operations. Bus addresses
are highly architecture dependent, of course.
Address Types in physical Memeory
 Kernel logical addresses: These make up the normal address space of the kernel. These
addresses map some portion (perhaps all) of main memory and are often treated as if
they were physical addresses. On most architectures, logical addresses and their
associated physical addresses differ only by a constant offset. Logical addresses use the
hardware's native pointer size and, therefore, may be unable to address all of physical
memory on heavily equipped 32-bit systems. Logical addresses are usually stored in
variables of type unsigned long or void *. Memory returned from kmalloc has a kernel
logical address.
 Kernel virtual addresses: Kernel virtual addresses are similar to logical addresses in that
they are a mapping from a kernel-space address to a physical address. Kernel virtual
addresses do not necessarily have the linear, one-to-one mapping to physical addresses
that characterize the logical address space, however. All logical addresses are kernel
virtual addresses, but many kernel virtual addresses are not logical addresses. For
example, memory allocated by vmalloc has a virtual address (but no direct physical
mapping). The kmap function (described later in this chapter) also returns virtual
addresses. Virtual addresses are usually stored in pointer variables.

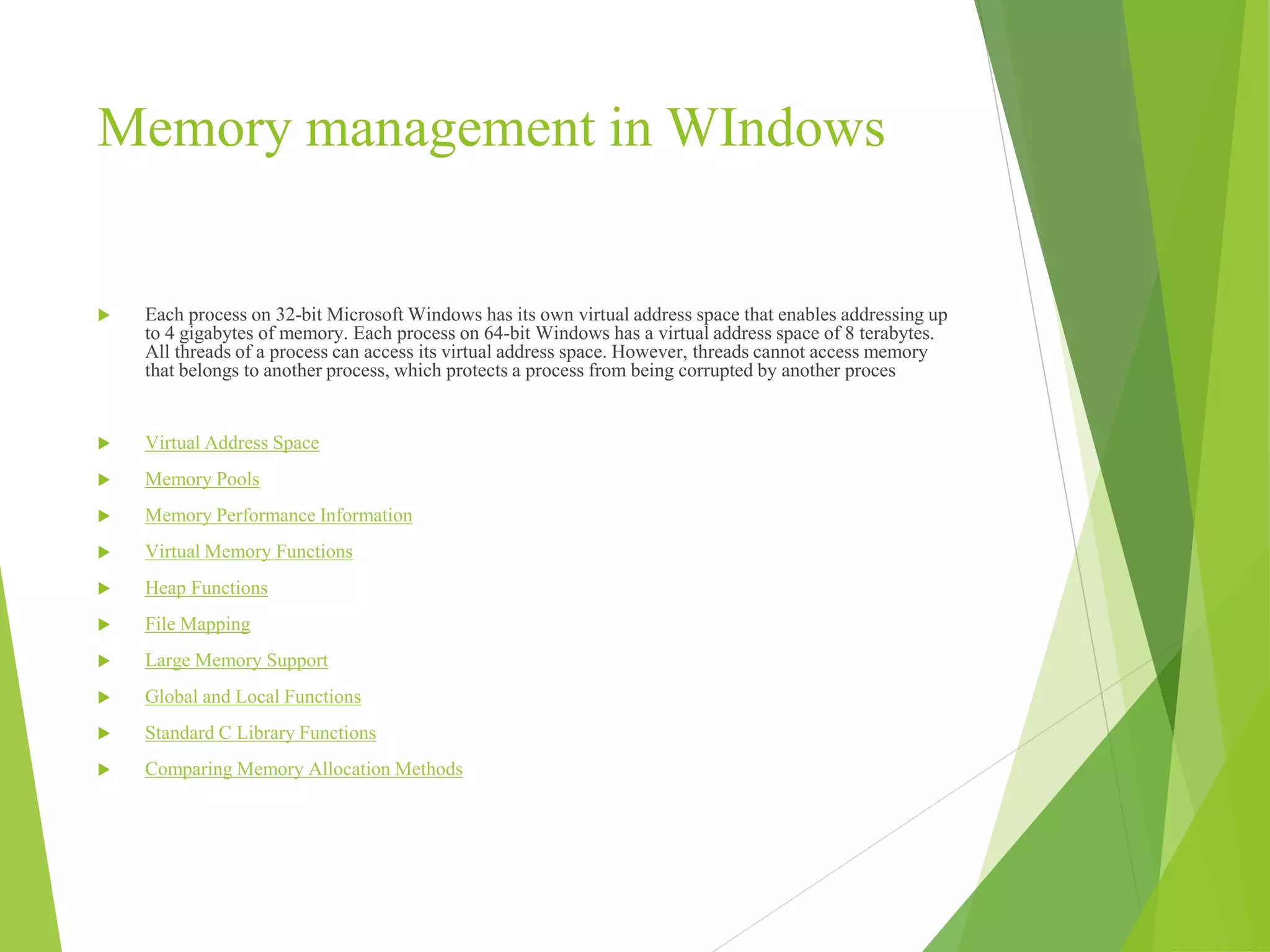

Memory management in WIndows
 Each process on 32-bit Microsoft Windows has its own virtual address space that enables addressing up
to 4 gigabytes of memory. Each process on 64-bit Windows has a virtual address space of 8 terabytes.
All threads of a process can access its virtual address space. However, threads cannot access memory
that belongs to another process, which protects a process from being corrupted by another proces
 Virtual Address Space
 Memory Pools
 Memory Performance Information
 Virtual Memory Functions
 Heap Functions
 File Mapping
 Large Memory Support
 Global and Local Functions
 Standard C Library Functions
 Comparing Memory Allocation Methods

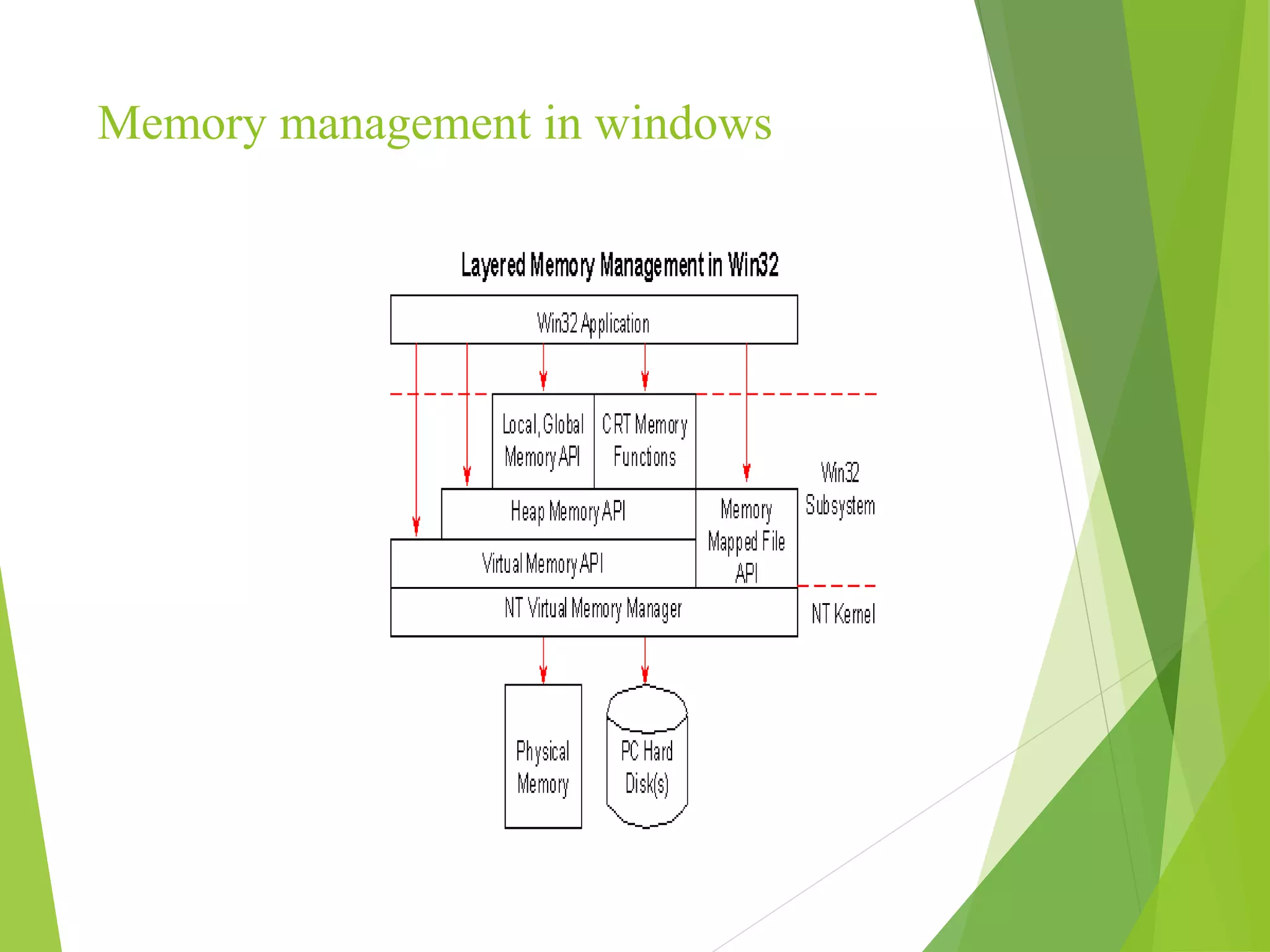

Memory management in windows

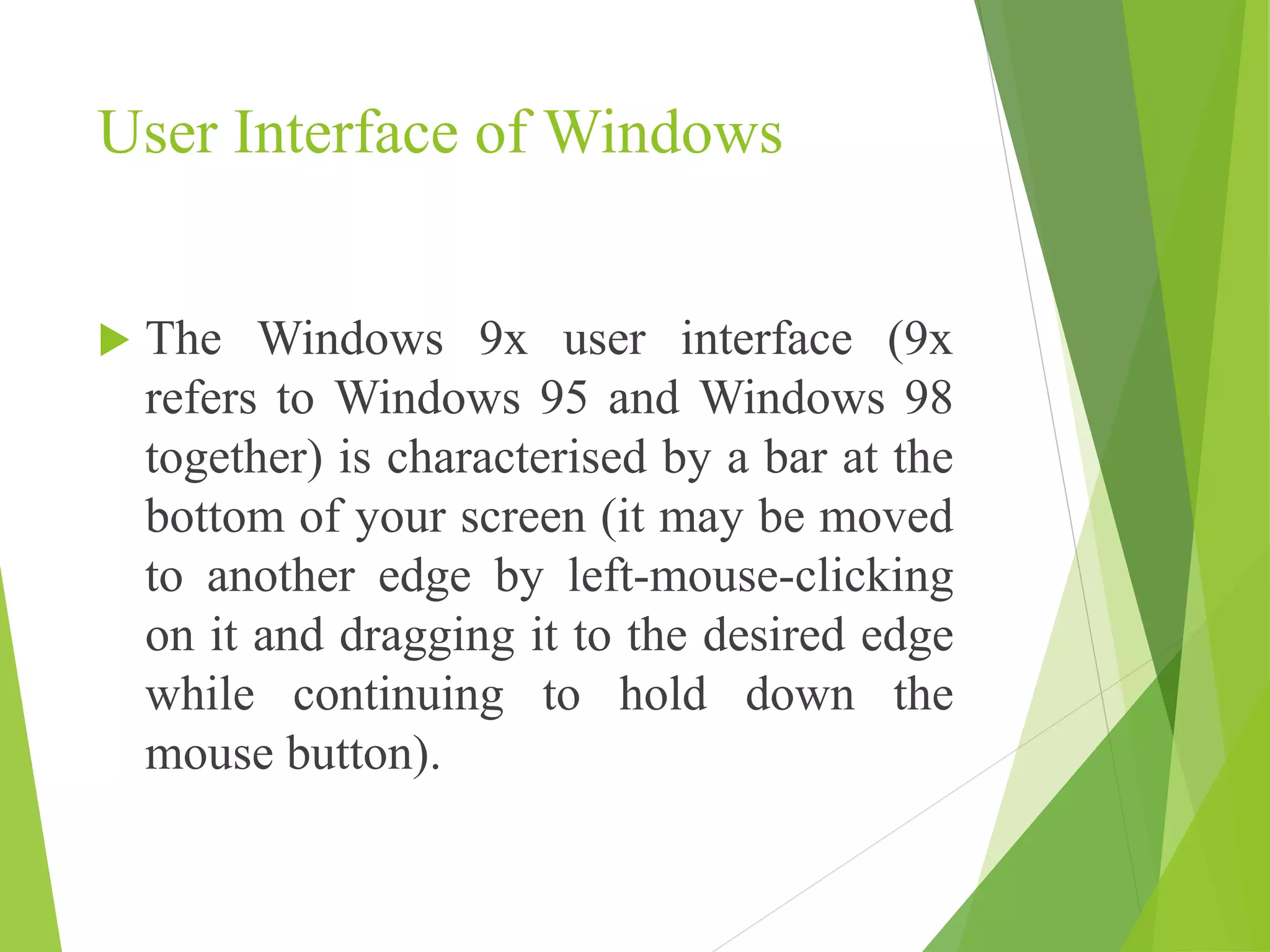

User Interface of Windows
 The Windows 9x user interface (9x
refers to Windows 95 and Windows 98
together) is characterised by a bar at the
bottom of your screen (it may be moved
to another edge by left-mouse-clicking
on it and dragging it to the desired edge
while continuing to hold down the
mouse button).

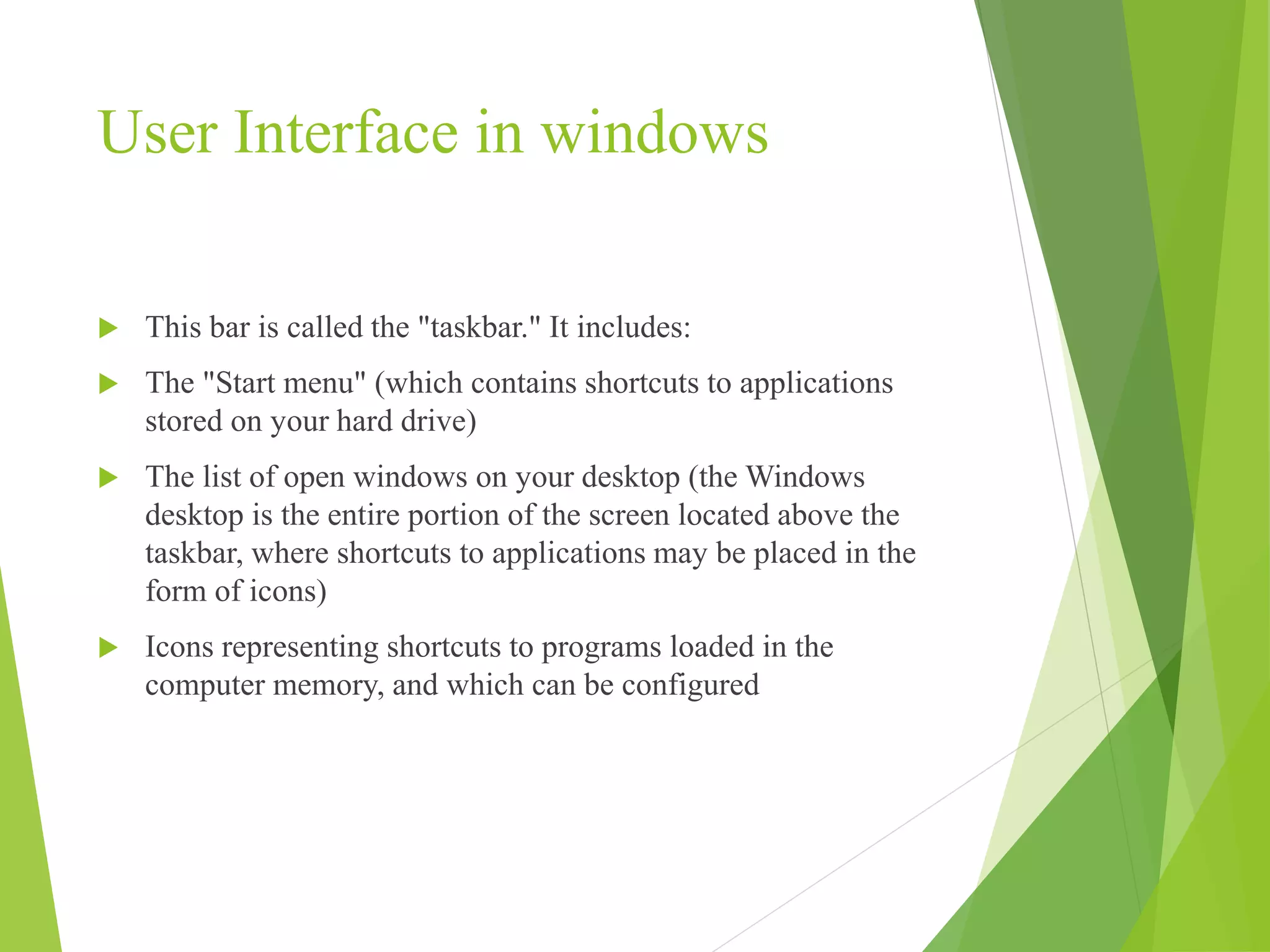

User Interface in windows
 This bar is called the "taskbar." It includes:
 The "Start menu" (which contains shortcuts to applications
stored on your hard drive)
 The list of open windows on your desktop (the Windows
desktop is the entire portion of the screen located above the
taskbar, where shortcuts to applications may be placed in the
form of icons)
 Icons representing shortcuts to programs loaded in the
computer memory, and which can be configured

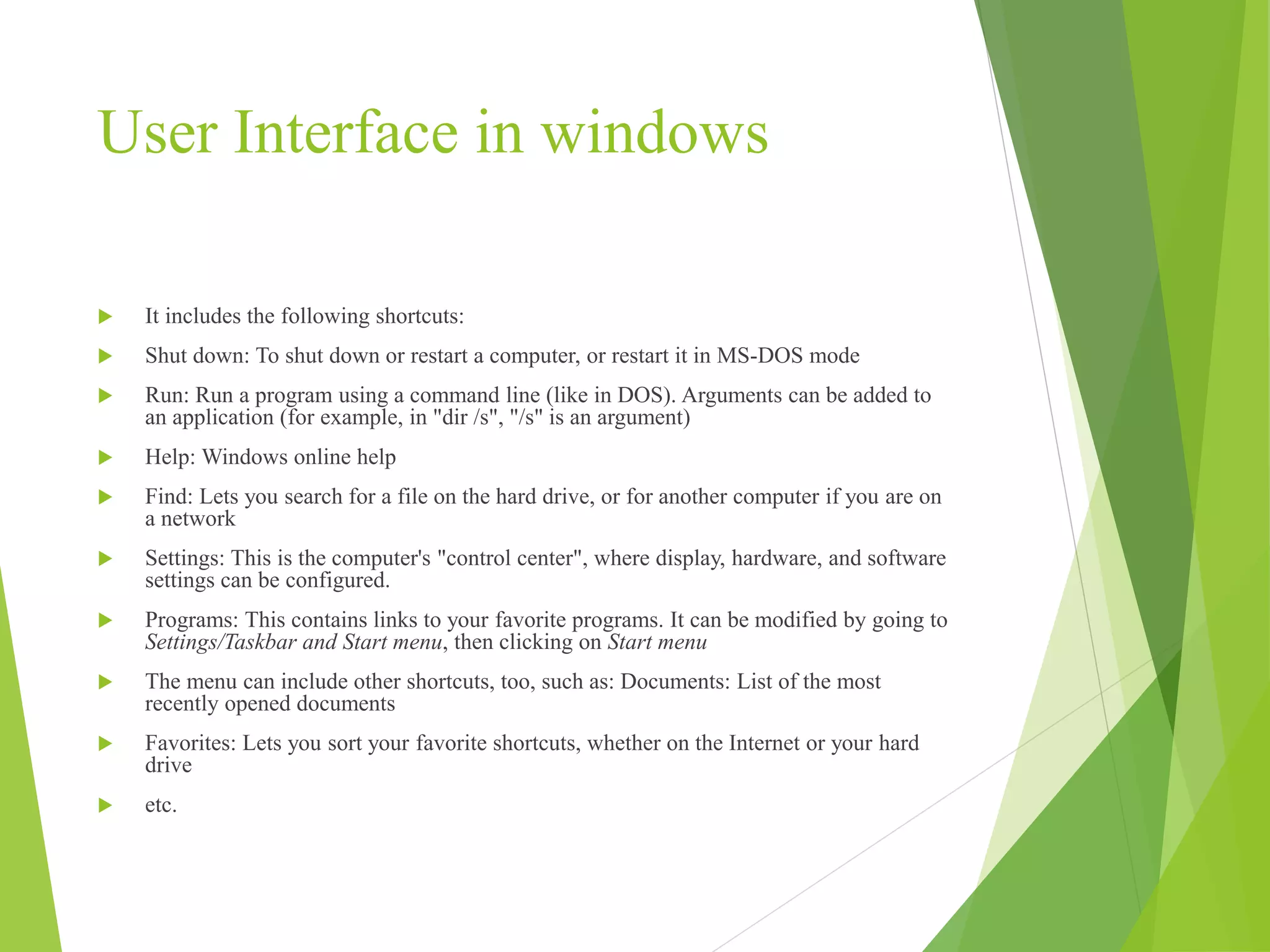

User Interface in windows
 It includes the following shortcuts:
 Shut down: To shut down or restart a computer, or restart it in MS-DOS mode
 Run: Run a program using a command line (like in DOS). Arguments can be added to
an application (for example, in "dir /s", "/s" is an argument)
 Help: Windows online help
 Find: Lets you search for a file on the hard drive, or for another computer if you are on
a network
 Settings: This is the computer's "control center", where display, hardware, and software
settings can be configured.
 Programs: This contains links to your favorite programs. It can be modified by going to
Settings/Taskbar and Start menu, then clicking on Start menu
 The menu can include other shortcuts, too, such as: Documents: List of the most
recently opened documents
 Favorites: Lets you sort your favorite shortcuts, whether on the Internet or your hard
drive
 etc.

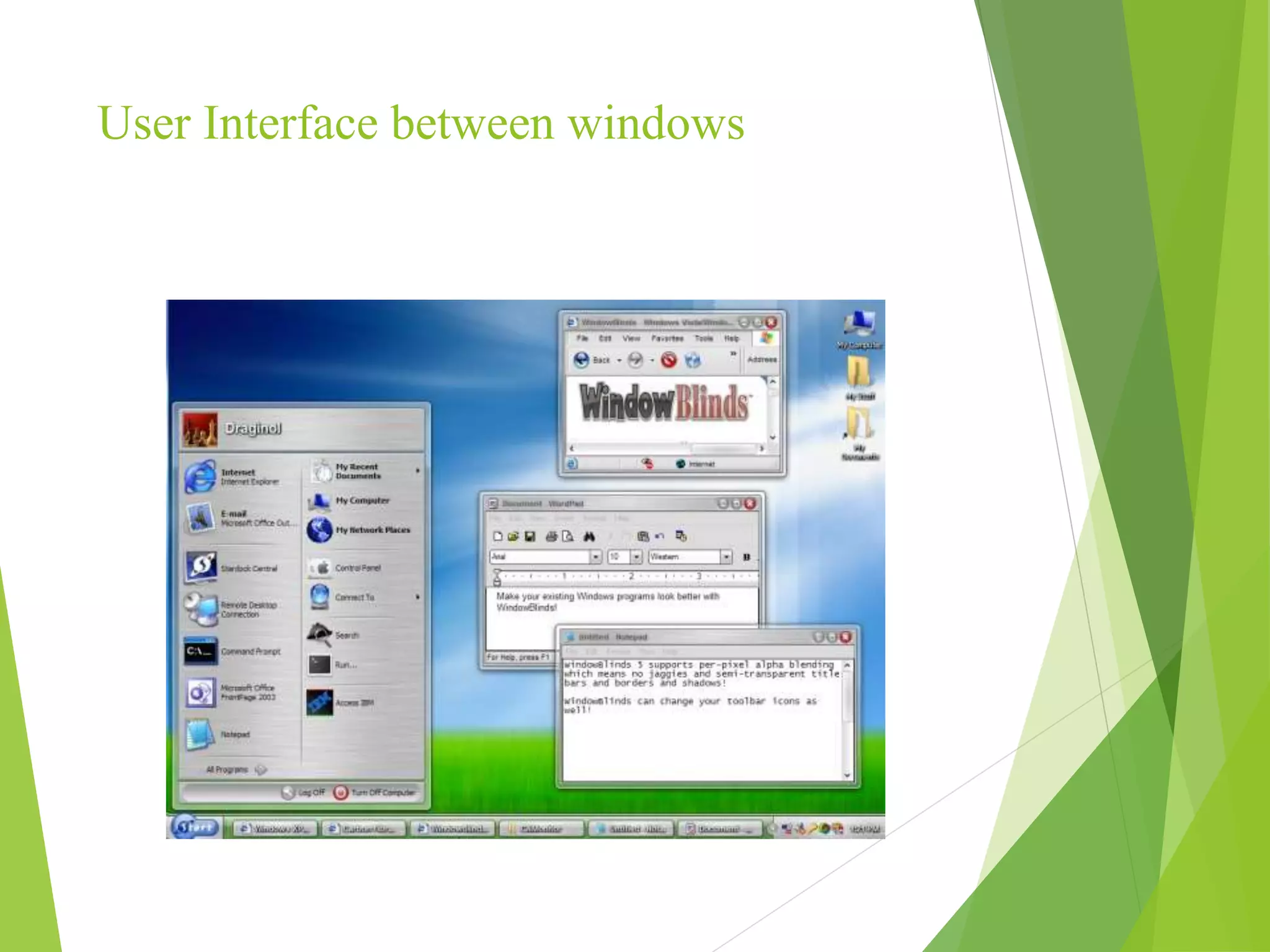

User Interface between windows

More Related Content

What's hot

Memory unit
Memory unitMemory unit
Memory unit
Sajal Sirohi

Cpu organisation
Cpu organisationCpu organisation
Cpu organisation
Er Sangita Vishwakarma

Computer architecture input output organization
Computer architecture input output organizationComputer architecture input output organization
Computer architecture input output organization
Mazin Alwaaly

Multiprocessor architecture
Multiprocessor architectureMultiprocessor architecture
Multiprocessor architecture
Arpan Baishya

Fundamentals Of Computer
Fundamentals Of ComputerFundamentals Of Computer
Fundamentals Of Computer
Jack Frost

pipelining
pipeliningpipelining
pipelining
Siddique Ibrahim

Hard disk PPT
Hard disk PPTHard disk PPT
Hard disk PPT
George Ranson

Input output systems ppt - cs2411
Input output systems ppt - cs2411Input output systems ppt - cs2411
Input output systems ppt - cs2411
Geerthik Varun

Buddy system final
Buddy system finalBuddy system final
Buddy system finalTech_MX

6 multiprogramming & time sharing
6 multiprogramming & time sharing6 multiprogramming & time sharing
6 multiprogramming & time sharingmyrajendra

Operating systems
Operating systemsOperating systems
Operating systems
11mooremichael

IO and file systems
IO and file systems IO and file systems
IO and file systems
EktaVaswani2

Single &Multi Core processor
Single &Multi Core processorSingle &Multi Core processor
Single &Multi Core processor
Justify Shadap

Computer memory & Memory Storage Devices.
Computer memory & Memory Storage Devices.Computer memory & Memory Storage Devices.
Computer memory & Memory Storage Devices.
RajThakuri

Computer architecture cache memory
Computer architecture cache memoryComputer architecture cache memory
Computer architecture cache memory
Mazin Alwaaly

Cache memory
Cache memoryCache memory
Cache memory
Ansari Maviya

Instruction pipeline: Computer Architecture
Instruction pipeline: Computer ArchitectureInstruction pipeline: Computer Architecture
Instruction pipeline: Computer Architecture
InteX Research Lab

Mass storage device
Mass storage deviceMass storage device
Mass storage deviceRaza Umer


What's hot (20)

Memory unit
Memory unitMemory unit
Memory unit

Cpu organisation
Cpu organisationCpu organisation
Cpu organisation

Computer architecture input output organization
Computer architecture input output organizationComputer architecture input output organization
Computer architecture input output organization

Multiprocessor architecture
Multiprocessor architectureMultiprocessor architecture
Multiprocessor architecture

Virtual memory ppt
Virtual memory pptVirtual memory ppt
Virtual memory ppt

Fundamentals Of Computer
Fundamentals Of ComputerFundamentals Of Computer
Fundamentals Of Computer

pipelining
pipeliningpipelining
pipelining

Hard disk PPT
Hard disk PPTHard disk PPT
Hard disk PPT

Input output systems ppt - cs2411
Input output systems ppt - cs2411Input output systems ppt - cs2411
Input output systems ppt - cs2411

Buddy system final
Buddy system finalBuddy system final
Buddy system final

6 multiprogramming & time sharing
6 multiprogramming & time sharing6 multiprogramming & time sharing
6 multiprogramming & time sharing

Operating systems
Operating systemsOperating systems
Operating systems

IO and file systems
IO and file systems IO and file systems
IO and file systems

Single &Multi Core processor
Single &Multi Core processorSingle &Multi Core processor
Single &Multi Core processor

Computer memory & Memory Storage Devices.
Computer memory & Memory Storage Devices.Computer memory & Memory Storage Devices.
Computer memory & Memory Storage Devices.

Computer architecture cache memory
Computer architecture cache memoryComputer architecture cache memory
Computer architecture cache memory

Cache memory
Cache memoryCache memory
Cache memory

operating system structure
operating system structureoperating system structure
operating system structure

Instruction pipeline: Computer Architecture
Instruction pipeline: Computer ArchitectureInstruction pipeline: Computer Architecture
Instruction pipeline: Computer Architecture

Mass storage device
Mass storage deviceMass storage device
Mass storage device


Similar to Operating System Case Study and I/O System

IO SYSTEM AND CASE STUDY STRUCTURE
IO SYSTEM AND CASE STUDY STRUCTUREIO SYSTEM AND CASE STUDY STRUCTURE
IO SYSTEM AND CASE STUDY STRUCTURE
Hariharan Anand

Unit 6
Unit 6Unit 6
Unit 6
pm_ghate

cental processing unit and all its components
cental processing unit and all its componentscental processing unit and all its components
cental processing unit and all its components
ssuserf86fba

introduce computer .pptx
introduce computer .pptxintroduce computer .pptx
introduce computer .pptx
SHUJEHASSAN

L-3 BCE OS FINAL.ppt
L-3 BCE OS FINAL.pptL-3 BCE OS FINAL.ppt
L-3 BCE OS FINAL.ppt
Kirti Verma

computer science and enginnering fundamental organisation.pptx
computer science and enginnering fundamental organisation.pptxcomputer science and enginnering fundamental organisation.pptx
computer science and enginnering fundamental organisation.pptx
PannaBushratul

Fundamentals of Computers and Operating System(OS)
Fundamentals of Computers and Operating System(OS)Fundamentals of Computers and Operating System(OS)
Fundamentals of Computers and Operating System(OS)
TUHIN SAHA

Computer system, devices and peripherals
Computer system, devices and peripheralsComputer system, devices and peripherals
Computer system, devices and peripherals
Allan Roloma

Introduction to computer
Introduction to computerIntroduction to computer
Introduction to computer
Noor Zada

Basics of Operating System
Basics of Operating SystemBasics of Operating System
Basics of Operating System
Soumit Ghosh

Unit 1 q&a
Unit  1 q&aUnit  1 q&a
Operating system notes ch1
Operating system notes ch1Operating system notes ch1
Operating system notes ch1
Emmanuel Damka

Operating system
Operating systemOperating system
Computer Programming.pdf
Computer Programming.pdfComputer Programming.pdf
Computer Programming.pdf
LegesseSamuel

Introduction to Computer System-ppt.pptx
Introduction to Computer System-ppt.pptxIntroduction to Computer System-ppt.pptx
Introduction to Computer System-ppt.pptx
InfofarazMotivativeA

Introduction to Computer MBA SEM I - Copy (4).ppt
Introduction to Computer MBA SEM I - Copy (4).pptIntroduction to Computer MBA SEM I - Copy (4).ppt
Introduction to Computer MBA SEM I - Copy (4).ppt
ShivamSaini553956

Lecture 1.pptx
Lecture 1.pptxLecture 1.pptx
Lecture 1.pptx
SalarAzam1

Introduction to computers
Introduction to computersIntroduction to computers
Introduction to computers
Sweta Kumari Barnwal


Similar to Operating System Case Study and I/O System (20)

IO SYSTEM AND CASE STUDY STRUCTURE
IO SYSTEM AND CASE STUDY STRUCTUREIO SYSTEM AND CASE STUDY STRUCTURE
IO SYSTEM AND CASE STUDY STRUCTURE

Unit 6
Unit 6Unit 6
Unit 6

cental processing unit and all its components
cental processing unit and all its componentscental processing unit and all its components
cental processing unit and all its components

introduce computer .pptx
introduce computer .pptxintroduce computer .pptx
introduce computer .pptx

L-3 BCE OS FINAL.ppt
L-3 BCE OS FINAL.pptL-3 BCE OS FINAL.ppt
L-3 BCE OS FINAL.ppt

computer science and enginnering fundamental organisation.pptx
computer science and enginnering fundamental organisation.pptxcomputer science and enginnering fundamental organisation.pptx
computer science and enginnering fundamental organisation.pptx

Fundamentals of Computers and Operating System(OS)
Fundamentals of Computers and Operating System(OS)Fundamentals of Computers and Operating System(OS)
Fundamentals of Computers and Operating System(OS)

Computer system, devices and peripherals
Computer system, devices and peripheralsComputer system, devices and peripherals
Computer system, devices and peripherals

Introduction to computer
Introduction to computerIntroduction to computer
Introduction to computer

Basics of Operating System
Basics of Operating SystemBasics of Operating System
Basics of Operating System

Unit 1 q&a
Unit  1 q&aUnit  1 q&a
Unit 1 q&a

Operating system notes ch1
Operating system notes ch1Operating system notes ch1
Operating system notes ch1

Operating system
Operating systemOperating system
Operating system

Ch1
Ch1Ch1
Ch1

Ch1
Ch1Ch1
Ch1

Computer Programming.pdf
Computer Programming.pdfComputer Programming.pdf
Computer Programming.pdf

Introduction to Computer System-ppt.pptx
Introduction to Computer System-ppt.pptxIntroduction to Computer System-ppt.pptx
Introduction to Computer System-ppt.pptx

Introduction to Computer MBA SEM I - Copy (4).ppt
Introduction to Computer MBA SEM I - Copy (4).pptIntroduction to Computer MBA SEM I - Copy (4).ppt
Introduction to Computer MBA SEM I - Copy (4).ppt

Lecture 1.pptx
Lecture 1.pptxLecture 1.pptx
Lecture 1.pptx

Introduction to computers
Introduction to computersIntroduction to computers
Introduction to computers


Operating System Case Study and I/O System

  • 1. I/O System and Case Study By Prakash.G 14BIT035
  • 2.  One of the important jobs of an Operating System is to manage various I/O devices including mouse, keyboards, touch pad, disk drives, display adapters, USB devices, Bit-mapped screen, LED, Analog-to-digital converter, On/off switch, network connections, audio I/O, printers etc.  An I/O system is required to take an application I/O request and send it to the physical device, then take whatever response comes back from the device and send it to the application. I/O devices can be divided into two categories −  Block devices − A block device is one with which the driver communicates by sending entire blocks of data. For example, Hard disks, USB cameras, Disk-On-Key etc.  Character devices − A character device is one with which the driver communicates by sending and receiving single characters (bytes, octets). For example, serial ports, parallel ports, sounds cards etc
  • 3. Device Controllers:  Device drivers are software modules that can be plugged into an OS to handle a particular device. Operating System takes help from device drivers to handle all I/O devices.  The Device Controller works like an interface between a device and a device driver. I/O units (Keyboard, mouse, printer, etc.) typically consist of a mechanical component and an electronic component where electronic component is called the device controller.  There is always a device controller and a device driver for each device to communicate with the Operating Systems. A device controller may be able to handle multiple devices. As an interface its main task is to convert serial bit stream to block of bytes, perform error correction as necessary.  Any device connected to the computer is connected by a plug and socket, and the socket is connected to a device controller. Following is a model for connecting the CPU, memory, controllers, and I/O devices where CPU and device controllers all use a common bus for communication.
  • 5.  Synchronous vs asynchronous I/O Synchronous I/O − In this scheme CPU execution waits while I/O proceeds Asynchronous I/O − I/O proceeds concurrently with CPU execution  Communication to I/O Devices: The CPU must have a way to pass information to and from an I/O device. There are three approaches available to communicate with the CPU and Device. Special Instruction I/O Memory-mapped I/O Direct memory access (DMA) Special Instruction I/O: This uses CPU instructions that are specifically made for controlling I/O devices. These instructions typically allow data to be sent to an I/O device or read from an I/O device.
  • 6. Memory-mapped I/O  When using memory-mapped I/O, the same address space is shared by memory and I/O devices. The device is connected directly to certain main memory locations so that I/O device can transfer block of data to/from memory without going through CPU.  While using memory mapped IO, OS allocates buffer in memory and informs I/O device to use that buffer to send data to the CPU. I/O device operates asynchronously with CPU, interrupts CPU when finished.  The advantage to this method is that every instruction which can access memory can be used to manipulate an I/O device. Memory mapped IO is used for most high-speed I/O devices like disks, communication interfaces.
  • 7. Direct Memory Access (DMA)  Slow devices like keyboards will generate an interrupt to the main CPU after each byte is transferred. If a fast device such as a disk generated an interrupt for each byte, the operating system would spend most of its time handling these interrupts. So a typical computer uses direct memory access (DMA) hardware to reduce this overhead.  Direct Memory Access (DMA) means CPU grants I/O module authority to read from or write to memory without involvement. DMA module itself controls exchange of data between main memory and the I/O device. CPU is only involved at the beginning and end of the transfer and interrupted only after entire block has been transferred.  Direct Memory Access needs a special hardware called DMA controller (DMAC) that manages the data transfers and arbitrates access to the system bus. The controllers are programmed with source and destination pointers (where to read/write the data), counters to track the number of transferred bytes, and settings, which includes I/O and memory types, interrupts and states for the CPU cycles.
  • 9. Polling vs Interrupts I/O  A computer must have a way of detecting the arrival of any type of input. There are two ways that this can happen, known as polling and interrupts. Both of these techniques allow the processor to deal with events that can happen at any time and that are not related to the process it is currently running.  Polling I/O:  Polling is the simplest way for an I/O device to communicate with the processor the processor. The process of periodically checking status of the device to see if it is time for the next I/O operation, is called polling.  The I/O device simply puts the information in a Status register, and the processor must come and get the information.
  • 10. Interrupts I/O  An alternative scheme for dealing with I/O is the interrupt-driven method. An interrupt is a signal to the microprocessor from a device that requires attention.  A device controller puts an interrupt signal on the bus when it needs CPU’s attention when CPU receives an interrupt, It saves its current state and invokes the appropriate interrupt handler using the interrupt vector (addresses of OS routines to handle various events). When the interrupting device has been dealt with, the CPU continues with its original task as if it had never been interrupted.
  • 11. Case Study Operating Systems: Windows
  • 12. Features of Modern os  To facilitate easy, efficient, fair, orderly, and secure use of resources  Provide a user interface  Organize files on disk  Allocating resource to different users with security control  Co-ordinate programs to work with devices and other programs
  • 13. Beginning of Windows  In 1988, Microsoft decided to develop a “new technology” (NT) portable operating system that supported both the OS/2 and POSIX APIs  Originally, NT was supposed to use the OS/2 API as its native environment but during development NT was changed to use the Win32 API, reflecting the popularity of Windows 3.0.
  • 14. Advantages of windows  Advantages over Windows – It's almost free to relatively inexpensive – Source code is included – Bugs are fixed quickly and help is readily available through the vast support in Internet – Linux is more stable than Windows – Linux is truly multi-user and multi- tasking – multiuser: OS that can simultaneously serve a number of users – multitasking: OS that can simultaneously execute a number of programs – Linux runs on equipment that other operating systems consider too underpowered, e.g. 386 systems, PDA, etc  Microsoft has made several advancements and changes that have made it a much easier to use Operating System, and although arguably it may not be the easiest Operating System  Because of the large amount of Microsoft Windows users, there is a much larger selection of available software programs, utilities, and games for Windows.
  • 15. Disadvantages of windows Disadvantages of windows  Although Microsoft Windows has made great improvements in reliability over the last few versions of Windows, it still cannot match the reliability ofLinux.  to viruses and other attacks. Although Microsoft has made great improvements over the years with security on their Operating System, their Operating System continues to be the most vulnerable
  • 17. File management in windows  File management in windows can be done through Windows explorer or My Computer. Windows Explorer displays the hierarchical list of files, folders, and storage drives (both fixed and removable) on your computer. It also lists any network drives that have been mapped to as a drive letters on your computer. Windows Explorer can be used to copy, move, rename, and search for files and folders. For example, to copy a file, you can open a folder that contains the desired file to be copied or moved, and then just drag and drop the file to target folder or drive. Contents  1 Using Windows Explorer  2 Opening drives and folders  3 View file details  4 Copying and moving files using Explorer  5 Create a new folder  6 Rename a file or folder  7 Delete a file or folder  When files or folders are deleted from hard disk, Windows places them in the Recycle Bin, from where they can be retrieved, until the Recycle Bin is made empty. Files or folders deleted from a  File Management in Windows  removable storage media such as network drive are permanently deleted and are not sent to the Recycle Bin.
  • 18. States of process management  Running: A process will be in either running(current process in system)or ready to run(waiting to be assigned to system cpu)  Waiting:The process is waiting for a resource or event. Interputable waiting process can be interputable by signals but are waiting directly on hardware conditions and cannot be interpated
  • 19. States of process management (contd)  Stopped:The process can be stopped usually by receiving a signal. A process that is being debugged can be in a stopped state  Zombie:This is a halted process which for some reason still has task_struct data structure in task vector.It is like a dead process
  • 20. Process management in windows  A process contains its own independent virtual address space with both code and data, protected from other processes. Each process, in turn, contains one or more independently executing threads. A thread running within a process can execute application code, create new threads, create new independent processes, and manage communication and synchronization among the threads.  By creating and managing processes, applications can have multiple, concurrent tasks processing files, performing computations, or communicating with other networked systems. It is even possible to improve application performance by exploiting multiple CPU processors
  • 21. States of process management  Ready:May be scheduled for execution. The microkernel dispatcher keeps track of all ready threads and schedules them in priority order.  Standby:A standby thread has been selected to run next on a particular processor. The thread waits in this state until that processor is made available. If the standby thread's priority is high enough, the running thread on that processor may be preempted in favor of the standby thread. Otherwise, the standby thread waits until the running thread blocks orexhausts its time slice.  Running:Once the microkernel performs a thread or process switch, the standby thread enters the running state and begins execution and continues execution until it is preempted, exhausts its time slice, blocks, or terminates. In the first two cases, it goes back to the ready state
  • 23. Address Types in physical Memeory  The following is a list of address types used in Linux.  User virtual addresses:These are the regular addresses seen by user-space programs. User addresses are either 32 or 64 bits in length, depending on the underlying hardware architecture, and each process has its own virtual address space.  Physical addresses:The addresses used between the processor and the system's memory. Physical addresses are 32- or 64-bit quantities; even 32-bit systems can use larger physical addresses in some situations.  Bus addresses:The addresses used between peripheral buses and memory. Often, they are the same as the physical addresses used by the processor, but that is not necessarily the case. Some architectures can provide an I/O memory management unit (IOMMU) that remaps addresses between a bus and main memory. An IOMMU can make life easier in a number of ways (making a buffer scattered in memory appear contiguous to the device, for example), but programming the IOMMU is an extra step that must be performed when setting up DMA operations. Bus addresses are highly architecture dependent, of course.
  • 24. Address Types in physical Memeory  Kernel logical addresses: These make up the normal address space of the kernel. These addresses map some portion (perhaps all) of main memory and are often treated as if they were physical addresses. On most architectures, logical addresses and their associated physical addresses differ only by a constant offset. Logical addresses use the hardware's native pointer size and, therefore, may be unable to address all of physical memory on heavily equipped 32-bit systems. Logical addresses are usually stored in variables of type unsigned long or void *. Memory returned from kmalloc has a kernel logical address.  Kernel virtual addresses: Kernel virtual addresses are similar to logical addresses in that they are a mapping from a kernel-space address to a physical address. Kernel virtual addresses do not necessarily have the linear, one-to-one mapping to physical addresses that characterize the logical address space, however. All logical addresses are kernel virtual addresses, but many kernel virtual addresses are not logical addresses. For example, memory allocated by vmalloc has a virtual address (but no direct physical mapping). The kmap function (described later in this chapter) also returns virtual addresses. Virtual addresses are usually stored in pointer variables.
  • 25. Memory management in WIndows  Each process on 32-bit Microsoft Windows has its own virtual address space that enables addressing up to 4 gigabytes of memory. Each process on 64-bit Windows has a virtual address space of 8 terabytes. All threads of a process can access its virtual address space. However, threads cannot access memory that belongs to another process, which protects a process from being corrupted by another proces  Virtual Address Space  Memory Pools  Memory Performance Information  Virtual Memory Functions  Heap Functions  File Mapping  Large Memory Support  Global and Local Functions  Standard C Library Functions  Comparing Memory Allocation Methods
  • 27. User Interface of Windows  The Windows 9x user interface (9x refers to Windows 95 and Windows 98 together) is characterised by a bar at the bottom of your screen (it may be moved to another edge by left-mouse-clicking on it and dragging it to the desired edge while continuing to hold down the mouse button).
  • 28. User Interface in windows  This bar is called the "taskbar." It includes:  The "Start menu" (which contains shortcuts to applications stored on your hard drive)  The list of open windows on your desktop (the Windows desktop is the entire portion of the screen located above the taskbar, where shortcuts to applications may be placed in the form of icons)  Icons representing shortcuts to programs loaded in the computer memory, and which can be configured
  • 29. User Interface in windows  It includes the following shortcuts:  Shut down: To shut down or restart a computer, or restart it in MS-DOS mode  Run: Run a program using a command line (like in DOS). Arguments can be added to an application (for example, in "dir /s", "/s" is an argument)  Help: Windows online help  Find: Lets you search for a file on the hard drive, or for another computer if you are on a network  Settings: This is the computer's "control center", where display, hardware, and software settings can be configured.  Programs: This contains links to your favorite programs. It can be modified by going to Settings/Taskbar and Start menu, then clicking on Start menu  The menu can include other shortcuts, too, such as: Documents: List of the most recently opened documents  Favorites: Lets you sort your favorite shortcuts, whether on the Internet or your hard drive  etc.
