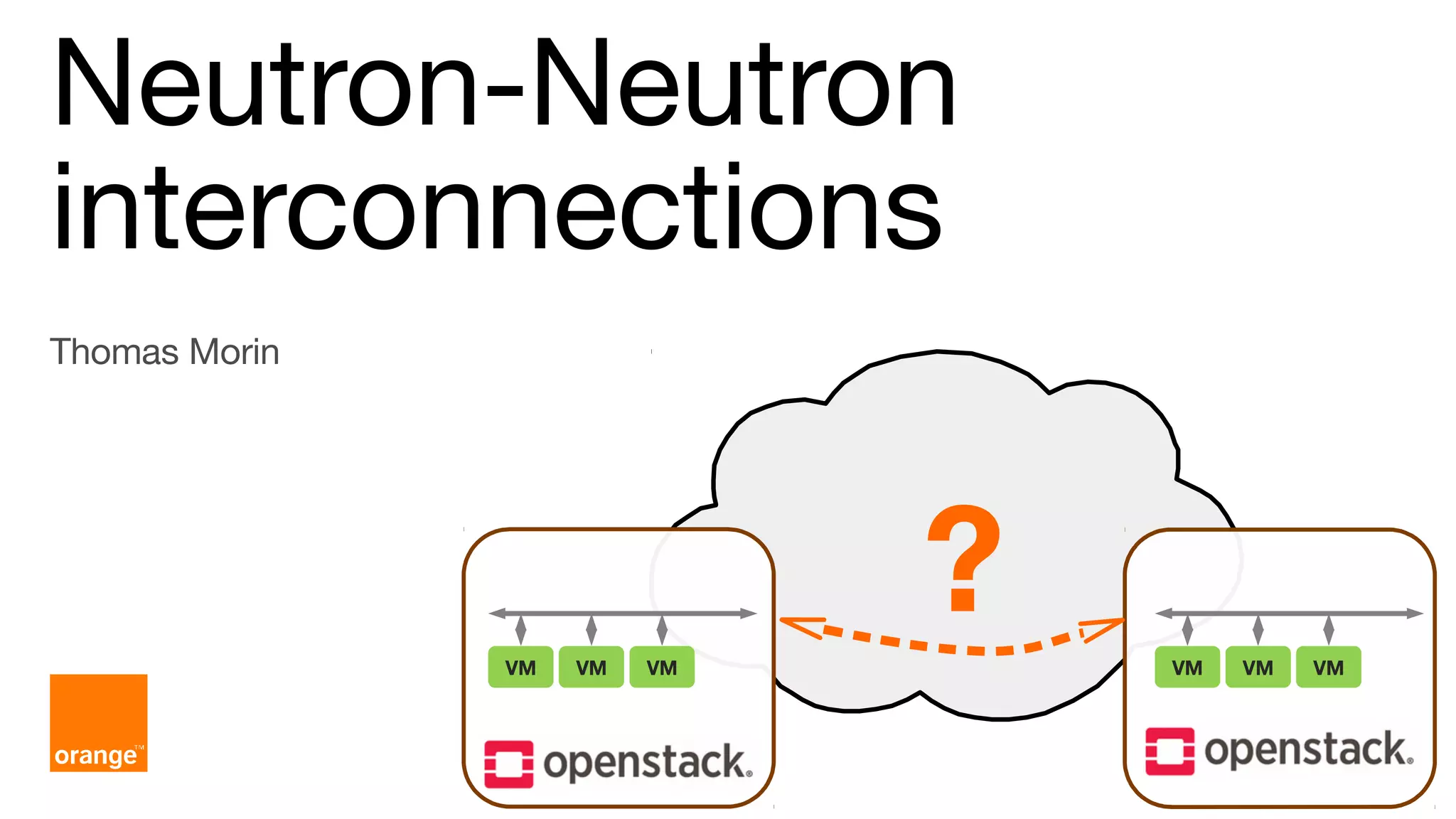

Neutron-Neutron
interconnections
Thomas Morin
VM VM VM VM VM VM
?
2

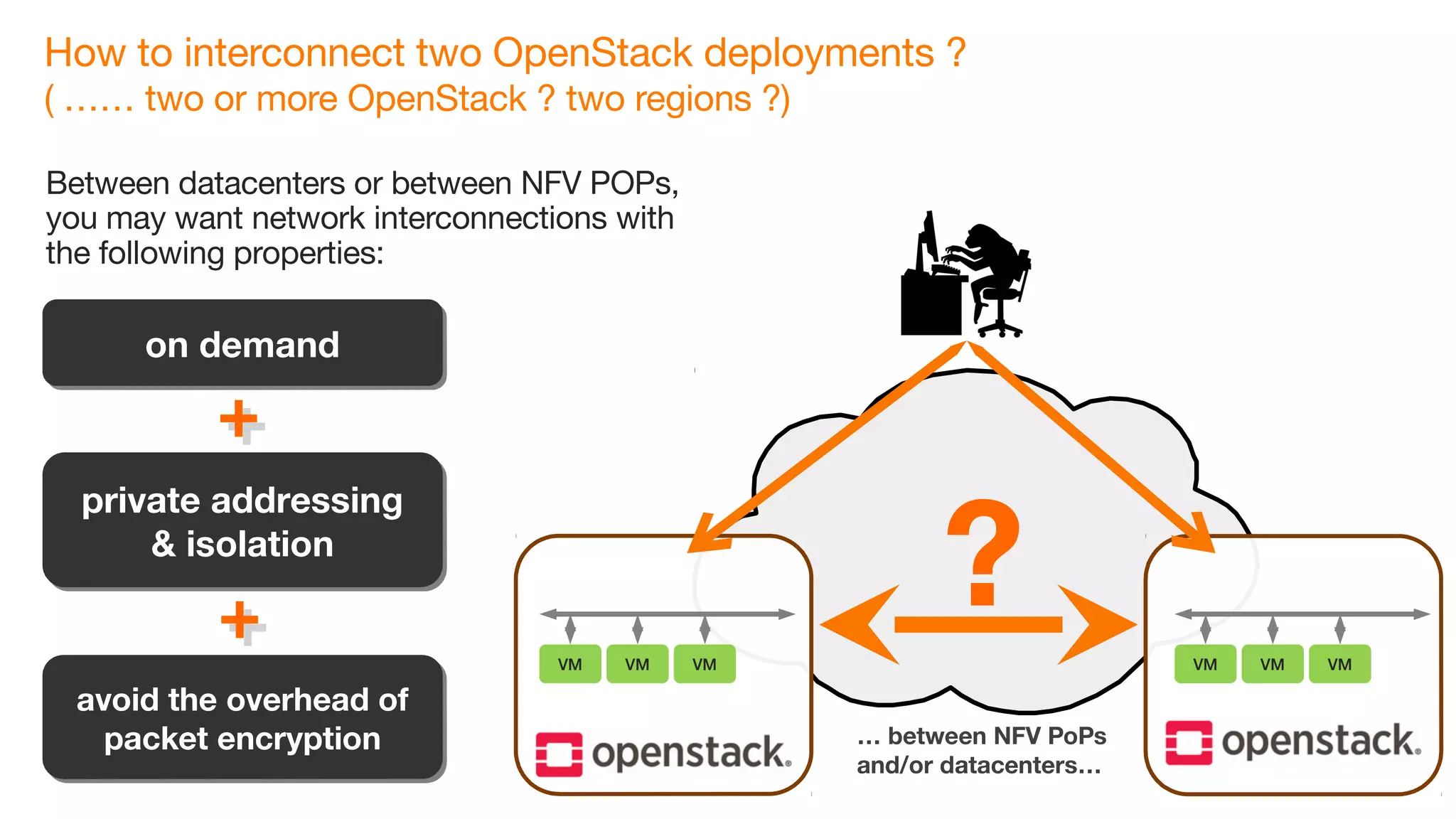

How to interconnect two OpenStack deployments ?
( …… two or more OpenStack ? two regions ?)
Between datacenters or between NFV POPs,
you may want network interconnections with
the following properties:
on demandon demand
VM VM VM VM VM VM
?
… between NFV PoPs
and/or datacenters…
private addressing
& isolation
private addressing
& isolation
++
avoid the overhead of
packet encryption
avoid the overhead of
packet encryption
++
3
Doing this with
an orchestrator ?
VM VM VM VM VM VM
?
… between NFV PoPs
and/or datacenters…
?
? ?
not always possible...
not always wanted...
 contexts where there isn't a
single organization involved
 need to expose an API to the
projects
 extra complexity
4
“Neutron-Neutron” API:
●
check if the reverse link
is defined on the other side
●
bis: not yet 
●
bis: OK ! 
●
expose/retrieve the technical
details on how to do realize
connectivity ()
●
parameters vary depending
on the technique to use
At the end of the exchange...
Each side has the necessary
information and can setup the
interconnection ()
“User facing” API :
let a project define that a local
Router is linked to a Router on
another Openstack
=> define the link symmetrically
on both sides (,)
Let's extend
Neutron's API !
VM VM VM VM VM VM
Neutron Neutron
 

 
bis

bis
5
 Trusting that the interconnection preserves isolation
 Goal:
 no interconnection setup unless explictly asked by each project/tenant
 How ?
 Interconnect if and only if both sides agree (symmetric link check)
 Each OpenStack instance has to trust the packets from the other OpenStack instances
 This proposal is for organizations/entities trusting each other,
and trusting the network used to carry interconnections
 Authenticating Neutron-Neutron API exchanges
 Each Neutron component on each side needs credentials to talk to the other side
 Not to act as the project/tenant
 Not to act as admin
 Only need creds for a specific role with read-only access to interconnection info
 Keystone federation is not strictly needed for functionality, but will be in practice necessary to
avoid too much configuration overhead
Multitenancy & need for network isolation
imply that we address trust questions
6
Multiple interconnection techniques are possible...
● Requirements for a
technique to be applicable
– Provide isolated network
connectivity
● L2 and/or L3
– Interoperability preferred:
makes the solution applicable
between two OpenStack that
do not use the same SDN
controller solution
● Examples
– VLAN hand-off
– VXLAN gateway
– L2GW
– BGP VPNs
– ...
Example with BGP VPNs
● How ?
– each side provides the routing identifier which the other side
will use to import routes for this interconnection
– connectivity realized whether as an overlay over the WAN, or
with the collaboration of WAN BGP VPN routing
● Benefits ?
– Each side independently allocates identifiers
=> no need to coordinate the use of a common space of
identifiers
● (because BGP RTs have are structured, prefixed typically by
an AS number)
– Can be implemented in Neutron by reusing the existing
BGPVPN Interconnection API
● (the BGPVPN Interconnection API already allows
interconnections, but not on demand because requiring the‑demand because requiring the
admin to create resources)
● will work with Neutron ref. drivers and many SDN controllers
– Applicable to both IP and Ethernet interconnects
7
Neutron-Neutron interconnections
Wrap up
● Allows interconnections
– On-demand
– No need for an orchestrator
– Light on packet dataplane (no IPSec)
● between OpenStack instances
– two OpenStack instances or more
– between trusting entities
– inter clouds, inter regions, inter DCs, between NFV POPs‑demand because requiring the  ‑demand because requiring the  ‑demand because requiring the
– including when these instances use a different SDN solution
● Next steps ?
– Neutron Specs being redacted
– Implementation to be proposed based on a PoC implementation by Orange
● Service composition: reusing the existing
Neutron BGPVPN Interconnection service
VM VM VM VM VM VM
?
