OpenConfig is an informal working group that aims to standardize network data models and streaming telemetry through vendor-neutral models written in YANG. It has developed models for BGP configuration, ACLs, and streaming telemetry. OpenConfig data models and transport protocols like gRPC are independent, allowing operators flexibility. The models provide a common interface for both device configuration and obtaining telemetry data. Demonstrations showed retrieving BGP configuration data and modifying settings via a gRPC client, as well as receiving streamed telemetry updates.

1. Copyright © Arista 2017. All rights reserved.Copyright © Arista 2017. All rights reserved.1
OpenConfig
Shishio Tsuchiya
shtsuchi@arista.com

2. Copyright © Arista 2017. All rights reserved.
• What is OpenConfig?
• OpenConfig is an informal working group of network operators sharing the goal of moving our networks
toward a more dynamic, programmable infrastructure by adopting software-defined networking principles
such as declarative configuration and model-driven management and operations.
• Common data models
• Our initial focus in OpenConfig is on compiling a consistent set of vendor-neutral data models (written in
YANG) based on actual operational needs from use cases and requirements from multiple network
operators.
• Streaming telemetry
• Streaming telemetry is a new paradigm for network monitoring in which data is streamed from devices
continuously with efficient, incremental updates. Operators can subscribe to the specific data items they
need, using OpenConfig data models as the common interface.
OpenConfig
http://openconfig.net/

3. Copyright © Arista 2017. All rights reserved.
• Already model Defined for BGP configuration, operation /ACL and streaming telemetry
• https://github.com/openconfig/public/tree/master/release/models
• Transport and RPC(Remote Procedure Call) Protocol
• Data model, transport and RPC are independent , so can choice any protocol as you like
• NETCONF and REST CONF
• gNMI(gRPC Network Management Interface) which use common gRPC protocol between Telemetry and
Configuraiton.
OpenConfig
http://openconfig.net/

4. Copyright © Arista 2017. All rights reserved.
• Provide common data model which is independent of vendors,
generation for configuration and streaming telemetry
Target of Openconfig
- - -
.
.
" " " " "
" /
. -
- -
. .
.
.
:
OpenConfig data model
Telemetry collector
OpenConfig data motel

5. Copyright © Arista 2017. All rights reserved.
Demonstration openconfig
vEOS1#show running-config | section management api
management api http-commands
protocol http
no shutdown
!
management api openconfig
transport grpc default
vEOS1#show running-config | section router bgp
router bgp 65000
bgp listen range 10.100.1.0/24 peer-group DC peer-filter Leaf
neighbor DC peer-group
neighbor DC maximum-routes 12000
network 10.255.255.1/32
https://youtu.be/satbCzrMjk0

6. Copyright © Arista 2017. All rights reserved.
Demonstration openconfig
arista@ubuntu:~/OpenConfig$ ./grpcli_linux_386 -addr 10.10.1.1:6030 -username "admin" -password "admin" -get
/network-instances/network-instance/default/protocols/protocol/"BGP BGP"/bgp/global
{"openconfig-bgp-global:config": {"as": 65000, "router-id": "0.0.0.0"}, "openconfig-bgp-global:default-route-
distance": {"config": {"external-route-distance": 200, "internal-route-distance": 200}}, "openconfig-bgp-
global:graceful-restart": {"config": {"restart-time": 0, "stale-routes-time": "+Inf.0"}}, "openconfig-bgp-
common:route-selection-options": {"config": {"advertise-inactive-routes": false, "always-compare-med": false,
"external-compare-router-id": true}}}
arista@ubuntu:~/OpenConfig$ ./grpcli_linux_386 -addr 10.10.1.1:6030 -username "admin" -password "admin" -get
/network-instances/network-instance/default/protocols/protocol/"BGP BGP"/bgp/global/config
{"openconfig-bgp-global:as": 65000, "openconfig-bgp-global:router-id": "0.0.0.0"}

7. Copyright © Arista 2017. All rights reserved.
Demonstration openconfig

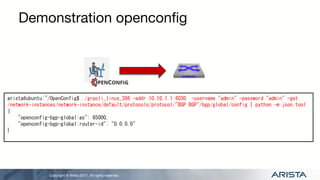

arista@ubuntu:~/OpenConfig$ ./grpcli_linux_386 -addr 10.10.1.1:6030 -username "admin" -password "admin" -get
/network-instances/network-instance/default/protocols/protocol/"BGP BGP"/bgp/global/config | python -m json.tool
{
"openconfig-bgp-global:as": 65000,
"openconfig-bgp-global:router-id": "0.0.0.0"
}

8. Copyright © Arista 2017. All rights reserved.
Demonstration openconfig

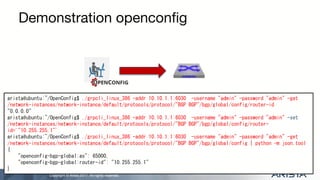

arista@ubuntu:~/OpenConfig$ ./grpcli_linux_386 -addr 10.10.1.1:6030 -username "admin" -password "admin" -get
/network-instances/network-instance/default/protocols/protocol/"BGP BGP"/bgp/global/config/router-id
"0.0.0.0"
arista@ubuntu:~/OpenConfig$ ./grpcli_linux_386 -addr 10.10.1.1:6030 -username "admin" -password "admin" -set
/network-instances/network-instance/default/protocols/protocol/"BGP BGP"/bgp/global/config/router-
id='"10.255.255.1"'
arista@ubuntu:~/OpenConfig$ ./grpcli_linux_386 -addr 10.10.1.1:6030 -username "admin" -password "admin" -get
/network-instances/network-instance/default/protocols/protocol/"BGP BGP"/bgp/global/config | python -m json.tool
{
"openconfig-bgp-global:as": 65000,
"openconfig-bgp-global:router-id": "10.255.255.1"
}

9. Copyright © Arista 2017. All rights reserved.
Demonstration openconfig

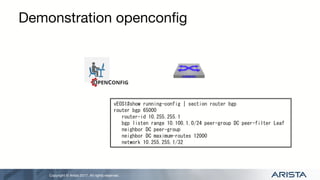

vEOS1#show running-config | section router bgp
router bgp 65000
router-id 10.255.255.1
bgp listen range 10.100.1.0/24 peer-group DC peer-filter Leaf
neighbor DC peer-group
neighbor DC maximum-routes 12000
network 10.255.255.1/32

10. Copyright © Arista 2017. All rights reserved.
Demonstration telemetry

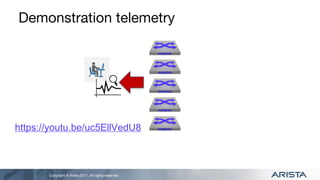

https://youtu.be/uc5EllVedU8

11. Copyright © Arista 2017. All rights reserved.

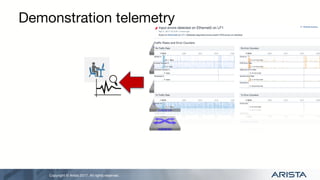

Demonstration telemetry

12. Copyright © Arista 2017. All rights reserved.

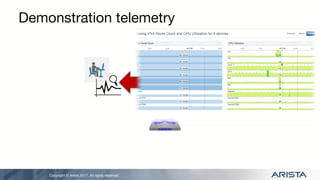

Demonstration telemetry

13. Copyright © Arista 2017. All rights reserved.Copyright © Arista 2016. All rights reserved.
www.arista.com
Thank You
