Monitoring GEi used in the FI-WARE and XiFi project in order to recover information of the servers, hosts and OpenStack instances

1. Open APIs for Open Minds
Monitoring Federation OpenStack infrastructure
(http://tinyurl.com/MonitoringFIWARE)
Fernando López Aguilar
(fla@tid.es)
Pablo Rodríguez Archilla
(pra@tid.es)

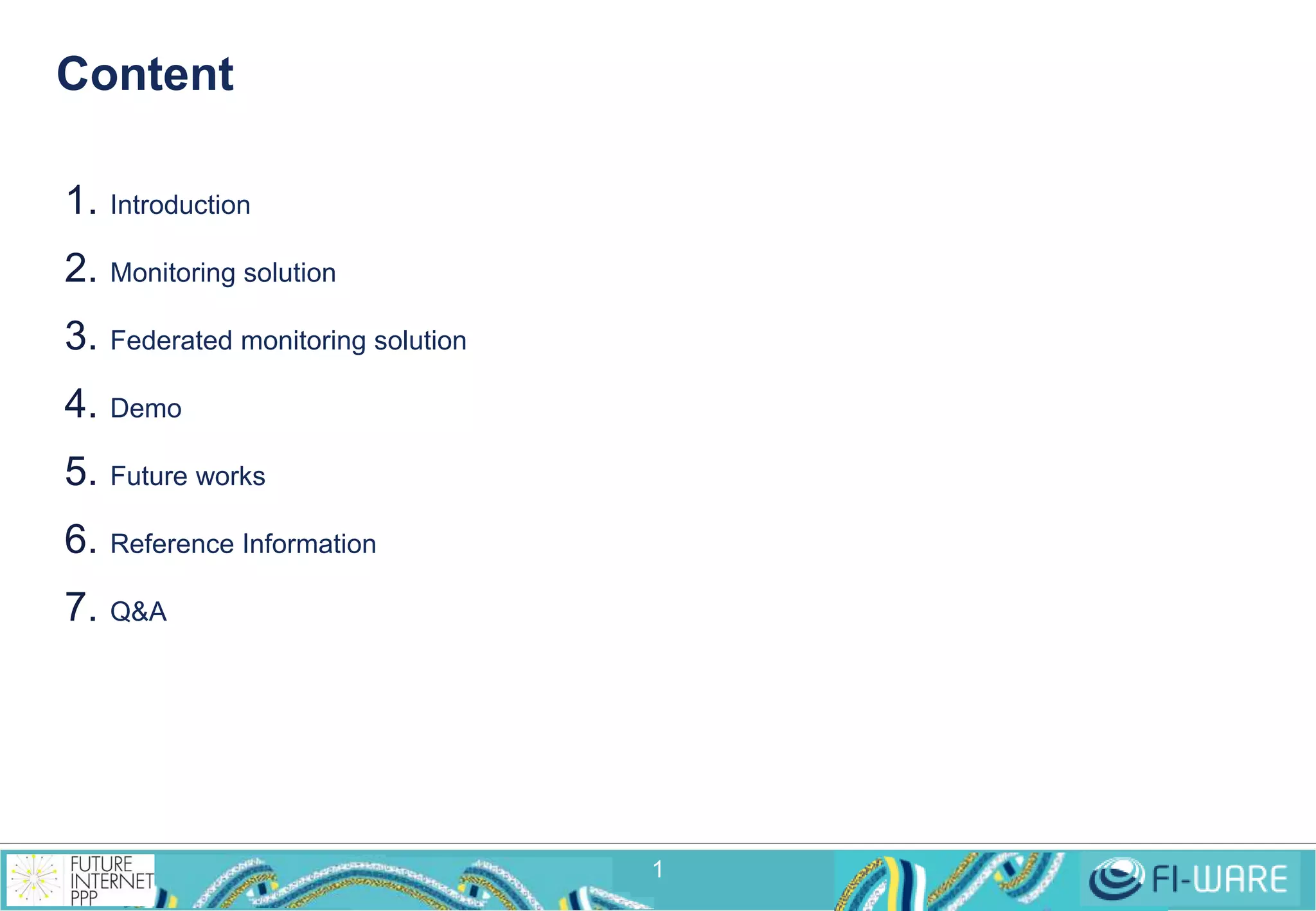

2. Content
1. Introduction
2. Monitoring solution
3. Federated monitoring solution
4. Demo
5. Future works
6. Reference Information
7. Q&A
1

3. Introduction
2

4. Need to monitor different processes:
• Need to know if they are running correctly.
• Notify administrator of the cloud about problems detected.
• Easy mechanism to provide new metrics to the system.
Need to give a more exhaustive information about the performance of the
servers.
• Need to know network bandwidth and latency (between regions).
Introduction
What are the requirements?
3

5. Need to give a more exhaustive information about the performance of the
servers.
• Memory/Disk/CPU consumption during time.
• User defined performance.
• Provide visual representation of data in form of temporal graphics.
• Provide solution to study data using CEP or Map/Reduce mechanisms.
Introduction
What are the requirements?
4

6. 5
Introduction
Monitoring infrastructure using OpenStack Telemetry (Ceilometer)

7. 6
 Use the same Bus for OS and monitoring (wrong idea!!!).
• Community, in fact, wants to change the use of Queue message by Pub/Sub
mechanism.
 Cannot provide tools to analyse data, only information without management.
 Difficult to extend in multi-region environment.
 Starting project (first version was with MySQL…).
 Does not provide data information inside servers and networks traffic.
Introduction
Monitoring infrastructure using OpenStack Telemetry (Ceilometer)

8. Two different approaches were provided:
• Nagios to provide alerts to monitor of some servers parameters.
• Highly Scalable and distributed solution in order to provide mgmt. and federation
capabilities of the data.
Integration of Big Data + IoT + Cloud solutions.
• Provide tools to allow forensic analysis of monitoring data.
• Provide real time analysis of data in order to evaluate possible actions on time.
Separate the gathering of data from management and analysis.
Introduction
And the solutions …
7

9. Provide a standard solution based on IoT standards (NGSI interface).
Provide a solution to monitor services, servers, networks and whatever we could
need.
Separate the OpenStack Notification Bus from the Monitoring Bus.
Highly scalable solution:
• Asynchronous Node.js server to adapt data gathered and Orion Context Broker for
publish/subscribe.
• MongoDB for storing current data, Hadoop for historical data both highly scalable.
Introduction
And the solutions …
8

10. Fully integrated with OS:
• Listener to the RabbitMQ to know the creation of server to configure the monitoring
process.
Heterogeneity
• Support pre-existing monitoring infrastructure  zero install effort.
Easy to extend and federate with other systems.
Data accesses must be controlled with authentication procedures.
Introduction
And the solutions …
9

11. Monitoring solution
10

12. Host
Pub/Sub Context Broker GE Virtual Servers
Virtual Servers
Virtual Servers
BigData
Portal visualization App. Backend
Update context*
(NGSI10)
Subscription
(NGSI10)
Update context*
(NGSI10)
Update context*
(NGSI10)
Notification
(NGSI10)
(*) Update context is equivalent to the publish operation.
Physical Servers
Update context*
(NGSI10)
Monitoring solution
Reference architecture
11

13. Monitoring solution
Nagios
Nagios monitors the infrastructure to ensure systems, applications, services, and
business processes are functioning properly.
Versions in FI-WARE/XiFi:
• Nagios Core 3.4.1
• nrpe 2.15
• nagios-plugins 1.4.16
More information
• www.nagios.org
• www.nagios.org/download/plugins/
12

14. Monitoring solution
Nagios Remote Plugin Executor
Nagios Remote Plugin Executor (NRPE) to monitoring remote hosts, servers and
services.
Allows to remotely execute Nagios plugins on other Linux/Unix machines.
Allows to monitor remote machine metrics (disk usage, CPU load, etc.).
13

15. Monitoring solution
NAM & DEM
14
NGSI Adapter
Context Broker
Adapter
server
NAM Adapter
Monitoring
probes
Measurement
collectors
DEM Adapter
Monitoring
probes
Measurement
collectors
Parser
R▲
R▲
Network Active Monitoring.
Datacenter and Enablers
Monitoring.
Parser to get data from
measurement collector.
Adapter server to transfer to
NGSI format.

16. 15
Monitoring solution
Deployment diagram
An example of deployment.
Depends of the requirements.
Adopt Hadoop solution for historical
store data.
Adopt Orion as Pub/Sub broker.

17. Federated monitoring solution
16

18. Per OpenStack node layer
• Managed by administrator nodes staff.
• Not directly accessible for normal users (e.g. FI-LAB user).
• Not strong scalability requirements.
• CBs in this layer send ALL their context information to the aggregation layer CB
(federation), except the information we want to get filtered out.
Federated monitoring solution
Requirement
17

19. Aggregation layer
• Managed by federation nodes staff.
• Globally accessible and shared for federation users, i.e. each federation user
can see and modify other users entities.
• Strong scalability and high availability requirements.
• Single point of integration for COSMOS (Big Data solution of FI-WARE).
• Federation user configure federation to get the subset of information they
want in the per user layer CBs.
Federated monitoring solution
Requirement
18

20. Per User layer (optional)
• Managed by federation users, i.e. CB dedicated instances in the federation.
• Integration with federation portal and/or third parties applications/services.
• Authentication required to access to the Aggregation layer.
• Not strong scalability requirements.
Federated monitoring solution
Requirement
19

21. Slave node #4
Slave node #3
Slave node #2
Slave node #1
Master node
Pub/Sub Context BrokerBigData
Data warehouse, ETL or
stream processing tools
Slave Context Broker
Slave Context Broker
Slave Context Broker
Slave Context Broker
Notification (NGSI10)
Third parties
Subscription
Notification
Dashboard /
visualization
Query API
Federated monitoring solution
Adopted solution
20

22. Demo
21

23. Demo
22
Master node (= Trento)
demo-federation
(Orion)
Node for region #2 “Trento” (Grizzly)
demo-2-orion
(Orion + NGSI Adapter)
demo-2-nagios
(Nagios + NGSI Broker)
demo-2-instB
(NRPE)demo-2-instA
(NRPE)
Node for region #1 “Spain” (Havana)
demo-1-orion
(Orion + NGSI Adapter)
demo-1-spain
(cron+ps)

24. Future works
23

25. Future works
Automatic deployment of components based on listener in the OpenStack
Queue System (RabbitMQ).
Evaluate the integration with new version of Ceilometer in the local node.
Introduce Storm solution to offer real time analysis.
Implement a REST service to access to the data.
Whatever requirement we receive from federation users.
24

26. Reference information
25

27. Reference Information
 More information and manuals on the Monitoring GEi page at FI-Ware
Catalogue.
• http://tinyurl.com/monitoring-service
 More information and manuals on the Orion Context Broker GEi page at
FI-Ware Catalogue.
• http://tinyurl.com/orion-cb-doc
 More information and manuals on the COSMOS BigData GEi page ar FI-
Ware Catalogue.
• http://tinyurl.com/cosmos-doc
 More FI-LAB Cloud Hosting components.
• http://tinyurl.com/cloud-hosting-ges
26
