從入門到放棄，原來 CNI 這麼複雜

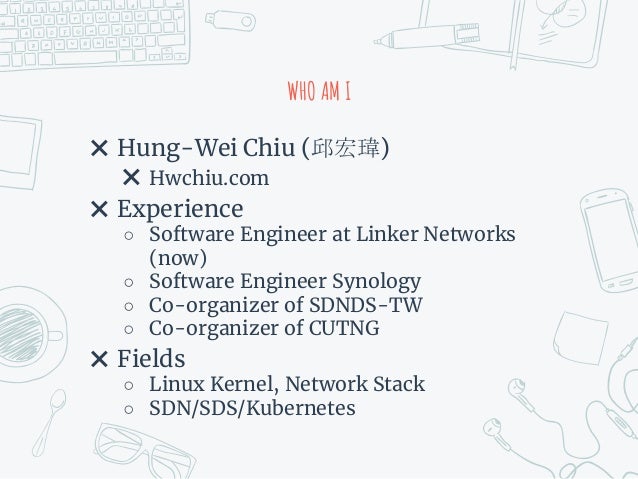

WHO AM I ✖ Hung-Wei Chiu (邱宏瑋) ✖ Hwchiu.com ✖ Experience ○ Software Engineer at Linker Networks (now) ○ Software Engineer ...
OUTLINE ✖ What is CNI ✖ How Kubernetes use CNI ✖ What is Flannel
What is CNI Container Network Interface

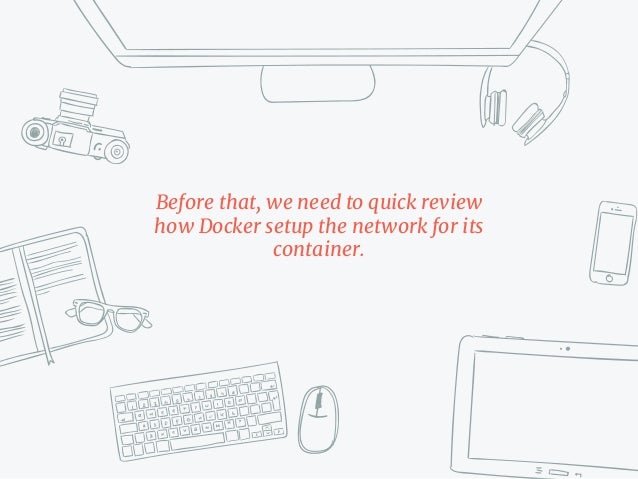

Before that, we need to quick review how Docker setup the network for its container.

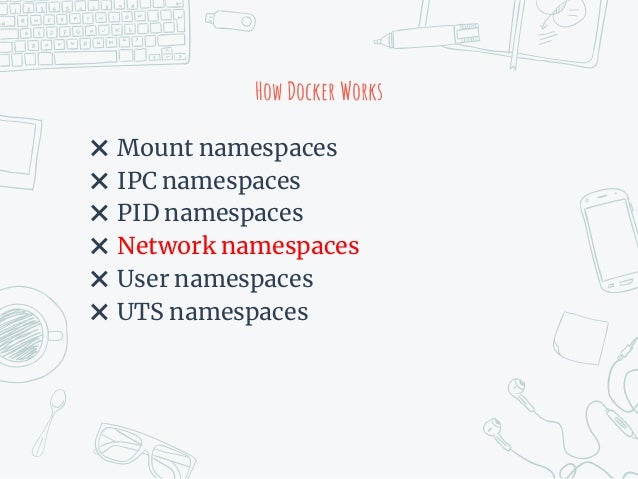

How Docker Works ✖ Mount namespaces ✖ IPC namespaces ✖ PID namespaces ✖ Network namespaces ✖ User namespaces ✖ UTS namespa...
We use the default docker network, Bridge Mode.

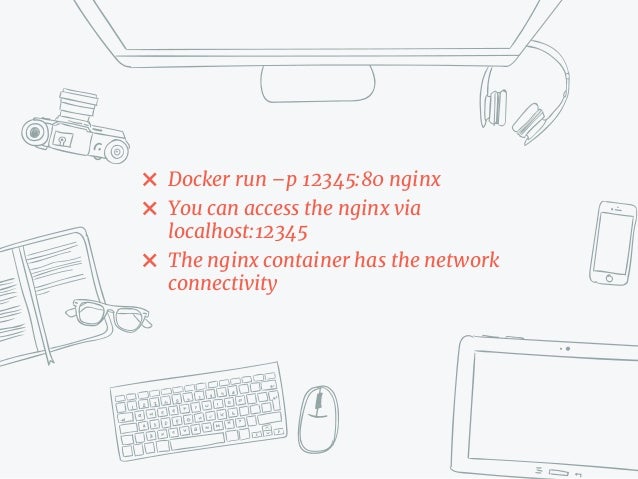

✖ Docker run –p 12345:80 nginx ✖ You can access the nginx via localhost:12345 ✖ The nginx container has the network connec...

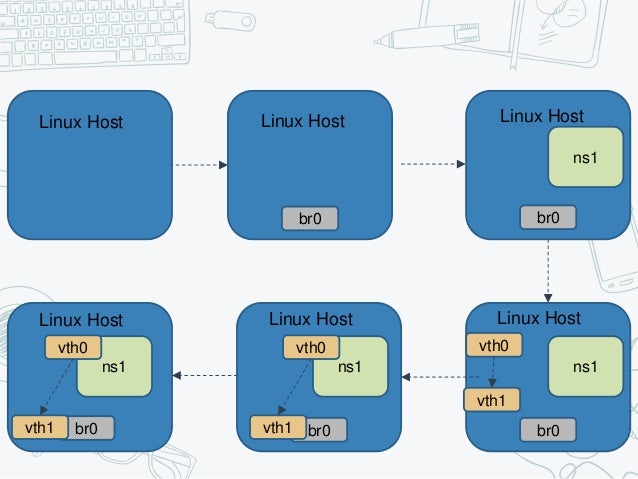

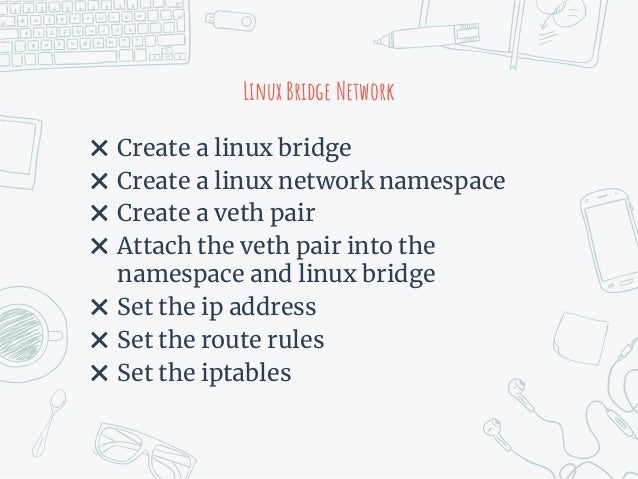

Linux Bridge Network ✖ Create a linux bridge ✖ Create a linux network namespace ✖ Create a veth pair ✖ Attach the veth pai...
br0 br0 br0br0br0 ns1 ns1ns1ns1 vth1 vth0 vth1 vth0 vth1 vth0 Linux Host Linux Host Linux Host Linux HostLinux HostLinux H...
Now, How about the Docker OVS network ?
OVS Network ✖ Create a OVS bridge ✖ Create a linux network namespace ✖ Create a veth pair ✖ Attach the veth pair into the ...
As a network plugin developer ✖ How many container system ✖ Docker ✖ Rkt ✖ LXC/LXD ✖ OpenVZ ✖ RunC ✖ ….
Should I Rewrite My Network Plugin for Every Containers?
Container Network Interface

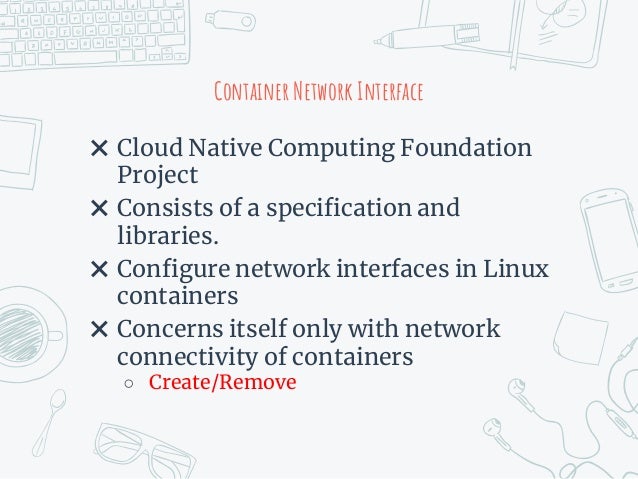

Container Network Interface ✖ Cloud Native Computing Foundation Project ✖ Consists of a specification and libraries. ✖ Con...
Container Network Interface ✖ Removing allocated resources when the container is deleted ✖ Based on golang
Why develop CNI?
To avoid duplication,
Who is using CNI?

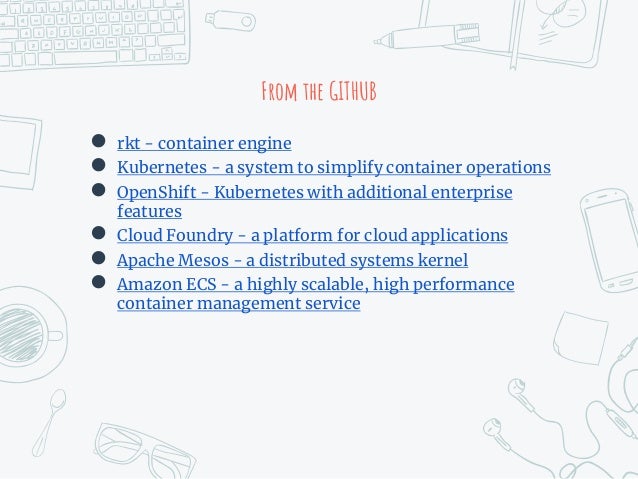

From the GITHUB  rkt - container engine  Kubernetes - a system to simplify container operations  OpenShift - Kubernetes...
So, How to use the CNI?

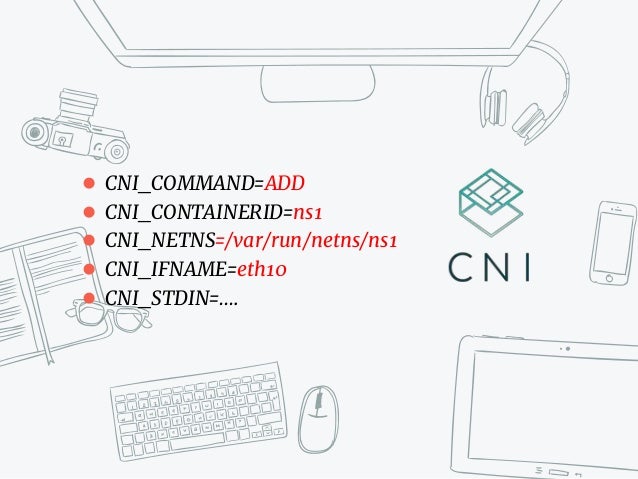

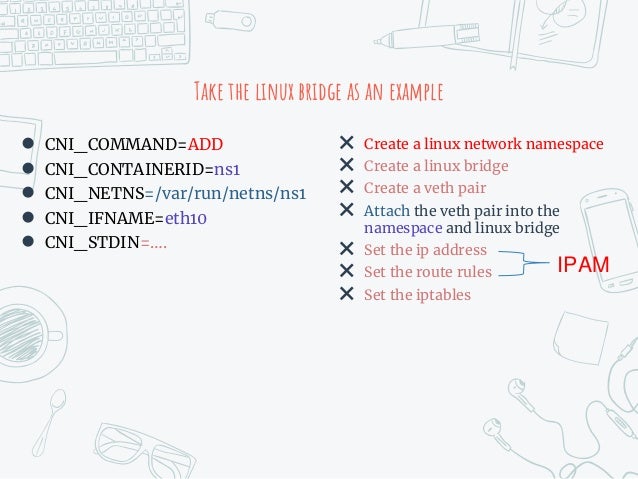

 CNI_COMMAND=ADD  CNI_CONTAINERID=ns1  CNI_NETNS=/var/run/netns/ns1  CNI_IFNAME=eth10  CNI_STDIN=….
 CNI_COMMAND=ADD  CNI_CONTAINERID=ns1  CNI_NETNS=/var/run/netns/ns1  CNI_IFNAME=eth10  CNI_STDIN=…. Take the linux br...

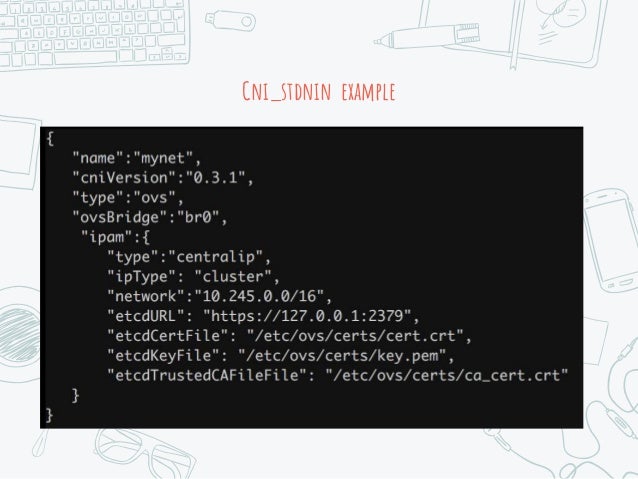

Cni_stdnin example
How k8s use cni
How Docker Works ✖ Create a kubernetes cluster ✖ Setup your CNI plugin ✖ Deploy your first POD
Just follow the installation to install the kubernetes
How do we install the CNI?

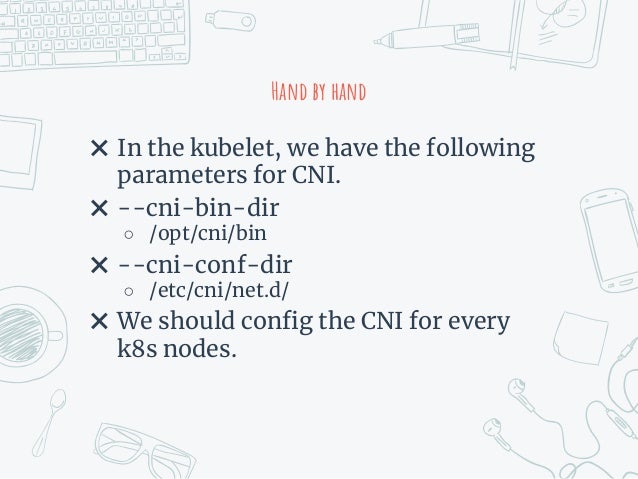

Hand by hand ✖ In the kubelet, we have the following parameters for CNI. ✖ --cni-bin-dir ○ /opt/cni/bin ✖ --cni-conf-dir ○...

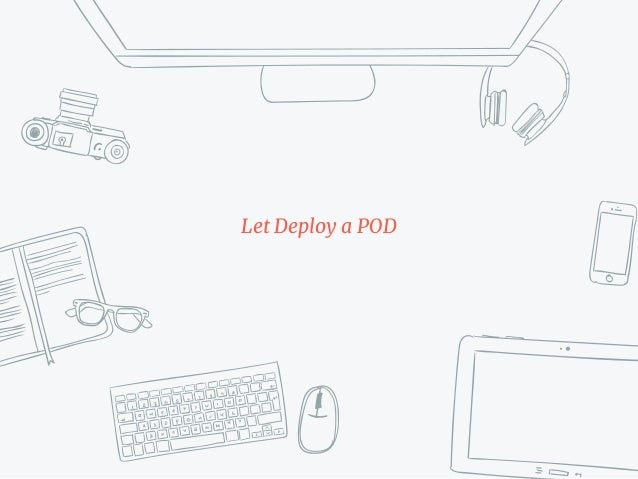

Let Deploy a POD

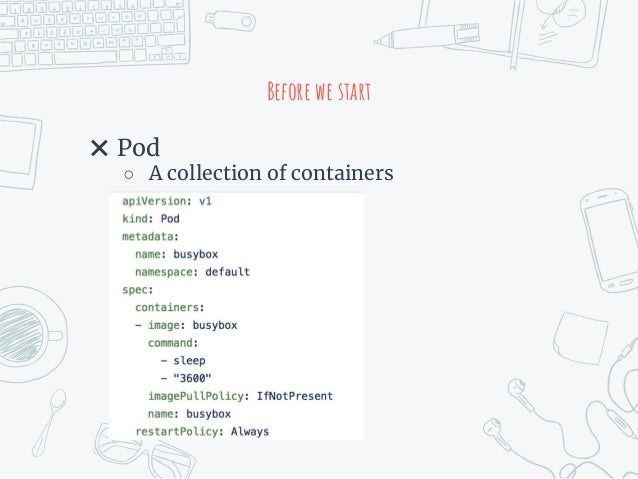

Before we start ✖ Pod ○ A collection of containers

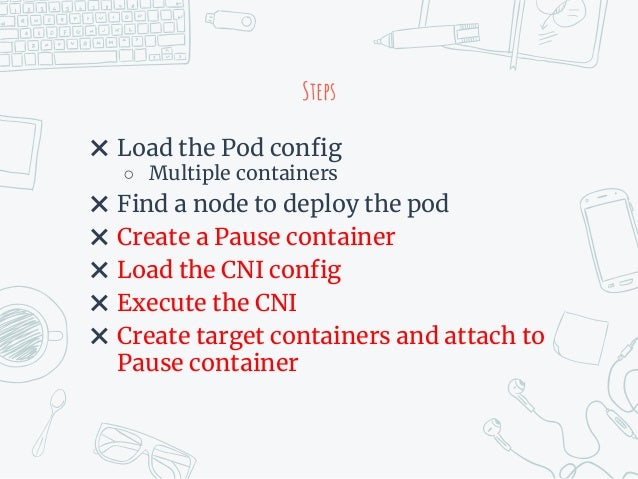

Steps ✖ Load the Pod config ○ Multiple containers ✖ Find a node to deploy the pod ✖ Create a Pause container ✖ Load the CN...

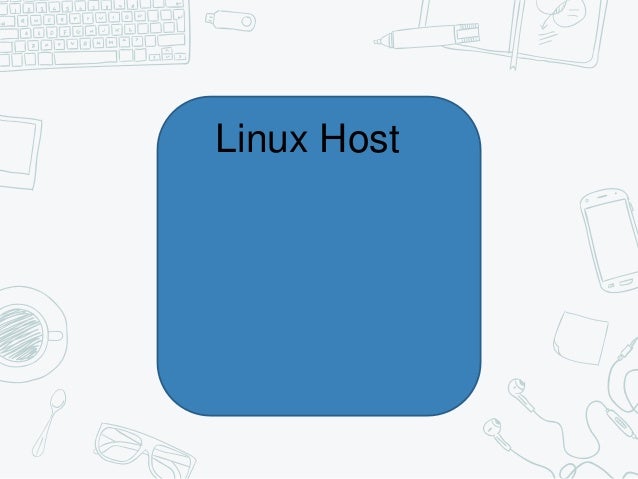

Linux Host
Linux Host Pause Container

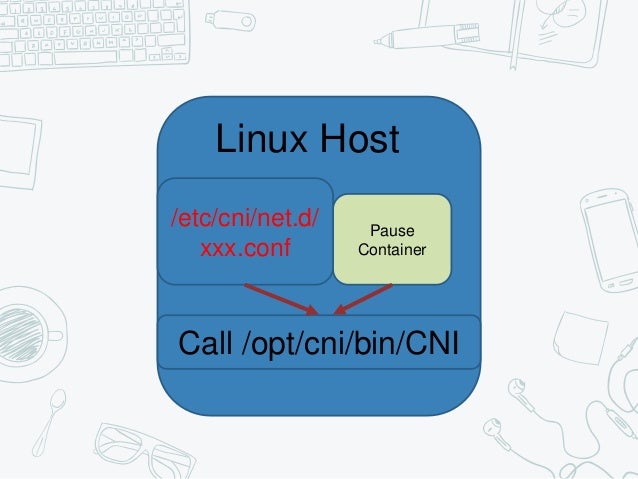

Linux Host Pause Container Call /opt/cni/bin/CNI /etc/cni/net.d/ xxx.conf

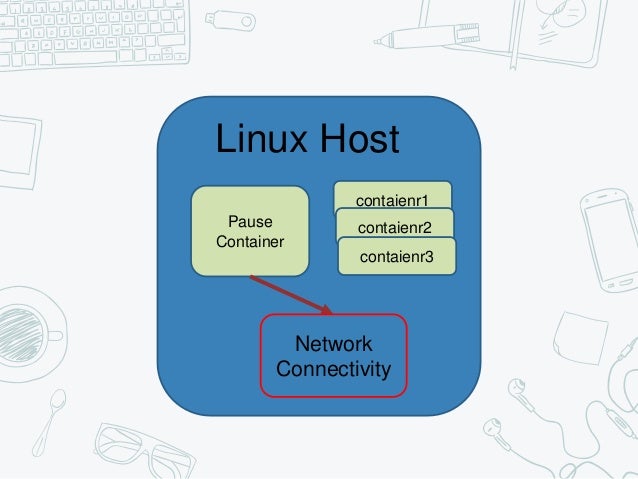

Linux Host Pause Container Network Connectivity
Linux Host Pause Container Network Connectivity contaienr1 contaienr2 contaienr3
Linux Host Pause Container Network Connectivity contaienr1 contaienr2 contaienr3

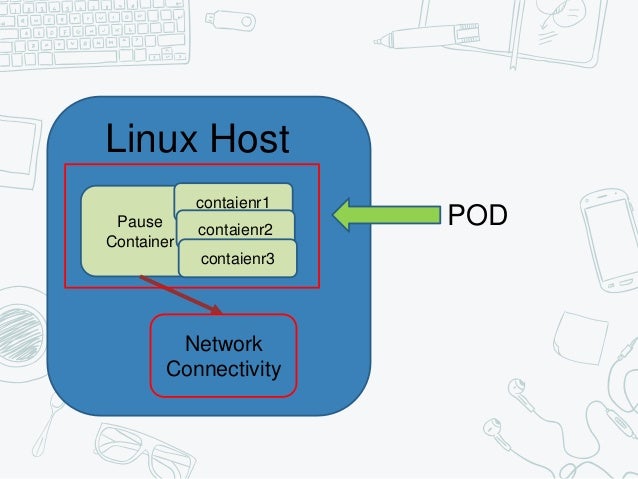

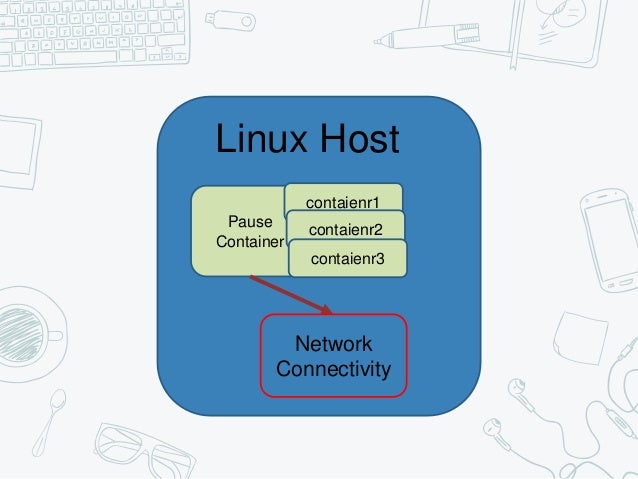

Linux Host Pause Container Network Connectivity contaienr1 contaienr2 contaienr3 POD

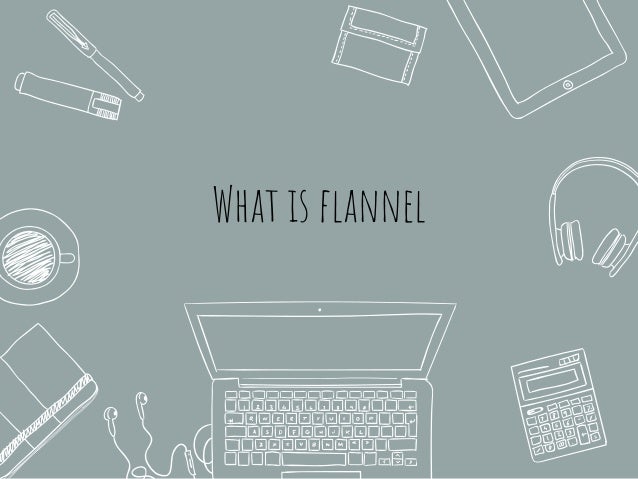

What is flannel

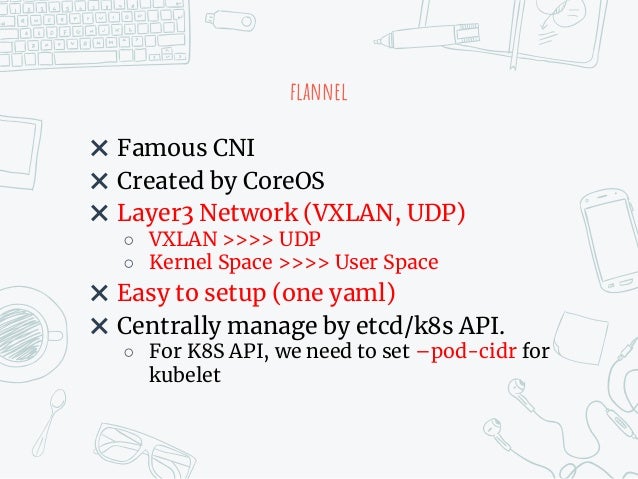

flannel ✖ Famous CNI ✖ Created by CoreOS ✖ Layer3 Network (VXLAN, UDP) ○ VXLAN >>>> UDP ○ Kernel Space >>>> User Space ✖ E...

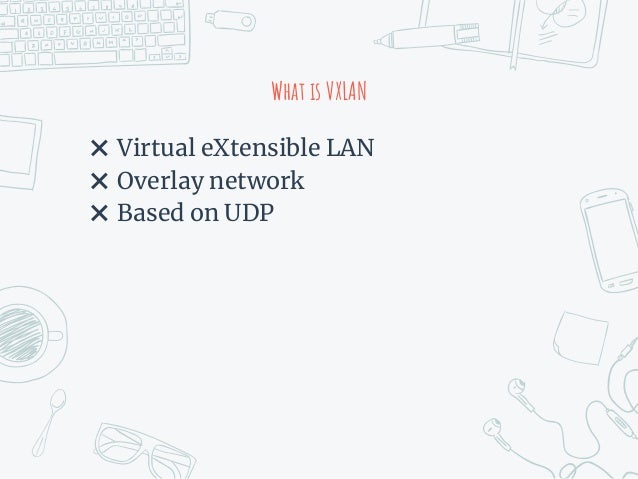

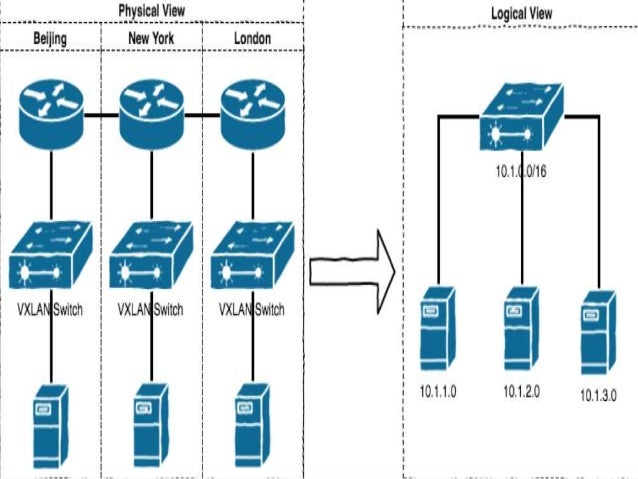

What is VXLAN ✖ Virtual eXtensible LAN ✖ Overlay network ✖ Based on UDP

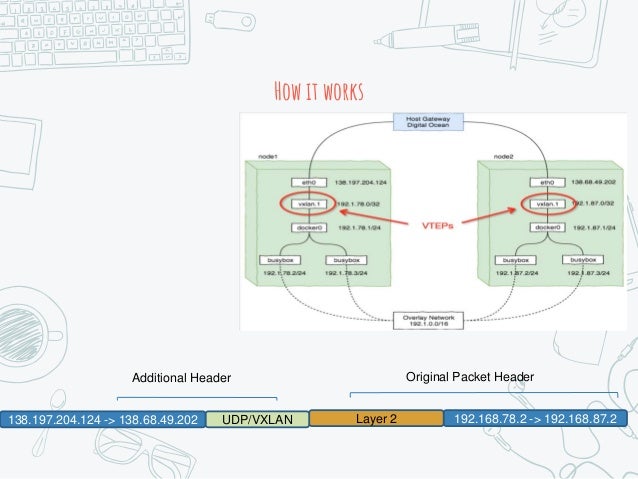

How it works 192.168.78.2 -> 192.168.87.2Layer 2UDP/VXLAN138.197.204.124 -> 138.68.49.202 Original Packet HeaderAdditional...

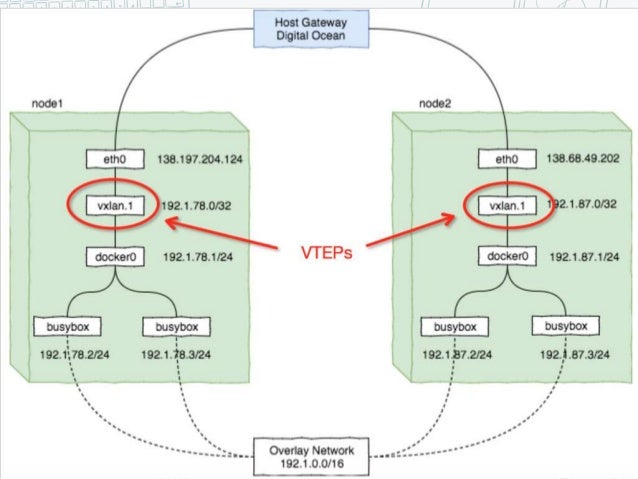

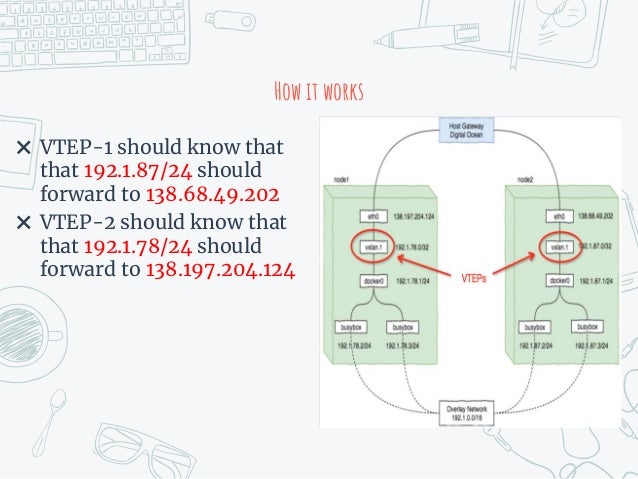

✖ VTEP-1 should know that that 192.1.87/24 should forward to 138.68.49.202 ✖ VTEP-2 should know that that 192.1.78/24 shou...
How vetps knows that ✖ Multicast ✖ L3 Routing ○ BGP ✖ Unicast (Flannel) ○ Event-Driven ■ Listen netlink event ○ Static Set...

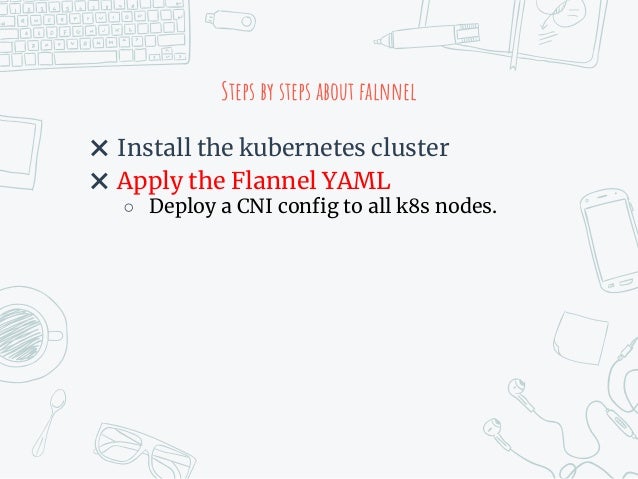

Steps by steps about falnnel ✖ Install the kubernetes cluster ✖ Apply the Flannel YAML ○ Deploy a CNI config to all k8s no...
Before we start ✖ Config Map ○ A global config in whole k8s cluster ✖ DaemonSet ○ A container running on all nodes.

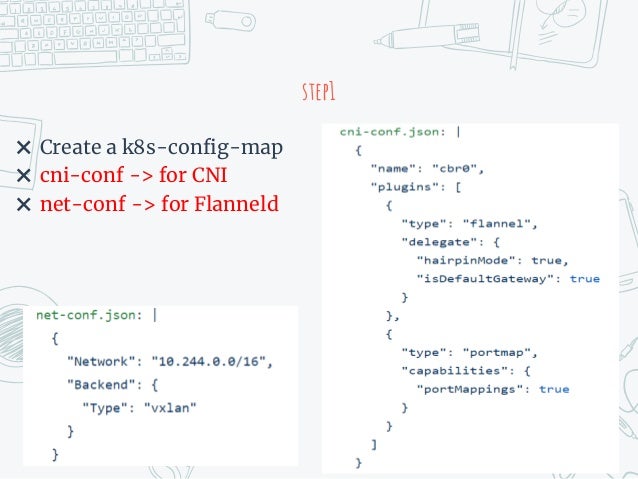

✖ Create a k8s-config-map ✖ cni-conf -> for CNI ✖ net-conf -> for Flanneld step1

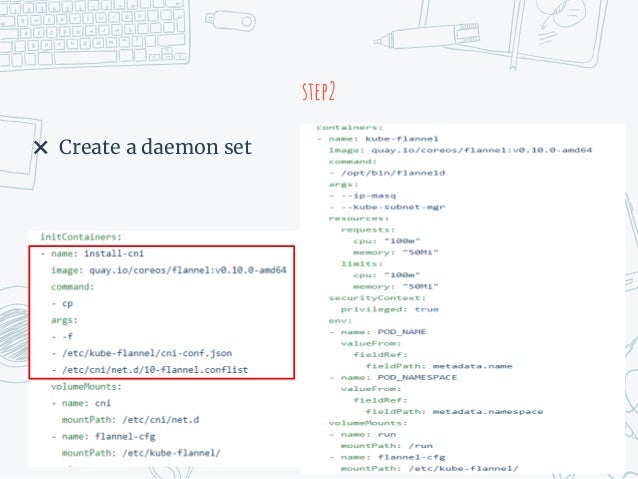

step2 ✖ Create a daemon set

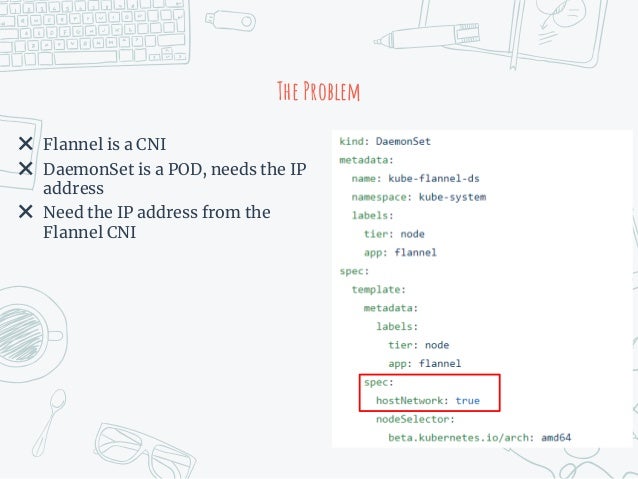

The Problem ✖ Flannel is a CNI ✖ DaemonSet is a POD, needs the IP address ✖ Need the IP address from the Flannel CNI

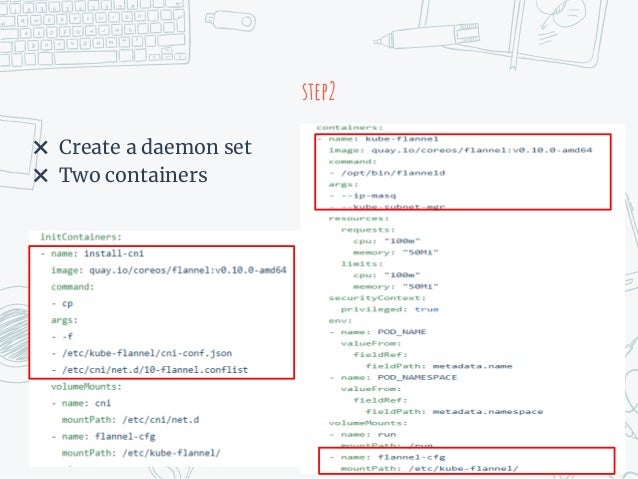

step2 ✖ Create a daemon set ✖ Two containers

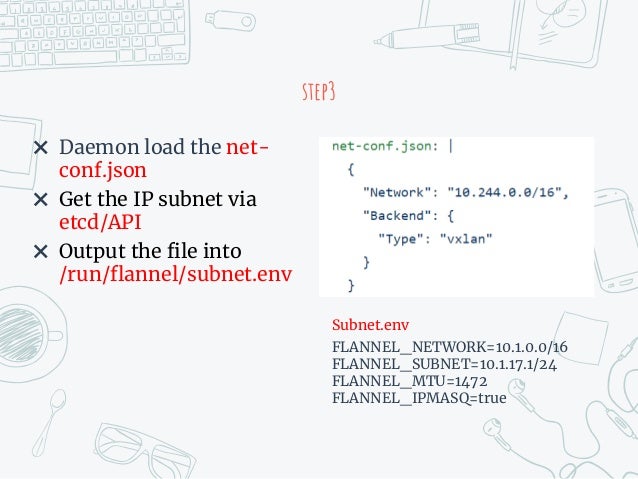

step3 ✖ Daemon load the net- conf.json ✖ Get the IP subnet via etcd/API ✖ Output the file into /run/flannel/subnet.env Sub...
step4 ✖ Fetch the vxlan infor from etcd/API ✖ Create an VXLAN interface ✖ Set the VXLAN routing rules

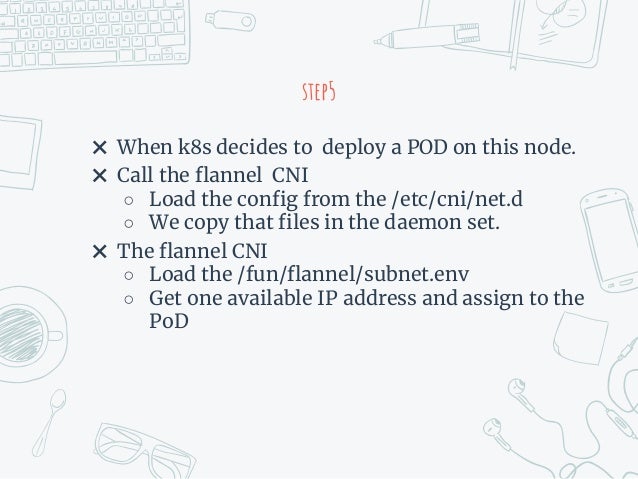

step5 ✖ When k8s decides to deploy a POD on this node. ✖ Call the flannel CNI ○ Load the config from the /etc/cni/net.d ○ ...
Summary Node 1 Node 2 Node 3 Network 172.16.2.2 172.16.2.3 172.16.2.4 Kubernetes Cluster
Summary Node 1 Node 2 Node 3 Network 172.16.2.2 172.16.2.3 172.16.2.4 Kubernetes Cluster ConfigMap: Cni.conf Net.con
Summary Node 1 Node 2 Node 3 Network 172.16.2.2 172.16.2.3 172.16.2.4 Kubernetes Cluster ConfigMap: Cni.conf Net.con Flann...
Summary Node 1 Node 2 Node 3 Network 172.16.2.2 172.16.2.3 172.16.2.4 Kubernetes Cluster ConfigMap: Cni.conf Net.con Flann...
Summary Node 1 Node 2 Node 3 Network 172.16.2.2 172.16.2.3 172.16.2.4 Kubernetes Cluster ConfigMap: Cni.conf Net.con Flann...
Summary ✖ CNI ○ Avoid Duplicatin ✖ K8S ○ Pause Container ○ Other use –net=` pause containerID` to attach ✖ Flannel ○ VXLAN...
Thanks! Any questions?
Introduction to CNI (Container Network Interface)
Introduction to CNI (Container Network Interface)
Introduction to CNI (Container Network Interface)
Introduction to CNI (Container Network Interface)
Introduction to CNI (Container Network Interface)
Introduction to CNI (Container Network Interface)
Introduction to CNI (Container Network Interface)
