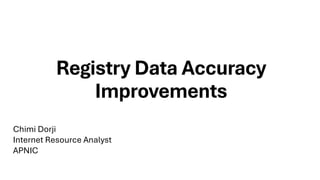

Registry Data Accuracy Improvements Chimi Dorji Internet Resource Analyst APNIC
Why is registry data accuracy important?

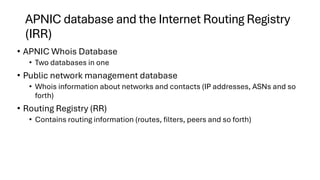

APNIC database and the Internet Routing Registry (IRR) • APNIC Whois Database • Two databases in one • Public network management database • Whois information about networks and contacts (IP addresses, ASNs and so forth) • Routing Registry (RR) • Contains routing information (routes, filters, peers and so forth)

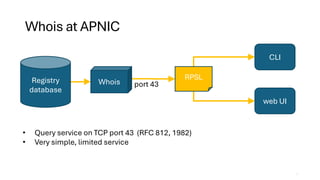

CLI web UI RPSL Whois at APNIC 4 Whois port 43 Registry database • Query service on TCP port 43 (RFC 812, 1982) • Very simple, limited service

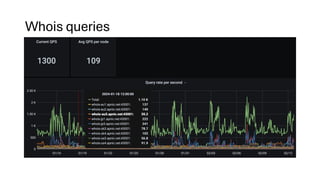

Whois queries

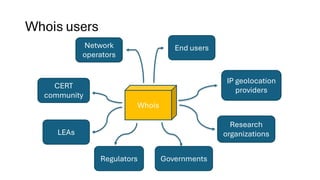

Whois users Whois Network operators CERT community LEAs Governments Research organizations End users Regulators IP geolocation providers

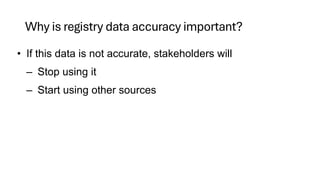

Why is registry data accuracy important? • If this data is not accurate, stakeholders will – Stop using it – Start using other sources
Historical resources • Pre-RIR delegations • Resources distributed by InterNIC, AUNIC, and so forth • No formal agreement with APNIC • Not managed under policy framework www.apnic.net/historical-about

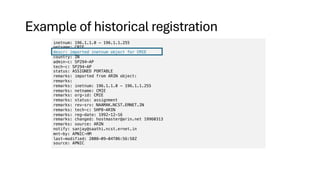

Example of historical registration inetnum: 196.1.1.0 - 196.1.1.255 netname: CMIE descr: imported inetnum object for CMIE country: IN admin-c: SP294-AP tech-c: SP294-AP status: ASSIGNED PORTABLE remarks: imported from ARIN object: remarks: remarks: inetnum: 196.1.1.0 - 196.1.1.255 remarks: netname: CMIE remarks: org-id: CMIE remarks: status: assignment remarks: rev-srv: NAAMAK.NCST.ERNET.IN remarks: tech-c: SHP8-ARIN remarks: reg-date: 1992-12-16 remarks: changed: hostmaster@arin.net 19960313 remarks: source: ARIN notify: sanjay@saathi.ncst.ernet.in mnt-by: APNIC-HM last-modified: 2008-09-04T06:56:58Z source: APNIC
Example of historical registration admin-c: SP294-AP tech-c: SP294-AP status: ASSIGNED PORTABLE remarks: ---------- remarks: imported from ARIN object: remarks: remarks: inetnum: 196.1.1.0 - 196.1.1.255 remarks: netname: CMIE remarks: org-id: CMIE remarks: status: assignment remarks: rev-srv: NAAMAK.NCST.ERNET.IN remarks: tech-c: SHP8-ARIN remarks: reg-date: 1992-12-16 remarks: changed: hostmaster@arin.net 19960313 remarks: source: ARIN remarks: remarks: ---------- notify: sanjay@saathi.ncst.ernet.in mnt-by: APNIC-HM last-modified: 2008-09-04T06:56:58Z source: APNIC address: National Centre for Software Technology Gulmohar Cross Road No. 9 J.V.P.D, Bombay - 4000049 country: IN phone: +91-22-6201606 e-mail: sanjay@saathi.ncst.ernet.in

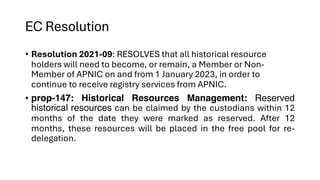

EC Resolution • Resolution 2021-09: RESOLVES that all historical resource holders will need to become, or remain, a Member or Non- Member of APNIC on and from 1 January 2023, in order to continue to receive registry services from APNIC. • prop-147: Historical Resources Management: Reserved historical resources can be claimed by the custodians within 12 months of the date they were marked as reserved. After 12 months, these resources will be placed in the free pool for re- delegation.

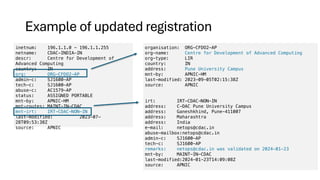

Example of updated registration inetnum: 196.1.1.0 - 196.1.1.255 netname: CDAC-INDIA-IN descr: Centre for Development of Advanced Computing country: IN org: ORG-CFDO2-AP admin-c: SJ1600-AP tech-c: SJ1600-AP abuse-c: AC1579-AP status: ASSIGNED PORTABLE mnt-by: APNIC-HM mnt-routes: MAINT-IN-CDAC mnt-irt: IRT-CDAC-NON-IN last-modified: 2023-07- 28T09:53:38Z source: APNIC organisation: ORG-CFDO2-AP org-name: Centre for Development of Advanced Computing org-type: LIR country: IN address: Pune University Campus mnt-by: APNIC-HM last-modified: 2023-09-05T02:15:38Z source: APNIC irt: IRT-CDAC-NON-IN address: C-DAC Pune University Campus address: Ganeshkhind, Pune-411007 address: Maharashtra address: India e-mail: netops@cdac.in abuse-mailbox:netops@cdac.in admin-c: SJ1600-AP tech-c: SJ1600-AP remarks: netops@cdac.in was validated on 2024-01-23 mnt-by: MAINT-IN-CDAC last-modified:2024-01-23T14:09:08Z source: APNIC
Project outcome • Total number of cases: 3,303 (7,342,080 IPs) • Total retained by custodians: 4,827,904 IPs • South Asian custodians: 10,752 IPs • Total reserved and to be recycled: 2,406,400 IPs • South Asian custodians: 6,912 IPs IPs

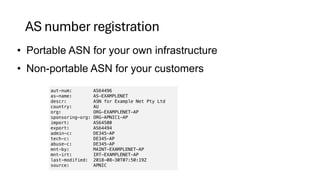

AS number registration • Portable ASN for your own infrastructure • Non-portable ASN for your customers aut-num: AS64496 as-name: AS-EXAMPLENET descr: ASN for Example Net Pty Ltd country: AU org: ORG-EXAMPLENET-AP sponsoring-org: ORG-APNIC1-AP import: AS64500 export: AS64494 admin-c: DE345-AP tech-c: DE345-AP abuse-c: DE345-AP mnt-by: MAINT-EXAMPLENET-AP mnt-irt: IRT-EXAMPLENET-AP last-modified: 2018-08-30T07:50:19Z source: APNIC

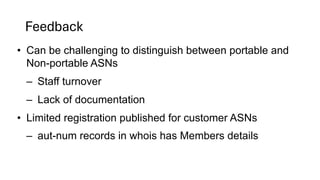

Feedback • Can be challenging to distinguish between portable and Non-portable ASNs – Staff turnover – Lack of documentation • Limited registration published for customer ASNs – aut-num records in whois has Members details

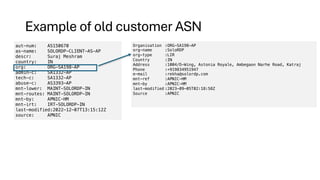

Example of old customer ASN aut-num: AS150670 as-name: SOLORDP-CLIENT-AS-AP descr: Suraj Meshram country: IN org: ORG-SA198-AP admin-c: SA1332-AP tech-c: SA1332-AP abuse-c: AS3393-AP mnt-lower: MAINT-SOLORDP-IN mnt-routes: MAINT-SOLORDP-IN mnt-by: APNIC-HM mnt-irt: IRT-SOLORDP-IN last-modified:2022-12-07T13:15:12Z source: APNIC Organisation :ORG-SA198-AP org-name :SoloRDP org-type :LIR Country :IN Address :1004/D-Wing, Astonia Royale, Ambegaon Narhe Road, Katraj Phone :+919834951947 e-mail :rekha@solordp.com mnt-ref :APNIC-HM mnt-by :APNIC-HM last-modified :2023-09-05T02:18:58Z Source :APNIC

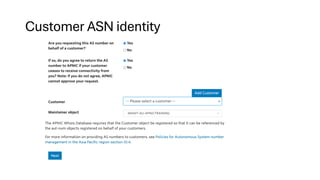

Customer ASN identity

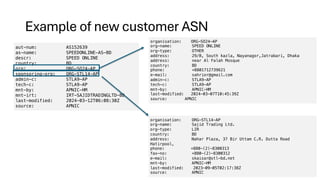

Example of new customer ASN aut-num: AS152639 as-name: SPEEDONLINE-AS-BD descr: SPEED ONLINE country: BD org: ORG-SO24-AP sponsoring-org: ORG-STL14-AP admin-c: STLA9-AP tech-c: STLA9-AP mnt-by: APNIC-HM mnt-irt: IRT-SAJIDTRADINGLTD-BD last-modified: 2024-03-12T06:08:30Z source: APNIC organisation: ORG-SO24-AP org-name: SPEED ONLINE org-type: OTHER address: 29/B, South kazla, Nayanagor,Jatrabari, Dhaka address: near Al Falah Mosque country: BD phone: +8801712739621 e-mail: sahrior@gmail.com admin-c: STLA9-AP tech-c: STLA9-AP mnt-by: APNIC-HM last-modified: 2024-03-07T10:45:39Z source: APNIC organisation: ORG-STL14-AP org-name: Sajid Trading Ltd. org-type: LIR country: BD address: Nahar Plaza, 37 Bir Uttam C.R. Dutta Road Hatirpool, phone: +880-(2)-8300313 fax-no: +880-(2)-8300312 e-mail: skaisar@stl-bd.net mnt-by: APNIC-HM last-modified: 2023-09-05T02:17:38Z source: APNIC

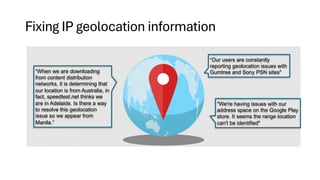

Fixing IP geolocation information “When we are downloading from content distribution networks, it is determining that our location is from Australia, in fact, speedtest.net thinks we are in Adelaide. Is there a way to resolve this geolocation issue so we appear from Manila.” “Our users are constantly reporting geolocation issues with Gumtree and Sony PSN sites" "We're having issues with our address space on the Google Play store. It seems the range location can't be identified"

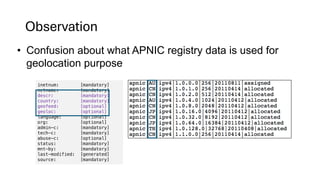

Observation • Confusion about what APNIC registry data is used for geolocation purpose inetnum: [mandatory] netname: [mandatory] descr: [mandatory] country: [mandatory] geofeed: [optional] geoloc: [optional] language: [optional] org: [optional] admin-c: [mandatory] tech-c: [mandatory] abuse-c: [optional] status: [mandatory] mnt-by: [mandatory] last-modified: [generated] source: [mandatory]

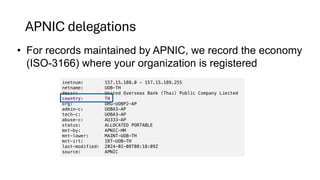

APNIC delegations • For records maintained by APNIC, we record the economy (ISO-3166) where your organization is registered inetnum: 157.15.188.0 - 157.15.189.255 netname: UOB-TH descr: United Overseas Bank (Thai) Public Company Limited country: TH org: ORG-UOBP2-AP admin-c: UOBA3-AP tech-c: UOBA3-AP abuse-c: AU333-AP status: ALLOCATED PORTABLE mnt-by: APNIC-HM mnt-lower: MAINT-UOB-TH mnt-irt: IRT-UOB-TH last-modified: 2024-02-08T08:18:09Z source: APNIC

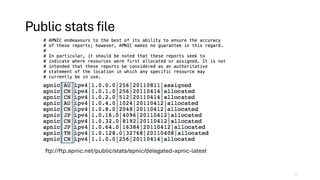

Public stats file 22 ftp://ftp.apnic.net/public/stats/apnic/delegated-apnic-latest

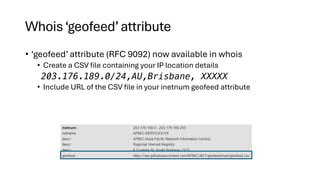

Whois‘geofeed’attribute • ‘geofeed’ attribute (RFC 9092) now available in whois • Create a CSV file containing your IP location details 203.176.189.0/24,AU,Brisbane, XXXXX • Include URL of the CSV file in your inetnum geofeed attribute

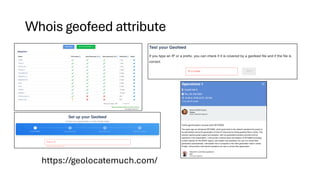

Whois geofeed attribute https://geolocatemuch.com/
Questions?
