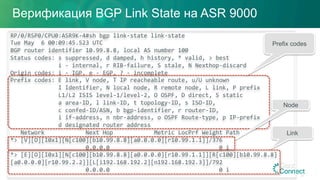

![RP/0/RSP0/CPU0:ASR9K-4#sh bgp link-state link-state
Tue May 6 00:09:45.523 UTC
BGP router identifier 10.99.8.8, local AS number 100
Status codes: s suppressed, d damped, h history, * valid, > best
i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
Prefix codes: E link, V node, T IP reacheable route, u/U unknown
I Identifier, N local node, R remote node, L link, P prefix
L1/L2 ISIS level-1/level-2, O OSPF, D direct, S static
a area-ID, l link-ID, t topology-ID, s ISO-ID,
c confed-ID/ASN, b bgp-identifier, r router-ID,
i if-address, n nbr-address, o OSPF Route-type, p IP-prefix
d designated router address
Network Next Hop Metric LocPrf Weight Path
*> [V][O][I0x1][N[c100][b10.99.8.8][a0.0.0.0][r10.99.1.1]]/376
0.0.0.0 0 i
*> [E][O][I0x1][N[c100][b10.99.8.8][a0.0.0.0][r10.99.1.1]][R[c100][b10.99.8.8]
[a0.0.0.0][r10.99.2.2]][L[i192.168.192.2][n192.168.192.3]]/792
0.0.0.0 0 i
Prefix codes
Node
Link
21
Верификация BGP Link State на ASR 9000](https://image.slidesharecdn.com/10-151127142742-lva1-app6892/85/ASR-9000-SDN-21-320.jpg)
![PCE Add-LSP (OpenDaylight) пример
REST URL: http://localhost:8080/restconf/operations/network-topology-pcep:add-lsp
Method: POST Content-Type:application/xml
<input>
<node>pcc://10.99.8.8</node>
<name>test-tunnel</name>
<arguments>
<endpoints-obj><ipv4>
<source-ipv4-address>10.99.8.8</source-ipv4-address>
<destination-ipv4-address>10.99.6.6</destination-ipv4-address>
</ipv4></endpoints-obj>
</arguments>
<network-topology-ref xmlns:topo="urn:TBD:params:xml:ns:yang:network-topology">/
topo:network-topology/topo:topology[topo:topology-id="pcep-topology"]</network-
topology-ref>
</input>
PCC
Source
Destination
30](https://image.slidesharecdn.com/10-151127142742-lva1-app6892/85/ASR-9000-SDN-30-320.jpg)

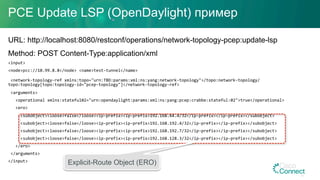

![PCE Update LSP (OpenDaylight) пример
URL: http://localhost:8080/restconf/operations/network-topology-pcep:update-lsp
Method: POST Content-Type:application/xml
<input>
<node>pcc://10.99.8.8</node> <name>test-tunnel</name>
<network-topology-ref xmlns:topo="urn:TBD:params:xml:ns:yang:network-topology">/topo:network-topology/
topo:topology[topo:topology-id="pcep-topology"]</network-topology-ref>
<arguments>
<operational xmlns:stateful02="urn:opendaylight:params:xml:ns:yang:pcep:crabbe:stateful:02">true</operational>
<ero>
<subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.64.4/32</ip-prefix></ip-prefix></subobject>
<subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.192.4/32</ip-prefix></ip-prefix></subobject>
<subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.192.7/32</ip-prefix></ip-prefix></subobject>
<subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.128.3/32</ip-prefix></ip-prefix></subobject>
</ero>
</arguments>
</input>
Explicit-Route Object (ERO)
31](https://image.slidesharecdn.com/10-151127142742-lva1-app6892/85/ASR-9000-SDN-31-320.jpg)

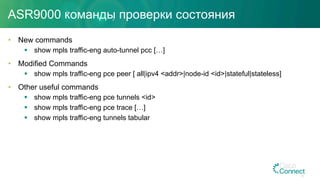

![ASR9000 команды проверки состояния
• New commands
§ show mpls traffic-eng auto-tunnel pcc […]
• Modified Commands
§ show mpls traffic-eng pce peer [ all|ipv4 <addr>|node-id <id>|stateful|stateless]
• Other useful commands
§ show mpls traffic-eng pce tunnels <id>
§ show mpls traffic-eng pce trace […]
§ show mpls traffic-eng tunnels tabular
33](https://image.slidesharecdn.com/10-151127142742-lva1-app6892/85/ASR-9000-SDN-33-320.jpg)

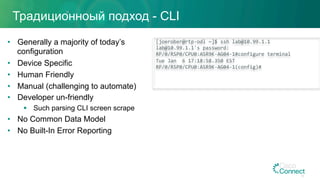

![Традиционноый подход - CLI
• Generally a majority of today’s
configuration
• Device Specific
• Human Friendly
• Manual (challenging to automate)
• Developer un-friendly
§ Such parsing CLI screen scrape
• No Common Data Model
• No Built-In Error Reporting
[joerober@rtp-odl ~]$ ssh lab@10.99.1.1
lab@10.99.1.1's password:
RP/0/RSP0/CPU0:ASR9K-AG04-1#configure terminal
Tue Jan 6 17:18:58.350 EST
RP/0/RSP0/CPU0:ASR9K-AG04-1(config)#
39](https://image.slidesharecdn.com/10-151127142742-lva1-app6892/85/ASR-9000-SDN-39-320.jpg)
Uploaded byCisco Russia
ASR-9000 в качестве платформы внедрения SDN в сетях операторов связи
The document discusses using the Cisco ASR-9000 router as a platform for implementing SDN in telecommunications network operators' networks. It describes several SDN technologies that can be used on the ASR-9000 including BGP Link State Protocol (BGP-LS), Stateful Path Computation Element Protocol (PCEP), NETCONF/YANG, and concludes by stating the ASR-9000 supports various SDN technologies and interfaces.
More Related Content
Similar to ASR-9000 в качестве платформы внедрения SDN в сетях операторов связи
ASR-9000 в качестве платформы внедрения SDN в сетях операторов связи
- 1. ASR-9000 в качествеплатформы внедрения SDN в сетях операторов связи Илгар Гасымов (igasymov@cisco.com) Системный архитектор Департамент операторов связи 23.11.15 © 2015 Cisco and/or its affiliates. All rights reserved.

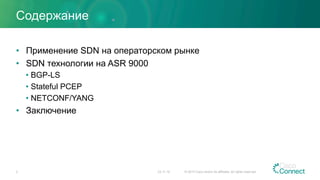

- 2. Содержание • Применение SDNна операторском рынке • SDN технологии на ASR 9000 • BGP-LS • Stateful PCEP • NETCONF/YANG • Заключение 23.11.15 © 2015 Cisco and/or its affiliates. All rights reserved.2
- 3. Применение SDN наоператорском рынке 23.11.15 © 2015 Cisco and/or its affiliates. All rights reserved.3
- 4. Cloud Data Centre Consumer DPICGN WWW FW CDN IPS Virtual Private Cloud Enterprise NfV Services CPE DPI WAAS FW NAM IPS SP IP/MPLS Network SP DC Fabric Guaranteed Network SLA Cloud SLA Service Chaining NSO / VTS / Elastic Service Controller Cisco WAE 4 CPE CPE PE DCI vCPE SDN – Сквозное управление услугой Централизованный контроль ресурсов и обеспечение SLA

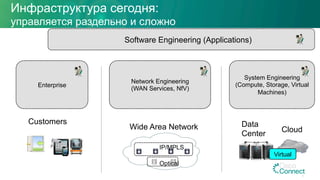

- 5. Инфраструктура сегодня: управляется раздельнои сложно Data Center Customers Wide Area Network Cloud Optical IP/MPLS Software Engineering (Applications) System Engineering (Compute, Storage, Virtual Machines) Network Engineering (WAN Services, NfV) Enterprise Virtual 5

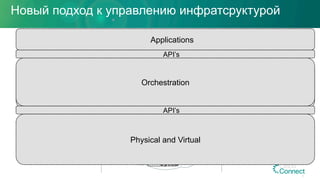

- 6. Новый подход куправлению инфратсруктурой Data Center Customers Wide Area Network Cloud Optical IP/MPLS Software Engineering (Applications) System Engineering (Compute, Storage, Virtual Machines) Network Engineering (WAN Services, NfV) Enterprise Virtual Physical and Virtual API’s Orchestration API’s Applications 6

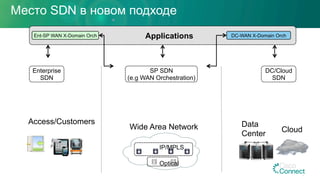

- 7. Место SDN вновом подходе Data Center Access/Customers Wide Area Network Cloud Optical IP/MPLS DC/Cloud SDN Enterprise SDN Applications DC-WAN X-Domain OrchEnt-SP WAN X-Domain Orch SP SDN (e.g WAN Orchestration) 7
- 8. Data Center Access/Customers Wide AreaNetwork Cloud Optical IP/MPLS DC/Cloud SDN Enterprise SDN Applications DC-WAN X-Domain OrchEnt-SP WAN X-Domain Orch SP SDN (e.g WAN Orchestration) 8 APIC EM APIC DC Место SDN в новом подходе
- 9. SDN: Большой выборплатформ 9 “Купить” “Разработать” Tail-F NCS Оркестрация NETCONF PCEP BGP-LS NETFLOW SNMP CLI Множество опций управления Физическими и Виртуальными устройствами
- 10.

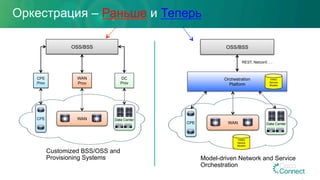

- 11. Оркестрация – Раньшеи Теперь OSS/BSS WANCPE Data Center CPE Prov WAN Prov DC Prov OSS/BSS WANCPE Data Center Orchestration Platform YANG Service Models YANG Device Models REST, Netconf, … Customized BSS/OSS and Provisioning Systems Model-driven Network and Service Orchestration
- 12. SDN технологии наASR 9000 23.11.15 © 2015 Cisco and/or its affiliates. All rights reserved.12
- 13. ASR 9001 ASR9904ASR 9006 ASR 9010 ASR9912 ASR 9922 Размер 2RU 6RU 10RU 21RU 30RU 44RU Кол-во I/O слотов 2 MPAs 2 4 8 10 20 Вентиляция Side to side Side to side Side to back Front to back Front to back Front to back Произв. / слот N/A 770G/385G 440G/220G 440G/220G 770G/660G 770G/660G Произв. шасси / слот 120Gbps 2Tbps 880Gbps 880Gbps 2Tbps 2Tbps Произв. всего шасси 120Gbps 8Gbps 3.5 Tbps 7.0 Tbps 20Tbps 40Tbps Cisco ASR 9000 Virtual XR DP IOS XRv 9000

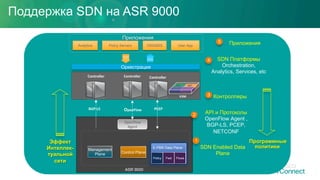

- 14. Поддержка SDN наASR 9000 Controller OpenFlow OpenFlow Agent Приложения Policy Servers OSS/BSS User AppAnalytics Оркестрация Control Plane Management Plane Controller Контроллеры3 Программные политики BGP-LS API и Протоколы OpenFlow Agent , BGP-LS, PCEP, NETCONF 2 SDN Enabled Data Plane 1 E-PBR Data Plane Policy Fwd Flows ASR 9000 SDN Платформы Orchestration, Analytics, Services, etc 4 VSM Эффект Интеллек- туальной сети Controller PCEP Приложения5
- 15. Различные инструменты длятестирования OpenDaylight (ODL) https://wiki.opendaylight.org/view/Getting_started http://www.opendaylight.org/software/downloads REST Client: Chrome: Postman REST Client Firefox: REST Client Wireshark: https://www.wireshark.org/ IOS XR 5.2.2 with physical routers and Virtual Internet Routing Lab (VIRL): virl.cisco.com For Your Reference 15
- 16. ASR-9000 BGP LinkState protocol 23.11.15 © 2015 Cisco and/or its affiliates. All rights reserved.16

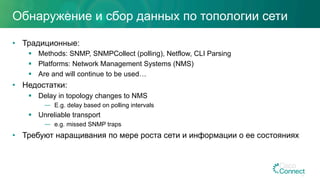

- 17. Обнаружение и сборданных по топологии сети • Традиционные: § Methods: SNMP, SNMPCollect (polling), Netflow, CLI Parsing § Platforms: Network Management Systems (NMS) § Are and will continue to be used… • Недостатки: § Delay in topology changes to NMS — E.g. delay based on polling intervals § Unreliable transport — e.g. missed SNMP traps • Требуют наращивания по мере роста сети и информации о ее состояниях 17

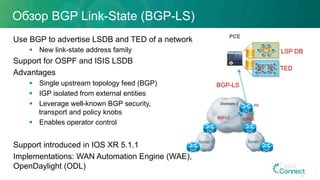

- 18. Обзор BGP Link-State(BGP-LS) Use BGP to advertise LSDB and TED of a network § New link-state address family Support for OSPF and ISIS LSDB Advantages § Single upstream topology feed (BGP) § IGP isolated from external entities § Leverage well-known BGP security, transport and policy knobs § Enables operator control Support introduced in IOS XR 5.1.1 Implementations: WAN Automation Engine (WAE), OpenDaylight (ODL) Domain 1 Domain 2 Domain 0 BGP-LS BGP-LS BGP-LS RR PCE TED LSP DB 18

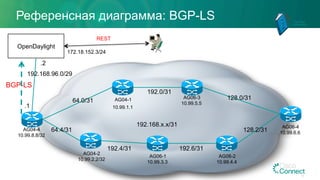

- 19. Референсная диаграмма: BGP-LS OpenDaylight 192.168.96.0/29 .1 .2 192.168.x.x/31 64.4/31 64.0/31 192.4/31192.6/31 128.2/31 128.0/31 192.0/31 AG04-4 10.99.8.8/32 AG04-2 10.99.2.2/32 AG06-3 10.99.5.5 AG06-1 10.99.3.3 AG06-2 10.99.4.4 AG06-4 10.99.6.6 AG04-1 10.99.1.1 172.18.152.3/24 For Your Reference BGP-LS REST 19

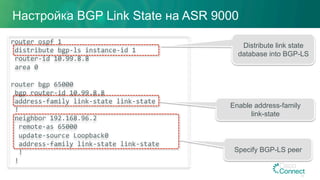

- 20. router ospf 1 distribute bgp-ls instance-id 1 router-id 10.99.8.8 area 0 router bgp 65000 bgp router-id 10.99.8.8 address-family link-state link-state ! neighbor 192.168.96.2 remote-as 65000 update-source Loopback0 address-family link-state link-state ! ! Настройка BGP LinkState на ASR 9000 20 Distribute link state database into BGP-LS Specify BGP-LS peer Enable address-family link-state
- 21.
- 22. BGP-LS Пример* TopologyVisualization 22 *Посетите DevNet чтобы скачать пример программы визуализации BGP-LS https://developer.cisco.com/site/devnetlabs/bgp/
- 23. ASR9000 Path ComputationElement protocol 23.11.15 © 2015 Cisco and/or its affiliates. All rights reserved.23

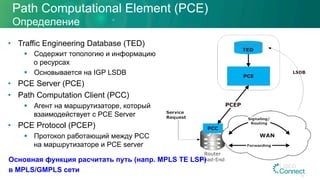

- 24. Path Computational Element(PCE) Определение • Traffic Engineering Database (TED) § Содержит топологию и информацию о ресурсах § Основывается на IGP LSDB • PCE Server (PCE) • Path Computation Client (PCC) § Агент на маршрутизаторе, который взаимодействует с PCE Server • PCE Protocol (PCEP) § Протокол работающий между PCC на маршрутизаторе и PCE server 24 Основная функция расчитать путь (напр. MPLS TE LSP) в MPLS/GMPLS сети
- 25. • Stateless • PCEне имеет информации о ранее построенных LSP • Stateful • Синхронизация PCC и PCE • PCC пересылает изменение состояний на PCE • PCC может делегировать упр-е LSP на PCE • PCE или PCC могут инициировать настройку LSP • PCC всегда отслеживает состояние LSP Stateless и Stateful PCE 25 PCEP Stateful PCE TED LSP DB PCC PCE-initiated LSP

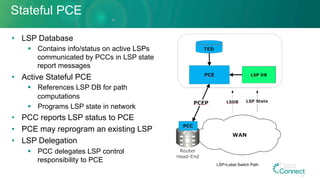

- 26. Stateful PCE • LSPDatabase § Contains info/status on active LSPs communicated by PCCs in LSP state report messages • Active Stateful PCE § References LSP DB for path computations § Programs LSP state in network • PCC reports LSP status to PCE • PCE may reprogram an existing LSP • LSP Delegation § PCC delegates LSP control responsibility to PCE LSP=Label Switch Path 26

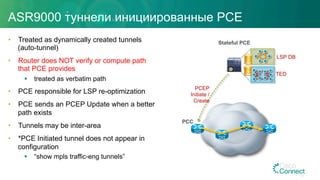

- 27. ASR9000 туннели инициированныеPCE • Treated as dynamically created tunnels (auto-tunnel) • Router does NOT verify or compute path that PCE provides § treated as verbatim path • PCE responsible for LSP re-optimization • PCE sends an PCEP Update when a better path exists • Tunnels may be inter-area • *PCE Initiated tunnel does not appear in configuration § “show mpls traffic-eng tunnels” PCEP Initiate / Create Stateful PCE TED LSP DB PCC 27

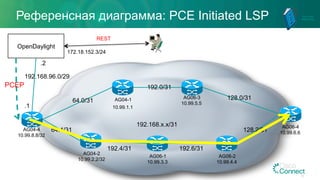

- 28. Референсная диаграмма: PCEInitiated LSP OpenDaylight 192.168.96.0/29 .1 .2 192.168.x.x/31 64.4/31 64.0/31 192.4/31 192.6/31 128.2/31 128.0/31 192.0/31 AG04-4 10.99.8.8/32 AG04-2 10.99.2.2/32 AG06-3 10.99.5.5 AG06-1 10.99.3.3 AG06-2 10.99.4.4 AG06-4 10.99.6.6 AG04-1 10.99.1.1 172.18.152.3/24 For Your Reference PCEP REST 28
- 29. Настройка PCC наASR 9000 hostname ASR9K-AG04-4 ! ipv4 unnumbered mpls traffic-eng Loopback0 ! mpls traffic-eng pce peer ipv4 192.168.96.2 stateful-client instantiation delegation ! auto-tunnel pcc tunnel-id min 7000 max 9999 ! Allow PCE-initiated LSP User defined tunnel number range. Required for auto-tunnel PCE server 29 Delegate statically configured tunnels
- 30. PCE Add-LSP (OpenDaylight)пример REST URL: http://localhost:8080/restconf/operations/network-topology-pcep:add-lsp Method: POST Content-Type:application/xml <input> <node>pcc://10.99.8.8</node> <name>test-tunnel</name> <arguments> <endpoints-obj><ipv4> <source-ipv4-address>10.99.8.8</source-ipv4-address> <destination-ipv4-address>10.99.6.6</destination-ipv4-address> </ipv4></endpoints-obj> </arguments> <network-topology-ref xmlns:topo="urn:TBD:params:xml:ns:yang:network-topology">/ topo:network-topology/topo:topology[topo:topology-id="pcep-topology"]</network- topology-ref> </input> PCC Source Destination 30
- 31. PCE Update LSP(OpenDaylight) пример URL: http://localhost:8080/restconf/operations/network-topology-pcep:update-lsp Method: POST Content-Type:application/xml <input> <node>pcc://10.99.8.8</node> <name>test-tunnel</name> <network-topology-ref xmlns:topo="urn:TBD:params:xml:ns:yang:network-topology">/topo:network-topology/ topo:topology[topo:topology-id="pcep-topology"]</network-topology-ref> <arguments> <operational xmlns:stateful02="urn:opendaylight:params:xml:ns:yang:pcep:crabbe:stateful:02">true</operational> <ero> <subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.64.4/32</ip-prefix></ip-prefix></subobject> <subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.192.4/32</ip-prefix></ip-prefix></subobject> <subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.192.7/32</ip-prefix></ip-prefix></subobject> <subobject><loose>false</loose><ip-prefix><ip-prefix>192.168.128.3/32</ip-prefix></ip-prefix></subobject> </ero> </arguments> </input> Explicit-Route Object (ERO) 31

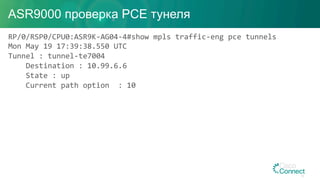

- 32. ASR9000 проверка PCEтунеля RP/0/RSP0/CPU0:ASR9K-AG04-4#show mpls traffic-eng pce tunnels Mon May 19 17:39:38.550 UTC Tunnel : tunnel-te7004 Destination : 10.99.6.6 State : up Current path option : 10 32
- 33. ASR9000 команды проверкисостояния • New commands § show mpls traffic-eng auto-tunnel pcc […] • Modified Commands § show mpls traffic-eng pce peer [ all|ipv4 <addr>|node-id <id>|stateful|stateless] • Other useful commands § show mpls traffic-eng pce tunnels <id> § show mpls traffic-eng pce trace […] § show mpls traffic-eng tunnels tabular 33

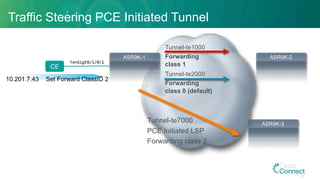

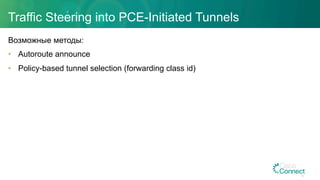

- 34. Traffic Steering intoPCE-Initiated Tunnels Возможные методы: • Autoroute announce • Policy-based tunnel selection (forwarding class id) 34

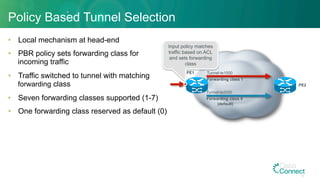

- 35. Policy Based TunnelSelection • Local mechanism at head-end • PBR policy sets forwarding class for incoming traffic • Traffic switched to tunnel with matching forwarding class • Seven forwarding classes supported (1-7) • One forwarding class reserved as default (0) PE1 PE2 Tunnel-te1000 Forwarding class 1 Tunnel-te2000 Forwarding class 0 (default) Input policy matches traffic based on ACL and sets forwarding class 35
- 36. Traffic Steering PCEInitiated Tunnel Tunnel-te1000 Forwarding class 1 Tunnel-te2000 Forwarding class 0 (default) Tunnel-te7000 PCE Initiated LSP Forwarding class 2 ASR9K-1 CE TenGigE0/1/0/1 10.201.7.43 ASR9K-2 ASR9K-3 Set Forward ClassID 2 36
- 37. Orchestra?on RESTful APIs PCEP Programming Пример: PCE InitiatedLSP WAN R1 R2 R3 Data Center #1 Data Center #2 4 3 Service Request 1 Analytic to determine LSP 2 PCCreate LSP 3 Traffic steering onto LSP 6 10.201.7.43 2 6 TE LSP Signaling 4 Delegate & LSP State Report 5 5
- 38. ASR9000 NetConf YANG 23.11.15© 2015 Cisco and/or its affiliates. All rights reserved.38
- 39. Традиционноый подход -CLI • Generally a majority of today’s configuration • Device Specific • Human Friendly • Manual (challenging to automate) • Developer un-friendly § Such parsing CLI screen scrape • No Common Data Model • No Built-In Error Reporting [joerober@rtp-odl ~]$ ssh lab@10.99.1.1 lab@10.99.1.1's password: RP/0/RSP0/CPU0:ASR9K-AG04-1#configure terminal Tue Jan 6 17:18:58.350 EST RP/0/RSP0/CPU0:ASR9K-AG04-1(config)# 39

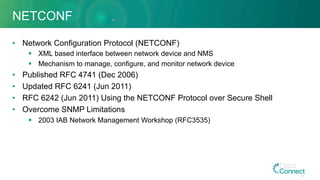

- 40. NETCONF • Network ConfigurationProtocol (NETCONF) § XML based interface between network device and NMS § Mechanism to manage, configure, and monitor network device • Published RFC 4741 (Dec 2006) • Updated RFC 6241 (Jun 2011) • RFC 6242 (Jun 2011) Using the NETCONF Protocol over Secure Shell • Overcome SNMP Limitations § 2003 IAB Network Management Workshop (RFC3535) 40

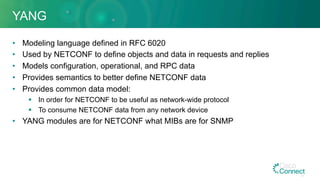

- 41. YANG • Modeling languagedefined in RFC 6020 • Used by NETCONF to define objects and data in requests and replies • Models configuration, operational, and RPC data • Provides semantics to better define NETCONF data • Provides common data model: § In order for NETCONF to be useful as network-wide protocol § To consume NETCONF data from any network device • YANG modules are for NETCONF what MIBs are for SNMP 41

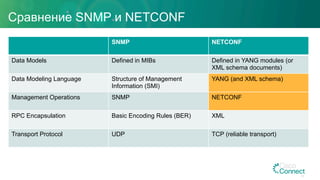

- 42. Сравнение SNMP иNETCONF SNMP NETCONF Data Models Defined in MIBs Defined in YANG modules (or XML schema documents) Data Modeling Language Structure of Management Information (SMI) YANG (and XML schema) Management Operations SNMP NETCONF RPC Encapsulation Basic Encoding Rules (BER) XML Transport Protocol UDP TCP (reliable transport) 42

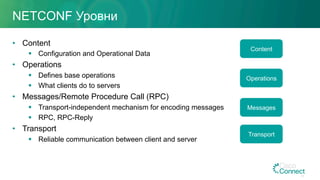

- 43. NETCONF Уровни • Content § Configuration and Operational Data • Operations § Defines base operations § What clients do to servers • Messages/Remote Procedure Call (RPC) § Transport-independent mechanism for encoding messages § RPC, RPC-Reply • Transport § Reliable communication between client and server Content Operations Messages Transport 43

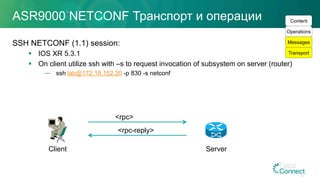

- 44. ASR9000 NETCONF Транспорти операции SSH NETCONF (1.1) session: § IOS XR 5.3.1 § On client utilize ssh with –s to request invocation of subsystem on server (router) — ssh lab@172.18.152.20 -p 830 -s netconf Transport Messages Operations Content Client Server <rpc> <rpc-reply> 44

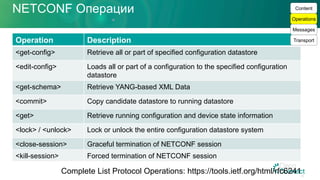

- 45. NETCONF Операции 45 Operation Description <get-config>Retrieve all or part of specified configuration datastore <edit-config> Loads all or part of a configuration to the specified configuration datastore <get-schema> Retrieve YANG-based XML Data <commit> Copy candidate datastore to running datastore <get> Retrieve running configuration and device state information <lock> / <unlock> Lock or unlock the entire configuration datastore system <close-session> Graceful termination of NETCONF session <kill-session> Forced termination of NETCONF session Complete List Protocol Operations: https://tools.ietf.org/html/rfc6241 Transport Messages Operations Content

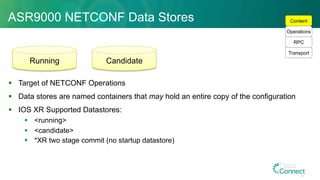

- 46. ASR9000 NETCONF DataStores § Target of NETCONF Operations § Data stores are named containers that may hold an entire copy of the configuration § IOS XR Supported Datastores: § <running> § <candidate> § *XR two stage commit (no startup datastore) Running Candidate Transport RPC Operations Content 46

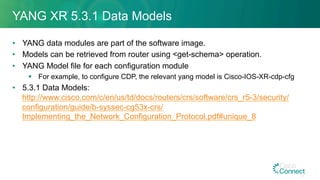

- 47. YANG XR 5.3.1Data Models • YANG data modules are part of the software image. • Models can be retrieved from router using <get-schema> operation. • YANG Model file for each configuration module § For example, to configure CDP, the relevant yang model is Cisco-IOS-XR-cdp-cfg • 5.3.1 Data Models: http://www.cisco.com/c/en/us/td/docs/routers/crs/software/crs_r5-3/security/ configuration/guide/b-syssec-cg53x-crs/ Implementing_the_Network_Configuration_Protocol.pdf#unique_8 47

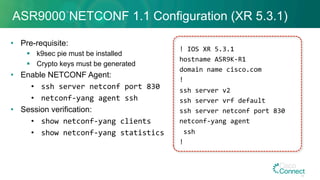

- 48. ASR9000 NETCONF 1.1Configuration (XR 5.3.1) • Pre-requisite: § k9sec pie must be installed § Crypto keys must be generated • Enable NETCONF Agent: • ssh server netconf port 830 • netconf-yang agent ssh • Session verification: • show netconf-yang clients • show netconf-yang statistics ! IOS XR 5.3.1 hostname ASR9K-R1 domain name cisco.com ! ssh server v2 ssh server vrf default ssh server netconf port 830 netconf-yang agent ssh ! 48

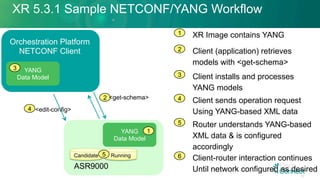

- 49. XR 5.3.1 SampleNETCONF/YANG Workflow 49 ASR9000 Orchestration Platform NETCONF Client 1 XR Image contains YANG 2 Client (application) retrieves models with <get-schema> 3 Client installs and processes YANG models YANG Data Model 1 YANG Data Model 3 4 Client sends operation request Using YANG-based XML data 5 Router understands YANG-based XML data & is configured accordingly 2 <get-schema> <edit-config>4 Candidate Running5 6 Client-router interaction continues Until network configured as desired

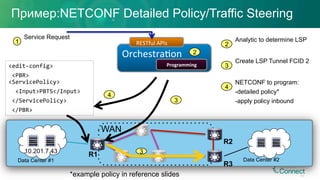

- 50. <edit-config> <PBR> <ServicePolicy> <Input>PBTS</Input> </ServicePolicy> </PBR> Orchestra?on RESTful APIs Programming Пример:NETCONF Detailed Policy/TrafficSteering WAN R1 R2 R3 Data Center #1 Data Center #2 3 3 Service Request 1 Analytic to determine LSP 2 Create LSP Tunnel FCID 2 3 NETCONF to program: -detailed policy* -apply policy inbound 4 10.201.7.43 2 4 *example policy in reference slides 50

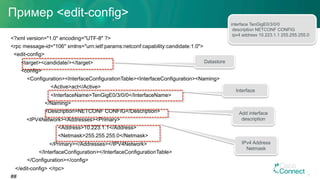

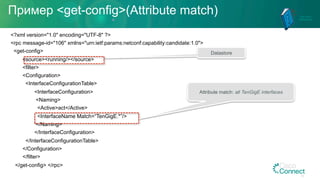

- 51. Пример <edit-config> <?xml version="1.0"encoding="UTF-8" ?> <rpc message-id="106" xmlns="urn:ietf:params:netconf:capability:candidate:1.0"> <edit-config> <target><candidate/></target> <config> <Configuration><InterfaceConfigurationTable><InterfaceConfiguration><Naming> <Active>act</Active> <InterfaceName>TenGigE0/3/0/0</InterfaceName> </Naming> <Description>NETCONF CONFIG</Description> <IPV4Network><Addresses><Primary> <Address>10.223.1.1</Address> <Netmask>255.255.255.0</Netmask> </Primary></Addresses></IPV4Network> </InterfaceConfiguration></InterfaceConfigurationTable> </Configuration></config> </edit-config> </rpc> ## Datastore Interface Add interface description IPv4 Address Netmask interface TenGigE0/3/0/0 description NETCONF CONFIG ipv4 address 10.223.1.1 255.255.255.0 51
- 52. Пример <get-config>(Attribute match) <?xmlversion="1.0" encoding="UTF-8" ?> <rpc message-id="106" xmlns="urn:ietf:params:netconf:capability:candidate:1.0"> <get-config> <source><running/></source> <filter> <Configuration> <InterfaceConfigurationTable> <InterfaceConfiguration> <Naming> <Active>act</Active> <InterfaceName Match=“TenGigE.*”/> </Naming> </InterfaceConfiguration> </InterfaceConfigurationTable> </Configuration> </filter> </get-config> </rpc> Attribute match: all TenGigE interfaces Datastore 52 For Your Reference
- 53. Заключение 23.11.15 © 2015Cisco and/or its affiliates. All rights reserved.53

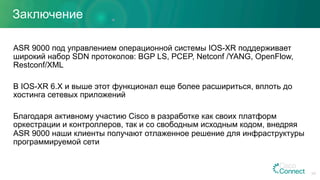

- 54. Заключение ASR 9000 подуправлением операционной системы IOS-XR поддерживает широкий набор SDN протоколов: BGP LS, PCEP, Netconf /YANG, OpenFlow, Restconf/XML В IOS-XR 6.X и выше этот функционал еще более расшириться, вплоть до хостинга сетевых приложений Благодаря активному участию Cisco в разработке как своих платформ оркестрации и контроллеров, так и со свободным исходным кодом, внедряя ASR 9000 наши клиенты получают отлаженное решение для инфраструктуры программируемой сети 54
- 55. CiscoRu Cisco CiscoRussia Ждемваших сообщений с хештегом #CiscoConnectRu CiscoRu Пожалуйста, заполните анкеты. Ваше мнение очень важно для нас! Спасибо! Илгар Гасымов (igasymov@cisco.com) Системный архитектор Департамент операторов связи © 2015 Cisco and/or its affiliates. All rights reserved.
