This document provides an introduction to PL/SQL, including PL/SQL block structure, data types, variables, control structures, and more. PL/SQL combines procedural language elements with SQL statements to enhance database programming capabilities. Key elements include DECLARE, BEGIN, and END sections in a PL/SQL block; data types like NUMBER, VARCHAR2, DATE; variables and constants; control structures like IF-THEN-ELSE; and functions for output.

1. Oracle PL/SQL
By
OpenGurukul.com
Free/Open Source Software Laboratory

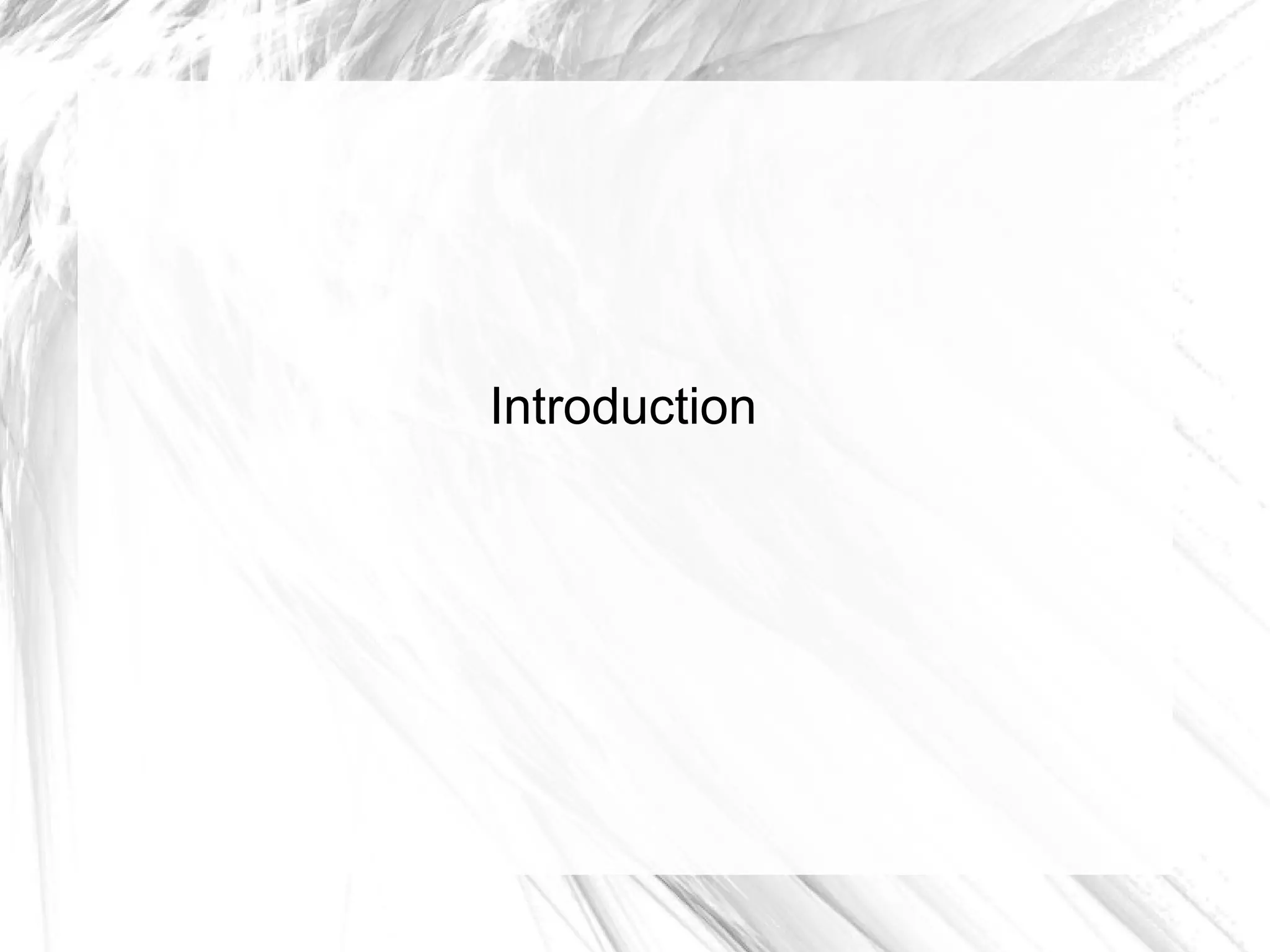

2. Introduction

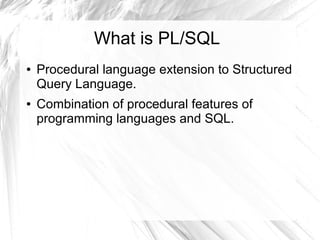

3. What is PL/SQL
● Procedural language extension to Structured
Query Language.
● Combination of procedural features of
programming languages and SQL.

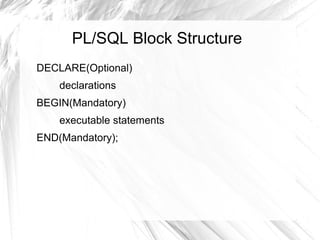

4. PL/SQL Block Structure
DECLARE(Optional)
declarations
BEGIN(Mandatory)
executable statements
END(Mandatory);

5. PL/SQL Block Structure Exmaple
DECLARE
age NUMBER;
name VARCHAR2(128) := 'Surinder';
salary NUMBER;
BEGIN
age := 20;
SELECT income into salary from employee_income where name is
'%Surinder%';
DBMS_OUTPUT.PUT_LINE('name: ' || name || 'age : ' ||
TO_CHAR(age));
END;

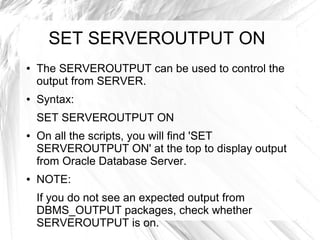

6. SET SERVEROUTPUT ON
● The SERVEROUTPUT can be used to control the
output from SERVER.
● Syntax:
SET SERVEROUTPUT ON
● On all the scripts, you will find 'SET
SERVEROUTPUT ON' at the top to display output
from Oracle Database Server.
● NOTE:
If you do not see an expected output from
DBMS_OUTPUT packages, check whether
SERVEROUTPUT is on.

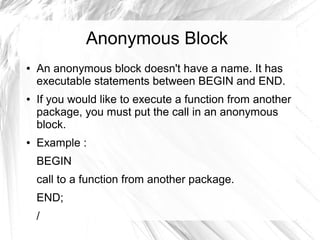

7. Anonymous Block
● An anonymous block doesn't have a name. It has
executable statements between BEGIN and END.
● If you would like to execute a function from another
package, you must put the call in an anonymous
block.
● Example :
BEGIN
call to a function from another package.
END;
/

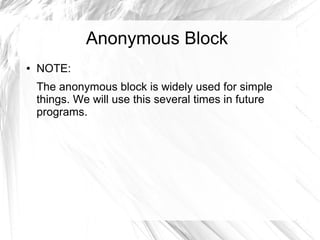

8. Anonymous Block
● NOTE:
The anonymous block is widely used for simple
things. We will use this several times in future
programs.

9. PUT_LINE : print character strings
● The DBMS_OUTPUT.PUT_LINE () function is used
to display string output.
SET SERVEROUTPUT ON
BEGIN
DBMS_OUTPUT.PUT_LINE('INDIA');
END;
/

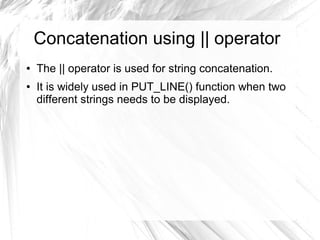

10. Concatenation using || operator
● The || operator is used for string concatenation.
● It is widely used in PUT_LINE() function when two
different strings needs to be displayed.

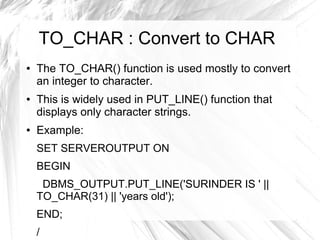

11. TO_CHAR : Convert to CHAR
● The TO_CHAR() function is used mostly to convert
an integer to character.
● This is widely used in PUT_LINE() function that
displays only character strings.
● Example:
SET SERVEROUTPUT ON
BEGIN
DBMS_OUTPUT.PUT_LINE('SURINDER IS ' ||
TO_CHAR(31) || 'years old');
END;
/

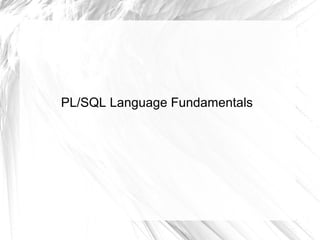

12. PL/SQL Language Fundamentals

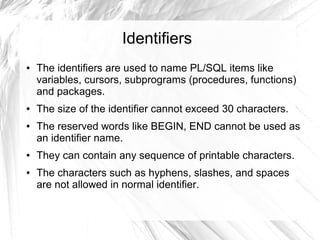

13. Identifiers
● The identifiers are used to name PL/SQL items like
variables, cursors, subprograms (procedures, functions)
and packages.
● The size of the identifier cannot exceed 30 characters.
● The reserved words like BEGIN, END cannot be used as
an identifier name.
● They can contain any sequence of printable characters.
● The characters such as hyphens, slashes, and spaces
are not allowed in normal identifier.

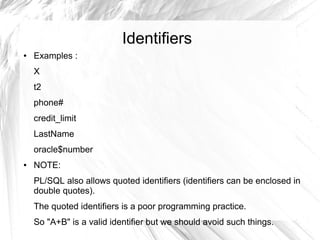

14. Identifiers
● Examples :
X
t2
phone#
credit_limit
LastName
oracle$number
● NOTE:
PL/SQL also allows quoted identifiers (identifiers can be enclosed in
double quotes).
The quoted identifiers is a poor programming practice.
So "A+B" is a valid identifier but we should avoid such things.

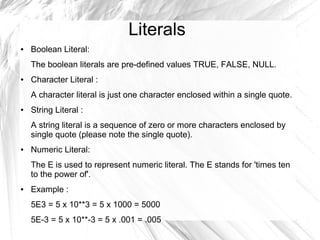

15. Literals
● Boolean Literal:
The boolean literals are pre-defined values TRUE, FALSE, NULL.
● Character Literal :
A character literal is just one character enclosed within a single quote.
● String Literal :
A string literal is a sequence of zero or more characters enclosed by
single quote (please note the single quote).
● Numeric Literal:
The E is used to represent numeric literal. The E stands for 'times ten
to the power of'.
● Example :
5E3 = 5 x 10**3 = 5 x 1000 = 5000
5E-3 = 5 x 10**-3 = 5 x .001 = .005

16. Comments
● The single line comments are specified using -- (double
hyphen).
● The multi-line comments are specified using /* and */
● Example :
-- This is a comment
/*
This is another comment
the comment continues
*/

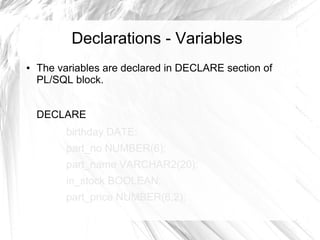

17. Declarations - Variables
● The variables are declared in DECLARE section of
PL/SQL block.
DECLARE
birthday DATE;
part_no NUMBER(6);
part_name VARCHAR2(20);
in_stock BOOLEAN;
part_price NUMBER(6,2);

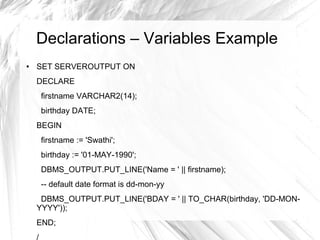

18. Declarations – Variables Example
● SET SERVEROUTPUT ON
DECLARE
firstname VARCHAR2(14);
birthday DATE;
BEGIN
firstname := 'Swathi';
birthday := '01-MAY-1990';
DBMS_OUTPUT.PUT_LINE('Name = ' || firstname);
-- default date format is dd-mon-yy
DBMS_OUTPUT.PUT_LINE('BDAY = ' || TO_CHAR(birthday, 'DD-MON-
YYYY'));
END;

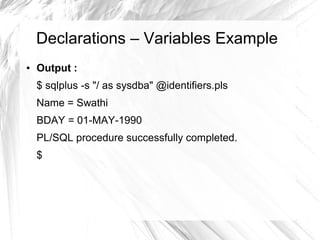

19. Declarations – Variables Example
● Output :
$ sqlplus -s "/ as sysdba" @identifiers.pls
Name = Swathi
BDAY = 01-MAY-1990
PL/SQL procedure successfully completed.
$

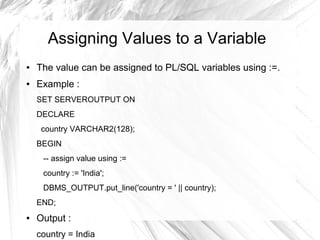

20. Assigning Values to a Variable
● The value can be assigned to PL/SQL variables using :=.
● Example :
SET SERVEROUTPUT ON
DECLARE
country VARCHAR2(128);
BEGIN
-- assign value using :=
country := 'India';
DBMS_OUTPUT.put_line('country = ' || country);
END;
● Output :
country = India

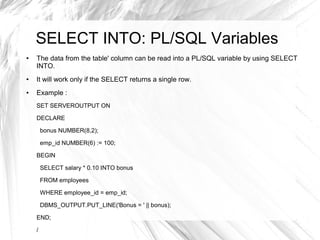

21. SELECT INTO: PL/SQL Variables
● The data from the table' column can be read into a PL/SQL variable by using SELECT
INTO.
● It will work only if the SELECT returns a single row.
● Example :
SET SERVEROUTPUT ON
DECLARE
bonus NUMBER(8,2);
emp_id NUMBER(6) := 100;
BEGIN
SELECT salary * 0.10 INTO bonus
FROM employees
WHERE employee_id = emp_id;
DBMS_OUTPUT.PUT_LINE('Bonus = ' || bonus);
END;
/

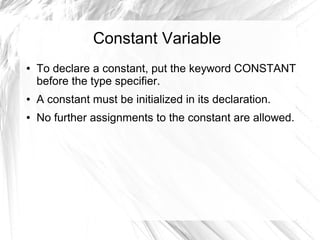

22. Constant Variable
● To declare a constant, put the keyword CONSTANT
before the type specifier.
● A constant must be initialized in its declaration.
● No further assignments to the constant are allowed.

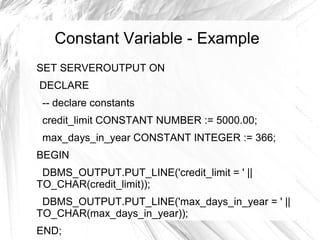

23. Constant Variable - Example
SET SERVEROUTPUT ON
DECLARE
-- declare constants
credit_limit CONSTANT NUMBER := 5000.00;
max_days_in_year CONSTANT INTEGER := 366;
BEGIN
DBMS_OUTPUT.PUT_LINE('credit_limit = ' ||
TO_CHAR(credit_limit));
DBMS_OUTPUT.PUT_LINE('max_days_in_year = ' ||
TO_CHAR(max_days_in_year));
END;

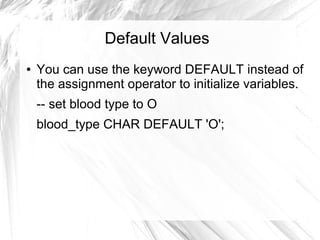

24. Default Values
● You can use the keyword DEFAULT instead of
the assignment operator to initialize variables.
-- set blood type to O
blood_type CHAR DEFAULT 'O';

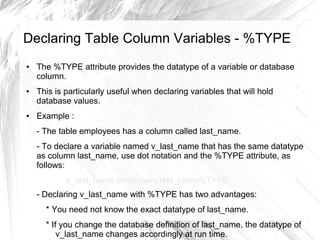

25. Declaring Table Column Variables - %TYPE
● The %TYPE attribute provides the datatype of a variable or database
column.
● This is particularly useful when declaring variables that will hold
database values.
● Example :
- The table employees has a column called last_name.
- To declare a variable named v_last_name that has the same datatype
as column last_name, use dot notation and the %TYPE attribute, as
follows:
v_last_name employees.last_name%TYPE;
- Declaring v_last_name with %TYPE has two advantages:
* You need not know the exact datatype of last_name.
* If you change the database definition of last_name, the datatype of
v_last_name changes accordingly at run time.

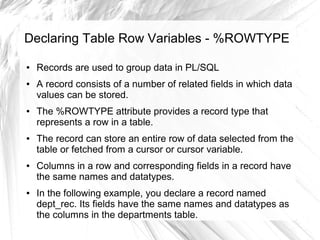

26. Declaring Table Row Variables - %ROWTYPE
● Records are used to group data in PL/SQL
● A record consists of a number of related fields in which data
values can be stored.
● The %ROWTYPE attribute provides a record type that
represents a row in a table.
● The record can store an entire row of data selected from the
table or fetched from a cursor or cursor variable.
● Columns in a row and corresponding fields in a record have
the same names and datatypes.
● In the following example, you declare a record named
dept_rec. Its fields have the same names and datatypes as
the columns in the departments table.

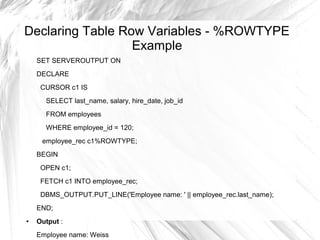

27. Declaring Table Row Variables - %ROWTYPE
Example
SET SERVEROUTPUT ON
DECLARE
CURSOR c1 IS
SELECT last_name, salary, hire_date, job_id
FROM employees
WHERE employee_id = 120;
employee_rec c1%ROWTYPE;
BEGIN
OPEN c1;
FETCH c1 INTO employee_rec;
DBMS_OUTPUT.PUT_LINE('Employee name: ' || employee_rec.last_name);
END;
● Output :
Employee name: Weiss

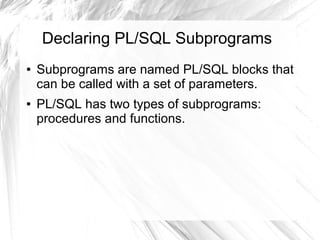

28. Declaring PL/SQL Subprograms
● Subprograms are named PL/SQL blocks that
can be called with a set of parameters.
● PL/SQL has two types of subprograms:
procedures and functions.

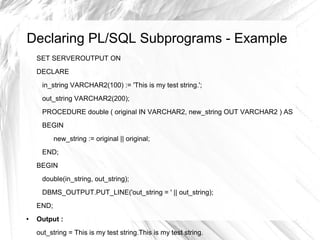

29. Declaring PL/SQL Subprograms - Example
SET SERVEROUTPUT ON
DECLARE
in_string VARCHAR2(100) := 'This is my test string.';
out_string VARCHAR2(200);
PROCEDURE double ( original IN VARCHAR2, new_string OUT VARCHAR2 ) AS
BEGIN
new_string := original || original;
END;
BEGIN
double(in_string, out_string);
DBMS_OUTPUT.PUT_LINE('out_string = ' || out_string);
END;
● Output :
out_string = This is my test string.This is my test string.

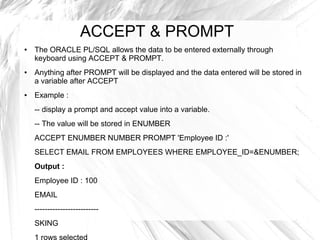

30. ACCEPT & PROMPT
● The ORACLE PL/SQL allows the data to be entered externally through
keyboard using ACCEPT & PROMPT.
● Anything after PROMPT will be displayed and the data entered will be stored in
a variable after ACCEPT
● Example :
-- display a prompt and accept value into a variable.
-- The value will be stored in ENUMBER
ACCEPT ENUMBER NUMBER PROMPT 'Employee ID :'
SELECT EMAIL FROM EMPLOYEES WHERE EMPLOYEE_ID=&ENUMBER;
Output :
Employee ID : 100
EMAIL
-------------------------
SKING

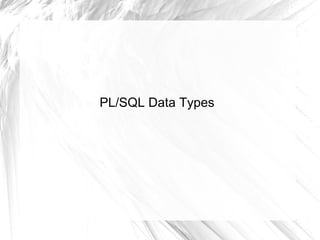

31. PL/SQL Data Types

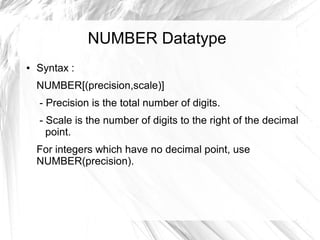

32. NUMBER Datatype
● Syntax :
NUMBER[(precision,scale)]
- Precision is the total number of digits.
- Scale is the number of digits to the right of the decimal
point.
For integers which have no decimal point, use
NUMBER(precision).

33. NUMBER Datatype Example
SET SERVEROUTPUT ON
DECLARE
x NUMBER(3);
BEGIN
x := 123.89;
DBMS_OUTPUT.PUT_LINE('The value of x is ' ||
TO_CHAR(x));
END;
● Output :
The value of x is 124

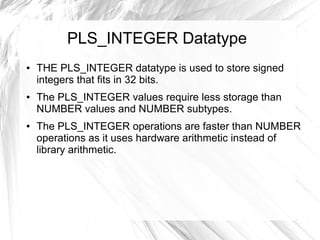

34. PLS_INTEGER Datatype
● THE PLS_INTEGER datatype is used to store signed
integers that fits in 32 bits.
● The PLS_INTEGER values require less storage than
NUMBER values and NUMBER subtypes.
● The PLS_INTEGER operations are faster than NUMBER
operations as it uses hardware arithmetic instead of
library arithmetic.

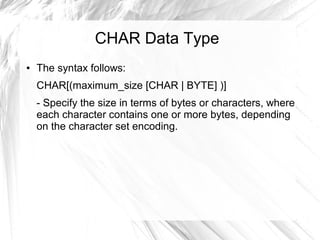

35. CHAR Data Type
● The syntax follows:
CHAR[(maximum_size [CHAR | BYTE] )]
- Specify the size in terms of bytes or characters, where
each character contains one or more bytes, depending
on the character set encoding.

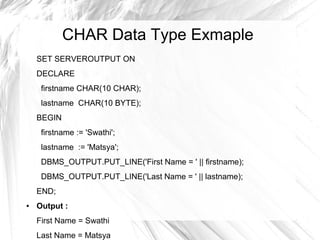

36. CHAR Data Type Exmaple
SET SERVEROUTPUT ON
DECLARE
firstname CHAR(10 CHAR);
lastname CHAR(10 BYTE);
BEGIN
firstname := 'Swathi';
lastname := 'Matsya';
DBMS_OUTPUT.PUT_LINE('First Name = ' || firstname);
DBMS_OUTPUT.PUT_LINE('Last Name = ' || lastname);
END;
● Output :
First Name = Swathi
Last Name = Matsya

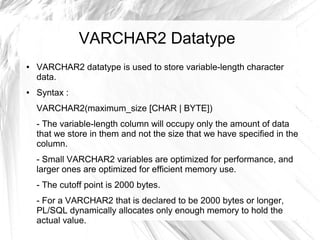

37. VARCHAR2 Datatype
● VARCHAR2 datatype is used to store variable-length character
data.
● Syntax :
VARCHAR2(maximum_size [CHAR | BYTE])
- The variable-length column will occupy only the amount of data
that we store in them and not the size that we have specified in the
column.
- Small VARCHAR2 variables are optimized for performance, and
larger ones are optimized for efficient memory use.
- The cutoff point is 2000 bytes.
- For a VARCHAR2 that is declared to be 2000 bytes or longer,
PL/SQL dynamically allocates only enough memory to hold the
actual value.

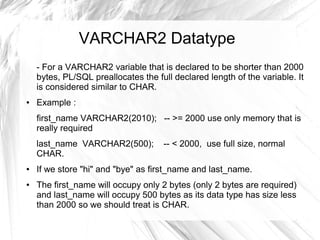

38. VARCHAR2 Datatype
- For a VARCHAR2 variable that is declared to be shorter than 2000
bytes, PL/SQL preallocates the full declared length of the variable. It
is considered similar to CHAR.
● Example :
first_name VARCHAR2(2010); -- >= 2000 use only memory that is
really required
last_name VARCHAR2(500); -- < 2000, use full size, normal
CHAR.
● If we store "hi" and "bye" as first_name and last_name.
● The first_name will occupy only 2 bytes (only 2 bytes are required)
and last_name will occupy 500 bytes as its data type has size less
than 2000 so we should treat is CHAR.

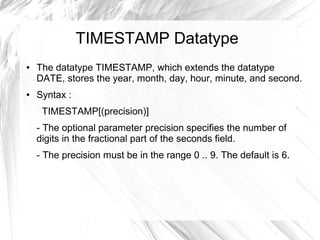

39. TIMESTAMP Datatype
● The datatype TIMESTAMP, which extends the datatype
DATE, stores the year, month, day, hour, minute, and second.
● Syntax :
TIMESTAMP[(precision)]
- The optional parameter precision specifies the number of
digits in the fractional part of the seconds field.
- The precision must be in the range 0 .. 9. The default is 6.

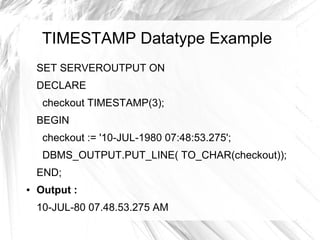

40. TIMESTAMP Datatype Example
SET SERVEROUTPUT ON
DECLARE
checkout TIMESTAMP(3);
BEGIN
checkout := '10-JUL-1980 07:48:53.275';
DBMS_OUTPUT.PUT_LINE( TO_CHAR(checkout));
END;
● Output :
10-JUL-80 07.48.53.275 AM

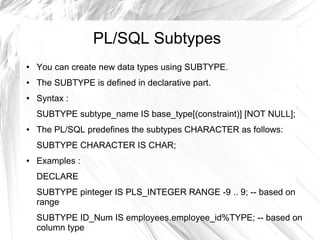

41. PL/SQL Subtypes
● You can create new data types using SUBTYPE.
● The SUBTYPE is defined in declarative part.
● Syntax :
SUBTYPE subtype_name IS base_type[(constraint)] [NOT NULL];
● The PL/SQL predefines the subtypes CHARACTER as follows:
SUBTYPE CHARACTER IS CHAR;
● Examples :
DECLARE
SUBTYPE pinteger IS PLS_INTEGER RANGE -9 .. 9; -- based on
range
SUBTYPE ID_Num IS employees.employee_id%TYPE; -- based on
column type

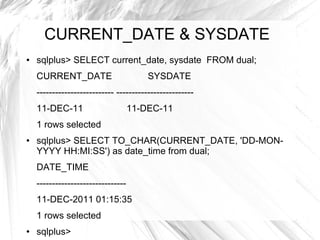

42. CURRENT_DATE & SYSDATE
● sqlplus> SELECT current_date, sysdate FROM dual;
CURRENT_DATE SYSDATE
------------------------- -------------------------
11-DEC-11 11-DEC-11
1 rows selected
● sqlplus> SELECT TO_CHAR(CURRENT_DATE, 'DD-MON-
YYYY HH:MI:SS') as date_time from dual;
DATE_TIME
-----------------------------
11-DEC-2011 01:15:35
1 rows selected
● sqlplus>

43. CURRENT_TIMESTAMP
● The current_timestamp shows the value of current
timestamp.
● sqlplus> select current_timestamp from dual;
CURRENT_TIMESTAMP
-----------------
11-DEC-11 01.18.38.256784000 PM +05:30
1 rows selected
● sqlplus>

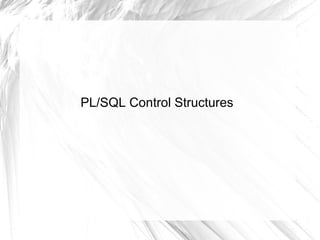

44. PL/SQL Control Structures

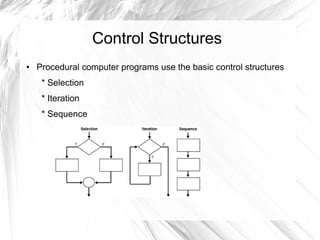

45. Control Structures
● Procedural computer programs use the basic control structures
* Selection
* Iteration
* Sequence

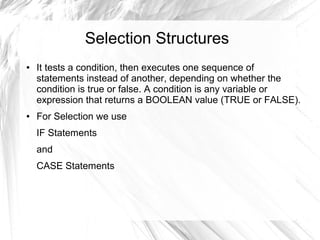

46. Selection Structures
● It tests a condition, then executes one sequence of
statements instead of another, depending on whether the
condition is true or false. A condition is any variable or
expression that returns a BOOLEAN value (TRUE or FALSE).
● For Selection we use
IF Statements
and
CASE Statements

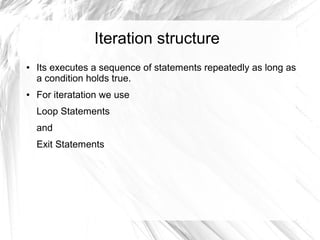

47. Iteration structure
● Its executes a sequence of statements repeatedly as long as
a condition holds true.
● For iteratation we use
Loop Statements
and
Exit Statements

48. Sequence structure
● It simply executes a sequence of statements in the order in
which they occur.
● For sequence we use
Goto Statements
and
Null Statements

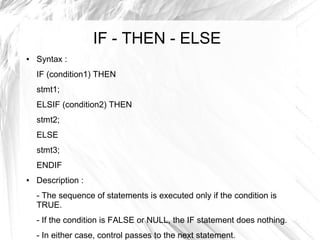

49. IF - THEN - ELSE
● Syntax :
IF (condition1) THEN
stmt1;
ELSIF (condition2) THEN
stmt2;
ELSE
stmt3;
ENDIF
● Description :
- The sequence of statements is executed only if the condition is
TRUE.
- If the condition is FALSE or NULL, the IF statement does nothing.
- In either case, control passes to the next statement.

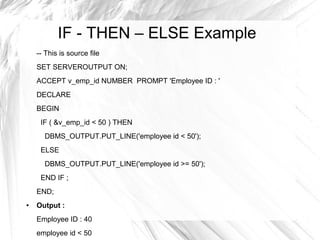

50. IF - THEN – ELSE Example
-- This is source file
SET SERVEROUTPUT ON;
ACCEPT v_emp_id NUMBER PROMPT 'Employee ID : '
DECLARE
BEGIN
IF ( &v_emp_id < 50 ) THEN
DBMS_OUTPUT.PUT_LINE('employee id < 50');
ELSE
DBMS_OUTPUT.PUT_LINE('employee id >= 50');
END IF ;
END;
● Output :
Employee ID : 40
employee id < 50

51. CASE : Simple Expression
● The CASE statement selects one sequence of statements to
execute similar to IF.
● The expression is evaluated once and its value is matched
with several blocks whichever matches first, we execute that
block.
● It starts with CASE with a series of WHEN-THEN statments
and ends with END CASE.

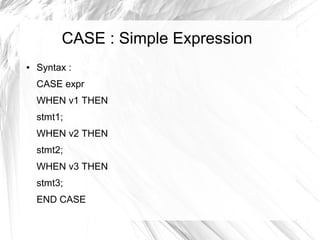

52. CASE : Simple Expression
● Syntax :
CASE expr
WHEN v1 THEN
stmt1;
WHEN v2 THEN
stmt2;
WHEN v3 THEN
stmt3;
END CASE

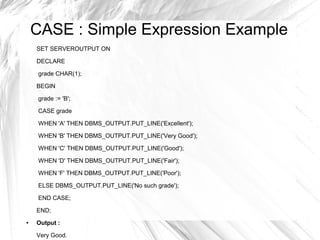

53. CASE : Simple Expression Example
SET SERVEROUTPUT ON
DECLARE
grade CHAR(1);
BEGIN
grade := 'B';
CASE grade
WHEN 'A' THEN DBMS_OUTPUT.PUT_LINE('Excellent');
WHEN 'B' THEN DBMS_OUTPUT.PUT_LINE('Very Good');
WHEN 'C' THEN DBMS_OUTPUT.PUT_LINE('Good');
WHEN 'D' THEN DBMS_OUTPUT.PUT_LINE('Fair');
WHEN 'F' THEN DBMS_OUTPUT.PUT_LINE('Poor');
ELSE DBMS_OUTPUT.PUT_LINE('No such grade');
END CASE;
END;
● Output :
Very Good.

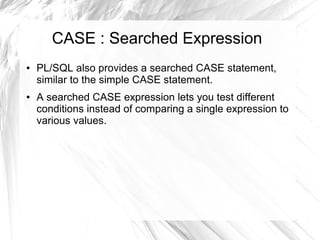

54. CASE : Searched Expression
● PL/SQL also provides a searched CASE statement,
similar to the simple CASE statement.
● A searched CASE expression lets you test different
conditions instead of comparing a single expression to
various values.

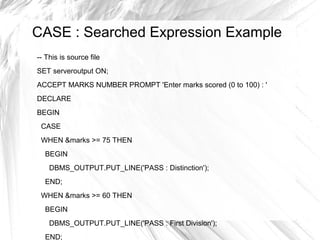

55. CASE : Searched Expression Example
-- This is source file
SET serveroutput ON;
ACCEPT MARKS NUMBER PROMPT 'Enter marks scored (0 to 100) : '
DECLARE
BEGIN
CASE
WHEN &marks >= 75 THEN
BEGIN
DBMS_OUTPUT.PUT_LINE('PASS : Distinction');
END;
WHEN &marks >= 60 THEN
BEGIN
DBMS_OUTPUT.PUT_LINE('PASS : First Division');
END;

56. CASE : Searched Expression Example
WHEN &marks >= 50 THEN
BEGIN
DBMS_OUTPUT.PUT_LINE('PASS : Second Division');
END;
WHEN &marks >= 40 THEN
BEGIN
DBMS_OUTPUT.PUT_LINE('PASS : Third Division');
END;
WHEN &marks < 40 THEN
BEGIN
DBMS_OUTPUT.PUT_LINE('FAILED');
END;
END CASE;
END;

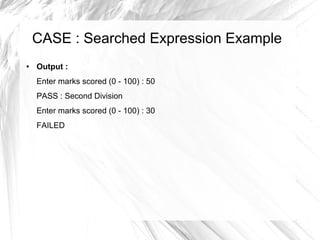

57. CASE : Searched Expression Example
● Output :
Enter marks scored (0 - 100) : 50
PASS : Second Division
Enter marks scored (0 - 100) : 30
FAILED

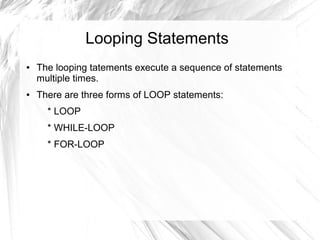

58. Looping Statements
● The looping tatements execute a sequence of statements
multiple times.
● There are three forms of LOOP statements:
* LOOP
* WHILE-LOOP
* FOR-LOOP

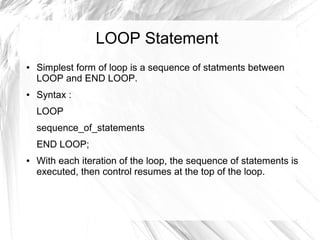

59. LOOP Statement
● Simplest form of loop is a sequence of statments between
LOOP and END LOOP.
● Syntax :
LOOP
sequence_of_statements
END LOOP;
● With each iteration of the loop, the sequence of statements is
executed, then control resumes at the top of the loop.

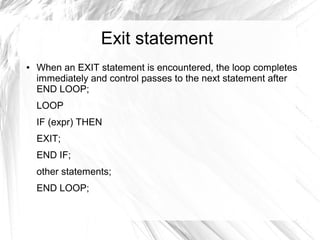

60. Exit statement
● When an EXIT statement is encountered, the loop completes
immediately and control passes to the next statement after
END LOOP;
LOOP
IF (expr) THEN
EXIT;
END IF;
other statements;
END LOOP;

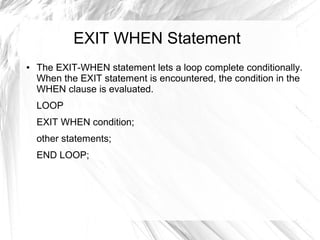

61. EXIT WHEN Statement
● The EXIT-WHEN statement lets a loop complete conditionally.
When the EXIT statement is encountered, the condition in the
WHEN clause is evaluated.
LOOP
EXIT WHEN condition;
other statements;
END LOOP;

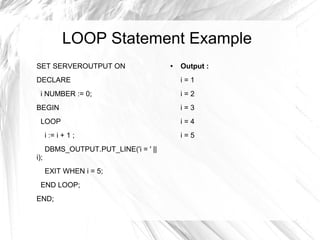

62. LOOP Statement Example
SET SERVEROUTPUT ON ● Output :
DECLARE i=1
i NUMBER := 0; i=2
BEGIN i=3
LOOP i=4
i := i + 1 ; i=5
DBMS_OUTPUT.PUT_LINE('i = ' ||
i);
EXIT WHEN i = 5;
END LOOP;
END;

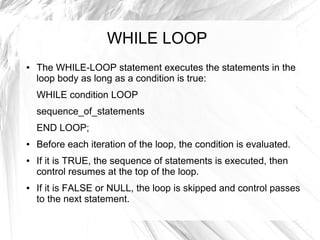

63. WHILE LOOP
● The WHILE-LOOP statement executes the statements in the
loop body as long as a condition is true:
WHILE condition LOOP
sequence_of_statements
END LOOP;
● Before each iteration of the loop, the condition is evaluated.
● If it is TRUE, the sequence of statements is executed, then
control resumes at the top of the loop.
● If it is FALSE or NULL, the loop is skipped and control passes
to the next statement.

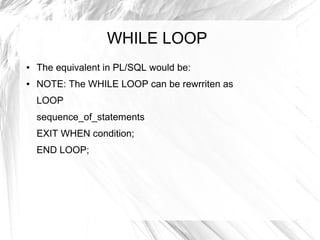

64. WHILE LOOP
● The equivalent in PL/SQL would be:
● NOTE: The WHILE LOOP can be rewrriten as
LOOP
sequence_of_statements
EXIT WHEN condition;
END LOOP;

65. SET SERVEROUTPUT ON ● Output :
DECLARE i=1
i NUMBER := 0; i=2
BEGIN i=3
WHILE (i != 5) i=4
LOOP i=5
i := i + 1 ;
DBMS_OUTPUT.PUT_LINE('i
= ' || i);
END LOOP;
END;

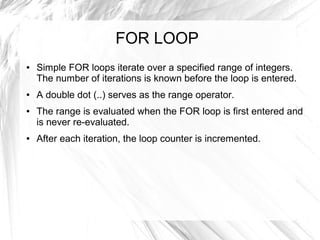

66. FOR LOOP
● Simple FOR loops iterate over a specified range of integers.
The number of iterations is known before the loop is entered.
● A double dot (..) serves as the range operator.
● The range is evaluated when the FOR loop is first entered and
is never re-evaluated.
● After each iteration, the loop counter is incremented.

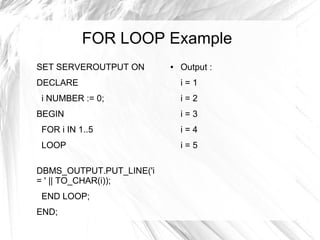

67. FOR LOOP Example
SET SERVEROUTPUT ON ● Output :
DECLARE i=1
i NUMBER := 0; i=2
BEGIN i=3
FOR i IN 1..5 i=4
LOOP i=5
DBMS_OUTPUT.PUT_LINE('i
= ' || TO_CHAR(i));
END LOOP;
END;

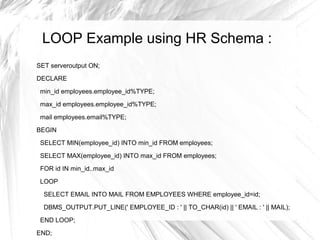

68. LOOP Example using HR Schema :
SET serveroutput ON;
DECLARE
min_id employees.employee_id%TYPE;
max_id employees.employee_id%TYPE;
mail employees.email%TYPE;
BEGIN
SELECT MIN(employee_id) INTO min_id FROM employees;
SELECT MAX(employee_id) INTO max_id FROM employees;
FOR id IN min_id..max_id
LOOP
SELECT EMAIL INTO MAIL FROM EMPLOYEES WHERE employee_id=id;
DBMS_OUTPUT.PUT_LINE(' EMPLOYEE_ID : ' || TO_CHAR(id) || ' EMAIL : ' || MAIL);
END LOOP;
END;

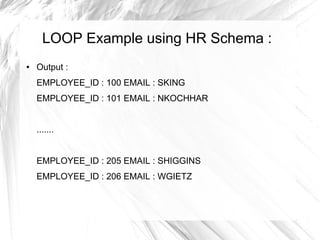

69. LOOP Example using HR Schema :
● Output :
EMPLOYEE_ID : 100 EMAIL : SKING
EMPLOYEE_ID : 101 EMAIL : NKOCHHAR
.......
EMPLOYEE_ID : 205 EMAIL : SHIGGINS
EMPLOYEE_ID : 206 EMAIL : WGIETZ

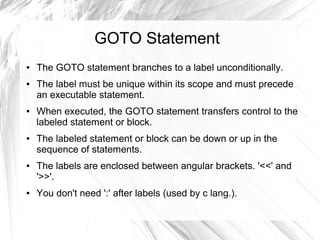

70. GOTO Statement
● The GOTO statement branches to a label unconditionally.
● The label must be unique within its scope and must precede
an executable statement.
● When executed, the GOTO statement transfers control to the
labeled statement or block.
● The labeled statement or block can be down or up in the
sequence of statements.
● The labels are enclosed between angular brackets. '<<' and
'>>'.
● You don't need ':' after labels (used by c lang.).

71. GOTO Statement Example
SET serveroutput ON;
ACCEPT country_p CHAR PROMPT 'Enter country (india or australia) : '
DECLARE
country CHAR(20);
BEGIN
country := '&country_p';
IF country = 'australia' THEN
GOTO australia;
ELSIF country = 'india' THEN
GOTO india;
ELSE
GOTO none;
END IF;

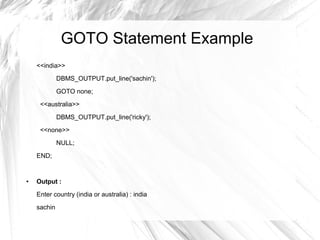

72. GOTO Statement Example
<<india>>
DBMS_OUTPUT.put_line('sachin');
GOTO none;
<<australia>>
DBMS_OUTPUT.put_line('ricky');
<<none>>
NULL;
END;
● Output :
Enter country (india or australia) : india
sachin

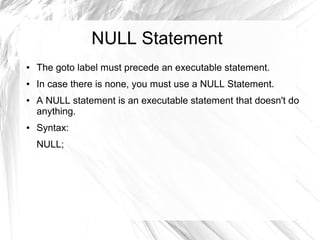

73. NULL Statement
● The goto label must precede an executable statement.
● In case there is none, you must use a NULL Statement.
● A NULL statement is an executable statement that doesn't do
anything.
● Syntax:
NULL;

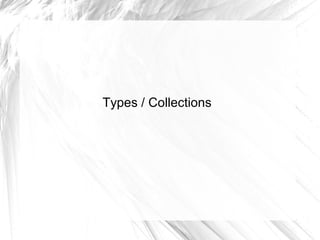

74. Types / Collections

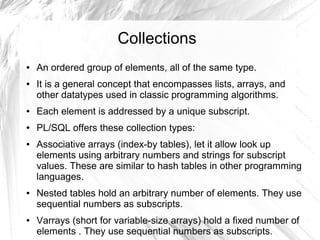

75. Collections
● An ordered group of elements, all of the same type.
● It is a general concept that encompasses lists, arrays, and
other datatypes used in classic programming algorithms.
● Each element is addressed by a unique subscript.
● PL/SQL offers these collection types:
● Associative arrays (index-by tables), let it allow look up
elements using arbitrary numbers and strings for subscript
values. These are similar to hash tables in other programming
languages.
● Nested tables hold an arbitrary number of elements. They use
sequential numbers as subscripts.
● Varrays (short for variable-size arrays) hold a fixed number of
elements . They use sequential numbers as subscripts.

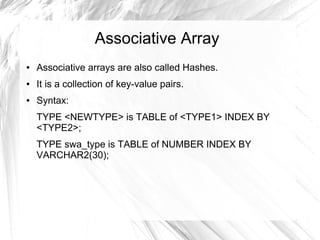

76. Associative Array
● Associative arrays are also called Hashes.
● It is a collection of key-value pairs.
● Syntax:
TYPE <NEWTYPE> is TABLE of <TYPE1> INDEX BY
<TYPE2>;
TYPE swa_type is TABLE of NUMBER INDEX BY
VARCHAR2(30);

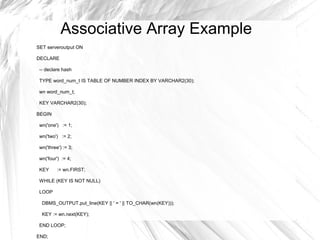

77. Associative Array Example
SET serveroutput ON
DECLARE
-- declare hash
TYPE word_num_t IS TABLE OF NUMBER INDEX BY VARCHAR2(30);
wn word_num_t;
KEY VARCHAR2(30);
BEGIN
wn('one') := 1;
wn('two') := 2;
wn('three') := 3;
wn('four') := 4;
KEY := wn.FIRST;
WHILE (KEY IS NOT NULL)
LOOP
DBMS_OUTPUT.put_line(KEY || ' = ' || TO_CHAR(wn(KEY)));
KEY := wn.next(KEY);
END LOOP;
END;

78. Associative Array Example
● Output :
four = 4
one = 1
three = 3
two = 2

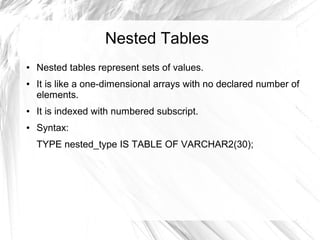

79. Nested Tables
● Nested tables represent sets of values.
● It is like a one-dimensional arrays with no declared number of
elements.
● It is indexed with numbered subscript.
● Syntax:
TYPE nested_type IS TABLE OF VARCHAR2(30);

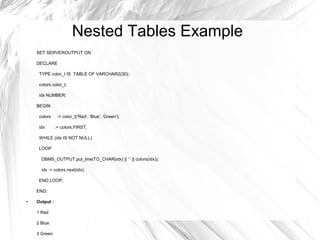

80. Nested Tables Example
SET SERVEROUTPUT ON
DECLARE
TYPE color_t IS TABLE OF VARCHAR2(30);
colors color_t;
idx NUMBER;
BEGIN
colors := color_t('Red', 'Blue', 'Green');
idx := colors.FIRST;
WHILE (idx IS NOT NULL)
LOOP
DBMS_OUTPUT.put_line(TO_CHAR(idx) || ' ' || colors(idx));
idx := colors.next(idx);
END LOOP;
END;
● Output :
1 Red
2 Blue
3 Green

81. Varrays
● VARRAY (also known as varrays) has a maximum size that is
specified during type definition.
● Syntax:
TYPE varray_type IS VARRAY(5) OF %TYPE%;

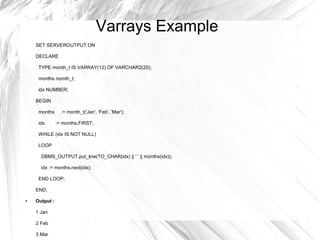

82. Varrays Example
SET SERVEROUTPUT ON
DECLARE
TYPE month_t IS VARRAY(12) OF VARCHAR2(20);
months month_t;
idx NUMBER;
BEGIN
months := month_t('Jan', 'Feb', 'Mar');
idx := months.FIRST;
WHILE (idx IS NOT NULL)
LOOP
DBMS_OUTPUT.put_line(TO_CHAR(idx) || ' ' || months(idx));
idx := months.next(idx);
END LOOP;
END;
● Output :
1 Jan
2 Feb
3 Mar

83. Triggers

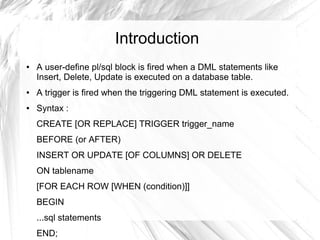

84. Introduction
● A user-define pl/sql block is fired when a DML statements like
Insert, Delete, Update is executed on a database table.
● A trigger is fired when the triggering DML statement is executed.
● Syntax :
CREATE [OR REPLACE] TRIGGER trigger_name
BEFORE (or AFTER)
INSERT OR UPDATE [OF COLUMNS] OR DELETE
ON tablename
[FOR EACH ROW [WHEN (condition)]]
BEGIN
...sql statements
END;

85. Introduction
● CREATE [OR REPLACE] TRIGGER trigger_name :
Creates a trigger with the given trigger_name or replace(overwrites)
an existing trigger with the same trigger_name.
● BEFORE (or AFTER) :
Indicate when you want to fire the trigger, either before or after the
database modification (update, delete, insert) .
● INSERT OR UPDATE [OF COLUMNS] OR DELETE :
This are the triggering events. You can use More than one
triggering events together separated by OR keyword. Whenever the
triggering event occurs trigger gets fired.
[OF col_name] is used with update triggers. Used only when you
want to trigger an event when a particular column is updated.

86. Introduction
● [FOR EACH ROW [WHEN (condition)]] :
Used to determine whether a trigger must fire when each row gets
affected ( i.e. a Row Level Trigger) or just once when the entire sql
statement is executed(i.e.statement level Trigger).
WHEN (condition) is used only for row level triggers. The trigger is
fired for each rows that satisfy the condition specified.
● The PL/SQL block (between BEGIN and END) is a block where you
can place the PL/SQL commands.

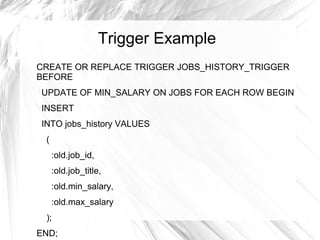

87. Trigger Example
CREATE OR REPLACE TRIGGER JOBS_HISTORY_TRIGGER
BEFORE
UPDATE OF MIN_SALARY ON JOBS FOR EACH ROW BEGIN
INSERT
INTO jobs_history VALUES
(
:old.job_id,
:old.job_title,
:old.min_salary,
:old.max_salary
);
END;

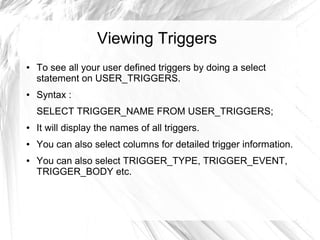

88. Viewing Triggers
● To see all your user defined triggers by doing a select
statement on USER_TRIGGERS.
● Syntax :
SELECT TRIGGER_NAME FROM USER_TRIGGERS;
● It will display the names of all triggers.
● You can also select columns for detailed trigger information.
● You can also select TRIGGER_TYPE, TRIGGER_EVENT,
TRIGGER_BODY etc.

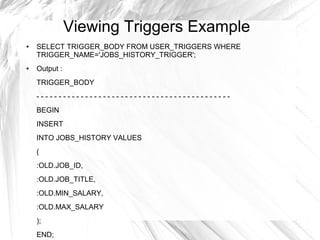

89. Viewing Triggers Example
● SELECT TRIGGER_BODY FROM USER_TRIGGERS WHERE
TRIGGER_NAME='JOBS_HISTORY_TRIGGER';
● Output :
TRIGGER_BODY
--------------------------------------------
BEGIN
INSERT
INTO JOBS_HISTORY VALUES
(
:OLD.JOB_ID,
:OLD.JOB_TITLE,
:OLD.MIN_SALARY,
:OLD.MAX_SALARY
);
END;

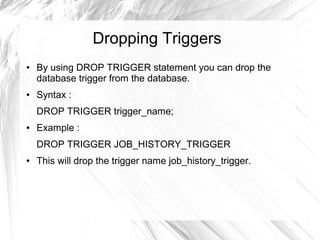

90. Dropping Triggers
● By using DROP TRIGGER statement you can drop the
database trigger from the database.
● Syntax :
DROP TRIGGER trigger_name;
● Example :
DROP TRIGGER JOB_HISTORY_TRIGGER
● This will drop the trigger name job_history_trigger.

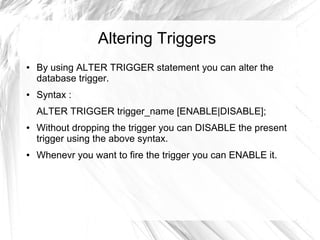

91. Altering Triggers
● By using ALTER TRIGGER statement you can alter the
database trigger.
● Syntax :
ALTER TRIGGER trigger_name [ENABLE|DISABLE];
● Without dropping the trigger you can DISABLE the present
trigger using the above syntax.
● Whenevr you want to fire the trigger you can ENABLE it.

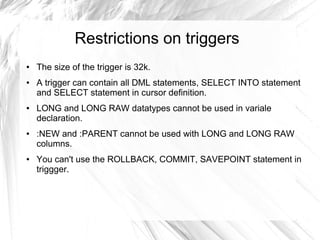

92. Restrictions on triggers
● The size of the trigger is 32k.
● A trigger can contain all DML statements, SELECT INTO statement
and SELECT statement in cursor definition.
● LONG and LONG RAW datatypes cannot be used in variale
declaration.
● :NEW and :PARENT cannot be used with LONG and LONG RAW
columns.
● You can't use the ROLLBACK, COMMIT, SAVEPOINT statement in
triggger.
