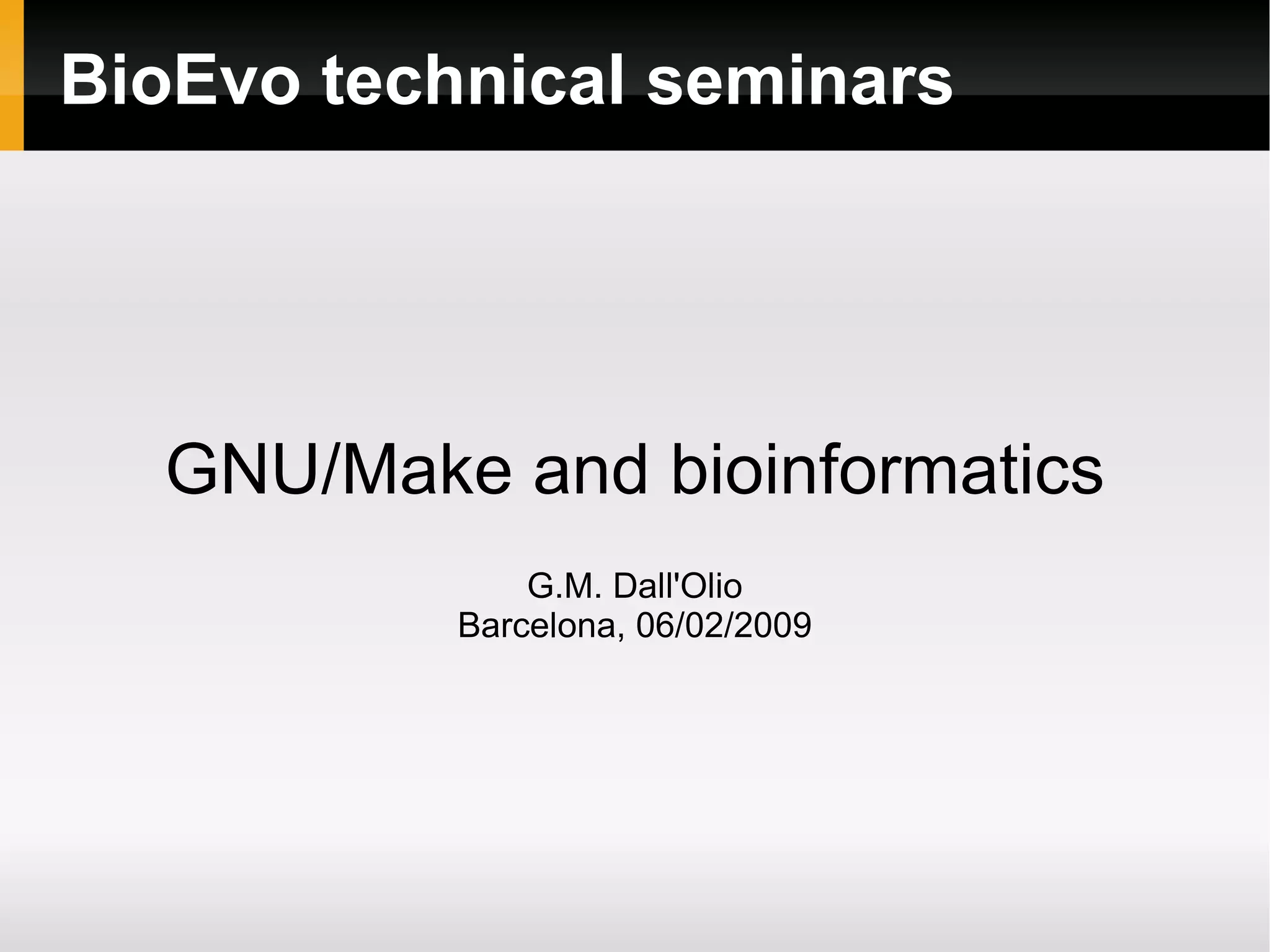

BioEvo technical seminars GNU/Make and bioinformatics G.M. Dall'Olio Barcelona, 06/02/2009
Original problem statement Compiled languages programmers (C, C++, fortran, etc..) have to frequently execute complex shell commands:  gcc -c -Wall -ansi -I/pkg/chempak/include dat2csv.c
g++ -c main.cpp; g++ -c func.cpp; g++ main.o func.o
rm *.o These commands are needed to convert a C++/C source code file to a binary file.
Shell commands in bioinformatics In bioinformatics it is frequent to use command line tools with complex syntax: grep, head, gawk, sed, cat.. (tools to work with flat files data)
perl/python/R/other scripts
Many suites of binary programs (emboss, phylip, blast, t-coffee, plink, genepop, gromacs, rosetta...)
etc...
Common problem In short, C programmers and many bioinformaticians have two problems in common: Have a way to store command-line instructions with different parameters
Execute these commands only when necessary (don't calculate again some results, if they have already been calculated)
GNU/make make is a tool to store command-line instructions and re-execute them quickly, along with all their parameters
It is a declarative programming language
It belongs to a class of softwares called 'automated build tools'
Simplest Makefile example The simplest Makefile contains just the name of a task and the commands associated with it: print_hello  is a makefile 'rule': it stores the commands needed to say 'Hello, world!' to the screen.
Simplest Makefile example Makefile rule Target of the rule Commands associated with the rule This is a tabulation (not 8 spaces)
Simplest Makefile example Create a file in your computer and save it as ' Makefile '.
Write these instructions in it: print_hello : echo 'Hello, world!!'
Then, open a terminal and type: This is a tabulation (<Tab> key) make -f  Makefile  print_hello
Simplest Makefile example
Simplest Makefile example –  explanation When invoked, the program 'make' looks for a file in the current directory called 'Makefile'
When we type 'make print_hello', it executes any procedure (target) called 'print_hello' in the makefile
It then shows the commands executed and their output
Tip1: the 'Makefile' file The '-f' option allows you to define the file which contains the instructions for make
If you omit this option, make will look for any file called 'Makefile' in the current directory
make -f Makefile all is equivalent to: make all
A sligthly longer example You can add as many commands you like to a rule
For example, this ' print_hello ' rule contains 5 commands
Note: ignore the '@' thing, it is only to disable verbose mode (explained later)
A more complex example
Make - advantages Make allows you to save shell commands along with their parameters and re-execute them;
It allows you to use command-line tools which are more flexible;
Combined with a revision control software, it makes possible to reproduce all the operations made to your data;
Second part A closer look at make syntax (target and commands)
The target syntax Makefile syntax: <target> : (prerequisites) <commands associated to the rule>
The target syntax The target of a rule can be either a title for the task, or a file name.
Everytime you call a make rule (example: 'make all'), the program looks for a file called like the target name (e.g. 'all', 'clean', 'inputdata.txt', 'results.txt')
The rule is executed only if that file doesn't exists.
Filename as target names In this makefile, we have two rules: 'testfile.txt' and 'clean'
Filename as target names In this makefile, we have two rules: ' testfile.txt ' and ' clean '
When we call ' make testfile.txt ', make checks if a file called 'testfile.txt' already exists.
Filename as target names The commands associated with the rule ' testfile.txt ' are executed only if that file doesn't exists already
Multiple target definition A target can also be a list of files
You can retrieve the matched target with the special variable $@
Special characters The % character can be used as a wild card
For example, a rule with the target: %.txt : .... would be activated by any file ending with '.txt' 'make 1.txt', 'make 2.txt', etc.. We will be able to retrieve the matched expression with '$*'
Special character % / creating more than a file at a time
Makefile – cluster support Note that in the previous example we created three files at the same time, by executing three times the command 'touch'
If we use the '-j' option when invoking make, the three processess will be launched in parallel
Makefile syntax: <target> : (prerequisites) <commands associated to the rule> The commands syntax
Inactivating verbose mode You can disactivate the verbose mode for a line by adding '@' at its beginning: Differences here
Skipping errors The modifiers '-' tells make to ignore errors returned by a command
Example:  'mkdir /var' will cause an error (the '/var' directory already exists) and cause gnu/make to exit
'-mkdir /var' will cause an error anyway, but gnu/make will ignore it
Moving throught directories A big issue with make is that every line is executed as a different shell process.
So, this: lsvar : cd /var ls
Won't work (it will list only the files in the current directory, not /var)
The solution is to put everything in a single process:
lsvar : (cd /var; ls)
Third part Prerequisites and conditional execution
Makefile syntax: <target> : (prerequisites) <commands associated to the rule> We will look at the 'prerequisites' part of a make rule, that I had skipped before The commands syntax
Real Makefile-rule syntax Complete syntax for a Makefile rule: <target> : <list of prerequisites> <commands associated to the rule>
