Backroll is not only a production-grade KVM backup solution. It is also being integrated inside Apache Cloudstack using the Backup and restore framework. Pierre and Quentin will show how it works, the feature list, and how the integration has been made. Quentin is in charge of DIMSI custom developments on Apache Cloudstack deployment : customer portal, backup solution. On a daily basis, he helps our customers and our developers to use and embrace Devops methodology, by building CI/CD pipelines (GitLab, Azure Devops), dockerizing apps and automate things as much as possible... When not DevOps'ing, Quentin loves to binge watch series and movies, play with his cat "Boogie" and is a crazy fan of street food.  Grégoire is a software architect who spends most of his time designing infrastructure applications and CRM systems, on-premise or multi-cloud based. He’s been using Apache Cloudstack for many years, and likes to keep knowledge and data outside black-boxes Father of 4 children, you can meet him in Southern Brittany, sailing Hobbie Cat or supporting Lorient football club at Moustoir stadium. Pierre is in charge of Backroll integration inside Cloudstack. Pierre has a proven track record of successful c# and Java projects. When not playing with his keyboard, Pierre is surfing, WingFoiling or bodyboarding on Brittany coast. ----------------------------------------- CloudStack Collaboration Conference 2022 took place on 14th-16th November in Sofia, Bulgaria and virtually. The day saw a hybrid get-together of the global CloudStack community hosting 370 attendees. The event hosted 43 sessions from leading CloudStack experts, users and skilful engineers from the open-source world, which included: technical talks, user stories, new features and integrations presentations and more.

1. BackROLL: An open-source KVM Backup solution fully
integrated inside Apache Cloudstack
From November 14 to 16, 2022

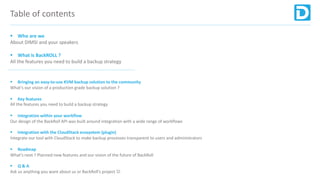

2. Table of contents
§ Bringing an easy-to-use KVM backup solution to the community
What's our vision of a production grade backup solution ?
§ Key features
All the features you need to build a backup strategy
§ Integration within your workflow
Our design of the BackRoll API was built around integration with a wide range of workflows
§ Integration with the CloudStack ecosystem (plugin)
Integrate our tool with CloudStack to make backup processes transparent to users and administrators
§ Roadmap
What's next ? Planned new features and our vision of the future of BackRoll
§ Q & A
Ask us anything you want about us or BackRoll’s project J
§ Who are we
About DIMSI and your speakers
§ What is BackROLL ?
All the features you need to build a backup strategy

3. Your fellow speakers (Greg, Quentin, Pierre)
Grégoire LAMODIERE
Co-Founder & solution architect
Backroll evangelist
Quentin ROCCIA
Senior SRE and Devops Engineer
Backroll guru
Pierre CHARTON
Senior C# / Java developer, Pierre
provides Backroll integration within
Apache Cloudstack, main contributor of
Backroll plugin
Senior backend developer
Backroll integrator
Automation addict, Quentin is in charge of
maintaining Cloudstack infrastructure up and
running. He also helps our developers to
speed-up code integration and deployment
Senior solution architect, Grégoire helps our
customers to define Cloud-based, hybrid and
OnPremise strategies

4. Who are we ?
We are a small independent French cloud
provider that keeps its focus on small and
medium sized companies
We also provide for companies using
Microsoft Dynamics CRM, and bring them
our expertise on project management and
development to meet their business needs
We think that even a small team such as ours
can bring great knowledge and success to
our customers
Our human-size teams put people at the
heart of our digital services

5. ABOUT DIMSI
In 2022, DIMSI became a mission-driven company
Foundation
2006
Area of expertise
Company Size
4 sites :
§ Paris
§ Lorient
§ Sousse
§ Hong-Kong
Offerings
Microsoft
Power Platform
Cloud & Services
Modern Apps
Lorient
Paris
Sousse
Hong-Kong

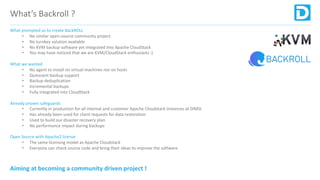

6. What’s Backroll ?
What prompted us to create BackROLL
• No similar open-source community project
• No turnkey solution available
• No KVM backup software yet integrated into Apache CloudStack
• You may have noticed that we are KVM/CloudStack enthusiasts :)
What we wanted
• No agent to install on virtual machines nor on hosts
• Quiescent backup support
• Backup deduplication
• Incremental backups
• Fully integrated into CloudStack
Already proven safeguards
• Currently in production for all internal and customer Apache Cloudstack instances at DIMSI
• Has already been used for client requests for data restoration
• Used to build our disaster recovery plan
• No performance impact during backups
Open Source with Apache2 license
• The same licensing model as Apache Cloudstack
• Everyone can check source code and bring their ideas to improve the software
Aiming at becoming a community driven project !

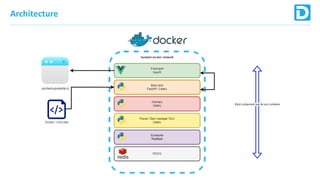

7. Architecture
Modern web UI

8. The various components of BackROLL
Modern web UI
• Front-end
The web UI, offers the same functionality as the API
• Back-end
Contains API and core logic, it receives all API calls that will trigger tasks (Celery)
• Workers
Used to run the Celery tasks (VM list, backup list, host list, backup job, and so on...), can be stand-alone or clustered to
maximize task parallelization
• Flower
Flower is used to monitor tasks in real-time and get logs via web interface / web API
• Beat
Beat is the scheduler, allowing us to create scheduled backup policies and run redundant and automated tasks (like backup
cleaning every night)
• Redis
Redis is used as a database to store keys specific for every task, allowing tracking and keeping records.

9. Bring an easy-to-use KVM backup solution to the community
1. Modern web UI
Designed to be easy to use
Easily manage your backups
§ Easily track the progress and logs of your backup tasks
§ Manage virtual machine backups, pools or backup policies via a
graphical interface
§ Schedule backup and restore tasks
§ Built in VueJS 3
The web interface is optional, but still convenient for non-tech users
2. RESTful API
That follows best practices
Can be used in your existing workflows
§ Stateless
§ Uniform interface
§ Layered system
§ Can be used with scripts or tools like Ansible
The learning curve is minimal if you are already used to working with
other REST APIs
3. Containerized application
Reduces maintenance requirements
§ Deploy and update using a docker-compose template
§ One click deployment
§ Customize deployment template to meet your needs
Reduce maintenance hassle as everything needed is embedded in the
docker image

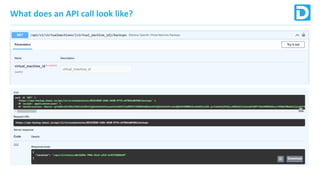

10. What does an API call look like?
Modern web UI

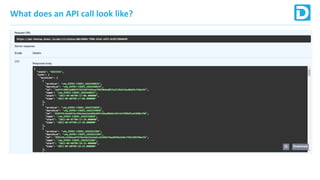

11. What does an API call look like?
Modern web UI

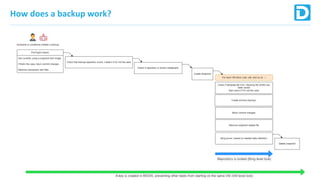

12. How does a backup work?
Modern web UI

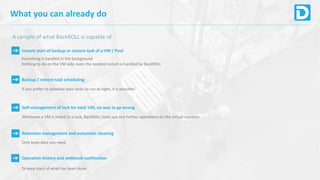

13. What you can already do
A sample of what BackROLL is capable of
Instant start of backup or restore task of a VM / Pool
Everything is handled in the background
Nothing to do on the VM side, even the needed restart is handled by BackROLL
Backup / restore task scheduling
If you prefer to schedule your tasks to run at night, it is possible!
Self-management of lock for each VM, no way to go wrong
Whenever a VM is linked to a task, BackROLL locks out any further operations on the virtual machine
Retention management and automatic cleaning
Only keep data you need
Operation history and webhook notification
To keep track of what has been done

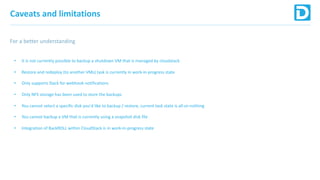

14. Caveats and limitations
For a better understanding
• It is not currently possible to backup a shutdown VM that is managed by cloudstack
• Restore and redeploy (to another VMs) task is currently in work-in-progress state
• Only supports Slack for webhook notifications
• Only NFS storage has been used to store the backups
• You cannot select a specific disk you'd like to backup / restore, current task state is all-or-nothing
• You cannot backup a VM that is currently using a snapshot disk file
• Integration of BackROLL within CloudStack is in work-in-progress state

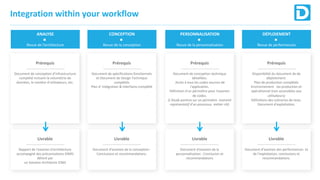

15. Integration within your workflow
ANALYSE
Revue de l’architecture
Prérequis
Document de conception d’infrastructure
complété incluant la volumétrie de
données, le nombre d’utilisateurs, etc.
Livrable
Rapport de l'examen d'architecture
accompagné des préconisations DIMSI
délivré par
un Solution Architecte D365
CONCEPTION
Revue de la conception
Prérequis
Document de spécifications fonctionnels
et Document de Design Technique
complétés
Plan d‘ intégration & Interfaces complété
Livrable
Document d’examen de la conception :
Conclusions et recommandations.
PERSONNALISATION
Revue de la personnalisation
Prérequis
Document de conception technique
détaillées.
Accès à tous les codes sources de
l'application.
Définition d'un périmètre pour l'examen
de codes.
(L'étude portera sur un périmètre restreint
représentatif d'un processus métier clé)
Livrable
Document d'examen de la
personnalisation : Conclusion et
recommandations
DÉPLOIEMENT
Revue de performances
Prérequis
Disponibilité du document de de
déploiement.
Plan de production complétés
Environnement iso production et
opérationnel (non accessibles aux
utilisateurs)
Définitions des scénarios de tests.
Document d'exploitation.
Livrable
Document d’examen des performances et
de l'exploitation, conclusions et
recommandations.

16. Integration with the CloudStack ecosystem (plugin)
Cloudstack Back and restore
framework
Cloudstack Backroll Plugin
How we’ve built Backroll plugin for Cloudstack
(http://docs.cloudstack.apache.org/en/latest/adminguide/backup_and_recovery.
html)
We are developping our plugin using the Cloudstack Back and Restore
framework
How to setup the Backroll plugin
• Set 'backroll' to the "backup.framework.provider.plugin" global configuration variable
• Set these 3 variables:
• "backup.plugin.backroll.config.url"
• "backup.plugin.backroll.config.appname"
• "backup.plugin.backroll.config.password"
Code sample, authent, etc
To do: diagram to describe components
• Allows Cloudstack users to
use 3rd party backup
solutions
• Abstracts the API commands
required for common backup
and recovery operations
Concepts
• 'SLA' Backups
• Adhoc and user scheduled
backups
Key features
• Authentication
• List of existing backup policies
• Start a backup for registred virtual machines
• Restore virtual machines from backups
• Delete backups

17. Live demo
Modern web UI

18. Roadmap
Modern web UI
What's next ?

19. www.dimsi.fr | contact@dimsi.fr | (+33) 01 75 43 89 66
4 Avenue Laurent Cély Hall D,
92600 Asnières-sur-Seine
Thank you !
