Software Defined Networking :
Primer
Muhammad Moinur Rahman
moin@1asia-ahl.com

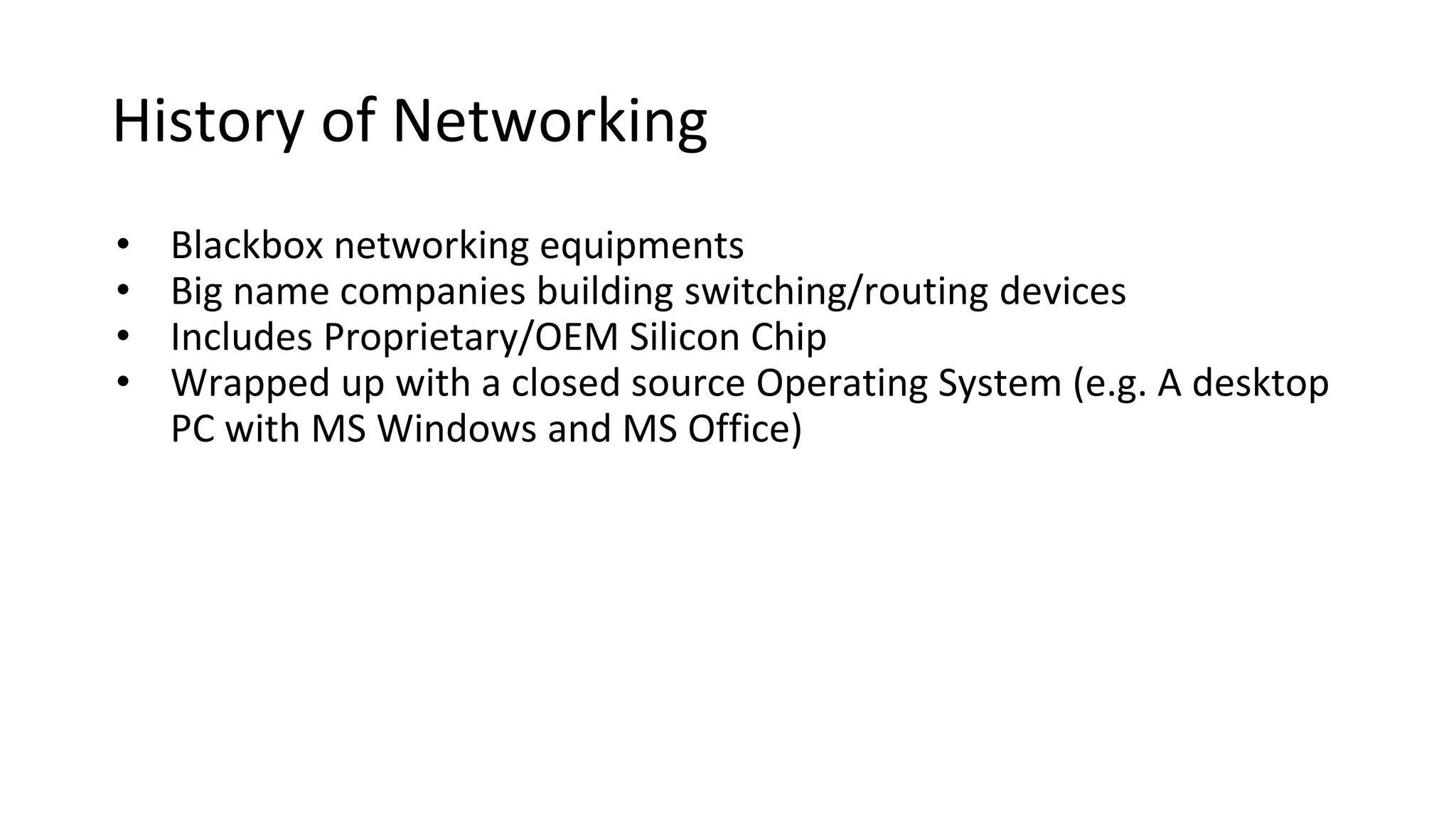

History of Networking
• Blackbox networking equipments
• Big name companies building switching/routing devices
• Includes Proprietary/OEM Silicon Chip
• Wrapped up with a closed source Operating System (e.g. A desktop
PC with MS Windows and MS Office)

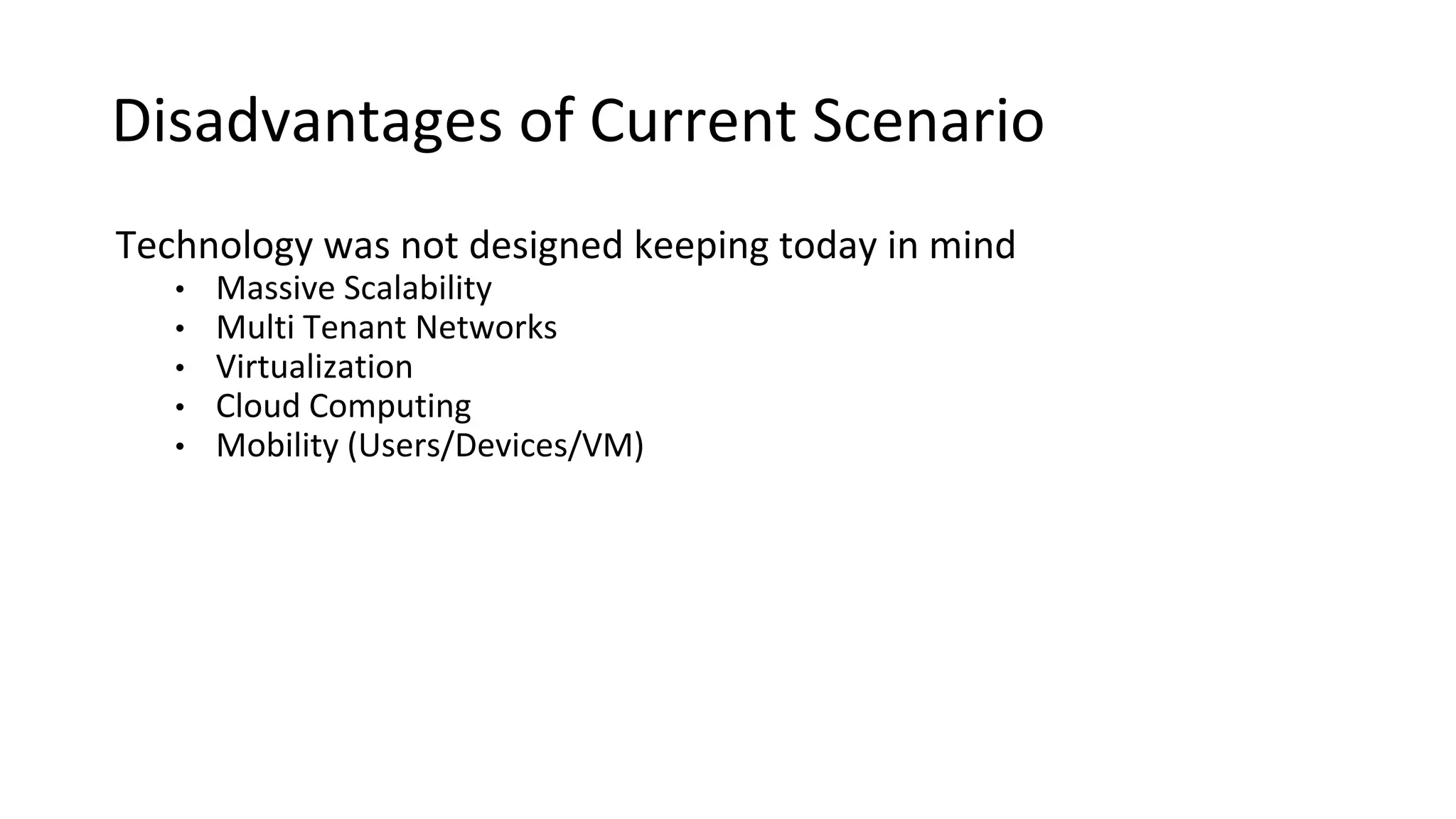

Disadvantages of Current Scenario
Technology was not designed keeping today in mind
• Massive Scalability
• Multi Tenant Networks
• Virtualization
• Cloud Computing
• Mobility (Users/Devices/VM)

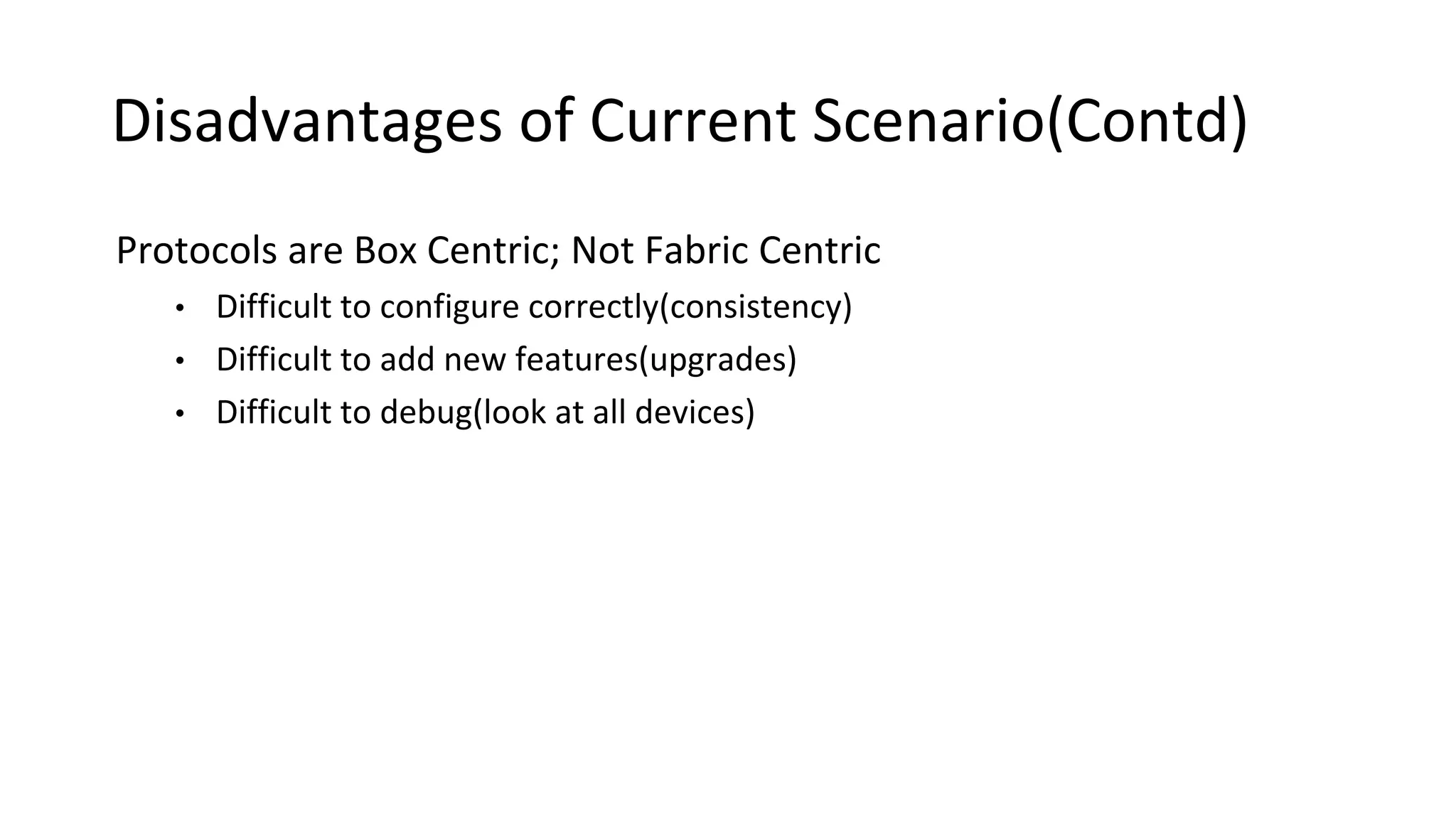

Disadvantages of Current Scenario(Contd)
Protocols are Box Centric; Not Fabric Centric
• Difficult to configure correctly(consistency)
• Difficult to add new features(upgrades)
• Difficult to debug(look at all devices)

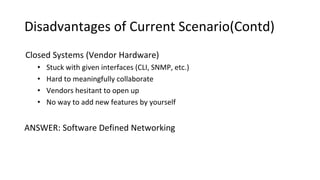

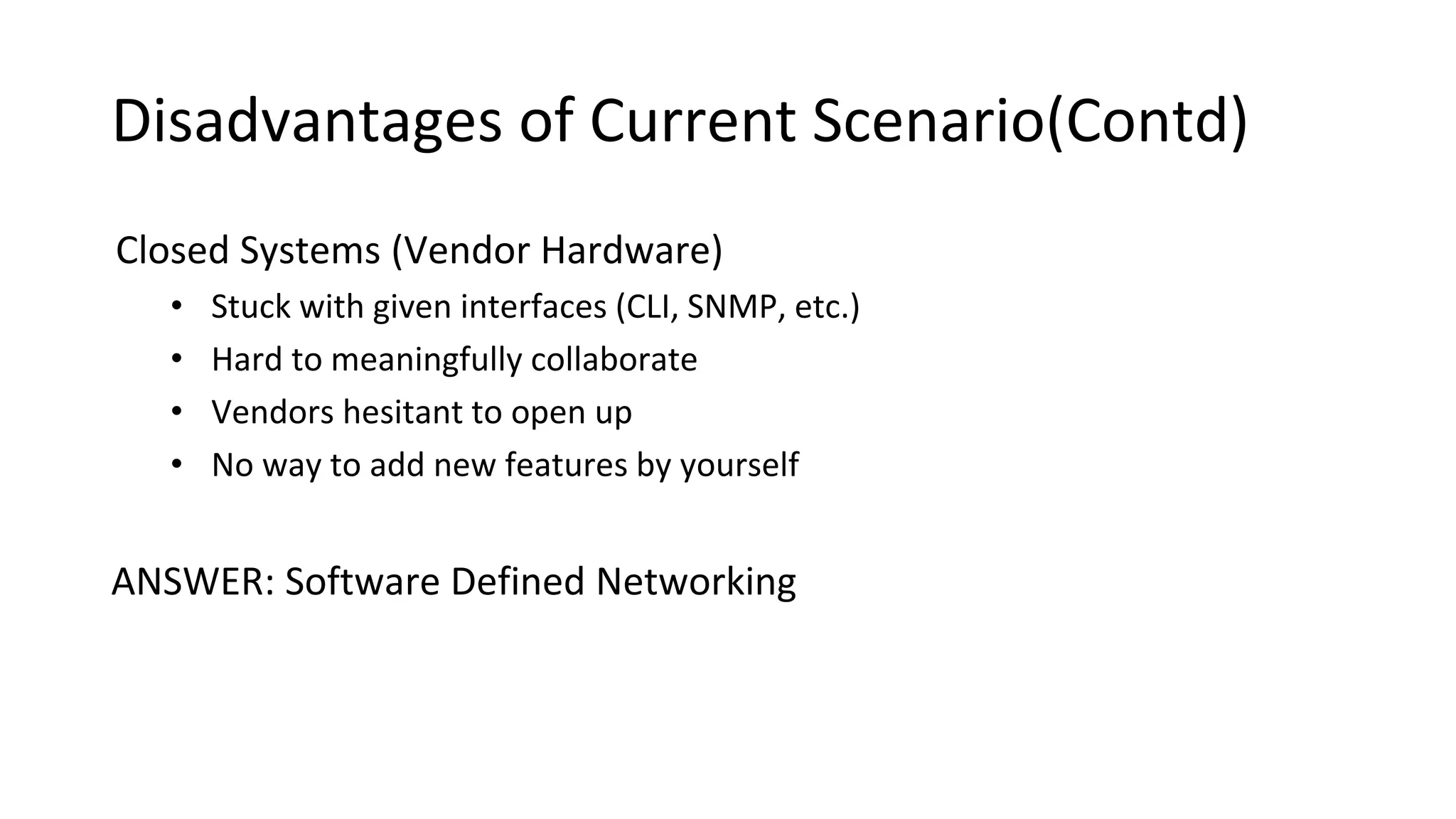

Disadvantages of Current Scenario(Contd)
Closed Systems (Vendor Hardware)
• Stuck with given interfaces (CLI, SNMP, etc.)
• Hard to meaningfully collaborate
• Vendors hesitant to open up
• No way to add new features by yourself
ANSWER: Software Defined Networking

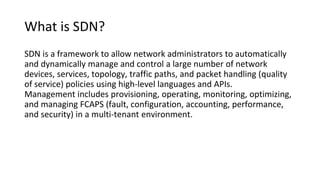

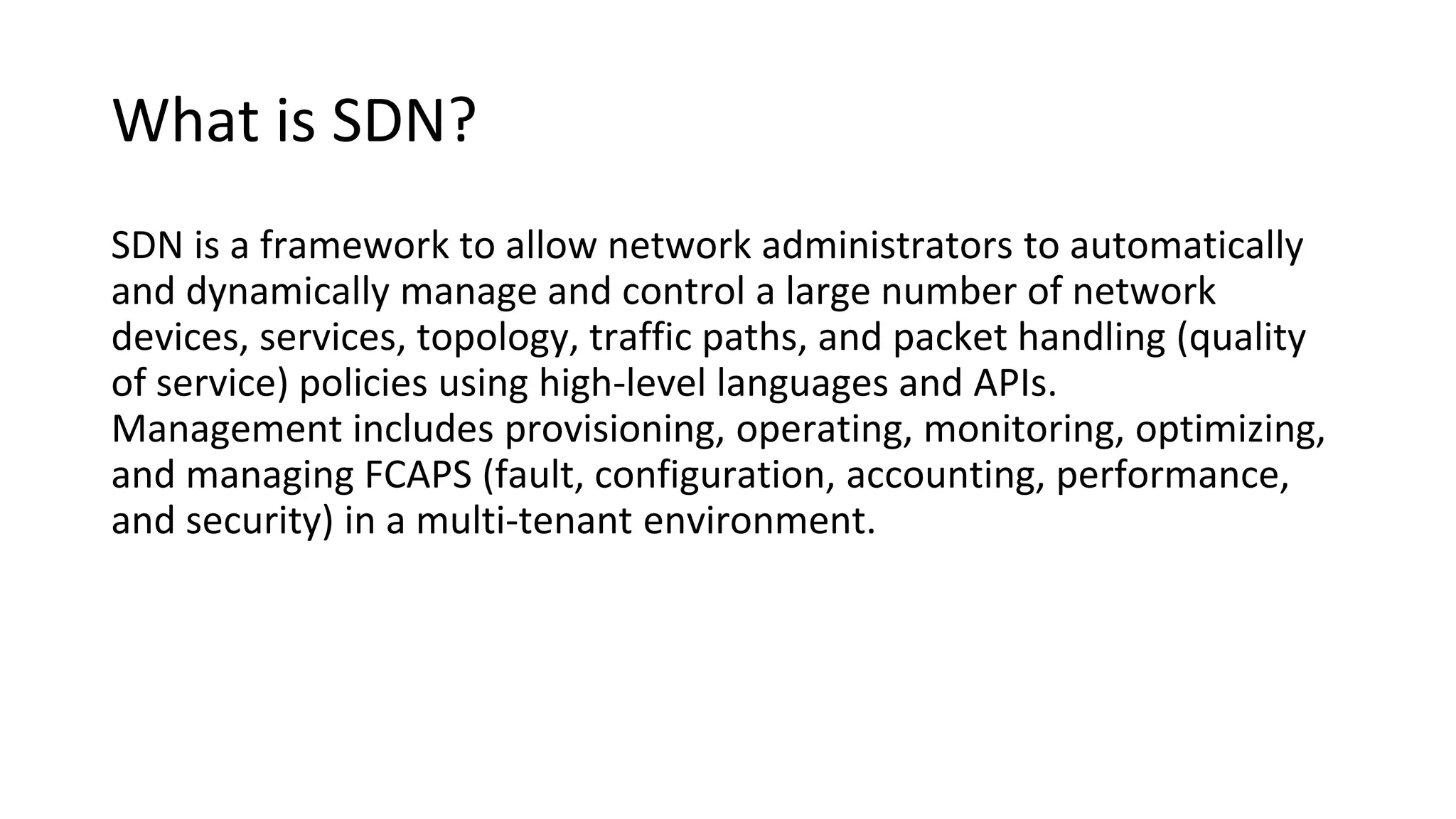

What is SDN?
SDN is a framework to allow network administrators to automatically
and dynamically manage and control a large number of network
devices, services, topology, traffic paths, and packet handling (quality
of service) policies using high-level languages and APIs.
Management includes provisioning, operating, monitoring, optimizing,
and managing FCAPS (fault, configuration, accounting, performance,
and security) in a multi-tenant environment.

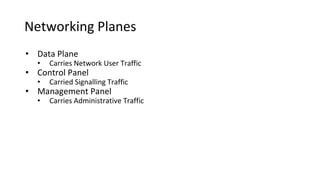

Networking Planes
• Data Plane
• Carries Network User Traffic
• Control Panel
• Carried Signalling Traffic
• Management Panel
• Carries Administrative Traffic

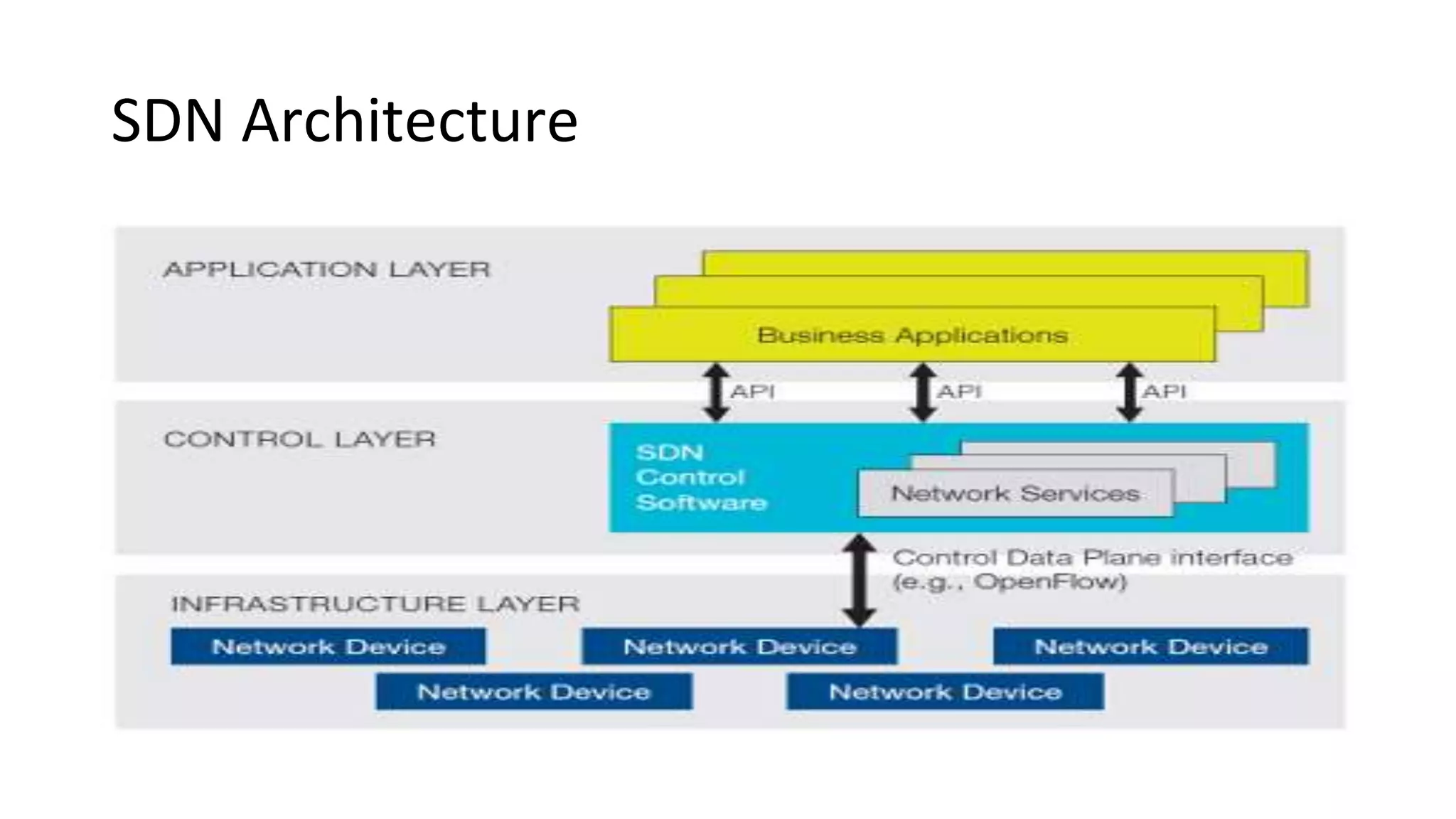

SDN Architecture

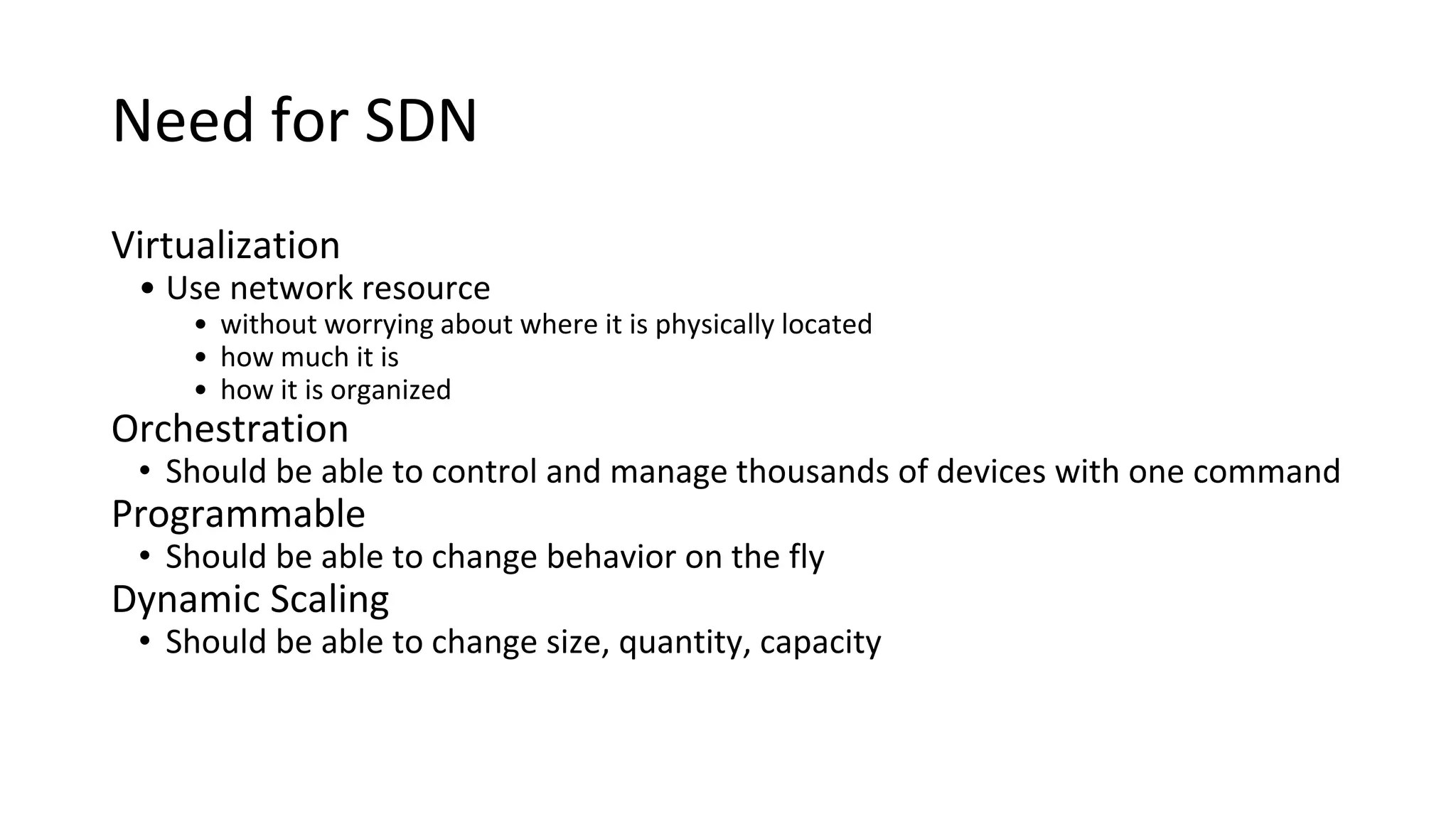

Need for SDN
Virtualization
• Use network resource
• without worrying about where it is physically located
• how much it is
• how it is organized
Orchestration
• Should be able to control and manage thousands of devices with one command
Programmable
• Should be able to change behavior on the fly
Dynamic Scaling
• Should be able to change size, quantity, capacity

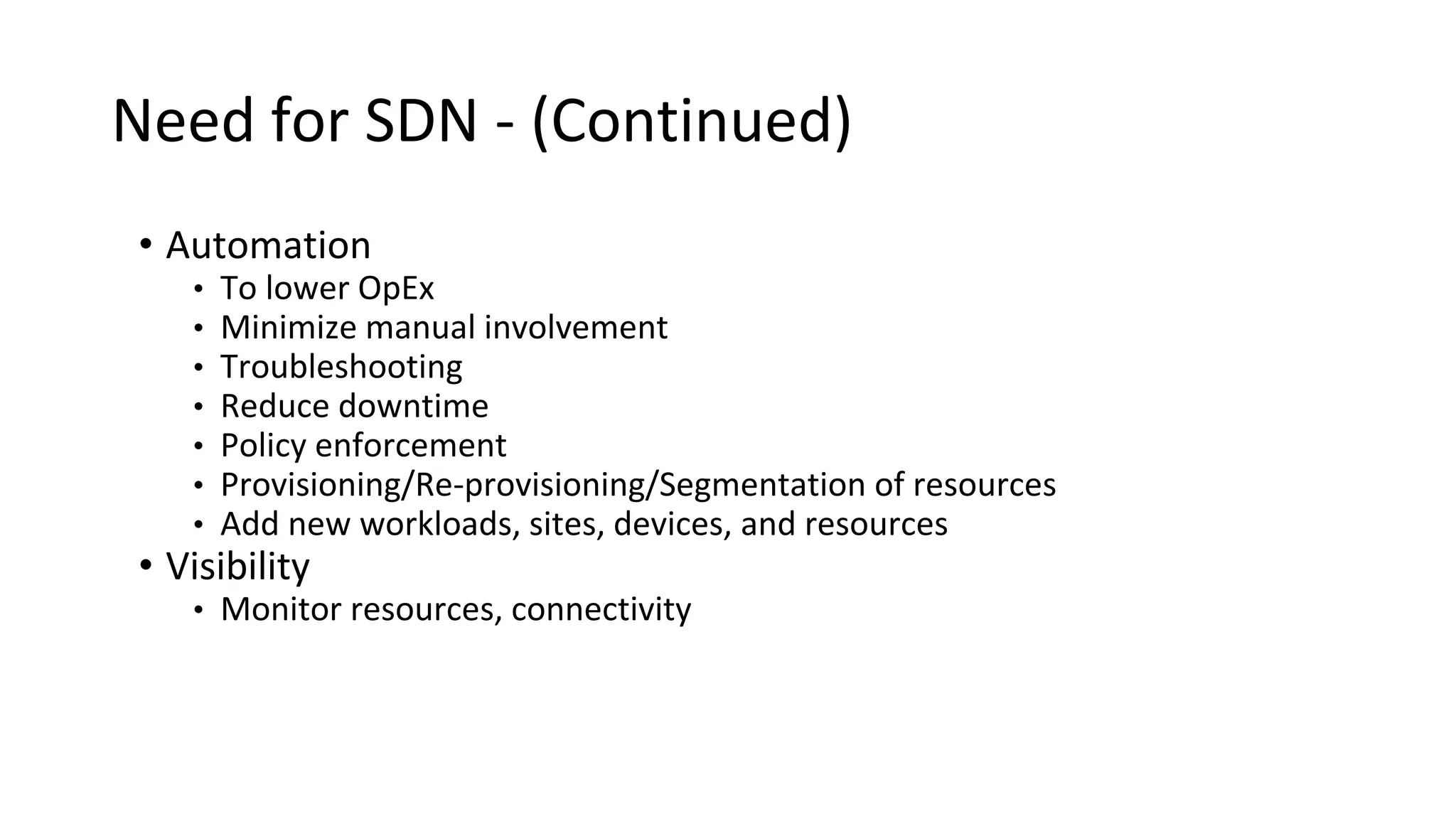

Need for SDN - (Continued)
• Automation
• To lower OpEx
• Minimize manual involvement
• Troubleshooting
• Reduce downtime
• Policy enforcement
• Provisioning/Re-provisioning/Segmentation of resources
• Add new workloads, sites, devices, and resources
• Visibility
• Monitor resources, connectivity

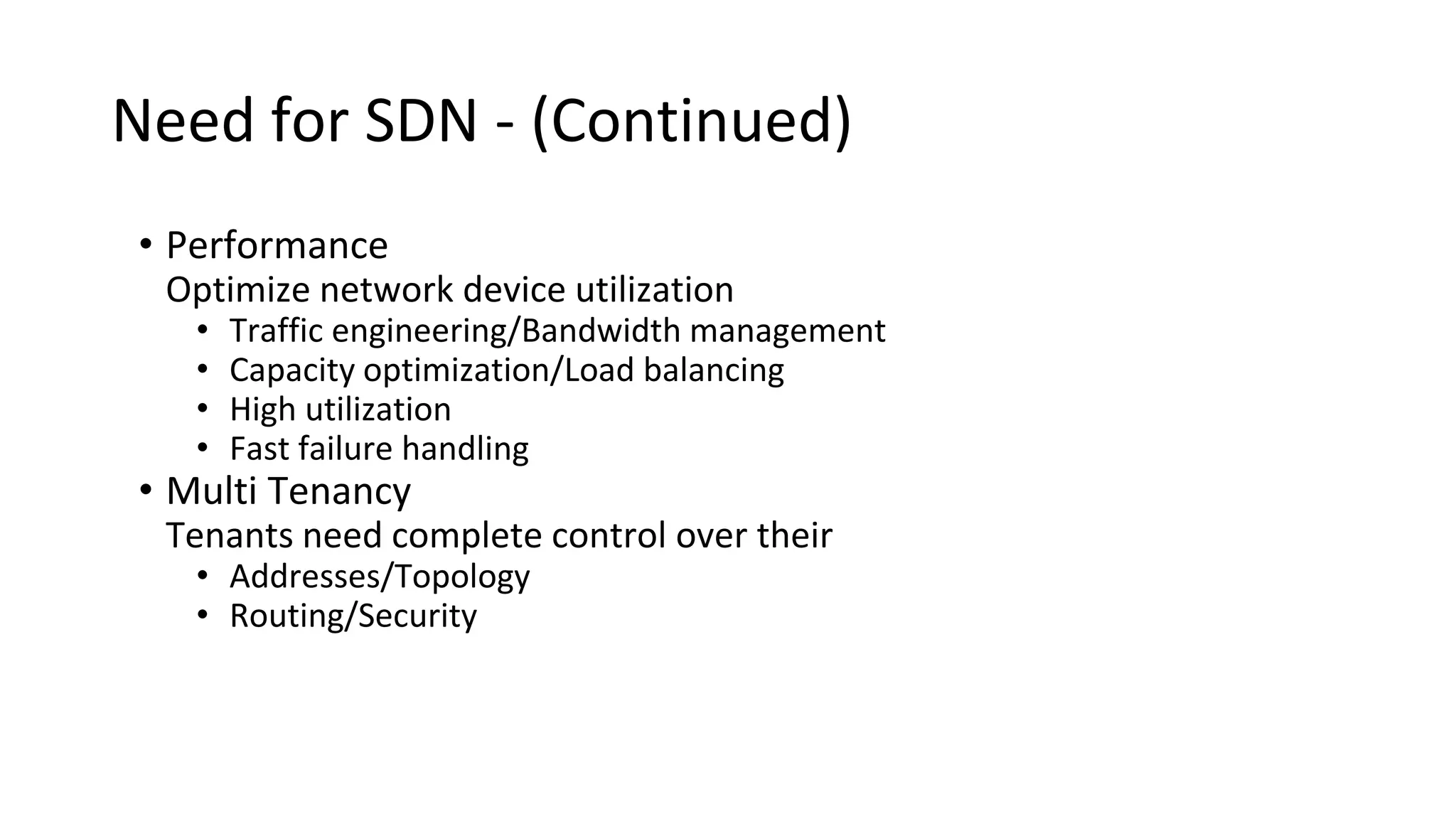

Need for SDN - (Continued)
• Performance
Optimize network device utilization
• Traffic engineering/Bandwidth management
• Capacity optimization/Load balancing
• High utilization
• Fast failure handling
• Multi Tenancy
Tenants need complete control over their
• Addresses/Topology
• Routing/Security

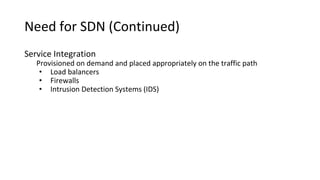

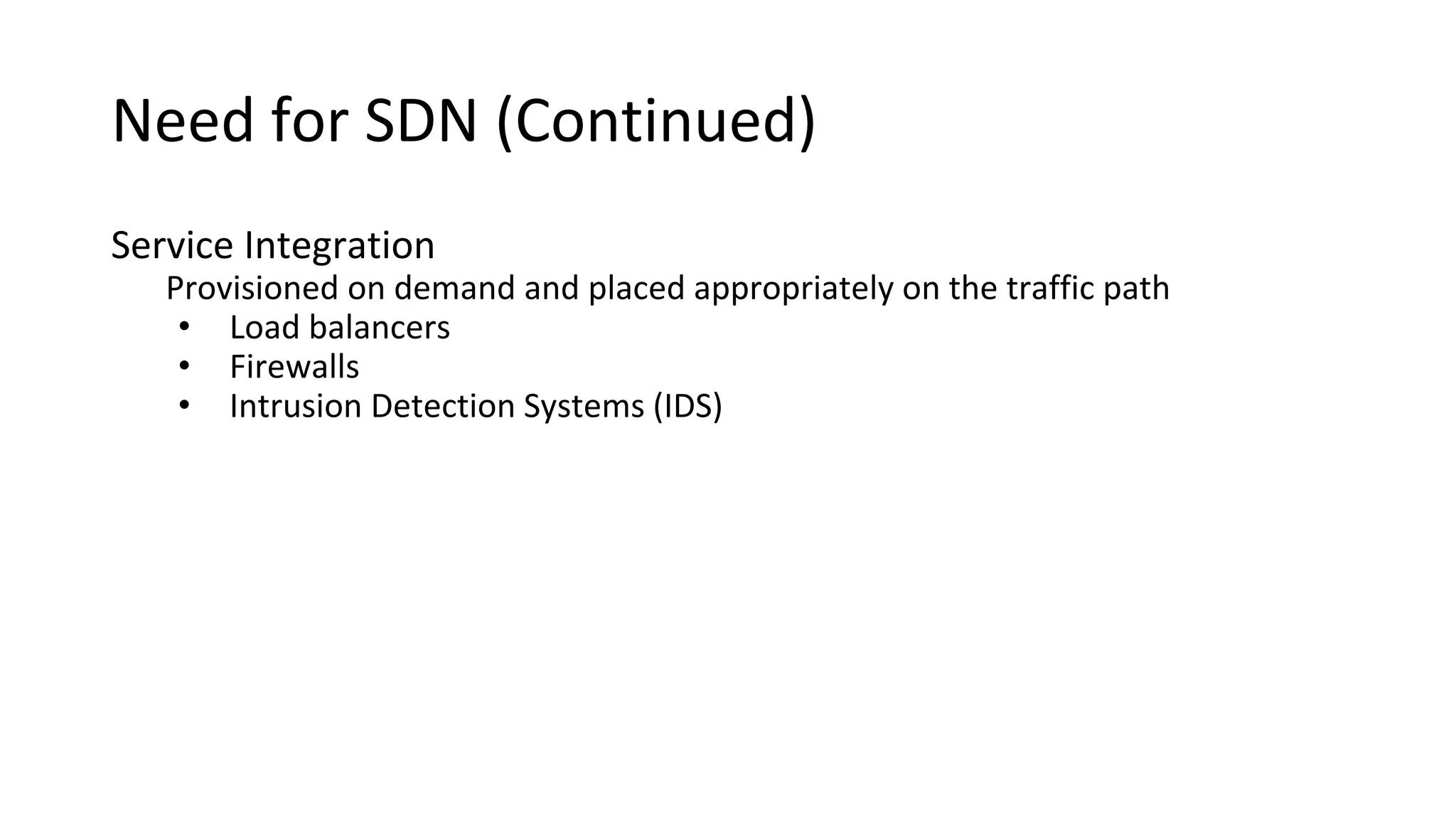

Need for SDN (Continued)
Service Integration
Provisioned on demand and placed appropriately on the traffic path
• Load balancers
• Firewalls
• Intrusion Detection Systems (IDS)

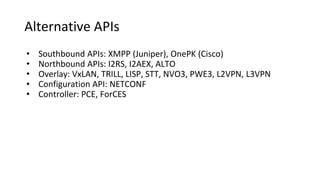

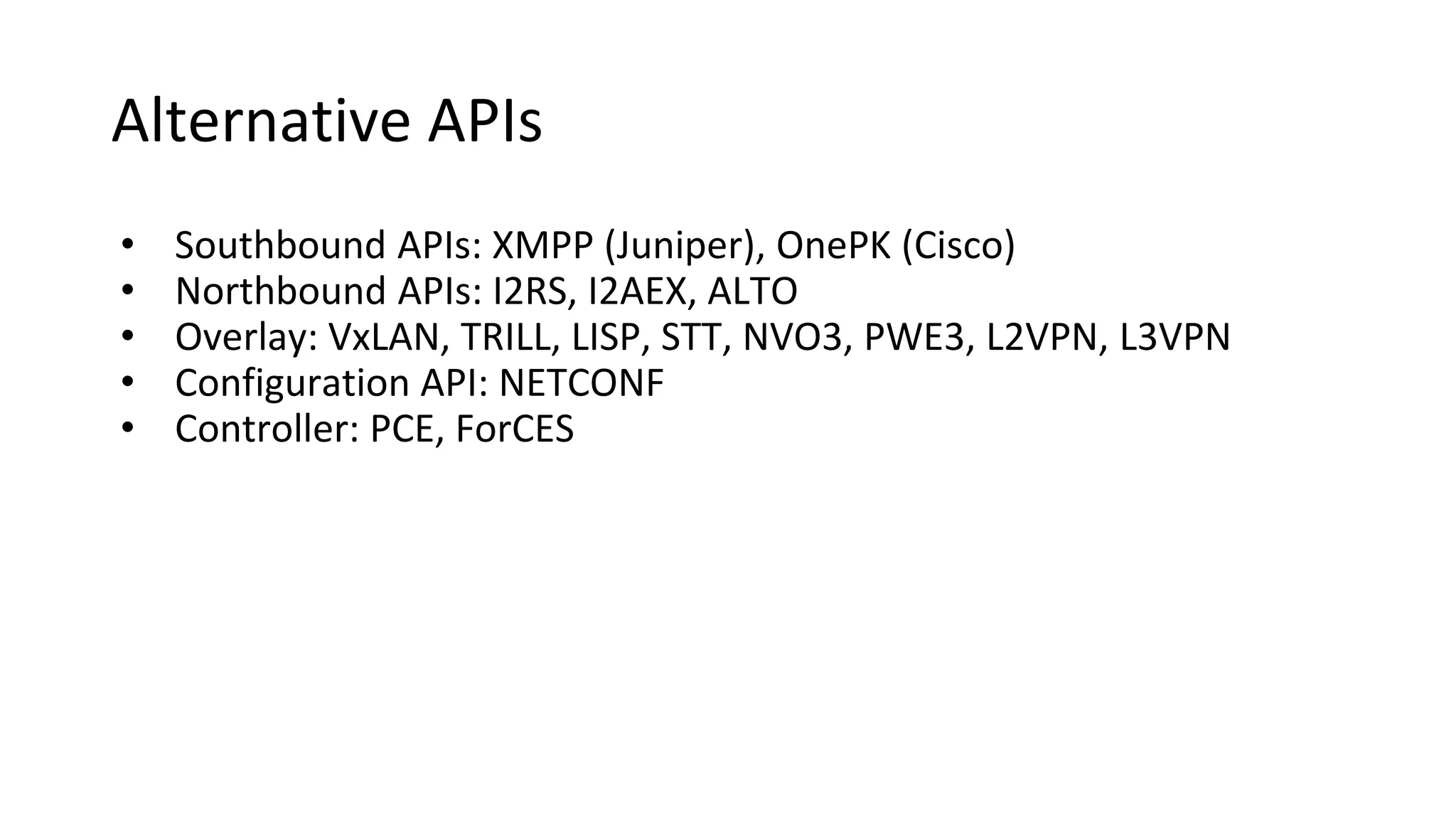

Alternative APIs
• Southbound APIs: XMPP (Juniper), OnePK (Cisco)
• Northbound APIs: I2RS, I2AEX, ALTO
• Overlay: VxLAN, TRILL, LISP, STT, NVO3, PWE3, L2VPN, L3VPN
• Configuration API: NETCONF
• Controller: PCE, ForCES

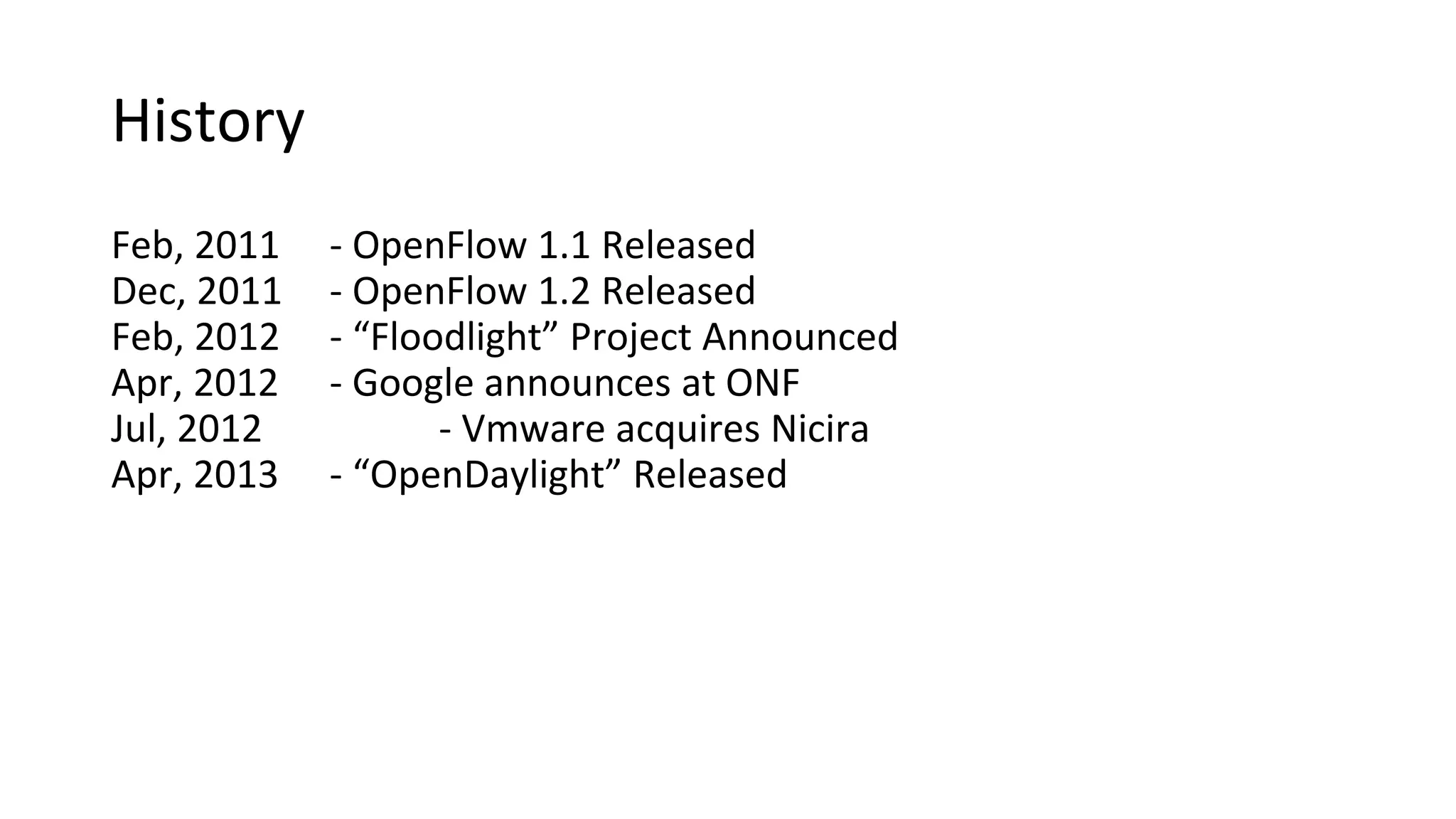

History
Feb, 2011 - OpenFlow 1.1 Released
Dec, 2011 - OpenFlow 1.2 Released
Feb, 2012 - “Floodlight” Project Announced
Apr, 2012 - Google announces at ONF
Jul, 2012 - Vmware acquires Nicira
Apr, 2013 - “OpenDaylight” Released

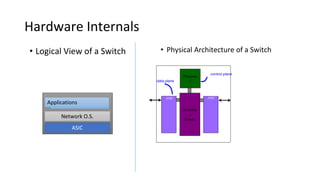

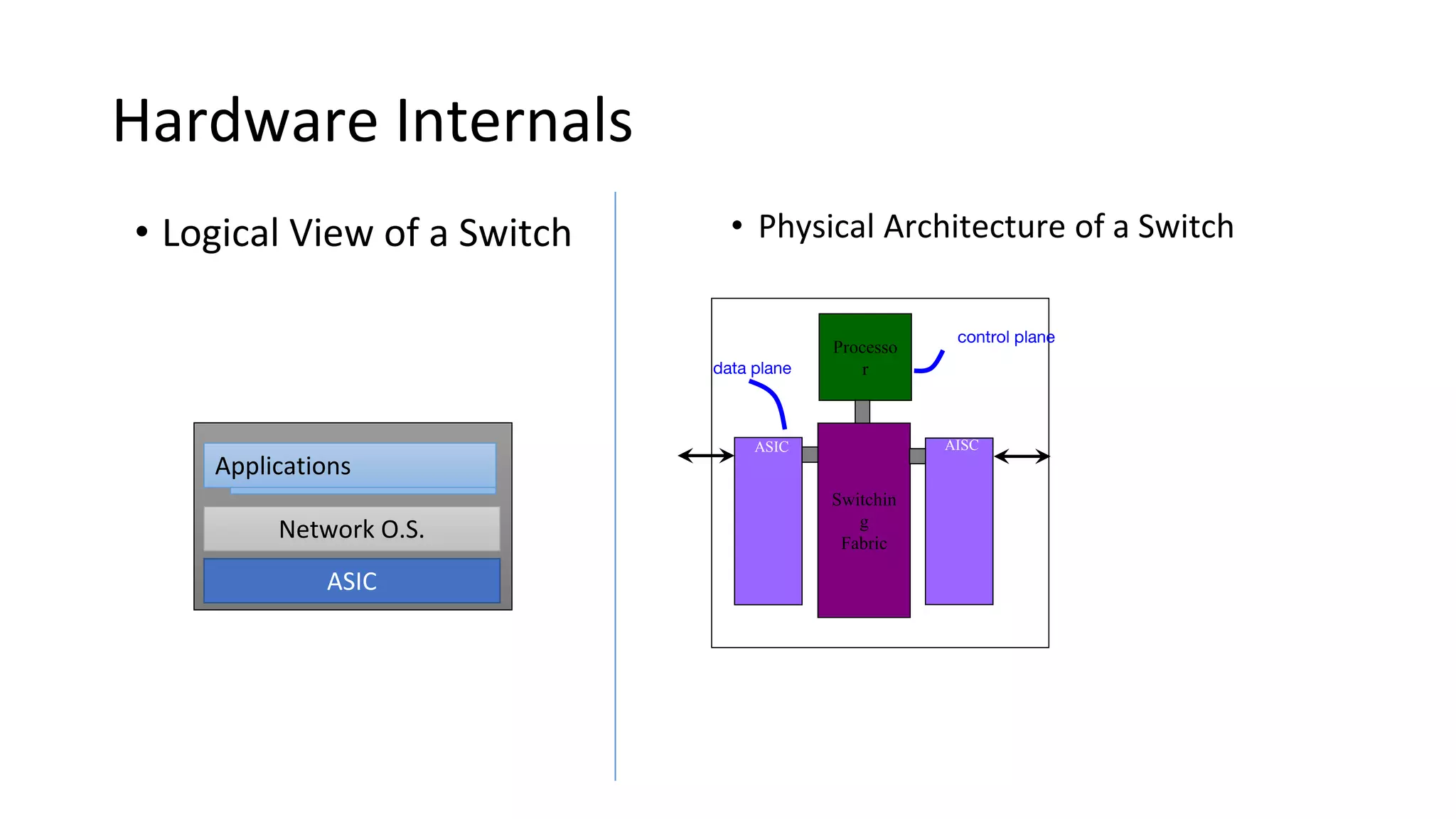

Hardware Internals
• Logical View of a Switch • Physical Architecture of a Switch
Switchin
g
Fabric
Processo
r
ASIC AISC
data plane
control plane
Network O.S.
ASIC
ApplicationsApplications

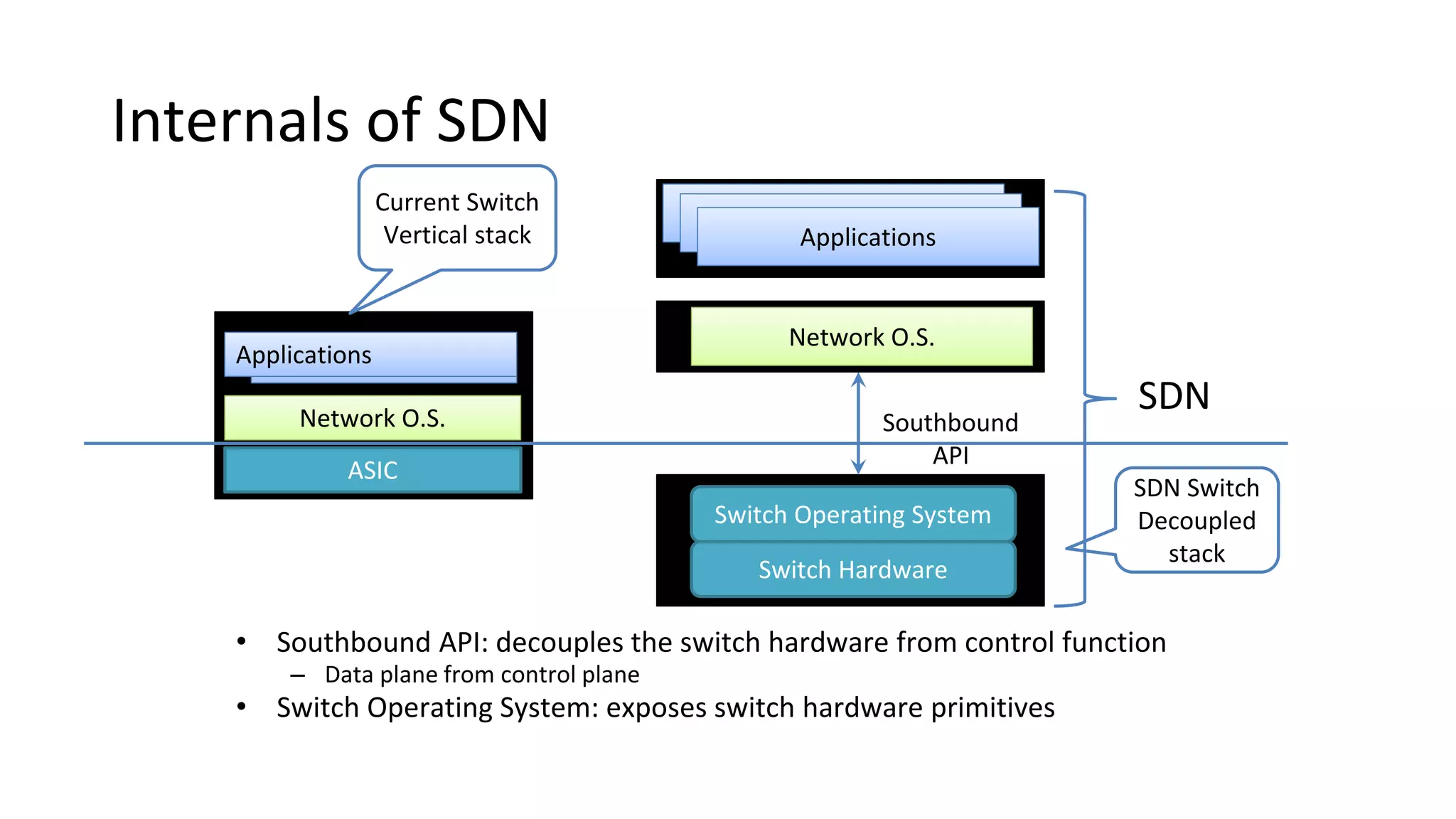

Internals of SDN
• Southbound API: decouples the switch hardware from control function
– Data plane from control plane
• Switch Operating System: exposes switch hardware primitives
Network O.S.
ApplicationsApplications
Applications
Southbound
API
SDN
Switch Operating System
Switch Hardware
Network O.S.
ASIC
ApplicationsApplications
Current Switch
Vertical stack
SDN Switch
Decoupled
stack

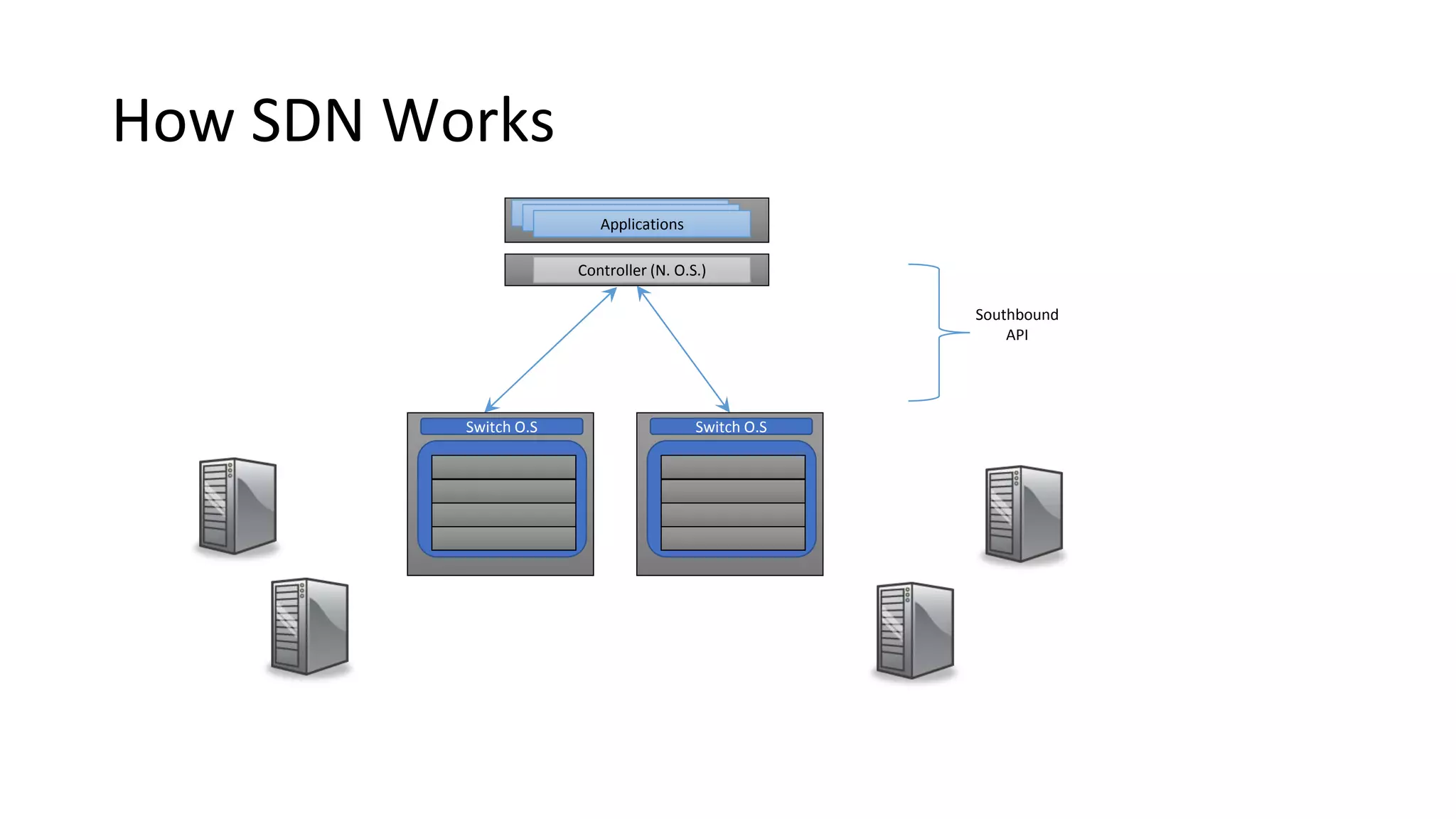

How SDN Works
Controller (N. O.S.)
ApplicationsApplicationsApplications
Southbound
API
Switch H.W
Switch O.S
Switch H.W
Switch O.S

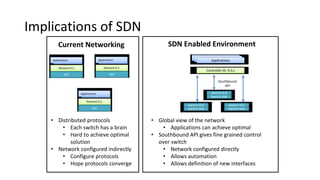

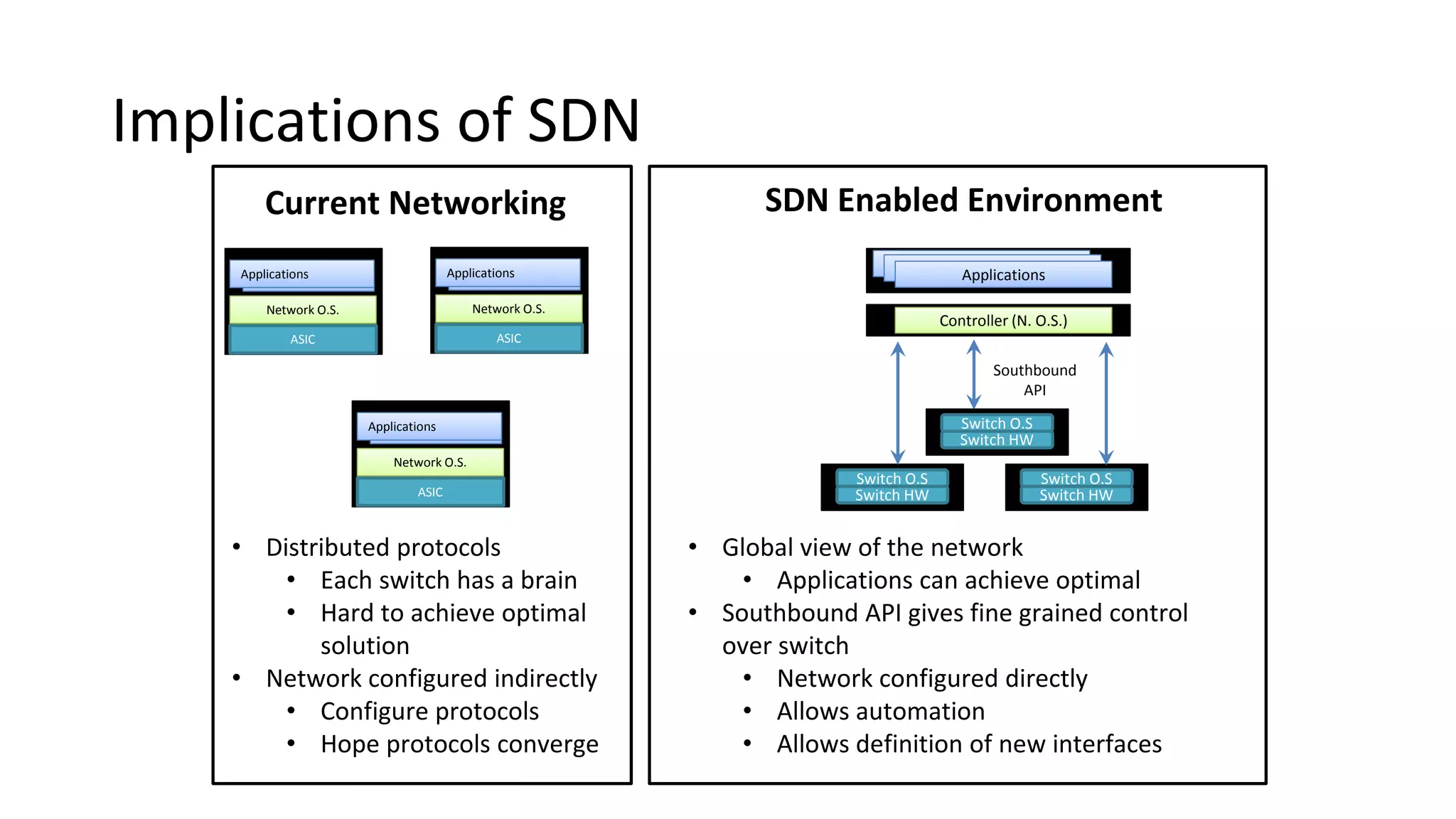

Implications of SDN
Current Networking SDN Enabled Environment
Controller (N. O.S.)
ApplicationsApplicationsApplications
Southbound
API
Switch O.S
Switch HW
Switch O.S
Switch HW
Switch O.S
Switch HW
• Distributed protocols
• Each switch has a brain
• Hard to achieve optimal
solution
• Network configured indirectly
• Configure protocols
• Hope protocols converge
• Global view of the network
• Applications can achieve optimal
• Southbound API gives fine grained control
over switch
• Network configured directly
• Allows automation
• Allows definition of new interfaces
Network O.S.
ASIC
ApplicationsApplications
Network O.S.
ASIC
ApplicationsApplications
Network O.S.
ASIC
ApplicationsApplications
19

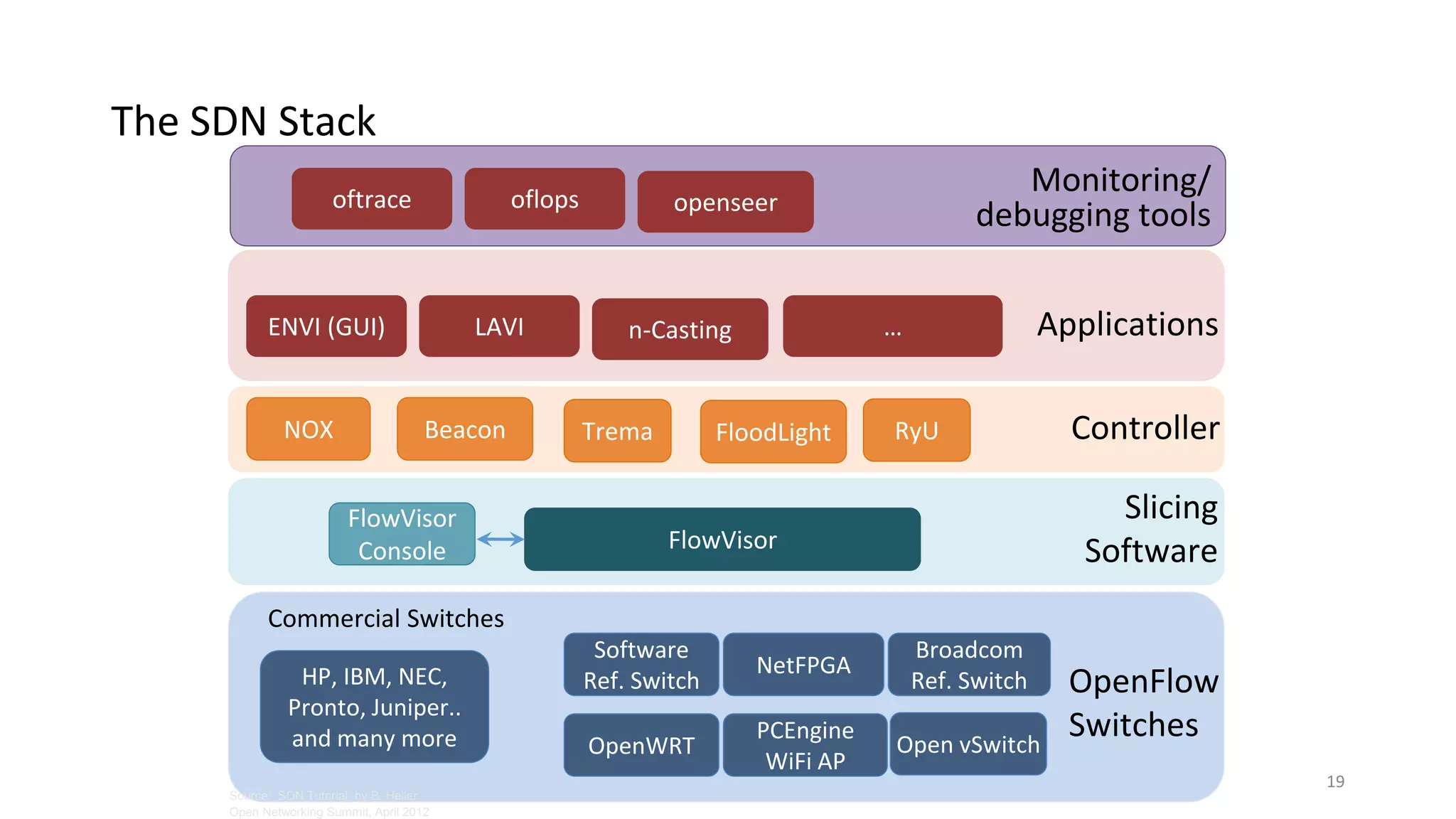

The SDN Stack
ControllerNOX
Slicing
SoftwareFlowVisor
FlowVisor
Console
19
ApplicationsLAVIENVI (GUI) …n-Casting
NetFPGA
Software
Ref. Switch
Broadcom
Ref. Switch
OpenWRT
PCEngine
WiFi AP
Commercial Switches
OpenFlow
Switches
RyU
Monitoring/
debugging toolsoflopsoftrace openseer
Open vSwitch
HP, IBM, NEC,
Pronto, Juniper..
and many more
Beacon Trema FloodLight
Source: SDN Tutorial by B. Heller
Open Networking Summit, April 2012

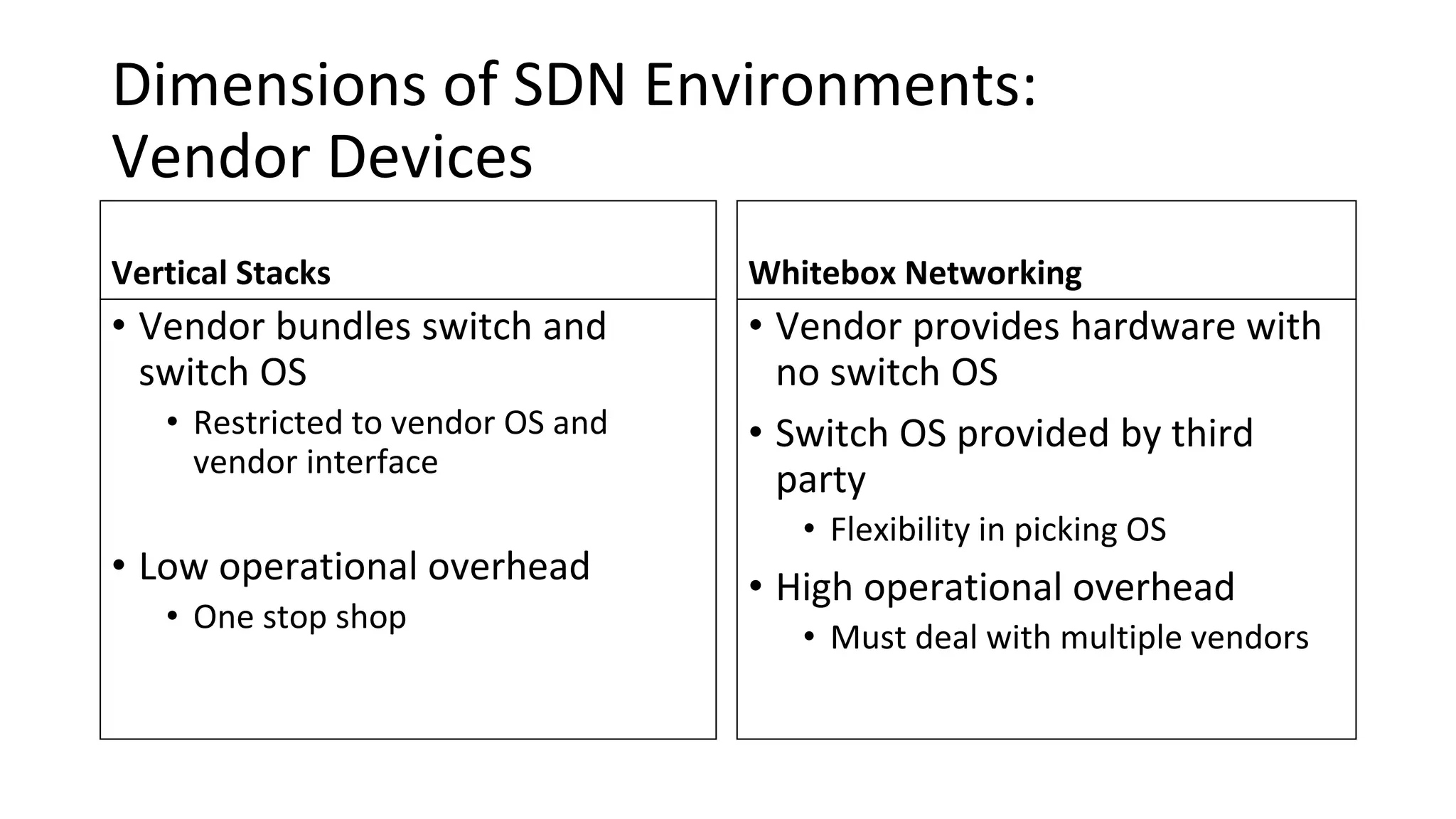

Dimensions of SDN Environments:
Vendor Devices
Vertical Stacks
• Vendor bundles switch and
switch OS
• Restricted to vendor OS and
vendor interface
• Low operational overhead
• One stop shop
Whitebox Networking
• Vendor provides hardware with
no switch OS
• Switch OS provided by third
party
• Flexibility in picking OS
• High operational overhead
• Must deal with multiple vendors

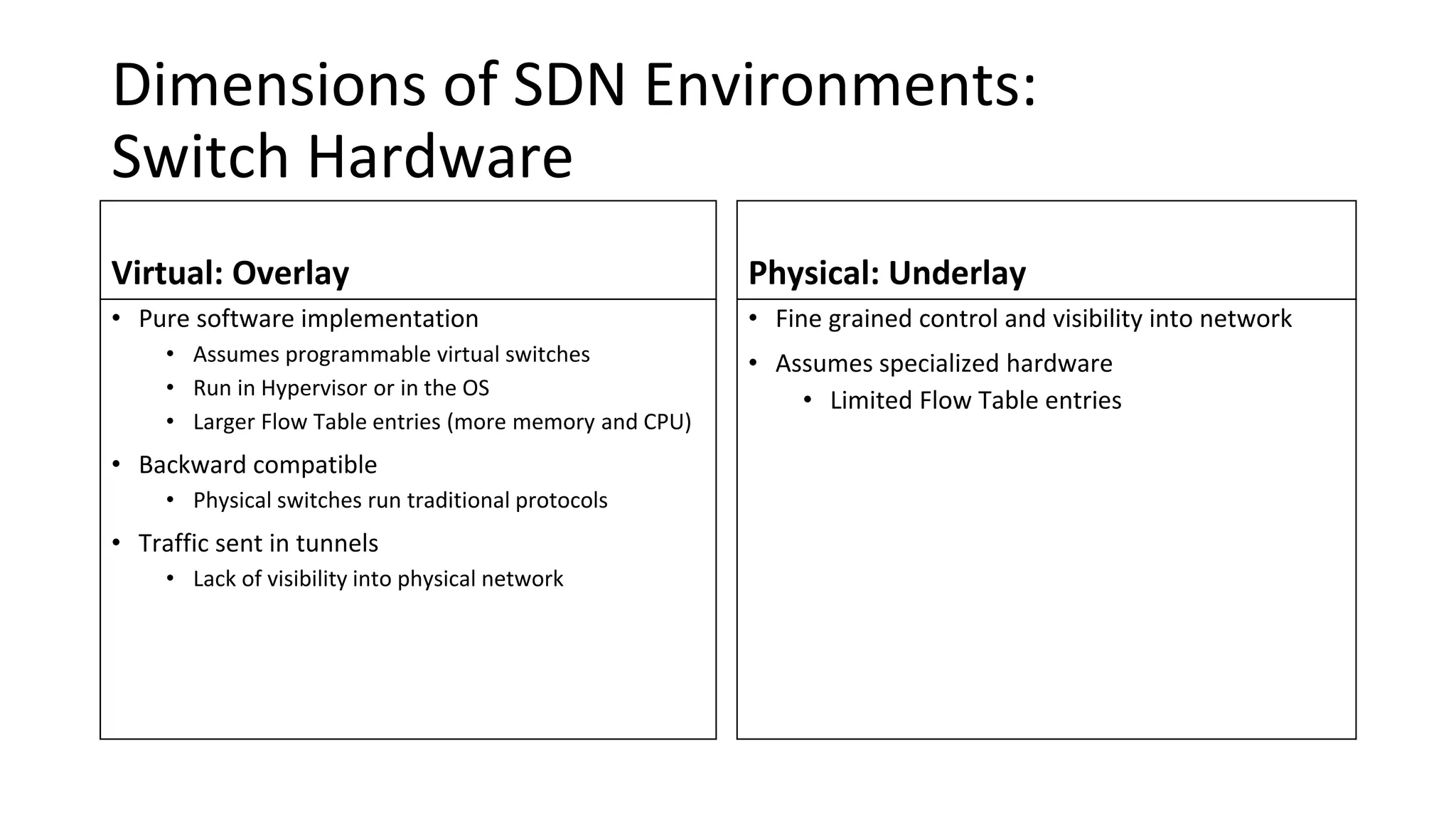

Dimensions of SDN Environments:
Switch Hardware
Virtual: Overlay
• Pure software implementation
• Assumes programmable virtual switches
• Run in Hypervisor or in the OS
• Larger Flow Table entries (more memory and CPU)
• Backward compatible
• Physical switches run traditional protocols
• Traffic sent in tunnels
• Lack of visibility into physical network
Physical: Underlay
• Fine grained control and visibility into network
• Assumes specialized hardware
• Limited Flow Table entries

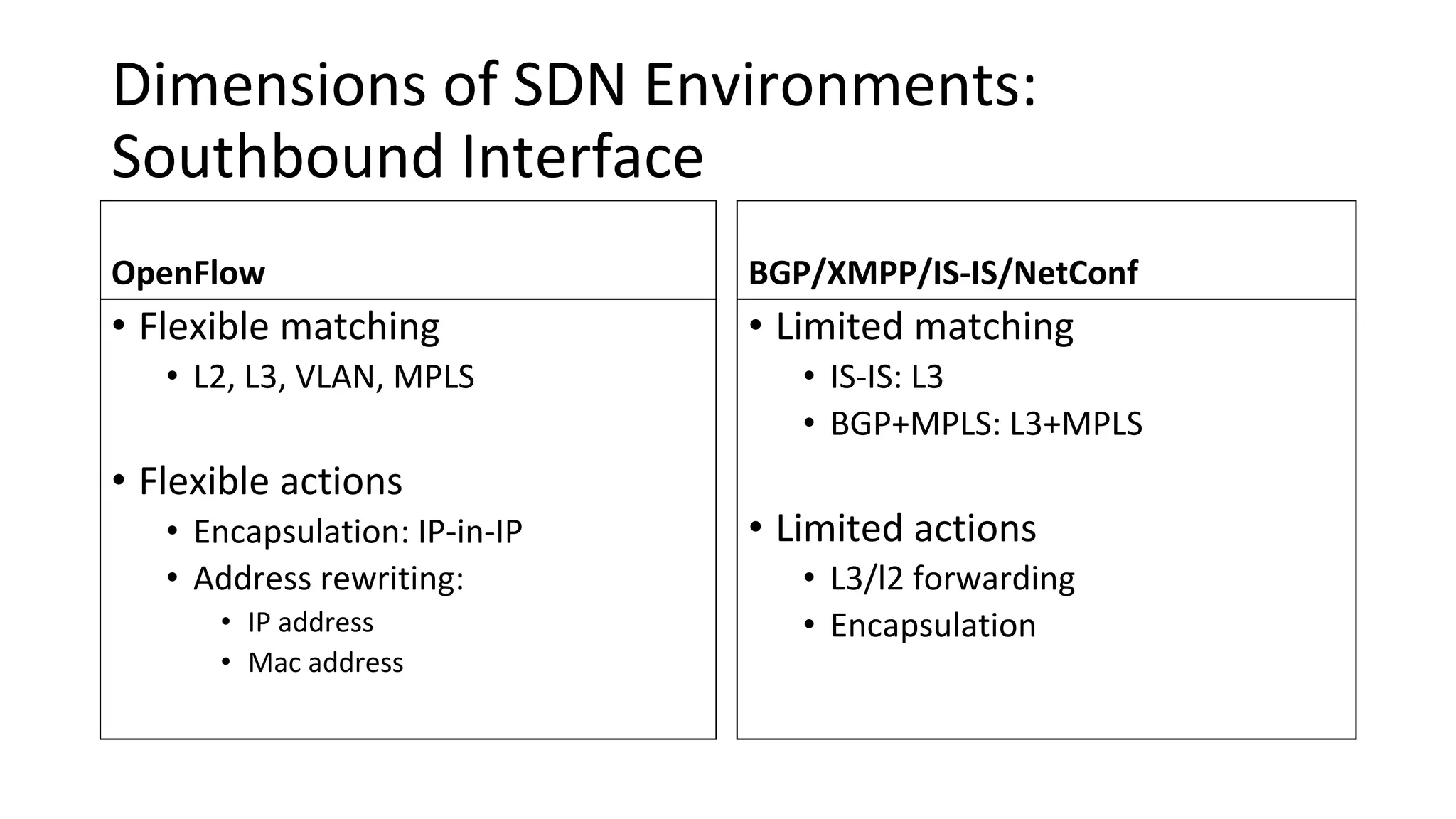

Dimensions of SDN Environments:
Southbound Interface
OpenFlow
• Flexible matching
• L2, L3, VLAN, MPLS
• Flexible actions
• Encapsulation: IP-in-IP
• Address rewriting:
• IP address
• Mac address
BGP/XMPP/IS-IS/NetConf
• Limited matching
• IS-IS: L3
• BGP+MPLS: L3+MPLS
• Limited actions
• L3/l2 forwarding
• Encapsulation

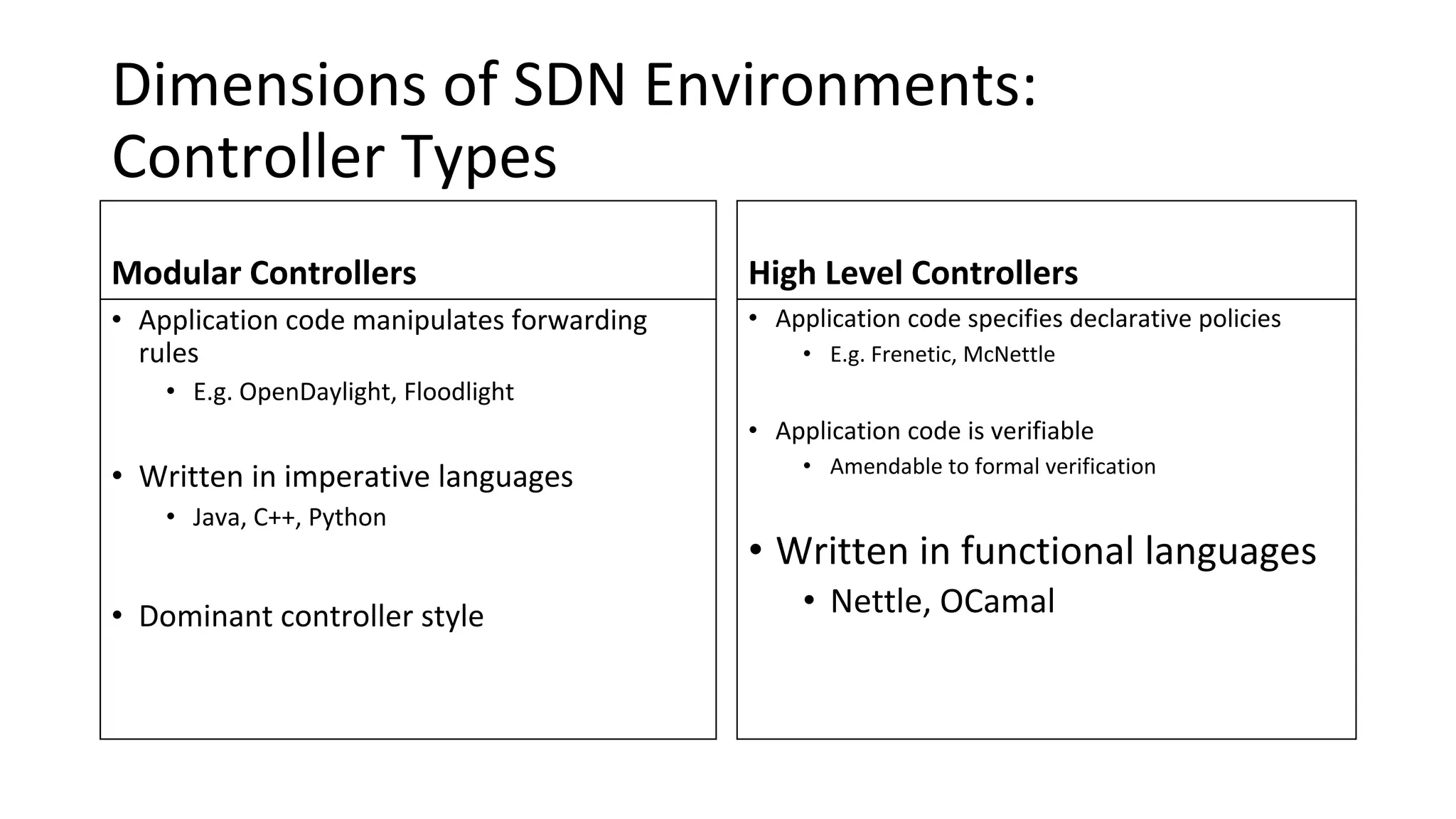

Dimensions of SDN Environments:
Controller Types
Modular Controllers
• Application code manipulates forwarding
rules
• E.g. OpenDaylight, Floodlight
• Written in imperative languages
• Java, C++, Python
• Dominant controller style
High Level Controllers
• Application code specifies declarative policies
• E.g. Frenetic, McNettle
• Application code is verifiable
• Amendable to formal verification
• Written in functional languages
• Nettle, OCamal

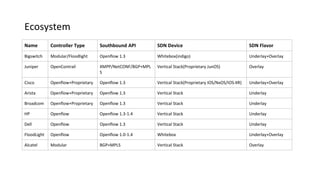

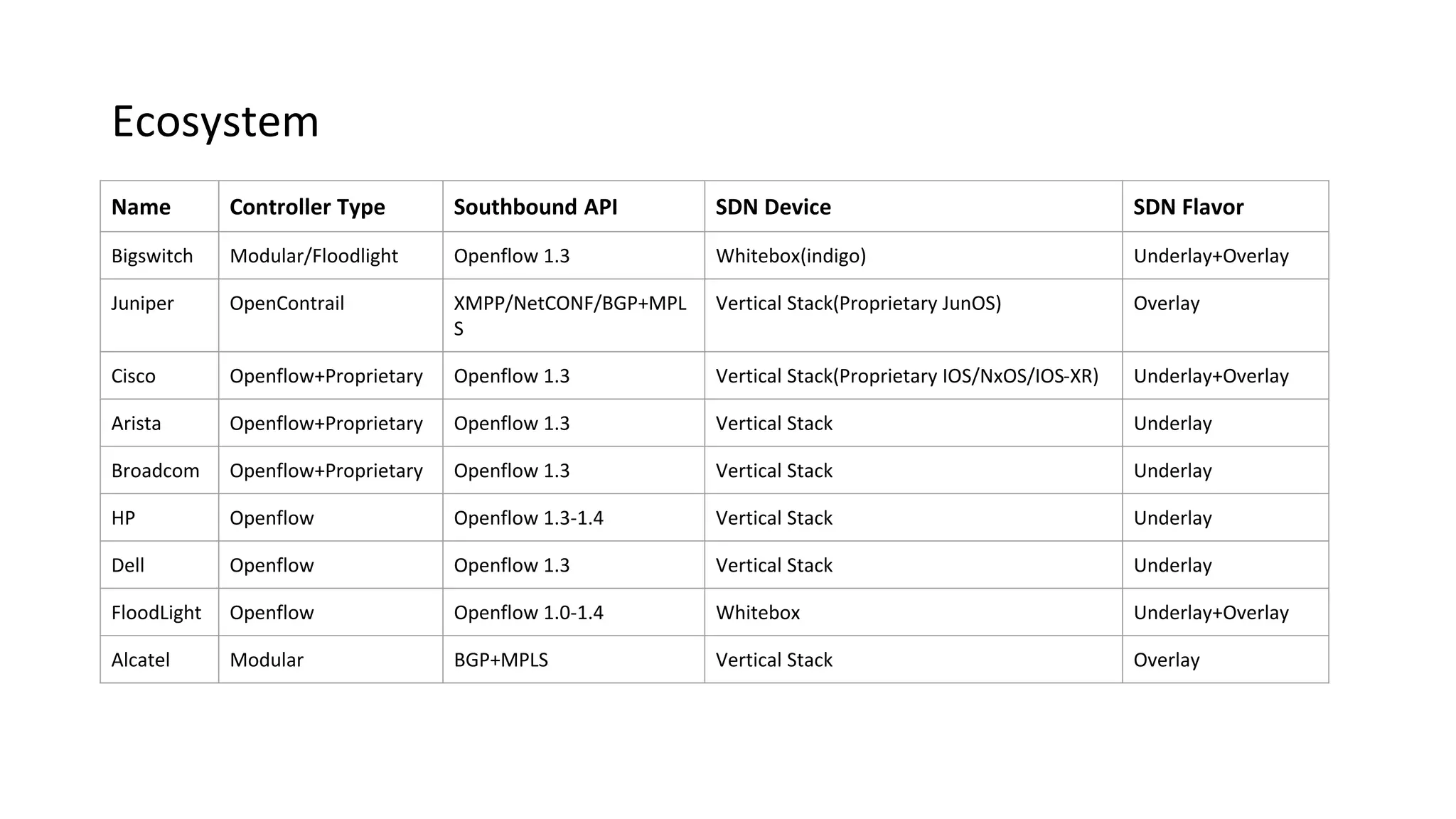

Ecosystem
Name Controller Type Southbound API SDN Device SDN Flavor
Bigswitch Modular/Floodlight Openflow 1.3 Whitebox(indigo) Underlay+Overlay
Juniper OpenContrail XMPP/NetCONF/BGP+MPL
S
Vertical Stack(Proprietary JunOS) Overlay
Cisco Openflow+Proprietary Openflow 1.3 Vertical Stack(Proprietary IOS/NxOS/IOS-XR) Underlay+Overlay
Arista Openflow+Proprietary Openflow 1.3 Vertical Stack Underlay
Broadcom Openflow+Proprietary Openflow 1.3 Vertical Stack Underlay
HP Openflow Openflow 1.3-1.4 Vertical Stack Underlay
Dell Openflow Openflow 1.3 Vertical Stack Underlay
FloodLight Openflow Openflow 1.0-1.4 Whitebox Underlay+Overlay
Alcatel Modular BGP+MPLS Vertical Stack Overlay

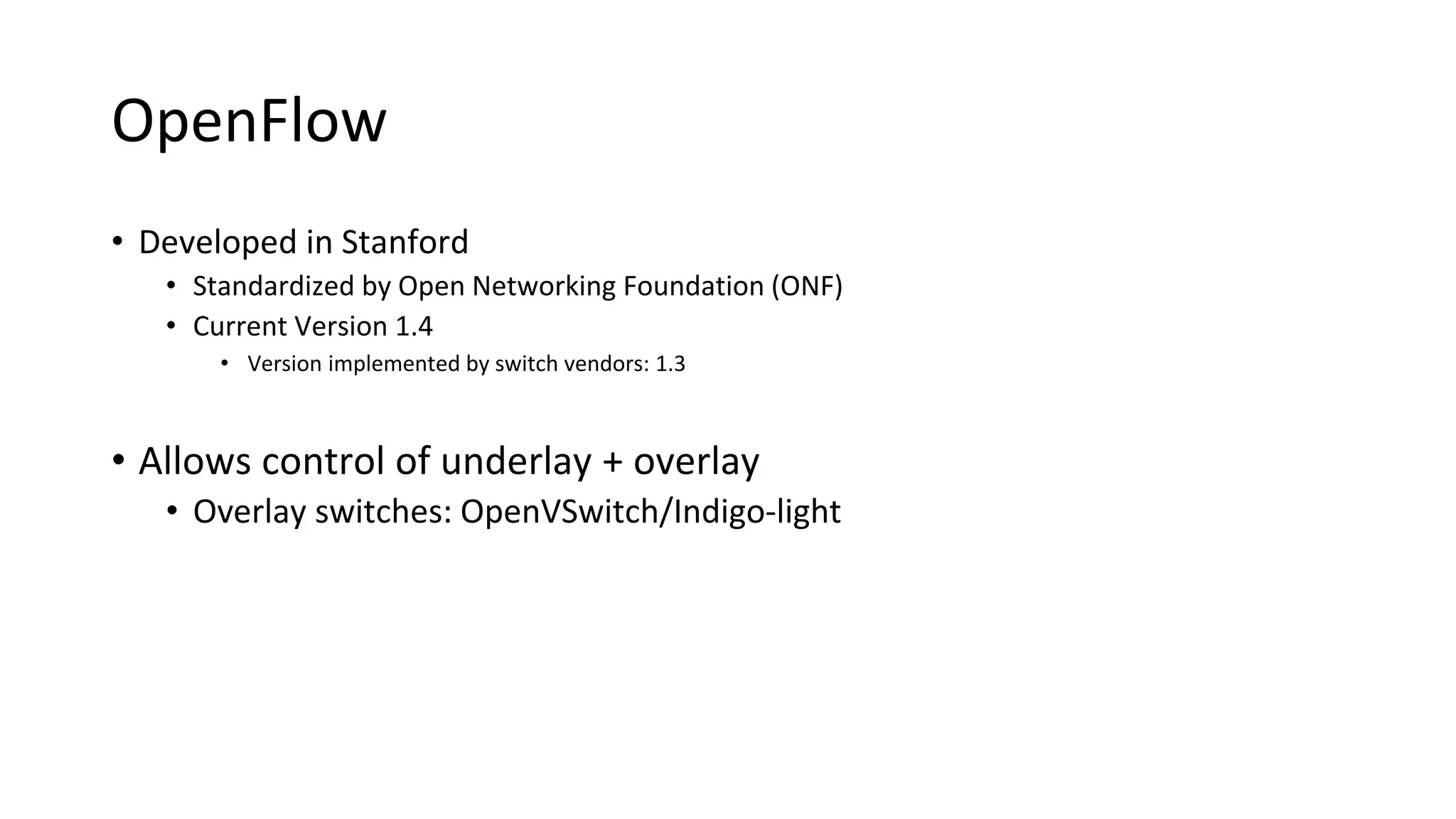

OpenFlow
• Developed in Stanford
• Standardized by Open Networking Foundation (ONF)
• Current Version 1.4
• Version implemented by switch vendors: 1.3
• Allows control of underlay + overlay
• Overlay switches: OpenVSwitch/Indigo-light
PC

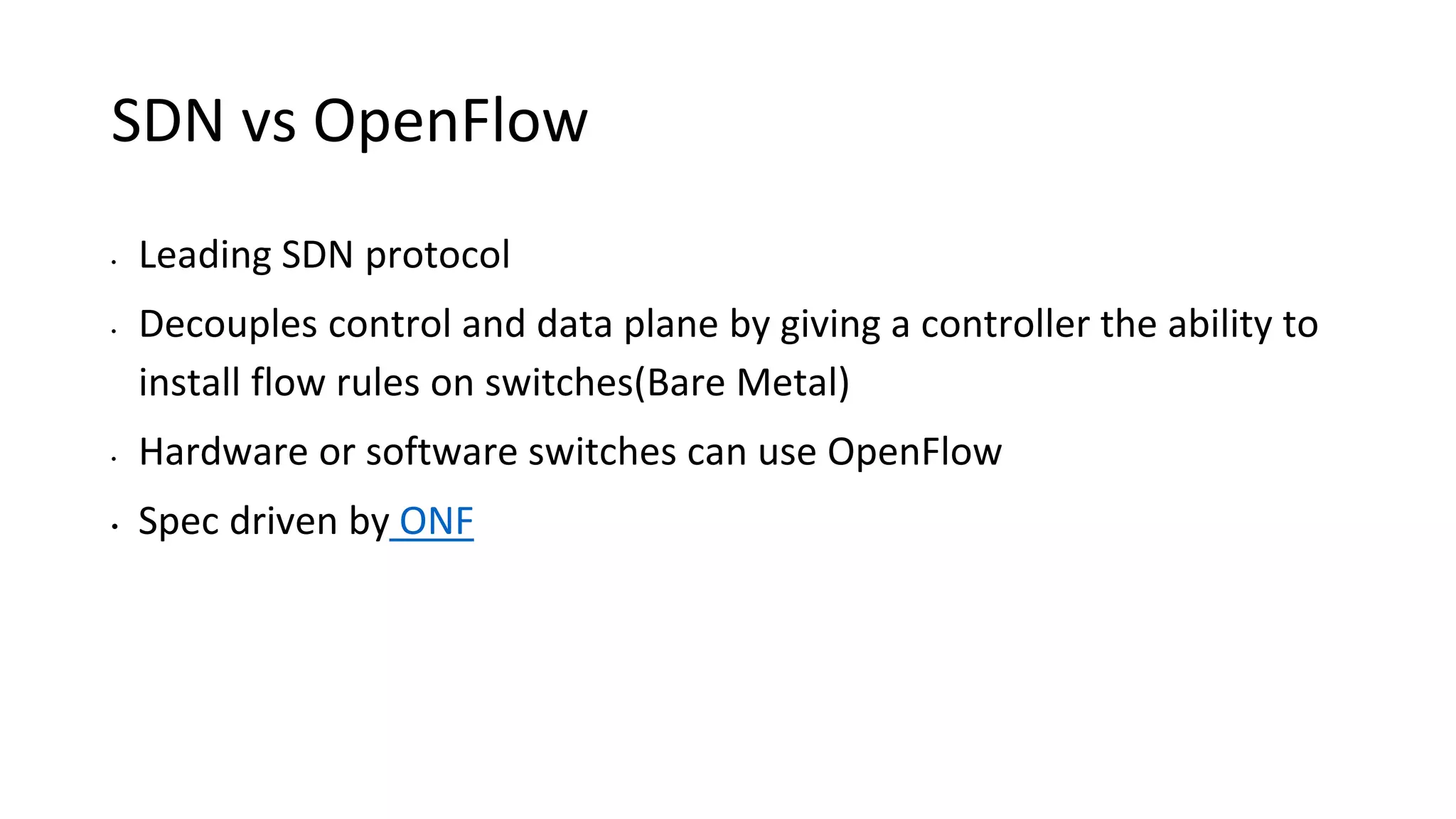

SDN vs OpenFlow
• Leading SDN protocol
• Decouples control and data plane by giving a controller the ability to
install flow rules on switches(Bare Metal)
• Hardware or software switches can use OpenFlow
• Spec driven by ONF

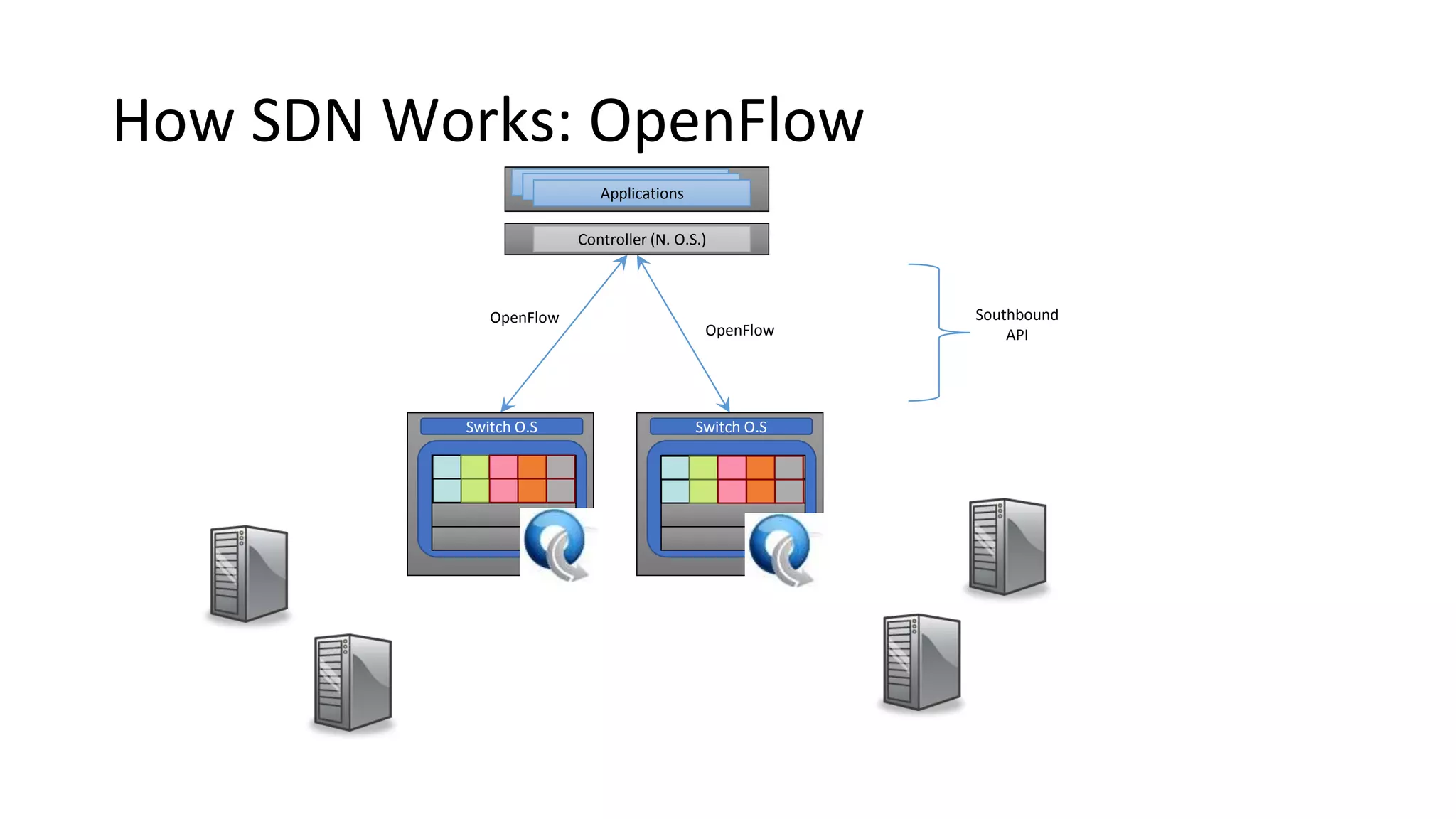

How SDN Works: OpenFlow
Controller (N. O.S.)
ApplicationsApplicationsApplications
Southbound
API
Switch H.W
Switch O.S
Switch H.W
Switch O.S
OpenFlow
OpenFlow

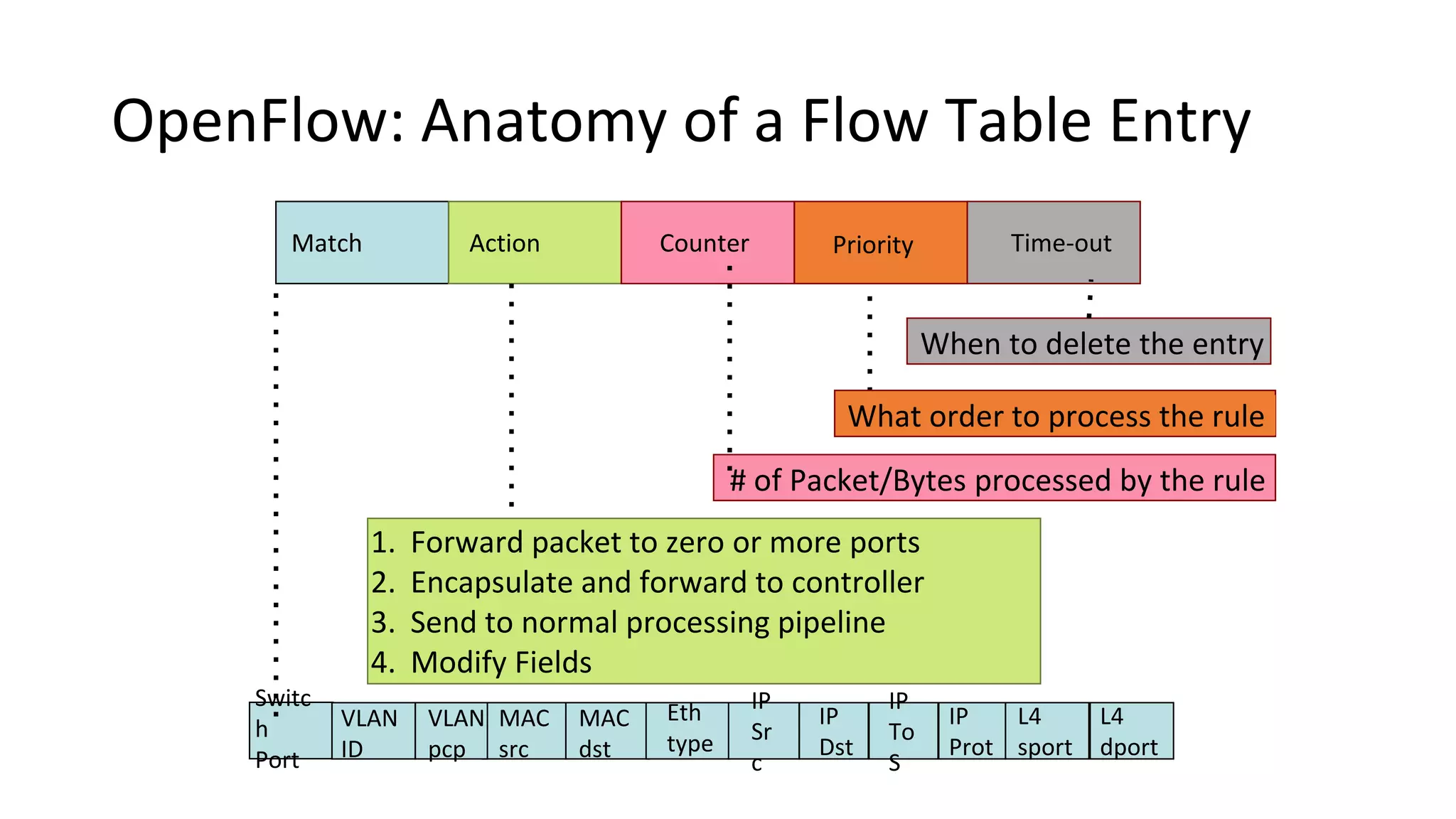

OpenFlow: Anatomy of a Flow Table Entry
Switc
h
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Sr
c
IP
Dst
IP
Prot
L4
sport
L4
dport
Match Action Counter
1. Forward packet to zero or more ports
2. Encapsulate and forward to controller
3. Send to normal processing pipeline
4. Modify Fields
When to delete the entry
VLAN
pcp
IP
To
S
Priority Time-out
What order to process the rule
# of Packet/Bytes processed by the rule

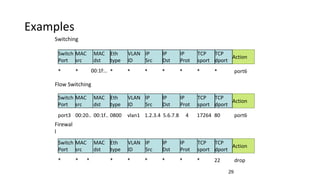

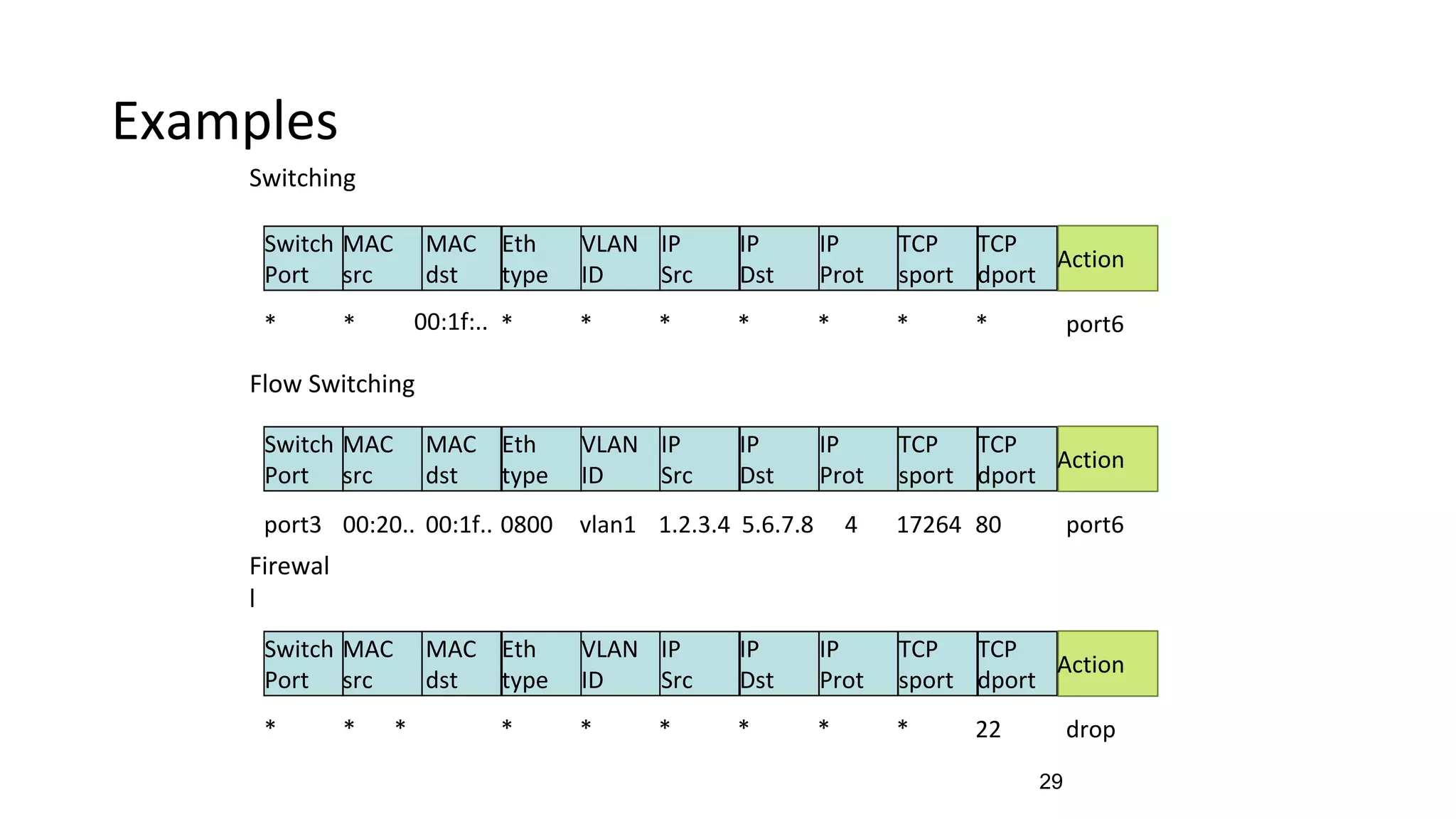

Examples
Switching
*
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
sport
TCP
dport
Action
* 00:1f:.. * * * * * * * port6
Flow Switching
port3
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
sport
TCP
dport
Action
00:20.. 00:1f.. 0800 vlan1 1.2.3.4 5.6.7.8 4 17264 80 port6
Firewal
l
*
Switch
Port
MAC
src
MAC
dst
Eth
type
VLAN
ID
IP
Src
IP
Dst
IP
Prot
TCP
sport
TCP
dport
Action
* * * * * * * * 22 drop
29

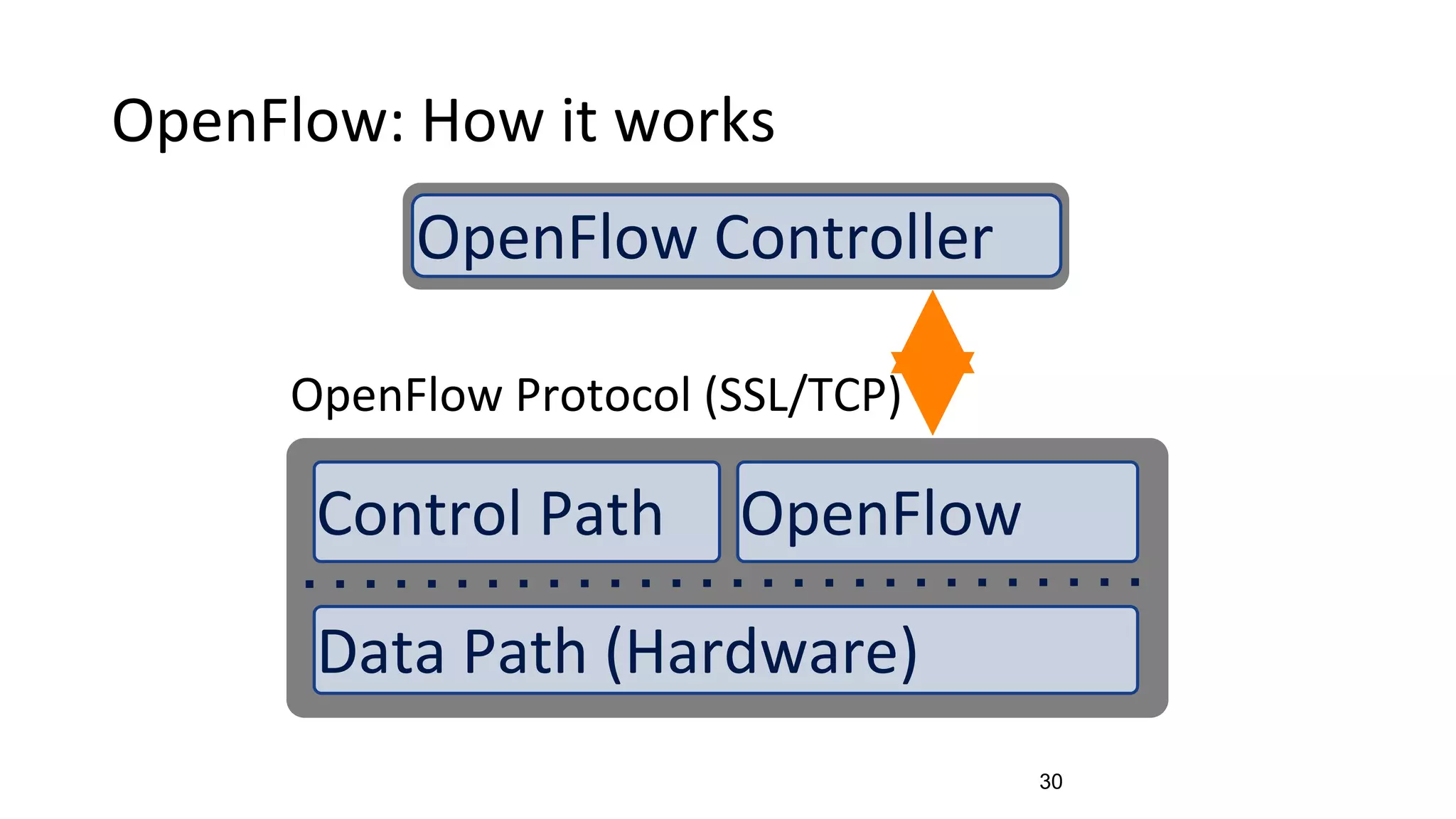

Data Path (Hardware)
Control Path OpenFlow
OpenFlow Controller
OpenFlow Protocol (SSL/TCP)
30
OpenFlow: How it works

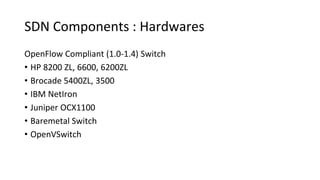

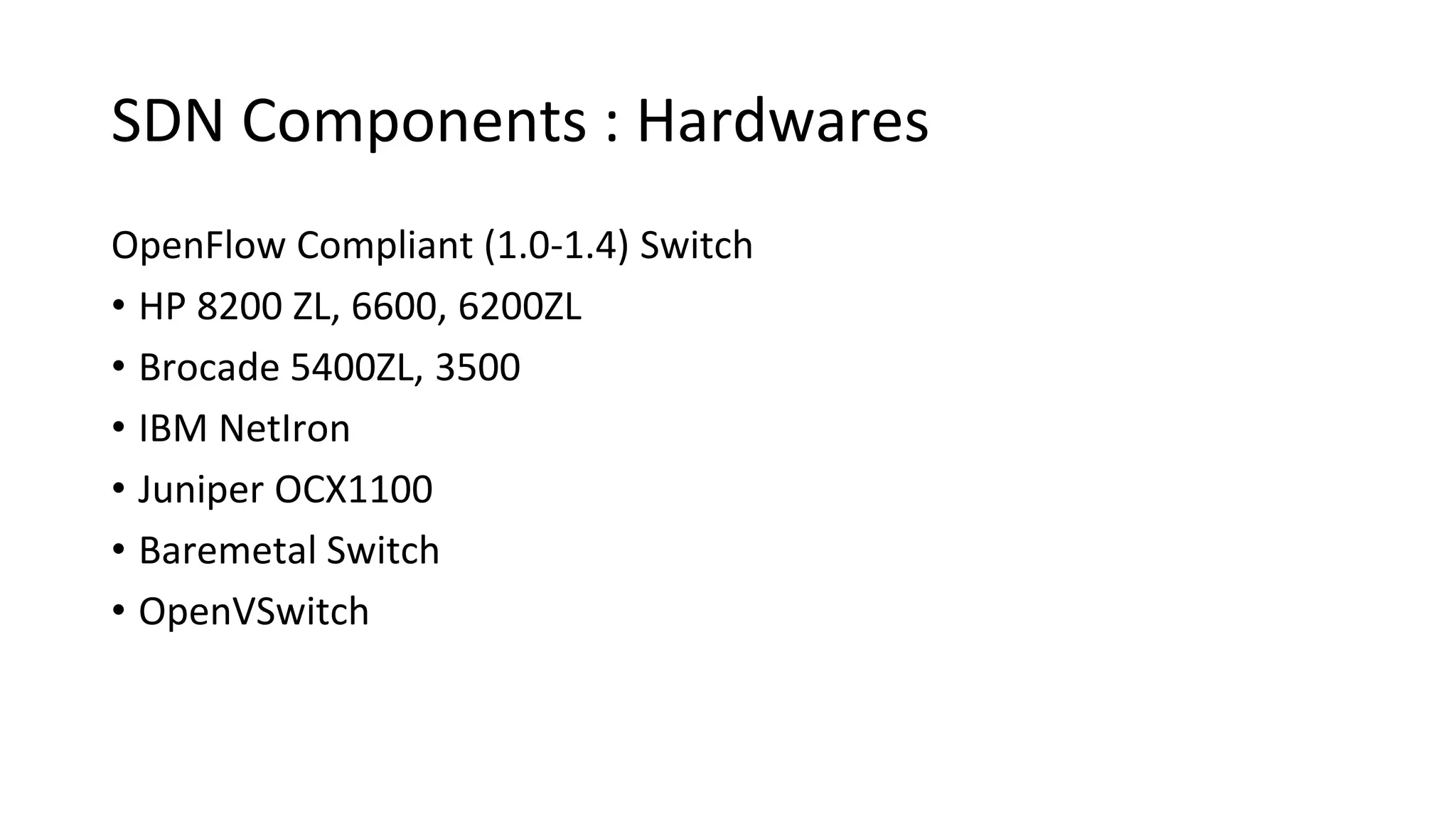

SDN Components : Hardwares
OpenFlow Compliant (1.0-1.4) Switch
• HP 8200 ZL, 6600, 6200ZL
• Brocade 5400ZL, 3500
• IBM NetIron
• Juniper OCX1100
• Baremetal Switch
• OpenVSwitch

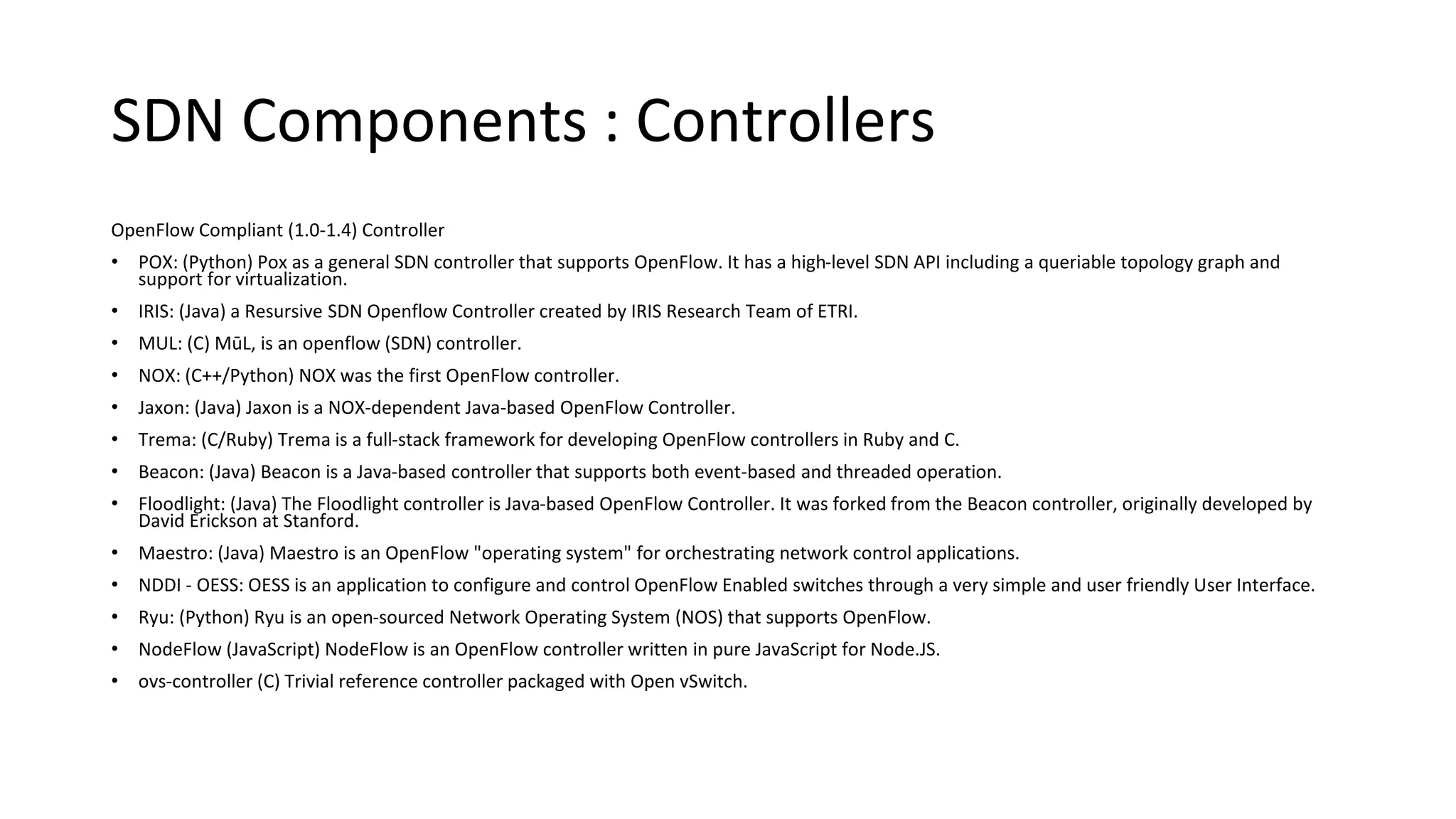

SDN Components : Controllers
OpenFlow Compliant (1.0-1.4) Controller
• POX: (Python) Pox as a general SDN controller that supports OpenFlow. It has a high-level SDN API including a queriable topology graph and
support for virtualization.
• IRIS: (Java) a Resursive SDN Openflow Controller created by IRIS Research Team of ETRI.
• MUL: (C) MūL, is an openflow (SDN) controller.
• NOX: (C++/Python) NOX was the first OpenFlow controller.
• Jaxon: (Java) Jaxon is a NOX-dependent Java-based OpenFlow Controller.
• Trema: (C/Ruby) Trema is a full-stack framework for developing OpenFlow controllers in Ruby and C.
• Beacon: (Java) Beacon is a Java-based controller that supports both event-based and threaded operation.
• Floodlight: (Java) The Floodlight controller is Java-based OpenFlow Controller. It was forked from the Beacon controller, originally developed by
David Erickson at Stanford.
• Maestro: (Java) Maestro is an OpenFlow "operating system" for orchestrating network control applications.
• NDDI - OESS: OESS is an application to configure and control OpenFlow Enabled switches through a very simple and user friendly User Interface.
• Ryu: (Python) Ryu is an open-sourced Network Operating System (NOS) that supports OpenFlow.
• NodeFlow (JavaScript) NodeFlow is an OpenFlow controller written in pure JavaScript for Node.JS.
• ovs-controller (C) Trivial reference controller packaged with Open vSwitch.

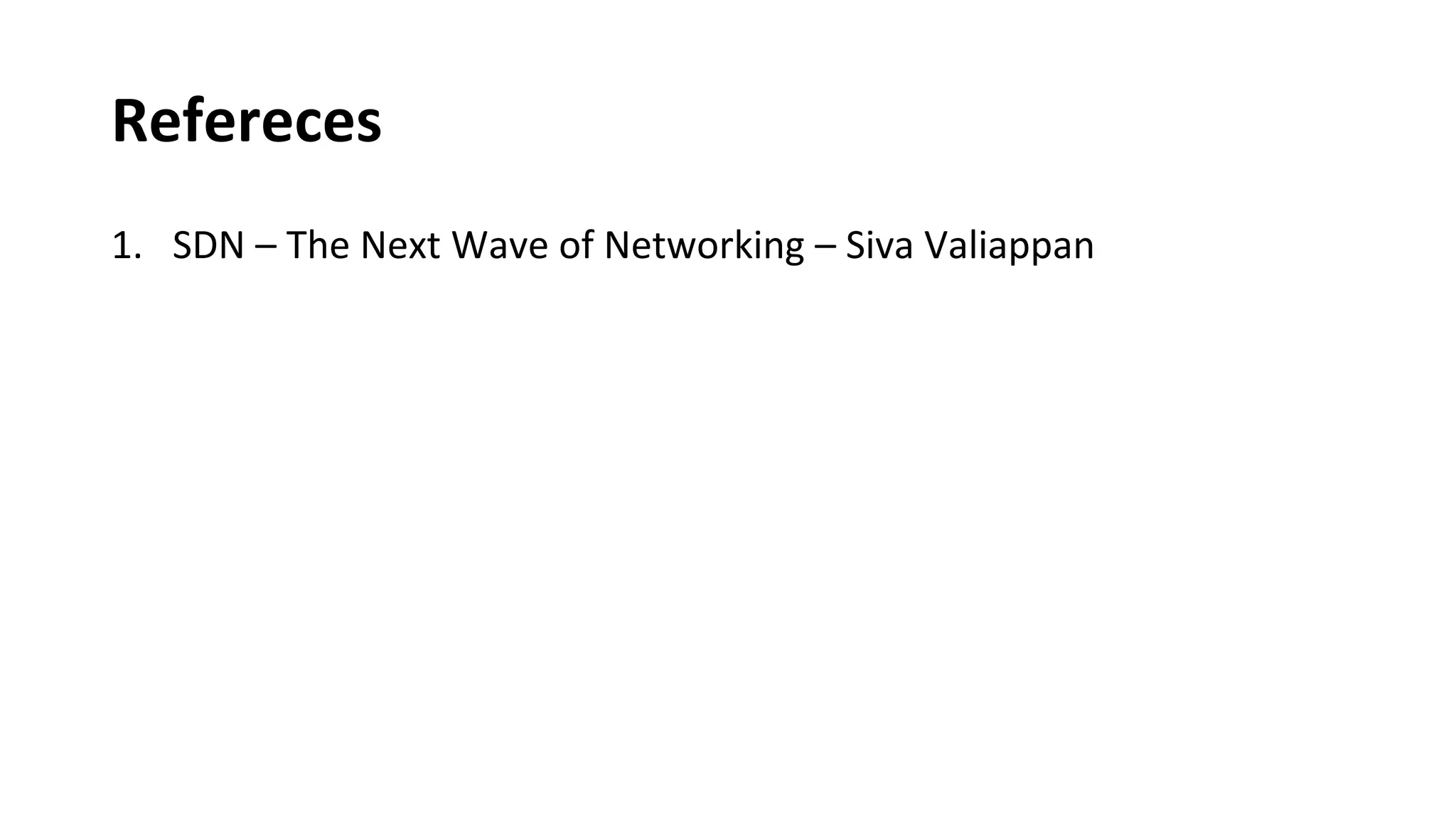

Refereces
1. SDN – The Next Wave of Networking – Siva Valiappan
Questions

More Related Content

What's hot

Introduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las Vegas
Introduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las VegasIntroduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las Vegas
Introduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las Vegas
Bruno Teixeira

Deep Packet Inspection technology evolution
Deep Packet Inspection technology evolutionDeep Packet Inspection technology evolution
Deep Packet Inspection technology evolution
Daniel Vinyar

OpenFlow: What is it Good For?
OpenFlow: What is it Good For? OpenFlow: What is it Good For?
OpenFlow: What is it Good For?
APNIC

Telco Cloud 03 - Introduction to SDN
Telco Cloud 03 - Introduction to SDNTelco Cloud 03 - Introduction to SDN
Telco Cloud 03 - Introduction to SDN
Vikas Shokeen

MPLS SDN NFV WORLD'17 - SDN NFV deployment update
MPLS SDN NFV WORLD'17 - SDN NFV deployment updateMPLS SDN NFV WORLD'17 - SDN NFV deployment update
MPLS SDN NFV WORLD'17 - SDN NFV deployment update
Stephane Litkowski

SDN Basics – What You Need to Know about Software-Defined Networking
SDN Basics – What You Need to Know about Software-Defined NetworkingSDN Basics – What You Need to Know about Software-Defined Networking
SDN Basics – What You Need to Know about Software-Defined Networking
SDxCentral

An overview of SDN & Openflow
An overview of SDN & OpenflowAn overview of SDN & Openflow
An overview of SDN & Openflow
Peyman Faizian

Software defined networks and openflow protocol
Software defined networks and openflow protocolSoftware defined networks and openflow protocol
Software defined networks and openflow protocol
Mahesh Mohan

Introduction to Segment Routing
Introduction to Segment RoutingIntroduction to Segment Routing
Introduction to Segment Routing
MyNOG

Why sdn
Why sdnWhy sdn
Why sdn
lz1dsb

A Centrally Orchestrated SD-WAN Building a Green Ecosystem
A Centrally Orchestrated SD-WAN Building a Green EcosystemA Centrally Orchestrated SD-WAN Building a Green Ecosystem
A Centrally Orchestrated SD-WAN Building a Green Ecosystem
Open Networking Summit

Is SDN Necessary?
Is SDN Necessary?Is SDN Necessary?
Is SDN Necessary?
Bruce Davie

Industrial Internet of Things: Protocols an Standards
Industrial Internet of Things: Protocols an StandardsIndustrial Internet of Things: Protocols an Standards
Industrial Internet of Things: Protocols an Standards
Javier Povedano

SDN overview 2014
SDN overview 2014SDN overview 2014
SDN overview 2014
Dave Michels

RouteFlow & IXPs
RouteFlow & IXPsRouteFlow & IXPs
RouteFlow & IXPs
nvirters

SDN Architecture & Ecosystem
SDN Architecture & EcosystemSDN Architecture & Ecosystem
SDN Architecture & Ecosystem
Kingston Smiler

SDN & NFV Introduction - Open Source Data Center Networking
SDN & NFV Introduction - Open Source Data Center NetworkingSDN & NFV Introduction - Open Source Data Center Networking
SDN & NFV Introduction - Open Source Data Center Networking
Thomas Graf

DPI BOX: deep packet inspection for ISP traffic management
DPI BOX: deep packet inspection for ISP traffic managementDPI BOX: deep packet inspection for ISP traffic management
DPI BOX: deep packet inspection for ISP traffic management
Ilya Mikov

SDN Fundamentals - short presentation
SDN Fundamentals -  short presentationSDN Fundamentals -  short presentation
SDN Fundamentals - short presentation
Azhar Khuwaja

Sdn and open flow tutorial 4
Sdn and open flow tutorial 4Sdn and open flow tutorial 4
Sdn and open flow tutorial 4
UmaMahesh Sistu


What's hot (20)

Introduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las Vegas
Introduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las VegasIntroduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las Vegas
Introduction to SDN and Network Programmability - BRKRST-1014 | 2017/Las Vegas

Deep Packet Inspection technology evolution
Deep Packet Inspection technology evolutionDeep Packet Inspection technology evolution
Deep Packet Inspection technology evolution

OpenFlow: What is it Good For?
OpenFlow: What is it Good For? OpenFlow: What is it Good For?
OpenFlow: What is it Good For?

Telco Cloud 03 - Introduction to SDN
Telco Cloud 03 - Introduction to SDNTelco Cloud 03 - Introduction to SDN
Telco Cloud 03 - Introduction to SDN

MPLS SDN NFV WORLD'17 - SDN NFV deployment update
MPLS SDN NFV WORLD'17 - SDN NFV deployment updateMPLS SDN NFV WORLD'17 - SDN NFV deployment update
MPLS SDN NFV WORLD'17 - SDN NFV deployment update

SDN Basics – What You Need to Know about Software-Defined Networking
SDN Basics – What You Need to Know about Software-Defined NetworkingSDN Basics – What You Need to Know about Software-Defined Networking
SDN Basics – What You Need to Know about Software-Defined Networking

An overview of SDN & Openflow
An overview of SDN & OpenflowAn overview of SDN & Openflow
An overview of SDN & Openflow

Software defined networks and openflow protocol
Software defined networks and openflow protocolSoftware defined networks and openflow protocol
Software defined networks and openflow protocol

Introduction to Segment Routing
Introduction to Segment RoutingIntroduction to Segment Routing
Introduction to Segment Routing

Why sdn
Why sdnWhy sdn
Why sdn

A Centrally Orchestrated SD-WAN Building a Green Ecosystem
A Centrally Orchestrated SD-WAN Building a Green EcosystemA Centrally Orchestrated SD-WAN Building a Green Ecosystem
A Centrally Orchestrated SD-WAN Building a Green Ecosystem

Is SDN Necessary?
Is SDN Necessary?Is SDN Necessary?
Is SDN Necessary?

Industrial Internet of Things: Protocols an Standards
Industrial Internet of Things: Protocols an StandardsIndustrial Internet of Things: Protocols an Standards
Industrial Internet of Things: Protocols an Standards

SDN overview 2014
SDN overview 2014SDN overview 2014
SDN overview 2014

RouteFlow & IXPs
RouteFlow & IXPsRouteFlow & IXPs
RouteFlow & IXPs

SDN Architecture & Ecosystem
SDN Architecture & EcosystemSDN Architecture & Ecosystem
SDN Architecture & Ecosystem

SDN & NFV Introduction - Open Source Data Center Networking
SDN & NFV Introduction - Open Source Data Center NetworkingSDN & NFV Introduction - Open Source Data Center Networking
SDN & NFV Introduction - Open Source Data Center Networking

DPI BOX: deep packet inspection for ISP traffic management
DPI BOX: deep packet inspection for ISP traffic managementDPI BOX: deep packet inspection for ISP traffic management
DPI BOX: deep packet inspection for ISP traffic management

SDN Fundamentals - short presentation
SDN Fundamentals -  short presentationSDN Fundamentals -  short presentation
SDN Fundamentals - short presentation

Sdn and open flow tutorial 4
Sdn and open flow tutorial 4Sdn and open flow tutorial 4
Sdn and open flow tutorial 4


Similar to Software Defined Networking: Primer

Introductionto SDN
Introductionto SDN Introductionto SDN
Introductionto SDN
Md. Shariful Islam Robin

Introduction to SDN
Introduction to SDNIntroduction to SDN
Introduction to SDN
Muhammad Moinur Rahman

FlowER Erlang Openflow Controller
FlowER Erlang Openflow ControllerFlowER Erlang Openflow Controller
FlowER Erlang Openflow Controller
Holger Winkelmann

F14_Class1.pptx
F14_Class1.pptxF14_Class1.pptx
F14_Class1.pptx
Sameer Ali

OpenFlow Tutorial
OpenFlow TutorialOpenFlow Tutorial
OpenFlow Tutorial
Ja-seop Kwak

btNOG 9 presentation Introduction to Software Defined Networking
btNOG 9 presentation Introduction to Software Defined NetworkingbtNOG 9 presentation Introduction to Software Defined Networking
btNOG 9 presentation Introduction to Software Defined Networking
APNIC

Introduction to Software Defined Networking (SDN) presentation by Warren Finc...
Introduction to Software Defined Networking (SDN) presentation by Warren Finc...Introduction to Software Defined Networking (SDN) presentation by Warren Finc...
Introduction to Software Defined Networking (SDN) presentation by Warren Finc...
APNIC

Introduction to Software Defined Networking (SDN)
Introduction to Software Defined Networking (SDN)Introduction to Software Defined Networking (SDN)
Introduction to Software Defined Networking (SDN)
Bangladesh Network Operators Group

Software Defined networking (SDN)
Software Defined networking (SDN)Software Defined networking (SDN)
Software Defined networking (SDN)
Milson Munakami

Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...
Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...
Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...
Radisys Corporation

10. Lec X- SDN.pptx
10. Lec X- SDN.pptx10. Lec X- SDN.pptx
10. Lec X- SDN.pptx
DanishMahmood23

bruce-sdn.pptx
bruce-sdn.pptxbruce-sdn.pptx
bruce-sdn.pptx
Sameer Ali

Software defined networking: Primer
Software defined networking: PrimerSoftware defined networking: Primer
Software defined networking: Primer
Muhammad Moinur Rahman

Cis sem sdn
Cis sem sdnCis sem sdn
Cis sem sdn
Lino Quivén

Security defined routing_cybergamut_v1_1
Security defined routing_cybergamut_v1_1Security defined routing_cybergamut_v1_1
Security defined routing_cybergamut_v1_1
Joel W. King

OpenFlow tutorial
OpenFlow tutorialOpenFlow tutorial
OpenFlow tutorial
openflow

Protocol and Integration Challenges for SDN
Protocol and Integration Challenges for SDNProtocol and Integration Challenges for SDN
Protocol and Integration Challenges for SDN
Gerardo Pardo-Castellote

Network Virtualization & Software-defined Networking
Network Virtualization & Software-defined NetworkingNetwork Virtualization & Software-defined Networking
Network Virtualization & Software-defined Networking
Digicomp Academy AG

Presentation on Data Center Use-Case & Trends
Presentation on Data Center Use-Case & TrendsPresentation on Data Center Use-Case & Trends
Presentation on Data Center Use-Case & Trends
Amod Dani

Link_NwkingforDevOps
Link_NwkingforDevOpsLink_NwkingforDevOps
Link_NwkingforDevOps
Vikas Deolaliker


Similar to Software Defined Networking: Primer (20)

Introductionto SDN
Introductionto SDN Introductionto SDN
Introductionto SDN

Introduction to SDN
Introduction to SDNIntroduction to SDN
Introduction to SDN

FlowER Erlang Openflow Controller
FlowER Erlang Openflow ControllerFlowER Erlang Openflow Controller
FlowER Erlang Openflow Controller

F14_Class1.pptx
F14_Class1.pptxF14_Class1.pptx
F14_Class1.pptx

OpenFlow Tutorial
OpenFlow TutorialOpenFlow Tutorial
OpenFlow Tutorial

btNOG 9 presentation Introduction to Software Defined Networking
btNOG 9 presentation Introduction to Software Defined NetworkingbtNOG 9 presentation Introduction to Software Defined Networking
btNOG 9 presentation Introduction to Software Defined Networking

Introduction to Software Defined Networking (SDN) presentation by Warren Finc...
Introduction to Software Defined Networking (SDN) presentation by Warren Finc...Introduction to Software Defined Networking (SDN) presentation by Warren Finc...
Introduction to Software Defined Networking (SDN) presentation by Warren Finc...

Introduction to Software Defined Networking (SDN)
Introduction to Software Defined Networking (SDN)Introduction to Software Defined Networking (SDN)
Introduction to Software Defined Networking (SDN)

Software Defined networking (SDN)
Software Defined networking (SDN)Software Defined networking (SDN)
Software Defined networking (SDN)

Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...
Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...
Radisys/Wind River: The Telcom Cloud - Deployment Strategies: SDN/NFV and Vir...

10. Lec X- SDN.pptx
10. Lec X- SDN.pptx10. Lec X- SDN.pptx
10. Lec X- SDN.pptx

bruce-sdn.pptx
bruce-sdn.pptxbruce-sdn.pptx
bruce-sdn.pptx

Software defined networking: Primer
Software defined networking: PrimerSoftware defined networking: Primer
Software defined networking: Primer

Cis sem sdn
Cis sem sdnCis sem sdn
Cis sem sdn

Security defined routing_cybergamut_v1_1
Security defined routing_cybergamut_v1_1Security defined routing_cybergamut_v1_1
Security defined routing_cybergamut_v1_1

OpenFlow tutorial
OpenFlow tutorialOpenFlow tutorial
OpenFlow tutorial

Protocol and Integration Challenges for SDN
Protocol and Integration Challenges for SDNProtocol and Integration Challenges for SDN
Protocol and Integration Challenges for SDN

Network Virtualization & Software-defined Networking
Network Virtualization & Software-defined NetworkingNetwork Virtualization & Software-defined Networking
Network Virtualization & Software-defined Networking

Presentation on Data Center Use-Case & Trends
Presentation on Data Center Use-Case & TrendsPresentation on Data Center Use-Case & Trends
Presentation on Data Center Use-Case & Trends

Link_NwkingforDevOps
Link_NwkingforDevOpsLink_NwkingforDevOps
Link_NwkingforDevOps


More from Bangladesh Network Operators Group

Accelerating Hyper-Converged Enterprise Virtualization using Proxmox and Ceph
Accelerating Hyper-Converged Enterprise Virtualization using Proxmox and CephAccelerating Hyper-Converged Enterprise Virtualization using Proxmox and Ceph
Accelerating Hyper-Converged Enterprise Virtualization using Proxmox and Ceph
Bangladesh Network Operators Group

Recent IRR changes by Yoshinobu Matsuzaki, IIJ
Recent IRR changes by Yoshinobu Matsuzaki, IIJRecent IRR changes by Yoshinobu Matsuzaki, IIJ
Recent IRR changes by Yoshinobu Matsuzaki, IIJ
Bangladesh Network Operators Group

Fact Sheets : Network Status in Bangladesh
Fact Sheets : Network Status in BangladeshFact Sheets : Network Status in Bangladesh
Fact Sheets : Network Status in Bangladesh
Bangladesh Network Operators Group

AI Driven Wi-Fi for the Bottom of the Pyramid
AI Driven Wi-Fi for the Bottom of the PyramidAI Driven Wi-Fi for the Bottom of the Pyramid
AI Driven Wi-Fi for the Bottom of the Pyramid
Bangladesh Network Operators Group

IPv6 Security Overview by QS Tahmeed, APNIC RCT
IPv6 Security Overview by QS Tahmeed, APNIC RCTIPv6 Security Overview by QS Tahmeed, APNIC RCT
IPv6 Security Overview by QS Tahmeed, APNIC RCT
Bangladesh Network Operators Group

Network eWaste : Community role to manage end of life Product
Network eWaste : Community role to manage end of life ProductNetwork eWaste : Community role to manage end of life Product
Network eWaste : Community role to manage end of life Product
Bangladesh Network Operators Group

A plenarily integrated SIEM solution and it’s Deployment
A plenarily integrated SIEM solution and it’s DeploymentA plenarily integrated SIEM solution and it’s Deployment
A plenarily integrated SIEM solution and it’s Deployment
Bangladesh Network Operators Group

IPv6 Deployment in South Asia 2022
IPv6 Deployment in South Asia  2022IPv6 Deployment in South Asia  2022
IPv6 Deployment in South Asia 2022
Bangladesh Network Operators Group

RPKI Deployment Status in Bangladesh
RPKI Deployment Status in BangladeshRPKI Deployment Status in Bangladesh
RPKI Deployment Status in Bangladesh
Bangladesh Network Operators Group

An Overview about open UDP Services
An Overview about open UDP ServicesAn Overview about open UDP Services
An Overview about open UDP Services
Bangladesh Network Operators Group

12 Years in DNS Security As a Defender
12 Years in DNS Security As a Defender12 Years in DNS Security As a Defender
12 Years in DNS Security As a Defender
Bangladesh Network Operators Group

Contents Localization Initiatives to get better User Experience
Contents Localization Initiatives to get better User ExperienceContents Localization Initiatives to get better User Experience
Contents Localization Initiatives to get better User Experience
Bangladesh Network Operators Group

BdNOG-20220625-MT-v6.0.pptx
BdNOG-20220625-MT-v6.0.pptxBdNOG-20220625-MT-v6.0.pptx
BdNOG-20220625-MT-v6.0.pptx
Bangladesh Network Operators Group

Route Leak Prevension with BGP Community
Route Leak Prevension with BGP CommunityRoute Leak Prevension with BGP Community
Route Leak Prevension with BGP Community
Bangladesh Network Operators Group

Tale of a New Bangladeshi NIX
Tale of a New Bangladeshi NIXTale of a New Bangladeshi NIX
Tale of a New Bangladeshi NIX
Bangladesh Network Operators Group

MANRS for Network Operators
MANRS for Network OperatorsMANRS for Network Operators
MANRS for Network Operators
Bangladesh Network Operators Group

Re-define network visibility for capacity planning & forecasting with Grafana
Re-define network visibility for capacity planning & forecasting with GrafanaRe-define network visibility for capacity planning & forecasting with Grafana
Re-define network visibility for capacity planning & forecasting with Grafana
Bangladesh Network Operators Group

RPKI ROA updates
RPKI ROA updatesRPKI ROA updates
Blockchain Demystified
Blockchain DemystifiedBlockchain Demystified
Blockchain Demystified
Bangladesh Network Operators Group

Measuring the Internet Economy: How Networks Create Value
Measuring the Internet Economy: How Networks Create ValueMeasuring the Internet Economy: How Networks Create Value
Measuring the Internet Economy: How Networks Create Value
Bangladesh Network Operators Group


More from Bangladesh Network Operators Group (20)

Accelerating Hyper-Converged Enterprise Virtualization using Proxmox and Ceph
Accelerating Hyper-Converged Enterprise Virtualization using Proxmox and CephAccelerating Hyper-Converged Enterprise Virtualization using Proxmox and Ceph
Accelerating Hyper-Converged Enterprise Virtualization using Proxmox and Ceph

Recent IRR changes by Yoshinobu Matsuzaki, IIJ
Recent IRR changes by Yoshinobu Matsuzaki, IIJRecent IRR changes by Yoshinobu Matsuzaki, IIJ
Recent IRR changes by Yoshinobu Matsuzaki, IIJ

Fact Sheets : Network Status in Bangladesh
Fact Sheets : Network Status in BangladeshFact Sheets : Network Status in Bangladesh
Fact Sheets : Network Status in Bangladesh

AI Driven Wi-Fi for the Bottom of the Pyramid
AI Driven Wi-Fi for the Bottom of the PyramidAI Driven Wi-Fi for the Bottom of the Pyramid
AI Driven Wi-Fi for the Bottom of the Pyramid

IPv6 Security Overview by QS Tahmeed, APNIC RCT
IPv6 Security Overview by QS Tahmeed, APNIC RCTIPv6 Security Overview by QS Tahmeed, APNIC RCT
IPv6 Security Overview by QS Tahmeed, APNIC RCT

Network eWaste : Community role to manage end of life Product
Network eWaste : Community role to manage end of life ProductNetwork eWaste : Community role to manage end of life Product
Network eWaste : Community role to manage end of life Product

A plenarily integrated SIEM solution and it’s Deployment
A plenarily integrated SIEM solution and it’s DeploymentA plenarily integrated SIEM solution and it’s Deployment
A plenarily integrated SIEM solution and it’s Deployment

IPv6 Deployment in South Asia 2022
IPv6 Deployment in South Asia  2022IPv6 Deployment in South Asia  2022
IPv6 Deployment in South Asia 2022

RPKI Deployment Status in Bangladesh
RPKI Deployment Status in BangladeshRPKI Deployment Status in Bangladesh
RPKI Deployment Status in Bangladesh

An Overview about open UDP Services
An Overview about open UDP ServicesAn Overview about open UDP Services
An Overview about open UDP Services

12 Years in DNS Security As a Defender
12 Years in DNS Security As a Defender12 Years in DNS Security As a Defender
12 Years in DNS Security As a Defender

Contents Localization Initiatives to get better User Experience
Contents Localization Initiatives to get better User ExperienceContents Localization Initiatives to get better User Experience
Contents Localization Initiatives to get better User Experience

BdNOG-20220625-MT-v6.0.pptx
BdNOG-20220625-MT-v6.0.pptxBdNOG-20220625-MT-v6.0.pptx
BdNOG-20220625-MT-v6.0.pptx

Route Leak Prevension with BGP Community
Route Leak Prevension with BGP CommunityRoute Leak Prevension with BGP Community
Route Leak Prevension with BGP Community

Tale of a New Bangladeshi NIX
Tale of a New Bangladeshi NIXTale of a New Bangladeshi NIX
Tale of a New Bangladeshi NIX

MANRS for Network Operators
MANRS for Network OperatorsMANRS for Network Operators
MANRS for Network Operators

Re-define network visibility for capacity planning & forecasting with Grafana
Re-define network visibility for capacity planning & forecasting with GrafanaRe-define network visibility for capacity planning & forecasting with Grafana
Re-define network visibility for capacity planning & forecasting with Grafana

RPKI ROA updates
RPKI ROA updatesRPKI ROA updates
RPKI ROA updates

Blockchain Demystified
Blockchain DemystifiedBlockchain Demystified
Blockchain Demystified

Measuring the Internet Economy: How Networks Create Value
Measuring the Internet Economy: How Networks Create ValueMeasuring the Internet Economy: How Networks Create Value
Measuring the Internet Economy: How Networks Create Value


Recently uploaded

一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理
k4ncd0z

Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?
Paul Walk

快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
3a0sd7z3

Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...
APNIC

Discover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to IndiaDiscover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to India
davidjhones387

Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
APNIC

HijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process HollowingHijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process Hollowing
Donato Onofri

办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
xjq03c34

怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
rtunex8r

一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
thezot

Bengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal BrandingBengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal Branding
Tarandeep Singh

快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
3a0sd7z3


Recently uploaded (12)

一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理

Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?

快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样

Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...

Discover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to IndiaDiscover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to India

Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...

HijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process HollowingHijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process Hollowing

办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样

怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样

一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理

Bengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal BrandingBengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal Branding

快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样


Software Defined Networking: Primer

  • 1. Software Defined Networking : Primer Muhammad Moinur Rahman moin@1asia-ahl.com
  • 2. History of Networking • Blackbox networking equipments • Big name companies building switching/routing devices • Includes Proprietary/OEM Silicon Chip • Wrapped up with a closed source Operating System (e.g. A desktop PC with MS Windows and MS Office)
  • 3. Disadvantages of Current Scenario Technology was not designed keeping today in mind • Massive Scalability • Multi Tenant Networks • Virtualization • Cloud Computing • Mobility (Users/Devices/VM)
  • 4. Disadvantages of Current Scenario(Contd) Protocols are Box Centric; Not Fabric Centric • Difficult to configure correctly(consistency) • Difficult to add new features(upgrades) • Difficult to debug(look at all devices)
  • 5. Disadvantages of Current Scenario(Contd) Closed Systems (Vendor Hardware) • Stuck with given interfaces (CLI, SNMP, etc.) • Hard to meaningfully collaborate • Vendors hesitant to open up • No way to add new features by yourself ANSWER: Software Defined Networking
  • 6. What is SDN? SDN is a framework to allow network administrators to automatically and dynamically manage and control a large number of network devices, services, topology, traffic paths, and packet handling (quality of service) policies using high-level languages and APIs. Management includes provisioning, operating, monitoring, optimizing, and managing FCAPS (fault, configuration, accounting, performance, and security) in a multi-tenant environment.
  • 7. Networking Planes • Data Plane • Carries Network User Traffic • Control Panel • Carried Signalling Traffic • Management Panel • Carries Administrative Traffic
  • 9. Need for SDN Virtualization • Use network resource • without worrying about where it is physically located • how much it is • how it is organized Orchestration • Should be able to control and manage thousands of devices with one command Programmable • Should be able to change behavior on the fly Dynamic Scaling • Should be able to change size, quantity, capacity
  • 10. Need for SDN - (Continued) • Automation • To lower OpEx • Minimize manual involvement • Troubleshooting • Reduce downtime • Policy enforcement • Provisioning/Re-provisioning/Segmentation of resources • Add new workloads, sites, devices, and resources • Visibility • Monitor resources, connectivity
  • 11. Need for SDN - (Continued) • Performance Optimize network device utilization • Traffic engineering/Bandwidth management • Capacity optimization/Load balancing • High utilization • Fast failure handling • Multi Tenancy Tenants need complete control over their • Addresses/Topology • Routing/Security
  • 12. Need for SDN (Continued) Service Integration Provisioned on demand and placed appropriately on the traffic path • Load balancers • Firewalls • Intrusion Detection Systems (IDS)
  • 13. Alternative APIs • Southbound APIs: XMPP (Juniper), OnePK (Cisco) • Northbound APIs: I2RS, I2AEX, ALTO • Overlay: VxLAN, TRILL, LISP, STT, NVO3, PWE3, L2VPN, L3VPN • Configuration API: NETCONF • Controller: PCE, ForCES
  • 14. History Feb, 2011 - OpenFlow 1.1 Released Dec, 2011 - OpenFlow 1.2 Released Feb, 2012 - “Floodlight” Project Announced Apr, 2012 - Google announces at ONF Jul, 2012 - Vmware acquires Nicira Apr, 2013 - “OpenDaylight” Released
  • 15. Hardware Internals • Logical View of a Switch • Physical Architecture of a Switch Switchin g Fabric Processo r ASIC AISC data plane control plane Network O.S. ASIC ApplicationsApplications
  • 16. Internals of SDN • Southbound API: decouples the switch hardware from control function – Data plane from control plane • Switch Operating System: exposes switch hardware primitives Network O.S. ApplicationsApplications Applications Southbound API SDN Switch Operating System Switch Hardware Network O.S. ASIC ApplicationsApplications Current Switch Vertical stack SDN Switch Decoupled stack
  • 17. How SDN Works Controller (N. O.S.) ApplicationsApplicationsApplications Southbound API Switch H.W Switch O.S Switch H.W Switch O.S
  • 18. Implications of SDN Current Networking SDN Enabled Environment Controller (N. O.S.) ApplicationsApplicationsApplications Southbound API Switch O.S Switch HW Switch O.S Switch HW Switch O.S Switch HW • Distributed protocols • Each switch has a brain • Hard to achieve optimal solution • Network configured indirectly • Configure protocols • Hope protocols converge • Global view of the network • Applications can achieve optimal • Southbound API gives fine grained control over switch • Network configured directly • Allows automation • Allows definition of new interfaces Network O.S. ASIC ApplicationsApplications Network O.S. ASIC ApplicationsApplications Network O.S. ASIC ApplicationsApplications
  • 19. 19 The SDN Stack ControllerNOX Slicing SoftwareFlowVisor FlowVisor Console 19 ApplicationsLAVIENVI (GUI) …n-Casting NetFPGA Software Ref. Switch Broadcom Ref. Switch OpenWRT PCEngine WiFi AP Commercial Switches OpenFlow Switches RyU Monitoring/ debugging toolsoflopsoftrace openseer Open vSwitch HP, IBM, NEC, Pronto, Juniper.. and many more Beacon Trema FloodLight Source: SDN Tutorial by B. Heller Open Networking Summit, April 2012
  • 20. Dimensions of SDN Environments: Vendor Devices Vertical Stacks • Vendor bundles switch and switch OS • Restricted to vendor OS and vendor interface • Low operational overhead • One stop shop Whitebox Networking • Vendor provides hardware with no switch OS • Switch OS provided by third party • Flexibility in picking OS • High operational overhead • Must deal with multiple vendors
  • 21. Dimensions of SDN Environments: Switch Hardware Virtual: Overlay • Pure software implementation • Assumes programmable virtual switches • Run in Hypervisor or in the OS • Larger Flow Table entries (more memory and CPU) • Backward compatible • Physical switches run traditional protocols • Traffic sent in tunnels • Lack of visibility into physical network Physical: Underlay • Fine grained control and visibility into network • Assumes specialized hardware • Limited Flow Table entries
  • 22. Dimensions of SDN Environments: Southbound Interface OpenFlow • Flexible matching • L2, L3, VLAN, MPLS • Flexible actions • Encapsulation: IP-in-IP • Address rewriting: • IP address • Mac address BGP/XMPP/IS-IS/NetConf • Limited matching • IS-IS: L3 • BGP+MPLS: L3+MPLS • Limited actions • L3/l2 forwarding • Encapsulation
  • 23. Dimensions of SDN Environments: Controller Types Modular Controllers • Application code manipulates forwarding rules • E.g. OpenDaylight, Floodlight • Written in imperative languages • Java, C++, Python • Dominant controller style High Level Controllers • Application code specifies declarative policies • E.g. Frenetic, McNettle • Application code is verifiable • Amendable to formal verification • Written in functional languages • Nettle, OCamal
  • 24. Ecosystem Name Controller Type Southbound API SDN Device SDN Flavor Bigswitch Modular/Floodlight Openflow 1.3 Whitebox(indigo) Underlay+Overlay Juniper OpenContrail XMPP/NetCONF/BGP+MPL S Vertical Stack(Proprietary JunOS) Overlay Cisco Openflow+Proprietary Openflow 1.3 Vertical Stack(Proprietary IOS/NxOS/IOS-XR) Underlay+Overlay Arista Openflow+Proprietary Openflow 1.3 Vertical Stack Underlay Broadcom Openflow+Proprietary Openflow 1.3 Vertical Stack Underlay HP Openflow Openflow 1.3-1.4 Vertical Stack Underlay Dell Openflow Openflow 1.3 Vertical Stack Underlay FloodLight Openflow Openflow 1.0-1.4 Whitebox Underlay+Overlay Alcatel Modular BGP+MPLS Vertical Stack Overlay
  • 25. OpenFlow • Developed in Stanford • Standardized by Open Networking Foundation (ONF) • Current Version 1.4 • Version implemented by switch vendors: 1.3 • Allows control of underlay + overlay • Overlay switches: OpenVSwitch/Indigo-light PC
  • 26. SDN vs OpenFlow • Leading SDN protocol • Decouples control and data plane by giving a controller the ability to install flow rules on switches(Bare Metal) • Hardware or software switches can use OpenFlow • Spec driven by ONF
  • 27. How SDN Works: OpenFlow Controller (N. O.S.) ApplicationsApplicationsApplications Southbound API Switch H.W Switch O.S Switch H.W Switch O.S OpenFlow OpenFlow
  • 28. OpenFlow: Anatomy of a Flow Table Entry Switc h Port MAC src MAC dst Eth type VLAN ID IP Sr c IP Dst IP Prot L4 sport L4 dport Match Action Counter 1. Forward packet to zero or more ports 2. Encapsulate and forward to controller 3. Send to normal processing pipeline 4. Modify Fields When to delete the entry VLAN pcp IP To S Priority Time-out What order to process the rule # of Packet/Bytes processed by the rule
  • 29. Examples Switching * Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action * 00:1f:.. * * * * * * * port6 Flow Switching port3 Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action 00:20.. 00:1f.. 0800 vlan1 1.2.3.4 5.6.7.8 4 17264 80 port6 Firewal l * Switch Port MAC src MAC dst Eth type VLAN ID IP Src IP Dst IP Prot TCP sport TCP dport Action * * * * * * * * 22 drop 29
  • 30. Data Path (Hardware) Control Path OpenFlow OpenFlow Controller OpenFlow Protocol (SSL/TCP) 30 OpenFlow: How it works
  • 31. SDN Components : Hardwares OpenFlow Compliant (1.0-1.4) Switch • HP 8200 ZL, 6600, 6200ZL • Brocade 5400ZL, 3500 • IBM NetIron • Juniper OCX1100 • Baremetal Switch • OpenVSwitch
  • 32. SDN Components : Controllers OpenFlow Compliant (1.0-1.4) Controller • POX: (Python) Pox as a general SDN controller that supports OpenFlow. It has a high-level SDN API including a queriable topology graph and support for virtualization. • IRIS: (Java) a Resursive SDN Openflow Controller created by IRIS Research Team of ETRI. • MUL: (C) MūL, is an openflow (SDN) controller. • NOX: (C++/Python) NOX was the first OpenFlow controller. • Jaxon: (Java) Jaxon is a NOX-dependent Java-based OpenFlow Controller. • Trema: (C/Ruby) Trema is a full-stack framework for developing OpenFlow controllers in Ruby and C. • Beacon: (Java) Beacon is a Java-based controller that supports both event-based and threaded operation. • Floodlight: (Java) The Floodlight controller is Java-based OpenFlow Controller. It was forked from the Beacon controller, originally developed by David Erickson at Stanford. • Maestro: (Java) Maestro is an OpenFlow "operating system" for orchestrating network control applications. • NDDI - OESS: OESS is an application to configure and control OpenFlow Enabled switches through a very simple and user friendly User Interface. • Ryu: (Python) Ryu is an open-sourced Network Operating System (NOS) that supports OpenFlow. • NodeFlow (JavaScript) NodeFlow is an OpenFlow controller written in pure JavaScript for Node.JS. • ovs-controller (C) Trivial reference controller packaged with Open vSwitch.
  • 33. Refereces 1. SDN – The Next Wave of Networking – Siva Valiappan
