HOTI 2017
DEVELOPING TO THE OPENFABRICS
INTERFACES LIBFABRIC
Sean Hefty, OFIWG Co-Chair Jim Swaro, GNI Maintainer
August, 2017
Intel Corporation Cray Incorporated

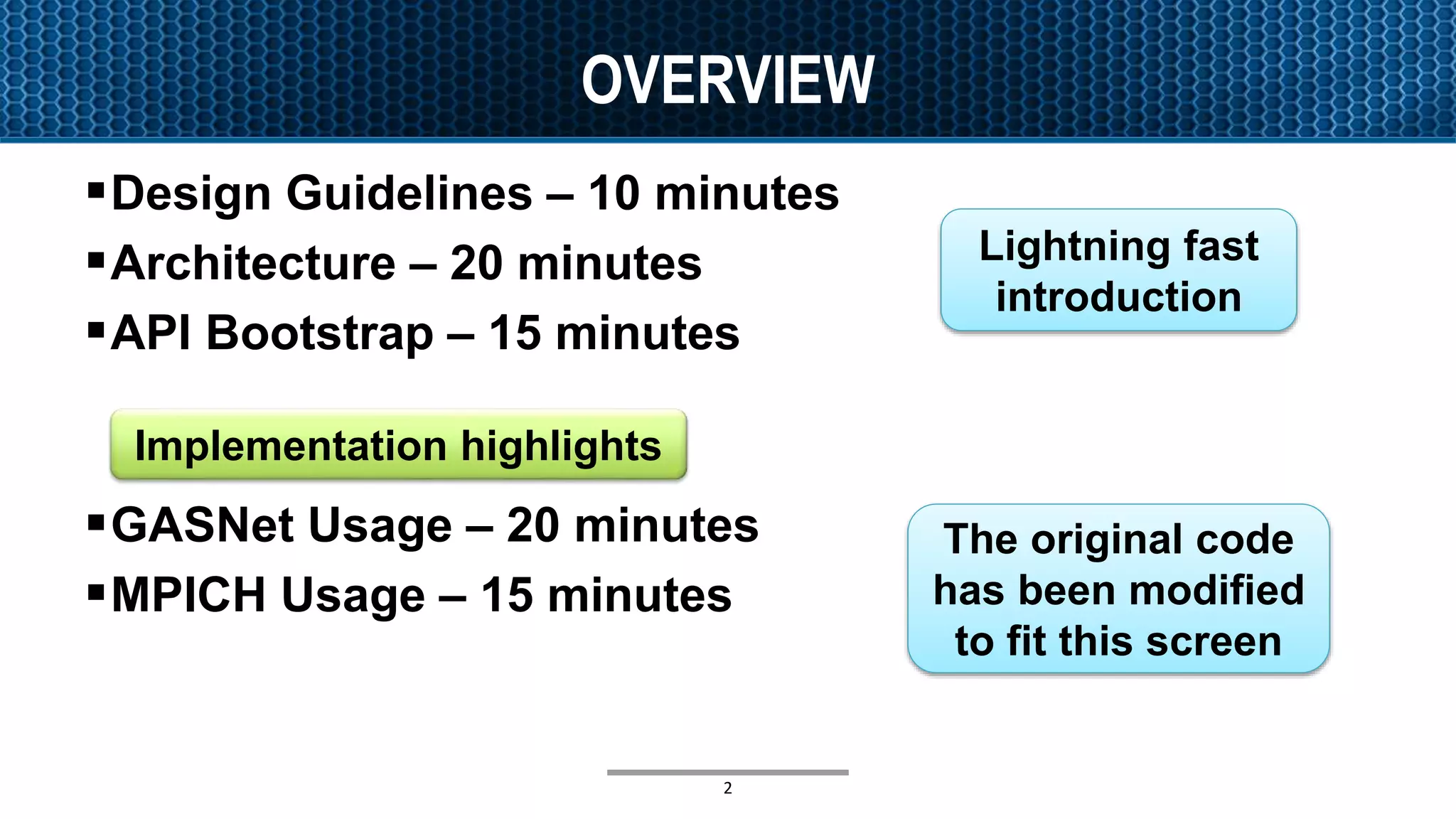

OVERVIEW
Design Guidelines – 10 minutes
Architecture – 20 minutes
API Bootstrap – 15 minutes
GASNet Usage – 20 minutes
MPICH Usage – 15 minutes
2
Implementation highlights
The original code
has been modified
to fit this screen
Lightning fast
introduction

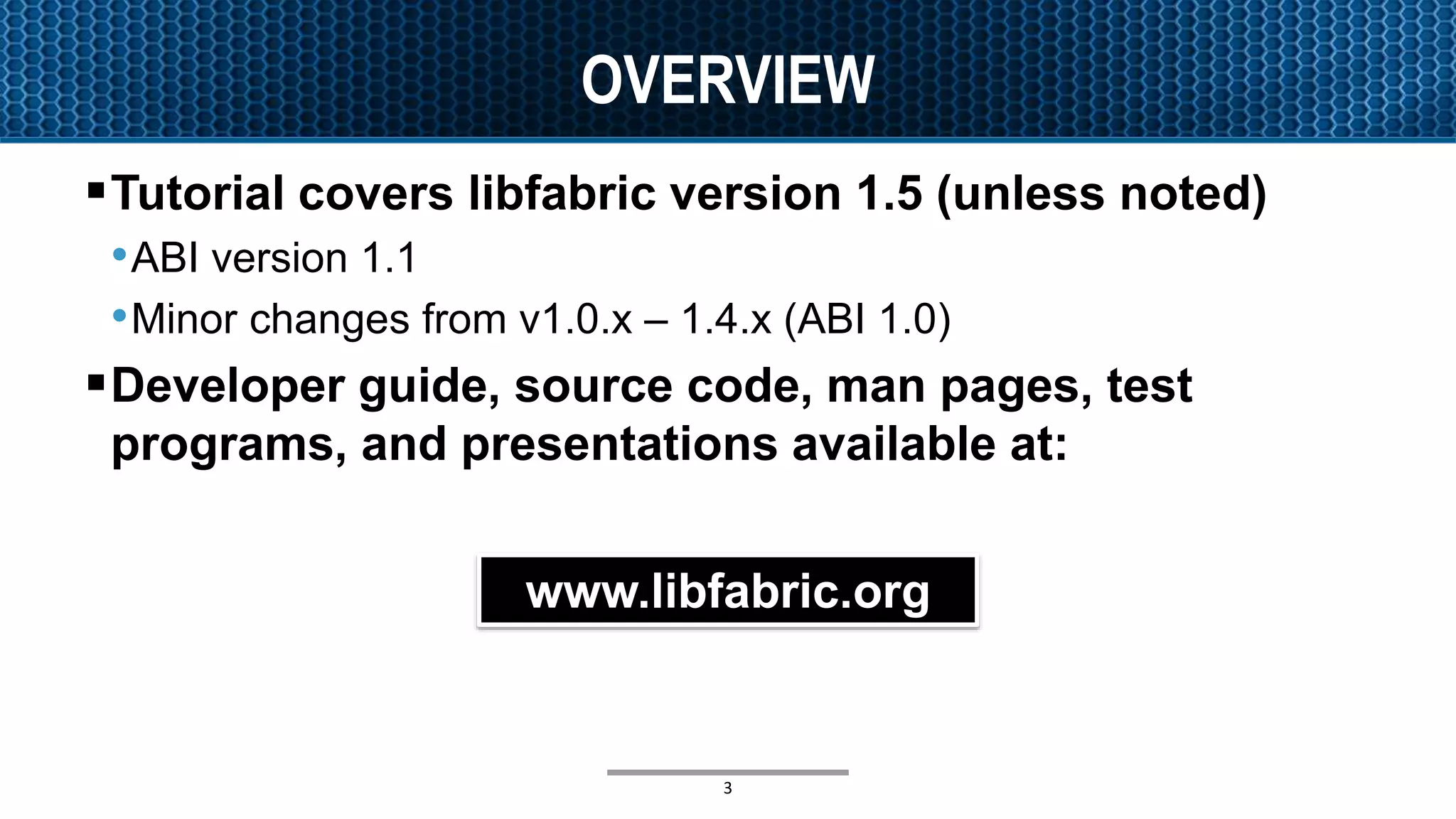

OVERVIEW
Tutorial covers libfabric version 1.5 (unless noted)
•ABI version 1.1
•Minor changes from v1.0.x – 1.4.x (ABI 1.0)
Developer guide, source code, man pages, test
programs, and presentations available at:
www.libfabric.org
3

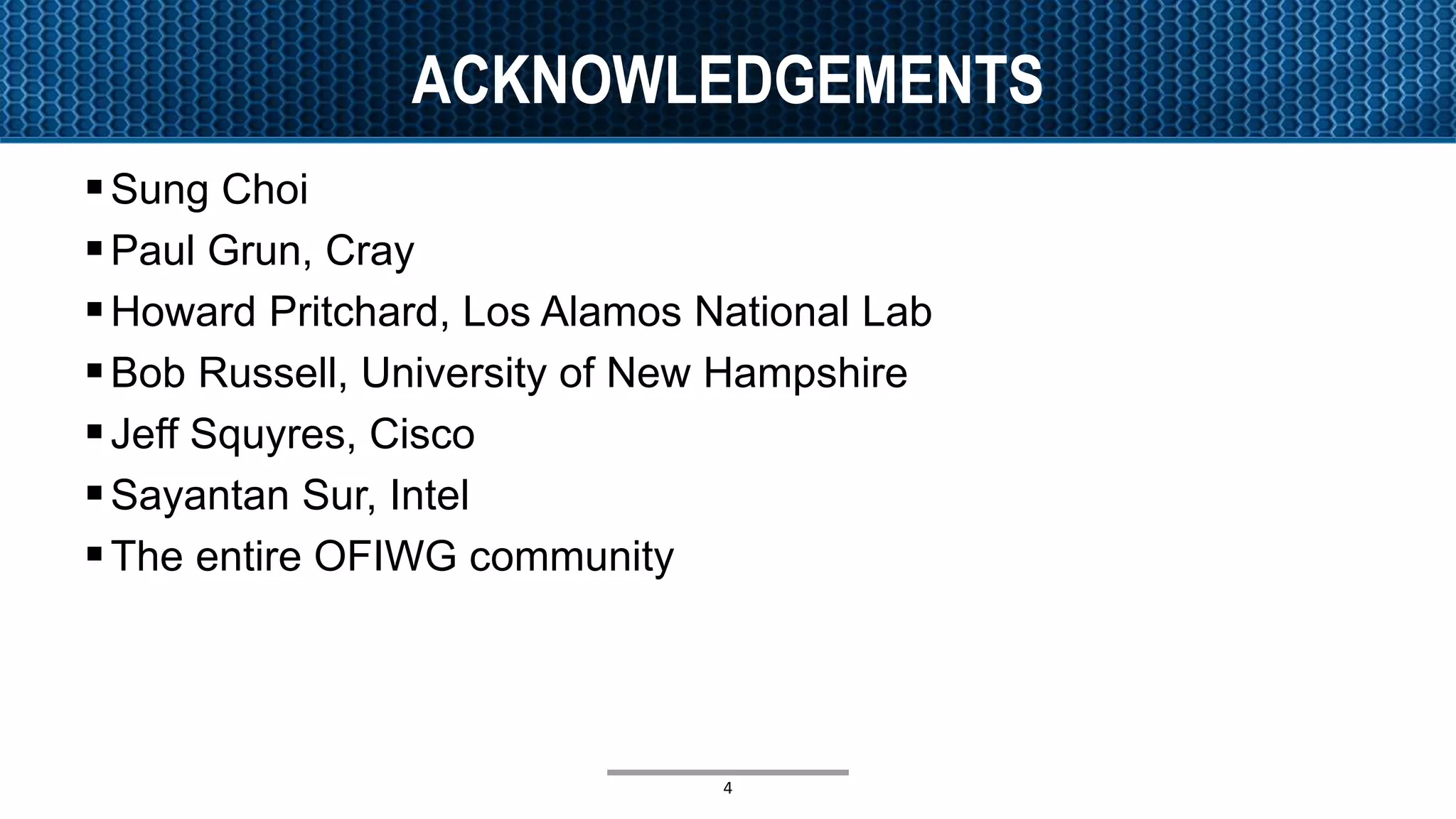

ACKNOWLEDGEMENTS
Sung Choi
Paul Grun, Cray
Howard Pritchard, Los Alamos National Lab
Bob Russell, University of New Hampshire
Jeff Squyres, Cisco
Sayantan Sur, Intel
The entire OFIWG community
4
DESIGN GUIDELINES
5

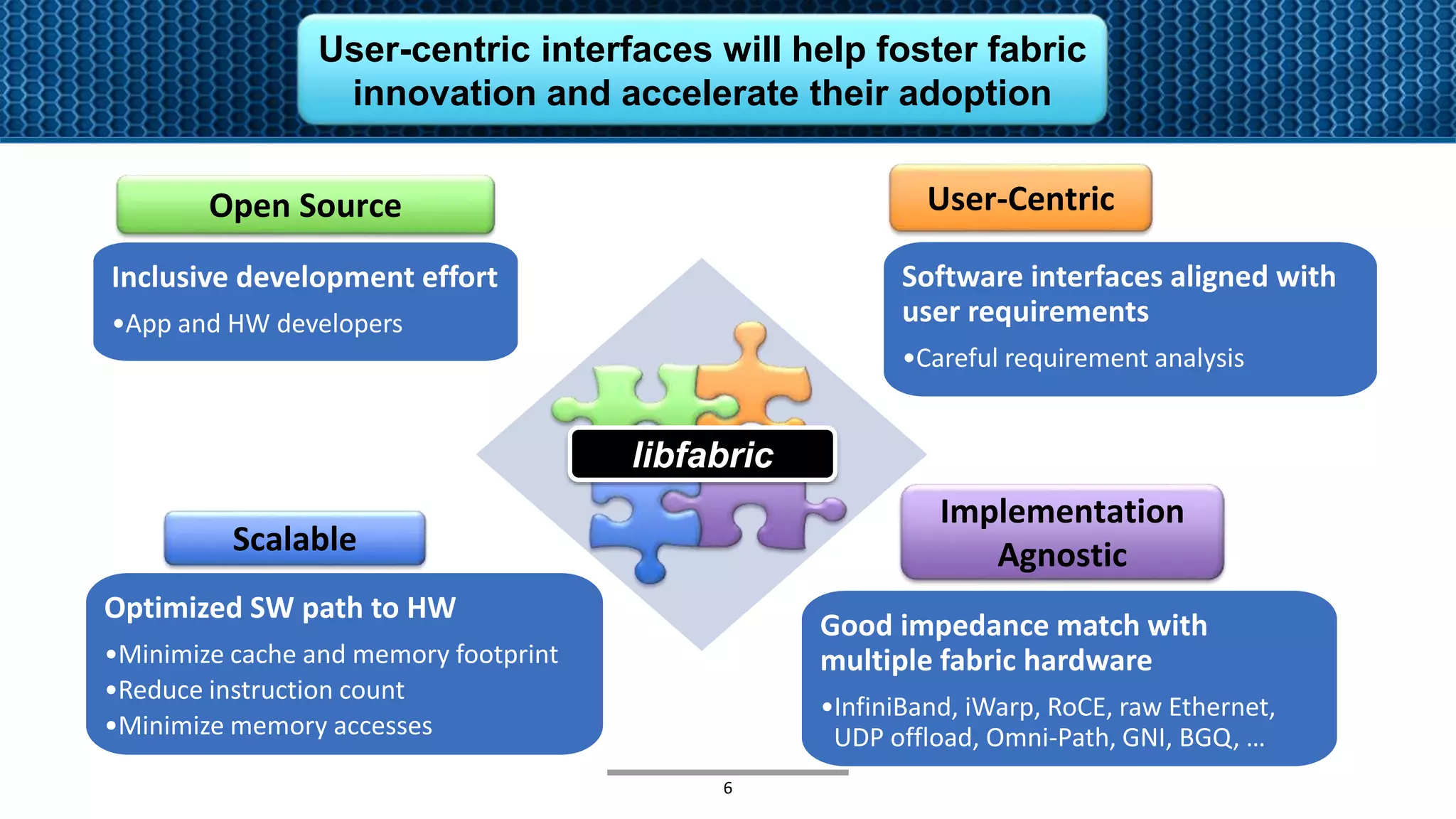

Charter: develop interfaces
aligned with user needs
Optimized SW path to HW
•Minimize cache and memory footprint
•Reduce instruction count
•Minimize memory accesses
Scalable
Implementation
Agnostic
Software interfaces aligned with
user requirements
•Careful requirement analysis
Inclusive development effort
•App and HW developers
Good impedance match with
multiple fabric hardware
•InfiniBand, iWarp, RoCE, raw Ethernet,
UDP offload, Omni-Path, GNI, BGQ, …
Open Source User-Centric
libfabric
User-centric interfaces will help foster fabric
innovation and accelerate their adoption
6
OFI USER REQUIREMENTS
7
Give us a high-
level interface!
Give us a low-
level interface!
MPI developers
OFI strives to meet
both requirements
Middleware is primary user
Looking for input on
expanding beyond HPC

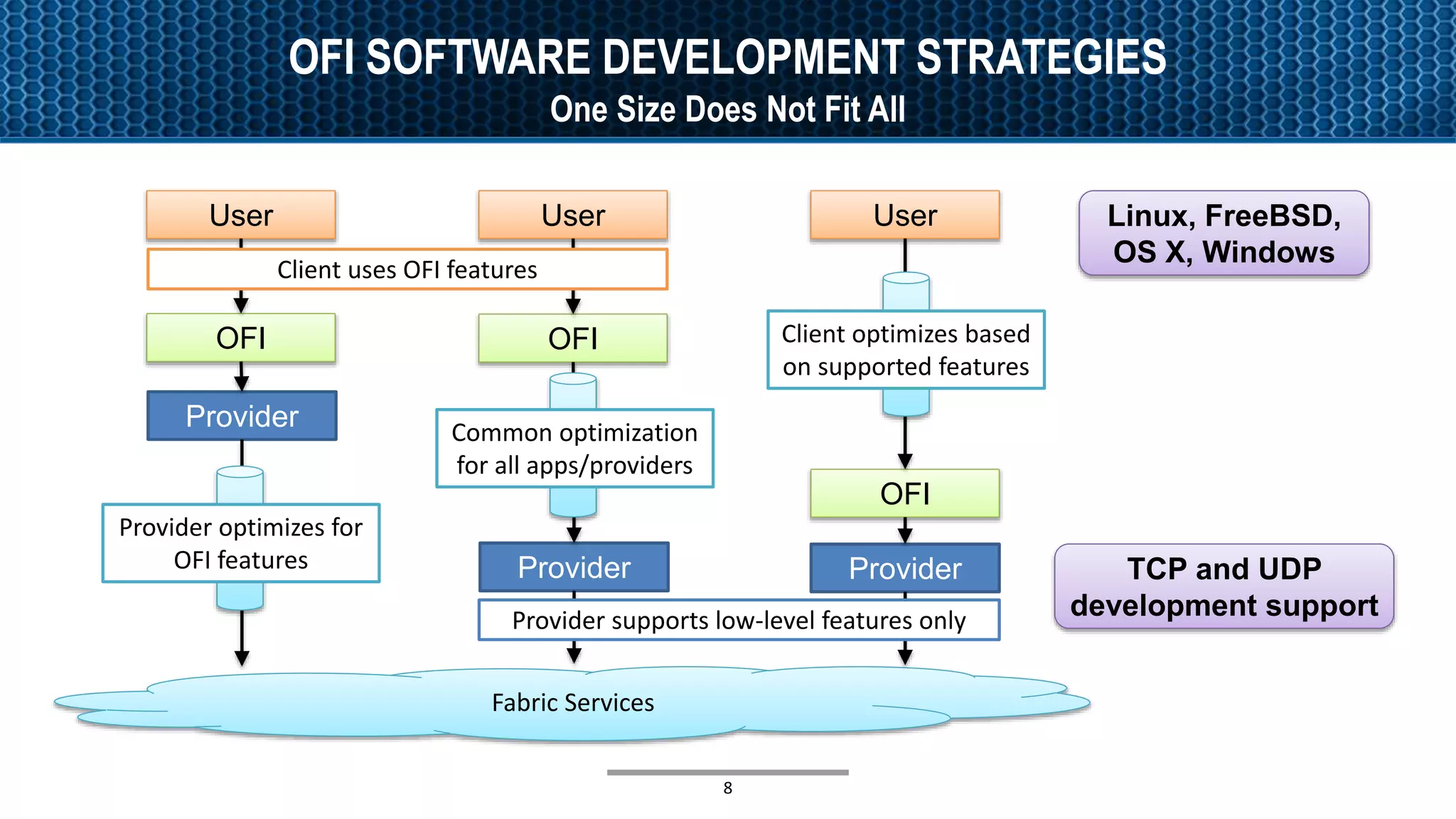

OFI SOFTWARE DEVELOPMENT STRATEGIES
One Size Does Not Fit All
8
Fabric Services
User
OFI
Provider
User
OFI
Provider
Provider optimizes for
OFI features
Common optimization
for all apps/providers
Client uses OFI features
User
OFI
Provider
Client optimizes based
on supported features
Provider supports low-level features only
Linux, FreeBSD,
OS X, Windows
TCP and UDP
development support
ARCHITECTURE
9

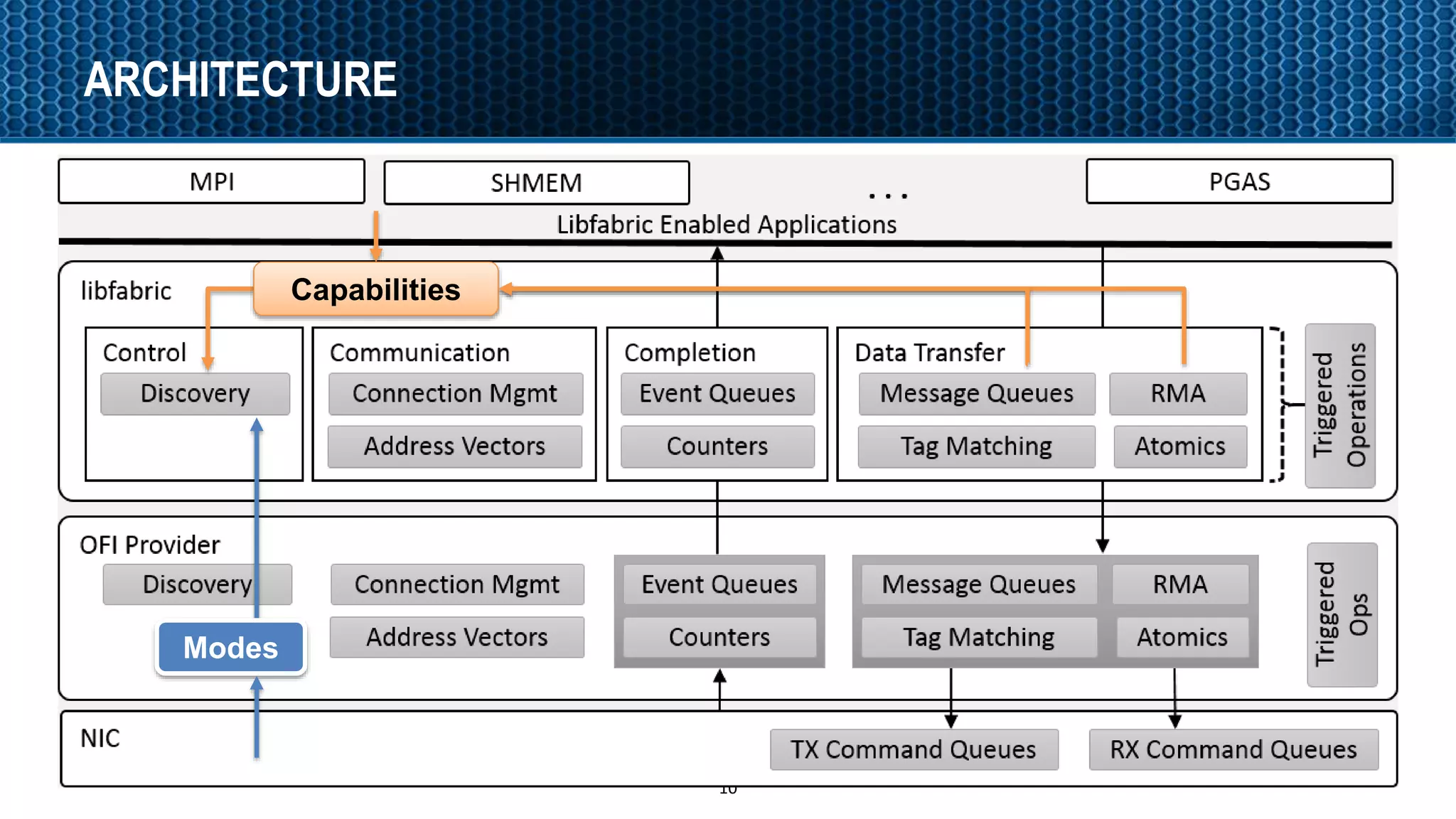

ARCHITECTURE
10
Modes
Capabilities

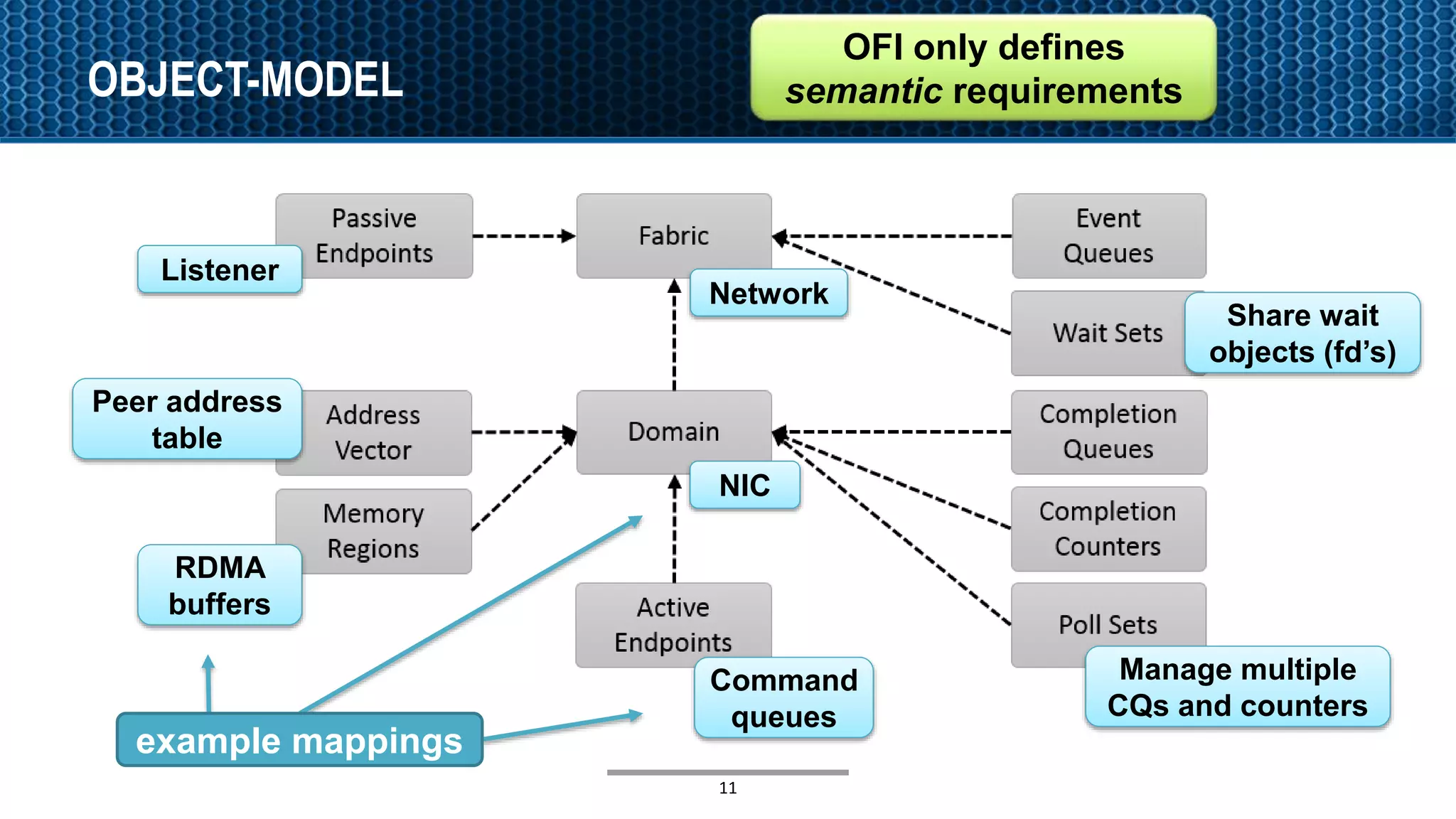

OBJECT-MODEL
11
OFI only defines
semantic requirements
NIC
Network
Peer address
table
Listener
Command
queues
RDMA
buffers
Manage multiple
CQs and counters
Share wait
objects (fd’s)
example mappings

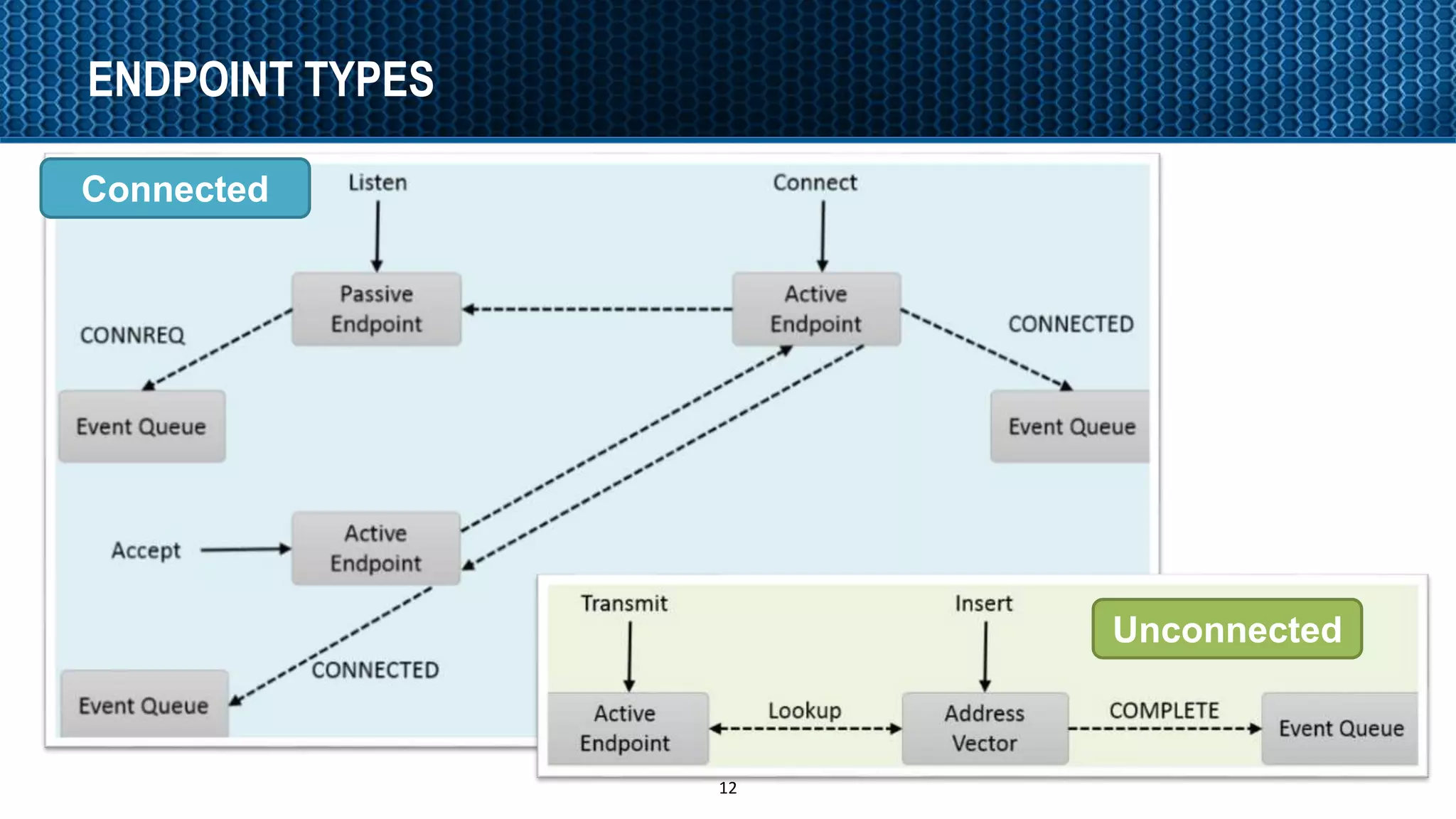

ENDPOINT TYPES
12
Unconnected
Connected

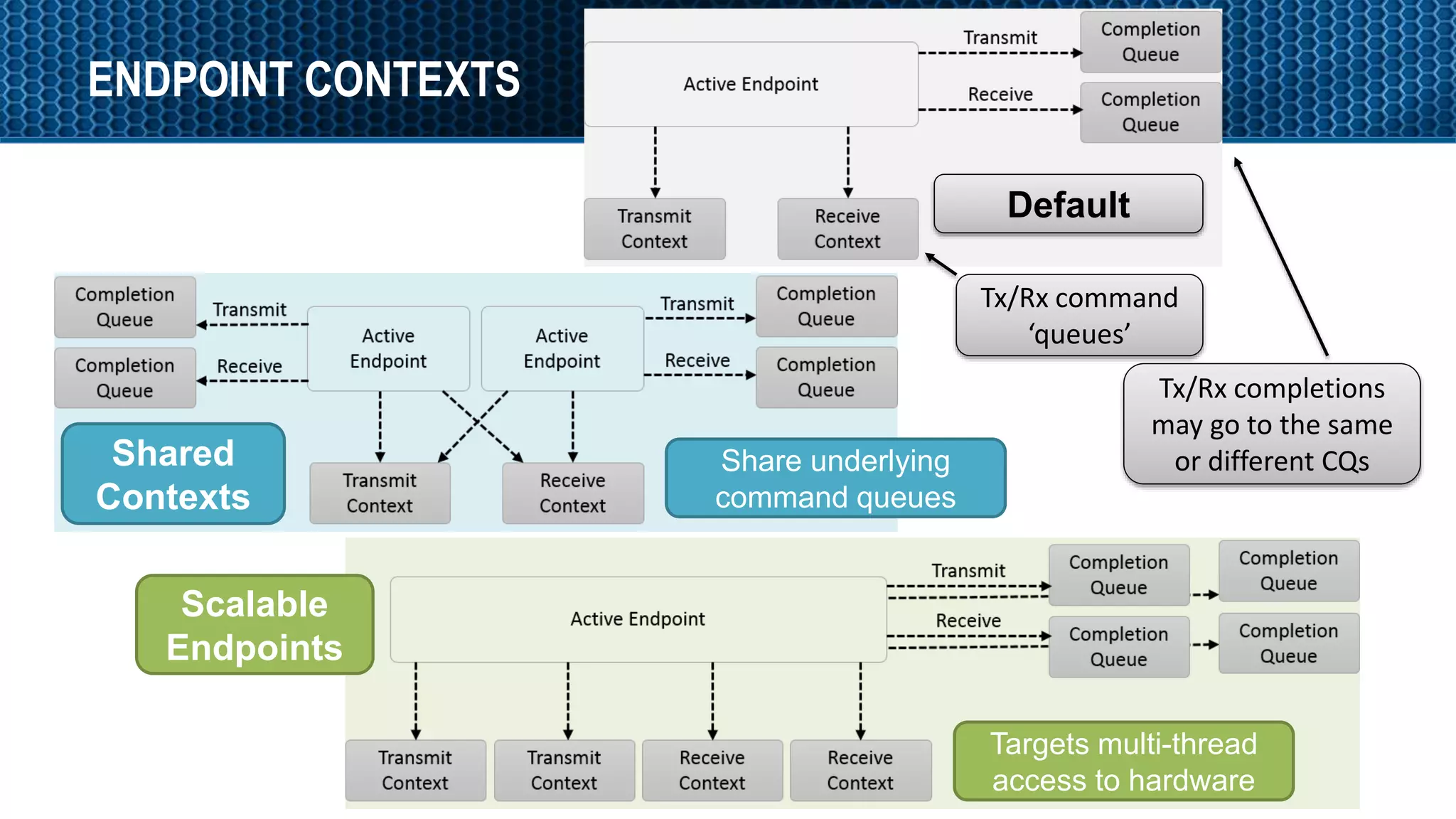

ENDPOINT CONTEXTS
13
Default
Scalable
Endpoints
Shared
Contexts
Tx/Rx completions
may go to the same
or different CQs
Tx/Rx command
‘queues’
Share underlying
command queues
Targets multi-thread
access to hardware

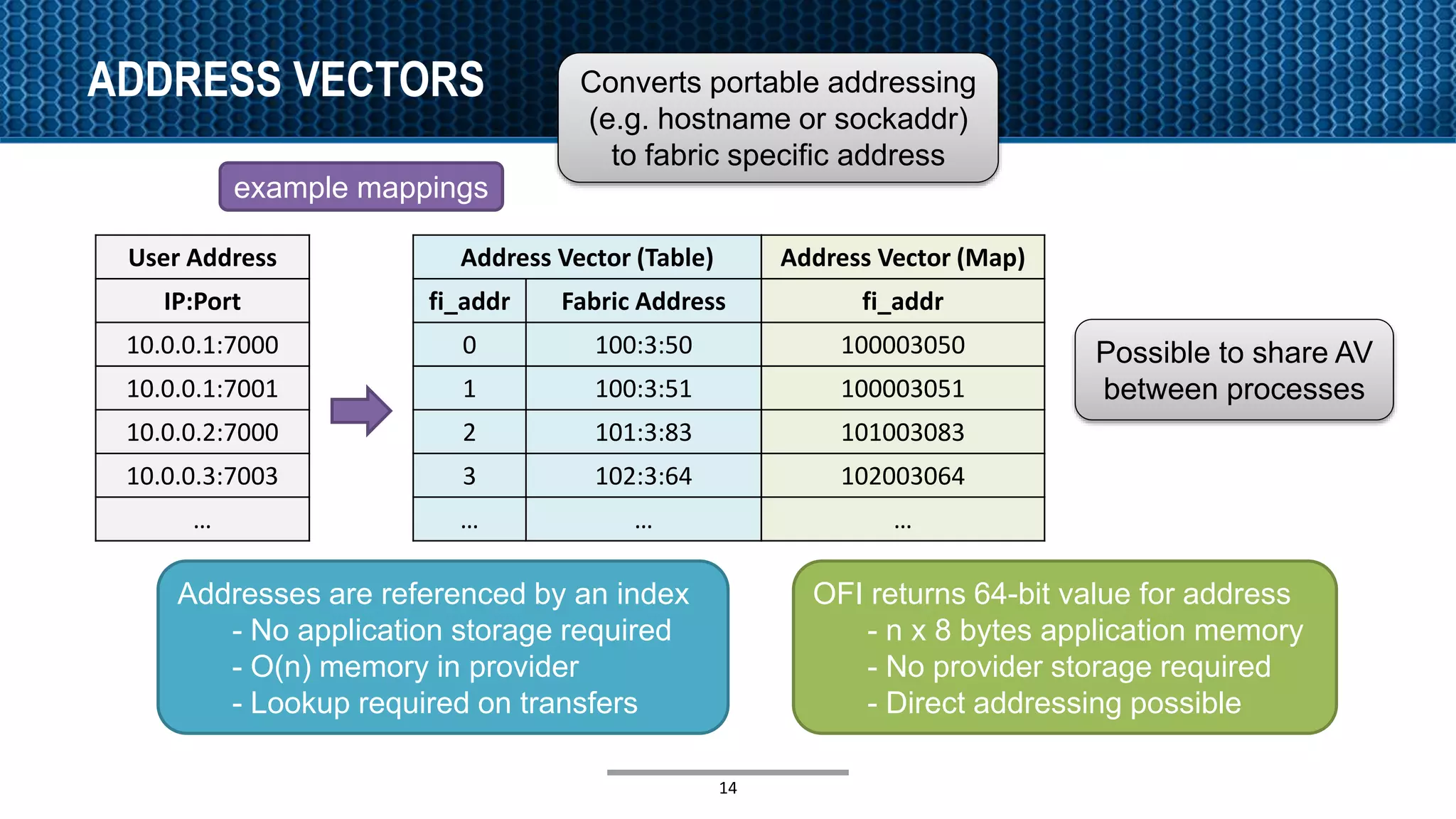

ADDRESS VECTORS
14
Address Vector (Table)
fi_addr Fabric Address
0 100:3:50
1 100:3:51
2 101:3:83
3 102:3:64
… …
Address Vector (Map)
fi_addr
100003050
100003051
101003083
102003064
…
Addresses are referenced by an index
- No application storage required
- O(n) memory in provider
- Lookup required on transfers
OFI returns 64-bit value for address
- n x 8 bytes application memory
- No provider storage required
- Direct addressing possible
Converts portable addressing
(e.g. hostname or sockaddr)
to fabric specific address
Possible to share AV
between processes
User Address
IP:Port
10.0.0.1:7000
10.0.0.1:7001
10.0.0.2:7000
10.0.0.3:7003
…
example mappings

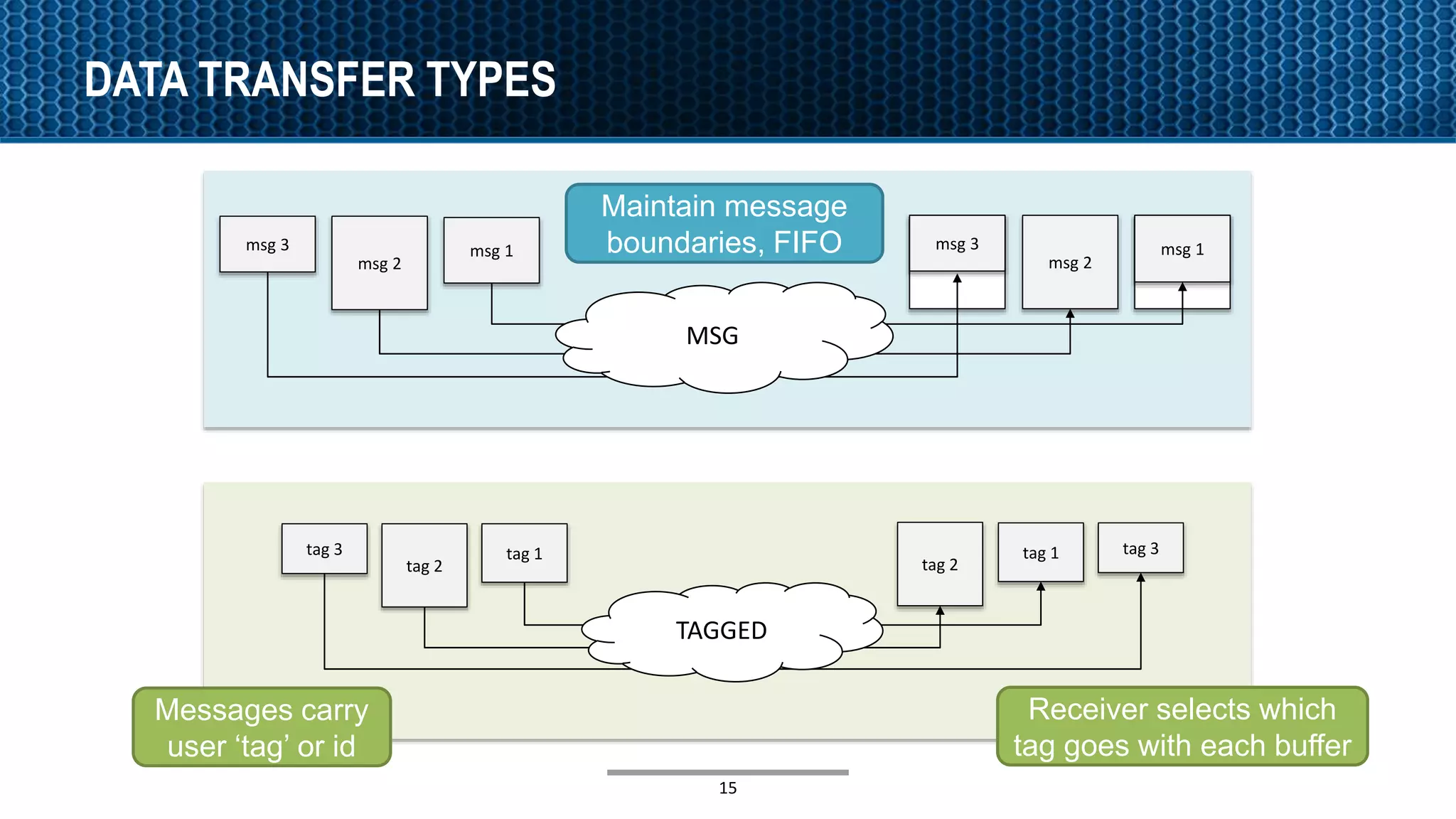

DATA TRANSFER TYPES
15
msg 2
msg 1msg 3
msg 2
msg 1msg 3
tag 2
tag 1tag 3
tag 2
tag 1 tag 3
TAGGED
MSG
Maintain message
boundaries, FIFO
Messages carry
user ‘tag’ or id
Receiver selects which
tag goes with each buffer

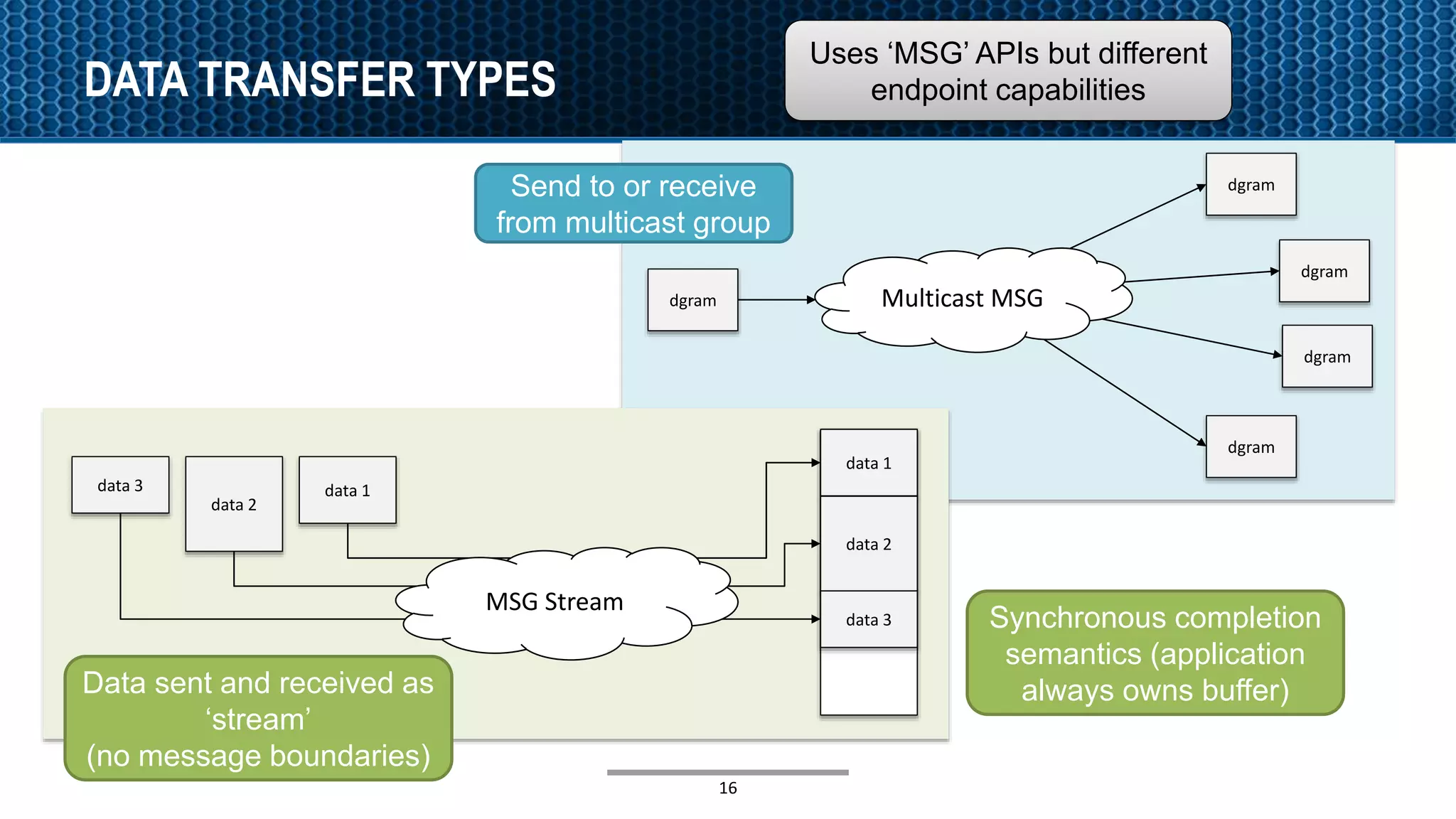

DATA TRANSFER TYPES
16
data 2
data 1data 3
data 1
data 2
data 3
MSG Stream
dgram
dgram
dgram
dgram
dgram
Multicast MSG
Send to or receive
from multicast group
Data sent and received as
‘stream’
(no message boundaries)
Uses ‘MSG’ APIs but different
endpoint capabilities
Synchronous completion
semantics (application
always owns buffer)

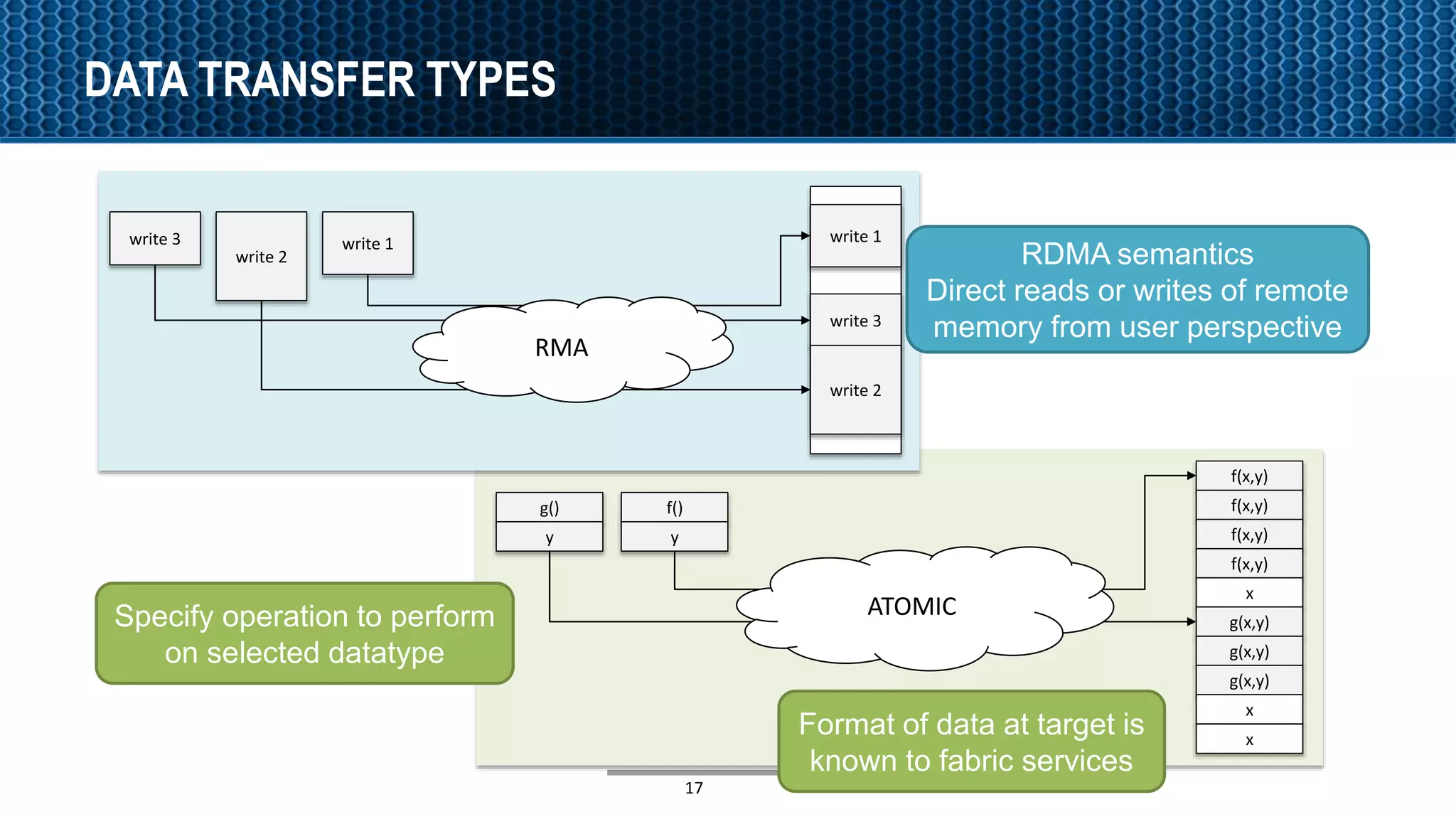

DATA TRANSFER TYPES
17
write 2
write 1write 3 write 1
write 3
write 2
RMA
RDMA semantics
Direct reads or writes of remote
memory from user perspective
Specify operation to perform
on selected datatype
f(x,y)
ATOMIC
f(x,y)
f(x,y)
f(x,y)
f()
y
g()
y
x
g(x,y)
g(x,y)
g(x,y)
x
x
Format of data at target is
known to fabric services
API BOOTSTRAP
18

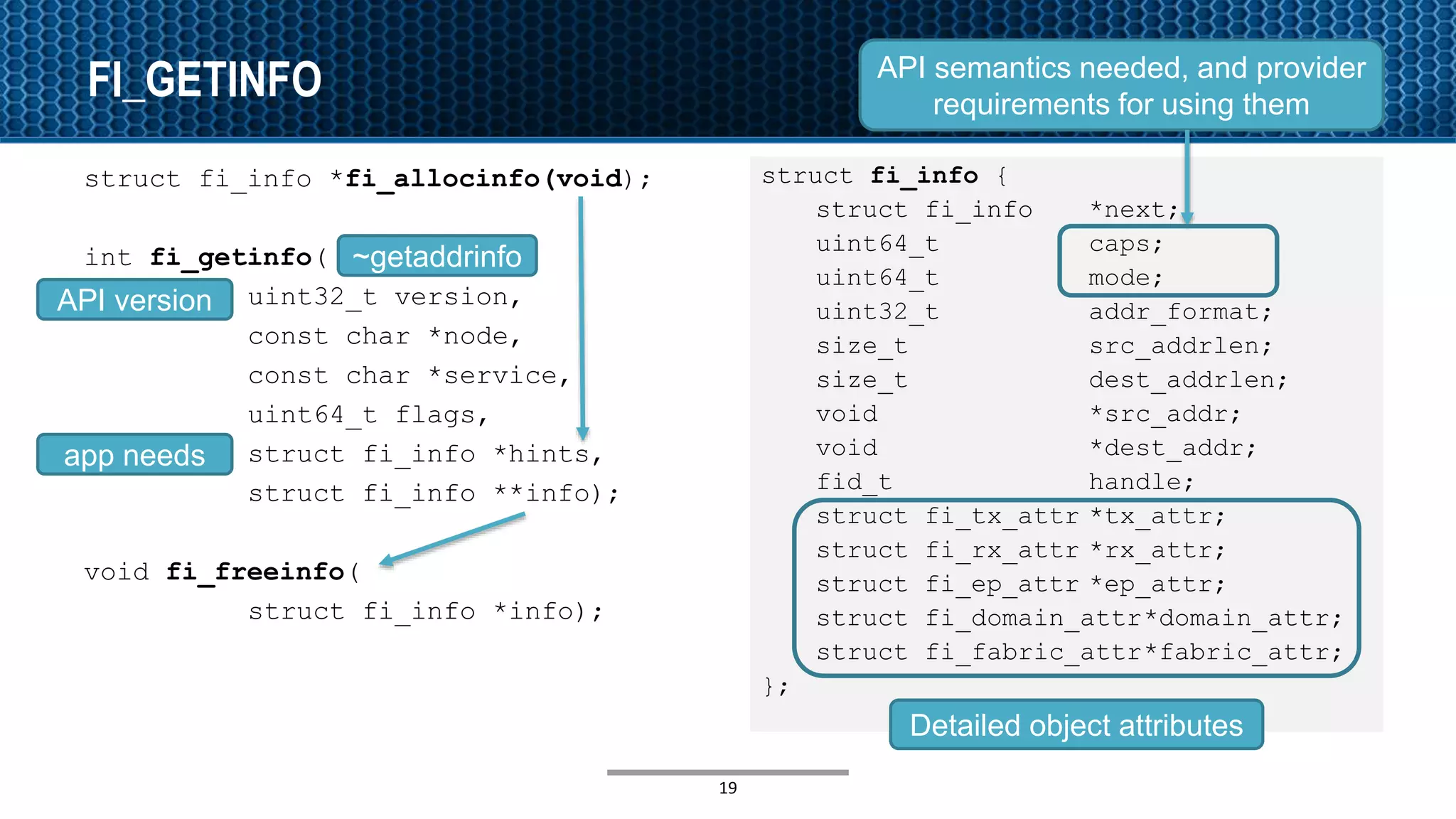

FI_GETINFO
struct fi_info *fi_allocinfo(void);
int fi_getinfo(
uint32_t version,
const char *node,
const char *service,
uint64_t flags,
struct fi_info *hints,
struct fi_info **info);
void fi_freeinfo(
struct fi_info *info);
19
struct fi_info {
struct fi_info *next;
uint64_t caps;
uint64_t mode;
uint32_t addr_format;
size_t src_addrlen;
size_t dest_addrlen;
void *src_addr;
void *dest_addr;
fid_t handle;
struct fi_tx_attr *tx_attr;
struct fi_rx_attr *rx_attr;
struct fi_ep_attr *ep_attr;
struct fi_domain_attr*domain_attr;
struct fi_fabric_attr*fabric_attr;
};
API version
~getaddrinfo
app needs
API semantics needed, and provider
requirements for using them
Detailed object attributes

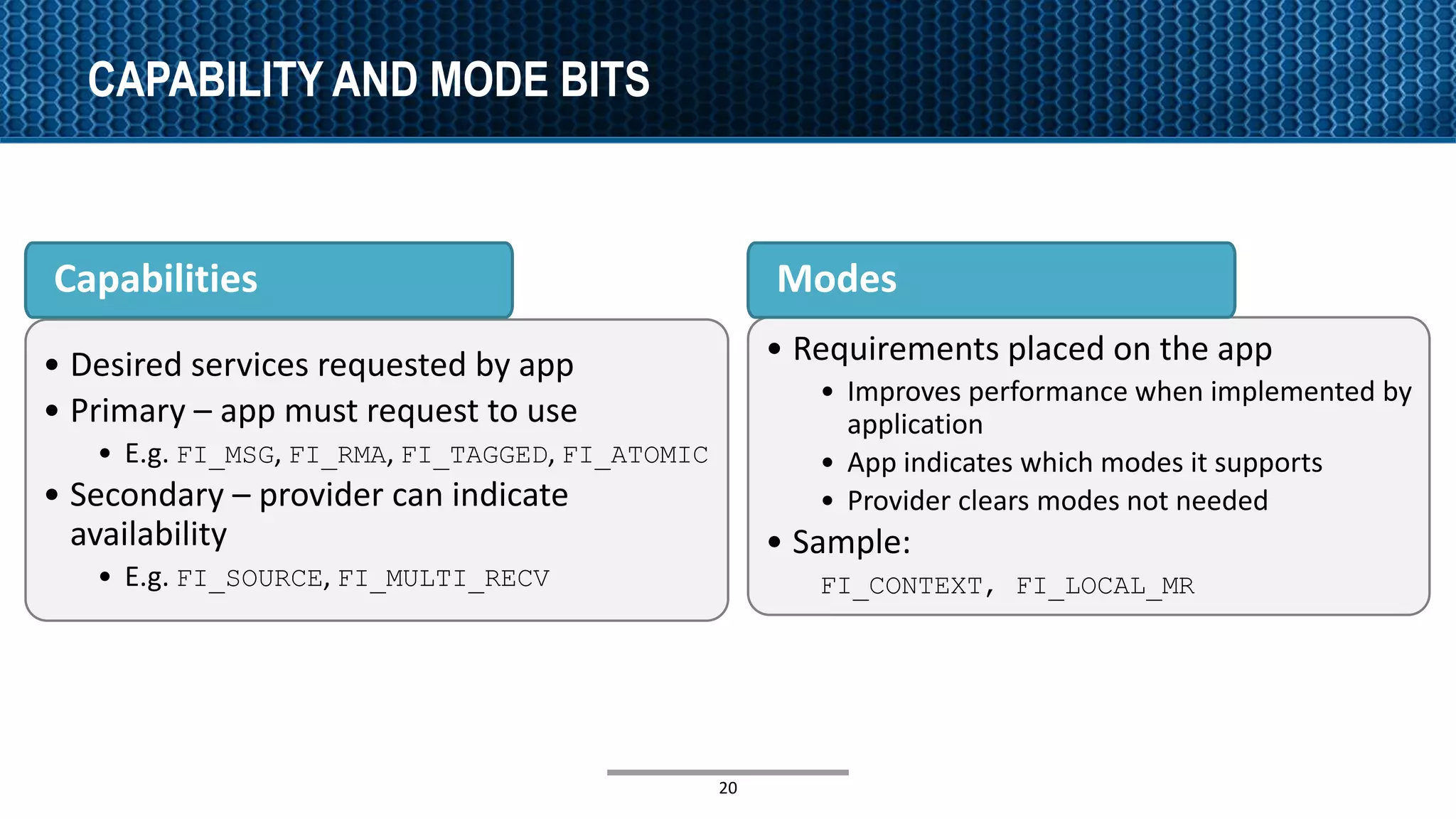

CAPABILITY AND MODE BITS
20
• Desired services requested by app
• Primary – app must request to use
• E.g. FI_MSG, FI_RMA, FI_TAGGED, FI_ATOMIC
• Secondary – provider can indicate
availability
• E.g. FI_SOURCE, FI_MULTI_RECV
Capabilities
• Requirements placed on the app
• Improves performance when implemented by
application
• App indicates which modes it supports
• Provider clears modes not needed
• Sample:
FI_CONTEXT, FI_LOCAL_MR
Modes

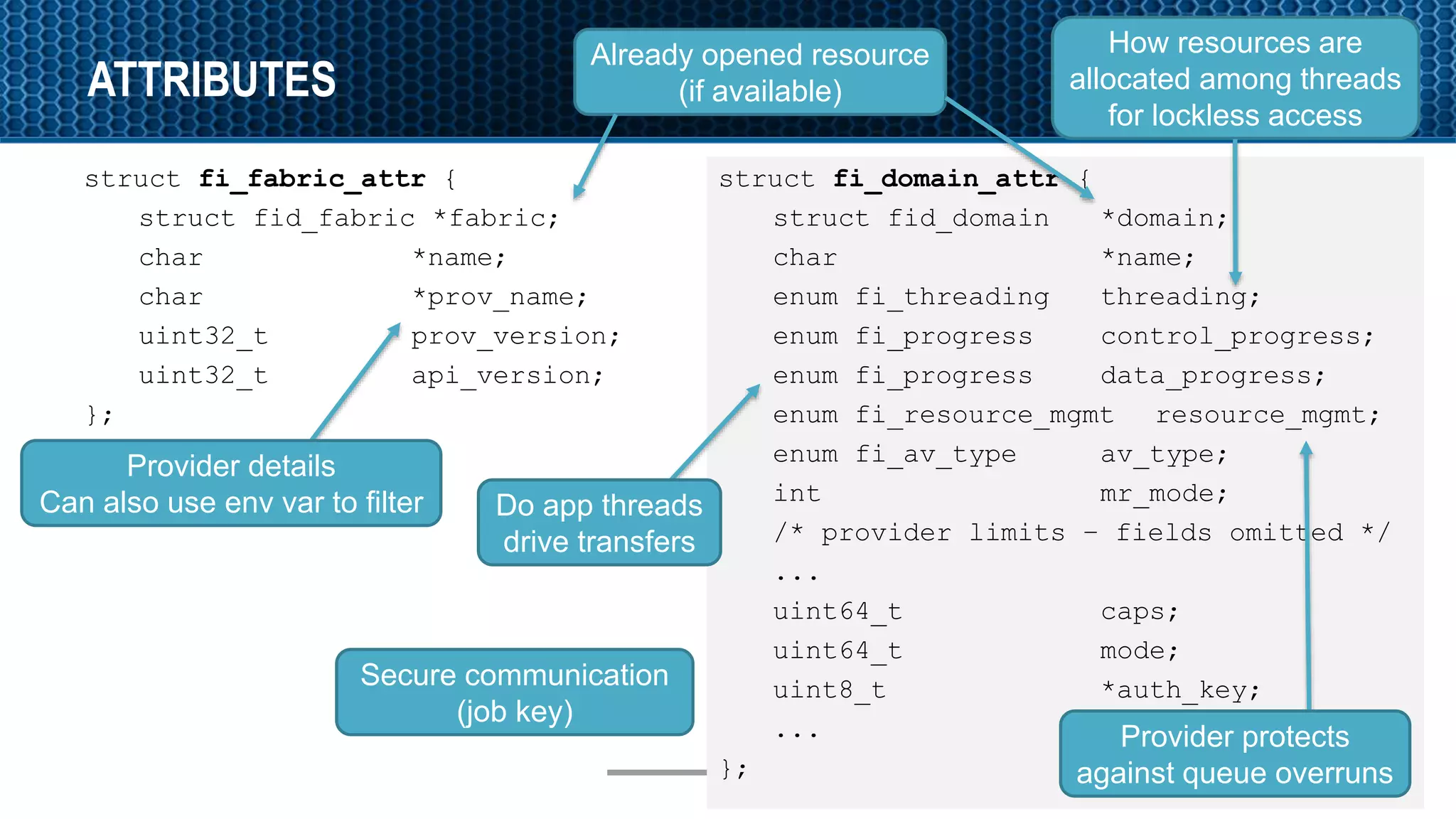

ATTRIBUTES
struct fi_fabric_attr {
struct fid_fabric *fabric;
char *name;
char *prov_name;
uint32_t prov_version;
uint32_t api_version;
};
21
struct fi_domain_attr {
struct fid_domain *domain;
char *name;
enum fi_threading threading;
enum fi_progress control_progress;
enum fi_progress data_progress;
enum fi_resource_mgmt resource_mgmt;
enum fi_av_type av_type;
int mr_mode;
/* provider limits – fields omitted */
...
uint64_t caps;
uint64_t mode;
uint8_t *auth_key;
...
};
Provider details
Can also use env var to filter
Already opened resource
(if available)
How resources are
allocated among threads
for lockless access
Provider protects
against queue overruns
Do app threads
drive transfers
Secure communication
(job key)

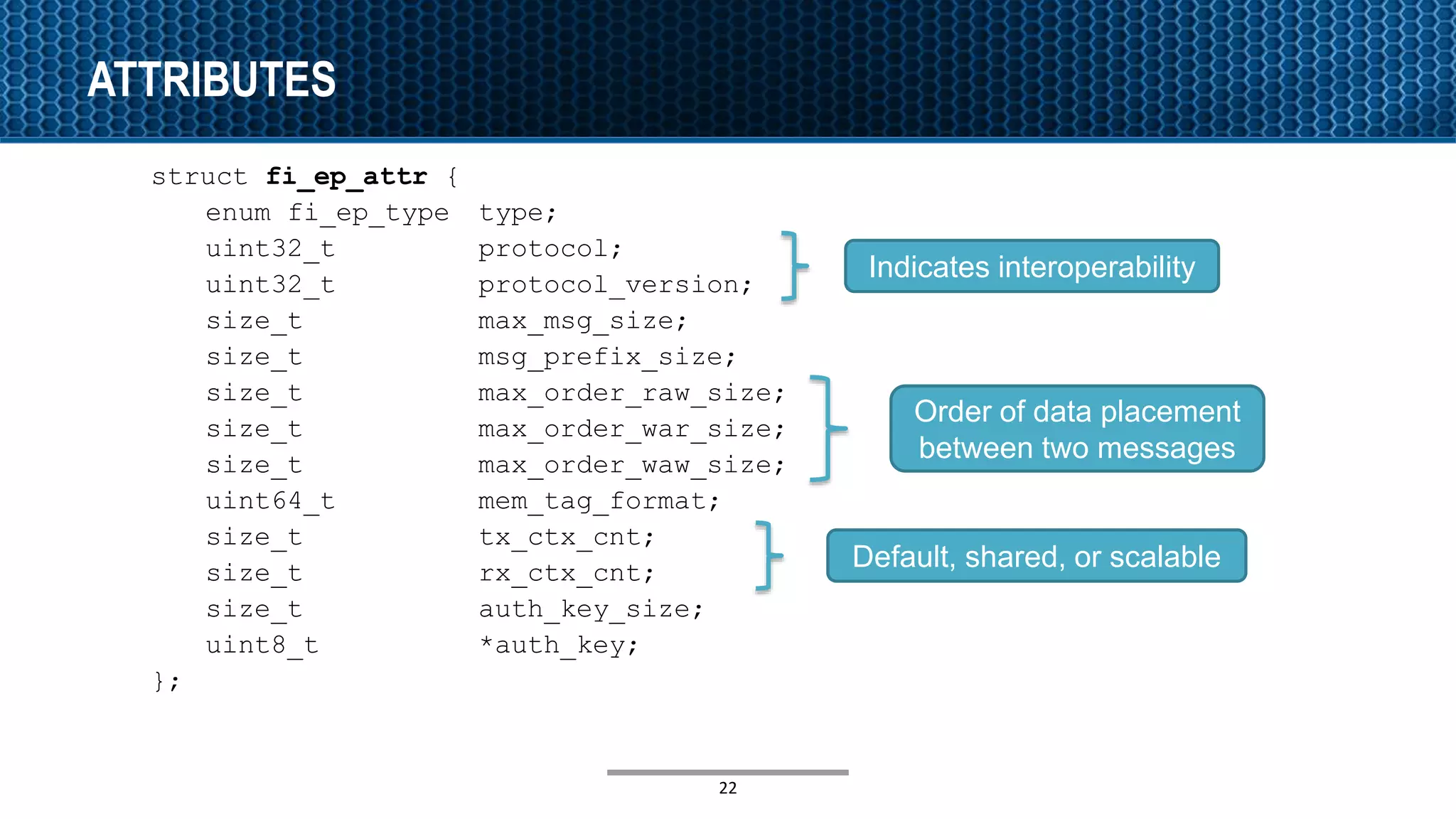

ATTRIBUTES
struct fi_ep_attr {
enum fi_ep_type type;
uint32_t protocol;
uint32_t protocol_version;
size_t max_msg_size;
size_t msg_prefix_size;
size_t max_order_raw_size;
size_t max_order_war_size;
size_t max_order_waw_size;
uint64_t mem_tag_format;
size_t tx_ctx_cnt;
size_t rx_ctx_cnt;
size_t auth_key_size;
uint8_t *auth_key;
};
22
Indicates interoperability
Order of data placement
between two messages
Default, shared, or scalable

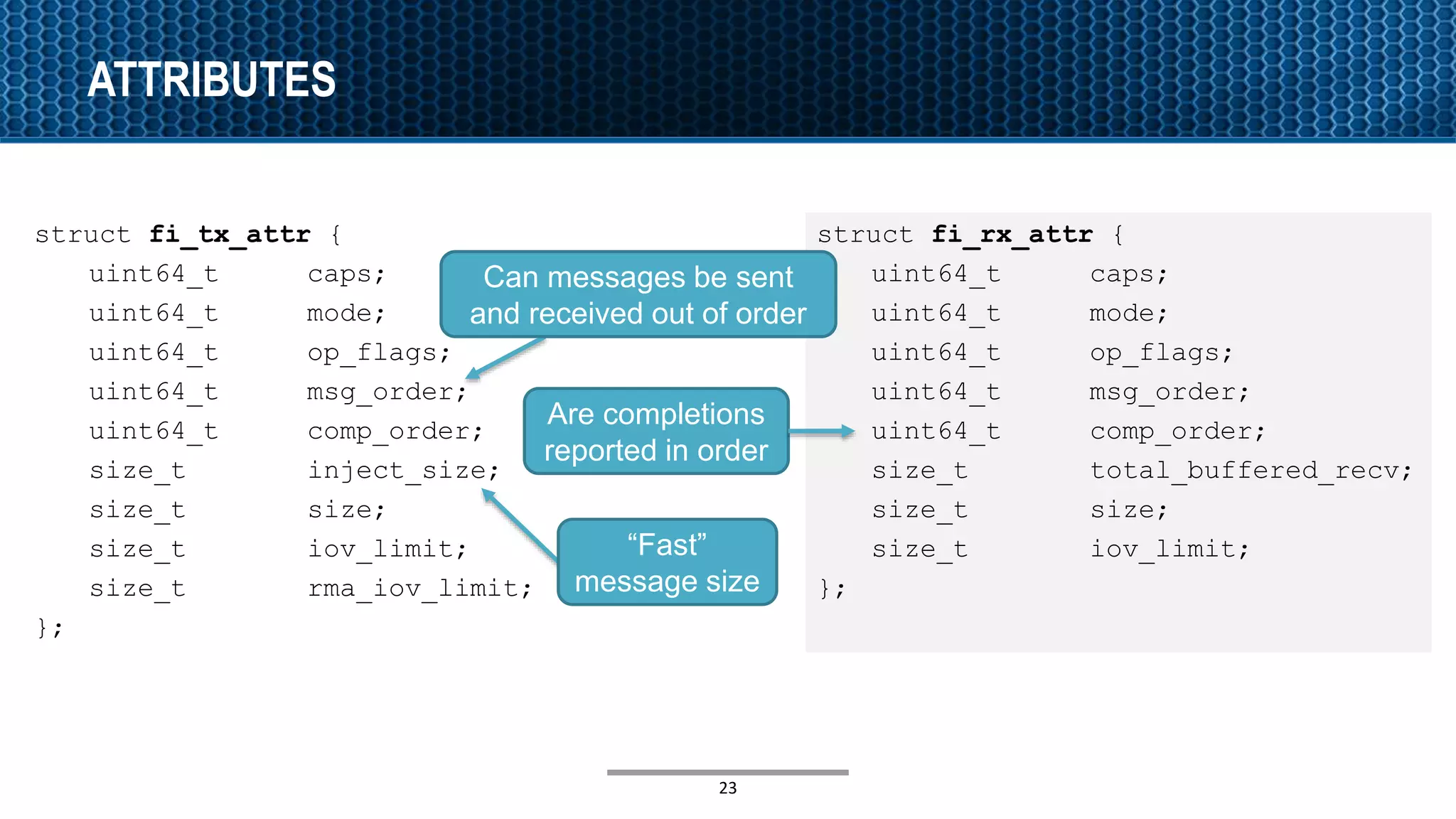

ATTRIBUTES
struct fi_tx_attr {
uint64_t caps;
uint64_t mode;
uint64_t op_flags;
uint64_t msg_order;
uint64_t comp_order;
size_t inject_size;
size_t size;
size_t iov_limit;
size_t rma_iov_limit;
};
23
struct fi_rx_attr {
uint64_t caps;
uint64_t mode;
uint64_t op_flags;
uint64_t msg_order;
uint64_t comp_order;
size_t total_buffered_recv;
size_t size;
size_t iov_limit;
};
Are completions
reported in order
“Fast”
message size
Can messages be sent
and received out of order
GASNET USAGE
24

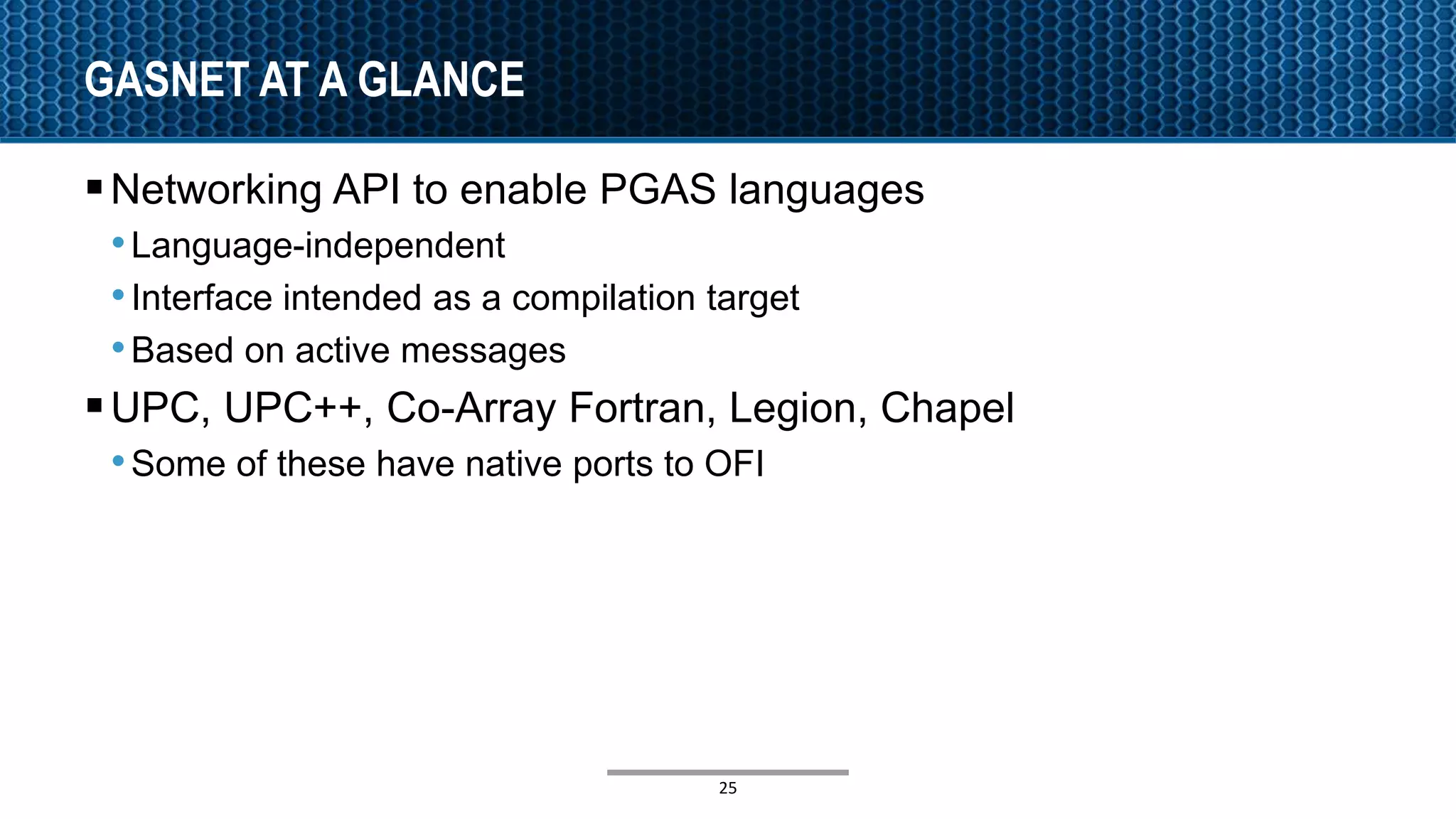

GASNET AT A GLANCE
Networking API to enable PGAS languages
•Language-independent
•Interface intended as a compilation target
•Based on active messages
UPC, UPC++, Co-Array Fortran, Legion, Chapel
•Some of these have native ports to OFI
25

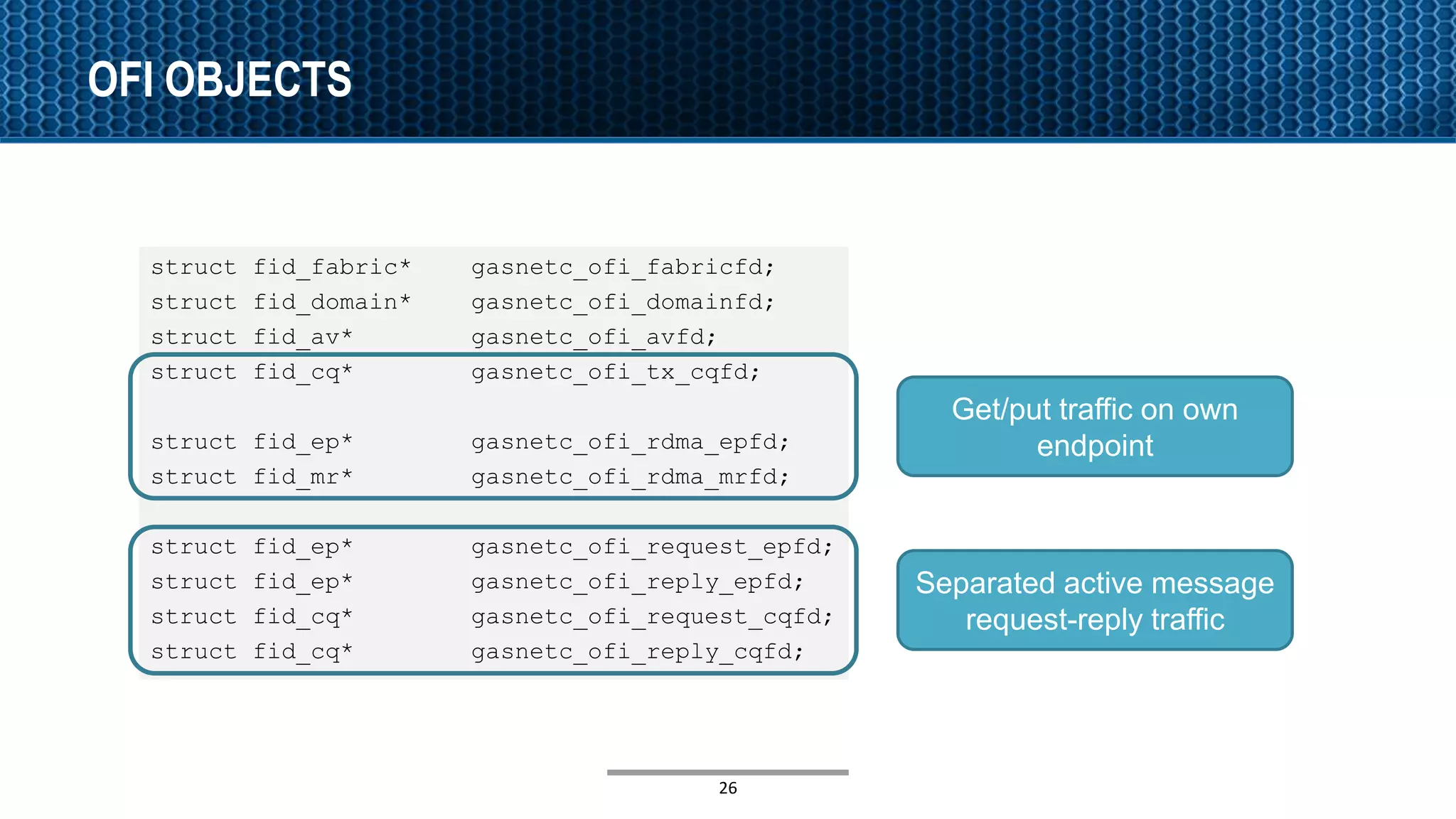

OFI OBJECTS
struct fid_fabric* gasnetc_ofi_fabricfd;
struct fid_domain* gasnetc_ofi_domainfd;
struct fid_av* gasnetc_ofi_avfd;
struct fid_cq* gasnetc_ofi_tx_cqfd;
struct fid_ep* gasnetc_ofi_rdma_epfd;
struct fid_mr* gasnetc_ofi_rdma_mrfd;
struct fid_ep* gasnetc_ofi_request_epfd;
struct fid_ep* gasnetc_ofi_reply_epfd;
struct fid_cq* gasnetc_ofi_request_cqfd;
struct fid_cq* gasnetc_ofi_reply_cqfd;
26
Separated active message
request-reply traffic
Get/put traffic on own
endpoint

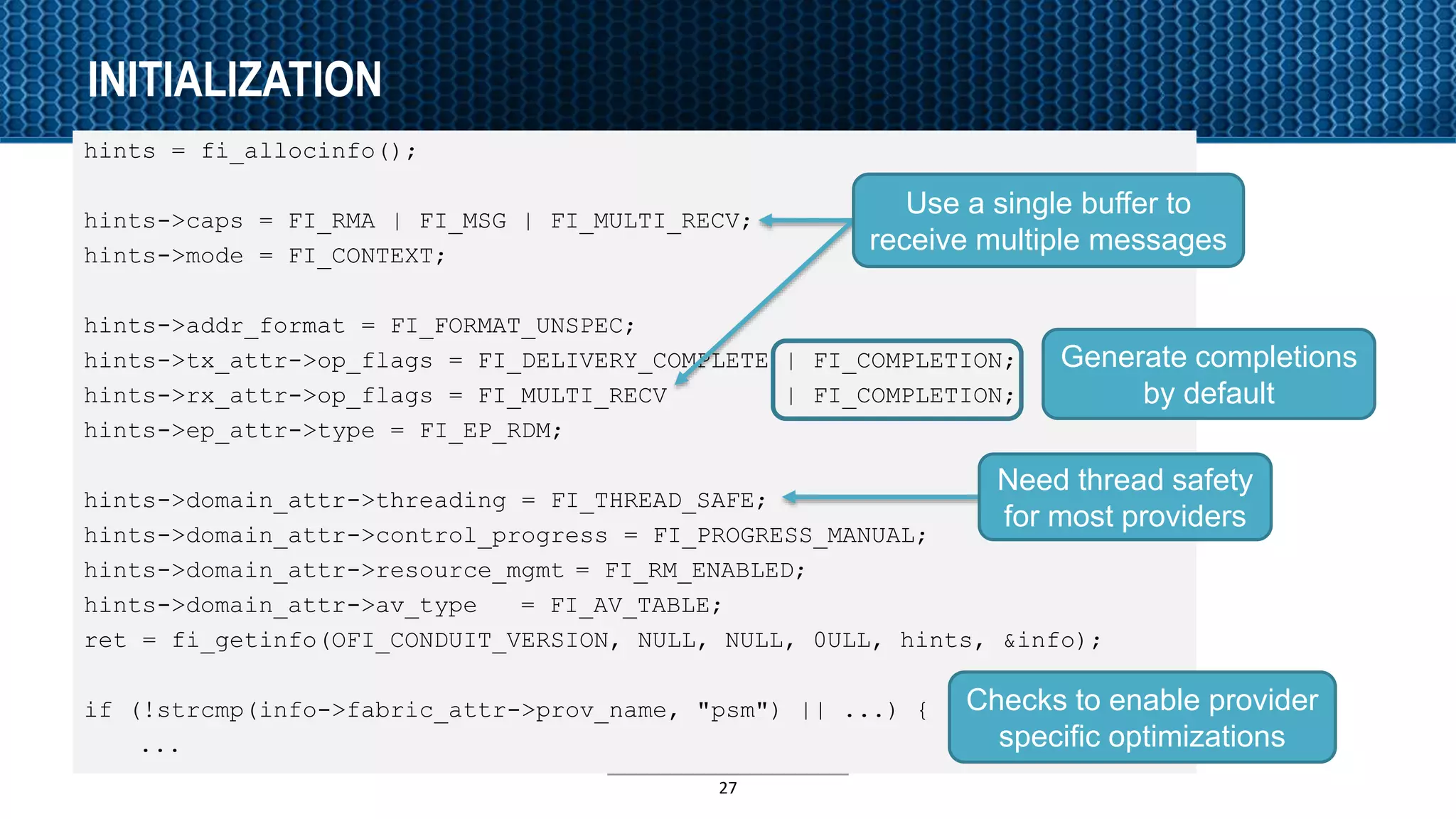

INITIALIZATION
hints = fi_allocinfo();
hints->caps = FI_RMA | FI_MSG | FI_MULTI_RECV;
hints->mode = FI_CONTEXT;
hints->addr_format = FI_FORMAT_UNSPEC;
hints->tx_attr->op_flags = FI_DELIVERY_COMPLETE | FI_COMPLETION;
hints->rx_attr->op_flags = FI_MULTI_RECV | FI_COMPLETION;
hints->ep_attr->type = FI_EP_RDM;
hints->domain_attr->threading = FI_THREAD_SAFE;
hints->domain_attr->control_progress = FI_PROGRESS_MANUAL;
hints->domain_attr->resource_mgmt = FI_RM_ENABLED;
hints->domain_attr->av_type = FI_AV_TABLE;
ret = fi_getinfo(OFI_CONDUIT_VERSION, NULL, NULL, 0ULL, hints, &info);
if (!strcmp(info->fabric_attr->prov_name, "psm") || ...) {
...
27
Generate completions
by default
Checks to enable provider
specific optimizations
Need thread safety
for most providers
Use a single buffer to
receive multiple messages

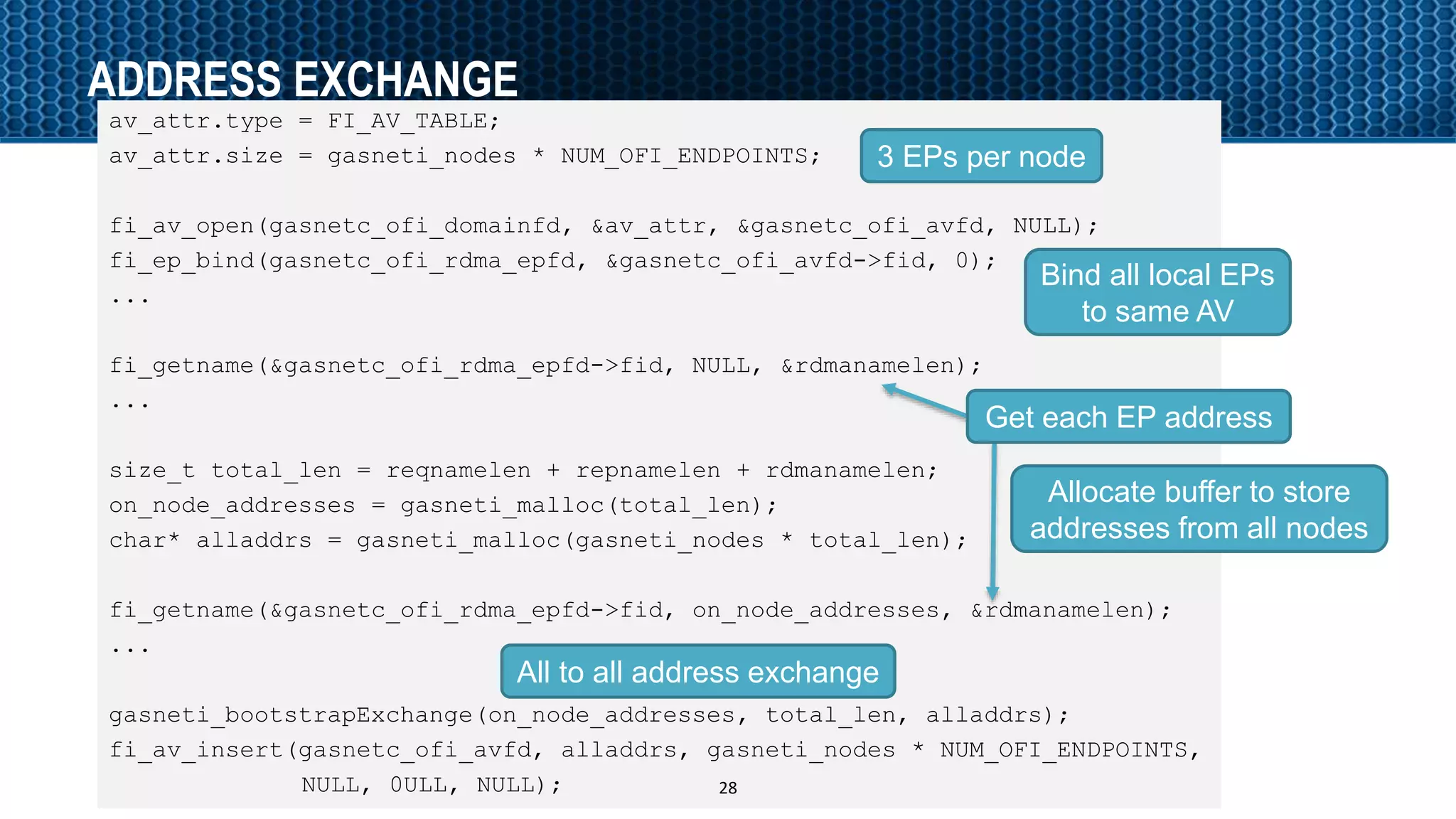

ADDRESS EXCHANGE
av_attr.type = FI_AV_TABLE;
av_attr.size = gasneti_nodes * NUM_OFI_ENDPOINTS;
fi_av_open(gasnetc_ofi_domainfd, &av_attr, &gasnetc_ofi_avfd, NULL);
fi_ep_bind(gasnetc_ofi_rdma_epfd, &gasnetc_ofi_avfd->fid, 0);
...
fi_getname(&gasnetc_ofi_rdma_epfd->fid, NULL, &rdmanamelen);
...
size_t total_len = reqnamelen + repnamelen + rdmanamelen;
on_node_addresses = gasneti_malloc(total_len);
char* alladdrs = gasneti_malloc(gasneti_nodes * total_len);
fi_getname(&gasnetc_ofi_rdma_epfd->fid, on_node_addresses, &rdmanamelen);
...
gasneti_bootstrapExchange(on_node_addresses, total_len, alladdrs);
fi_av_insert(gasnetc_ofi_avfd, alladdrs, gasneti_nodes * NUM_OFI_ENDPOINTS,
NULL, 0ULL, NULL); 28
Bind all local EPs
to same AV
3 EPs per node
Allocate buffer to store
addresses from all nodes
Get each EP address
All to all address exchange

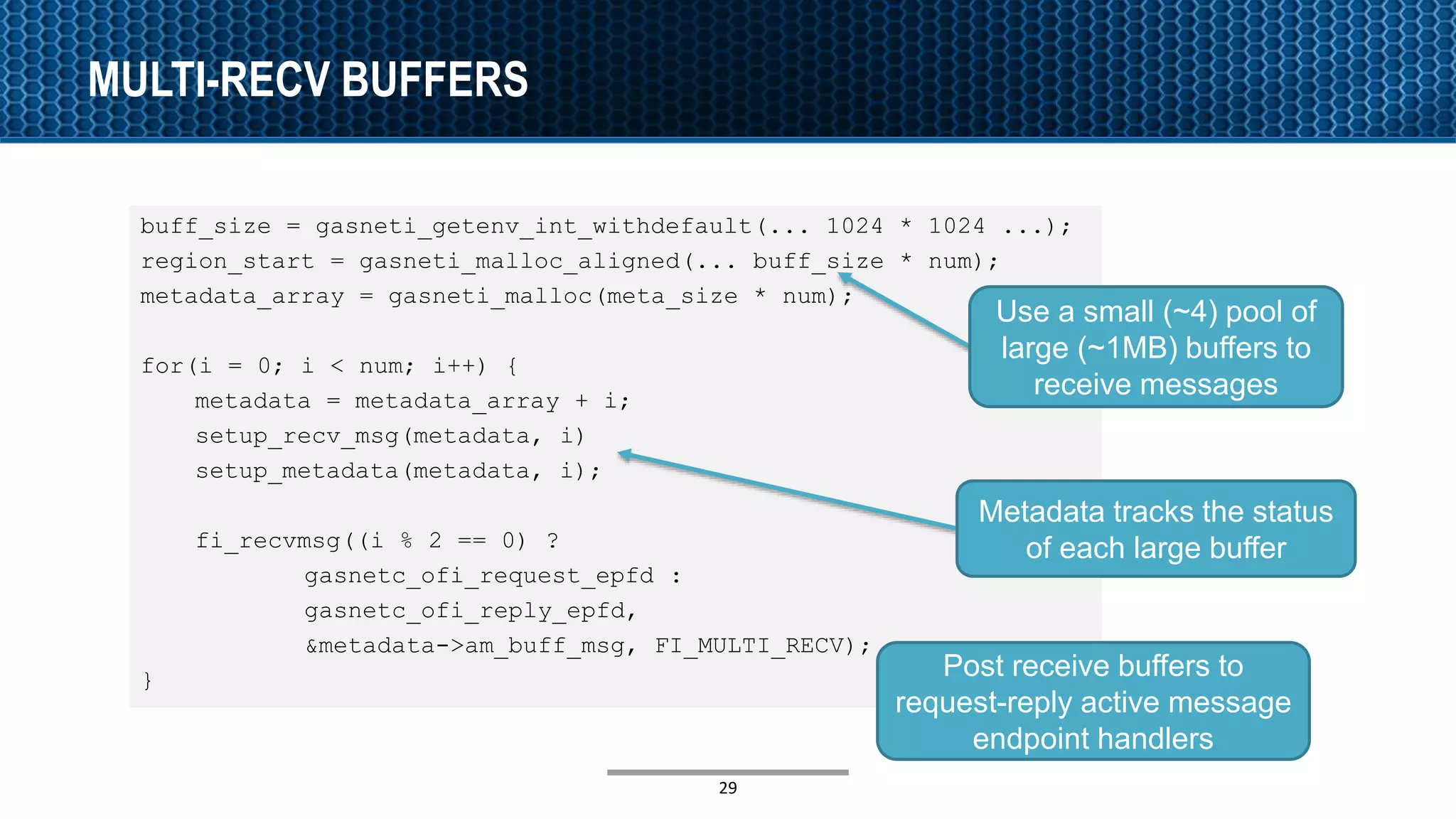

MULTI-RECV BUFFERS
buff_size = gasneti_getenv_int_withdefault(... 1024 * 1024 ...);
region_start = gasneti_malloc_aligned(... buff_size * num);
metadata_array = gasneti_malloc(meta_size * num);
for(i = 0; i < num; i++) {
metadata = metadata_array + i;
setup_recv_msg(metadata, i)
setup_metadata(metadata, i);
fi_recvmsg((i % 2 == 0) ?
gasnetc_ofi_request_epfd :
gasnetc_ofi_reply_epfd,
&metadata->am_buff_msg, FI_MULTI_RECV);
}
29
Use a small (~4) pool of
large (~1MB) buffers to
receive messages
Metadata tracks the status
of each large buffer
Post receive buffers to
request-reply active message
endpoint handlers

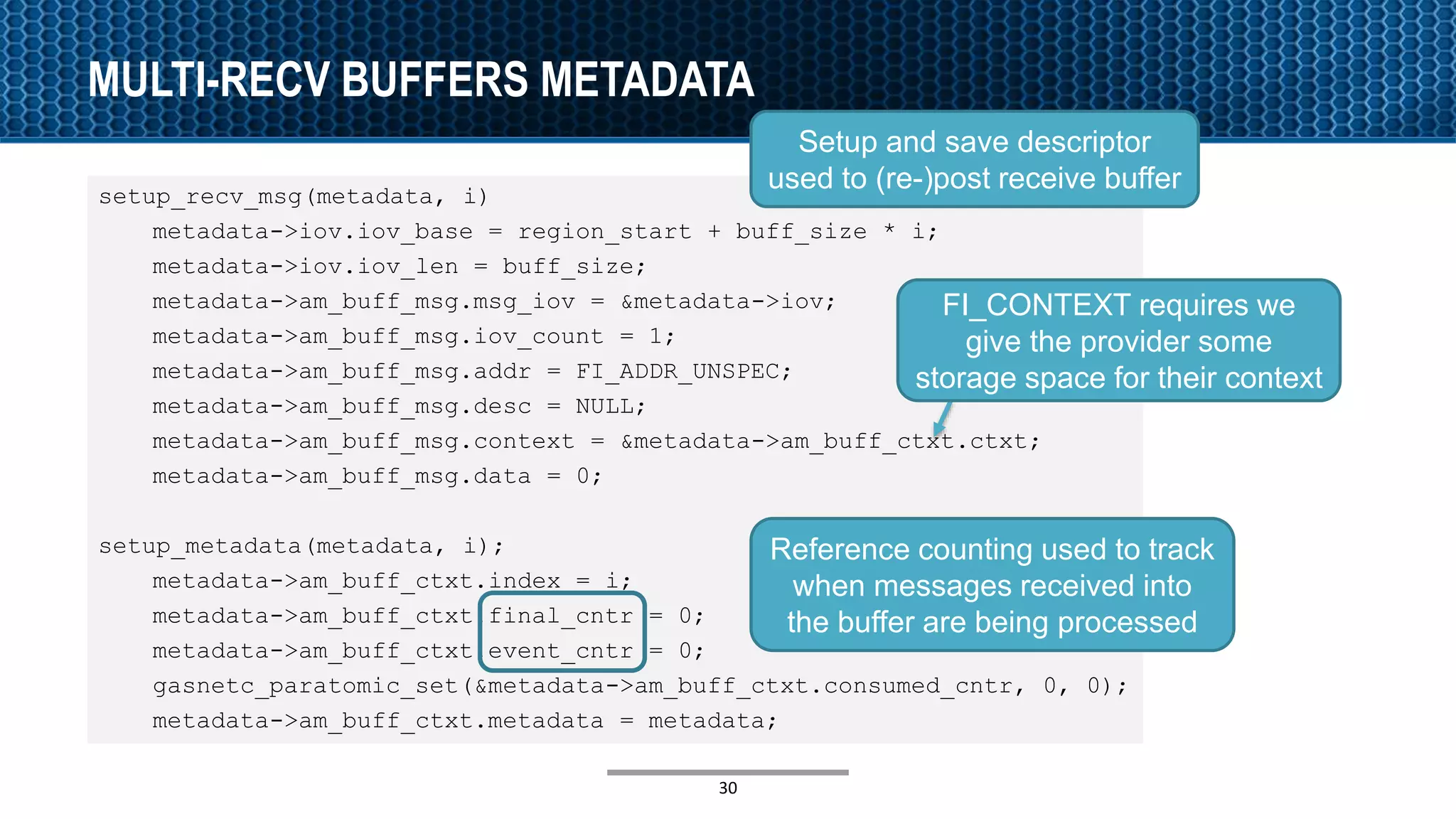

MULTI-RECV BUFFERS METADATA
setup_recv_msg(metadata, i)
metadata->iov.iov_base = region_start + buff_size * i;
metadata->iov.iov_len = buff_size;
metadata->am_buff_msg.msg_iov = &metadata->iov;
metadata->am_buff_msg.iov_count = 1;
metadata->am_buff_msg.addr = FI_ADDR_UNSPEC;
metadata->am_buff_msg.desc = NULL;
metadata->am_buff_msg.context = &metadata->am_buff_ctxt.ctxt;
metadata->am_buff_msg.data = 0;
setup_metadata(metadata, i);
metadata->am_buff_ctxt.index = i;
metadata->am_buff_ctxt.final_cntr = 0;
metadata->am_buff_ctxt.event_cntr = 0;
gasnetc_paratomic_set(&metadata->am_buff_ctxt.consumed_cntr, 0, 0);
metadata->am_buff_ctxt.metadata = metadata;
30
Setup and save descriptor
used to (re-)post receive buffer
Reference counting used to track
when messages received into
the buffer are being processed
FI_CONTEXT requires we
give the provider some
storage space for their context

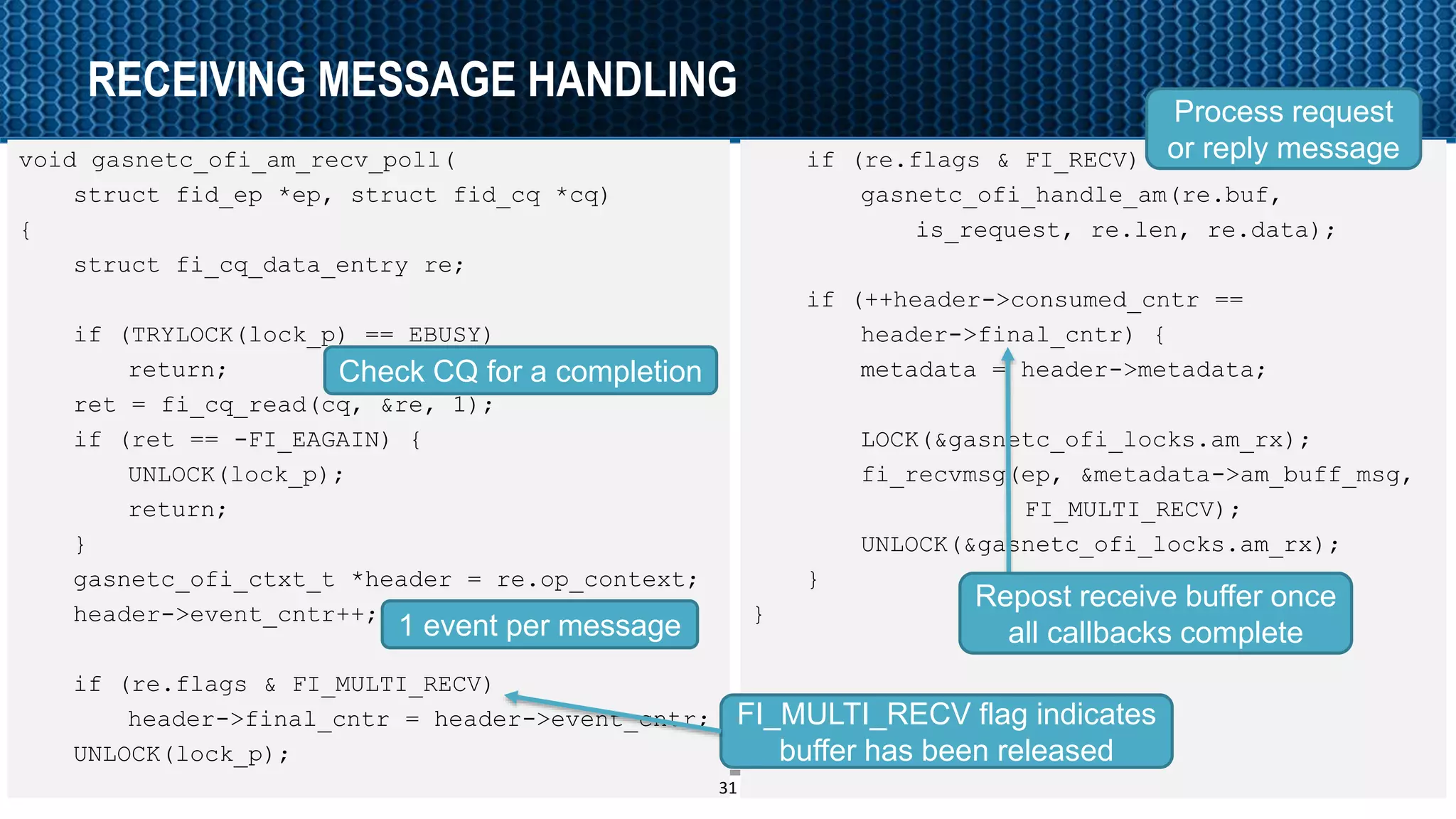

RECEIVING MESSAGE HANDLING
void gasnetc_ofi_am_recv_poll(
struct fid_ep *ep, struct fid_cq *cq)
{
struct fi_cq_data_entry re;
if (TRYLOCK(lock_p) == EBUSY)
return;
ret = fi_cq_read(cq, &re, 1);
if (ret == -FI_EAGAIN) {
UNLOCK(lock_p);
return;
}
gasnetc_ofi_ctxt_t *header = re.op_context;
header->event_cntr++;
if (re.flags & FI_MULTI_RECV)
header->final_cntr = header->event_cntr;
UNLOCK(lock_p);
31
if (re.flags & FI_RECV)
gasnetc_ofi_handle_am(re.buf,
is_request, re.len, re.data);
if (++header->consumed_cntr ==
header->final_cntr) {
metadata = header->metadata;
LOCK(&gasnetc_ofi_locks.am_rx);
fi_recvmsg(ep, &metadata->am_buff_msg,
FI_MULTI_RECV);
UNLOCK(&gasnetc_ofi_locks.am_rx);
}
}
Check CQ for a completion
1 event per message
FI_MULTI_RECV flag indicates
buffer has been released
Process request
or reply message
Repost receive buffer once
all callbacks complete

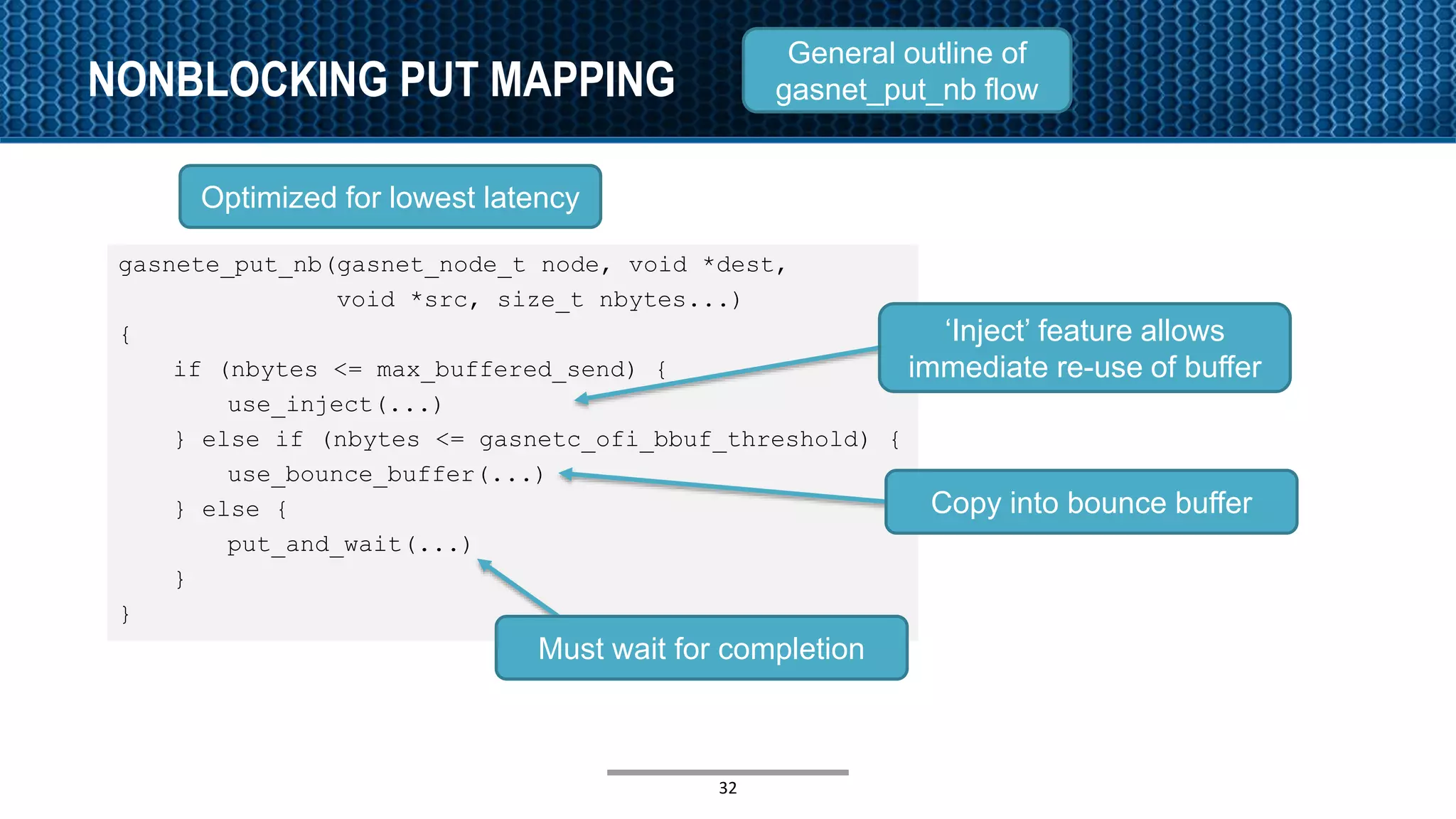

NONBLOCKING PUT MAPPING
gasnete_put_nb(gasnet_node_t node, void *dest,
void *src, size_t nbytes...)
{
if (nbytes <= max_buffered_send) {
use_inject(...)
} else if (nbytes <= gasnetc_ofi_bbuf_threshold) {
use_bounce_buffer(...)
} else {
put_and_wait(...)
}
}
32
General outline of
gasnet_put_nb flow
‘Inject’ feature allows
immediate re-use of buffer
Optimized for lowest latency
Copy into bounce buffer
Must wait for completion
put_and_wait
fi_write(gasnetc_ofi_rdma_epfd, src, nbytes,
NULL, GET_RDMA_DEST(node),
GET_REMOTEADDR(node, dest), 0, ctxt_ptr);
pending_rdma++;
while (pending_rdma)
GASNETC_OFI_POLL_EVERYTHING();

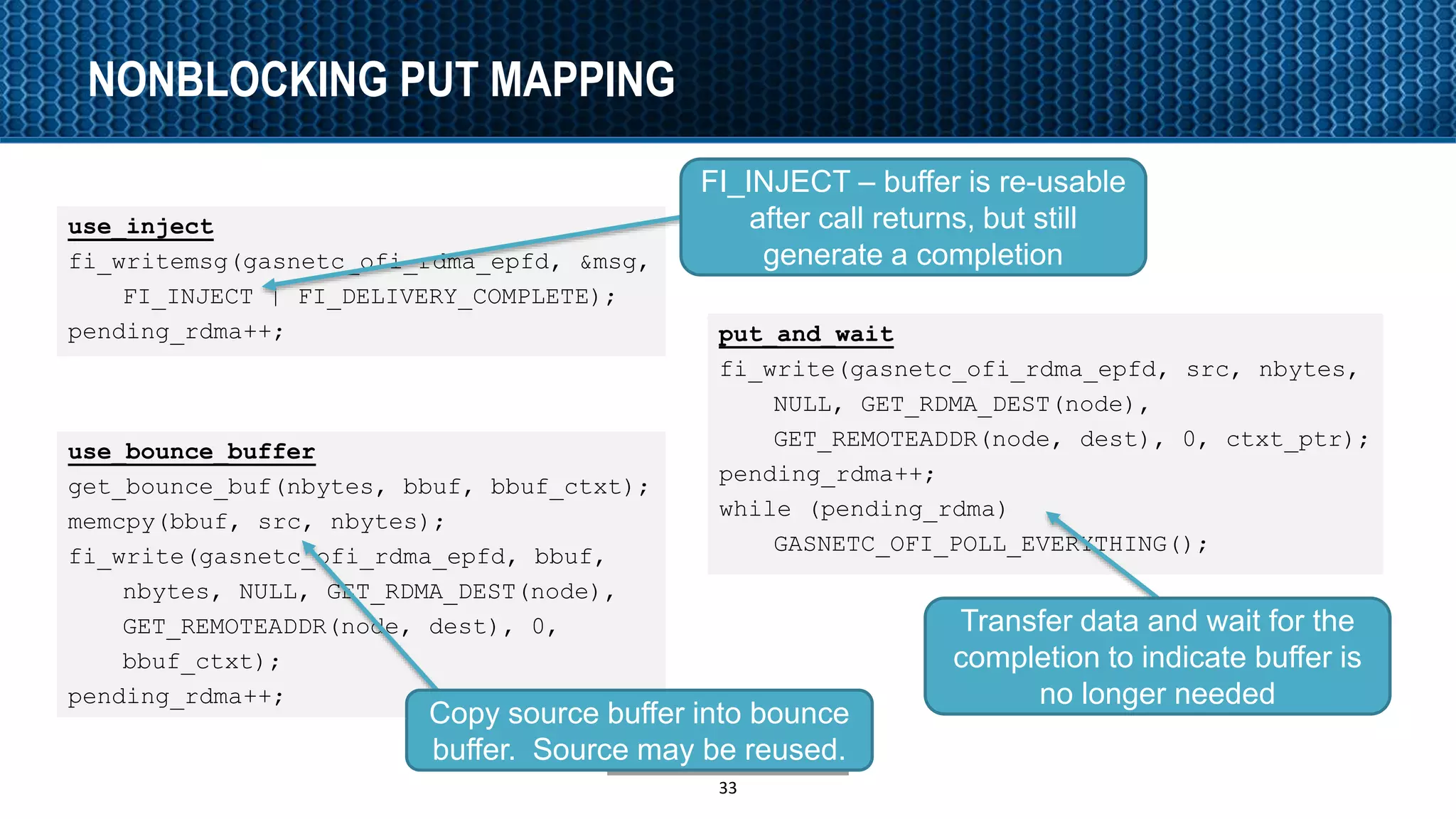

NONBLOCKING PUT MAPPING
33
use_inject
fi_writemsg(gasnetc_ofi_rdma_epfd, &msg,
FI_INJECT | FI_DELIVERY_COMPLETE);
pending_rdma++;
use_bounce_buffer
get_bounce_buf(nbytes, bbuf, bbuf_ctxt);
memcpy(bbuf, src, nbytes);
fi_write(gasnetc_ofi_rdma_epfd, bbuf,
nbytes, NULL, GET_RDMA_DEST(node),
GET_REMOTEADDR(node, dest), 0,
bbuf_ctxt);
pending_rdma++;
Copy source buffer into bounce
buffer. Source may be reused.
FI_INJECT – buffer is re-usable
after call returns, but still
generate a completion
Transfer data and wait for the
completion to indicate buffer is
no longer needed
MPICH USAGE
OFI CH4 NETMOD
34

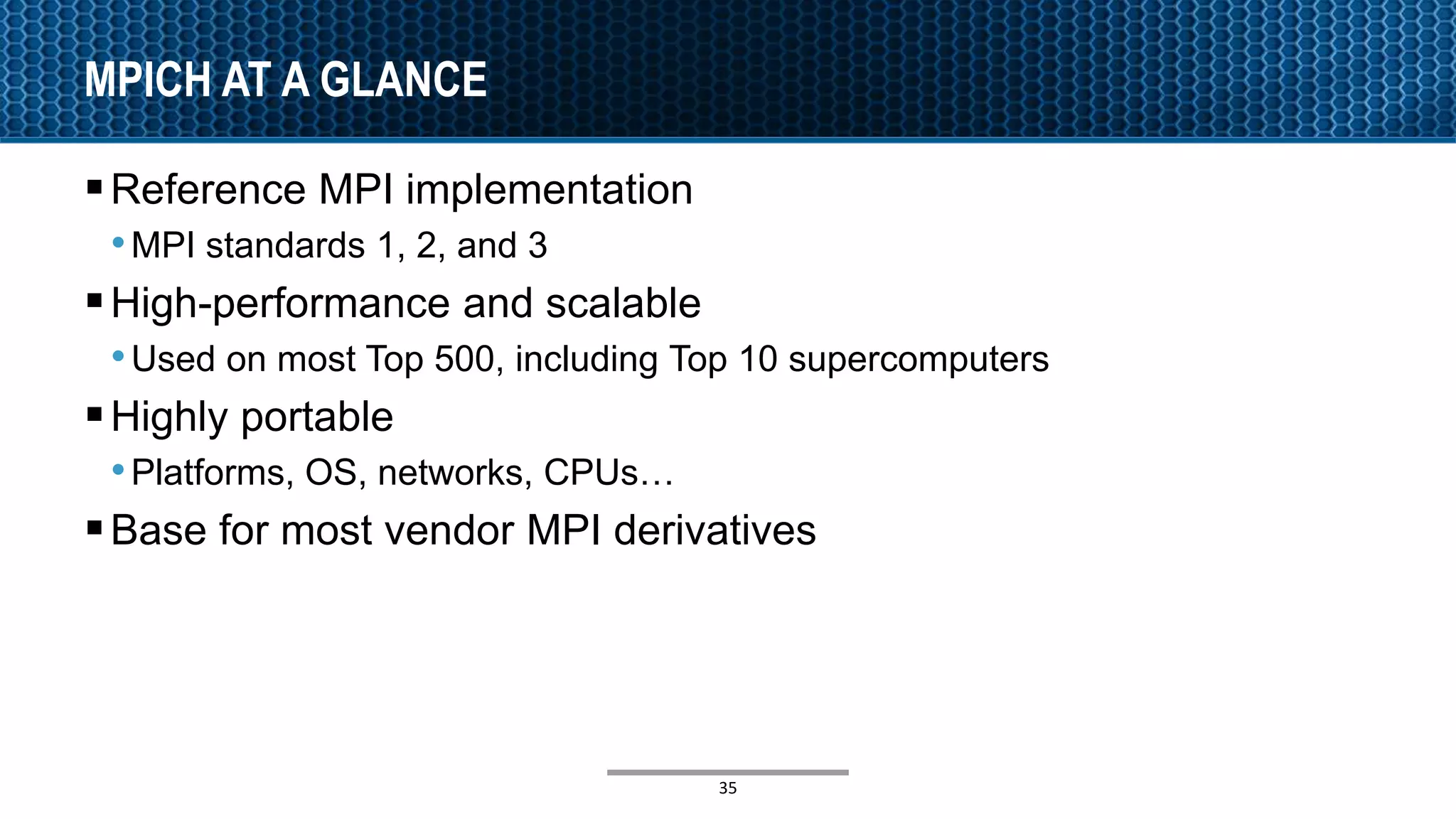

MPICH AT A GLANCE
Reference MPI implementation
•MPI standards 1, 2, and 3
High-performance and scalable
•Used on most Top 500, including Top 10 supercomputers
Highly portable
•Platforms, OS, networks, CPUs…
Base for most vendor MPI derivatives
35
MPI Progress
36
Fabric Services
User
OFI
Provider
Provider optimizes for
OFI features
Counters
CQs
MPI 2-Sided
FI_TAGGED
MPI-3 RMA
FI_MSG
FI_RMA
User
OFI
Provider
Common optimization
for all apps/providers
Client uses OFI features
Provider supports low-
level features only

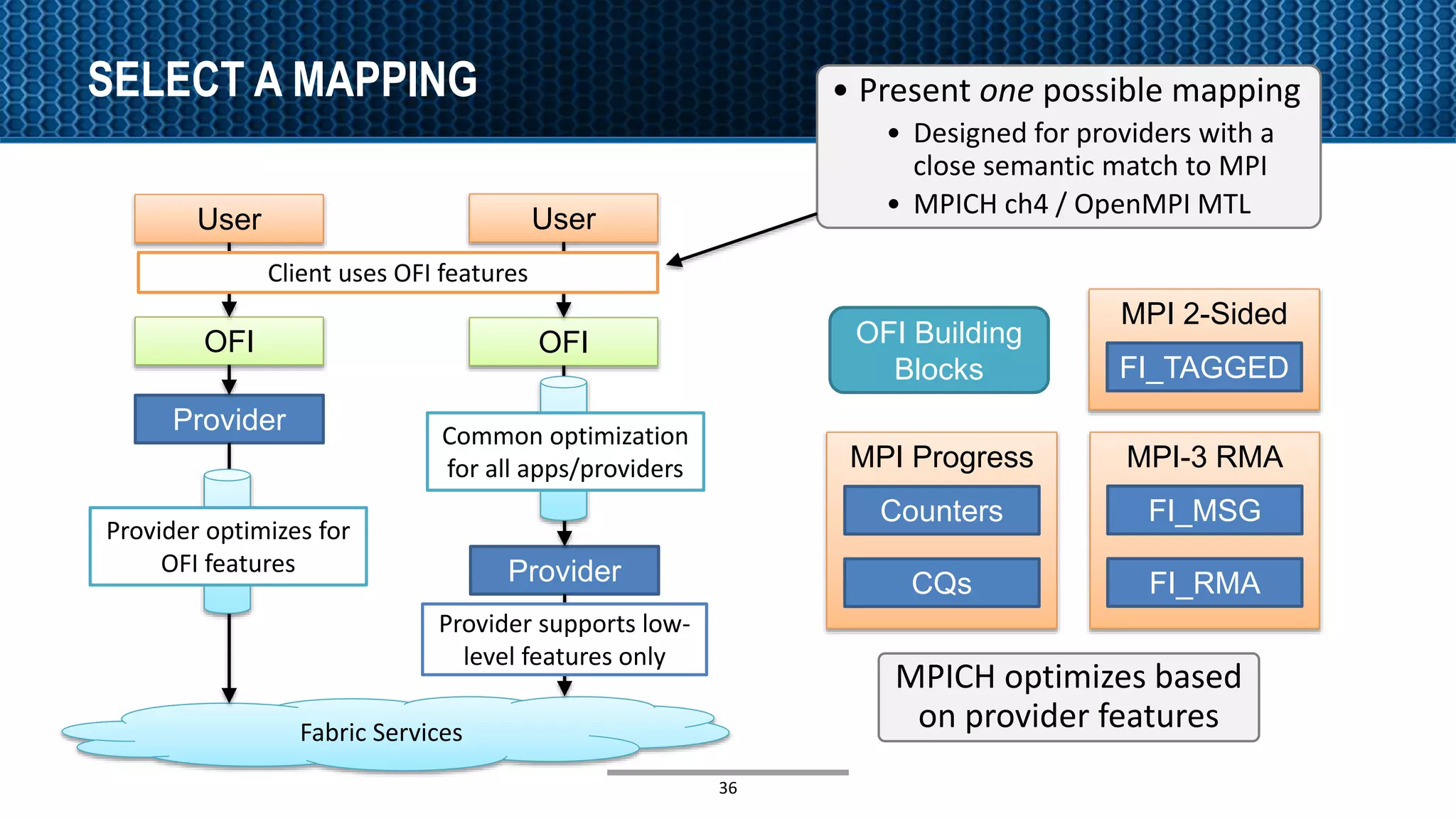

SELECT A MAPPING
OFI Building
Blocks
MPICH optimizes based
on provider features
• Present one possible mapping
• Designed for providers with a
close semantic match to MPI
• MPICH ch4 / OpenMPI MTL

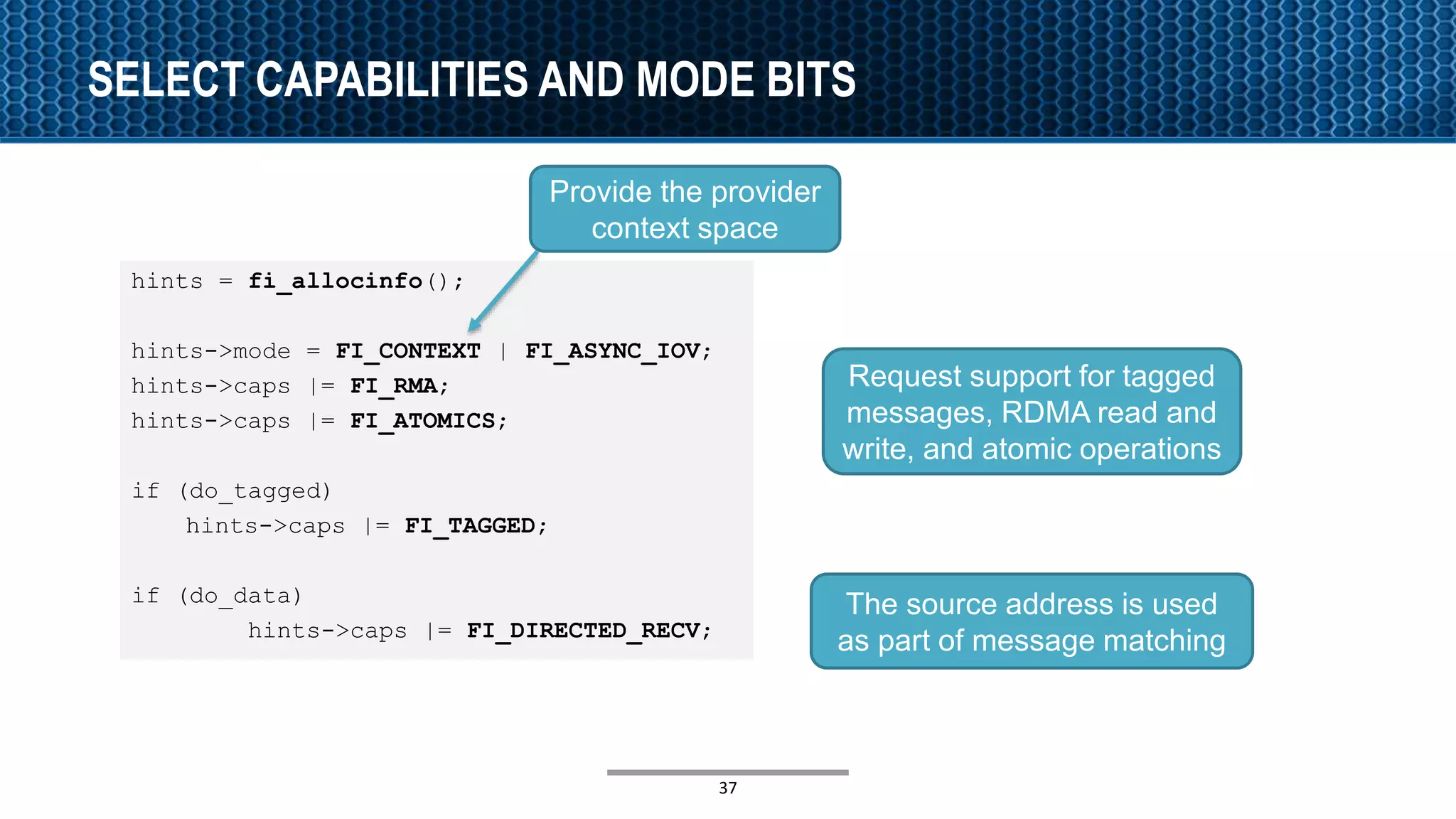

SELECT CAPABILITIES AND MODE BITS
hints = fi_allocinfo();
hints->mode = FI_CONTEXT | FI_ASYNC_IOV;
hints->caps |= FI_RMA;
hints->caps |= FI_ATOMICS;
if (do_tagged)
hints->caps |= FI_TAGGED;
if (do_data)
hints->caps |= FI_DIRECTED_RECV;
37
Provide the provider
context space
Request support for tagged
messages, RDMA read and
write, and atomic operations
The source address is used
as part of message matching
SPECIFY DOMAIN ATTRIBUTES
fi_version = FI_VERSION(MPIDI_OFI_MAJOR_VERSION,
MPIDI_OFI_MINOR_VERSION);
hints->addr_format = FI_FORMAT_UNSPEC;
hints->domain_attr->threading = FI_THREAD_DOMAIN;
hints->domain_attr->control_progress = FI_PROGRESS_MANUAL;
hints->domain_attr->data_progress = FI_PROGRESS_MANUAL;
hints->domain_attr->resource_mgmt = FI_RM_ENABLED;
hints->domain_attr->av_type = do_av_table ?
FI_AV_TABLE : FI_AV_MAP;
hints->domain_attr->mr_mode = do_mr_scalable ?
FI_MR_SCALABLE : FI_MR_BASIC;
38
Specify API version
MPI is coded to
Support common memory
registration modes (ABI v1.0)
MPI handles all synchronization
(lock-free provider)
MPI is capable of driving
progress (thread-less provider)
Provider will protect against local
and remote queue overruns
Support either address vector
format

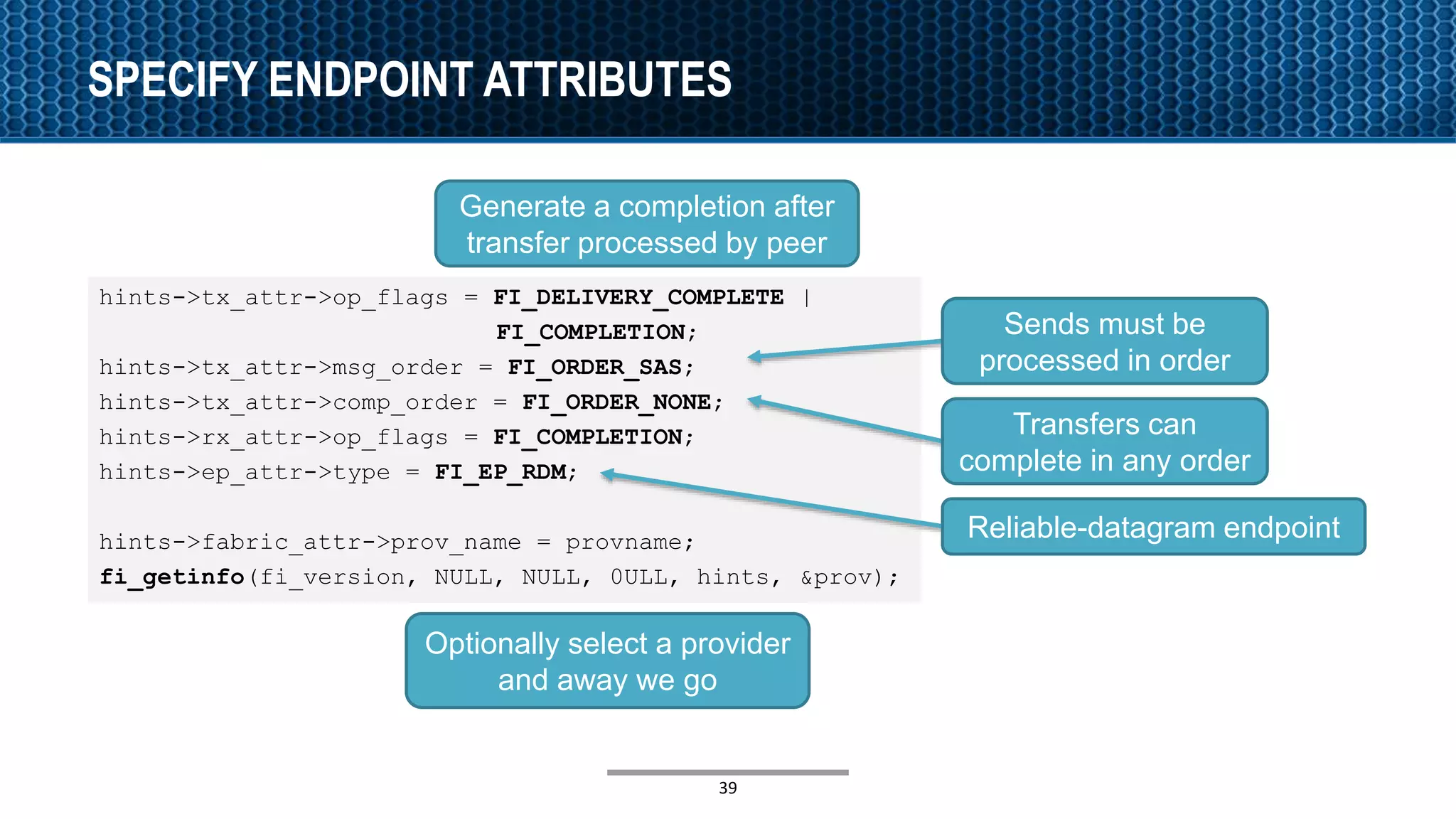

SPECIFY ENDPOINT ATTRIBUTES
hints->tx_attr->op_flags = FI_DELIVERY_COMPLETE |
FI_COMPLETION;
hints->tx_attr->msg_order = FI_ORDER_SAS;
hints->tx_attr->comp_order = FI_ORDER_NONE;
hints->rx_attr->op_flags = FI_COMPLETION;
hints->ep_attr->type = FI_EP_RDM;
hints->fabric_attr->prov_name = provname;
fi_getinfo(fi_version, NULL, NULL, 0ULL, hints, &prov);
39
Generate a completion after
transfer processed by peer
Optionally select a provider
and away we go
Sends must be
processed in order
Reliable-datagram endpoint
Transfers can
complete in any order

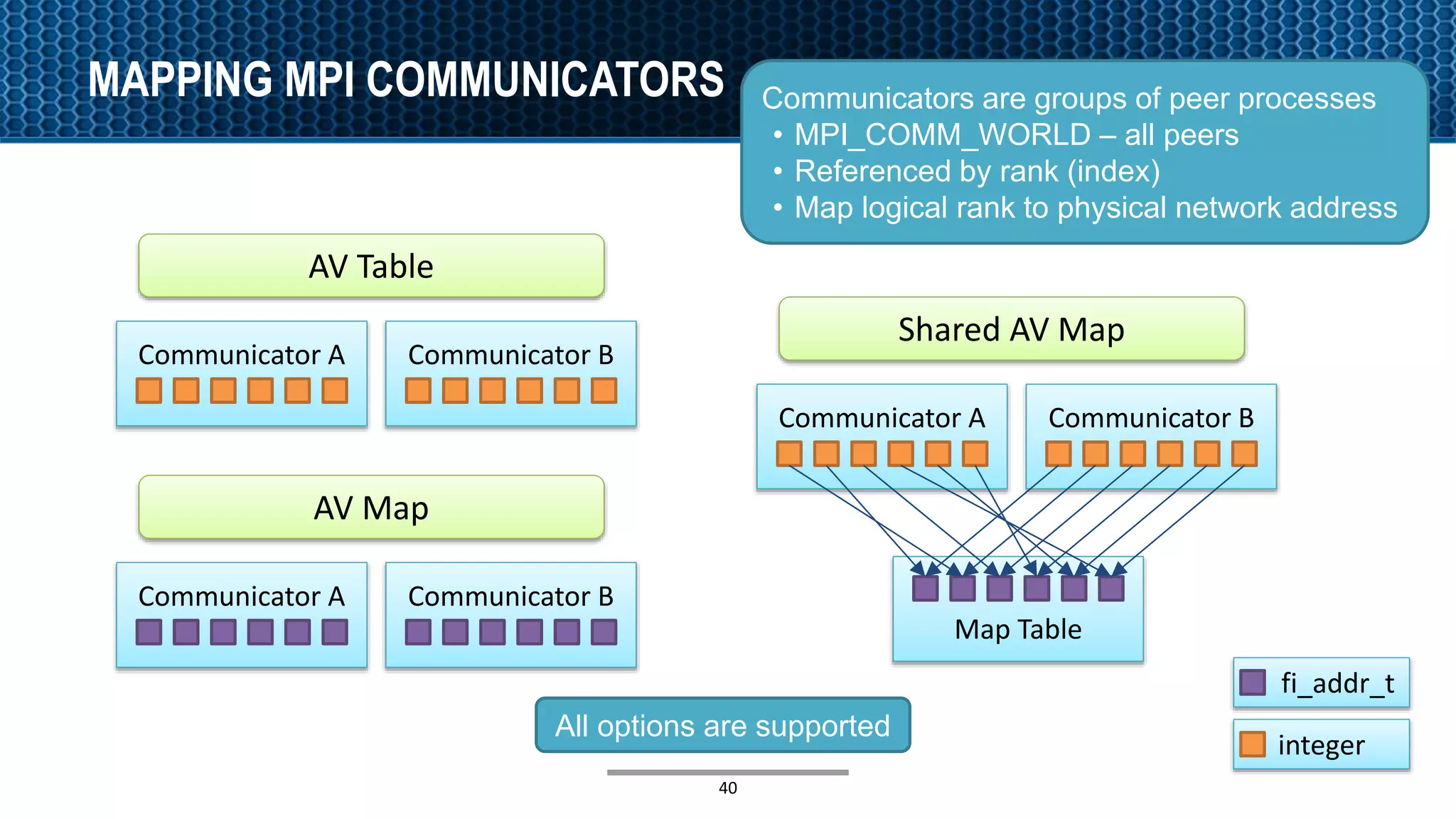

Communicator A
MAPPING MPI COMMUNICATORS
40
Communicators are groups of peer processes
• MPI_COMM_WORLD – all peers
• Referenced by rank (index)
• Map logical rank to physical network address
Map Table
Communicator B
Shared AV Map
fi_addr_t
integer
Communicator A Communicator B
AV Table
Communicator A Communicator B
AV Map
All options are supported

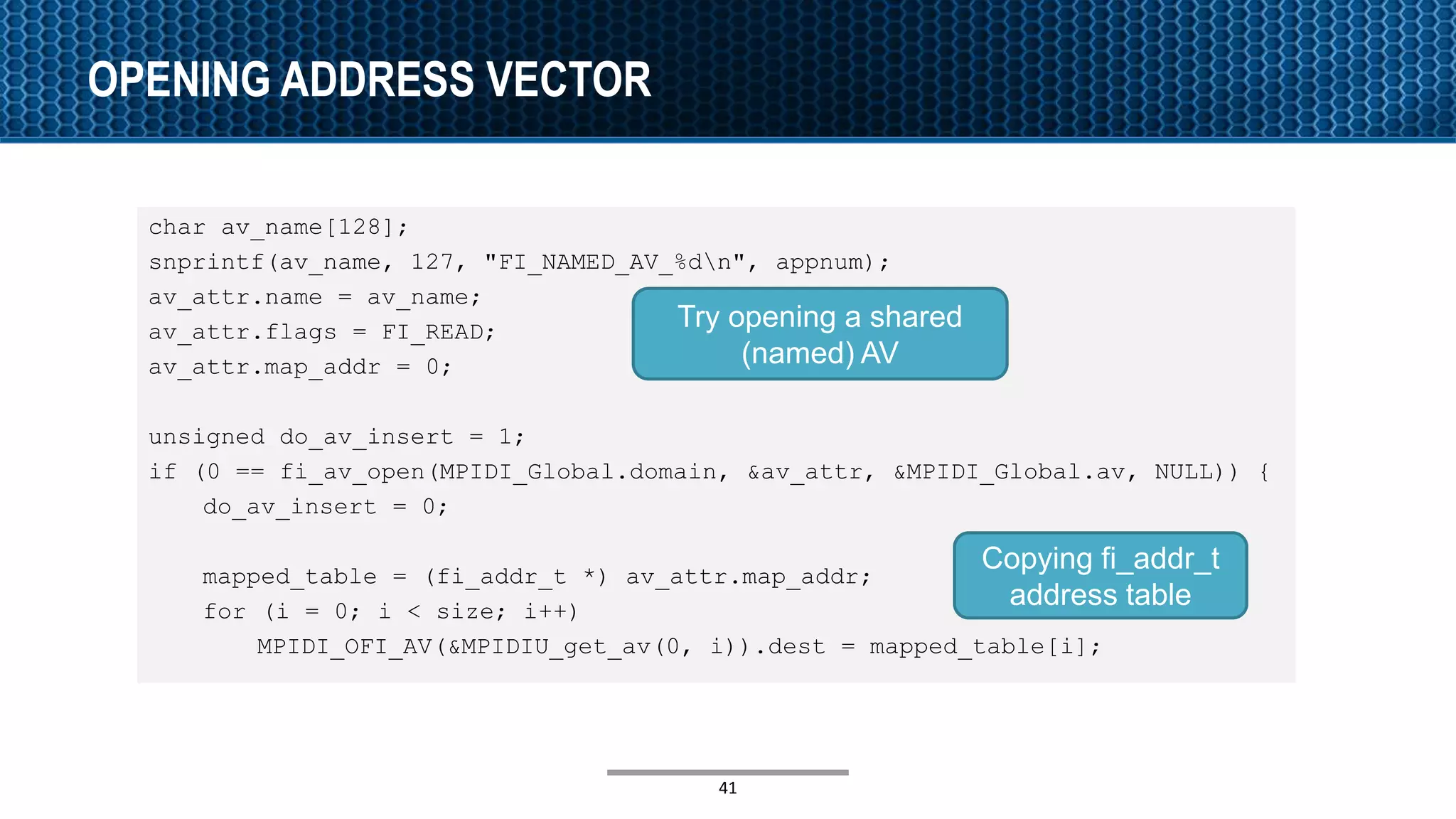

OPENING ADDRESS VECTOR
char av_name[128];
snprintf(av_name, 127, "FI_NAMED_AV_%dn", appnum);
av_attr.name = av_name;
av_attr.flags = FI_READ;
av_attr.map_addr = 0;
unsigned do_av_insert = 1;
if (0 == fi_av_open(MPIDI_Global.domain, &av_attr, &MPIDI_Global.av, NULL)) {
do_av_insert = 0;
mapped_table = (fi_addr_t *) av_attr.map_addr;
for (i = 0; i < size; i++)
MPIDI_OFI_AV(&MPIDIU_get_av(0, i)).dest = mapped_table[i];
41
Copying fi_addr_t
address table
Try opening a shared
(named) AV

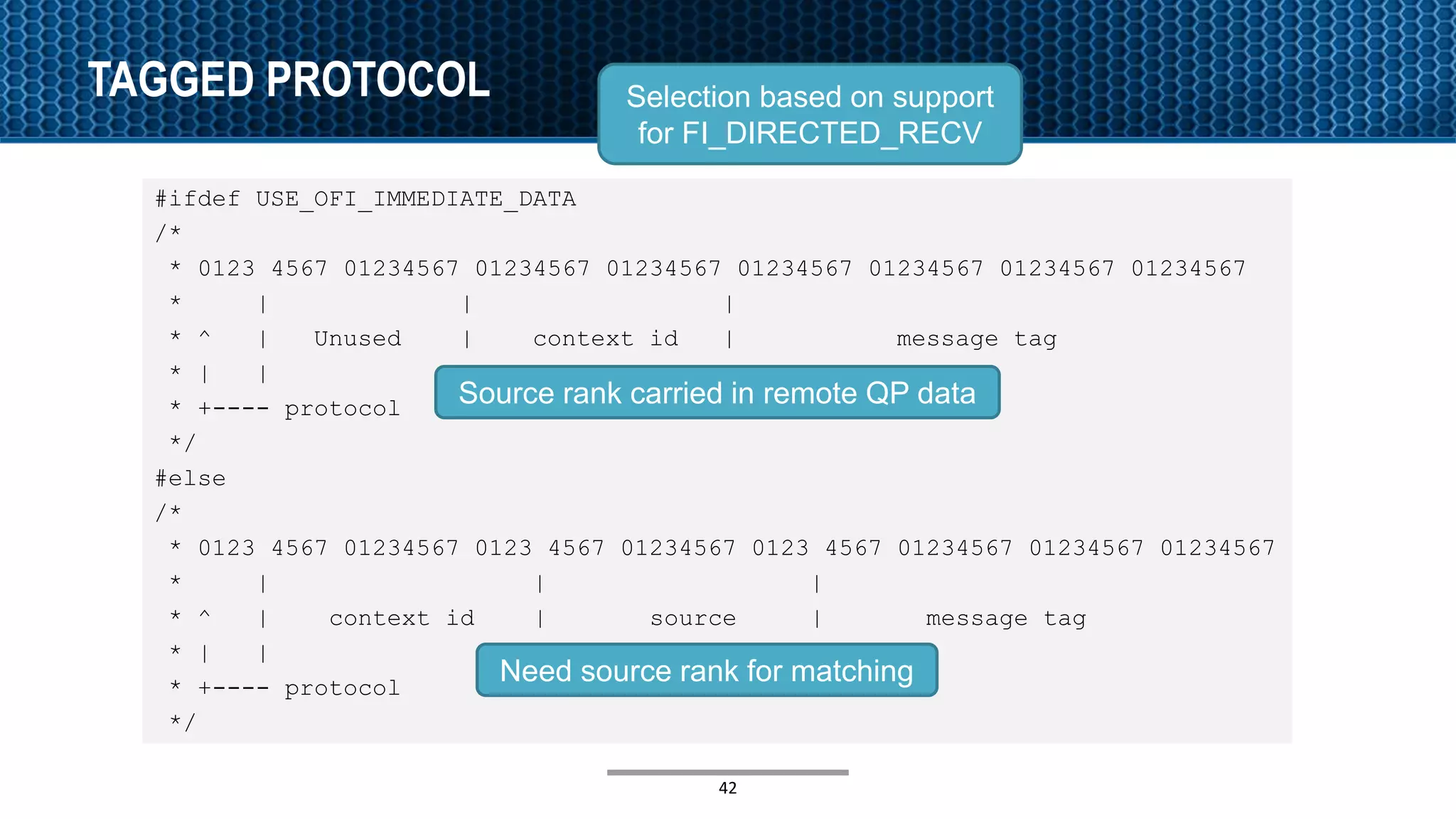

TAGGED PROTOCOL
#ifdef USE_OFI_IMMEDIATE_DATA
/*
* 0123 4567 01234567 01234567 01234567 01234567 01234567 01234567 01234567
* | | |
* ^ | Unused | context id | message tag
* | | | |
* +---- protocol
*/
#else
/*
* 0123 4567 01234567 0123 4567 01234567 0123 4567 01234567 01234567 01234567
* | | |
* ^ | context id | source | message tag
* | | | |
* +---- protocol
*/
42
Selection based on support
for FI_DIRECTED_RECV
Source rank carried in remote QP data
Need source rank for matching

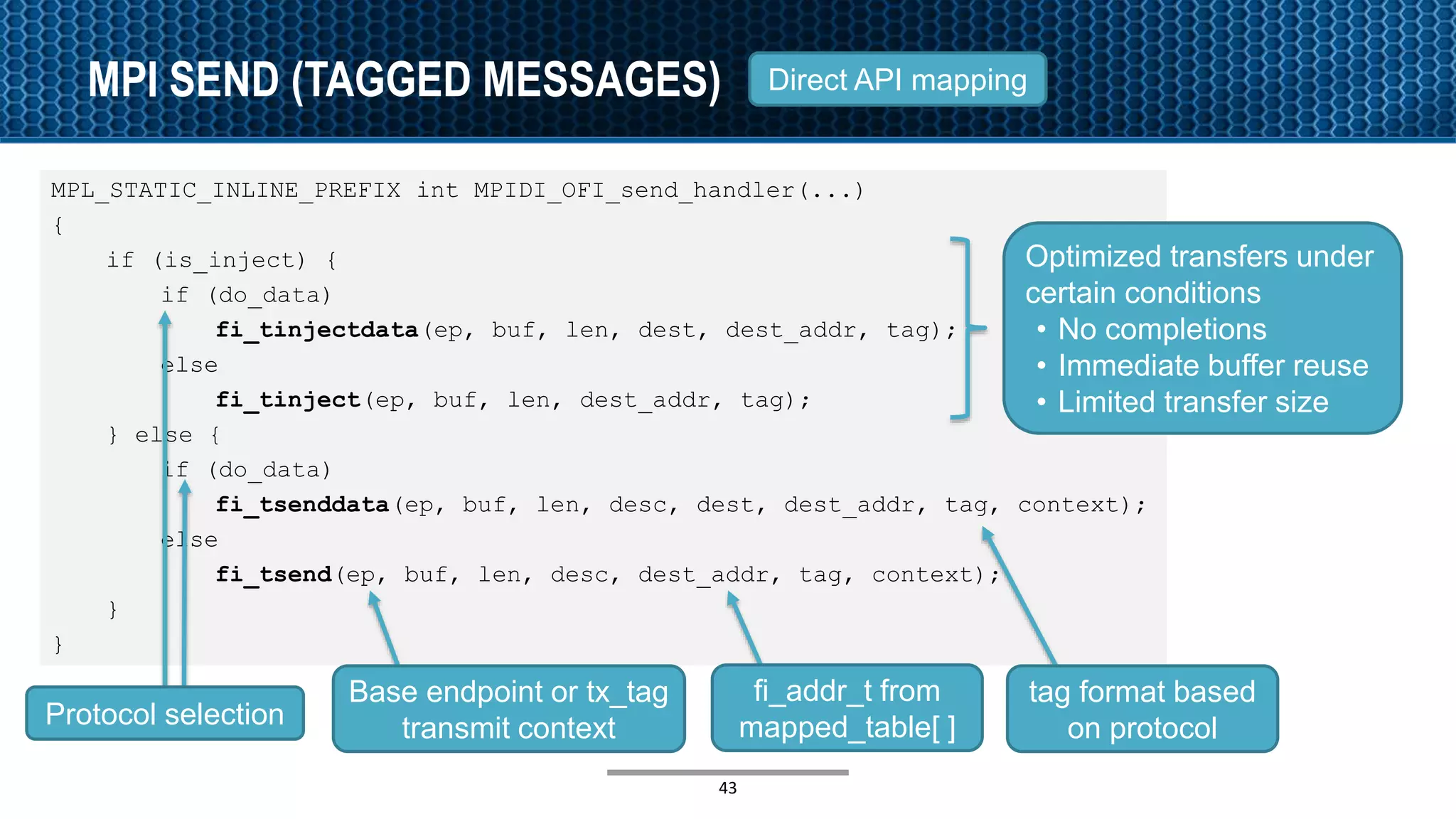

MPI SEND (TAGGED MESSAGES)
MPL_STATIC_INLINE_PREFIX int MPIDI_OFI_send_handler(...)
{
if (is_inject) {
if (do_data)
fi_tinjectdata(ep, buf, len, dest, dest_addr, tag);
else
fi_tinject(ep, buf, len, dest_addr, tag);
} else {
if (do_data)
fi_tsenddata(ep, buf, len, desc, dest, dest_addr, tag, context);
else
fi_tsend(ep, buf, len, desc, dest_addr, tag, context);
}
}
43
Optimized transfers under
certain conditions
• No completions
• Immediate buffer reuse
• Limited transfer size
Protocol selection
Direct API mapping
Base endpoint or tx_tag
transmit context
fi_addr_t from
mapped_table[ ]
tag format based
on protocol

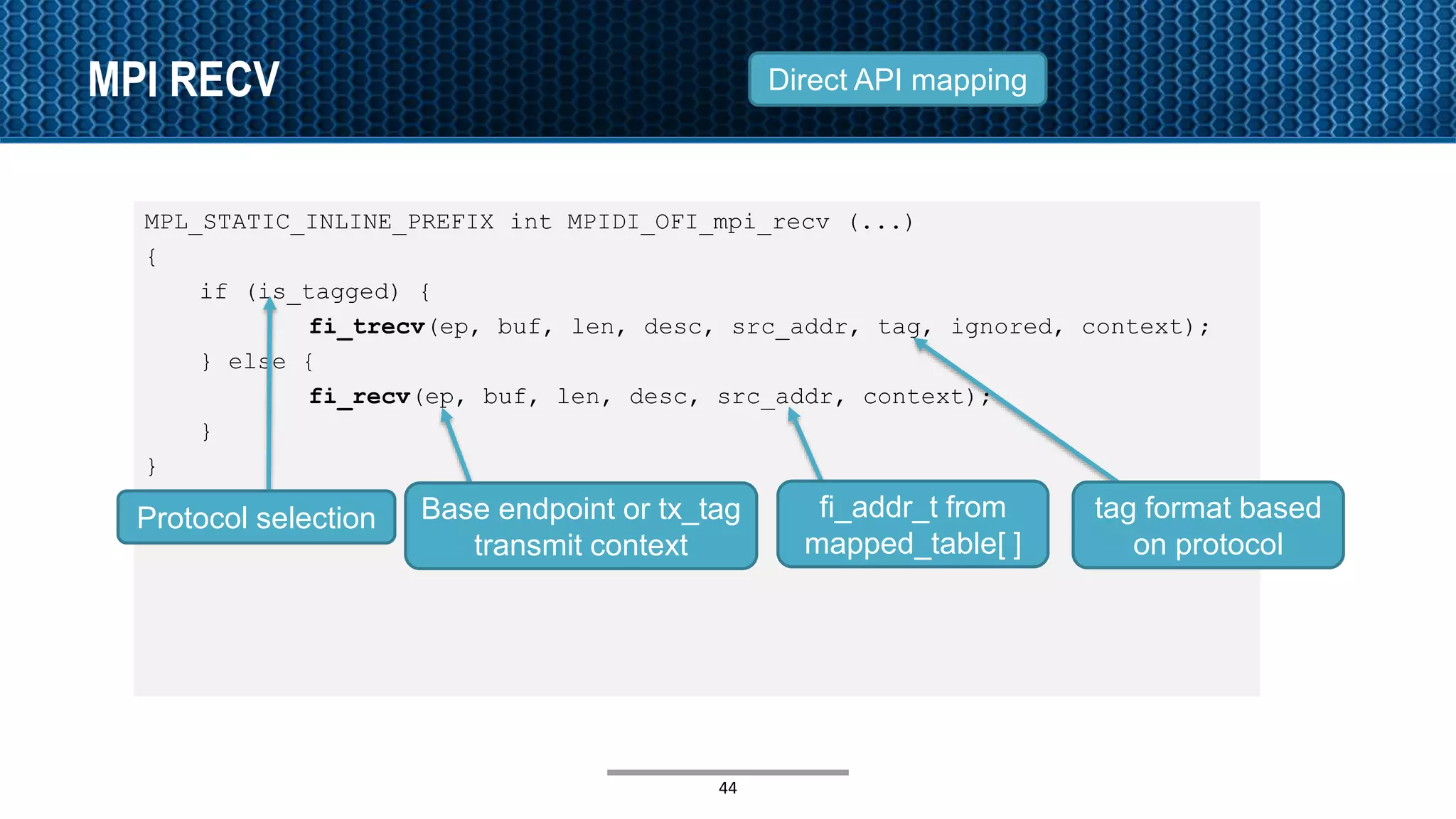

MPI RECV
MPL_STATIC_INLINE_PREFIX int MPIDI_OFI_mpi_recv (...)
{
if (is_tagged) {
fi_trecv(ep, buf, len, desc, src_addr, tag, ignored, context);
} else {
fi_recv(ep, buf, len, desc, src_addr, context);
}
}
44
Protocol selection
Direct API mapping
Base endpoint or tx_tag
transmit context
fi_addr_t from
mapped_table[ ]
tag format based
on protocol

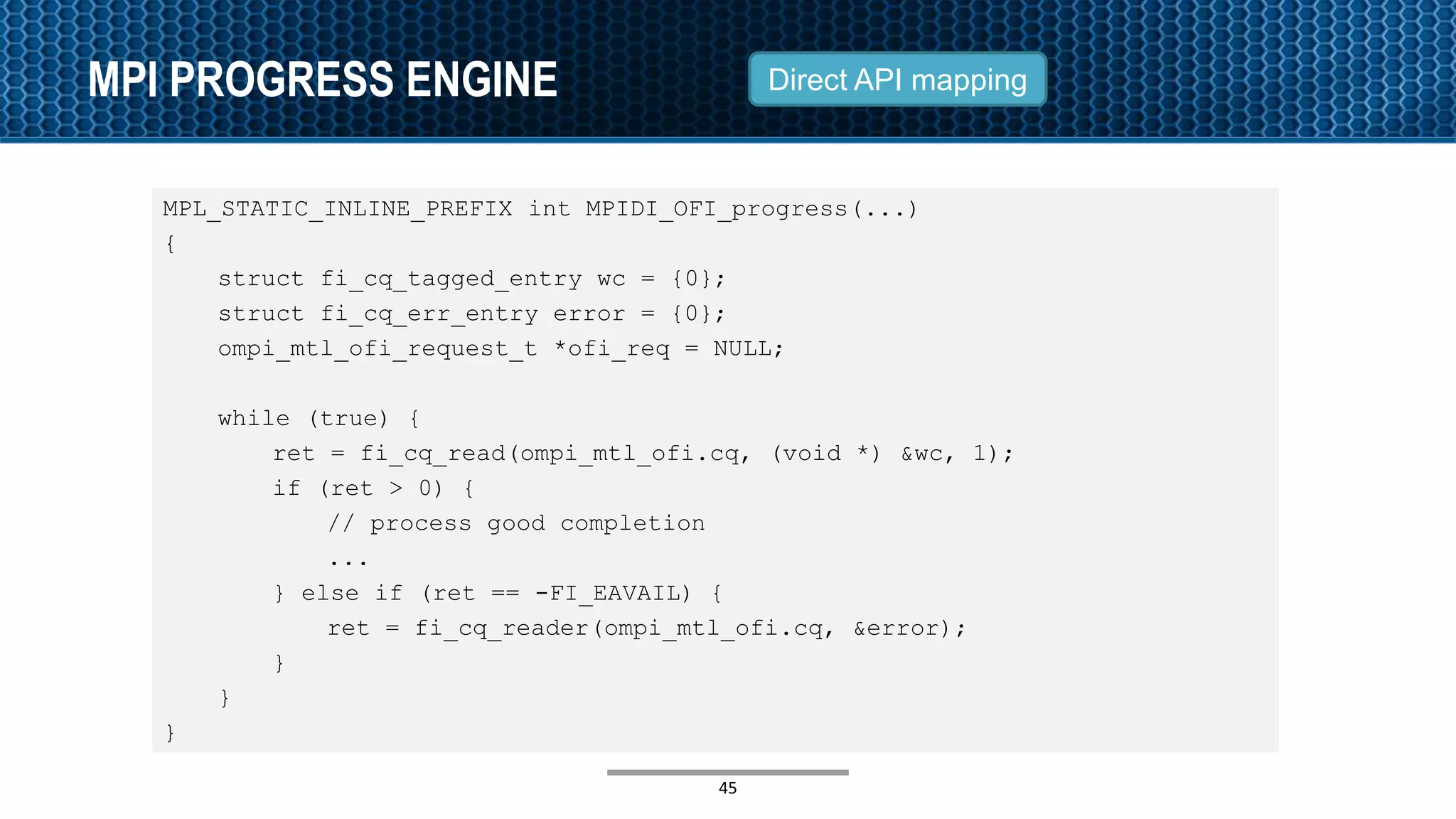

MPI PROGRESS ENGINE
MPL_STATIC_INLINE_PREFIX int MPIDI_OFI_progress(...)
{
struct fi_cq_tagged_entry wc = {0};
struct fi_cq_err_entry error = {0};
ompi_mtl_ofi_request_t *ofi_req = NULL;
while (true) {
ret = fi_cq_read(ompi_mtl_ofi.cq, (void *) &wc, 1);
if (ret > 0) {
// process good completion
...
} else if (ret == -FI_EAVAIL) {
ret = fi_cq_reader(ompi_mtl_ofi.cq, &error);
}
}
}
45
Direct API mapping
HOTI 2017
THANK YOU
Sean Hefty, OFIWG Co-Chair

More Related Content

What's hot

Linux Native, HTTP Aware Network Security
Linux Native, HTTP Aware Network SecurityLinux Native, HTTP Aware Network Security
Linux Native, HTTP Aware Network Security
Thomas Graf

eBPF - Observability In Deep
eBPF - Observability In DeepeBPF - Observability In Deep
eBPF - Observability In Deep
Mydbops

Data Ingest Self Service and Management using Nifi and Kafka
Data Ingest Self Service and Management using Nifi and KafkaData Ingest Self Service and Management using Nifi and Kafka
Data Ingest Self Service and Management using Nifi and Kafka
DataWorks Summit

Enable DPDK and SR-IOV for containerized virtual network functions with zun
Enable DPDK and SR-IOV for containerized virtual network functions with zunEnable DPDK and SR-IOV for containerized virtual network functions with zun
Enable DPDK and SR-IOV for containerized virtual network functions with zun
heut2008

Automating Network Infrastructure : Ansible
Automating Network Infrastructure : AnsibleAutomating Network Infrastructure : Ansible
Automating Network Infrastructure : Ansible
Bangladesh Network Operators Group

Room 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsi
Room 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsiRoom 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsi
Room 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsi
Vietnam Open Infrastructure User Group

Understanding Open vSwitch
Understanding Open vSwitch Understanding Open vSwitch
Understanding Open vSwitch
YongKi Kim

cilium-public.pdf
cilium-public.pdfcilium-public.pdf
cilium-public.pdf
Sanjeev Rampal

Juniper mpls best practice part 1
Juniper mpls best practice   part 1Juniper mpls best practice   part 1
Juniper mpls best practice part 1
Febrian ‎

Introduction to eBPF
Introduction to eBPFIntroduction to eBPF
Introduction to eBPF
RogerColl2

Vxlan deep dive session rev0.5 final
Vxlan deep dive session rev0.5   finalVxlan deep dive session rev0.5   final
Vxlan deep dive session rev0.5 final
KwonSun Bae

P4, EPBF, and Linux TC Offload
P4, EPBF, and Linux TC OffloadP4, EPBF, and Linux TC Offload
P4, EPBF, and Linux TC Offload
Open-NFP

NETCONF Call Home
NETCONF Call Home NETCONF Call Home
NETCONF Call Home
ADVA

BGP Advance Technique by Steven & James
BGP Advance Technique by Steven & JamesBGP Advance Technique by Steven & James
BGP Advance Technique by Steven & James
Febrian ‎

OpenvSwitch Deep Dive
OpenvSwitch Deep DiveOpenvSwitch Deep Dive
OpenvSwitch Deep Dive
rajdeep

Kubernetes Networking with Cilium - Deep Dive
Kubernetes Networking with Cilium - Deep DiveKubernetes Networking with Cilium - Deep Dive
Kubernetes Networking with Cilium - Deep Dive
Michal Rostecki

Open ebs 101
Open ebs 101Open ebs 101
Open ebs 101
LibbySchulze

Kafka Tutorial: Kafka Security
Kafka Tutorial: Kafka SecurityKafka Tutorial: Kafka Security
Kafka Tutorial: Kafka Security
Jean-Paul Azar

Kamailio :: A Quick Introduction
Kamailio :: A Quick IntroductionKamailio :: A Quick Introduction
Kamailio :: A Quick Introduction
Olle E Johansson

Dataflow with Apache NiFi
Dataflow with Apache NiFiDataflow with Apache NiFi
Dataflow with Apache NiFi
DataWorks Summit/Hadoop Summit


What's hot (20)

Linux Native, HTTP Aware Network Security
Linux Native, HTTP Aware Network SecurityLinux Native, HTTP Aware Network Security
Linux Native, HTTP Aware Network Security

eBPF - Observability In Deep
eBPF - Observability In DeepeBPF - Observability In Deep
eBPF - Observability In Deep

Data Ingest Self Service and Management using Nifi and Kafka
Data Ingest Self Service and Management using Nifi and KafkaData Ingest Self Service and Management using Nifi and Kafka
Data Ingest Self Service and Management using Nifi and Kafka

Enable DPDK and SR-IOV for containerized virtual network functions with zun
Enable DPDK and SR-IOV for containerized virtual network functions with zunEnable DPDK and SR-IOV for containerized virtual network functions with zun
Enable DPDK and SR-IOV for containerized virtual network functions with zun

Automating Network Infrastructure : Ansible
Automating Network Infrastructure : AnsibleAutomating Network Infrastructure : Ansible
Automating Network Infrastructure : Ansible

Room 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsi
Room 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsiRoom 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsi
Room 1 - 2 - Nguyễn Văn Thắng & Dzung Nguyen - Proxmox VE và ZFS over iscsi

Understanding Open vSwitch
Understanding Open vSwitch Understanding Open vSwitch
Understanding Open vSwitch

cilium-public.pdf
cilium-public.pdfcilium-public.pdf
cilium-public.pdf

Juniper mpls best practice part 1
Juniper mpls best practice   part 1Juniper mpls best practice   part 1
Juniper mpls best practice part 1

Introduction to eBPF
Introduction to eBPFIntroduction to eBPF
Introduction to eBPF

Vxlan deep dive session rev0.5 final
Vxlan deep dive session rev0.5   finalVxlan deep dive session rev0.5   final
Vxlan deep dive session rev0.5 final

P4, EPBF, and Linux TC Offload
P4, EPBF, and Linux TC OffloadP4, EPBF, and Linux TC Offload
P4, EPBF, and Linux TC Offload

NETCONF Call Home
NETCONF Call Home NETCONF Call Home
NETCONF Call Home

BGP Advance Technique by Steven & James
BGP Advance Technique by Steven & JamesBGP Advance Technique by Steven & James
BGP Advance Technique by Steven & James

OpenvSwitch Deep Dive
OpenvSwitch Deep DiveOpenvSwitch Deep Dive
OpenvSwitch Deep Dive

Kubernetes Networking with Cilium - Deep Dive
Kubernetes Networking with Cilium - Deep DiveKubernetes Networking with Cilium - Deep Dive
Kubernetes Networking with Cilium - Deep Dive

Open ebs 101
Open ebs 101Open ebs 101
Open ebs 101

Kafka Tutorial: Kafka Security
Kafka Tutorial: Kafka SecurityKafka Tutorial: Kafka Security
Kafka Tutorial: Kafka Security

Kamailio :: A Quick Introduction
Kamailio :: A Quick IntroductionKamailio :: A Quick Introduction
Kamailio :: A Quick Introduction

Dataflow with Apache NiFi
Dataflow with Apache NiFiDataflow with Apache NiFi
Dataflow with Apache NiFi


Similar to 2017 ofi-hoti-tutorial

Advancing OpenFabrics Interfaces
Advancing OpenFabrics InterfacesAdvancing OpenFabrics Interfaces
Advancing OpenFabrics Interfaces
inside-BigData.com

Application Visibility and Experience through Flexible Netflow
Application Visibility and Experience through Flexible NetflowApplication Visibility and Experience through Flexible Netflow
Application Visibility and Experience through Flexible Netflow
Cisco DevNet

OpenFabrics Interfaces introduction
OpenFabrics Interfaces introductionOpenFabrics Interfaces introduction
OpenFabrics Interfaces introduction
ofiwg

HKG18-318 - OpenAMP Workshop
HKG18-318 - OpenAMP WorkshopHKG18-318 - OpenAMP Workshop
HKG18-318 - OpenAMP Workshop
Linaro

Tech Talk - Konrad Gawda : P4 programming language
Tech Talk - Konrad Gawda : P4 programming languageTech Talk - Konrad Gawda : P4 programming language
Tech Talk - Konrad Gawda : P4 programming language
CodiLime

Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020
Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020
Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020
InfluxData

PHP QA Tools
PHP QA ToolsPHP QA Tools
PHP QA Tools
rjsmelo

SDN and metrics from the SDOs
SDN and metrics from the SDOsSDN and metrics from the SDOs
SDN and metrics from the SDOs
Open Networking Summit

Linkmeup v076(2019-06).2
Linkmeup v076(2019-06).2Linkmeup v076(2019-06).2
Linkmeup v076(2019-06).2
eucariot

DPDK Summit 2015 - Intel - Keith Wiles
DPDK Summit 2015 - Intel - Keith WilesDPDK Summit 2015 - Intel - Keith Wiles
DPDK Summit 2015 - Intel - Keith Wiles
Jim St. Leger

Firebird 3: provider-based architecture, plugins and OO approach to API
Firebird 3: provider-based architecture, plugins and OO approach to API Firebird 3: provider-based architecture, plugins and OO approach to API
Firebird 3: provider-based architecture, plugins and OO approach to API
Mind The Firebird

Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Talk Python To Me: Stream Processing in your favourite Language with Beam on ...Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Aljoscha Krettek

DEVNET-1128 Cisco Intercloud Fabric NB Api's for Business & Providers
DEVNET-1128	Cisco Intercloud Fabric NB Api's for Business & ProvidersDEVNET-1128	Cisco Intercloud Fabric NB Api's for Business & Providers
DEVNET-1128 Cisco Intercloud Fabric NB Api's for Business & Providers
Cisco DevNet

2232016 Sample Implementation Plan1.htmlfileCUsers.docx
2232016 Sample Implementation Plan1.htmlfileCUsers.docx2232016 Sample Implementation Plan1.htmlfileCUsers.docx
2232016 Sample Implementation Plan1.htmlfileCUsers.docx
eugeniadean34240

Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
OpenShift Origin

FIWARE Tech Summit - Stream Processing with Kurento Media Server
FIWARE Tech Summit - Stream Processing with Kurento Media ServerFIWARE Tech Summit - Stream Processing with Kurento Media Server
FIWARE Tech Summit - Stream Processing with Kurento Media Server
FIWARE

P4_tutorial.pdf
P4_tutorial.pdfP4_tutorial.pdf
P4_tutorial.pdf
PramodhN3

NFV features in kubernetes
NFV features in kubernetesNFV features in kubernetes
NFV features in kubernetes
Kuralamudhan Ramakrishnan

Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...
Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...
Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...
Flink Forward

Intro to InfluxDB 2.0 and Your First Flux Query by Sonia Gupta
Intro to InfluxDB 2.0 and Your First Flux Query by Sonia GuptaIntro to InfluxDB 2.0 and Your First Flux Query by Sonia Gupta
Intro to InfluxDB 2.0 and Your First Flux Query by Sonia Gupta
InfluxData


Similar to 2017 ofi-hoti-tutorial (20)

Advancing OpenFabrics Interfaces
Advancing OpenFabrics InterfacesAdvancing OpenFabrics Interfaces
Advancing OpenFabrics Interfaces

Application Visibility and Experience through Flexible Netflow
Application Visibility and Experience through Flexible NetflowApplication Visibility and Experience through Flexible Netflow
Application Visibility and Experience through Flexible Netflow

OpenFabrics Interfaces introduction
OpenFabrics Interfaces introductionOpenFabrics Interfaces introduction
OpenFabrics Interfaces introduction

HKG18-318 - OpenAMP Workshop
HKG18-318 - OpenAMP WorkshopHKG18-318 - OpenAMP Workshop
HKG18-318 - OpenAMP Workshop

Tech Talk - Konrad Gawda : P4 programming language
Tech Talk - Konrad Gawda : P4 programming languageTech Talk - Konrad Gawda : P4 programming language
Tech Talk - Konrad Gawda : P4 programming language

Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020
Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020
Tim Hall [InfluxData] | InfluxDB Roadmap | InfluxDays Virtual Experience NA 2020

PHP QA Tools
PHP QA ToolsPHP QA Tools
PHP QA Tools

SDN and metrics from the SDOs
SDN and metrics from the SDOsSDN and metrics from the SDOs
SDN and metrics from the SDOs

Linkmeup v076(2019-06).2
Linkmeup v076(2019-06).2Linkmeup v076(2019-06).2
Linkmeup v076(2019-06).2

DPDK Summit 2015 - Intel - Keith Wiles
DPDK Summit 2015 - Intel - Keith WilesDPDK Summit 2015 - Intel - Keith Wiles
DPDK Summit 2015 - Intel - Keith Wiles

Firebird 3: provider-based architecture, plugins and OO approach to API
Firebird 3: provider-based architecture, plugins and OO approach to API Firebird 3: provider-based architecture, plugins and OO approach to API
Firebird 3: provider-based architecture, plugins and OO approach to API

Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Talk Python To Me: Stream Processing in your favourite Language with Beam on ...Talk Python To Me: Stream Processing in your favourite Language with Beam on ...
Talk Python To Me: Stream Processing in your favourite Language with Beam on ...

DEVNET-1128 Cisco Intercloud Fabric NB Api's for Business & Providers
DEVNET-1128	Cisco Intercloud Fabric NB Api's for Business & ProvidersDEVNET-1128	Cisco Intercloud Fabric NB Api's for Business & Providers
DEVNET-1128 Cisco Intercloud Fabric NB Api's for Business & Providers

2232016 Sample Implementation Plan1.htmlfileCUsers.docx
2232016 Sample Implementation Plan1.htmlfileCUsers.docx2232016 Sample Implementation Plan1.htmlfileCUsers.docx
2232016 Sample Implementation Plan1.htmlfileCUsers.docx

Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...

FIWARE Tech Summit - Stream Processing with Kurento Media Server
FIWARE Tech Summit - Stream Processing with Kurento Media ServerFIWARE Tech Summit - Stream Processing with Kurento Media Server
FIWARE Tech Summit - Stream Processing with Kurento Media Server

P4_tutorial.pdf
P4_tutorial.pdfP4_tutorial.pdf
P4_tutorial.pdf

NFV features in kubernetes
NFV features in kubernetesNFV features in kubernetes
NFV features in kubernetes

Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...
Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...
Flink Forward Berlin 2017: Aljoscha Krettek - Talk Python to me: Stream Proce...

Intro to InfluxDB 2.0 and Your First Flux Query by Sonia Gupta
Intro to InfluxDB 2.0 and Your First Flux Query by Sonia GuptaIntro to InfluxDB 2.0 and Your First Flux Query by Sonia Gupta
Intro to InfluxDB 2.0 and Your First Flux Query by Sonia Gupta


Recently uploaded

Hand Rolled Applicative User Validation Code Kata
Hand Rolled Applicative User ValidationCode KataHand Rolled Applicative User ValidationCode Kata
Hand Rolled Applicative User Validation Code Kata
Philip Schwarz

Unveiling the Advantages of Agile Software Development.pdf
Unveiling the Advantages of Agile Software Development.pdfUnveiling the Advantages of Agile Software Development.pdf
Unveiling the Advantages of Agile Software Development.pdf
brainerhub1

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CDKuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
rodomar2

Using Query Store in Azure PostgreSQL to Understand Query Performance
Using Query Store in Azure PostgreSQL to Understand Query PerformanceUsing Query Store in Azure PostgreSQL to Understand Query Performance
Using Query Store in Azure PostgreSQL to Understand Query Performance
Grant Fritchey

Fundamentals of Programming and Language Processors
Fundamentals of Programming and Language ProcessorsFundamentals of Programming and Language Processors
Fundamentals of Programming and Language Processors
Rakesh Kumar R

Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !
Marcin Chrost

Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
XfilesPro

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?
ToXSL Technologies

Microservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we workMicroservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we work
Sven Peters

Oracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptxOracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptx
Remote DBA Services

SQL Accounting Software Brochure Malaysia
SQL Accounting Software Brochure MalaysiaSQL Accounting Software Brochure Malaysia
SQL Accounting Software Brochure Malaysia
GohKiangHock

Top 9 Trends in Cybersecurity for 2024.pptx
Top 9 Trends in Cybersecurity for 2024.pptxTop 9 Trends in Cybersecurity for 2024.pptx
Top 9 Trends in Cybersecurity for 2024.pptx
devvsandy

UI5con 2024 - Keynote: Latest News about UI5 and it’s Ecosystem
UI5con 2024 - Keynote: Latest News about UI5 and it’s EcosystemUI5con 2024 - Keynote: Latest News about UI5 and it’s Ecosystem
UI5con 2024 - Keynote: Latest News about UI5 and it’s Ecosystem
Peter Muessig

Odoo ERP Vs. Traditional ERP Systems – A Comparative Analysis
Odoo ERP Vs. Traditional ERP Systems – A Comparative AnalysisOdoo ERP Vs. Traditional ERP Systems – A Comparative Analysis
Odoo ERP Vs. Traditional ERP Systems – A Comparative Analysis
Envertis Software Solutions

Transform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR SolutionsTransform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR Solutions
TheSMSPoint

Using Xen Hypervisor for Functional Safety
Using Xen Hypervisor for Functional SafetyUsing Xen Hypervisor for Functional Safety
Using Xen Hypervisor for Functional Safety
Ayan Halder

SMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API ServiceSMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API Service
Yara Milbes

GreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-JurisicGreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-Jurisic
Green Software Development

UI5con 2024 - Bring Your Own Design System
UI5con 2024 - Bring Your Own Design SystemUI5con 2024 - Bring Your Own Design System
UI5con 2024 - Bring Your Own Design System
Peter Muessig

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
Bert Jan Schrijver


Recently uploaded (20)

Hand Rolled Applicative User Validation Code Kata
Hand Rolled Applicative User ValidationCode KataHand Rolled Applicative User ValidationCode Kata
Hand Rolled Applicative User Validation Code Kata

Unveiling the Advantages of Agile Software Development.pdf
Unveiling the Advantages of Agile Software Development.pdfUnveiling the Advantages of Agile Software Development.pdf
Unveiling the Advantages of Agile Software Development.pdf

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CDKuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD

Using Query Store in Azure PostgreSQL to Understand Query Performance
Using Query Store in Azure PostgreSQL to Understand Query PerformanceUsing Query Store in Azure PostgreSQL to Understand Query Performance
Using Query Store in Azure PostgreSQL to Understand Query Performance

Fundamentals of Programming and Language Processors
Fundamentals of Programming and Language ProcessorsFundamentals of Programming and Language Processors
Fundamentals of Programming and Language Processors

Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !

Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...
Everything You Need to Know About X-Sign: The eSign Functionality of XfilesPr...

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?

Microservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we workMicroservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we work

Oracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptxOracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptx

SQL Accounting Software Brochure Malaysia
SQL Accounting Software Brochure MalaysiaSQL Accounting Software Brochure Malaysia
SQL Accounting Software Brochure Malaysia

Top 9 Trends in Cybersecurity for 2024.pptx
Top 9 Trends in Cybersecurity for 2024.pptxTop 9 Trends in Cybersecurity for 2024.pptx
Top 9 Trends in Cybersecurity for 2024.pptx

UI5con 2024 - Keynote: Latest News about UI5 and it’s Ecosystem
UI5con 2024 - Keynote: Latest News about UI5 and it’s EcosystemUI5con 2024 - Keynote: Latest News about UI5 and it’s Ecosystem
UI5con 2024 - Keynote: Latest News about UI5 and it’s Ecosystem

Odoo ERP Vs. Traditional ERP Systems – A Comparative Analysis
Odoo ERP Vs. Traditional ERP Systems – A Comparative AnalysisOdoo ERP Vs. Traditional ERP Systems – A Comparative Analysis
Odoo ERP Vs. Traditional ERP Systems – A Comparative Analysis

Transform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR SolutionsTransform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR Solutions

Using Xen Hypervisor for Functional Safety
Using Xen Hypervisor for Functional SafetyUsing Xen Hypervisor for Functional Safety
Using Xen Hypervisor for Functional Safety

SMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API ServiceSMS API Integration in Saudi Arabia| Best SMS API Service
SMS API Integration in Saudi Arabia| Best SMS API Service

GreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-JurisicGreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-Jurisic

UI5con 2024 - Bring Your Own Design System
UI5con 2024 - Bring Your Own Design SystemUI5con 2024 - Bring Your Own Design System
UI5con 2024 - Bring Your Own Design System

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...


2017 ofi-hoti-tutorial

  • 1. HOTI 2017 DEVELOPING TO THE OPENFABRICS INTERFACES LIBFABRIC Sean Hefty, OFIWG Co-Chair Jim Swaro, GNI Maintainer August, 2017 Intel Corporation Cray Incorporated
  • 2. OVERVIEW Design Guidelines – 10 minutes Architecture – 20 minutes API Bootstrap – 15 minutes GASNet Usage – 20 minutes MPICH Usage – 15 minutes 2 Implementation highlights The original code has been modified to fit this screen Lightning fast introduction
  • 3. OVERVIEW Tutorial covers libfabric version 1.5 (unless noted) •ABI version 1.1 •Minor changes from v1.0.x – 1.4.x (ABI 1.0) Developer guide, source code, man pages, test programs, and presentations available at: www.libfabric.org 3
  • 4. ACKNOWLEDGEMENTS Sung Choi Paul Grun, Cray Howard Pritchard, Los Alamos National Lab Bob Russell, University of New Hampshire Jeff Squyres, Cisco Sayantan Sur, Intel The entire OFIWG community 4
  • 5. DESIGN GUIDELINES 5 Charter: develop interfaces aligned with user needs
  • 6. Optimized SW path to HW •Minimize cache and memory footprint •Reduce instruction count •Minimize memory accesses Scalable Implementation Agnostic Software interfaces aligned with user requirements •Careful requirement analysis Inclusive development effort •App and HW developers Good impedance match with multiple fabric hardware •InfiniBand, iWarp, RoCE, raw Ethernet, UDP offload, Omni-Path, GNI, BGQ, … Open Source User-Centric libfabric User-centric interfaces will help foster fabric innovation and accelerate their adoption 6
  • 7. OFI USER REQUIREMENTS 7 Give us a high- level interface! Give us a low- level interface! MPI developers OFI strives to meet both requirements Middleware is primary user Looking for input on expanding beyond HPC
  • 8. OFI SOFTWARE DEVELOPMENT STRATEGIES One Size Does Not Fit All 8 Fabric Services User OFI Provider User OFI Provider Provider optimizes for OFI features Common optimization for all apps/providers Client uses OFI features User OFI Provider Client optimizes based on supported features Provider supports low-level features only Linux, FreeBSD, OS X, Windows TCP and UDP development support
  • 11. OBJECT-MODEL 11 OFI only defines semantic requirements NIC Network Peer address table Listener Command queues RDMA buffers Manage multiple CQs and counters Share wait objects (fd’s) example mappings
  • 13. ENDPOINT CONTEXTS 13 Default Scalable Endpoints Shared Contexts Tx/Rx completions may go to the same or different CQs Tx/Rx command ‘queues’ Share underlying command queues Targets multi-thread access to hardware
  • 14. ADDRESS VECTORS 14 Address Vector (Table) fi_addr Fabric Address 0 100:3:50 1 100:3:51 2 101:3:83 3 102:3:64 … … Address Vector (Map) fi_addr 100003050 100003051 101003083 102003064 … Addresses are referenced by an index - No application storage required - O(n) memory in provider - Lookup required on transfers OFI returns 64-bit value for address - n x 8 bytes application memory - No provider storage required - Direct addressing possible Converts portable addressing (e.g. hostname or sockaddr) to fabric specific address Possible to share AV between processes User Address IP:Port 10.0.0.1:7000 10.0.0.1:7001 10.0.0.2:7000 10.0.0.3:7003 … example mappings
  • 15. DATA TRANSFER TYPES 15 msg 2 msg 1msg 3 msg 2 msg 1msg 3 tag 2 tag 1tag 3 tag 2 tag 1 tag 3 TAGGED MSG Maintain message boundaries, FIFO Messages carry user ‘tag’ or id Receiver selects which tag goes with each buffer
  • 16. DATA TRANSFER TYPES 16 data 2 data 1data 3 data 1 data 2 data 3 MSG Stream dgram dgram dgram dgram dgram Multicast MSG Send to or receive from multicast group Data sent and received as ‘stream’ (no message boundaries) Uses ‘MSG’ APIs but different endpoint capabilities Synchronous completion semantics (application always owns buffer)
  • 17. DATA TRANSFER TYPES 17 write 2 write 1write 3 write 1 write 3 write 2 RMA RDMA semantics Direct reads or writes of remote memory from user perspective Specify operation to perform on selected datatype f(x,y) ATOMIC f(x,y) f(x,y) f(x,y) f() y g() y x g(x,y) g(x,y) g(x,y) x x Format of data at target is known to fabric services
  • 19. FI_GETINFO struct fi_info *fi_allocinfo(void); int fi_getinfo( uint32_t version, const char *node, const char *service, uint64_t flags, struct fi_info *hints, struct fi_info **info); void fi_freeinfo( struct fi_info *info); 19 struct fi_info { struct fi_info *next; uint64_t caps; uint64_t mode; uint32_t addr_format; size_t src_addrlen; size_t dest_addrlen; void *src_addr; void *dest_addr; fid_t handle; struct fi_tx_attr *tx_attr; struct fi_rx_attr *rx_attr; struct fi_ep_attr *ep_attr; struct fi_domain_attr*domain_attr; struct fi_fabric_attr*fabric_attr; }; API version ~getaddrinfo app needs API semantics needed, and provider requirements for using them Detailed object attributes
  • 20. CAPABILITY AND MODE BITS 20 • Desired services requested by app • Primary – app must request to use • E.g. FI_MSG, FI_RMA, FI_TAGGED, FI_ATOMIC • Secondary – provider can indicate availability • E.g. FI_SOURCE, FI_MULTI_RECV Capabilities • Requirements placed on the app • Improves performance when implemented by application • App indicates which modes it supports • Provider clears modes not needed • Sample: FI_CONTEXT, FI_LOCAL_MR Modes
  • 21. ATTRIBUTES struct fi_fabric_attr { struct fid_fabric *fabric; char *name; char *prov_name; uint32_t prov_version; uint32_t api_version; }; 21 struct fi_domain_attr { struct fid_domain *domain; char *name; enum fi_threading threading; enum fi_progress control_progress; enum fi_progress data_progress; enum fi_resource_mgmt resource_mgmt; enum fi_av_type av_type; int mr_mode; /* provider limits – fields omitted */ ... uint64_t caps; uint64_t mode; uint8_t *auth_key; ... }; Provider details Can also use env var to filter Already opened resource (if available) How resources are allocated among threads for lockless access Provider protects against queue overruns Do app threads drive transfers Secure communication (job key)
  • 22. ATTRIBUTES struct fi_ep_attr { enum fi_ep_type type; uint32_t protocol; uint32_t protocol_version; size_t max_msg_size; size_t msg_prefix_size; size_t max_order_raw_size; size_t max_order_war_size; size_t max_order_waw_size; uint64_t mem_tag_format; size_t tx_ctx_cnt; size_t rx_ctx_cnt; size_t auth_key_size; uint8_t *auth_key; }; 22 Indicates interoperability Order of data placement between two messages Default, shared, or scalable
  • 23. ATTRIBUTES struct fi_tx_attr { uint64_t caps; uint64_t mode; uint64_t op_flags; uint64_t msg_order; uint64_t comp_order; size_t inject_size; size_t size; size_t iov_limit; size_t rma_iov_limit; }; 23 struct fi_rx_attr { uint64_t caps; uint64_t mode; uint64_t op_flags; uint64_t msg_order; uint64_t comp_order; size_t total_buffered_recv; size_t size; size_t iov_limit; }; Are completions reported in order “Fast” message size Can messages be sent and received out of order
  • 25. GASNET AT A GLANCE Networking API to enable PGAS languages •Language-independent •Interface intended as a compilation target •Based on active messages UPC, UPC++, Co-Array Fortran, Legion, Chapel •Some of these have native ports to OFI 25
  • 26. OFI OBJECTS struct fid_fabric* gasnetc_ofi_fabricfd; struct fid_domain* gasnetc_ofi_domainfd; struct fid_av* gasnetc_ofi_avfd; struct fid_cq* gasnetc_ofi_tx_cqfd; struct fid_ep* gasnetc_ofi_rdma_epfd; struct fid_mr* gasnetc_ofi_rdma_mrfd; struct fid_ep* gasnetc_ofi_request_epfd; struct fid_ep* gasnetc_ofi_reply_epfd; struct fid_cq* gasnetc_ofi_request_cqfd; struct fid_cq* gasnetc_ofi_reply_cqfd; 26 Separated active message request-reply traffic Get/put traffic on own endpoint
  • 27. INITIALIZATION hints = fi_allocinfo(); hints->caps = FI_RMA | FI_MSG | FI_MULTI_RECV; hints->mode = FI_CONTEXT; hints->addr_format = FI_FORMAT_UNSPEC; hints->tx_attr->op_flags = FI_DELIVERY_COMPLETE | FI_COMPLETION; hints->rx_attr->op_flags = FI_MULTI_RECV | FI_COMPLETION; hints->ep_attr->type = FI_EP_RDM; hints->domain_attr->threading = FI_THREAD_SAFE; hints->domain_attr->control_progress = FI_PROGRESS_MANUAL; hints->domain_attr->resource_mgmt = FI_RM_ENABLED; hints->domain_attr->av_type = FI_AV_TABLE; ret = fi_getinfo(OFI_CONDUIT_VERSION, NULL, NULL, 0ULL, hints, &info); if (!strcmp(info->fabric_attr->prov_name, "psm") || ...) { ... 27 Generate completions by default Checks to enable provider specific optimizations Need thread safety for most providers Use a single buffer to receive multiple messages
  • 28. ADDRESS EXCHANGE av_attr.type = FI_AV_TABLE; av_attr.size = gasneti_nodes * NUM_OFI_ENDPOINTS; fi_av_open(gasnetc_ofi_domainfd, &av_attr, &gasnetc_ofi_avfd, NULL); fi_ep_bind(gasnetc_ofi_rdma_epfd, &gasnetc_ofi_avfd->fid, 0); ... fi_getname(&gasnetc_ofi_rdma_epfd->fid, NULL, &rdmanamelen); ... size_t total_len = reqnamelen + repnamelen + rdmanamelen; on_node_addresses = gasneti_malloc(total_len); char* alladdrs = gasneti_malloc(gasneti_nodes * total_len); fi_getname(&gasnetc_ofi_rdma_epfd->fid, on_node_addresses, &rdmanamelen); ... gasneti_bootstrapExchange(on_node_addresses, total_len, alladdrs); fi_av_insert(gasnetc_ofi_avfd, alladdrs, gasneti_nodes * NUM_OFI_ENDPOINTS, NULL, 0ULL, NULL); 28 Bind all local EPs to same AV 3 EPs per node Allocate buffer to store addresses from all nodes Get each EP address All to all address exchange
  • 29. MULTI-RECV BUFFERS buff_size = gasneti_getenv_int_withdefault(... 1024 * 1024 ...); region_start = gasneti_malloc_aligned(... buff_size * num); metadata_array = gasneti_malloc(meta_size * num); for(i = 0; i < num; i++) { metadata = metadata_array + i; setup_recv_msg(metadata, i) setup_metadata(metadata, i); fi_recvmsg((i % 2 == 0) ? gasnetc_ofi_request_epfd : gasnetc_ofi_reply_epfd, &metadata->am_buff_msg, FI_MULTI_RECV); } 29 Use a small (~4) pool of large (~1MB) buffers to receive messages Metadata tracks the status of each large buffer Post receive buffers to request-reply active message endpoint handlers
  • 30. MULTI-RECV BUFFERS METADATA setup_recv_msg(metadata, i) metadata->iov.iov_base = region_start + buff_size * i; metadata->iov.iov_len = buff_size; metadata->am_buff_msg.msg_iov = &metadata->iov; metadata->am_buff_msg.iov_count = 1; metadata->am_buff_msg.addr = FI_ADDR_UNSPEC; metadata->am_buff_msg.desc = NULL; metadata->am_buff_msg.context = &metadata->am_buff_ctxt.ctxt; metadata->am_buff_msg.data = 0; setup_metadata(metadata, i); metadata->am_buff_ctxt.index = i; metadata->am_buff_ctxt.final_cntr = 0; metadata->am_buff_ctxt.event_cntr = 0; gasnetc_paratomic_set(&metadata->am_buff_ctxt.consumed_cntr, 0, 0); metadata->am_buff_ctxt.metadata = metadata; 30 Setup and save descriptor used to (re-)post receive buffer Reference counting used to track when messages received into the buffer are being processed FI_CONTEXT requires we give the provider some storage space for their context
  • 31. RECEIVING MESSAGE HANDLING void gasnetc_ofi_am_recv_poll( struct fid_ep *ep, struct fid_cq *cq) { struct fi_cq_data_entry re; if (TRYLOCK(lock_p) == EBUSY) return; ret = fi_cq_read(cq, &re, 1); if (ret == -FI_EAGAIN) { UNLOCK(lock_p); return; } gasnetc_ofi_ctxt_t *header = re.op_context; header->event_cntr++; if (re.flags & FI_MULTI_RECV) header->final_cntr = header->event_cntr; UNLOCK(lock_p); 31 if (re.flags & FI_RECV) gasnetc_ofi_handle_am(re.buf, is_request, re.len, re.data); if (++header->consumed_cntr == header->final_cntr) { metadata = header->metadata; LOCK(&gasnetc_ofi_locks.am_rx); fi_recvmsg(ep, &metadata->am_buff_msg, FI_MULTI_RECV); UNLOCK(&gasnetc_ofi_locks.am_rx); } } Check CQ for a completion 1 event per message FI_MULTI_RECV flag indicates buffer has been released Process request or reply message Repost receive buffer once all callbacks complete
  • 32. NONBLOCKING PUT MAPPING gasnete_put_nb(gasnet_node_t node, void *dest, void *src, size_t nbytes...) { if (nbytes <= max_buffered_send) { use_inject(...) } else if (nbytes <= gasnetc_ofi_bbuf_threshold) { use_bounce_buffer(...) } else { put_and_wait(...) } } 32 General outline of gasnet_put_nb flow ‘Inject’ feature allows immediate re-use of buffer Optimized for lowest latency Copy into bounce buffer Must wait for completion
  • 33. put_and_wait fi_write(gasnetc_ofi_rdma_epfd, src, nbytes, NULL, GET_RDMA_DEST(node), GET_REMOTEADDR(node, dest), 0, ctxt_ptr); pending_rdma++; while (pending_rdma) GASNETC_OFI_POLL_EVERYTHING(); NONBLOCKING PUT MAPPING 33 use_inject fi_writemsg(gasnetc_ofi_rdma_epfd, &msg, FI_INJECT | FI_DELIVERY_COMPLETE); pending_rdma++; use_bounce_buffer get_bounce_buf(nbytes, bbuf, bbuf_ctxt); memcpy(bbuf, src, nbytes); fi_write(gasnetc_ofi_rdma_epfd, bbuf, nbytes, NULL, GET_RDMA_DEST(node), GET_REMOTEADDR(node, dest), 0, bbuf_ctxt); pending_rdma++; Copy source buffer into bounce buffer. Source may be reused. FI_INJECT – buffer is re-usable after call returns, but still generate a completion Transfer data and wait for the completion to indicate buffer is no longer needed
  • 34. MPICH USAGE OFI CH4 NETMOD 34
  • 35. MPICH AT A GLANCE Reference MPI implementation •MPI standards 1, 2, and 3 High-performance and scalable •Used on most Top 500, including Top 10 supercomputers Highly portable •Platforms, OS, networks, CPUs… Base for most vendor MPI derivatives 35
  • 36. MPI Progress 36 Fabric Services User OFI Provider Provider optimizes for OFI features Counters CQs MPI 2-Sided FI_TAGGED MPI-3 RMA FI_MSG FI_RMA User OFI Provider Common optimization for all apps/providers Client uses OFI features Provider supports low- level features only SELECT A MAPPING OFI Building Blocks MPICH optimizes based on provider features • Present one possible mapping • Designed for providers with a close semantic match to MPI • MPICH ch4 / OpenMPI MTL
  • 37. SELECT CAPABILITIES AND MODE BITS hints = fi_allocinfo(); hints->mode = FI_CONTEXT | FI_ASYNC_IOV; hints->caps |= FI_RMA; hints->caps |= FI_ATOMICS; if (do_tagged) hints->caps |= FI_TAGGED; if (do_data) hints->caps |= FI_DIRECTED_RECV; 37 Provide the provider context space Request support for tagged messages, RDMA read and write, and atomic operations The source address is used as part of message matching
  • 38. SPECIFY DOMAIN ATTRIBUTES fi_version = FI_VERSION(MPIDI_OFI_MAJOR_VERSION, MPIDI_OFI_MINOR_VERSION); hints->addr_format = FI_FORMAT_UNSPEC; hints->domain_attr->threading = FI_THREAD_DOMAIN; hints->domain_attr->control_progress = FI_PROGRESS_MANUAL; hints->domain_attr->data_progress = FI_PROGRESS_MANUAL; hints->domain_attr->resource_mgmt = FI_RM_ENABLED; hints->domain_attr->av_type = do_av_table ? FI_AV_TABLE : FI_AV_MAP; hints->domain_attr->mr_mode = do_mr_scalable ? FI_MR_SCALABLE : FI_MR_BASIC; 38 Specify API version MPI is coded to Support common memory registration modes (ABI v1.0) MPI handles all synchronization (lock-free provider) MPI is capable of driving progress (thread-less provider) Provider will protect against local and remote queue overruns Support either address vector format
  • 39. SPECIFY ENDPOINT ATTRIBUTES hints->tx_attr->op_flags = FI_DELIVERY_COMPLETE | FI_COMPLETION; hints->tx_attr->msg_order = FI_ORDER_SAS; hints->tx_attr->comp_order = FI_ORDER_NONE; hints->rx_attr->op_flags = FI_COMPLETION; hints->ep_attr->type = FI_EP_RDM; hints->fabric_attr->prov_name = provname; fi_getinfo(fi_version, NULL, NULL, 0ULL, hints, &prov); 39 Generate a completion after transfer processed by peer Optionally select a provider and away we go Sends must be processed in order Reliable-datagram endpoint Transfers can complete in any order
  • 40. Communicator A MAPPING MPI COMMUNICATORS 40 Communicators are groups of peer processes • MPI_COMM_WORLD – all peers • Referenced by rank (index) • Map logical rank to physical network address Map Table Communicator B Shared AV Map fi_addr_t integer Communicator A Communicator B AV Table Communicator A Communicator B AV Map All options are supported
  • 41. OPENING ADDRESS VECTOR char av_name[128]; snprintf(av_name, 127, "FI_NAMED_AV_%dn", appnum); av_attr.name = av_name; av_attr.flags = FI_READ; av_attr.map_addr = 0; unsigned do_av_insert = 1; if (0 == fi_av_open(MPIDI_Global.domain, &av_attr, &MPIDI_Global.av, NULL)) { do_av_insert = 0; mapped_table = (fi_addr_t *) av_attr.map_addr; for (i = 0; i < size; i++) MPIDI_OFI_AV(&MPIDIU_get_av(0, i)).dest = mapped_table[i]; 41 Copying fi_addr_t address table Try opening a shared (named) AV
  • 42. TAGGED PROTOCOL #ifdef USE_OFI_IMMEDIATE_DATA /* * 0123 4567 01234567 01234567 01234567 01234567 01234567 01234567 01234567 * | | | * ^ | Unused | context id | message tag * | | | | * +---- protocol */ #else /* * 0123 4567 01234567 0123 4567 01234567 0123 4567 01234567 01234567 01234567 * | | | * ^ | context id | source | message tag * | | | | * +---- protocol */ 42 Selection based on support for FI_DIRECTED_RECV Source rank carried in remote QP data Need source rank for matching
  • 43. MPI SEND (TAGGED MESSAGES) MPL_STATIC_INLINE_PREFIX int MPIDI_OFI_send_handler(...) { if (is_inject) { if (do_data) fi_tinjectdata(ep, buf, len, dest, dest_addr, tag); else fi_tinject(ep, buf, len, dest_addr, tag); } else { if (do_data) fi_tsenddata(ep, buf, len, desc, dest, dest_addr, tag, context); else fi_tsend(ep, buf, len, desc, dest_addr, tag, context); } } 43 Optimized transfers under certain conditions • No completions • Immediate buffer reuse • Limited transfer size Protocol selection Direct API mapping Base endpoint or tx_tag transmit context fi_addr_t from mapped_table[ ] tag format based on protocol
  • 44. MPI RECV MPL_STATIC_INLINE_PREFIX int MPIDI_OFI_mpi_recv (...) { if (is_tagged) { fi_trecv(ep, buf, len, desc, src_addr, tag, ignored, context); } else { fi_recv(ep, buf, len, desc, src_addr, context); } } 44 Protocol selection Direct API mapping Base endpoint or tx_tag transmit context fi_addr_t from mapped_table[ ] tag format based on protocol
  • 45. MPI PROGRESS ENGINE MPL_STATIC_INLINE_PREFIX int MPIDI_OFI_progress(...) { struct fi_cq_tagged_entry wc = {0}; struct fi_cq_err_entry error = {0}; ompi_mtl_ofi_request_t *ofi_req = NULL; while (true) { ret = fi_cq_read(ompi_mtl_ofi.cq, (void *) &wc, 1); if (ret > 0) { // process good completion ... } else if (ret == -FI_EAVAIL) { ret = fi_cq_reader(ompi_mtl_ofi.cq, &error); } } } 45 Direct API mapping
  • 46. HOTI 2017 THANK YOU Sean Hefty, OFIWG Co-Chair
