This document summarizes the architecture of a social networking platform handling high loads of 2.8 million users. It discusses how the load is balanced across 3 data centers with 2400 servers. It describes the multi-layer architecture including web servers, application servers, business services, caches, and SQL and NoSQL databases. It also discusses strategies for ensuring high performance and reliability under heavy loads, including handling garbage collection pauses, database partitioning, and using gatekeepers to control new features.

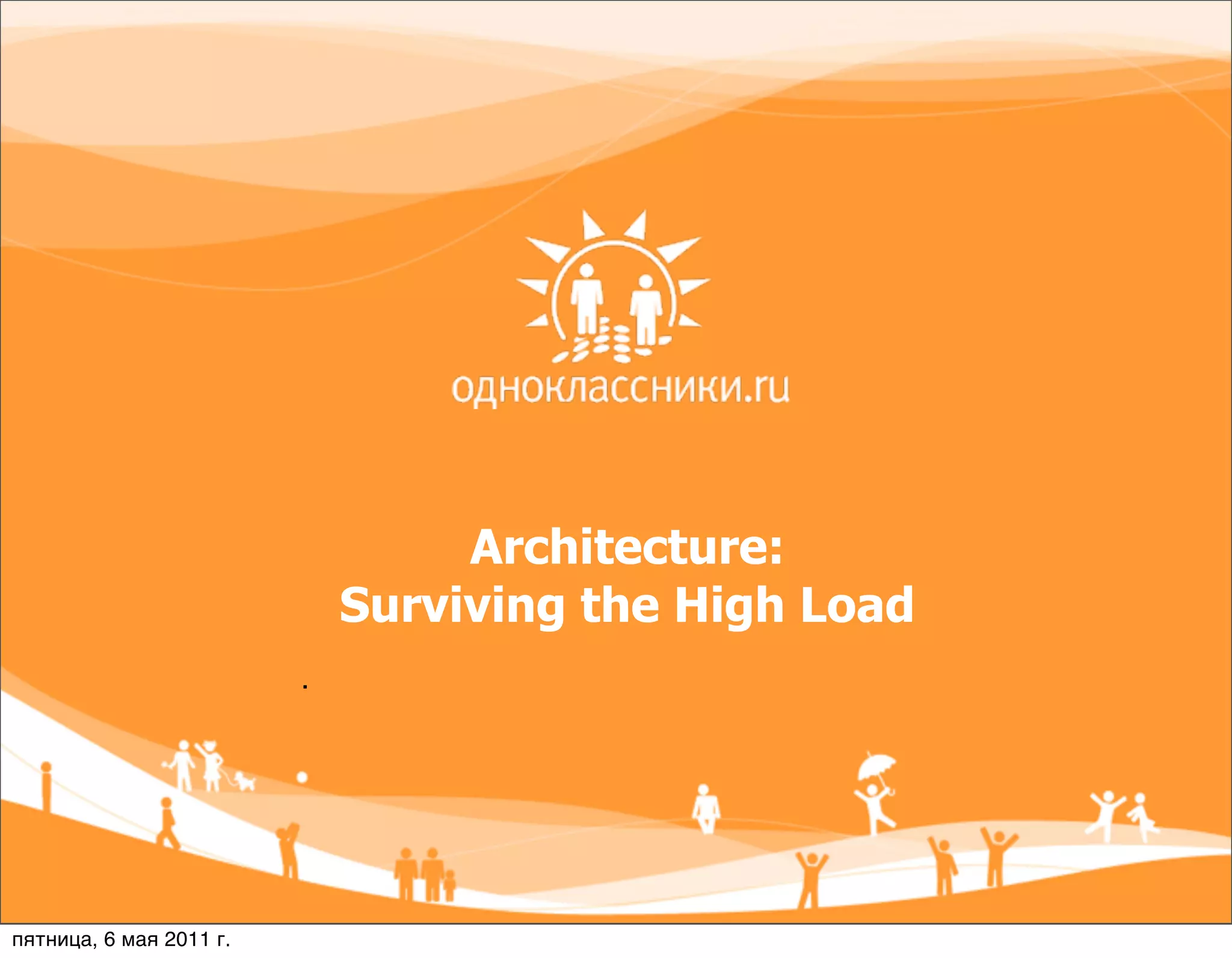

1. Architecture:
Surviving the High Load
.
пятница, 6 мая 2011 г.

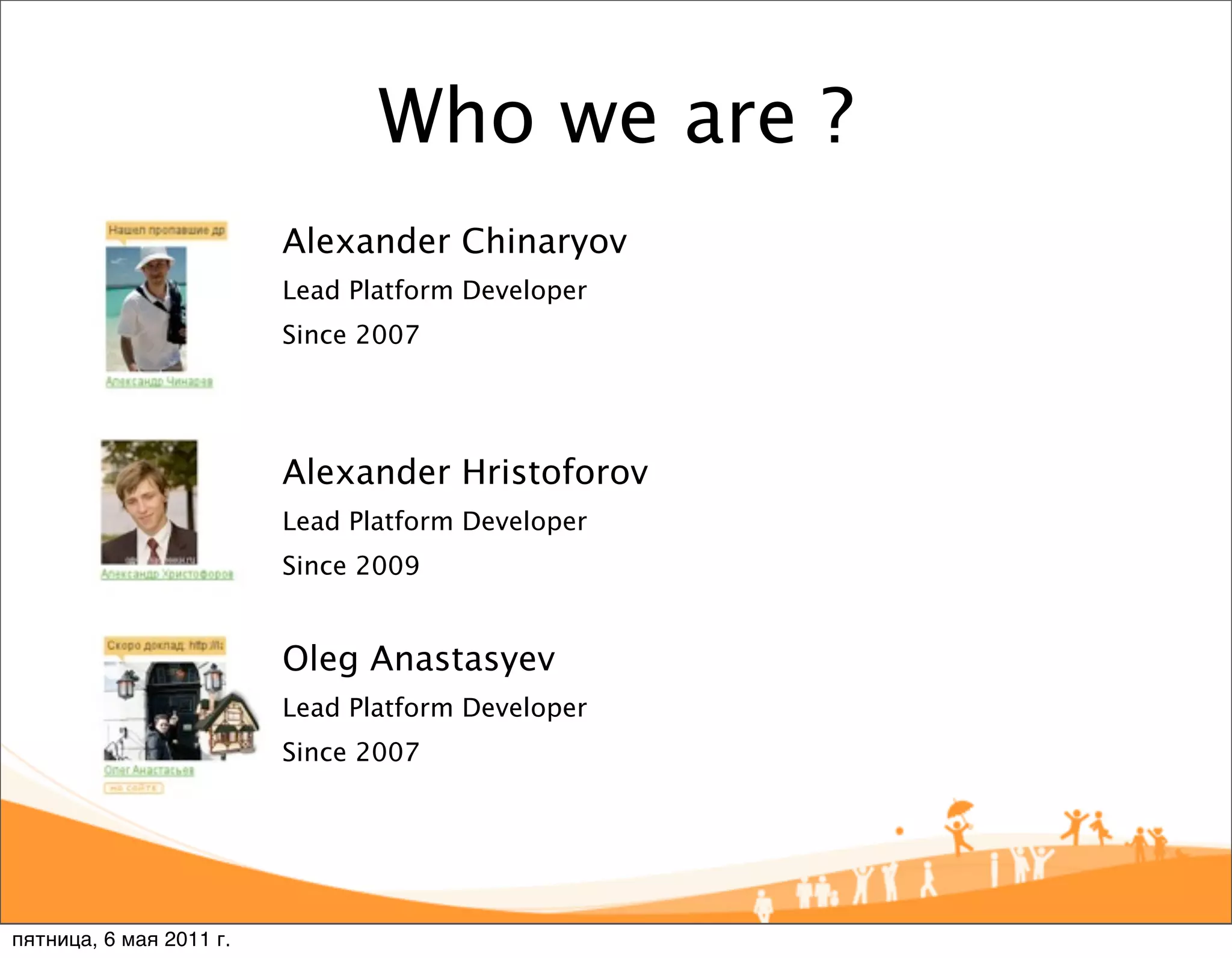

2. Who we are ?
Alexander Chinaryov
Lead Platform Developer
Since 2007
Alexander Hristoforov
Lead Platform Developer
Since 2009
Oleg Anastasyev
Lead Platform Developer
Since 2007
пятница, 6 мая 2011 г.

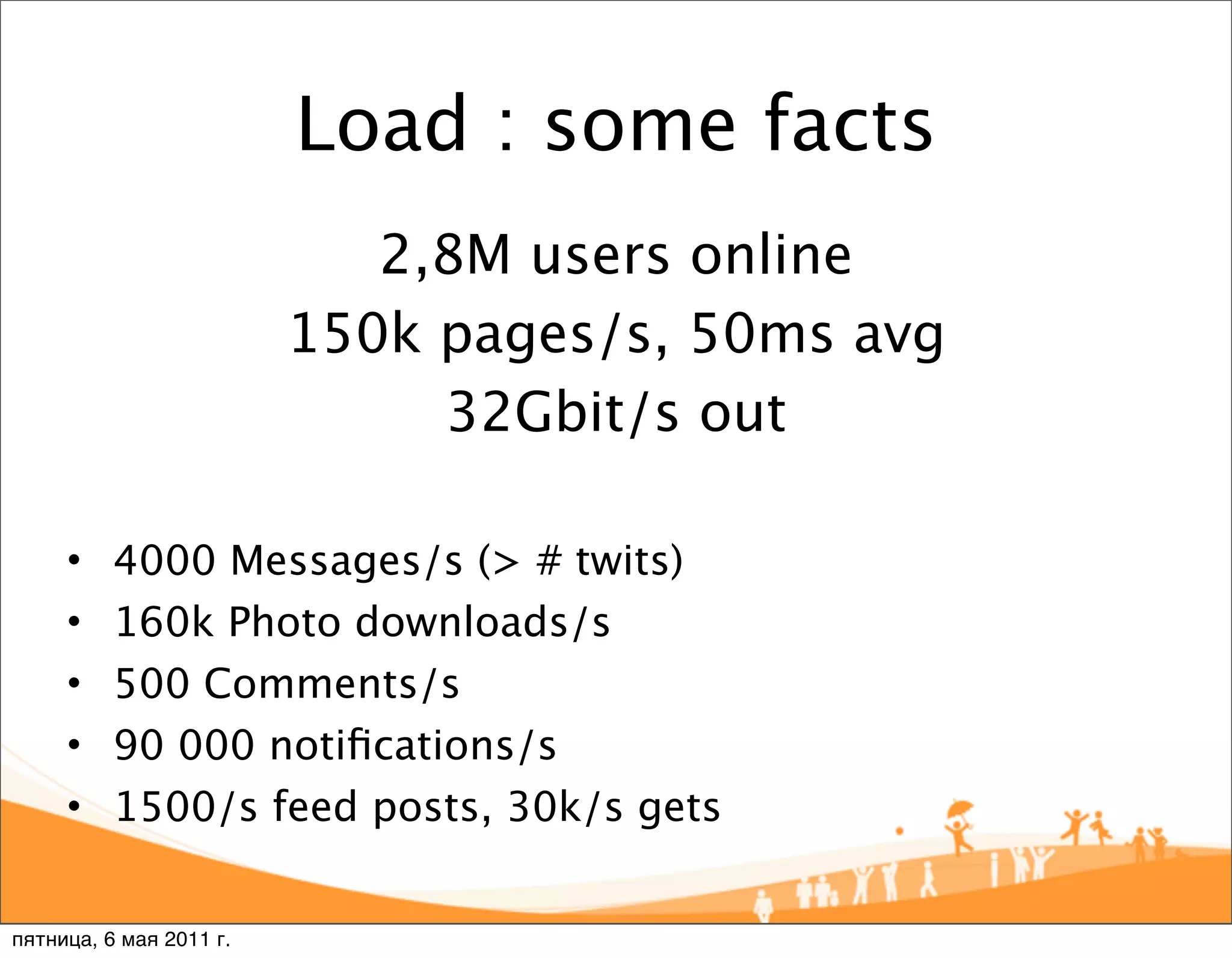

3. Load : some facts
2,8M users online
150k pages/s, 50ms avg
32Gbit/s out
• 4000 Messages/s (> # twits)
• 160k Photo downloads/s
• 500 Comments/s
• 90 000 notifications/s
• 1500/s feed posts, 30k/s gets
пятница, 6 мая 2011 г.

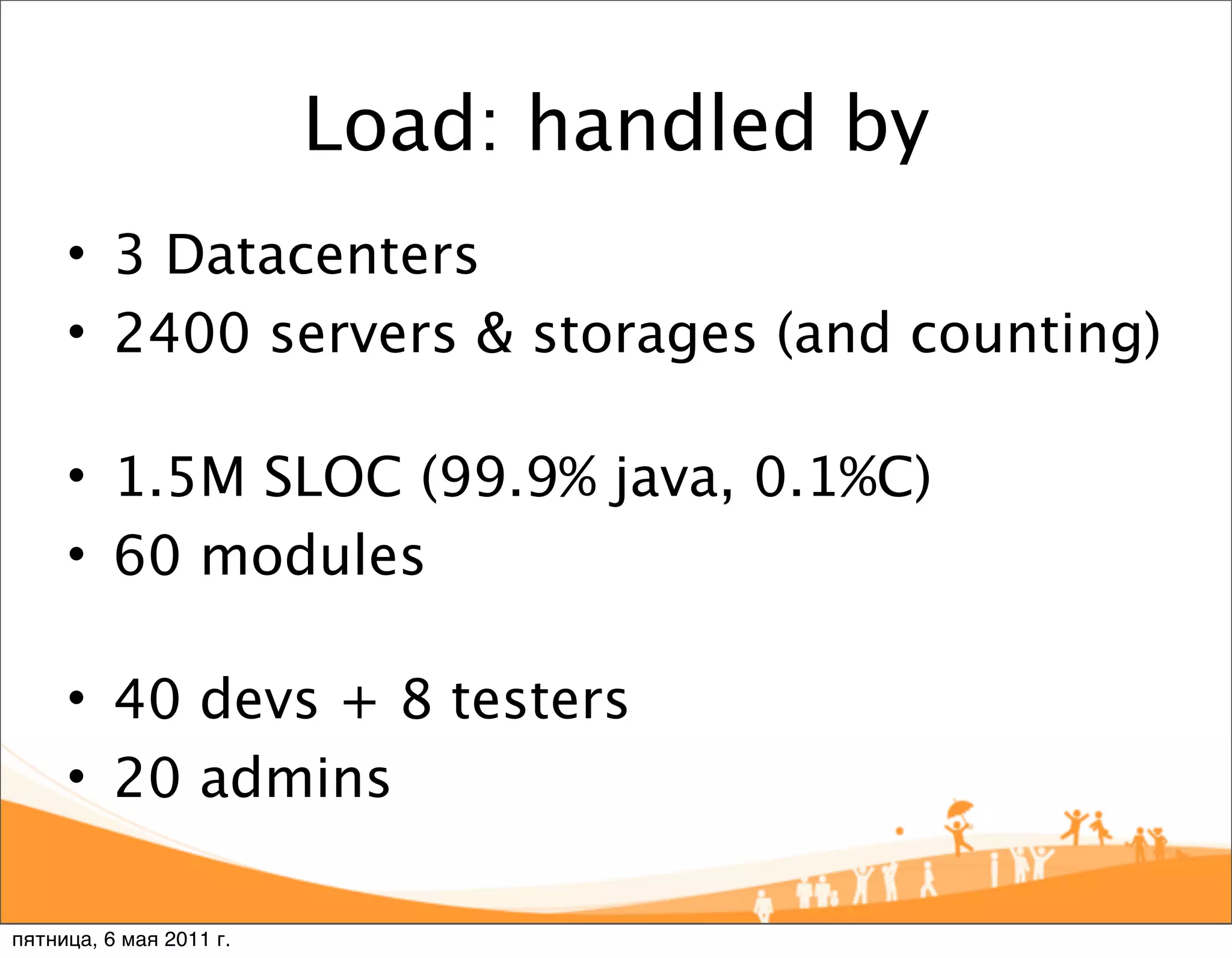

4. Load: handled by
• 3 Datacenters
• 2400 servers & storages (and counting)
• 1.5M SLOC (99.9% java, 0.1%C)
• 60 modules
• 40 devs + 8 testers
• 20 admins
пятница, 6 мая 2011 г.

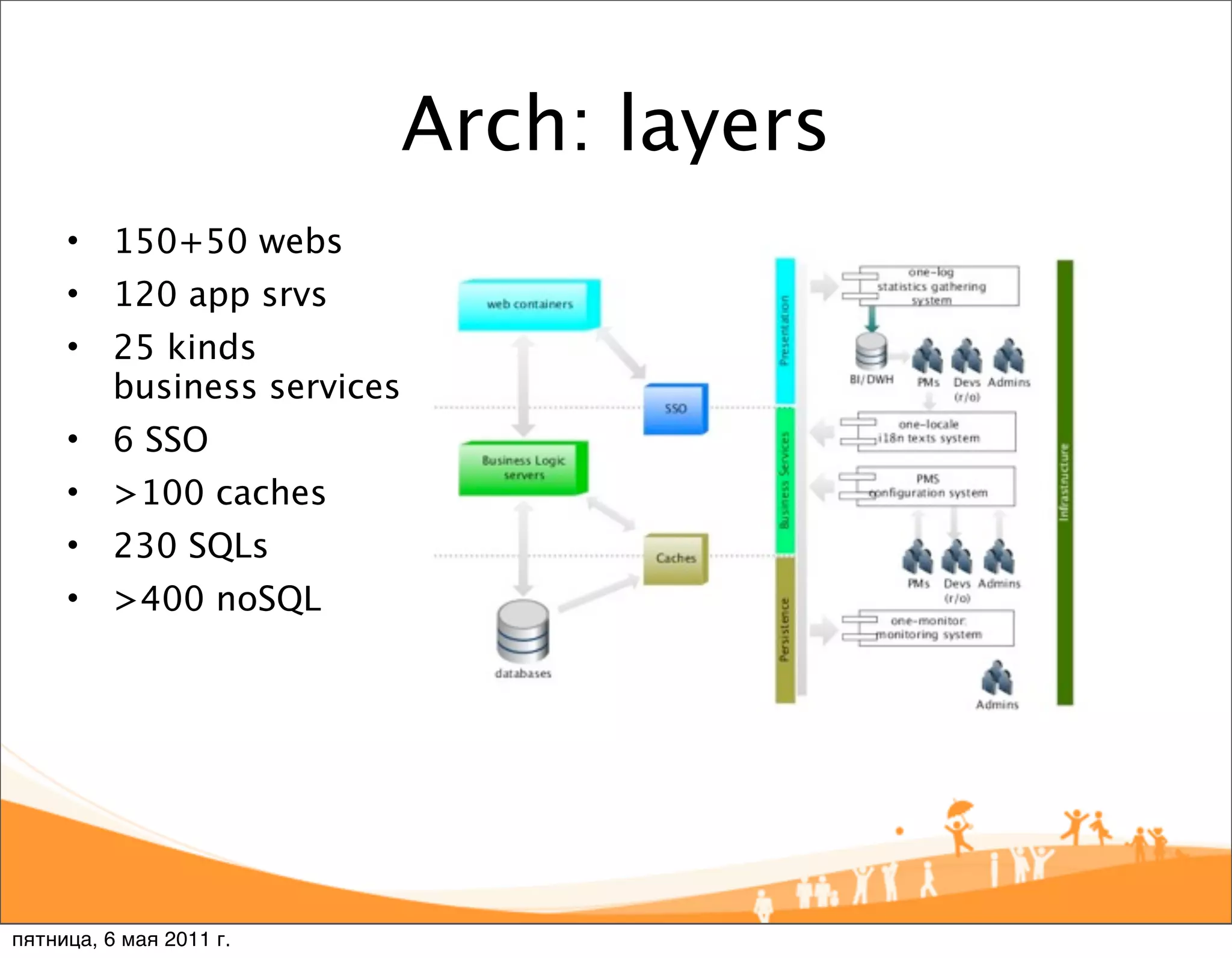

5. Arch: layers
• 150+50 webs
• 120 app srvs
• 25 kinds
business services
• 6 SSO
• >100 caches
• 230 SQLs
• >400 noSQL
пятница, 6 мая 2011 г.

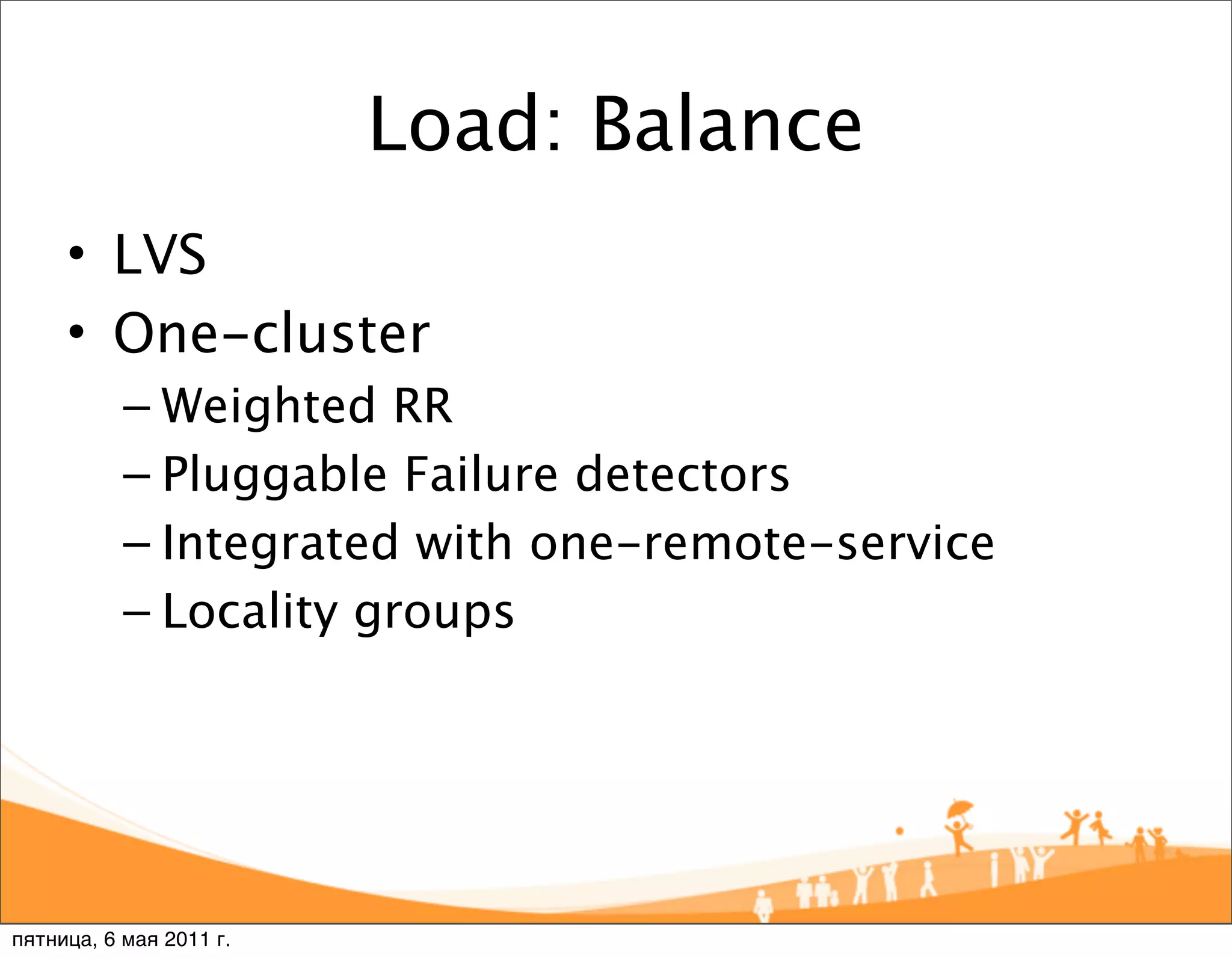

6. Load: Balance
• LVS
• One-cluster
– Weighted RR
– Pluggable Failure detectors
– Integrated with one-remote-service
– Locality groups
пятница, 6 мая 2011 г.

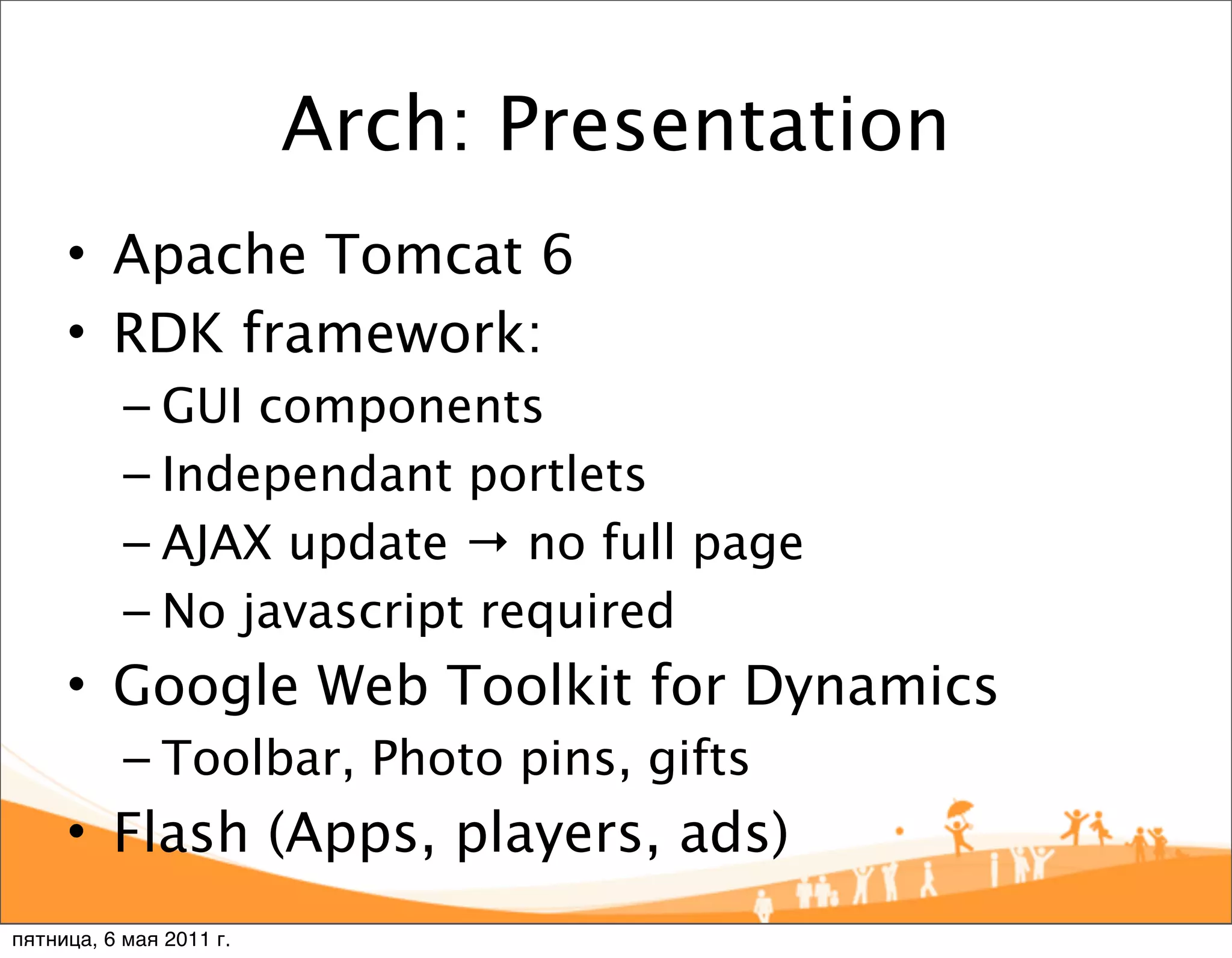

7. Arch: Presentation
• Apache Tomcat 6
• RDK framework:
– GUI components
– Independant portlets
– AJAX update → no full page
– No javascript required
• Google Web Toolkit for Dynamics
– Toolbar, Photo pins, gifts
• Flash (Apps, players, ads)
пятница, 6 мая 2011 г.

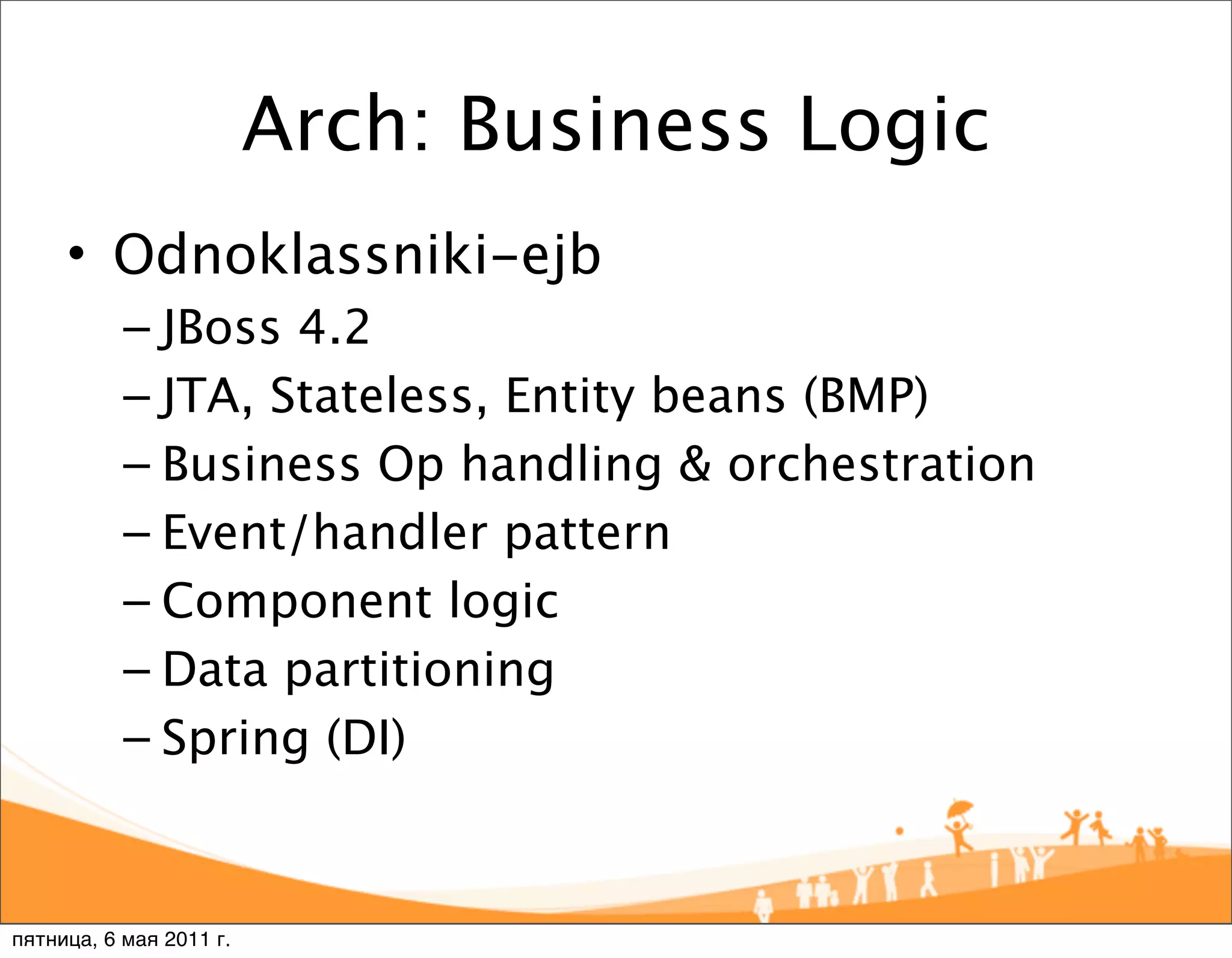

8. Arch: Business Logic
• Odnoklassniki-ejb
– JBoss 4.2
– JTA, Stateless, Entity beans (BMP)
– Business Op handling & orchestration
– Event/handler pattern
– Component logic
– Data partitioning
– Spring (DI)
пятница, 6 мая 2011 г.

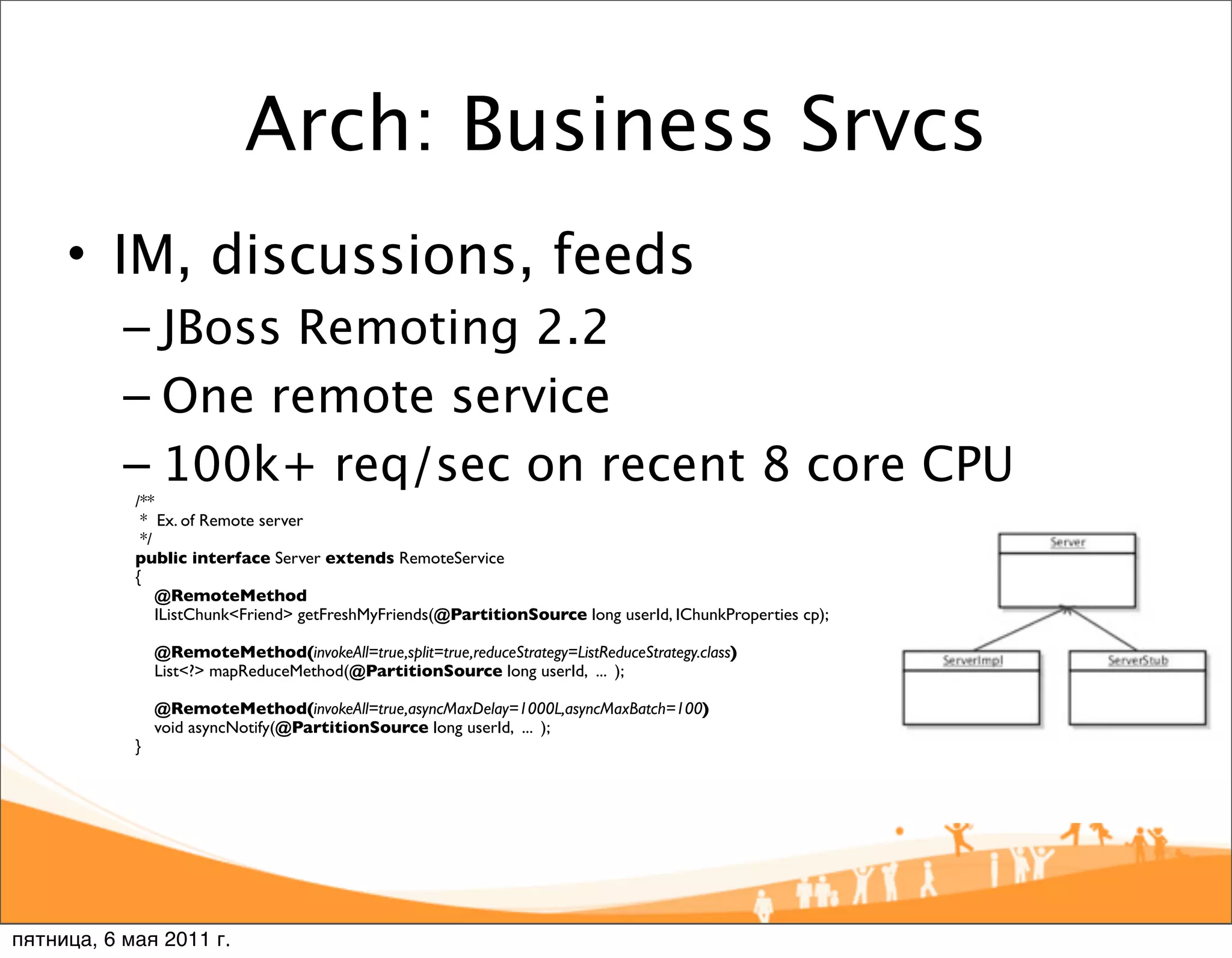

9. Arch: Business Srvcs
• IM, discussions, feeds
– JBoss Remoting 2.2
– One remote service
– 100k+ req/sec on recent 8 core CPU
/**
* Ex. of Remote server
*/
public interface Server extends RemoteService
{
@RemoteMethod
IListChunk<Friend> getFreshMyFriends(@PartitionSource long userId, IChunkProperties cp);
@RemoteMethod(invokeAll=true,split=true,reduceStrategy=ListReduceStrategy.class)
List<?> mapReduceMethod(@PartitionSource long userId, ... );
@RemoteMethod(invokeAll=true,asyncMaxDelay=1000L,asyncMaxBatch=100)
void asyncNotify(@PartitionSource long userId, ... );
}
пятница, 6 мая 2011 г.

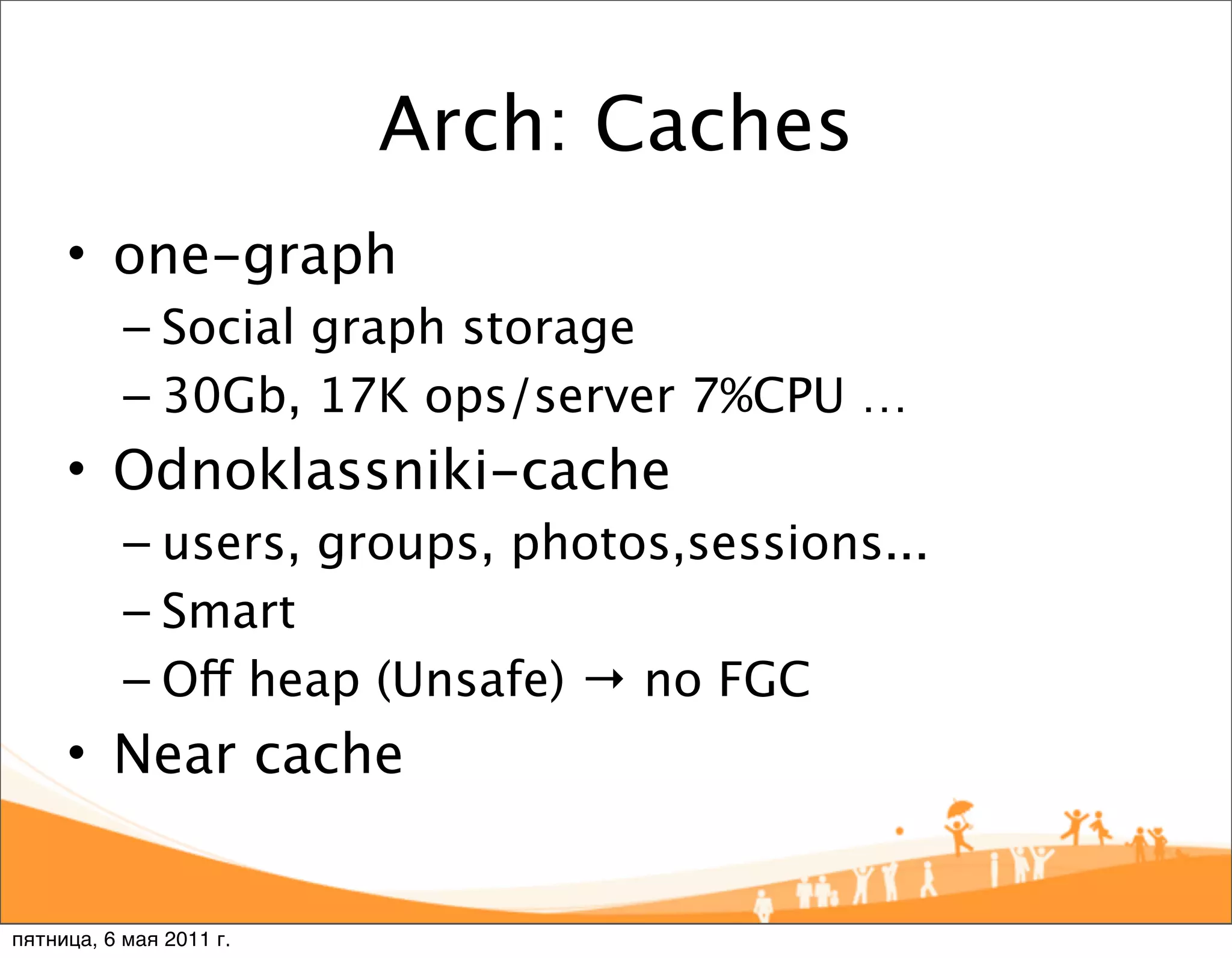

10. Arch: Caches
• one-graph
– Social graph storage
– 30Gb, 17K ops/server 7%CPU …
• Odnoklassniki-cache
– users, groups, photos,sessions...
– Smart
– Off heap (Unsafe) → no FGC
• Near cache
пятница, 6 мая 2011 г.

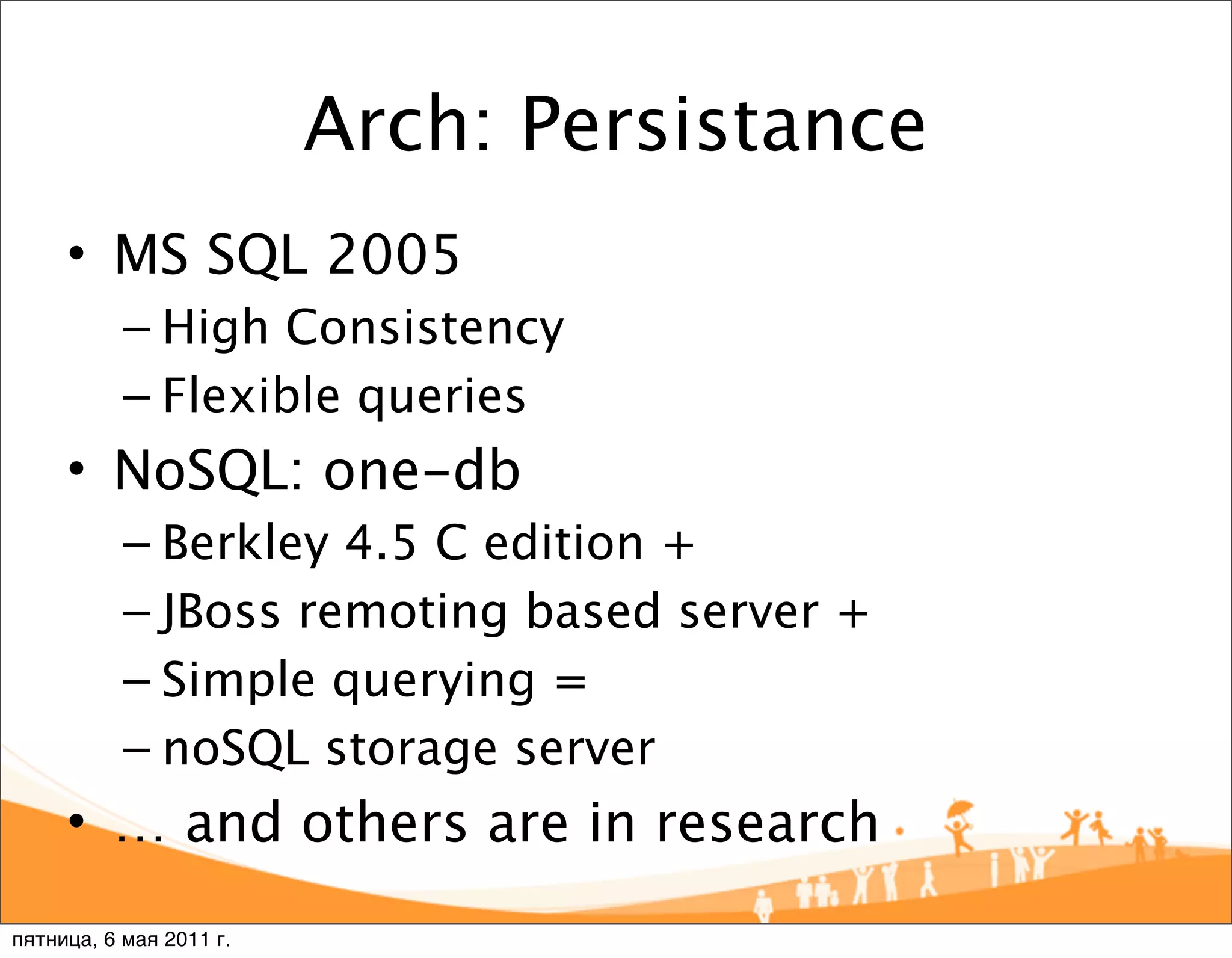

11. Arch: Persistance
• MS SQL 2005
– High Consistency
– Flexible queries
• NoSQL: one-db
– Berkley 4.5 C edition +
– JBoss remoting based server +
– Simple querying =
– noSQL storage server
• … and others are in research
пятница, 6 мая 2011 г.

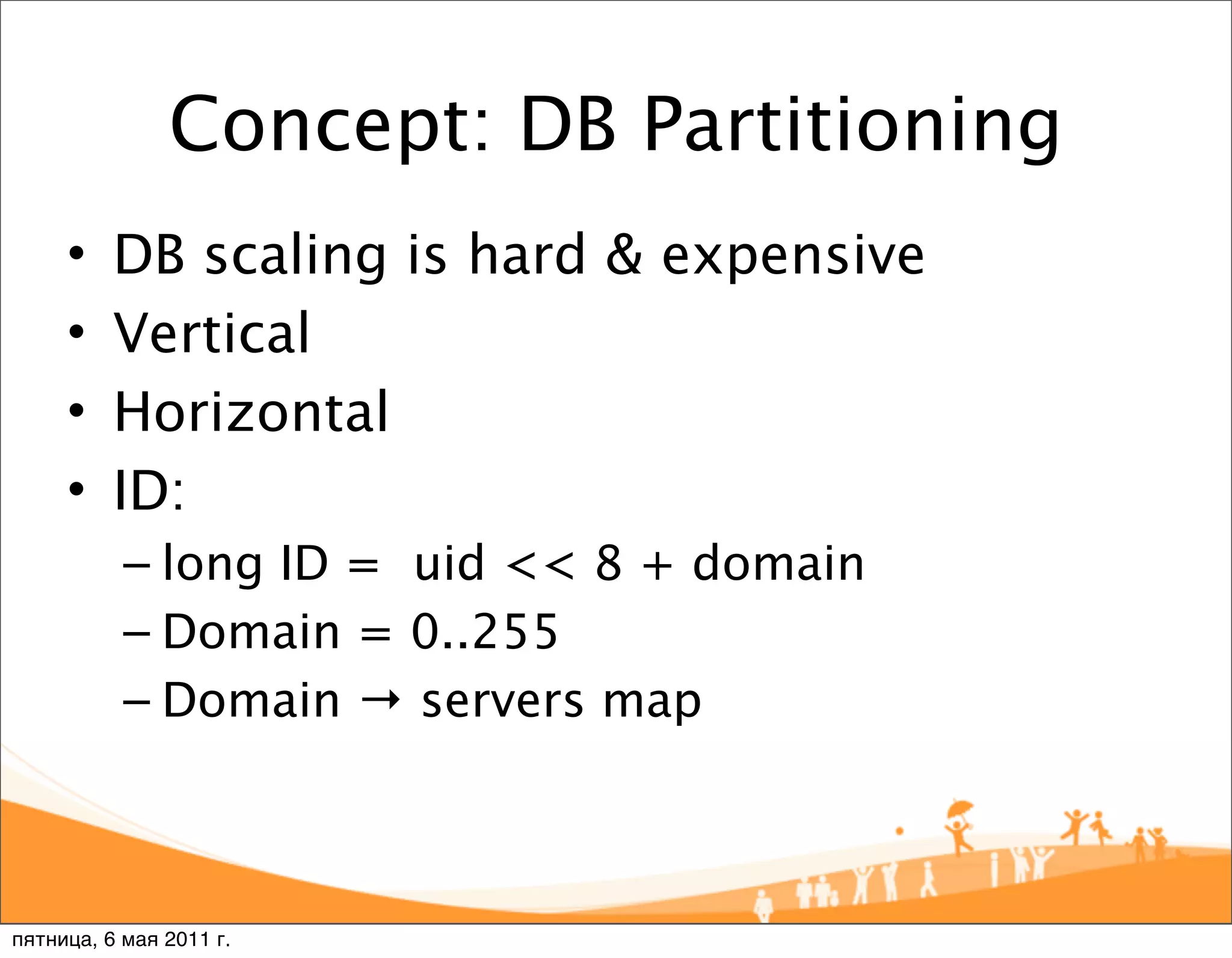

12. Concept: DB Partitioning
• DB scaling is hard & expensive
• Vertical
• Horizontal
• ID:
– long ID = uid << 8 + domain
– Domain = 0..255
– Domain → servers map
пятница, 6 мая 2011 г.

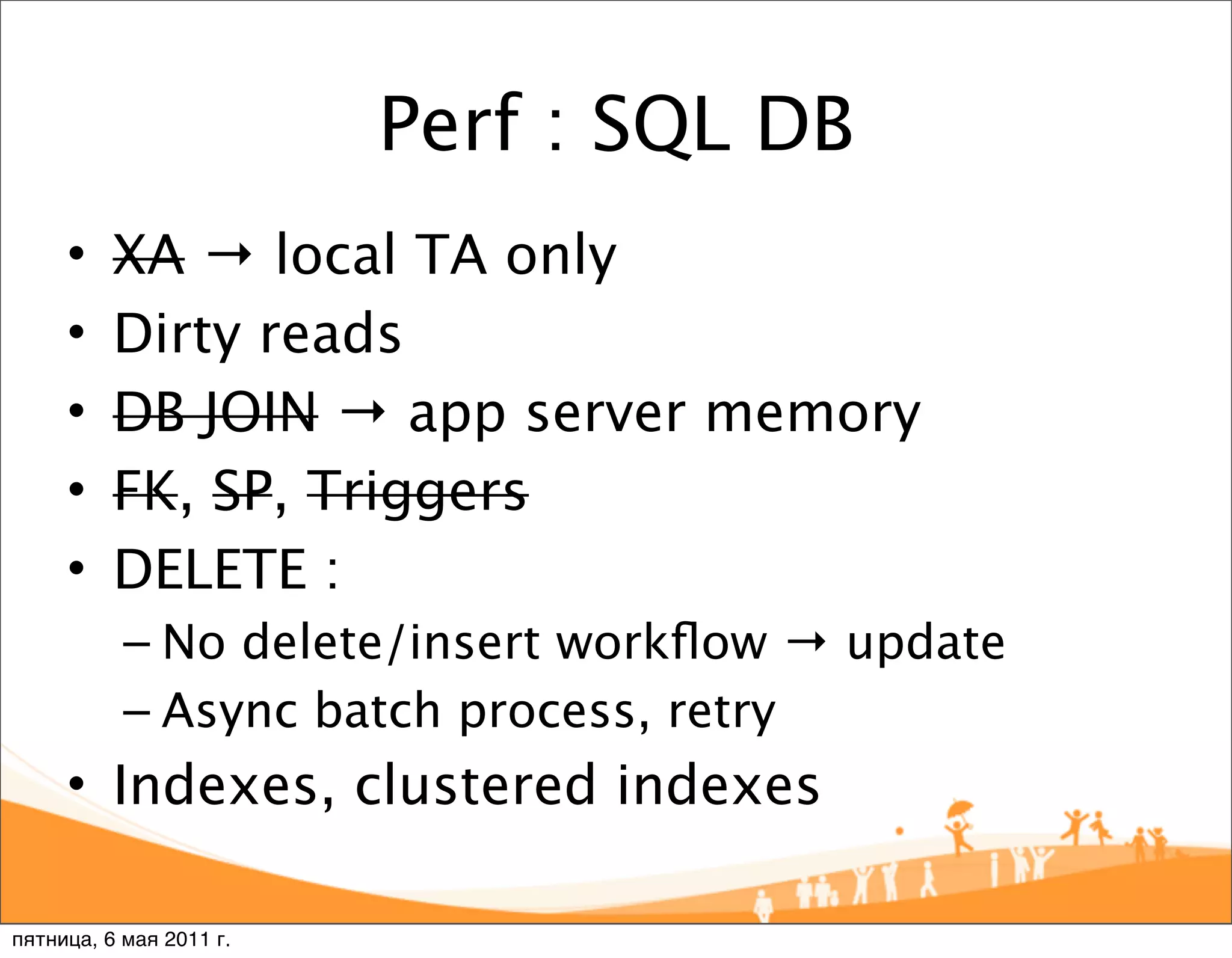

13. Perf : SQL DB
• XA → local TA only
• Dirty reads
• DB JOIN → app server memory
• FK, SP, Triggers
• DELETE :
– No delete/insert workflow → update
– Async batch process, retry
• Indexes, clustered indexes
пятница, 6 мая 2011 г.

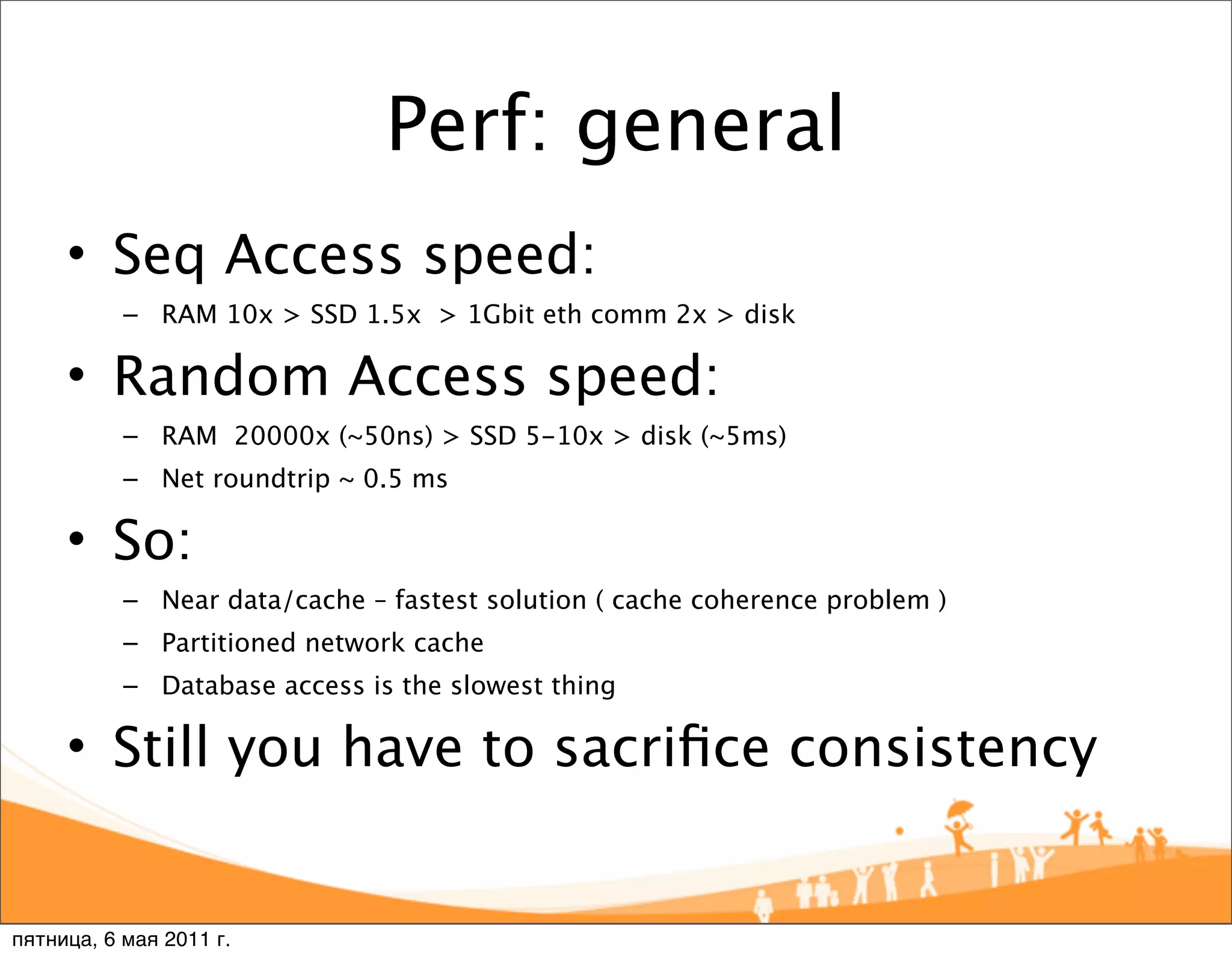

14. Perf: general
• Seq Access speed:
– RAM 10x > SSD 1.5x > 1Gbit eth comm 2x > disk
• Random Access speed:
– RAM 20000x (~50ns) > SSD 5-10x > disk (~5ms)
– Net roundtrip ~ 0.5 ms
• So:
– Near data/cache – fastest solution ( cache coherence problem )
– Partitioned network cache
– Database access is the slowest thing
• Still you have to sacrifice consistency
пятница, 6 мая 2011 г.

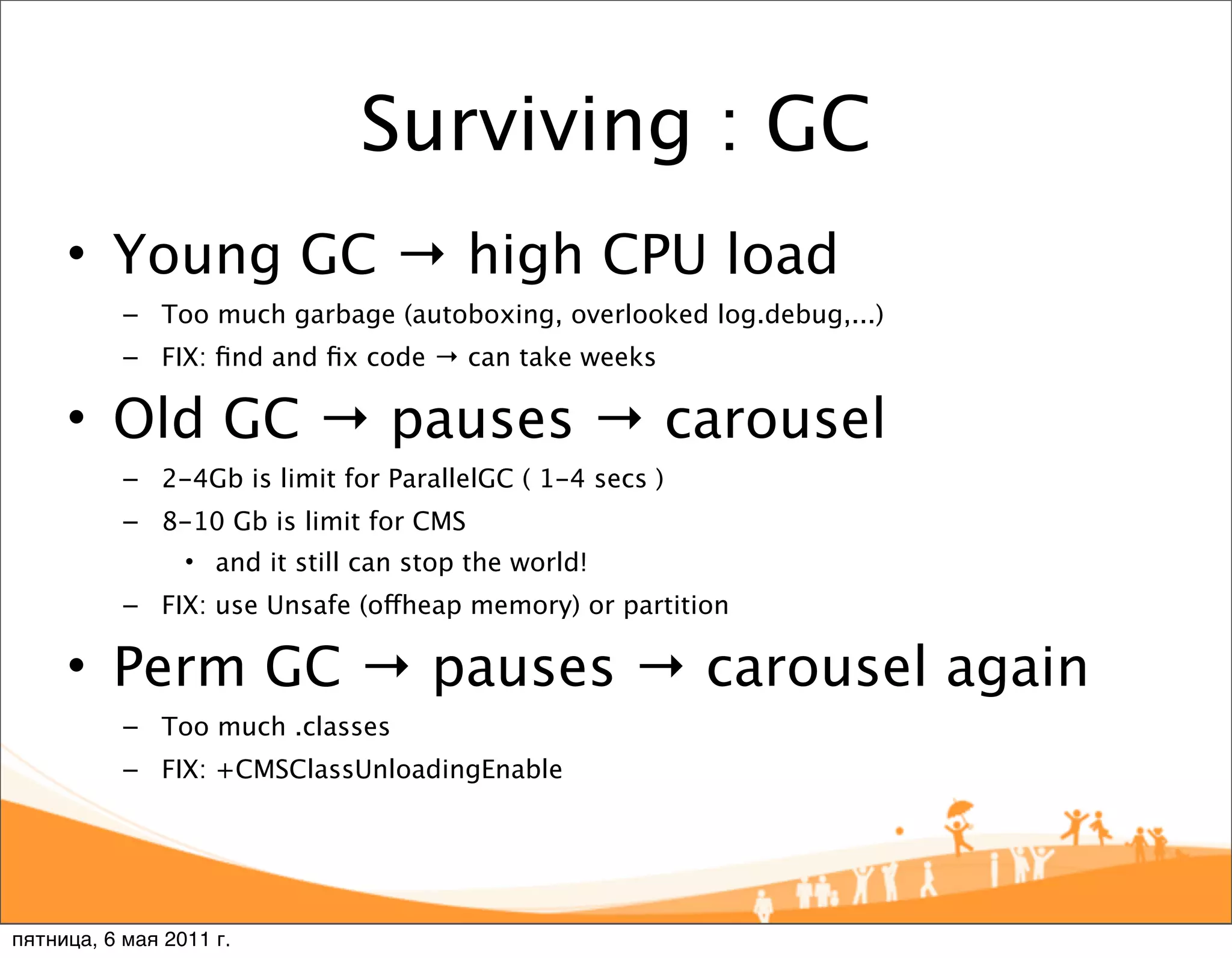

15. Surviving : GC
• Young GC → high CPU load
– Too much garbage (autoboxing, overlooked log.debug,...)
– FIX: find and fix code → can take weeks
• Old GC → pauses → carousel
– 2-4Gb is limit for ParallelGC ( 1-4 secs )
– 8-10 Gb is limit for CMS
• and it still can stop the world!
– FIX: use Unsafe (offheap memory) or partition
• Perm GC → pauses → carousel again
– Too much .classes
– FIX: +CMSClassUnloadingEnable
пятница, 6 мая 2011 г.

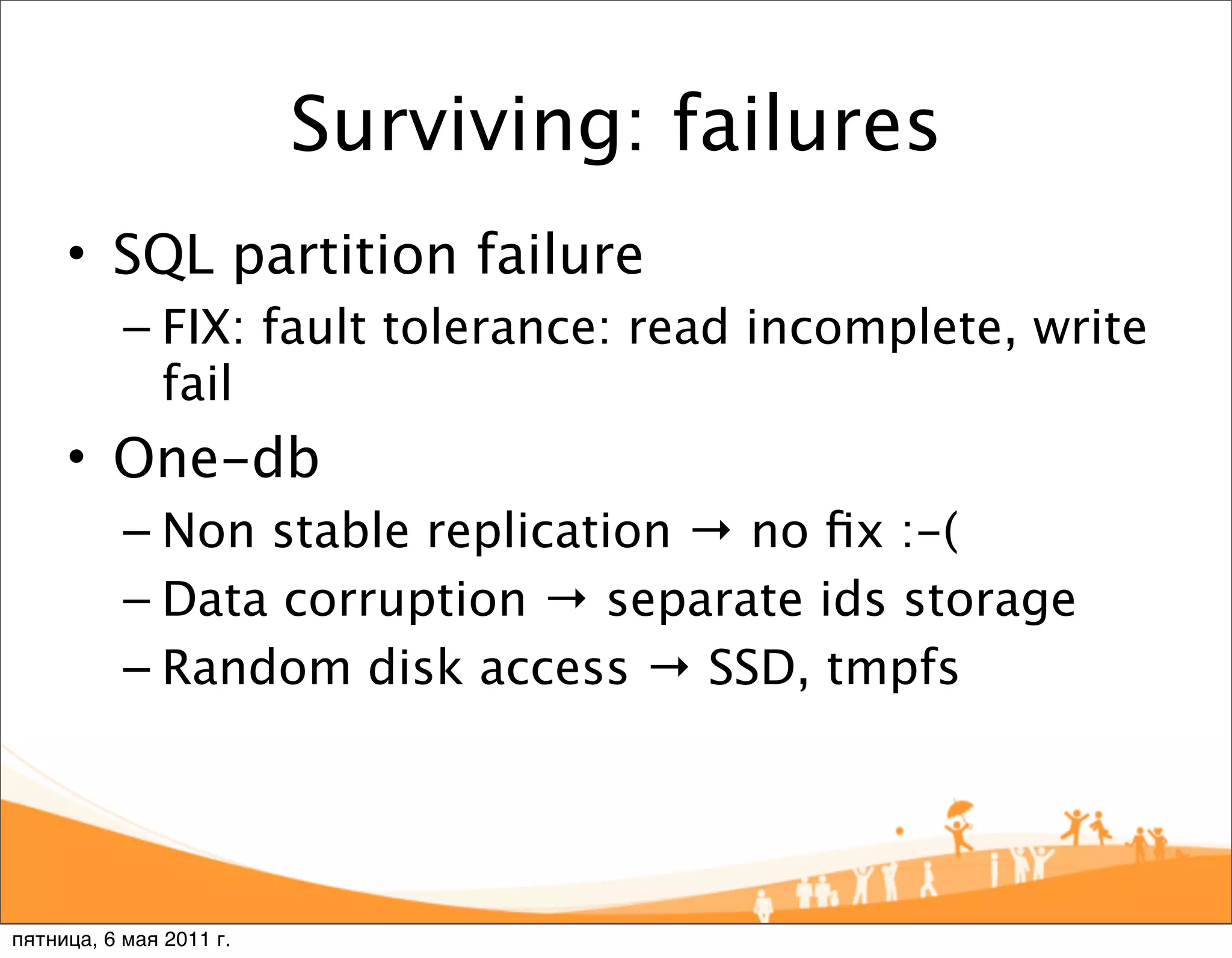

16. Surviving: failures
• SQL partition failure
– FIX: fault tolerance: read incomplete, write
fail
• One-db
– Non stable replication → no fix :-(
– Data corruption → separate ids storage
– Random disk access → SSD, tmpfs
пятница, 6 мая 2011 г.

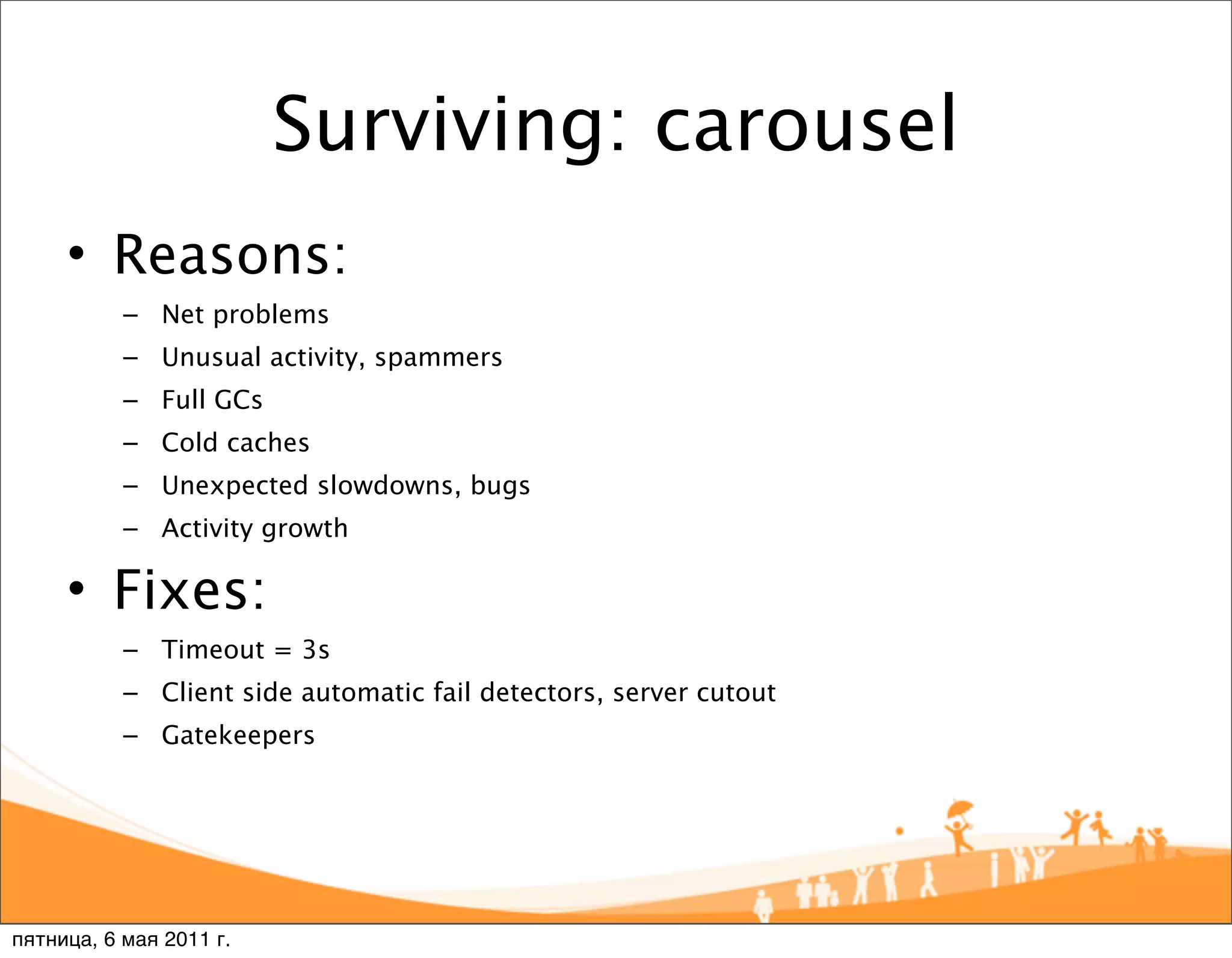

17. Surviving: carousel
• Reasons:
– Net problems
– Unusual activity, spammers
– Full GCs
– Cold caches
– Unexpected slowdowns, bugs
– Activity growth
• Fixes:
– Timeout = 3s
– Client side automatic fail detectors, server cutout
– Gatekeepers
пятница, 6 мая 2011 г.

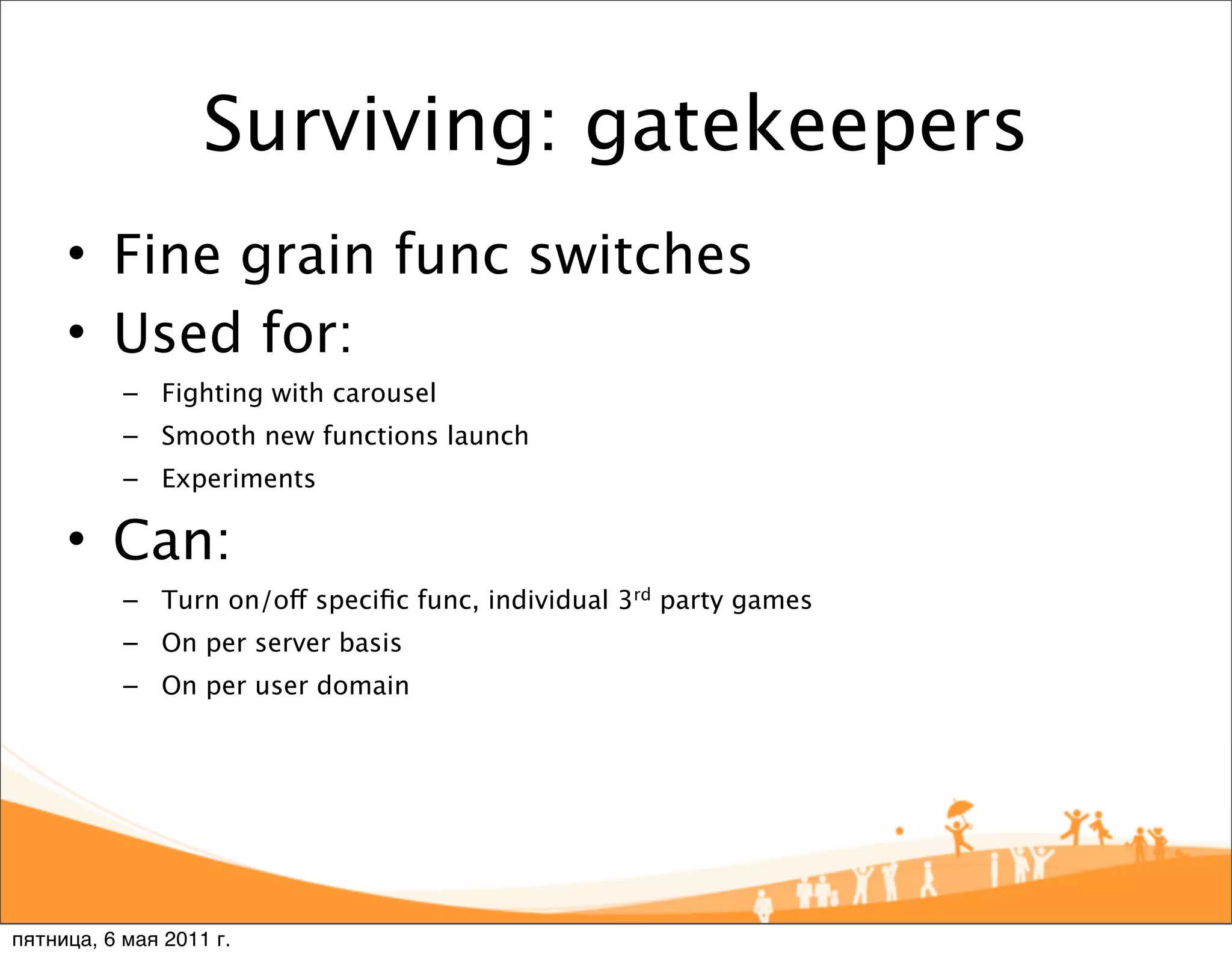

18. Surviving: gatekeepers
• Fine grain func switches
• Used for:
– Fighting with carousel
– Smooth new functions launch
– Experiments
• Can:
– Turn on/off specific func, individual 3rd party games
– On per server basis
– On per user domain
пятница, 6 мая 2011 г.

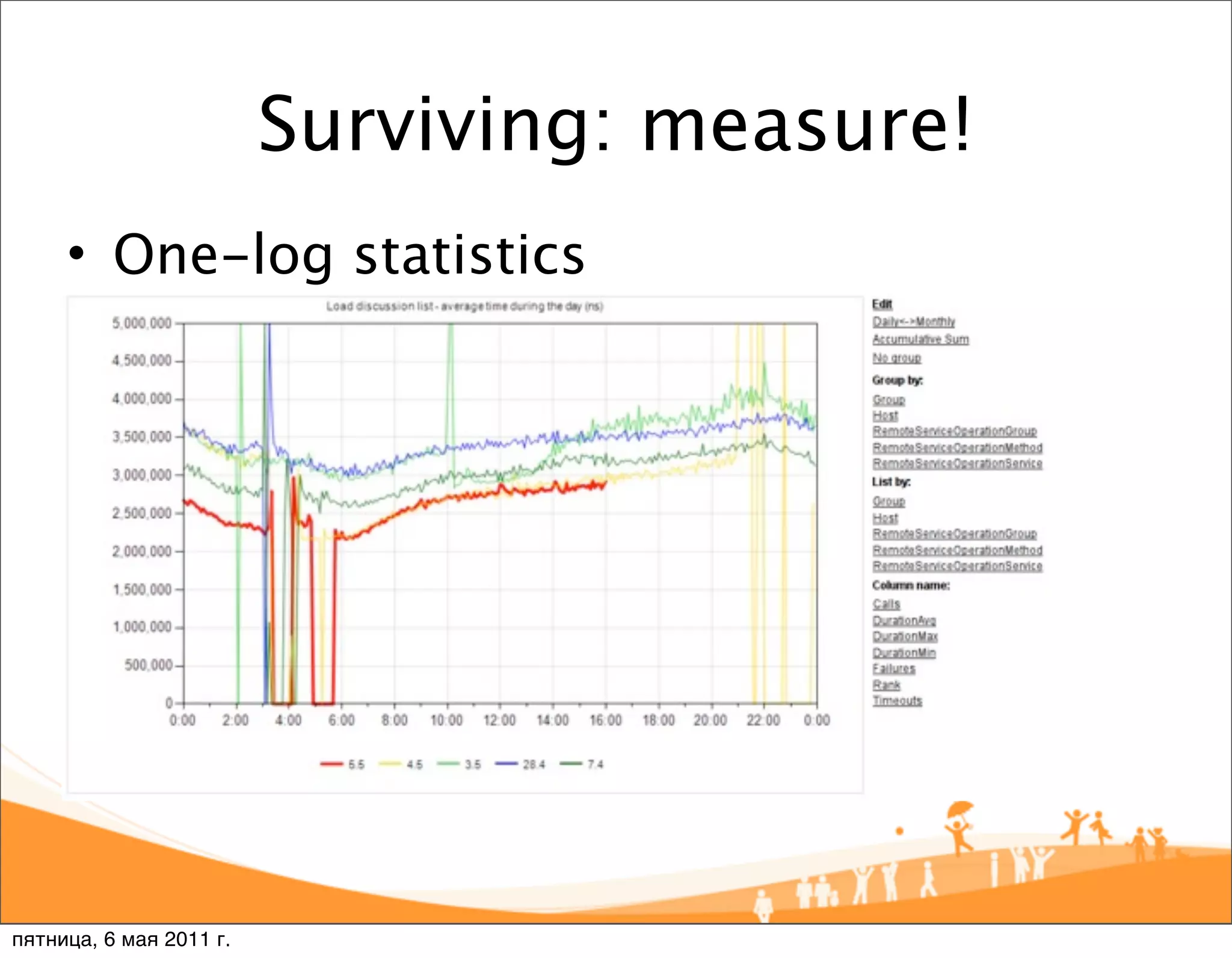

19. Surviving: measure!
• One-log statistics
пятница, 6 мая 2011 г.

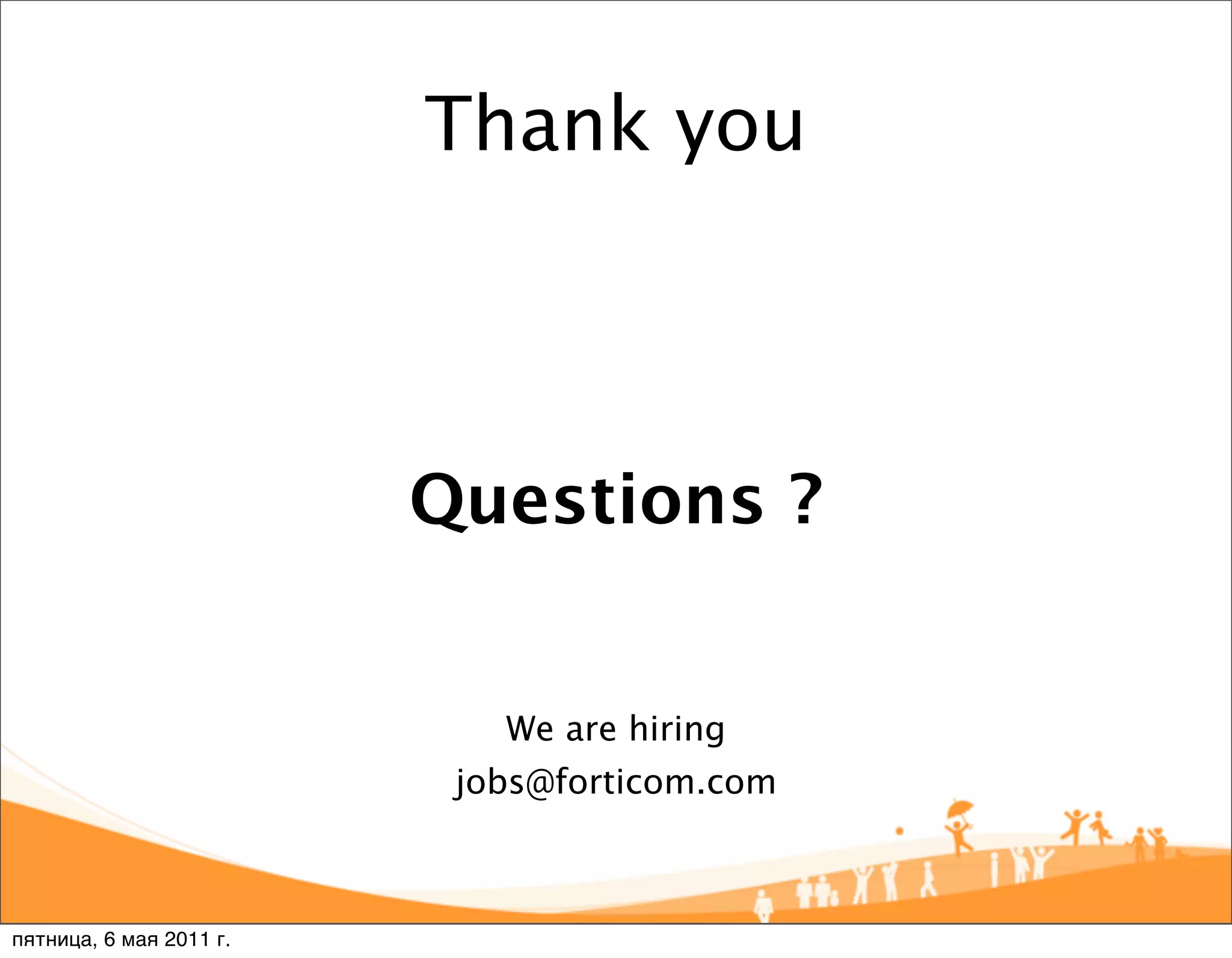

20. Thank you
Questions ?
We are hiring
jobs@forticom.com
пятница, 6 мая 2011 г.

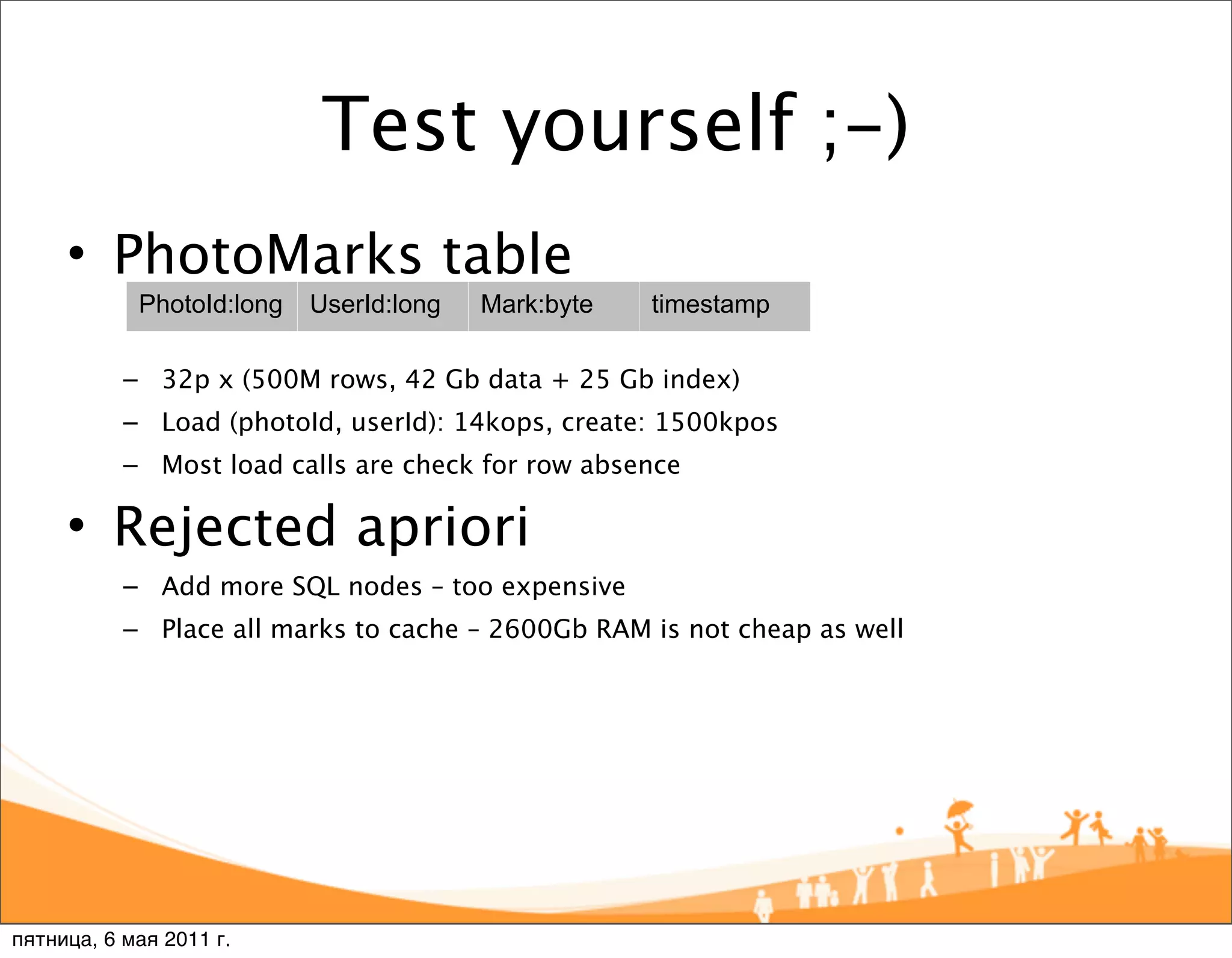

21. Test yourself ;-)
• PhotoMarks table
PhotoId:long UserId:long Mark:byte timestamp
– 32p x (500M rows, 42 Gb data + 25 Gb index)
– Load (photoId, userId): 14kops, create: 1500kpos
– Most load calls are check for row absence
• Rejected apriori
– Add more SQL nodes – too expensive
– Place all marks to cache – 2600Gb RAM is not cheap as well
пятница, 6 мая 2011 г.
