1. Implementing OAuth

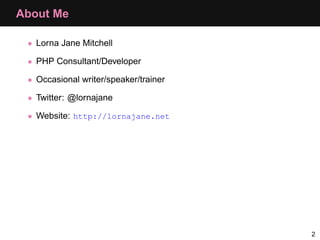

2. About Me
• Lorna Jane Mitchell
• PHP Consultant/Developer
• Occasional writer/speaker/trainer
• Twitter: @lornajane
• Website: http://lornajane.net
2

3. About Me
• Lorna Jane Mitchell
• PHP Consultant/Developer
• Occasional writer/speaker/trainer
• Twitter: @lornajane
• Website: http://lornajane.net
• I am excited about OAuth :)
2

4. About This Talk
• Covering OAuth1 and OAuth2
• OAuth1 needs more explanation
• OAuth v1.0a is current stable
• OAuth2 in use by Google, Facebook and others
• Ask questions at any time
3

5. About OAuth
• Provider has User data
• User wants data to be available to 3rd party
• User tells Provider to grant access to Consumer
• Access may be limited
• User can revoke at any time
• Provider can distinguish between User and Consumer
4

6. OAuth Terminology
Provider The app with the interesting data
Consumer The app that wants the data
User Who the data belongs to
Token Random string
Secret Another random string, linked to a token
Verifier Another random string
5

7. OAuth HowTo

8. OAuth Dance
7

9. Dance Steps
• Step 0: Register as a consumer
• Step 1: Get a request token
• Step 2: Send the user to authenticate
• Step 3: Swap their verification for an access token
• Step 4: Consume data
8

10. Step 0: Register
• Akin to registering for an API key
• Introduce the Provider and Consumer
9

11. Step 1: Get A Request Token
Consumer asks for a request token from the Provider’s request token
endpoint, specifying the callback URL
We give the token to the user and send them to log in
10

12. Step 2: User Grants Access
We send the user to the Provider, with the request token, to log in
11

13. Step 2: User Grants Access
We send the user to the Provider, with the request token, to log in
The Provider returns them to us, at the callback URL, with a verifier code
11

14. Devices Where Callback Won’t Work
It is hard to forward a user from a browser back to an app
• Instead we use "oob" as the callback parameter
• Provider displays verifier on screen
• User types code into app manually
12

15. Step 3: Get an Access Token
Consumer makes a request to Provider’s access token endpoint with:
• Consumer key
• Request token
• Verifier
13

16. Step 3: Get an Access Token
Consumer makes a request to Provider’s access token endpoint with:
• Consumer key
• Request token
• Verifier
13

17. OAuth Theory

18. Transmitting OAuth Parameters
We have three choices:
• As query parameters on the URL
• Use an Authorization Header
• Include the data as POST data
15

19. OAuth Request Token Fields
Asking for a request token looks like this:
https://api.login.yahoo.com/oauth/v2/
get_request_token?oauth_nonce=ce2130523f788f313f76314ed3965ea6
&oauth_timestamp=1202956957
&oauth_consumer_key=123456891011121314151617181920
&oauth_signature_method=plaintext
&oauth_signature=abcdef
&oauth_version=1.0
&oauth_callback="http://yoursite.com/callback"
http://developer.yahoo.com/oauth/guide/oauth-requesttoken.html
We supplied the oauth_consumer_key and oauth_callback but what are these
other fields?
16

20. OAuth Request Token Fields
• signature method: How the request is signed. Typically
plaintext or HMAC-SHA1
17

21. OAuth Request Token Fields
• signature method: How the request is signed. Typically
plaintext or HMAC-SHA1
• nonce: Cryptographic term meaning "Number Used Once". We
think of a number, then throw it away
17

22. OAuth Request Token Fields
• signature method: How the request is signed. Typically
plaintext or HMAC-SHA1
• nonce: Cryptographic term meaning "Number Used Once". We
think of a number, then throw it away
• timestamp: Number of seconds since the epoch
17

23. OAuth Request Token Fields
• signature method: How the request is signed. Typically
plaintext or HMAC-SHA1
• nonce: Cryptographic term meaning "Number Used Once". We
think of a number, then throw it away
• timestamp: Number of seconds since the epoch
• version: 1.0 in this instance (more on OAuth2 later)
17

24. OAuth Request Token Fields
• signature method: How the request is signed. Typically
plaintext or HMAC-SHA1
• nonce: Cryptographic term meaning "Number Used Once". We
think of a number, then throw it away
• timestamp: Number of seconds since the epoch
• version: 1.0 in this instance (more on OAuth2 later)
• signature:
17

25. OAuth Request Token Fields
• signature method: How the request is signed. Typically
plaintext or HMAC-SHA1
• nonce: Cryptographic term meaning "Number Used Once". We
think of a number, then throw it away
• timestamp: Number of seconds since the epoch
• version: 1.0 in this instance (more on OAuth2 later)
• signature:
If you care, read this: http://bit.ly/gTJGPZ
17

26. Practical Examples

27. OAuth Tools
PHP tools for OAuth:
• Pecl OAuth
• http://uk2.php.net/manual/en/class.oauth.php
• Talk examples use this
• Zend OAuth
• http://framework.zend.com/manual/en/zend.oauth.html
19

28. Providing and Consuming OAuth
• Consuming:
• relatively easy
• used for authenticating against e.g. twitter
• Providing:
• more overhead than consuming
• great way to give access to applications
• needs multiple pages and endpoints as well as the API itself
Provider code with dark background
Consumer code with a blue background
20

29. Provider: Auxiliary Web Pages
There are some additional functions to provide as a provider:
• Consumer signup page, like an API key
• User authorisation step to allow/deny access for this consumer
• Rights management page so users can control/revoke access later
21

30. Provider: Step 0, Consumer Keys
This is straightforward
• Generate a key and a secret, store them
• Return them to the consumer to use
• Can use OAuth libraries, or not
$hash = sha1(mt_rand()); // there are many ways to do this
$consumer_key = substr($hash,0,30);
$consumer_secret = substr($hash,30,10);
22

31. Provider: Handling OAuth Requests With Pecl
For every incoming request, for tokens and in normal operation, we’ll have
code like this:
$this->provider = new OAuthProvider();
// set names of functions to be called by the extension
$this->provider->consumerHandler(array($this,'lookupConsumer'));
$this->provider->timestampNonceHandler(
array($this,'timestampNonceChecker'));
$this->provider->tokenHandler(array($this,'tokenHandler'));
// no access token needed for this URL only
$this->provider->setRequestTokenPath('/v2/oauth/request_token');
$this->provider->checkOAuthRequest();
23

32. Step 1
consumer key, callback
Consumer Provider
request token, request secret
24

33. Consumer: Step 1, Request Token
$config = array();
$config['request_uri'] = 'http://api.local/v2/oauth/request_token';
$config['consumer_key'] = 'akey';
$config['consumer_secret'] = 'asecret';
$oauth = new OAuth($config['consumer_key'],
$config['consumer_secret']
);
$oauth->setAuthType(OAUTH_AUTH_TYPE_URI);
$req = $oauth->getRequestToken($config['request_uri'], "oob");
25

34. Provider: Step 1, Request Token Request
• Check oauth signature and consumer key
• Generate a request token and store it
• Return the request token
26

35. Provider: Step 1, Generate Request Token
Retrieve the callback, and make the token and secret:
// remember we're in URI mode
parse_str($_SERVER['QUERY_STRING'], &$parameters);
$callback = $parameters['oauth_callback'];
$request_token = bin2hex($provider->generateToken(4));
$request_token_secret = bin2hex($provider->generateToken(12));
We then simply echo the resulting variables in query format, e.g.
echo 'login_url = http://api.joindin.local/user/oauth_allow?' .
'request_token = ' . $request_token .
'&request_token_secret = ' . $request_token_secret .
'&oauth_callback_confirmed = true';
27

36. Storing Request Tokens
Storage is simple, again, you know all this
+----------------------+--------------+
| Field | Type |
+----------------------+--------------+
| id | int(11) |
| consumer_key | varchar(30) |
| request_token | varchar(8) |
| request_token_secret | varchar(32) |
| callback | varchar(400) |
| verification | varchar(20) |
| authorised_user_id | int(11) |
| created_date | timestamp |
+----------------------+--------------+
28

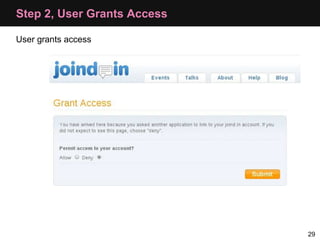

37. Step 2, User Grants Access
User grants access
29

38. Provider: Step 2, Granting/Denying Access
User grants access:
• store user id against request token
• generate a verifier code and store that too
User denies access:
• delete request token
30

39. Step 2, For Devices
Instead of forwarding the user, give them a code to use
31

40. Step 3
consumer key,
request token, verifier
Consumer Provider
access token
32

41. Consumer: Step 3, Request an Access Token
$oauth = new OAuth($config['consumer_key'],
$config['consumer_secret']);
// request token, request token secret and verification all set
// by earlier steps, and loaded into $config
try{
$oauth->setToken(
$config['request_token'],
$config['request_token_secret']);
$access = $oauth->getAccessToken($config['access_uri'], null,
$config['verification']);
} catch (OAuthException $e) {
echo $e->getMessage();
}
33

42. Provider: Step 3, Generate Access Token
Generate and store access token and secret, then return:
echo "oauth_token=" . $tokens['oauth_token']
. '&oauth_token_secret=' . $tokens['oauth_token_secret'];
34

43. Storing Access Tokens
+---------------------+-------------+
| Field | Type |
+---------------------+-------------+
| id | int(11) |
| consumer_key | varchar(30) |
| access_token | varchar(16) |
| access_token_secret | varchar(32) |
| user_id | int(11) |
| created_date | timestamp |
| last_used_date | datetime |
+---------------------+-------------+
35

44. Step 4
consumer key,
access token, API request
Consumer Provider
API response
36

45. Consumer: Step 4, Subsequent Requests
$oauth = new OAuth($config['consumer_key'],
$config['consumer_secret']);
// from the getAccessToken call
$oauth->setToken($oauth_token, $oauth_token_secret);
$result = $oauth->fetch("http://api.local/usual/call/here");
if($result) {
$response = $oauth->getLastResponse();
}
37

46. Debugging
• For pecl_oauth:
• Use OAuth::enableDebug() to turn on verbose debugging
• The debug information is available in OAuth::debugInfo
• For the provider, use OAuthProvider::reportProblem()
• Wireshark or Charles Proxy
• http://www.wireshark.org/
• http://www.charlesproxy.com/
38

47. Other OAuth Types

48. 3-legged OAuth
So far we have discussed 3-legged OAuth
• Three parties are involved
• Consumer
• Provider
• User
40

49. 2-legged OAuth
2-legged OAuth is also an option
• Only two parties involved now
• Provider
• User/Client
• Step 0: User signs up for credentials similar to consumer key/secret
• Step 4: User makes request using
• their key and secret
• empty token details
41

50. OAuth 2
• Same principles and intention
• Spec still at draft stage officially
• Used by Google, Facebook and others
• Aims to be less complicated than OAuth 1
• Intended to be more scalable - provider split into resources and auth
servers
• No signing, SSL recommended instead
42

51. OAuth2 Outline
+--------+ +---------------+
| |--(A)- Authorization Request ->| Resource |
| | | Owner |
| |<-(B)-- Authorization Grant ---| |
| | +---------------+
| |
| | Authorization Grant & +---------------+
| |--(C)--- Client Credentials -->| Authorization |
| Client | | Server |
| |<-(D)----- Access Token -------| |
| | +---------------+
| |
| | +---------------+
| |--(E)----- Access Token ------>| Resource |
| | | Server |
| |<-(F)--- Protected Resource ---| |
+--------+ +---------------+
Diagram from OAuth2 spec
http://tools.ietf.org/html/draft-ietf-oauth-v2-15
43

52. Authorization Grant
Can take many forms
• Username and password
• used once to obtain an access token
• or just used as access token
• Client credentials
• client has prearranged access to the resource
• Implicit
• an access token provided some other way
• Authorization Code
• similar to OAuth 1, send user to talk to Auth Server and get
verification codes
44

53. Access Tokens and Refresh Tokens
Refresh Tokens are an optional addition to OAuth 2
• Auth Server can return a refresh token with an access token
• Refresh token has longer validity
• Can be exchanged for an access token when combined with other
details
• Compare with re-entering your password at intervals
45

54. The State of OAuth
• OAuth 1
• already in use
• a faff!
• OAuth 2
• still being finalised
• different approach to same problem
46

55. Questions?

56. Resources
• PHP Manual: http://uk2.php.net/manual/en/book.oauth.php
• Rasmus’ OAuth Provider Example: http://bit.ly/i76Tzx
• Yahoo Developer Network Documentation:
http://developer.yahoo.com/oauth/guide/
• Eran Hammer-Lahav’s blog: http://hueniverse.com
• 2-legged OAuth post: http://bit.ly/ejQRoK
• OAuth 2 Draft Spec:
http://tools.ietf.org/html/draft-ietf-oauth-v2-15
48

57. Thanks!
Thanks!
http://joind.in/3243/
@lornajane
http://lornajane.net/
49
