The document discusses identity management protocols OpenID and OAuth. OpenID allows users to use a single digital identity across multiple websites, while OAuth allows websites to grant third party applications access to user data without sharing passwords. The document outlines the roles, flows, and differences between the two protocols, and proposes a project to implement an OAuth service provider and consumer as an example.

1. Identity on the Web
OpenID vs OAuth
Identity Management in SOA
Richard Metzler
May 2010
1

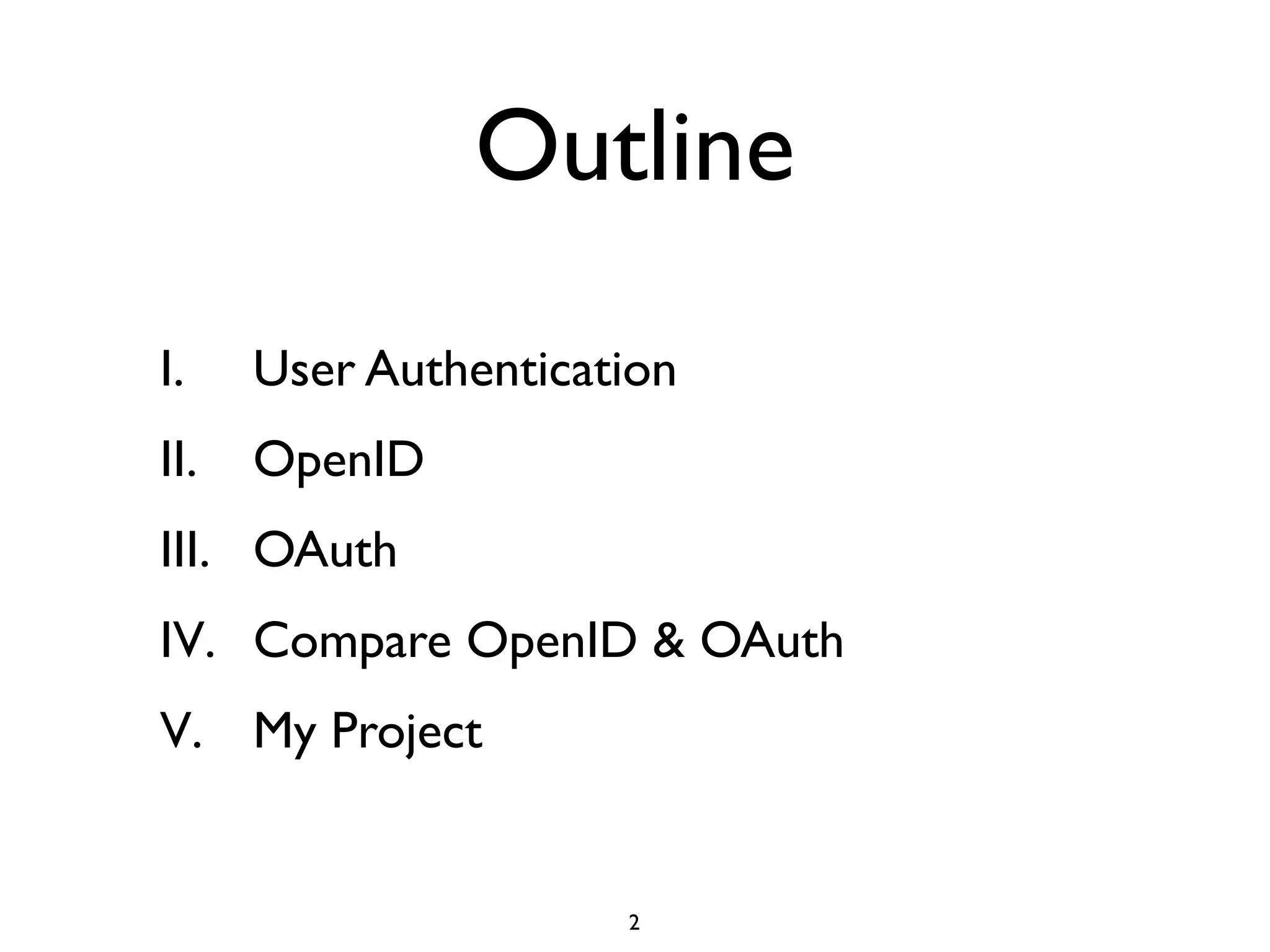

2. Outline
I. User Authentication
II. OpenID
III. OAuth
IV. Compare OpenID & OAuth
V. My Project
2

3. User Authentication
3

4. User Authentication
• every single website needs my credentials
• username / e-mail
• password
• should be secure
• should not be reused
• how to remember?
4

5. Resulting Problems
• identity is scattered
• passwords
• millions to remember vs recycling
• how to authorize third party access?
➡ Password Anti-Pattern
5

6. OpenID
6

7. OpenID
• sharing a single identity with different
consumers
• decentralized
• OpenID 2.0 (without XRI)
http://openid.net/
7

8. Roles in OpenID
• User owns account at
OpenID Provider
• User proves Identity
to Relying Party
8

9. OpenID Flow
http://www.openaselect.org/trac/openaselect/wiki/OpenID
9

10. Sign in with
OpenID Identifier
10

11. Discovery & Delegation
obtain OP Endpoint
11

12. Establish Association
• shared secret between Relying Party &
OpenID Provider
• Diffie Hellman Key Exchange
• (g^xa)^xb mod p = (g^xb)^xa mod p
http://en.wikipedia.org/wiki/Diffie%E2%80%93Hellman_key_exchange
12

13. Redirect User Agent to
OP Endpoint
13

14. Redirect User Agent to
OP Endpoint
14

15. Return URL Verification
• OpenId Provider checks:
• do Realm and return_to URL match?
15

16. User Authentification
16

17. OpenID Provider
presents Realm
17

18. Redirect User Agent to
OP Endpoint URL
18

19. Redirect User Agent to
OP Endpoint URL
19

20. Verification
• Relying Party checks:
• return_to URL
• OpenID Identifier
• was Nonce never used before?
• fields signed, signature valid
20

21. Logged in
21

22. OpenID Flow
http://www.openaselect.org/trac/openaselect/wiki/OpenID
22

23. OAuth
23

24. OAuth
• sharing your data without sharing your
password
• centralized
• OAuth 1.0a (current version)
• Draft for OAuth 2.0
http://oauth.net/
24

25. Roles
• User owns Resource at
Service Provider
• User grants
Consumer access to
Resource
25

26. OAuth Dance
http://fireeagle.yahoo.net/developer/documentation/web_auth
26

27. Register Consumer,
get Consumer Key
• manually register Consumer at Service
Provider
• identified by Token / Secret
• Callback URL
• all subsequent Requests must be signed
with Secret, Nonce & Timestamp
27

28. Sign in with OAuth
28

29. Get Request Token
• Consumer asks Service Provider for
Request Token
• Request Token identifies authorization
workflow
• not user specific
• transmitted in URL when User Agent is
redirected
29

30. HTTP Redirect to
Service Provider
30

31. HTTP Redirect to
Service Provider
31

32. Authenticate
32

33. Grant Access
33

34. HTTP Redirect to
Consumer Callback
34

35. HTTP Redirect to
Consumer Callback
35

36. Get Access Token
• Consumer trades Request Token for Access
Token
• Access Token grants access to Service
Provider in behalf of User
• user specific
36

37. Logged in
37

38. Access Resource
• authenticated access on Resource
• must be signed
• Consumer Key
• OAuth Token
• Timestamp
• Nonce
38

39. OAuth Dance
http://fireeagle.yahoo.net/developer/documentation/web_auth
39

40. OpenId vs OAuth
40

41. Commonalities
• involves 3 parties
• open protocols - community driven
• HTTP based
• not mutual exclusive
41

42. Differences
• sharing: identity vs data resources
• decentralized vs centralized
• Consumer-Provider-Relationship:
• unknown vs well-known
42

43. My Project
43

44. My Project
• Implement OAuth Service Provider &
OAuth Consumer example
• API for manageable resources (ideas)
• profile pictures
• activity streams Atom feed extension
• RESTful API for editing RDF::FOAF data
http://activitystrea.ms/ http://www.foaf-project.org/
44

45. Questions?
45
