The document discusses the transition from today's electricity system to a 21st century smart grid. It notes that today's system is electromechanical, carbon-intensive, and lacks information and control. The vision for the future grid is that it will be information-rich, utilize distributed and automated operations, integrate clean technologies like storage, and enable end-user participation and smart homes/buildings. Game changing technologies like sensors, communications, and controls are driving this transformation to a more optimized, efficient and flexible grid.

1. Smart Grid - Building the 21st Century Grid
India Smart Grid
Delegation
September 15, 2011
Steve Hauser
Vice President
Grid Integration
NREL is a national laboratory of the U.S. Department of Energy Office of Energy Efficiency and Renewable Energy operated by the Alliance for Sustainable Energy, LLC

2. Today’s Electricity System
• Production follows
demand
• Largely
electromechanical
• High carbon/low storage
• Blind to
distribution/demand
• Very little information and
control
• Central planning, design
and operation
• Aging assets
National Renewable Energy Laboratory 2 Innovation for Our Energy Future

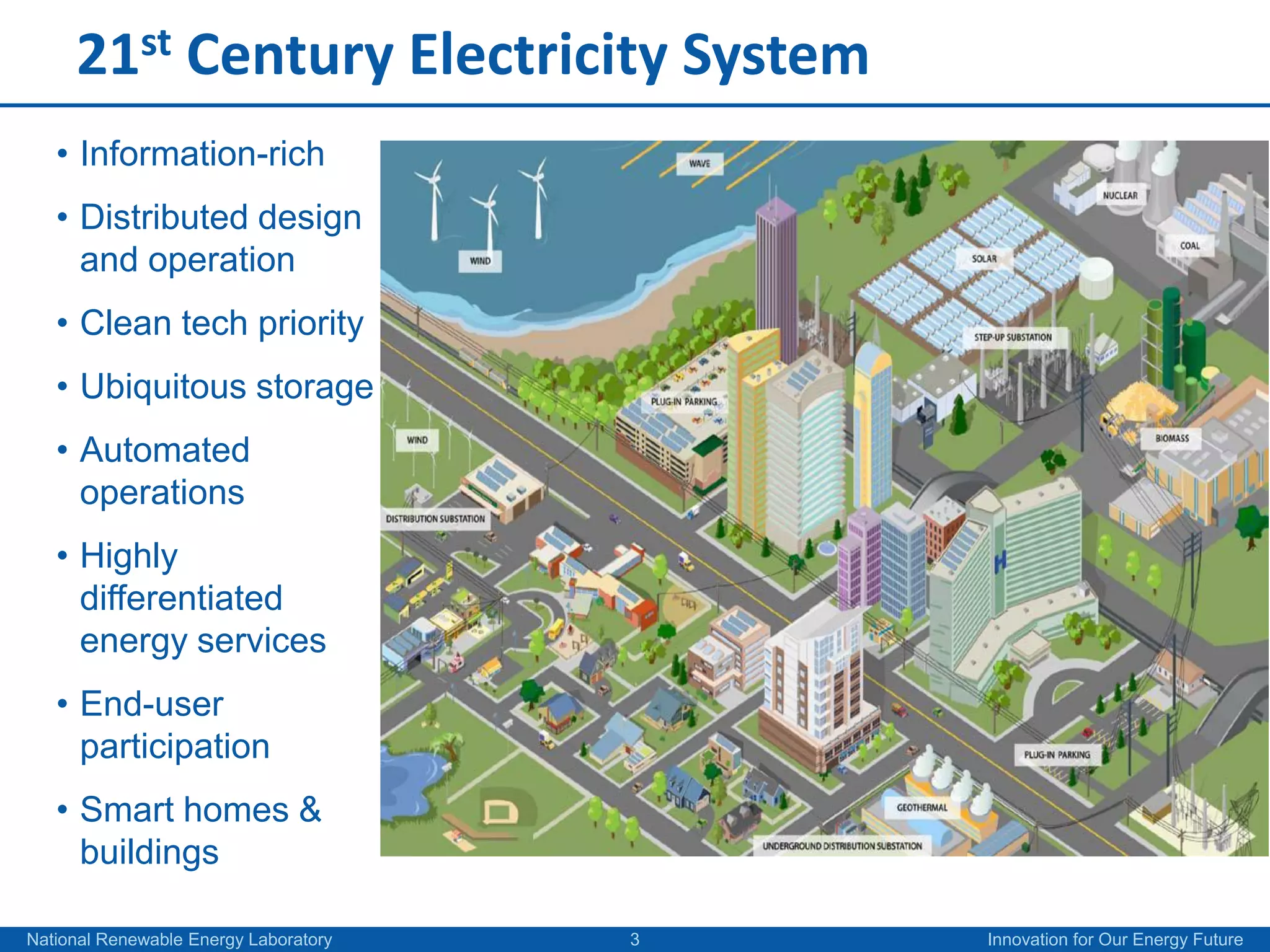

3. 21st Century Electricity System
• Information-rich
• Distributed design
and operation
• Clean tech priority
• Ubiquitous storage
• Automated
operations
• Highly
differentiated
energy services
• End-user
participation
• Smart homes &
buildings
National Renewable Energy Laboratory 3 Innovation for Our Energy Future

4. Changes Impact Power Delivery
National Renewable Energy Laboratory 4 Innovation for Our Energy Future

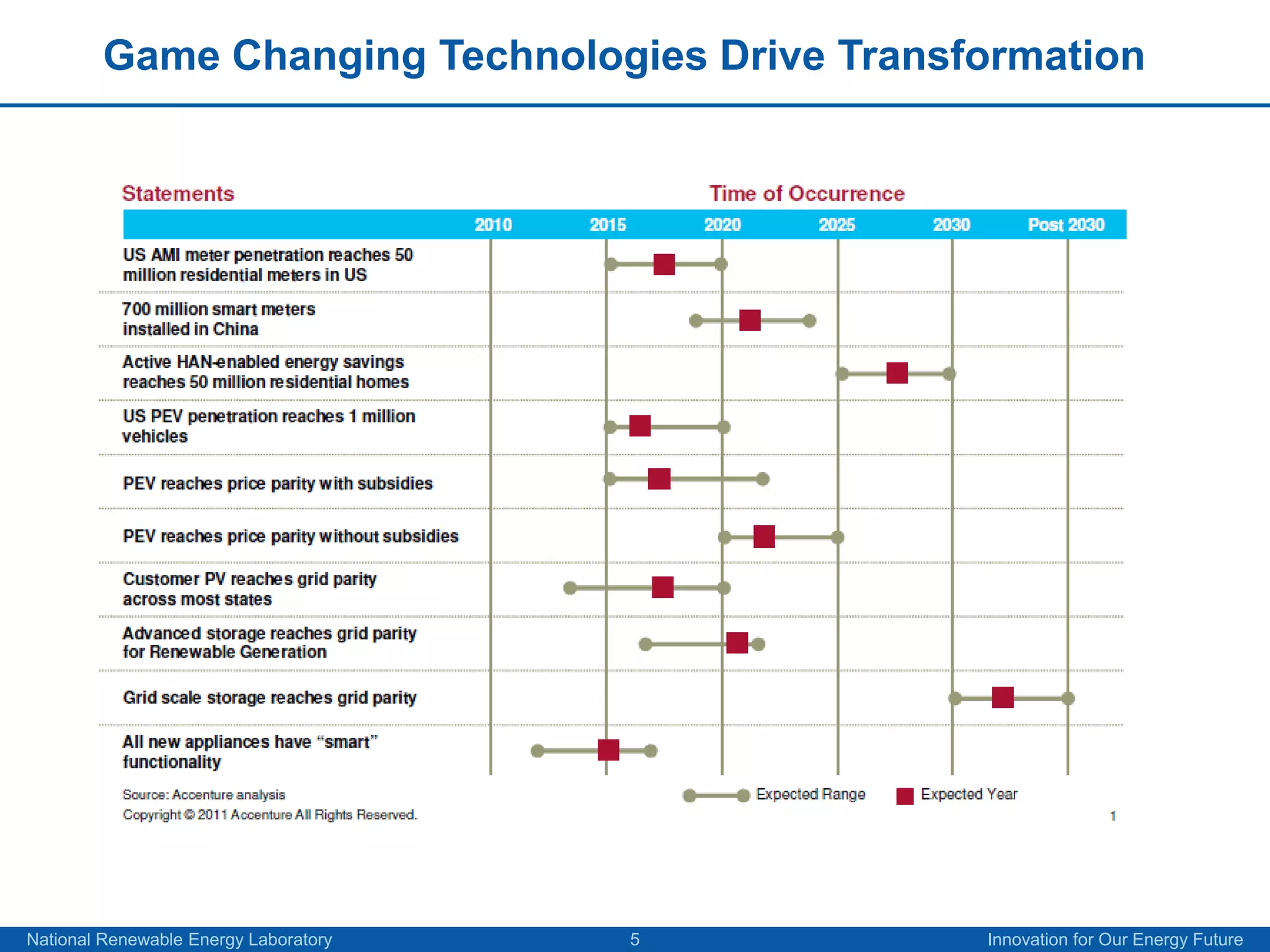

5. Game Changing Technologies Drive Transformation
National Renewable Energy Laboratory 5 Innovation for Our Energy Future

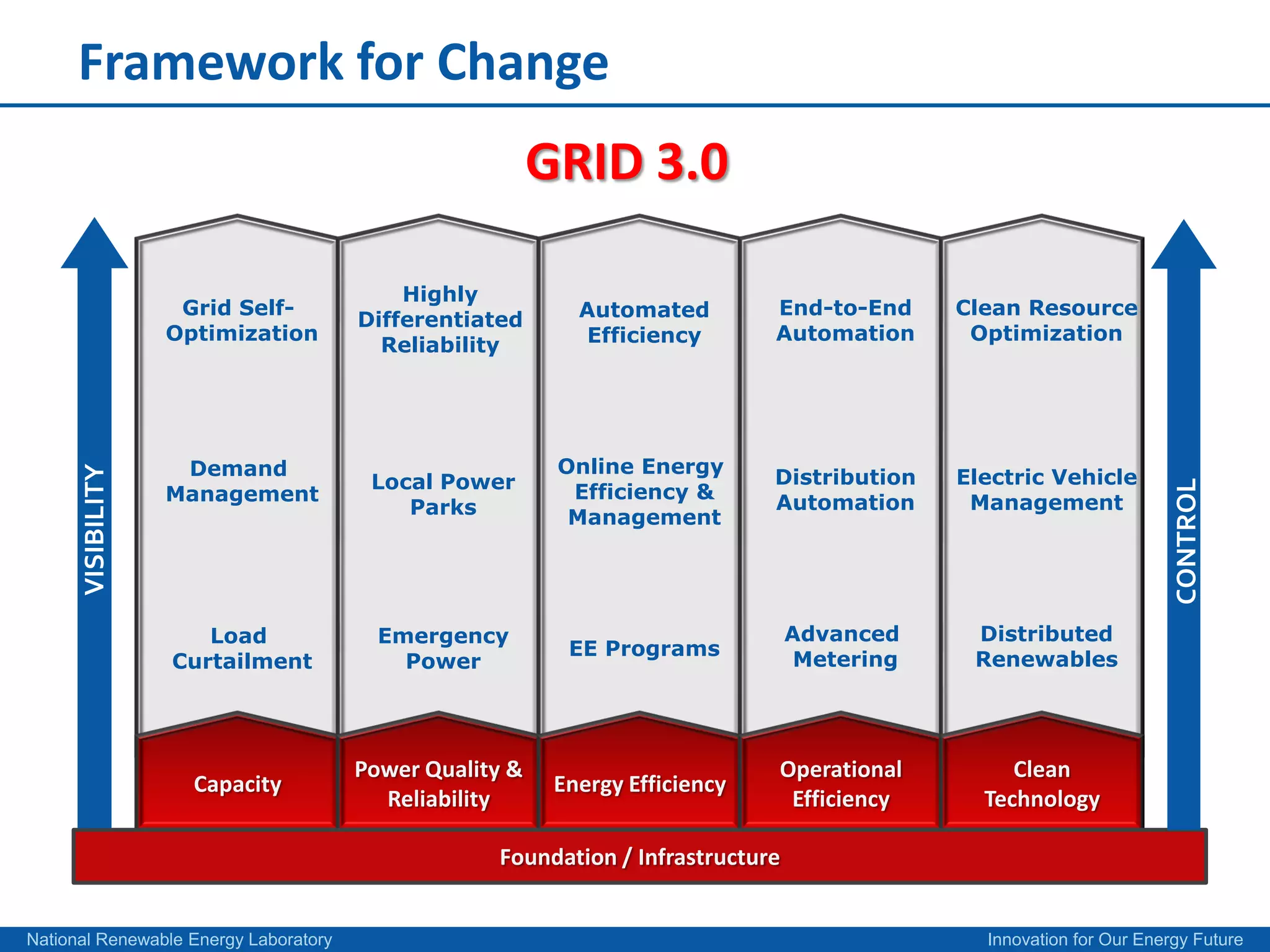

6. Framework for Change
GRID 3.0
Highly
Grid Self- Automated End-to-End Clean Resource
Differentiated
Optimization Efficiency Automation Optimization
Reliability
Demand Online Energy
Distribution Electric Vehicle
VISIBILITY
Local Power
CONTROL
Management Efficiency &
Parks Automation Management
Management
Load Emergency Advanced Distributed
EE Programs
Curtailment Power Metering Renewables
Power Quality & Operational Clean
Capacity Energy Efficiency
Reliability Efficiency Technology
Foundation / Infrastructure
National Renewable Energy Laboratory Innovation for Our Energy Future

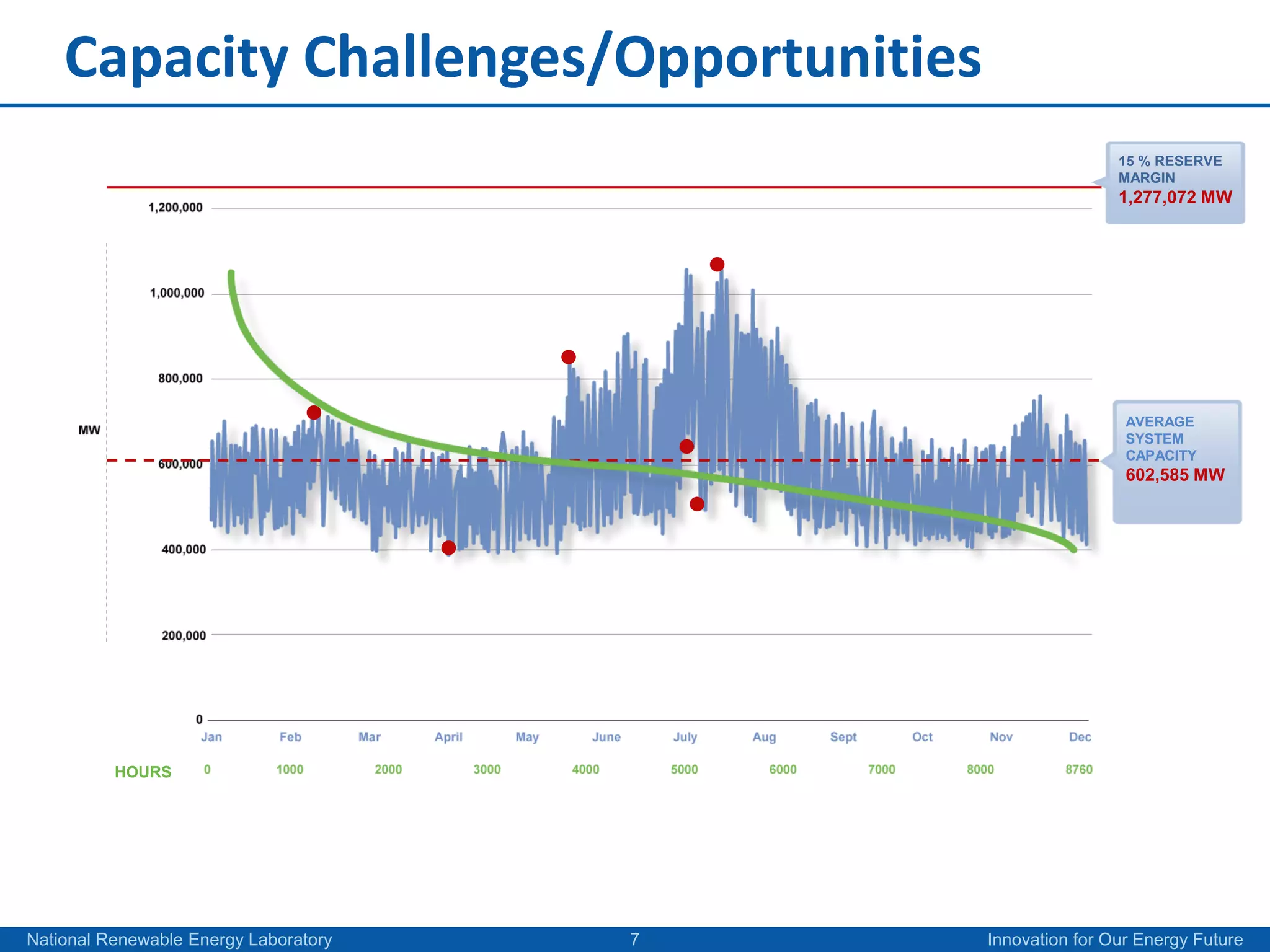

7. Capacity Challenges/Opportunities
15 % RESERVE
MARGIN
1,277,072 MW
AVERAGE
SYSTEM
CAPACITY
602,585 MW
HOURS
National Renewable Energy Laboratory 7 Innovation for Our Energy Future

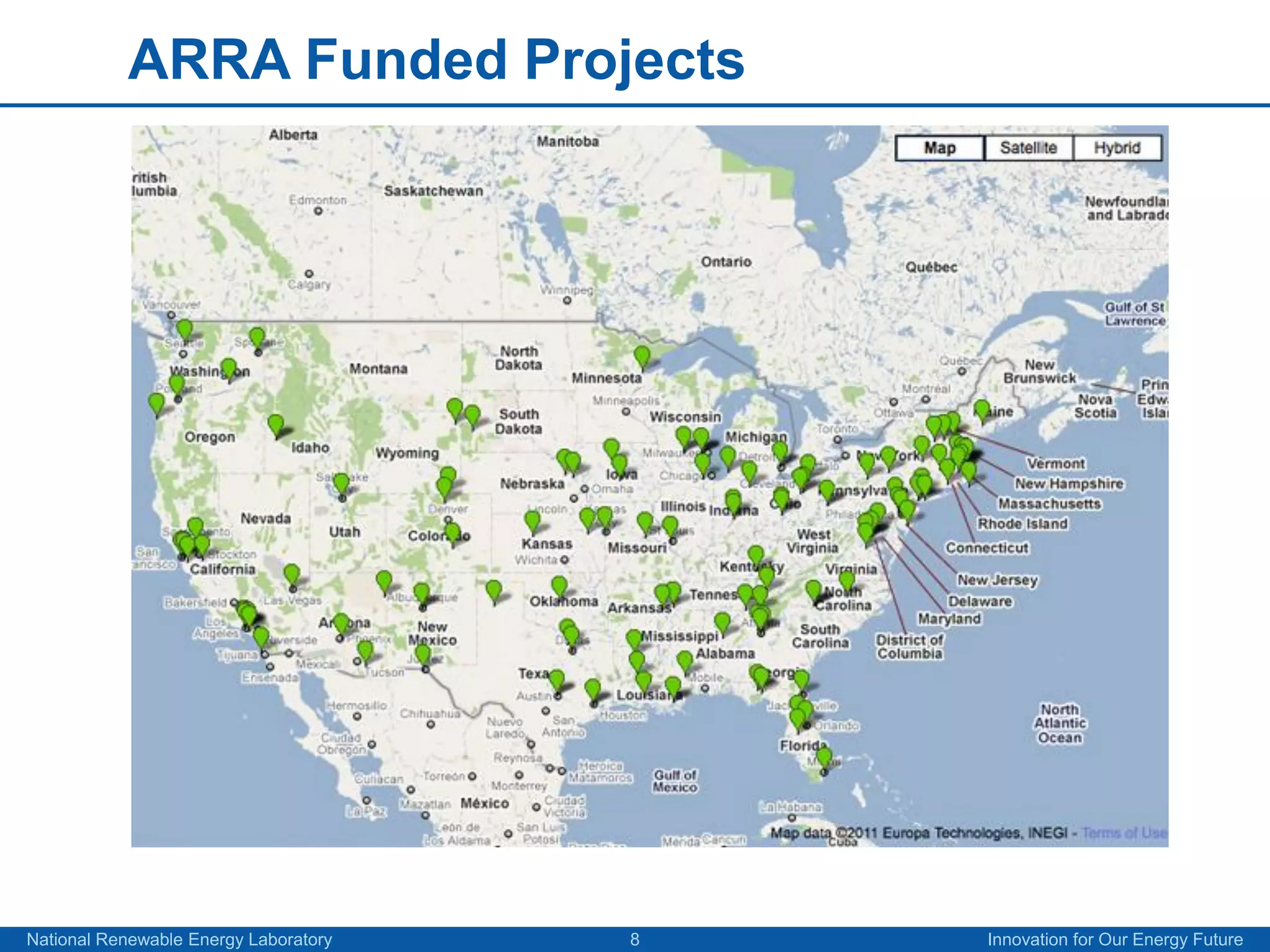

8. ARRA Funded Projects
National Renewable Energy Laboratory 8 Innovation for Our Energy Future

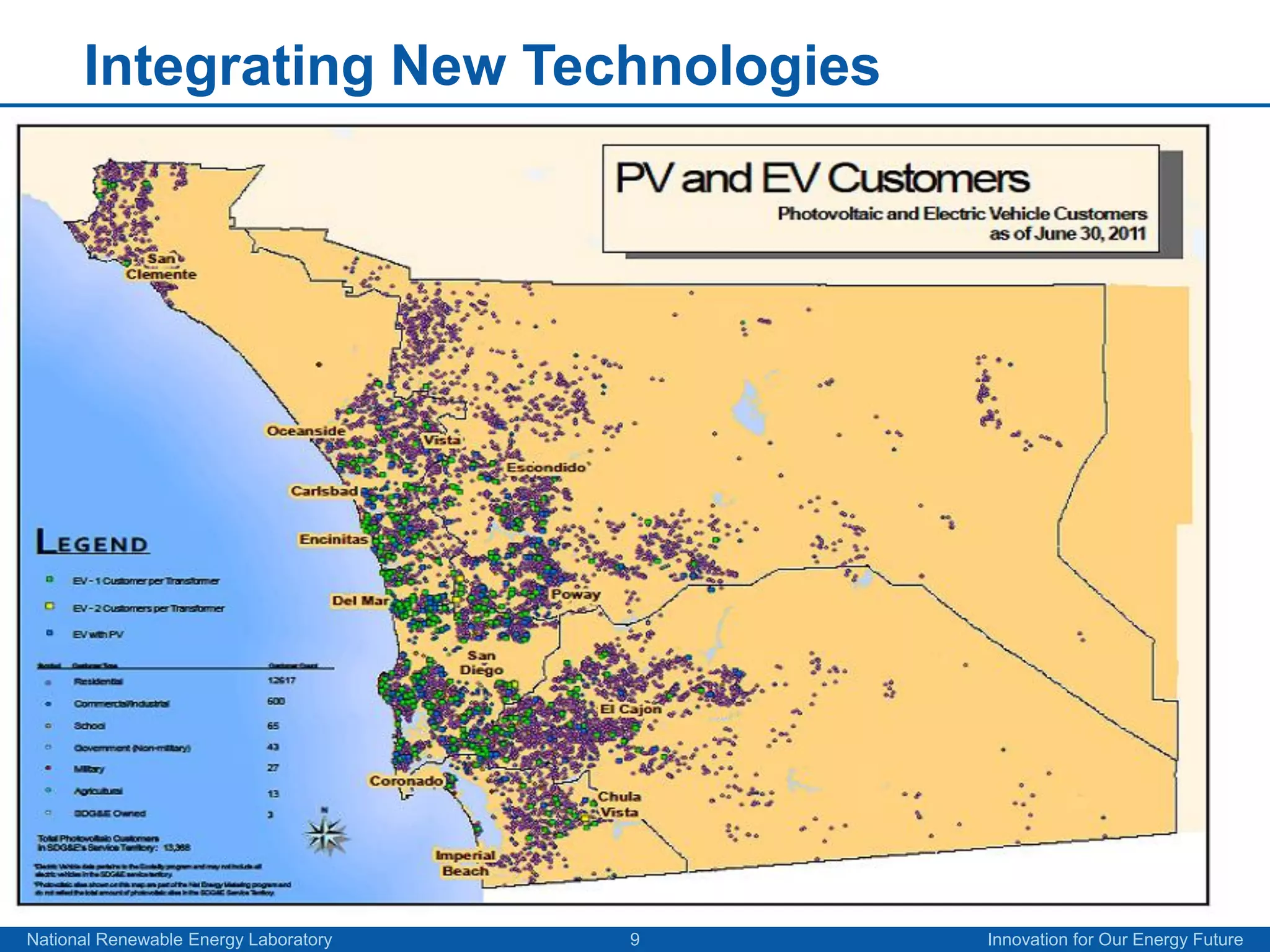

9. Integrating New Technologies
National Renewable Energy Laboratory 9 Innovation for Our Energy Future

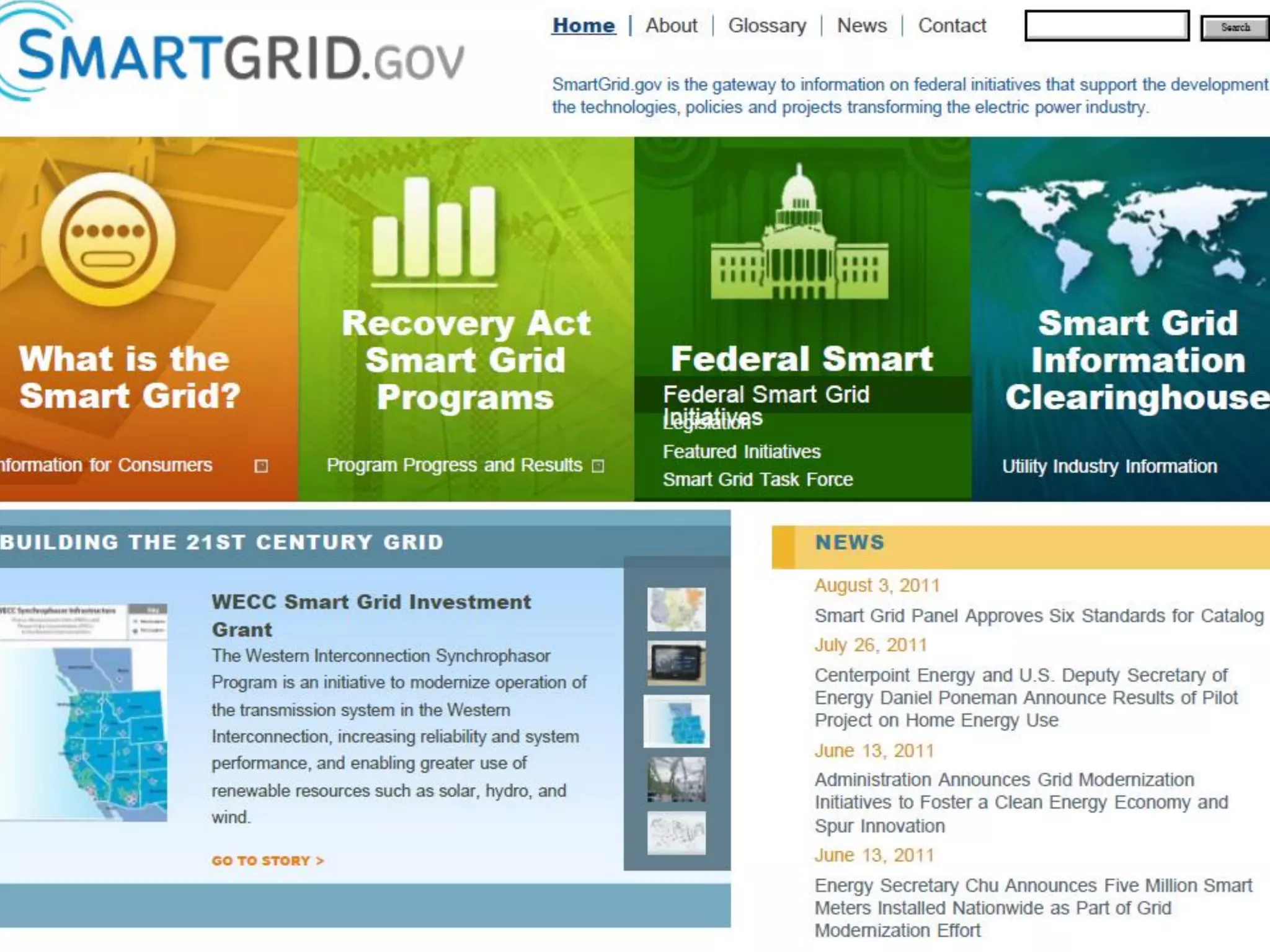

10. National Renewable Energy Laboratory 10 Innovation for Our Energy Future

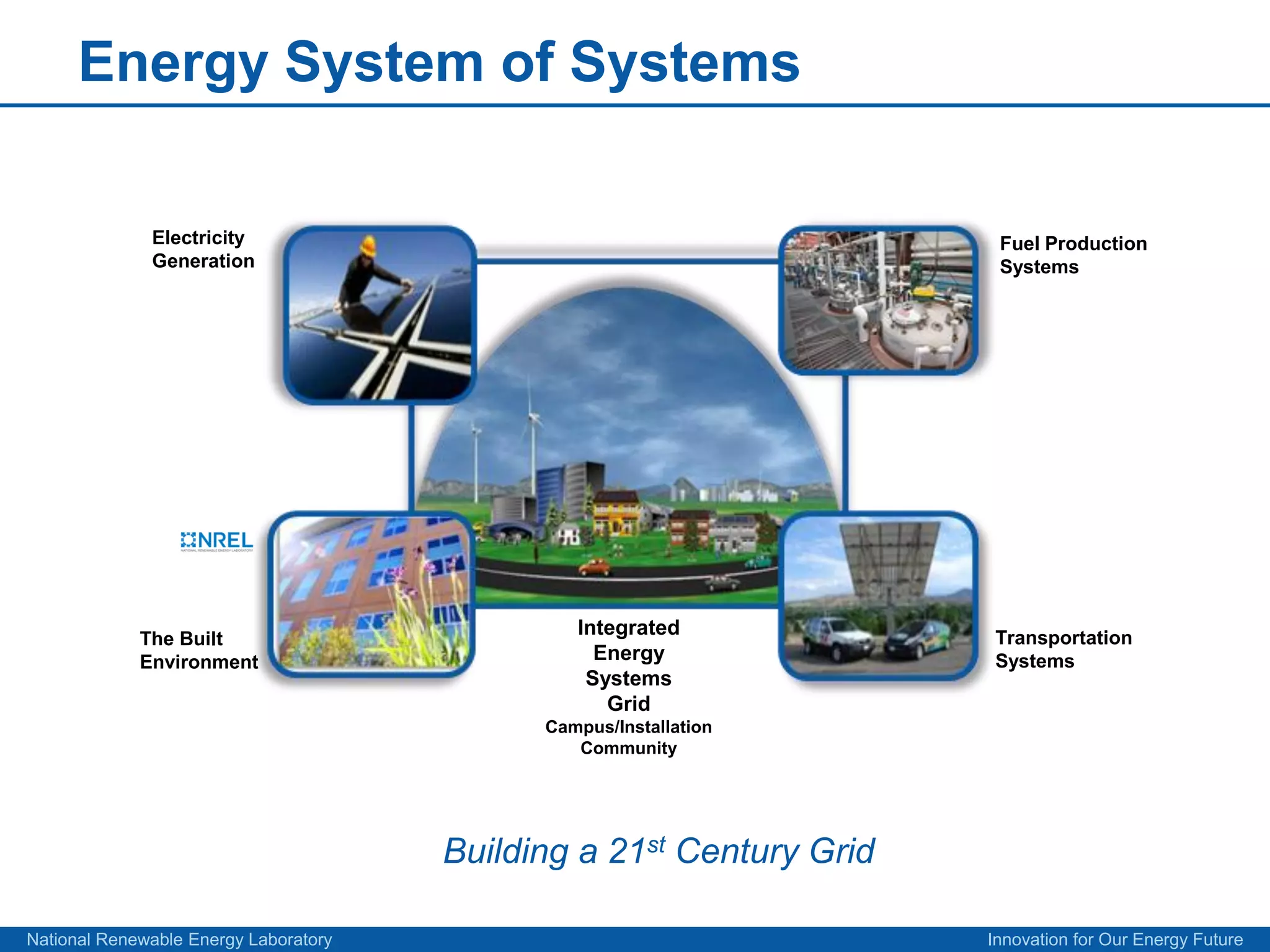

11. Energy System of Systems
Electricity Fuel Production
Generation Systems
Integrated Transportation
The Built
Environment Energy Systems
Systems
Grid
Campus/Installation
Community
Building a 21st Century Grid
National Renewable Energy Laboratory Innovation for Our Energy Future

12. National Renewable Energy Laboratory Innovation for Our Energy Future

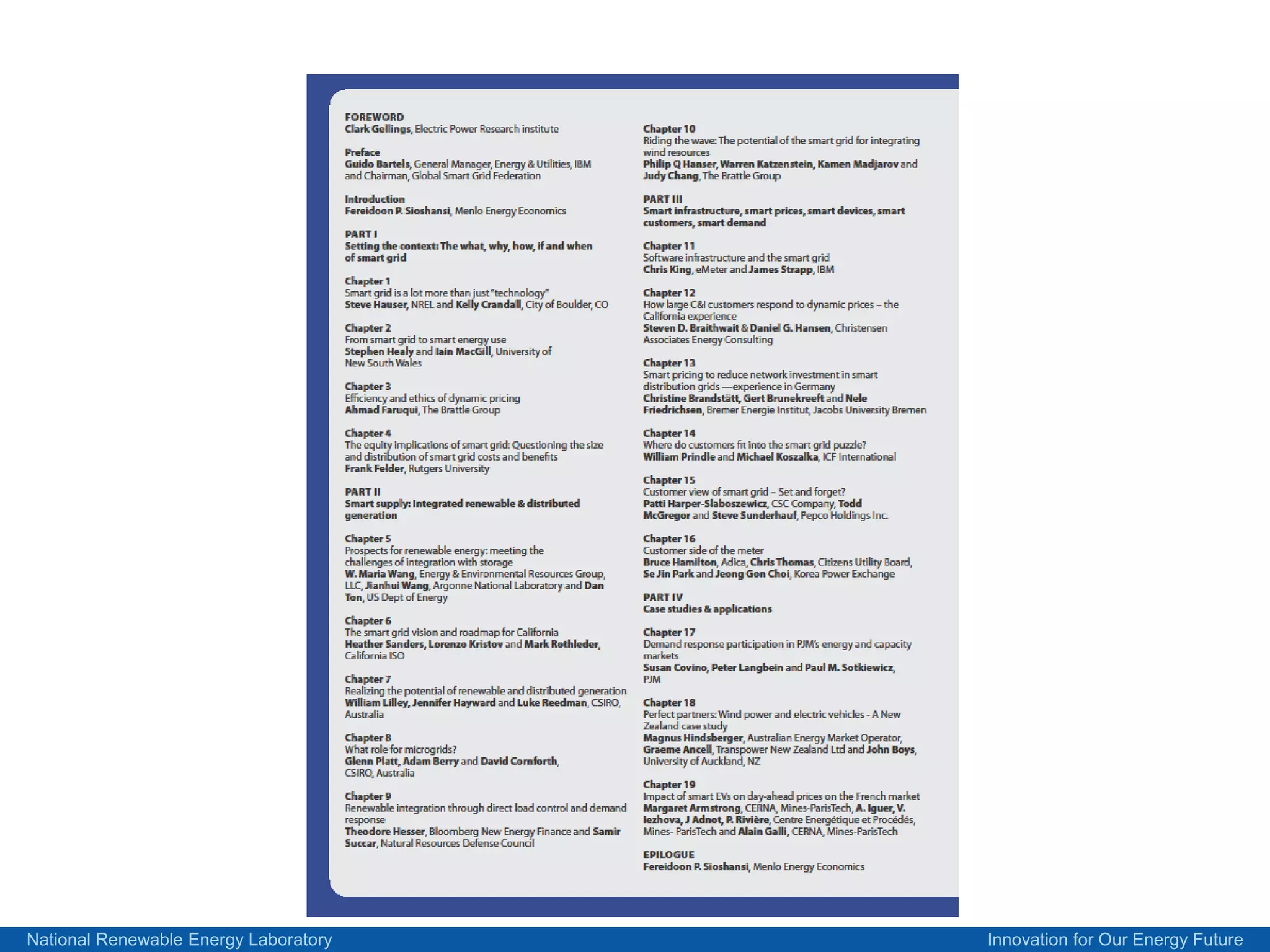

13. National Renewable Energy Laboratory Innovation for Our Energy Future

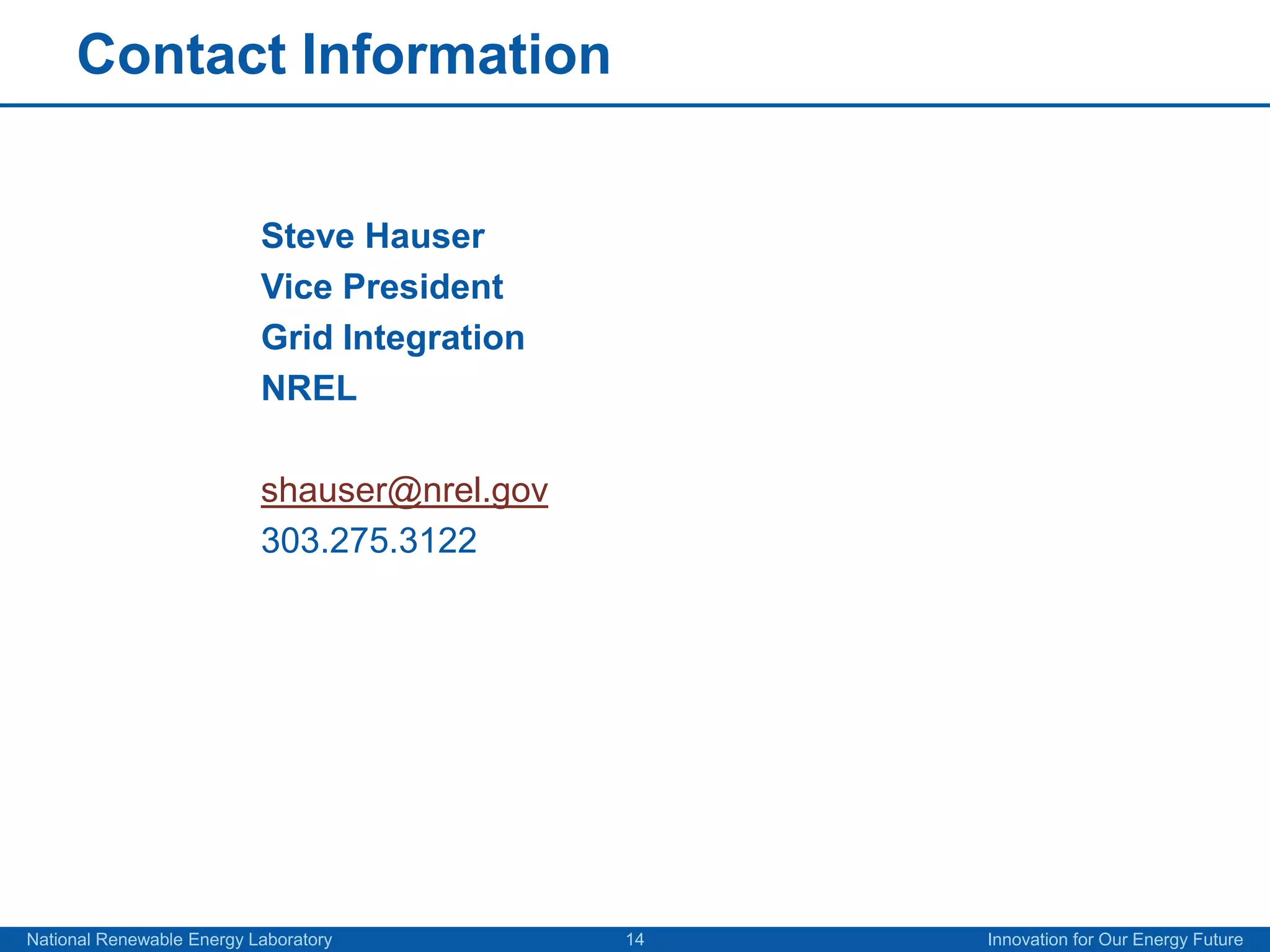

14. Contact Information
Steve Hauser
Vice President
Grid Integration
NREL
shauser@nrel.gov
303.275.3122
National Renewable Energy Laboratory 14 Innovation for Our Energy Future
