5G is the 5th generation of wireless technology that will offer faster speeds, increased bandwidth, and lower latency compared to previous generations. It aims to provide speeds over 1 Gbps, support a vastly greater number of connected devices, and enable new applications. Key technologies that will enable 5G include massive MIMO, ultra-dense networks, new multiple access techniques, support for all spectrum types, and new network architectures based on network function virtualization and software-defined networking. 5G will enable new use cases like connected vehicles, telemedicine, and the Internet of Things by supporting requirements for low latency, high reliability, and large connection densities.

1. 5G Network
&
Technology
By Nour Frikha & Becem Abid
2015-2016
2éme Année
GT
1

2. INTRODUCTION TO 5G
Lets watch video to have small idea about our presentation!
5G network & technology 2

3. Put a relevant subtitle in this line
COMPANY NAME
ABS.COM

4. • 5G Wireless: 5th generation wireless technology
• Complete wireless communication with almost no
limitations
• Can be called REAL wireless world
• Has incredible transmission speed
• Concept is only theory not real
What is 5G?
5G network & technology 4

5. What does it offer?
• Worldwide cellular phones
• Extraordinary data capabilities
• High connectivity
• More power & features in hand held
phones
• Provide more dialing speed, more clarity
in audio & video
5G network & technology 5

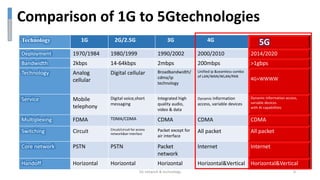

6. Technology 1G 2G/2.5G 3G 4G
5G
Deployment 1970/1984 1980/1999 1990/2002 2000/2010 2014/2020
Bandwidth 2kbps 14-64kbps 2mbps 200mbps >1gbps
Technology Analog
cellular
Digital cellular Broadbandwidth/
cdma/ip
technology
Unified ip &seamless combo
of LAN/WAN/WLAN/PAN
4G+WWWW
Service Mobile
telephony
Digital voice,short
messaging
Integrated high
quality audio,
video & data
Dynamic information
access, variable devices
Dynamic information access,
variable devices
with AI capabilities
Multiplexing FDMA TDMA/CDMA CDMA CDMA CDMA
Switching Circuit Circuit/circuit for access
network&air interface
Packet except for
air interface
All packet All packet
Core network PSTN PSTN Packet
network
Internet Internet
Handoff Horizontal Horizontal Horizontal Horizontal&Vertical Horizontal&Vertical
Comparison of 1G to 5Gtechnologies
5G network & technology 6

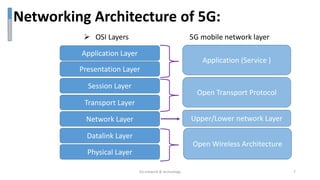

7. Networking Architecture of 5G:
 OSI Layers 5G mobile network layer
Application Layer
Presentation Layer
Session Layer
Transport Layer
Physical Layer
Application (Service )
Open Transport Protocol
Open Wireless Architecture
Upper/Lower network Layer
Datalink Layer
Network Layer
5G network & technology 7

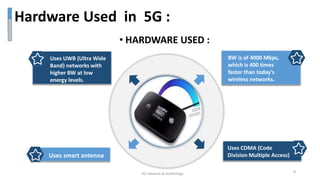

8. Hardware Used in 5G :
• HARDWARE USED :
Uses UWB (Ultra Wide
Band) networks with
higher BW at low
energy levels.
BW is of 4000 Mbps,
which is 400 times
faster than today’s
wireless networks.
Uses CDMA (Code
Division Multiple Access)Uses smart antenna
CRATIVE
5G network & technology 8

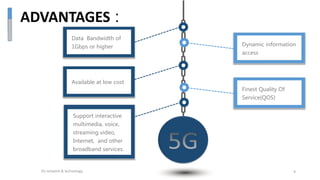

9. ADVANTAGES :
Data Bandwidth of
1Gbps or higher Dynamic information
access
Available at low cost
Support interactive
multimedia, voice,
streaming video,
Internet, and other
broadband services.
Finest Quality Of
Service(QOS)
5G network & technology 9

10. 5G Architecture
Internet
MMC
D2D / URC
MN
UDN
Aggregation Network (local, regional, national)
Massive
MIMO
Wireless access
Wireless fronthaul
Wired fronthaul
Wired backhaul
Internet access
C-RAN
CoMP
Mobile Core
– Centralized
Functions
+ OAM
C-RAN +
Mobile Core – Distributed Functions
(incl. optional local breakout or CDN)
Macro radio node*
Small cell radio node*, e.g.
micro, (ultra-)pico, femto
Note: Indoor cells not shown!
…
Centralized
or
distributed?
* Only Remote Radio Units (RRUs) assumed.
Local break out & Distributed mobile core
functions
Accelerated content delivery
Tech. Dependent
D2D, MMC (Massive Machine Comm.), Moving
Networks (MN), UDN Ultra-reliable Comm. (URC)
Amazingly Fast scenario
high data rates & network capacities
Ultra-Dense Networks (UDN)
ISD about 10 m
>= 1 radio nodes per room
5G network & technology
10

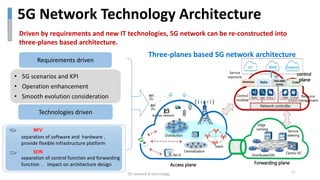

11. 5G Network Technology Architecture
Driven by requirements and new IT technologies, 5G network can be re-constructed into
three-planes based architecture.
Three-planes based 5G network architecture
Requirements driven
Technologies driven
• 5G scenarios and KPI
• Operation enhancement
• Smooth evolution consideration
Access plane Forwarding plane
control
plane
NFV
separation of software and hardware ，
provide flexible infrastructure platform
separation of control function and forwarding
function ，impact on architecture design
SDN
5G network & technology
11

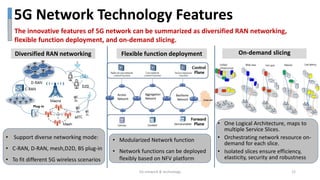

12. 5G Network Technology Features
The innovative features of 5G network can be summarized as diversified RAN networking,
flexible function deployment, and on-demand slicing.
• Support diverse networking mode:
• C-RAN, D-RAN, mesh,D2D, BS plug-in
• To fit different 5G wireless scenarios
Plug-in
Diversified RAN networking Flexible function deployment On-demand slicing
• Modularized Network function
• Network functions can be deployed
flexibly based on NFV platform
• One Logical Architecture, maps to
multiple Service Slices.
• Orchestrating network resource on-
demand for each slice.
• Isolated slices ensure efficiency,
elasticity, security and robustness
5G network & technology 12

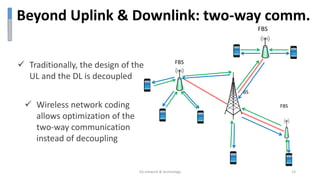

13.  Wireless network coding
allows optimization of the
two-way communication
instead of decoupling
Beyond Uplink & Downlink: two-way comm.
FBS
FBS
FBS
BS
5G network & technology 13
 Traditionally, the design of the
UL and the DL is decoupled

14. 5G Air Interface Technical Framework
• SCMA/PDMA/MUSA
• Massive MIMO
• Ultra-dense network
• All-spectrum access
• F-OFDM/UFMA/FBMC
• Flexible/Full duplex
• Polar codes
Optimized Solutions
• A unified, flexible, and configurable framework is needed to better balance the performance for
diverse scenarios and the implementation cost for standardization & industry.
Requirement Sets
• Scenarios & KPIs
• Available bands
• Equipment capability
• Cost requirement
Able to support various scenarios,
even including the future possible
new scenarios
• Configure the related technical modules and parameters
Duplex Antenna
Multiple access
Waveform
CodingModulation
Frame structure Channelization Protocol
5G Air Interface Technical Framework
5G network & technology 14

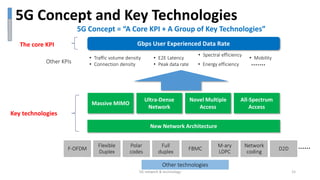

15. 5G Concept = “A Core KPI + A Group of Key Technologies”
5G Concept and Key Technologies
Massive MIMO
Ultra-Dense
Network
Novel Multiple
Access
All-Spectrum
Access
New Network Architecture
Gbps User Experienced Data RateThe core KPI
Key technologies
• Connection density
• Traffic volume density
• Spectral efficiency
• Energy efficiency
• Mobility
• Peak data rate
• E2E Latency
F-OFDM
Flexible
Duplex
Polar
codes
Full
duplex
FBMC
M-ary
LDPC
Network
coding
D2D
Other technologies
Other KPIs
5G network & technology 15

16. 5G Scenarios
Super real-time
and reliable
connections
Amazingly
fast
Great Service
in a crowd
Ubiquitous things
communicating
Best
experience
follows you
delay,
reliability
bit-rate,
delay Accessibility,
dense crowds
simple devices,
coverageAccessibility,
mobility
5G network & technology 16

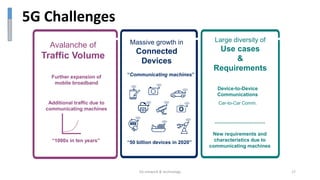

17. Large diversity of
Use cases
&
Requirements
Device-to-Device
Communications
Car-to-Car Comm.
New requirements and
characteristics due to
communicating machines
Avalanche of
Traffic Volume
Further expansion of
mobile broadband
Additional traffic due to
communicating machines
“1000x in ten years”
Massive growth in
Connected
Devices
“Communicating machines”
“50 billion devices in 2020”
5G Challenges
5G network & technology 17

18.  5G technology is going to be a new revolution in
 wireless systems market.
 5G will be User Centric.
 5G is the next frontier of innovation for entire mobile
industry.
 5G - a promising Generation of wireless communication that
will change people’s lives.
CONCLUSION
5G network & technology 18

19. Thanks for coming
Have a nice day
 THANK YOULET’S START QUESTION AND ANSWER
5G network & technology 19
