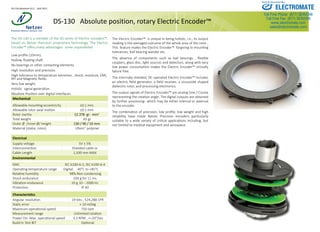

DS-130 Absolute position, rotary Electric Encoder™
DS-130-datasheet-V2.2 , AUG 2015
1
The DS-130 is a member of the DS series of Electric Encoders™,
based on Netzer Precision proprietary technology. The Electric
Encoder™ offers many advantages- some unparalleled
Low profile (10mm).
Hollow, floating shaft.
No bearings or other contacting elements.
High resolution and precision.
High tolerance to temperature extremes , shock, moisture, EMI,
RFI and Magnetic fields.
Very low weight.
Holistic signal generation
Absolute Position over digital interfaces.
Mechanical
Allowable mounting eccentricity ±0.1 mm
Allowable rotor axial motion ±0.1 mm
Rotor inertia 12.378 gr · mm2
Total weight 65 gr
Outer Ø /Inner Ø/ Height 130 / 90 / 10 mm
Material (stator, rotor) Ultem™
polymer
Electrical
Supply voltage 5V ± 5%
Interconnection Shielded cable or
Cable Length 1,500 mm MAX
Environmental
EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature range Digital: -40°C to +85°C
Relative humidity 98% Non condensing
Shock endurance 100 g for 11 ms
Vibration endurance 20 g 10 – 2000 Hz
Protection IP 40
Characteristics
Angular resolution 19 bits ; 524,288 CPR
Static error < 10 mDeg
Maximum operational speed 750 rpm
Measurement range Unlimited rotation
Power On- Max. operational speed 3.3 RPM , <=20°/sec
Build In Test BIT Optional
The Electric Encoder™ is unique in being holistic, i.e., its output
reading is the averaged outcome of the whole area of the rotor ,
This feature makes the Electric Encoder™ forgiving to mounting
tolerances, ball bearing wander etc.
The absence of components such as ball bearings , flexible
couplers, glass disc, light sources and detectors, along with very
low power consumption makes the Electric Encoder™ virtually
failure free.
The internally shielded, DC operated Electric Encoder™ includes
an electric field generator, a field receiver, a sinusoidal shaped
dielectric rotor, and processing electronics.
The output signals of Electric Encoder™ are analog Sine / Cosine
representing the rotation angle. The digital outputs are obtained
by further processing- which may be either internal or external
to the encoder.
The combination of precision, low profile, low weight and high
reliability have made Netzer Precision encoders particularly
suitable to a wide variety of critical applications including, but
not limited to medical equipment and aerospace.
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

2
Description Recommendations
n Total number of data bits
T Clock period (sec) User defined
1/T Clock frequency 0.5 ÷ 2.0 MHz
(user defined) 2.0 MHz
t1
Minimum time required for the
encoder to freeze data and preset
the shift registers before receiving
the first rising edge to prompt the
MSB
T/2
t2 Data transmission delay
(increases with cable length)
“0” on standard
cable length
t3
Required delay to refresh position
data between subsequent posi-
tion
>25 μSec

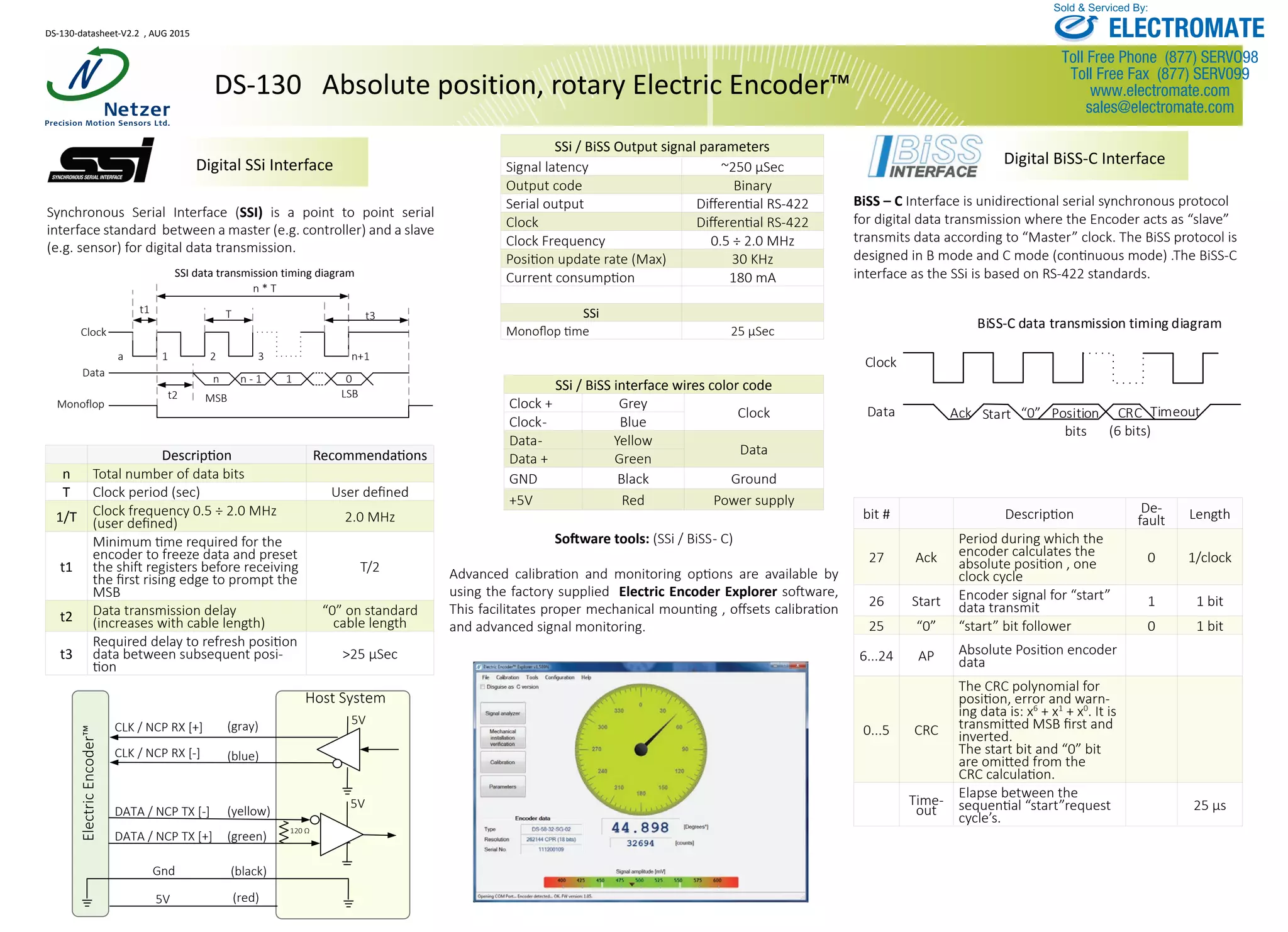

Synchronous Serial Interface (SSI) is a point to point serial
interface standard between a master (e.g. controller) and a slave
(e.g. sensor) for digital data transmission.
Digital SSi Interface
BiSS – C Interface is unidirectional serial synchronous protocol
for digital data transmission where the Encoder acts as “slave”
transmits data according to “Master” clock. The BiSS protocol is
designed in B mode and C mode (continuous mode) .The BiSS-C
interface as the SSi is based on RS-422 standards.
Digital BiSS-C Interface
Clock
Data Ack Start “0” Position
bits
CRC
(6 bits)
Timeout
BiSS-C data transmission timing diagram
SSi / BiSS Output signal parameters
Signal latency ~250 μSec
Output code Binary
Serial output Differential RS-422
Clock Differential RS-422
Clock Frequency 0.5 ÷ 2.0 MHz
Position update rate (Max) 30 KHz
Current consumption 180 mA
SSi
Monoflop time 25 μSec
SSi / BiSS interface wires color code
Clock + Grey
Clock
Clock- Blue
Data- Yellow
Data
Data + Green
GND Black Ground
+5V Red Power supply
Software tools: (SSi / BiSS- C)
Advanced calibration and monitoring options are available by
using the factory supplied Electric Encoder Explorer software,
This facilitates proper mechanical mounting , offsets calibration
and advanced signal monitoring.
1
t1
2 3 n+1
T
n * T
t3
Clock
t2 MSB
n n ‐ 1 01
LSB
Data
a
SSI data transmission timing diagram
Monoflop
5V
Host System
CLK / NCP RX [+]
CLK / NCP RX [‐]
5V
5V
120 Ω
(red)
(yellow)
(green)
(blue)
(gray)
(black)
Electric Encoder™
Gnd
DATA / NCP TX [‐]
DATA / NCP TX [+]
bit # Description De-
fault Length
27 Ack
Period during which the
encoder calculates the
absolute position , one
clock cycle
0 1/clock
26 Start Encoder signal for “start”
data transmit 1 1 bit
25 “0” “start” bit follower 0 1 bit
6...24 AP Absolute Position encoder
data
0...5 CRC
The CRC polynomial for
position, error and warn-
ing data is: x6
+ x1
+ x0
. It is
transmitted MSB first and
inverted.
The start bit and “0” bit
are omitted from the
CRC calculation.
Time-
out
Elapse between the
sequential “start”request
cycle’s.
25 μs
ELECTROMATE
www.electromate.com
Sold & Serviced By:

3
30 AWG twisted pairs (3)
Braided shield
Jacket 0.45mm
3.45 ±  0.20mm
30 AWG single
insulated wire0.017
Ø 0.61 ±  0.051mm
Netzer Cat No.: CB‐00014
Provider: Ray‐Q USA. wire CAT No: RQ213210
Cable:  30 AWG twisted pair (3) :2 (30 AWG 25/44 finned copper ,
             0.15 PFE to Ø0.6 ± 0.05 OD).
Temperature rating: ‐60 to +150 Deg C.
Braided shield: Thinned copper braided 95% min. coverage.
Jacket: 0.45 silicon rubber jacket  Ø3.45 ±0.2 OD
Pair # Color
1
2
3
Red / Black
Gray / Blue
Green / Yellow Related documents:
DS-130 User Manual : Mechanical , Electrical and calibration setup.
Demonstration Kit:
DS-130DKIT-01: Includes ,mounted encoder on rotary jig ,
and RS-422 to USB converter.
DS Product line
Outputs:
S- Digital : SSi
I- Digital : BiSS-C
Interconnection:
S- shielded cable (default)
R- Strain relief & shielded cable
Resolution
Code Bit CPR
H 19 524,288
DS - 130 - 64 3S- S-H 0
C- Connector (optional)
n- n n
nnn- Custom
Outer Diameter
Fine ECR
ELECTROMATE
www.electromate.com
Sold & Serviced By:

4
2.90
4.30
MOUNTING SURFACE
6
6 PLACES
R4
12 PLACES
135
141
REF
A
A
90
+0.05
0
130
2.30 TYP6
4.40
TYP6
2.40
127-
0
0.05
93
1.50
9.70
SECTION A-A
0.1 A
A
MOUNTING SURFACE
REVISIONS
ZONE REV. DESCRIPTION DATE APPROVED
D
E
F
C
1 2 3 4
B
A
321 5
C
D
4 6 7 8
A
B
The information contained in this drawing is the sole property of Netzer Precision Motion Sensors Ltd. Any reproduction in part or whole without the
written permission of Netzer Precision Motion Sensors Ltd.is prohibited. The drawing is confidential, and is the property of Netzer Precision Ltd. it must
not be disclosed to a third party without written consent of Netzer Precision Ltd.
SIGNATURE
DS-130 ICD
19.08.15V.D
A3
SHEET 1 OF 1
SCALE: 1:1
DWG NO. :
TITLE:
MATERIAL:
DATENAME
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN mm
SURFACE FINISH: N6
LINEAR TOLERANCES: 0.1 mm
ANGULAR TOLERANCES: 0.5 deg
ALL CHAMFER: 0.1 mm X 45°
APPV'D
CHK'D
DRAWN
Coating:
CAT NO. : ICD-DS-130-00
00
Revision :
ELECTROMATE
www.electromate.com
Sold & Serviced By:

5
135
141
AA
8 THREADS M2 DEEP 5mm
EQ.SP
0.1 A
0.1 A
120min
80 max
D
SECTION A-A
3 THREADS M2 DEEP 5mm
EQ.SP
127
+0.05
0
93
90 -
0
0.05
SECTION B-B
0.05 A
0.05 A
0.02 B
0.05 A
A
B
1.60-
0
0.05
2.50min
DETAIL D
3
1
2
D
E
F
C
1 2 3 4
B
A
321 5
C
D
4 6 7 8
A
B
Shaft - End installation
No Part Description QTY.
1 DS-130-64-3SH Included DS-130 encoder 1
3 MP-00329 Included Socket head cup screw,Alen M2X4mm ,
St.St. ,DIN912
6
2
MA-DS130-004 Optional
Shaft End
installation kit
MP-00016-02 1
3 MP-00329 6
Critical dimensions marked with “*”
ELECTROMATE
www.electromate.com
Sold & Serviced By:

Netzer DS 130
