The DL-25 is an absolute position rotary electric encoder based on Netzer Precision's proprietary technology. It offers advantages like high precision, tolerance to temperature/shock/moisture/EMI, and a digital SSi output. The DL-25 is suited for demanding applications and provides 17-bit resolution, unlimited rotation, and outputs on a shielded cable. It has dimensions of 25mm diameter, operates from -40 to 70 degrees C, and integrates position sensing and processing electronics.

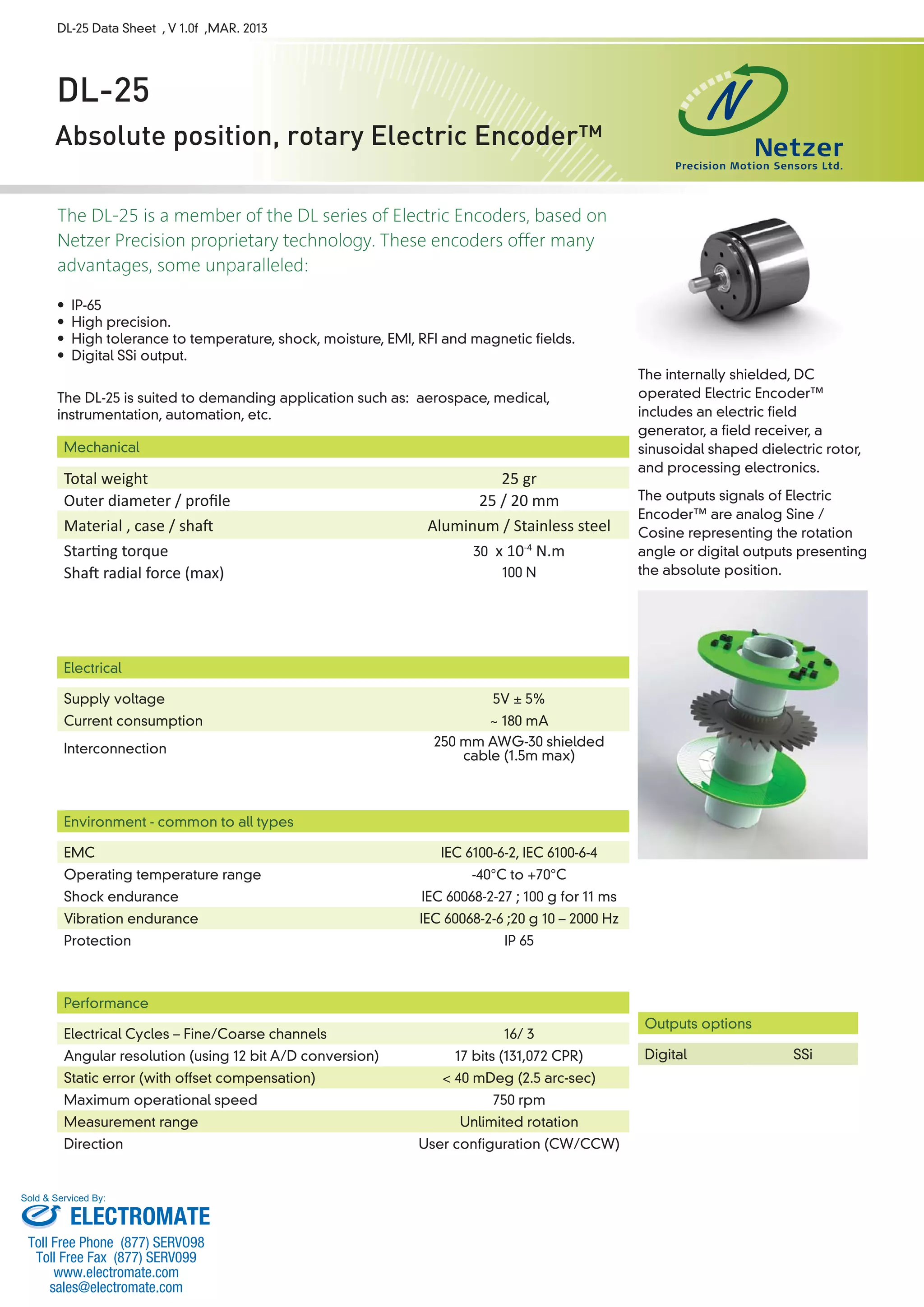

1. DL-25 Data Sheet , V 1.0f ,MAR. 2013
DL-25
Absolute position, rotary Electric Encoder™
The DL-25 is a member of the DL series of Electric Encoders, based on
Netzer Precision proprietary technology. These encoders offer many
advantages, some unparalleled:
• IP-65
• High precision.
• High tolerance to temperature, shock, moisture, EMI, RFI and magnetic fields.
• Digital SSi output.
The DL-25 is suited to demanding application such as: aerospace, medical,
instrumentation, automation, etc.
Mechanical
Total weight 25 gr
Outer diameter / profi le 25 / 20 mm
Material , case / shaŌ Aluminum / Stainless steel
StarƟ ng torque 30 x 10-4 N.m
ShaŌ radial force (max) 100 N
Electrical
Supply voltage 5V ± 5%
Current consumption ~ 180 mA
Interconnection 250 mm AWG-30 shielded
cable (1.5m max)
Environment - common to all types
EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature range -40°C to +70°C
Shock endurance IEC 60068-2-27 ; 100 g for 11 ms
Vibration endurance IEC 60068-2-6 ;20 g 10 – 2000 Hz
Protection IP 65
Performance
Electrical Cycles – Fine/Coarse channels 16/ 3
Angular resolution (using 12 bit A/D conversion) 17 bits (131,072 CPR)
Static error (with offset compensation) < 40 mDeg (2.5 arc-sec)
Maximum operational speed 750 rpm
Measurement range Unlimited rotation
Direction User configuration (CW/CCW)
The internally shielded, DC
operated Electric Encoder™
includes an electric field
generator, a field receiver, a
sinusoidal shaped dielectric rotor,
and processing electronics.
The outputs signals of Electric
Encoder™ are analog Sine /
Cosine representing the rotation
angle or digital outputs presenting
the absolute position.
Outputs options
Digital SSi
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

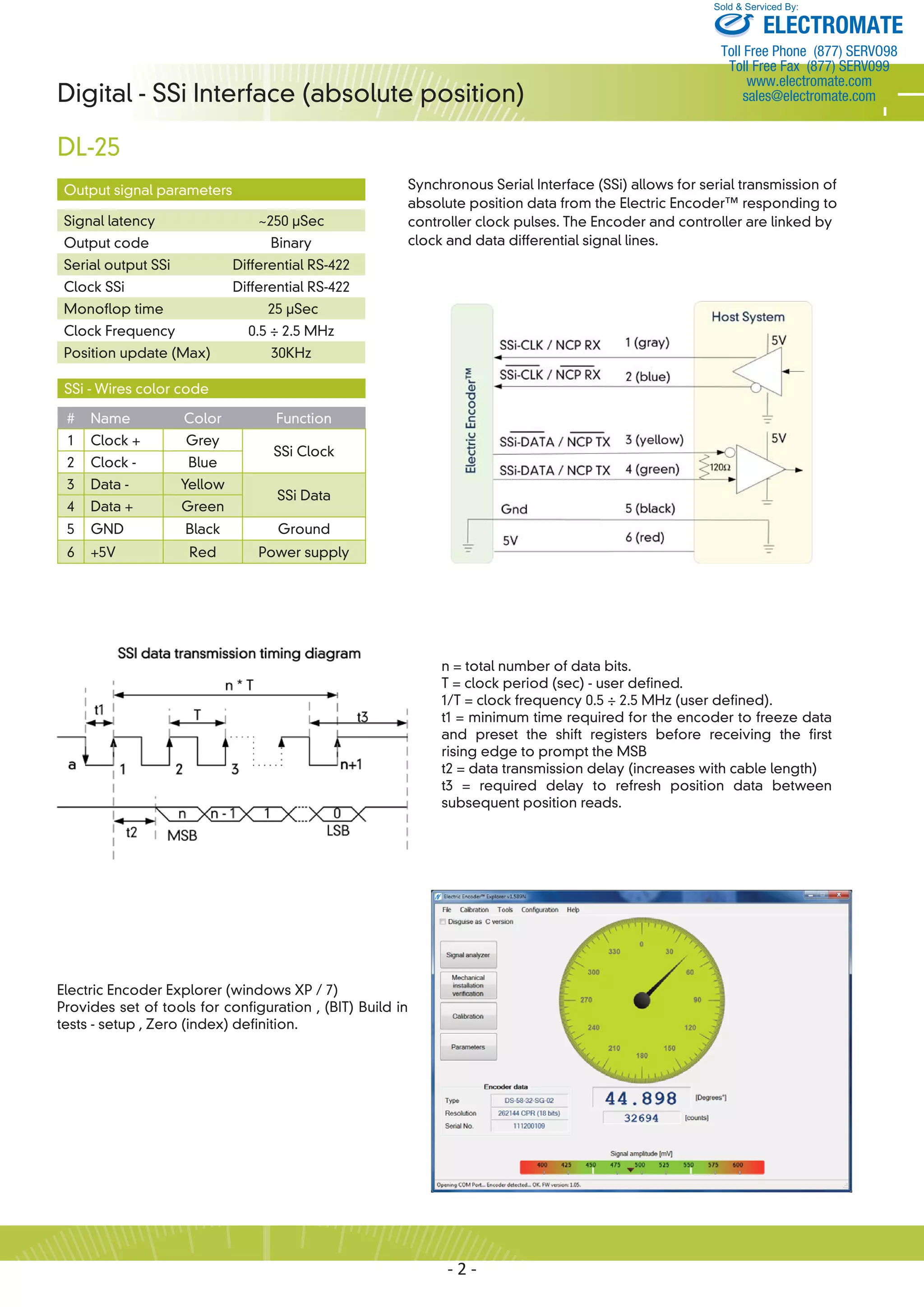

2. Digital - SSi Interface (absolute position)
DL-25
Sold & Serviced By:
Synchronous Serial Interface (SSi) allows for serial transmission of
absolute position data from the Electric Encoder™ responding to
controller clock pulses. The Encoder and controller are linked by
clock and data differential signal lines.
n = total number of data bits.
T = clock period (sec) - user defined.
1/T = clock frequency 0.5 ÷ 2.5 MHz (user defined).
t1 = minimum time required for the encoder to freeze data
and preset the shift registers before receiving the first
rising edge to prompt the MSB
t2 = data transmission delay (increases with cable length)
t3 = required delay to refresh position data between
subsequent position reads.
- 2 -
Output signal parameters
Signal latency ~250 μSec
Output code Binary
Serial output SSi Differential RS-422
Clock SSi Differential RS-422
Monoflop time 25 μSec
Clock Frequency 0.5 ÷ 2.5 MHz
Position update (Max) 30KHz
SSi - Wires color code
# Name Color Function
1 Clock + Grey
SSi Clock
2 Clock - Blue
3 Data - Yellow
SSi Data
4 Data + Green
5 GND Black Ground
6 +5V Red Power supply
Electric Encoder Explorer (windows XP / 7)
Provides set of tools for configuration , (BIT) Build in
tests - setup , Zero (index) definition.
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

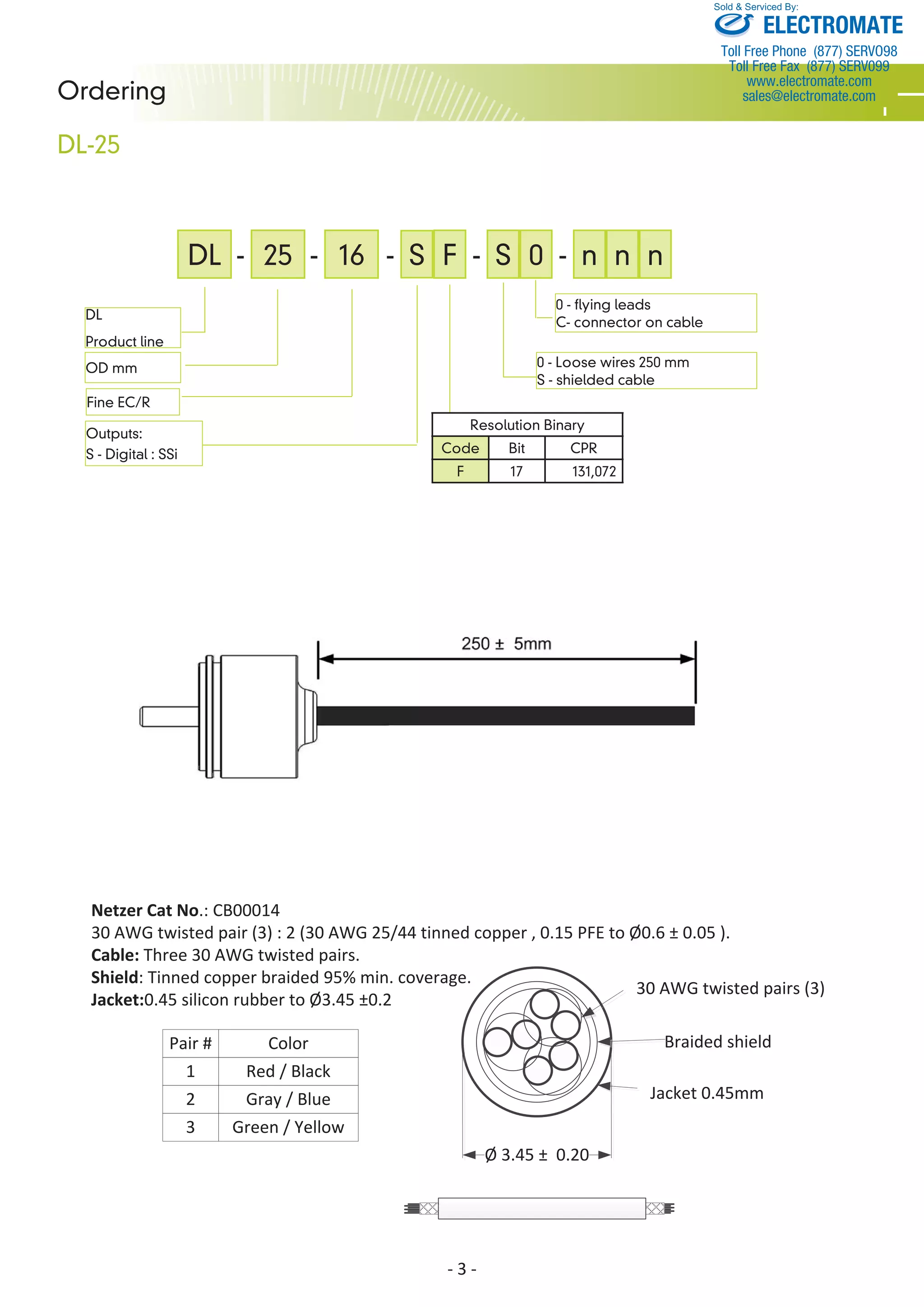

3. DL - 25 - 16 - S- - S
Sold & Serviced By:
Netzer Cat No.: CB00014
30 AWG twisted pair (3) : 2 (30 AWG 25/44 tinned copper , 0.15 PFE to Ø0.6 ± 0.05 ).
Cable: Three 30 AWG twisted pairs.
Shield: Tinned copper braided 95% min. coverage.
Jacket:0.45 silicon rubber to Ø3.45 ±0.2
- 3 -
Ordering
DL-25
DL
Product line
OD mm
Outputs:
S - Digital : SSi
- n n n
0 - Loose wires 250 mm
S - shielded cable
Resolution Binary
Code Bit CPR
F 17 131,072
Fine EC/R
F 0
0 - flying leads
C- connector on cable
30 AWG twisted pairs (3)
Braided shield
Jacket 0.45mm
Ø 3.45 ± 0.20
Pair # Color
1
2
3
Red / Black
Gray / Blue
Green / Yellow
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

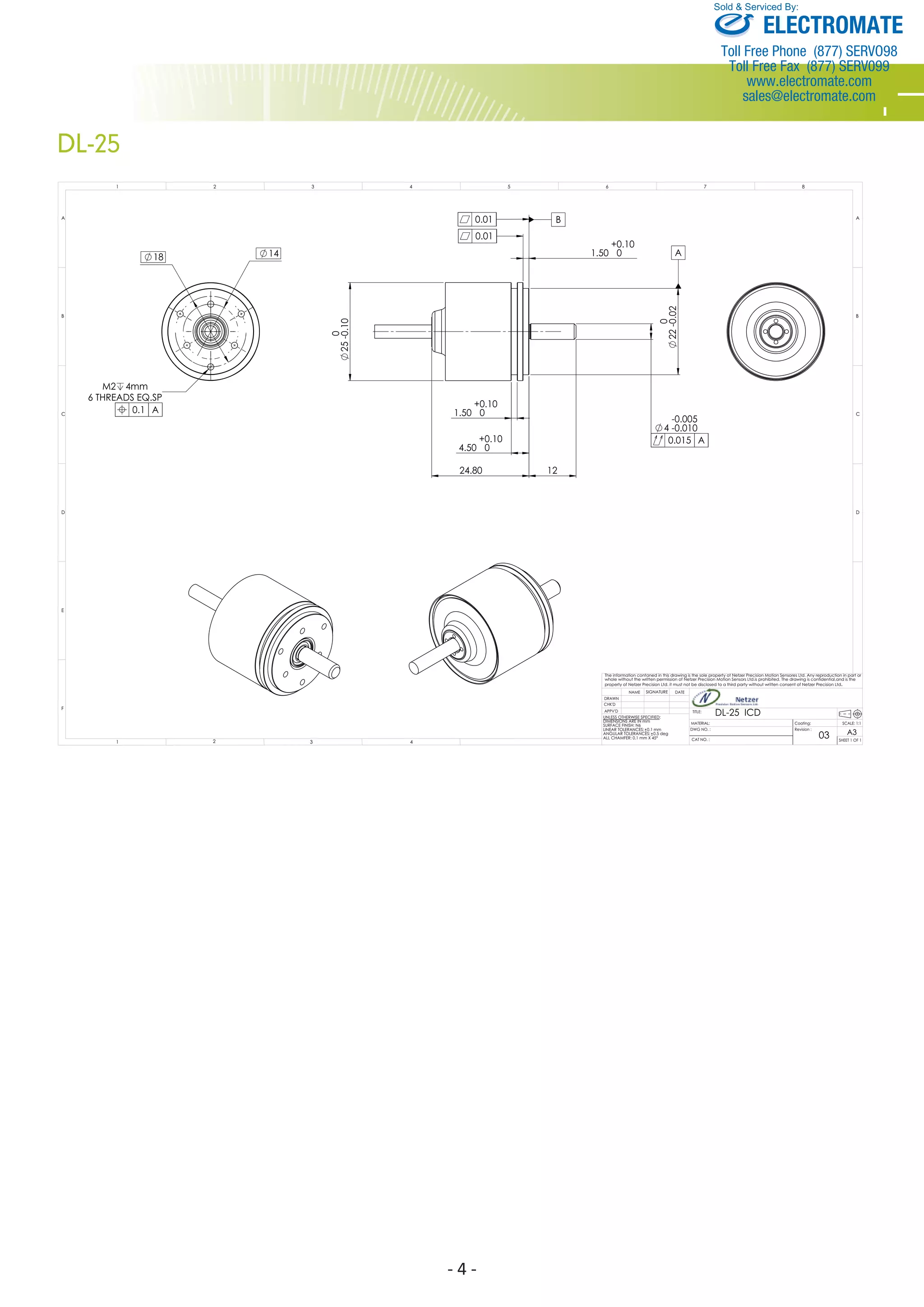

4. - 4 -
DL-25
$
%
$
0 PP
7+5($'6(463
$
$
'
(
)
%
Sold Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
'
$
%
7KHLQIRUPDWLRQFRQWDQHGLQWKLVGUDZLQJLVWKHVROHSURSHUWRW1HW]HU3UHFLVLRQ0RWLRQ6HQVRUHV/WG$QUHSURGXFWLRQLQSDUWRU
ZKROHZLWKRXWWKHZULWWHQSHUPLVVLRQRI1HW]HU3UHFLVLRQ0RWLRQ6HQVRUV/WGLVSURKLELWHG7KHGUDZLQJLVFRQILGHQWLDODQGLVWKH
SURSHUWRI1HW]HU3UHFLVLRQ/WGLWPXVWQRWEHGLVFORVHGWRDWKLUGSDUWZLWKRXWZULWWHQFRQVHQWRI1HW]HU3UHFLVLRQ/WG
6,*1$785(
'/,'
6$/(
$
6+((72)
7,7/(
0$7(5,$/
':*12
1$0( '$7(
'5$:1
+.
'
$339
'
81/(6627+(5:,6(63(,),('
',0(16,216$5(,1PP
685)$(),1,6+1
/,1($572/(5$1(6 PP
$1*8/$572/(5$1(6 GHJ
$//+$0)(5PP;ƒ
RDWLQJ
$712 5HYLVLRQ
