- 2. Network Design & SecurityBest Practices Mike Sherwood Director, Technical Operations – Milestone Systems Moses Anderson Security, Privacy and Management Systems Consultant – On-Demand CISO/CTO Services
- 3. Design Principles • Layeredapproach to facilitate a well functioning and secure network • Physical or virtual segmentation where access should be limited • Understanding where the system is most vulnerable • Quantity of endpoints • Operating system vulnerabilities • Ease of network access • Nature of business and facility • Securing Access and encrypting data in transit
- 4. Physical LAN Segmentation •Pros • Ease of troubleshooting (flat camera network) • Limited access to the camera network (i.e. more secure) • Minimal to no Quality of Service Requirements • Multicast “quarantine” (limiting broadcast scope) • Limited traffic scrope (mostly egress OR ingress) • Cons • Additional expense in network infrastructure • Limited accessibility for servicing cameras Client 192.168.10.101 IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Camera NetworkClient Network

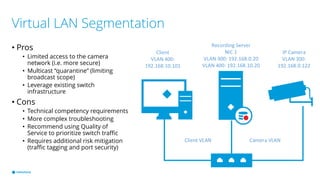

- 5. Virtual LAN Segmentation •Pros • Limited access to the camera network (i.e. more secure) • Multicast “quarantine” (limiting broadcast scope) • Leverage existing switch infrastructure • Cons • Technical competency requirements • More complex troubleshooting • Recommend using Quality of Service to prioritize switch traffic • Requires additional risk mitigation (traffic tagging and port security) Client VLAN 400: 192.168.10.101 IP Camera VLAN 300: 192.168.0.122 Recording Server NIC 1 VLAN 300: 192.168.0.20 VLAN 400: 192.168.10.20 Camera VLANClient VLAN

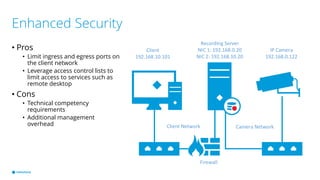

- 6. Enhanced Security • Pros •Limit ingress and egress ports on the client network • Leverage access control lists to limit access to services such as remote desktop • Cons • Technical competency requirements • Additional management overhead Client 192.168.10.101 IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Camera NetworkClient Network Firewall

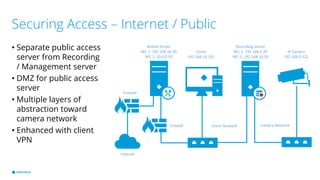

- 7. Securing Access –Internet / Public • Separate public access server from Recording / Management server • DMZ for public access server • Multiple layers of abstraction toward camera network • Enhanced with client VPN Client 192.168.10.101 IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Camera NetworkClient Network Mobile Server NIC 1: 192.168.10.30 NIC 2: 10.0.0.10 Internet Firewall Firewall

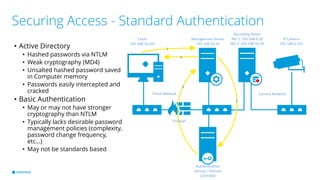

- 8. Securing Access -Standard Authentication • Active Directory • Hashed passwords via NTLM • Weak cryptography (MD4) • Unsalted hashed password saved in Computer memory • Passwords easily intercepted and cracked • Basic Authentication • May or may not have stronger cryptography than NTLM • Typically lacks desirable password management policies (complexity, password change frequency, etc…) • May not be standards based Client 192.168.10.101 IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Camera NetworkClient Network Firewall Management Server 192.168.10.10 Authentication Service / Domain Controller 1 2 3 4
- 9. Securing Access -Enhanced Authentication • Kerberos - Stronger cryptography (AES, 256 or 128 bit) - Mutual authentication vs. challenge/response (both client and service authenticate to the other) - Supports two factor authentication (Smart Card) - Avoids storing and sending passwords (uses ticket to prove identity with secret key) • Key Note - Not supported by all applications – reverts to NTLM if not supported Client 192.168.10.101 IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Camera NetworkClient Network Firewall Management Server 192.168.10.10 Authentication Service / Domain Controller 1 2 3 Ticket Granting Service 4 5 6

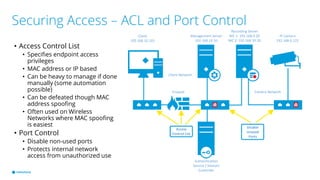

- 10. Securing Access –ACL and Port Control • Access Control List • Specifies endpoint access privileges • MAC address or IP based • Can be heavy to manage if done manually (some automation possible) • Can be defeated though MAC address spoofing • Often used on Wireless Networks where MAC spoofing is easiest • Port Control • Disable non-used ports • Protects internal network access from unauthorized use Client 192.168.10.101 IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 X Client Network Firewall Management Server 192.168.10.10 Authentication Service / Domain Controller Access Control List Disable Unused Ports Camera Network X

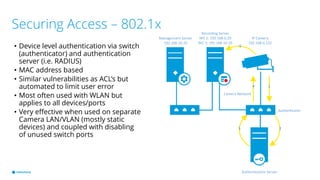

- 11. Securing Access –802.1x • Device level authentication via switch (authenticator) and authentication server (i.e. RADIUS) • MAC address based • Similar vulnerabilities as ACL’s but automated to limit user error • Most often used with WLAN but applies to all devices/ports • Very effective when used on separate Camera LAN/VLAN (mostly static devices) and coupled with disabling of unused switch ports IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Camera Network Management Server 192.168.10.10 Authentication Server Authenticator 1 23 4 5

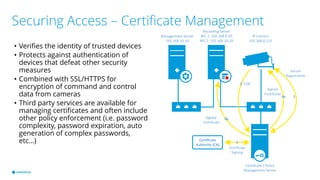

- 12. Securing Access –Certificate Management • Verifies the identity of trusted devices • Protects against authentication of devices that defeat other security measures • Combined with SSL/HTTPS for encryption of command and control data from cameras • Third party services are available for managing certificates and often include other policy enforcement (i.e. password complexity, password expiration, auto generation of complex passwords, etc…) IP Camera 192.168.0.122 Recording Server NIC 1: 192.168.0.20 NIC 2: 192.168.10.20 Management Server 192.168.10.10 Certificate / Policy Management Server 1 2 3 Secure Registration CSR Certificate Authority (CA) Certificate Signing 4a 4b Signed Certificate Signed Certificate
- 13. Securing Data inTransit - Encryption • VPN / SSL • Typically used for external access • Limits the exposer of servers hosted in DMZ (does not necessarily limit the need for hosting public access servers in DMZ) • Can be used internally across networks where encryption is highly desireable • Media Access Control Security (MACsec) • Point to point encryption (IPSec/SSL) for all ethernet traffic on a given link (key based) • Ensures data integrity and protects against a variety of attacks (man in the middle, denial of service, intrusion, masquerading, playback attacks, etc…) • Works in conjunction with 802.1x and RADIUS authentication • Ideal solution for Windows host communications • HTTPS – camera command and control • Secure RTP (SRTP) • Camera video stream encryption (limited vendor support to date)
- 14. Policy and BestPractice • Any best-practice method, solution or security adopted is only as good as the consistency of it’s execution • Your network is only as safe as its weakest link • Policy is top-down approach that ensures participation at all levels – from directive to feedback
- 15. Getting Started • Standardsand Frameworks • Regulations – FISMA, HIPAA, EU GDPR • Client & Partner Design Requirements • Evolving Attack Vectors – CVE’s • Risk Assessments
- 16. All Things Policy •No need to re-invent the wheel • Controls are better implemented when integrated
- 17. Network Security Policies– ISO/IEC 27001 • Segregation in Networks - Groups of information services, users and information systems - Promoting such a practice through policy making builds a culture of consistency in network designs and system integration • Encryption - A policy on the use of cryptographic controls for protection - A policy on the use, protection and lifetime of cryptographic keys shall be developed and implemented through their whole lifecycle - As product manufacturers, ensuring the security of keys is paramount • Access to networks and Network Services - Users shall only be provided with access to the network and network services that they have been specifically authorized to use - You products should avoid attempting to use ports other than those pre-arranged or documented
