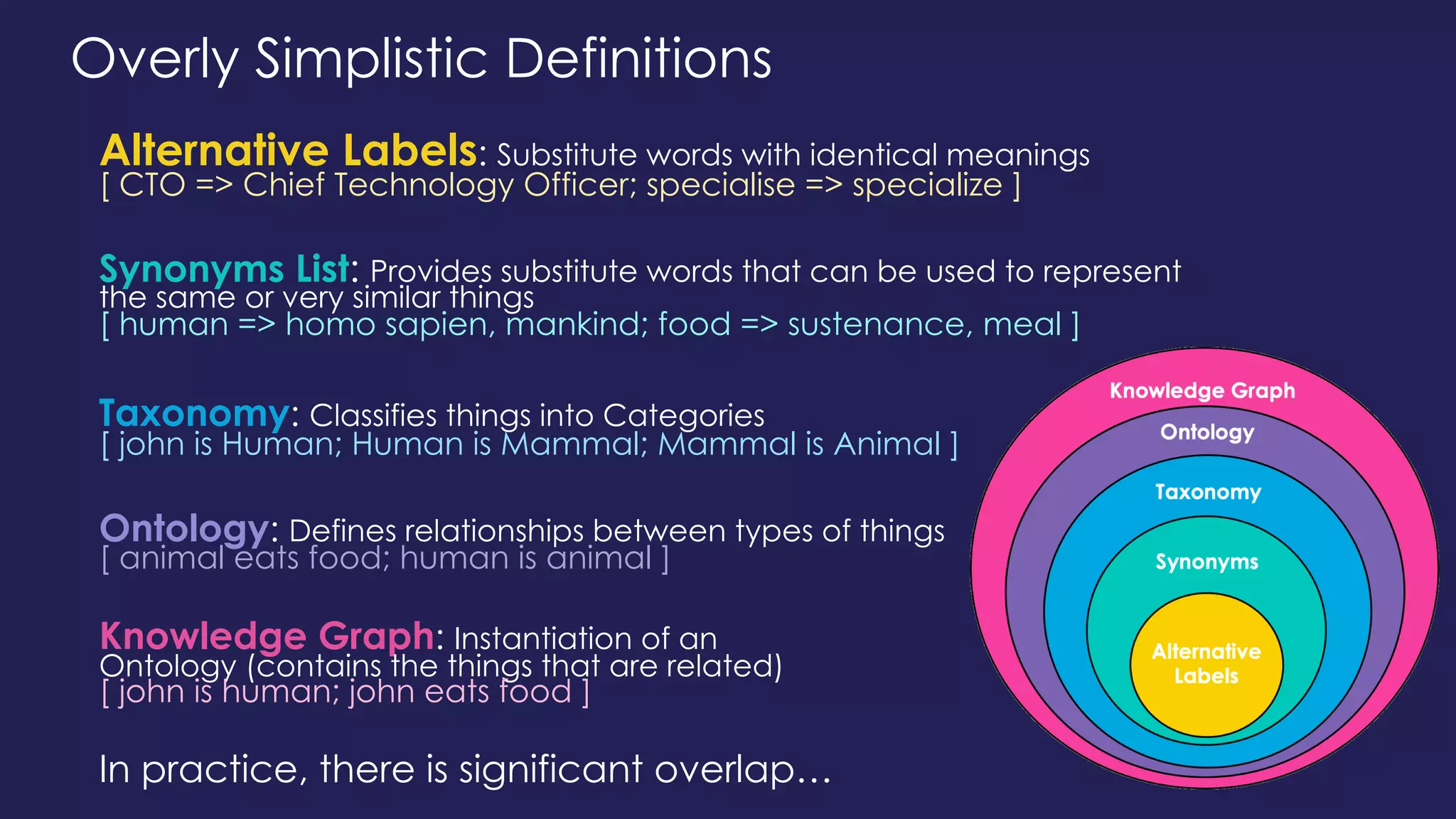

![Overly Simplistic Definitions
Alternative Labels: Substitute words with identical meanings
[ CTO => Chief Technology Officer; specialise => specialize ]
Synonyms List: Provides substitute words that can be used to represent
the same or very similar things
[ human => homo sapien, mankind; food => sustenance, meal ]
Taxonomy: Classifies things into Categories
[ john is Human; Human is Mammal; Mammal is Animal ]
Ontology: Defines relationships between types of things
[ animal eats food; human is animal ]
Knowledge Graph: Instantiation of an
Ontology (contains the things that are related)
[ john is human; john eats food ]
In practice, there is significant overlap…](https://image.slidesharecdn.com/natural-language-search-with-knowledge-graphs-chicago-meetup-191106055714/75/Natural-Language-Search-with-Knowledge-Graphs-Chicago-Meetup-24-2048.jpg)

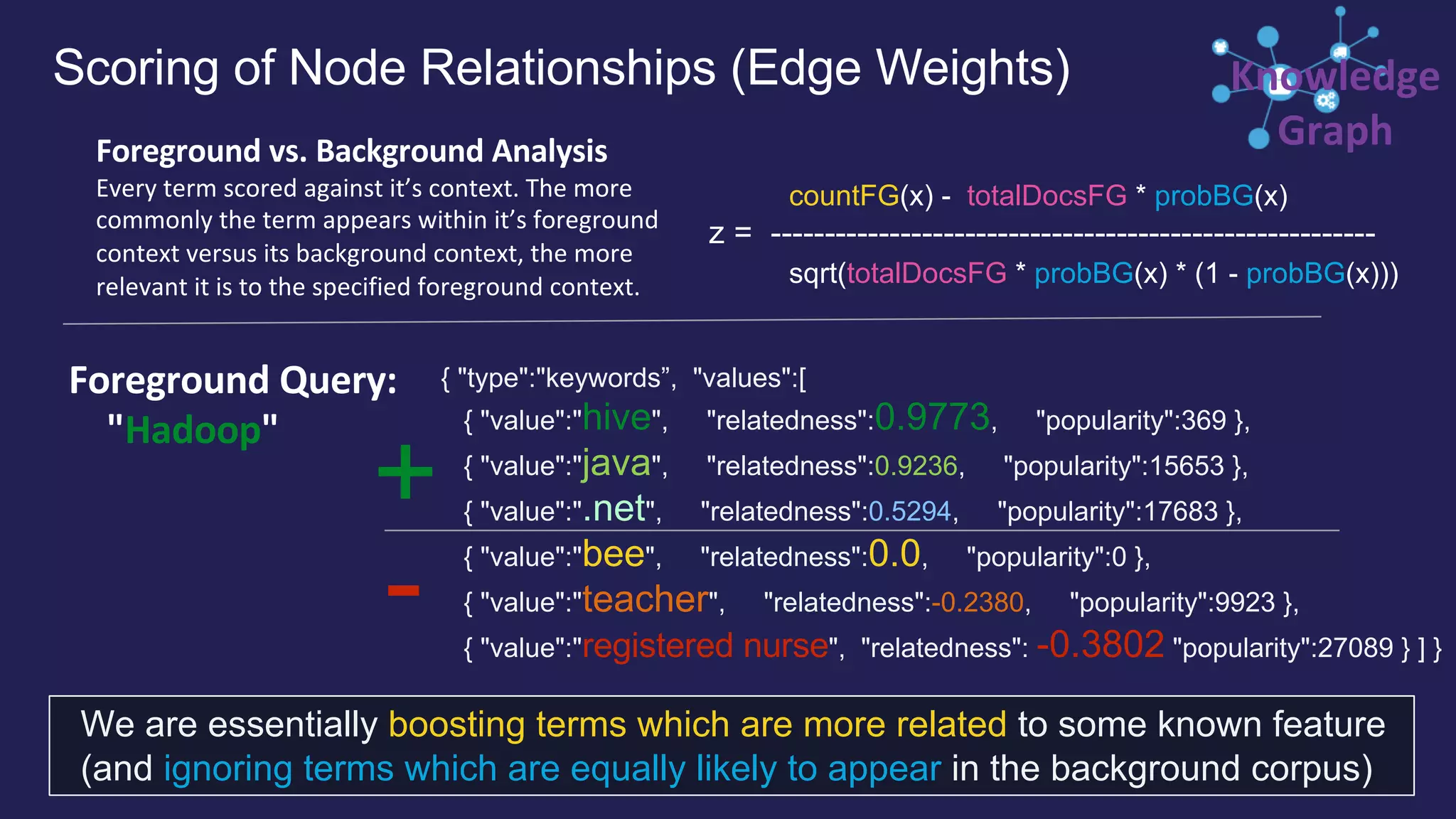

![Scoring of Node Relationships (Edge Weights)
Foreground vs. Background Analysis
Every term scored against it’s context. The more
commonly the term appears within it’s foreground
context versus its background context, the more
relevant it is to the specified foreground context.
countFG(x) - totalDocsFG * probBG(x)
z = --------------------------------------------------------
sqrt(totalDocsFG * probBG(x) * (1 - probBG(x)))
{ "type":"keywords”, "values":[
{ "value":"hive", "relatedness":0.9773, "popularity":369 },
{ "value":"java", "relatedness":0.9236, "popularity":15653 },
{ "value":".net", "relatedness":0.5294, "popularity":17683 },
{ "value":"bee", "relatedness":0.0, "popularity":0 },
{ "value":"teacher", "relatedness":-0.2380, "popularity":9923 },
{ "value":"registered nurse", "relatedness": -0.3802 "popularity":27089 } ] }
We are essentially boosting terms which are more related to some known feature
(and ignoring terms which are equally likely to appear in the background corpus)
+
-
Foreground Query:
"Hadoop"
Knowledge
Graph](https://image.slidesharecdn.com/natural-language-search-with-knowledge-graphs-chicago-meetup-191106055714/75/Natural-Language-Search-with-Knowledge-Graphs-Chicago-Meetup-46-2048.jpg)

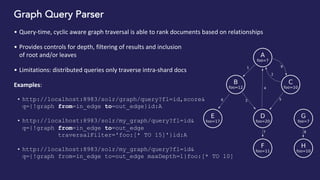

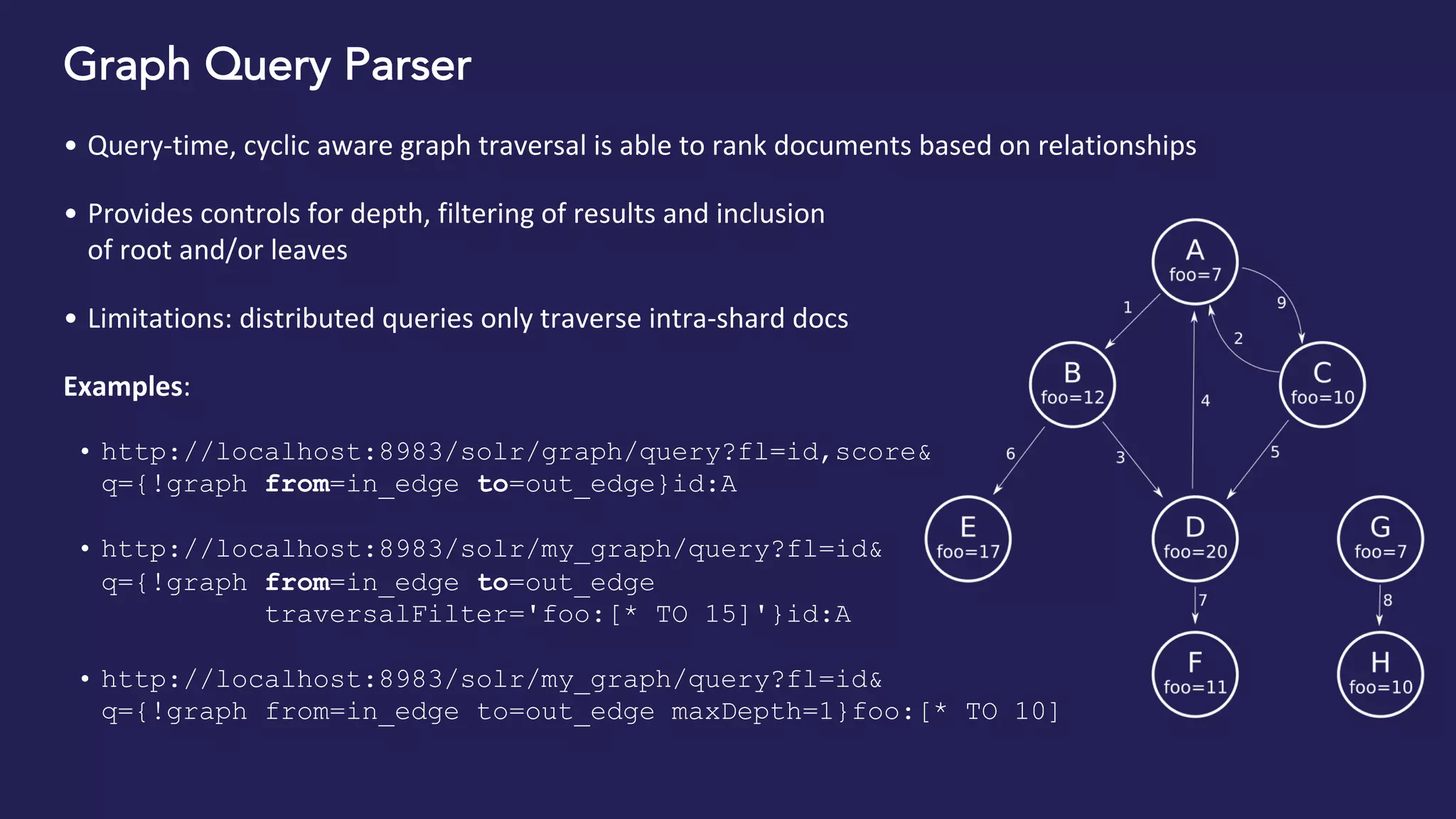

![Graph Query Parser
• Query-time, cyclic aware graph traversal is able to rank documents based on relationships
• Provides controls for depth, filtering of results and inclusion
of root and/or leaves
• Limitations: distributed queries only traverse intra-shard docs
Examples:
• http://localhost:8983/solr/graph/query?fl=id,score&
q={!graph from=in_edge to=out_edge}id:A
• http://localhost:8983/solr/my_graph/query?fl=id&
q={!graph from=in_edge to=out_edge
traversalFilter='foo:[* TO 15]'}id:A
• http://localhost:8983/solr/my_graph/query?fl=id&
q={!graph from=in_edge to=out_edge maxDepth=1}foo:[* TO 10]](https://image.slidesharecdn.com/natural-language-search-with-knowledge-graphs-chicago-meetup-191106055714/75/Natural-Language-Search-with-Knowledge-Graphs-Chicago-Meetup-67-2048.jpg)

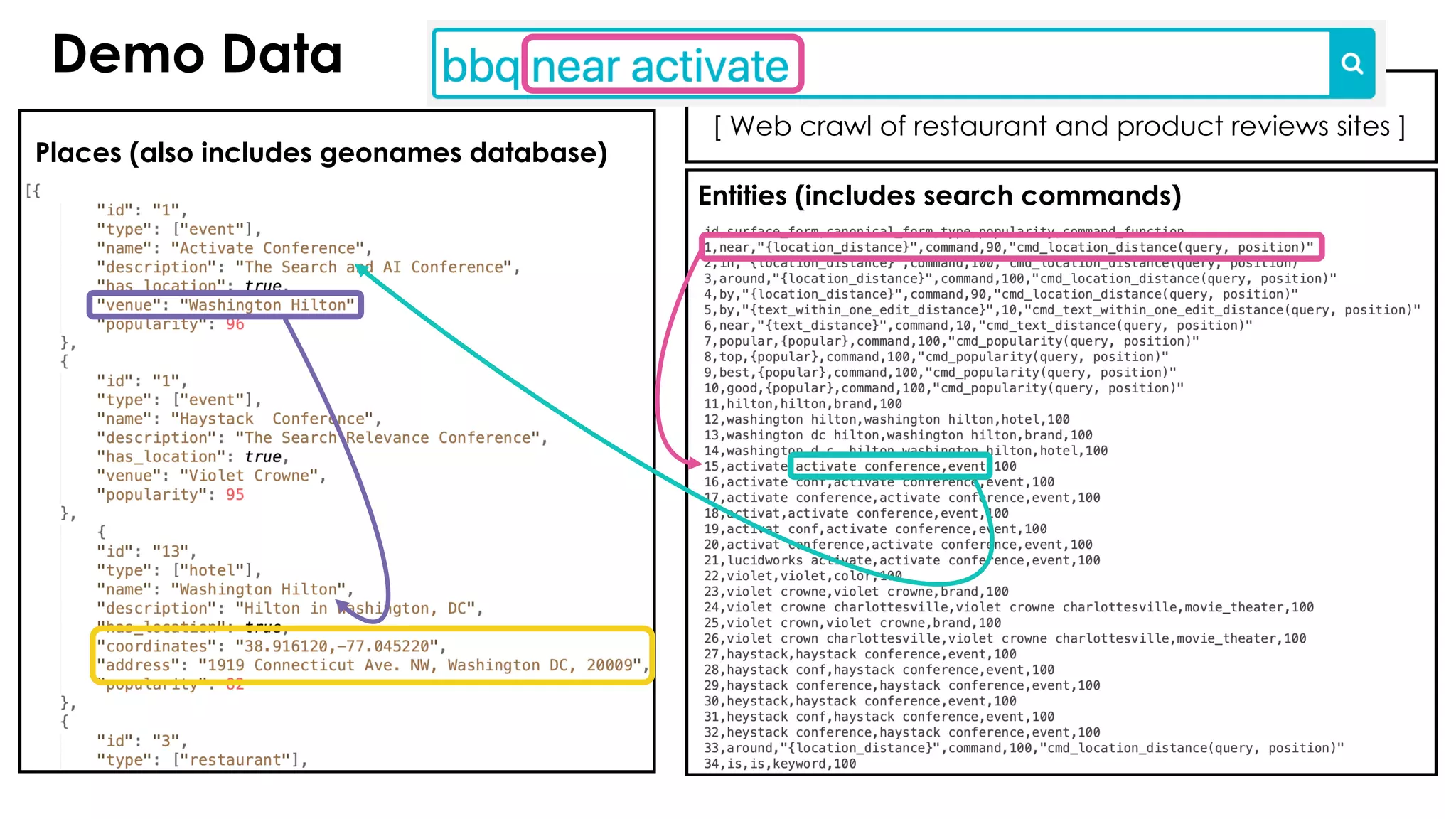

![Demo Data
Places (also includes geonames database)
Entities (includes search commands)
Text Content
[ Web crawl of restaurant and product reviews sites ]](https://image.slidesharecdn.com/natural-language-search-with-knowledge-graphs-chicago-meetup-191106055714/75/Natural-Language-Search-with-Knowledge-Graphs-Chicago-Meetup-69-2048.jpg)

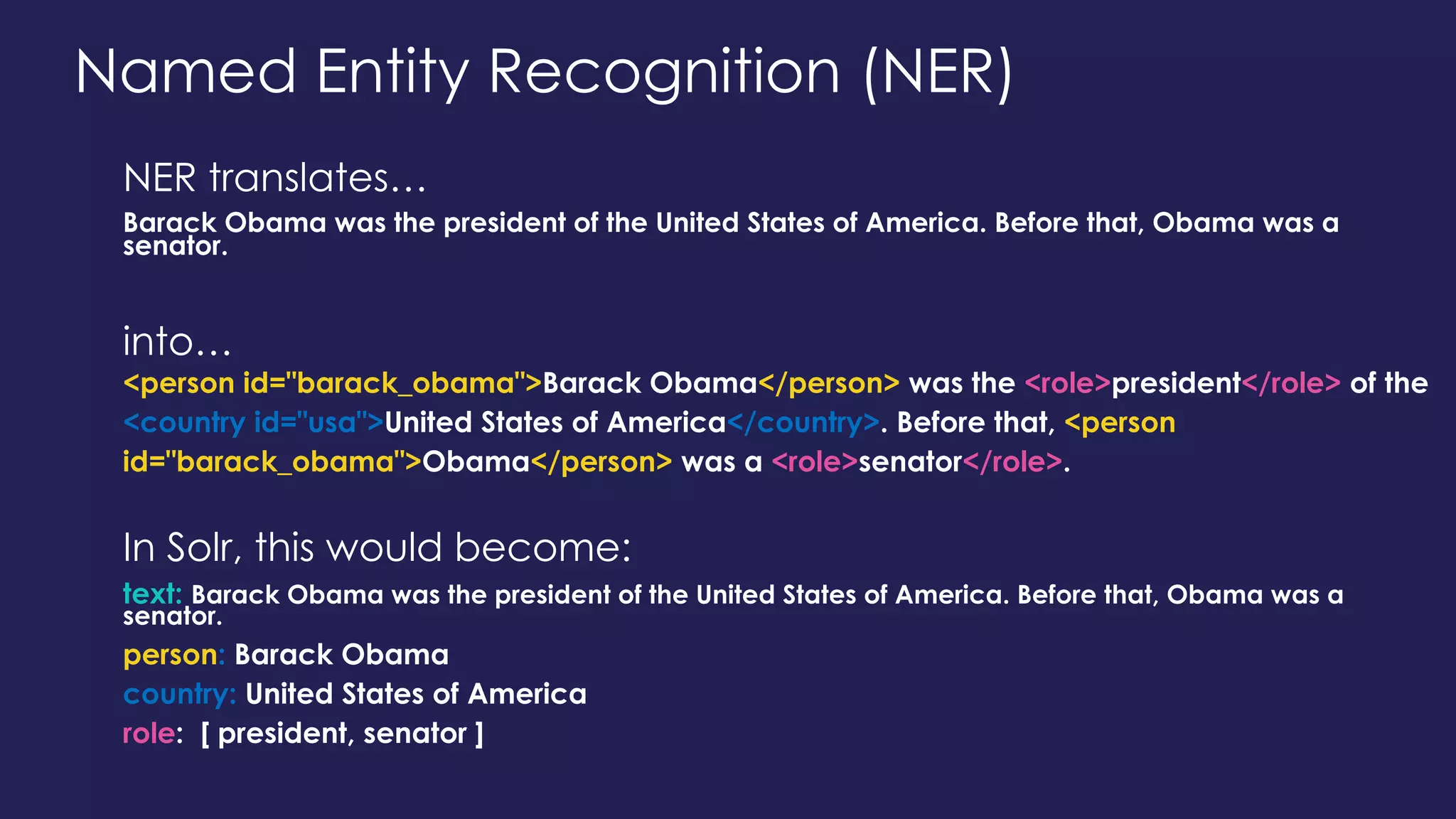

![Named Entity Recognition (NER)
NER translates…
Barack Obama was the president of the United States of America. Before that, Obama was a
senator.
into…
<person id="barack_obama">Barack Obama</person> was the <role>president</role> of the
<country id="usa">United States of America</country>. Before that, <person
id="barack_obama">Obama</person> was a <role>senator</role>.
In Solr, this would become:
text: Barack Obama was the president of the United States of America. Before that, Obama was a
senator.
person: Barack Obama
country: United States of America
role: [ president, senator ]](https://image.slidesharecdn.com/natural-language-search-with-knowledge-graphs-chicago-meetup-191106055714/75/Natural-Language-Search-with-Knowledge-Graphs-Chicago-Meetup-75-2048.jpg)
Uploaded byTrey Grainger
Natural Language Search with Knowledge Graphs (Chicago Meetup)
Trey Grainger, Chief Algorithms Officer at Lucidworks, discusses AI-powered search and natural language processing using knowledge graphs. The document outlines the principles of semantic search, relevance tuning, and query disambiguation, emphasizing the importance of structured and unstructured data in search applications. Additionally, it covers various tools and methodologies for enhancing search experiences and the role of knowledge graphs in improving natural language search capabilities.
More Related Content
Similar to Natural Language Search with Knowledge Graphs (Chicago Meetup)
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Natural Language Search with Knowledge Graphs (Chicago Meetup)
- 1. Trey Grainger Chief AlgorithmsOfficer Natural Language Search with Knowledge Graphs September 25, 2019
- 2. Trey Grainger Chief AlgorithmsOfficer • Previously: SVP of Engineering @ Lucidworks; Director of Engineering @ CareerBuilder • Georgia Tech – MBA, Management of Technology • Furman University – BA, Computer Science, Business, & Philosophy • Stanford University – Information Retrieval & Web Search Other fun projects: • Co-author of Solr in Action, plus numerous research publications • Advisor to Presearch, the decentralized search engine • Lucene / Solr contributor About Me
- 3. http://aiPoweredSearch.com ... is mynew book!

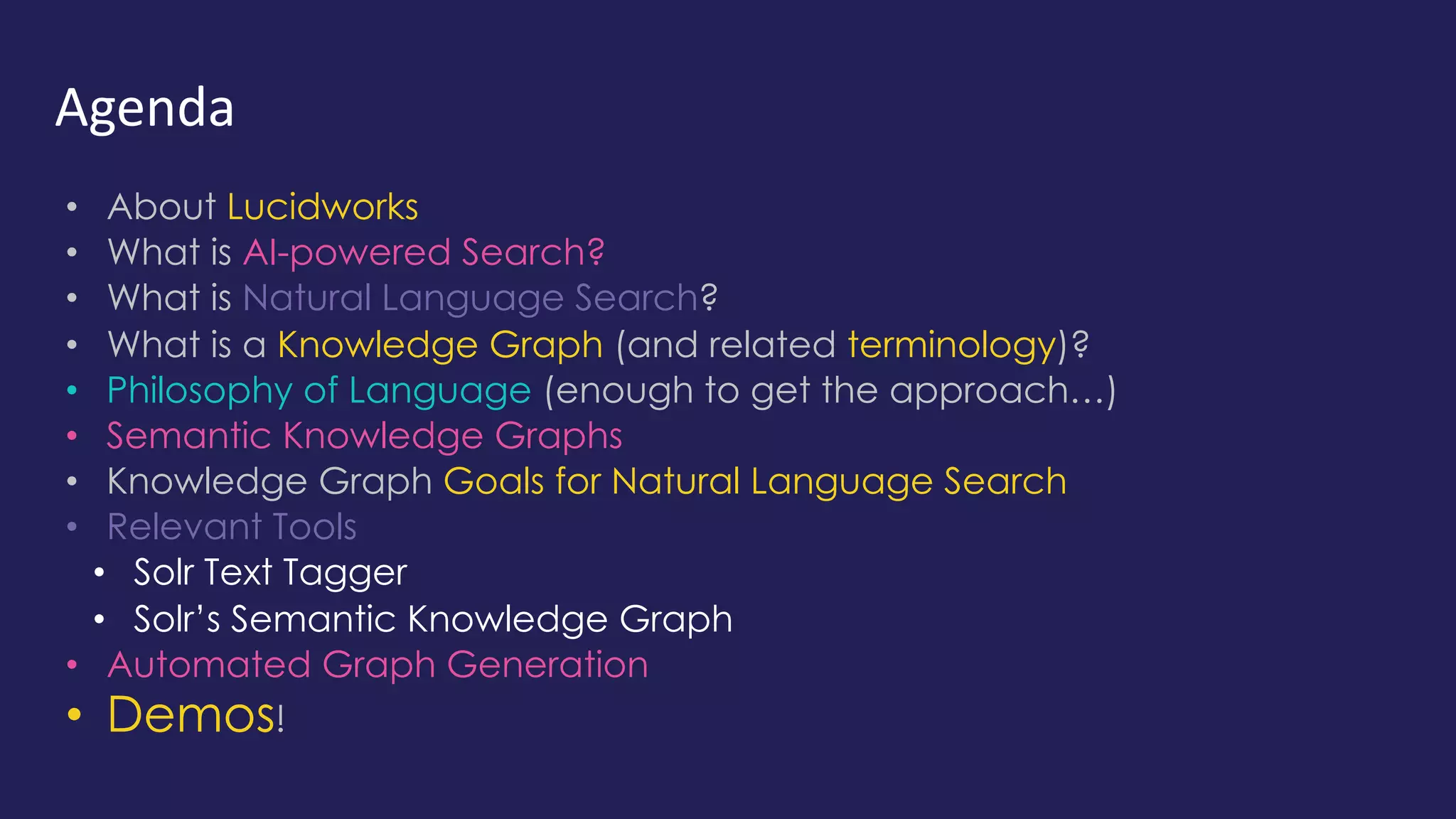

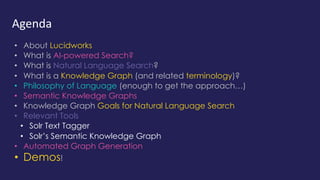

- 4. Agenda • About Lucidworks •What is AI-powered Search? • What is Natural Language Search? • What is a Knowledge Graph (and related terminology)? • Philosophy of Language (enough to get the approach…) • Semantic Knowledge Graphs • Knowledge Graph Goals for Natural Language Search • Relevant Tools • Solr Text Tagger • Solr’s Semantic Knowledge Graph • Automated Graph Generation • Demos!
- 5. The Search &AI Conference COMPANY BEHIND Who are we? 300+ CUSTOMERS ACROSS THE FORTUNE 1000 400+EMPLOYEES OFFICES IN San Francisco, CA (HQ) Raleigh-Durham, NC Cambridge, UK Bangalore, India Hong Kong Employ about 40% of the active committers on the Solr project 40% Contribute over 70% of Solr's open source codebase 70% DEVELOP & SUPPORT Apache
- 6. Industry’s most powerful IntelligentSearch & Discovery Platform.
- 7.

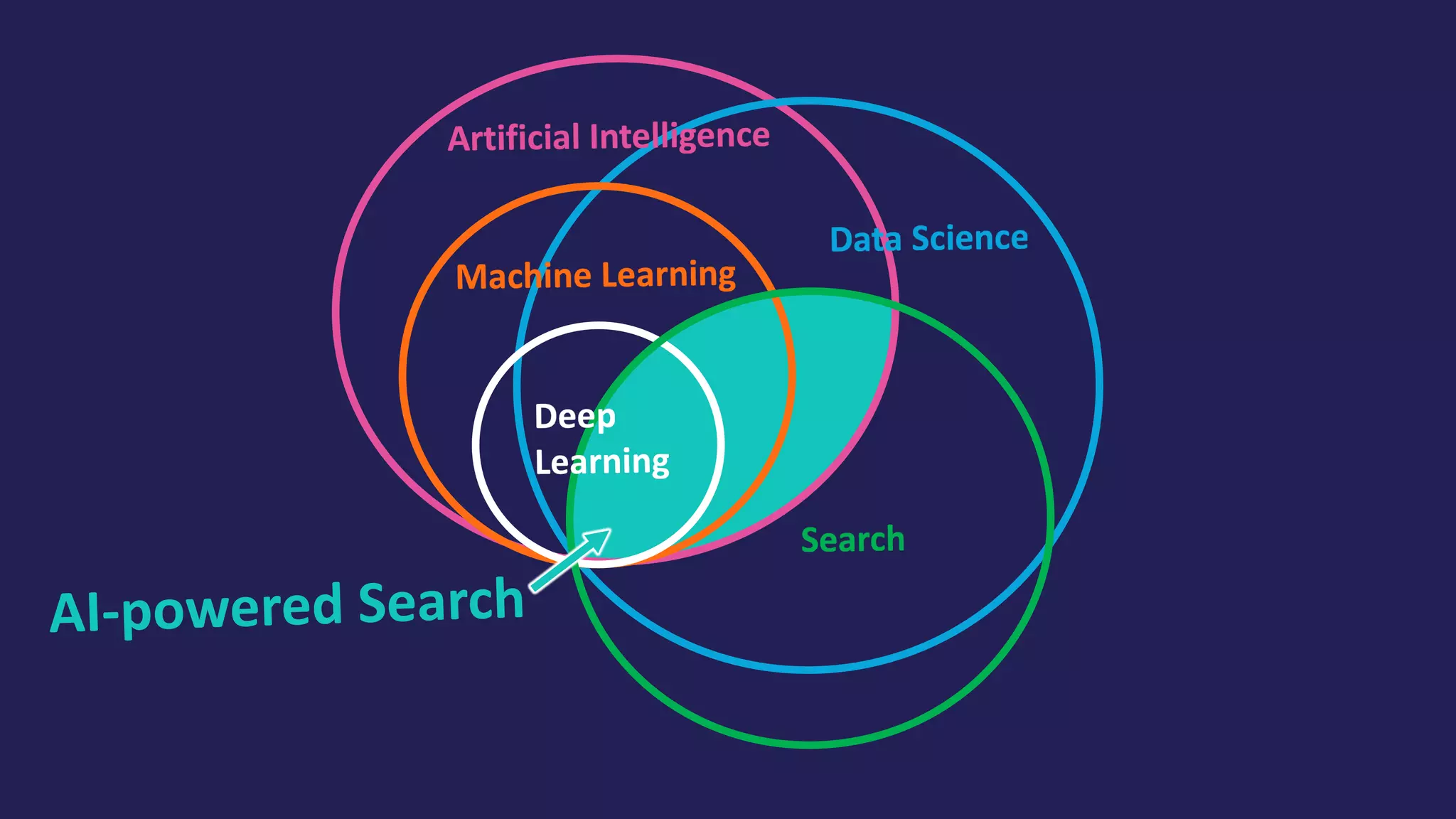

- 8. AI? Machine Learning? Data Science? NeuralSearch? AI-Powered Search? Deep Learning?
- 13.

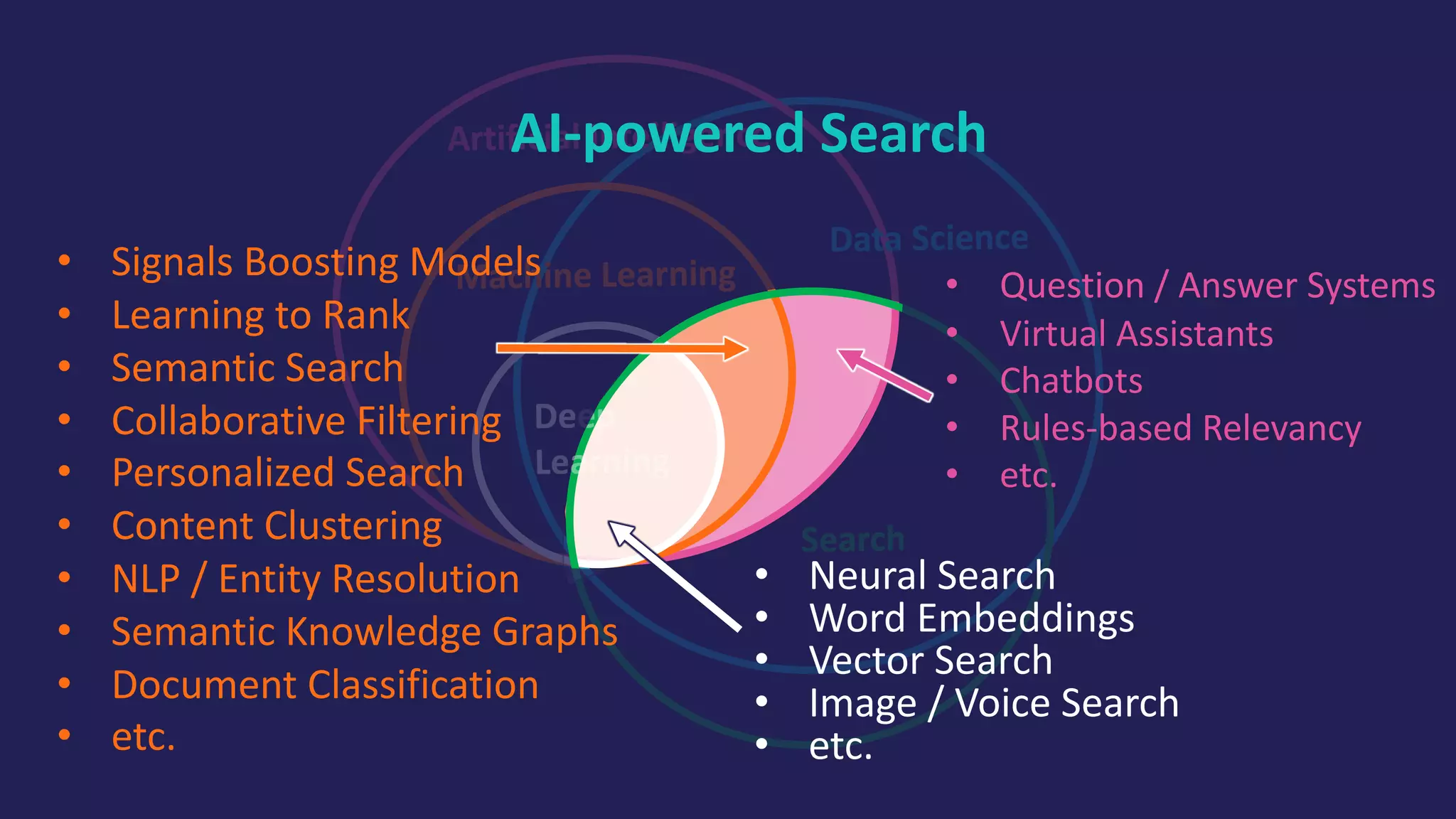

- 14. AI-powered Search Question /Answer Systems Virtual Assistants • Signals Boosting Models • Learning to Rank • Semantic Search • Collaborative Filtering • Personalized Search • Content Clustering • NLP / Entity Resolution • Semantic Knowledge Graphs • Document Classification • etc. • Neural Search • Word Embeddings • Vector Search • Image / Voice Search • etc. • Question / Answer Systems • Virtual Assistants • Chatbots • Rules-based Relevancy • etc.
- 15. Proudly built withopen-source tech at its core: Apache Solr & Apache Spark Personalizes search with applied machine learning Proven on the world’s biggest information systems
- 16. Signals Boosting Popularized Relevancy Learning to Rank GeneralizedRelevancy Collaborative Filtering Personalized Relevancy
- 17. Knowledge Graphs Domain modeling Multi-modal Learning Merged ContentModalities Thought Vectors Conceptual scoring

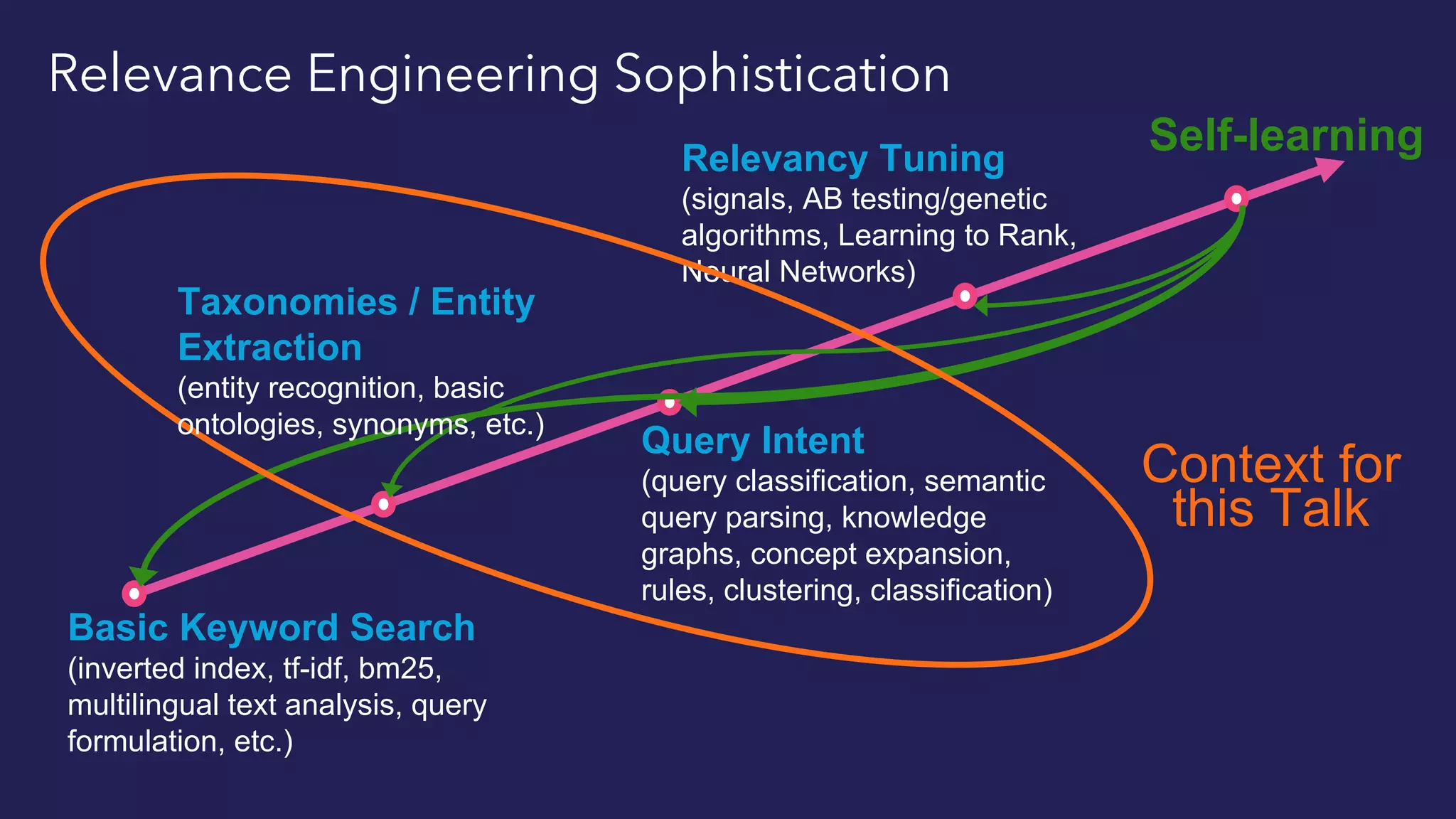

- 18. Basic Keyword Search (invertedindex, tf-idf, bm25, multilingual text analysis, query formulation, etc.) Query Intent (query classification, semantic query parsing, knowledge graphs, concept expansion, rules, clustering, classification) Relevancy Tuning (signals, AB testing/genetic algorithms, Learning to Rank, Neural Networks) Self-learning Relevance Engineering Sophistication Context for this Talk Taxonomies / Entity Extraction (entity recognition, basic ontologies, synonyms, etc.)

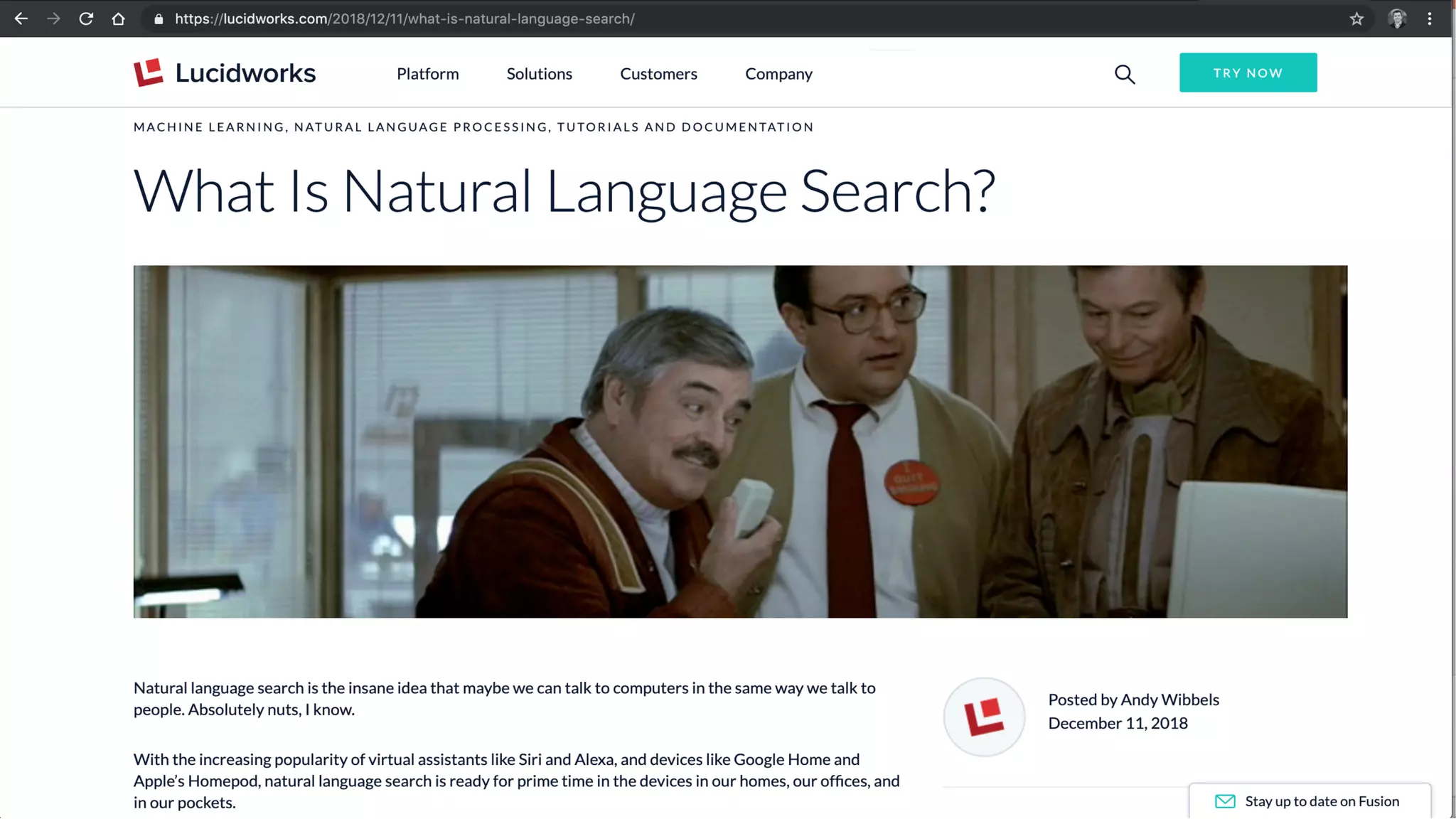

- 19. What is Natural LanguageSearch?
- 22. What is aKnowledge Graph? (vs. Ontology vs. Taxonomy vs. Synonyms, etc.)
- 24. Overly Simplistic Definitions AlternativeLabels: Substitute words with identical meanings [ CTO => Chief Technology Officer; specialise => specialize ] Synonyms List: Provides substitute words that can be used to represent the same or very similar things [ human => homo sapien, mankind; food => sustenance, meal ] Taxonomy: Classifies things into Categories [ john is Human; Human is Mammal; Mammal is Animal ] Ontology: Defines relationships between types of things [ animal eats food; human is animal ] Knowledge Graph: Instantiation of an Ontology (contains the things that are related) [ john is human; john eats food ] In practice, there is significant overlap…
- 26. What sort ofKnowledge Graph can help us with the kinds of problems we encounter in Search use cases?

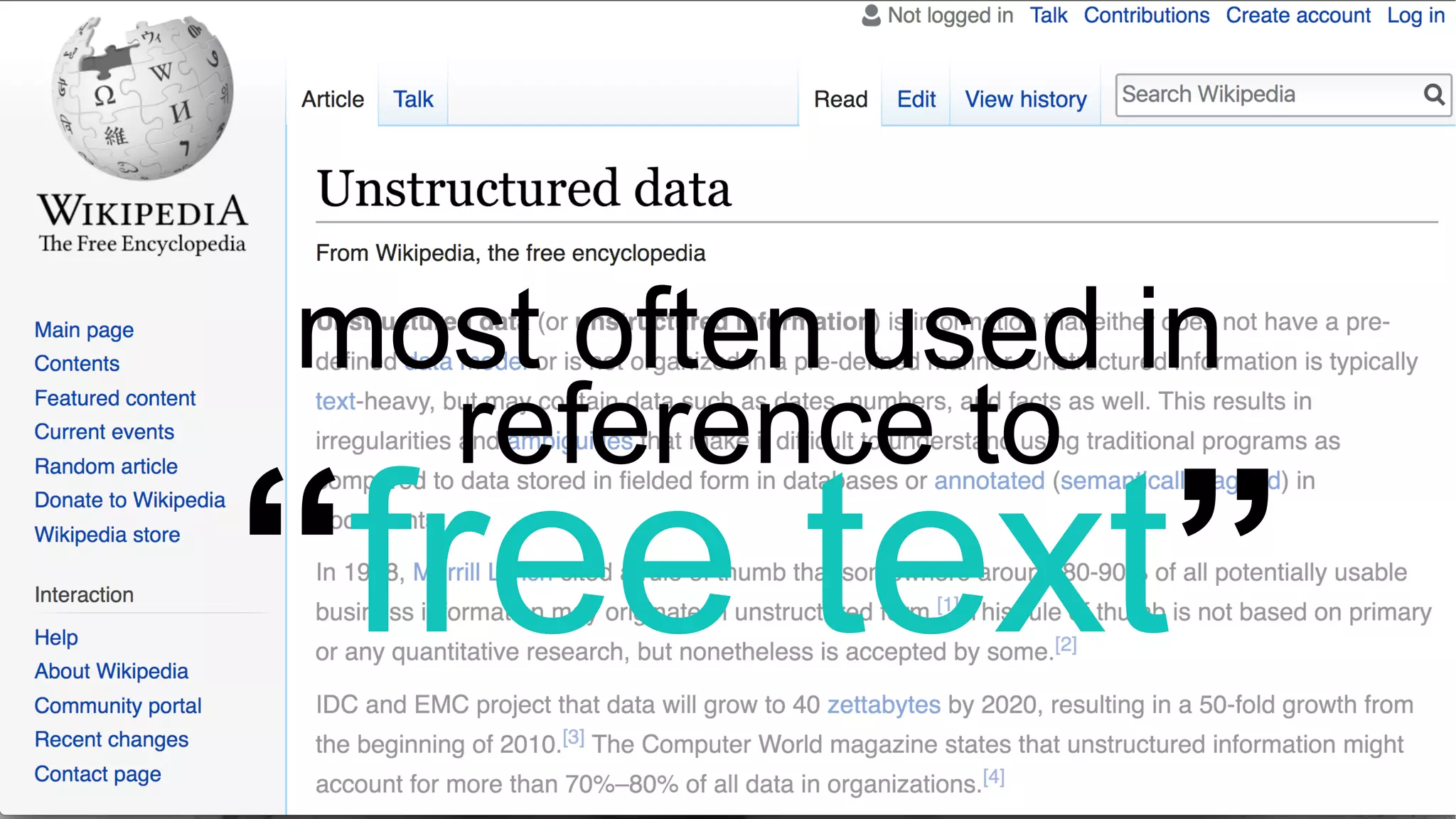

- 28. most often usedin reference to “free text”
- 29. But… unstructured datais really more like “hyper-structured” data. It is a graph that contains much more structure than typical “structured data.”

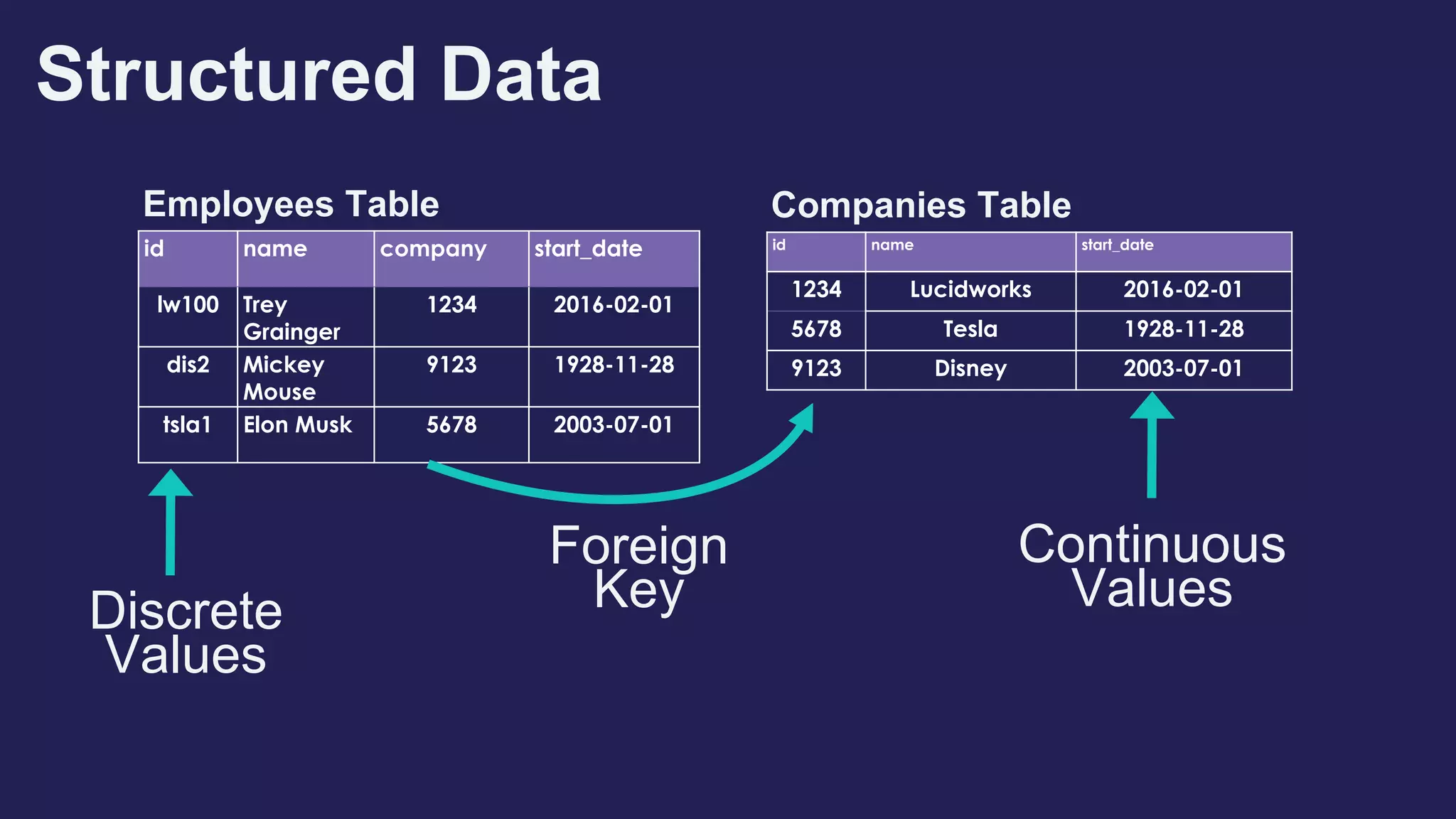

- 30. Structured Data Employees Table idname company start_date lw100 Trey Grainger 1234 2016-02-01 dis2 Mickey Mouse 9123 1928-11-28 tsla1 Elon Musk 5678 2003-07-01 Companies Table id name start_date 1234 Lucidworks 2016-02-01 5678 Tesla 1928-11-28 9123 Disney 2003-07-01 Discrete Values Continuous Values Foreign Key

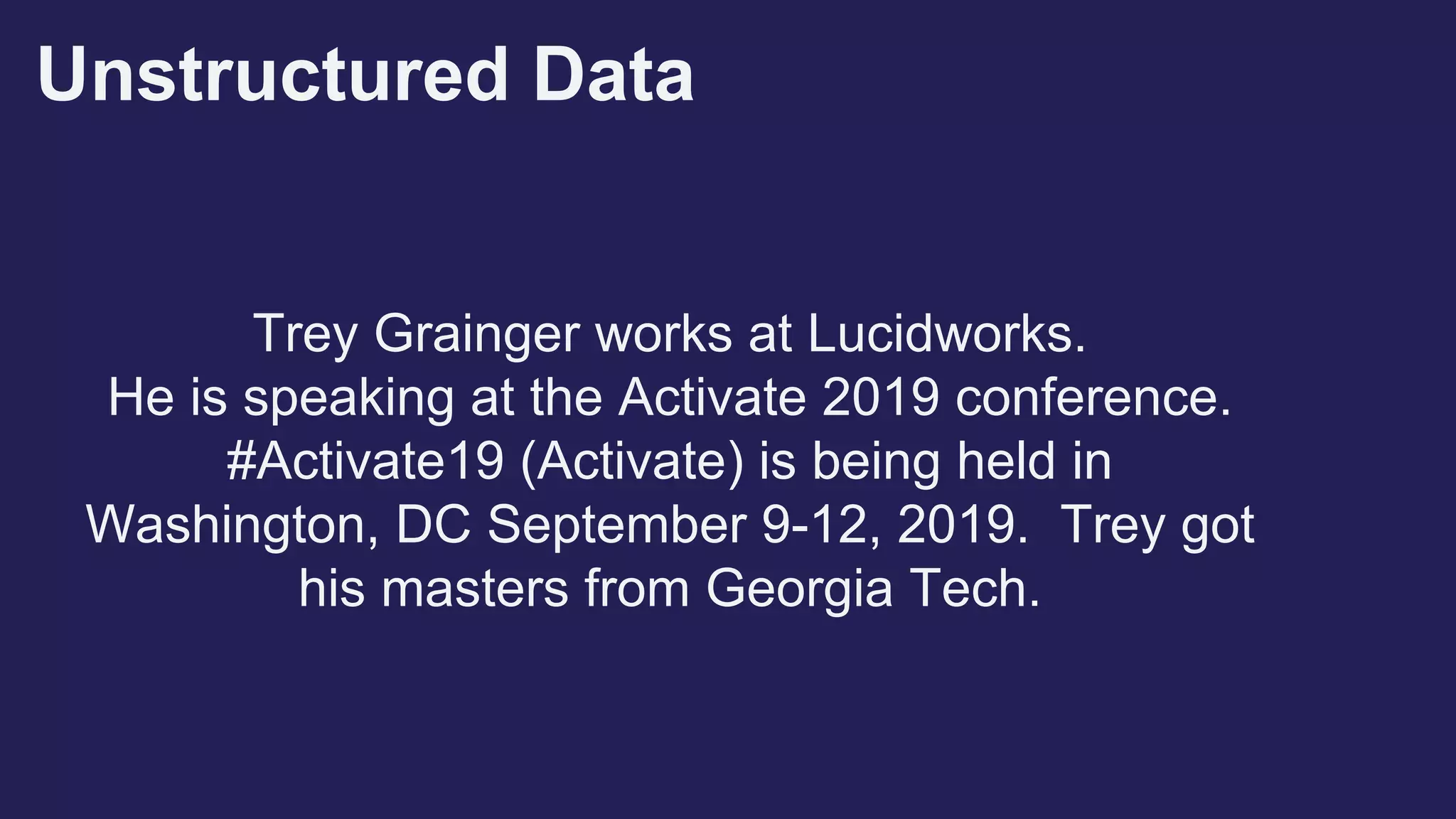

- 31. Unstructured Data Trey Graingerworks at Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters from Georgia Tech.
- 32. Trey Grainger worksfor Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters degree from Georgia Tech. Trey’s Voicemail Unstructured Data

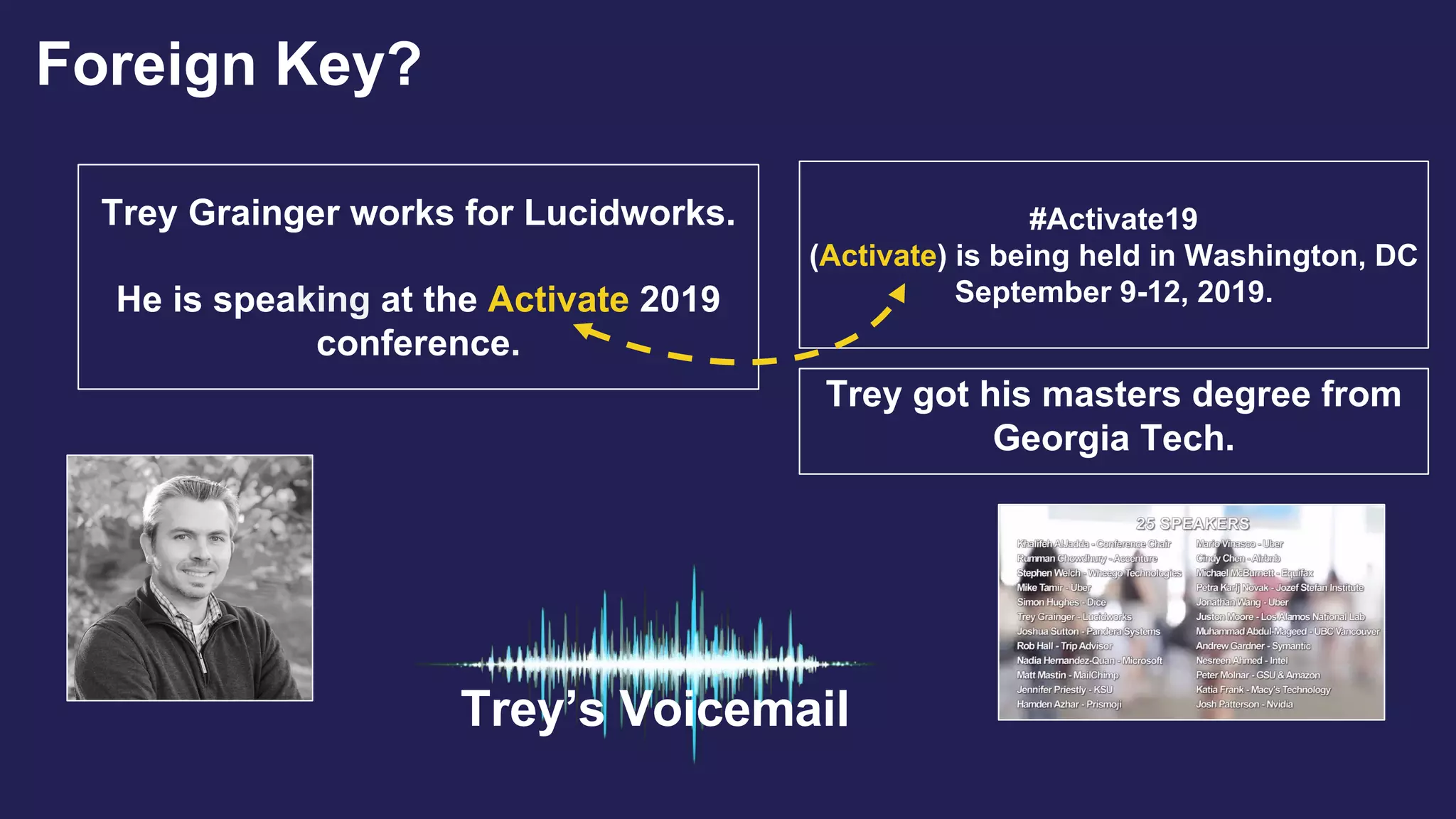

- 33. Trey Grainger worksfor Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters degree from Georgia Tech. Trey’s Voicemail Foreign Key?

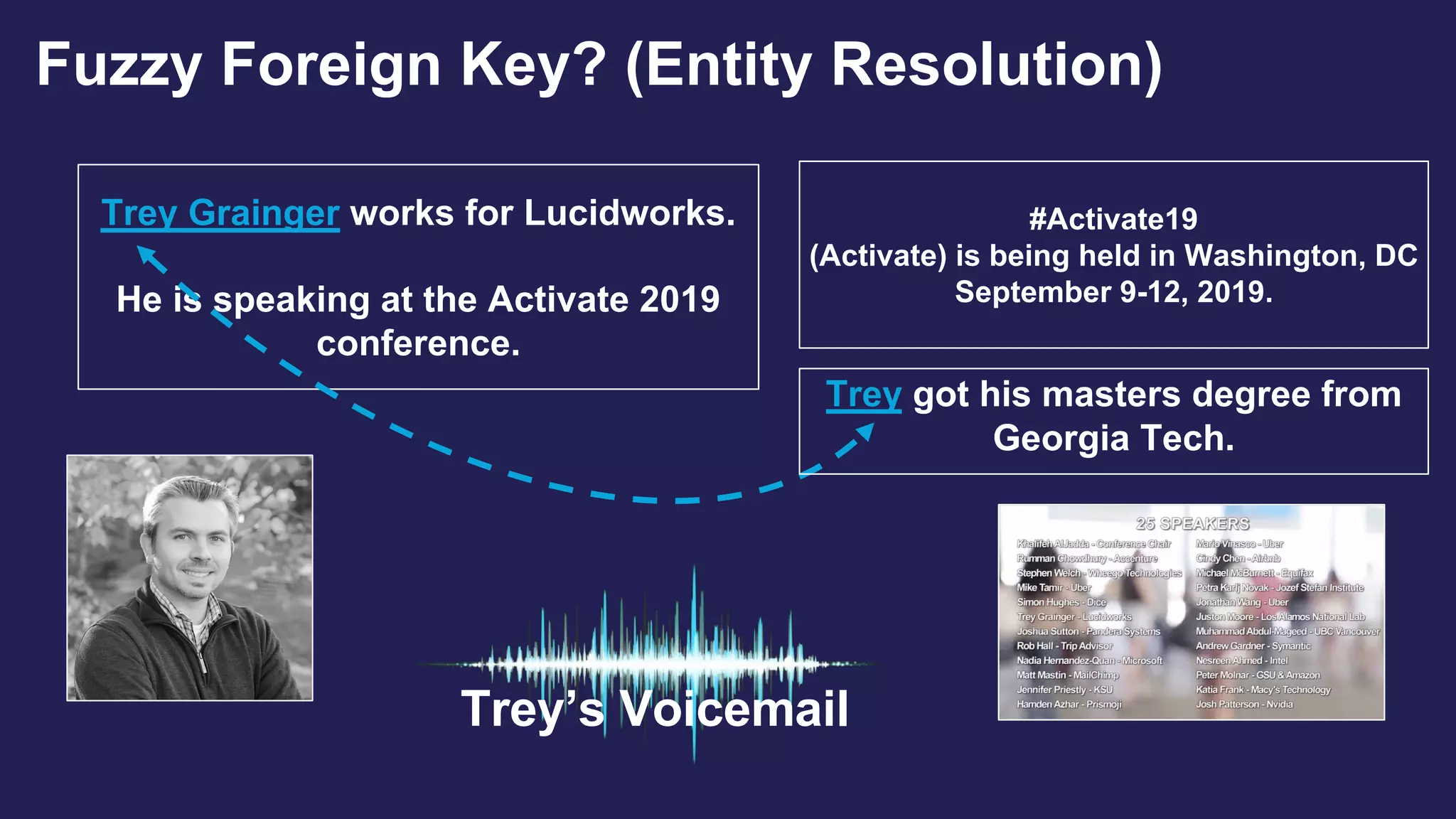

- 34. Trey Grainger worksfor Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters degree from Georgia Tech. Trey’s Voicemail Fuzzy Foreign Key? (Entity Resolution)
- 35. Trey Grainger worksfor Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters degree from Georgia Tech. Trey’s Voicemail Fuzzier Foreign Key? (metadata, latent features)
- 36. Trey Grainger worksfor Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters degree from Georgia Tech. Trey’s Voicemail Fuzzier Foreign Key? (metadata, latent features) Not so fast!

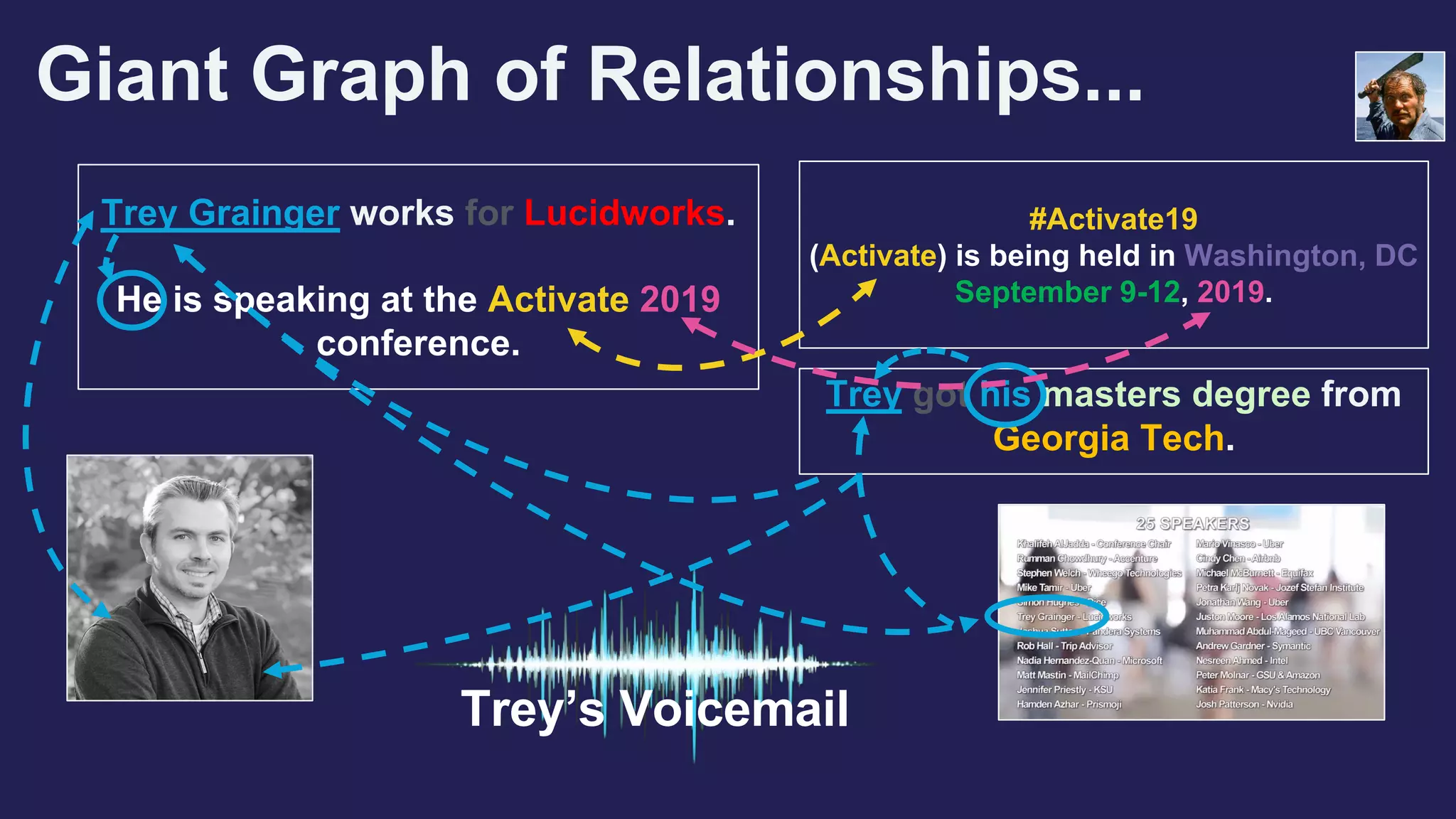

- 39. Giant Graph ofRelationships... Trey Grainger works for Lucidworks. He is speaking at the Activate 2019 conference. #Activate19 (Activate) is being held in Washington, DC September 9-12, 2019. Trey got his masters degree from Georgia Tech. Trey’s Voicemail
- 40. How do weeasily harness this “semantic graph” of relationships within unstructured information?
- 41.

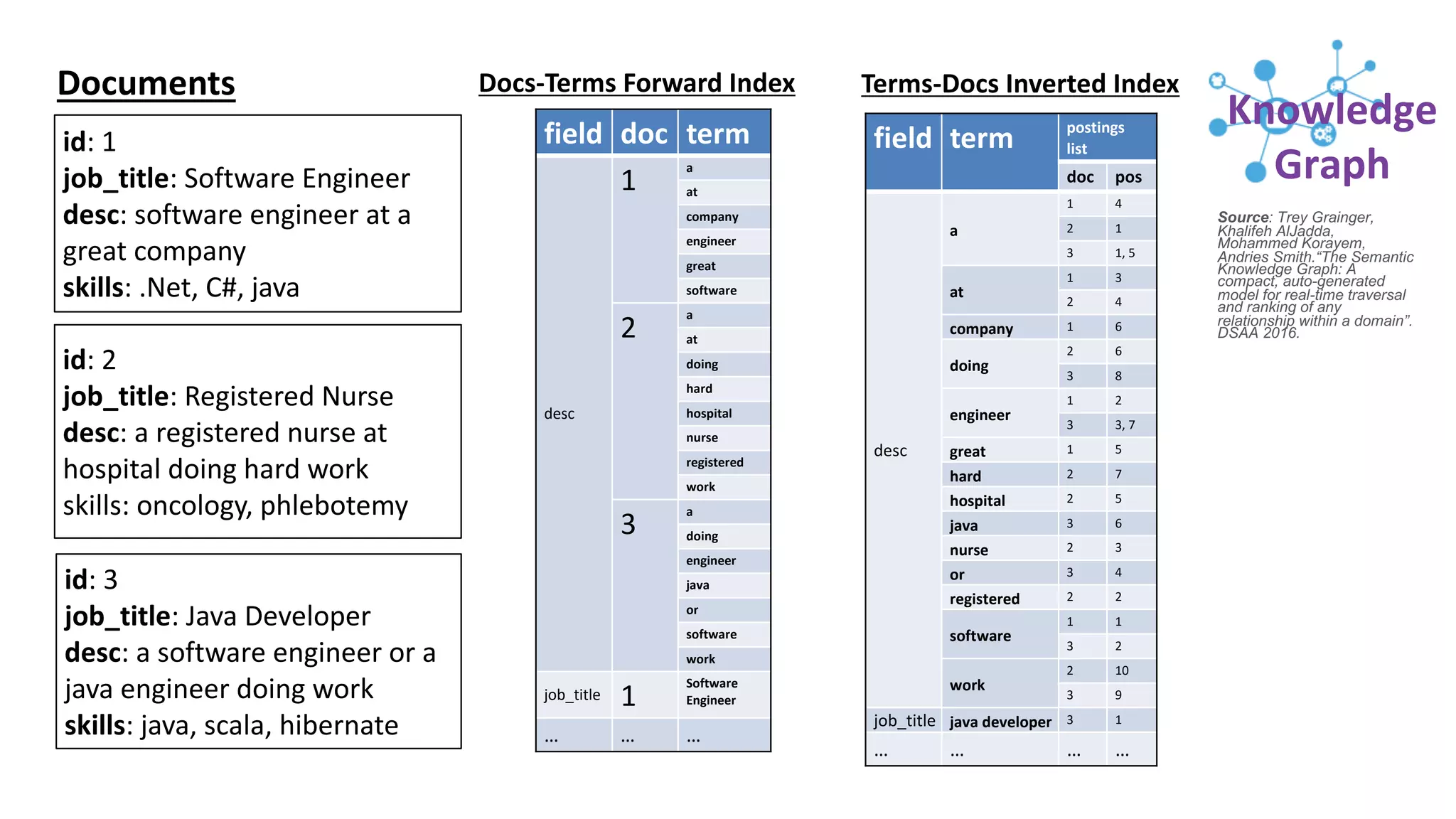

- 42. id: 1 job_title: SoftwareEngineer desc: software engineer at a great company skills: .Net, C#, java id: 2 job_title: Registered Nurse desc: a registered nurse at hospital doing hard work skills: oncology, phlebotemy id: 3 job_title: Java Developer desc: a software engineer or a java engineer doing work skills: java, scala, hibernate field doc term desc 1 a at company engineer great software 2 a at doing hard hospital nurse registered work 3 a doing engineer java or software work job_title 1 Software Engineer … … … Terms-Docs Inverted IndexDocs-Terms Forward IndexDocuments Source: Trey Grainger, Khalifeh AlJadda, Mohammed Korayem, Andries Smith.“The Semantic Knowledge Graph: A compact, auto-generated model for real-time traversal and ranking of any relationship within a domain”. DSAA 2016. Knowledge Graph field term postings list doc pos desc a 1 4 2 1 3 1, 5 at 1 3 2 4 company 1 6 doing 2 6 3 8 engineer 1 2 3 3, 7 great 1 5 hard 2 7 hospital 2 5 java 3 6 nurse 2 3 or 3 4 registered 2 2 software 1 1 3 2 work 2 10 3 9 job_title java developer 3 1 … … … …

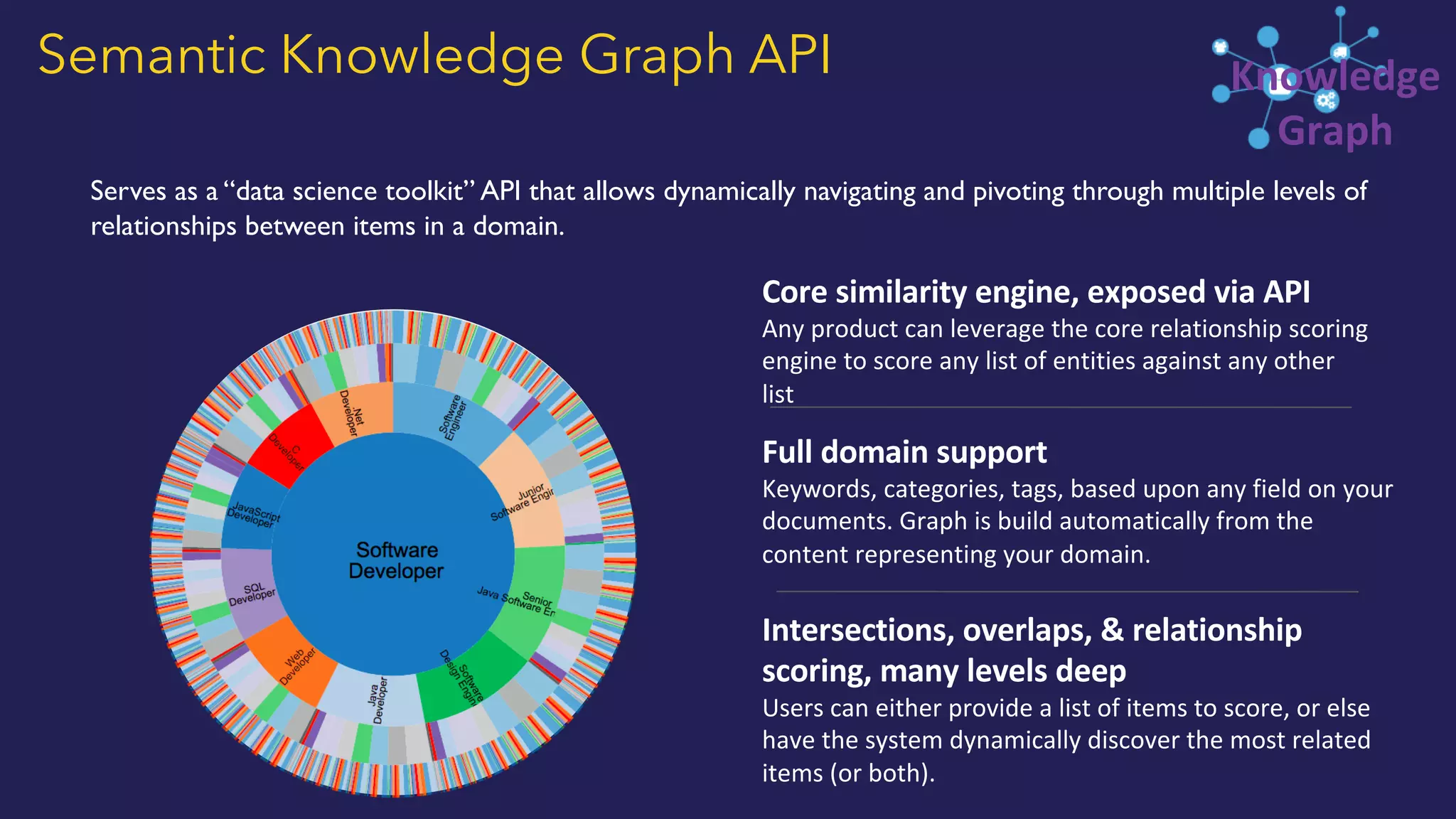

- 43. Serves as a“data science toolkit” API that allows dynamically navigating and pivoting through multiple levels of relationships between items in a domain. Semantic Knowledge Graph API Core similarity engine, exposed via API Any product can leverage the core relationship scoring engine to score any list of entities against any other list Full domain support Keywords, categories, tags, based upon any field on your documents. Graph is build automatically from the content representing your domain. Intersections, overlaps, & relationship scoring, many levels deep Users can either provide a list of items to score, or else have the system dynamically discover the most related items (or both). Knowledge Graph

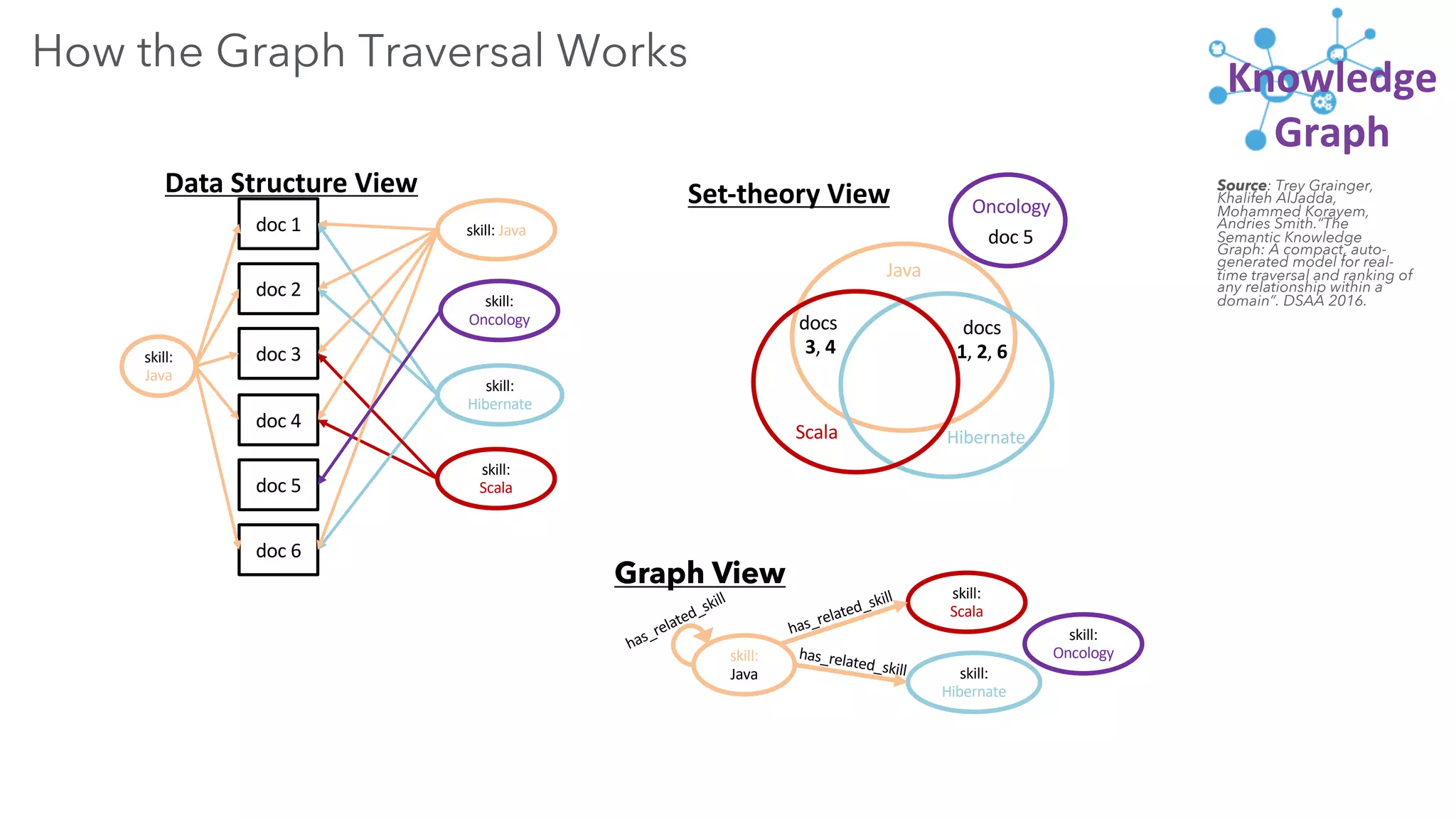

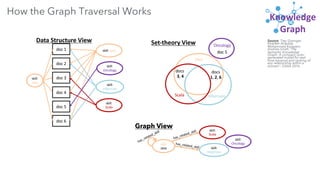

- 44. Source: Trey Grainger, KhalifehAlJadda, Mohammed Korayem, Andries Smith.“The Semantic Knowledge Graph: A compact, auto- generated model for real- time traversal and ranking of any relationship within a domain”. DSAA 2016. Knowledge Graph Set-theory View Graph View How the Graph Traversal Works skill: Java skill: Scala skill: Hibernate skill: Oncology has_related_skill has_related_skill has_related_skill doc 1 doc 2 doc 3 doc 4 doc 5 doc 6 skill: Java skill: Java skill: Scala skill: Hibernate skill: Oncology Data Structure View Java Scala Hibernate docs 1, 2, 6 docs 3, 4 Oncology doc 5

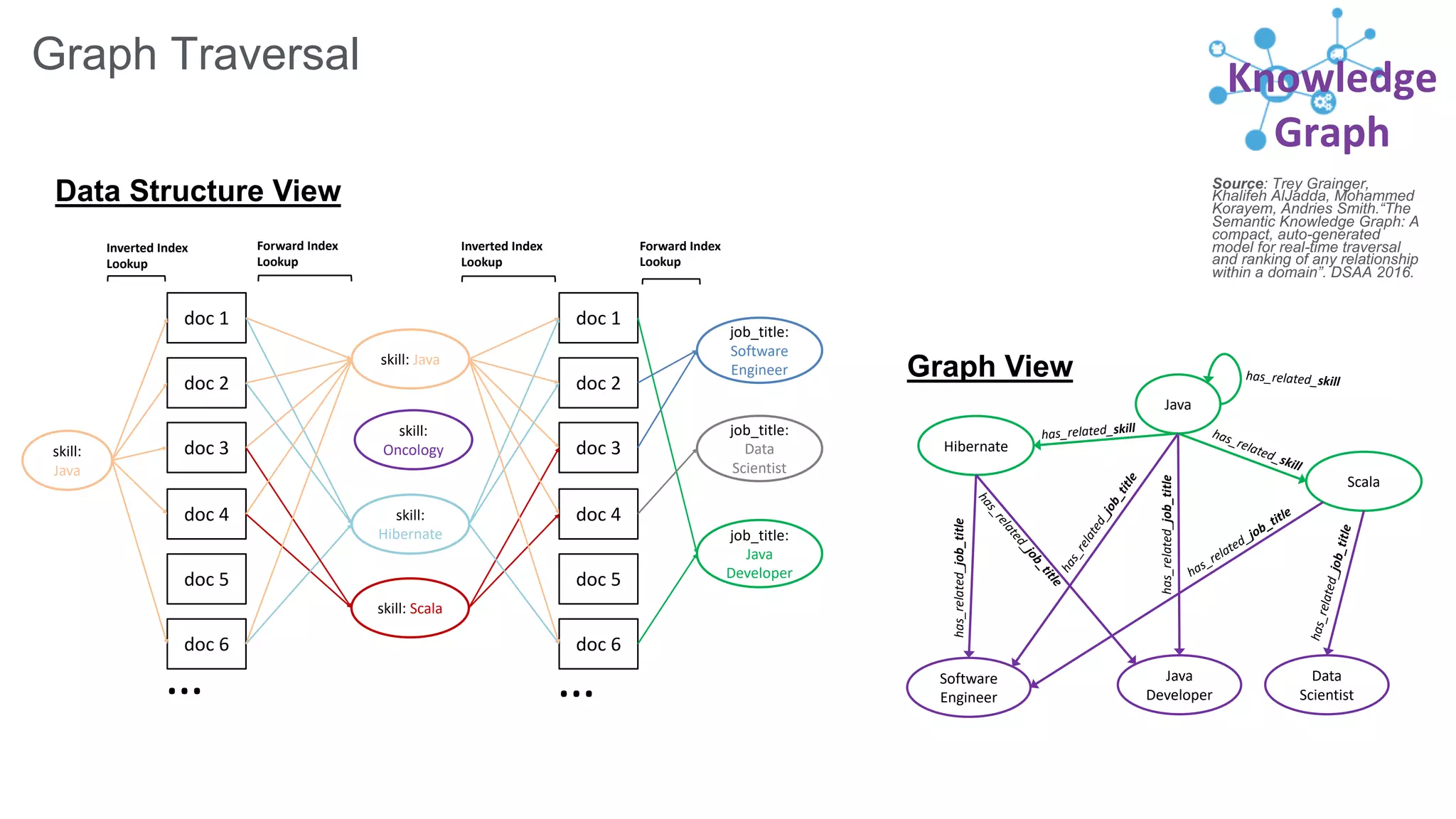

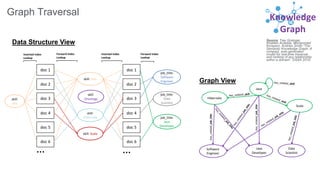

- 45. DOI: 10.1109/DSAA.2016.51 Conference: 2016IEEE International Conference on Data Science and Advanced Analytics (DSAA) Source: Trey Grainger, Khalifeh AlJadda, Mohammed Korayem, Andries Smith.“The Semantic Knowledge Graph: A compact, auto-generated model for real-time traversal and ranking of any relationship within a domain”. DSAA 2016. Knowledge Graph Graph Traversal Data Structure View Graph View doc 1 doc 2 doc 3 doc 4 doc 5 doc 6 skill: Java skill: Java skill: Scala skill: Hibernate skill: Oncology doc 1 doc 2 doc 3 doc 4 doc 5 doc 6 job_title: Software Engineer job_title: Data Scientist job_title: Java Developer …… Inverted Index Lookup Forward Index Lookup Forward Index Lookup Inverted Index Lookup Java Java Developer Hibernate Scala Software Engineer Data Scientist has_related_skill has_related_skill has_related_skill has_related_job_title has_related_job_title has_related_job_title has_related_job_title has_related_job_title has_related_job_title
- 46. Scoring of NodeRelationships (Edge Weights) Foreground vs. Background Analysis Every term scored against it’s context. The more commonly the term appears within it’s foreground context versus its background context, the more relevant it is to the specified foreground context. countFG(x) - totalDocsFG * probBG(x) z = -------------------------------------------------------- sqrt(totalDocsFG * probBG(x) * (1 - probBG(x))) { "type":"keywords”, "values":[ { "value":"hive", "relatedness":0.9773, "popularity":369 }, { "value":"java", "relatedness":0.9236, "popularity":15653 }, { "value":".net", "relatedness":0.5294, "popularity":17683 }, { "value":"bee", "relatedness":0.0, "popularity":0 }, { "value":"teacher", "relatedness":-0.2380, "popularity":9923 }, { "value":"registered nurse", "relatedness": -0.3802 "popularity":27089 } ] } We are essentially boosting terms which are more related to some known feature (and ignoring terms which are equally likely to appear in the background corpus) + - Foreground Query: "Hadoop" Knowledge Graph

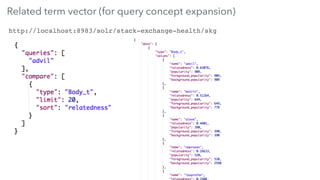

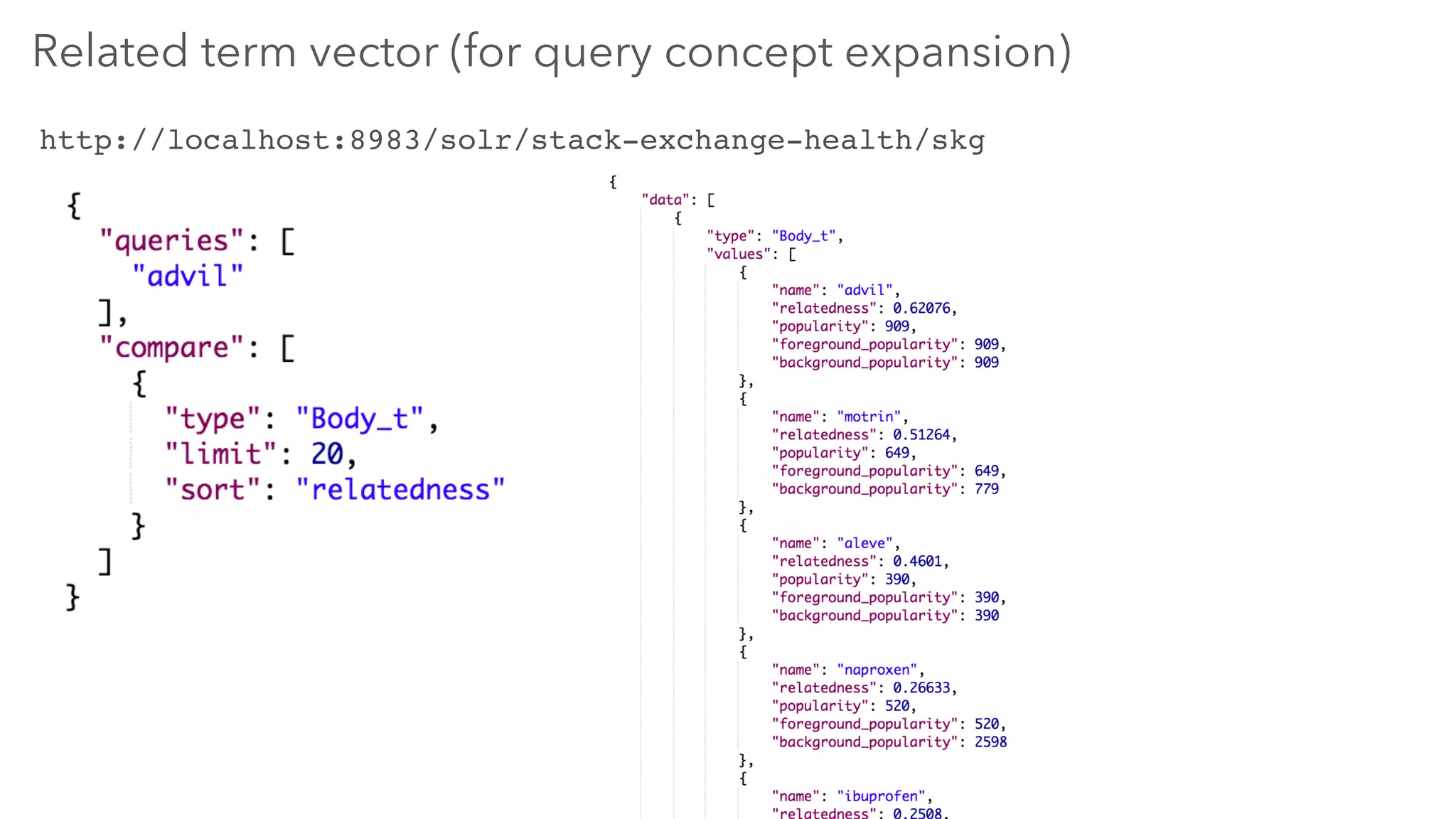

- 47. Related term vector(for query concept expansion) http://localhost:8983/solr/stack-exchange-health/skg

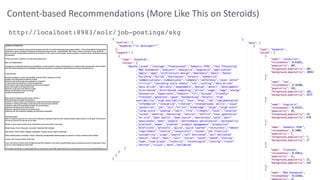

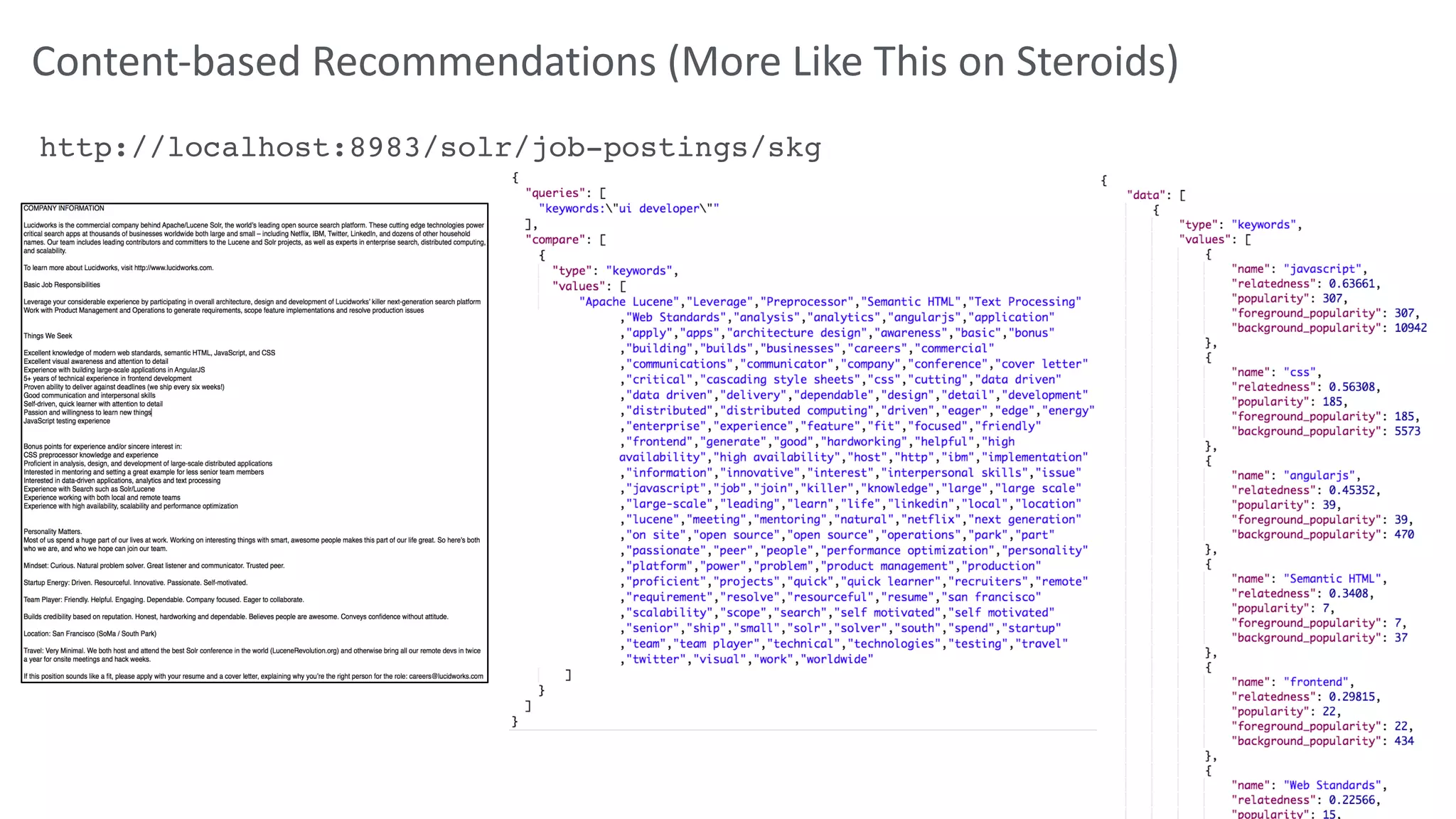

- 48. Content-based Recommendations (MoreLike This on Steroids) http://localhost:8983/solr/job-postings/skg

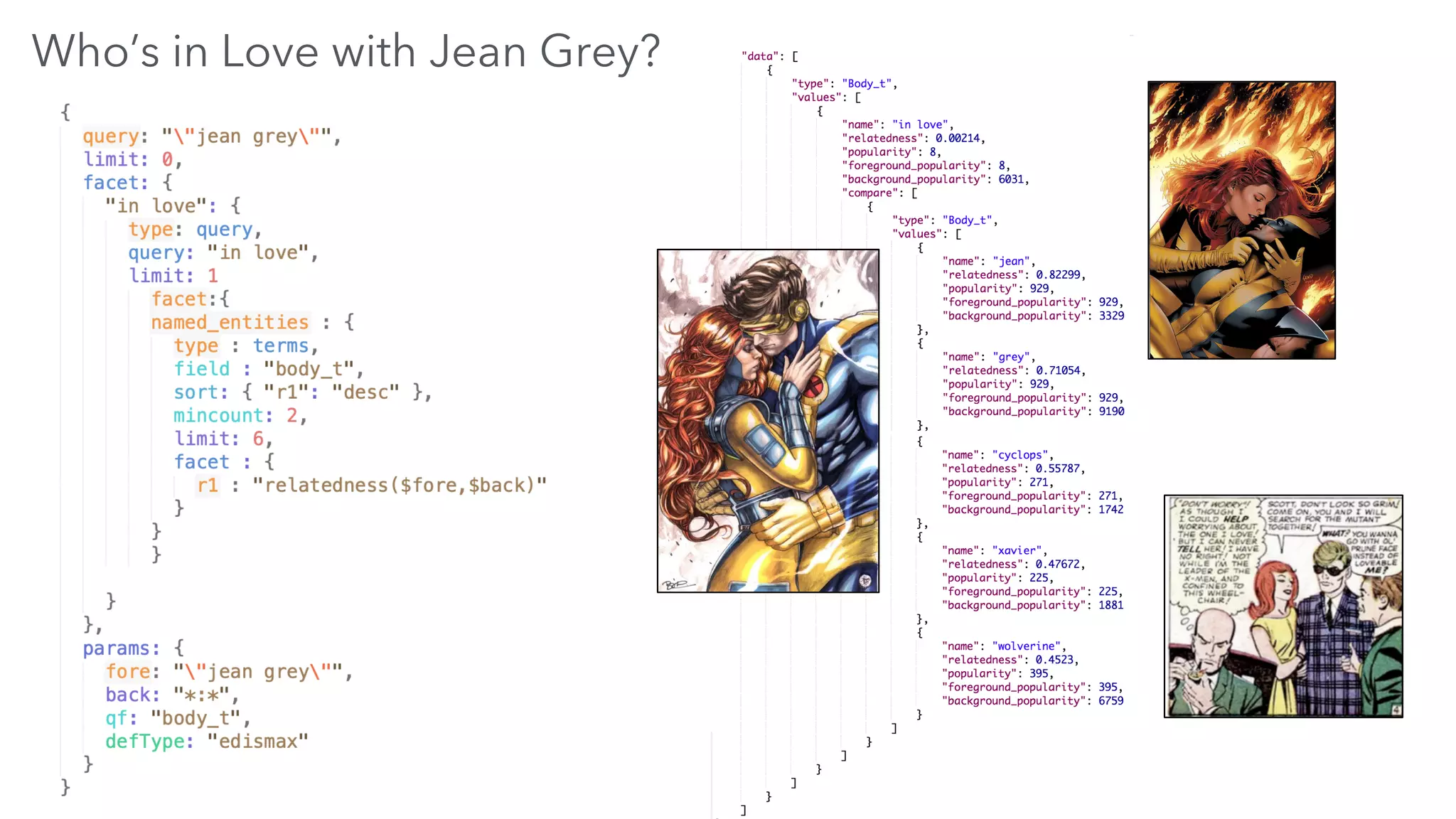

- 49. Who’s in Lovewith Jean Grey?

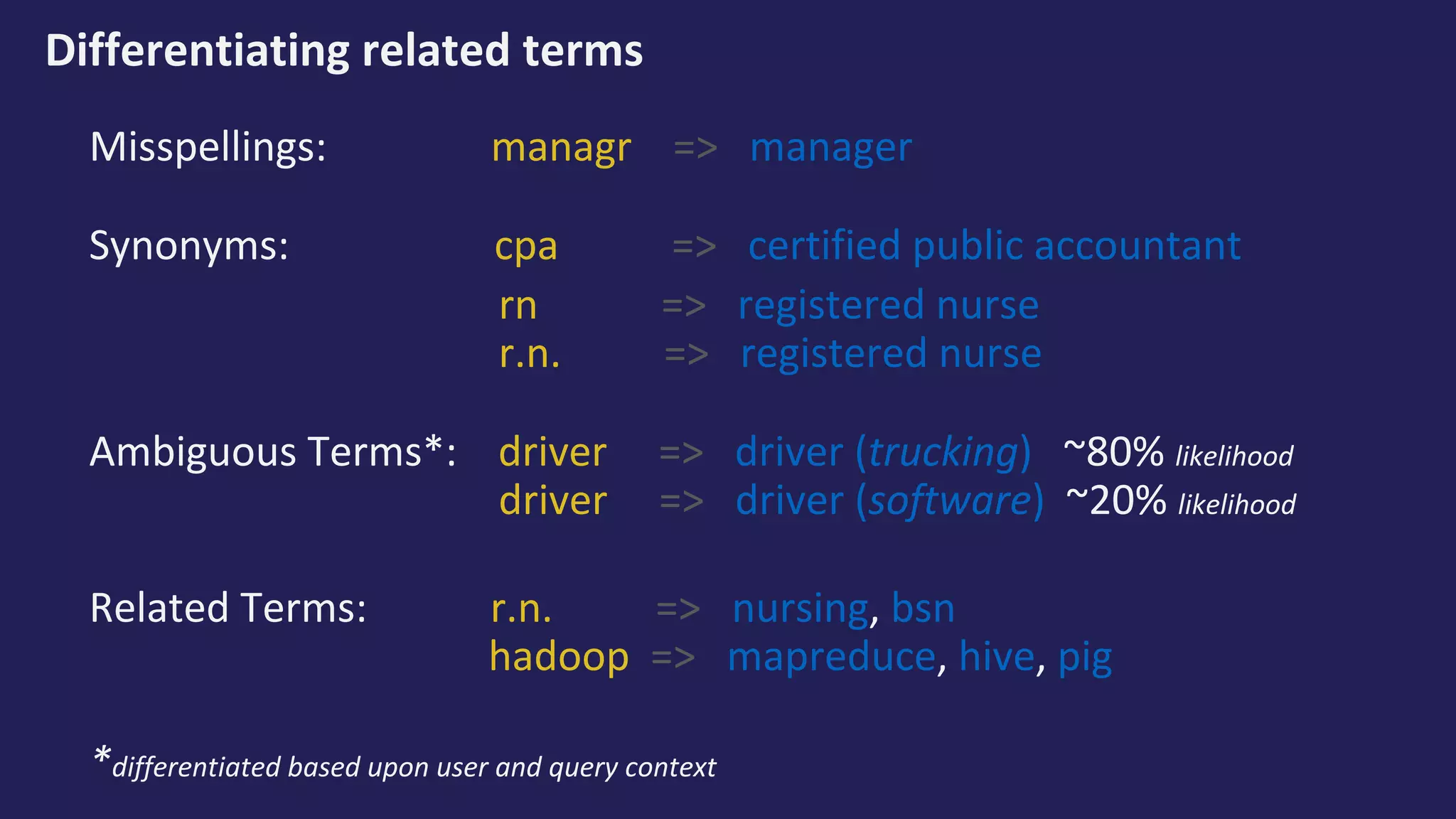

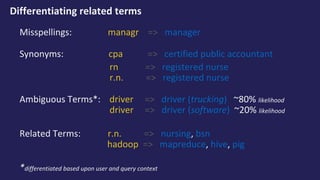

- 50. Differentiating related terms Misspellings:managr => manager Synonyms: cpa => certified public accountant rn => registered nurse r.n. => registered nurse Ambiguous Terms*: driver => driver (trucking) ~80% likelihood driver => driver (software) ~20% likelihood Related Terms: r.n. => nursing, bsn hadoop => mapreduce, hive, pig *differentiated based upon user and query context
- 51. Thought Exercise What doyou think of when I say the word “driver”? What about “architect”?

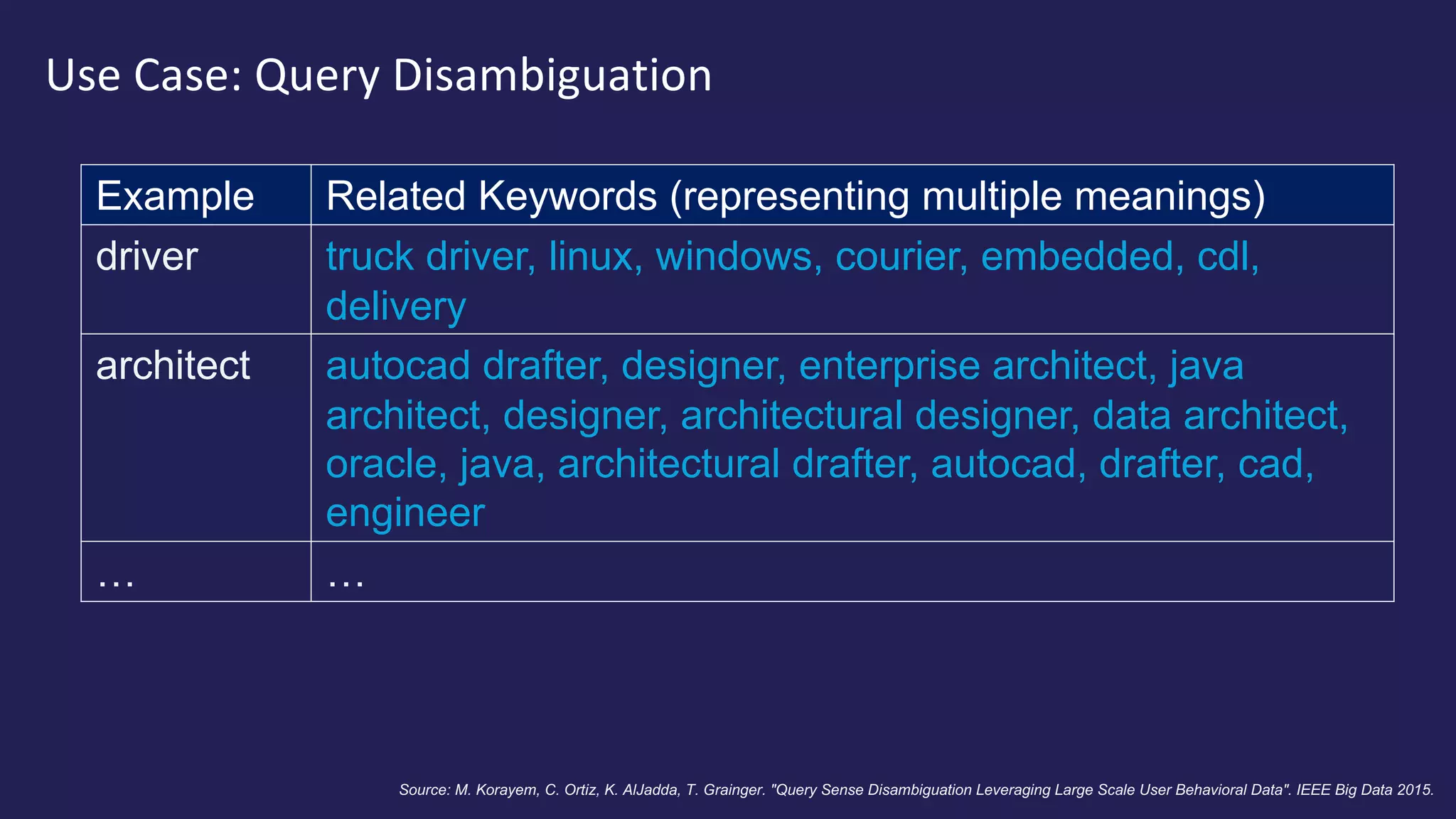

- 52. Use Case: QueryDisambiguation Source: M. Korayem, C. Ortiz, K. AlJadda, T. Grainger. "Query Sense Disambiguation Leveraging Large Scale User Behavioral Data". IEEE Big Data 2015. Example Related Keywords (representing multiple meanings) driver truck driver, linux, windows, courier, embedded, cdl, delivery architect autocad drafter, designer, enterprise architect, java architect, designer, architectural designer, data architect, oracle, java, architectural drafter, autocad, drafter, cad, engineer … …

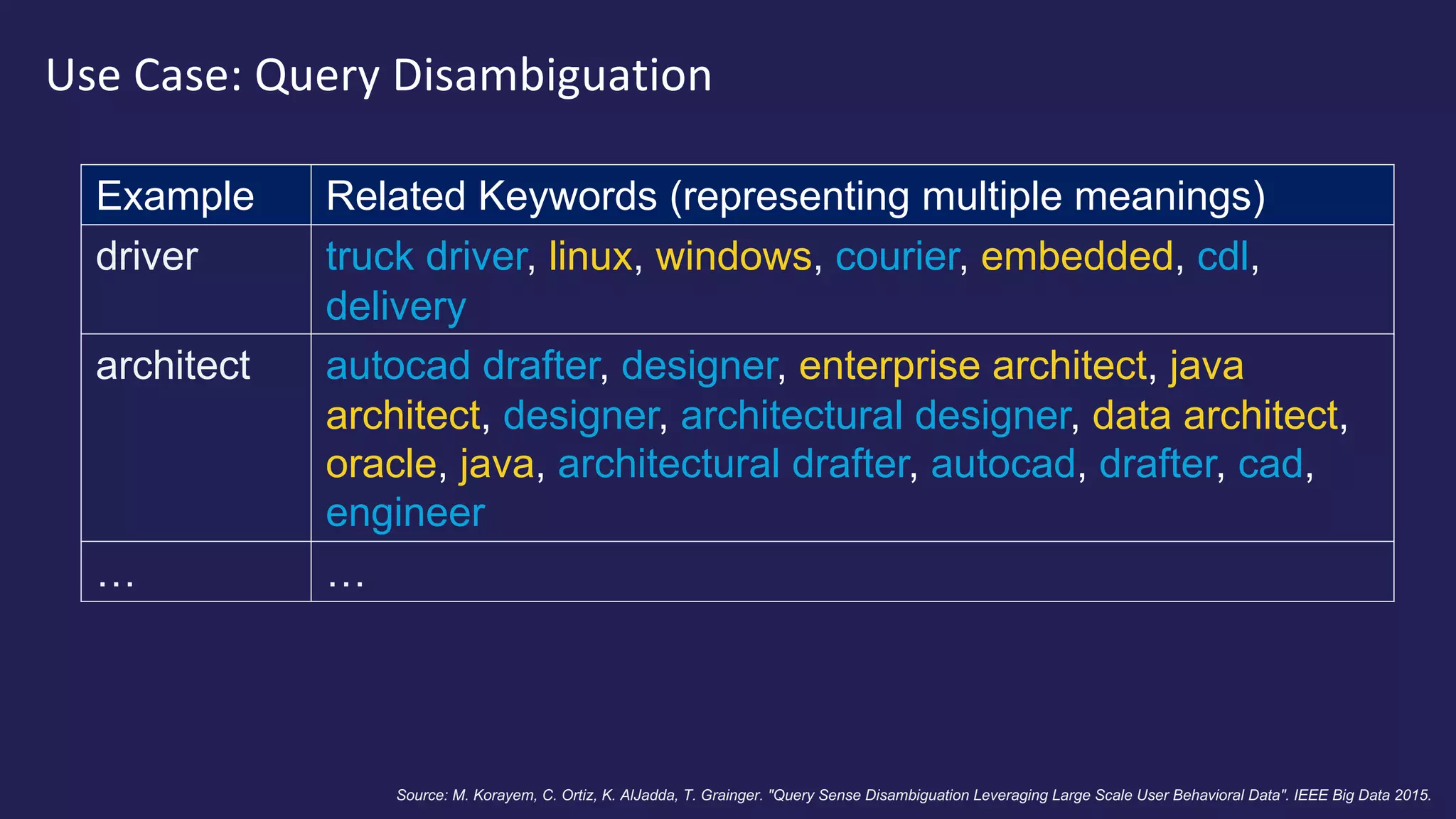

- 53. Use Case: QueryDisambiguation Example Related Keywords (representing multiple meanings) driver truck driver, linux, windows, courier, embedded, cdl, delivery architect autocad drafter, designer, enterprise architect, java architect, designer, architectural designer, data architect, oracle, java, architectural drafter, autocad, drafter, cad, engineer … … Source: M. Korayem, C. Ortiz, K. AlJadda, T. Grainger. "Query Sense Disambiguation Leveraging Large Scale User Behavioral Data". IEEE Big Data 2015.

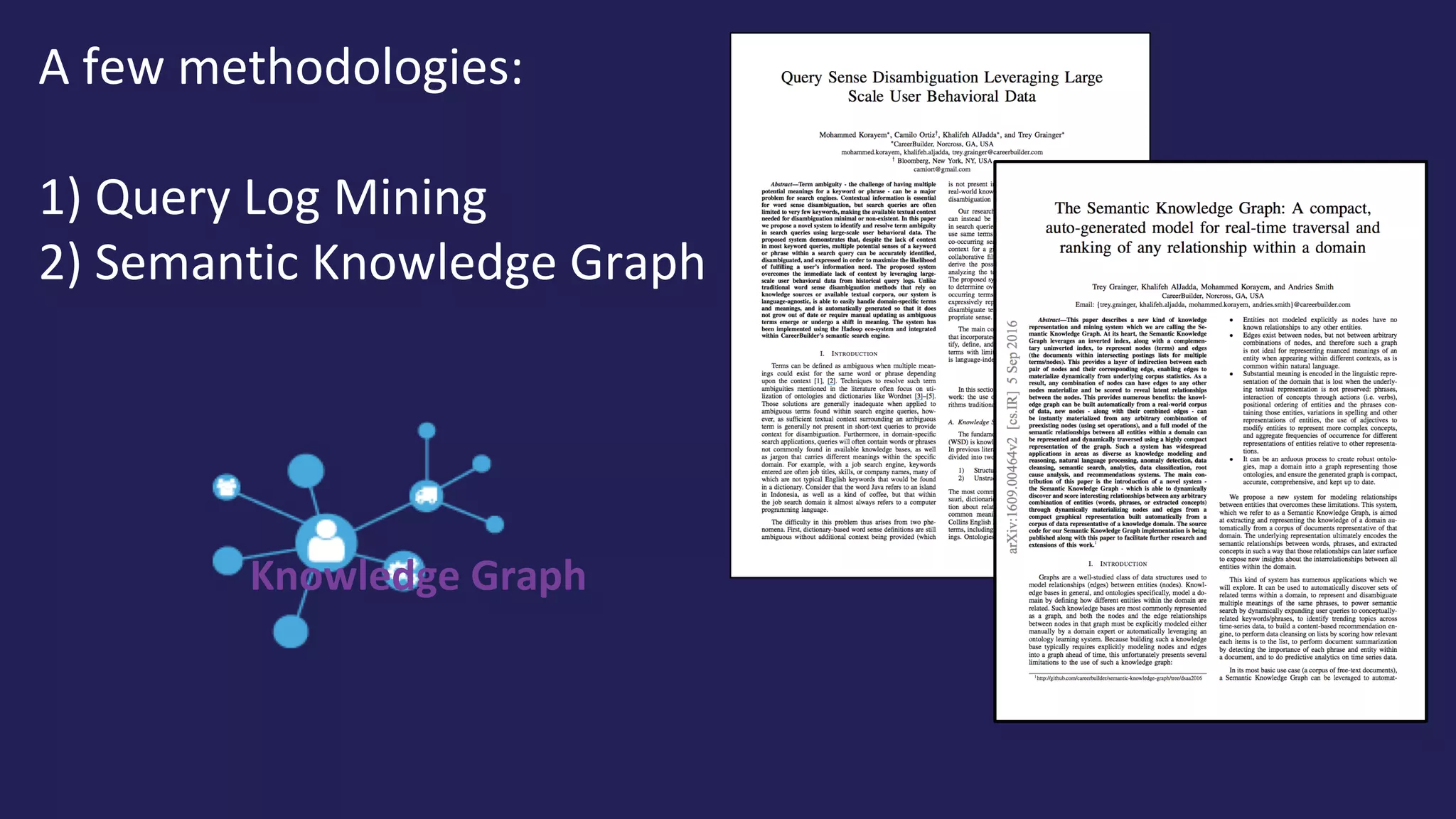

- 54. A few methodologies: 1)Query Log Mining 2) Semantic Knowledge Graph Knowledge Graph

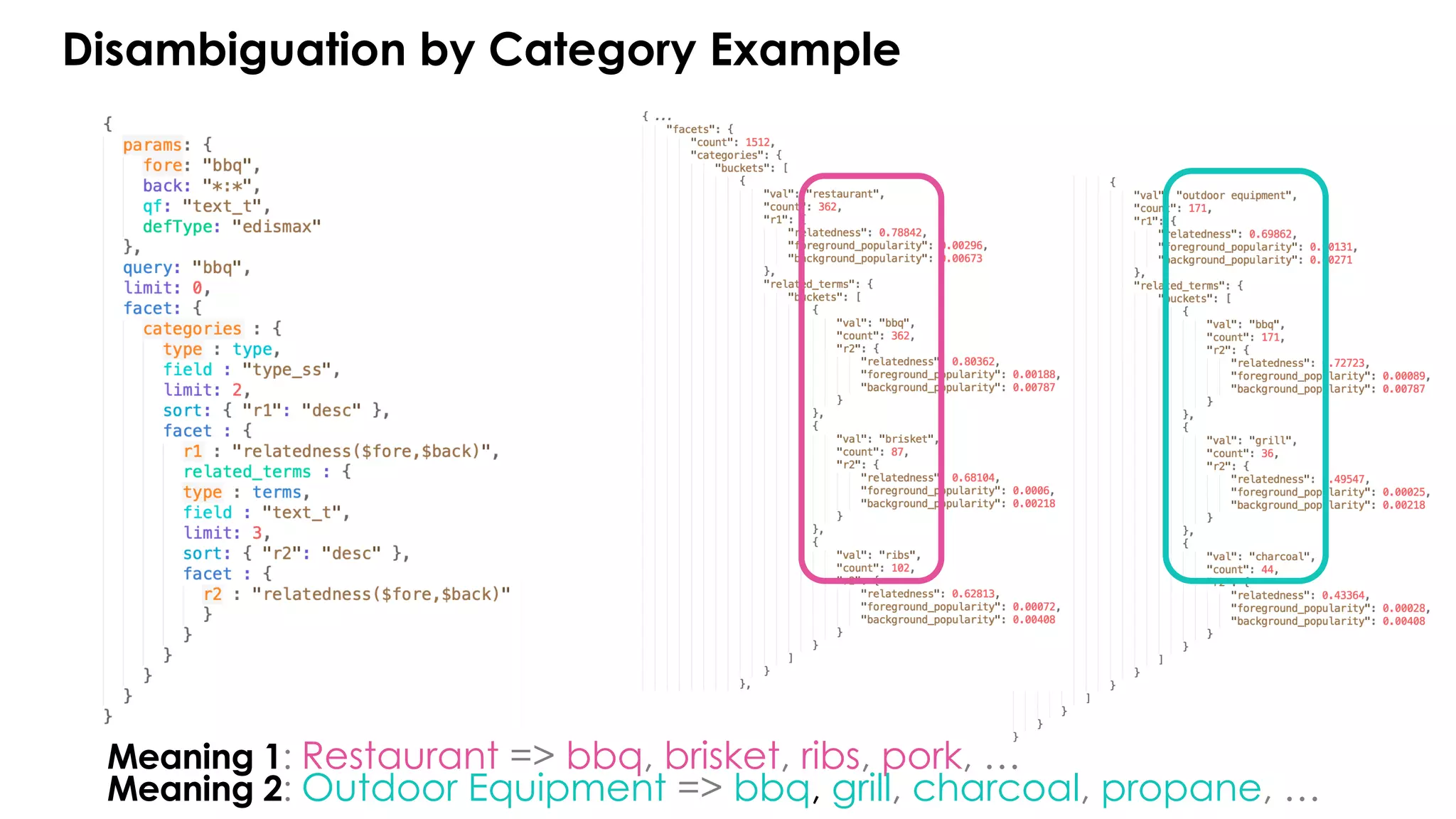

- 55. Disambiguation by CategoryExample Meaning 1: Restaurant => bbq, brisket, ribs, pork, … Meaning 2: Outdoor Equipment => bbq, grill, charcoal, propane, …

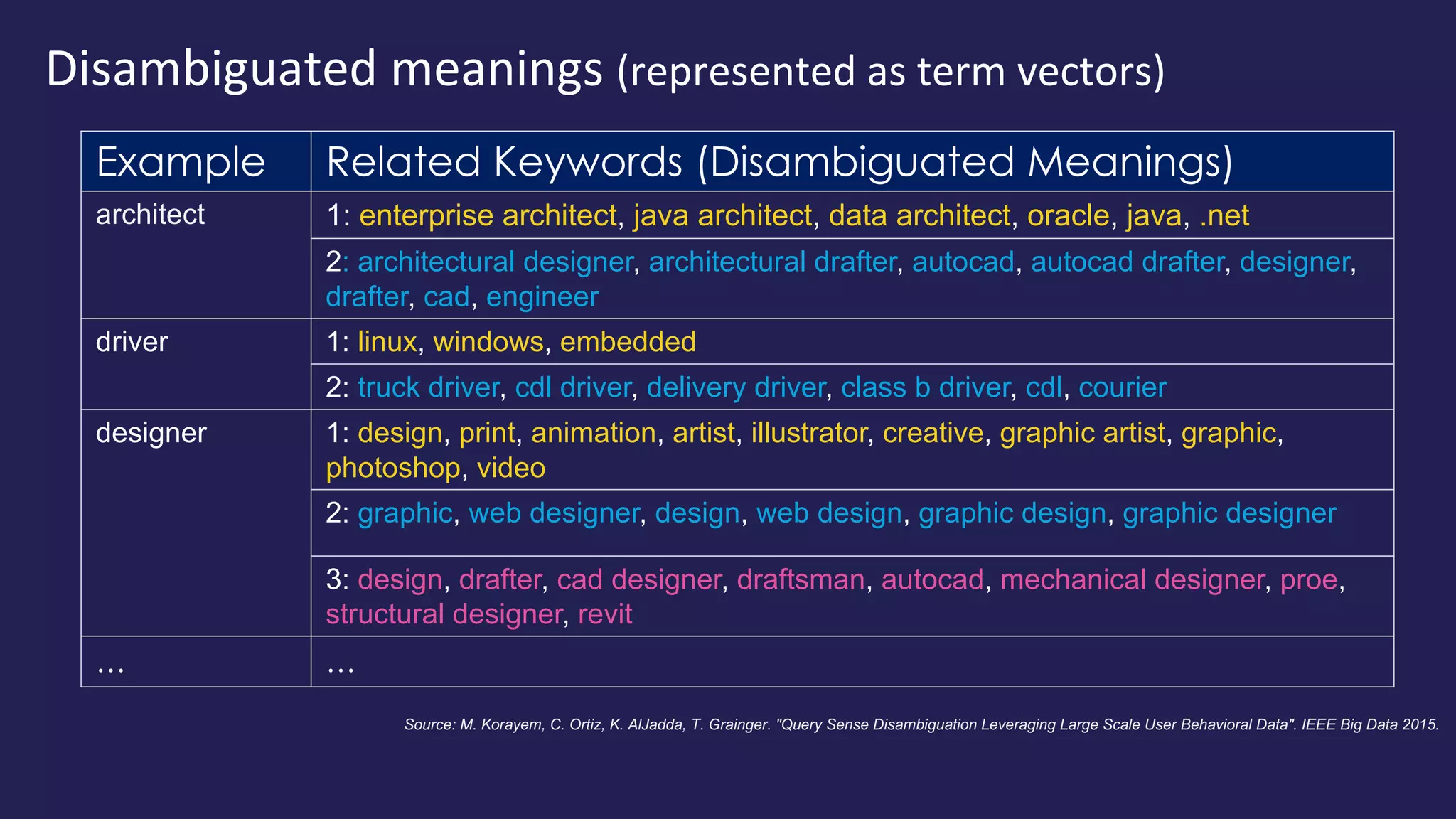

- 56. Disambiguated meanings (representedas term vectors) Example Related Keywords (Disambiguated Meanings) architect 1: enterprise architect, java architect, data architect, oracle, java, .net 2: architectural designer, architectural drafter, autocad, autocad drafter, designer, drafter, cad, engineer driver 1: linux, windows, embedded 2: truck driver, cdl driver, delivery driver, class b driver, cdl, courier designer 1: design, print, animation, artist, illustrator, creative, graphic artist, graphic, photoshop, video 2: graphic, web designer, design, web design, graphic design, graphic designer 3: design, drafter, cad designer, draftsman, autocad, mechanical designer, proe, structural designer, revit … … Source: M. Korayem, C. Ortiz, K. AlJadda, T. Grainger. "Query Sense Disambiguation Leveraging Large Scale User Behavioral Data". IEEE Big Data 2015.
- 57. Every term orphrase is a Context-dependent cluster of meaning with an ambiguous label

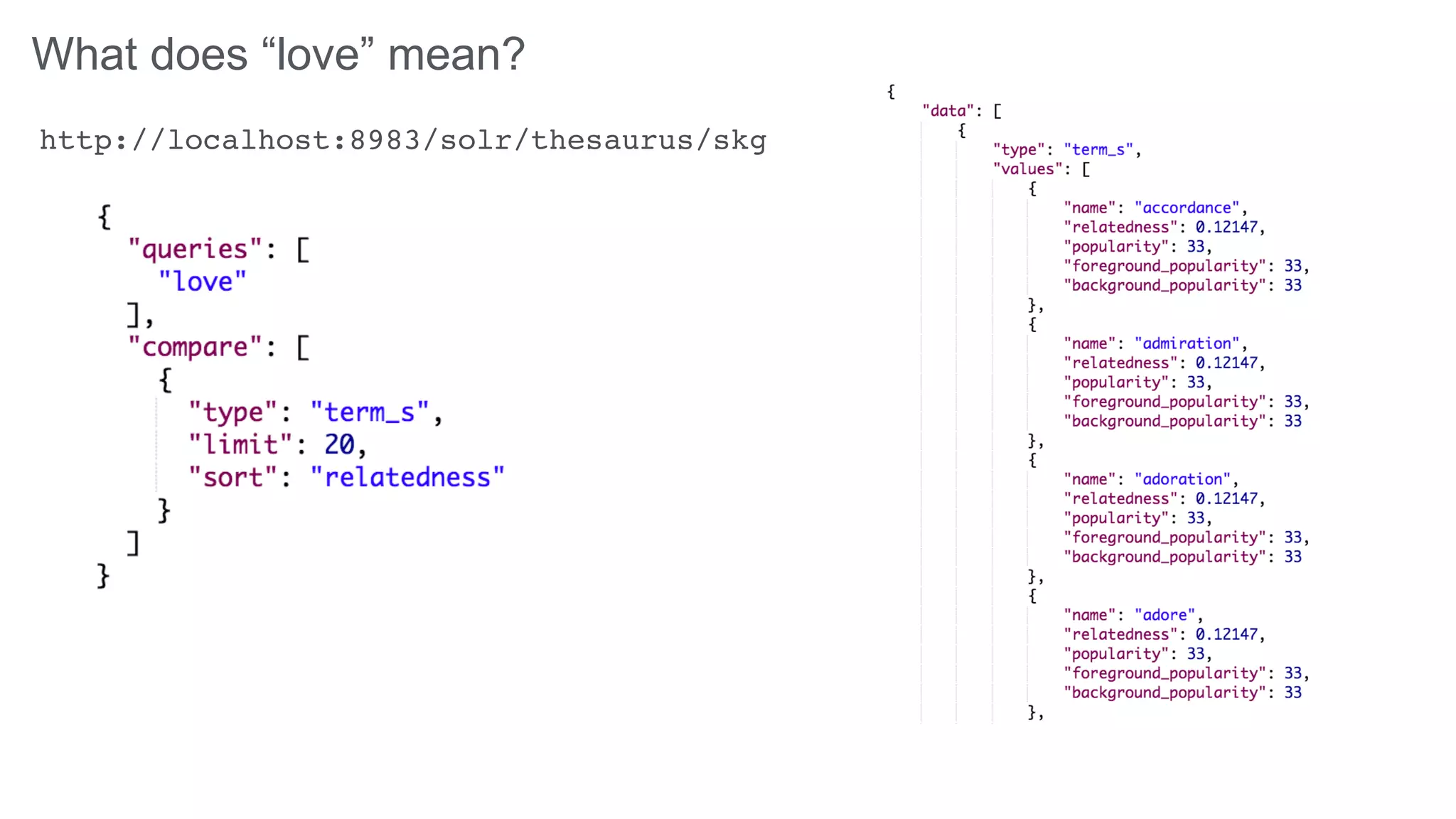

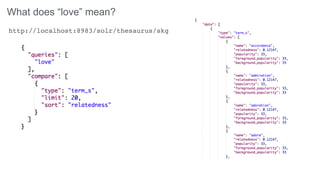

- 58. What does “love”mean? http://localhost:8983/solr/thesaurus/skg

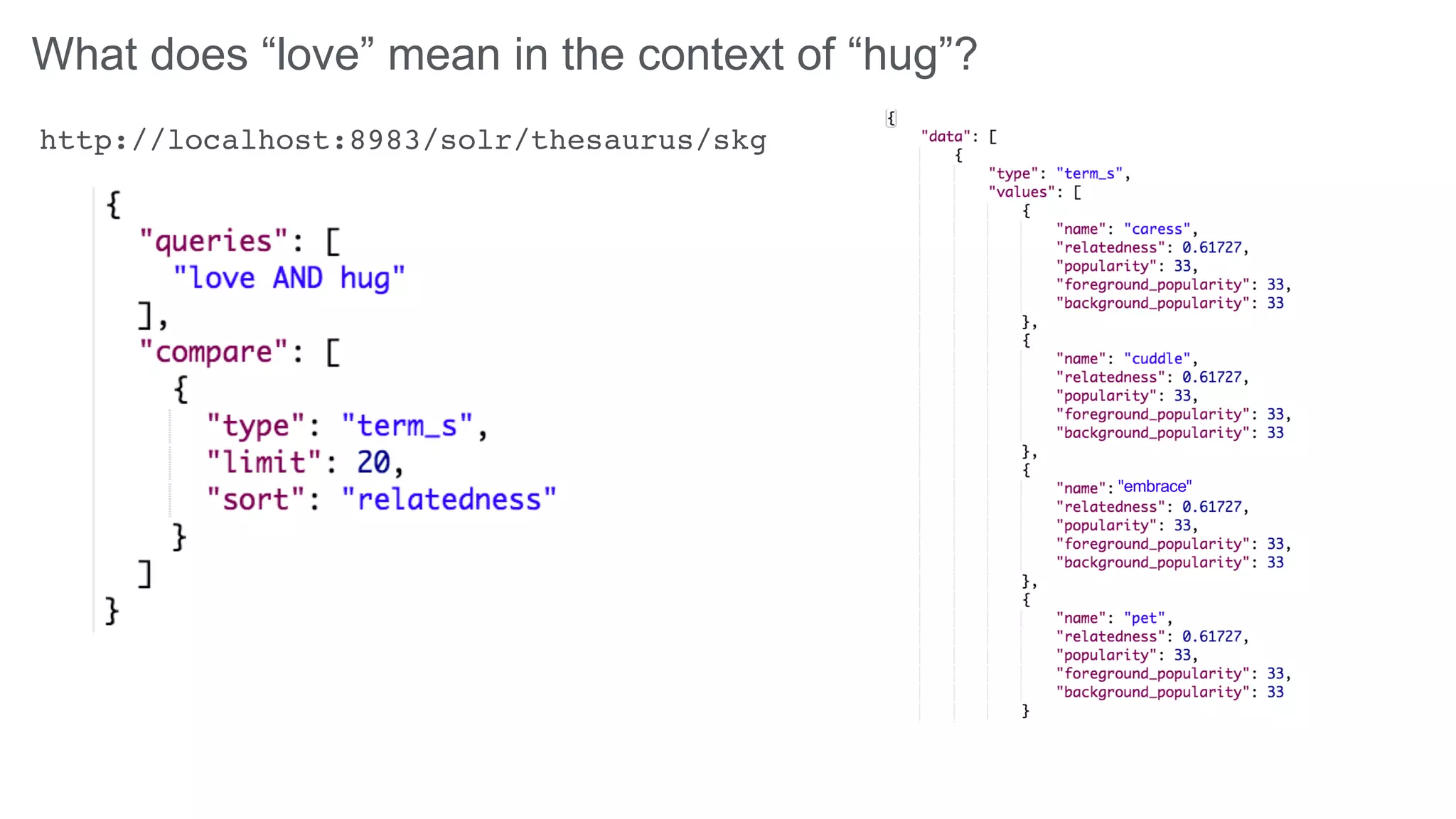

- 59. What does “love”mean in the context of “hug”? http://localhost:8983/solr/thesaurus/skg "embrace"

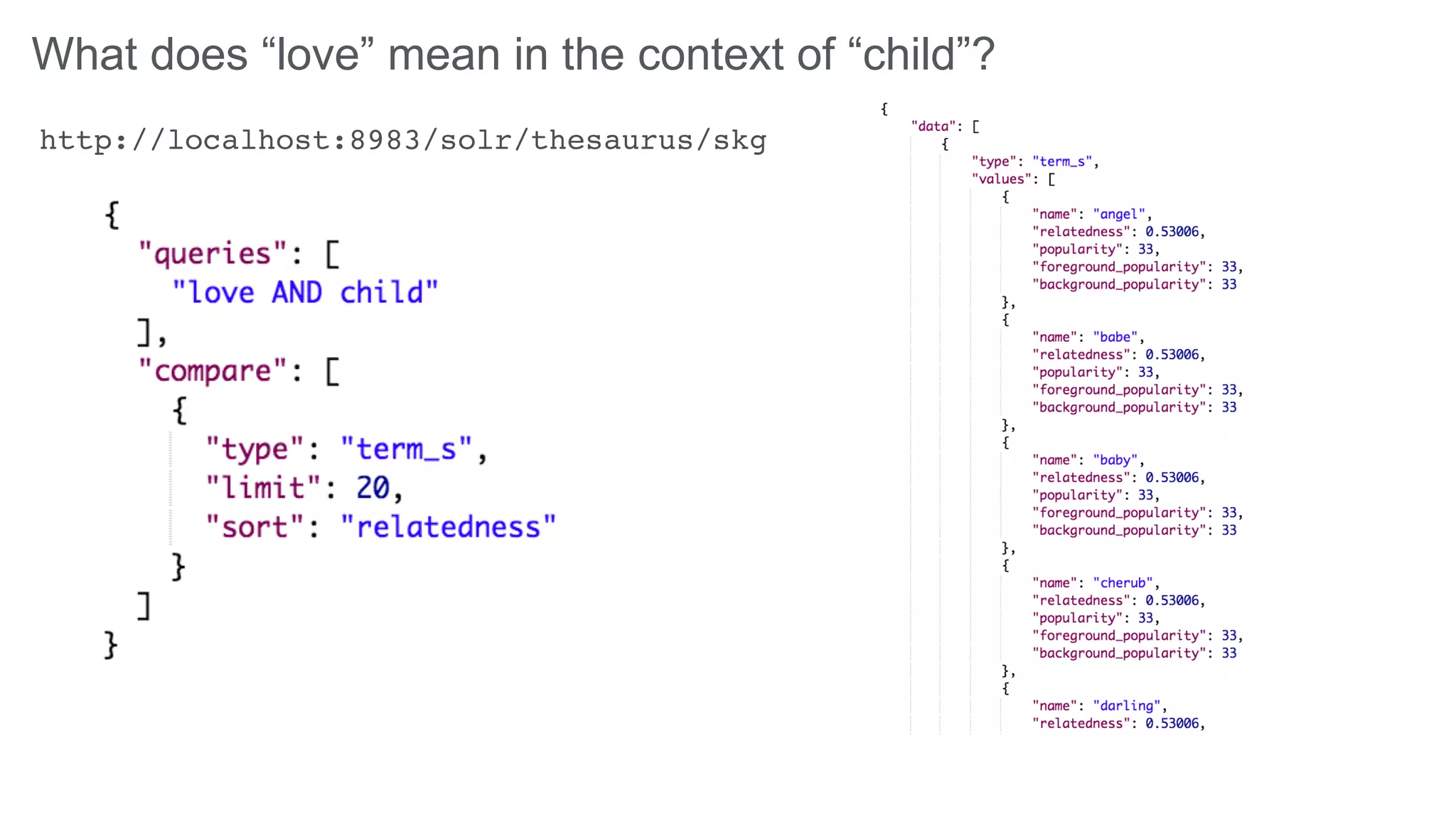

- 60. What does “love”mean in the context of “child”? http://localhost:8983/solr/thesaurus/skg

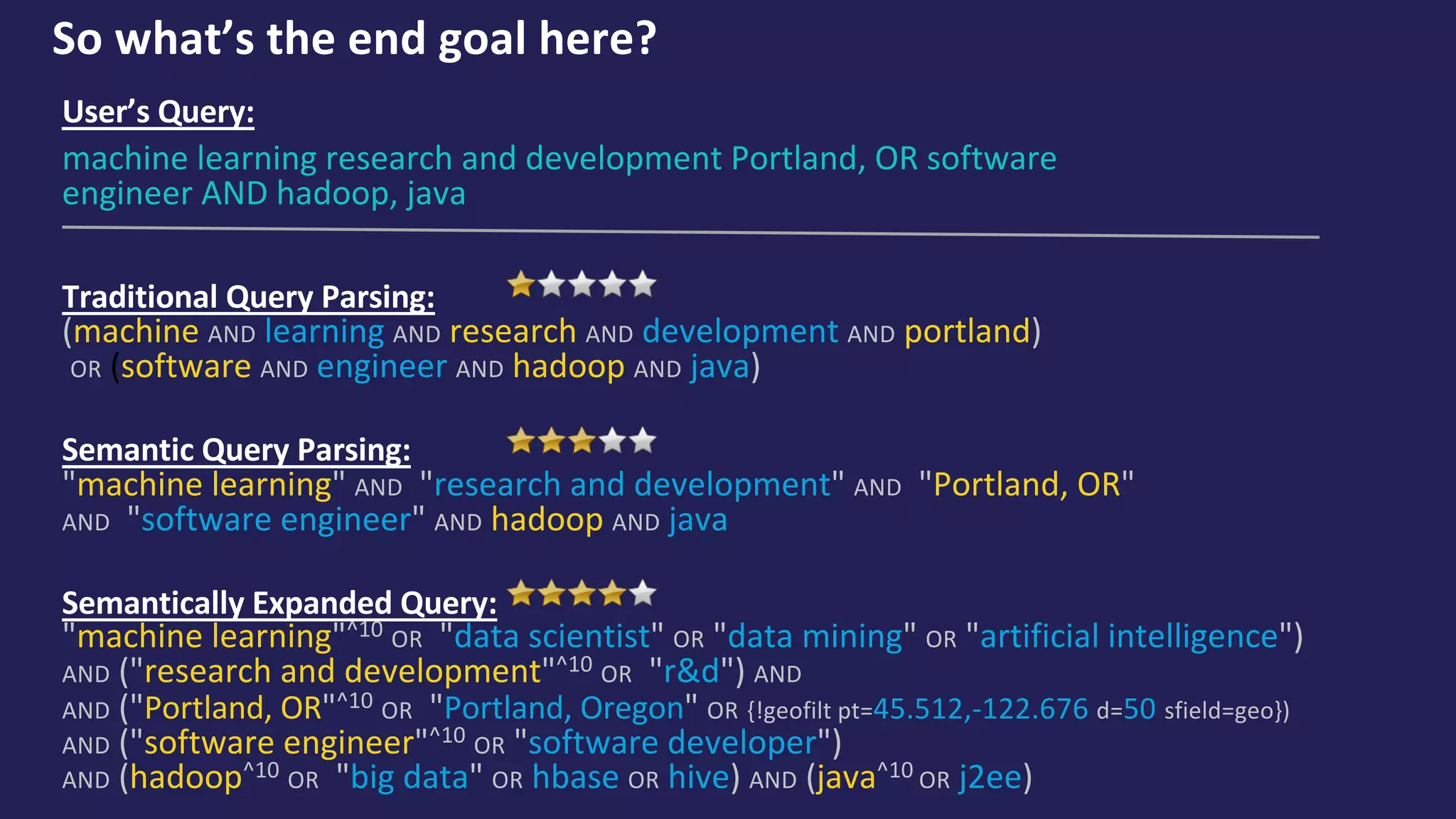

- 61. So what’s theend goal here? User’s Query: machine learning research and development Portland, OR software engineer AND hadoop, java Traditional Query Parsing: (machine AND learning AND research AND development AND portland) OR (software AND engineer AND hadoop AND java) Semantic Query Parsing: "machine learning" AND "research and development" AND "Portland, OR" AND "software engineer" AND hadoop AND java Semantically Expanded Query: "machine learning"^10 OR "data scientist" OR "data mining" OR "artificial intelligence") AND ("research and development"^10 OR "r&d") AND AND ("Portland, OR"^10 OR "Portland, Oregon" OR {!geofilt pt=45.512,-122.676 d=50 sfield=geo}) AND ("software engineer"^10 OR "software developer") AND (hadoop^10 OR "big data" OR hbase OR hive) AND (java^10 OR j2ee)

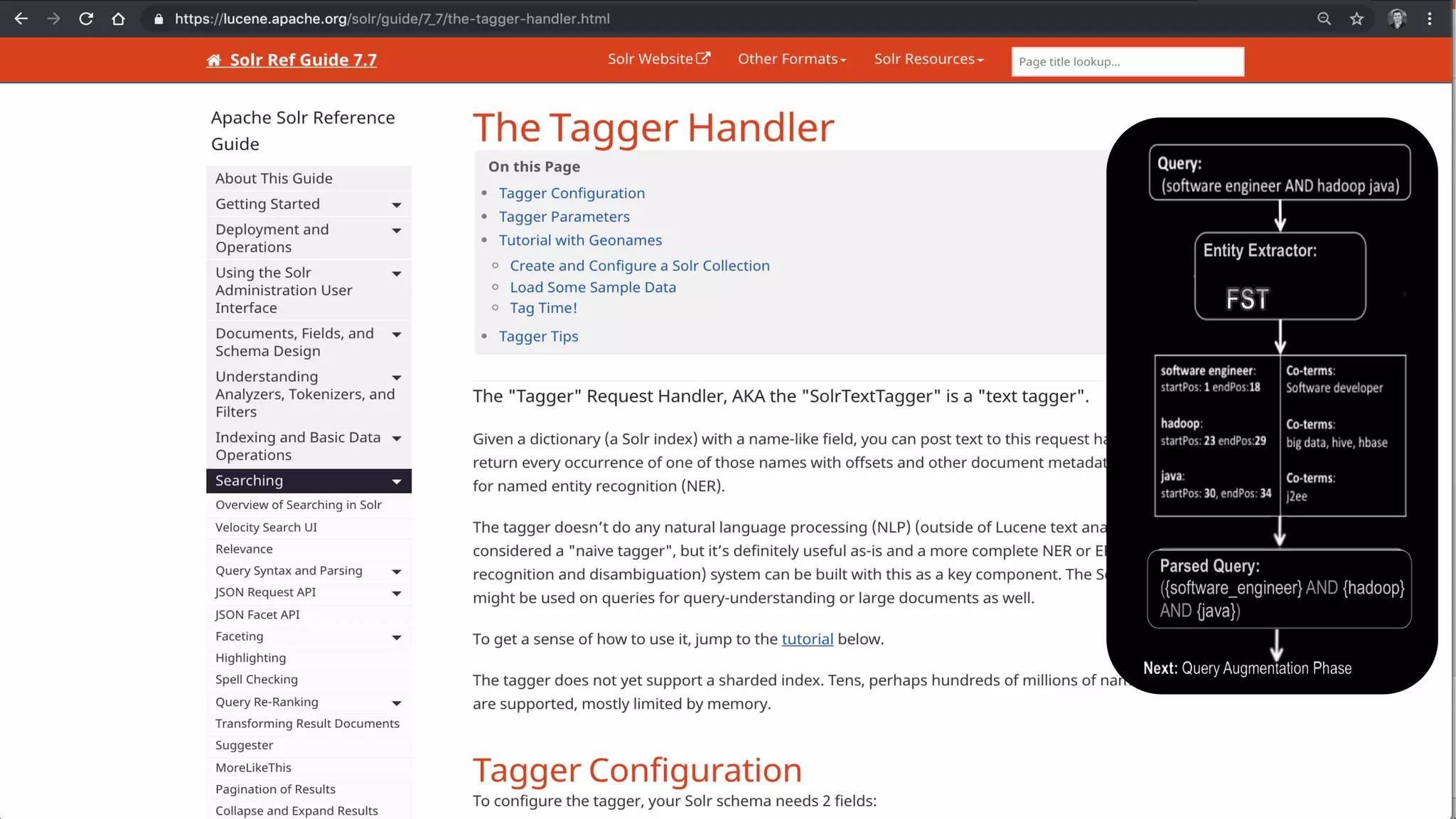

- 62. Semantic Search Components: •Apache Solr • Solr Text Tagger • Semantic Knowledge Graph • Statistical Phrase Identifier • Fusion Semantic Query Pipelines • Fusion AI Synonyms Job • Fusion AI Token & Phrase Spell Correction Job • Fusion AI Head/Tail Analysis Job • Fusion AI Phrase Identification Job • Fusion Query Rules Engine
- 63. I talked aboutintegrating these last year: See my Activate 2018 talk on “How to Build a Semantic Search System” For details on extended Lucidworks Fusion capabilities.
- 64. For Today’s talk,I’ll only focus on these two • Solr Text Tagger • Semantic Knowledge Graph
- 67. Graph Query Parser •Query-time, cyclic aware graph traversal is able to rank documents based on relationships • Provides controls for depth, filtering of results and inclusion of root and/or leaves • Limitations: distributed queries only traverse intra-shard docs Examples: • http://localhost:8983/solr/graph/query?fl=id,score& q={!graph from=in_edge to=out_edge}id:A • http://localhost:8983/solr/my_graph/query?fl=id& q={!graph from=in_edge to=out_edge traversalFilter='foo:[* TO 15]'}id:A • http://localhost:8983/solr/my_graph/query?fl=id& q={!graph from=in_edge to=out_edge maxDepth=1}foo:[* TO 10]
- 68.
- 69. Demo Data Places (alsoincludes geonames database) Entities (includes search commands) Text Content [ Web crawl of restaurant and product reviews sites ]

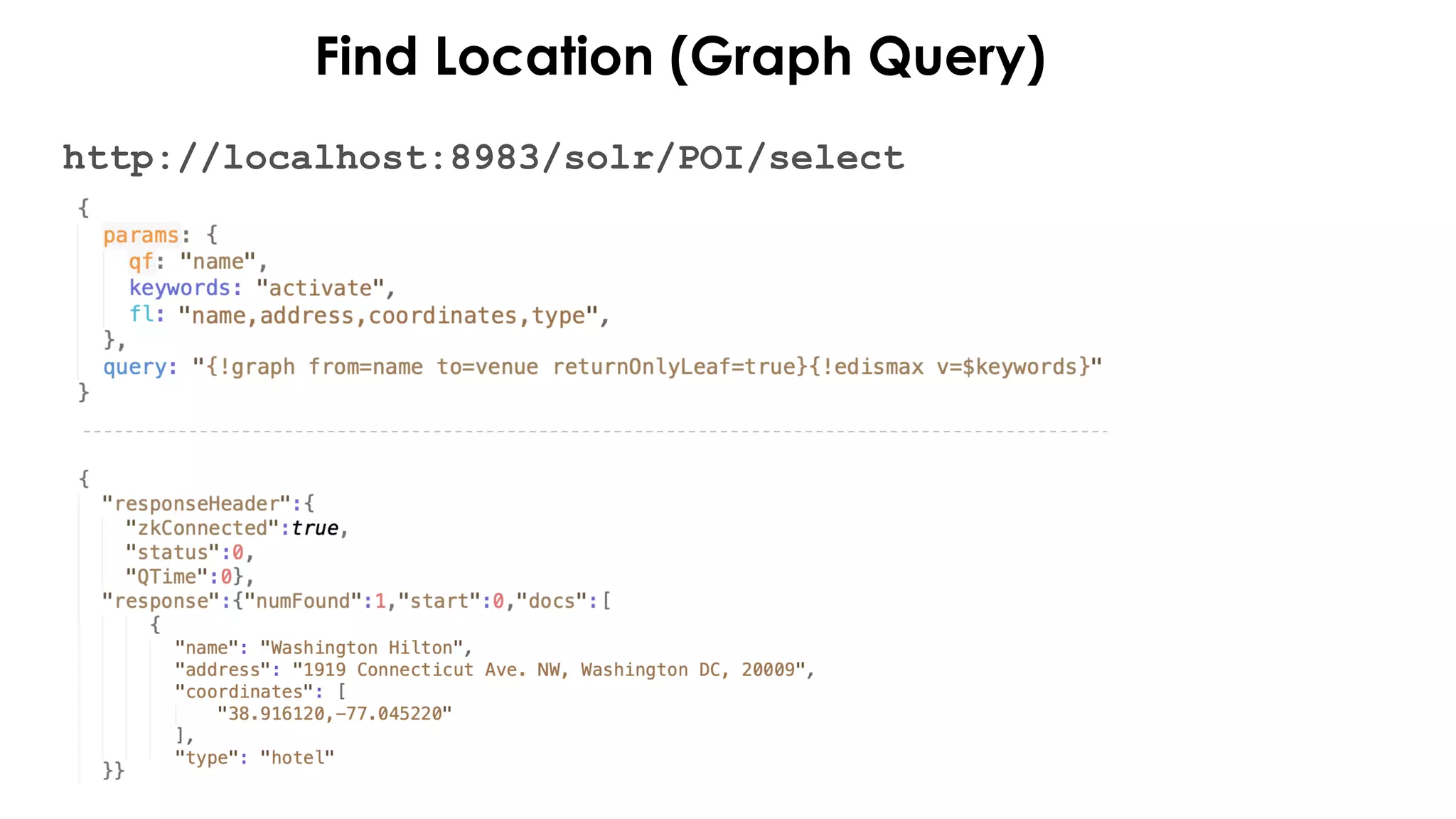

- 70. Find Location (GraphQuery) http://localhost:8983/solr/POI/select

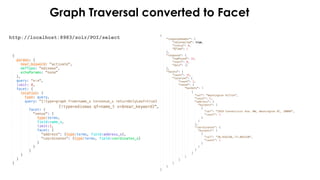

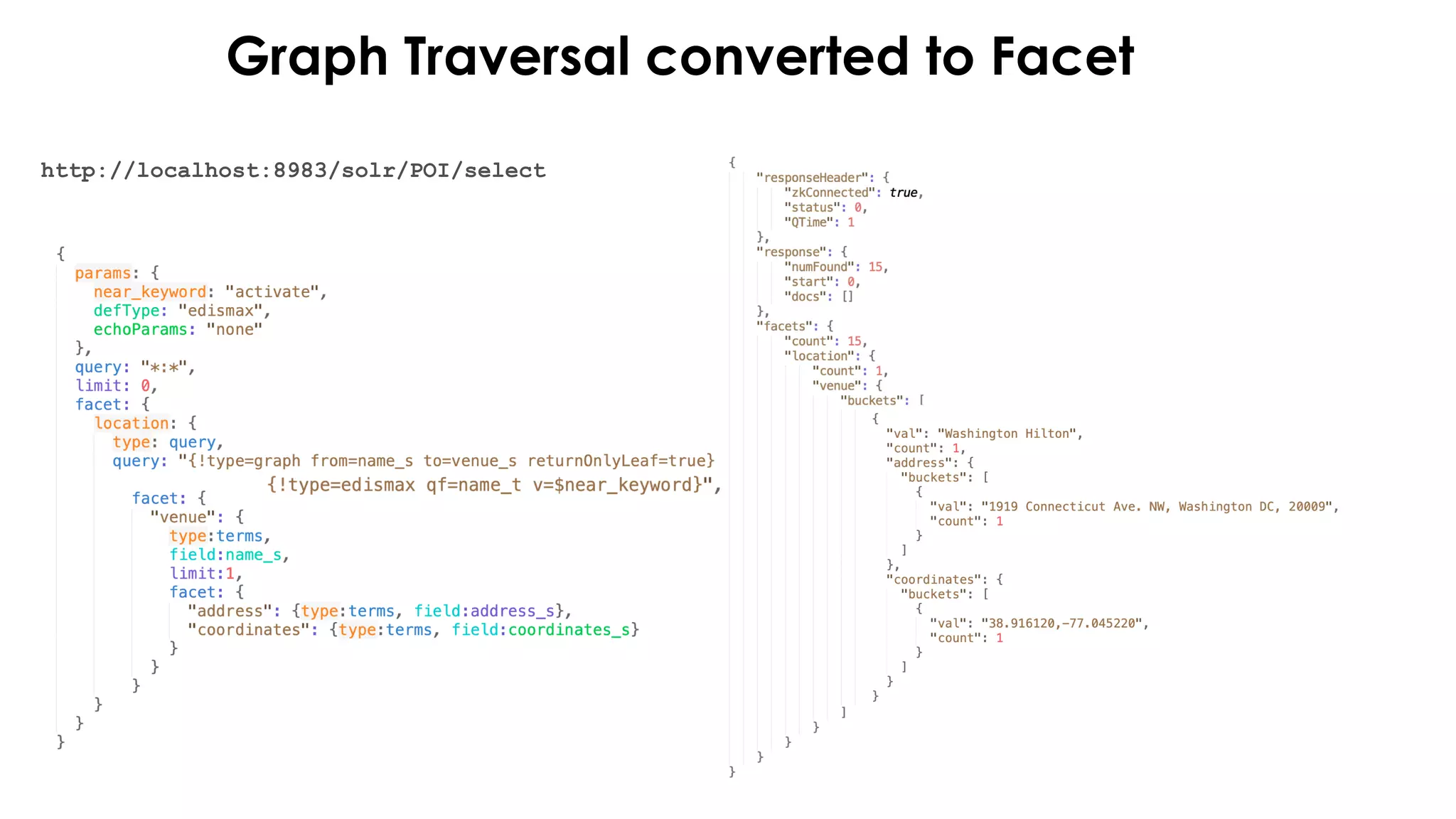

- 71. Graph Traversal convertedto Facet http://localhost:8983/solr/POI/select

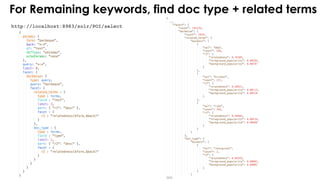

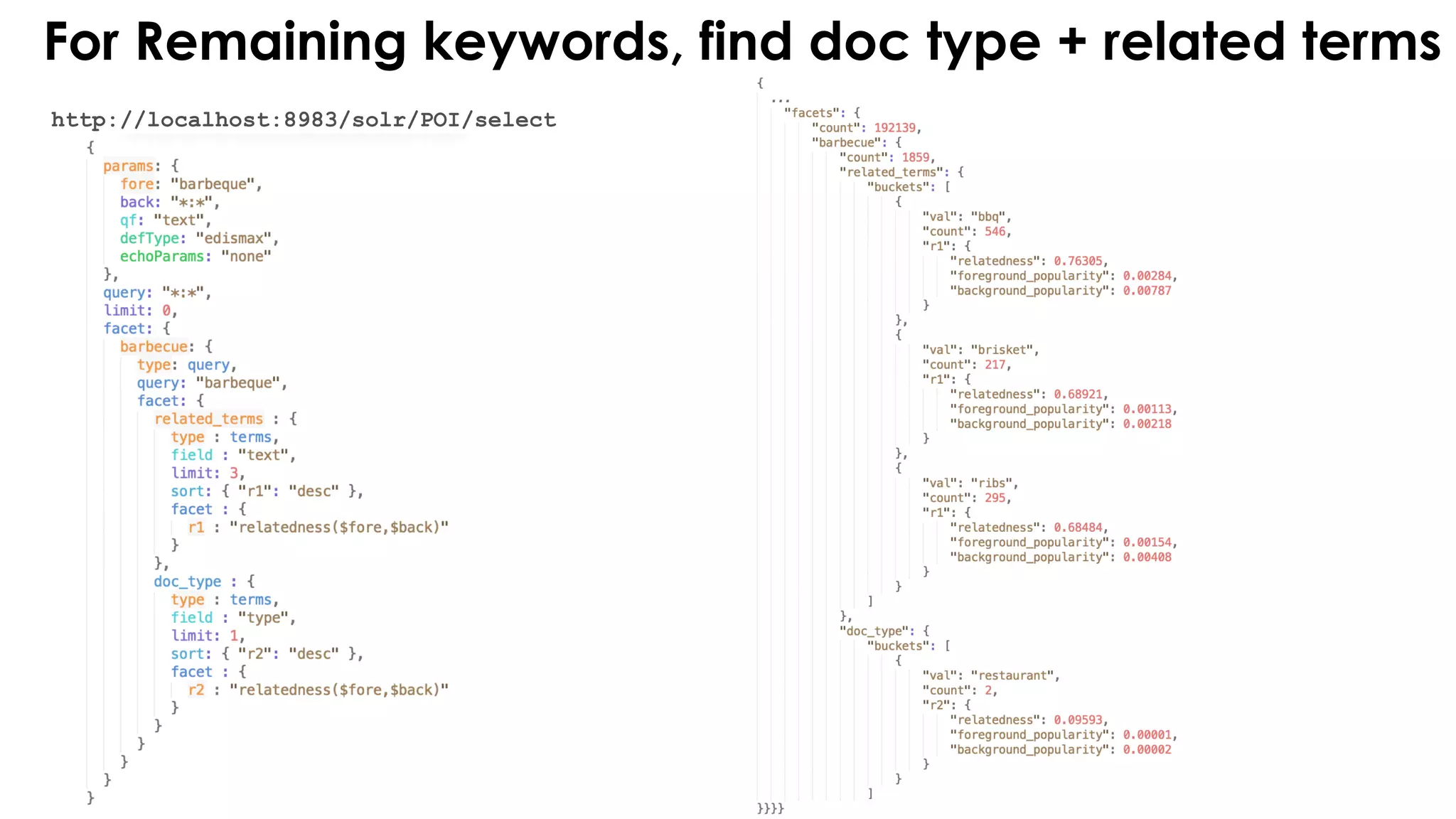

- 72. For Remaining keywords,find doc type + related terms http://localhost:8983/solr/POI/select

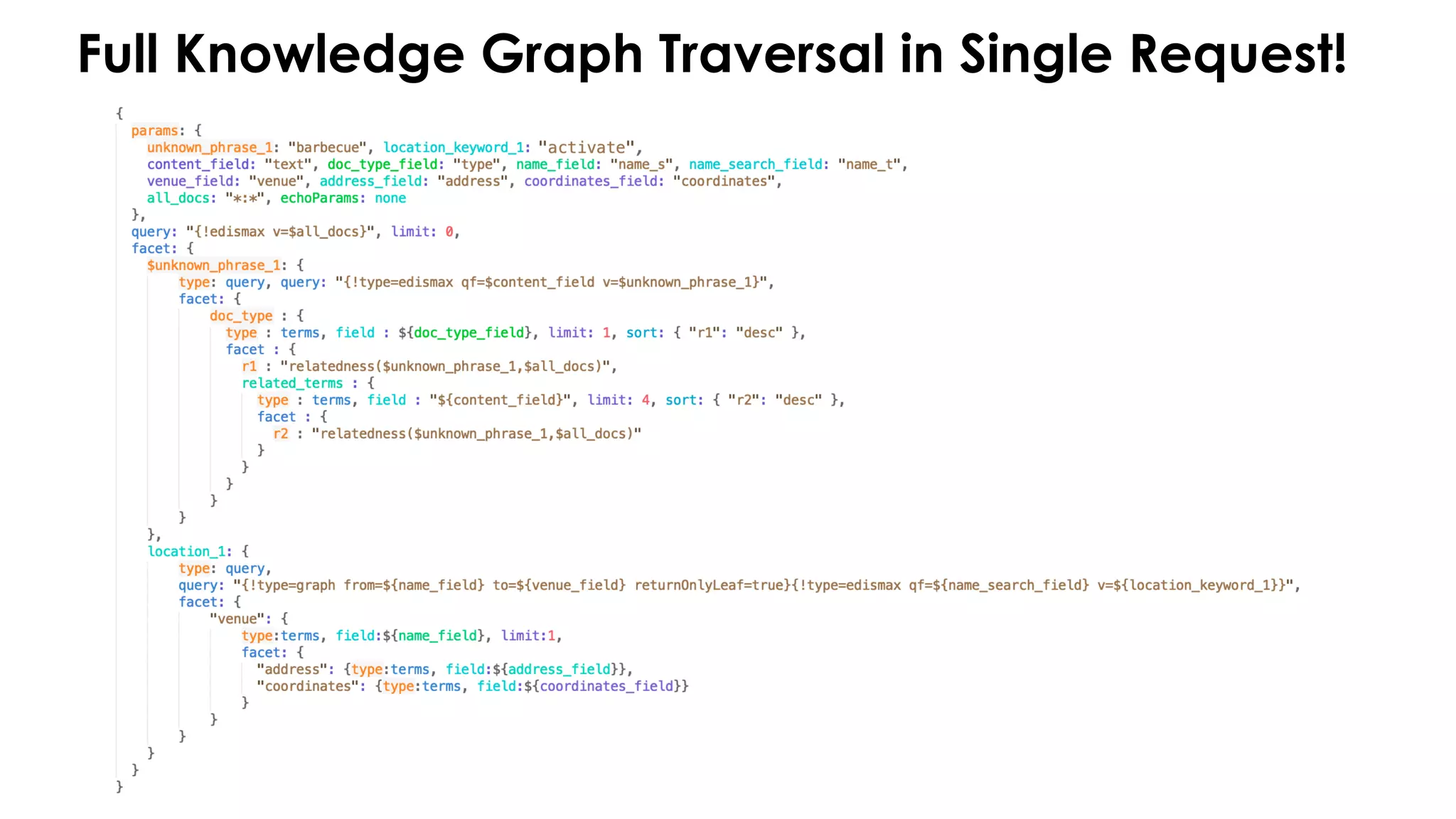

- 73. Full Knowledge GraphTraversal in Single Request!
- 74. Tricks for Automated GraphGeneration
- 75. Named Entity Recognition(NER) NER translates… Barack Obama was the president of the United States of America. Before that, Obama was a senator. into… <person id="barack_obama">Barack Obama</person> was the <role>president</role> of the <country id="usa">United States of America</country>. Before that, <person id="barack_obama">Obama</person> was a <role>senator</role>. In Solr, this would become: text: Barack Obama was the president of the United States of America. Before that, Obama was a senator. person: Barack Obama country: United States of America role: [ president, senator ]

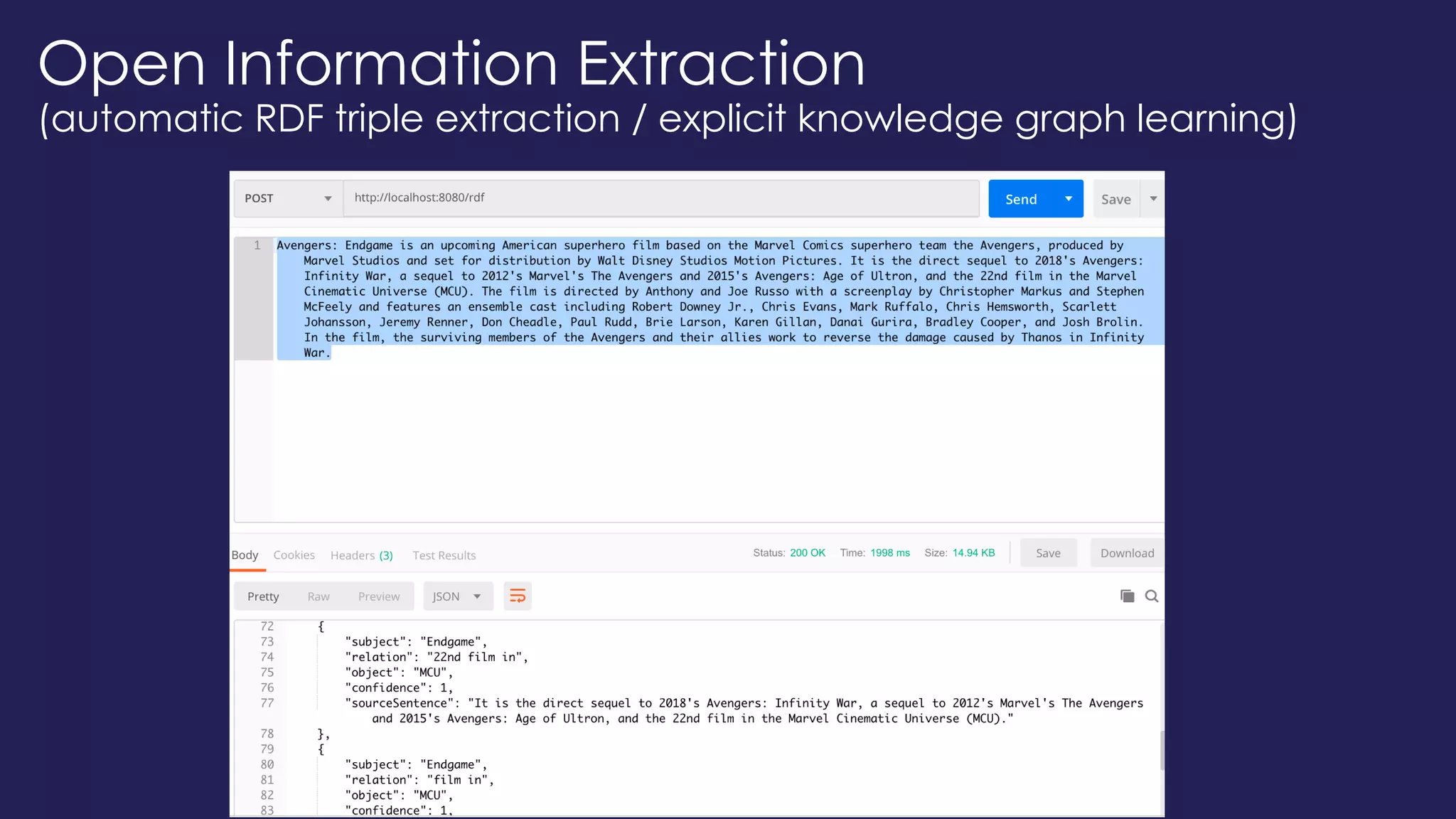

- 76. Open Information Extraction (automaticRDF triple extraction / explicit knowledge graph learning)
- 77.
- 78.

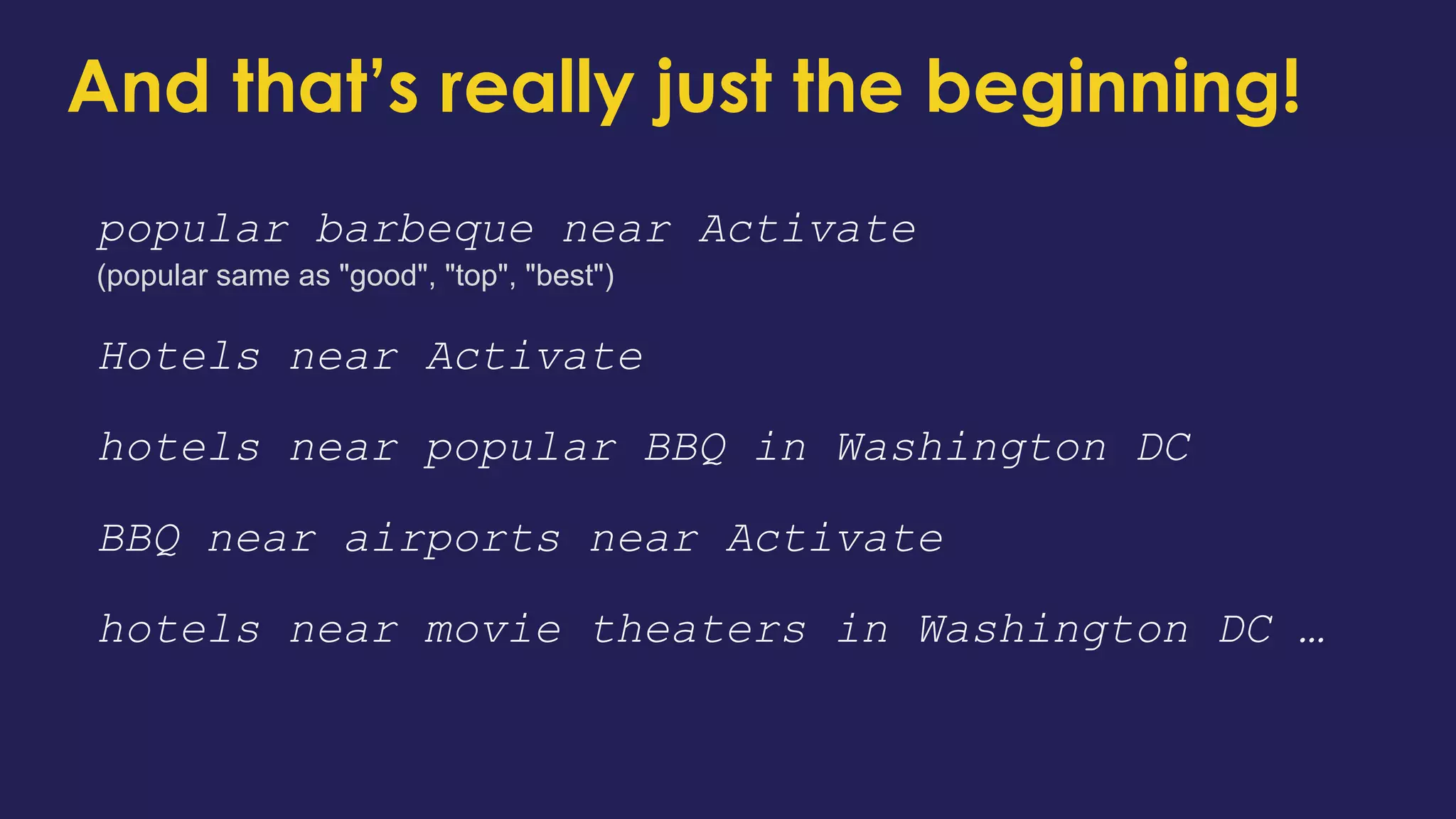

- 79. popular barbeque nearActivate (popular same as "good", "top", "best") Hotels near Activate hotels near popular BBQ in Washington DC BBQ near airports near Activate hotels near movie theaters in Washington DC … And that’s really just the beginning!
- 80. But it’s unfortunatelyalso the end of our presentation for today : (
- 81. We operationalize AIfor the largest businesses on the planet.
- 82.
- 83. Trey Grainger trey@lucidworks.com @treygrainger Other presentations: http://www.treygrainger.com 40%Discount code: mtpchic19 http://aiPoweredSearch.com http://solrinaction.com Books: Thank You!
