AI, Knowledge Representation and Graph Databases - Key Trends in Data Science
Dan McCreary gave a talk on AI, knowledge representation, and graph databases. He discussed how knowledge representation is a key focus for AI and many feel over half their work is understanding knowledge structures. In 2012, Google published a paper that consolidated many forms of knowledge representation into a single structure called a labeled property graph. This talk described how labeled property graphs became popular and how they are being used to build knowledge graphs that can be used by AI systems and researchers. The talk also discussed challenges of transferring siloed project knowledge into reusable knowledge structures.
More Related Content
Similar to AI, Knowledge Representation and Graph Databases - Key Trends in Data Science
AI, Knowledge Representation and Graph Databases - Key Trends in Data Science

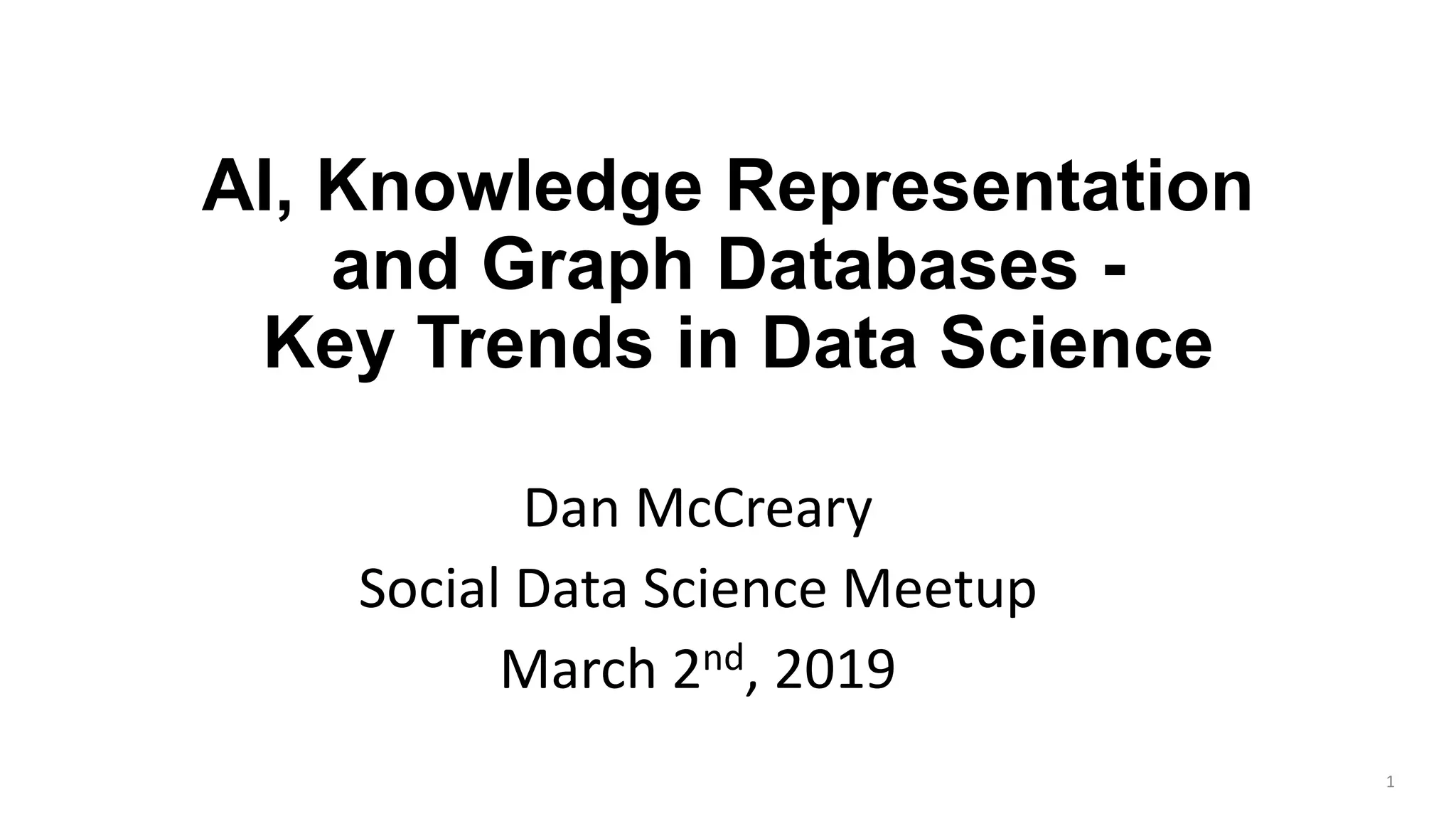

- 1. AI, Knowledge Representation andGraph Databases - Key Trends in Data Science Dan McCreary Social Data Science Meetup March 2nd, 2019 1

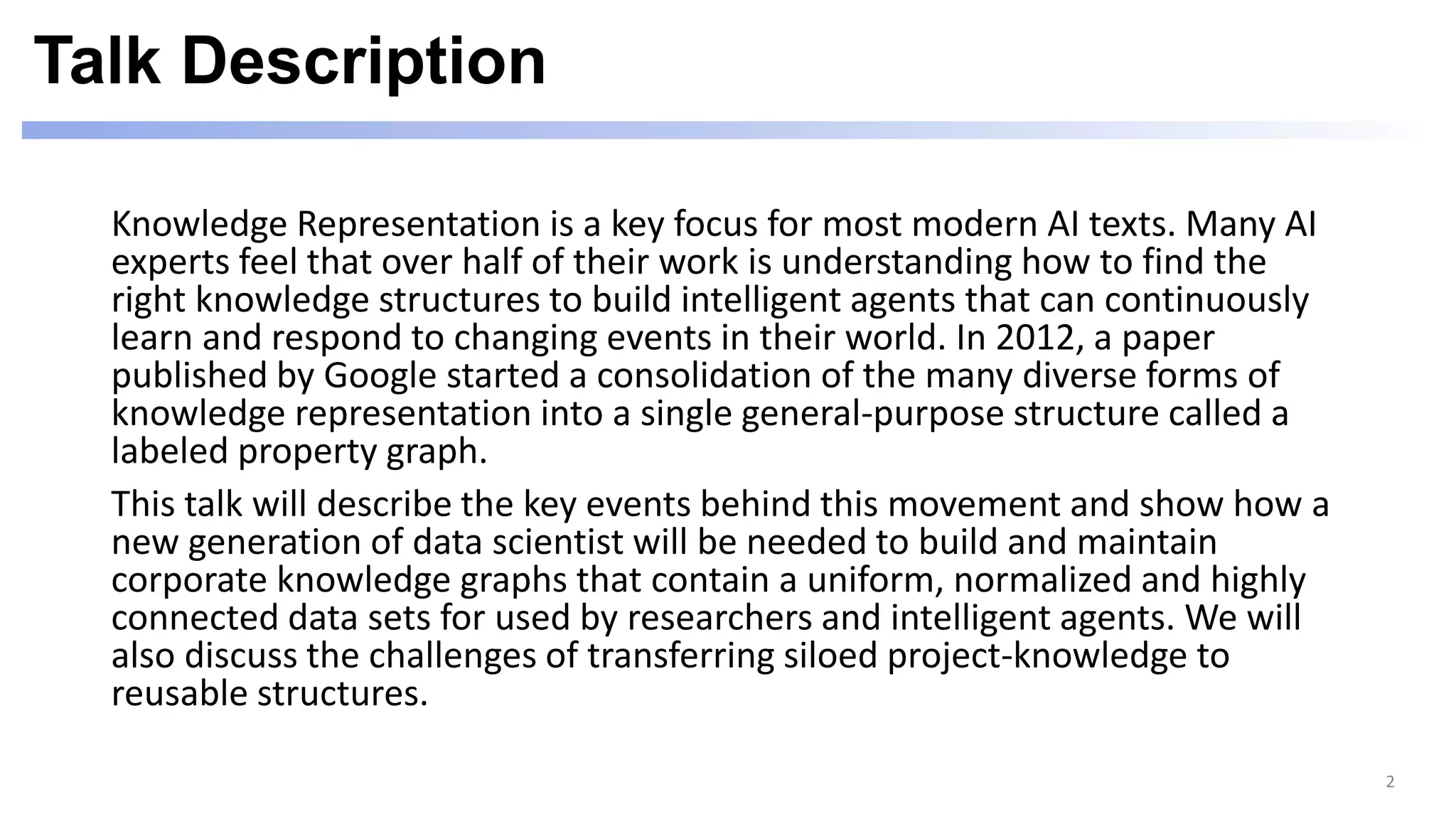

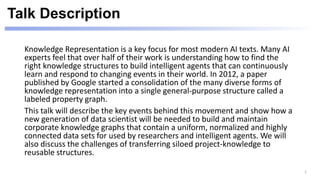

- 2. Talk Description Knowledge Representationis a key focus for most modern AI texts. Many AI experts feel that over half of their work is understanding how to find the right knowledge structures to build intelligent agents that can continuously learn and respond to changing events in their world. In 2012, a paper published by Google started a consolidation of the many diverse forms of knowledge representation into a single general-purpose structure called a labeled property graph. This talk will describe the key events behind this movement and show how a new generation of data scientist will be needed to build and maintain corporate knowledge graphs that contain a uniform, normalized and highly connected data sets for used by researchers and intelligent agents. We will also discuss the challenges of transferring siloed project-knowledge to reusable structures. 2
- 3. Hello, my nameis dan.mccreary@gmail.com • Distinguished Engineer in AI and Graph Technologies at Optum’s Advanced Technology Collaborative • Co-founder of "NoSQL Now!" conference (now part of Dataversity) • Author of "Making Sense of NoSQL" (w. Ann Kelly) • 15+ years of working with non-tabular knowledge representations • Background in solution architecture, metadata management, NLP, semantics, text analytics and knowledge representation for AI • Disclaimer: All opinions are my own and may not reflect the views of my employer 3

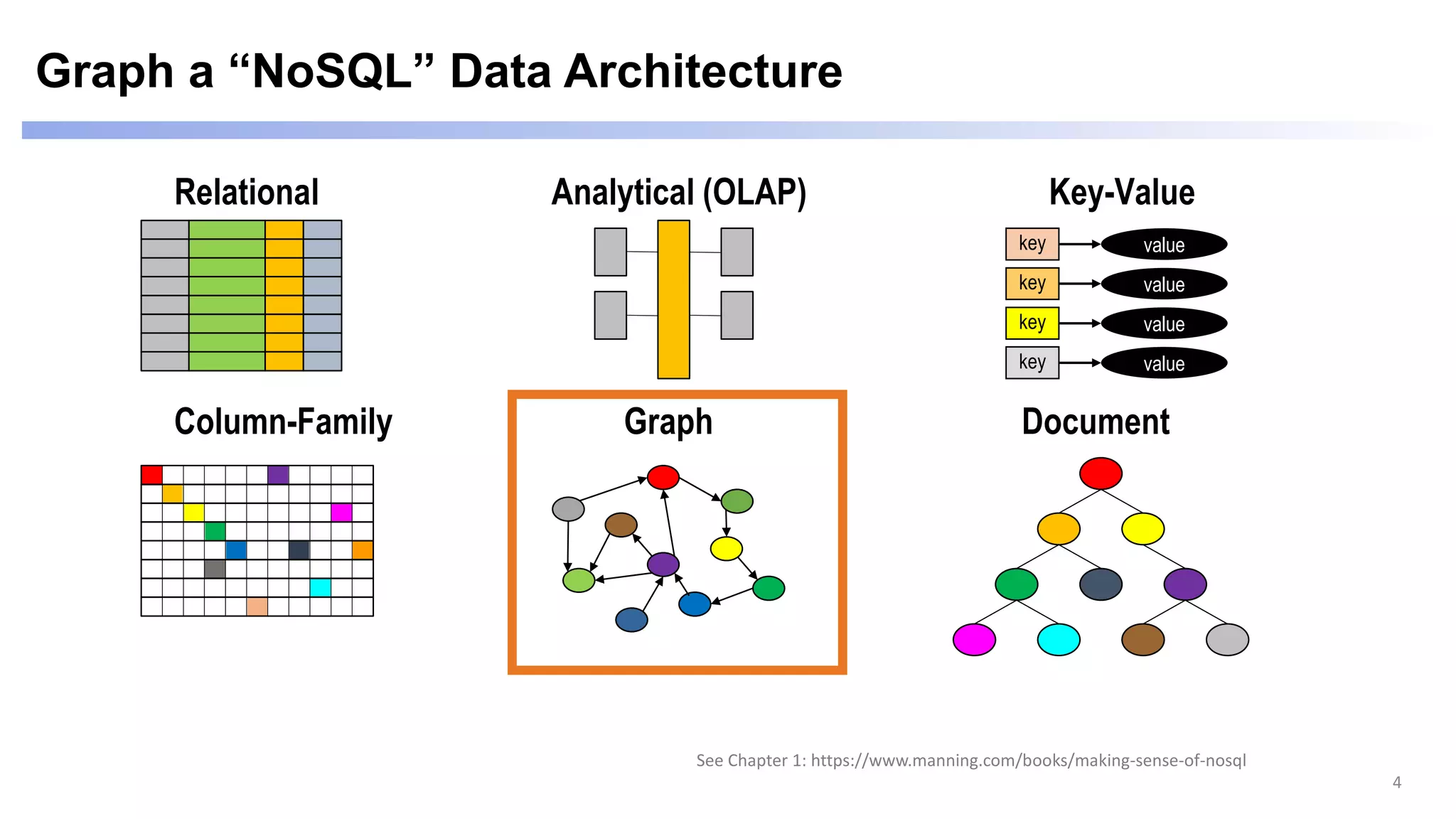

- 4. Graph a “NoSQL”Data Architecture Relational Analytical (OLAP) Key-Value Column-Family DocumentGraph key value key value key value key value See Chapter 1: https://www.manning.com/books/making-sense-of-nosql 4

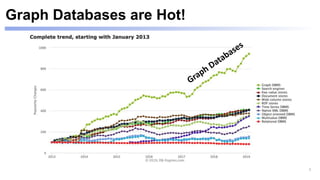

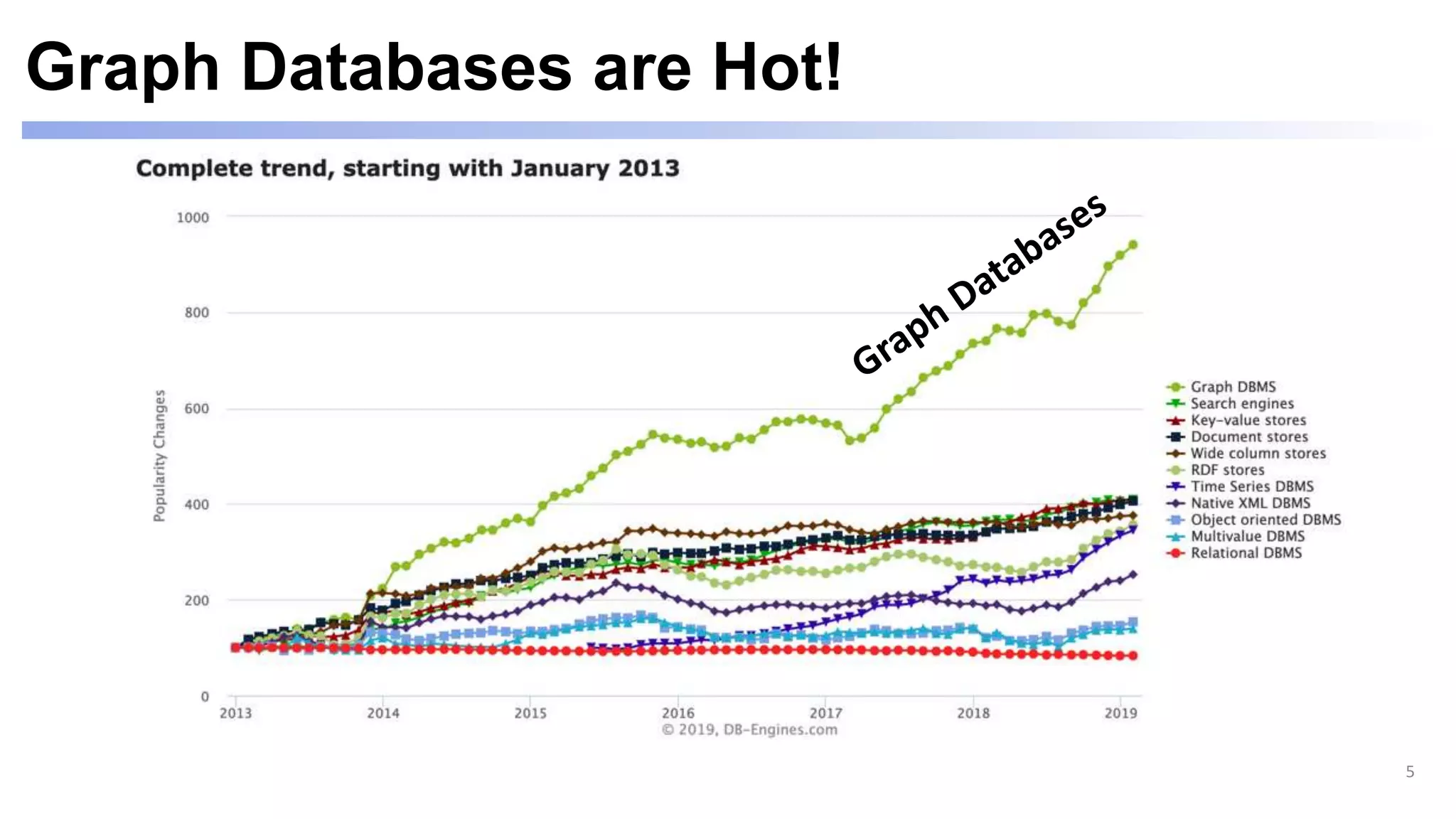

- 5. Graph Databases areHot! 5

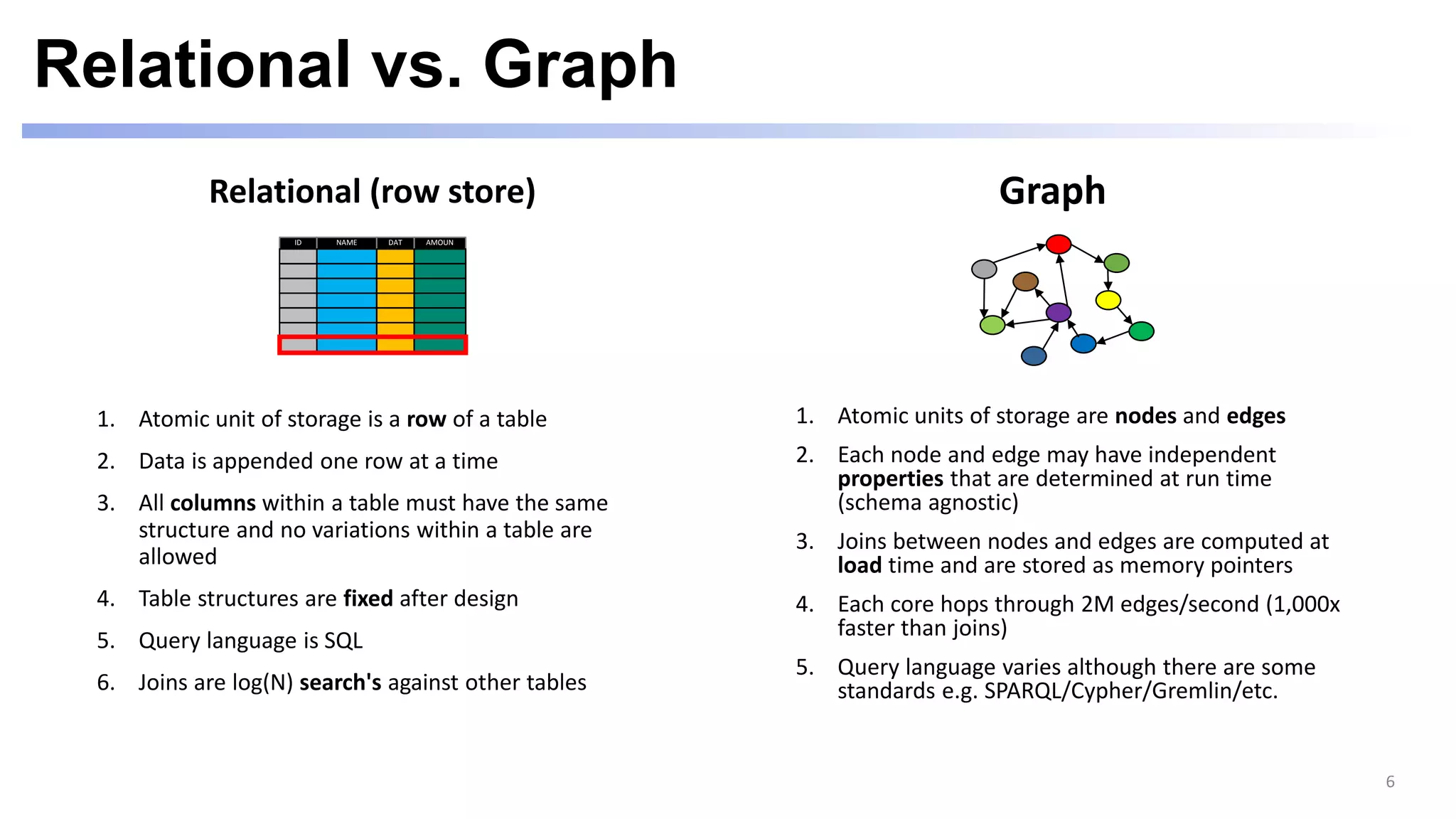

- 6. Relational vs. Graph 6 1.Atomic unit of storage is a row of a table 2. Data is appended one row at a time 3. All columns within a table must have the same structure and no variations within a table are allowed 4. Table structures are fixed after design 5. Query language is SQL 6. Joins are log(N) search's against other tables 1. Atomic units of storage are nodes and edges 2. Each node and edge may have independent properties that are determined at run time (schema agnostic) 3. Joins between nodes and edges are computed at load time and are stored as memory pointers 4. Each core hops through 2M edges/second (1,000x faster than joins) 5. Query language varies although there are some standards e.g. SPARQL/Cypher/Gremlin/etc. Relational (row store) Graph ID NAME DAT E AMOUN T

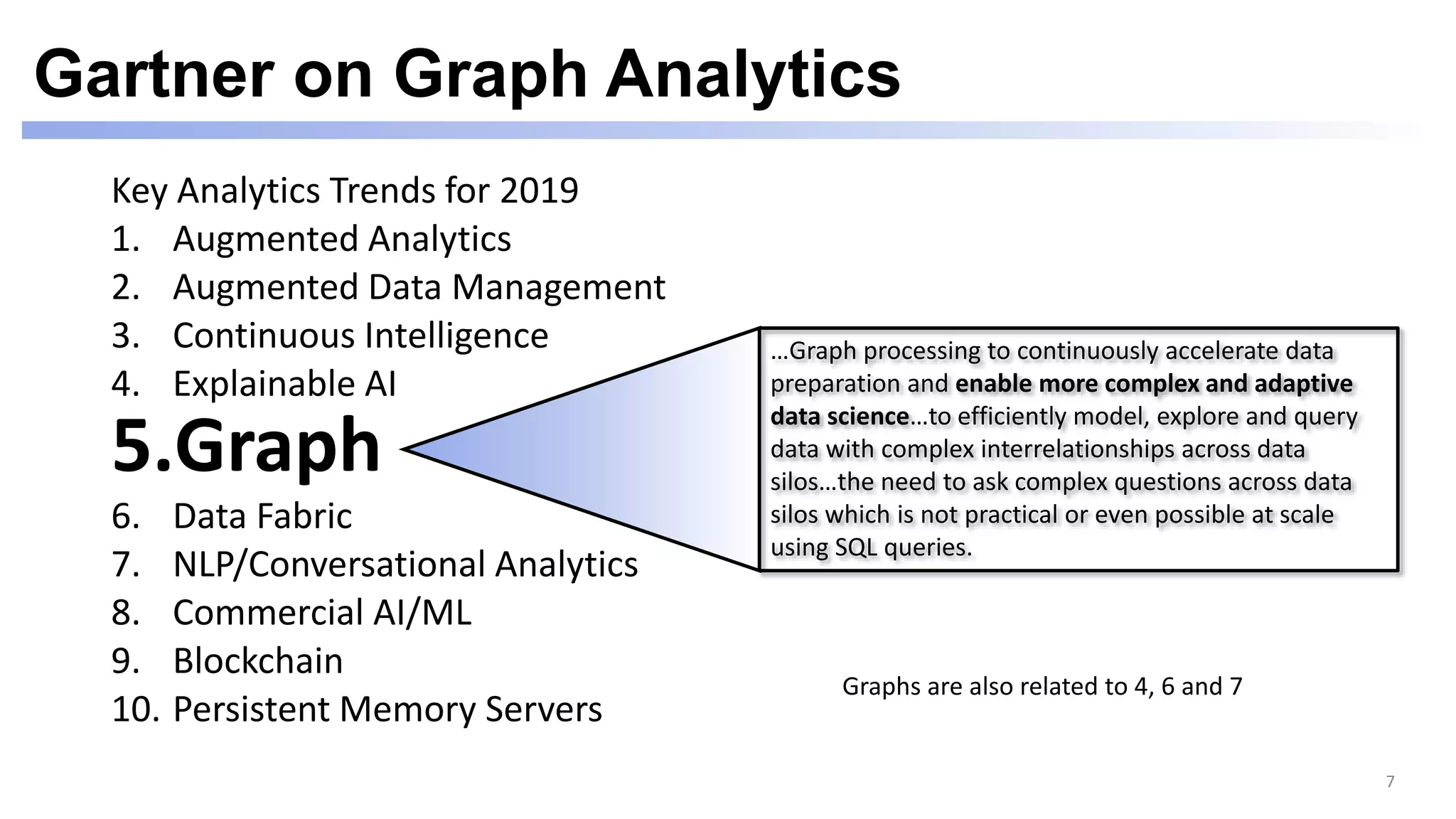

- 7. Gartner on GraphAnalytics Key Analytics Trends for 2019 1. Augmented Analytics 2. Augmented Data Management 3. Continuous Intelligence 4. Explainable AI 5.Graph 6. Data Fabric 7. NLP/Conversational Analytics 8. Commercial AI/ML 9. Blockchain 10. Persistent Memory Servers 7 …Graph processing to continuously accelerate data preparation and enable more complex and adaptive data science…to efficiently model, explore and query data with complex interrelationships across data silos…the need to ask complex questions across data silos which is not practical or even possible at scale using SQL queries. Graphs are also related to 4, 6 and 7
- 8. Which of thefollowing organizations use graph databases? • Every major airline uses a graph database to calculate fares in real-time • Over half of retailers use graphs for product recommendations Answer: They all do! 8

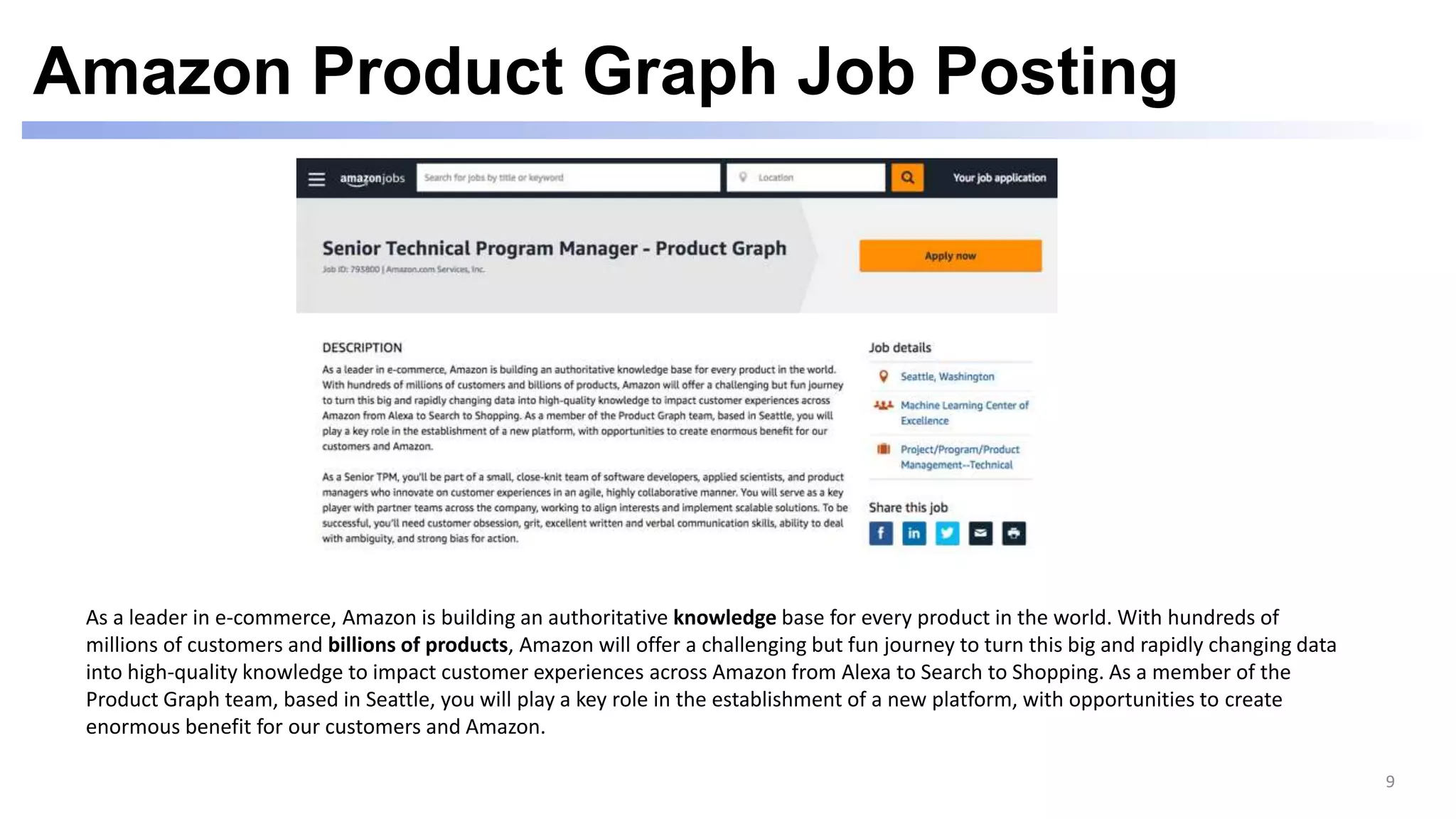

- 9. Amazon Product GraphJob Posting As a leader in e-commerce, Amazon is building an authoritative knowledge base for every product in the world. With hundreds of millions of customers and billions of products, Amazon will offer a challenging but fun journey to turn this big and rapidly changing data into high-quality knowledge to impact customer experiences across Amazon from Alexa to Search to Shopping. As a member of the Product Graph team, based in Seattle, you will play a key role in the establishment of a new platform, with opportunities to create enormous benefit for our customers and Amazon. 9
- 10. How do westore knowledge? • What exactly is “knowledge”? • How is knowledge different from raw data and information? • What is knowledge engineering? • What is knowledge architecture? • How does this relate to data science? 10

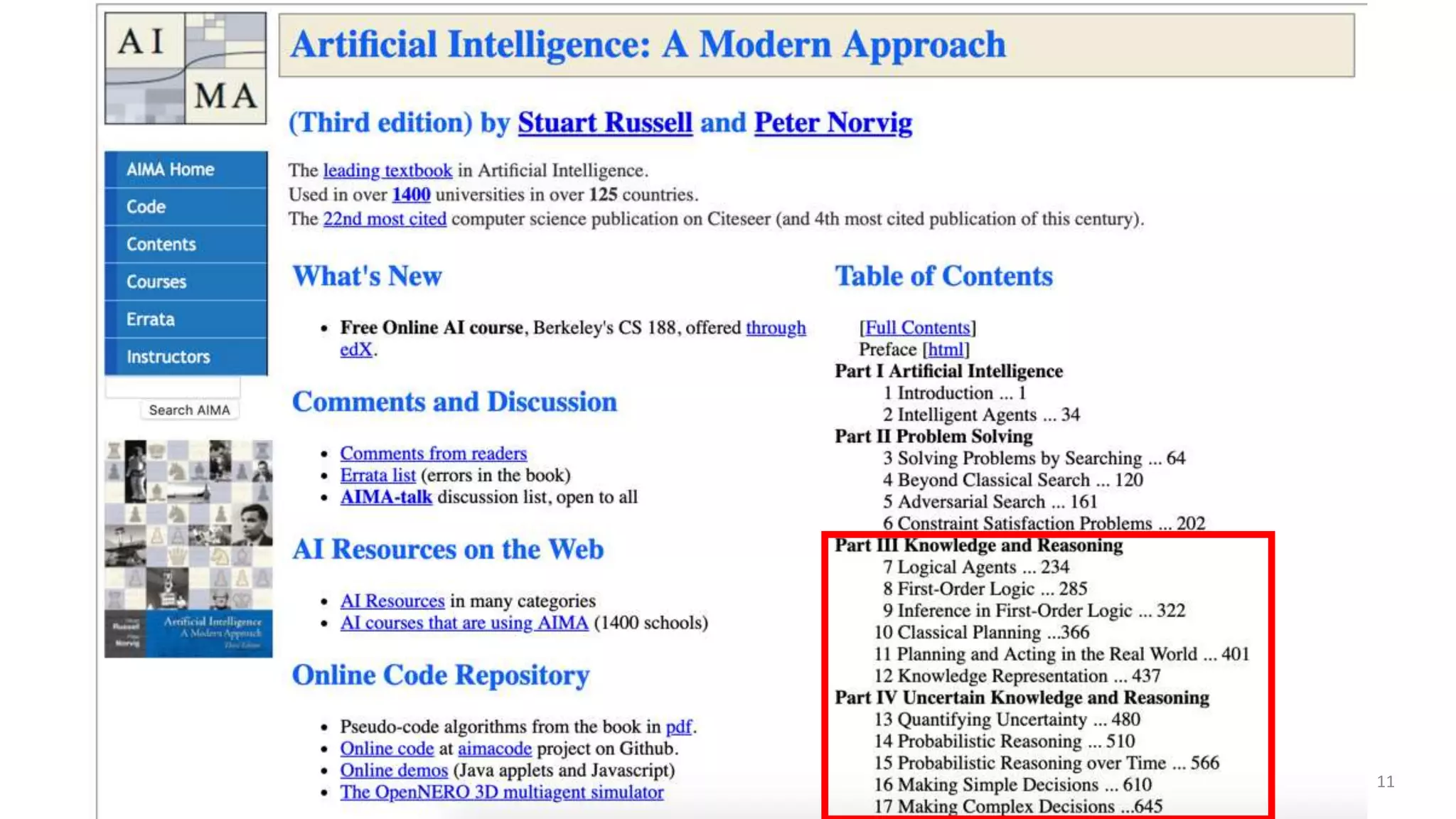

- 11.

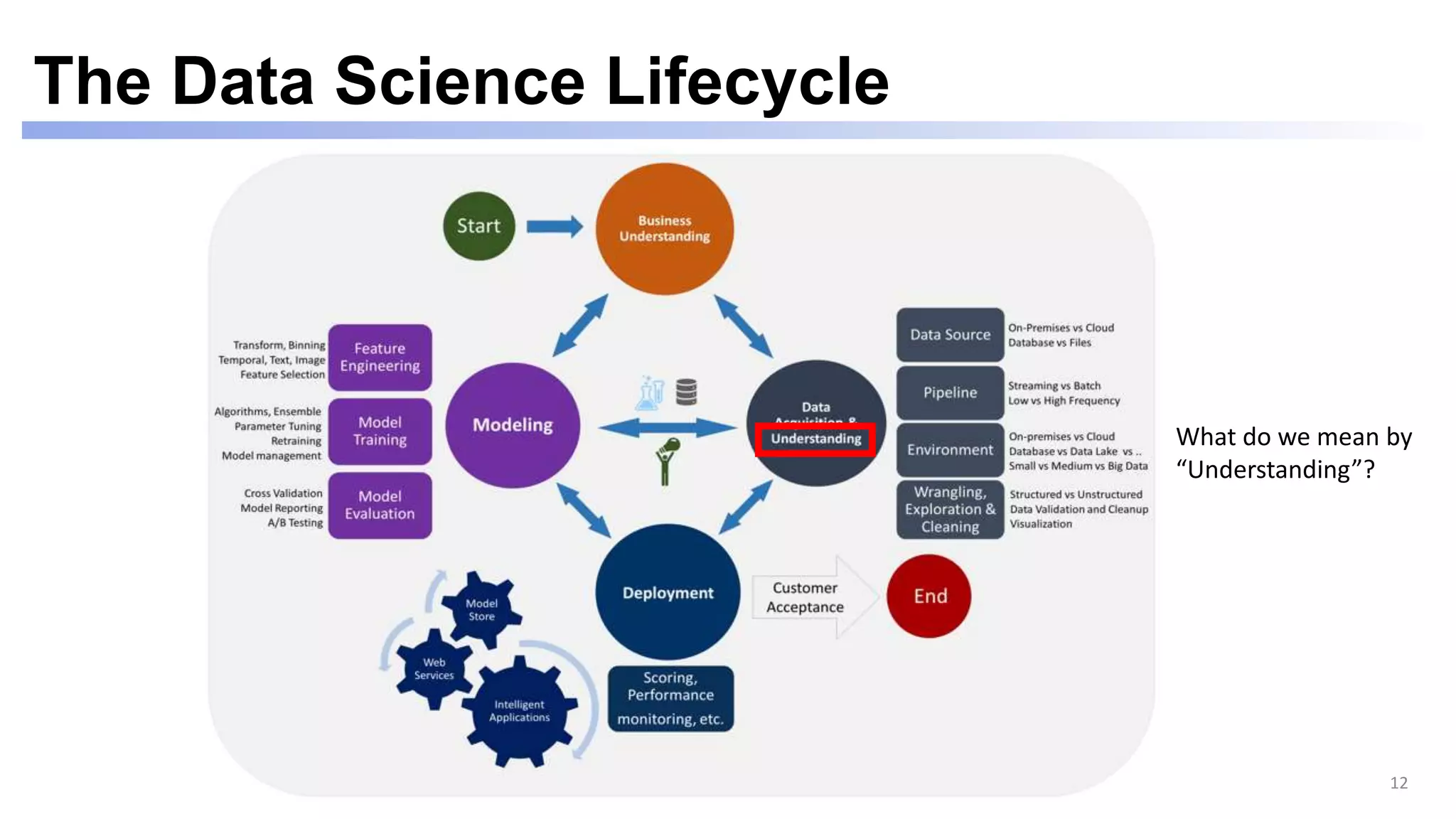

- 12. The Data ScienceLifecycle 12 What do we mean by “Understanding”?

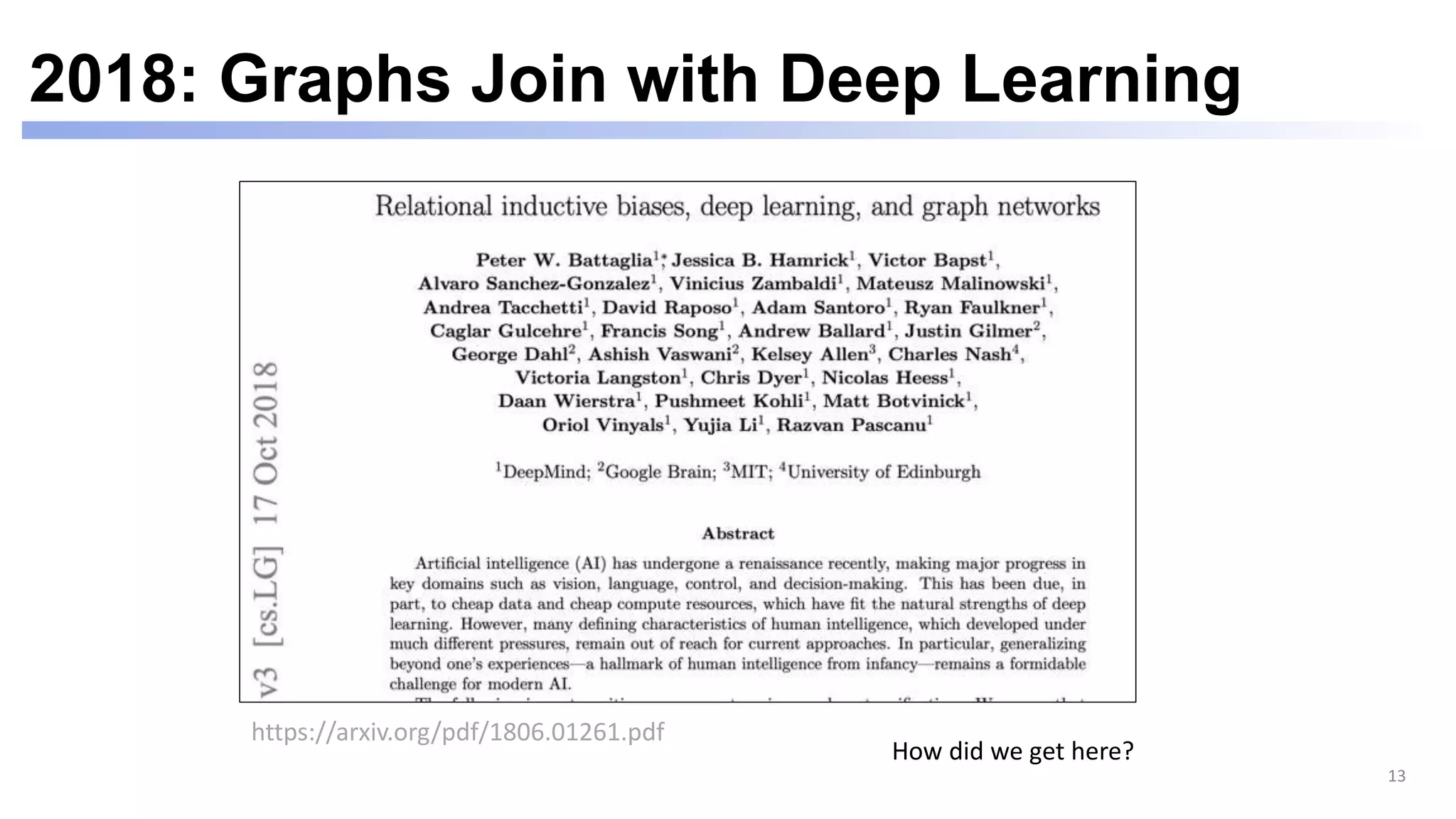

- 13. 2018: Graphs Joinwith Deep Learning How did we get here? https://arxiv.org/pdf/1806.01261.pdf 13
- 14. Why Metaphors Matter “Metaphorsdrive design decisions” GraphConnect Keynote 2018 We make decisions not by having a deep understanding of how technology works, but through being exposed to the right metaphors.Hillary Mason Data Scientist https://neo4j.com/graphconnect-2018/ around 51 minutes in 14

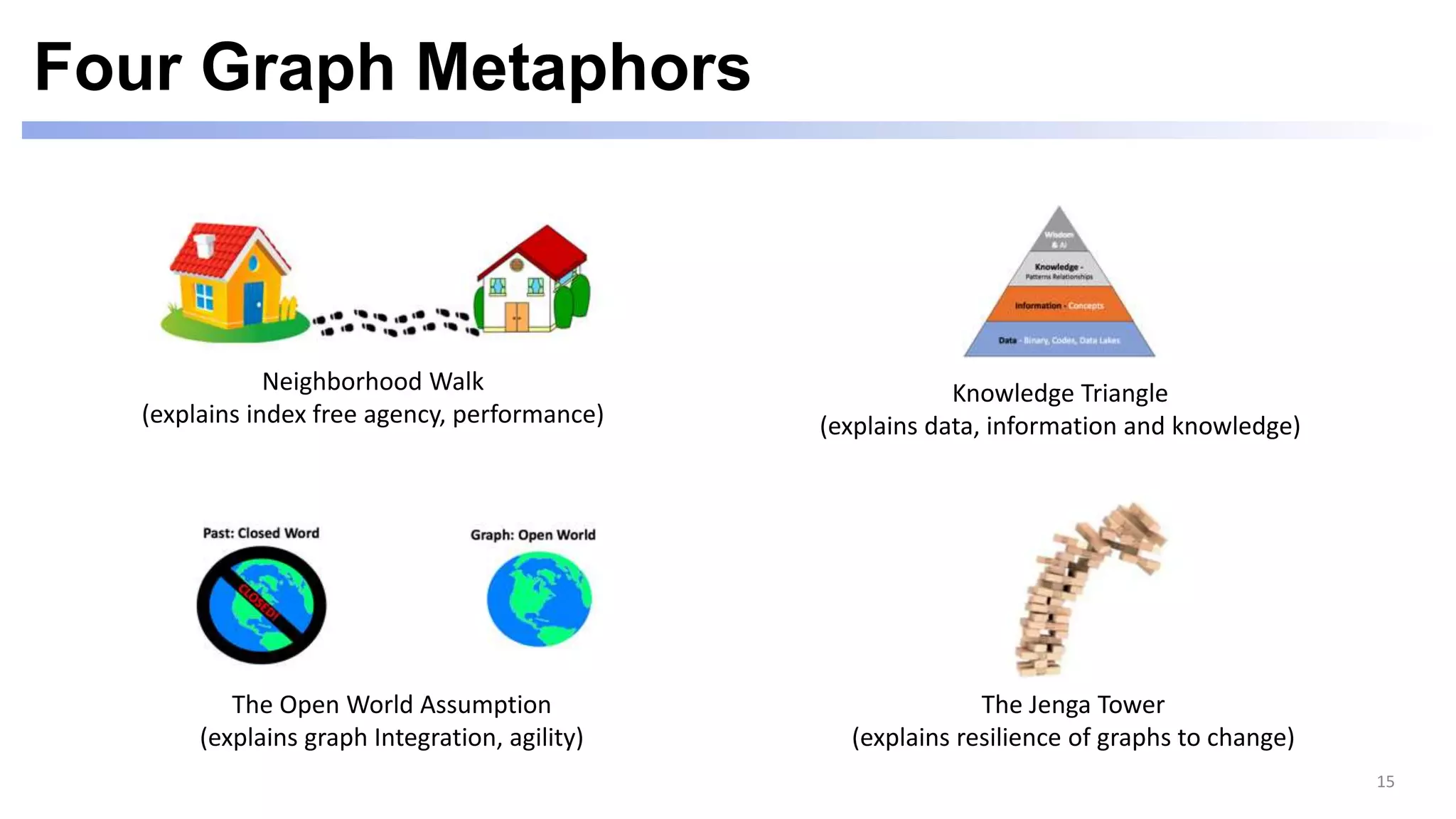

- 15. Four Graph Metaphors 15 NeighborhoodWalk (explains index free agency, performance) Knowledge Triangle (explains data, information and knowledge) The Open World Assumption (explains graph Integration, agility) The Jenga Tower (explains resilience of graphs to change)

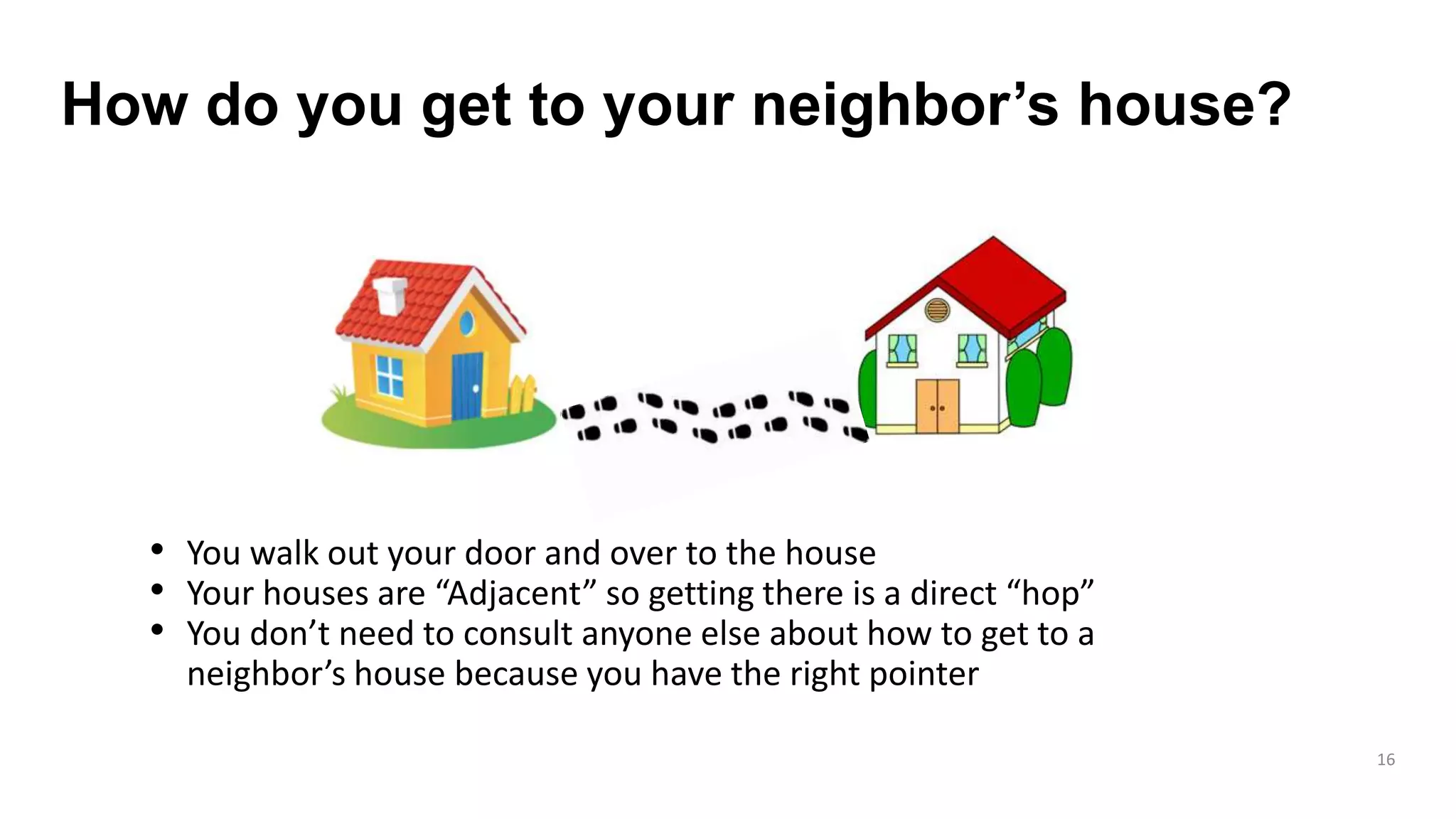

- 16. How do youget to your neighbor’s house? • You walk out your door and over to the house • Your houses are “Adjacent” so getting there is a direct “hop” • You don’t need to consult anyone else about how to get to a neighbor’s house because you have the right pointer 16

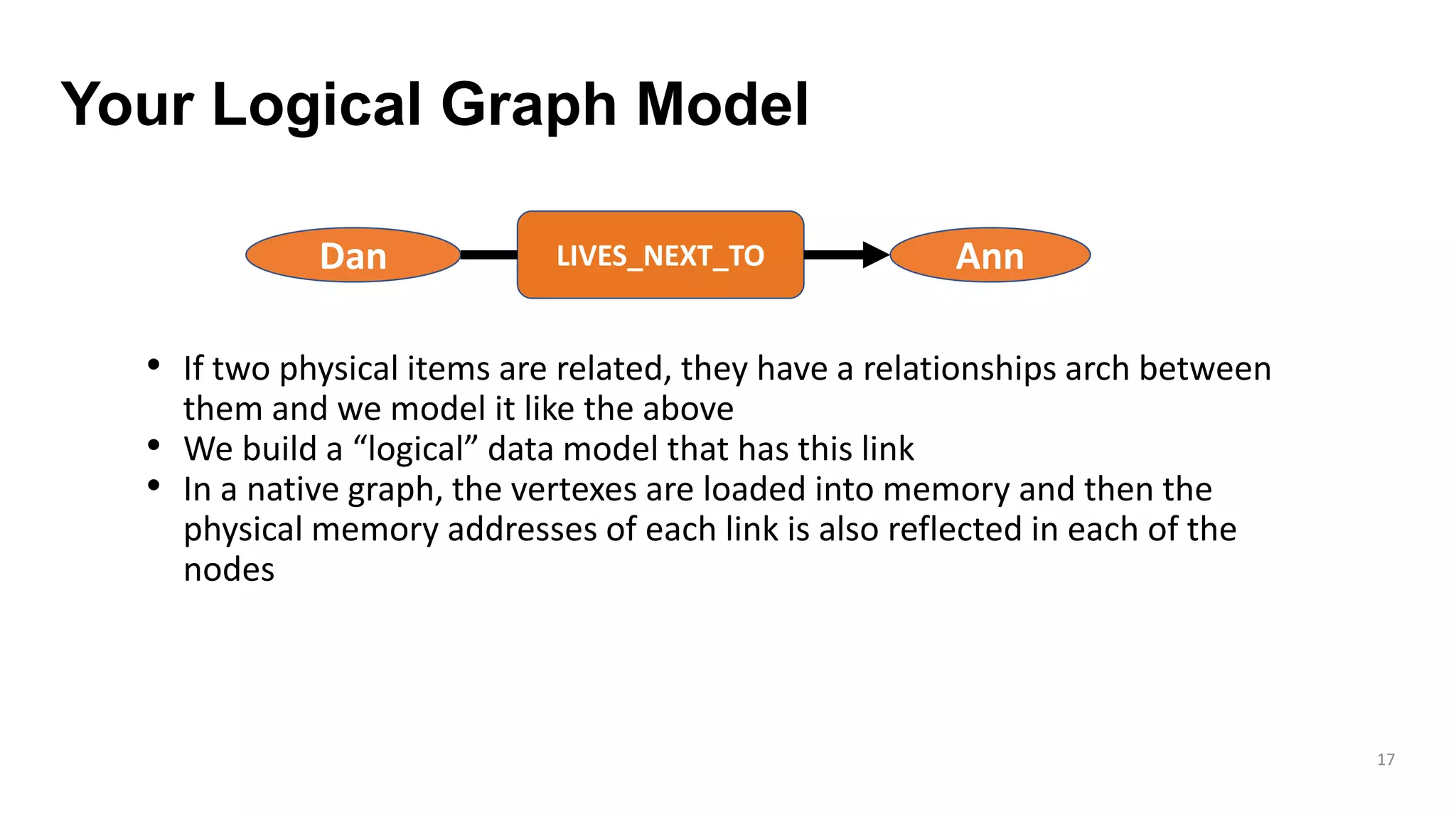

- 17. Your Logical GraphModel • If two physical items are related, they have a relationships arch between them and we model it like the above • We build a “logical” data model that has this link • In a native graph, the vertexes are loaded into memory and then the physical memory addresses of each link is also reflected in each of the nodes 17 Dan LIVES_NEXT_TO Ann

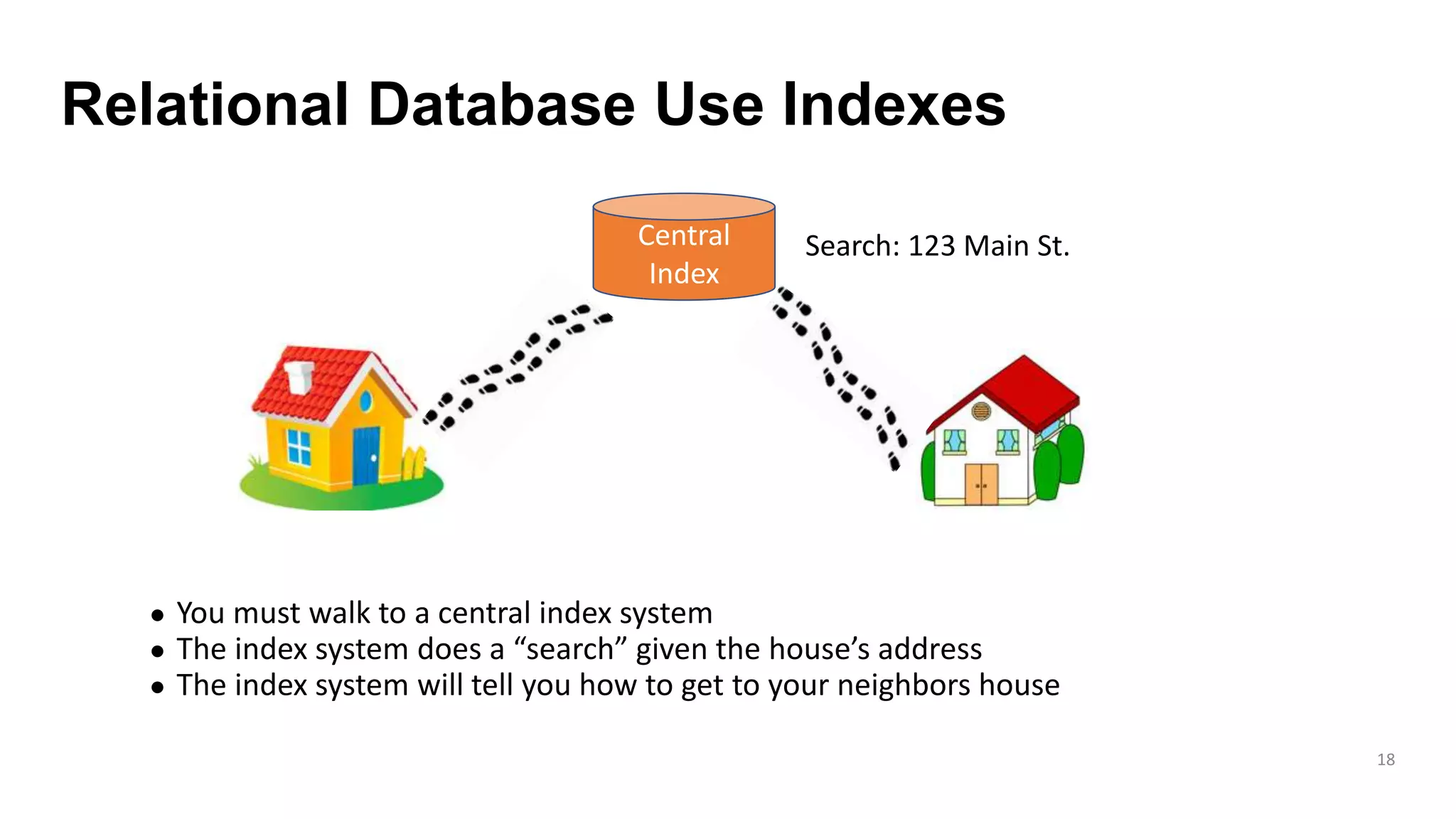

- 18. Relational Database UseIndexes ● You must walk to a central index system ● The index system does a “search” given the house’s address ● The index system will tell you how to get to your neighbors house 18 Central Index Search: 123 Main St.

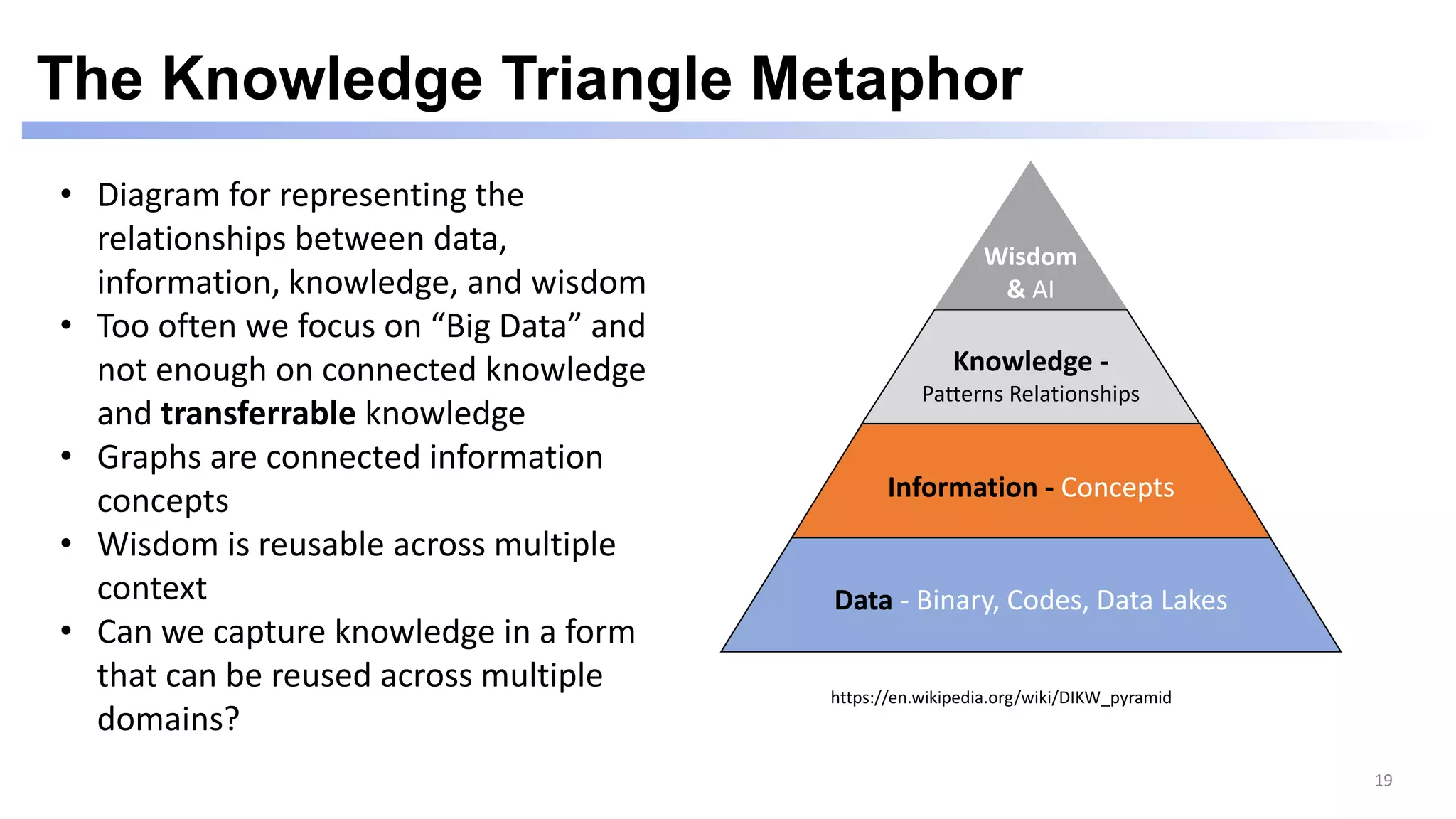

- 19. The Knowledge TriangleMetaphor 19 https://en.wikipedia.org/wiki/DIKW_pyramid • Diagram for representing the relationships between data, information, knowledge, and wisdom • Too often we focus on “Big Data” and not enough on connected knowledge and transferrable knowledge • Graphs are connected information concepts • Wisdom is reusable across multiple context • Can we capture knowledge in a form that can be reused across multiple domains? Data - Binary, Codes, Data Lakes Information - Concepts Knowledge - Patterns Relationships Wisdom & AI

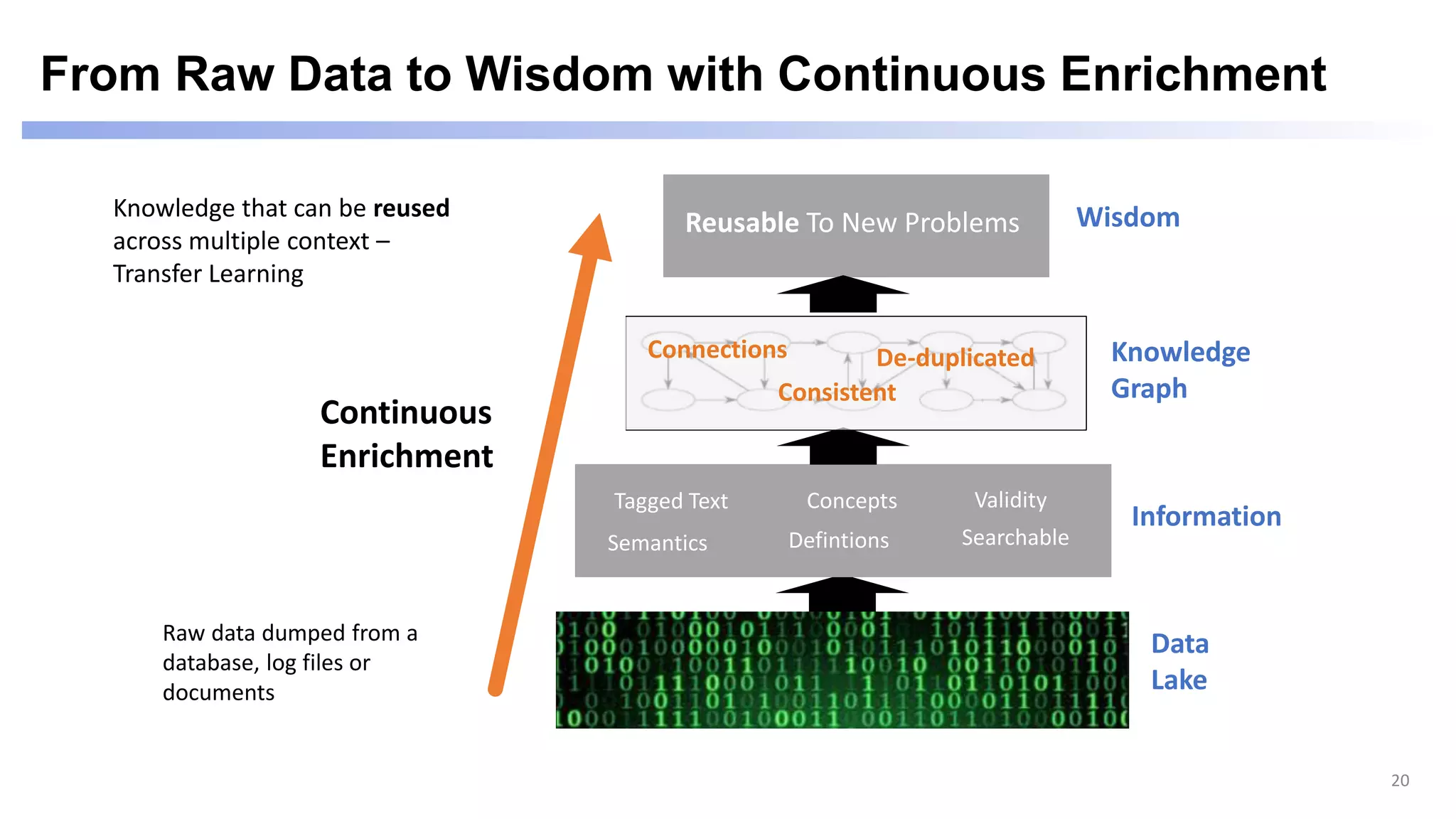

- 20. From Raw Datato Wisdom with Continuous Enrichment 20 Knowledge that can be reused across multiple context – Transfer Learning Data Lake Information Knowledge Graph Wisdom Raw data dumped from a database, log files or documents Tagged Text Connections Consistent De-duplicated Semantics Concepts Reusable To New Problems Defintions Validity Searchable Continuous Enrichment

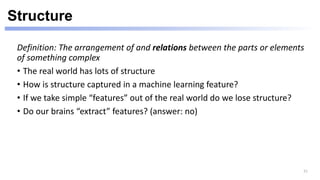

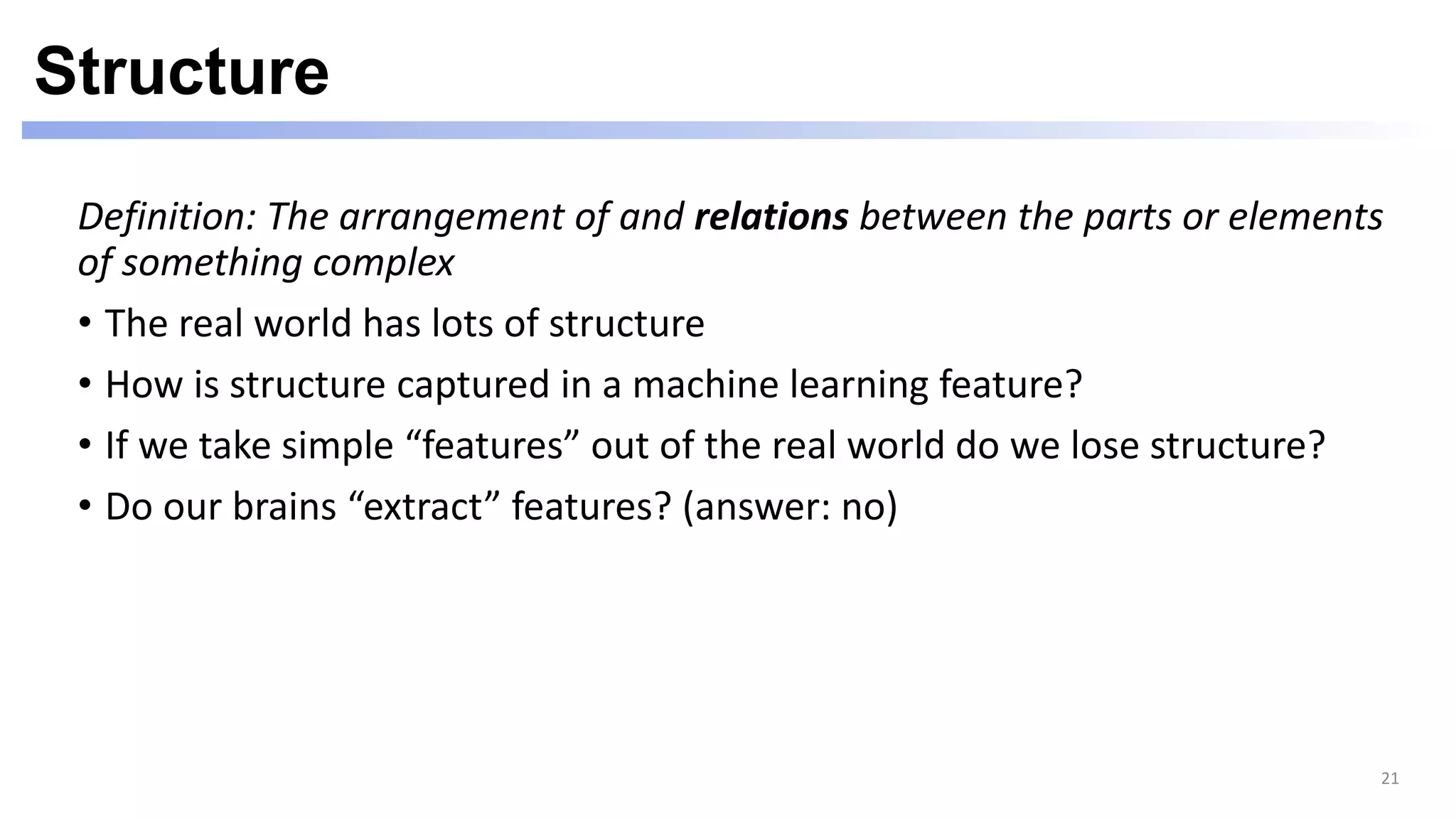

- 21. Structure Definition: The arrangementof and relations between the parts or elements of something complex • The real world has lots of structure • How is structure captured in a machine learning feature? • If we take simple “features” out of the real world do we lose structure? • Do our brains “extract” features? (answer: no) 21

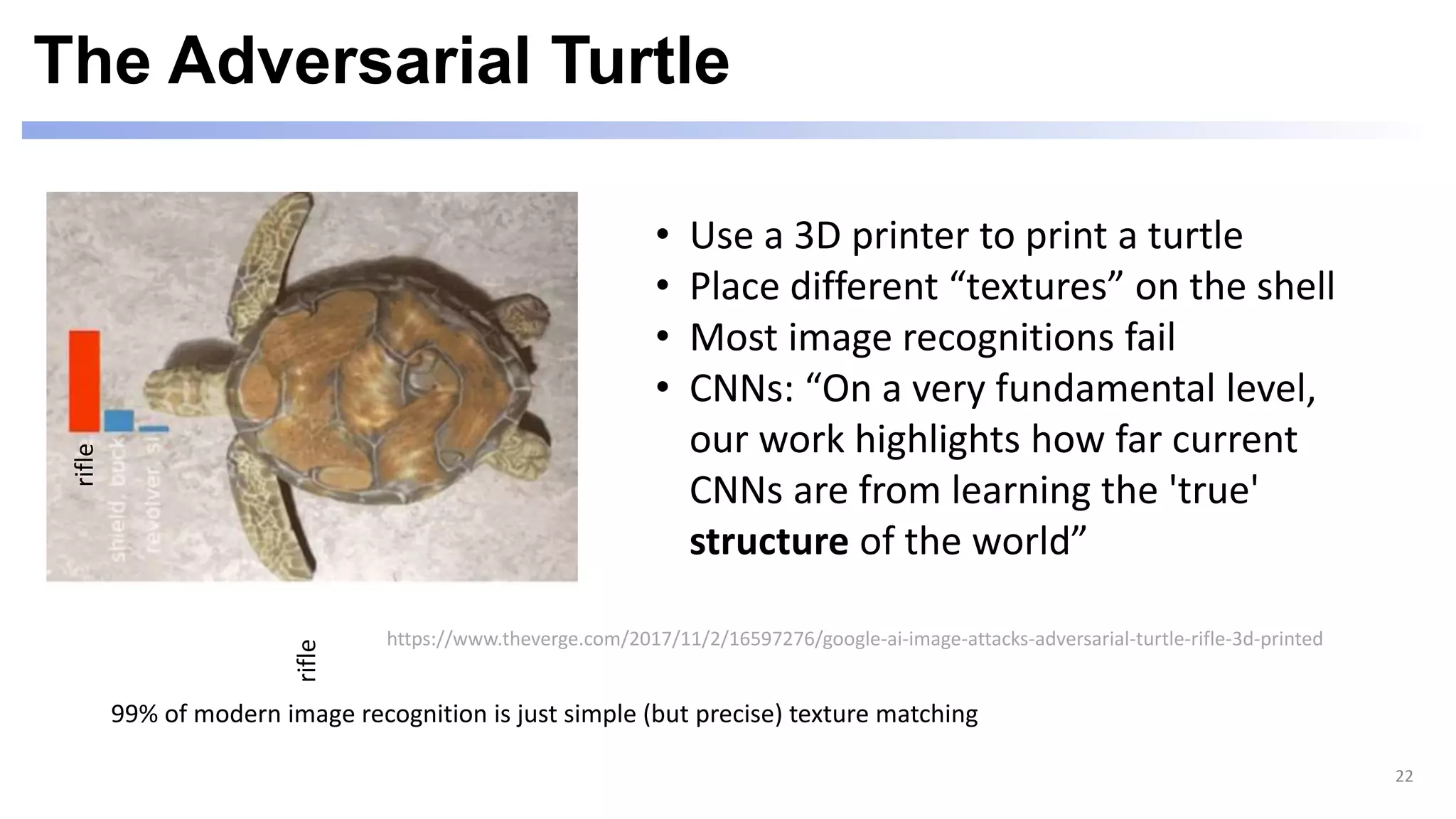

- 22. The Adversarial Turtle 99%of modern image recognition is just simple (but precise) texture matching https://www.theverge.com/2017/11/2/16597276/google-ai-image-attacks-adversarial-turtle-rifle-3d-printed • Use a 3D printer to print a turtle • Place different “textures” on the shell • Most image recognitions fail • CNNs: “On a very fundamental level, our work highlights how far current CNNs are from learning the 'true' structure of the world” 22 rifle rifle

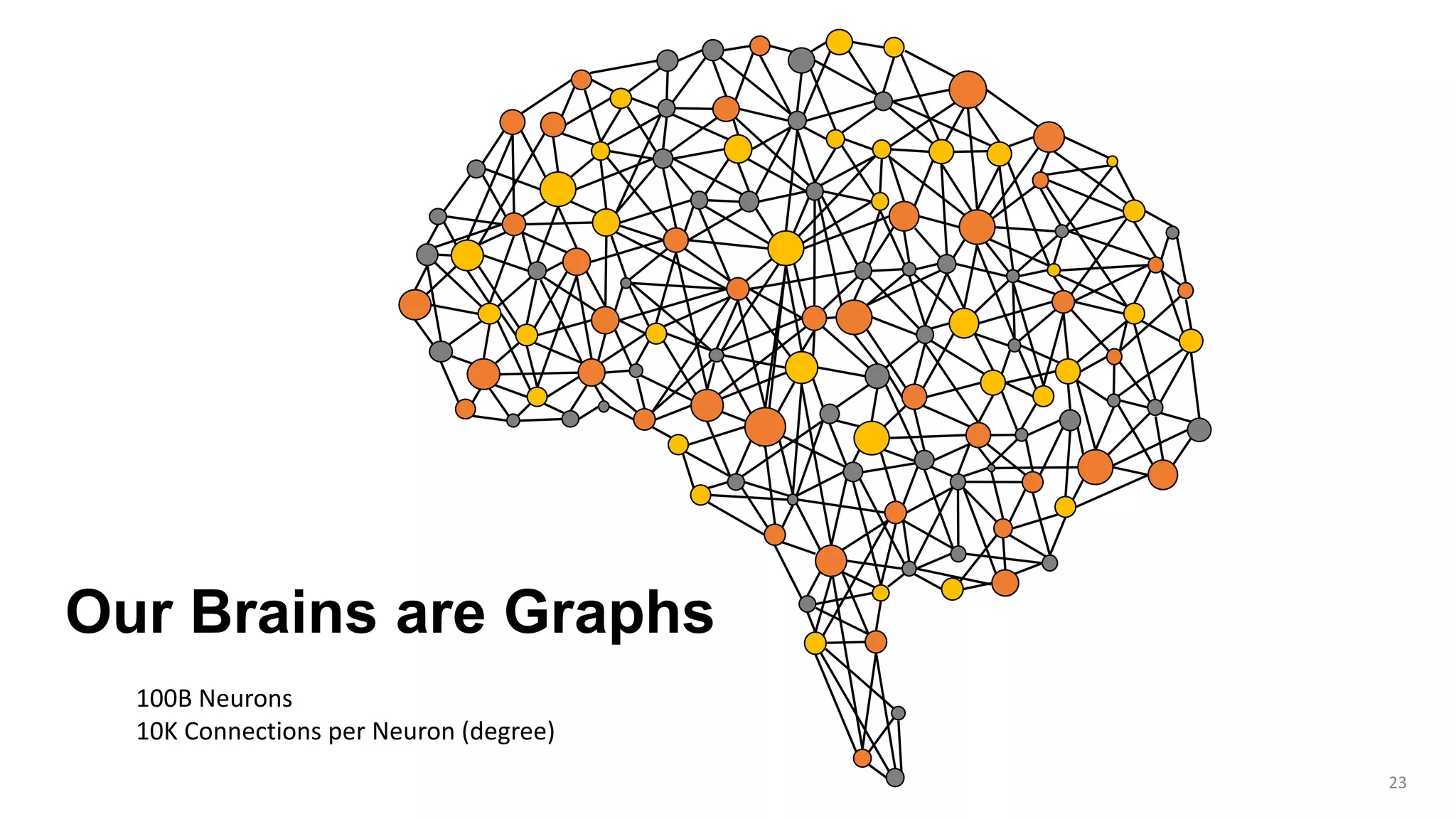

- 23. Our Brains areGraphs 100B Neurons 10K Connections per Neuron (degree) 23

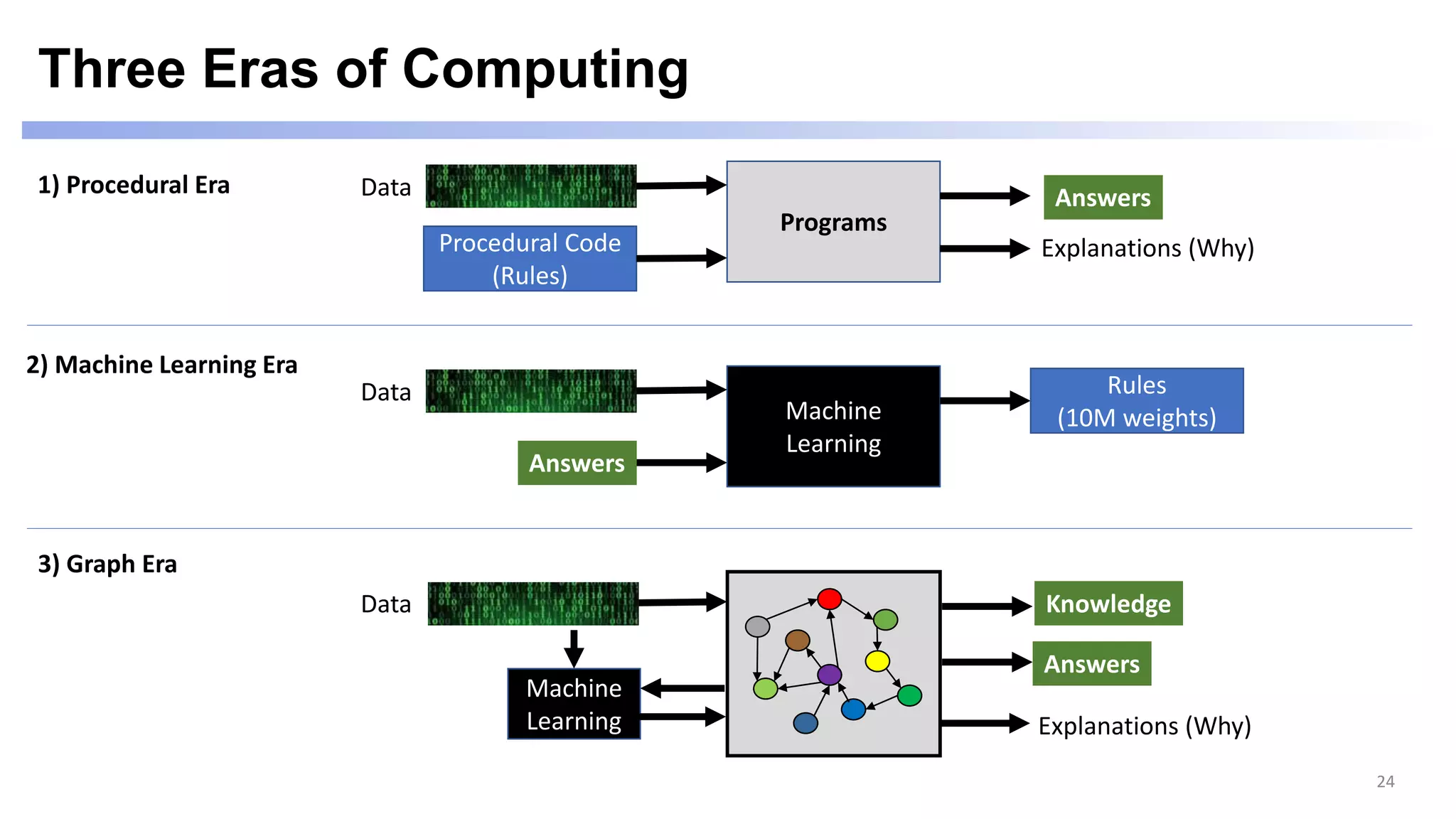

- 24. Three Eras ofComputing Procedural Code (Rules) Programs Data Answers Explanations (Why) Machine Learning Data Answers Rules (10M weights) 1) Procedural Era 2) Machine Learning Era 3) Graph Era Data Answers Explanations (Why) Knowledge Machine Learning 24

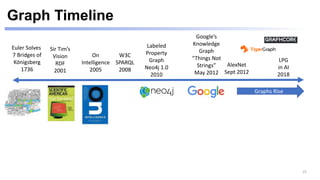

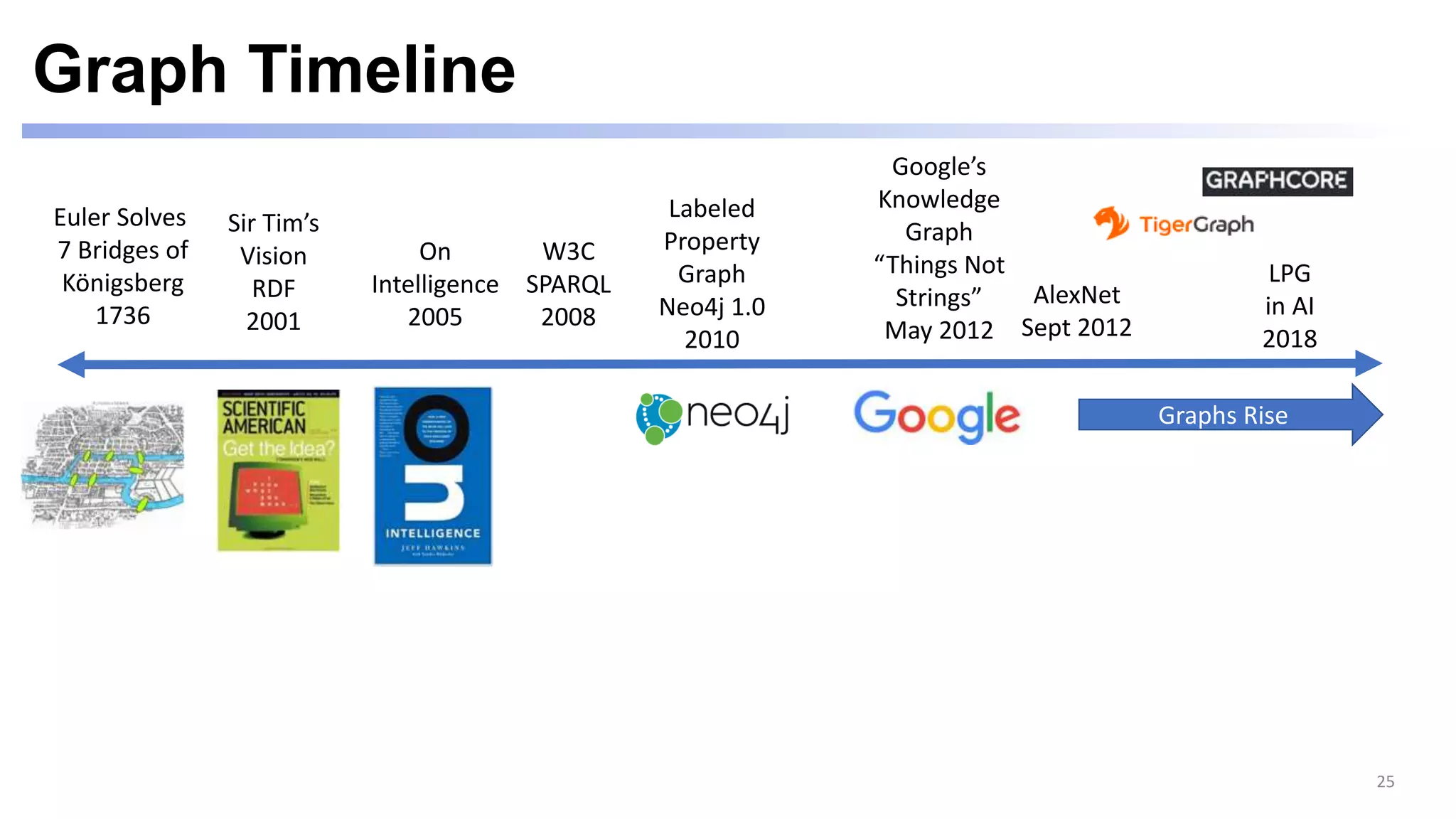

- 25. Sir Tim’s Vision RDF 2001 Euler Solves 7Bridges of Königsberg 1736 W3C SPARQL 2008 Labeled Property Graph Neo4j 1.0 2010 LPG in AI 2018 Google’s Knowledge Graph “Things Not Strings” May 2012 Graph Timeline 25 AlexNet Sept 2012 Graphs Rise On Intelligence 2005

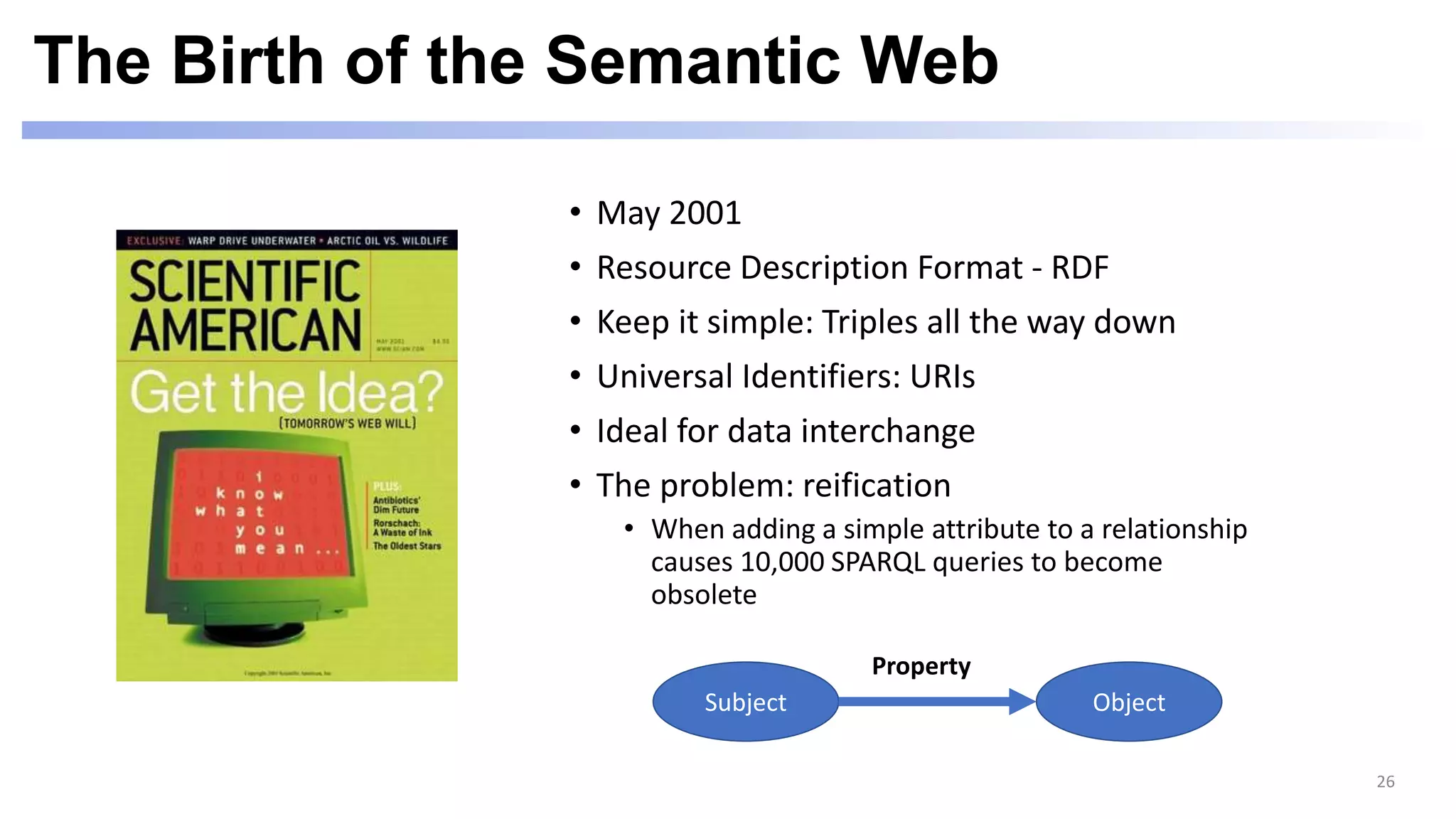

- 26. The Birth ofthe Semantic Web • May 2001 • Resource Description Format - RDF • Keep it simple: Triples all the way down • Universal Identifiers: URIs • Ideal for data interchange • The problem: reification • When adding a simple attribute to a relationship causes 10,000 SPARQL queries to become obsolete Subject Object Property 26

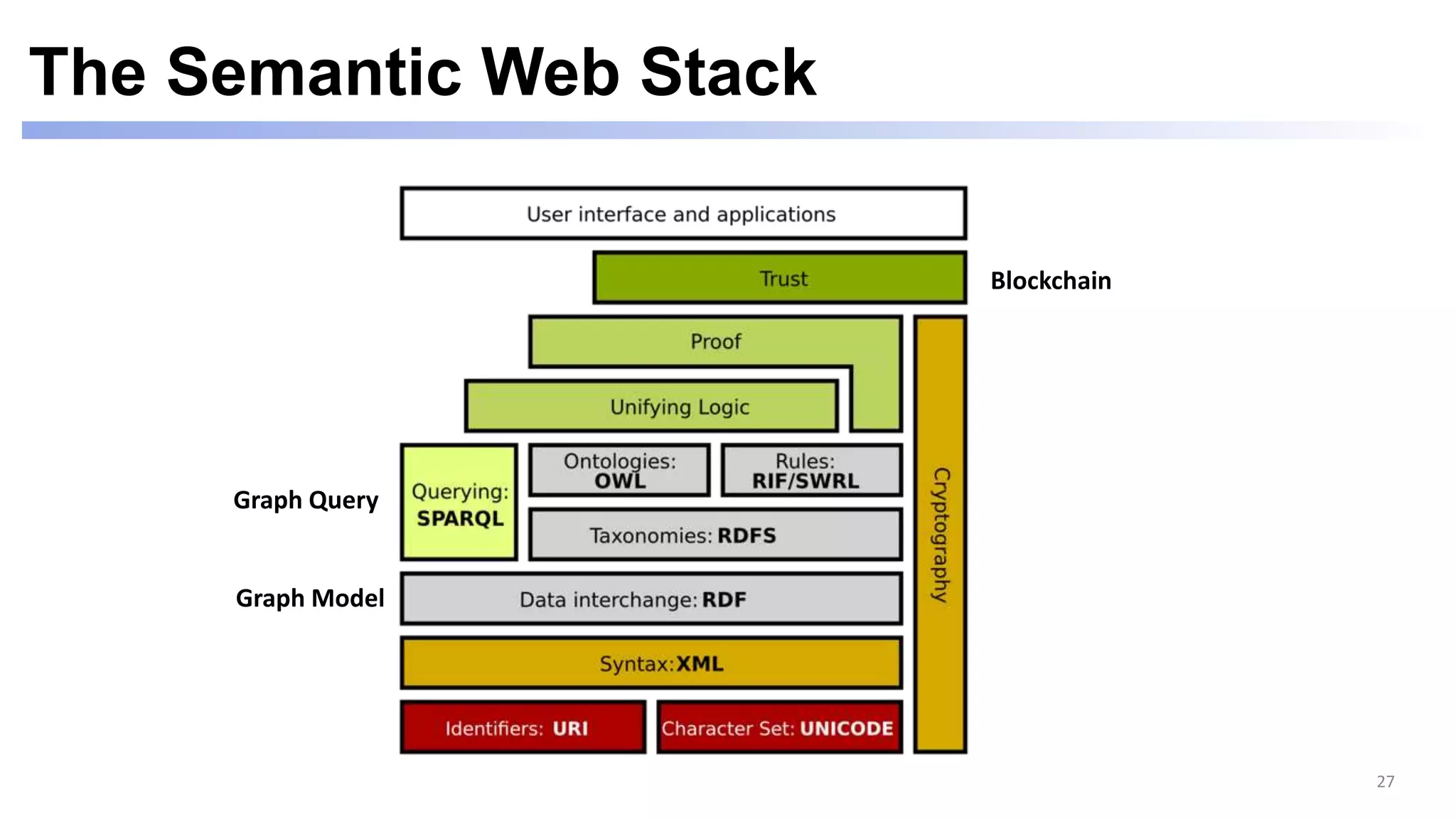

- 27. The Semantic WebStack 27 Graph Model Graph Query Blockchain

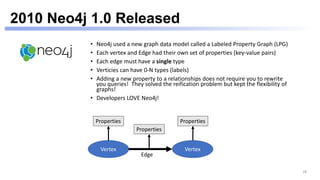

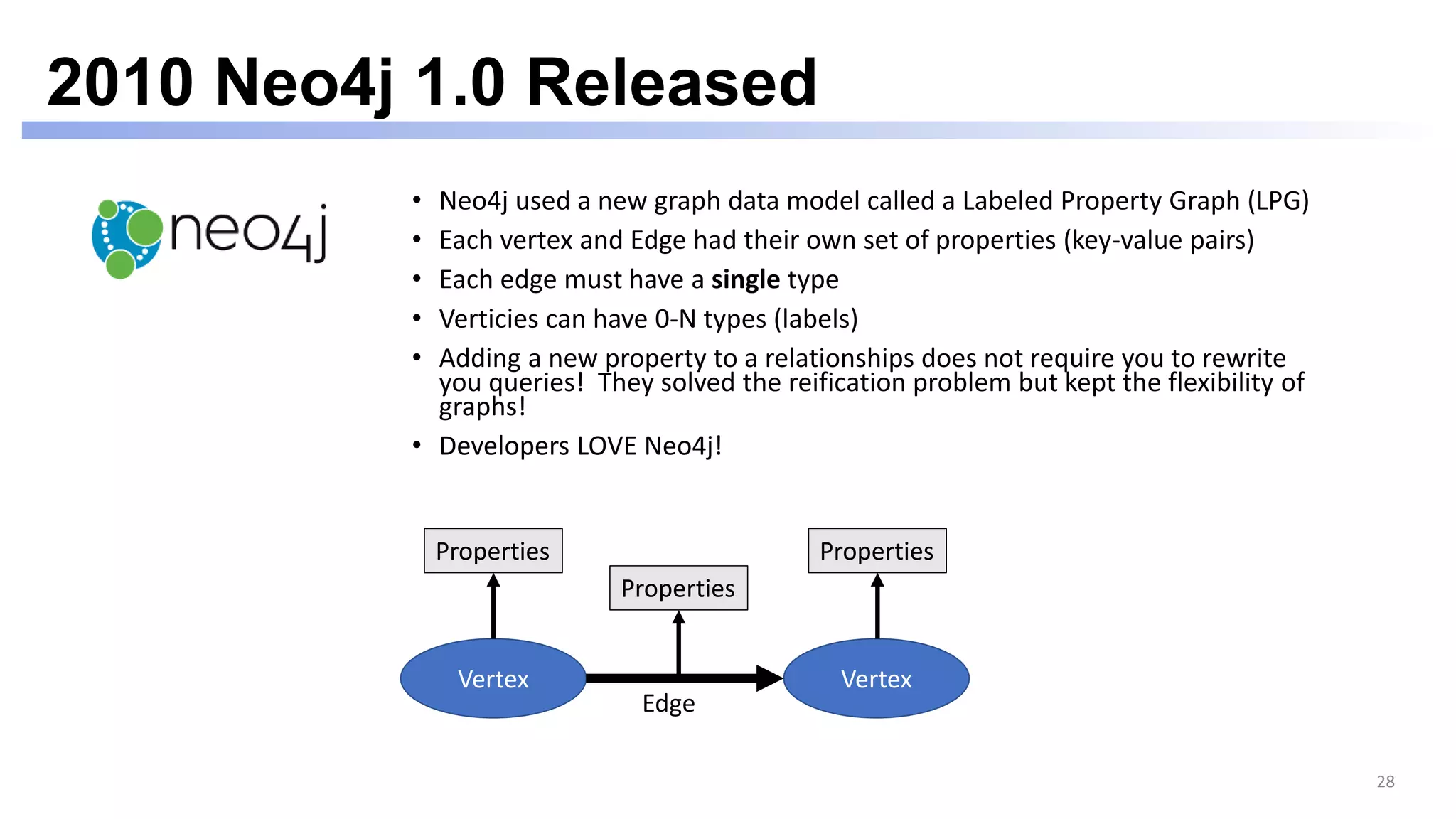

- 28. 2010 Neo4j 1.0Released • Neo4j used a new graph data model called a Labeled Property Graph (LPG) • Each vertex and Edge had their own set of properties (key-value pairs) • Each edge must have a single type • Verticies can have 0-N types (labels) • Adding a new property to a relationships does not require you to rewrite you queries! They solved the reification problem but kept the flexibility of graphs! • Developers LOVE Neo4j! Vertex Vertex Properties Properties Properties Edge 28

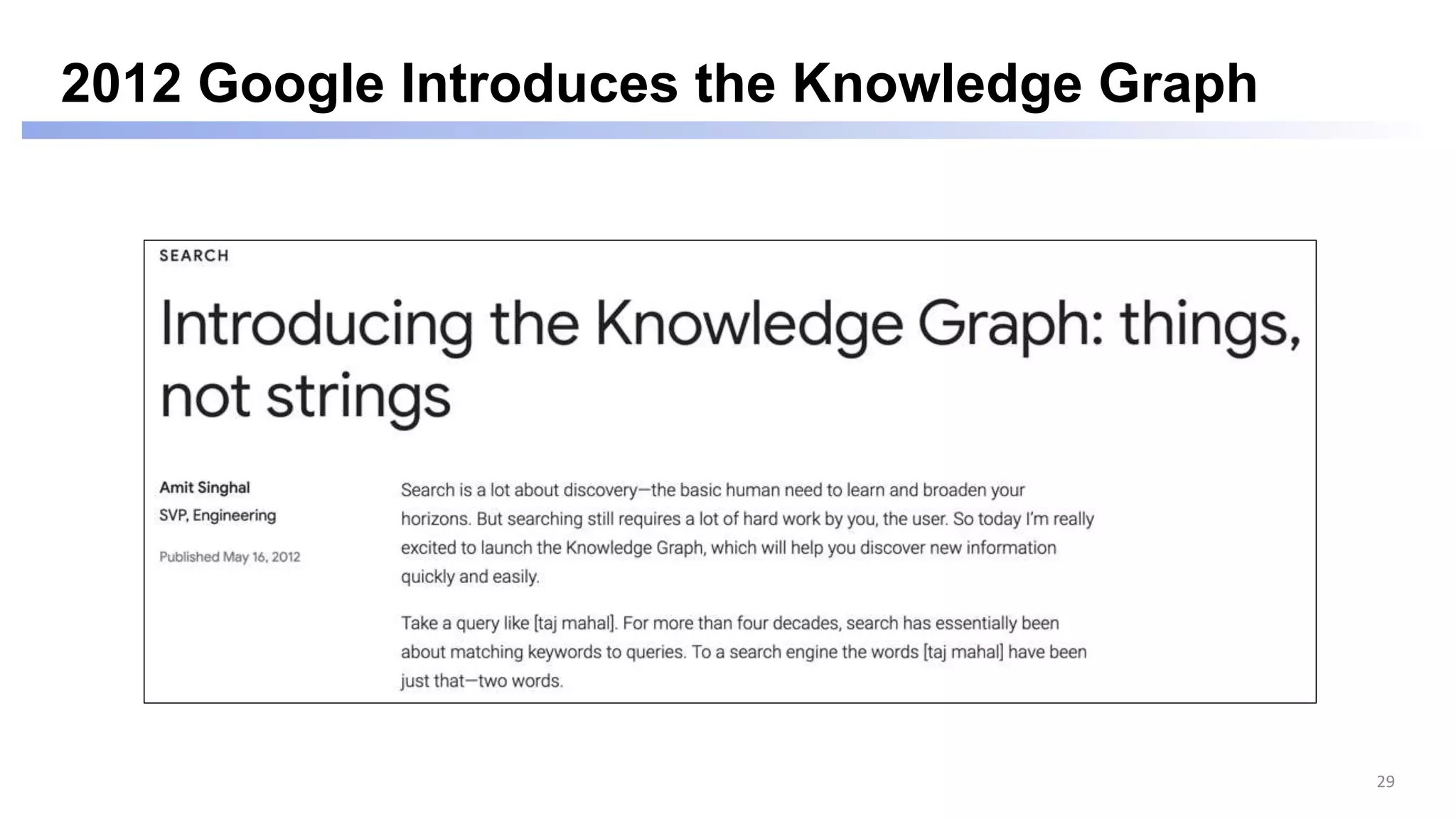

- 29. 2012 Google Introducesthe Knowledge Graph 29

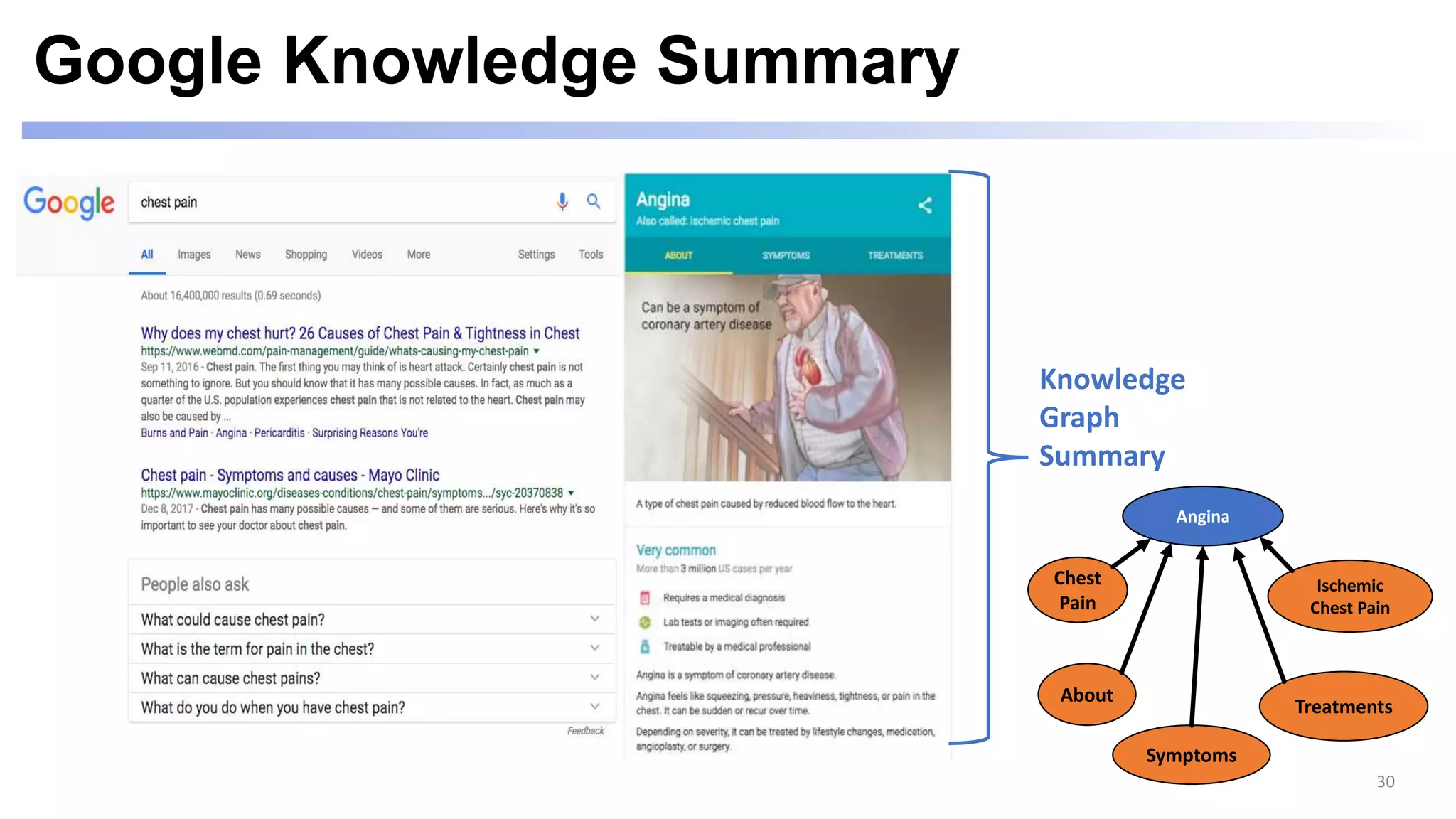

- 30. Google Knowledge Summary 30 Knowledge Graph Summary Chest Pain Angina Ischemic ChestPain About Symptoms Treatments

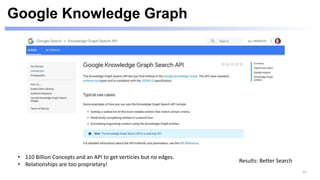

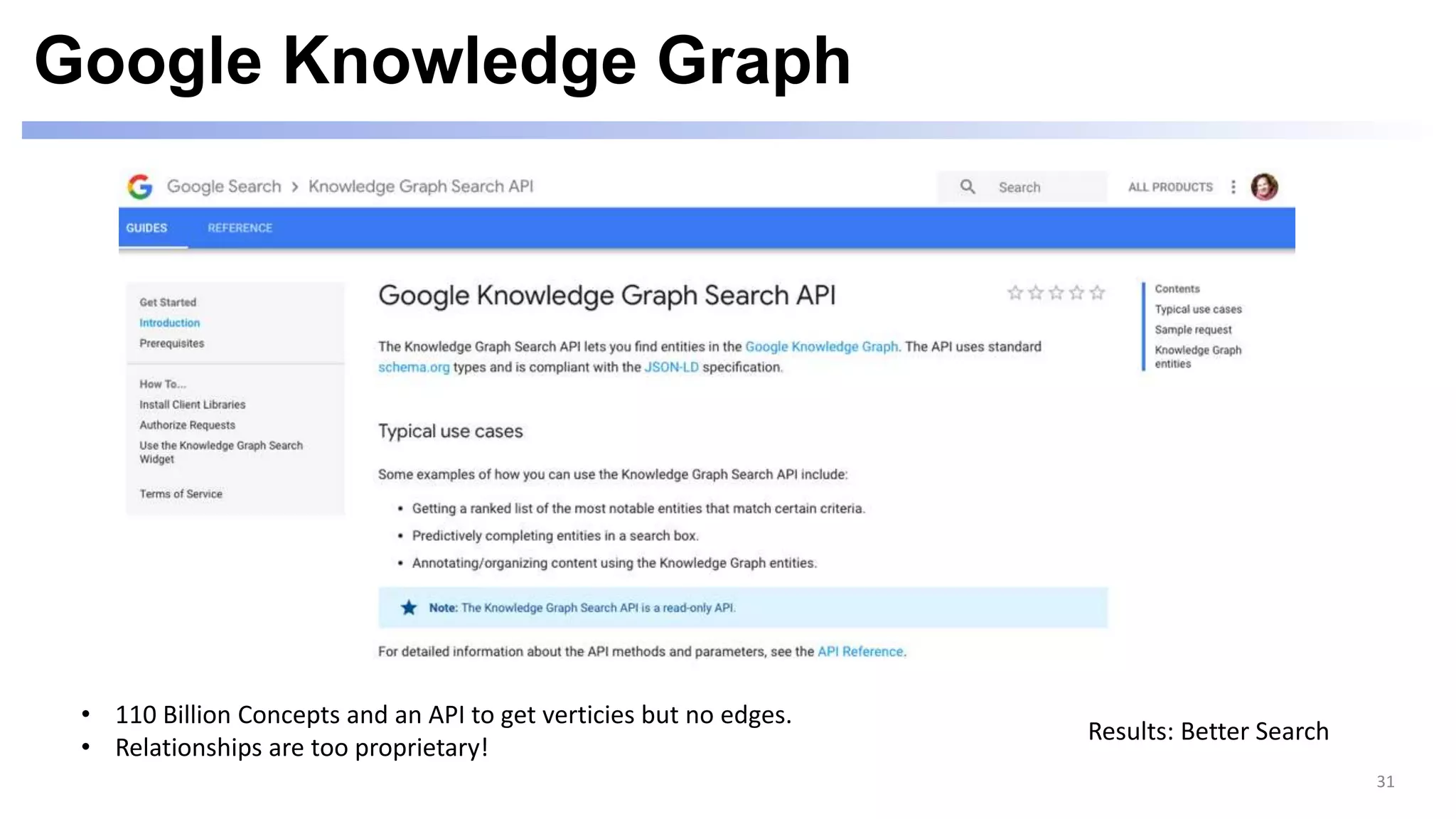

- 31. Google Knowledge Graph Results:Better Search • 110 Billion Concepts and an API to get verticies but no edges. • Relationships are too proprietary! 31

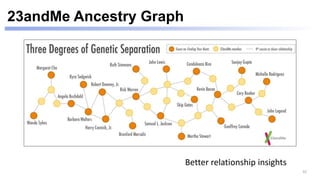

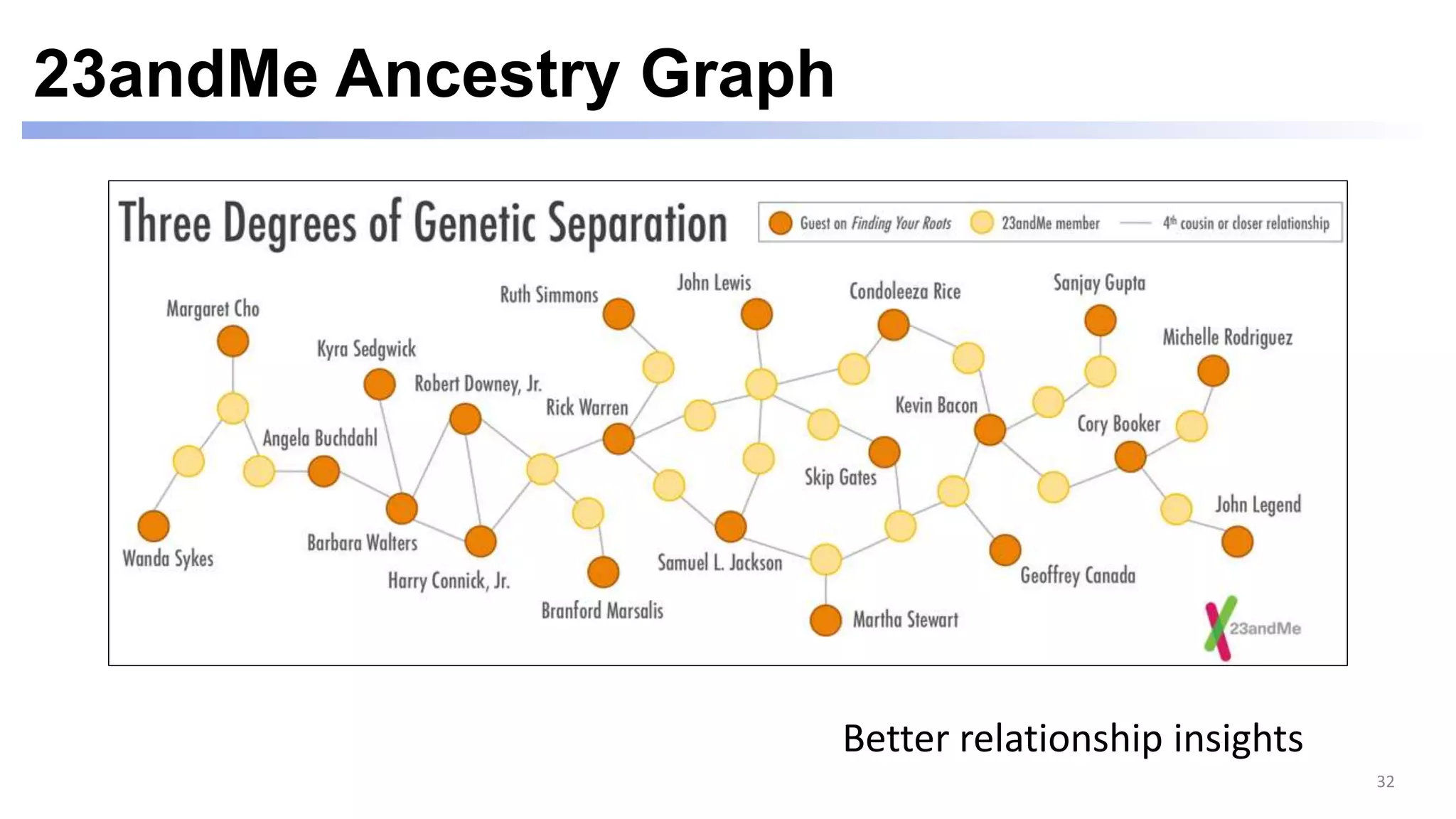

- 32. 23andMe Ancestry Graph Betterrelationship insights 32

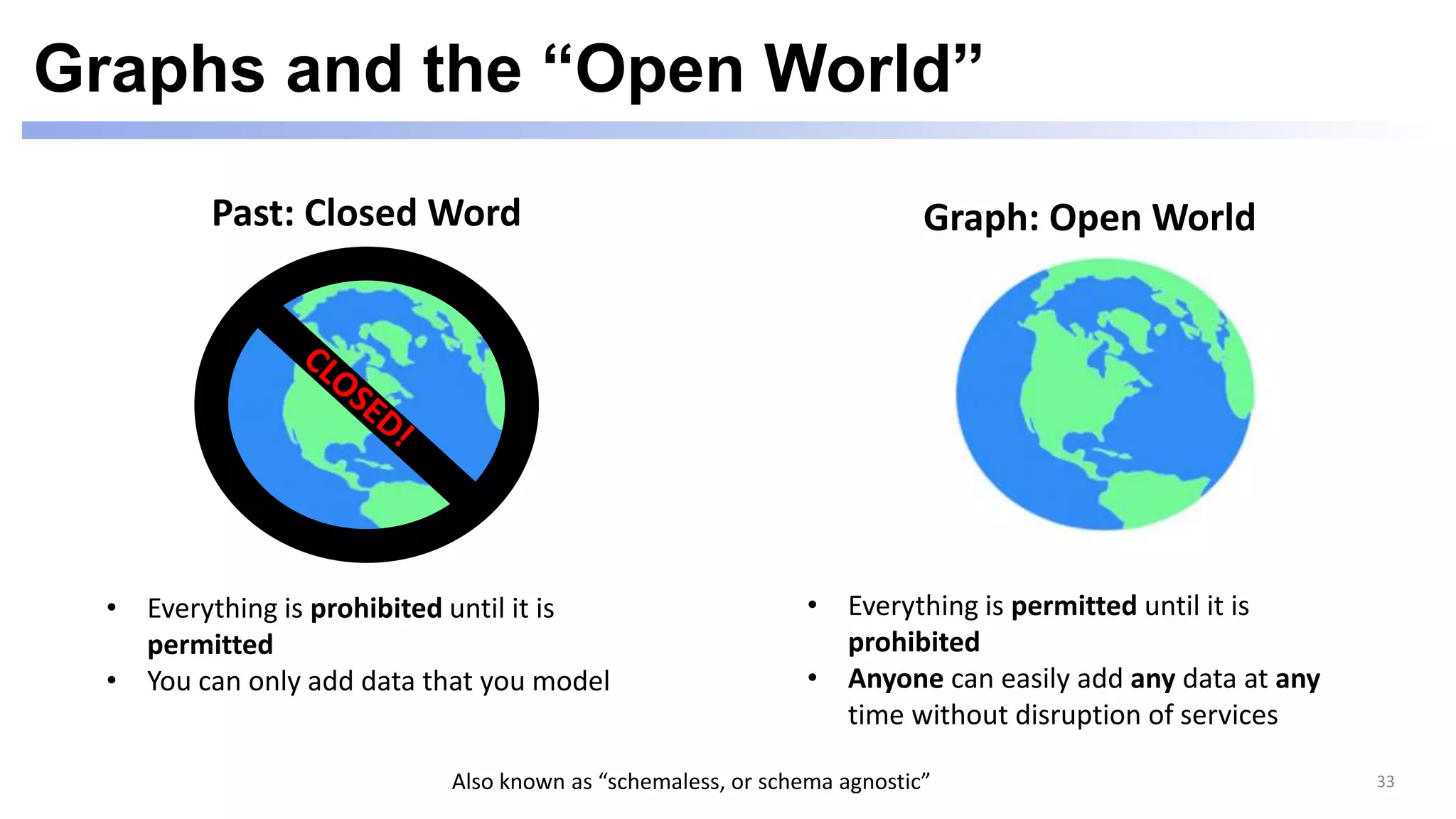

- 33. Graphs and the“Open World” 33 Past: Closed Word Graph: Open World • Everything is prohibited until it is permitted • You can only add data that you model • Everything is permitted until it is prohibited • Anyone can easily add any data at any time without disruption of services Also known as “schemaless, or schema agnostic”
- 34. The Jenga TowerMetaphor • What happens to your existing queries when you make a change to your data model? • LPGs allow anyone to add properties to verticies or relationships without disrupting other queries 34 Add a property to your model 1,000 queries need to be rewritten

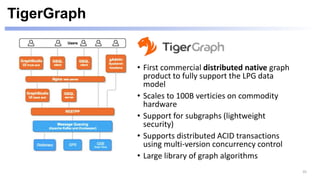

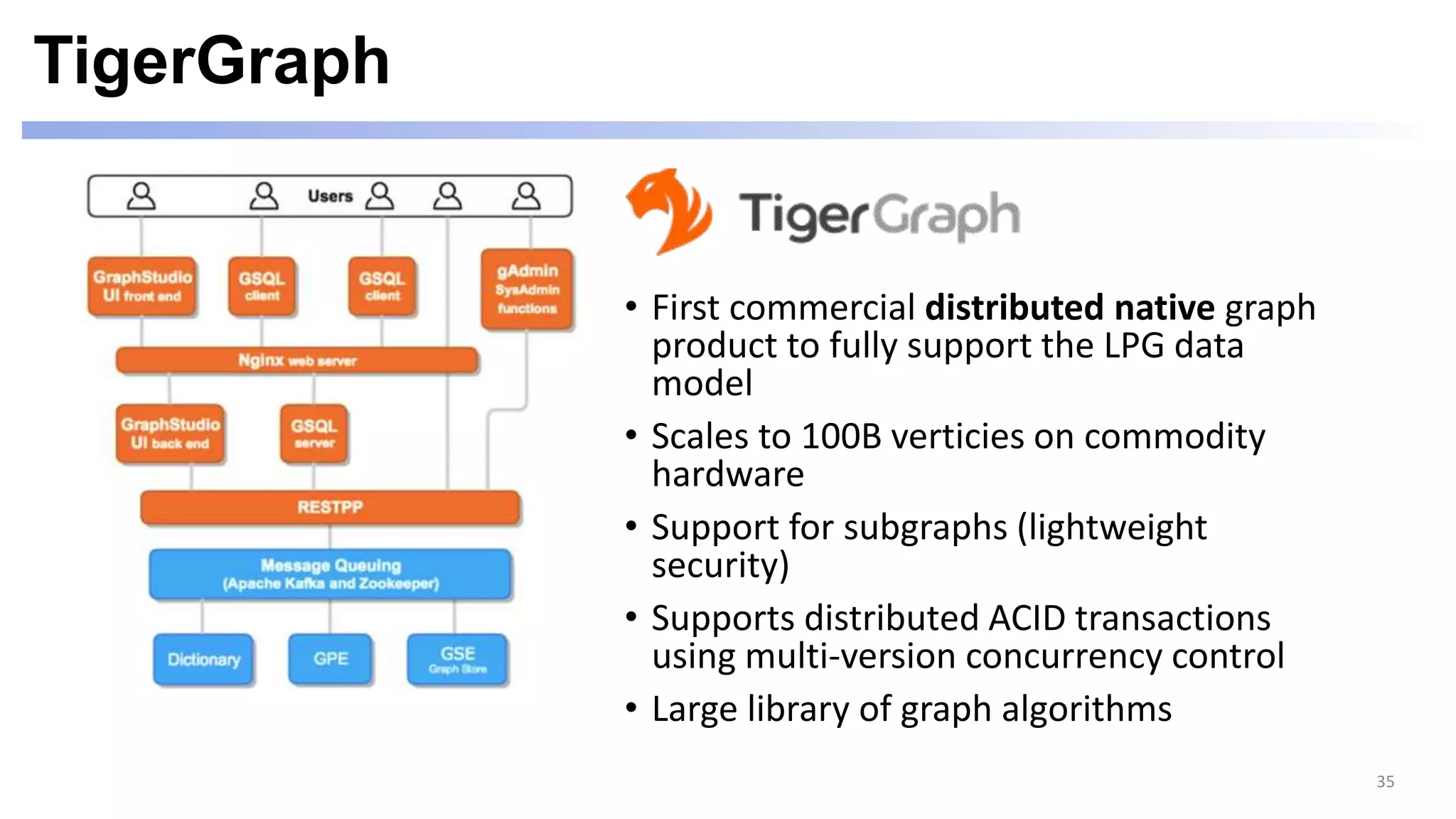

- 35. TigerGraph • First commercialdistributed native graph product to fully support the LPG data model • Scales to 100B verticies on commodity hardware • Support for subgraphs (lightweight security) • Supports distributed ACID transactions using multi-version concurrency control • Large library of graph algorithms 35

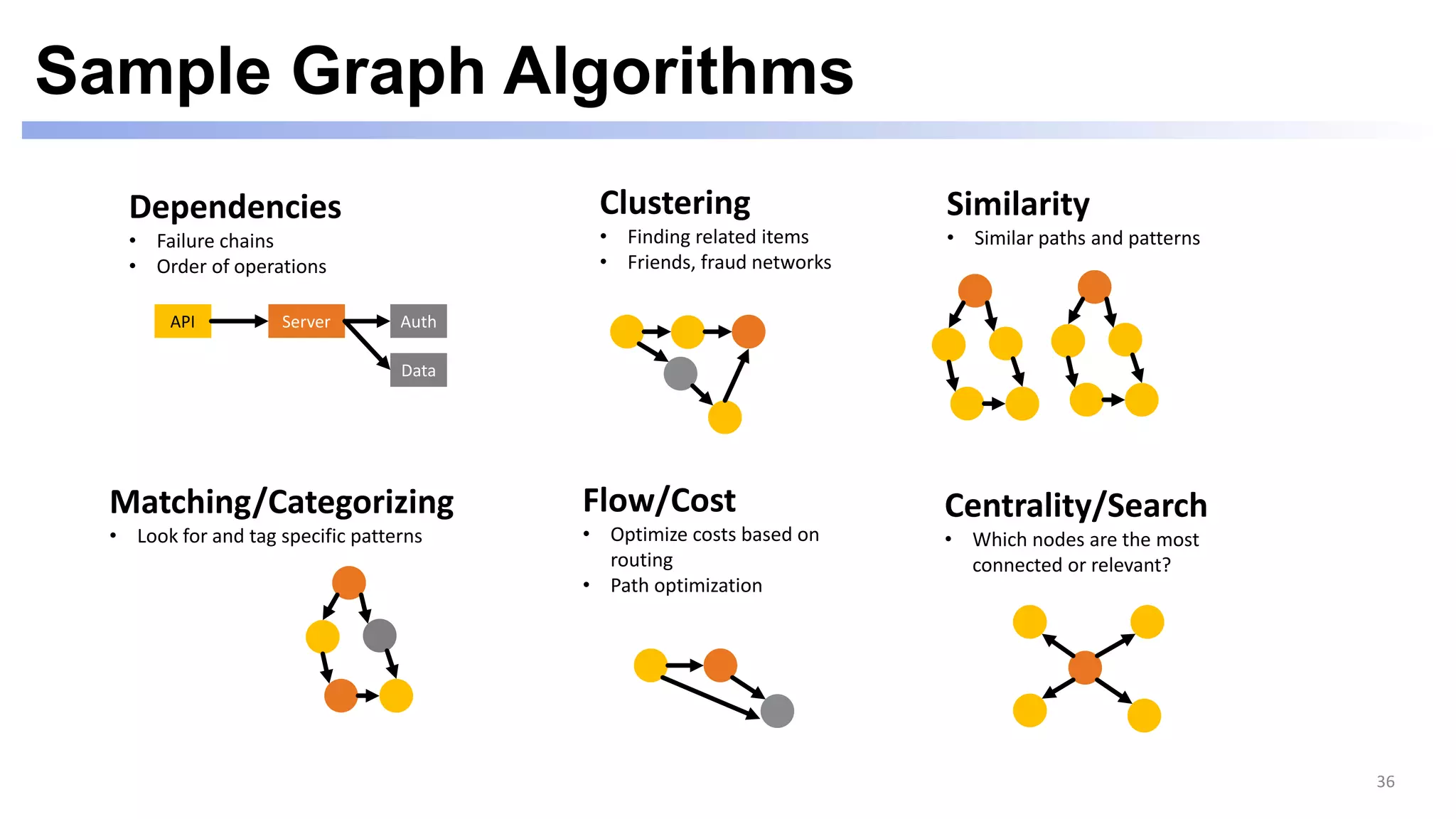

- 36. Sample Graph Algorithms 36 Dependencies •Failure chains • Order of operations Clustering • Finding related items • Friends, fraud networks Similarity • Similar paths and patterns Matching/Categorizing • Look for and tag specific patterns Flow/Cost • Optimize costs based on routing • Path optimization Centrality/Search • Which nodes are the most connected or relevant? API Server Auth Data

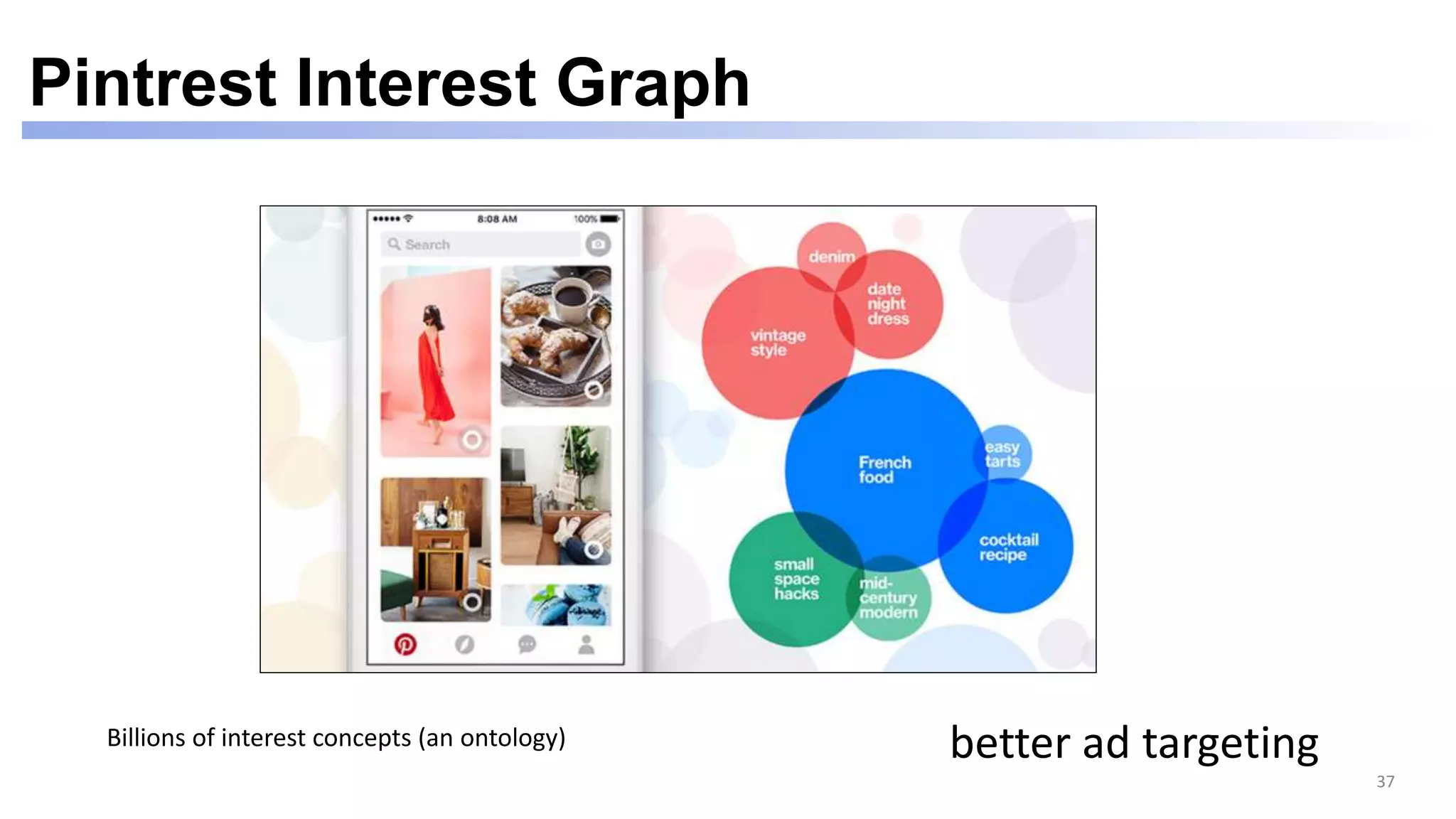

- 37. Pintrest Interest Graph betterad targeting 37 Billions of interest concepts (an ontology)

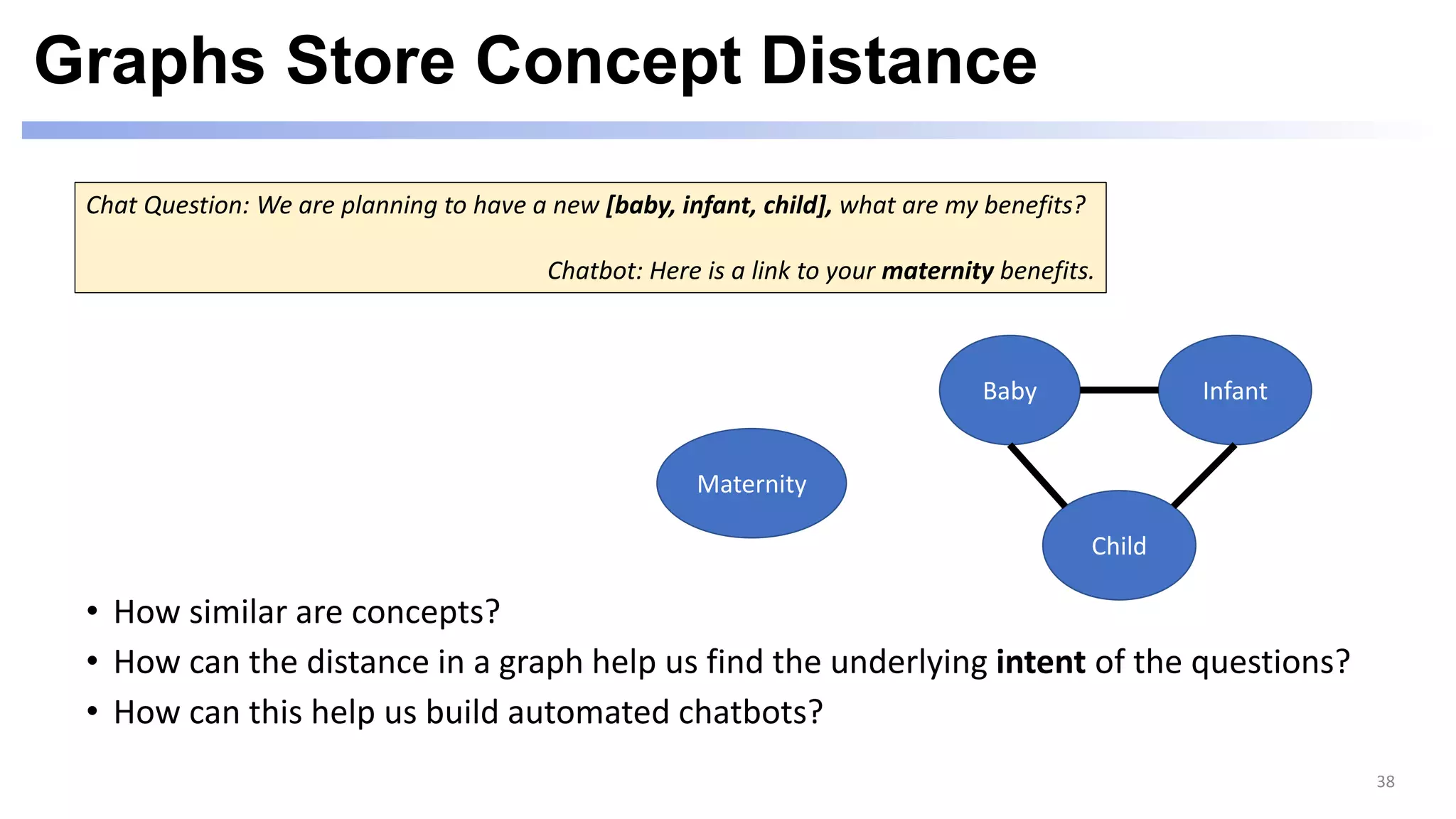

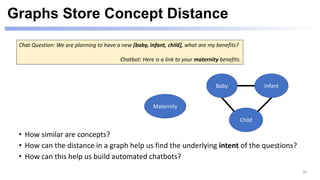

- 38. Graphs Store ConceptDistance • How similar are concepts? • How can the distance in a graph help us find the underlying intent of the questions? • How can this help us build automated chatbots? 38 Baby Infant Child Chat Question: We are planning to have a new [baby, infant, child], what are my benefits? Chatbot: Here is a link to your maternity benefits. Maternity

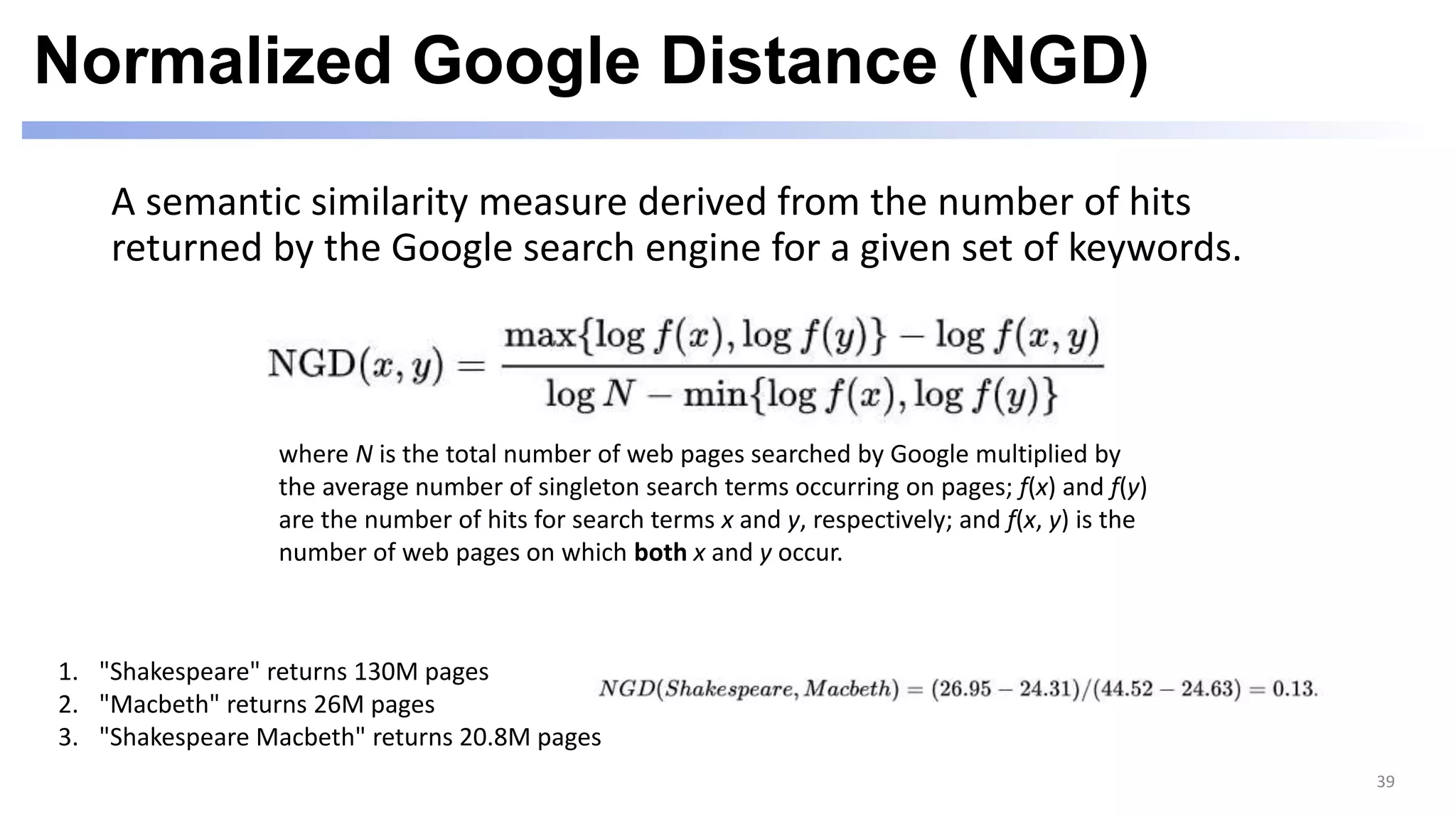

- 39. Normalized Google Distance(NGD) A semantic similarity measure derived from the number of hits returned by the Google search engine for a given set of keywords. 39 1. "Shakespeare" returns 130M pages 2. "Macbeth" returns 26M pages 3. "Shakespeare Macbeth" returns 20.8M pages where N is the total number of web pages searched by Google multiplied by the average number of singleton search terms occurring on pages; f(x) and f(y) are the number of hits for search terms x and y, respectively; and f(x, y) is the number of web pages on which both x and y occur.

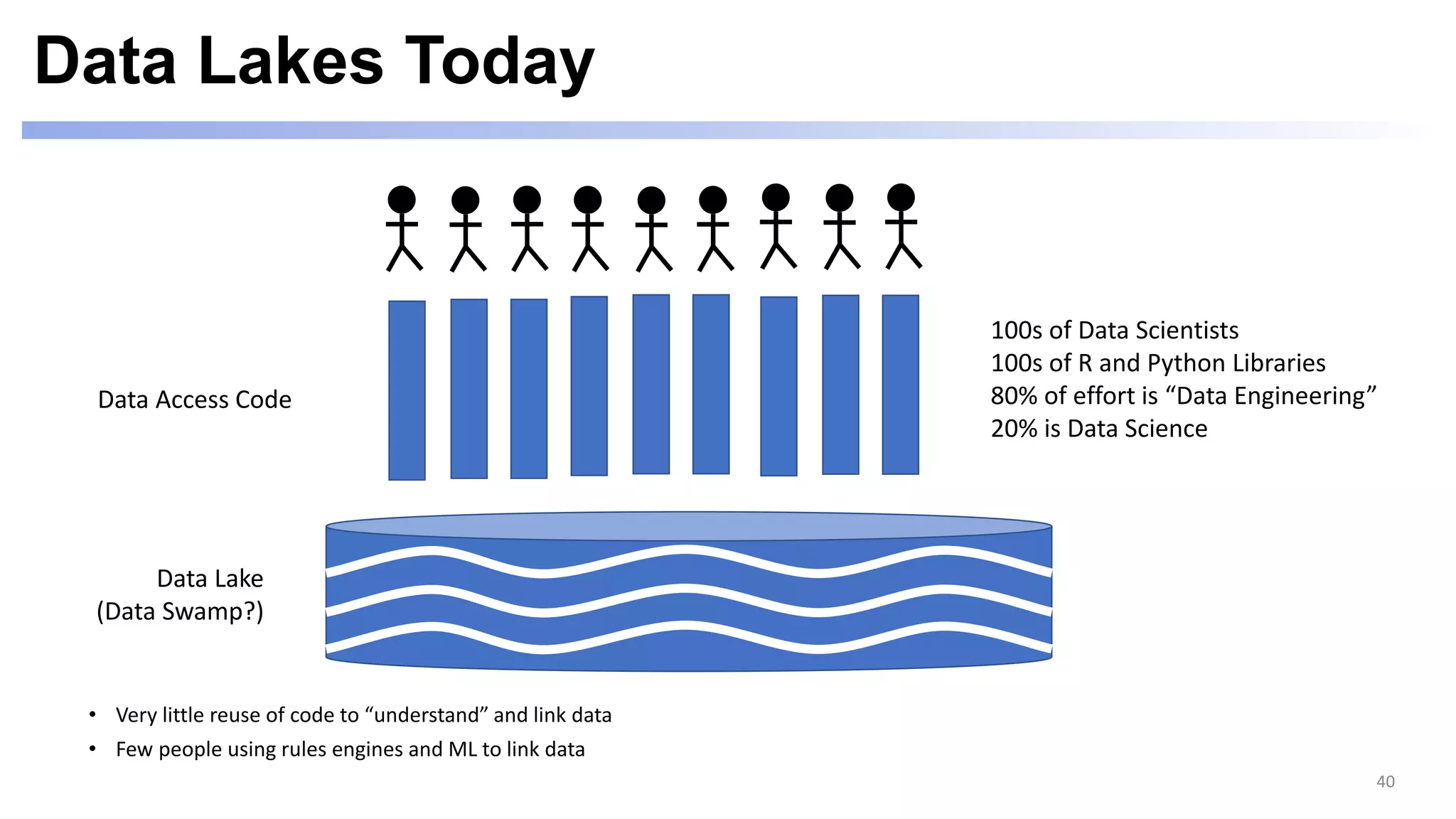

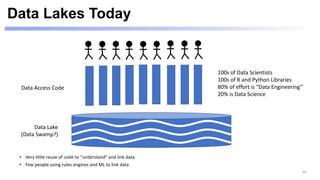

- 40. Data Lakes Today •Very little reuse of code to “understand” and link data • Few people using rules engines and ML to link data 40 Data Lake (Data Swamp?) 100s of Data Scientists 100s of R and Python Libraries 80% of effort is “Data Engineering” 20% is Data Science Data Access Code

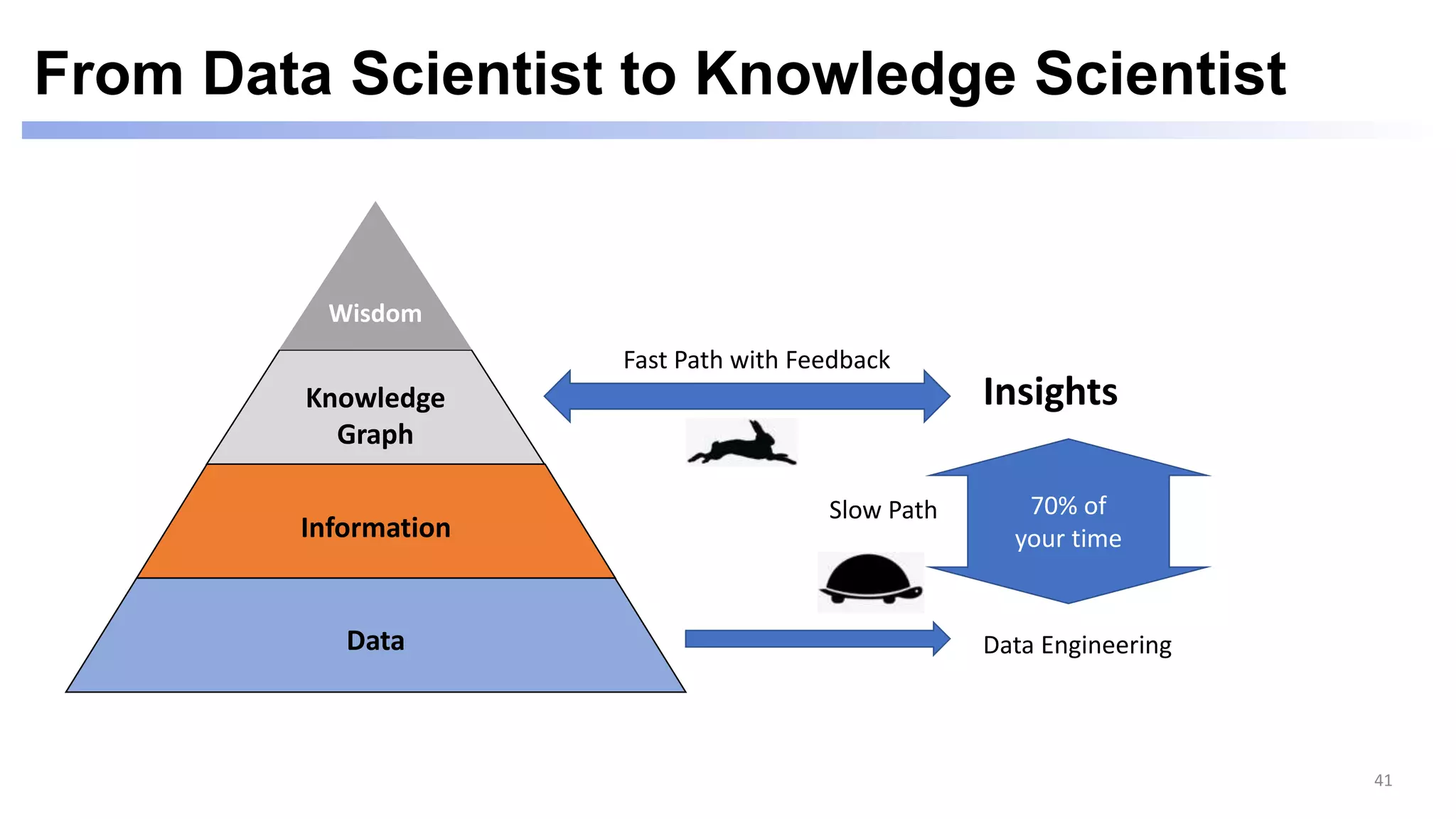

- 41. From Data Scientistto Knowledge Scientist 41 Data Information Knowledge Graph Wisdom Data Engineering Insights 70% of your time Fast Path with Feedback Slow Path

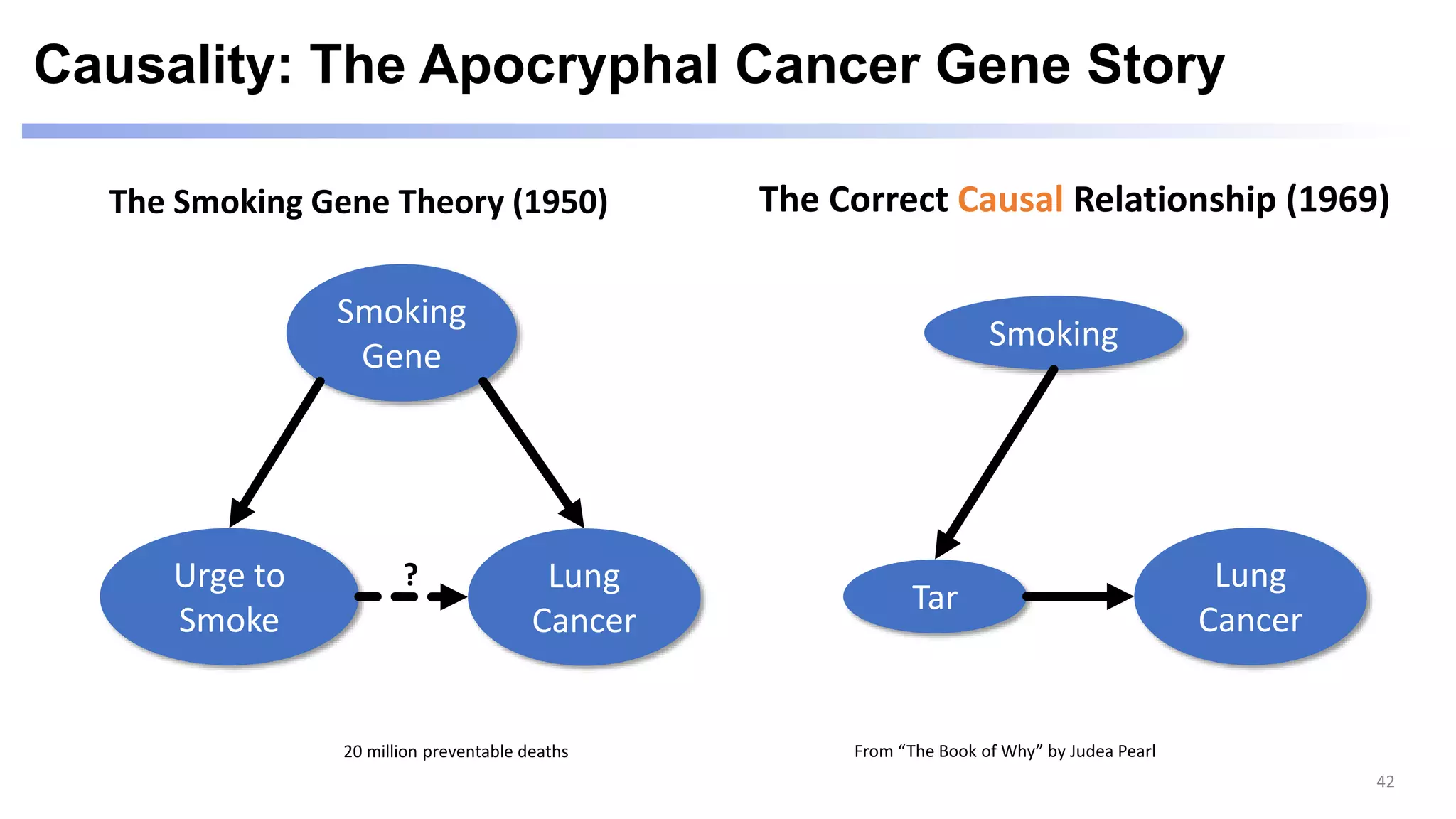

- 42. Causality: The ApocryphalCancer Gene Story 42 The Smoking Gene Theory (1950) The Correct Causal Relationship (1969) Smoking Gene Lung Cancer Urge to Smoke Lung Cancer Tar Smoking 20 million preventable deaths From “The Book of Why” by Judea Pearl ?

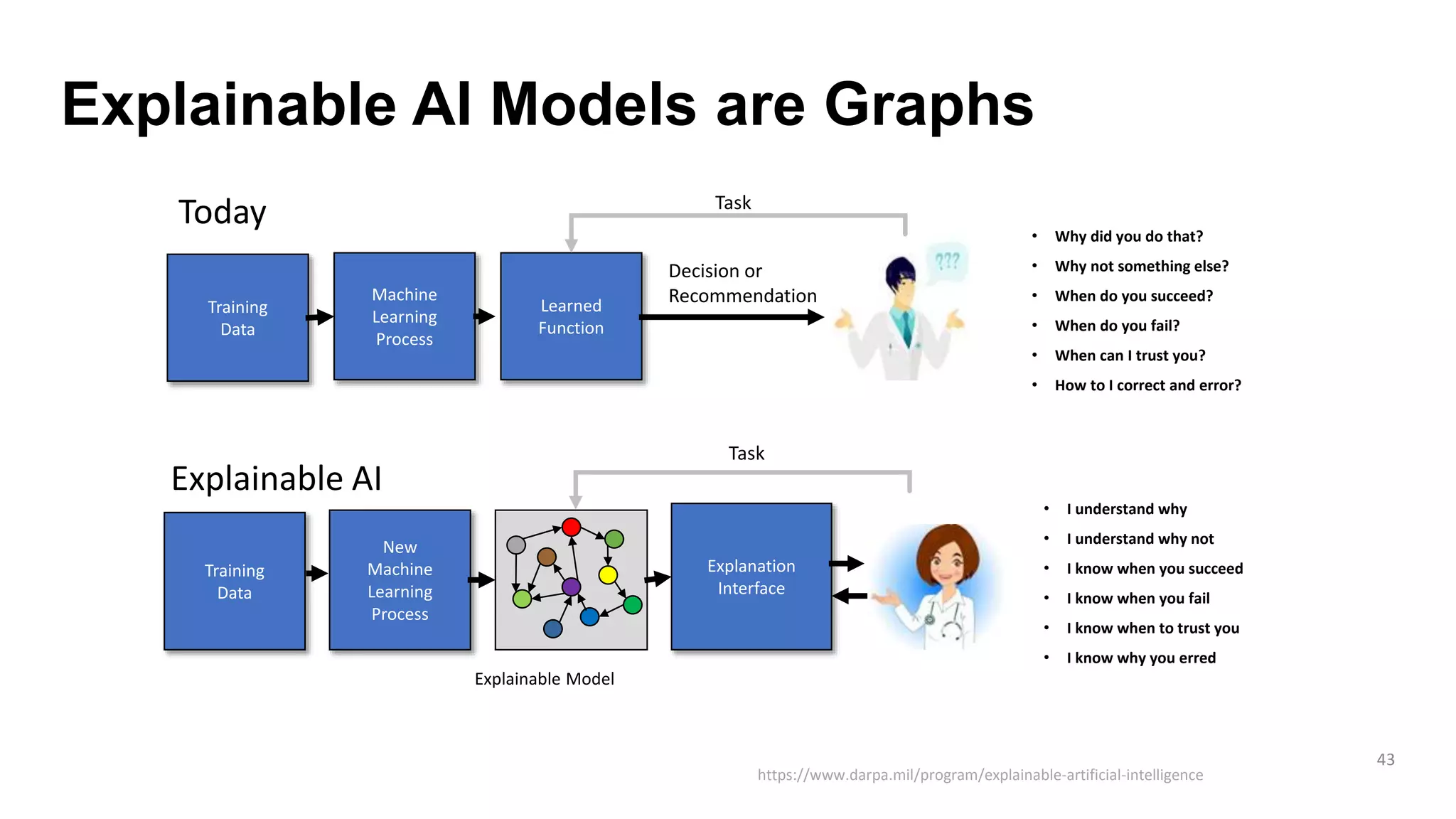

- 43. Explainable AI Modelsare Graphs 43 https://www.darpa.mil/program/explainable-artificial-intelligence Training Data Training Data Machine Learning Process New Machine Learning Process Learned Function Today Explainable AI • Why did you do that? • Why not something else? • When do you succeed? • When do you fail? • When can I trust you? • How to I correct and error? • I understand why • I understand why not • I know when you succeed • I know when you fail • I know when to trust you • I know why you erred Decision or Recommendation Explanation Interface Explainable Model Task Task

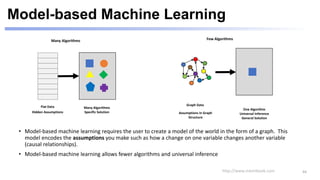

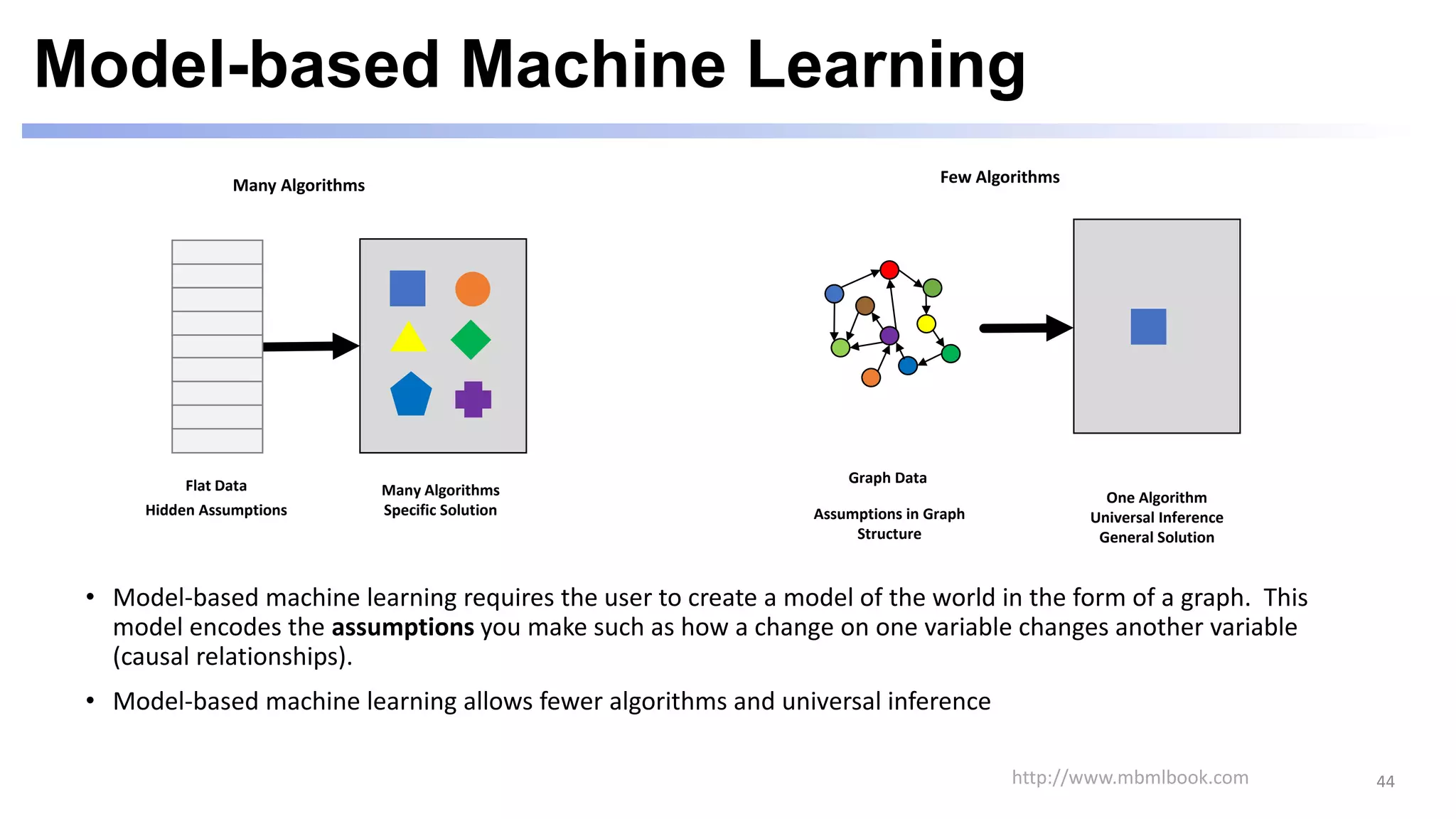

- 44. Model-based Machine Learning 44 •Model-based machine learning requires the user to create a model of the world in the form of a graph. This model encodes the assumptions you make such as how a change on one variable changes another variable (causal relationships). • Model-based machine learning allows fewer algorithms and universal inference Many Algorithms Flat Data Hidden Assumptions Many Algorithms Specific Solution Graph Data Assumptions in Graph Structure One Algorithm Universal Inference General Solution Few Algorithms http://www.mbmlbook.com

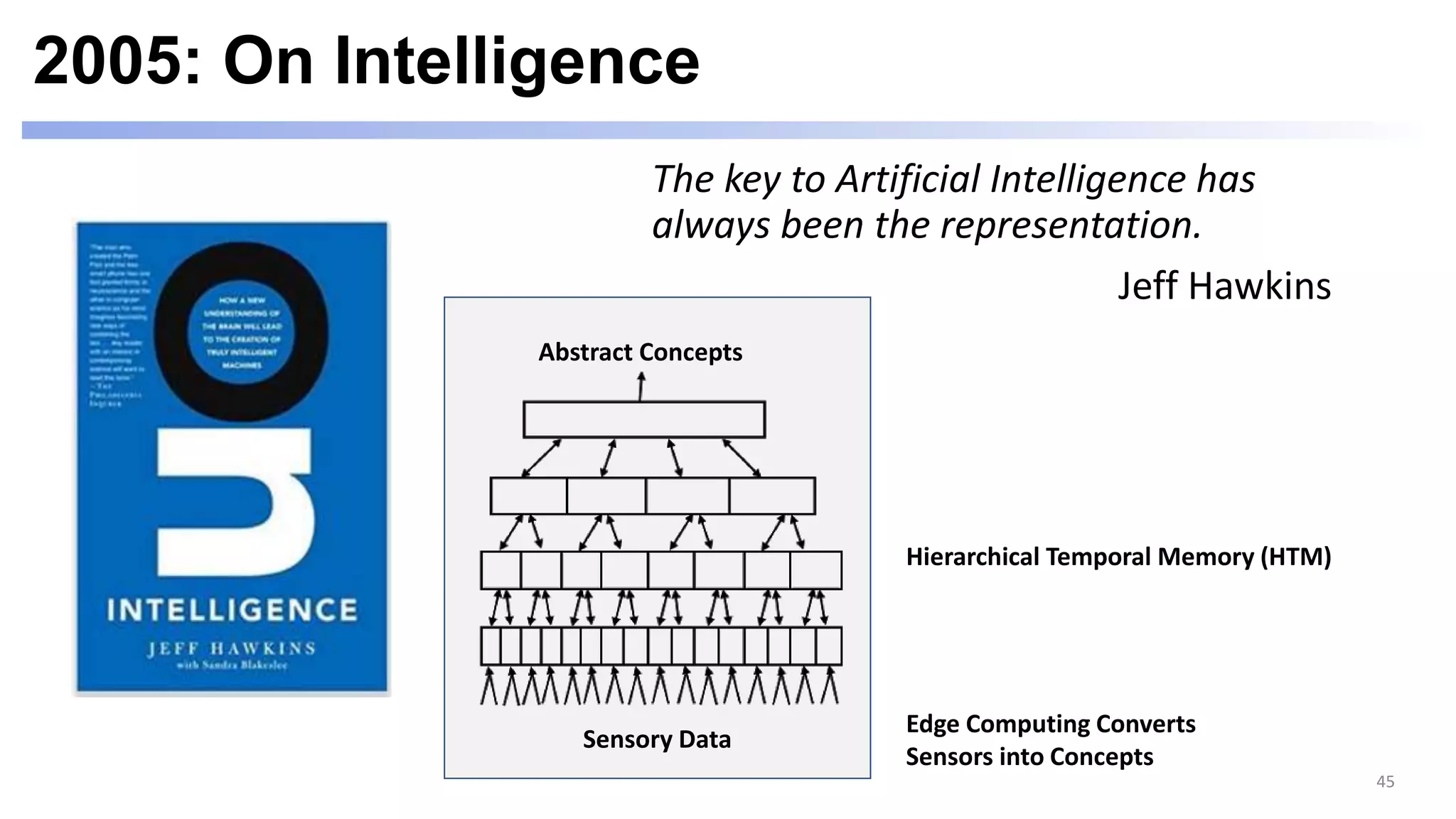

- 45. 2005: On Intelligence Thekey to Artificial Intelligence has always been the representation. Jeff Hawkins Sensory Data Abstract Concepts Hierarchical Temporal Memory (HTM) 45 Edge Computing Converts Sensors into Concepts

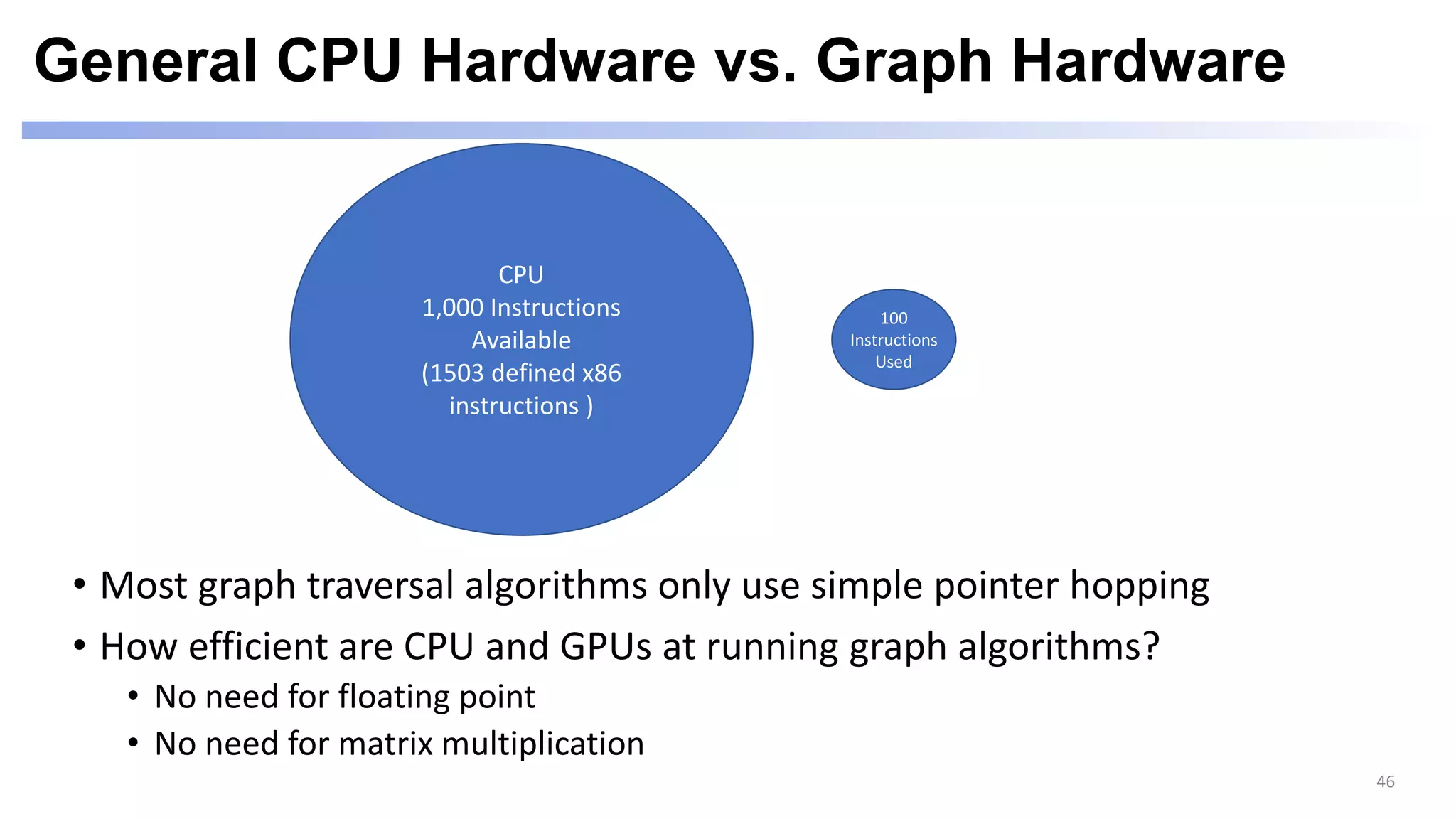

- 46. General CPU Hardwarevs. Graph Hardware • Most graph traversal algorithms only use simple pointer hopping • How efficient are CPU and GPUs at running graph algorithms? • No need for floating point • No need for matrix multiplication 46 CPU 1,000 Instructions Available (1503 defined x86 instructions ) 100 Instructions Used

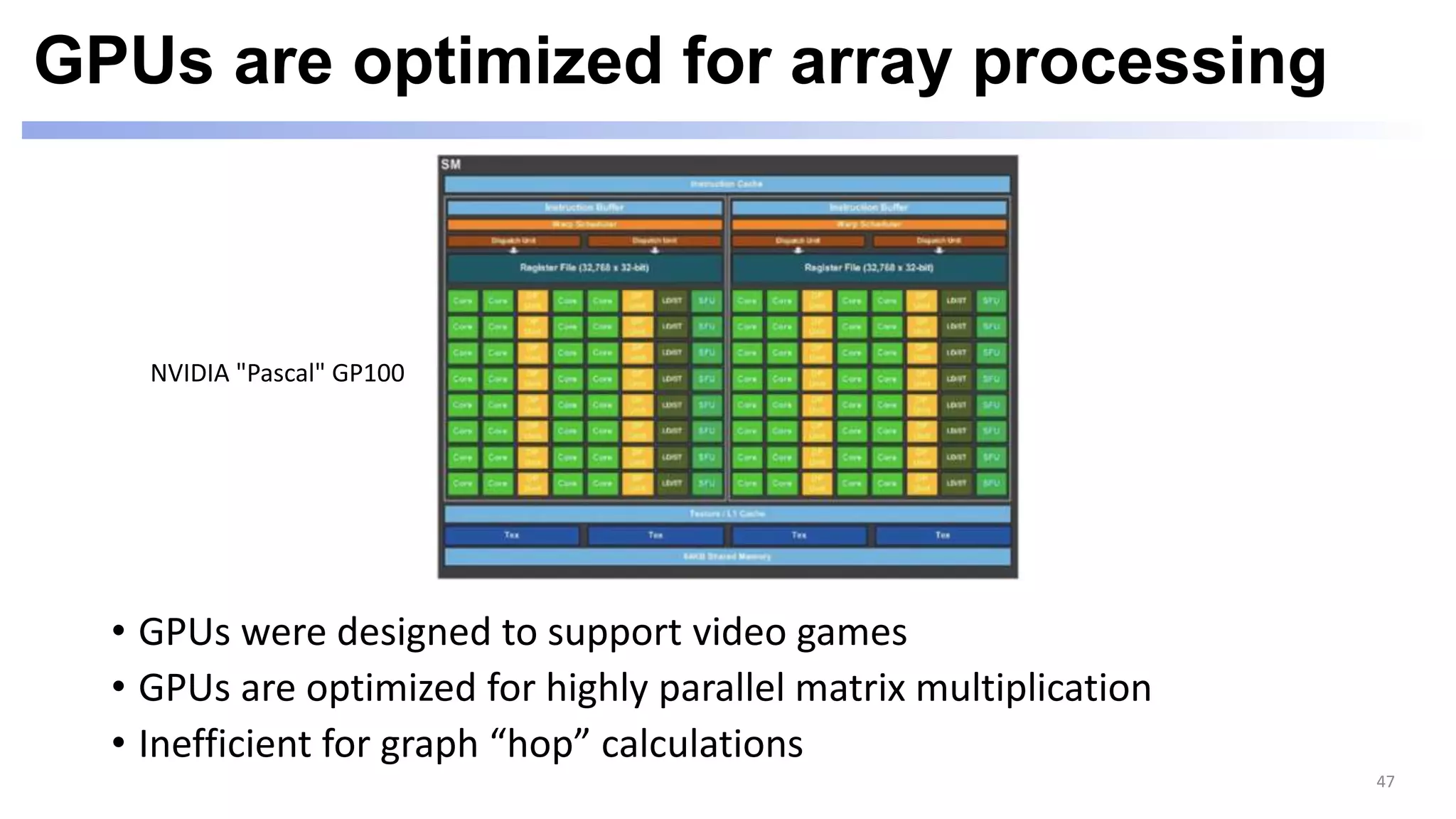

- 47. GPUs are optimizedfor array processing • GPUs were designed to support video games • GPUs are optimized for highly parallel matrix multiplication • Inefficient for graph “hop” calculations 47 NVIDIA "Pascal" GP100

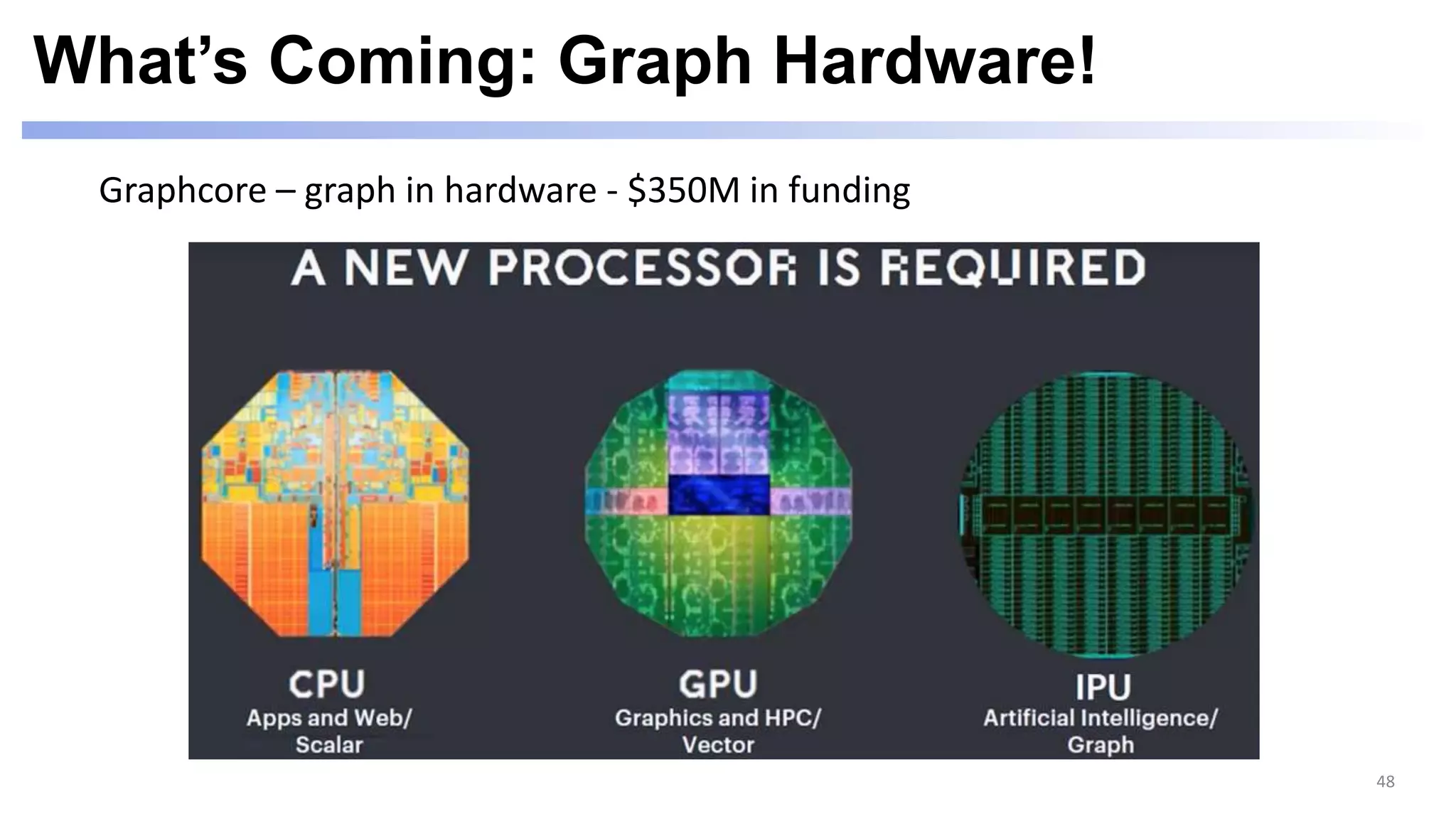

- 48. What’s Coming: GraphHardware! Graphcore – graph in hardware - $350M in funding 48

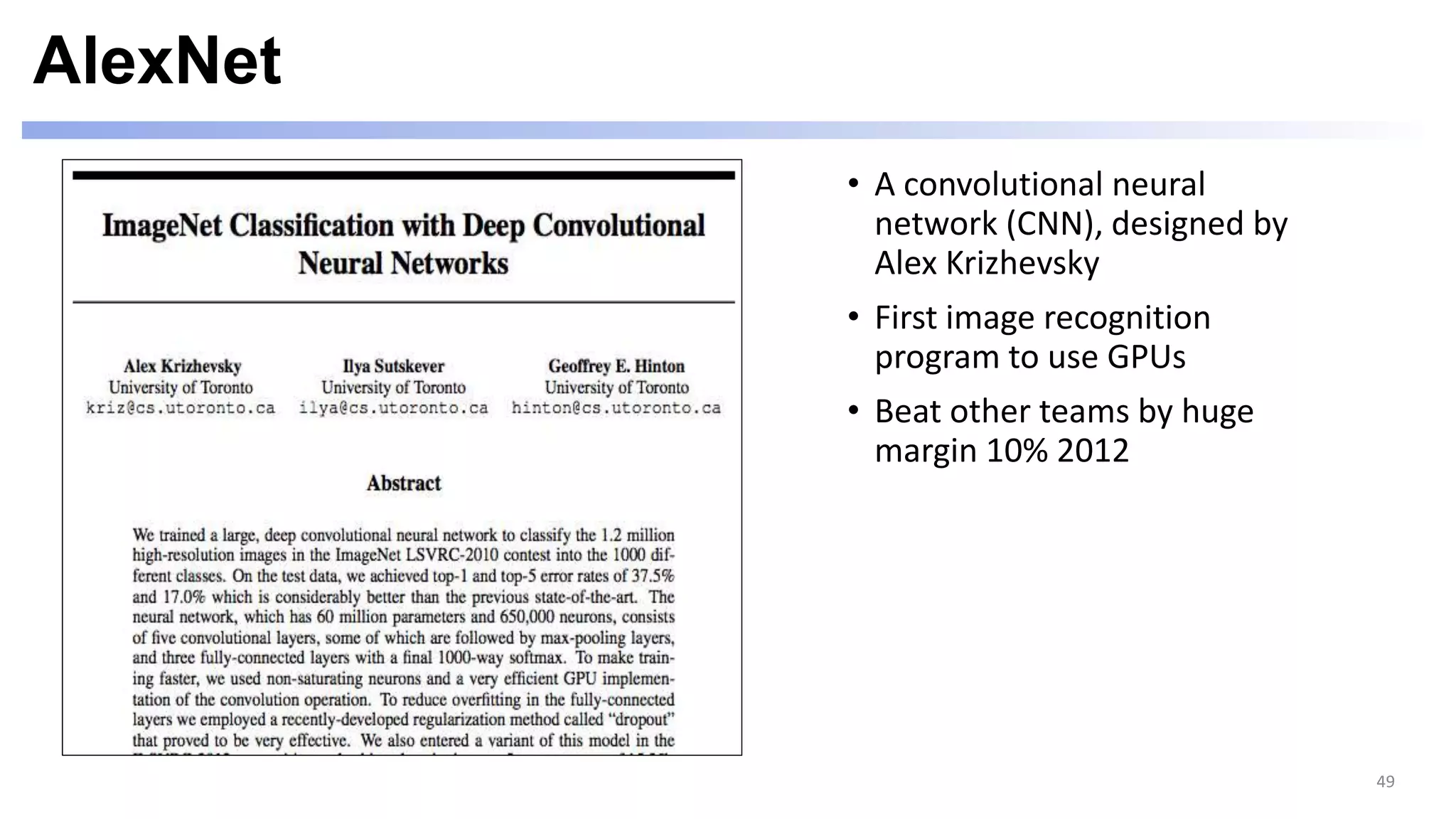

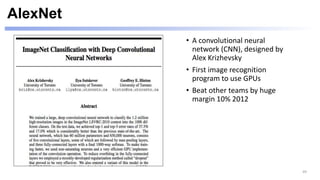

- 49. AlexNet • A convolutionalneural network (CNN), designed by Alex Krizhevsky • First image recognition program to use GPUs • Beat other teams by huge margin 10% 2012 49

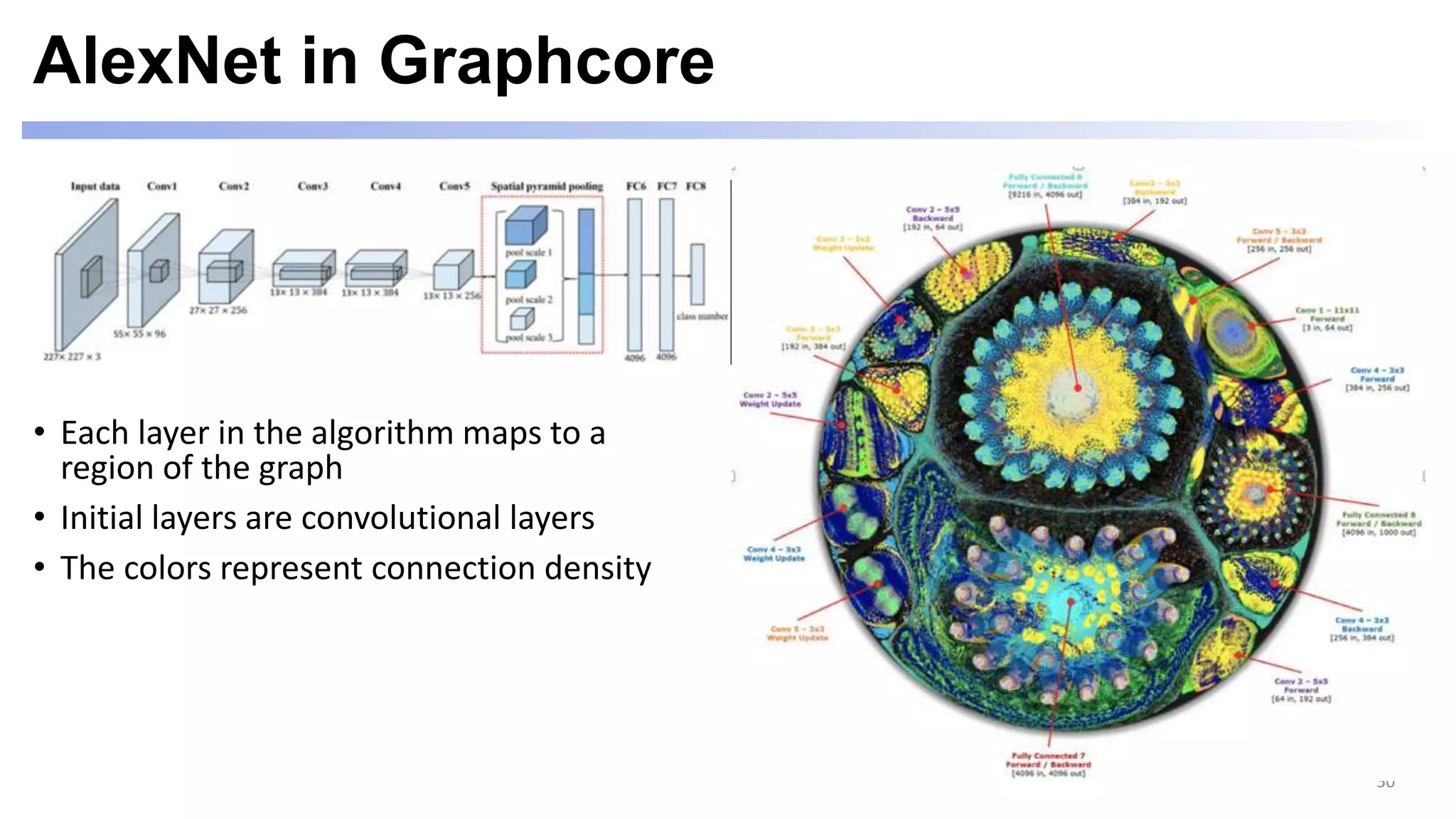

- 50. AlexNet in Graphcore •Each layer in the algorithm maps to a region of the graph • Initial layers are convolutional layers • The colors represent connection density 50
- 51. Different Algorithms LookDifferent 51 ResNet50: “AI Brain Scan” https://www.wired.co.uk/gallery/machine-learning-graphcore-pictures-inside-ai
- 52.

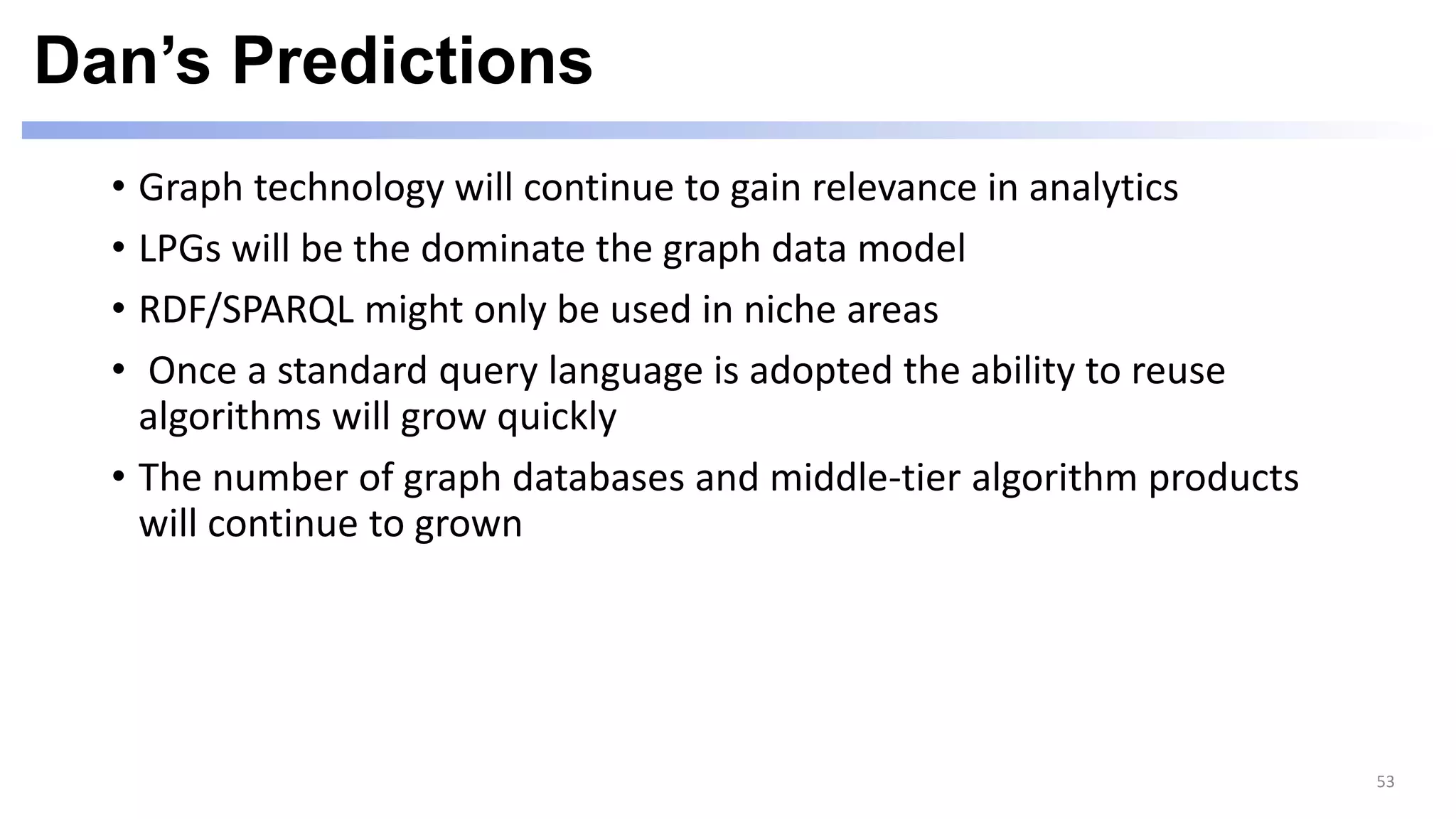

- 53. Dan’s Predictions • Graphtechnology will continue to gain relevance in analytics • LPGs will be the dominate the graph data model • RDF/SPARQL might only be used in niche areas • Once a standard query language is adopted the ability to reuse algorithms will grow quickly • The number of graph databases and middle-tier algorithm products will continue to grown 53

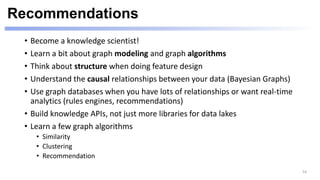

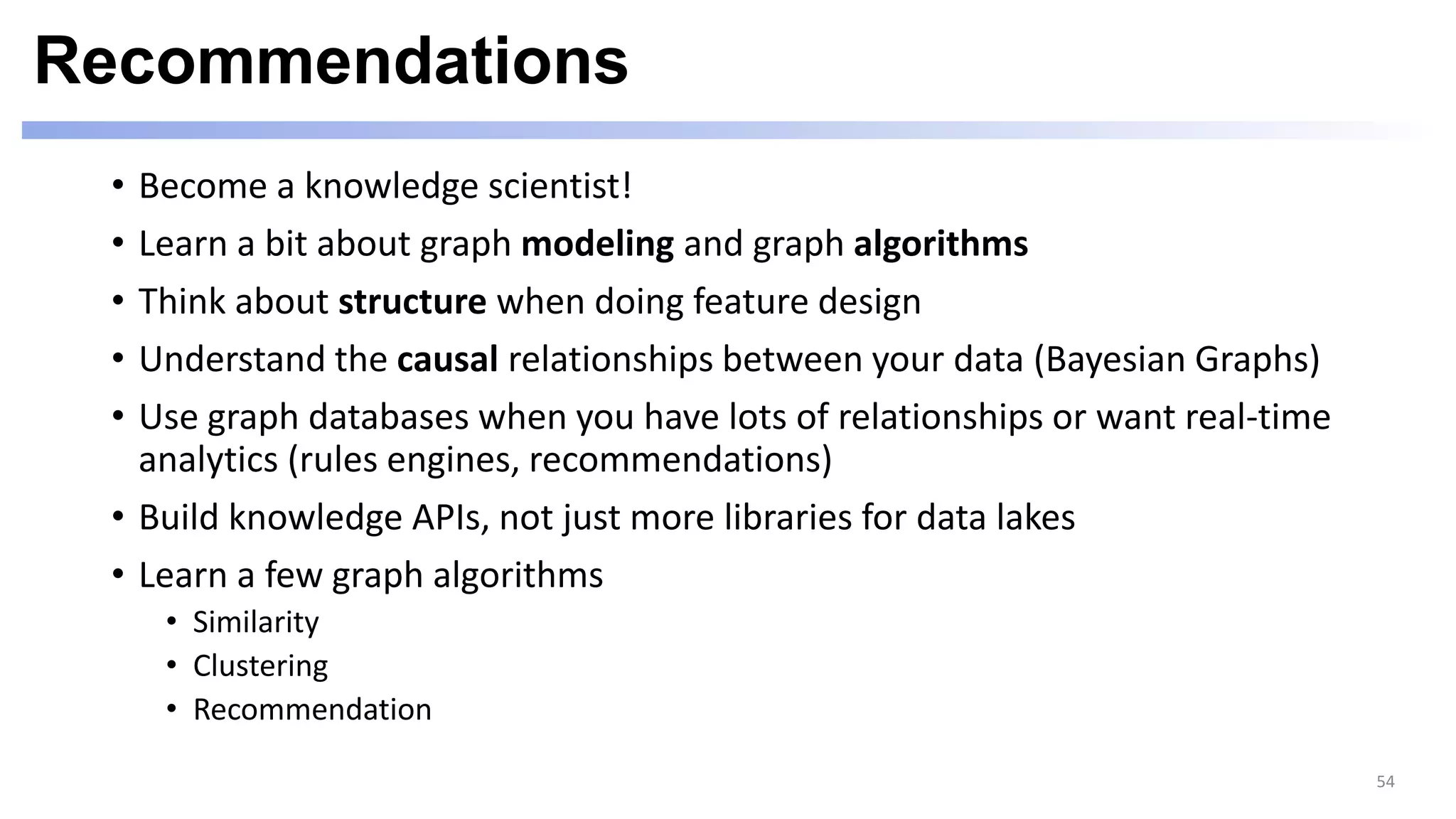

- 54. Recommendations • Become aknowledge scientist! • Learn a bit about graph modeling and graph algorithms • Think about structure when doing feature design • Understand the causal relationships between your data (Bayesian Graphs) • Use graph databases when you have lots of relationships or want real-time analytics (rules engines, recommendations) • Build knowledge APIs, not just more libraries for data lakes • Learn a few graph algorithms • Similarity • Clustering • Recommendation 54

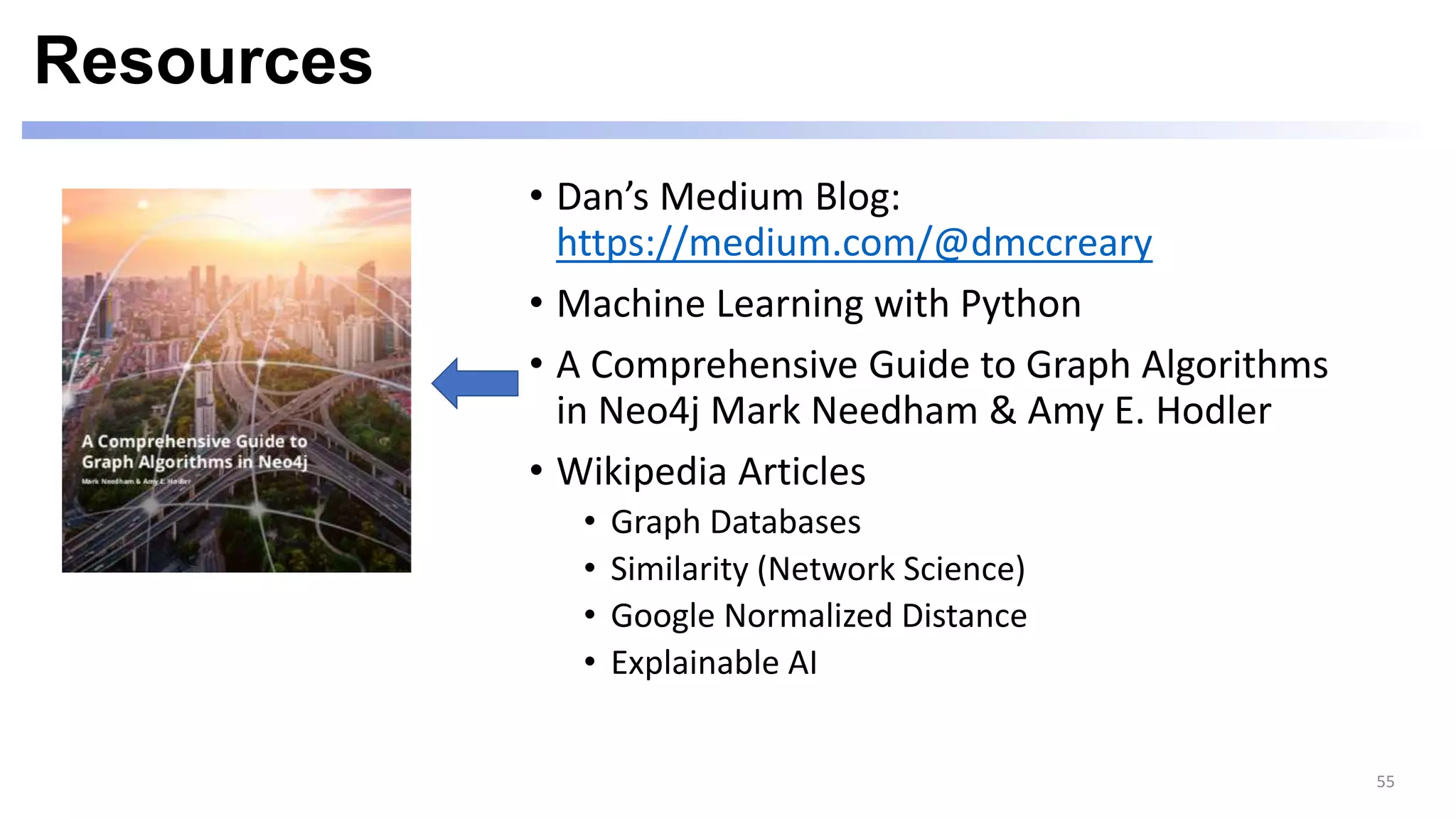

- 55. Resources • Dan’s MediumBlog: https://medium.com/@dmccreary • Machine Learning with Python • A Comprehensive Guide to Graph Algorithms in Neo4j Mark Needham & Amy E. Hodler • Wikipedia Articles • Graph Databases • Similarity (Network Science) • Google Normalized Distance • Explainable AI 55
- 56. Thank You! Please sende-mail to Dan.McCreary@gmail.com if you want a copy of the slides. 56
Editor's Notes
- #4 My background is a solution architect. I have spent most of the last 20 years understanding how to objectively match business problems to the appropriate technologies. My focus has been on the fast-evolving area of NoSQL databases. I have also had a strong interest in AI, semantics, natural language process and search.
- #5 OK, now lets take a step back and take a more structure look at where these tools fit into our business processes at Optum. There are six main database architecture patterns we use when we think of a business problem. Relational or row-stores Analytical or OLAP Key-Value stores – one of the simplest but most extensible data architectures Column-family stores Graph stores and Document stores Graph is just one of these six. Graph stores are often most closely related to document stores. Both Graph and document stores have the ability for new data to be added to structures without needing to remodel the data. We call these systems schema-free or schema agnostic. They are a key driver for highly agile systems. Your systems may often draw on two or more of these systems. Databases that support multiple data models are called multi-model databases. They prevent us from having to store the same data over in multiple systems for transactions, search and analytics. Multi-modal systems that integrate graph technologies are also an emerging trend.
- #6 https://db-engines.com/en/ranking_categories
- #7 Now lets do a side-by-side comparison of both the traditional Relational row-store and compare some key facts. With a row store, the atomic unit of work is adding a single row at a time to a table. The key is that all the datatypes in each column must be the same. If there are dates in the third column and decimals in the fourth column all your data must conform to this standard. The table column structures and datatypes are fixed when you design your database. Once you have a million rows loaded into each table and 10,000 reports created it becomes challenging to modify the database. Relational database also use the SQL language and they use join operations to dynamically calculate relationships each time the query is run. These calculations are based on binary search algorithms that run in log(N) time where N is the number of rows in each table. As the table grows the searches sale as the log of the number of rows. Graph databases on the other hand allow you to add any number of nodes and and relationships into your graph database. Each node and relationship has it own properties but there are usually few overarching rules about what datatypes these structures can contain. Graph databases also used fixed memory pointers to store relationships between each node. As a result the queries over relationships are fast and there is no slow-down as the number of verticies gets bigger.
- #12 http://aima.cs.berkeley.edu/
- #13 https://docs.microsoft.com/en-us/azure/machine-learning/team-data-science-process/overview
- #14 https://arxiv.org/pdf/1806.01261.pdf
- #15 https://neo4j.com/graphconnect-2018/ around 51 minutes in
- #17 Sometimes the best way to understand how graph databases are different is using a metaphor. We call this metaphor the “Neighbor Walk” metaphor. It has proven very helpful for people that are trying to understand the performance differences between relational joins and a graph traversal. Let’s say you want to walk out your front door and over to your neighbor’s house. You open the door, point you body to the neighbor’s house and walk over there. Pretty simple. Since your houses are adjacent this is the logical way to do it.
- #18 Here is the graph “logical model” for this. You might have a vertex for your house, a relationships called LIVES_NEXT_TO as a pre-calculated relationship to your neighbor’s house.
- #19 Here are the steps that are reflective of how a relational databases does joins Walk out the door Walk downtown to the DMV where they have a service that tells you how to get to your neighbor’s house When you get to the DMV you take a number When your number comes up you get called by a search agent You give your neighbors name to the DMV search agent The search agent at the DMV has a list of all the people in your town sorted by their address (called the index). They search the list (using a binary search algorithm) and they finally give you the GPS coordinates of your neighbor’s house. You take these GPS coordinates, enter them them into your GPS tracker and follow the directions to Ann’s house. Now granted the metaphor is not perfect. The speedup really depends on how many rows each table has. However, this metaphore helps you remember that sometimes directly addressing a memory location that is pre-calculated for you at load time can sometimes be three orders of magnitude faster than searching for something every time you need to access it. RDBMS systems try to minimize this search time by doing clever things like caching. However the more data you have the longer the searches take. Direct memory access will always be faster than doing a search! Now lets also look at some different architectures than a single node graph.
- #20 Now lets take a look into some of the reasons that organizations are moving toward knowledge graphs as ways to connect and reuse data. The structure we used to describe this system is called the DIKY pyramid. It is a triangle with Data at the bottom, Information at one level up, Knowledge (in the form of a graph) at the third level and Wisdom at the top. The Wisdom is the layer most strongly associated with AI. When we think of going to the top of the mountain and we ask the Gurus for advice, we are asking them to apply their knowledge to our specific problem. We are asking them to transfer knowledge to our context.
- #21 This picture follows this same DIKW pattern. However, we want to invoke the idea of raw binary data at the bottom with binary symbols that have little meaning without context. The second layer is where we identify the nouns in our documents for data. We look for people, places and things in the byte stream. This is where we can understand isolated data – know the types, the definitions of the types and be able to validate if the 1s and 0s make sense within a narrow context. The third layer is where we start to tie our Nouns together in a graph. It is where we build relationship links between things. It is where we might look for duplicated data (Master Data Management), where we check for consistency and we verify the patterns of connections are consistent. The highest level is where we restructure our graph so that it comes in sub-graphs that are reusable across multiple applications. We can provide consistent APIs that pull data in consistent ways and these interfaces are reusable across many domains. Central to this pyramid is the concept of continuous enrichment cycles. As we discover new things at a higher level, we sometimes provide feedback to lower levels.
- #30 https://www.blog.google/products/search/introducing-knowledge-graph-things-not/
- #31 If you go to Google and type “chest pain” you will note that a “Knowledge Summary” box appears in the right side. Note that the keyword is mapped into a Preferred Term called “Angina” – which is the formal medical condition name. You will also not that the term “Ischemic chest pain” is also shown as an alternate label. The Knowledge summary has tabs for ABOUT, SYMPTOMS and TREATMENTS. The summary box also indicates that this is a common condition that impacts over 3 million people per year in the US. This is an example of using a Graph to group common concepts about a topic. The keyword gets you to the right part of the graph, but the knowledge summary is a machine generated summary that has been carefully reviewed for quality by the Mayo Clinic. Googles Knowledge Graph contains over 100 billion “facts” about things that people search for. They build this graph by harvesting information from many web pages and using both Natural Language Processing (NLP) and machine learning based on what users actually click on to find the most relevant summary information for any topic in the graph.
- #34 There is another way to describe the differences between fixed and schema agnostic. This is related to the way that logic systems make assumptions about unknown data. Many relational database use logic that imply that missing or unknown data is always false. Graph databases use an assumption that unknown data is usually unknown. This is known as the Open World Assumption (OWA). https://en.wikipedia.org/wiki/Open-world_assumption http://www.mkbergman.com/852/the-open-world-assumption-elephant-in-the-room/
- #37 Dan
- #44 Explainable AI is a key https://www.darpa.mil/program/explainable-artificial-intelligence
