![Watson: “You appeared to [see a good deal] which was quite invisible to me”
Sherlock: “Not invisible but unnoticed, Watson. You did not know
where to look, and so you missed all that was important.”
The Adventures of Sherlock Holmes, ADVENTURE III. A CASE OF IDENTITY, Sir. Oliver Conan Doyle](https://image.slidesharecdn.com/measuring-relevance-in-the-negative-space-191106052829/85/Measuring-Relevance-in-the-Negative-Space-36-320.jpg)
![Scoring of Node Relationships (Edge Weights)
Foreground vs. Background Analysis
Every term scored against it’s context. The more
commonly the term appears within it’s foreground
context versus its background context, the more
relevant it is to the specified foreground context.
countFG(x) - totalDocsFG * probBG(x)
z = --------------------------------------------------------
sqrt(totalDocsFG * probBG(x) * (1 - probBG(x)))
{ "type":"keywords”, "values":[
{ "value":"hive", "relatedness":0.9773, "popularity":369 },
{ "value":"java", "relatedness":0.9236, "popularity":15653 },
{ "value":".net", "relatedness":0.5294, "popularity":17683 },
{ "value":"bee", "relatedness":0.0, "popularity":0 },
{ "value":"teacher", "relatedness":-0.2380, "popularity":9923 },
{ "value":"registered nurse", "relatedness": -0.3802 "popularity":27089 } ] }
We are essentially boosting terms which are more related to some known feature
(and ignoring terms which are equally likely to appear in the background corpus)
+
-
Foreground Query:
"Hadoop"
Knowledge
Graph](https://image.slidesharecdn.com/measuring-relevance-in-the-negative-space-191106052829/85/Measuring-Relevance-in-the-Negative-Space-93-320.jpg)
Uploaded byTrey Grainger
Measuring Relevance in the Negative Space
The document discusses using negative space, or hidden or missing data, to improve machine learning and algorithmic systems by connecting related concepts that may not be explicitly linked. It provides examples of how analyzing relationships between terms in a semantic knowledge graph can lead to more diverse and less biased recommendations and search results. The talk argues that simulating hypothetical user interactions could help identify potential issues with algorithm changes before exposing real users.
More Related Content
Similar to Measuring Relevance in the Negative Space
Measuring Relevance in the Negative Space
- 1. Measuring Relevance inthe Trey Grainger Chief Algorithms Officer, Lucidworks @treygrainger
- 2. Trey Grainger Chief AlgorithmsOfficer • Previously: SVP of Engineering @ Lucidworks; Director of Engineering @ CareerBuilder • Georgia Tech – MBA, Management of Technology • Furman University – BA, Computer Science, Business, & Philosophy • Stanford University – Information Retrieval & Web Search Other fun projects: • Co-author of Solr in Action, plus numerous research publications • Advisor to Presearch, the decentralized search engine • Lucene / Solr contributor About Me

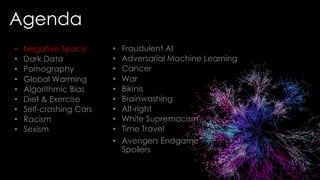

- 3. Agenda • Fraudulent AI •Adversarial Machine Learning • Cancer • War • Bikinis • Brainwashing • Alt-right • White Supremacism • Time Travel • Avengers Endgame Spoilers • Negative Space • Dark Data • Pornography • Global Warming • Algorithmic Bias • Diet & Exercise • Self-crashing Cars • Racism • Sexism
- 4. Who are we? 230CUSTOMERS ACROSS THE FORTUNE 1000 400+EMPLOYEES OFFICES IN San Francisco, CA (HQ) Raleigh-Durham, NC Cambridge, UK Bangalore, India Hong Kong The Search & AI Conference COMPANY BEHIND Employ about 40% of the active committers on the Solr project 40% Contribute over 70% of Solr's open source codebase 70% DEVELOP & SUPPORT Apache
- 5. The standard for enterprise search. ofFortune 500 uses Solr. 90%
- 7. Industry’s most powerful IntelligentSearch & Discovery Platform.

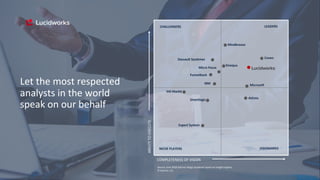

- 8. Let the mostrespected analysts in the world speak on our behalf Dassault Systèmes Mindbreeze Coveo Microsoft Attivio Expert System Smartlogic Sinequa IBM IHS Markit Funnelback Micro Focus COMPLETENESS OF VISION ABILITYTOEXECUTE CHALLENGERS LEADERS NICHE PLAYERS VISIONARIES Source: June 2018 Gartner Magic Quadrant report on Insight Engines. © Gartner, Inc.
- 9. Goals of thisTalk 1. Help identify patterns for uncovering overlooked data hidden in plain sight 2. Point out current failures and dangers of overlooking this negative space. 3. Discuss applications to my field (information retrieval) and how my company is working to overcome some of these failures in our own technology.
- 10.

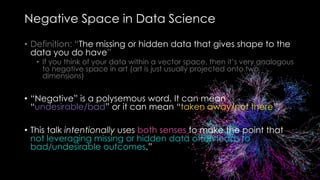

- 12. Negative Space inData Science • Definition: “The missing or hidden data that gives shape to the data you do have” • If you think of your data within a vector space, then it’s very analogous to negative space in art (art is just usually projected onto two dimensions) • “Negative” is a polysemous word. It can mean “undesirable/bad” or it can mean “taken away/not there”. • This talk intentionally uses both senses to make the point that not leveraging missing or hidden data often leads to bad/undesirable outcomes.”

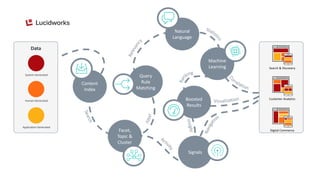

- 19. Data System Generated Human Generated ApplicationGenerated Content Index Facet, Topic & Cluster Query Rule Matching Natural Language Machine Learning Boosted Results Signals Search & Discovery Customer Analytics Digital Commerce
- 21. 40% of the S&P500 will be extinct in 10 years

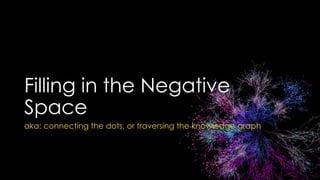

- 23. Filling in theNegative Space aka: connecting the dots, or traversing the knowledge graph
- 24. https://svs.gsfc.nasa.gov/30919 What is thisa picture of?
- 25. Stars in theSky Lights on a Map Mouse Brain with Dementia Jellyfish Larvae
- 26.
- 27.
- 28. If we zoomout a little bit…
- 29. And if wekeep zooming out… We see a map of all lights in the world
- 30. And similar patternsemerge in other contexts… Let’s explore airline flight patterns…
- 31.

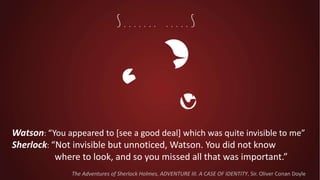

- 36. Watson: “You appearedto [see a good deal] which was quite invisible to me” Sherlock: “Not invisible but unnoticed, Watson. You did not know where to look, and so you missed all that was important.” The Adventures of Sherlock Holmes, ADVENTURE III. A CASE OF IDENTITY, Sir. Oliver Conan Doyle

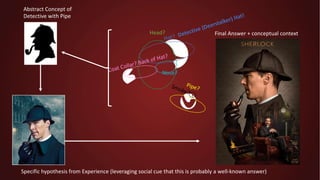

- 37. Head? Pipe? Coat Collar? Backof Hat? Hat? Smoke? Nose? Abstract Concept of Detective with Pipe Specific hypothesis from Experience (leveraging social cue that this is probably a well-known answer) Detective (Deerstalker) Hat! Final Answer + conceptual context
- 38. Fighting Algorithmic Bias aka:slapping ourselves in the face for a bit

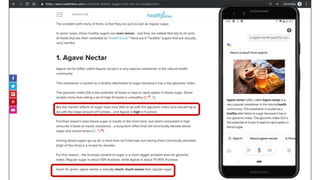

- 40. Ok, Google… Is AgaveNectar good for you?
- 42. So I boughta few…
- 43. …and then oneday I checked again… !

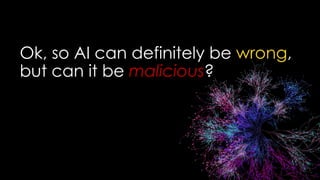

- 45. Ok, so AIcan definitely be wrong, but can it be malicious?
- 46. Racist Algorithms? Sexist Algorithms? CreepyAlgorithms? Negligent Algorithms? Fraudulent Algorithms? Malicious Algorithms?
- 47.

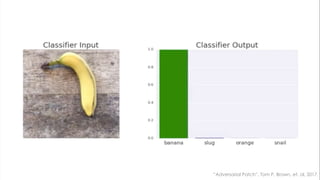

- 49. “Adversarial Patch”, TomP. Brown, et. al, 2017.
- 50. Racist Algorithms? Sexist Algorithms? CreepyAlgorithms? Negligent Algorithms? Fraudulent Algorithms? Malicious Algorithms?
- 51.

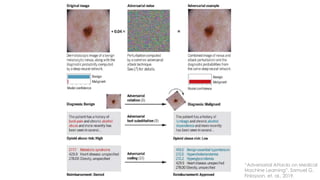

- 52. “Adversarial Attacks onMedical Machine Learning”, Samuel G. Finlayson, et. al., 2019.
- 53.
- 54.
- 57.
- 58.
- 60.
- 61.

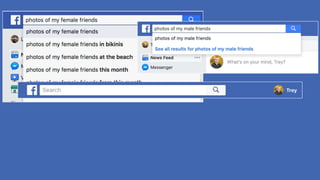

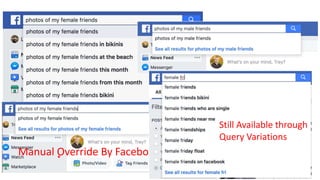

- 64. Manual Override ByFacebook Still Available through Query Variations
- 65.
- 66.
- 69.
- 70. Racist Algorithms? Sexist Algorithms? CreepyAlgorithms? Negligent Algorithms? Fraudulent Algorithms? Malicious Algorithms?
- 71.

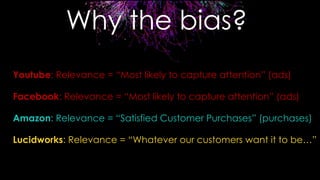

- 72. Youtube: Relevance =“Most likely to capture attention” (ads) Facebook: Relevance = “Most likely to capture attention” (ads) Amazon: Relevance = “Satisfied Customer Purchases” (purchases) Lucidworks: Relevance = “Whatever our customers want it to be…” Why the bias?
- 73. So how canwe help our customers avoid these pitfalls?
- 74.

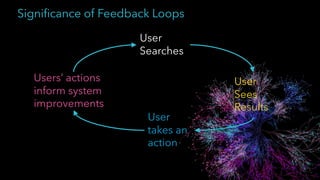

- 75. Significance of FeedbackLoops User Searches User Sees Results User takes an action Users’ actions inform system improvements Southern Data Science

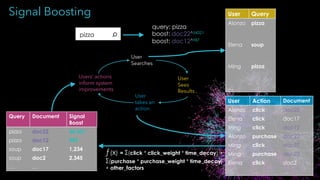

- 76. Signal Boosting User Searches User Sees Results User takes an action Users’actions inform system improvements User Query Results Alonzo pizza doc10, doc22, doc12, … Elena soup doc84, doc2, doc17, … Ming pizza doc10, doc22, doc12, … … … … User Action Document Alonzo click doc22 Elena click doc17 Ming click doc12 Alonzo purchase doc22 Ming click doc22 Ming purchase doc22 Elena click doc2 … … … Query Document Signal Boost pizza doc22 54,321 pizza doc12 987 soup doc17 1,234 soup doc2 2,345 … … pizza ⌕ query: pizza boost: doc22^54321 boost: doc12^987 ƒ(x) = Σ(click * click_weight * time_decay) + Σ(purchase * purchase_weight * time_decay) + other_factors
- 77.
- 78.
- 79.

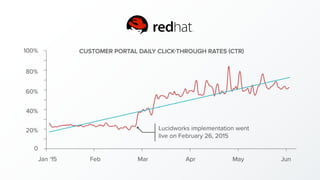

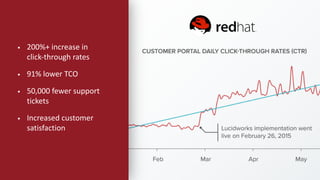

- 81. • 200%+ increasein click-through rates • 91% lower TCO • 50,000 fewer support tickets • Increased customer satisfaction
- 82. Signal Boosting • Benefits:dramatically improves relevance (increased conversions, most popular documents / answers at the top) • Risks: • Reinforces current biases: Documents at the top already are more likely to be clicked on / purchased / interacted with, and therefore diversity is harder to achieve • Solution: Learning to Rank: Learn relevance patterns and feature weights from aggregate behavior instead of overfitting to specific documents • Subject to Manipulation: Once users realize their behaviors (searches, clicks, etc.) influence the ranking, they can manipulate the engine with fake actions to boost or bury content through adversarial actions. • Solutions: • Session-filtering: limit to one action, per-type, per user. Further limit by IP address, browser fingerprint, etc. if necessary • Quality vs. Quality Weighting: For users acting on lots of queries or documents, reduce the weight of each action proportionate to the total actions. The more actions taken per user, the less they count toward the aggregate.
- 83. Learning to Rank(LTR) ● It applies machine learning techniques to discover the best combination of features that provide best ranking. ● It requires labeled set of documents with relevancy scores for given set of queries ● Features used for ranking are usually more computationally expensive than the ones used for matching ● It typically re-ranks a subset of the matched documents (e.g. top 1000)
- 84.

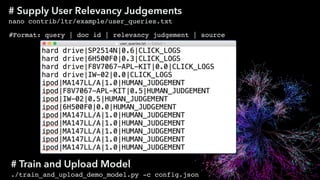

- 85. # Supply UserRelevancy Judgements nano contrib/ltr/example/user_queries.txt #Format: query | doc id | relevancy judgement | source # Train and Upload Model ./train_and_upload_demo_model.py -c config.json

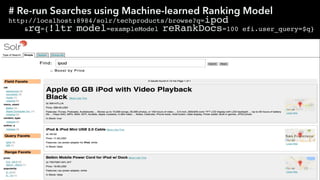

- 86. # Re-run Searchesusing Machine-learned Ranking Model http://localhost:8984/solr/techproducts/browse?q=ipod &rq={!ltr model=exampleModel reRankDocs=100 efi.user_query=$q}

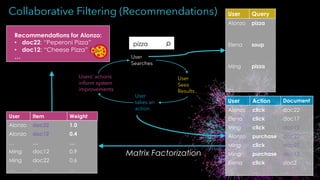

- 87. Collaborative Filtering (Recommendations) User Searches User Sees Results User takesan action Users’ actions inform system improvements User Query Results Alonzo pizza doc10, doc22, doc12, … Elena soup doc84, doc2, doc17, … Ming pizza doc10, doc22, doc12, … … … … User Action Document Alonzo click doc22 Elena click doc17 Ming click doc12 Alonzo purchase doc22 Ming click doc22 Ming purchase doc12 Elena click doc2 … … … User Item Weight Alonzo doc22 1.0 Alonzo doc12 0.4 … … … Ming doc12 0.9 Ming doc22 0.6 … … … pizza ⌕ Matrix Factorization Recommendations for Alonzo: • doc22: “Peperoni Pizza” • doc12: “Cheese Pizza” …

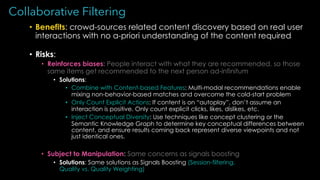

- 88. Collaborative Filtering • Benefits:crowd-sources related content discovery based on real user interactions with no a-priori understanding of the content required • Risks: • Reinforces biases: People interact with what they are recommended, so those same items get recommended to the next person ad-infinitum • Solutions: • Combine with Content-based Features: Multi-modal recommendations enable mixing non-behavior-based matches and overcome the cold-start problem • Only Count Explicit Actions: If content is on “autoplay”, don’t assume an interaction is positive. Only count explicit clicks, likes, dislikes, etc. • Inject Conceptual Diversity: Use techniques like concept clustering or the Semantic Knowledge Graph to determine key conceptual differences between content, and ensure results coming back represent diverse viewpoints and not just identical ones. • Subject to Manipulation: Same concerns as signals boosting • Solutions: Same solutions as Signals Boosting (Session-filtering, Quality vs. Quality Weighting)
- 89. What is theNegative Space between two words?
- 90. What’s in theNegative Space Between the words “Jean Grey” and “In Love”? Jean Grey In Love
- 91.
- 92.
- 93. Scoring of NodeRelationships (Edge Weights) Foreground vs. Background Analysis Every term scored against it’s context. The more commonly the term appears within it’s foreground context versus its background context, the more relevant it is to the specified foreground context. countFG(x) - totalDocsFG * probBG(x) z = -------------------------------------------------------- sqrt(totalDocsFG * probBG(x) * (1 - probBG(x))) { "type":"keywords”, "values":[ { "value":"hive", "relatedness":0.9773, "popularity":369 }, { "value":"java", "relatedness":0.9236, "popularity":15653 }, { "value":".net", "relatedness":0.5294, "popularity":17683 }, { "value":"bee", "relatedness":0.0, "popularity":0 }, { "value":"teacher", "relatedness":-0.2380, "popularity":9923 }, { "value":"registered nurse", "relatedness": -0.3802 "popularity":27089 } ] } We are essentially boosting terms which are more related to some known feature (and ignoring terms which are equally likely to appear in the background corpus) + - Foreground Query: "Hadoop" Knowledge Graph
- 94. Techniques like the SemanticKnowledge Graph can be used to score “diversity” across content, which can aid in reducing the bias of Signals and Collaborative Filtering.
- 95. So, can wego back in time and fix our mistakes?
- 96. No, but wedo have a wizard….

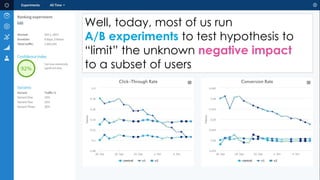

- 97. User Searches User Sees Results User takes an action Well, today,most of us run A/B experiments to test hypothesis to “limit” the unknown negative impact to a subset of users
- 98. What if wecould use the negative space to view alternate futures… …and then make only the specific choices that will achieve the desired outcomes
- 99. Imagine if wecould simulate user interactions to changes before having to expose real users to those changes?
- 100. User Searches User Sees Results User takes an action Users’ actions informsystem improvements User Query Results Alonz o pizza doc10, doc22, doc12, … Elena soup doc84, doc2, doc17, … Ming pizza doc10, doc22, doc12, … … … … User Action Document Alonzo click doc22 Elena click doc17 Ming click doc10 Alonzo purchase doc22 Ming click doc22 Ming purchase doc22 Elena click doc2 … … … We DO have historical user behavior, but it’s biased to the current algorithm... The click and purchase counts are all higher for docs that are already ranked higher, since they’re seen more often…

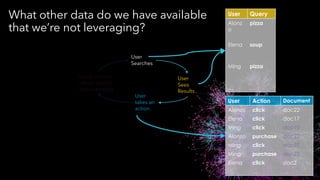

- 101. User Searches User Sees Results User takes an action Users’ actions informsystem improvements User Query Results Alonz o pizza doc10, doc22, doc12, … Elena soup doc84, doc2, doc17, … Ming pizza doc10, doc22, doc12, … … … … User Action Document Alonzo click doc22 Elena click doc17 Ming click doc10 Alonzo purchase doc22 Ming click doc22 Ming purchase doc22 Elena click doc2 … … … What other data do we have available that we’re not leveraging?

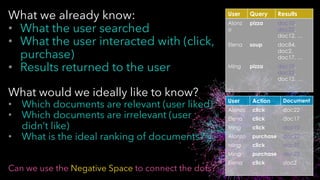

- 102. User Query Results Alonz o pizzadoc10, doc22, doc12, … Elena soup doc84, doc2, doc17, … Ming pizza doc10, doc22, doc12, … … … … User Action Document Alonzo click doc22 Elena click doc17 Ming click doc10 Alonzo purchase doc22 Ming click doc22 Ming purchase doc22 Elena click doc2 … … … What we already know: • What the user searched • What the user interacted with (click, purchase) • Results returned to the user What would we ideally like to know? • Which documents are relevant (user liked) • Which documents are irrelevant (user didn’t like) • What is the ideal ranking of documents? Can we use the Negative Space to connect the dots?

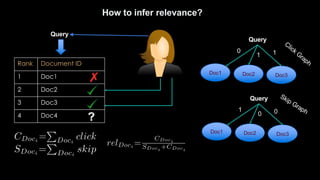

- 104. How to inferrelevance? Rank Document ID 1 Doc1 2 Doc2 3 Doc3 4 Doc4 Query Query Doc1 Doc2 Doc3 0 1 1 Query Doc1 Doc2 Doc3 1 0 0 Click Graph Skip Graph ?
- 105. From this click-skipgraph, we can generate a ground truth data set mapping known queries to an ideal ranking of documents.
- 106. How to MeasureRelevance? A B C Retrieved Documents Relevant Documents Precision = B / A Recall = B / C Problem: Assume Prec = 90% and Rec = 100% but assume the 10% irrelevant documents were ranked at the top of the retrieved documents, is that OK?

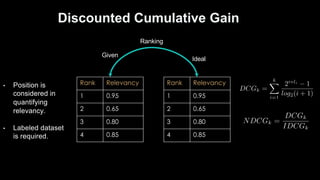

- 107. Discounted Cumulative Gain RankRelevancy 1 0.95 2 0.65 3 0.80 4 0.85 Rank Relevancy 1 0.95 2 0.65 3 0.80 4 0.85 Ranking Ideal Given • Position is considered in quantifying relevancy. • Labeled dataset is required.

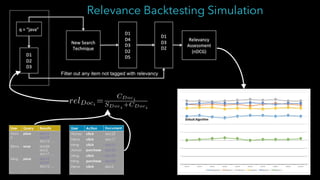

- 108. User Query Results Alonz o pizzadoc10, doc22, doc12, … Elena soup doc84, doc2, doc17, … Ming pizza doc10, doc22, doc12, … … … … User Action Document Alonzo click doc22 Elena click doc17 Ming click doc10 Alonzo purchase doc22 Ming click doc22 Ming purchase doc22 Elena click doc2 … … … Relevance Backtesting Simulation
- 110. Did we coverour Agenda? • Fraudulent AI • Adversarial Machine Learning • Cancer • War • Bikinis • Brainwashing • Alt-right • White Supremacism • Time Travel • Avengers Endgame Spoilers • Negative Space • Dark Data • Pornography • Global Warming • Algorithmic Bias • Diet & Exercise • Self-crashing Cars • Racism • Sexism
- 111. Goals of thisTalk 1. Help identify patterns for uncovering overlooked data hidden in plain sight 2. Point out current failures and dangers of overlooking this negative space. 3. Discuss applications to my field (information retrieval) and how my company is working to overcome some of these failures in our own technology.
- 113. Trey Grainger trey.grainger@lucidworks.com @treygrainger Thank you! http://solrinaction.com Otherpresentations: http://www.treygrainger.com Discount code: ctwdsc19 Book Signing 3:00 pm today! (coffee break) @ Registration Desk
