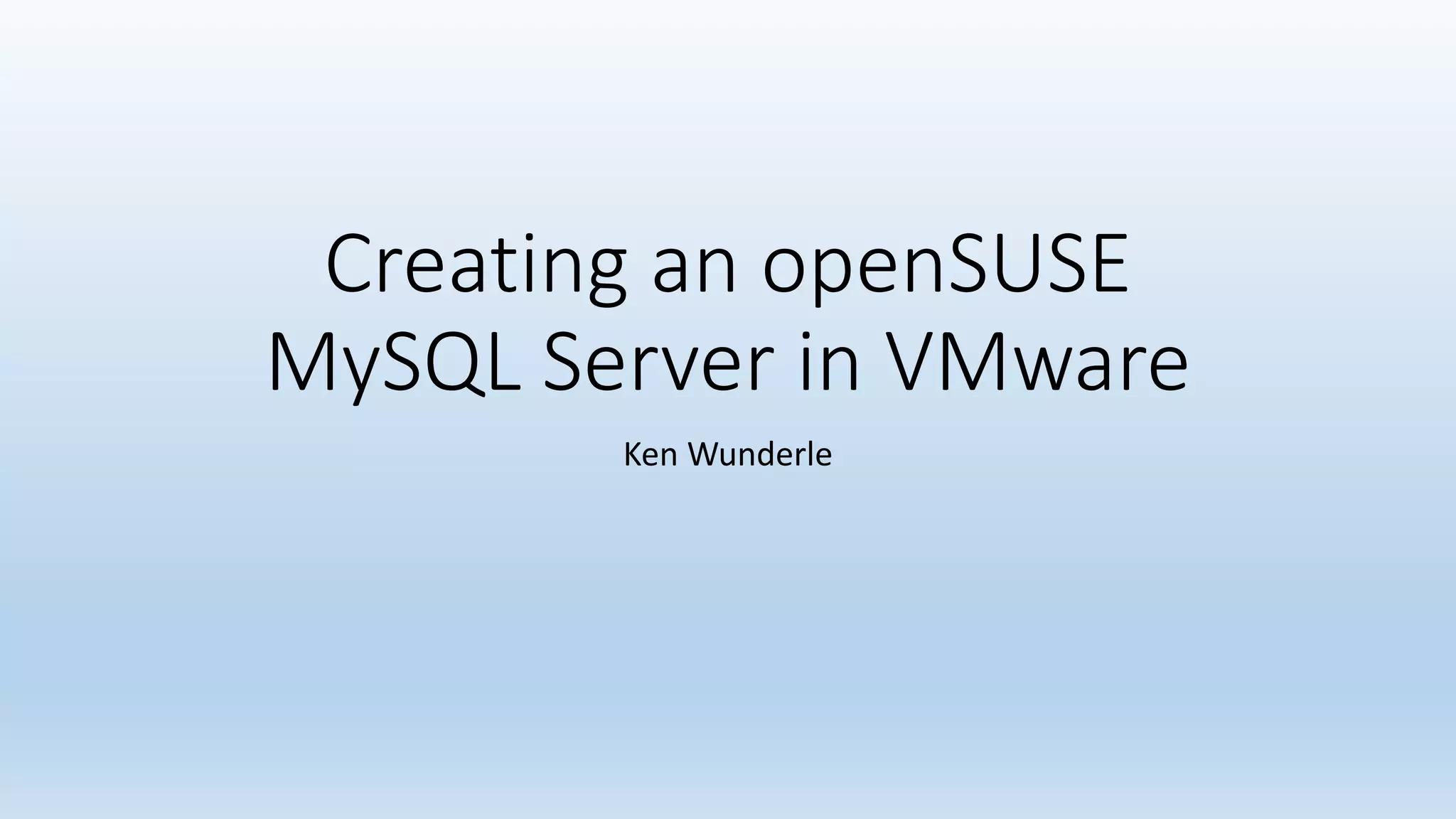

1. Creating an openSUSE
MySQL Server in VMware
Ken Wunderle

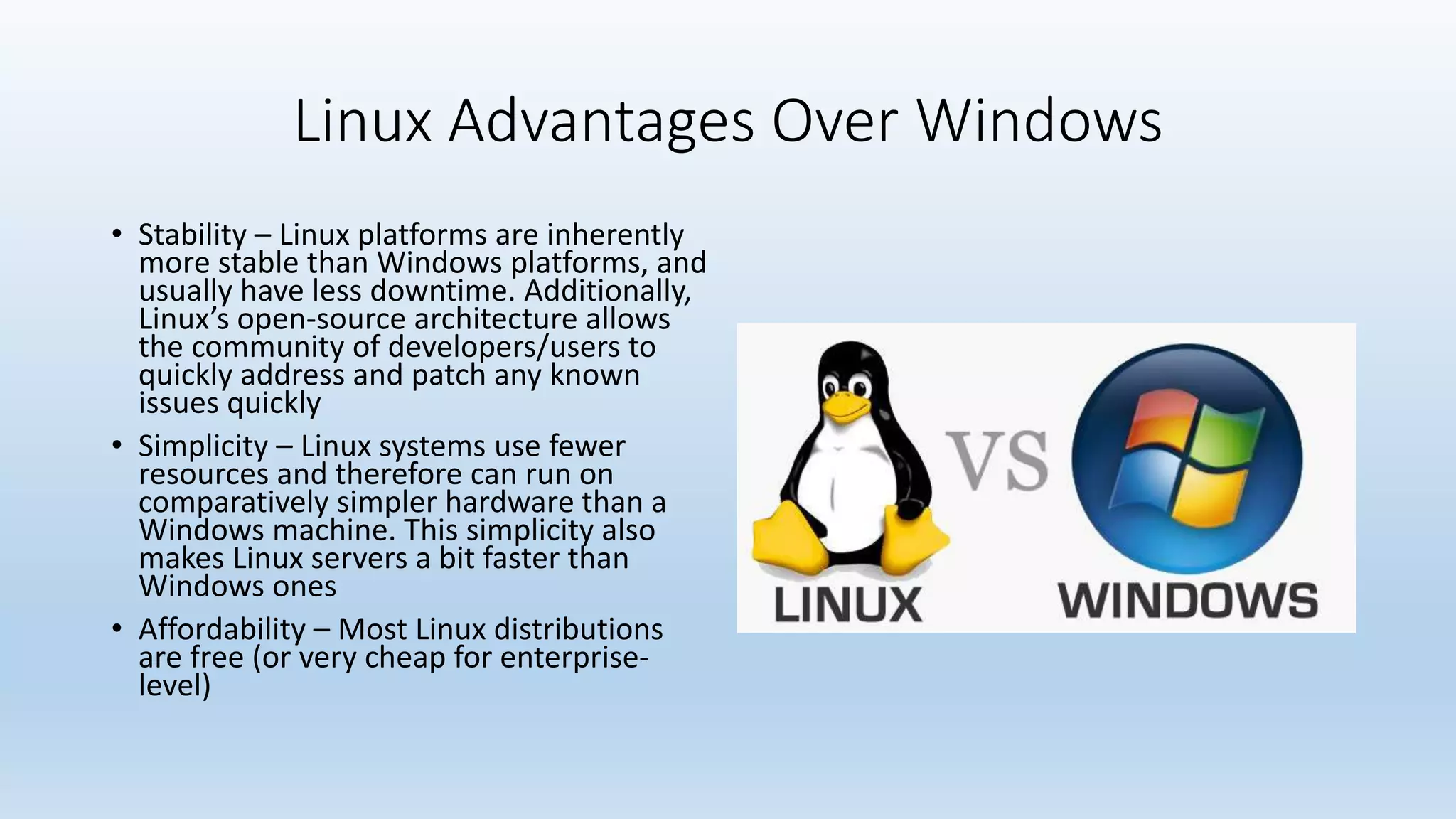

2. Linux Advantages Over Windows
• Stability – Linux platforms are inherently
more stable than Windows platforms, and
usually have less downtime. Additionally,
Linux’s open-source architecture allows
the community of developers/users to
quickly address and patch any known
issues quickly
• Simplicity – Linux systems use fewer
resources and therefore can run on
comparatively simpler hardware than a
Windows machine. This simplicity also
makes Linux servers a bit faster than
Windows ones
• Affordability – Most Linux distributions
are free (or very cheap for enterprise-
level)

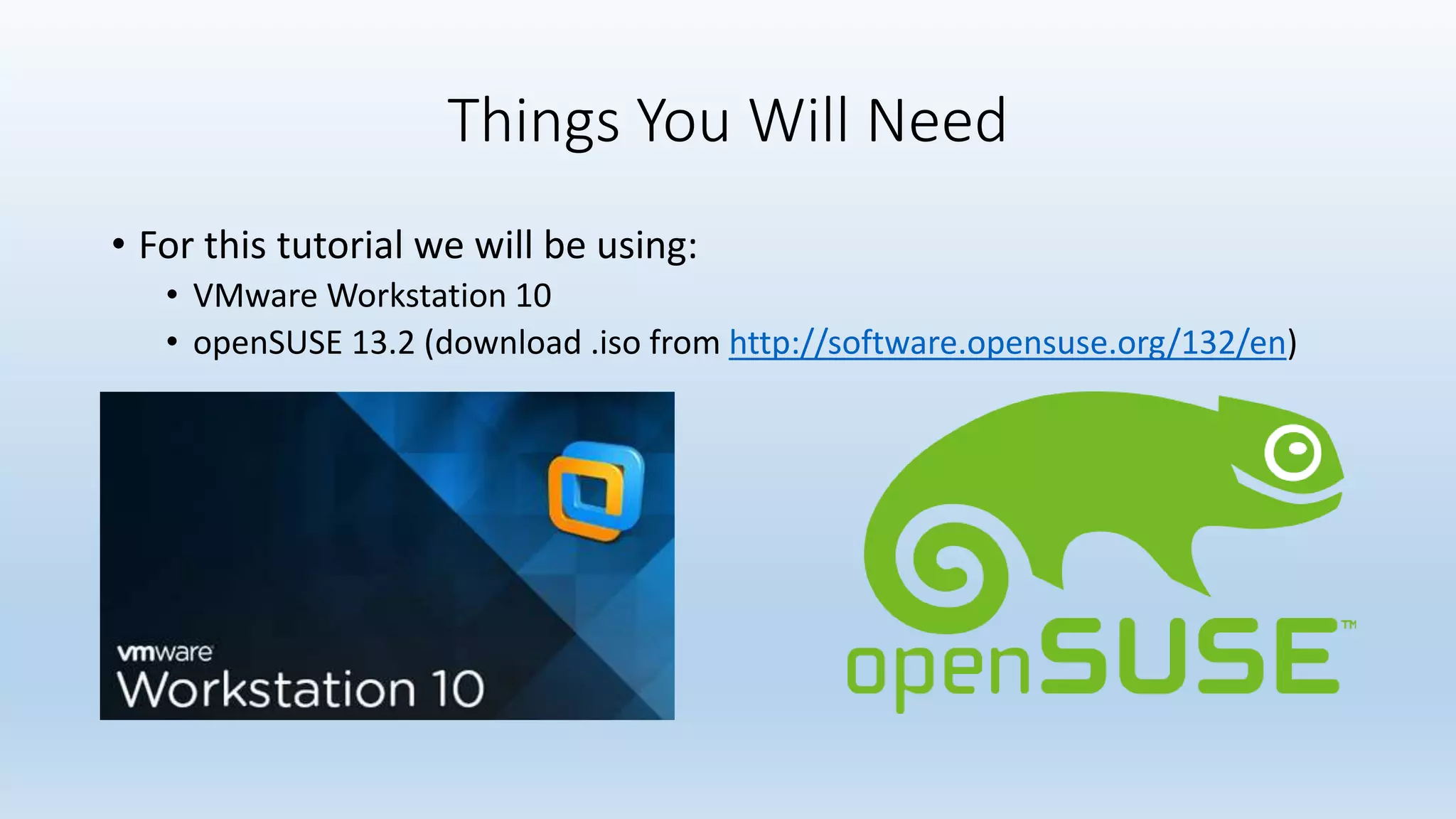

3. Things You Will Need
• For this tutorial we will be using:
• VMware Workstation 10
• openSUSE 13.2 (download .iso from http://software.opensuse.org/132/en)

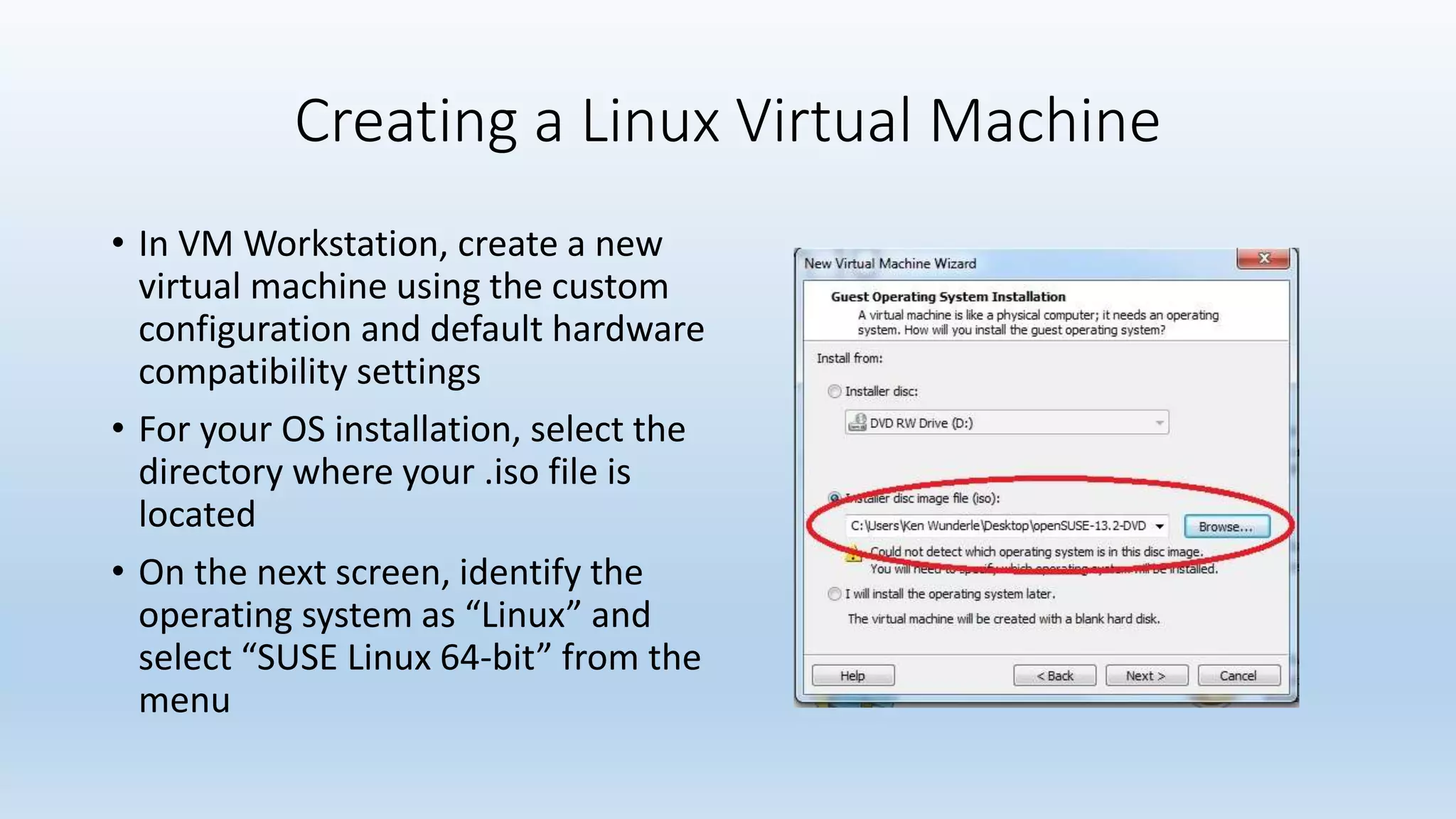

4. Creating a Linux Virtual Machine
• In VM Workstation, create a new
virtual machine using the custom
configuration and default hardware
compatibility settings
• For your OS installation, select the
directory where your .iso file is
located
• On the next screen, identify the
operating system as “Linux” and
select “SUSE Linux 64-bit” from the
menu

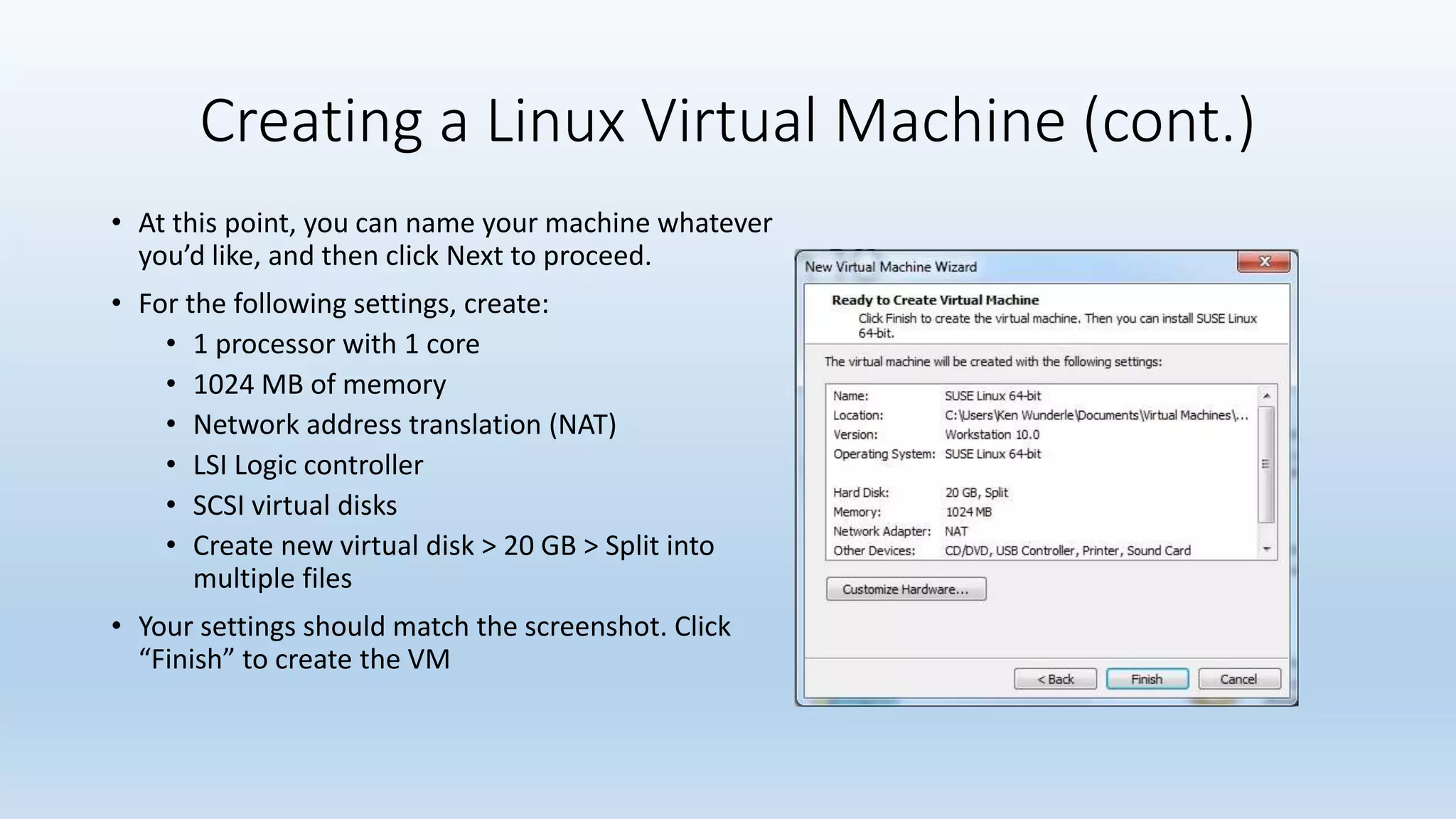

5. Creating a Linux Virtual Machine (cont.)
• At this point, you can name your machine whatever
you’d like, and then click Next to proceed.
• For the following settings, create:
• 1 processor with 1 core
• 1024 MB of memory
• Network address translation (NAT)
• LSI Logic controller
• SCSI virtual disks
• Create new virtual disk > 20 GB > Split into
multiple files
• Your settings should match the screenshot. Click
“Finish” to create the VM

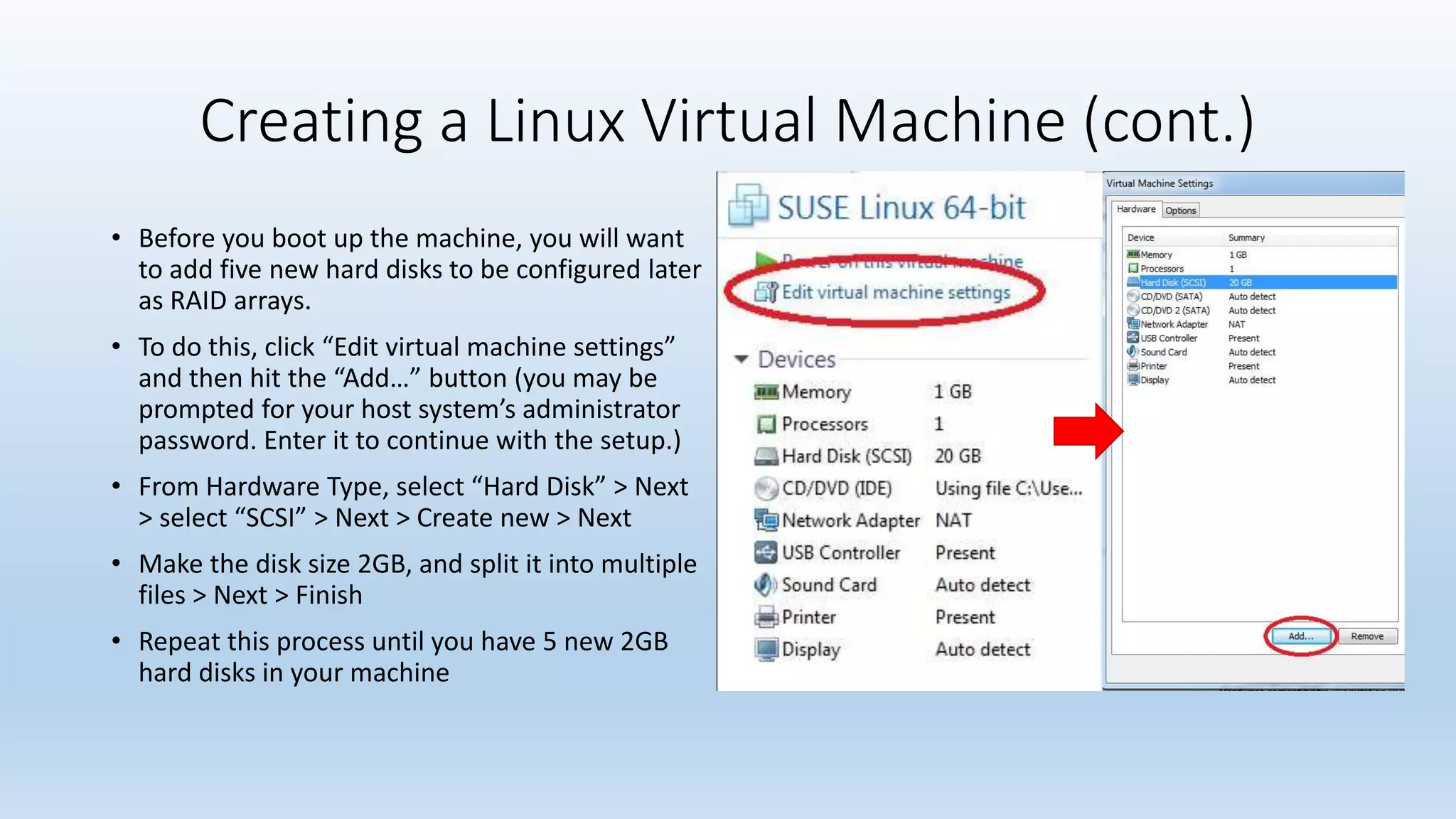

6. Creating a Linux Virtual Machine (cont.)
• Before you boot up the machine, you will want
to add five new hard disks to be configured later
as RAID arrays.
• To do this, click “Edit virtual machine settings”
and then hit the “Add…” button (you may be
prompted for your host system’s administrator
password. Enter it to continue with the setup.)
• From Hardware Type, select “Hard Disk” > Next
> select “SCSI” > Next > Create new > Next
• Make the disk size 2GB, and split it into multiple
files > Next > Finish
• Repeat this process until you have 5 new 2GB
hard disks in your machine

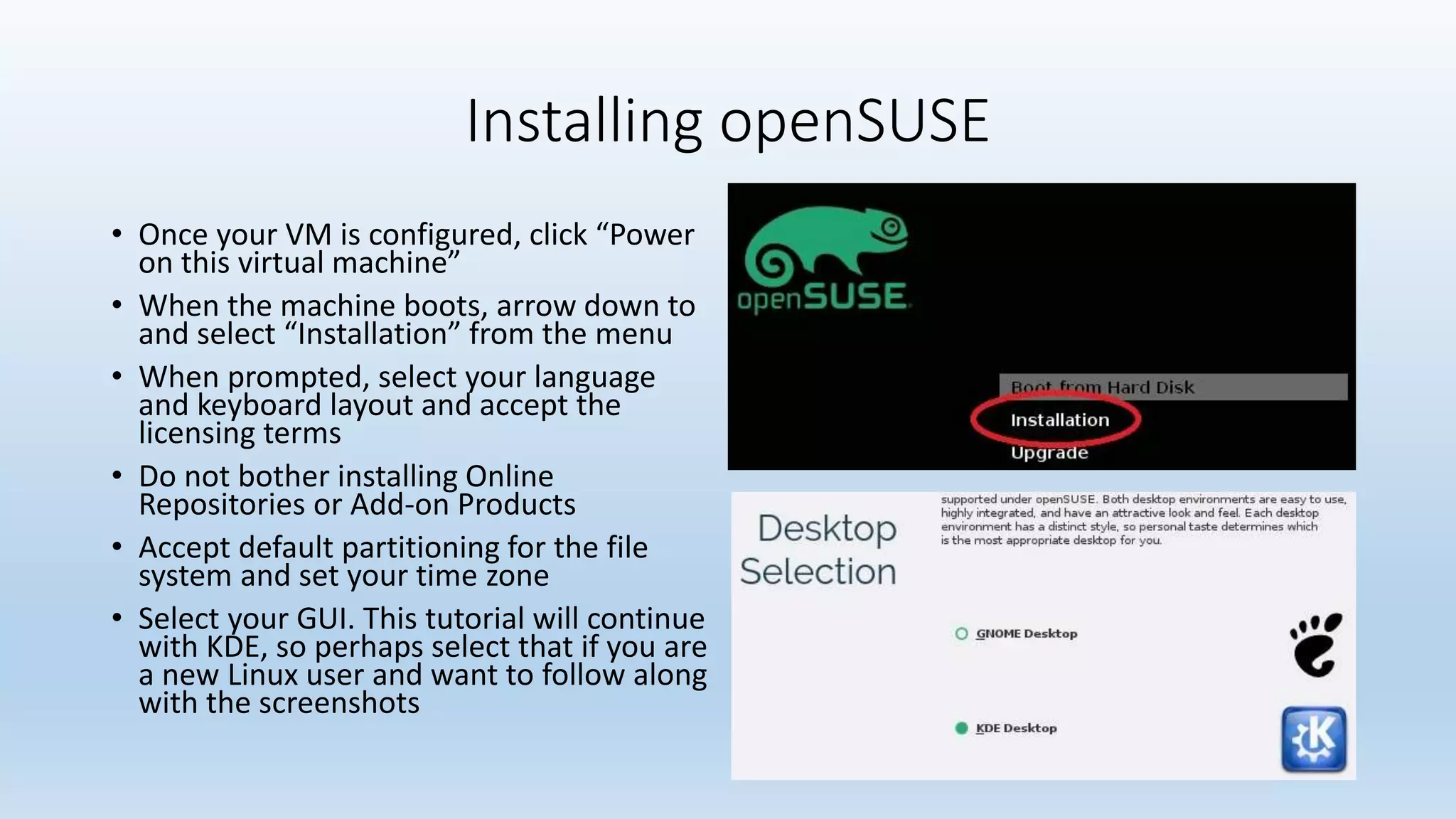

7. Installing openSUSE
• Once your VM is configured, click “Power
on this virtual machine”
• When the machine boots, arrow down to
and select “Installation” from the menu
• When prompted, select your language
and keyboard layout and accept the
licensing terms
• Do not bother installing Online
Repositories or Add-on Products
• Accept default partitioning for the file
system and set your time zone
• Select your GUI. This tutorial will continue
with KDE, so perhaps select that if you are
a new Linux user and want to follow along
with the screenshots

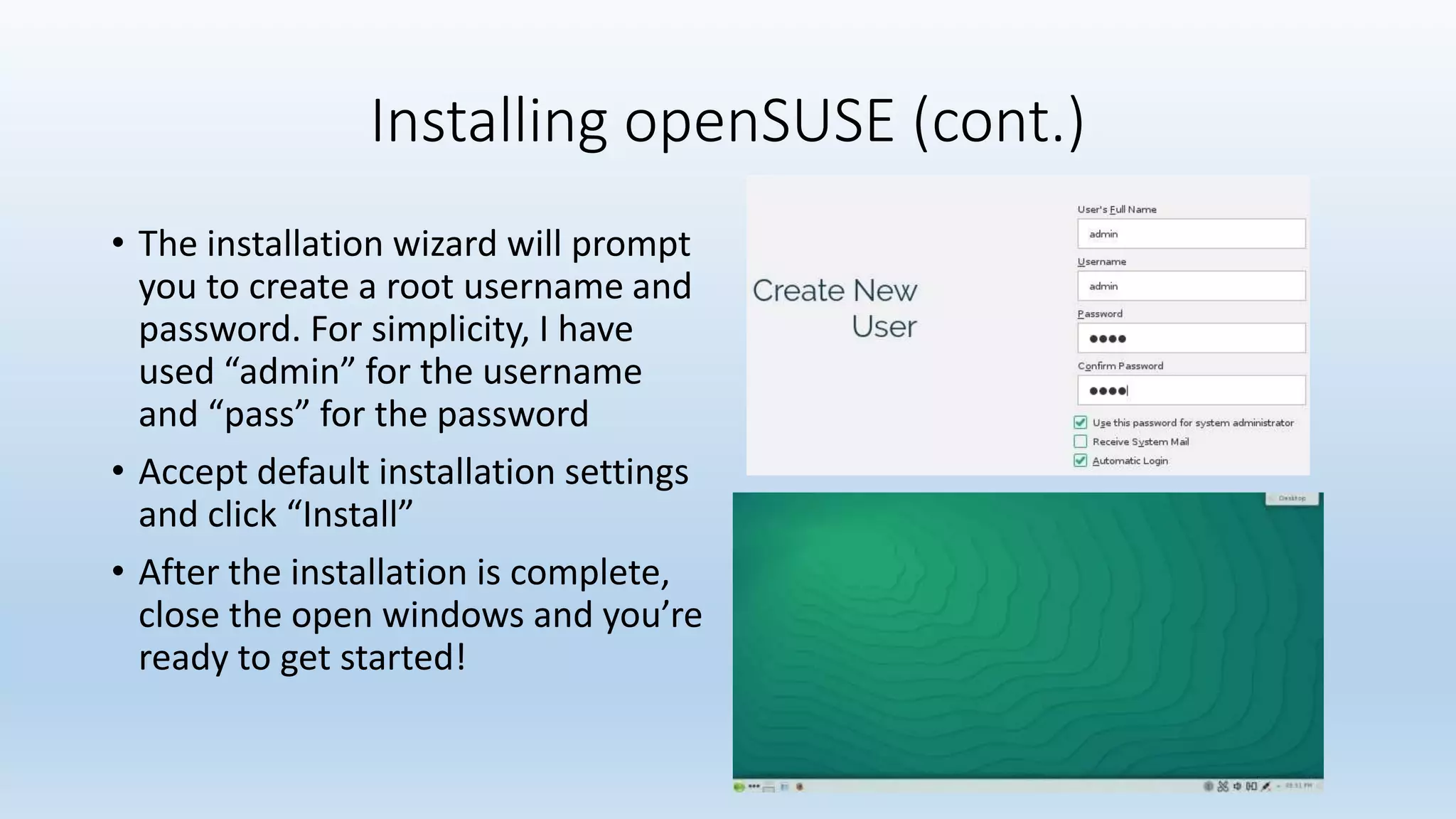

8. Installing openSUSE (cont.)
• The installation wizard will prompt
you to create a root username and
password. For simplicity, I have
used “admin” for the username
and “pass” for the password
• Accept default installation settings
and click “Install”
• After the installation is complete,
close the open windows and you’re
ready to get started!

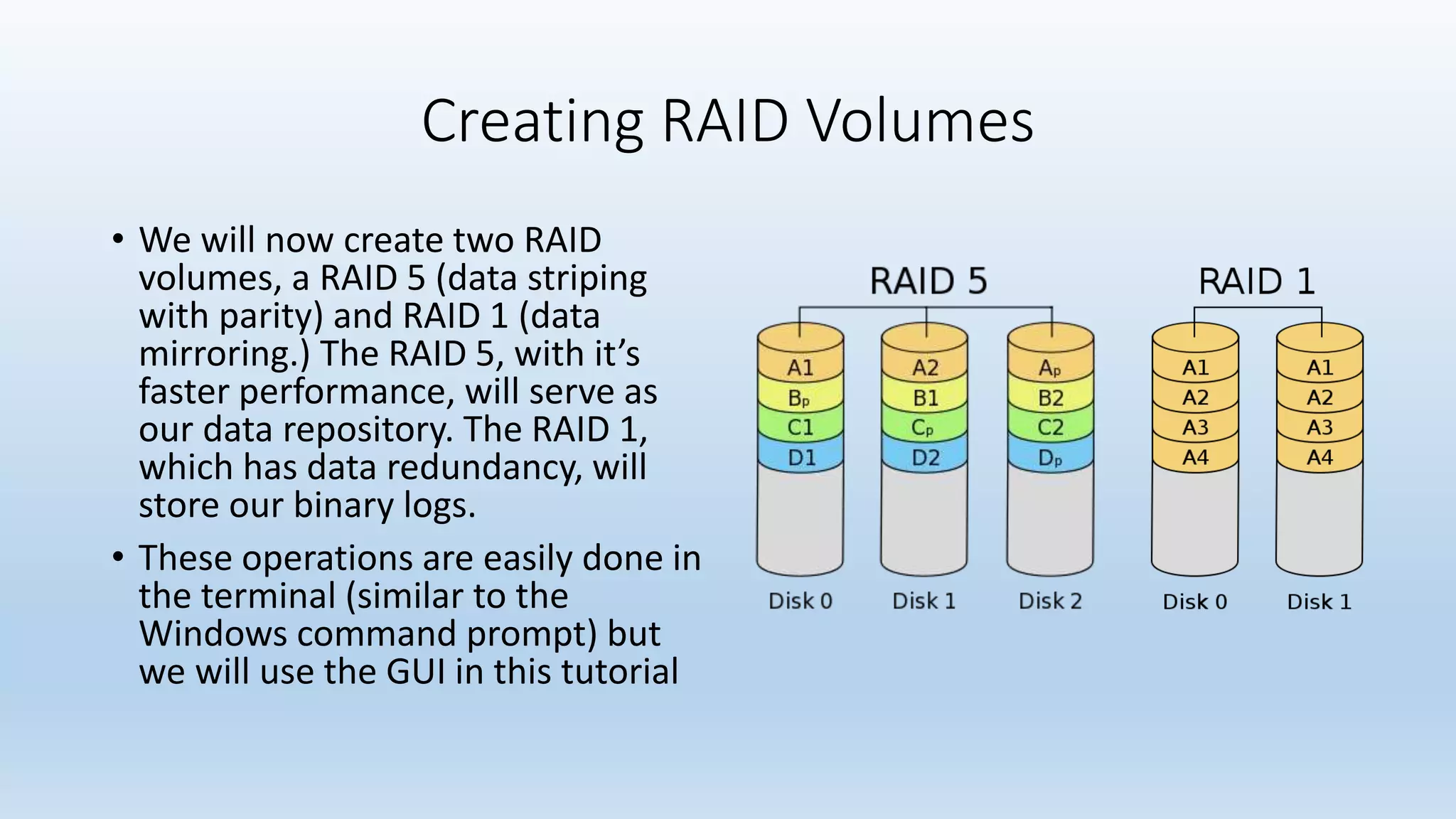

9. Creating RAID Volumes
• We will now create two RAID
volumes, a RAID 5 (data striping
with parity) and RAID 1 (data
mirroring.) The RAID 5, with it’s
faster performance, will serve as
our data repository. The RAID 1,
which has data redundancy, will
store our binary logs.
• These operations are easily done in
the terminal (similar to the
Windows command prompt) but
we will use the GUI in this tutorial

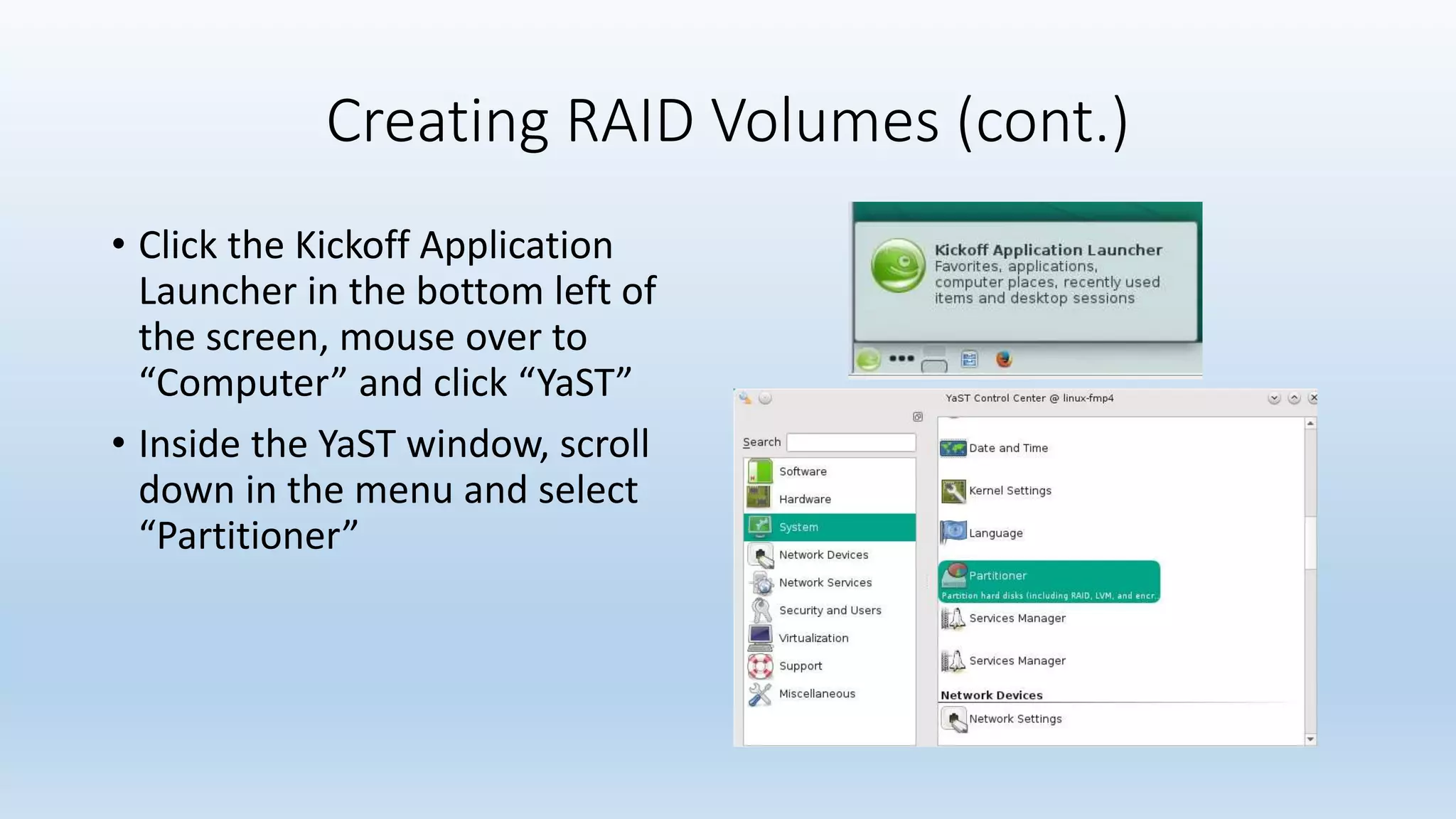

10. Creating RAID Volumes (cont.)
• Click the Kickoff Application
Launcher in the bottom left of
the screen, mouse over to
“Computer” and click “YaST”
• Inside the YaST window, scroll
down in the menu and select
“Partitioner”

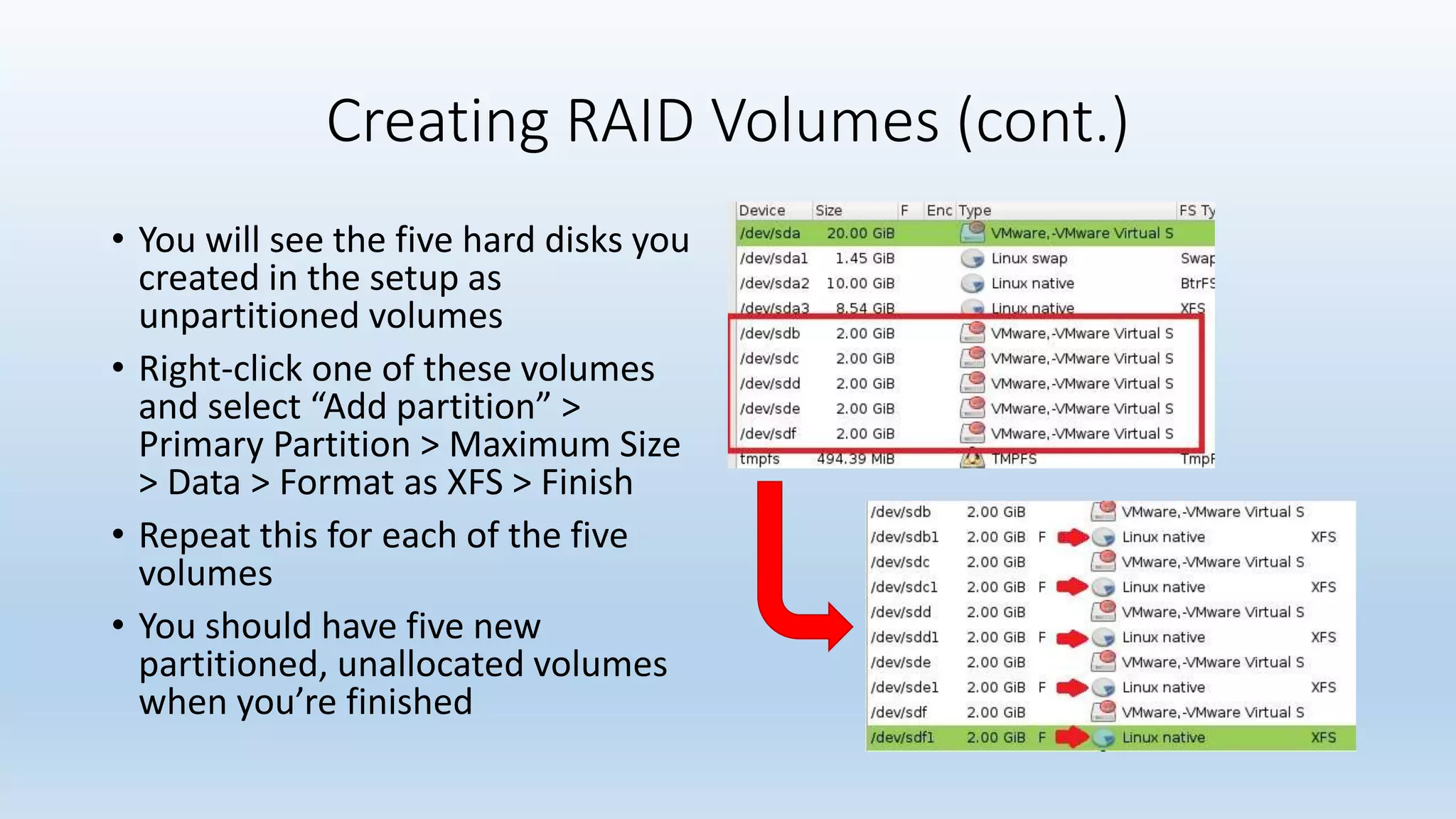

11. Creating RAID Volumes (cont.)
• You will see the five hard disks you
created in the setup as
unpartitioned volumes
• Right-click one of these volumes
and select “Add partition” >
Primary Partition > Maximum Size
> Data > Format as XFS > Finish
• Repeat this for each of the five
volumes
• You should have five new
partitioned, unallocated volumes
when you’re finished

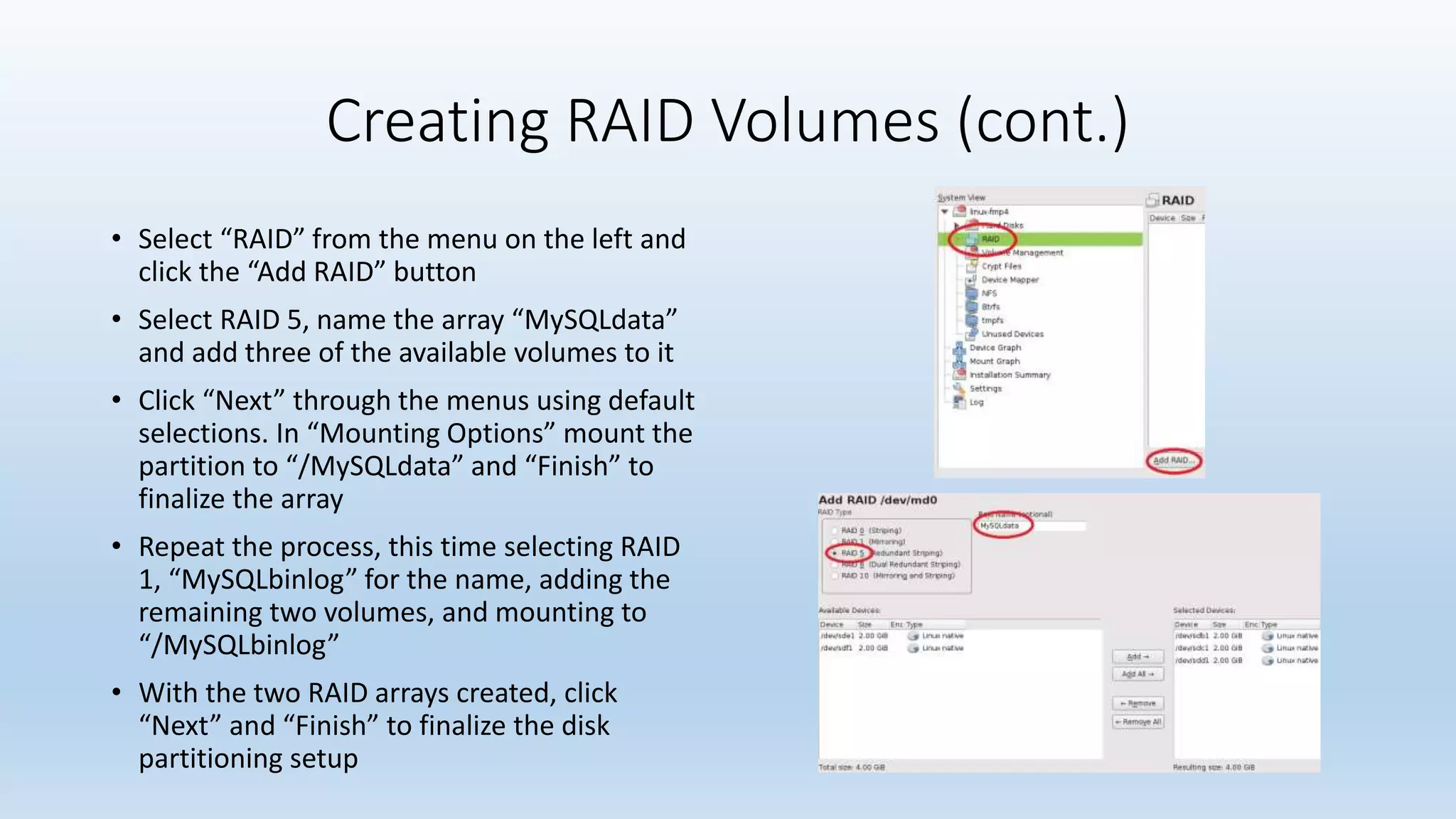

12. Creating RAID Volumes (cont.)
• Select “RAID” from the menu on the left and
click the “Add RAID” button
• Select RAID 5, name the array “MySQLdata”
and add three of the available volumes to it
• Click “Next” through the menus using default
selections. In “Mounting Options” mount the
partition to “/MySQLdata” and “Finish” to
finalize the array
• Repeat the process, this time selecting RAID
1, “MySQLbinlog” for the name, adding the
remaining two volumes, and mounting to
“/MySQLbinlog”
• With the two RAID arrays created, click
“Next” and “Finish” to finalize the disk
partitioning setup

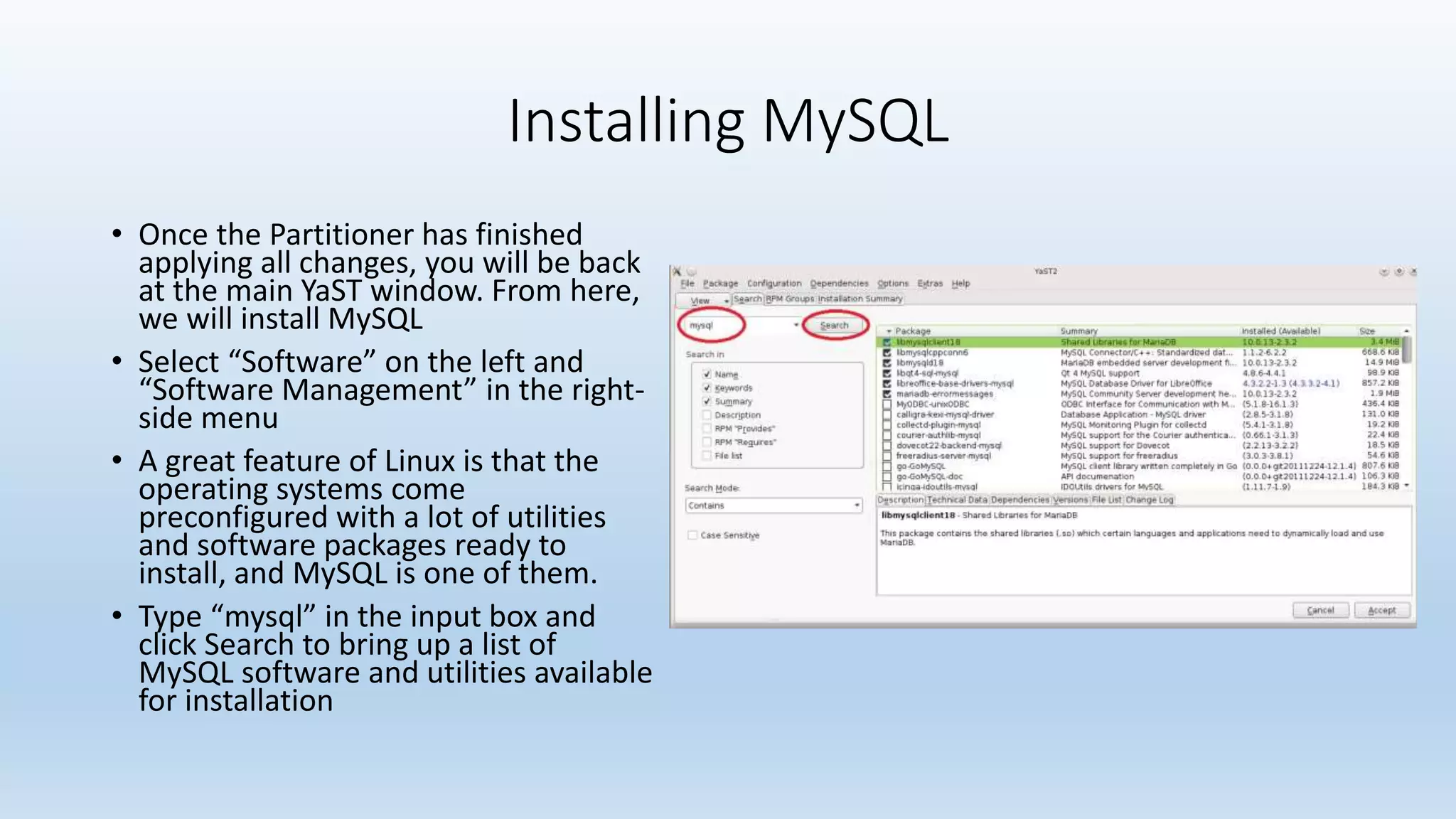

13. Installing MySQL
• Once the Partitioner has finished
applying all changes, you will be back
at the main YaST window. From here,
we will install MySQL
• Select “Software” on the left and
“Software Management” in the right-
side menu
• A great feature of Linux is that the
operating systems come
preconfigured with a lot of utilities
and software packages ready to
install, and MySQL is one of them.
• Type “mysql” in the input box and
click Search to bring up a list of
MySQL software and utilities available
for installation

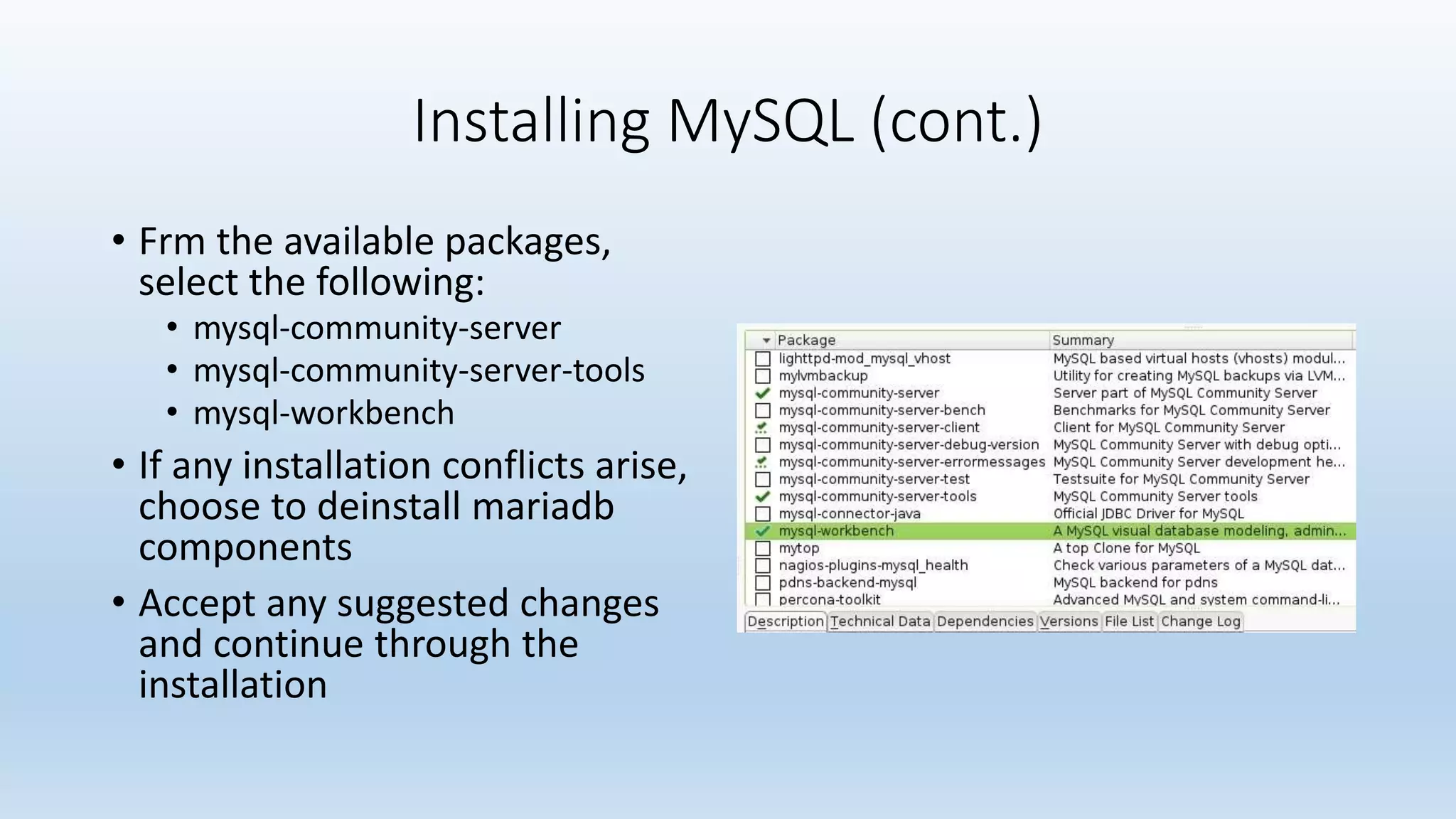

14. Installing MySQL (cont.)
• Frm the available packages,
select the following:
• mysql-community-server
• mysql-community-server-tools
• mysql-workbench
• If any installation conflicts arise,
choose to deinstall mariadb
components
• Accept any suggested changes
and continue through the
installation

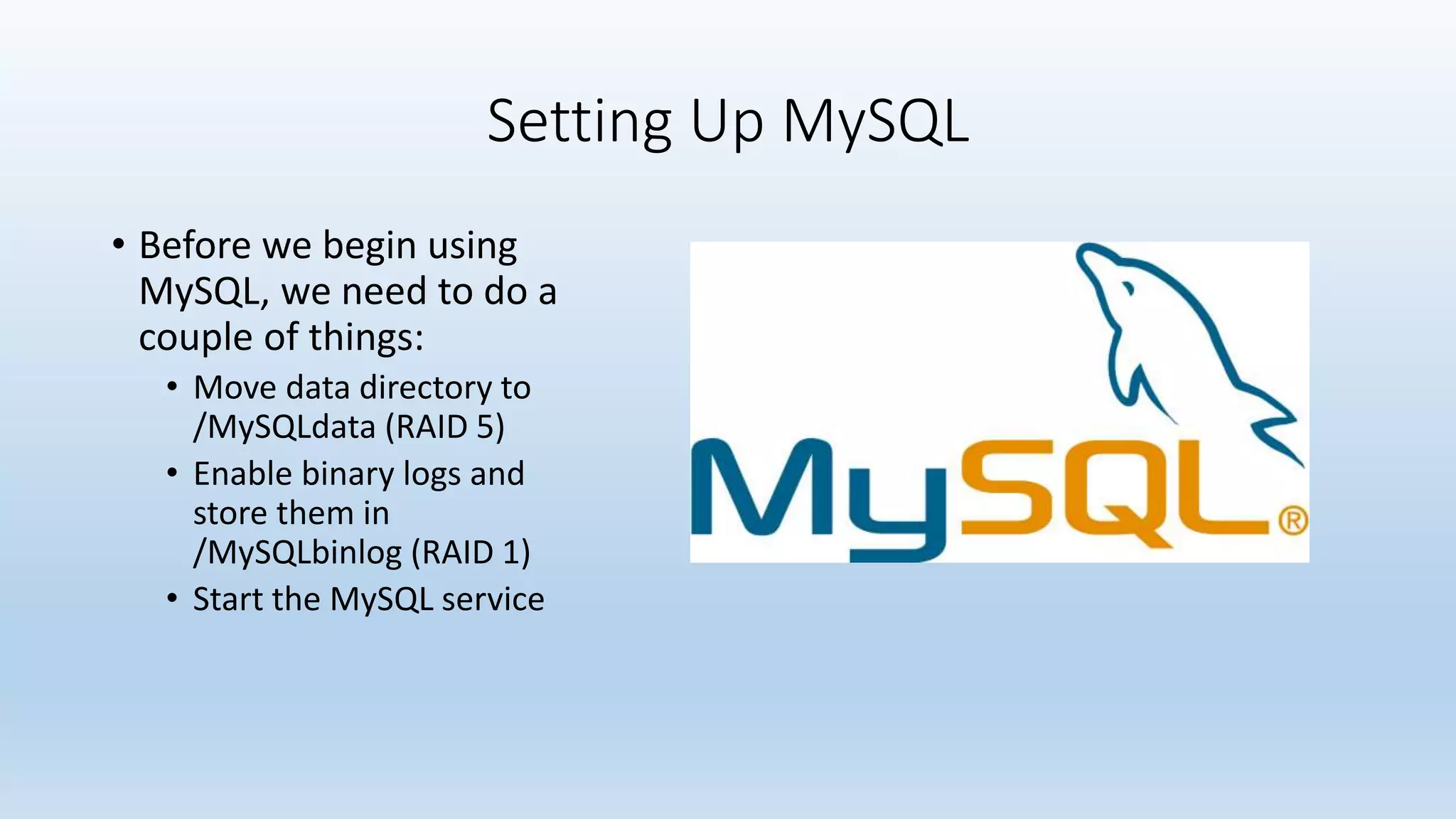

15. Setting Up MySQL
• Before we begin using
MySQL, we need to do a
couple of things:
• Move data directory to
/MySQLdata (RAID 5)
• Enable binary logs and
store them in
/MySQLbinlog (RAID 1)
• Start the MySQL service

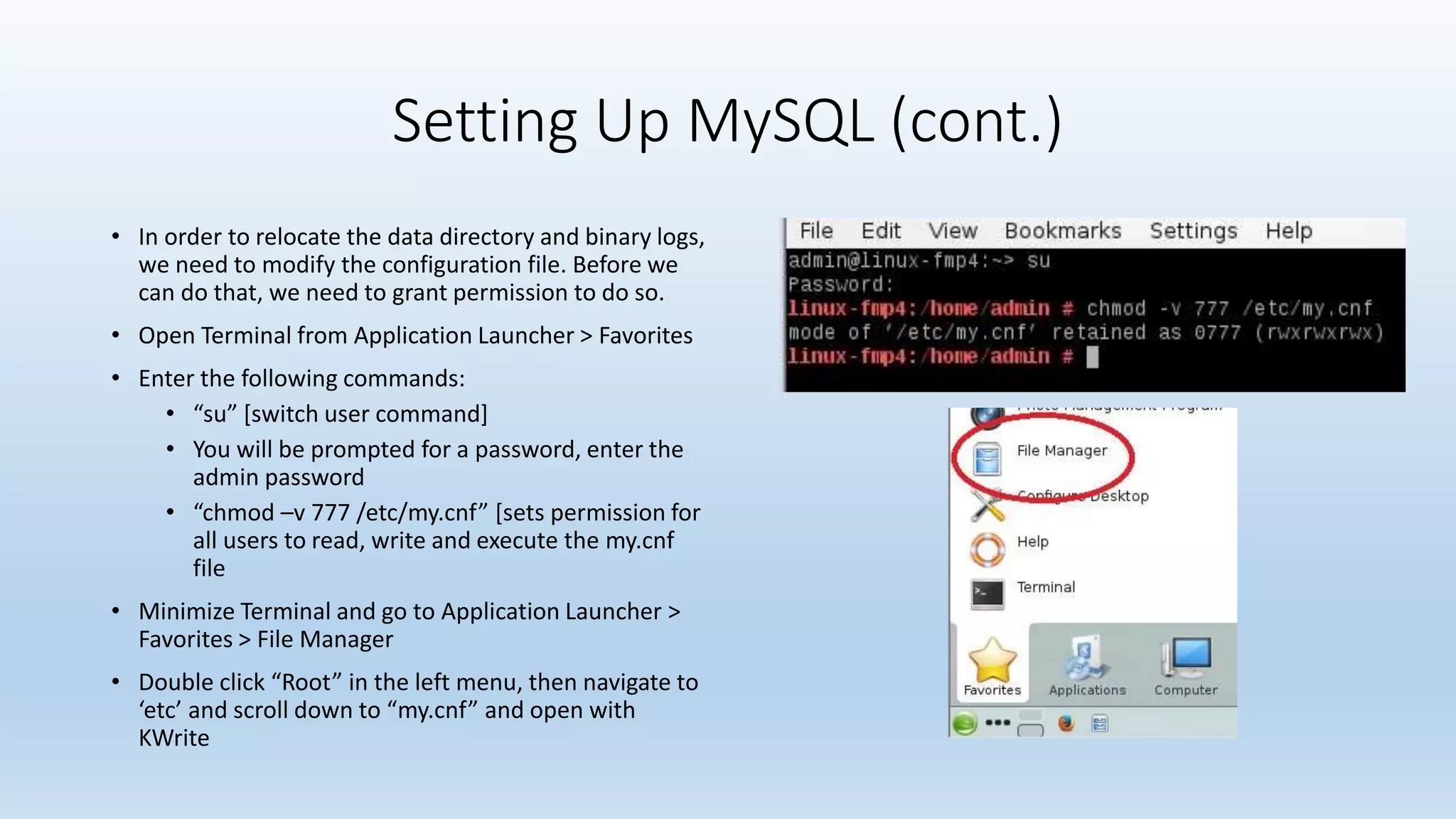

16. Setting Up MySQL (cont.)
• In order to relocate the data directory and binary logs,
we need to modify the configuration file. Before we
can do that, we need to grant permission to do so.
• Open Terminal from Application Launcher > Favorites
• Enter the following commands:
• “su” [switch user command]
• You will be prompted for a password, enter the
admin password
• “chmod –v 777 /etc/my.cnf” [sets permission for
all users to read, write and execute the my.cnf
file
• Minimize Terminal and go to Application Launcher >
Favorites > File Manager
• Double click “Root” in the left menu, then navigate to
‘etc’ and scroll down to “my.cnf” and open with
KWrite

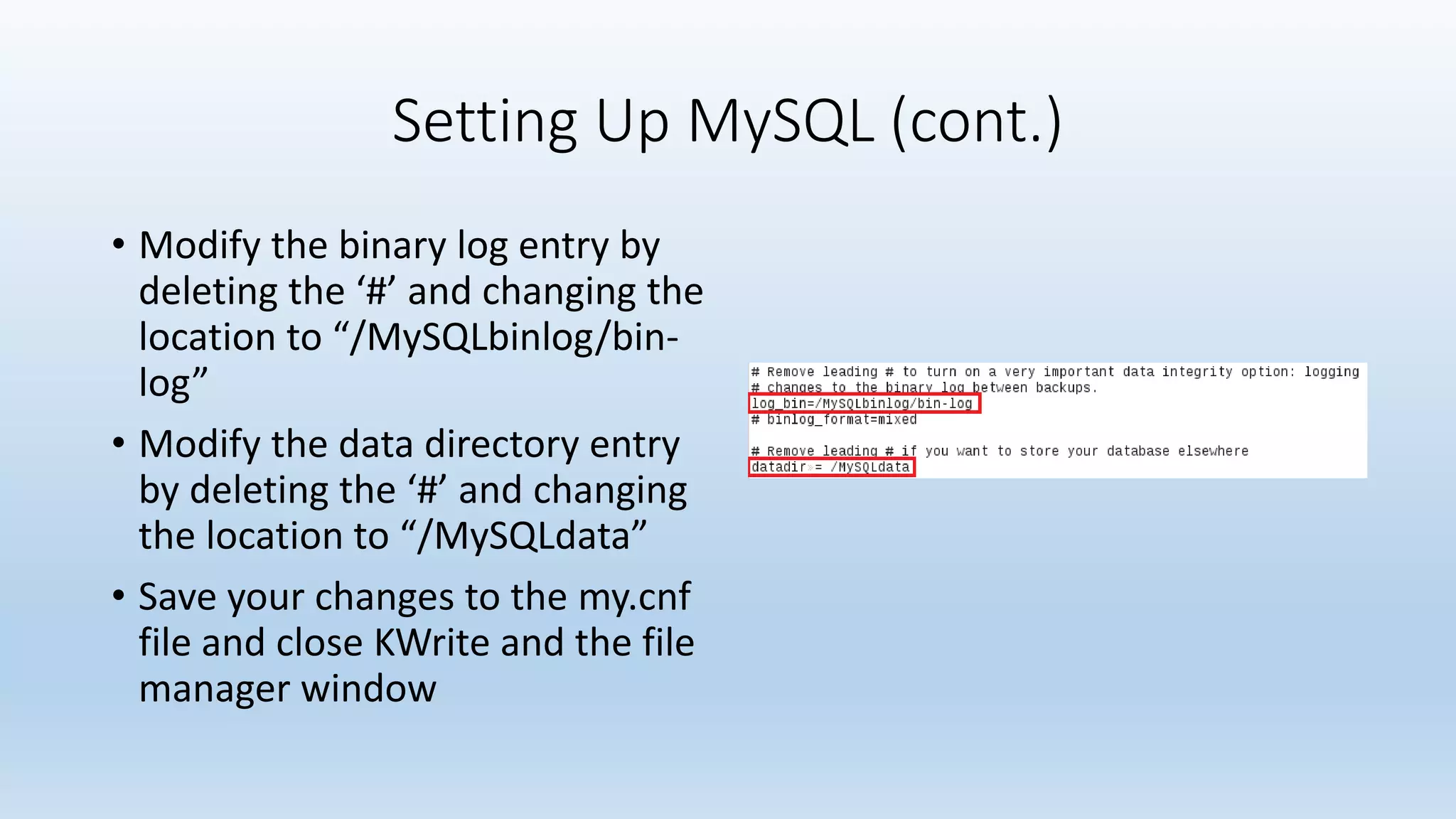

17. Setting Up MySQL (cont.)
• Modify the binary log entry by
deleting the ‘#’ and changing the
location to “/MySQLbinlog/bin-
log”
• Modify the data directory entry
by deleting the ‘#’ and changing
the location to “/MySQLdata”
• Save your changes to the my.cnf
file and close KWrite and the file
manager window

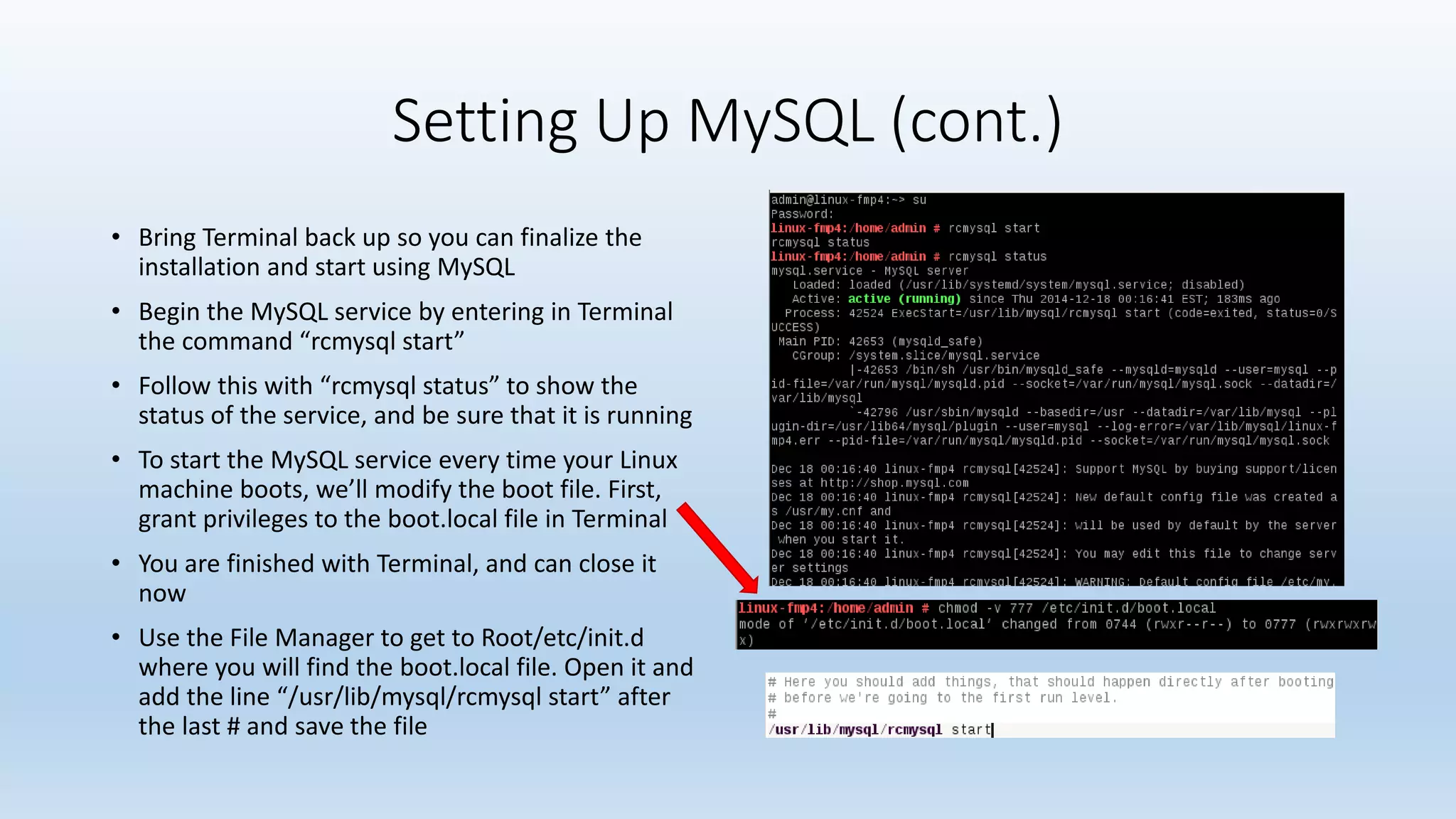

18. Setting Up MySQL (cont.)
• Bring Terminal back up so you can finalize the
installation and start using MySQL
• Begin the MySQL service by entering in Terminal
the command “rcmysql start”
• Follow this with “rcmysql status” to show the
status of the service, and be sure that it is running
• To start the MySQL service every time your Linux
machine boots, we’ll modify the boot file. First,
grant privileges to the boot.local file in Terminal
• You are finished with Terminal, and can close it
now
• Use the File Manager to get to Root/etc/init.d
where you will find the boot.local file. Open it and
add the line “/usr/lib/mysql/rcmysql start” after
the last # and save the file

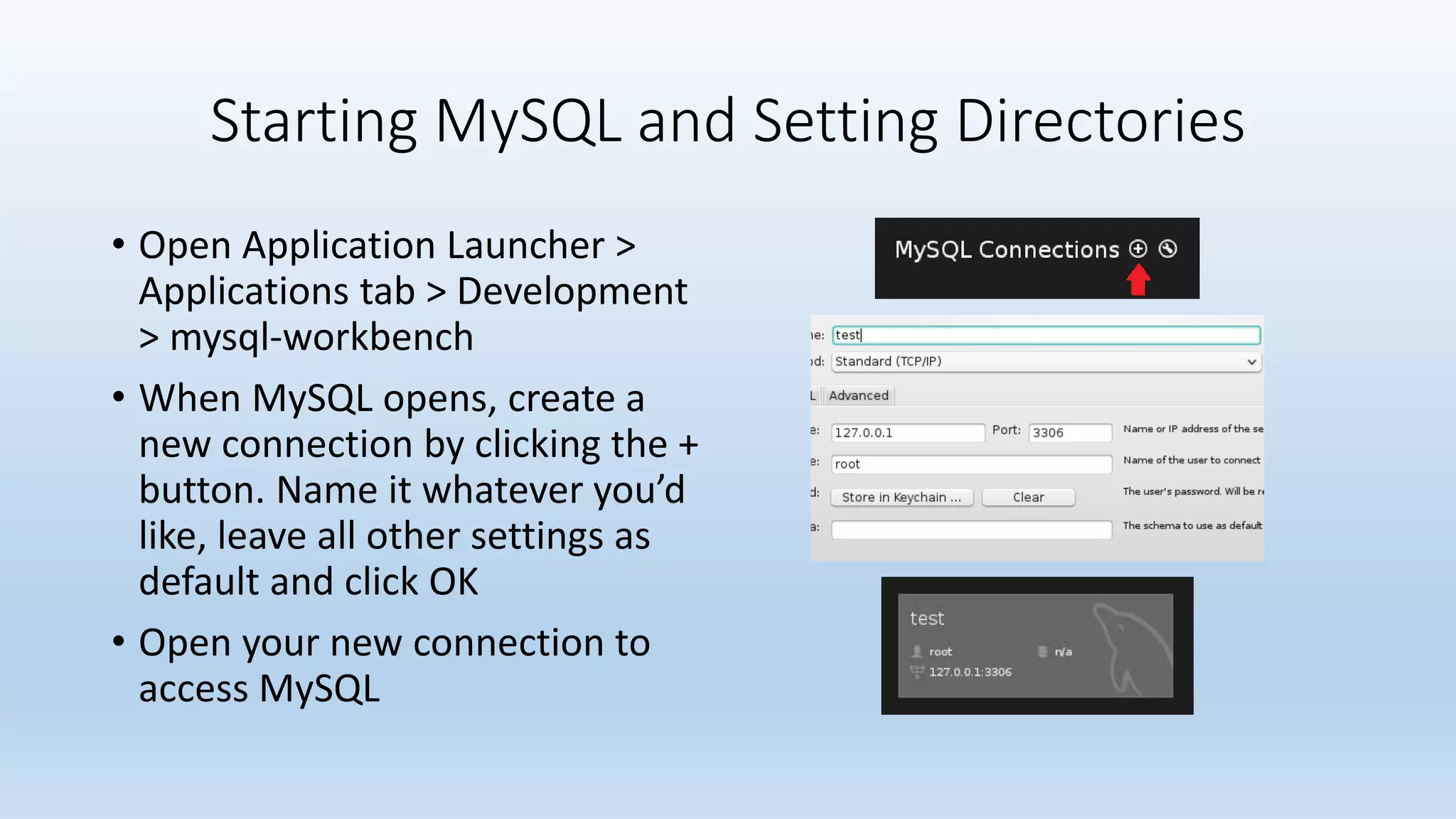

19. Starting MySQL and Setting Directories
• Open Application Launcher >
Applications tab > Development
> mysql-workbench
• When MySQL opens, create a
new connection by clicking the +
button. Name it whatever you’d
like, leave all other settings as
default and click OK
• Open your new connection to
access MySQL

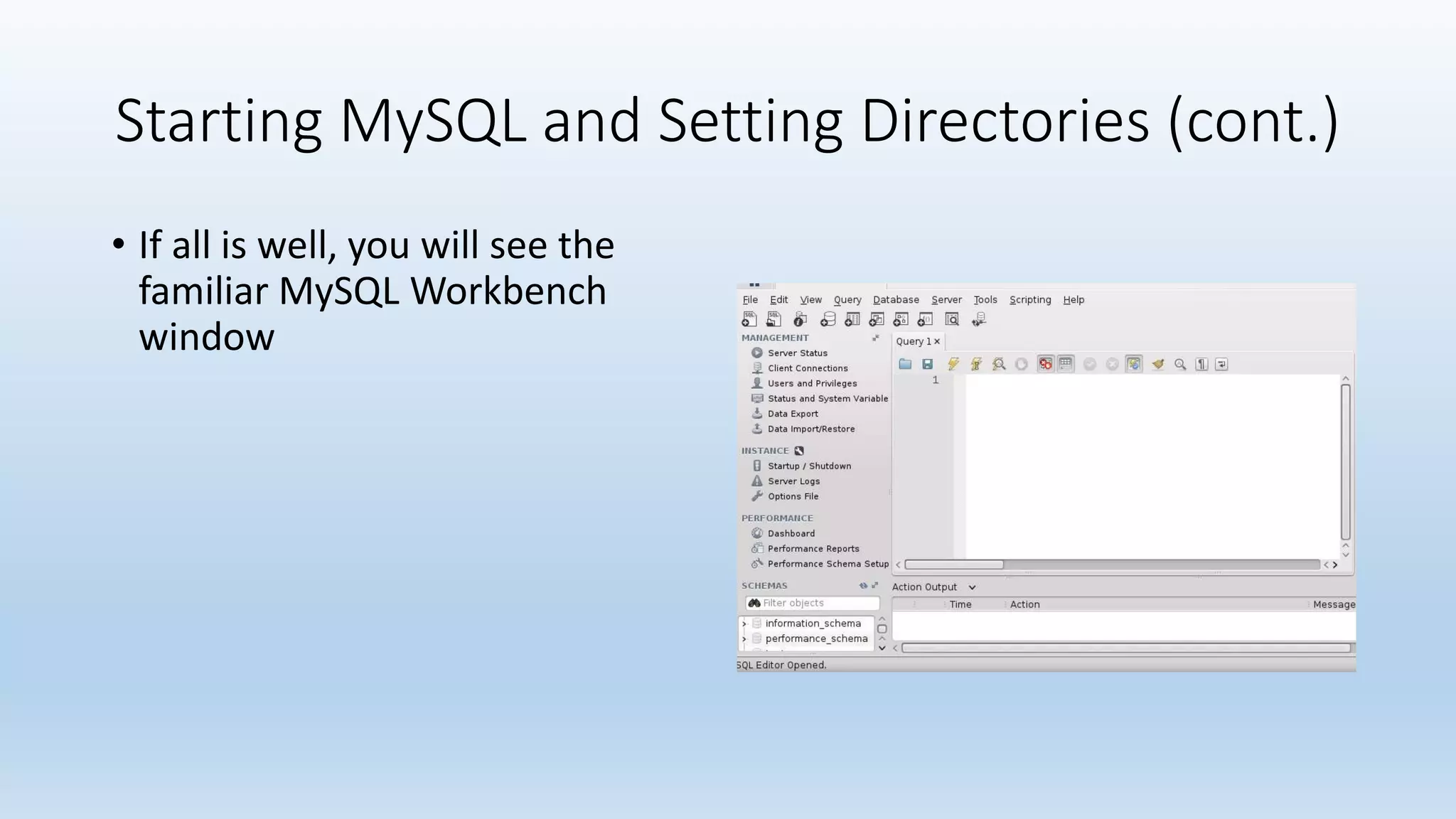

20. Starting MySQL and Setting Directories (cont.)
• If all is well, you will see the
familiar MySQL Workbench
window

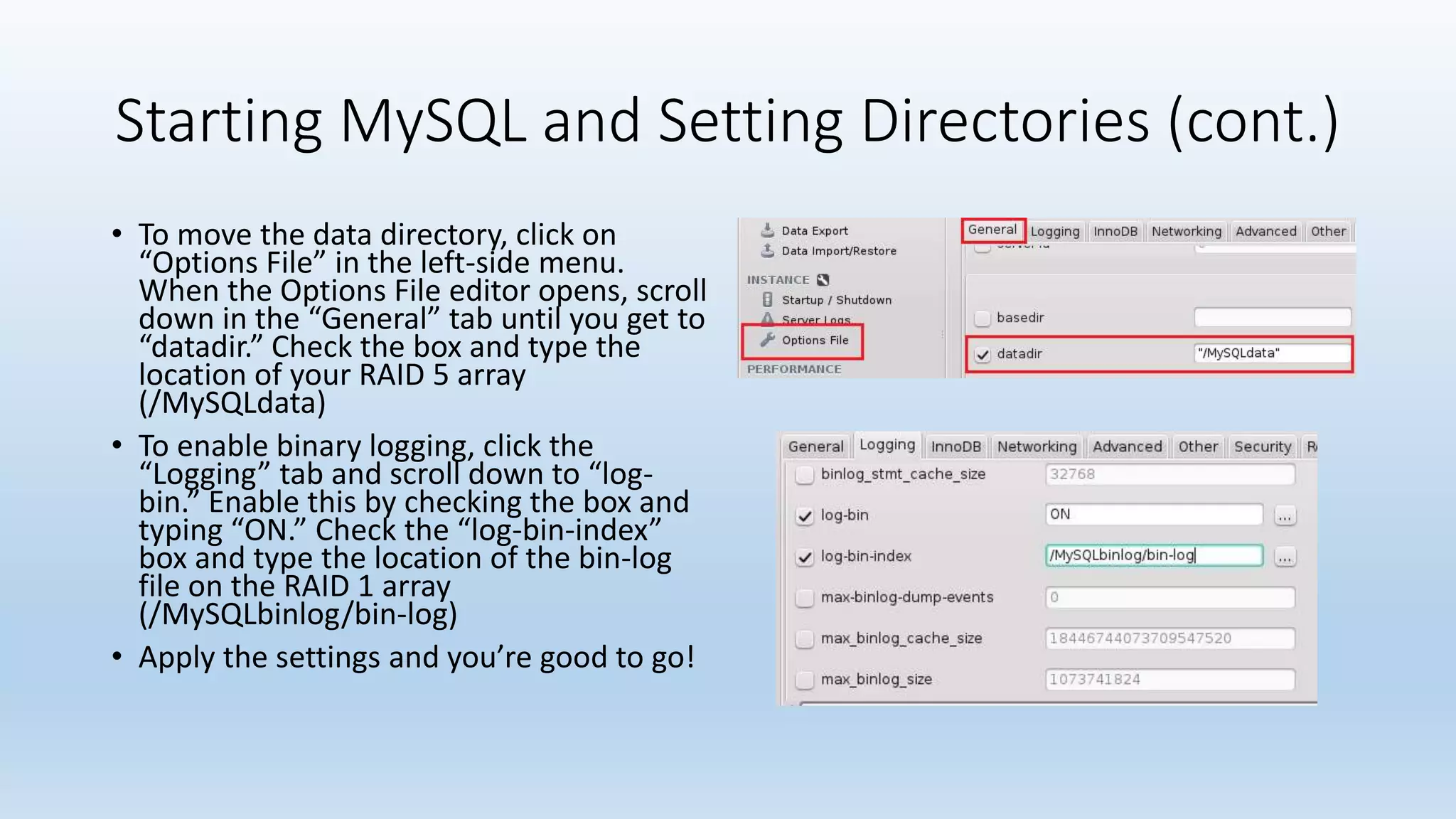

21. Starting MySQL and Setting Directories (cont.)
• To move the data directory, click on
“Options File” in the left-side menu.
When the Options File editor opens, scroll
down in the “General” tab until you get to
“datadir.” Check the box and type the
location of your RAID 5 array
(/MySQLdata)
• To enable binary logging, click the
“Logging” tab and scroll down to “log-
bin.” Enable this by checking the box and
typing “ON.” Check the “log-bin-index”
box and type the location of the bin-log
file on the RAID 1 array
(/MySQLbinlog/bin-log)
• Apply the settings and you’re good to go!

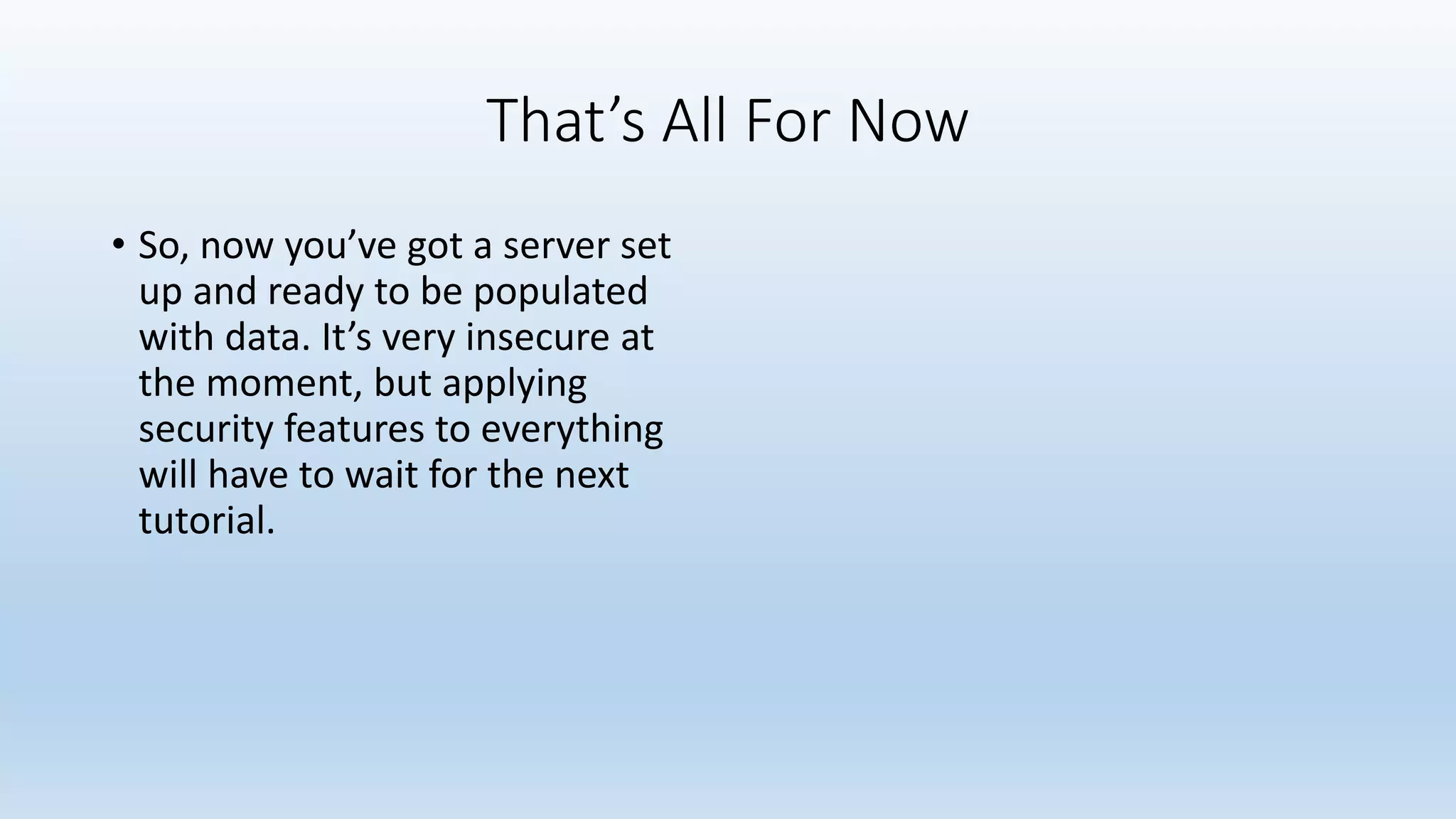

22. That’s All For Now
• So, now you’ve got a server set
up and ready to be populated
with data. It’s very insecure at
the moment, but applying
security features to everything
will have to wait for the next
tutorial.
