1. DataStax / Cassandra Data
Modeling Strategies
Avoiding The Three Stooges: Wide Partitions, Tombstones, Data Skew
Rahul Xavier Singh Anant Corporation

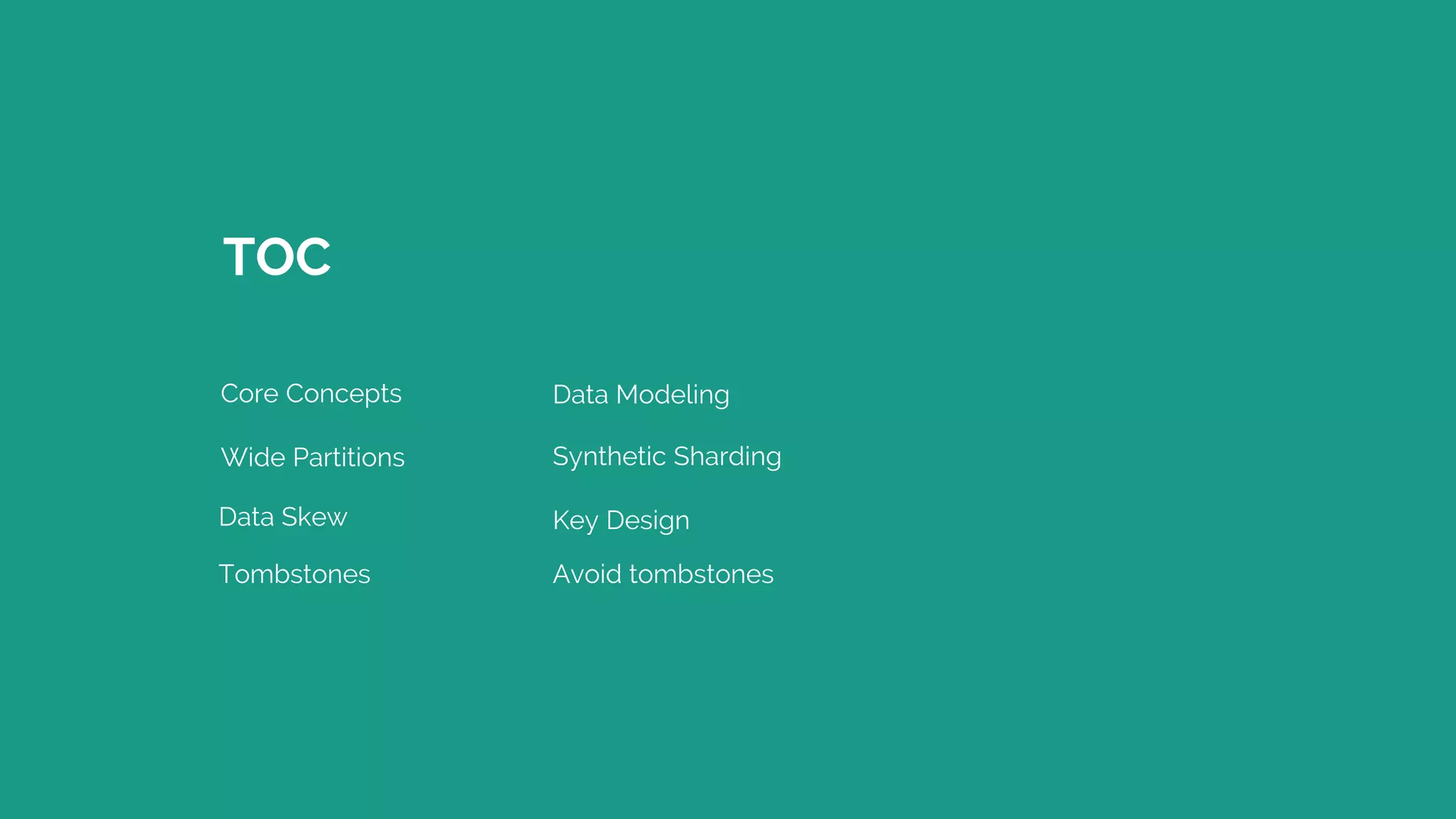

2. TOC
Core Concepts
Wide Partitions
Data Modeling
Synthetic Sharding
Key Design
Tombstones
Data Skew
Avoid tombstones

3. Business Platform Success
We build business success platforms,
which are collections of systems that
serve business processes that have
information needs for people.

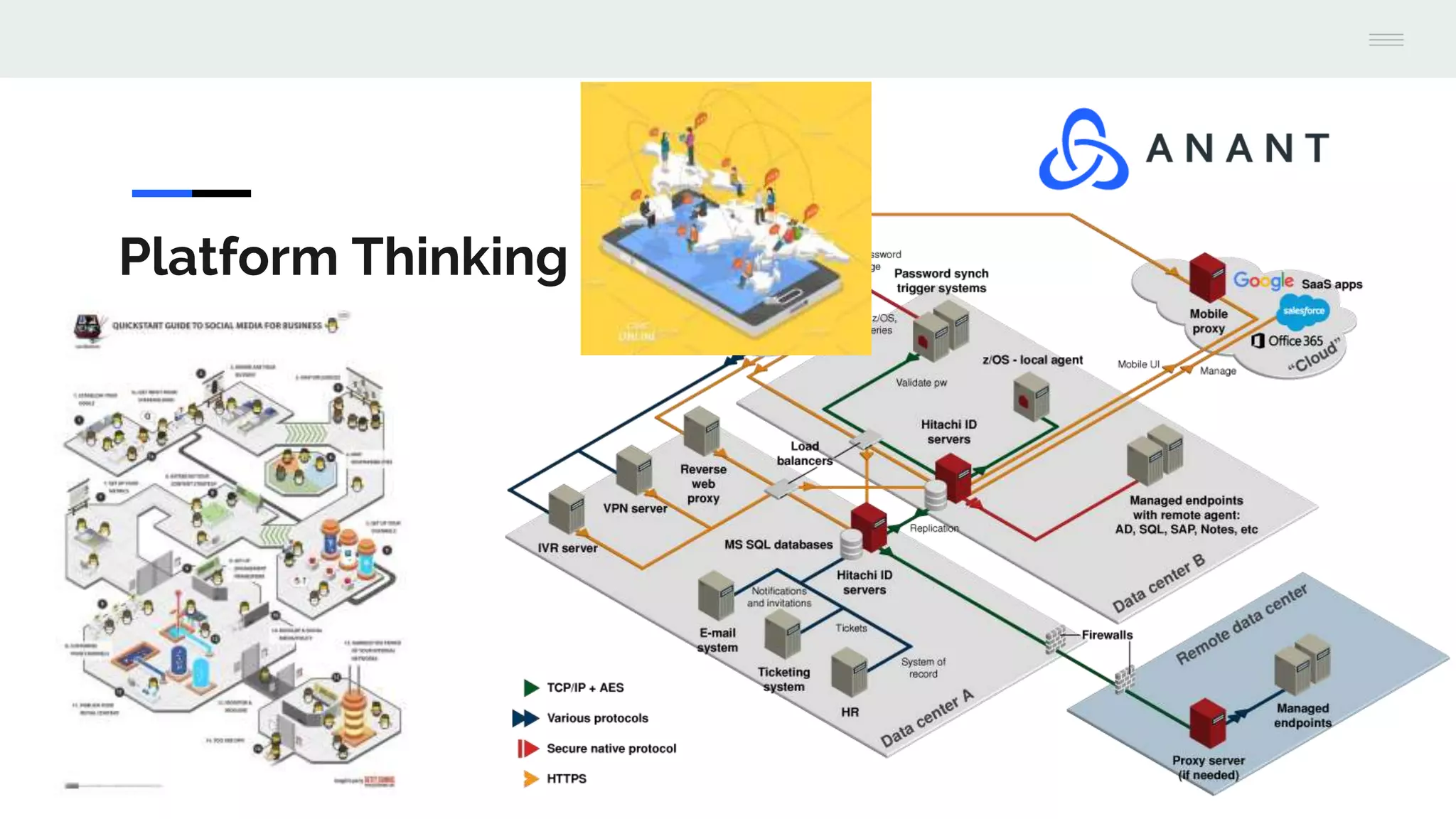

4. Platform Thinking

5. How?
Project
Information
Client Service
Information
Corporate
Guides
Collaborative
Documents
Assets
& Files
Corporate
Assets
Business Platform
● Curate framework of
systems.
● Work with a vetted team
of experts.
● Connect it all together.
● Focus on finding,
analyzing, and acting on
knowledge &
communication towards
business success.

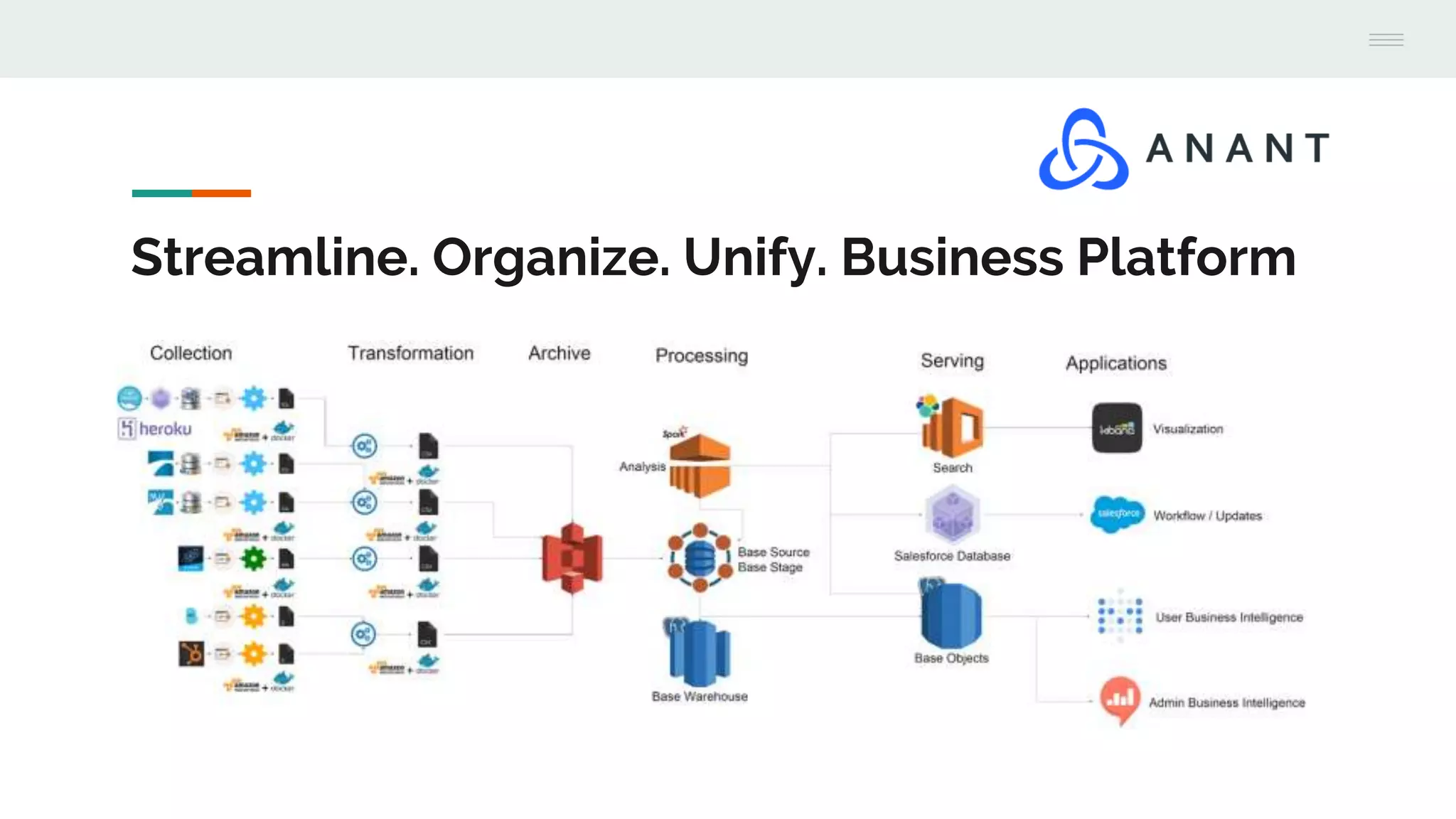

6. Streamline. Organize. Unify. Business Platform

7. Who we help Succeed

8. Cassandra / DataStax
Core Concepts

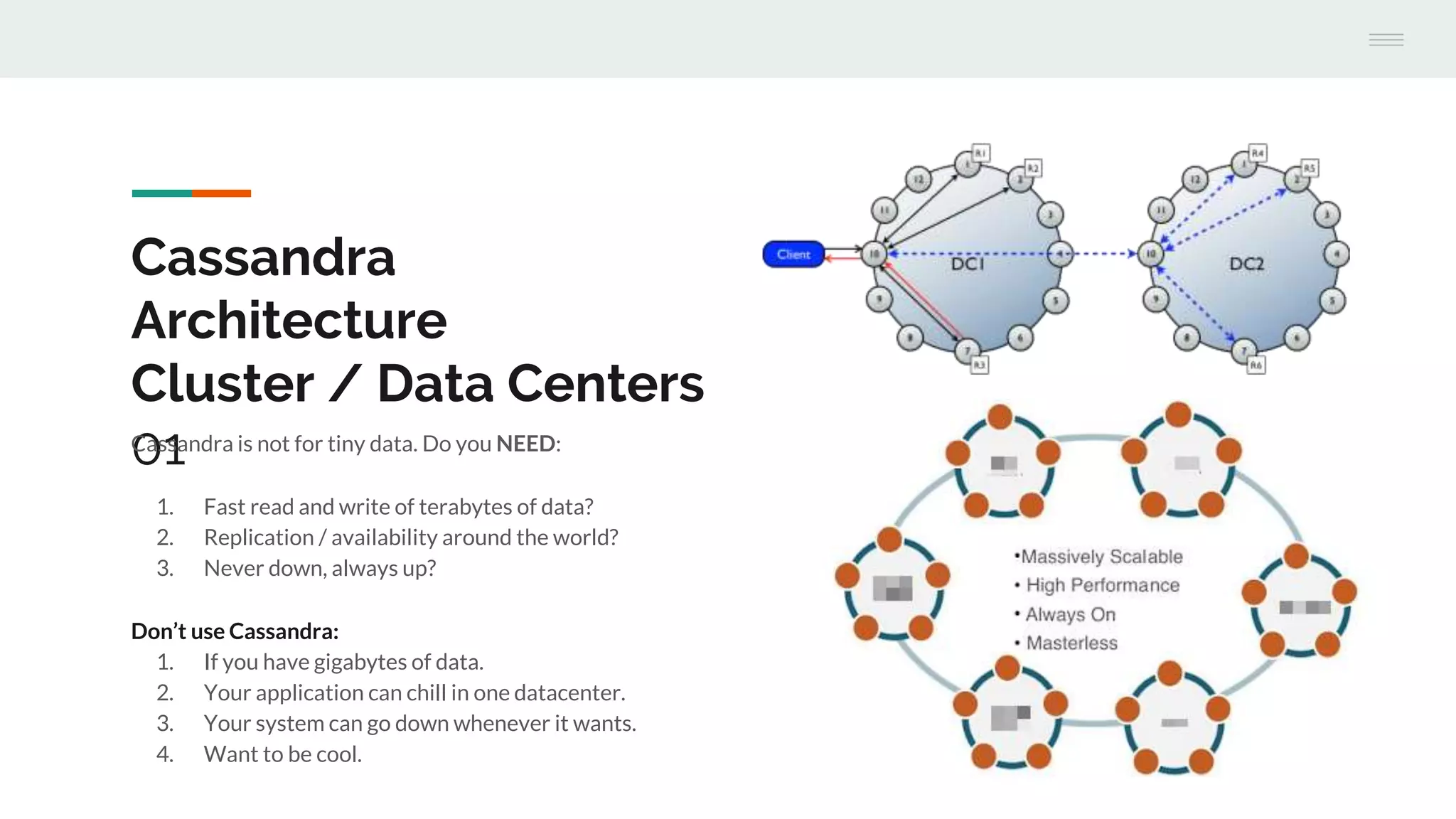

9. Cassandra
Architecture
Cluster / Data Centers
01Cassandra is not for tiny data. Do you NEED:
1. Fast read and write of terabytes of data?
2. Replication / availability around the world?
3. Never down, always up?
Don’t use Cassandra:
1. If you have gigabytes of data.
2. Your application can chill in one datacenter.
3. Your system can go down whenever it wants.
4. Want to be cool.

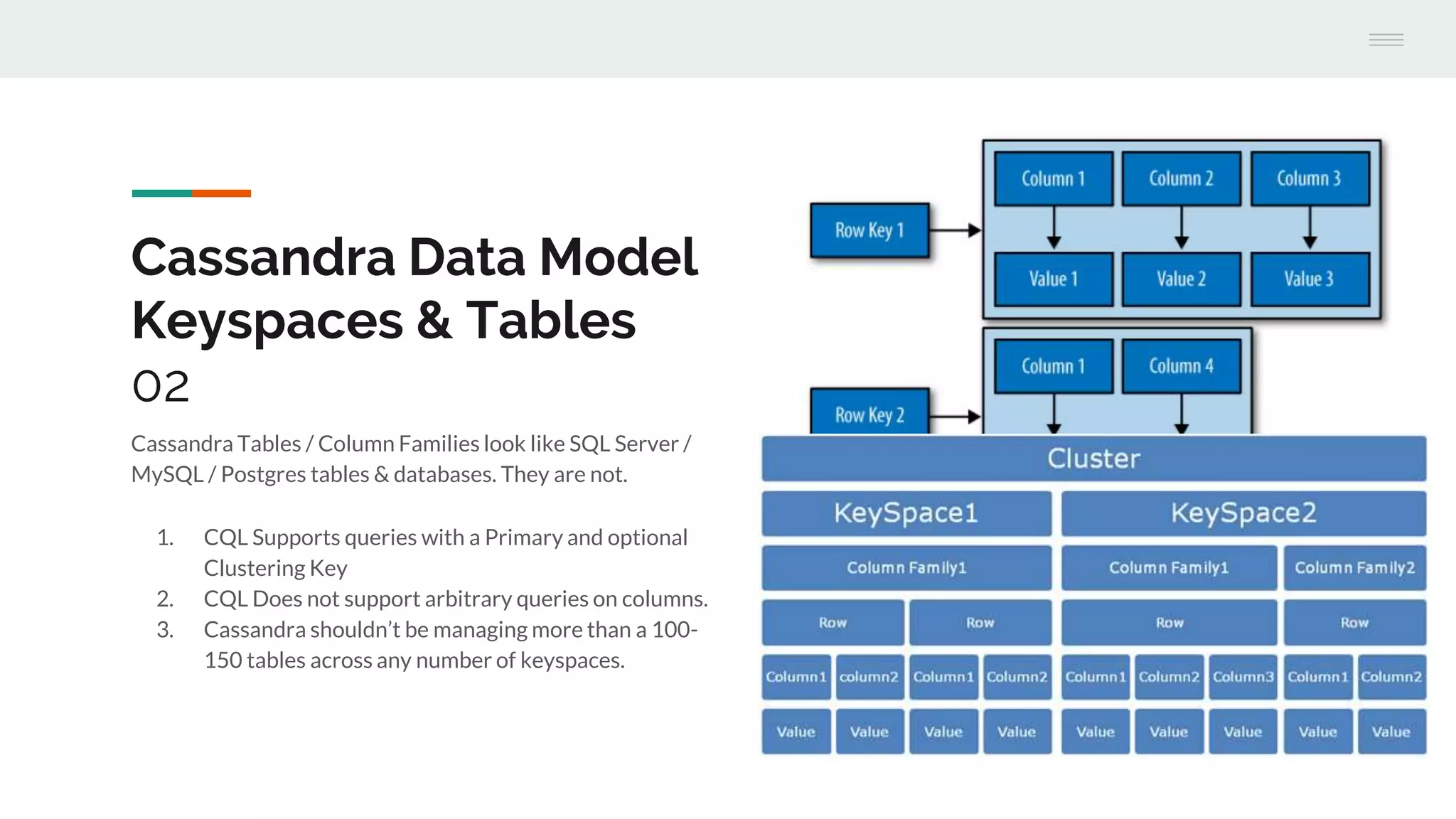

10. Cassandra Data Model
Keyspaces & Tables
02
Cassandra Tables / Column Families look like SQL Server /
MySQL / Postgres tables & databases. They are not.
1. CQL Supports queries with a Primary and optional
Clustering Key
2. CQL Does not support arbitrary queries on columns.
3. Cassandra shouldn’t be managing more than a 100-
150 tables across any number of keyspaces.

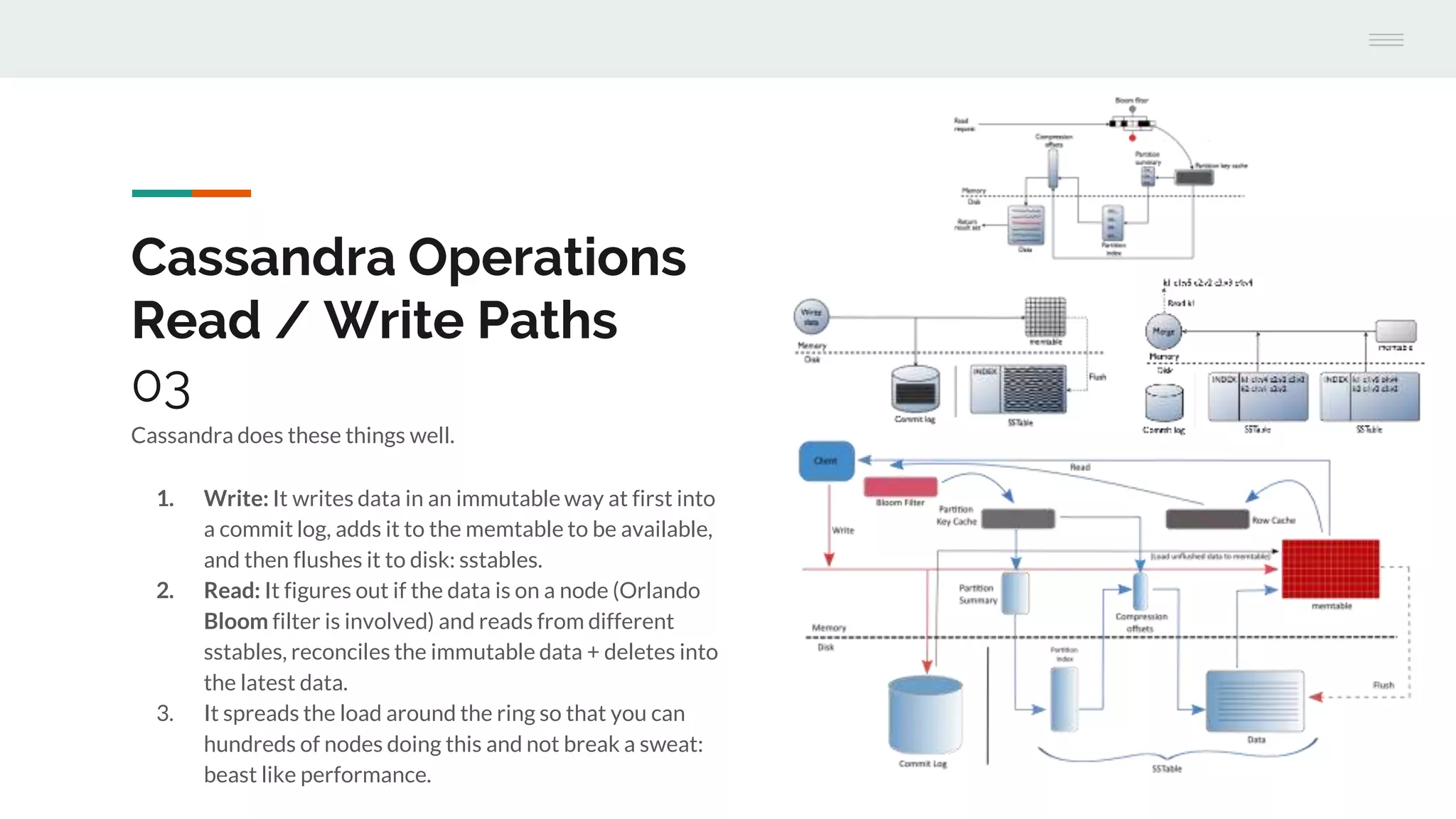

11. Cassandra Operations
Read / Write Paths
03
Cassandra does these things well.
1. Write: It writes data in an immutable way at first into
a commit log, adds it to the memtable to be available,
and then flushes it to disk: sstables.
2. Read: It figures out if the data is on a node (Orlando
Bloom filter is involved) and reads from different
sstables, reconciles the immutable data + deletes into
the latest data.
3. It spreads the load around the ring so that you can
hundreds of nodes doing this and not break a sweat:
beast like performance.

12. Cassandra Operational
Pitfalls Visualized

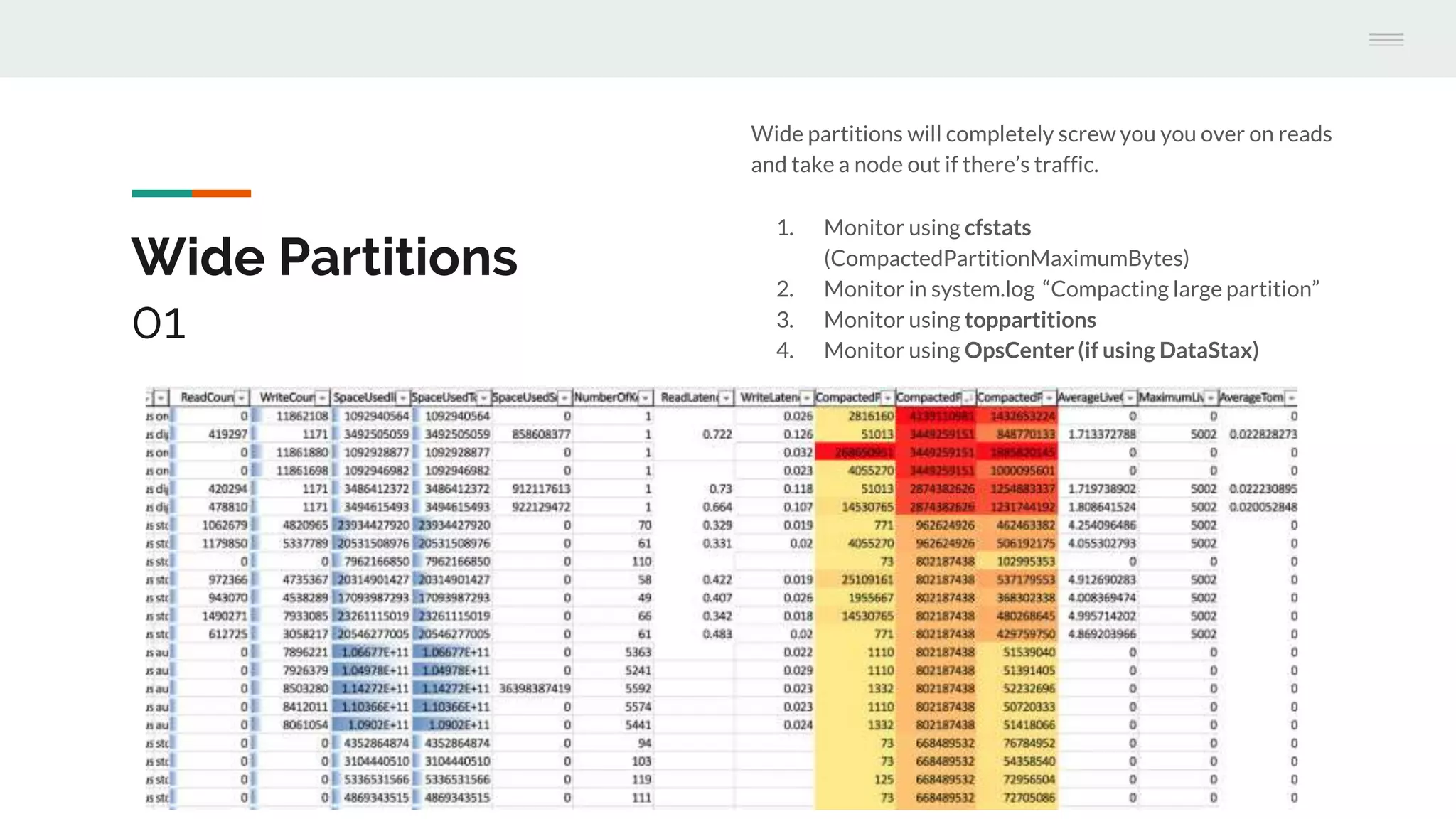

13. Wide Partitions
01
Wide partitions will completely screw you you over on reads
and take a node out if there’s traffic.
1. Monitor using cfstats
(CompactedPartitionMaximumBytes)
2. Monitor in system.log “Compacting large partition”
3. Monitor using toppartitions
4. Monitor using OpsCenter (if using DataStax)

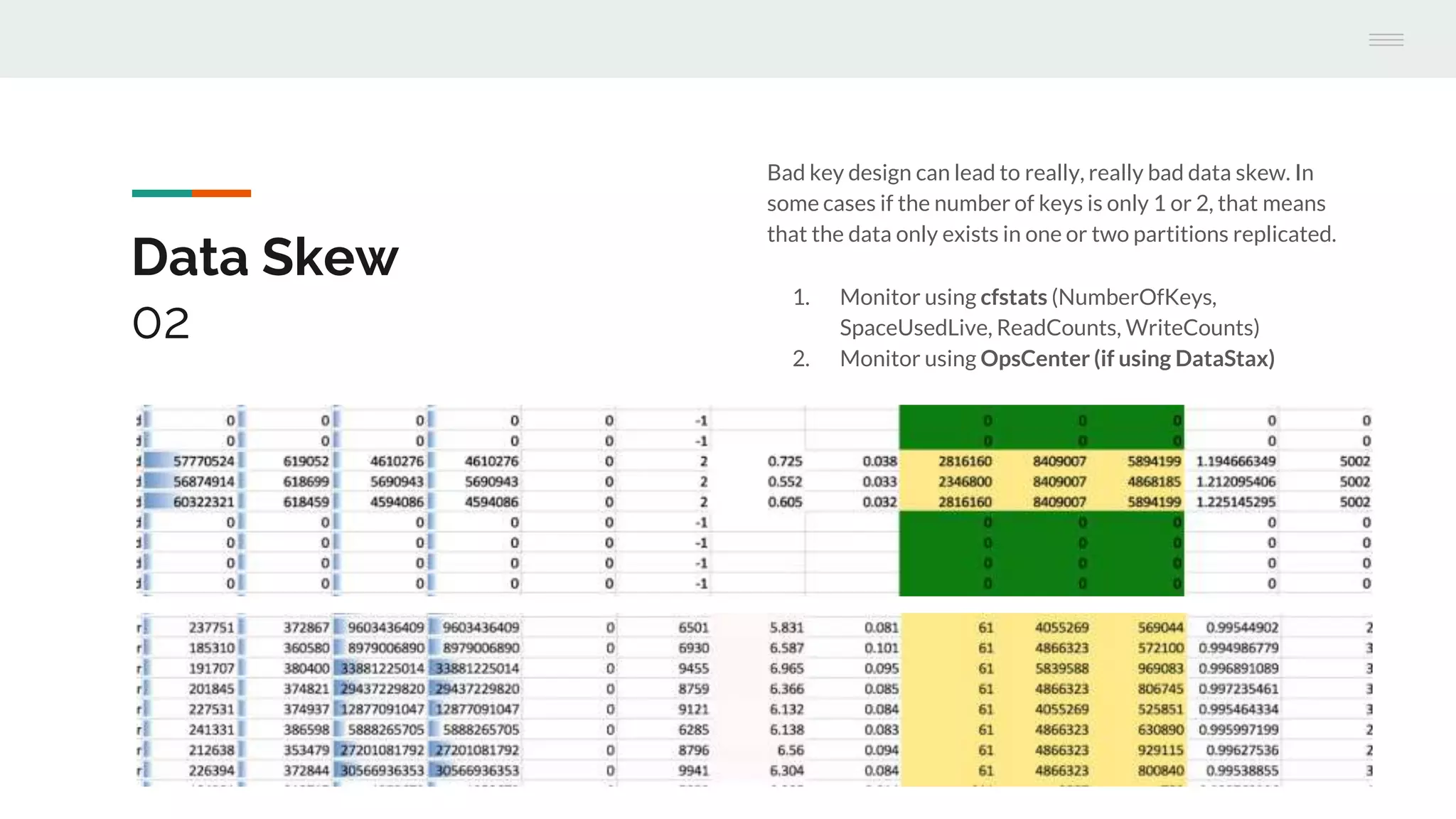

14. Data Skew
02
Bad key design can lead to really, really bad data skew. In
some cases if the number of keys is only 1 or 2, that means
that the data only exists in one or two partitions replicated.
1. Monitor using cfstats (NumberOfKeys,
SpaceUsedLive, ReadCounts, WriteCounts)
2. Monitor using OpsCenter (if using DataStax)

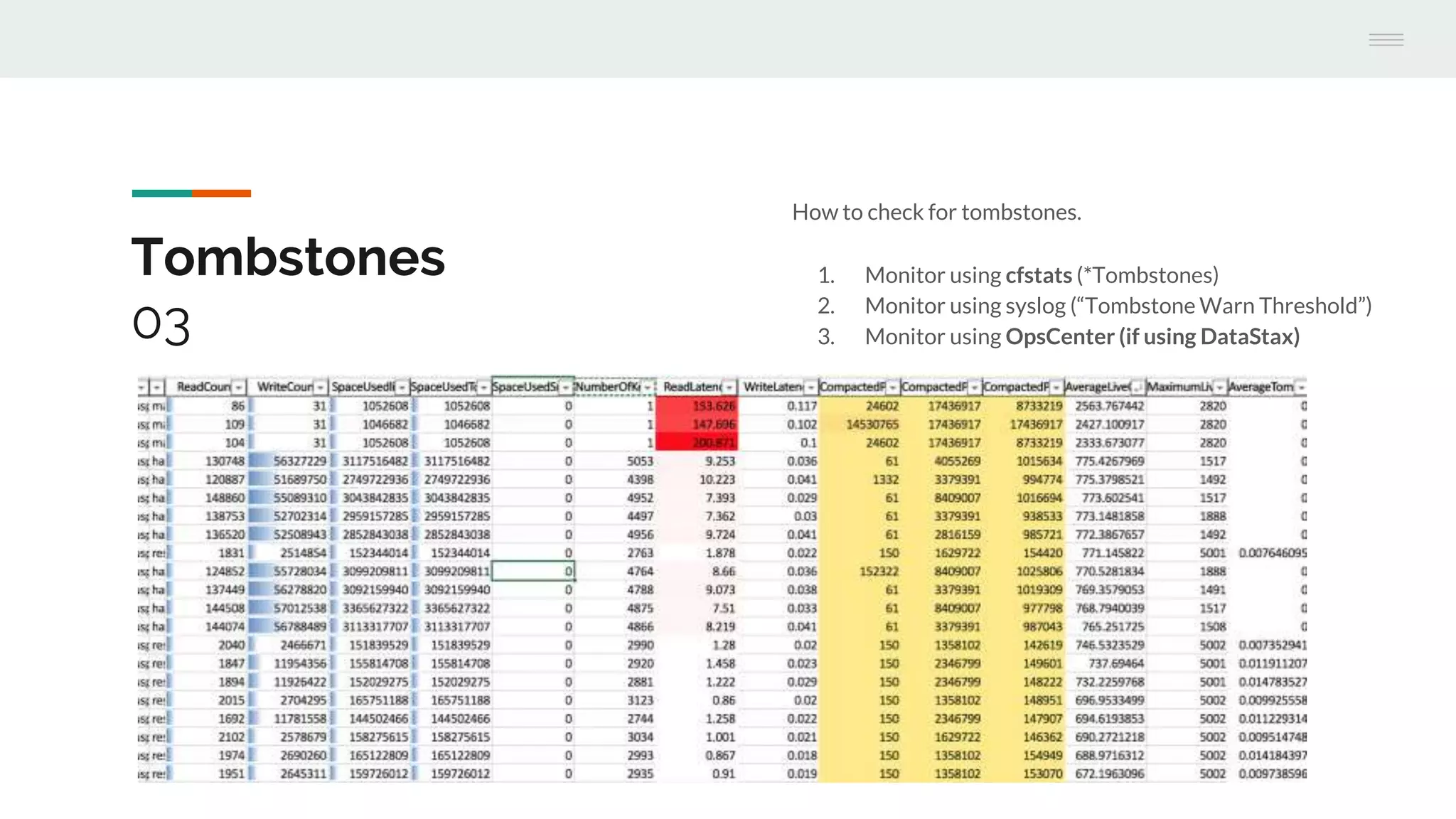

15. Tombstones
03
How to check for tombstones.
1. Monitor using cfstats (*Tombstones)
2. Monitor using syslog (“Tombstone Warn Threshold”)
3. Monitor using OpsCenter (if using DataStax)

16. Cassandra Data Modeling
Best Practices

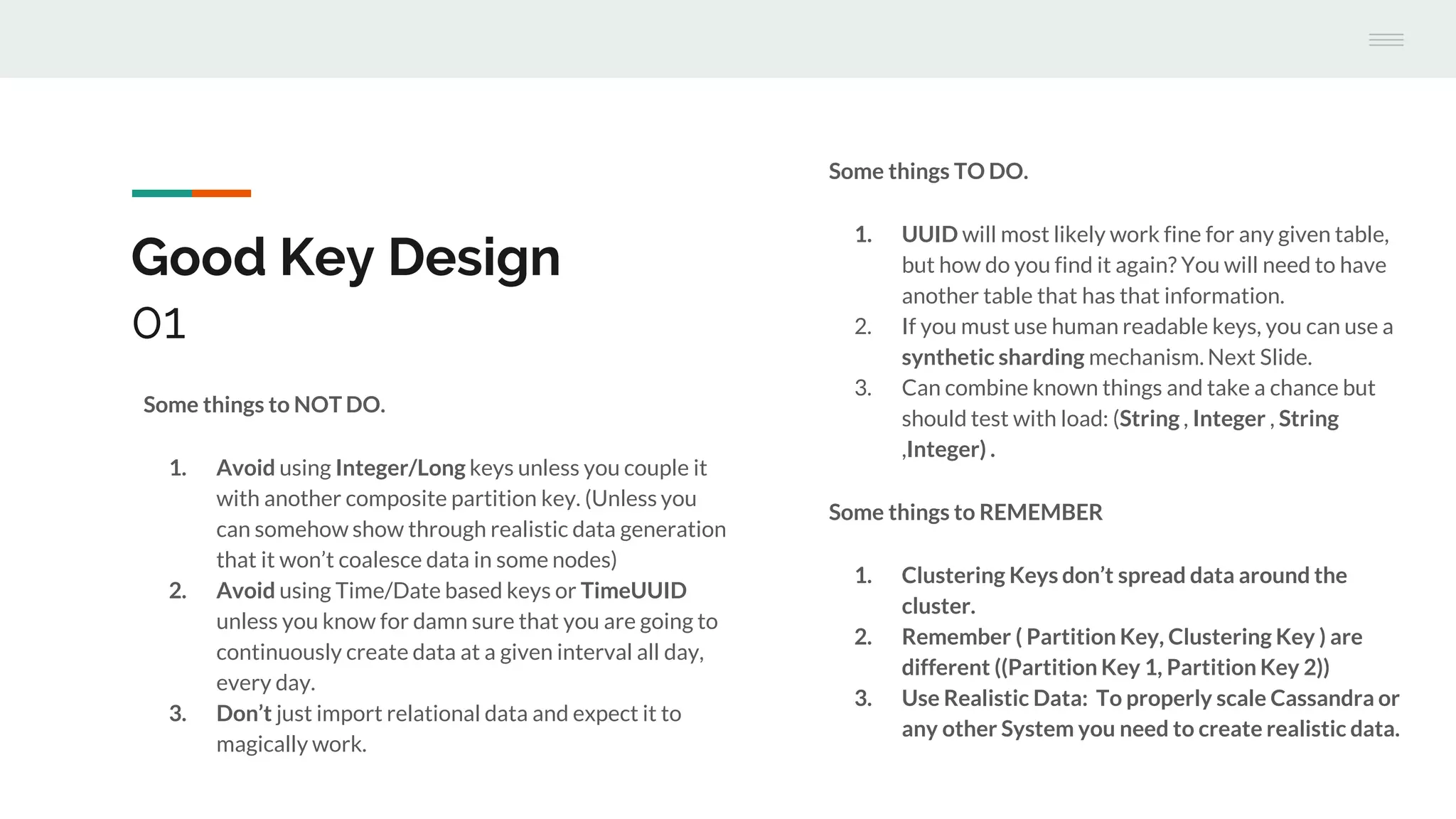

17. Good Key Design
01
Some things to NOT DO.
1. Avoid using Integer/Long keys unless you couple it
with another composite partition key. (Unless you
can somehow show through realistic data generation
that it won’t coalesce data in some nodes)
2. Avoid using Time/Date based keys or TimeUUID
unless you know for damn sure that you are going to
continuously create data at a given interval all day,
every day.
3. Don’t just import relational data and expect it to
magically work.
Some things TO DO.
1. UUID will most likely work fine for any given table,
but how do you find it again? You will need to have
another table that has that information.
2. If you must use human readable keys, you can use a
synthetic sharding mechanism. Next Slide.
3. Can combine known things and take a chance but
should test with load: (String , Integer , String
,Integer) .
Some things to REMEMBER
1. Clustering Keys don’t spread data around the
cluster.
2. Remember ( Partition Key, Clustering Key ) are
different ((Partition Key 1, Partition Key 2))
3. Use Realistic Data: To properly scale Cassandra or
any other System you need to create realistic data.

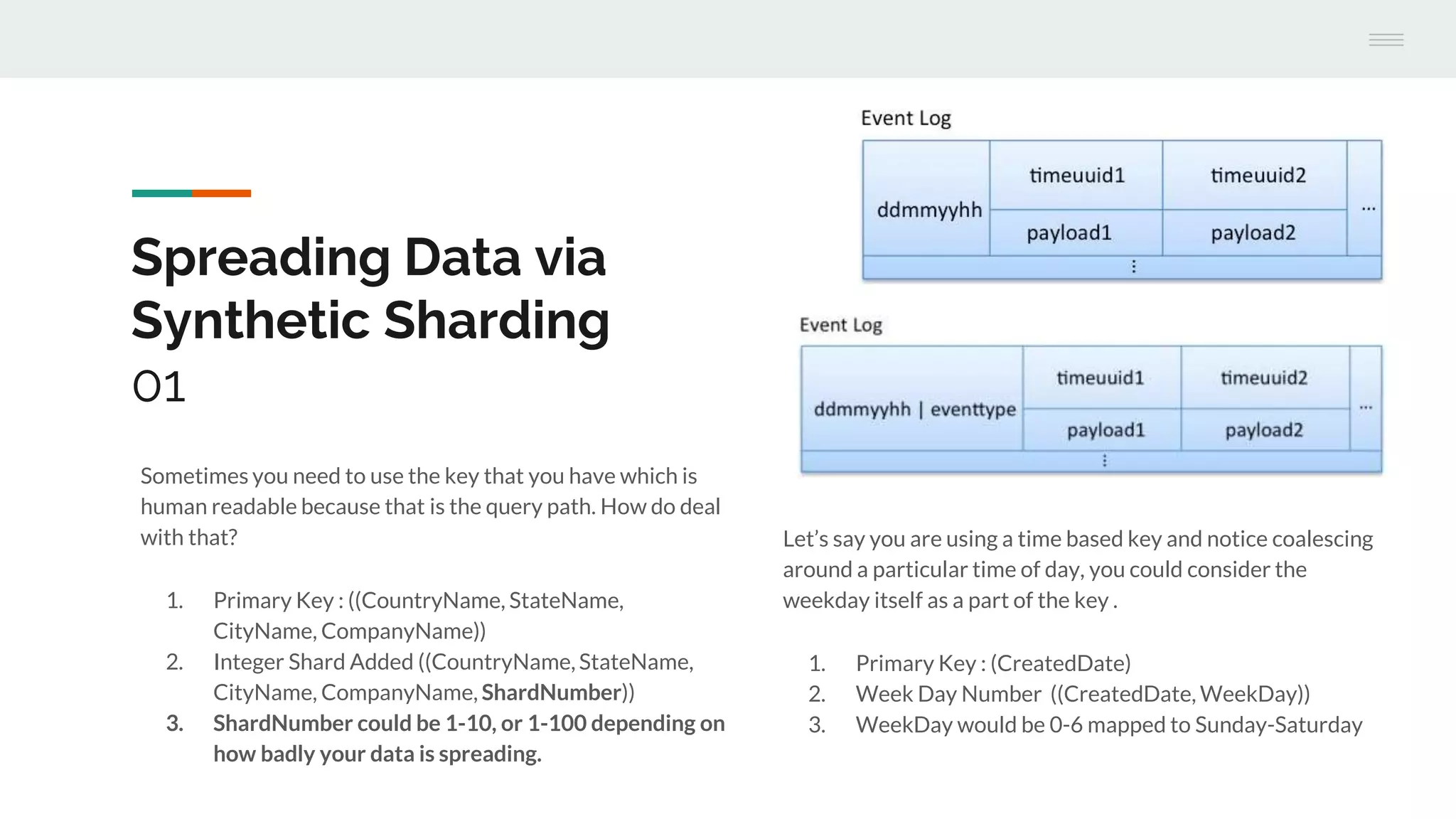

18. Spreading Data via
Synthetic Sharding
01
Sometimes you need to use the key that you have which is
human readable because that is the query path. How do deal
with that?
1. Primary Key : ((CountryName, StateName,
CityName, CompanyName))
2. Integer Shard Added ((CountryName, StateName,
CityName, CompanyName, ShardNumber))
3. ShardNumber could be 1-10, or 1-100 depending on
how badly your data is spreading.
Let’s say you are using a time based key and notice coalescing
around a particular time of day, you could consider the
weekday itself as a part of the key .
1. Primary Key : (CreatedDate)
2. Week Day Number ((CreatedDate, WeekDay))
3. WeekDay would be 0-6 mapped to Sunday-Saturday

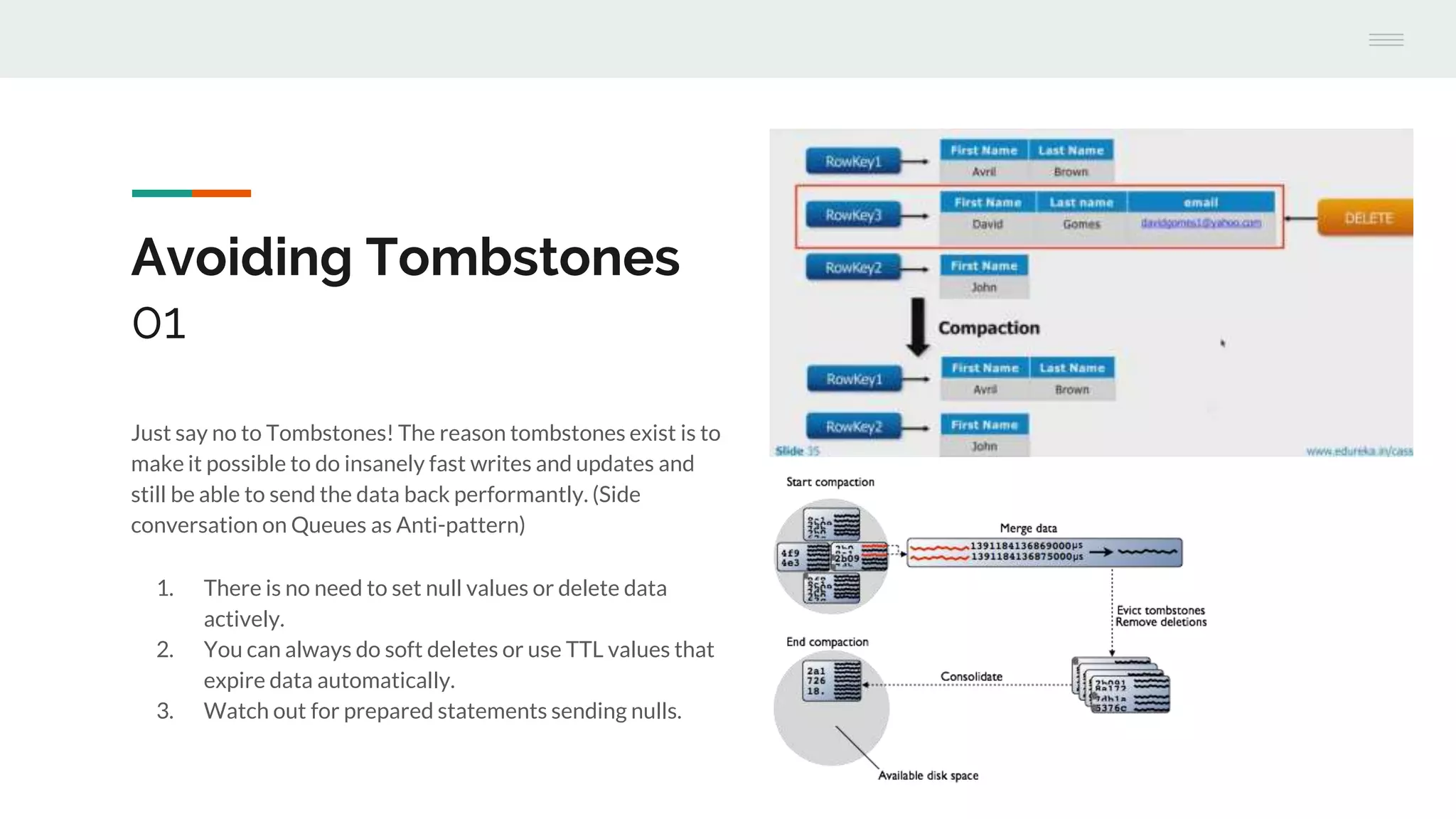

19. Just say no to Tombstones! The reason tombstones exist is to
make it possible to do insanely fast writes and updates and
still be able to send the data back performantly. (Side
conversation on Queues as Anti-pattern)
1. There is no need to set null values or delete data
actively.
2. You can always do soft deletes or use TTL values that
expire data automatically.
3. Watch out for prepared statements sending nulls.
Avoiding Tombstones
01

20. Questions?
