This document provides an overview and lessons learned from using different data storage options in Windows Azure, including Blobs, Tables, SQL Azure, and Queues. It discusses how each one works, best practices for using them, and how they compare to each other. Key takeaways include that Tables are not a relational database, picking the right partition key is important for performance, and SQL Azure has some limitations compared to on-premises SQL Server. The presenter provides a demonstration of the storage features in Windows Azure and encourages understanding how they are different from traditional on-premises options.

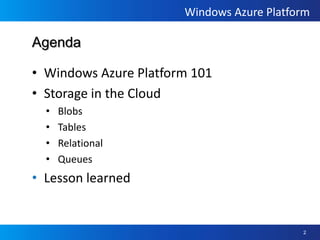

1. Design considerations for storing data in the cloud with Windows AzureEric NelsonMicrosoft UKBlog: http://geekswithblogs.net/iupdateableTwitter: http://twitter.com/ericnel and http://twitter.com/ukmsdnPodcast: http://bit.ly/msdnpodcastNewsletter: http://msdn.microsoft.com/en-gb/flashSlides, links and background “diary” posts can be found on my blog

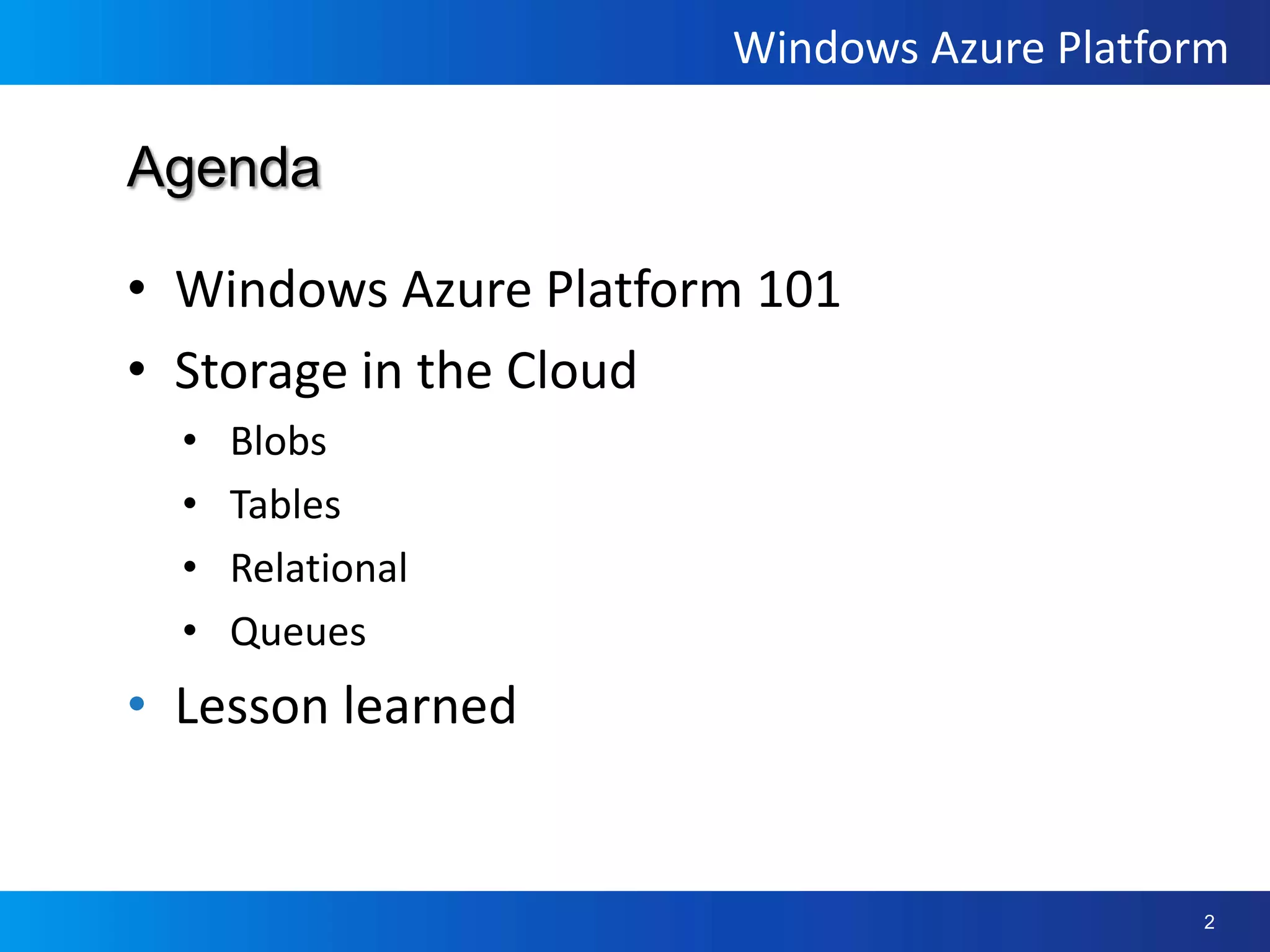

2. Windows Azure Platform 101

3. Storage in the Cloud

4. Blobs

5. Tables

6. Relational

7. Queues

8. Lesson learnedAgenda

9. Windows Azure PLATFORM 101Just in case you had something better to do over the last 18months

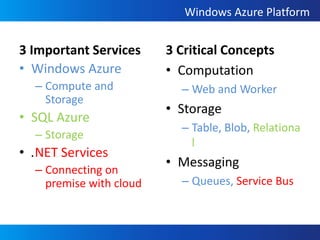

10. 3 Important Services3 Critical ConceptsWindows AzureCompute and StorageSQL AzureStorage.NET ServicesConnectingComputationWeb and WorkerStorageTable, Blob, RelationalMessagingQueues, Service Bus

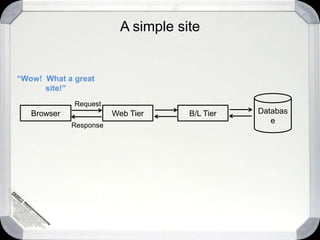

11. A simple site“Wow! What a great site!”DatabaseRequestWeb TierB/L TierBrowserResponse

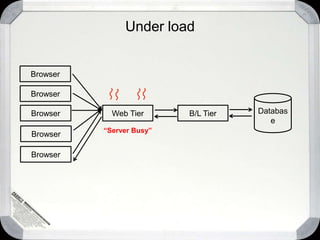

12. Under loadBrowserBrowserDatabaseWeb TierB/L TierBrowser“Server Busy”BrowserBrowser

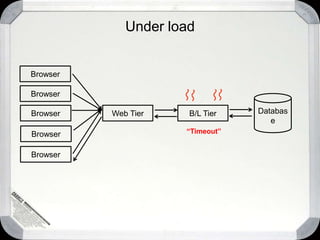

13. Under loadBrowserBrowserDatabaseWeb TierB/L TierBrowser“Timeout”BrowserBrowser

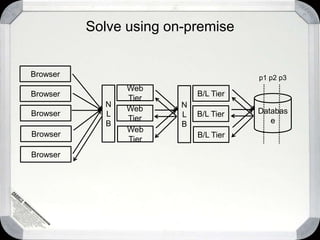

14. Solve using on-premiseBrowserp1 p2 p3Web TierN L BB/L TierN L BBrowserDatabaseWeb TierBrowserB/L TierBrowserWeb TierB/L TierBrowser

15. However…p1 p2 p3“Not so great now…”Web TierN L BB/L TierN L BDatabaseWeb TierBrowserB/L TierWeb TierB/L Tier“That took a lot of work - and money!”“Hmmm... Most of this stuff is sitting idle...”

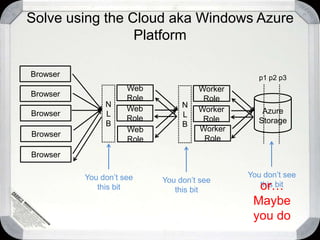

16. Solve using the Cloud aka Windows Azure PlatformBrowserp1 p2 p3Web RoleN L BWorker RoleN L BBrowserAzureStorageWeb RoleBrowserWorker RoleWorker RoleBrowserWeb RoleBrowserYou don’t see this bitYou don’t see this bitYou don’t see this bitor…Maybe you do

17. Solve using the Cloud aka Windows Azure PlatformSQLAzureBrowserp1 p2 p3Web RoleN L BWorker RoleN L BBrowserAzureStorageWeb RoleBrowserWorker RoleWorker RoleBrowserWeb RoleBrowserYou don’t see this bitYou don’t see this bitYou don’t see this bitOk, you definitely do

18. Demo: Windows Azure Portal

19. Storage in the Cloud…Windows Azure Storage and SQL Azure

20. Blobs, Tables, Relational

21. Blobs, Tables, Relational

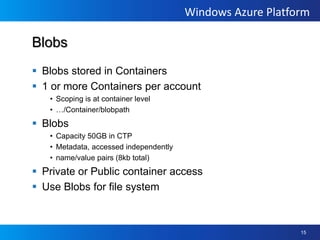

22. Blobs stored in Containers1 or more Containers per accountScoping is at container level…/Container/blobpathBlobsCapacity 50GB in CTPMetadata, accessed independently Private or Public container accessBlobs

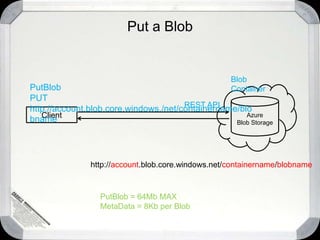

23. Put a BlobBlob ContainerPutBlobPUT http://account.blob.core.windows./net/containername/blobnameAzure Blob StorageREST APIClienthttp://account.blob.core.windows.net/containername/blobname

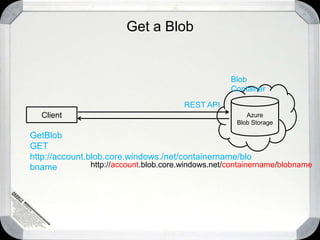

24. Get a BlobBlob ContainerAzure Blob StorageREST APIClientGetBlobGET http://account.blob.core.windows./net/containername/blobnamehttp://account.blob.core.windows.net/containername/blobname

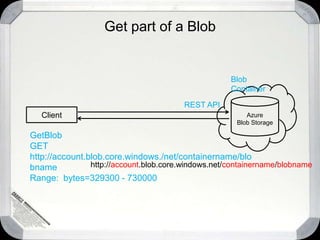

25. Get part of a BlobBlob ContainerAzure Blob StorageREST APIClientGetBlobGET http://account.blob.core.windows./net/containername/blobnameRange: bytes=329300 - 730000http://account.blob.core.windows.net/containername/blobname

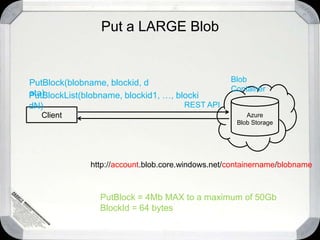

26. Put a LARGE BlobPutBlock(blobname, blockid1, data)Blob ContainerPutBlock(blobname, blockid7, data)PutBlockList(blobname, blockid1, …, blockidN)Azure Blob StorageREST APIClienthttp://account.blob.core.windows.net/containername/blobname

27. Blobs, Tables, Relational

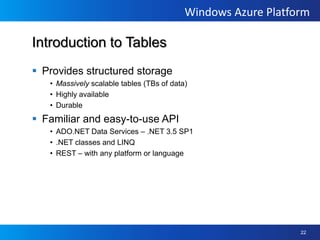

28. Provides structured storageMassively scalable tables (TBs of data)Self scalingHighly availableDurableFamiliar and easy-to-use API, layered.NET classes and LINQADO.NET Data Services – .NET 3.5 SP1REST – with any platform or languageIntroduction to Tables

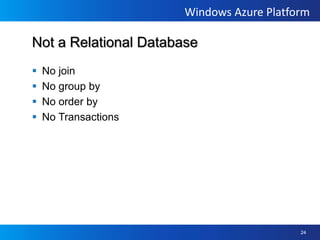

29. No joinNo group byNo order by“No Schema”Not a Relational Database

30. TableA Table is a set of Entities (rows)An Entity is a set of Properties (columns)EntityTwo “key” properties form unique IDPartitionKey – enables scaleRowKey – uniquely ID within a partitionData Model

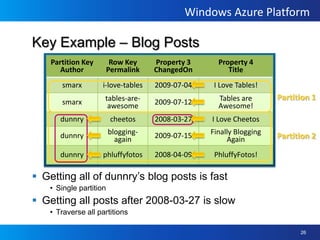

31. Key Example – Blog PostsPartition 1Partition 2Getting all of dunnry’s blog posts is fastSingle partitionGetting all posts after 2008-03-27 is slowTraverse all partitions

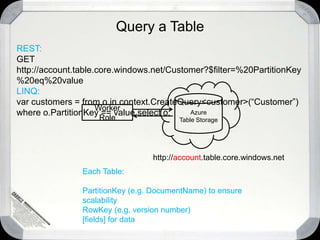

32. Query a TableREST: GET http://account.table.core.windows.net/Customer?$filter=%20PartitionKey%20eq%20valueLINQ:var customers = from o in context.CreateQuery<customer>(“Customer”) where o.PartitionKey == value select o;AzureTable StorageWorker Rolehttp://account.table.core.windows.net

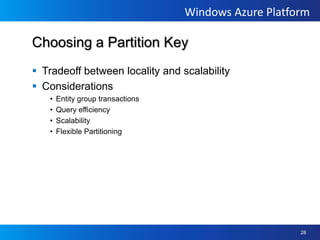

33. Tradeoff between locality and scalabilityConsiderationsEntity group transactionsQuery efficiencyScalabilityFlexible PartitioningChoosing a Partition Key

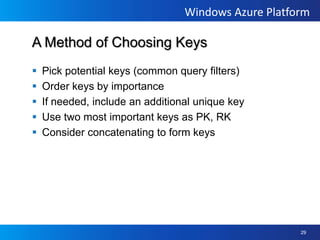

34. Pick potential keys (common query filters)Order keys by importanceIf needed, include an additional unique keyUse two most important keys as PK, RKConsider concatenating to form keysA Method of Choosing Keys

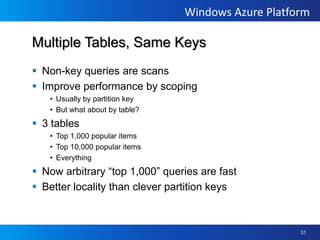

35. Non-key queries are scansImprove performance by scopingUsually by partition keyBut what about by table?3 tablesTop 1,000 popular itemsTop 10,000 popular itemsEverythingNow arbitrary “top 1,000” queries are fastBetter locality than clever partition keysWrite many is one approach

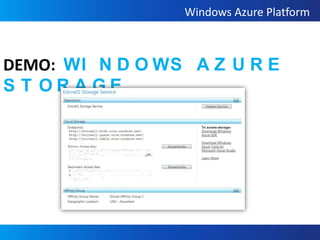

36. Demo: Windows Azure Storage

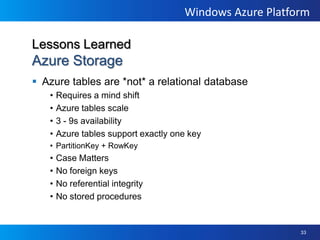

37. Lessons LearnedAzure StorageAzure tables are *not* a relational databaseRequires a mind shiftAzure tables scale3 - 9s availabilityAzure tables support exactly one keyPartitionKey + RowKeyCase MattersNo foreign keysNo referential integrityNo stored procedures

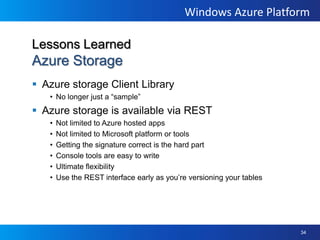

38. Lessons LearnedAzure StorageAzure Storage Client LibraryNo longer just a “sample”Azure storage is available via RESTNot limited to Azure hosted appsNot limited to Microsoft platform or toolsGetting the signature correct is the hard part

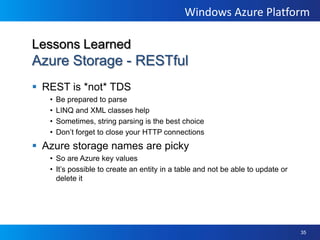

39. Lessons LearnedAzure Storage - RESTfulREST is *not* TDSBe prepared to parseLINQ and XML classes helpSometimes, string parsing is the best choiceAzure storage names are pickySo are Azure key valuesIt’s possible to create an entity in a table and not be able to update or delete it

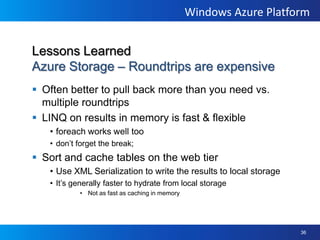

40. Lessons LearnedAzure Storage – Roundtrips are expensiveOften better to pull back more than you need vs. multiple roundtripsLINQ on results in memory is fast & flexibleforeach works well tooSort and cache tables on the web tier

41. Lessons LearnedAzure Storage – Entity Group TransactionsDifferent Entity types in the same tableE.g. PK = CustomerIdCustomer, Order and OrderDetails in the same table

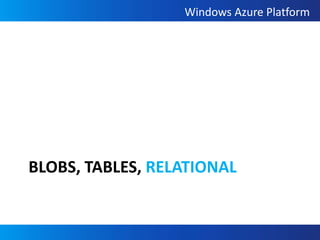

42. Blobs, Tables, Relational

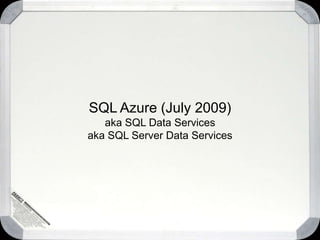

43. SQL Azure (July 2009)aka SQL Data Servicesaka SQL Server Data Services

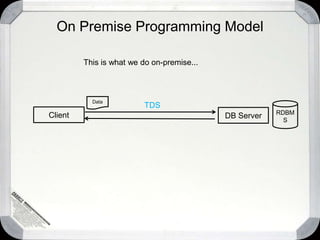

44. On Premise Programming ModelThis is what we do on-premise...DataTDSRDBMSClientSQLServer

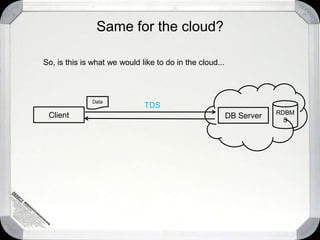

45. Same for the cloud? So, is this is what we would like to do in the cloud...DataTDSRDBMSClientSQL Server

46. SQL Azure can do thisDataTDSRDBMSClientSQL Azure

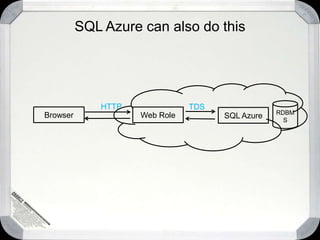

47. SQL Azure can also do thisHTTPTDSRDBMSBrowserWeb RoleSQL Azure

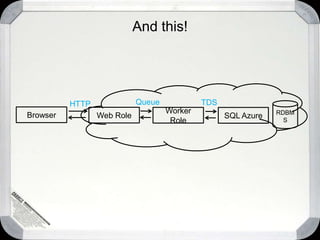

48. And this!QueueTDSHTTPRDBMSBrowserWeb RoleWorker RoleSQL Azure

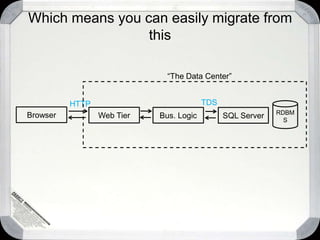

49. Which means you can easily migrate from this“The Data Center”TDSHTTPRDBMSBrowserWeb TierBus. LogicSQL Server

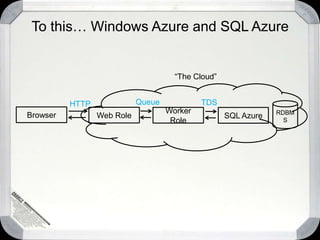

50. To this… Windows Azure and SQL Azure“The Cloud”QueueTDSHTTPRDBMSBrowserWeb RoleWorker RoleSQL Azure

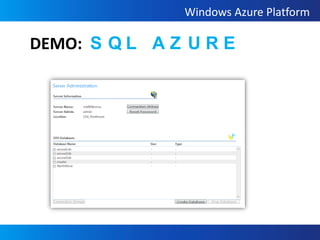

51. Demo: SQL Azure

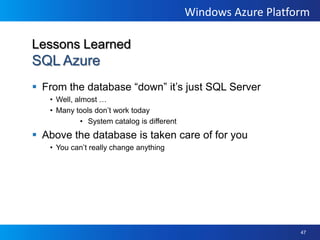

52. Lessons LearnedSQL AzureFrom the database “down” it’s just SQL ServerWell, almost …Many tools don’t work todaySystem catalog is differentAbove the database is taken care of for youYou can’t really change anything

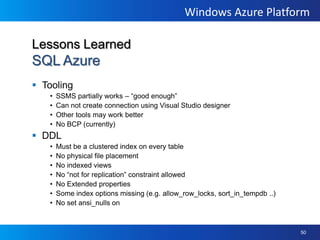

53. Lessons LearnedSQL AzureToolingSSMS partially works – “good enough”Can not create connection using Visual Studio designerOther tools may work betterNo BCP (currently)DDLMust be a clustered index on every tableNo physical file placementNo indexed viewsNo “not for replication” constraint allowedNo Extended propertiesSome index options missing (e.g. allow_row_locks, sort_in_tempdb ..)No set ansi_nulls on

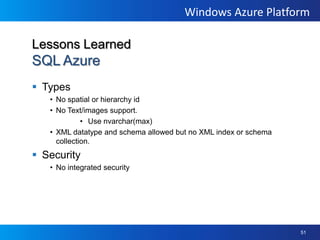

54. Lessons LearnedSQL AzureTypesNo spatial or hierarchy idNo Text/images support. Use nvarchar(max)XML datatype and schema allowed but no XML index or schema collection.SecurityNo integrated security

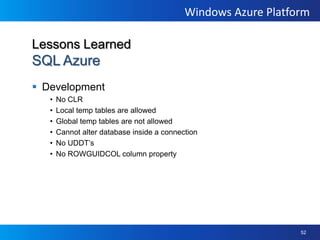

55. Lessons LearnedSQL AzureDevelopmentNo CLRLocal temp tables are allowed Global temp tables are not allowedCannot alter database inside a connectionNo UDDT’sNo ROWGUIDCOL column property

56. Lessons LearnedSQL Azure vs Windows Azure TablesSQL Server is very familiarSQL Azure *is* SQL Server in the cloudWindows Azure Storage is…very different Make the right choiceUnderstand Azure storageUnderstand SQL AzureUnderstand they are totally differentYou can use both

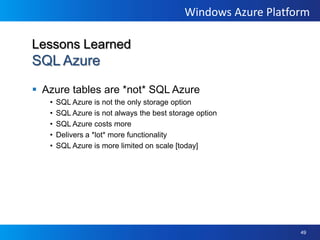

57. Lessons Learned SQL Azure vs Windows Azure TablesSQL Azure is not always the best storage optionSQL Azure costs moreDelivers a *lot* more functionalitySQL Azure is more limited on scale

58. Lessons Learned SQL Azure and ShardingCan be doneMany 10GB databasesNot fun 

59. Queues

60. Simple asynchronous dispatch queueCreate and delete queuesMessage:Retrieved at least onceMax size 8kbOperations:EnqueueDequeueRemoveMessageQueues

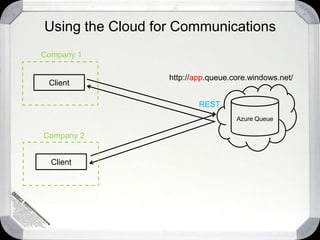

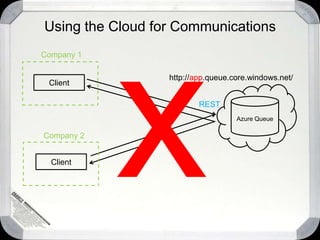

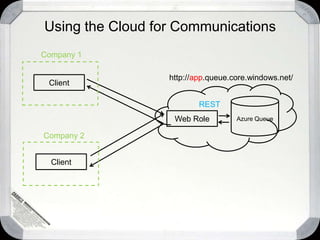

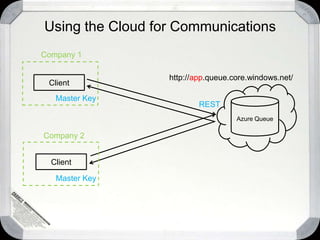

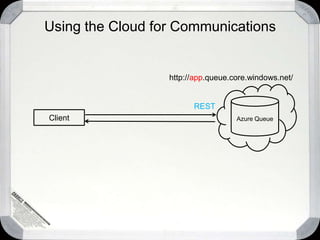

61. Using the Cloud for Communicationshttp://app.queue.core.windows.net/Azure QueueRESTClient
