Module 15 (hacking wireless networks)

Ethical Hacking and Countermeasures Exam 312-50 Certified Ethical Hacker
Hacking Wireless Networks
Module XV Page 1 of 31 Ethical Hacking and Countermeasures Copyright © by EC-Council
All rights reserved. Reproduction is strictly prohibited
Ethical Hacking
Module XV
Hacking Wireless
Networks
Ethical Hacking (EH)
Module XV: Hacking Wireless Networks
Exam 312-50 Ethical Hacking and Countermeasures

EC-Council

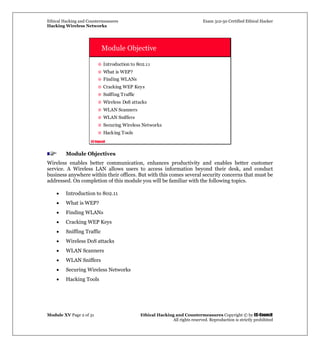

Module Objective
Introduction to 802.11
What is WEP?
Finding WLANs
Cracking WEP Keys
Sniffing Traffic
Wireless DoS attacks
WLAN Scanners
WLAN Sniffers
Securing Wireless Networks
Hacking Tools
Module Objectives
Wireless enables better communication, enhances productivity and enables better customer
service. A Wireless LAN allows users to access information beyond their desk, and conduct
business anywhere within their offices. But with this comes several security concerns that must be
addressed. On completion of this module you will be familiar with the following topics.
• Introduction to 802.11
• What is WEP?
• Finding WLANs
• Cracking WEP Keys
• Sniffing Traffic
• Wireless DoS attacks
• WLAN Scanners
• WLAN Sniffers
• Securing Wireless Networks
• Hacking Tools

EC-Council

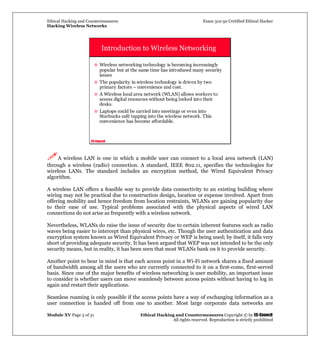

Introduction to Wireless Networking
Wireless networking technology is becoming increasingly
popular but at the same time has introduced many security
issues
The popularity in wireless technology is driven by two
primary factors – convenience and cost.
A Wireless local area network (WLAN) allows workers to
access digital resources without being locked into their
desks.
Laptops could be carried into meetings or even into
Starbucks café tapping into the wireless network. This
convenience has become affordable.
A wireless LAN is one in which a mobile user can connect to a local area network (LAN)
through a wireless (radio) connection. A standard, IEEE 802.11, specifies the technologies for
wireless LANs. The standard includes an encryption method, the Wired Equivalent Privacy
algorithm.
A wireless LAN offers a feasible way to provide data connectivity to an existing building where
wiring may not be practical due to construction design, location or expense involved. Apart from
offering mobility and hence freedom from location restraints, WLANs are gaining popularity due
to their ease of use. Typical problems associated with the physical aspects of wired LAN
connections do not arise as frequently with a wireless network.
Nevertheless, WLANs do raise the issue of security due to certain inherent features such as radio
waves being easier to intercept than physical wires, etc. Though the user authentication and data
encryption system known as Wired Equivalent Privacy or WEP is being used; by itself, it falls very
short of providing adequate security. It has been argued that WEP was not intended to be the only
security means, but in reality, it has been seen that most WLANs bank on it to provide security.
Another point to bear in mind is that each access point in a Wi-Fi network shares a fixed amount
of bandwidth among all the users who are currently connected to it on a first-come, first-served
basis. Since one of the major benefits of wireless networking is user mobility, an important issue
to consider is whether users can move seamlessly between access points without having to log in
again and restart their applications.
Seamless roaming is only possible if the access points have a way of exchanging information as a

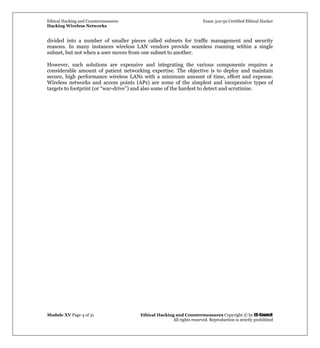

user connection is handed off from one to another. Most large corporate data networks are

divided into a number of smaller pieces called subnets for traffic management and security
reasons. In many instances wireless LAN vendors provide seamless roaming within a single
subnet, but not when a user moves from one subnet to another.
However, such solutions are expensive and integrating the various components requires a
considerable amount of patient networking expertise. The objective is to deploy and maintain
secure, high performance wireless LANs with a minimum amount of time, effort and expense.
Wireless networks and access points (APs) are some of the simplest and inexpensive types of
targets to footprint (or “war-drive”) and also some of the hardest to detect and scrutinize.

EC-Council

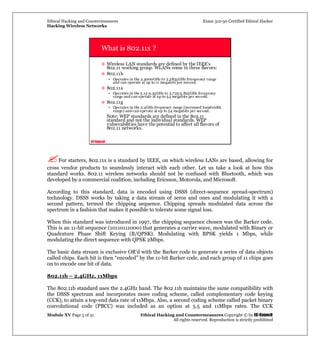

What is 802.11x ?
Wireless LAN standards are defined by the IEEE’s
802.11 working group. WLANs come in three flavors:
802.11b
• Operates in the 2.4000GHz to 2.2835GHz frtequency range
and can operate at up to 11 megabits per second.
802.11a
• Operates in the 5.15-5.35GHz to 5.725-5.825GHz frequency
range and can operate at up to 54 megabits per second.
802.11g
• Operates in the 2.4GHz frequency range (increased bandwidth
range) and can operate at up to 54 megabits per second.
Note: WEP standards are defined in the 802.11
standard and not the individual standards. WEP
vulnerabilities have the potential to affect all flavors of
802.11 networks.
For starters, 802.11x is a standard by IEEE, on which wireless LANs are based, allowing for
cross vendor products to seamlessly interact with each other. Let us take a look at how this
standard works. 802.11 wireless networks should not be confused with Bluetooth, which was
developed by a commercial coalition, including Ericsson, Motorola, and Microsoft.
According to this standard, data is encoded using DSSS (direct-sequence spread-spectrum)
technology. DSSS works by taking a data stream of zeros and ones and modulating it with a
second pattern, termed the chipping sequence. Chipping spreads modulated data across the
spectrum in a fashion that makes it possible to tolerate some signal loss.
When this standard was introduced in 1997, the chipping sequence chosen was the Barker code.
This is an 11-bit sequence (10110111000) that generates a carrier wave, modulated with Binary or
Quadrature Phase Shift Keying (B/QPSK). Modulating with BPSK yields 1 Mbps, while
modulating the direct sequence with QPSK 2Mbps.
The basic data stream is exclusive OR'd with the Barker code to generate a series of data objects
called chips. Each bit is then “encoded” by the 11-bit Barker code, and each group of 11 chips goes
on to encode one bit of data.

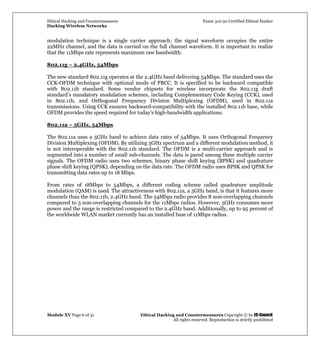

802.11b – 2.4GHz, 11Mbps
The 802.11b standard uses the 2.4GHz band. The 802.11b maintains the same compatibility with
the DSSS spectrum and incorporates more coding scheme, called complementary code keying
(CCK), to attain a top-end data rate of 11Mbps. Also, a second coding scheme called packet binary
convolutional code (PBCC) was included as an option at 5.5 and 11Mbps rates. The CCK

modulation technique is a single carrier approach; the signal waveform occupies the entire
22MHz channel, and the data is carried on the full channel waveform. It is important to realize
that the 11Mbps rate represents maximum raw bandwidth.
802.11g – 2.4GHz, 54Mbps
The new standard 802.11g operates at the 2.4GHz band delivering 54Mbps. The standard uses the
CCK-OFDM technique with optional mode of PBCC. It is specified to be backward compatible
with 802.11b standard. Some vendor chipsets for wireless incorporate the 802.11g draft
standard’s mandatory modulation schemes, including Complementary Code Keying (CCK), used
in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11a
transmissions. Using CCK ensures backward-compatibility with the installed 802.11b base, while
OFDM provides the speed required for today’s high-bandwidth applications.
802.11a – 5GHz, 54Mbps
The 802.11a uses a 5GHz band to achieve data rates of 54Mbps. It uses Orthogonal Frequency
Division Multiplexing (OFDM). By utilizing 5GHz spectrum and a different modulation method, it
is not interoperable with the 802.11b standard. The OFDM is a multi-carrier approach and is
segmented into a number of small sub-channels. The data is pared among these multiple carrier
signals. The OFDM radio uses two schemes, binary phase shift keying (BPSK) and quadrature
phase shift keying (QPSK), depending on the data rate. The OFDM radio uses BPSK and QPSK for
transmitting data rates up to 18 Mbps.
From rates of 18Mbps to 54Mbps, a different coding scheme called quadrature amplitude
modulation (QAM) is used. The attractiveness with 802.11a, a 5GHz band, is that it features more
channels than the 802.11b, 2.4GHz band. The 54Mbps radio provides 8 non-overlapping channels
compared to 3 non-overlapping channels for the 11Mbps radios. However, 5GHz consumes more
power and the range is restricted compared to the 2.4GHz band. Additionally, up to 95 percent of
the worldwide WLAN market currently has an installed base of 11Mbps radios.

EC-Council

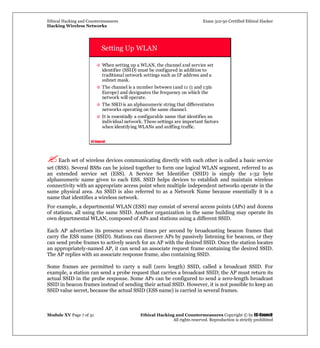

Setting Up WLAN
When setting up a WLAN, the channel and service set
identifier (SSID) must be configured in addition to
traditional network settings such as IP address and a
subnet mask.
The channel is a number between 1and 11 (1 and 13in
Europe) and designates the frequency on which the
network will operate.
The SSID is an alphanumeric string that differentiates
networks operating on the same channel.
It is essentially a configurable name that identifies an
individual network. These settings are important factors
when identifying WLANs and sniffing traffic.
Each set of wireless devices communicating directly with each other is called a basic service
set (BSS). Several BSSs can be joined together to form one logical WLAN segment, referred to as
an extended service set (ESS). A Service Set Identifier (SSID) is simply the 1-32 byte
alphanumeric name given to each ESS. SSID helps devices to establish and maintain wireless
connectivity with an appropriate access point when multiple independent networks operate in the
same physical area. An SSID is also referred to as a Network Name because essentially it is a
name that identifies a wireless network.
For example, a departmental WLAN (ESS) may consist of several access points (APs) and dozens
of stations, all using the same SSID. Another organization in the same building may operate its
own departmental WLAN, composed of APs and stations using a different SSID.
Each AP advertises its presence several times per second by broadcasting beacon frames that
carry the ESS name (SSID). Stations can discover APs by passively listening for beacons, or they
can send probe frames to actively search for an AP with the desired SSID. Once the station locates
an appropriately-named AP, it can send an associate request frame containing the desired SSID.
The AP replies with an associate response frame, also containing SSID.
Some frames are permitted to carry a null (zero length) SSID, called a broadcast SSID. For
example, a station can send a probe request that carries a broadcast SSID; the AP must return its
actual SSID in the probe response. Some APs can be configured to send a zero-length broadcast
SSID in beacon frames instead of sending their actual SSID. However, it is not possible to keep an
SSID value secret, because the actual SSID (ESS name) is carried in several frames.

EC-Council

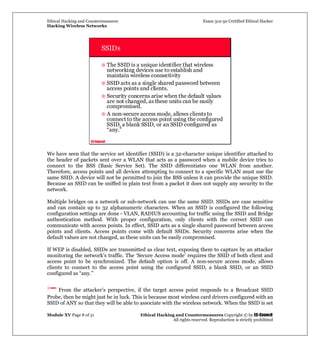

SSIDs
The SSID is a unique identifier that wireless
networking devices use to establish and
maintain wireless connectivity
SSID acts as a single shared password between
access points and clients.
Security concerns arise when the default values
are not changed, as these units can be easily
compromised.
A non-secure access mode, allows clients to
connect to the access point using the configured
SSID, a blank SSID, or an SSID configured as
“any.”
We have seen that the service set identifier (SSID) is a 32-character unique identifier attached to
the header of packets sent over a WLAN that acts as a password when a mobile device tries to
connect to the BSS (Basic Service Set). The SSID differentiates one WLAN from another.
Therefore, access points and all devices attempting to connect to a specific WLAN must use the
same SSID. A device will not be permitted to join the BSS unless it can provide the unique SSID.
Because an SSID can be sniffed in plain text from a packet it does not supply any security to the
network.
Multiple bridges on a network or sub-network can use the same SSID. SSIDs are case sensitive
and can contain up to 32 alphanumeric characters. When an SSID is configured the following
configuration settings are done - VLAN, RADIUS accounting for traffic using the SSID and Bridge
authentication method. With proper configuration, only clients with the correct SSID can
communicate with access points. In effect, SSID acts as a single shared password between access
points and clients. Access points come with default SSIDs. Security concerns arise when the
default values are not changed, as these units can be easily compromised.
If WEP is disabled, SSIDs are transmitted as clear text, exposing them to capture by an attacker
monitoring the network’s traffic. The ‘Secure Access mode’ requires the SSID of both client and
access point to be synchronized. The default option is off. A non-secure access mode, allows
clients to connect to the access point using the configured SSID, a blank SSID, or an SSID
configured as “any.”

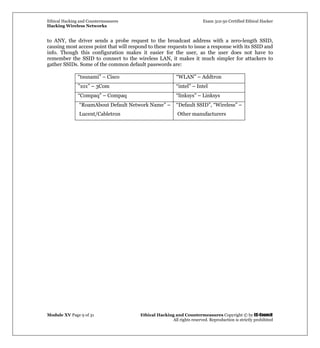

From the attacker’s perspective, if the target access point responds to a Broadcast SSID
Probe, then he might just be in luck. This is because most wireless card drivers configured with an
SSID of ANY so that they will be able to associate with the wireless network. When the SSID is set

to ANY, the driver sends a probe request to the broadcast address with a zero-length SSID,
causing most access point that will respond to these requests to issue a response with its SSID and
info. Though this configuration makes it easier for the user, as the user does not have to
remember the SSID to connect to the wireless LAN, it makes it much simpler for attackers to
gather SSIDs. Some of the common default passwords are:
“tsunami” – Cisco “WLAN” – Addtron
”101” – 3Com “intel” – Intel
“Compaq” – Compaq “linksys” – Linksys
“RoamAbout Default Network Name” –
Lucent/Cabletron
“Default SSID”, “Wireless” –
Other manufacturers

EC-Council

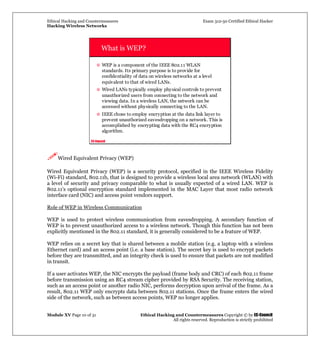

What is WEP?
WEP is a component of the IEEE 802.11 WLAN
standards. Its primary purpose is to provide for
confidentiality of data on wireless networks at a level
equivalent to that of wired LANs.
Wired LANs typically employ physical controls to prevent
unauthorized users from connecting to the network and
viewing data. In a wireless LAN, the network can be
accessed without physically connecting to the LAN.
IEEE chose to employ encryption at the data link layer to
prevent unauthorized eavesdropping on a network. This is
accomplished by encrypting data with the RC4 encryption
algorithm.
Wired Equivalent Privacy (WEP)
Wired Equivalent Privacy (WEP) is a security protocol, specified in the IEEE Wireless Fidelity
(Wi-Fi) standard, 802.11b, that is designed to provide a wireless local area network (WLAN) with
a level of security and privacy comparable to what is usually expected of a wired LAN. WEP is
802.11's optional encryption standard implemented in the MAC Layer that most radio network
interface card (NIC) and access point vendors support.
Role of WEP in Wireless Communication
WEP is used to protect wireless communication from eavesdropping. A secondary function of
WEP is to prevent unauthorized access to a wireless network. Though this function has not been
explicitly mentioned in the 802.11 standard, it is generally considered to be a feature of WEP.
WEP relies on a secret key that is shared between a mobile station (e.g. a laptop with a wireless
Ethernet card) and an access point (i.e. a base station). The secret key is used to encrypt packets
before they are transmitted, and an integrity check is used to ensure that packets are not modified
in transit.
If a user activates WEP, the NIC encrypts the payload (frame body and CRC) of each 802.11 frame
before transmission using an RC4 stream cipher provided by RSA Security. The receiving station,
such as an access point or another radio NIC, performs decryption upon arrival of the frame. As a
result, 802.11 WEP only encrypts data between 802.11 stations. Once the frame enters the wired
side of the network, such as between access points, WEP no longer applies.

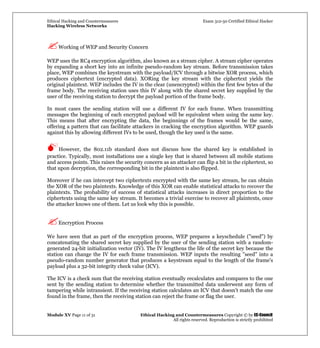

Working of WEP and Security Concern
WEP uses the RC4 encryption algorithm, also known as a stream cipher. A stream cipher operates
by expanding a short key into an infinite pseudo-random key stream. Before transmission takes
place, WEP combines the keystream with the payload/ICV through a bitwise XOR process, which
produces ciphertext (encrypted data). XORing the key stream with the ciphertext yields the
original plaintext. WEP includes the IV in the clear (unencrypted) within the first few bytes of the
frame body. The receiving station uses this IV along with the shared secret key supplied by the
user of the receiving station to decrypt the payload portion of the frame body.
In most cases the sending station will use a different IV for each frame. When transmitting
messages the beginning of each encrypted payload will be equivalent when using the same key.
This means that after encrypting the data, the beginnings of the frames would be the same,
offering a pattern that can facilitate attackers in cracking the encryption algorithm. WEP guards
against this by allowing different IVs to be used, though the key used is the same.
However, the 802.11b standard does not discuss how the shared key is established in
practice. Typically, most installations use a single key that is shared between all mobile stations
and access points. This raises the security concern as an attacker can flip a bit in the ciphertext, so
that upon decryption, the corresponding bit in the plaintext is also flipped.
Moreover if he can intercept two ciphertexts encrypted with the same key stream, he can obtain
the XOR of the two plaintexts. Knowledge of this XOR can enable statistical attacks to recover the
plaintexts. The probability of success of statistical attacks increases in direct proportion to the
ciphertexts using the same key stream. It becomes a trivial exercise to recover all plaintexts, once
the attacker knows one of them. Let us look why this is possible.
Encryption Process
We have seen that as part of the encryption process, WEP prepares a keyschedule ("seed") by
concatenating the shared secret key supplied by the user of the sending station with a random-
generated 24-bit initialization vector (IV). The IV lengthens the life of the secret key because the
station can change the IV for each frame transmission. WEP inputs the resulting "seed" into a
pseudo-random number generator that produces a keystream equal to the length of the frame's
payload plus a 32-bit integrity check value (ICV).
The ICV is a check sum that the receiving station eventually recalculates and compares to the one
sent by the sending station to determine whether the transmitted data underwent any form of
tampering while intransient. If the receiving station calculates an ICV that doesn't match the one
found in the frame, then the receiving station can reject the frame or flag the user.

WEP specifies a shared secret 40 or 64-bit key to encrypt and decrypt the data. Some vendors also
include 128 bit keys (know as "WEP2") in their products. With WEP, the receiving station must
use the same key for decryption. Each radio NIC and access point, therefore, must be manually
configured with the same key.
We will consider the 64-bit key generator here. In the figure below, the ASCII text “PassPhrase” is
mapped to 32-bit value with XOR. The XOR operation guarantees four zero bits. However, since
the input is ASCII, high bit of each character is always zero. The XOR of these high bits is also
zero. Therefore only seeds from 00:00:00:00 through 7f:7f:7f:7f can occur.
The resultant value is used as seed to 32-bit linear congruential PRNG (Pseudo Random Number
Generator). Forty values are generated from PRNG, of which one byte is taken from each 32-bit
result. Now, for each 32-bit output, only bits 16 through 23 are used. This flaw results in low bits
being “less random” than the higher bits. The 64-key generator is a linear congruential generator
modulo 2^32. Bit 0 has a cycle length of 2^1, Bit 3 has a cycle length of 2^4, etc. Therefore the
resultant bytes can have a cycle length of 2^24. This makes seeds 00:00:00:00 through 00:ff:ff:ff
only to result in unique keys. This implies that the 64-key generator has an entropy of 21-bits, as
the number of unique keys that can be generated is 2^21.
Security Issues
WEP is vulnerable because of relatively short IVs and keys that remain static. It is not the RC4
algorithm that is at fault, but the fact that the entropy of the key generator is only 21. With only 24
bits, WEP ultimately uses the same IV for different data packets.
This means that the chance for collision is high. For instance, in a large and busy network, this
can happen within an hour or so due to the reoccurrence of IVs. This result in the transmission of
frames having keystreams that is comparable. If an attacker manages to collect enough frames

based on the same IV (which is a minimum of two packets), he can determine the shared values
among them, i.e., the keystream or the shared secret key.
He can therefore decrypt any of the 802.11 frames. The static nature of the shared secret keys only
adds to this problem. 802.11 do not provide any functions that support the exchange of keys
among stations. As a result, system administrators and users generally use the same keys for
weeks, months, and even years.

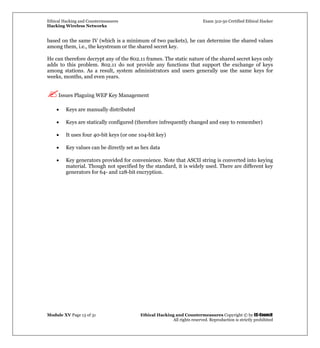

Issues Plaguing WEP Key Management
• Keys are manually distributed
• Keys are statically configured (therefore infrequently changed and easy to remember)
• It uses four 40-bit keys (or one 104-bit key)
• Key values can be directly set as hex data
• Key generators provided for convenience. Note that ASCII string is converted into keying
material. Though not specified by the standard, it is widely used. There are different key
generators for 64- and 128-bit encryption.

EC-Council
MAC Sniffing & AP Spoofing
MAC addresses are easily sniffed by an attacker since they
must appear in the clear even in when WEP is enabled.
An attacker can use those “advantages” in order to
masquerade as a valid MAC address by programming the
wireless card, and get into the wireless network and use
the wireless pipes.
Spoofing MAC address is very easy. Using packet-
capturing software, an attacker can determine a valid MAC
address using one packet.
To perform a spoofing attack, an attacker must set up an
access point (rogue) near the target wireless network or in
a place where a victim may believe that wireless Internet is
available.
Most vendors have implemented MAC-level access controls to add security to the nature of
802.11. This will provide added security if the admin defines a list of “approved” client MAC
addresses that will be allowed to connect to the access point. This is not always practical in large
networks. Besides, the MAC address does not provide a good security mechanism because it is
both easily observable and reproducible.
Even if WEP is enabled, MAC addresses can be easily sniffed by an attacker as they appear in
the clear format. Moreover, it is possible to change the MAC address on wireless cards using
suitable software. An attacker can use the same option to masquerade as a valid MAC address by
programming the wireless card, and accessing the wireless network using the wireless pipes.
Therefore, any MACs can be sniffed off the network with a wireless sniffer, and the attacker’s
MAC address can be changed easily in most cases.
Spoofing MAC address is very easy. Using packet-capturing software, an attacker can determine a
valid MAC address using one packet. If the wireless card firmware permits its users to change the
MAC address, then there is little to prevent the attacker from getting into the network.
If an attacker holds wireless equipment nearby, and he/she is near a wireless network, he
will be able to perform a spoofing attack. To perform a spoofing attack, an attacker must setup an
access point (rogue) near the target wireless network or in a place where a victim may believe that
wireless Internet is available. If the rogue's signal is stronger than the signal of the real access
point, then the victim's computer will connect to the attacker's access point. Once the victim has
established a connection, the attacker can steal his password, network access, compromise
his/her computer etc. This attack is used mainly for password acquisition.

EC-Council
Denial of Service attacks
Wireless LANs are susceptible to
the same protocol-based attacks
that plague wired LAN
WLANs send information via
radio waves on public frequencies,
thus they are susceptible to in
advertent or deliberate interference
from traffic using the same radio
band.
Wireless networks are extremely vulnerable to DoS attacks. It can slow the network to crawling
speeds or actually force it to quit working. In the "brute force" DoS attack method, a huge flood of
packets can use up all of the network's resources and force it to shut down, or a very strong radio
signal that totally dominates the airwaves can render access points and radio cards useless.
A hacker can initiate a packet-based brute force DoS attack by using other systems on the network
to send the useless packets to the server. This adds significant overhead on the network and takes
away useable bandwidth from legitimate users.
Sometimes a DoS occurrence on a wireless network may not even be intentional. 802.11b
resides in such a crowded spectrum; other 2.4GHz devices such as cordless phones, microwaves,
Bluetooth, and more may cause a significant reduction in 802.11b performance. To demonstrate
the vulnerability, place a laptop with an 802.11b NIC next to a microwave oven. As both devices
generally use the 2.4 GHz band, signal degradation on the 802.11b network is likely to occur any
time the microwave is in operation. An attacker could use the same principle to disable or degrade
an 802.11b network by broadcasting traffic on the same frequency as the network.
The Wi-Fi Protected Access (WPA) is vulnerable to a type of DoS attack. WPA uses mathematical
algorithms to authenticate users to the network. If a user is trying to get in and sends two packets
of unauthorized data within one second, WPA will assume it is under attack and shut down. While
this feature is designed to safeguard against security breaches, it allows the attacker to cause
damage by sending data frames periodically, causing constant shutdowns.

EC-Council
Hacking Tool: NetStumbler
http://www.netstumbler.org
Netstumbler is a high level WLAN scanner. It operates by
sending a steady stream of broadcast packets on all
possible channels.
Access Points (AP) respond to broadcast packets toverify
their existence, even if beacons have been disabled.
NetStumbler displays:
1. Signal Strength
2. MAC Address
3. SSID
4. Channel details
NetStumbler, written by Marius Milner, scans and logs the name, signal strength and other
technical details of any 802.11b wireless networks it finds. NetStumbler works by utilizing active
scanning techniques through the use of probe requests sent to a broadcast address with a
broadcast BSSID and an unspecified ESSID (length of 0).
NetStumbler is a Windows-based war-driving tool that will detect wireless networks and mark
their relative position with a GPS. NetStumbler uses an 802.11 Probe Request sent to the
broadcast destination address, causing all access points in the area to issue 802.11 Probe
Response containing network configuration information, such as their SSID and WEP status.
When hooked up to a GPS, NetStumbler will record a GPS coordinate for the highest signal
strength found for each access point. Using the network and GPS data, the user can create maps
with tools such as Microsoft MapPoint.
NetStumbler supports the Hermes chipset cards on Windows 2000, the most popular being the
Lucent (now Proxim) Orinoco branded cards. On Windows XP the NDIS 5.1 networking library
has 802.11 capabilities itself, which allows NetStumbler to be used with most cards that support
it. To use NetStumbler, the user inserts his wireless card and sets his SSID or network name to
ANY. As discussed before, this instructs the driver to use a zero-length SSID in its Probe
Requests, causing most access points to respond to Probe Requests along with their SSID or a
zero-length SSID.
The probe requests are difficult to be detected as that from NetStumbler activity as NetStumbler
utilizes the active scanning method described in the IEEE 802.11 specification without anomalous
characteristics. Once an AP is discovered, NetStumbler will probe the AP for its "nickname"
information, often the same information stored in the SNMP MIB system.sysName.0 parameter.

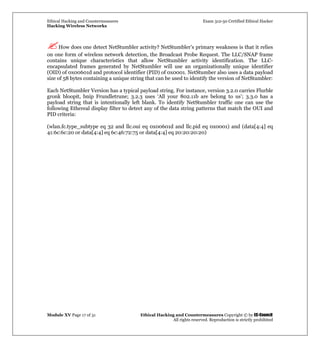

How does one detect NetStumbler activity? NetStumbler’s primary weakness is that it relies
on one form of wireless network detection, the Broadcast Probe Request. The LLC/SNAP frame
contains unique characteristics that allow NetStumbler activity identification. The LLC-
encapsulated frames generated by NetStumbler will use an organizationally unique identifier
(OID) of 0x00601d and protocol identifier (PID) of 0x0001. NetStumber also uses a data payload
size of 58 bytes containing a unique string that can be used to identify the version of NetStumbler:
Each NetStumbler Version has a typical payload string. For instance, version 3.2.0 carries Flurble
gronk bloopit, bnip Frundletrune; 3.2.3 uses ‘All your 802.11b are belong to us’; 3.3.0 has a
payload string that is intentionally left blank. To identify NetStumbler traffic one can use the
following Ethereal display filter to detect any of the data string patterns that match the OUI and
PID criteria:
(wlan.fc.type_subtype eq 32 and llc.oui eq 0x00601d and llc.pid eq 0x0001) and (data[4:4] eq
41:6c:6c:20 or data[4:4] eq 6c:46:72:75 or data[4:4] eq 20:20:20:20)

EC-Council

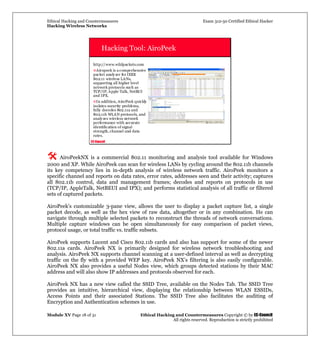

Hacking Tool: AiroPeek
http://www.wildpackets.com
Airopeek is a comprehensive
packet analyzer for IEEE
802.11 wireless LANs,
supporting all higher level
network protocols such as
TCP/IP, Apple Talk, NetBUI
and IPX.
In addition, AiroPeek quickly
isolates security problems,
fully decodes 802.11a and
802.11b WLAN protocols, and
analyzes wireless network
performance with accurate
identification of signal
strength, channel and data
rates.
AiroPeekNX is a commercial 802.11 monitoring and analysis tool available for Windows
2000 and XP. While AiroPeek can scan for wireless LANs by cycling around the 802.11b channels
its key competency lies in in-depth analysis of wireless network traffic. AiroPeek monitors a
specific channel and reports on data rates, error rates, addresses seen and their activity; captures
all 802.11b control, data and management frames; decodes and reports on protocols in use
(TCP/IP, AppleTalk, NetBEUI and IPX); and performs statistical analysis of all traffic or filtered
sets of captured packets.
AiroPeek’s customizable 3-pane view, allows the user to display a packet capture list, a single
packet decode, as well as the hex view of raw data, altogether or in any combination. He can
navigate through multiple selected packets to reconstruct the threads of network conversations.
Multiple capture windows can be open simultaneously for easy comparison of packet views,
protocol usage, or total traffic vs. traffic subsets.
AiroPeek supports Lucent and Cisco 802.11b cards and also has support for some of the newer
802.11a cards. AiroPeek NX is primarily designed for wireless network troubleshooting and
analysis. AiroPeek NX supports channel scanning at a user-defined interval as well as decrypting
traffic on the fly with a provided WEP key. AiroPeek NX’s filtering is also easily configurable.
AiroPeek NX also provides a useful Nodes view, which groups detected stations by their MAC
address and will also show IP addresses and protocols observed for each.
AiroPeek NX has a new view called the SSID Tree, available on the Nodes Tab. The SSID Tree
provides an intuitive, hierarchical view, displaying the relationship between WLAN ESSIDs,
Access Points and their associated Stations. The SSID Tree also facilitates the auditing of
Encryption and Authentication schemes in use.

AiroPeek can fully decode all 802.11 protocols, displaying management, control and data packets
as well as all higher-level network protocols such as TCP/IP, AppleTalk, NetBEUI and IPX.
AiroPeek tells you the status, length, and timestamp of a packet immediately, adding:
• The speed at which the packet was transmitted
• The channel number and radio frequency at which the packet was transmitted
• The signal strength of the transmission in which the packet was received.

EC-Council
Hacking Tool: Airsnort
http://airsnort.shmoo.com/
AirSnort is a wireless LAN (WLAN) tool which recovers
encryption keys. AirSnort operates by passively monitoring
transmissions, computing the encryption key when enough
packets have been gathered.
AirSnort requires approximately 5-10 million encrypted
packets to be gathered.
Once enough packets have been gathered, AirSnort can
guess the encryption password in under a second.
AirSnort tool is a collection of the scripts and programs derived from the research conducted
by Tim Newsham, the University of Maryland, and the University of California at Berkley.
AirSnort is a wireless LAN (WLAN) tool which recovers encryption keys. AirSnort operates by
passively monitoring transmissions, computing the encryption key when enough packets have
been gathered. AirSnort requires approximately 5-10 million encrypted packets to be gathered.
Once enough packets have been gathered, AirSnort can guess the encryption password in under a
second. Weak IV's are collected and sorted according to which key byte they help to expose. A
weak IV can assist in exposing only one key byte. When a sufficient number of weak IVs have been
gathered for a particular key byte, statistical analysis will show a tendency towards a particular
value for that key byte.
Each of the 256 possible values for a given key byte is scored as to their probability of being the
correct value. The crack process makes a key guess based on the highest ranking values in the
statistical analysis phase. The number of guesses that airsnort will make for each key byte is
governed by the 'breadth' parameter in the preferences section of airsnort. This is because weak
IVs are not distributed in a linear fashion across the entire IV space.
It has two modes. The monitor mode enables a wireless NIC to capture packets without
associating with an access point or ad-hoc network. This is desirable when the user does not want
to transmit any packets. In fact transmitting is sometimes not possible while in monitor mode
(driver dependent). Another aspect of monitor mode is that the NIC does not consider whether
the CRC values are correct for packets captured in monitor mode, as some packets may in fact be
corrupted. Promiscuous mode allows the user to view all wireless packets on a network to which
the user is associated. The need to associate means that the user must have some means of
authenticating himself with an access point. In promiscuous mode, packets are not seen until the
user has associated. Not all wireless drivers support promiscuous mode.

EC-Council

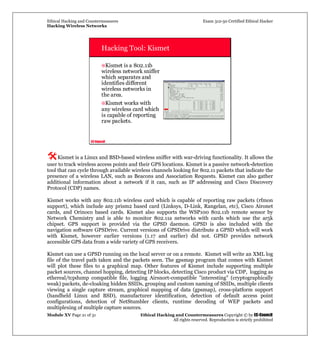

Hacking Tool: Kismet
Kismet is a 802.11b
wireless network sniffer
which separates and
identifies different
wireless networks in
the area.
Kismet works with
any wireless card which
is capable of reporting
raw packets.
Kismet is a Linux and BSD-based wireless sniffer with war-driving functionality. It allows the
user to track wireless access points and their GPS locations. Kismet is a passive network-detection
tool that can cycle through available wireless channels looking for 802.11 packets that indicate the
presence of a wireless LAN, such as Beacons and Association Requests. Kismet can also gather
additional information about a network if it can, such as IP addressing and Cisco Discovery
Protocol (CDP) names.
Kismet works with any 802.11b wireless card which is capable of reporting raw packets (rfmon
support), which include any prism2 based card (Linksys, D-Link, Rangelan, etc), Cisco Aironet
cards, and Orinoco based cards. Kismet also supports the WSP100 802.11b remote sensor by
Network Chemistry and is able to monitor 802.11a networks with cards which use the ar5k
chipset. GPS support is provided via the GPSD daemon. GPSD is also included with the
navigation software GPSDrive. Current versions of GPSDrive distribute a GPSD which will work
with Kismet, however earlier versions (1.17 and earlier) did not. GPSD provides network
accessible GPS data from a wide variety of GPS receivers.
Kismet can use a GPSD running on the local server or on a remote. Kismet will write an XML log
file of the travel path taken and the packets seen. The gpsmap program that comes with Kismet
will plot these files to a graphical map. Other features of Kismet include supporting multiple
packet sources, channel hopping, detecting IP blocks, detecting Cisco product via CDP, logging as
ethereal/tcpdump compatible file, logging Airsnort-compatible "interesting" (cryptographically
weak) packets, de-cloaking hidden SSIDs, grouping and custom naming of SSIDs, multiple clients
viewing a single capture stream, graphical mapping of data (gpsmap), cross-platform support
(handheld Linux and BSD), manufacturer identification, detection of default access point
configurations, detection of NetStumbler clients, runtime decoding of WEP packets and
multiplexing of multiple capture sources.

EC-Council

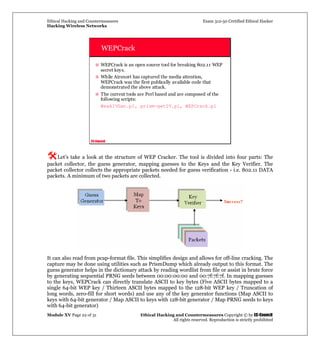

WEPCrack
WEPCrack is an open source tool for breaking 802.11 WEP
secret keys.
While Airsnort has captured the media attention,
WEPCrack was the first publically available code that
demonstrated the above attack.
The current tools are Perl based and are composed of the
following scripts:
WeakIVGen.pl, prism-getIV.pl, WEPCrack.pl
Let’s take a look at the structure of WEP Cracker. The tool is divided into four parts: The
packet collector, the guess generator, mapping guesses to the Keys and the Key Verifier. The
packet collector collects the appropriate packets needed for guess verification - i.e. 802.11 DATA
packets. A minimum of two packets are collected.
It can also read from pcap-format file. This simplifies design and allows for off-line cracking. The
capture may be done using utilities such as PrismDump which already output to this format. The
guess generator helps in the dictionary attack by reading wordlist from file or assist in brute force
by generating sequential PRNG seeds between 00:00:00:00 and 00:7f:7f:7f. In mapping guesses
to the keys, WEPCrack can directly translate ASCII to key bytes (Five ASCII bytes mapped to a
single 64-bit WEP key / Thirteen ASCII bytes mapped to the 128-bit WEP key / Truncation of
long words, zero-fill for short words) and use any of the key generator functions (Map ASCII to
keys with 64-bit generator / Map ASCII to keys with 128-bit generator / Map PRNG seeds to keys
with 64-bit generator)

EC-Council

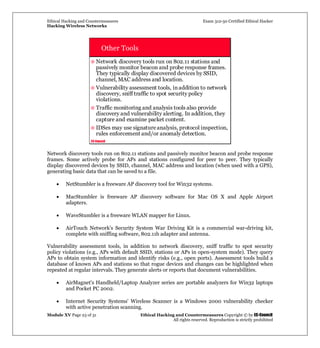

Other Tools
Network discovery tools run on 802.11 stations and
passively monitor beacon and probe response frames.
They typically display discovered devices by SSID,
channel, MAC address and location.
Vulnerability assessment tools, inaddition to network
discovery, sniff traffic to spot security policy
violations.
Traffic monitoring and analysis tools also provide
discovery and vulnerability alerting. In addition, they
capture and examine packet content.
IDSes may use signature analysis, protocol inspection,
rules enforcement and/or anomaly detection.
Network discovery tools run on 802.11 stations and passively monitor beacon and probe response
frames. Some actively probe for APs and stations configured for peer to peer. They typically
display discovered devices by SSID, channel, MAC address and location (when used with a GPS),
generating basic data that can be saved to a file.
• NetStumbler is a freeware AP discovery tool for Win32 systems.
• MacStumbler is freeware AP discovery software for Mac OS X and Apple Airport
adapters.
• WaveStumbler is a freeware WLAN mapper for Linux.
• AirTouch Network's Security System War Driving Kit is a commercial war-driving kit,
complete with sniffing software, 802.11b adapter and antenna.
Vulnerability assessment tools, in addition to network discovery, sniff traffic to spot security
policy violations (e.g., APs with default SSID, stations or APs in open-system mode). They query
APs to obtain system information and identify risks (e.g., open ports). Assessment tools build a
database of known APs and stations so that rogue devices and changes can be highlighted when
repeated at regular intervals. They generate alerts or reports that document vulnerabilities.
• AirMagnet's Handheld/Laptop Analyzer series are portable analyzers for Win32 laptops
and Pocket PC 2002.
• Internet Security Systems' Wireless Scanner is a Windows 2000 vulnerability checker
with active penetration scanning.

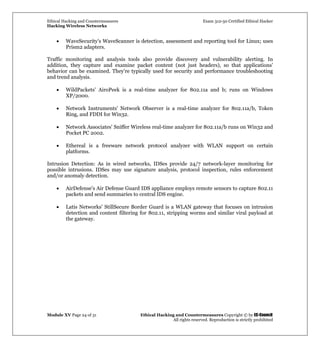

• WaveSecurity's WaveScanner is detection, assessment and reporting tool for Linux; uses
Prism2 adapters.
Traffic monitoring and analysis tools also provide discovery and vulnerability alerting. In
addition, they capture and examine packet content (not just headers), so that applications'
behavior can be examined. They're typically used for security and performance troubleshooting
and trend analysis.
• WildPackets' AiroPeek is a real-time analyzer for 802.11a and b; runs on Windows
XP/2000.
• Network Instruments' Network Observer is a real-time analyzer for 802.11a/b, Token
Ring, and FDDI for Win32.
• Network Associates' Sniffer Wireless real-time analyzer for 802.11a/b runs on Win32 and
Pocket PC 2002.
• Ethereal is a freeware network protocol analyzer with WLAN support on certain
platforms.
Intrusion Detection: As in wired networks, IDSes provide 24/7 network-layer monitoring for
possible intrusions. IDSes may use signature analysis, protocol inspection, rules enforcement
and/or anomaly detection.
• AirDefense's Air Defense Guard IDS appliance employs remote sensors to capture 802.11
packets and send summaries to central IDS engine.
• Latis Networks' StillSecure Border Guard is a WLAN gateway that focuses on intrusion
detection and content filtering for 802.11, stripping worms and similar viral payload at
the gateway.

EC-Council

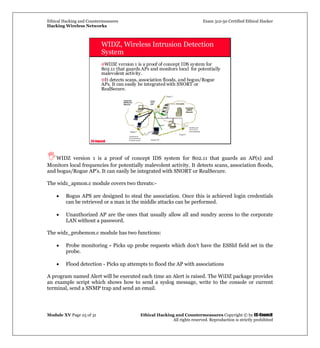

WIDZ, Wireless Intrusion Detection
System
WIDZ version 1 is a proof of concept IDS system for
802.11 that guards APs and monitors local for potentially
malevolent activity.
It detects scans, association floods, and bogus/Rogue
APs. It can easily be integrated with SNORT or
RealSecure.
WIDZ version 1 is a proof of concept IDS system for 802.11 that guards an AP(s) and
Monitors local frequencies for potentially malevolent activity. It detects scans, association floods,
and bogus/Rogue AP's. It can easily be integrated with SNORT or RealSecure.
The widz_apmon.c module covers two threats:-
• Bogus APS are designed to steal the association. Once this is achieved login credentials
can be retrieved or a man in the middle attacks can be performed.
• Unauthorized AP are the ones that usually allow all and sundry access to the corporate
LAN without a password.
The widz_probemon.c module has two functions:
• Probe monitoring - Picks up probe requests which don't have the ESSId field set in the
probe.
• Flood detection - Picks up attempts to flood the AP with associations
A program named Alert will be executed each time an Alert is raised. The WiDZ package provides
an example script which shows how to send a syslog message, write to the console or current
terminal, send a SNMP trap and send an email.

EC-Council

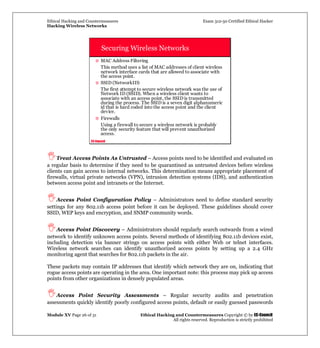

Securing Wireless Networks
MAC Address Filtering
This method uses a list of MAC addresses of client wireless
network interface cards that are allowed to associate with
the access point.
SSID (NetworkID)
The first attempt to secure wireless network was the use of
Network ID (SSID). When a wireless client wants to
associate with an access point, the SSID is transmitted
during the process. The SSID is a seven digit alphanumeric
id that is hard coded into the access point and the client
device.
Firewalls
Using a firewall to secure a wireless network is probably
the only security feature that will prevent unauthorized
access.
Treat Access Points As Untrusted – Access points need to be identified and evaluated on
a regular basis to determine if they need to be quarantined as untrusted devices before wireless
clients can gain access to internal networks. This determination means appropriate placement of
firewalls, virtual private networks (VPN), intrusion detection systems (IDS), and authentication
between access point and intranets or the Internet.
Access Point Configuration Policy – Administrators need to define standard security
settings for any 802.11b access point before it can be deployed. These guidelines should cover
SSID, WEP keys and encryption, and SNMP community words.
Access Point Discovery – Administrators should regularly search outwards from a wired
network to identify unknown access points. Several methods of identifying 802.11b devices exist,
including detection via banner strings on access points with either Web or telnet interfaces.
Wireless network searches can identify unauthorized access points by setting up a 2.4 GHz
monitoring agent that searches for 802.11b packets in the air.
These packets may contain IP addresses that identify which network they are on, indicating that
rogue access points are operating in the area. One important note: this process may pick up access
points from other organizations in densely populated areas.
Access Point Security Assessments – Regular security audits and penetration
assessments quickly identify poorly configured access points, default or easily guessed passwords

and community words, and the presence or absence of encryption. Router ACLs and firewall rules
also help minimize access to the SNMP agents and other interfaces on the access point.

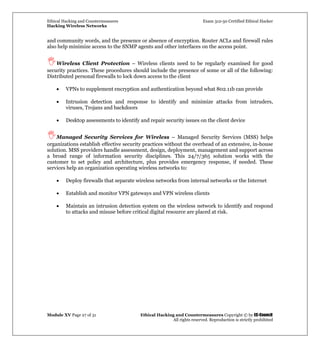

Wireless Client Protection – Wireless clients need to be regularly examined for good
security practices. These procedures should include the presence of some or all of the following:
Distributed personal firewalls to lock down access to the client
• VPNs to supplement encryption and authentication beyond what 802.11b can provide
• Intrusion detection and response to identify and minimize attacks from intruders,
viruses, Trojans and backdoors
• Desktop assessments to identify and repair security issues on the client device
Managed Security Services for Wireless – Managed Security Services (MSS) helps
organizations establish effective security practices without the overhead of an extensive, in-house
solution. MSS providers handle assessment, design, deployment, management and support across
a broad range of information security disciplines. This 24/7/365 solution works with the
customer to set policy and architecture, plus provides emergency response, if needed. These
services help an organization operating wireless networks to:
• Deploy firewalls that separate wireless networks from internal networks or the Internet
• Establish and monitor VPN gateways and VPN wireless clients
• Maintain an intrusion detection system on the wireless network to identify and respond
to attacks and misuse before critical digital resource are placed at risk.

EC-Council

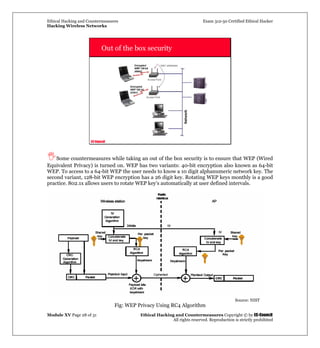

Out of the box security
Some countermeasures while taking an out of the box security is to ensure that WEP (Wired
Equivalent Privacy) is turned on. WEP has two variants: 40-bit encryption also known as 64-bit
WEP. To access to a 64-bit WEP the user needs to know a 10 digit alphanumeric network key. The
second variant, 128-bit WEP encryption has a 26 digit key. Rotating WEP keys monthly is a good
practice. 802.1x allows users to rotate WEP key's automatically at user defined intervals.
Fig: WEP Privacy Using RC4 Algorithm
Source: NIST

EC-Council
Radius: used as additional layer in the
security
Remote Authentication Dial-In User Service (RADIUS) is a widely deployed protocol
enabling centralized authentication, authorization, and accounting for network access. Originally
developed for dial-up remote access, RADIUS is now supported by virtual private network (VPN)
servers, wireless access points, authenticating Ethernet switches, Digital Subscriber Line (DSL)
access, and other network access types. The RADIUS protocol is a client/server security protocol
defined in the IETF's RFCs 2138 and 2139. RADIUS allows network managers to reduce the risk
of distributing security information across many devices by centralizing authentication and
permission attributes in a single server.
RADIUS is a standard technology that is used to protect access to wireless networks. RADIUS is a
user name and password scheme that enables only approved users to access the network; it does
not affect or encrypt data.
When a user wants access to the network, secure files or net locations, for the first time, he or she
must input his or her name and password and submit it over the network to the RADIUS server.
The server then verifies that the individual has an account and, if so, ensures that the person uses
the correct password before she or he can get on the network.
RADIUS can be set up to provide different access levels or classes of access. For example, one
level can provide blanket access to the Internet; another can provide access to the Internet as well
as to e-mail communications; yet another account class can provide access to the Net, email and
the secure business file server. Like other sophisticated security technologies already mentioned,
RADIUS comes in a variety of types and levels.

EC-Council

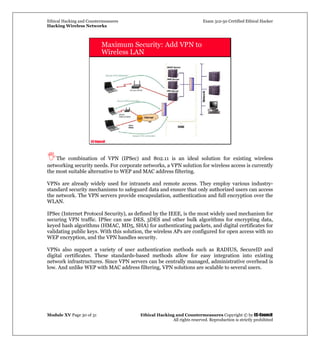

Maximum Security: Add VPN to
Wireless LAN
The combination of VPN (IPSec) and 802.11 is an ideal solution for existing wireless
networking security needs. For corporate networks, a VPN solution for wireless access is currently
the most suitable alternative to WEP and MAC address filtering.
VPNs are already widely used for intranets and remote access. They employ various industry-
standard security mechanisms to safeguard data and ensure that only authorized users can access
the network. The VPN servers provide encapsulation, authentication and full encryption over the
WLAN.
IPSec (Internet Protocol Security), as defined by the IEEE, is the most widely used mechanism for
securing VPN traffic. IPSec can use DES, 3DES and other bulk algorithms for encrypting data,
keyed hash algorithms (HMAC, MD5, SHA) for authenticating packets, and digital certificates for
validating public keys. With this solution, the wireless APs are configured for open access with no
WEP encryption, and the VPN handles security.
VPNs also support a variety of user authentication methods such as RADIUS, SecureID and
digital certificates. These standards-based methods allow for easy integration into existing
network infrastructures. Since VPN servers can be centrally managed, administrative overhead is
low. And unlike WEP with MAC address filtering, VPN solutions are scalable to several users.

EC-Council

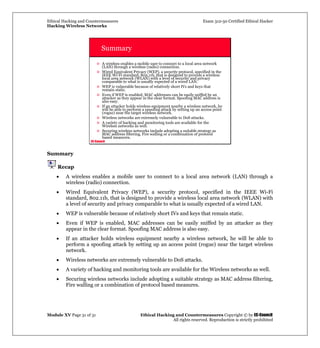

Summary
A wireless enables a mobile user to connect to a local area network
(LAN) through a wireless (radio) connection.
Wired Equivalent Privacy (WEP), a security protocol, specified in the
IEEE Wi-Fi standard, 802.11b, that is designed to provide a wireless
local area network (WLAN) with a level of security and privacy
comparable to what is usually expected of a wired LAN.
WEP is vulnerable because of relatively short IVs and keys that
remain static.
Even if WEP is enabled, MAC addresses can be easily sniffed by an
attacker as they appear in the clear format. Spoofing MAC address is
also easy.
If an attacker holds wireless equipment nearby a wireless network, he
will be able to perform a spoofing attack by setting up an access point
(rogue) near the target wireless network.
Wireless networks are extremely vulnerable to DoS attacks.
A variety of hacking and monitoring tools are available for the
Wireless networks as well.
Securing wireless networks include adopting a suitable strategy as
MAC address filtering, Fire walling or a combination of protocol
based measures.
Summary
Recap
• A wireless enables a mobile user to connect to a local area network (LAN) through a
wireless (radio) connection.
• Wired Equivalent Privacy (WEP), a security protocol, specified in the IEEE Wi-Fi
standard, 802.11b, that is designed to provide a wireless local area network (WLAN) with
a level of security and privacy comparable to what is usually expected of a wired LAN.
• WEP is vulnerable because of relatively short IVs and keys that remain static.
• Even if WEP is enabled, MAC addresses can be easily sniffed by an attacker as they
appear in the clear format. Spoofing MAC address is also easy.
• If an attacker holds wireless equipment nearby a wireless network, he will be able to
perform a spoofing attack by setting up an access point (rogue) near the target wireless
network.
• Wireless networks are extremely vulnerable to DoS attacks.
• A variety of hacking and monitoring tools are available for the Wireless networks as well.
• Securing wireless networks include adopting a suitable strategy as MAC address filtering,
Fire walling or a combination of protocol based measures.

Module 15 (hacking wireless networks)

More Related Content

What's hot

Similar to Module 15 (hacking wireless networks)

More from Wail Hassan

Recently uploaded

Module 15 (hacking wireless networks)
