Contention based MAC protocols

CONTENTION BASED MAC
PROTOCOLS
Darwin Nesakumar A, M.E, (P.hD)
Assistant Professor
Department of ECE
R.M.K. Engineering College

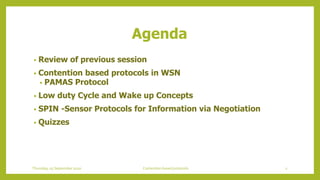

Agenda
• Review of previous session
• Contention based protocols in WSN

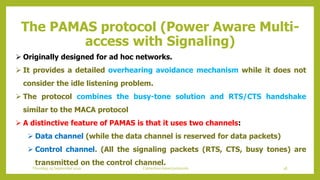

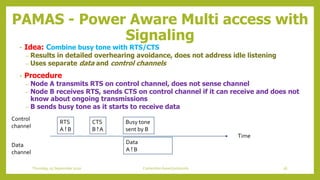

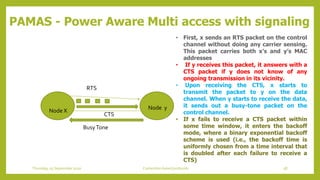

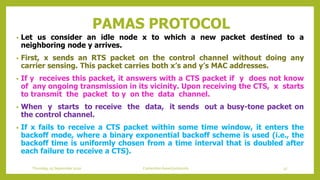

• PAMAS Protocol

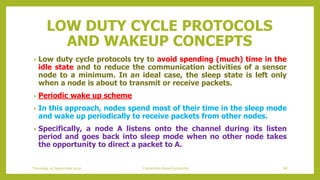

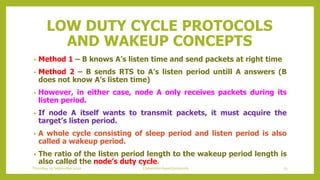

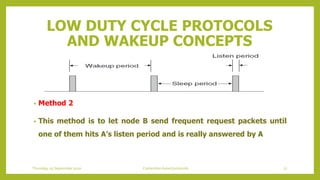

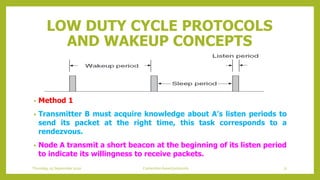

• Low duty Cycle and Wake up Concepts

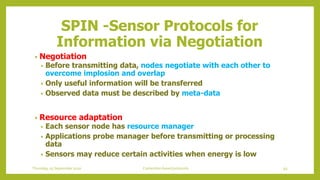

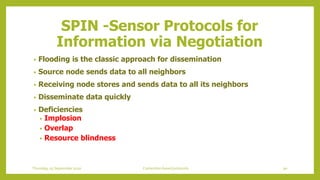

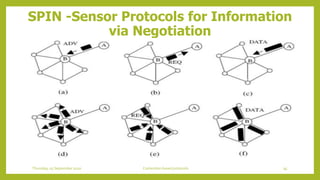

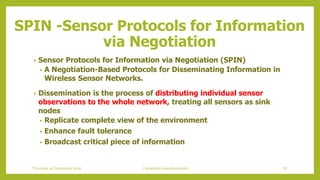

• SPIN -Sensor Protocols for Information via Negotiation
• Quizzes
2Contention based protocolsThursday, 03 September 2020

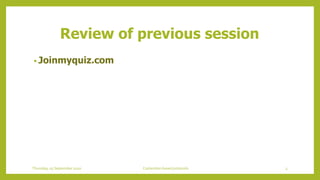

Review of previous session
• Joinmyquiz.com

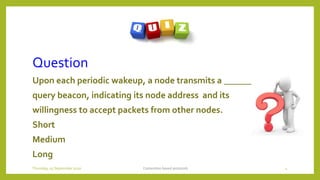

Question
Upon each periodic wakeup, a node transmits a _______
query beacon, indicating its node address and its
willingness to accept packets from other nodes.
Short
Medium
Long
Contention based protocols 4Thursday, 03 September 2020

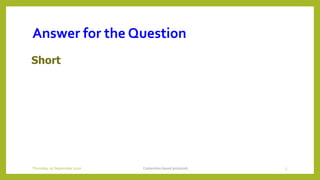

Answer for the Question
Short

Question

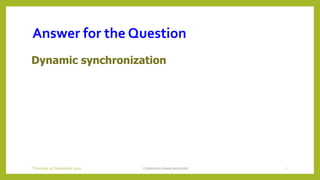

What is the purpose of Mediation device?

Dynamic synchronization

Question
Mediation device is power constrained.
TRUE
FALSE

FALSE

Question

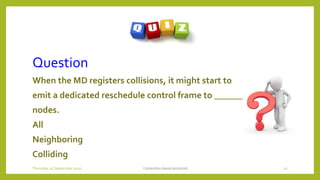

When the MD registers collisions, it might start to
emit a dedicated reschedule control frame to ________
nodes.
All
Neighboring
Colliding

Colliding

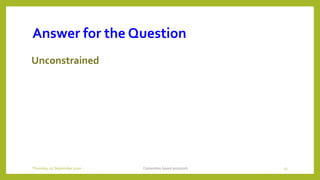

Question

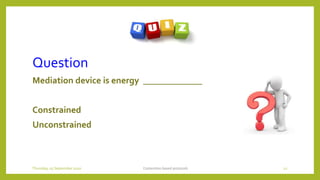

Mediation device is energy _____________
Constrained
Unconstrained

Unconstrained

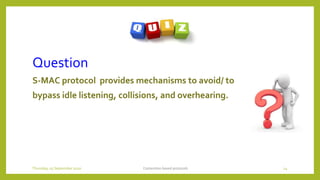

Question
S-MAC protocol provides mechanisms to avoid/ to
bypass idle listening, collisions, and overhearing.

True

Question

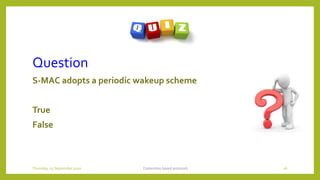

S-MAC adopts a periodic wakeup scheme
True
False

True

Question
S-MAC attempts to coordinate the schedules of neighboring
nodes
True
False

True

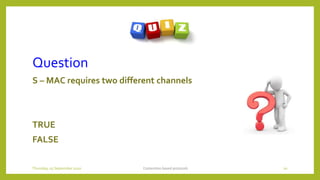

Question
S – MAC requires two different channels
TRUE
FALSE

FALSE

Question

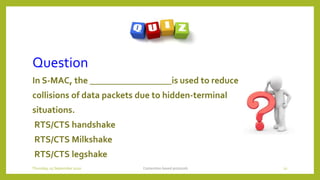

In S-MAC, the __________________is used to reduce
collisions of data packets due to hidden-terminal
situations.
RTS/CTS handshake
RTS/CTS Milkshake
RTS/CTS legshake

RTS/CTS handshake

Question

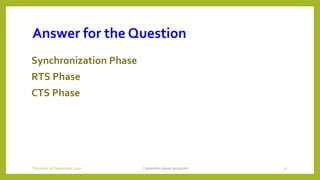

What are the three phases of listen period?

Synchronization Phase
RTS Phase
CTS Phase

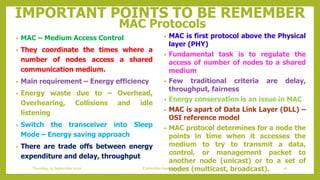

IMPORTANT POINTS TO BE REMEMBER
MAC Protocols
• MAC – Medium Access Control
• They coordinate the times where a
number of nodes access a shared
communication medium.
• Main requirement – Energy efficiency
• Energy waste due to – Overhead,
Overhearing, Collisions and idle
listening
• Switch the transceiver into Sleep
Mode – Energy saving approach
• There are trade offs between energy
expenditure and delay, throughput
• MAC is first protocol above the Physical
layer (PHY)
• Fundamental task is to regulate the
access of number of nodes to a shared
medium
• Few traditional criteria are delay,
throughput, fairness
• Energy conservation is an issue in MAC
• MAC is apart of Data Link Layer (DLL) –
OSI reference model
• MAC protocol determines for a node the
points in time when it accesses the
medium to try to transmit a data,
control, or management packet to
another node (unicast) or to a set of
nodes (multicast, broadcast). 26Contention based protocolsThursday, 03 September 2020

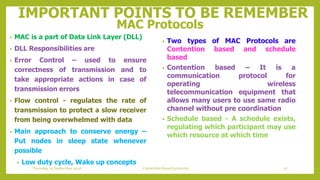

MAC Protocols
• MAC is a part of Data Link Layer (DLL)
• DLL Responsibilities are
• Error Control – used to ensure
correctness of transmission and to
take appropriate actions in case of
transmission errors
• Flow control - regulates the rate of
transmission to protect a slow receiver
from being overwhelmed with data
• Main approach to conserve energy –
Put nodes in sleep state whenever
possible
• Low duty cycle, Wake up concepts
• Two types of MAC Protocols are
Contention based and schedule
based
• Contention based – It is a
communication protocol for
operating wireless
telecommunication equipment that
allows many users to use same radio
channel without pre coordination
• Schedule based - A schedule exists,
regulating which participant may use
which resource at which time

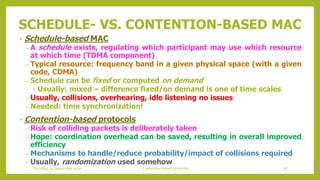

SCHEDULE- VS. CONTENTION-BASED MAC
• Schedule-based MAC
– A schedule exists, regulating which participant may use which resource
at which time (TDMA component)
– Typical resource: frequency band in a given physical space (with a given
code, CDMA)
– Schedule can be fixed or computed on demand
• Usually: mixed – difference fixed/on demand is one of time scales
– Usually, collisions, overhearing, idle listening no issues
– Needed: time synchronization!
• Contention-based protocols
– Risk of colliding packets is deliberately taken
– Hope: coordination overhead can be saved, resulting in overall improved
efficiency
– Mechanisms to handle/reduce probability/impact of collisions required
– Usually, randomization used somehow

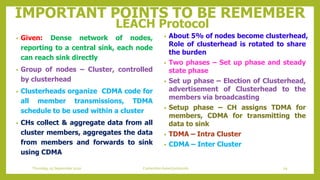

LEACH Protocol
• Given: Dense network of nodes,
reporting to a central sink, each node
can reach sink directly
• Group of nodes – Cluster, controlled
by clusterhead
• Clusterheads organize CDMA code for
all member transmissions, TDMA
schedule to be used within a cluster
• CHs collect & aggregate data from all
cluster members, aggregates the data
from members and forwards to sink
using CDMA
• About 5% of nodes become clusterhead,
Role of clusterhead is rotated to share
the burden
• Two phases – Set up phase and steady
state phase
• Set up phase – Election of Clusterhead,
advertisement of Clusterhead to the
members via broadcasting
• Setup phase – CH assigns TDMA for
members, CDMA for transmitting the
data to sink
• TDMA – Intra Cluster
• CDMA – Inter Cluster

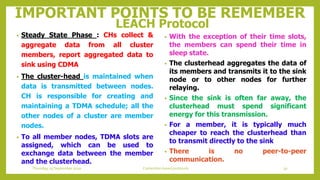

LEACH Protocol
• Steady State Phase : CHs collect &
aggregate data from all cluster
members, report aggregated data to
sink using CDMA
• The cluster-head is maintained when
data is transmitted between nodes.
CH is responsible for creating and
maintaining a TDMA schedule; all the
other nodes of a cluster are member
nodes.
• To all member nodes, TDMA slots are
assigned, which can be used to
exchange data between the member
and the clusterhead.
• With the exception of their time slots,
the members can spend their time in
sleep state.
• The clusterhead aggregates the data of
its members and transmits it to the sink
node or to other nodes for further
relaying.
• Since the sink is often far away, the
clusterhead must spend significant
energy for this transmission.
• For a member, it is typically much
cheaper to reach the clusterhead than
to transmit directly to the sink
• There is no peer-to-peer
communication.

LEACH Protocol
• Advantages
• Increases the lifetime of the network, Even drain of energy
• Distributed, no global knowledge required
• Energy saving due to aggregation by CHs
• TDMA- Nodes assigned with time slot for transmission and let them sleep at
all other times.
• Transmission schedules achieve no collisions occur at receivers and hence
no special mechanisms are needed to avoid hidden-terminal situations.

LEACH Protocol
• The setup and maintenance of
schedules involves signaling traffic.
• If a TDMA variant is employed, time is
divided into comparably small slots
• Such schedules are not easily adapted
to different load situations on small
timescales.
• The schedule of a node (and possibly
those of its neighbors) may require a
significant amount of memory, which
is a scarce resource in several sensor
node designs.
Disadvantages
• LEACH assumes all nodes can transmit
with enough power to reach BS if
necessary (e.g., elected as CHs)
• Each node should support both TDMA &
CDMA
• Need to do time synchronization
• Nodes use single-hop communication
• LEACH would not be able to cover large
geographical areas of some square miles
or more, because a clusterhead two miles
away from the sink likely does not have
enough energy to reach the sink at all.

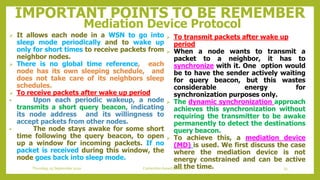

Mediation Device Protocol
 To transmit packets after wake up
period
 When a node wants to transmit a
packet to a neighbor, it has to
synchronize with it. One option would
be to have the sender actively waiting
for query beacon, but this wastes
considerable energy for
synchronization purposes only.
 The dynamic synchronization approach
achieves this synchronization without
requiring the transmitter to be awake
permanently to detect the destinations
query beacon.
 To achieve this, a mediation device
(MD) is used. We first discuss the case
where the mediation device is not
energy constrained and can be active
all the time.
 It allows each node in a WSN to go into
sleep mode periodically and to wake up
only for short times to receive packets from
neighbor nodes.
 There is no global time reference, each
node has its own sleeping schedule, and
does not take care of its neighbors sleep
schedules.
 To receive packets after wake up period
• Upon each periodic wakeup, a node
transmits a short query beacon, indicating
its node address and its willingness to
accept packets from other nodes.
• The node stays awake for some short
time following the query beacon, to open
up a window for incoming packets. If no
packet is received during this window, the
node goes back into sleep mode.

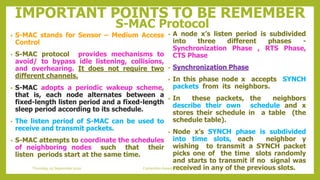

S-MAC Protocol
• A node x’s listen period is subdivided
into three different phases -
Synchronization Phase , RTS Phase,
CTS Phase
• Synchronization Phase
• In this phase node x accepts SYNCH
packets from its neighbors.
• In these packets, the neighbors
describe their own schedule and x
stores their schedule in a table (the
schedule table).
• Node x’s SYNCH phase is subdivided
into time slots, each neighbor y
wishing to transmit a SYNCH packet
picks one of the time slots randomly
and starts to transmit if no signal was
received in any of the previous slots.
• S-MAC stands for Sensor – Medium Access
Control
• S-MAC protocol provides mechanisms to
avoid/ to bypass idle listening, collisions,
and overhearing. It does not require two
different channels.
• S-MAC adopts a periodic wakeup scheme,
that is, each node alternates between a
fixed-length listen period and a fixed-length
sleep period according to its schedule.
• The listen period of S-MAC can be used to
receive and transmit packets.
• S-MAC attempts to coordinate the schedules
of neighboring nodes such that their
listen periods start at the same time.

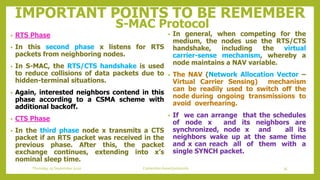

S-MAC Protocol
• In general, when competing for the
medium, the nodes use the RTS/CTS
handshake, including the virtual
carrier-sense mechanism, whereby a
node maintains a NAV variable.
• The NAV (Network Allocation Vector –
Virtual Carrier Sensing) mechanism
can be readily used to switch off the
node during ongoing transmissions to
avoid overhearing.
• If we can arrange that the schedules
of node x and its neighbors are
synchronized, node x and all its
neighbors wake up at the same time
and x can reach all of them with a
single SYNCH packet.
• RTS Phase
• In this second phase x listens for RTS
packets from neighboring nodes.
• In S-MAC, the RTS/CTS handshake is used
to reduce collisions of data packets due to
hidden-terminal situations.
• Again, interested neighbors contend in this
phase according to a CSMA scheme with
additional backoff.
• CTS Phase
• In the third phase node x transmits a CTS
packet if an RTS packet was received in the
previous phase. After this, the packet
exchange continues, extending into x’s
nominal sleep time.

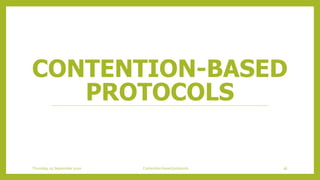

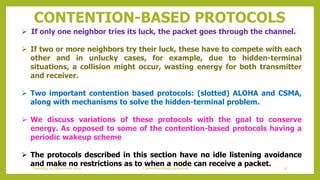

CONTENTION-BASED
PROTOCOLS
Thursday, 03 September 2020 Contention based protocols 36

CONTENTION-BASED PROTOCOLS
 If only one neighbor tries its luck, the packet goes through the channel.
 If two or more neighbors try their luck, these have to compete with each
other and in unlucky cases, for example, due to hidden-terminal
situations, a collision might occur, wasting energy for both transmitter
and receiver.
 Two important contention based protocols: (slotted) ALOHA and CSMA,
along with mechanisms to solve the hidden-terminal problem.
 We discuss variations of these protocols with the goal to conserve
energy. As opposed to some of the contention-based protocols having a
periodic wakeup scheme
 The protocols described in this section have no idle listening avoidance
and make no restrictions as to when a node can receive a packet. 37Contention based protocolsThursday, 03 September 2020

The PAMAS protocol (Power Aware Multi-
access with Signaling)
 Originally designed for ad hoc networks.
 It provides a detailed overhearing avoidance mechanism while it does not
consider the idle listening problem.
 The protocol combines the busy-tone solution and RTS/CTS handshake
similar to the MACA protocol
 A distinctive feature of PAMAS is that it uses two channels:
 Data channel (while the data channel is reserved for data packets)
 Control channel. (All the signaling packets (RTS, CTS, busy tones) are
transmitted on the control channel.

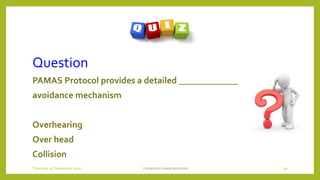

Question
PAMAS Protocol provides a detailed _____________
avoidance mechanism

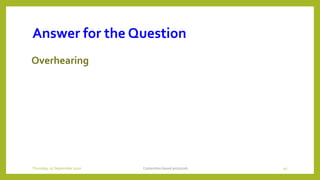

Overhearing
Over head
Collision

Overhearing

Question

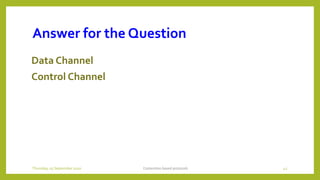

What are the two channels that PAMAS protocol uses?

Data Channel
Control Channel

Question
The protocol combines the _________solution and
RTS/CTS handshake similar to the MACA protocol
Ring -tone
Busy-tone

Busy-tone

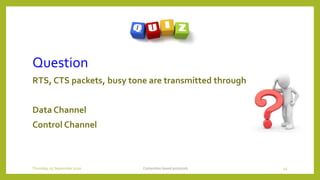

Question
RTS, CTS packets, busy tone are transmitted through
Data Channel
Control Channel

Control Channel

PAMAS PROTOCOL
• Let us consider an idle node x to which a new packet destined to a
neighboring node y arrives.
• First, x sends an RTS packet on the control channel without doing any
carrier sensing. This packet carries both x’s and y’s MAC addresses.
• If y receives this packet, it answers with a CTS packet if y does not know
of any ongoing transmission in its vicinity. Upon receiving the CTS, x starts
to transmit the packet to y on the data channel.
• When y starts to receive the data, it sends out a busy-tone packet on
the control channel.
• If x fails to receive a CTS packet within some time window, it enters the
backoff mode, where a binary exponential backoff scheme is used (i.e., the
backoff time is uniformly chosen from a time interval that is doubled after
each failure to receive a CTS).

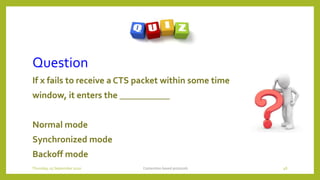

Question
If x fails to receive a CTS packet within some time
window, it enters the ___________
Normal mode
Synchronized mode
Backoff mode

Backoff mode

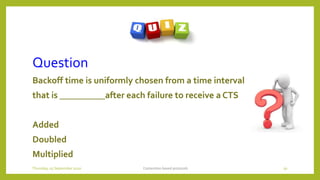

Question
Backoff time is uniformly chosen from a time interval
that is __________after each failure to receive a CTS
Added
Doubled
Multiplied

Doubled

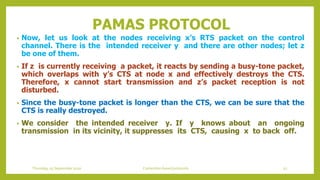

PAMAS PROTOCOL
• Now, let us look at the nodes receiving x’s RTS packet on the control
channel. There is the intended receiver y and there are other nodes; let z
be one of them.
• If z is currently receiving a packet, it reacts by sending a busy-tone packet,
which overlaps with y’s CTS at node x and effectively destroys the CTS.
Therefore, x cannot start transmission and z’s packet reception is not
disturbed.
• Since the busy-tone packet is longer than the CTS, we can be sure that the
CTS is really destroyed.
• We consider the intended receiver y. If y knows about an ongoing
transmission in its vicinity, it suppresses its CTS, causing x to back off.

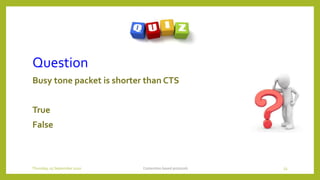

Question
Busy tone packet is shorter than CTS
True
False

False

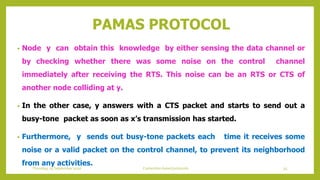

PAMAS PROTOCOL
• Node y can obtain this knowledge by either sensing the data channel or
by checking whether there was some noise on the control channel
immediately after receiving the RTS. This noise can be an RTS or CTS of
another node colliding at y.
• In the other case, y answers with a CTS packet and starts to send out a
busy-tone packet as soon as x’s transmission has started.
• Furthermore, y sends out busy-tone packets each time it receives some
noise or a valid packet on the control channel, to prevent its neighborhood
from any activities.

PAMAS - Power Aware Multi access with
Signaling
• Idea: Combine busy tone with RTS/CTS
– Results in detailed overhearing avoidance, does not address idle listening
– Uses separate data and control channels
• Procedure
– Node A transmits RTS on control channel, does not sense channel
– Node B receives RTS, sends CTS on control channel if it can receive and does not
know about ongoing transmissions
– B sends busy tone as it starts to receive data
Time
Control
channel
Data
channel
RTS
A ! B
CTS
B ! A
Data
A ! B
Busy tone
sent by B

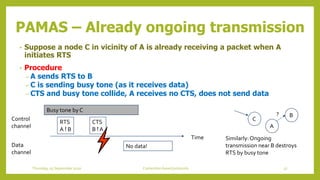

PAMAS – Already ongoing transmission
• Suppose a node C in vicinity of A is already receiving a packet when A
initiates RTS
• Procedure
– A sends RTS to B
– C is sending busy tone (as it receives data)
– CTS and busy tone collide, A receives no CTS, does not send data
A
B
C
?
Time
Control
channel
Data
channel
RTS
A ! B
CTS
B ! A
No data!
Busy tone by C
Similarly:Ongoing
transmission near B destroys
RTS by busy tone

PAMAS - Power Aware Multi access with signaling
Node X Node y
RTS
CTS
BusyTone
• First, x sends an RTS packet on the control
channel without doing any carrier sensing.
This packet carries both x’s and y’s MAC
addresses
• If y receives this packet, it answers with a
CTS packet if y does not know of any
ongoing transmission in its vicinity.
• Upon receiving the CTS, x starts to
transmit the packet to y on the data
channel. When y starts to receive the data,
it sends out a busy-tone packet on the
control channel.
• If x fails to receive a CTS packet within
some time window, it enters the backoff
mode, where a binary exponential backoff
scheme is used (i.e., the backoff time is
uniformly chosen from a time interval that
is doubled after each failure to receive a
CTS)

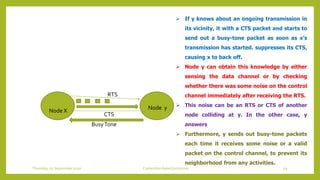

Node X Node y
RTS
CTS
BusyTone
 If y knows about an ongoing transmission in
its vicinity, it with a CTS packet and starts to
send out a busy-tone packet as soon as x’s
transmission has started. suppresses its CTS,
causing x to back off.
 Node y can obtain this knowledge by either
sensing the data channel or by checking
whether there was some noise on the control
channel immediately after receiving the RTS.
 This noise can be an RTS or CTS of another
node colliding at y. In the other case, y
answers
 Furthermore, y sends out busy-tone packets
each time it receives some noise or a valid
packet on the control channel, to prevent its
neighborhood from any activities.

Question

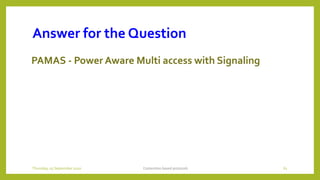

PAMAS refers to

PAMAS - Power Aware Multi access with Signaling

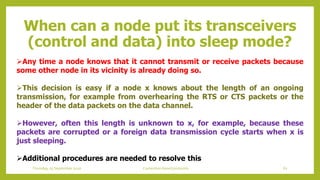

When can a node put its transceivers
(control and data) into sleep mode?
Any time a node knows that it cannot transmit or receive packets because
some other node in its vicinity is already doing so.
This decision is easy if a node x knows about the length of an ongoing
transmission, for example from overhearing the RTS or CTS packets or the
header of the data packets on the data channel.
However, often this length is unknown to x, for example, because these
packets are corrupted or a foreign data transmission cycle starts when x is
just sleeping.
Additional procedures are needed to resolve this

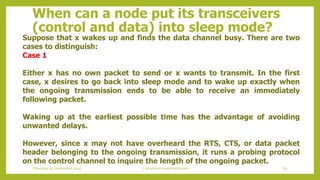

Suppose that x wakes up and finds the data channel busy. There are two
cases to distinguish:
Case 1
Either x has no own packet to send or x wants to transmit. In the first
case, x desires to go back into sleep mode and to wake up exactly when
the ongoing transmission ends to be able to receive an immediately
following packet.
Waking up at the earliest possible time has the advantage of avoiding
unwanted delays.
However, since x may not have overheard the RTS, CTS, or data packet
header belonging to the ongoing transmission, it runs a probing protocol
on the control channel to inquire the length of the ongoing packet.

Question
A node runs a _____________on the control channel to
inquire the length of the ongoing packet.
Probing protocol
Problem solving protocol

Probing protocol

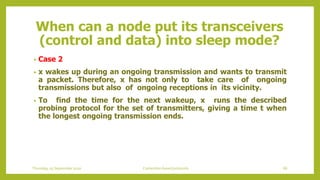

• Case 2
• x wakes up during an ongoing transmission and wants to transmit
a packet. Therefore, x has not only to take care of ongoing
transmissions but also of ongoing receptions in its vicinity.
• To find the time for the next wakeup, x runs the described
probing protocol for the set of transmitters, giving a time t when
the longest ongoing transmission ends.

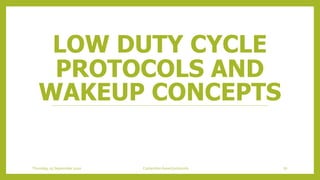

LOW DUTY CYCLE
PROTOCOLS AND
WAKEUP CONCEPTS

LOW DUTY CYCLE PROTOCOLS
AND WAKEUP CONCEPTS
• Low duty cycle protocols try to avoid spending (much) time in the
idle state and to reduce the communication activities of a sensor
node to a minimum. In an ideal case, the sleep state is left only
when a node is about to transmit or receive packets.
• Periodic wake up scheme
• In this approach, nodes spend most of their time in the sleep mode
and wake up periodically to receive packets from other nodes.
• Specifically, a node A listens onto the channel during its listen
period and goes back into sleep mode when no other node takes
the opportunity to direct a packet to A.

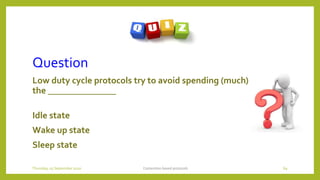

Question
Low duty cycle protocols try to avoid spending (much) time in
the _______________
Idle state
Wake up state
Sleep state

Idle state

AND WAKEUP CONCEPTS
• Method 1
• Transmitter B must acquire knowledge about A’s listen periods to
send its packet at the right time, this task corresponds to a
rendezvous.
• Node A transmit a short beacon at the beginning of its listen period
to indicate its willingness to receive packets.

AND WAKEUP CONCEPTS
• Method 2
• This method is to let node B send frequent request packets until
one of them hits A’s listen period and is really answered by A

AND WAKEUP CONCEPTS
• Method 1 – B knows A’s listen time and send packets at right time
• Method 2 – B sends RTS to A’s listen period untill A answers (B
does not know A’s listen time)
• However, in either case, node A only receives packets during its
listen period.
• If node A itself wants to transmit packets, it must acquire the
target’s listen period.
• A whole cycle consisting of sleep period and listen period is also
called a wakeup period.
• The ratio of the listen period length to the wakeup period length is
also called the node’s duty cycle.

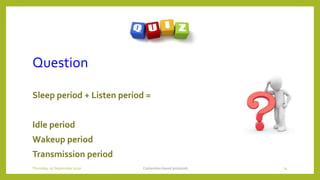

Question
Sleep period + Listen period =
Idle period
Wakeup period
Transmission period

Wakeup period

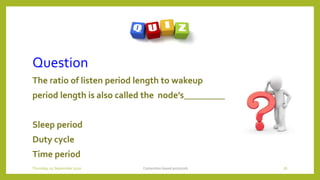

Question
The ratio of listen period length to wakeup
period length is also called the node’s_________
Sleep period
Duty cycle
Time period

Duty cycle

AND WAKEUP CONCEPTS

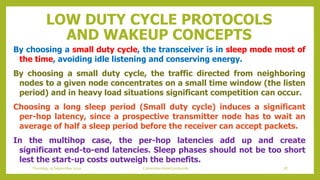

By choosing a small duty cycle, the transceiver is in sleep mode most of
the time, avoiding idle listening and conserving energy.
By choosing a small duty cycle, the traffic directed from neighboring
nodes to a given node concentrates on a small time window (the listen
period) and in heavy load situations significant competition can occur.
Choosing a long sleep period (Small duty cycle) induces a significant
per-hop latency, since a prospective transmitter node has to wait an
average of half a sleep period before the receiver can accept packets.
In the multihop case, the per-hop latencies add up and create
significant end-to-end latencies. Sleep phases should not be too short
lest the start-up costs outweigh the benefits.

Question

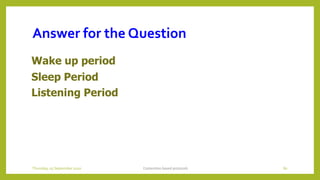

What are the three periods available in periodic
wakeup scheme?

Wake up period
Sleep Period
Listening Period

Question

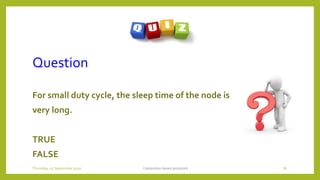

For small duty cycle, the sleep time of the node is
very long.
TRUE
FALSE

TRUE

Question
Sleep phase should be short or long ?

Short

Question
The ratio of the listen period length to the wakeup period length is
also called

Node’s duty cycle

• Sensor Protocols for Information via Negotiation (SPIN)
• A Negotiation-Based Protocols for Disseminating Information in
Wireless Sensor Networks.
• Dissemination is the process of distributing individual sensor
observations to the whole network, treating all sensors as sink
nodes
• Replicate complete view of the environment
• Enhance fault tolerance
• Broadcast critical piece of information
SPIN -Sensor Protocols for Information
via Negotiation

Question
The process of distributing individual sensor observations to the
whole network, treating all sensors as sink nodes is called
Determination
Distribution
Dissemination

Dissemination

• Flooding is the classic approach for dissemination
• Source node sends data to all neighbors
• Receiving node stores and sends data to all its neighbors
• Disseminate data quickly
• Deficiencies
• Implosion
• Overlap
• Resource blindness
SPIN -Sensor Protocols for
Information via Negotiation

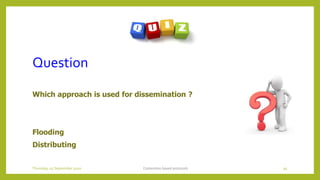

Question
Which approach is used for dissemination ?
Flooding
Distributing

Flooding

• Negotiation
• Before transmitting data, nodes negotiate with each other to
overcome implosion and overlap
• Only useful information will be transferred
• Observed data must be described by meta-data
• Resource adaptation
• Each sensor node has resource manager
• Applications probe manager before transmitting or processing
data
• Sensors may reduce certain activities when energy is low

• SPIN : A three-stage handshake protocol for point-to-point media
• ADV – data advertisement
• Node that has data to share can advertise this by transmitting
an ADV with meta-data attached
• REQ – request for data
• Node sends a request when it wishes to receive some actual
data
• DATA – data message
• Contain actual sensor data with a meta-data header
• Usually much bigger than ADV or REQ messages

SPIN -Sensor Protocols for Information
via Negotiation

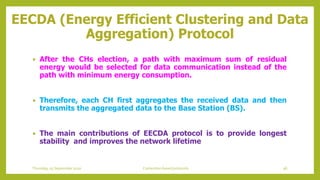

EECDA (Energy Efficient Clustering and Data
Aggregation) Protocol
 After the CHs election, a path with maximum sum of residual
energy would be selected for data communication instead of the
path with minimum energy consumption.
 Therefore, each CH first aggregates the received data and then
transmits the aggregated data to the Base Station (BS).
 The main contributions of EECDA protocol is to provide longest
stability and improves the network lifetime

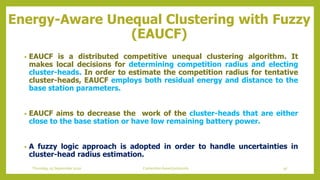

Energy-Aware Unequal Clustering with Fuzzy
(EAUCF)
• EAUCF is a distributed competitive unequal clustering algorithm. It
makes local decisions for determining competition radius and electing
cluster-heads. In order to estimate the competition radius for tentative
cluster-heads, EAUCF employs both residual energy and distance to the
base station parameters.
• EAUCF aims to decrease the work of the cluster-heads that are either
close to the base station or have low remaining battery power.
• A fuzzy logic approach is adopted in order to handle uncertainties in
cluster-head radius estimation.

Question

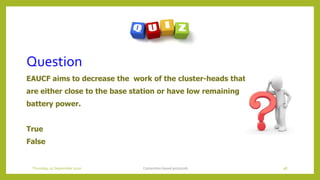

EAUCF aims to decrease the work of the cluster-heads that
are either close to the base station or have low remaining
battery power.
True
False

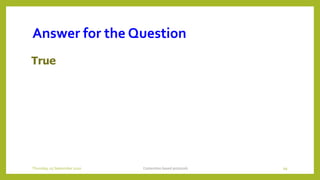

True

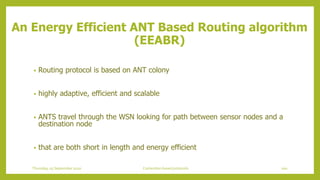

• Routing protocol is based on ANT colony
• highly adaptive, efficient and scalable
• ANTS travel through the WSN looking for path between sensor nodes and a
destination node
• that are both short in length and energy efficient
An Energy Efficient ANT Based Routing algorithm
(EEABR)

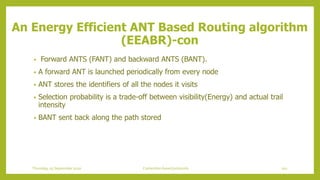

• Forward ANTS (FANT) and backward ANTS (BANT).
• A forward ANT is launched periodically from every node
• ANT stores the identifiers of all the nodes it visits
• Selection probability is a trade-off between visibility(Energy) and actual trail
intensity
• BANT sent back along the path stored
An Energy Efficient ANT Based Routing algorithm
(EEABR)-con

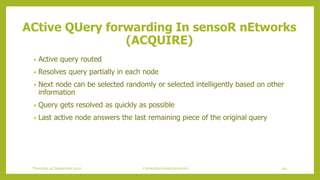

• Active query routed
• Resolves query partially in each node
• Next node can be selected randomly or selected intelligently based on other
information
• Query gets resolved as quickly as possible
• Last active node answers the last remaining piece of the original query
ACtive QUery forwarding In sensoR nEtworks
(ACQUIRE)

• Natural information gradient
• Gradient is known as fingerprint
f ( d ) = t / d2.
Regions
• Flat region
• Gradient region
RoUting on finGerprint Gradient in sEnsor
networks (RUGGED)

• there could be multiple gradient regions active
• A query may be initiated at any arbitrary node
• If the node is in a flat region,
• It uses flooding to forward the query
• It sets the query mode to flat region mode
• The query doesn’t switch to the gradient mode unless gradient information
is found
RoUting on finGerprint Gradient in
sEnsor networks (RUGGED)-con

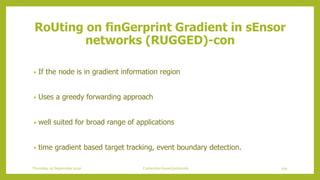

• If the node is in gradient information region
• Uses a greedy forwarding approach
• well suited for broad range of applications
• time gradient based target tracking, event boundary detection.
RoUting on finGerprint Gradient in sEnsor
networks (RUGGED)-con

Three categories
• Data-centric
• Hierarchical
• Location based routing
Classification of WSN
routing protocols

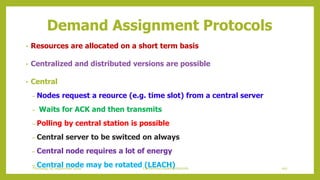

Demand Assignment Protocols
• Resources are allocated on a short term basis
• Centralized and distributed versions are possible
• Central
– Nodes request a reource (e.g. time slot) from a central server
– Waits for ACK and then transmits
– Polling by central station is possible
– Central server to be switced on always
– Central node requires a lot of energy
– Central node may be rotated (LEACH) 107Contention based protocolsThursday, 03 September 2020

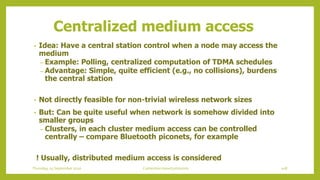

Centralized medium access
• Idea: Have a central station control when a node may access the
medium
– Example: Polling, centralized computation of TDMA schedules
– Advantage: Simple, quite efficient (e.g., no collisions), burdens
the central station
• Not directly feasible for non-trivial wireless network sizes
• But: Can be quite useful when network is somehow divided into
smaller groups
– Clusters, in each cluster medium access can be controlled
centrally – compare Bluetooth piconets, for example
! Usually, distributed medium access is considered

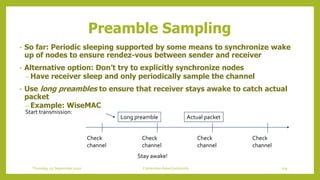

Preamble Sampling
• So far: Periodic sleeping supported by some means to synchronize wake
up of nodes to ensure rendez-vous between sender and receiver
• Alternative option: Don’t try to explicitly synchronize nodes
– Have receiver sleep and only periodically sample the channel
• Use long preambles to ensure that receiver stays awake to catch actual
packet
– Example: WiseMAC
Check
channel
Check
channel
Check
channel
Check
channel
Start transmission:
Long preamble Actual packet
Stay awake!

THANK YOU

Contention based MAC protocols

More Related Content

What's hot

Similar to Contention based MAC protocols

More from Darwin Nesakumar

Recently uploaded

Contention based MAC protocols

Editor's Notes
