Migrate your EOL MySQL servers to HA Complaint GR Cluster / InnoDB Cluster With Zero Downtime

This document outlines the end-of-life (EOL) announcements for MySQL versions 5.5 and 5.6, detailing automatic upgrades to version 5.7 and ultimately recommending version 8.0 due to its enhanced features and stability. It includes migration strategies such as zero downtime migrations, the importance of GTID for group replication, and considerations for application migration leveraging various proxy setups. The document serves as a comprehensive guide for clients to ensure a smooth transition to supported MySQL versions.

Engineering◦
Downloaded 13 times
Migrate Your EOL MySQL Servers February 13th, 2021 Mydbops MyWebinar - 2 Vinoth Kanna R S Co-Founder, Mydbops
o Interested in Open Source technologies o MySQL, MongoDB Certified Professional o Active MySQL Community Contributor o Tech Speaker/Blogger o Past, Technical Services Engineer, Percona o Co-Founded, Mydbops IT Solutions, 2016 Vinoth Kanna RS About Me
Mydbops Services Consulting Services Managed Services Focuses on MySQL, MongoDB, PostgreSQL Targeted Engagement 24 x 7 DBA Team
400 + Clients In 4 Yrs. of Operations Our Clients

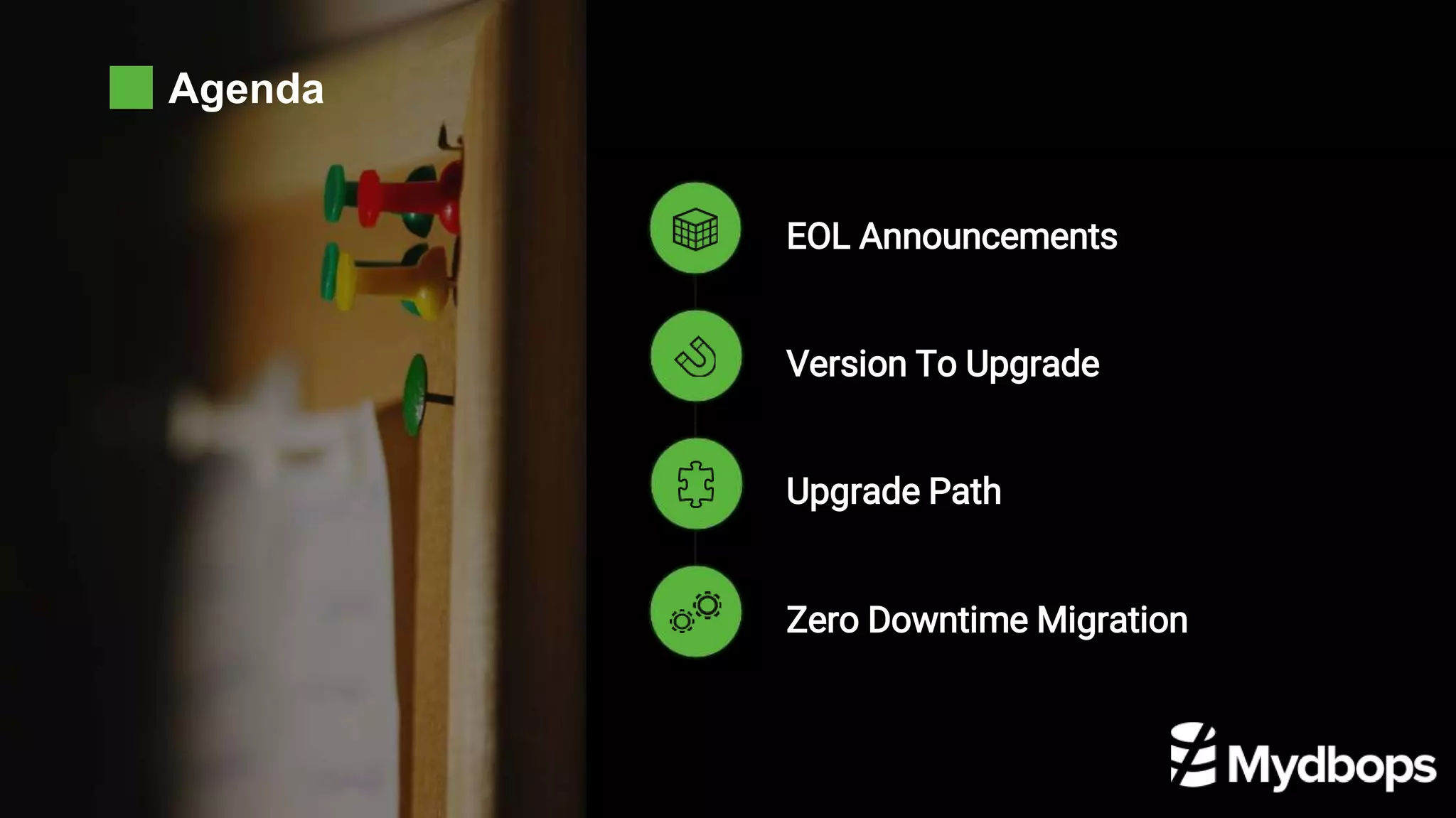

Agenda EOL Announcements Version To Upgrade Zero Downtime Migration Upgrade Path
EOL Announcements | MySQL

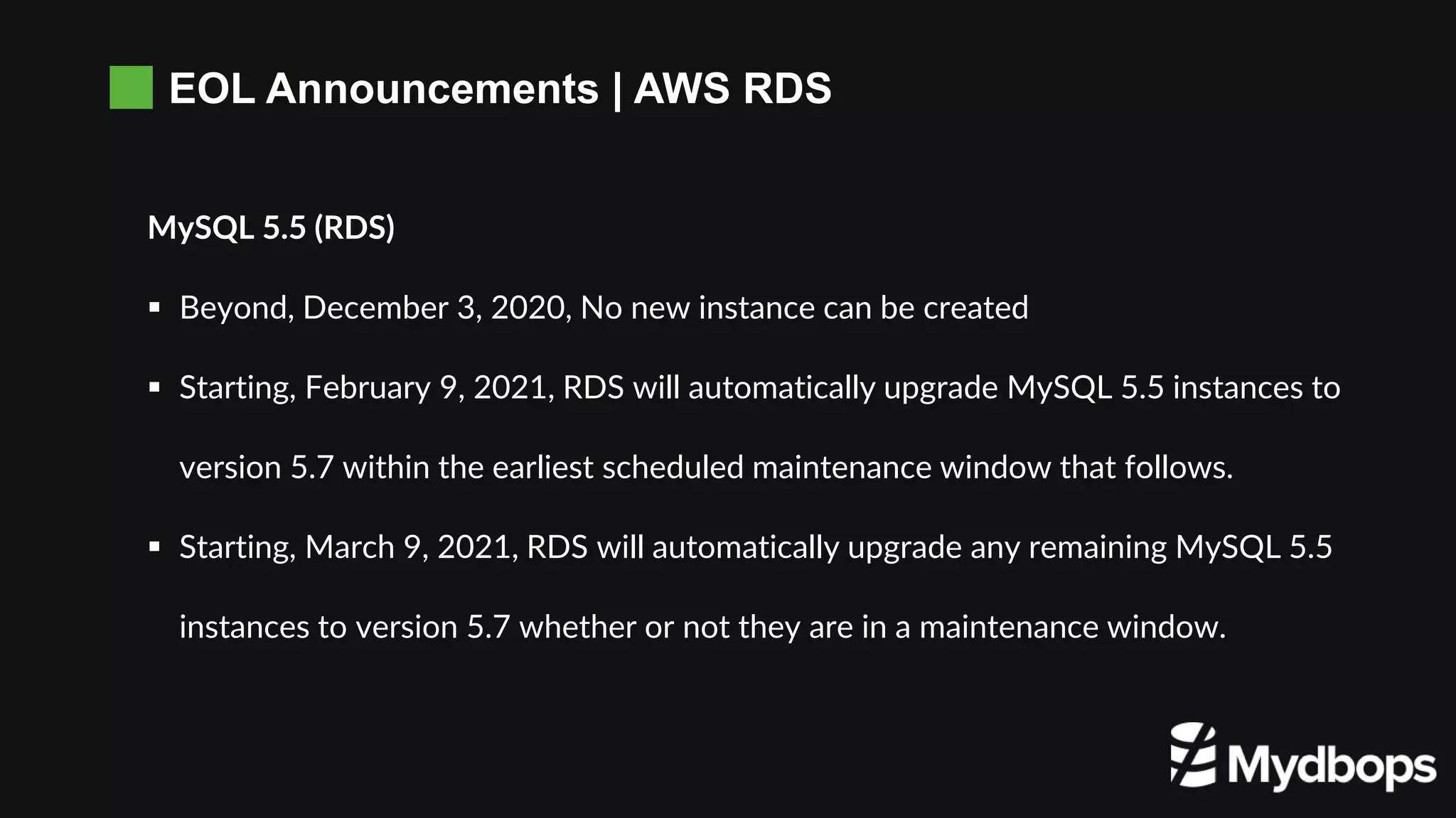

EOL Announcements | AWS RDS MySQL 5.5 (RDS)  Beyond, December 3, 2020, No new instance can be created  Starting, February 9, 2021, RDS will automatically upgrade MySQL 5.5 instances to version 5.7 within the earliest scheduled maintenance window that follows.  Starting, March 9, 2021, RDS will automatically upgrade any remaining MySQL 5.5 instances to version 5.7 whether or not they are in a maintenance window.

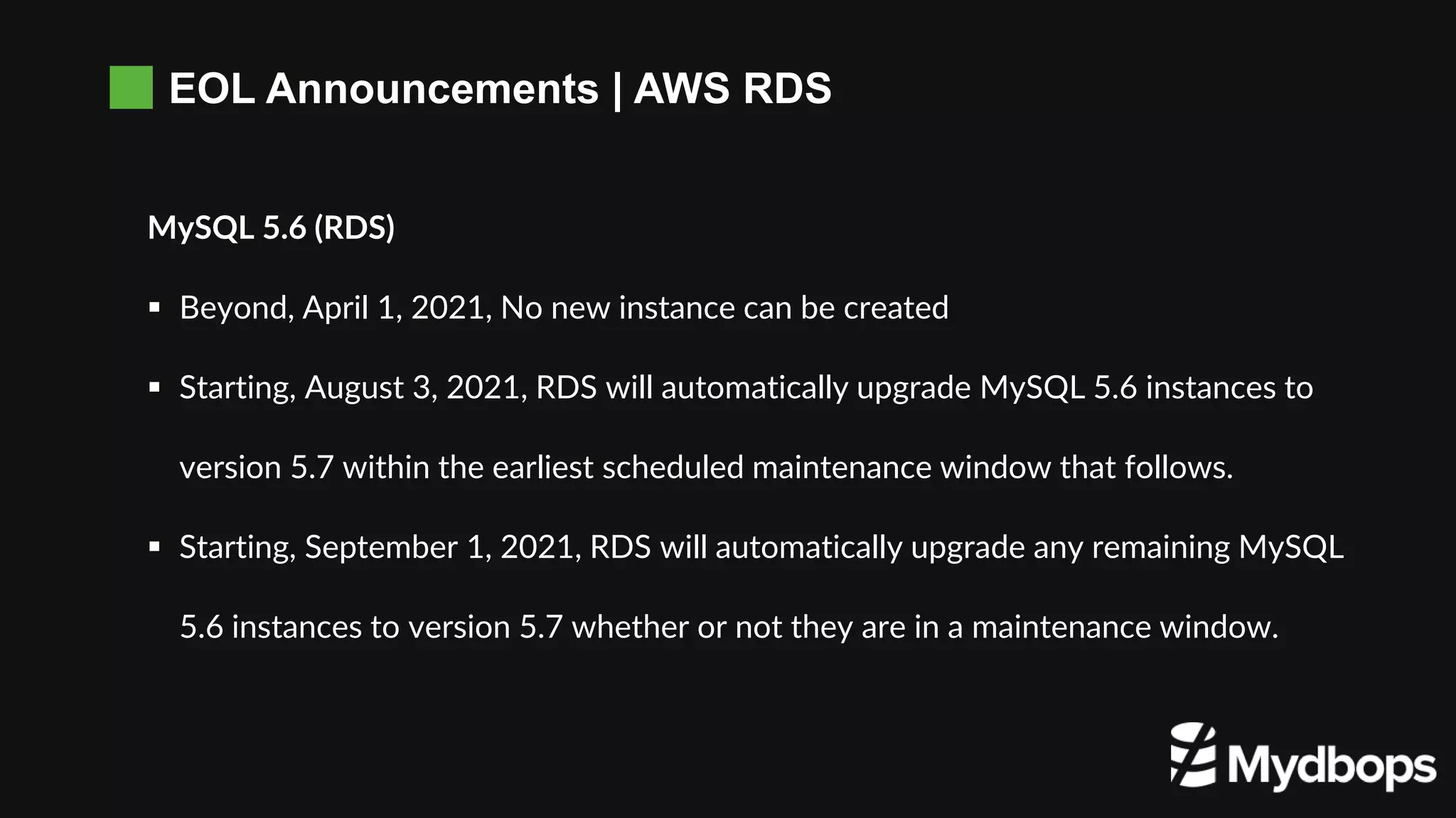

EOL Announcements | AWS RDS MySQL 5.6 (RDS)  Beyond, April 1, 2021, No new instance can be created  Starting, August 3, 2021, RDS will automatically upgrade MySQL 5.6 instances to version 5.7 within the earliest scheduled maintenance window that follows.  Starting, September 1, 2021, RDS will automatically upgrade any remaining MySQL 5.6 instances to version 5.7 whether or not they are in a maintenance window.

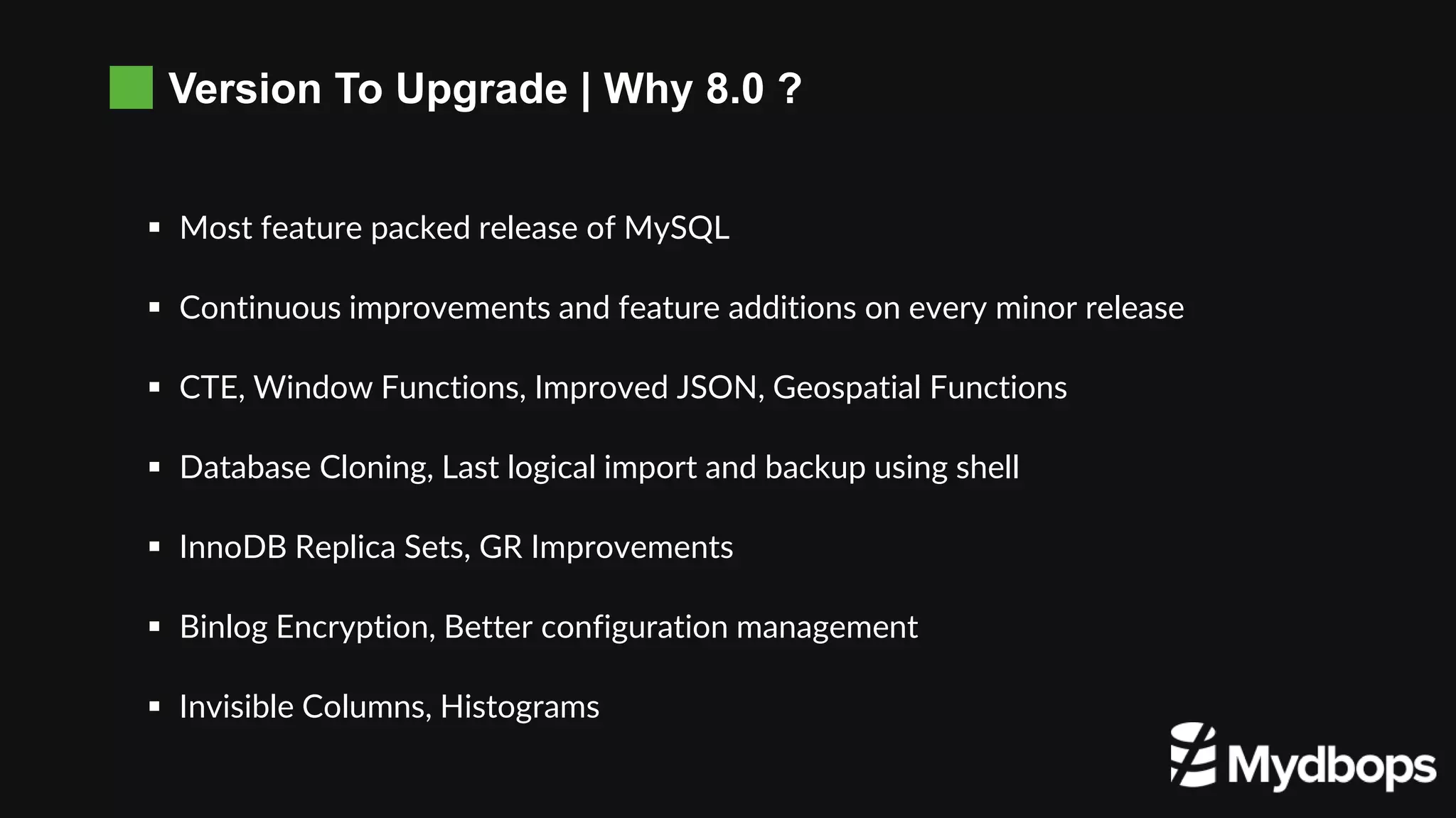

Version To Upgrade | Why 8.0 ?  Most feature packed release of MySQL  Continuous improvements and feature additions on every minor release  CTE, Window Functions, Improved JSON, Geospatial Functions  Database Cloning, Last logical import and backup using shell  InnoDB Replica Sets, GR Improvements  Binlog Encryption, Better configuration management  Invisible Columns, Histograms

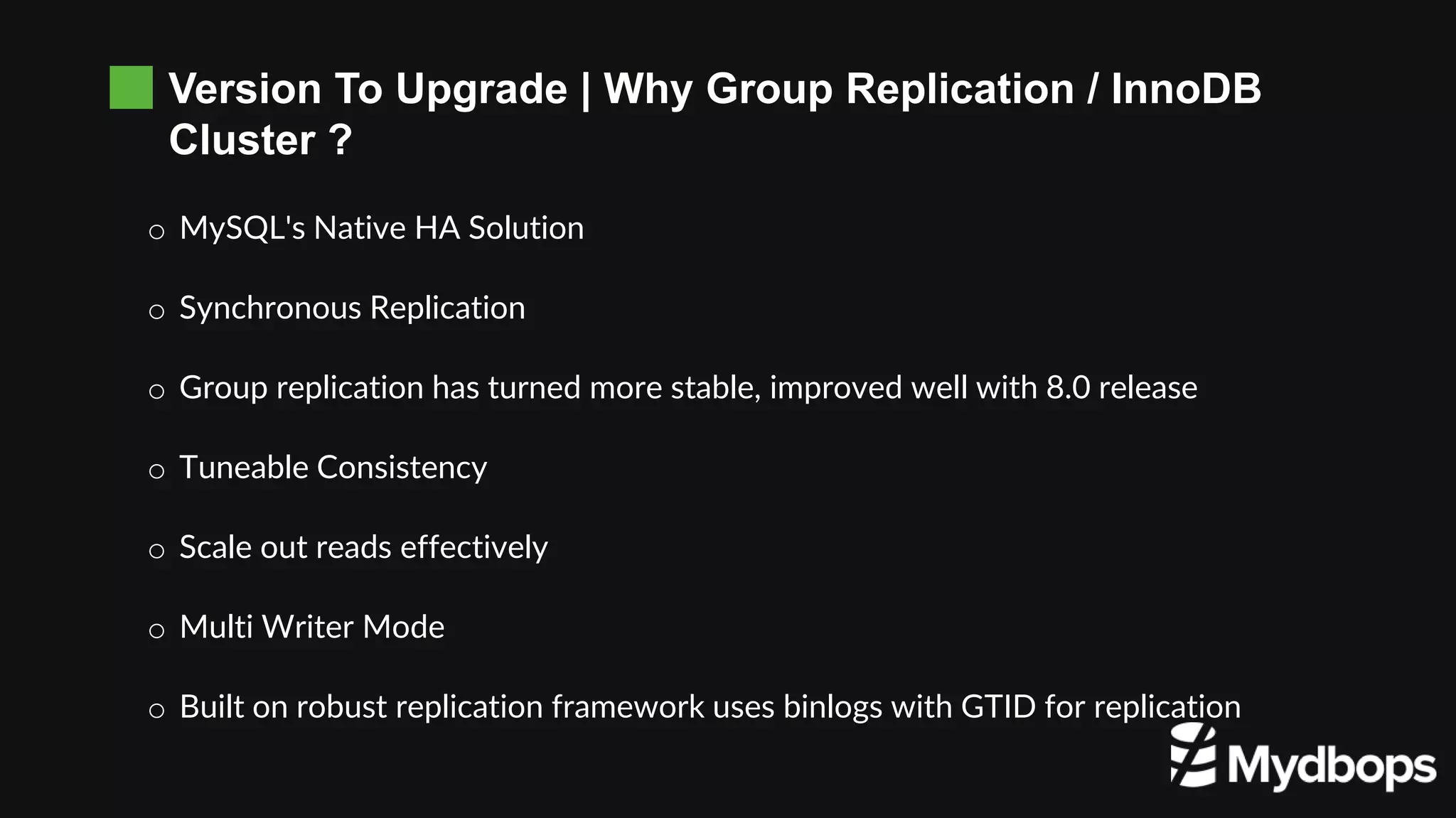

Version To Upgrade | Why Group Replication / InnoDB Cluster ? o MySQL's Native HA Solution o Synchronous Replication o Group replication has turned more stable, improved well with 8.0 release o Tuneable Consistency o Scale out reads effectively o Multi Writer Mode o Built on robust replication framework uses binlogs with GTID for replication
Version To Upgrade | Key Considerations Only Supports InnoDB Primary Key Is Must No Query Cache GTID Replication

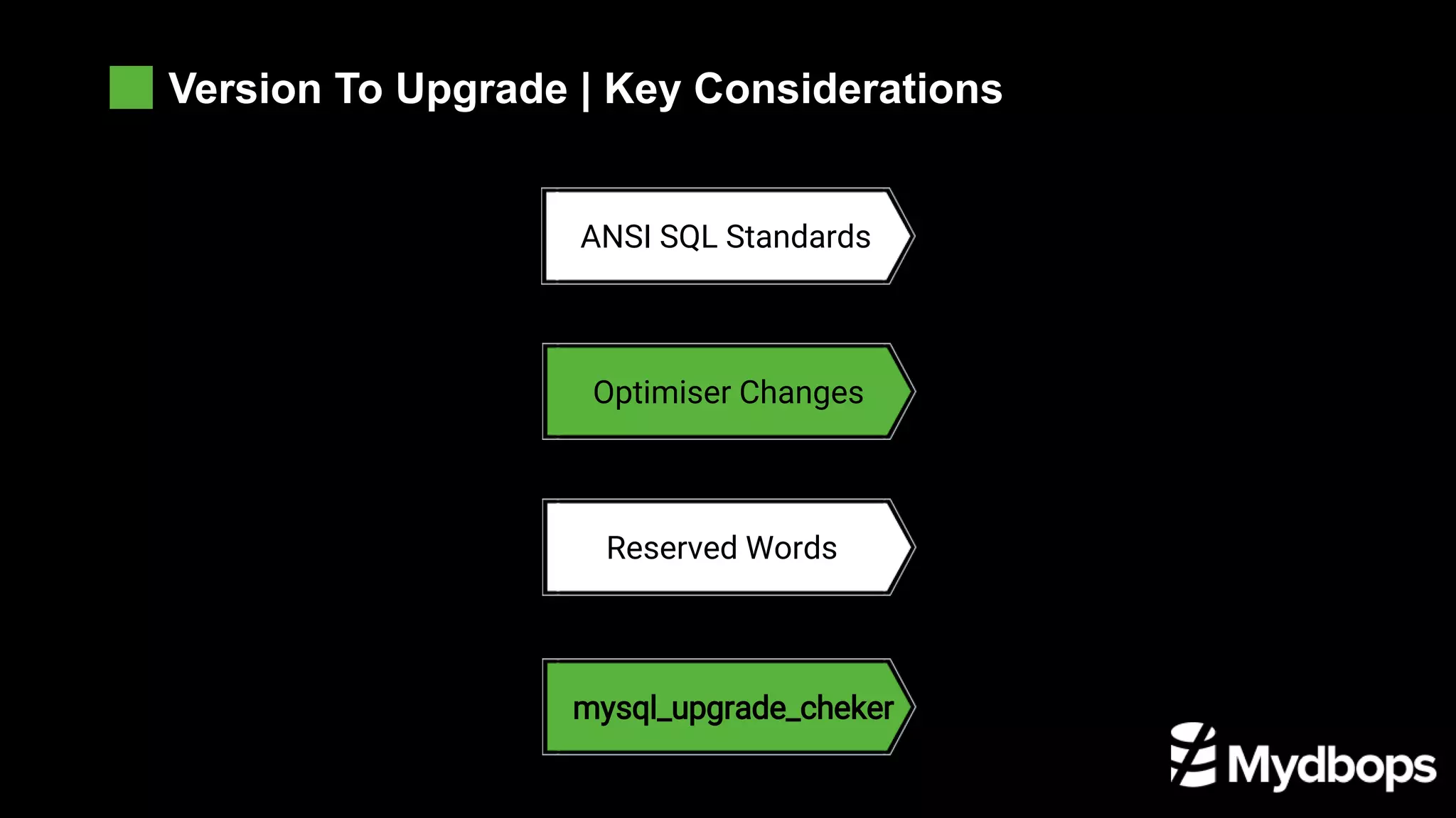

Version To Upgrade | Key Considerations ANSI SQL Standards Optimiser Changes Reserved Words mysql_upgrade_cheker

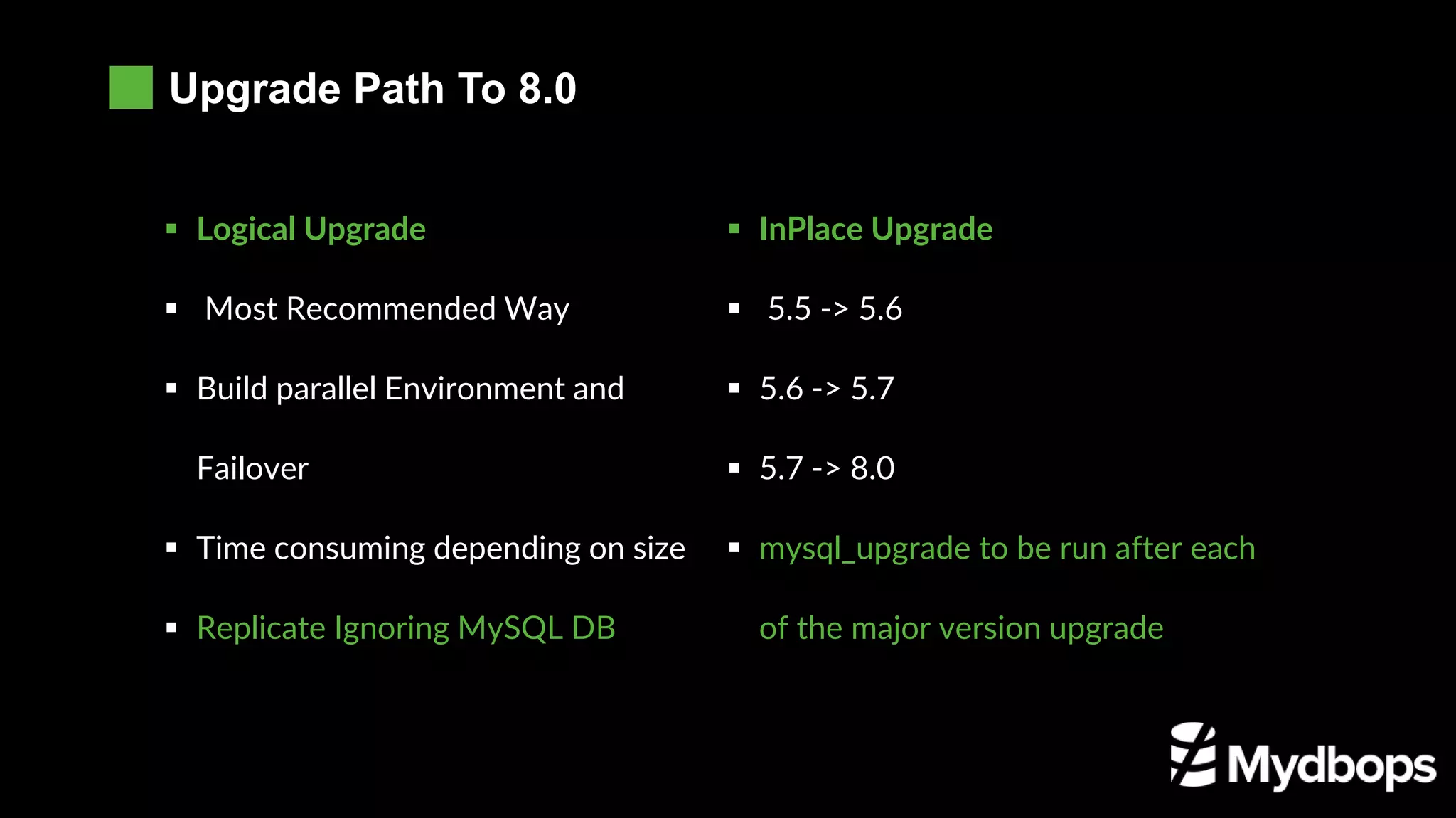

Upgrade Path To 8.0 Services (LB) Stateful Sets Operator Maturity PVC / Storage Class  InPlace Upgrade  5.5 -> 5.6  5.6 -> 5.7  5.7 -> 8.0  mysql_upgrade to be run after each of the major version upgrade  Logical Upgrade  Most Recommended Way  Build parallel Environment and Failover  Time consuming depending on size  Replicate Ignoring MySQL DB

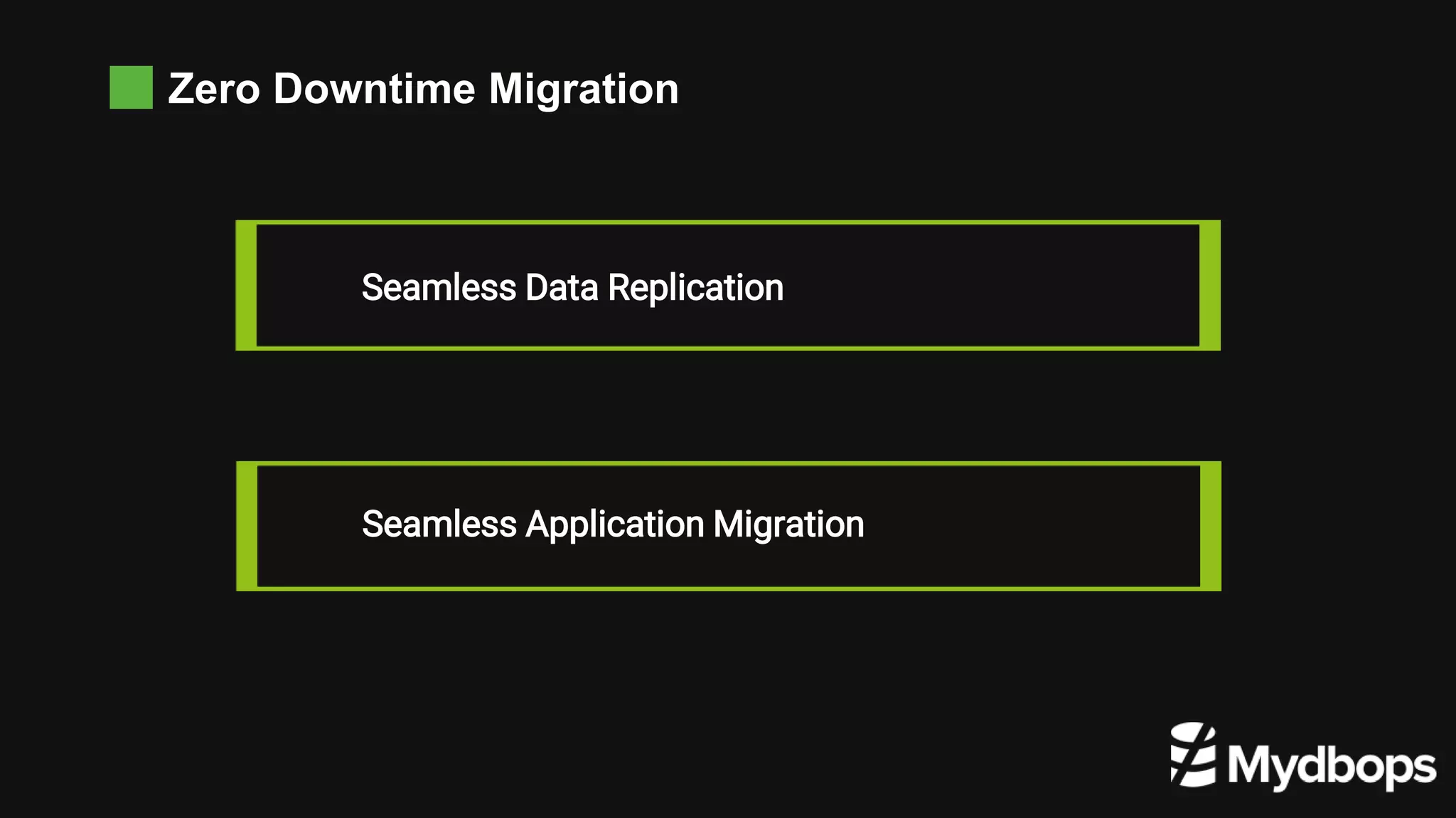

Zero Downtime Migration Seamless Data Replication Seamless Application Migration

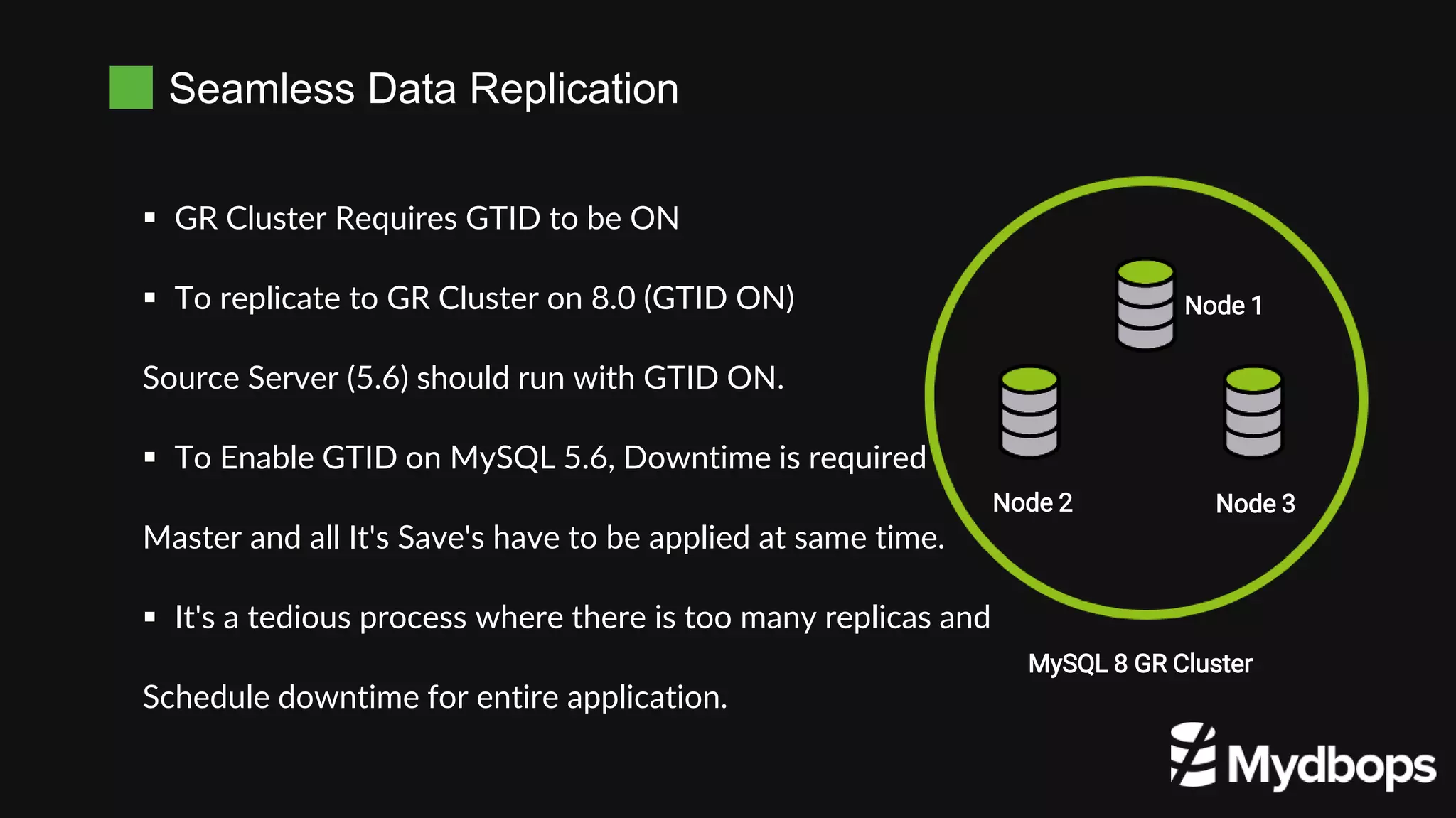

Seamless Data Replication Node 1 Node 2 Node 3  GR Cluster Requires GTID to be ON  To replicate to GR Cluster on 8.0 (GTID ON) Source Server (5.6) should run with GTID ON.  To Enable GTID on MySQL 5.6, Downtime is required Master and all It's Save's have to be applied at same time.  It's a tedious process where there is too many replicas and Schedule downtime for entire application. MySQL 8 GR Cluster

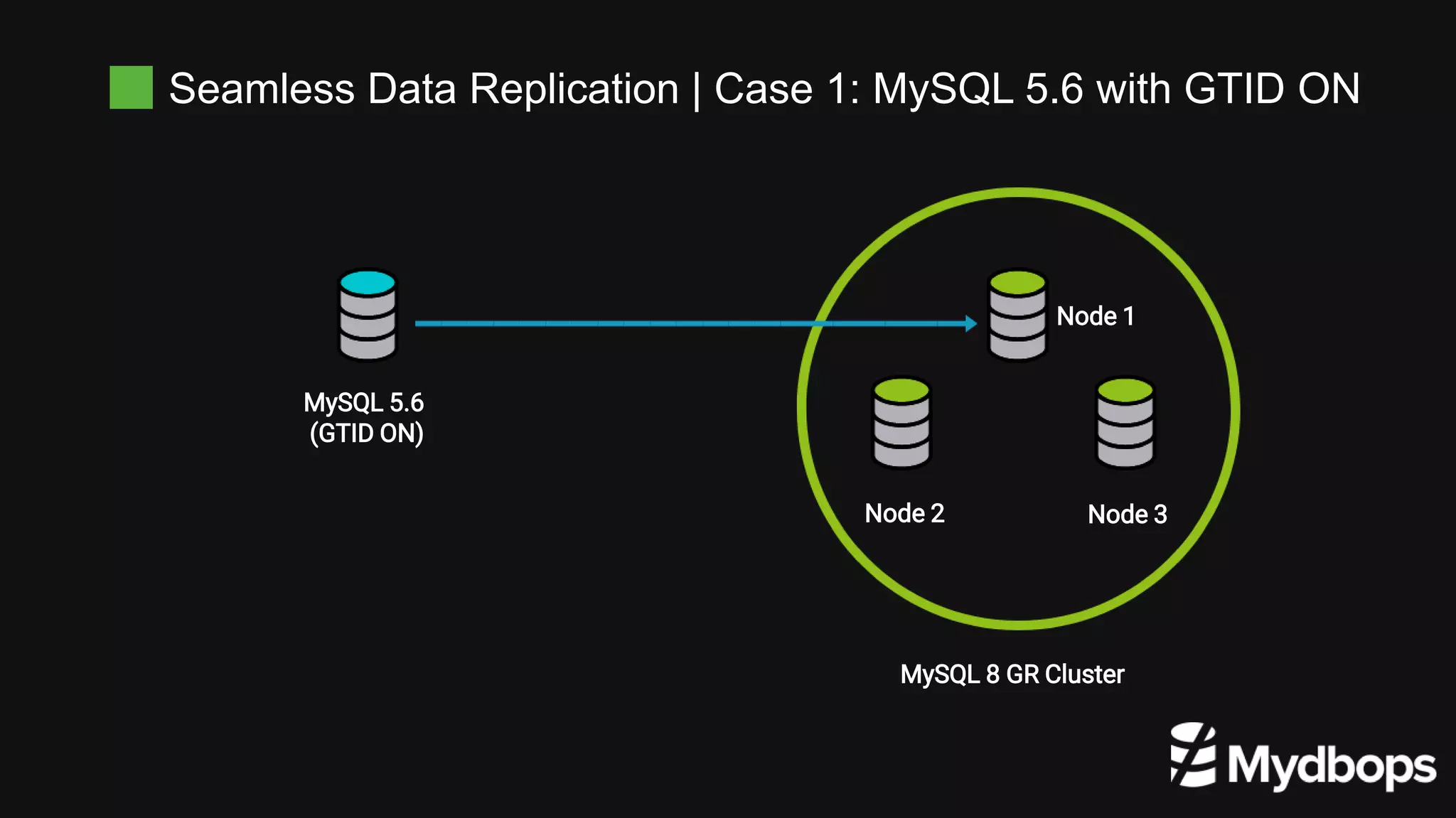

Seamless Data Replication | Case 1: MySQL 5.6 with GTID ON Node 1 Node 2 Node 3 MySQL 8 GR Cluster MySQL 5.6 (GTID ON)

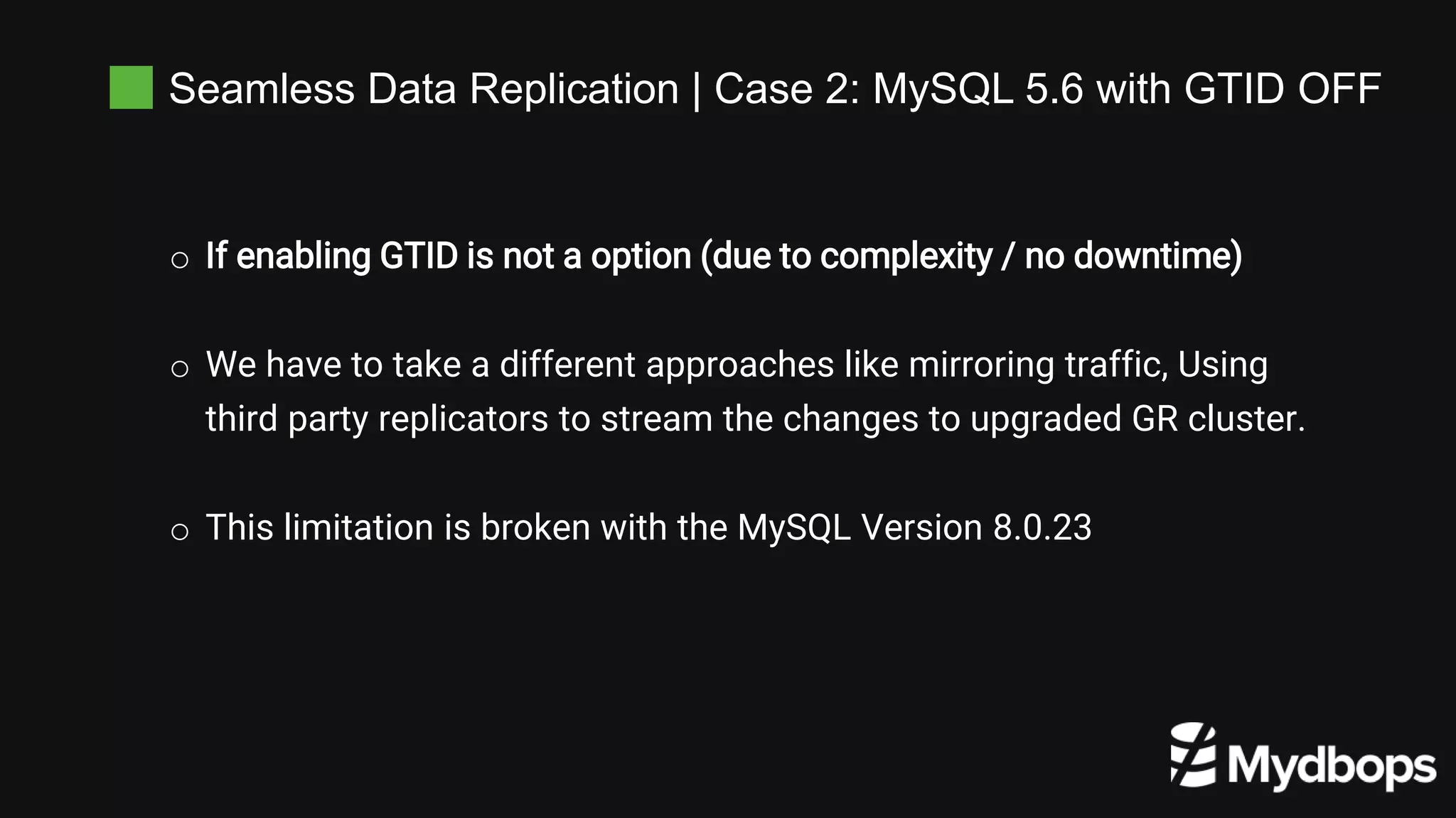

Seamless Data Replication | Case 2: MySQL 5.6 with GTID OFF o If enabling GTID is not a option (due to complexity / no downtime) o We have to take a different approaches like mirroring traffic, Using third party replicators to stream the changes to upgraded GR cluster. o This limitation is broken with the MySQL Version 8.0.23

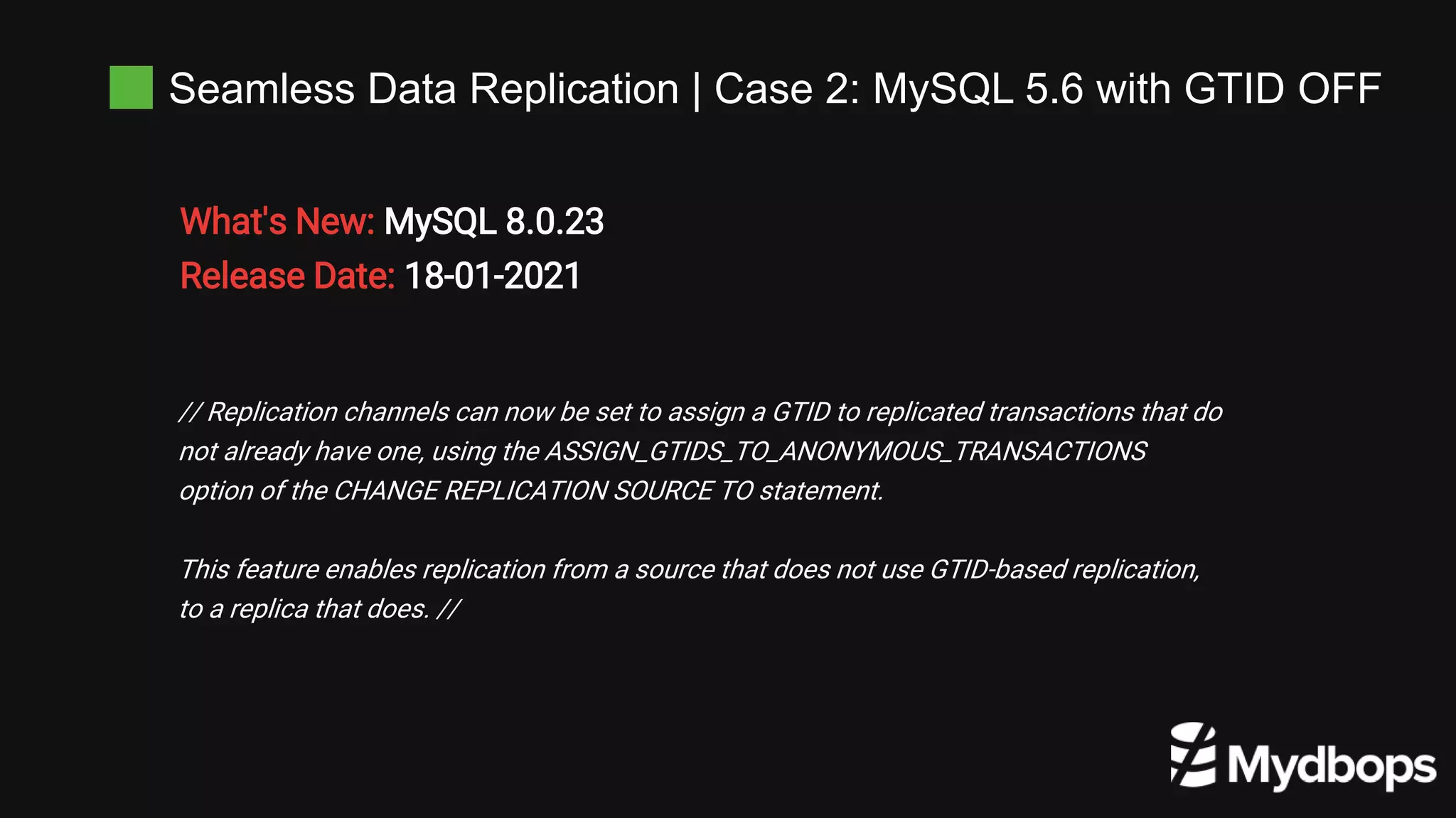

Seamless Data Replication | Case 2: MySQL 5.6 with GTID OFF What's New: MySQL 8.0.23 Release Date: 18-01-2021 // Replication channels can now be set to assign a GTID to replicated transactions that do not already have one, using the ASSIGN_GTIDS_TO_ANONYMOUS_TRANSACTIONS option of the CHANGE REPLICATION SOURCE TO statement. This feature enables replication from a source that does not use GTID-based replication, to a replica that does. //

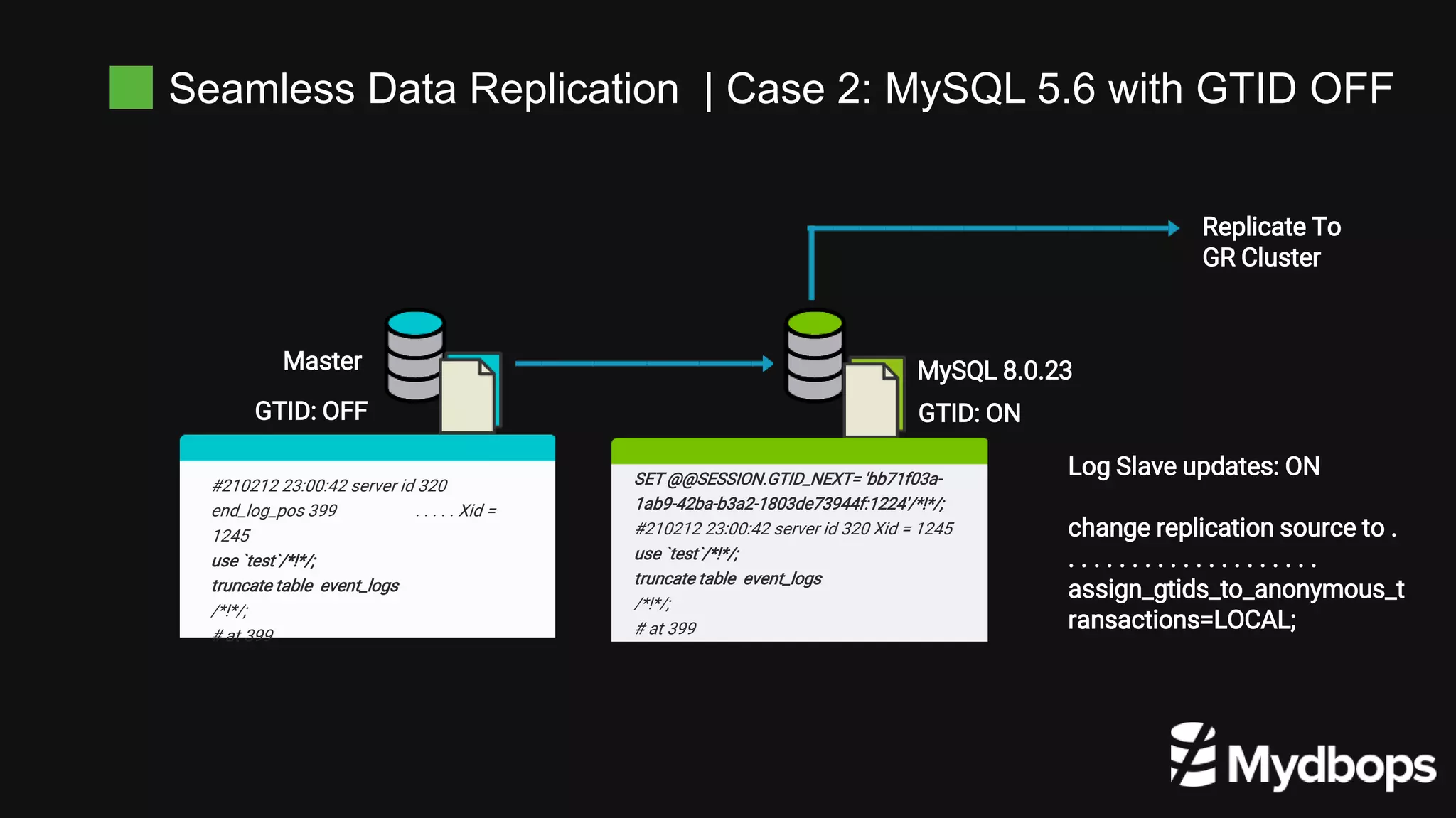

Seamless Data Replication | Case 2: MySQL 5.6 with GTID OFF Master MySQL 8.0.23 GTID: OFF GTID: ON Log Slave updates: ON change replication source to . . . . . . . . . . . . . . . . . . . . . assign_gtids_to_anonymous_t ransactions=LOCAL; #210212 23:00:42 server id 320 end_log_pos 399 . . . . . Xid = 1245 use `test`/*!*/; truncate table event_logs /*!*/; # at 399 SET @@SESSION.GTID_NEXT= 'bb71f03a- 1ab9-42ba-b3a2-1803de73944f:1224'/*!*/; #210212 23:00:42 server id 320 Xid = 1245 use `test`/*!*/; truncate table event_logs /*!*/; # at 399 Replicate To GR Cluster

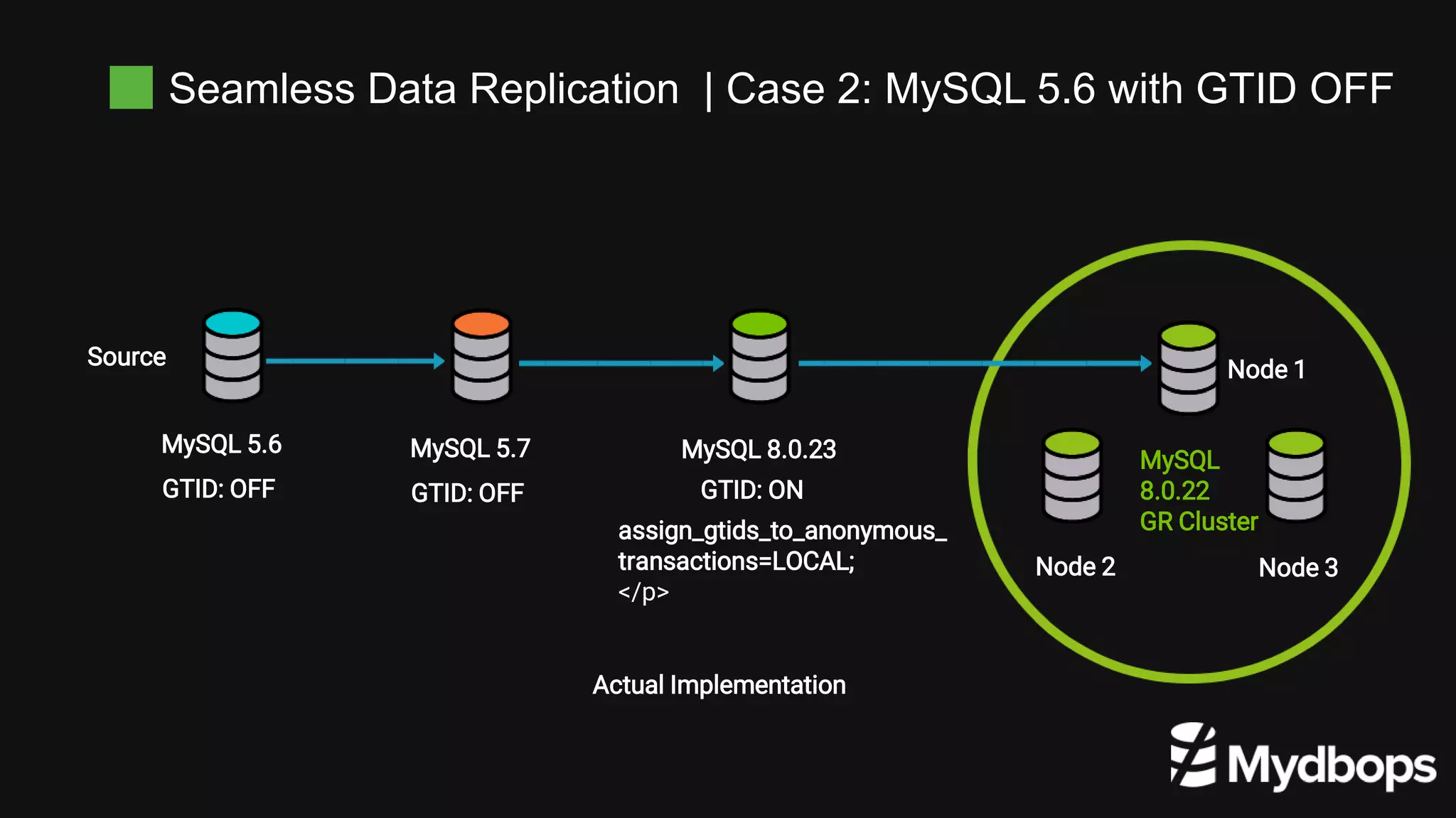

Seamless Data Replication | Case 2: MySQL 5.6 with GTID OFF Source MySQL 8.0.23 MySQL 5.6 GTID: OFF MySQL 5.7 GTID: OFF GTID: ON assign_gtids_to_anonymous_ transactions=LOCAL; </p> Node 1 Node 2 Node 3 MySQL 8.0.22 GR Cluster Actual Implementation

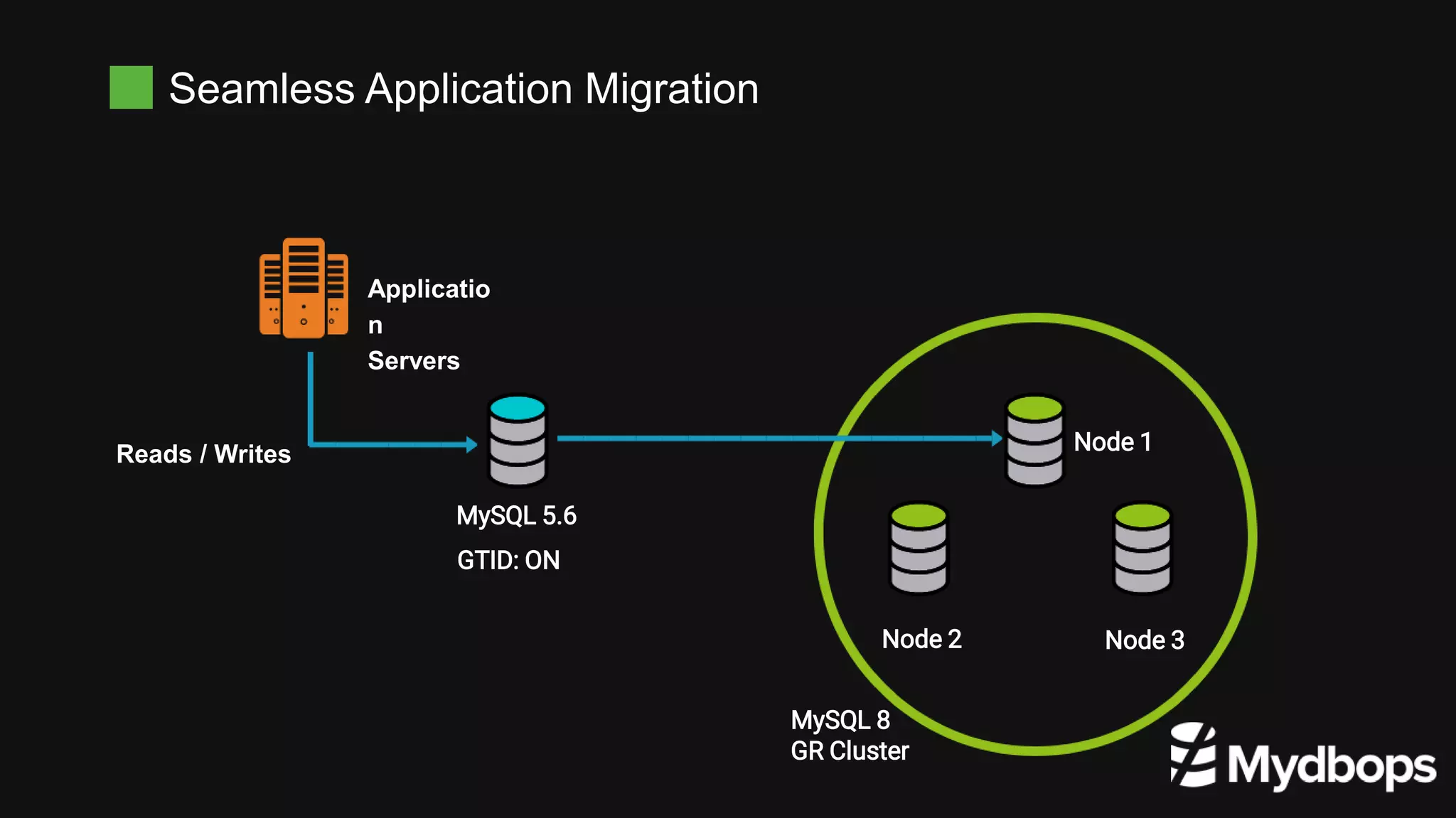

Seamless Application Migration MySQL 5.6 Applicatio n Servers Node 1 Node 2 Node 3 MySQL 8 GR Cluster Reads / Writes GTID: ON

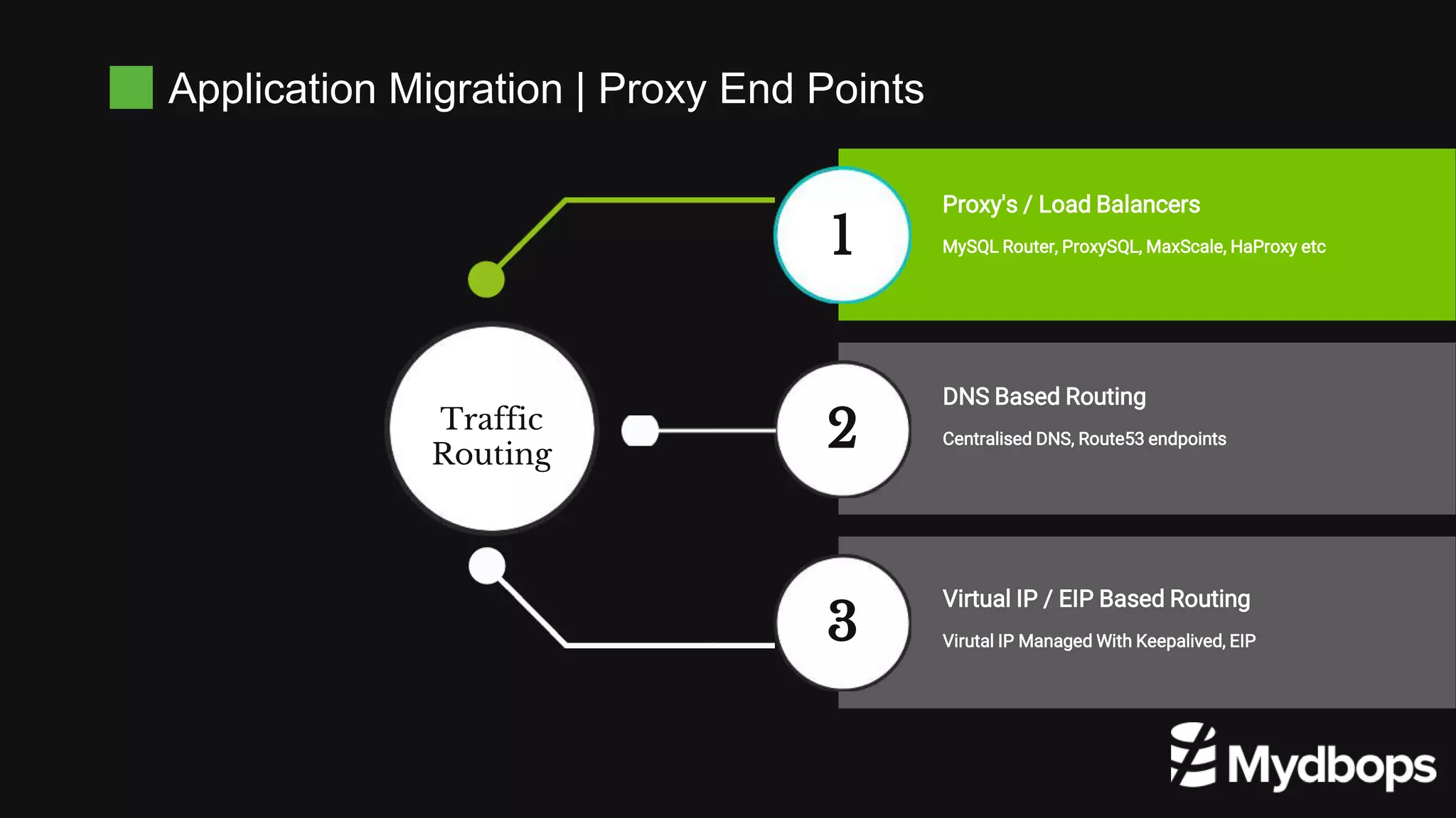

Application Migration | Proxy End Points 1 2 3 MySQL Router, ProxySQL, MaxScale, HaProxy etc Proxy's / Load Balancers Centralised DNS, Route53 endpoints DNS Based Routing Virutal IP Managed With Keepalived, EIP Virtual IP / EIP Based Routing Traffic Routing

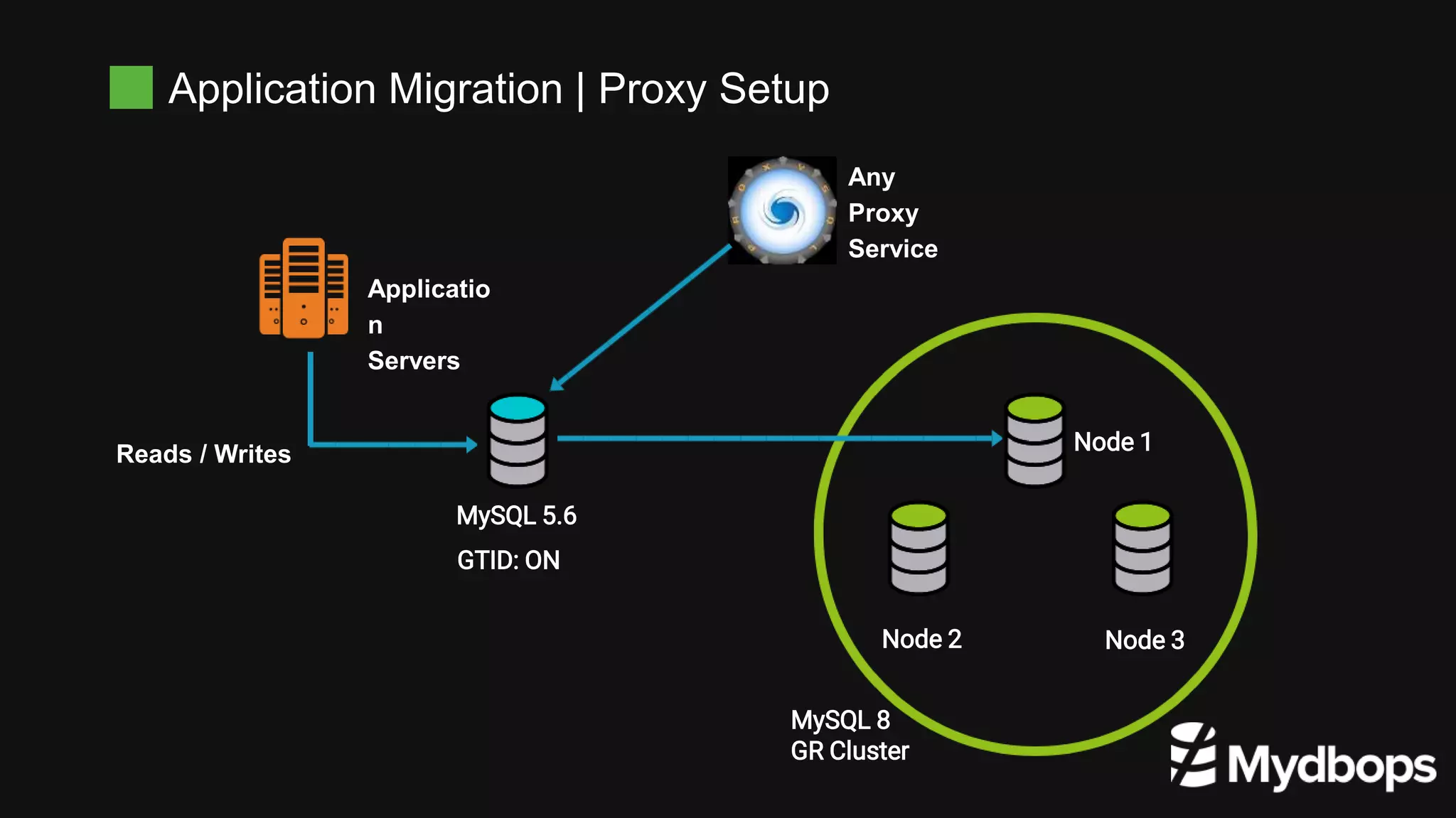

Application Migration | Proxy Setup MySQL 5.6 Applicatio n Servers Node 1 Node 2 Node 3 MySQL 8 GR Cluster Reads / Writes Any Proxy Service GTID: ON

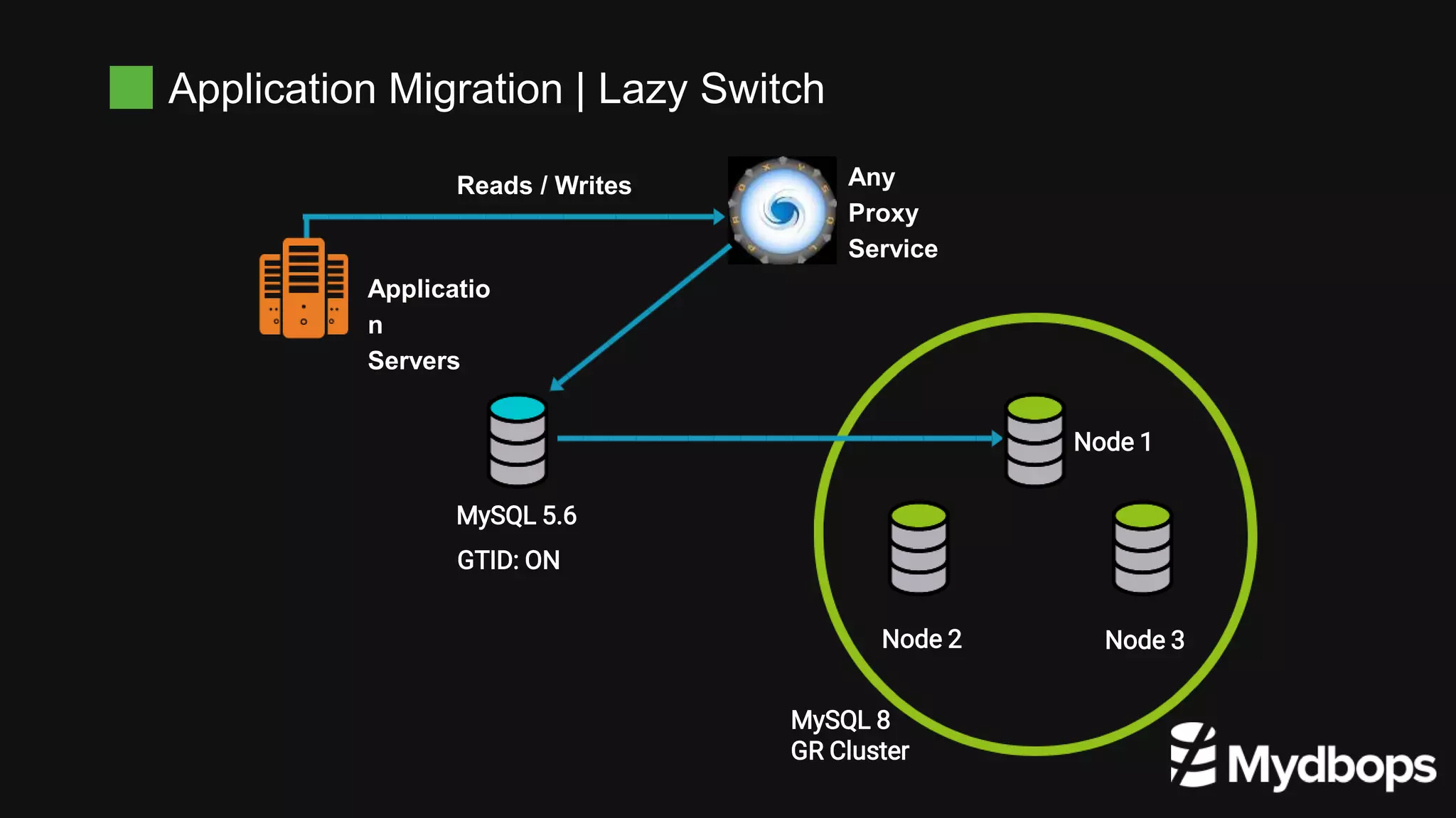

Application Migration | Lazy Switch MySQL 5.6 Applicatio n Servers Node 1 Node 2 Node 3 MySQL 8 GR Cluster Reads / Writes Any Proxy Service GTID: ON

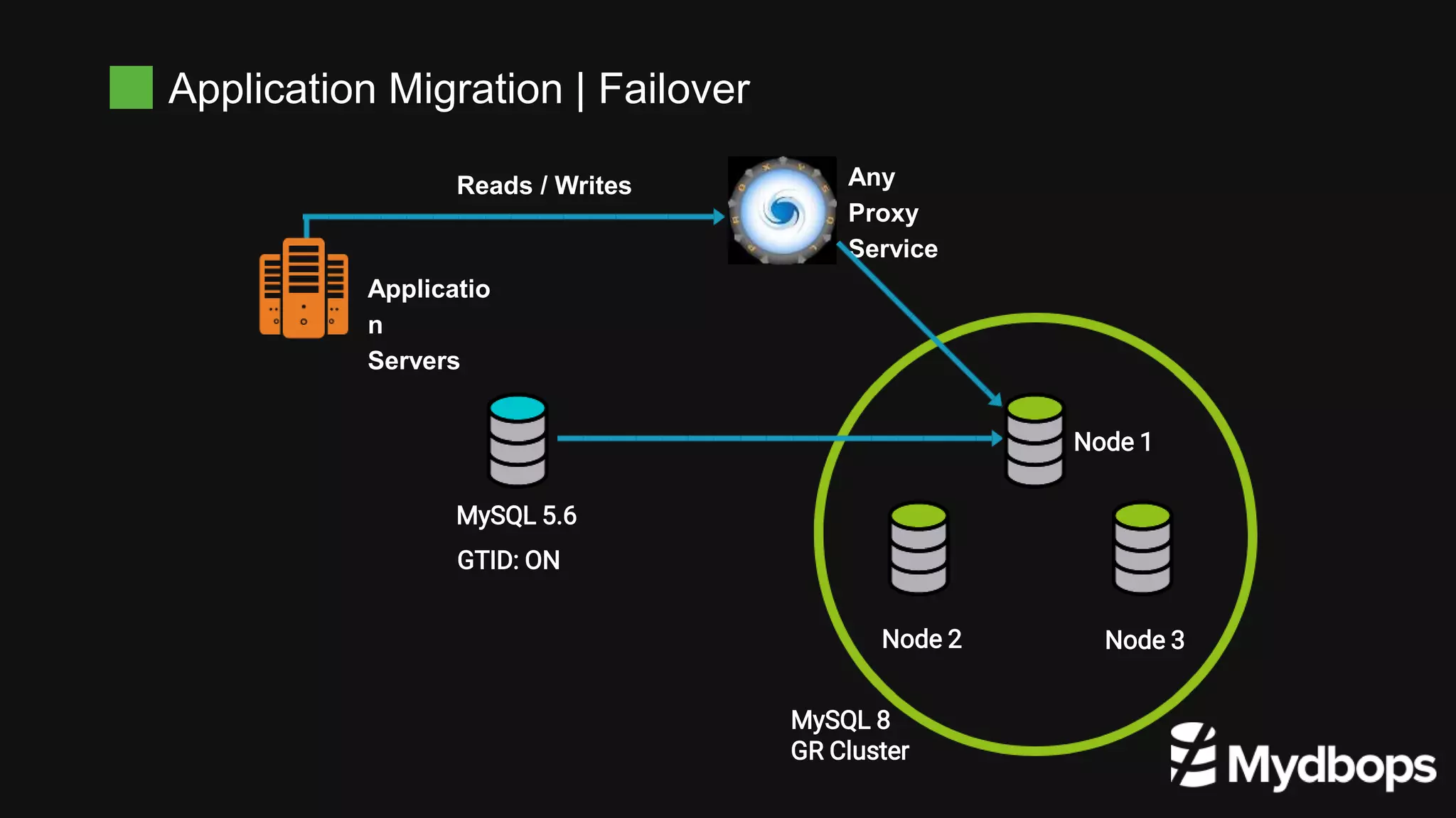

Application Migration | Failover MySQL 5.6 Applicatio n Servers Node 1 Node 2 Node 3 MySQL 8 GR Cluster Reads / Writes Any Proxy Service GTID: ON

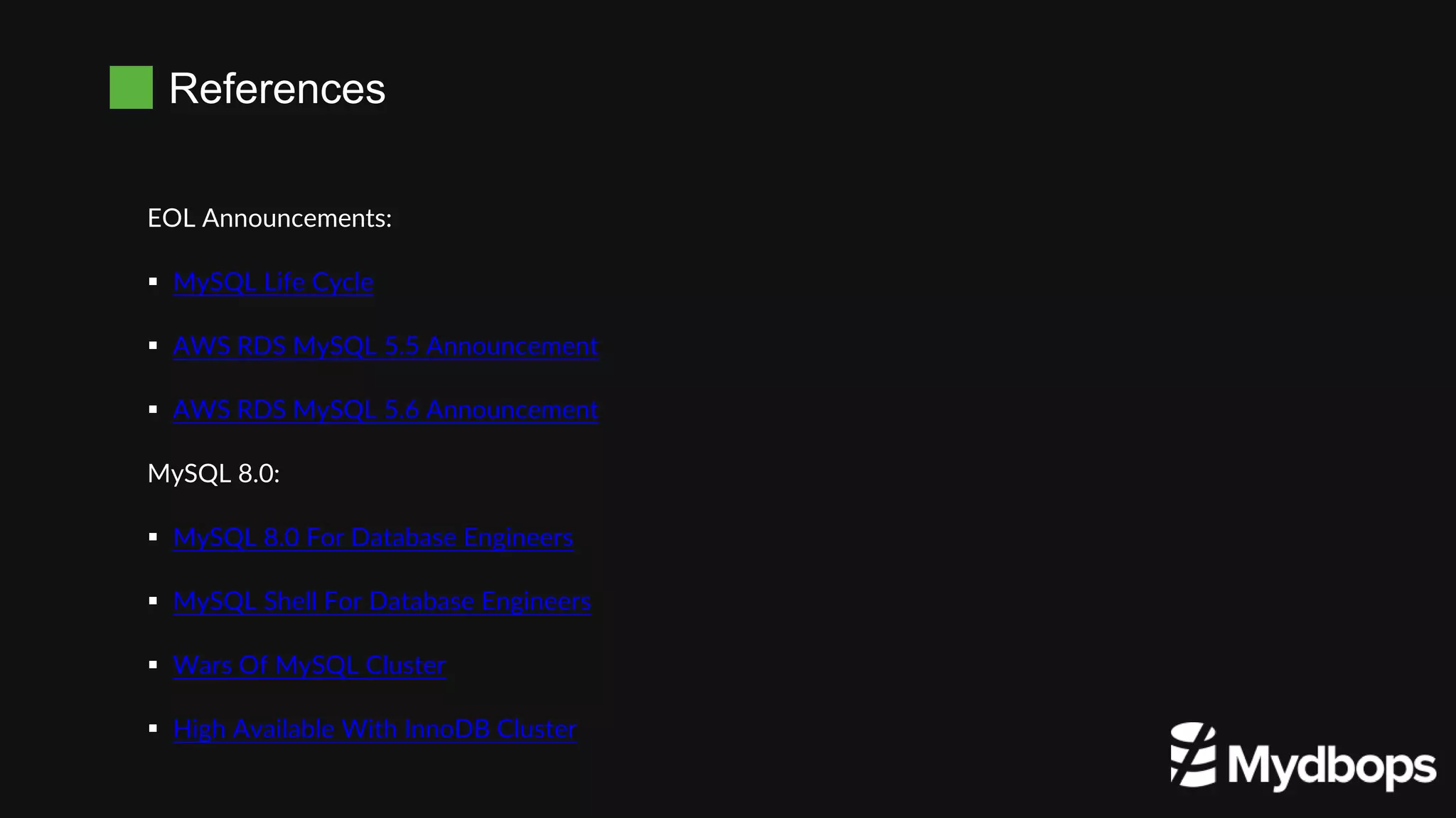

References EOL Announcements:  MySQL Life Cycle  AWS RDS MySQL 5.5 Announcement  AWS RDS MySQL 5.6 Announcement MySQL 8.0:  MySQL 8.0 For Database Engineers  MySQL Shell For Database Engineers  Wars Of MySQL Cluster  High Available With InnoDB Cluster
Reach Us : Info@mydbops.com Thank You
