Faster, better,
stronger: The new
InnoDB
Marko Mäkelä
Lead Developer InnoDB
MariaDB Corporation
1

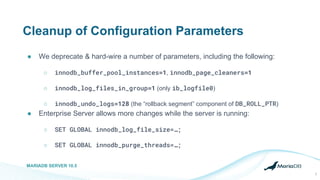

Cleanup of Configuration Parameters
● We deprecate & hard-wire a number of parameters, including the following:
○ innodb_buffer_pool_instances=1, innodb_page_cleaners=1
○ innodb_log_files_in_group=1 (only ib_logfile0)
○ innodb_undo_logs=128 (the “rollback segment” component of DB_ROLL_PTR)
● Enterprise Server allows more changes while the server is running:
○ SET GLOBAL innodb_log_file_size=…;
○ SET GLOBAL innodb_purge_threads=…;
MARIADB SERVER 10.5
2
Improvements to the Redo Log
● More compact, extensible redo log record format and faster backup&recovery
○ We now avoid writes of freed pages after DROP (or rebuild) operations.
○ The doublewrite buffer is not used for newly (re)initialized pages.
○ The physical format is easy to parse, thanks to explicitly encoded lengths.
○ Optimized memory management on recovery (or mariabackup --prepare).
● An improved group commit reduces contention and improves scalability
● Compile-time option for persistent memory (such as Intel® Optane™ DC)
MARIADB SERVER 10.5
3
Cleanup of Background Tasks
● Background tasks are run in a thread pool
○ No more merges of buffered changes to secondary indexes in the background
○ In the Enterprise Server, you can SET GLOBAL innodb_purge_threads=…;
● An InnoDB internal rw-lock was all but replaced by metadata locks (MDL)
○ We must ensure that the table not be dropped during an operation.
○ This used to be covered by dict_operation_lock covering any InnoDB table!
○ Acquiring only MDL on the table name ought to improve scalability.
MARIADB SERVER 10.5
4
Improvements to the
Redo Log and Recovery
… while still guaranteeing Atomicity, Consistency, Isolation, Durability
5

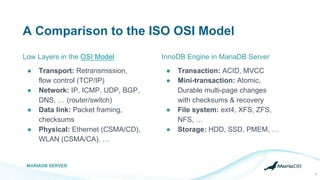

A Comparison to the ISO OSI Model
MARIADB SERVER
Low Layers in the OSI Model
● Transport: Retransmission,
flow control (TCP/IP)
● Network: IP, ICMP, UDP, BGP,
DNS, … (router/switch)
● Data link: Packet framing,
checksums
● Physical: Ethernet (CSMA/CD),
WLAN (CSMA/CA), …
● Transaction: ACID, MVCC
● Mini-transaction: Atomic,
Durable multi-page changes
with checksums & recovery
● File system: ext4, XFS, ZFS,
NFS, …
● Storage: HDD, SSD, PMEM, …
InnoDB Engine in MariaDB Server
6

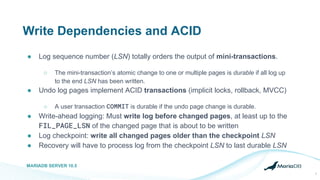

Write Dependencies and ACID
● Log sequence number (LSN) totally orders the output of mini-transactions.
○ The mini-transaction’s atomic change to one or multiple pages is durable if all log up
to the end LSN has been written.
● Undo log pages implement ACID transactions (implicit locks, rollback, MVCC)
○ A user transaction COMMIT is durable if the undo page change is durable.
● Write-ahead logging: Must write log before changed pages, at least up to the
FIL_PAGE_LSN of the changed page that is about to be written
● Log checkpoint: write all changed pages older than the checkpoint LSN
● Recovery will have to process log from the checkpoint LSN to last durable LSN
MARIADB SERVER 10.5
7

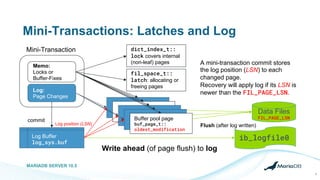

Mini-Transactions: Latches and Log
MARIADB SERVER 10.5
8
Mini-Transaction
Memo:
Locks or
Buffer-Fixes
dict_index_t::
lock covers internal
(non-leaf) pages
fil_space_t::
latch: allocating or
freeing pages
Log:
Page Changes
Data Files
FIL_PAGE_LSN
Flush (after log written)
ib_logfile0Log Buffer
log_sys.buf
Write ahead (of page flush) to log
Buffer pool page
buf_page_t::
oldest_modification
commit
A mini-transaction commit stores
the log position (LSN) to each
changed page.
Recovery will apply log if its LSN is
newer than the FIL_PAGE_LSN.
Log position (LSN)

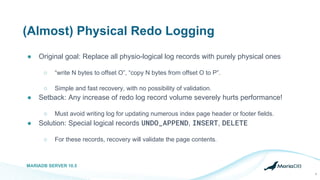

(Almost) Physical Redo Logging
● Original goal: Replace all physio-logical log records with purely physical ones
○ “write N bytes to offset O”, “copy N bytes from offset O to P”.
○ Simple and fast recovery, with no possibility of validation.
● Setback: Any increase of redo log record volume severely hurts performance!
○ Must avoid writing log for updating numerous index page header or footer fields.
● Solution: Special logical records UNDO_APPEND, INSERT, DELETE
○ For these records, recovery will validate the page contents.
MARIADB SERVER 10.5
9

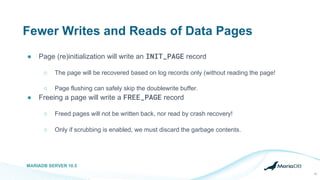

Fewer Writes and Reads of Data Pages
● Page (re)initialization will write an INIT_PAGE record
○ The page will be recovered based on log records only (without reading the page!
○ Page flushing can safely skip the doublewrite buffer.
● Freeing a page will write a FREE_PAGE record
○ Freed pages will not be written back, nor read by crash recovery!
○ Only if scrubbing is enabled, we must discard the garbage contents.
MARIADB SERVER 10.5
10

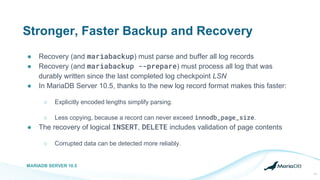

Stronger, Faster Backup and Recovery
● Recovery (and mariabackup) must parse and buffer all log records
● Recovery (and mariabackup --prepare) must process all log that was
durably written since the last completed log checkpoint LSN
● In MariaDB Server 10.5, thanks to the new log record format makes this faster:
○ Explicitly encoded lengths simplify parsing.
○ Less copying, because a record can never exceed innodb_page_size.
● The recovery of logical INSERT, DELETE includes validation of page contents
○ Corrupted data can be detected more reliably.
MARIADB SERVER 10.5
11

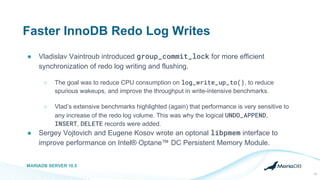

Faster InnoDB Redo Log Writes
● Vladislav Vaintroub introduced group_commit_lock for more efficient
synchronization of redo log writing and flushing.
○ The goal was to reduce CPU consumption on log_write_up_to(), to reduce
spurious wakeups, and improve the throughput in write-intensive benchmarks.
○ Vlad’s extensive benchmarks highlighted (again) that performance is very sensitive to
any increase of the redo log volume. This was why the logical UNDO_APPEND,
INSERT, DELETE records were added.
● Sergey Vojtovich and Eugene Kosov wrote an optonal libpmem interface to
improve performance on Intel® Optane™ DC Persistent Memory Module.
MARIADB SERVER 10.5
12
Other InnoDB Changes
in MariaDB Server 10.5
Better performance by cleaning up maintenance debt
13

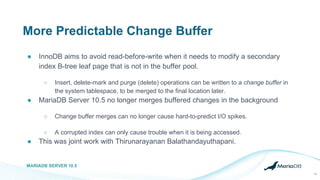

More Predictable Change Buffer
● InnoDB aims to avoid read-before-write when it needs to modify a secondary
index B-tree leaf page that is not in the buffer pool.
○ Insert, delete-mark and purge (delete) operations can be written to a change buffer in
the system tablespace, to be merged to the final location later.
● MariaDB Server 10.5 no longer merges buffered changes in the background
○ Change buffer merges can no longer cause hard-to-predict I/O spikes.
○ A corrupted index can only cause trouble when it is being accessed.
● This was joint work with Thirunarayanan Balathandayuthapani.
MARIADB SERVER 10.5
14

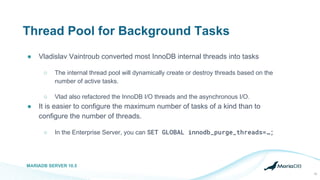

Thread Pool for Background Tasks
● Vladislav Vaintroub converted most InnoDB internal threads into tasks
○ The internal thread pool will dynamically create or destroy threads based on the
number of active tasks.
○ Vlad also refactored the InnoDB I/O threads and the asynchronous I/O.
● It is easier to configure the maximum number of tasks of a kind than to
configure the number of threads.
○ In the Enterprise Server, you can SET GLOBAL innodb_purge_threads=…;
MARIADB SERVER 10.5
15

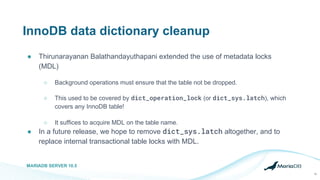

InnoDB data dictionary cleanup
● Thirunarayanan Balathandayuthapani extended the use of metadata locks
(MDL)
○ Background operations must ensure that the table not be dropped.
○ This used to be covered by dict_operation_lock (or dict_sys.latch), which
covers any InnoDB table!
○ It suffices to acquire MDL on the table name.
● In a future release, we hope to remove dict_sys.latch altogether, and to
replace internal transactional table locks with MDL.
MARIADB SERVER 10.5
16

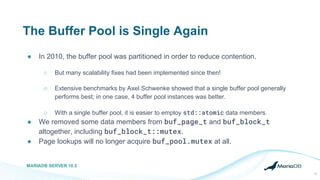

The Buffer Pool is Single Again
● In 2010, the buffer pool was partitioned in order to reduce contention.
○ But many scalability fixes had been implemented since then!
○ Extensive benchmarks by Axel Schwenke showed that a single buffer pool generally
performs best; in one case, 4 buffer pool instances was better.
○ With a single buffer pool, it is easier to employ std::atomic data members.
● We removed some data members from buf_page_t and buf_block_t
altogether, including buf_block_t::mutex.
● Page lookups will no longer acquire buf_pool.mutex at all.
MARIADB SERVER 10.5
17
A Few Words on
Quality
How we Test the InnoDB Storage Engine at MariaDB
18

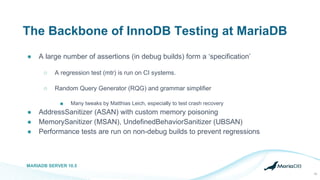

The Backbone of InnoDB Testing at MariaDB
● A large number of assertions (in debug builds) form a ‘specification’
○ A regression test (mtr) is run on CI systems.
○ Random Query Generator (RQG) and grammar simplifier
■ Many tweaks by Matthias Leich, especially to test crash recovery
● AddressSanitizer (ASAN) with custom memory poisoning
● MemorySanitizer (MSAN), UndefinedBehaviorSanitizer (UBSAN)
● Performance tests are run on non-debug builds to prevent regressions
MARIADB SERVER 10.5
19
Repeatable Execution Traces of Failures
● https://rr-project.org by the Mozilla Foundation records an execution trace that
can be used for deterministic debugging with rr replay
○ Breakpoints and watchpoints will work and can catch data races!
○ Much smaller than core dumps, even though all intermediate states are included.
● Even the most nondeterministic bugs become tractable and fixable.
○ Recovery bugs: need a trace of the killed server and the recovering server.
○ We recently found and fixed several elusive 10-year-old bugs.
● Best of all, rr record can be combined with ASAN and RQG.
MARIADB SERVER 10.5
20
Performance Evaluation
I/O Bound Performance on a 2×16-CPU System
21

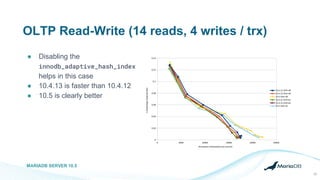

OLTP Read-Write (14 reads, 4 writes / trx)
● Disabling the
innodb_adaptive_hash_index
helps in this case
● 10.4.13 is faster than 10.4.12
● 10.5 is clearly better
MARIADB SERVER 10.5
22

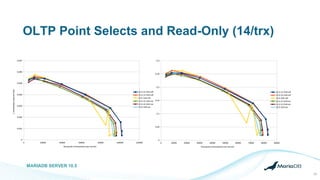

OLTP Point Selects and Read-Only (14/trx)
MARIADB SERVER 10.5
23

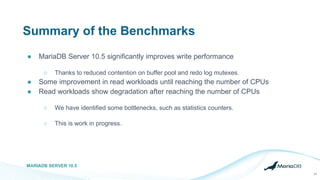

Summary of the Benchmarks
● MariaDB Server 10.5 significantly improves write performance
○ Thanks to reduced contention on buffer pool and redo log mutexes.
● Some improvement in read workloads until reaching the number of CPUs
● Read workloads show degradation after reaching the number of CPUs
○ We have identified some bottlenecks, such as statistics counters.
○ This is work in progress.
MARIADB SERVER 10.5
24
The Way Ahead
25
Limitations in Current File Formats
● Redo log: 512-byte block size causes copying and mutex contention
○ Block framing forces log records to be split or padded
○ A mutex must be held while copying, padding, encrypting, computing checksums
● Secondary indexes are missing a per-record transaction ID
○ MVCC, purge, and checks for implicit locks could be much simpler and faster
● DB_ROLL_PTR and the undo log format limit us to 128 rollback segments
○ Cannot possibly scale beyond 128 concurrent write transactions
MARIADB SERVER 10.5
26

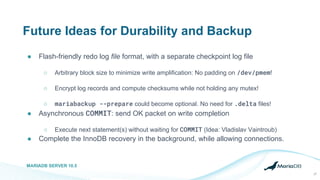

Future Ideas for Durability and Backup
● Flash-friendly redo log file format, with a separate checkpoint log file
○ Arbitrary block size to minimize write amplification: No padding on /dev/pmem!
○ Encrypt log records and compute checksums while not holding any mutex!
○ mariabackup --prepare could become optional. No need for .delta files!
● Asynchronous COMMIT: send OK packet on write completion
○ Execute next statement(s) without waiting for COMMIT (Idea: Vladislav Vaintroub)
● Complete the InnoDB recovery in the background, while allowing connections.
MARIADB SERVER 10.5
27

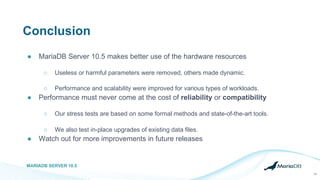

Conclusion
● MariaDB Server 10.5 makes better use of the hardware resources
○ Useless or harmful parameters were removed, others made dynamic.
○ Performance and scalability were improved for various types of workloads.
● Performance must never come at the cost of reliability or compatibility
○ Our stress tests are based on some formal methods and state-of-the-art tools.
○ We also test in-place upgrades of existing data files.
● Watch out for more improvements in future releases
MARIADB SERVER 10.5
28

More Related Content

What's hot

Ceph Performance and Sizing Guide
Ceph Performance and Sizing GuideCeph Performance and Sizing Guide
Ceph Performance and Sizing Guide
Jose De La Rosa

What to Expect From Oracle database 19c
What to Expect From Oracle database 19cWhat to Expect From Oracle database 19c
What to Expect From Oracle database 19c
Maria Colgan

How to use histograms to get better performance
How to use histograms to get better performanceHow to use histograms to get better performance
How to use histograms to get better performance
MariaDB plc

MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
Kenny Gryp

The Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScale
The Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScaleThe Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScale
The Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScale
Colin Charles

Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication
Mydbops

Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...
Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...
Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...
SindhuVasireddy1

Introduction to Storm
Introduction to Storm Introduction to Storm
Introduction to Storm
Chandler Huang

Understanding and tuning WiredTiger, the new high performance database engine...
Understanding and tuning WiredTiger, the new high performance database engine...Understanding and tuning WiredTiger, the new high performance database engine...
Understanding and tuning WiredTiger, the new high performance database engine...
Ontico

MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
Jean-François Gagné

The InnoDB Storage Engine for MySQL
The InnoDB Storage Engine for MySQLThe InnoDB Storage Engine for MySQL
The InnoDB Storage Engine for MySQL
Morgan Tocker

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability
Mydbops

Introduction to Redis
Introduction to RedisIntroduction to Redis
Introduction to Redis
Dvir Volk

M|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write PathsM|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write Paths
MariaDB plc

BlueStore, A New Storage Backend for Ceph, One Year In
BlueStore, A New Storage Backend for Ceph, One Year InBlueStore, A New Storage Backend for Ceph, One Year In
BlueStore, A New Storage Backend for Ceph, One Year In
Sage Weil

Solving PostgreSQL wicked problems
Solving PostgreSQL wicked problemsSolving PostgreSQL wicked problems
Solving PostgreSQL wicked problems
Alexander Korotkov

Parallel Replication in MySQL and MariaDB
Parallel Replication in MySQL and MariaDBParallel Replication in MySQL and MariaDB
Parallel Replication in MySQL and MariaDB
Mydbops

InnoDB Internal
InnoDB InternalInnoDB Internal
InnoDB Internal
mysqlops

The Rise of ZStandard: Apache Spark/Parquet/ORC/Avro
The Rise of ZStandard: Apache Spark/Parquet/ORC/AvroThe Rise of ZStandard: Apache Spark/Parquet/ORC/Avro
The Rise of ZStandard: Apache Spark/Parquet/ORC/Avro
Databricks

Linux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performanceLinux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performance
PostgreSQL-Consulting


What's hot (20)

Ceph Performance and Sizing Guide
Ceph Performance and Sizing GuideCeph Performance and Sizing Guide
Ceph Performance and Sizing Guide

What to Expect From Oracle database 19c
What to Expect From Oracle database 19cWhat to Expect From Oracle database 19c
What to Expect From Oracle database 19c

How to use histograms to get better performance
How to use histograms to get better performanceHow to use histograms to get better performance
How to use histograms to get better performance

MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11

The Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScale
The Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScaleThe Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScale
The Proxy Wars - MySQL Router, ProxySQL, MariaDB MaxScale

Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication

Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...
Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...
Designing Data-Intensive Applications_ The Big Ideas Behind Reliable, Scalabl...

Introduction to Storm
Introduction to Storm Introduction to Storm
Introduction to Storm

Understanding and tuning WiredTiger, the new high performance database engine...
Understanding and tuning WiredTiger, the new high performance database engine...Understanding and tuning WiredTiger, the new high performance database engine...
Understanding and tuning WiredTiger, the new high performance database engine...

MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...
MySQL Parallel Replication (LOGICAL_CLOCK): all the 5.7 (and some of the 8.0)...

The InnoDB Storage Engine for MySQL
The InnoDB Storage Engine for MySQLThe InnoDB Storage Engine for MySQL
The InnoDB Storage Engine for MySQL

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability

Introduction to Redis
Introduction to RedisIntroduction to Redis
Introduction to Redis

M|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write PathsM|18 Deep Dive: InnoDB Transactions and Write Paths
M|18 Deep Dive: InnoDB Transactions and Write Paths

BlueStore, A New Storage Backend for Ceph, One Year In
BlueStore, A New Storage Backend for Ceph, One Year InBlueStore, A New Storage Backend for Ceph, One Year In
BlueStore, A New Storage Backend for Ceph, One Year In

Solving PostgreSQL wicked problems
Solving PostgreSQL wicked problemsSolving PostgreSQL wicked problems
Solving PostgreSQL wicked problems

Parallel Replication in MySQL and MariaDB
Parallel Replication in MySQL and MariaDBParallel Replication in MySQL and MariaDB
Parallel Replication in MySQL and MariaDB

InnoDB Internal
InnoDB InternalInnoDB Internal
InnoDB Internal

The Rise of ZStandard: Apache Spark/Parquet/ORC/Avro
The Rise of ZStandard: Apache Spark/Parquet/ORC/AvroThe Rise of ZStandard: Apache Spark/Parquet/ORC/Avro
The Rise of ZStandard: Apache Spark/Parquet/ORC/Avro

Linux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performanceLinux tuning to improve PostgreSQL performance
Linux tuning to improve PostgreSQL performance


Similar to Faster, better, stronger: The new InnoDB

PL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptxPL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptx
Vinicius M Grippa

InnoDB Performance Optimisation
InnoDB Performance OptimisationInnoDB Performance Optimisation
InnoDB Performance Optimisation
Mydbops

MySQL Cluster (NDB) - Best Practices Percona Live 2017
MySQL Cluster (NDB) - Best Practices Percona Live 2017MySQL Cluster (NDB) - Best Practices Percona Live 2017
MySQL Cluster (NDB) - Best Practices Percona Live 2017
Severalnines

Percona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and ImprovementsPercona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and Improvements
Marcelo Altmann

Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎
YUCHENG HU

MySQL configuration - The most important Variables
MySQL configuration - The most important VariablesMySQL configuration - The most important Variables
MySQL configuration - The most important Variables
FromDual GmbH

InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0
Mydbops

Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0
Mydbops

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations
Jean-François Gagné

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations
Jean-François Gagné

Evolution of DBA in the Cloud Era
 Evolution of DBA in the Cloud Era Evolution of DBA in the Cloud Era
Evolution of DBA in the Cloud Era
Mydbops

IBM DB2 Analytics Accelerator Trends & Directions by Namik Hrle
IBM DB2 Analytics Accelerator  Trends & Directions by Namik Hrle IBM DB2 Analytics Accelerator  Trends & Directions by Namik Hrle
IBM DB2 Analytics Accelerator Trends & Directions by Namik Hrle
Surekha Parekh

IBM Analytics Accelerator Trends & Directions Namk Hrle
IBM Analytics Accelerator  Trends & Directions Namk Hrle IBM Analytics Accelerator  Trends & Directions Namk Hrle
IBM Analytics Accelerator Trends & Directions Namk Hrle
Surekha Parekh

mysql 8.0 architecture and enhancement
mysql 8.0 architecture and enhancementmysql 8.0 architecture and enhancement
mysql 8.0 architecture and enhancement
lalit choudhary

Tips to drive maria db cluster performance for nextcloud
Tips to drive maria db cluster performance for nextcloudTips to drive maria db cluster performance for nextcloud
Tips to drive maria db cluster performance for nextcloud
Severalnines

High performance json- postgre sql vs. mongodb
High performance json- postgre sql vs. mongodbHigh performance json- postgre sql vs. mongodb
High performance json- postgre sql vs. mongodb
Wei Shan Ang

MariaDB 10 and Beyond
MariaDB 10 and BeyondMariaDB 10 and Beyond
MariaDB 10 and Beyond
MariaDB Corporation

MySQL and MariaDB Backups
MySQL and MariaDB BackupsMySQL and MariaDB Backups
MySQL and MariaDB Backups
Federico Razzoli

MySQL Performance - Best practices
MySQL Performance - Best practices MySQL Performance - Best practices
MySQL Performance - Best practices
Ted Wennmark

Running MySQL in AWS
Running MySQL in AWSRunning MySQL in AWS
Running MySQL in AWS
Laine Campbell


Similar to Faster, better, stronger: The new InnoDB (20)

PL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptxPL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptx

InnoDB Performance Optimisation
InnoDB Performance OptimisationInnoDB Performance Optimisation
InnoDB Performance Optimisation

MySQL Cluster (NDB) - Best Practices Percona Live 2017
MySQL Cluster (NDB) - Best Practices Percona Live 2017MySQL Cluster (NDB) - Best Practices Percona Live 2017
MySQL Cluster (NDB) - Best Practices Percona Live 2017

Percona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and ImprovementsPercona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and Improvements

Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎

MySQL configuration - The most important Variables
MySQL configuration - The most important VariablesMySQL configuration - The most important Variables
MySQL configuration - The most important Variables

InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0

Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations

Evolution of DBA in the Cloud Era
 Evolution of DBA in the Cloud Era Evolution of DBA in the Cloud Era
Evolution of DBA in the Cloud Era

IBM DB2 Analytics Accelerator Trends & Directions by Namik Hrle
IBM DB2 Analytics Accelerator  Trends & Directions by Namik Hrle IBM DB2 Analytics Accelerator  Trends & Directions by Namik Hrle
IBM DB2 Analytics Accelerator Trends & Directions by Namik Hrle

IBM Analytics Accelerator Trends & Directions Namk Hrle
IBM Analytics Accelerator  Trends & Directions Namk Hrle IBM Analytics Accelerator  Trends & Directions Namk Hrle
IBM Analytics Accelerator Trends & Directions Namk Hrle

mysql 8.0 architecture and enhancement
mysql 8.0 architecture and enhancementmysql 8.0 architecture and enhancement
mysql 8.0 architecture and enhancement

Tips to drive maria db cluster performance for nextcloud
Tips to drive maria db cluster performance for nextcloudTips to drive maria db cluster performance for nextcloud
Tips to drive maria db cluster performance for nextcloud

High performance json- postgre sql vs. mongodb
High performance json- postgre sql vs. mongodbHigh performance json- postgre sql vs. mongodb
High performance json- postgre sql vs. mongodb

MariaDB 10 and Beyond
MariaDB 10 and BeyondMariaDB 10 and Beyond
MariaDB 10 and Beyond

MySQL and MariaDB Backups
MySQL and MariaDB BackupsMySQL and MariaDB Backups
MySQL and MariaDB Backups

MySQL Performance - Best practices
MySQL Performance - Best practices MySQL Performance - Best practices
MySQL Performance - Best practices

Running MySQL in AWS
Running MySQL in AWSRunning MySQL in AWS
Running MySQL in AWS


More from MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB plc

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma
MariaDB plc

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud
MariaDB plc

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB plc

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale
MariaDB plc

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation
MariaDB plc

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB plc

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB plc

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB plc

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023
MariaDB plc

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB
MariaDB plc

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server
MariaDB plc

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®
MariaDB plc

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis
MariaDB plc

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring
MariaDB plc

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector
MariaDB plc

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction
MariaDB plc

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL
MariaDB plc

What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1
MariaDB plc


More from MariaDB plc (20)

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL

What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1


Recently uploaded

一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理
一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理
一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理
74nqk8xf

Challenges of Nation Building-1.pptx with more important
Challenges of Nation Building-1.pptx with more importantChallenges of Nation Building-1.pptx with more important
Challenges of Nation Building-1.pptx with more important
Sm321

ViewShift: Hassle-free Dynamic Policy Enforcement for Every Data Lake
ViewShift: Hassle-free Dynamic Policy Enforcement for Every Data LakeViewShift: Hassle-free Dynamic Policy Enforcement for Every Data Lake
ViewShift: Hassle-free Dynamic Policy Enforcement for Every Data Lake
Walaa Eldin Moustafa

Population Growth in Bataan: The effects of population growth around rural pl...
Population Growth in Bataan: The effects of population growth around rural pl...Population Growth in Bataan: The effects of population growth around rural pl...
Population Growth in Bataan: The effects of population growth around rural pl...
Bill641377

Palo Alto Cortex XDR presentation .......
Palo Alto Cortex XDR presentation .......Palo Alto Cortex XDR presentation .......
Palo Alto Cortex XDR presentation .......
Sachin Paul

办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样
办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样
办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样
apvysm8

Experts live - Improving user adoption with AI
Experts live - Improving user adoption with AIExperts live - Improving user adoption with AI
Experts live - Improving user adoption with AI
jitskeb

Udemy_2024_Global_Learning_Skills_Trends_Report (1).pdf
Udemy_2024_Global_Learning_Skills_Trends_Report (1).pdfUdemy_2024_Global_Learning_Skills_Trends_Report (1).pdf
Udemy_2024_Global_Learning_Skills_Trends_Report (1).pdf
Fernanda Palhano

一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
bopyb

DSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelinesDSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelines
Timothy Spann

一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理
一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理
一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理
nuttdpt

一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理
aqzctr7x

一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理
g4dpvqap0

Global Situational Awareness of A.I. and where its headed
Global Situational Awareness of A.I. and where its headedGlobal Situational Awareness of A.I. and where its headed
Global Situational Awareness of A.I. and where its headed
vikram sood

STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...
STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...
STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...
sameer shah

Predictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging DataPredictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging Data
Kiwi Creative

Intelligence supported media monitoring in veterinary medicine
Intelligence supported media monitoring in veterinary medicineIntelligence supported media monitoring in veterinary medicine
Intelligence supported media monitoring in veterinary medicine
AndrzejJarynowski

在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
v7oacc3l

Influence of Marketing Strategy and Market Competition on Business Plan
Influence of Marketing Strategy and Market Competition on Business PlanInfluence of Marketing Strategy and Market Competition on Business Plan
Influence of Marketing Strategy and Market Competition on Business Plan
jerlynmaetalle

End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024
Lars Albertsson


Recently uploaded (20)

一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理
一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理
一比一原版(牛布毕业证书)牛津布鲁克斯大学毕业证如何办理

Challenges of Nation Building-1.pptx with more important
Challenges of Nation Building-1.pptx with more importantChallenges of Nation Building-1.pptx with more important
Challenges of Nation Building-1.pptx with more important

ViewShift: Hassle-free Dynamic Policy Enforcement for Every Data Lake
ViewShift: Hassle-free Dynamic Policy Enforcement for Every Data LakeViewShift: Hassle-free Dynamic Policy Enforcement for Every Data Lake
ViewShift: Hassle-free Dynamic Policy Enforcement for Every Data Lake

Population Growth in Bataan: The effects of population growth around rural pl...
Population Growth in Bataan: The effects of population growth around rural pl...Population Growth in Bataan: The effects of population growth around rural pl...
Population Growth in Bataan: The effects of population growth around rural pl...

Palo Alto Cortex XDR presentation .......
Palo Alto Cortex XDR presentation .......Palo Alto Cortex XDR presentation .......
Palo Alto Cortex XDR presentation .......

办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样
办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样
办(uts毕业证书)悉尼科技大学毕业证学历证书原版一模一样

Experts live - Improving user adoption with AI
Experts live - Improving user adoption with AIExperts live - Improving user adoption with AI
Experts live - Improving user adoption with AI

Udemy_2024_Global_Learning_Skills_Trends_Report (1).pdf
Udemy_2024_Global_Learning_Skills_Trends_Report (1).pdfUdemy_2024_Global_Learning_Skills_Trends_Report (1).pdf
Udemy_2024_Global_Learning_Skills_Trends_Report (1).pdf

一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理

DSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelinesDSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelines

一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理
一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理
一比一原版(UCSB文凭证书)圣芭芭拉分校毕业证如何办理

一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理

一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理
一比一原版(Glasgow毕业证书)格拉斯哥大学毕业证如何办理

Global Situational Awareness of A.I. and where its headed
Global Situational Awareness of A.I. and where its headedGlobal Situational Awareness of A.I. and where its headed
Global Situational Awareness of A.I. and where its headed

STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...
STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...
STATATHON: Unleashing the Power of Statistics in a 48-Hour Knowledge Extravag...

Predictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging DataPredictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging Data

Intelligence supported media monitoring in veterinary medicine
Intelligence supported media monitoring in veterinary medicineIntelligence supported media monitoring in veterinary medicine
Intelligence supported media monitoring in veterinary medicine

在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样

Influence of Marketing Strategy and Market Competition on Business Plan
Influence of Marketing Strategy and Market Competition on Business PlanInfluence of Marketing Strategy and Market Competition on Business Plan
Influence of Marketing Strategy and Market Competition on Business Plan

End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024


Faster, better, stronger: The new InnoDB

  • 1. Faster, better, stronger: The new InnoDB Marko Mäkelä Lead Developer InnoDB MariaDB Corporation 1
  • 2. Cleanup of Configuration Parameters ● We deprecate & hard-wire a number of parameters, including the following: ○ innodb_buffer_pool_instances=1, innodb_page_cleaners=1 ○ innodb_log_files_in_group=1 (only ib_logfile0) ○ innodb_undo_logs=128 (the “rollback segment” component of DB_ROLL_PTR) ● Enterprise Server allows more changes while the server is running: ○ SET GLOBAL innodb_log_file_size=…; ○ SET GLOBAL innodb_purge_threads=…; MARIADB SERVER 10.5 2
  • 3. Improvements to the Redo Log ● More compact, extensible redo log record format and faster backup&recovery ○ We now avoid writes of freed pages after DROP (or rebuild) operations. ○ The doublewrite buffer is not used for newly (re)initialized pages. ○ The physical format is easy to parse, thanks to explicitly encoded lengths. ○ Optimized memory management on recovery (or mariabackup --prepare). ● An improved group commit reduces contention and improves scalability ● Compile-time option for persistent memory (such as Intel® Optane™ DC) MARIADB SERVER 10.5 3
  • 4. Cleanup of Background Tasks ● Background tasks are run in a thread pool ○ No more merges of buffered changes to secondary indexes in the background ○ In the Enterprise Server, you can SET GLOBAL innodb_purge_threads=…; ● An InnoDB internal rw-lock was all but replaced by metadata locks (MDL) ○ We must ensure that the table not be dropped during an operation. ○ This used to be covered by dict_operation_lock covering any InnoDB table! ○ Acquiring only MDL on the table name ought to improve scalability. MARIADB SERVER 10.5 4
  • 5. Improvements to the Redo Log and Recovery … while still guaranteeing Atomicity, Consistency, Isolation, Durability 5
  • 6. A Comparison to the ISO OSI Model MARIADB SERVER Low Layers in the OSI Model ● Transport: Retransmission, flow control (TCP/IP) ● Network: IP, ICMP, UDP, BGP, DNS, … (router/switch) ● Data link: Packet framing, checksums ● Physical: Ethernet (CSMA/CD), WLAN (CSMA/CA), … ● Transaction: ACID, MVCC ● Mini-transaction: Atomic, Durable multi-page changes with checksums & recovery ● File system: ext4, XFS, ZFS, NFS, … ● Storage: HDD, SSD, PMEM, … InnoDB Engine in MariaDB Server 6
  • 7. Write Dependencies and ACID ● Log sequence number (LSN) totally orders the output of mini-transactions. ○ The mini-transaction’s atomic change to one or multiple pages is durable if all log up to the end LSN has been written. ● Undo log pages implement ACID transactions (implicit locks, rollback, MVCC) ○ A user transaction COMMIT is durable if the undo page change is durable. ● Write-ahead logging: Must write log before changed pages, at least up to the FIL_PAGE_LSN of the changed page that is about to be written ● Log checkpoint: write all changed pages older than the checkpoint LSN ● Recovery will have to process log from the checkpoint LSN to last durable LSN MARIADB SERVER 10.5 7
  • 8. Mini-Transactions: Latches and Log MARIADB SERVER 10.5 8 Mini-Transaction Memo: Locks or Buffer-Fixes dict_index_t:: lock covers internal (non-leaf) pages fil_space_t:: latch: allocating or freeing pages Log: Page Changes Data Files FIL_PAGE_LSN Flush (after log written) ib_logfile0Log Buffer log_sys.buf Write ahead (of page flush) to log Buffer pool page buf_page_t:: oldest_modification commit A mini-transaction commit stores the log position (LSN) to each changed page. Recovery will apply log if its LSN is newer than the FIL_PAGE_LSN. Log position (LSN)
  • 9. (Almost) Physical Redo Logging ● Original goal: Replace all physio-logical log records with purely physical ones ○ “write N bytes to offset O”, “copy N bytes from offset O to P”. ○ Simple and fast recovery, with no possibility of validation. ● Setback: Any increase of redo log record volume severely hurts performance! ○ Must avoid writing log for updating numerous index page header or footer fields. ● Solution: Special logical records UNDO_APPEND, INSERT, DELETE ○ For these records, recovery will validate the page contents. MARIADB SERVER 10.5 9
  • 10. Fewer Writes and Reads of Data Pages ● Page (re)initialization will write an INIT_PAGE record ○ The page will be recovered based on log records only (without reading the page! ○ Page flushing can safely skip the doublewrite buffer. ● Freeing a page will write a FREE_PAGE record ○ Freed pages will not be written back, nor read by crash recovery! ○ Only if scrubbing is enabled, we must discard the garbage contents. MARIADB SERVER 10.5 10
  • 11. Stronger, Faster Backup and Recovery ● Recovery (and mariabackup) must parse and buffer all log records ● Recovery (and mariabackup --prepare) must process all log that was durably written since the last completed log checkpoint LSN ● In MariaDB Server 10.5, thanks to the new log record format makes this faster: ○ Explicitly encoded lengths simplify parsing. ○ Less copying, because a record can never exceed innodb_page_size. ● The recovery of logical INSERT, DELETE includes validation of page contents ○ Corrupted data can be detected more reliably. MARIADB SERVER 10.5 11
  • 12. Faster InnoDB Redo Log Writes ● Vladislav Vaintroub introduced group_commit_lock for more efficient synchronization of redo log writing and flushing. ○ The goal was to reduce CPU consumption on log_write_up_to(), to reduce spurious wakeups, and improve the throughput in write-intensive benchmarks. ○ Vlad’s extensive benchmarks highlighted (again) that performance is very sensitive to any increase of the redo log volume. This was why the logical UNDO_APPEND, INSERT, DELETE records were added. ● Sergey Vojtovich and Eugene Kosov wrote an optonal libpmem interface to improve performance on Intel® Optane™ DC Persistent Memory Module. MARIADB SERVER 10.5 12
  • 13. Other InnoDB Changes in MariaDB Server 10.5 Better performance by cleaning up maintenance debt 13
  • 14. More Predictable Change Buffer ● InnoDB aims to avoid read-before-write when it needs to modify a secondary index B-tree leaf page that is not in the buffer pool. ○ Insert, delete-mark and purge (delete) operations can be written to a change buffer in the system tablespace, to be merged to the final location later. ● MariaDB Server 10.5 no longer merges buffered changes in the background ○ Change buffer merges can no longer cause hard-to-predict I/O spikes. ○ A corrupted index can only cause trouble when it is being accessed. ● This was joint work with Thirunarayanan Balathandayuthapani. MARIADB SERVER 10.5 14
  • 15. Thread Pool for Background Tasks ● Vladislav Vaintroub converted most InnoDB internal threads into tasks ○ The internal thread pool will dynamically create or destroy threads based on the number of active tasks. ○ Vlad also refactored the InnoDB I/O threads and the asynchronous I/O. ● It is easier to configure the maximum number of tasks of a kind than to configure the number of threads. ○ In the Enterprise Server, you can SET GLOBAL innodb_purge_threads=…; MARIADB SERVER 10.5 15
  • 16. InnoDB data dictionary cleanup ● Thirunarayanan Balathandayuthapani extended the use of metadata locks (MDL) ○ Background operations must ensure that the table not be dropped. ○ This used to be covered by dict_operation_lock (or dict_sys.latch), which covers any InnoDB table! ○ It suffices to acquire MDL on the table name. ● In a future release, we hope to remove dict_sys.latch altogether, and to replace internal transactional table locks with MDL. MARIADB SERVER 10.5 16
  • 17. The Buffer Pool is Single Again ● In 2010, the buffer pool was partitioned in order to reduce contention. ○ But many scalability fixes had been implemented since then! ○ Extensive benchmarks by Axel Schwenke showed that a single buffer pool generally performs best; in one case, 4 buffer pool instances was better. ○ With a single buffer pool, it is easier to employ std::atomic data members. ● We removed some data members from buf_page_t and buf_block_t altogether, including buf_block_t::mutex. ● Page lookups will no longer acquire buf_pool.mutex at all. MARIADB SERVER 10.5 17
  • 18. A Few Words on Quality How we Test the InnoDB Storage Engine at MariaDB 18
  • 19. The Backbone of InnoDB Testing at MariaDB ● A large number of assertions (in debug builds) form a ‘specification’ ○ A regression test (mtr) is run on CI systems. ○ Random Query Generator (RQG) and grammar simplifier ■ Many tweaks by Matthias Leich, especially to test crash recovery ● AddressSanitizer (ASAN) with custom memory poisoning ● MemorySanitizer (MSAN), UndefinedBehaviorSanitizer (UBSAN) ● Performance tests are run on non-debug builds to prevent regressions MARIADB SERVER 10.5 19
  • 20. Repeatable Execution Traces of Failures ● https://rr-project.org by the Mozilla Foundation records an execution trace that can be used for deterministic debugging with rr replay ○ Breakpoints and watchpoints will work and can catch data races! ○ Much smaller than core dumps, even though all intermediate states are included. ● Even the most nondeterministic bugs become tractable and fixable. ○ Recovery bugs: need a trace of the killed server and the recovering server. ○ We recently found and fixed several elusive 10-year-old bugs. ● Best of all, rr record can be combined with ASAN and RQG. MARIADB SERVER 10.5 20
  • 21. Performance Evaluation I/O Bound Performance on a 2×16-CPU System 21
  • 22. OLTP Read-Write (14 reads, 4 writes / trx) ● Disabling the innodb_adaptive_hash_index helps in this case ● 10.4.13 is faster than 10.4.12 ● 10.5 is clearly better MARIADB SERVER 10.5 22
  • 23. OLTP Point Selects and Read-Only (14/trx) MARIADB SERVER 10.5 23
  • 24. Summary of the Benchmarks ● MariaDB Server 10.5 significantly improves write performance ○ Thanks to reduced contention on buffer pool and redo log mutexes. ● Some improvement in read workloads until reaching the number of CPUs ● Read workloads show degradation after reaching the number of CPUs ○ We have identified some bottlenecks, such as statistics counters. ○ This is work in progress. MARIADB SERVER 10.5 24
  • 26. Limitations in Current File Formats ● Redo log: 512-byte block size causes copying and mutex contention ○ Block framing forces log records to be split or padded ○ A mutex must be held while copying, padding, encrypting, computing checksums ● Secondary indexes are missing a per-record transaction ID ○ MVCC, purge, and checks for implicit locks could be much simpler and faster ● DB_ROLL_PTR and the undo log format limit us to 128 rollback segments ○ Cannot possibly scale beyond 128 concurrent write transactions MARIADB SERVER 10.5 26
  • 27. Future Ideas for Durability and Backup ● Flash-friendly redo log file format, with a separate checkpoint log file ○ Arbitrary block size to minimize write amplification: No padding on /dev/pmem! ○ Encrypt log records and compute checksums while not holding any mutex! ○ mariabackup --prepare could become optional. No need for .delta files! ● Asynchronous COMMIT: send OK packet on write completion ○ Execute next statement(s) without waiting for COMMIT (Idea: Vladislav Vaintroub) ● Complete the InnoDB recovery in the background, while allowing connections. MARIADB SERVER 10.5 27
  • 28. Conclusion ● MariaDB Server 10.5 makes better use of the hardware resources ○ Useless or harmful parameters were removed, others made dynamic. ○ Performance and scalability were improved for various types of workloads. ● Performance must never come at the cost of reliability or compatibility ○ Our stress tests are based on some formal methods and state-of-the-art tools. ○ We also test in-place upgrades of existing data files. ● Watch out for more improvements in future releases MARIADB SERVER 10.5 28
