1. Demystifying Real Time Analytics With TiDB
Unlocking the Power of TiFlash for Real-Time Data Insights
Kabilesh PR
Co-Founder, Mydbops LLP
33rd
MyWebinar - Mydbops

2. About Me
Kabilesh PR
❏ Interested in Open Source DB technologies
❏ Keen Interest in MySQL, TiDB & Distributed SQL’s
❏ Active Tech Speaker/Blogger
❏ Pingcap Certified TiDB Professional
❏ AWS Database Speciality
❏ Founding Partner, Mydbops

3. Focus on MySQL, MongoDB, PostgreSQL, TiDB, Cassandra
Consulting
Services
Consulting
Services
Managed
Services
24*7
DBA Team
Targeted
Engagement
Mydbops Services

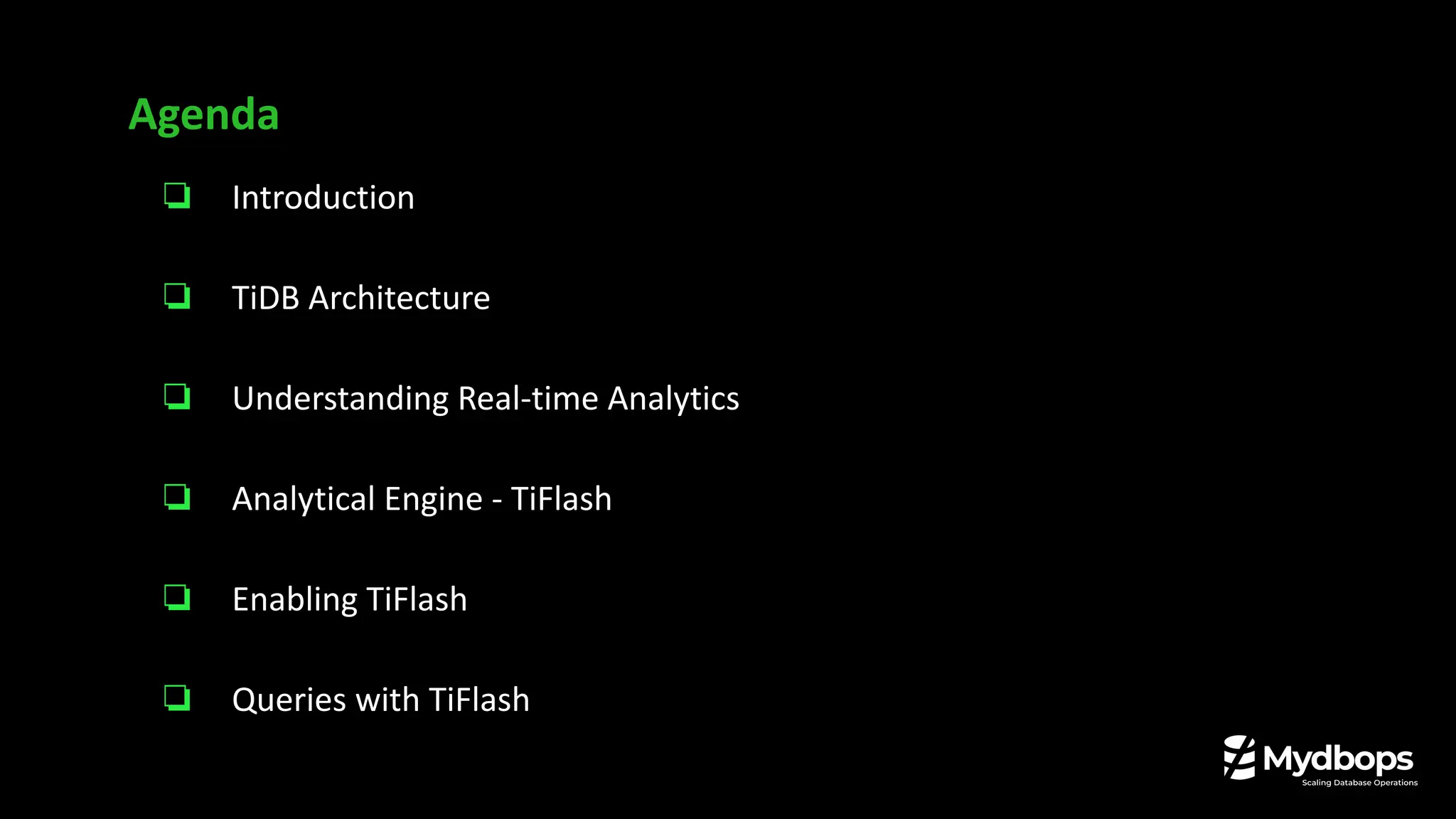

4. ❏ Introduction
❏ TiDB Architecture
❏ Understanding Real-time Analytics
❏ Analytical Engine - TiFlash
❏ Enabling TiFlash
❏ Queries with TiFlash
Agenda

5. Introduction

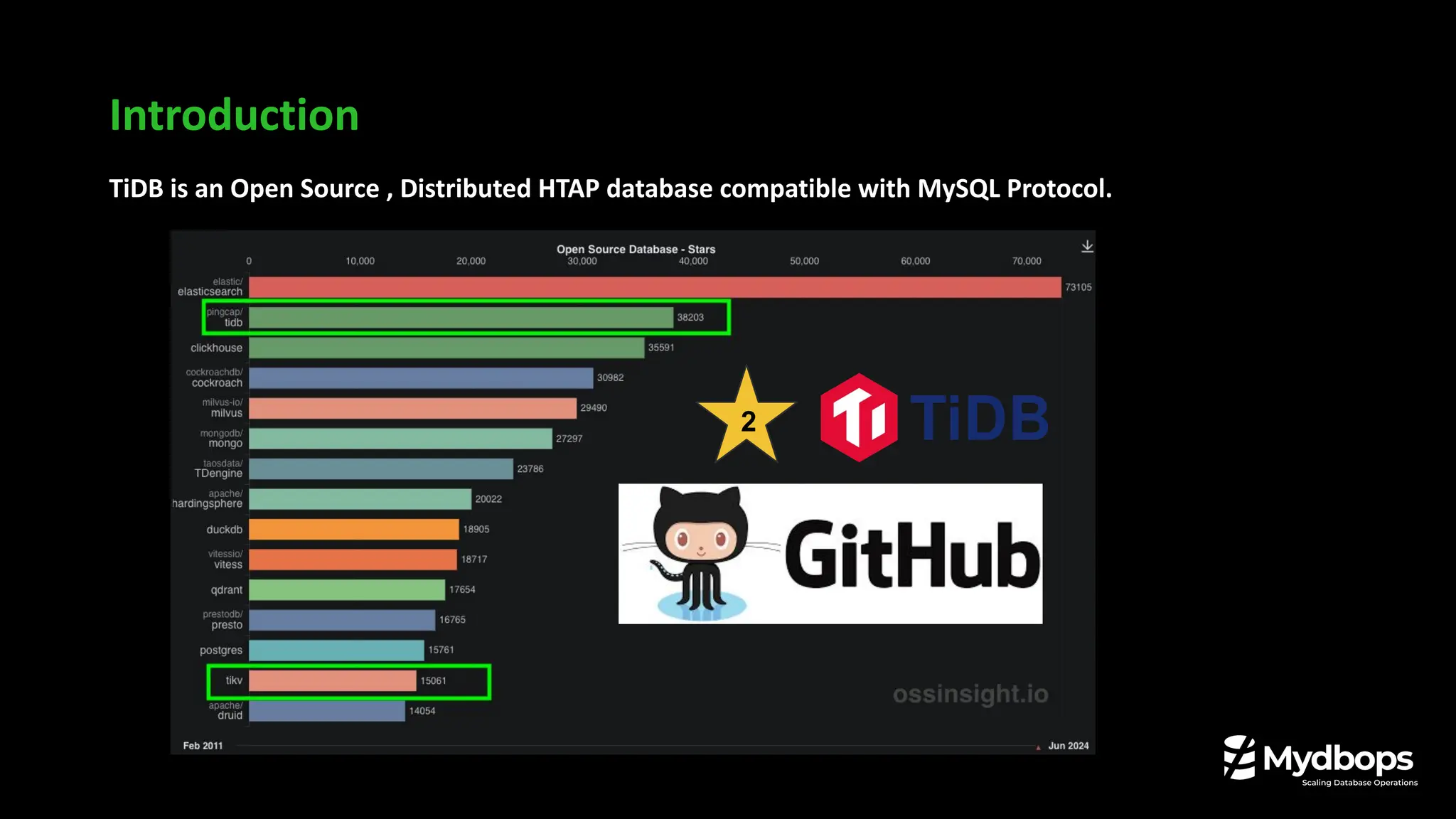

6. TiDB is an Open Source , Distributed HTAP database compatible with MySQL Protocol.
Introduction
2

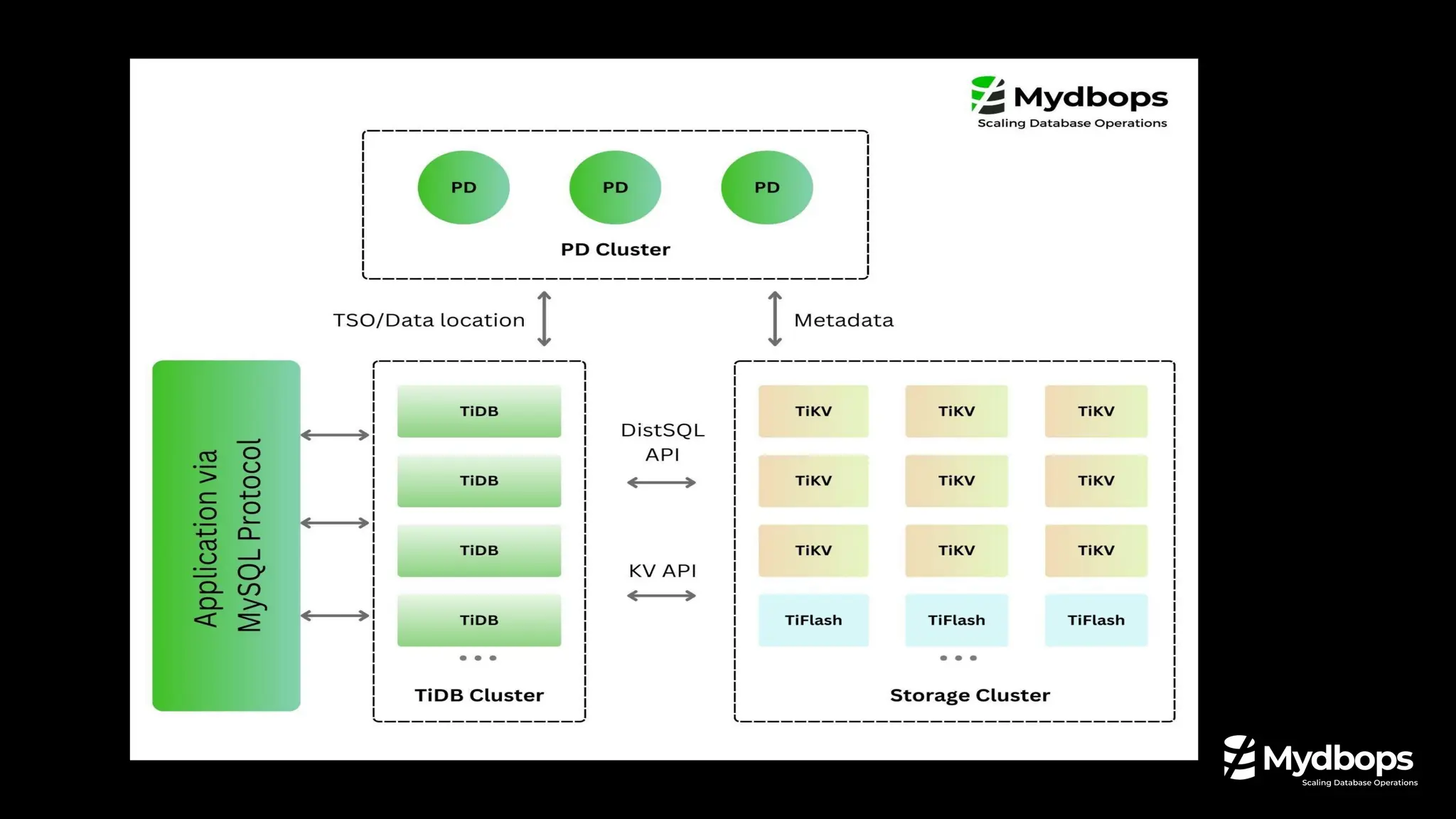

7. Understanding TiDB Architecture

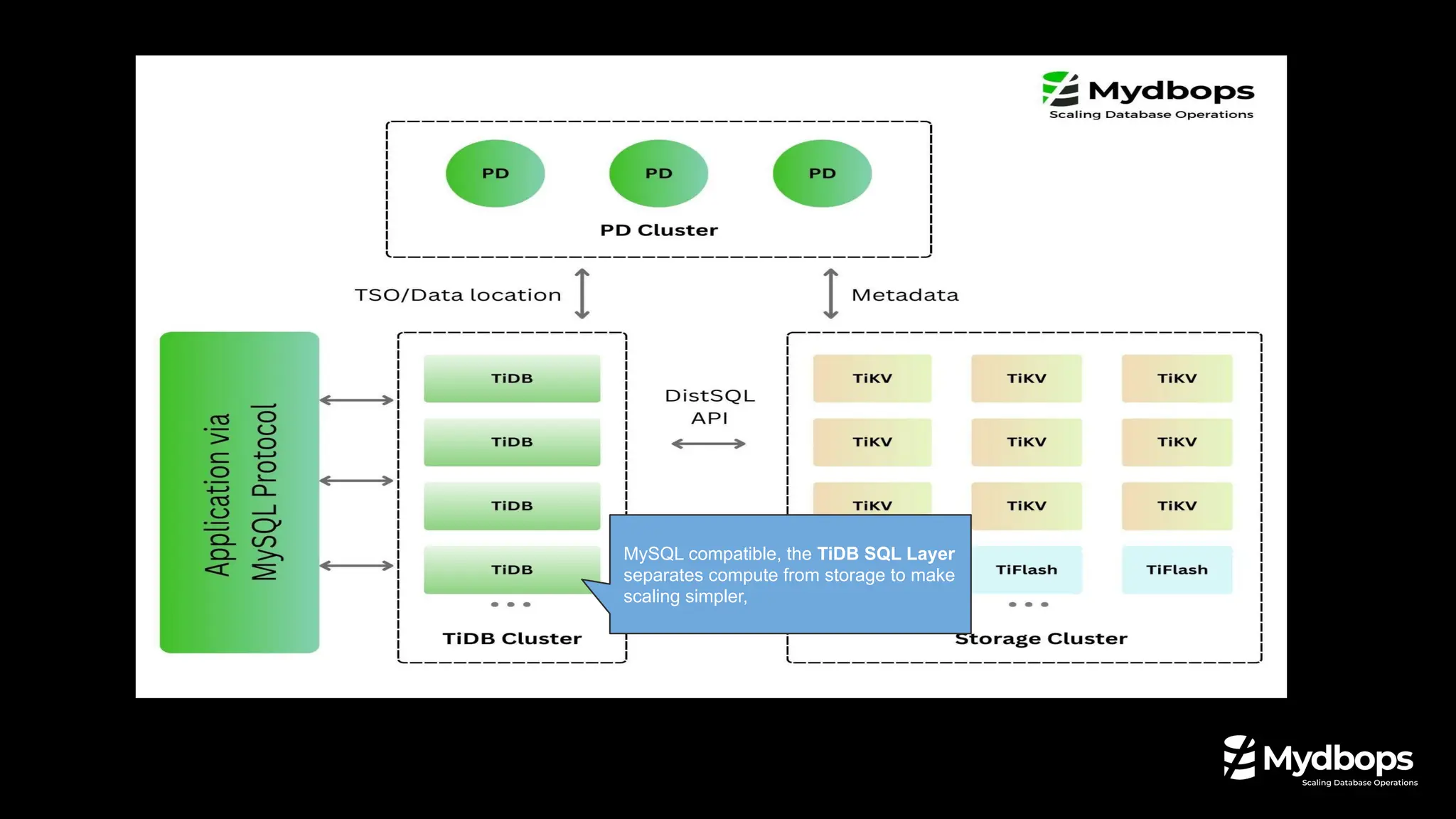

9. MySQL compatible, the TiDB SQL Layer
separates compute from storage to make
scaling simpler,

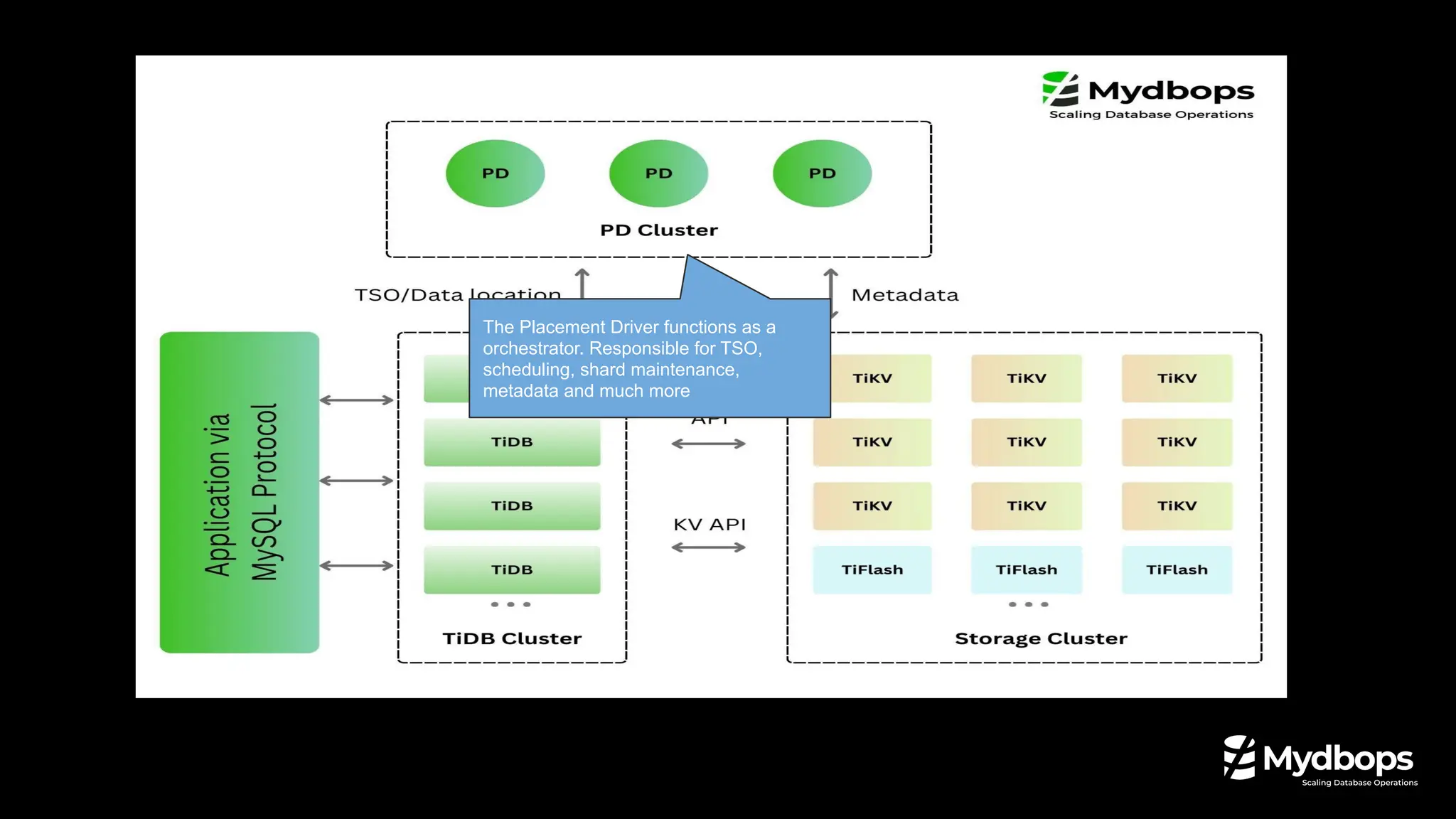

10. The Placement Driver functions as a
orchestrator. Responsible for TSO,
scheduling, shard maintenance,
metadata and much more

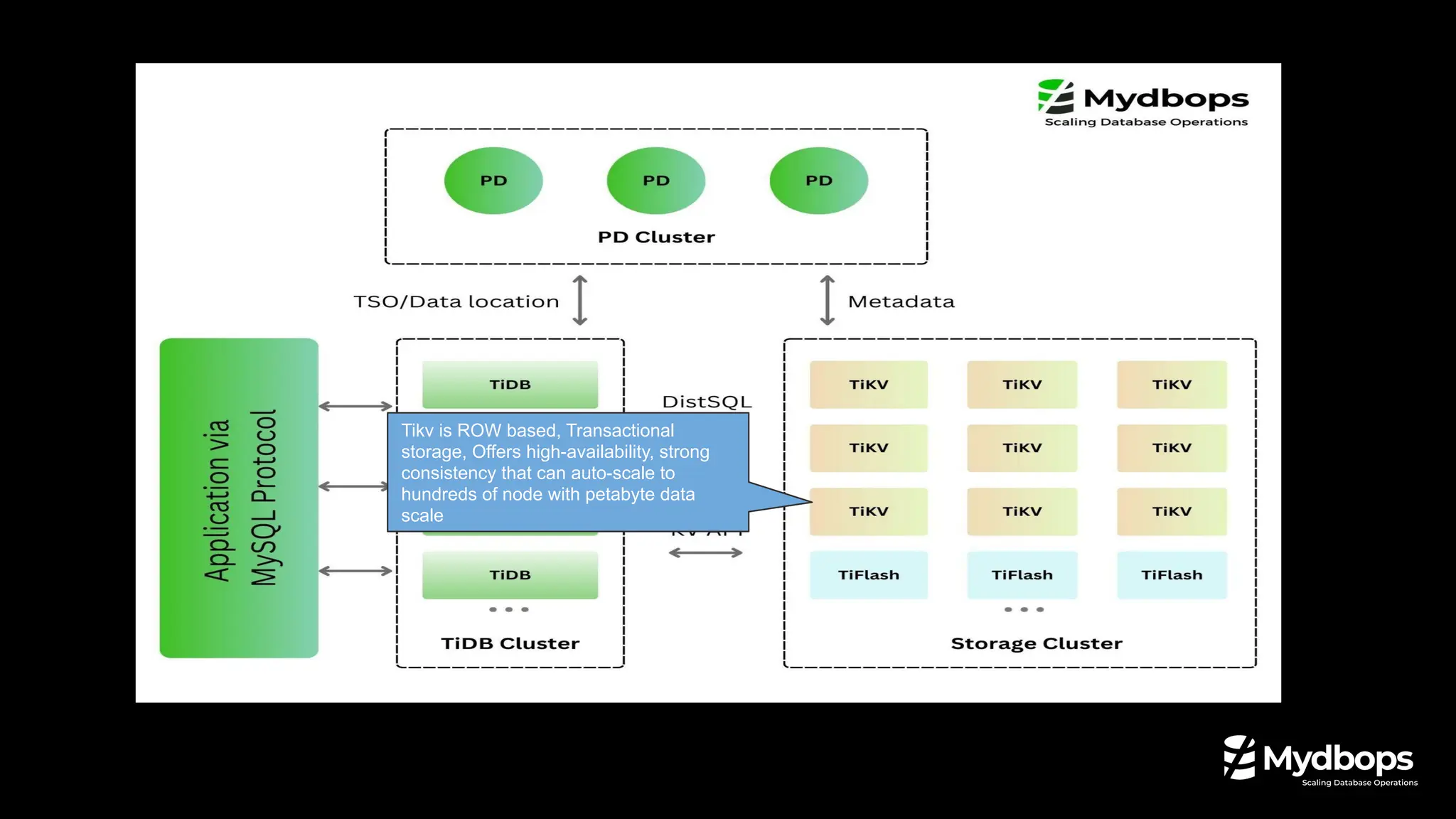

11. Tikv is ROW based, Transactional
storage, Offers high-availability, strong
consistency that can auto-scale to
hundreds of node with petabyte data
scale

12. Advantages of TiDB
Open Source
No Vendor lock-in with a
database that’s 100% open source.
Horizontal Scaling
Grants total transparency into data workloads without
manual sharding.
Horizontal Scaling
Grants total transparency into
data workloads with automatic sharding.
High Availability
Guarantees auto-failover and self-healing for
continuous data access.
MySQL Compatibility
Enjoy the most MySQL compatible
distributed SQL database on the planet.
Multi-Cloud
Deploy database clusters
anywhere in the world.
Mixed Workloads
Streamlined tech stack makes it
easier to produce real-time analytics.
Robust Security
Protect data with enterprise-grade
encryption both in-flight and at-rest.

13. Global client-Base TiDB

14. Understanding Real-time Analytics

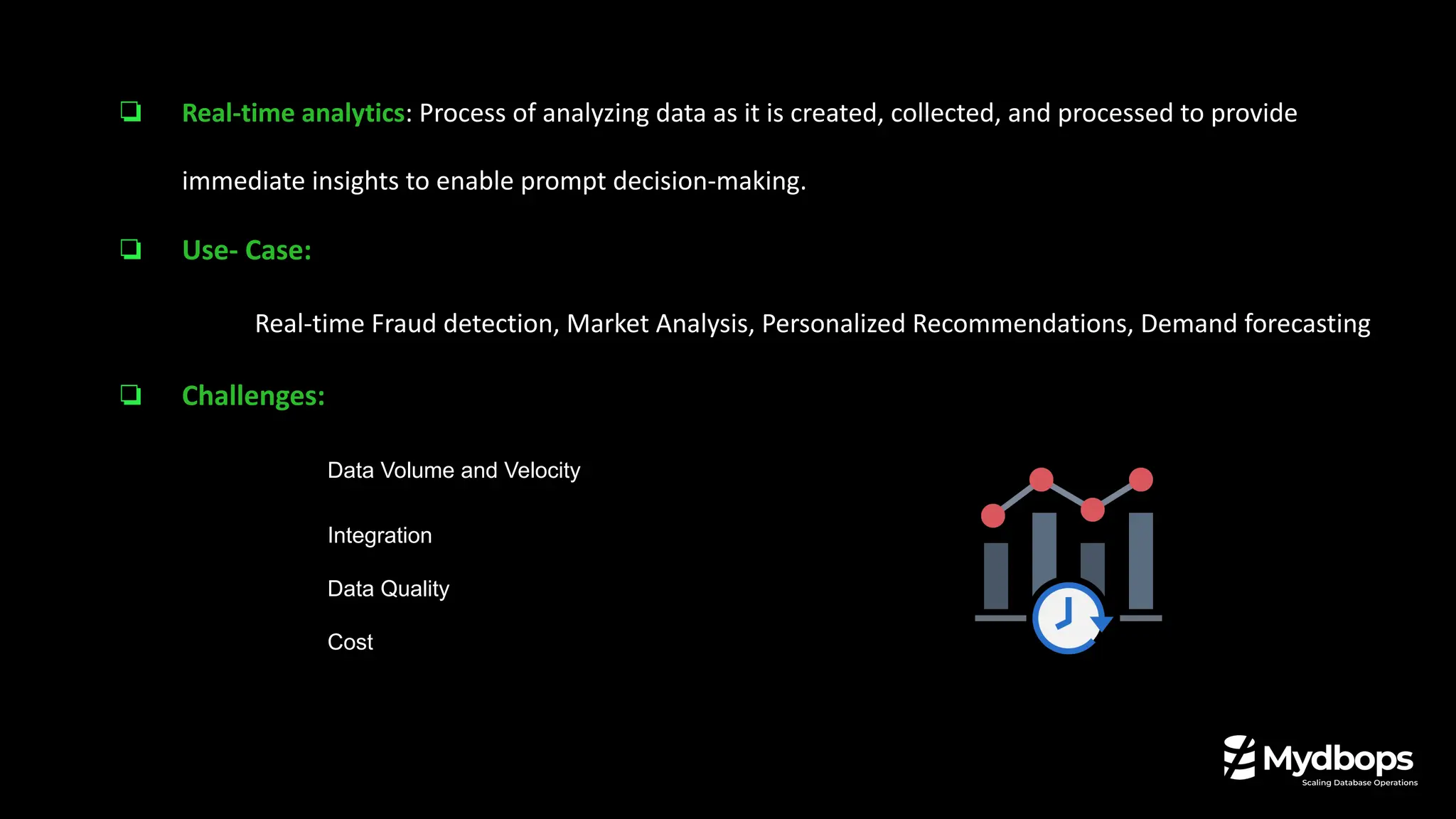

15. ❏ Real-time analytics: Process of analyzing data as it is created, collected, and processed to provide
immediate insights to enable prompt decision-making.
❏ Use- Case:
Real-time Fraud detection, Market Analysis, Personalized Recommendations, Demand forecasting
❏ Challenges:
Data Volume and Velocity
Integration
Data Quality
Cost

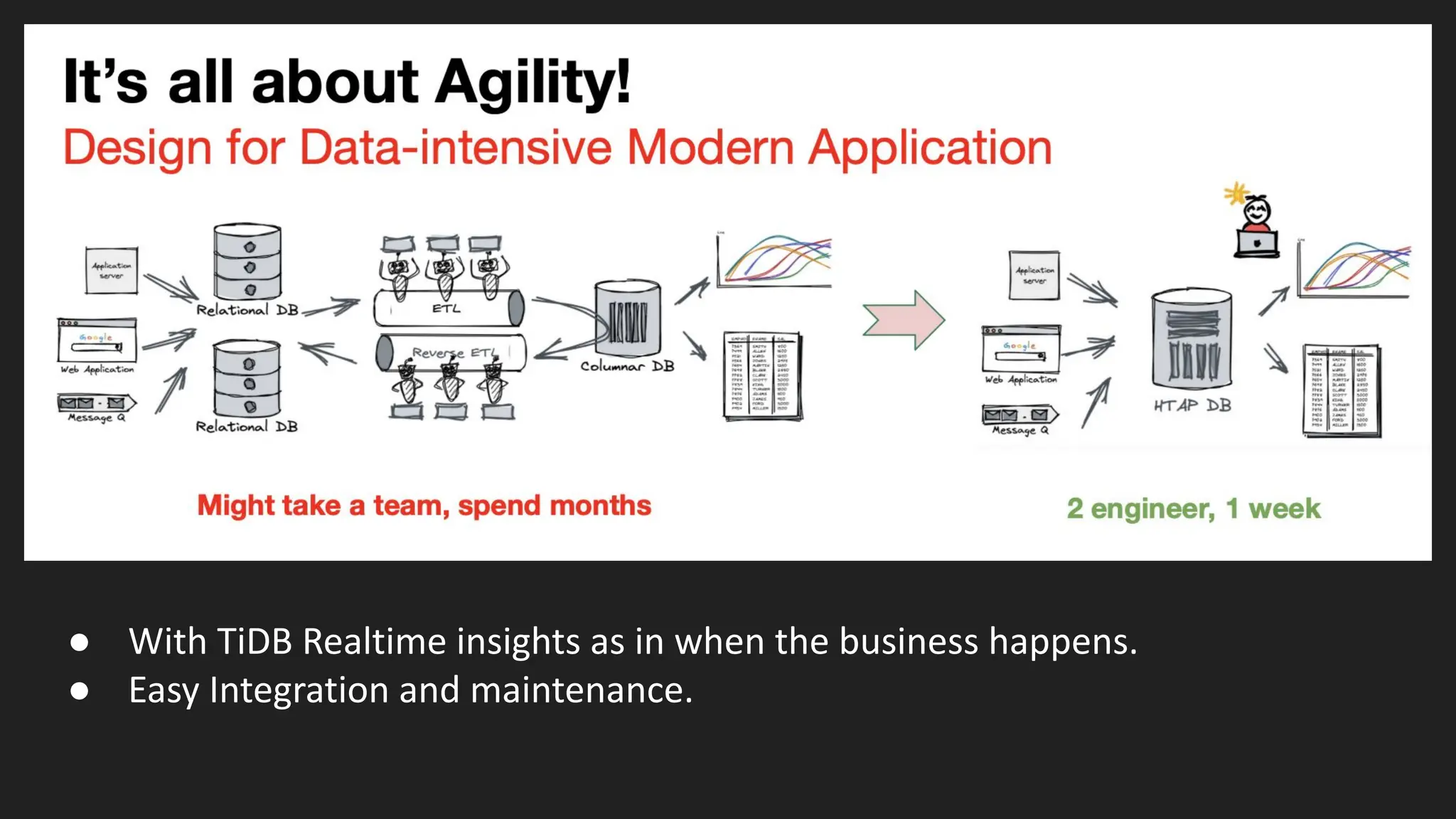

16. ● With TiDB Realtime insights as in when the business happens.
● Easy Integration and maintenance.

17. Real-Time Analytical Engine = TiFlash

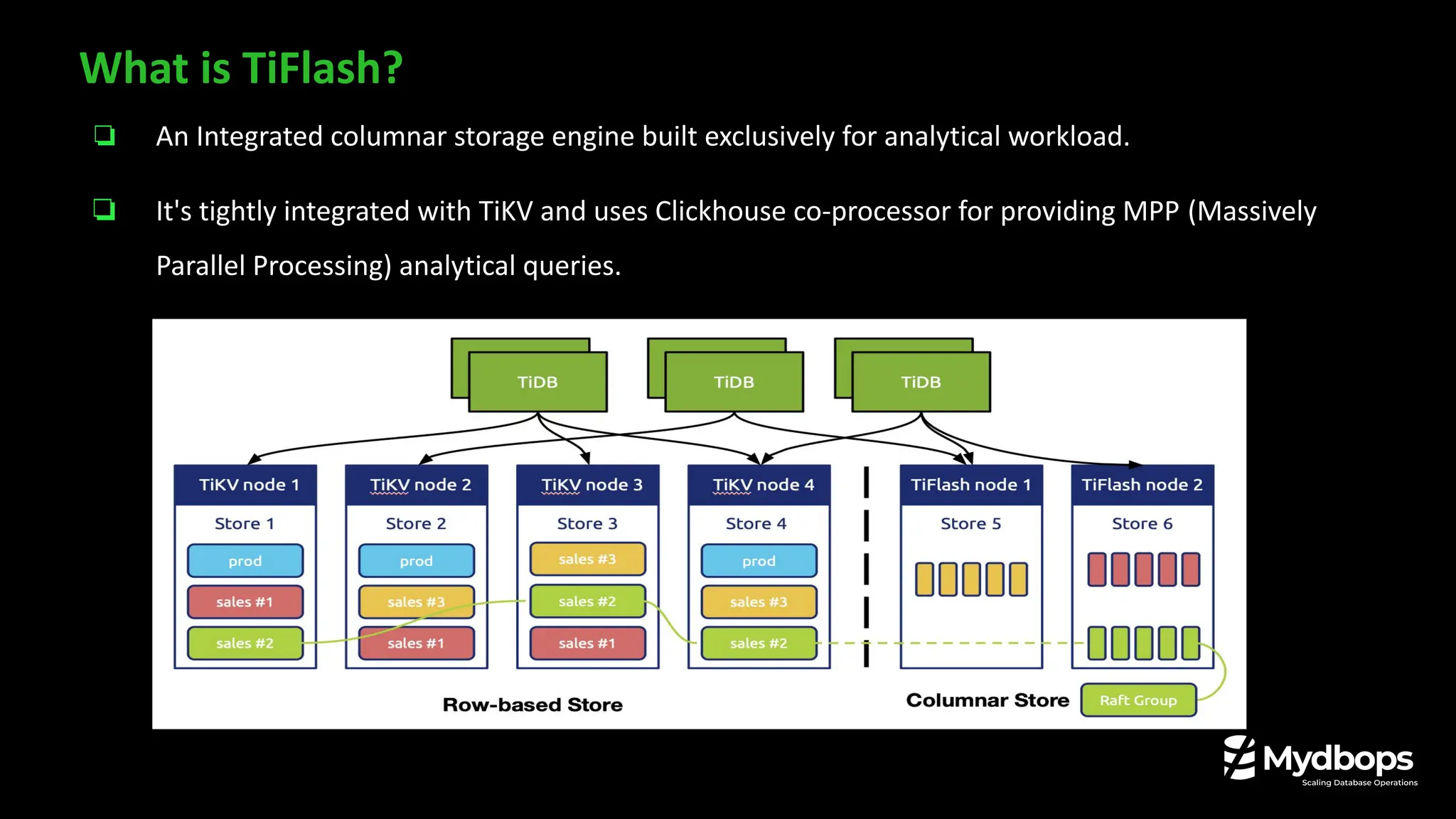

18. ❏ An Integrated columnar storage engine built exclusively for analytical workload.
❏ It's tightly integrated with TiKV and uses Clickhouse co-processor for providing MPP (Massively
Parallel Processing) analytical queries.
What is TiFlash?

19. Data Sync with TiFlash

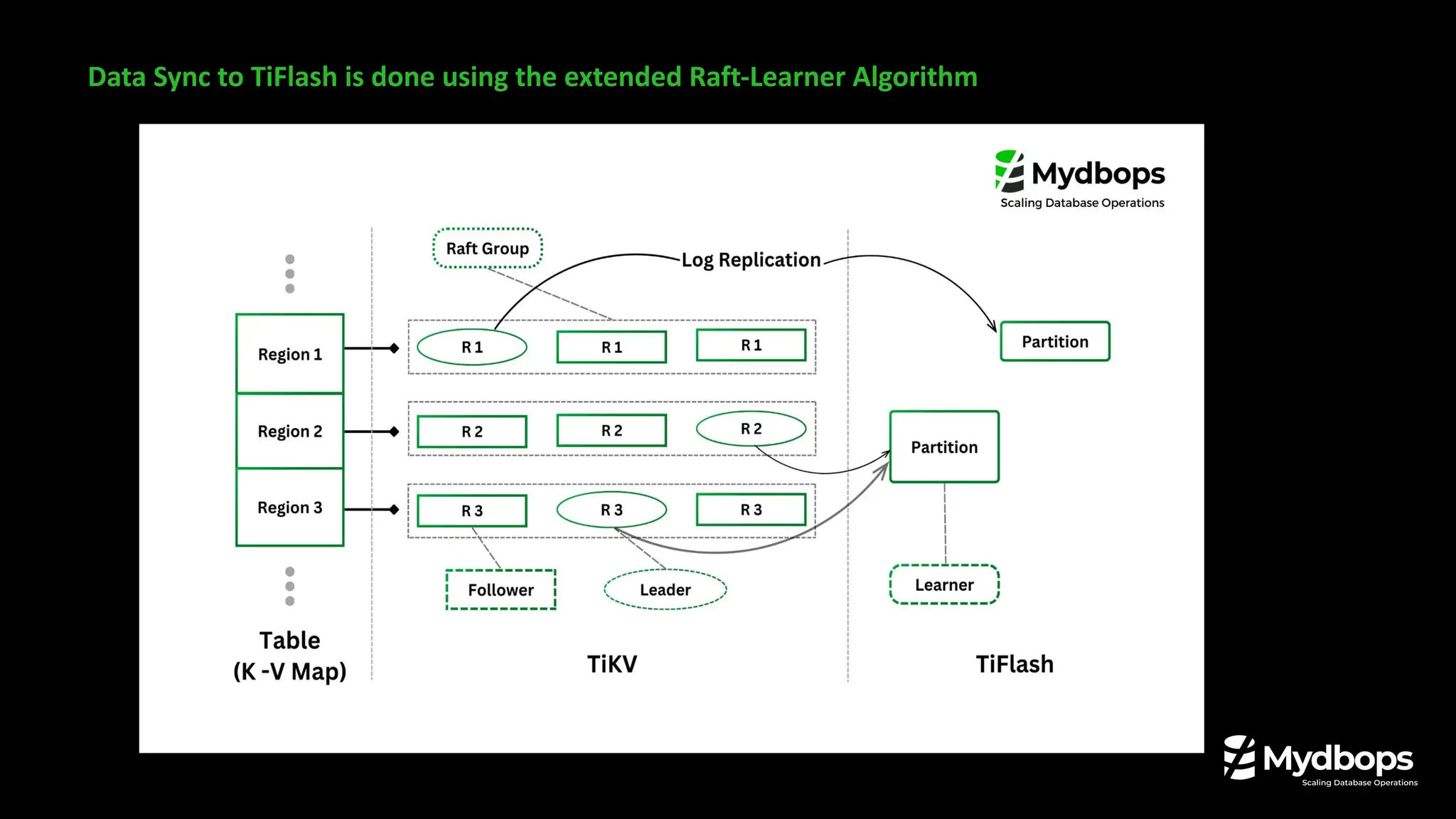

20. Data Sync to TiFlash is done using the extended Raft-Learner Algorithm

21. Enabling TiFlash

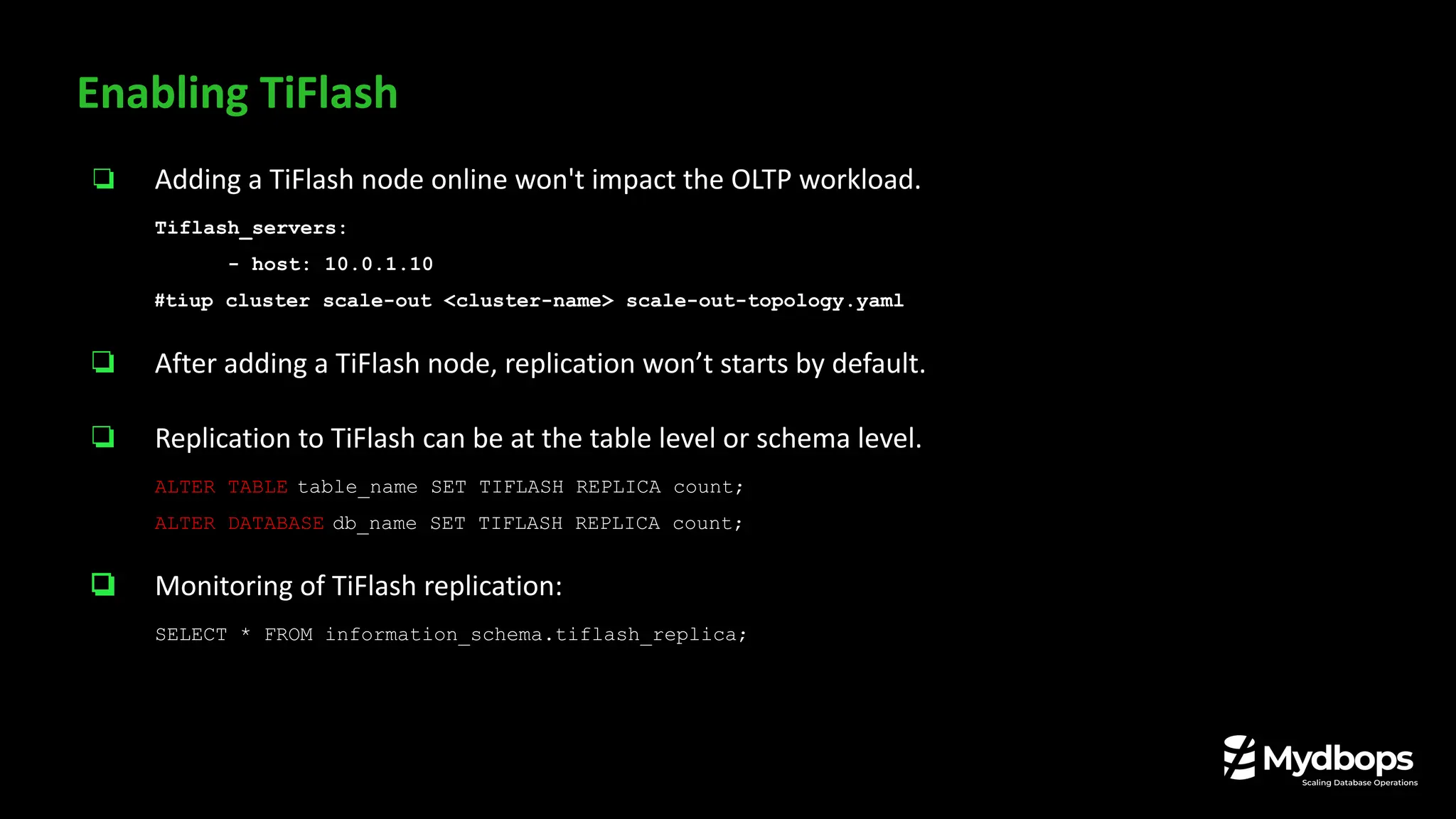

22. ❏ Adding a TiFlash node online won't impact the OLTP workload.
Tiflash_servers:
- host: 10.0.1.10
#tiup cluster scale-out <cluster-name> scale-out-topology.yaml
❏ After adding a TiFlash node, replication won’t starts by default.
❏ Replication to TiFlash can be at the table level or schema level.
ALTER TABLE table_name SET TIFLASH REPLICA count;
ALTER DATABASE db_name SET TIFLASH REPLICA count;
❏ Monitoring of TiFlash replication:
SELECT * FROM information_schema.tiflash_replica;
Enabling TiFlash

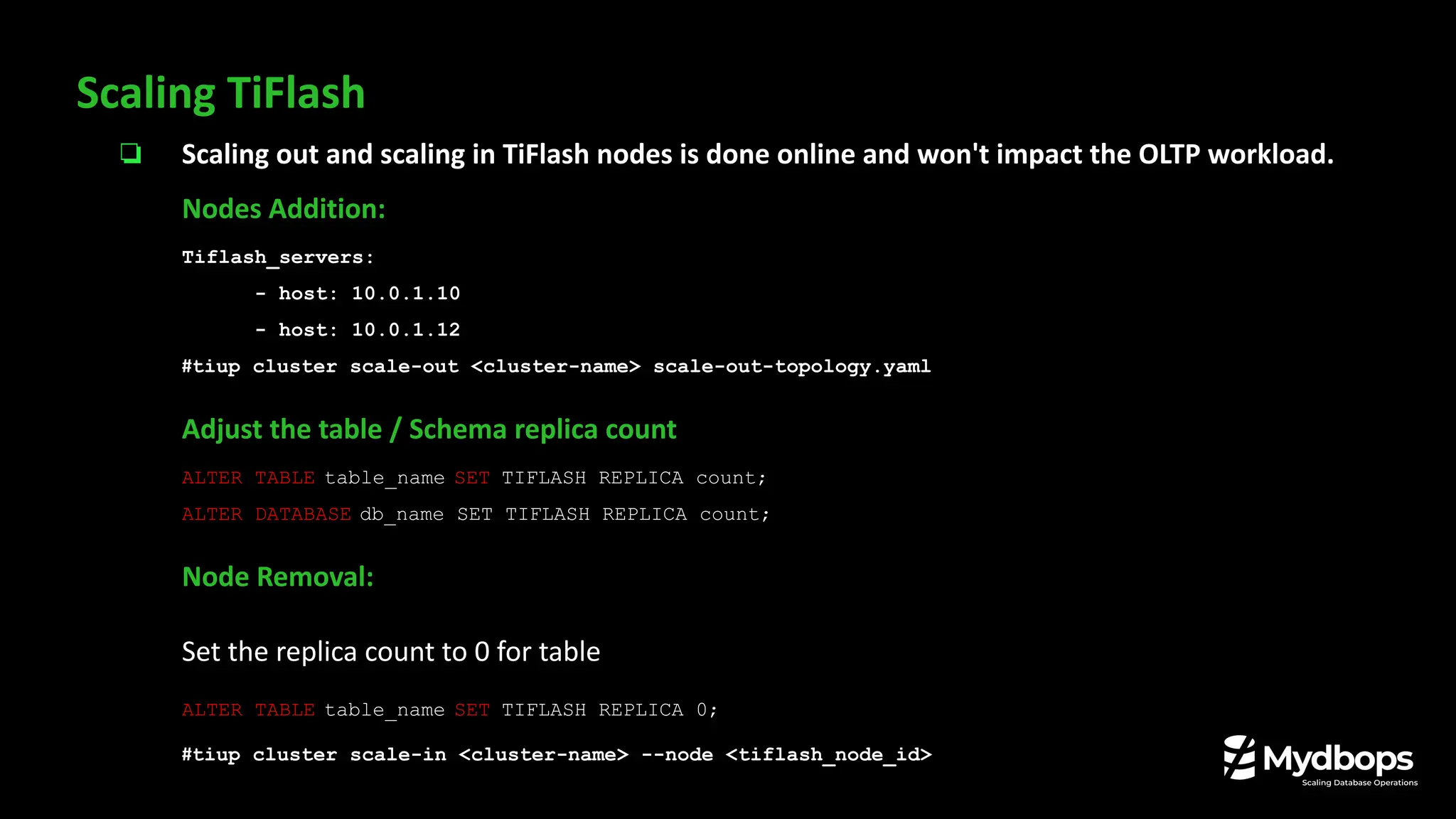

23. Scaling TiFlash

24. ❏ Scaling out and scaling in TiFlash nodes is done online and won't impact the OLTP workload.
Nodes Addition:
Tiflash_servers:
- host: 10.0.1.10
- host: 10.0.1.12
#tiup cluster scale-out <cluster-name> scale-out-topology.yaml
Adjust the table / Schema replica count
ALTER TABLE table_name SET TIFLASH REPLICA count;
ALTER DATABASE db_name SET TIFLASH REPLICA count;
Node Removal:
Set the replica count to 0 for table
ALTER TABLE table_name SET TIFLASH REPLICA 0;
#tiup cluster scale-in <cluster-name> --node <tiflash_node_id>
Scaling TiFlash

25. Queries With TiFlash

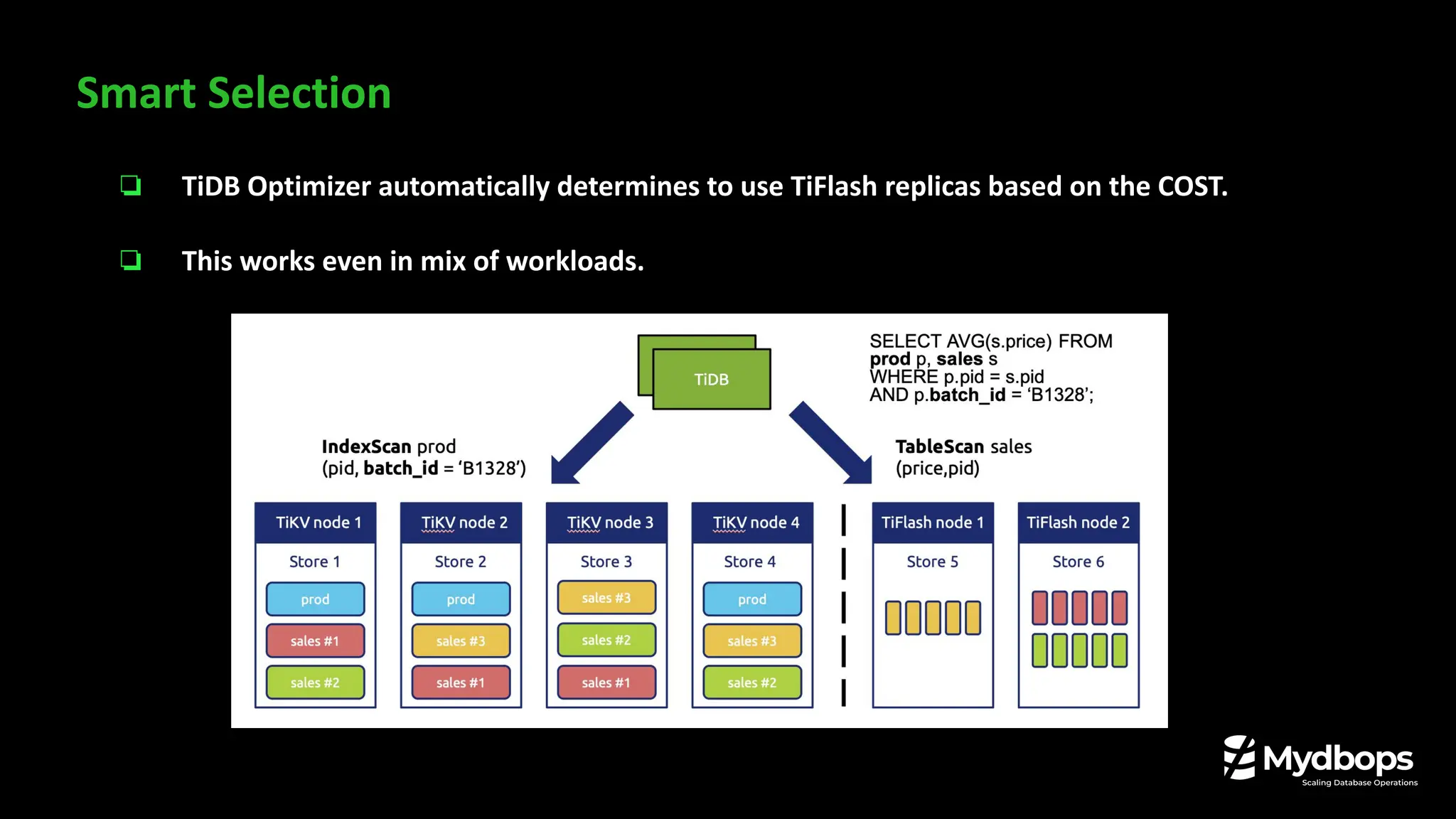

26. ❏ TiDB Optimizer automatically determines to use TiFlash replicas based on the COST.
❏ This works even in mix of workloads.
Smart Selection

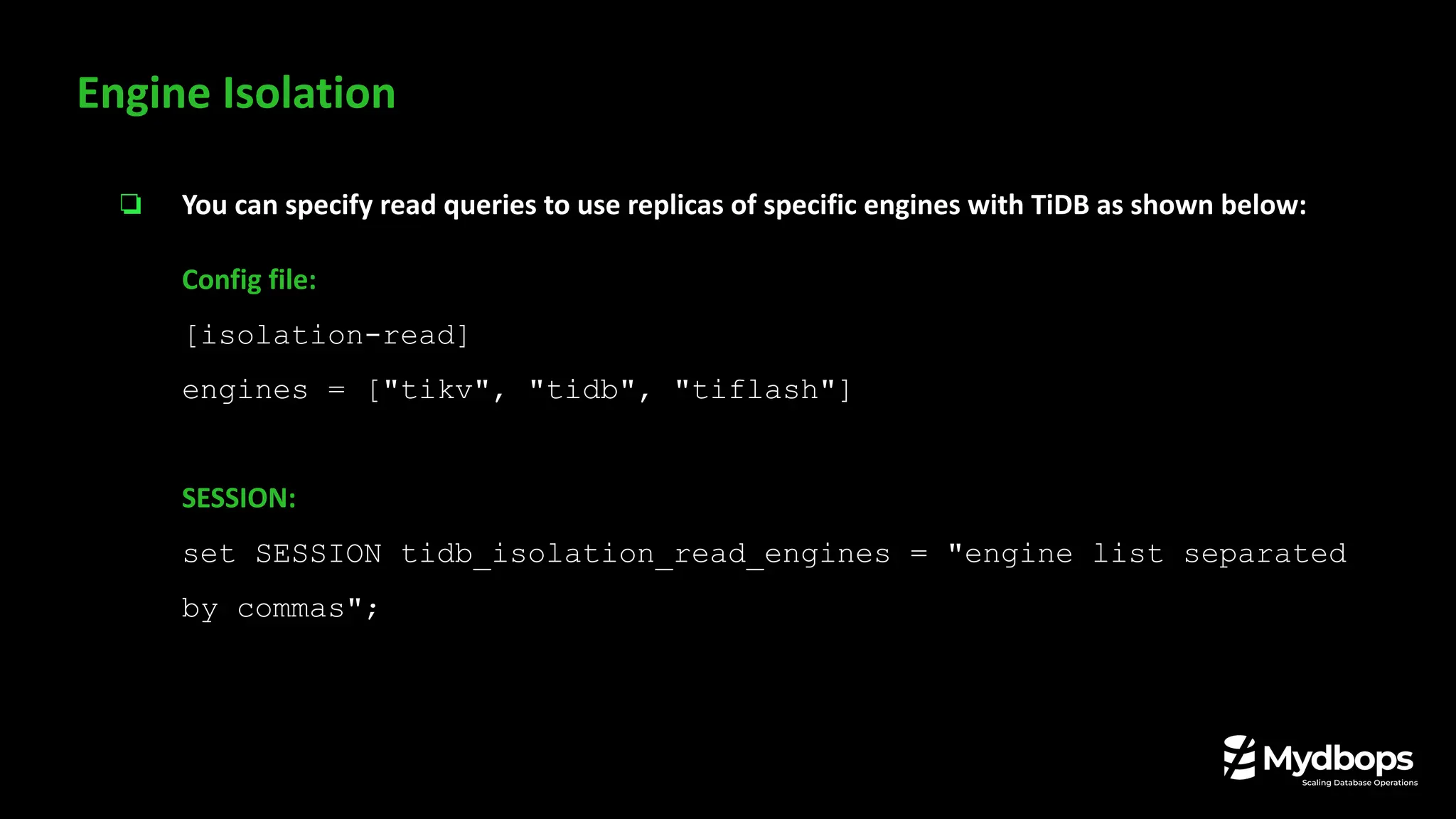

27. ❏ You can specify read queries to use replicas of specific engines with TiDB as shown below:
Config file:
[isolation-read]
engines = ["tikv", "tidb", "tiflash"]
SESSION:
set SESSION tidb_isolation_read_engines = "engine list separated
by commas";
Engine Isolation

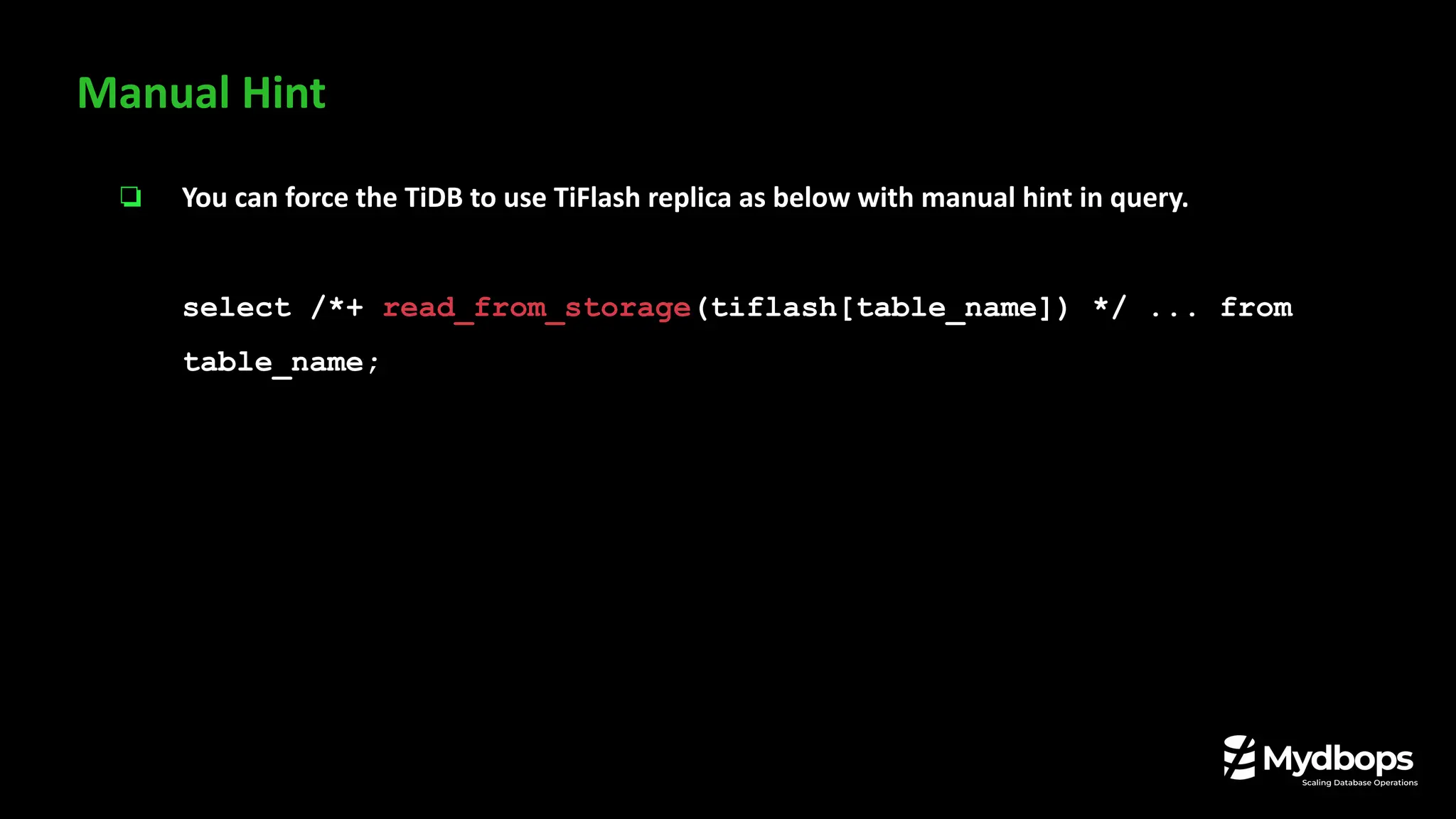

28. ❏ You can force the TiDB to use TiFlash replica as below with manual hint in query.
select /*+ read_from_storage(tiflash[table_name]) */ ... from
table_name;
Manual Hint

29. TiFlash Modes

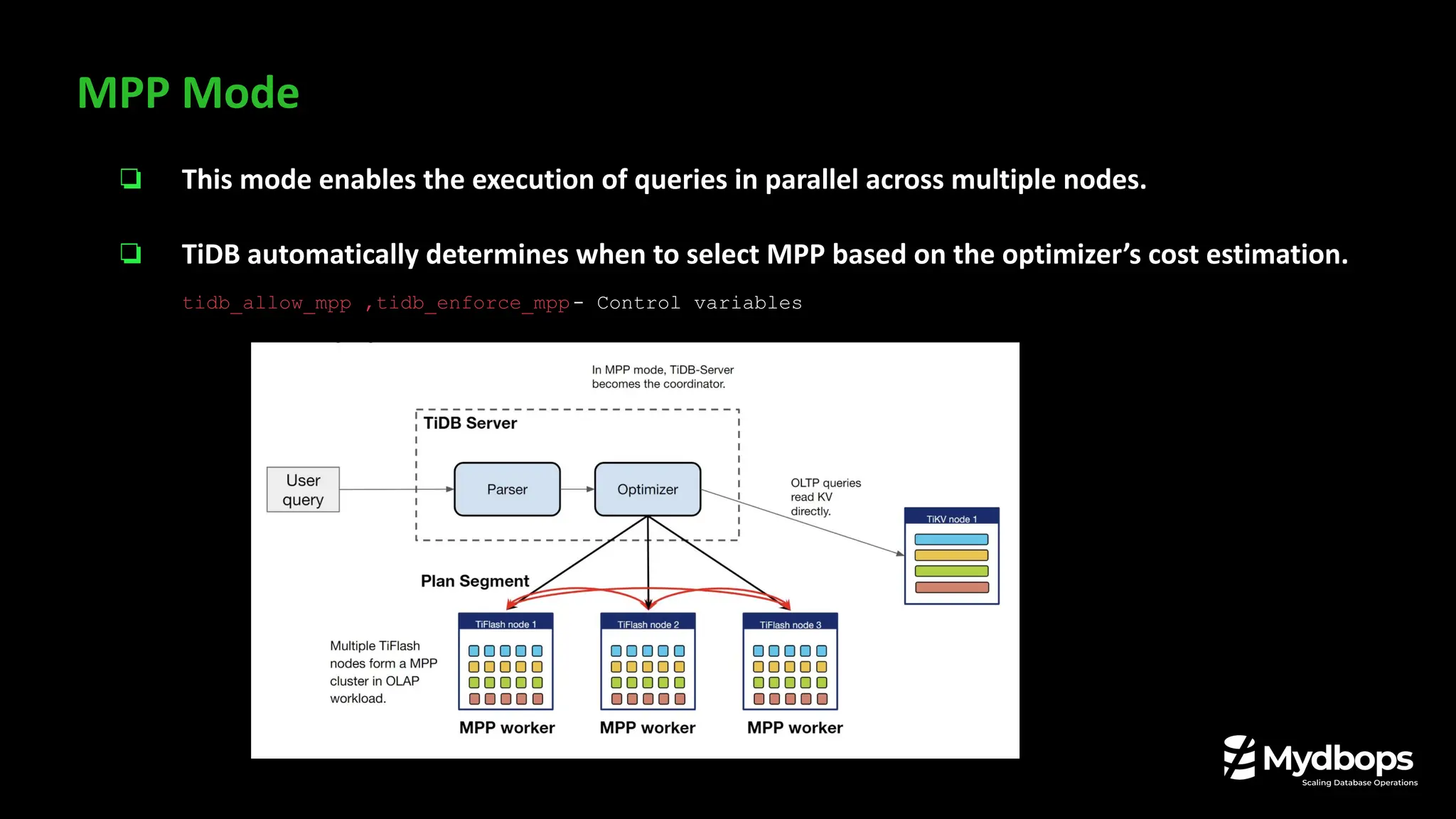

30. ❏ This mode enables the execution of queries in parallel across multiple nodes.
❏ TiDB automatically determines when to select MPP based on the optimizer’s cost estimation.
tidb_allow_mpp ,tidb_enforce_mpp- Control variables
MPP Mode

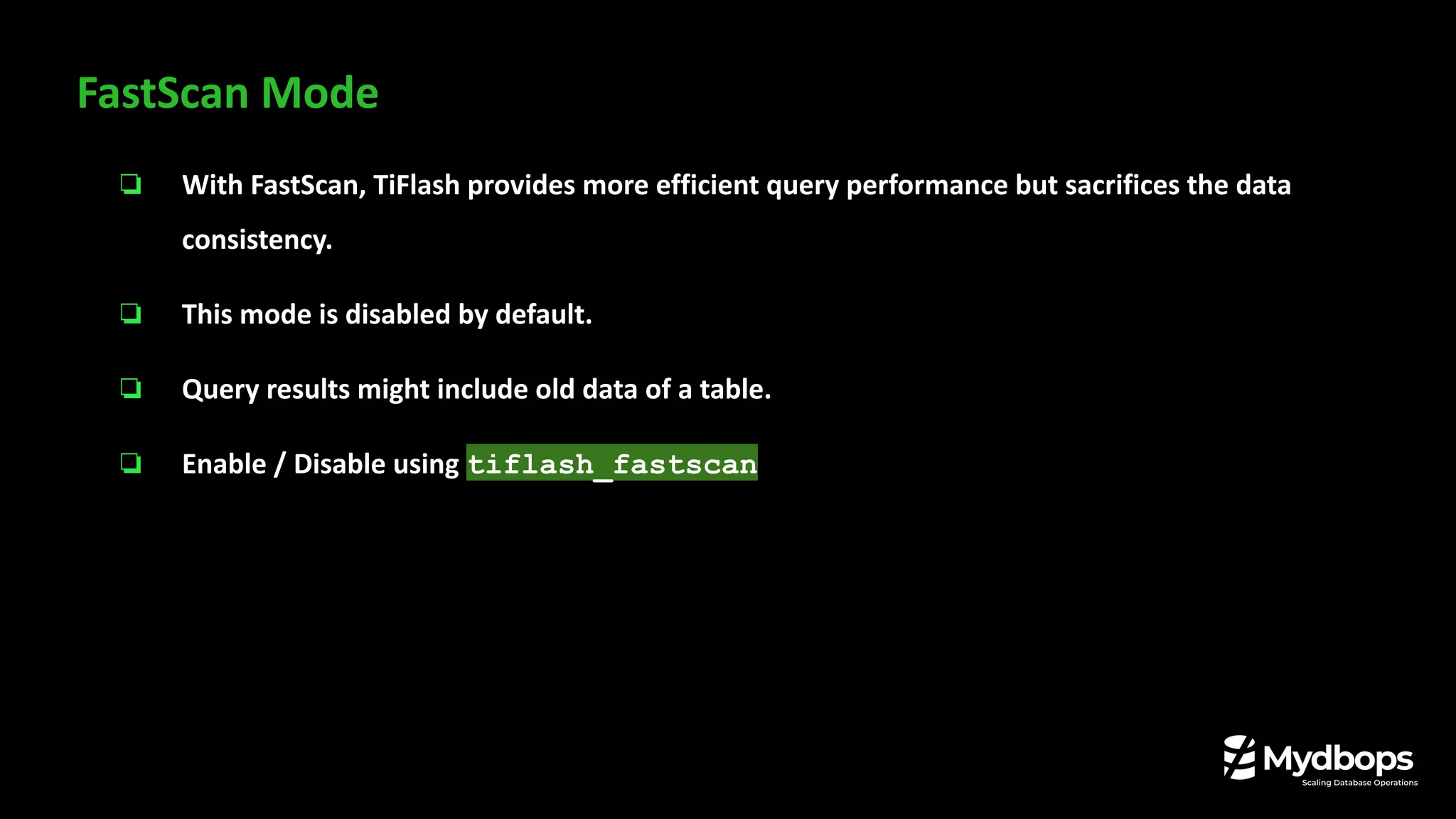

31. ❏ With FastScan, TiFlash provides more efficient query performance but sacrifices the data
consistency.
❏ This mode is disabled by default.
❏ Query results might include old data of a table.
❏ Enable / Disable using tiflash_fastscan
FastScan Mode

32. Any Questions?

33. Thank You
