It is a method of multiplying microbial organisms in a predetermined culture media with favourable conditions and test perform to check the sensitivity of organism towards the drugs.
PURPOSE OF CULTURE TEST
To guide the clinician in selecting the best drug for an individual patient.
To control the use of inappropriate drug in clinical practice.
To accumulate epidemiological information on the resistance of microorganism of public health importance within the community.
To overcome the resistance to antibiotics.
Sensitivity to the drug determined from the inhibition of bacterial growth around the disc.
Methicillin resistant Staphylococcus aureus (MRSA)
minimum inhibitory concentration

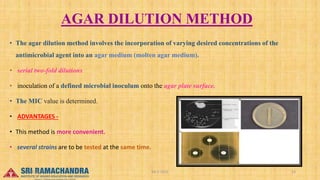

The agar dilution method involves the incorporation of varying desired concentrations of the antimicrobial agent into an agar medium (molten agar medium).
serial two-fold dilutions
inoculation of a defined microbial inoculum onto the agar plate surface.
The MIC value is determined.

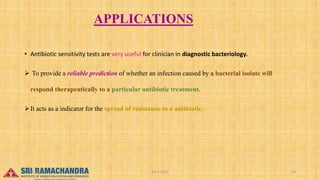

Antibiotic sensitivity tests are very useful for clinician in diagnostic bacteriology.
To provide a reliable prediction of whether an infection caused by a bacterial isolate will respond therapeutically to a particular antibiotic treatment.
It acts as a indicator for the spread of resistance to a antibiotic.
Antimicrobial sensitivity test are two types:- diffusion tests and dilution tests.
Stokes disc diffusion tests and Kirby-Bauer disc diffusion method are examples of diffusion tests.
Dilution tests include broth dilution method and agar dilution method.
Epsilometer or E-test combines the principle of dilution methods with that of diffusion methods.
Minimum inhibitory concentration (MIC) inhibits the bacterial growth while the minimum bactericidal concentration (MBC) kills the bacterium.
DIFFUSION TEST
PRINCIPLE:-
To allow the antimicrobial agent to diffuse through a solid medium so that the concentration is highest near the site of application of antimicrobial agent and decreases with distance.
DILUTION TEST:-
PRINCIPLE:-
Dilution tests are performed to determine the minimum inhibitory concentration (MIC) of an antimicrobial agent.

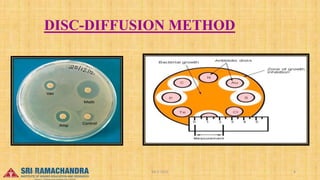

DISC-DIFFUSION METHOD
It is the most simple and easy method, hence most commonly used.
PRINCIPLE:-
This method involves the addition of known amount of an drug to a antibiotic discs measuring 6 mm in diameter.
The test bacterium is inoçulated on the medium and these antibiotic discs are applied.
Sensitivity to the drug determined from the inhibition of bacterial growth around the disc.
USES:-
Disc diffusion tests are most widely used to determine the susceptibility of isolates of pathogenic bacteria to antibiotics that are likely to be used in the treatment.
EPSILOMETER
MIC value is determined at the intersection of the strip and the zone of inhibition ellipse.
ADVANTAGE –
Easy to perform
Combination of antibiotics can be tested.
Does not require expertise.
Does not require special technologies.
A culture test is performed to find germs (such as bacteria or a fungus) that can cause an infection. It is done by using a culture media for their growth
A culture test is performed to find germs (such as bacteria or a fungus) that can cause an infection. It is done by using a culture media for their growth
Antibiotics are most common therapeutic agents used in hospitals across world, however, microbial world is becoming resistant day by day, posing special challenges to clinicians specially working in ICU set ups. There are multiple ways to curb this menace, if approached together in antibiotic stewardship way, can bring about wonders and retain therapeutic potentials of these drugs.
Antimicrobial sensitivity testing (AST) or Antibiotic Sensitivity Testing.
Contents:
1. Need of AST
2. Bacterial Resistance
3. Preperation of test: selection of antibiotic and bacteria
4. Types of tests
5. Process of tests
Antibiotics are most common therapeutic agents used in hospitals across world, however, microbial world is becoming resistant day by day, posing special challenges to clinicians specially working in ICU set ups. There are multiple ways to curb this menace, if approached together in antibiotic stewardship way, can bring about wonders and retain therapeutic potentials of these drugs.
Antimicrobial sensitivity testing (AST) or Antibiotic Sensitivity Testing.
Contents:
1. Need of AST
2. Bacterial Resistance
3. Preperation of test: selection of antibiotic and bacteria
4. Types of tests
5. Process of tests
Susceptibility testing is used to determine which antimicrobials will inhibit the growth of the bacteria or fungi causing a specific infection. The results from this test will help a healthcare practitioner determine which drugs are likely to be most effective in treating a person's infection.
Antibiotic sensitivity test PPT by Dr.C.P.PRINCEDR.PRINCE C P
Antibiotic sensitivity test: in vitro testing of bacterial cultures with antibiotics to determine susceptibility of bacteria to antibiotic therapy.
A laboratory test which determines how effective antibiotic therapy is against a bacterial infections.
Antibiotic sensitivity testing will control the use of Antibiotics in clinical practice
Testing will assist the clinicians in the choice of drugs for the treatment of infections.
Helps to guide the Physician in choosing Antibiotics
The accumulated results on different pathogens their sensitivity will guide the physician in choosing empirical treatment in serious patients before the individual’s laboratory results are analyzed in the Microbiology laboratory.
Reveals the changing trends in the local isolates.
Helps the local pattern of antibiotic prescribing.
PPT Prepared by
Dr.Prince.C.P
Department of Microbiology
Mother Theresa PG&RIHS
Pondicherry
a brief summary of antibacterial assays performed in lab studies to find out the dosing and efficacy of drugs and compounds on bacterial effect. different methods used are described alongwith imaged to give you a good idea.
antibiotic susceptibility testing
disk diffusion method
Kirby Bauer disc diffusion method
Stokes method
diluted method
agar dilution
test tube dilution
epsilometer test (E test)
Read| The latest issue of The Challenger is here! We are thrilled to announce that our school paper has qualified for the NATIONAL SCHOOLS PRESS CONFERENCE (NSPC) 2024. Thank you for your unwavering support and trust. Dive into the stories that made us stand out!
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
Honest Reviews of Tim Han LMA Course Program.pptxtimhan337
Personal development courses are widely available today, with each one promising life-changing outcomes. Tim Han’s Life Mastery Achievers (LMA) Course has drawn a lot of interest. In addition to offering my frank assessment of Success Insider’s LMA Course, this piece examines the course’s effects via a variety of Tim Han LMA course reviews and Success Insider comments.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
Acetabularia Information For Class 9 .docxvaibhavrinwa19
Acetabularia acetabulum is a single-celled green alga that in its vegetative state is morphologically differentiated into a basal rhizoid and an axially elongated stalk, which bears whorls of branching hairs. The single diploid nucleus resides in the rhizoid.
Francesca Gottschalk - How can education support child empowerment.pptxEduSkills OECD
Francesca Gottschalk from the OECD’s Centre for Educational Research and Innovation presents at the Ask an Expert Webinar: How can education support child empowerment?
3. MICROBIOLOGICAL CULTURE SENSITIVITY
TEST
• It is a method of multiplying microbial organisms in a predetermined culture media with favourable
conditions and test perform to check the sensitivity of organism towards the drugs.
PURPOSE OF CULTURE TEST
To guide the clinician in selecting the best drug for an individual patient.
To control the use of inappropriate drug in clinical practice.
To accumulate epidemiological information on the resistance of microorganism of public health importance
within the community.
To overcome the resistance to antibiotics.
04-2-2023 3
15-03-2023
4. HOW SENSITIVITY ANALYSIS IS DONE
Sensitivity analysis starts with a bacterial sample.
The sample is obtained by swabbing the infected area.
Cultures are taken from BLOOD, SPUTUM, PUS, URINE, FECES, THROAT SWAB, CSF.
04-2-2023 4
Selection of the appropriate method depends on:-
degree of accuracy
Urgency
Convenience
bioavailability of sources
cost
15-03-2023
5. DIFFUSION
• KIRBY-BAUER METHOD
• STOKES METHOD
DILUTION
• BROTH DILUTION
• AGAR DILUTION
04-2-2023 5
ANTIBIOTIC SENSITIVITY TEST
15-03-2023
E-TEST
DIFFUSION AND DILUTION
6. DIFFUSION TEST AND DILUTION TEST
DIFFUSION TEST
PRINCIPLE:-
• To allow the antimicrobial agent to diffuse through a solid medium so that the concentration is highest
near the site of application of antimicrobial agent and decreases with distance.
DILUTION TEST:-
• PRINCIPLE:-
Dilution tests are performed to determine the minimum inhibitory concentration (MIC) of an
antimicrobial agent.
04-2-2023 6
15-03-2023
7. DISC-DIFFUSION METHOD
• It is the most simple and easy method, hence most commonly used.
PRINCIPLE:-
• This method involves the addition of known amount of an drug to a antibiotic discs measuring 6 mm in
diameter.
• The test bacterium is inoçulated on the medium and these antibiotic discs are applied.
• Sensitivity to the drug determined from the inhibition of bacterial growth around the disc.
• USES:-
• Disc diffusion tests are most widely used to determine the susceptibility of isolates of pathogenic bacteria
to antibiotics that are likely to be used in the treatment.
04-2-2023 7
15-03-2023
9. STOKES DISC DIFFUSION METHOD
• The test bacterium is inoculated on the central one third and control on upper and lower thirds of the plate.
• Antibiotic discs are applied between the standard and test innocula .
• A maximum of six antibiotic discs can be applied on a 100 mm diameter plate.
• The plates are then incubated at 37°C for l6-18 hours.
• The reporting of results is done by comparing the zones of inhibition of control and test bacterium.
• Measure the zone size i.e. the A distance in mm from edge of the disc to the zone edge It is interpreted as follows:
• Sensitive The zone of test bacterium is equal to, or larger than that of control strain.
• If zone size of test bacterium is smaller than that of control, the difference between the two should not be more than
3 mm.
04-2-2023 9
15-03-2023
10. STOKES DISC DIFFUSION METHOD
• Intermediate sensitive The zone size of the test bacterium should be at least 2 mm and the difference between
the zone of test and control strain should be at least 3 mm.
• Resistant The zone size of the test bacterium is smaller than 2 mm.
04-2-2023 10
15-03-2023

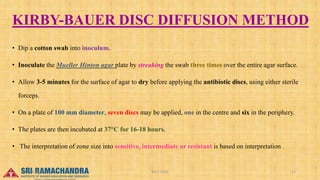

11. KIRBY-BAUER DISC DIFFUSION METHOD
• Dip a cotton swab into inoculum.
• Inoculate the Mueller Hinton agar plate by streaking the swab three times over the entire agar surface.
• Allow 3-5 minutes for the surface of agar to dry before applying the antibiotic discs, using either sterile
forceps.
• On a plate of 100 mm diameter, seven discs may be applied, one in the centre and six in the periphery.
• The plates are then incubated at 37°C for 16-18 hours.
• The interpretation of zone size into sensitive, intermediate or resistant is based on interpretation .
04-2-2023 11
15-03-2023

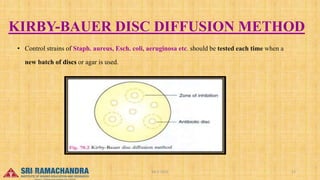

12. KIRBY-BAUER DISC DIFFUSION METHOD
15-03-2023 04-2-2023 12
• Control strains of Staph. aureus, Esch. coli, aeruginosa etc. should be tested each time when a
new batch of discs or agar is used.

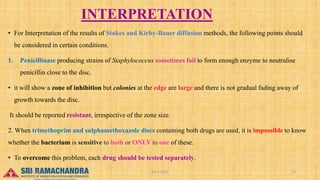

13. INTERPRETATION
• For Interpretation of the results of Stokes and Kirby-Bauer diffusion methods, the following points should
be considered in certain conditions.
1. Penicillinase producing strains of Staphylococcus sometimes fail to form enough enzyme to neutralise
penicillin close to the disc.
• it will show a zone of inhibition but colonies at the edge are large and there is not gradual fading away of
growth towards the disc.
It should be reported resistant, irrespective of the zone size.
2. When trimethoprim and sulphamethoxazole discs containing both drugs are used, it is impossible to know
whether the bacterium is sensitive to both or ONLY to one of these.
• To overcome this problem, each drug should be tested separately.
04-2-2023 13
15-03-2023

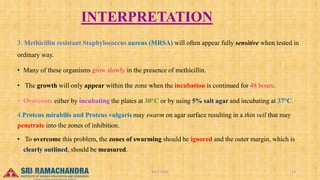

14. INTERPRETATION
3. Methicillin resistant Staphylococcus aureus (MRSA) will often appear fully sensitive when tested in
ordinary way.
• Many of these organisms grow slowly in the presence of methicillin.
• The growth will only appear within the zone when the incubation is continued for 48 hours.
• Overcome either by incubating the plates at 30°C or by using 5% salt agar and incubating at 37°C.
4.Proteus mirabilis and Proteus vulgaris may swarm on agar surface resulting in a thin veil that may
penetrate into the zones of inhibition.
• To overcome this problem, the zones of swarming should be ignored and the outer margin, which is
clearly outlined, should be measured.
15-03-2023 04-2-2023 14
15. INTERPRETATION
5.Polymyxin diffuses poorly in agar hence these zones are small.
Interpretation is as follows:
Sensitive- Many of these organisms diffuses slowly in the agar medium.
Resistant-The zone size of the test bacterium is smaller than that of the control strain.
04-2-2023 15
15-03-2023
16. INTERPRETATION
6. Large zones are seen around ciprofloxacin discs with the sensitive control strains.
Interpretation is as follows:
• (a) When Staph. aureus or Ps. aeruginosa is used as sensitive control.
• Sensitive-Inhibition zone of the test bacterium is equal to, greater than, or not more than 7 mm
smaller than that of control.
• Intermediate sensitive--Inhibition zone of the test bacterium is more than 2 mm but is smaller than
that of the control by more than 7 mm.
• Resistant-Inhibition zone of the test bacterium Is 2 mm or less.
04-2-2023 16
15-03-2023

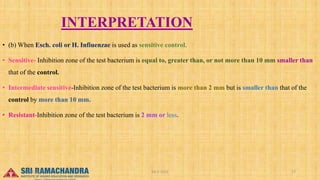

17. INTERPRETATION
• (b) When Esch. coli or H. Infiuenzae is used as sensitive control.
• Sensitive- Inhibition zone of the test bacterium is equal to, greater than, or not more than 10 mm smaller than
that of the control.
• Intermediate sensitive-Inhibition zone of the test bacterium is more than 2 mm but is smaller than that of the
control by more than 10 mm.
• Resistant-Inhibition zone of the test bacterium is 2 mm or less.
04-2-2023 17
15-03-2023

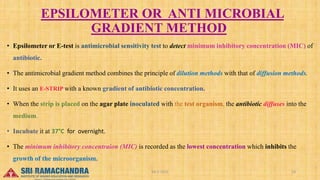

18. EPSILOMETER OR ANTI MICROBIAL
GRADIENT METHOD
• Epsilometer or E-test is antimicrobial sensitivity test to detect minimum inhibitory concentration (MIC) of
antibiotic.
• The antimicrobial gradient method combines the principle of dilution methods with that of diffusion methods.
• It uses an E-STRIP with a known gradient of antibiotic concentration.
• When the strip is placed on the agar plate inoculated with the test organism, the antibiotic diffuses into the
medium.
• Incubate it at 37°C for overnight.
• The minimum inhibitory concentraion (MIC) is recorded as the lowest concentration which inhibits the
growth of the microorganism.
04-2-2023 18
15-03-2023
19. EPSILOMETER
• MIC value is determined at the intersection of the strip and the zone of inhibition ellipse.
ADVANTAGE –
• Easy to perform
• Combination of antibiotics can be tested.
• Does not require expertise.
• Does not require special technologies.
LIMITATION-
• automated systems are available for reliable determination of MIC.
15-03-2023 04-2-2023 19

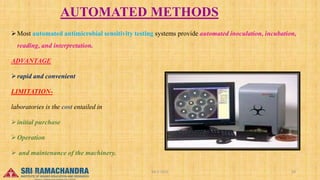

20. AUTOMATED METHODS
Most automated antimicrobial sensitivity testing systems provide automated inoculation, incubation,
reading, and interpretation.
ADVANTAGE
rapid and convenient
LIMITATION-
laboratories is the cost entailed in
initial purchase
Operation
and maintenance of the machinery.
04-2-2023 20
15-03-2023

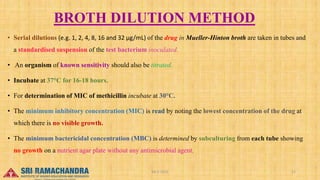

21. BROTH DILUTION METHOD
• Serial dilutions (e.g. 1, 2, 4, 8, 16 and 32 µg/mL) of the drug in Mueller-Hinton broth are taken in tubes and
a standardised suspension of the test bacterium inoculated.
• An organism of known sensitivity should also be titrated.
• Incubate at 37°C for 16-18 hours.
• For determination of MIC of methicillin incubate at 30°C.
• The minimum inhibitory concentration (MIC) is read by noting the lowest concentration of the drug at
which there is no visible growth.
• The minimum bactericidal concentration (MBC) is determined by subculturing from each tube showing
no growth on a nutrient agar plate without any antimicrobial agent.
04-2-2023 21
15-03-2023

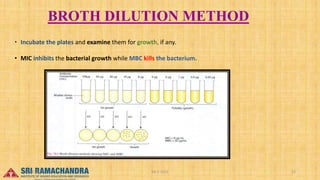

22. BROTH DILUTION METHOD
• Incubate the plates and examine them for growth, if any.
• MIC inhibits the bacterial growth while MBC kills the bacterium.
04-2-2023 22
15-03-2023
23. AGAR DILUTION METHOD
• The agar dilution method involves the incorporation of varying desired concentrations of the
antimicrobial agent into an agar medium (molten agar medium).
• serial two-fold dilutions
• inoculation of a defined microbial inoculum onto the agar plate surface.
• The MIC value is determined.
• ADVANTAGES -
• This method is more convenient.
• several strains are to be tested at the same time.
04-2-2023 23
15-03-2023
24. APPLICATIONS
• Antibiotic sensitivity tests are very useful for clinician in diagnostic bacteriology.
To provide a reliable prediction of whether an infection caused by a bacterial isolate will
respond therapeutically to a particular antibiotic treatment.
It acts as a indicator for the spread of resistance to a antibiotic.
04-2-2023 24
15-03-2023
25. SUMMARY
1. Antimicrobial sensitivity test are two types:- diffusion tests and dilution tests.
2. Stokes disc diffusion tests and Kirby-Bauer disc diffusion method are examples of diffusion tests.
3. Dilution tests include broth dilution method and agar dilution method.
4. Epsilometer or E-test combines the principle of dilution methods with that of diffusion methods.
5. Minimum inhibitory concentration (MIC) inhibits the bacterial growth while the minimum bactericidal
concentration (MBC) kills the bacterium.
04-2-2023 25
15-03-2023

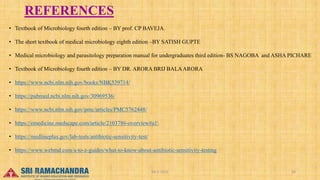

26. REFERENCES
• Textbook of Microbiology fourth edition – BY prof. CP BAVEJA.
• The short textbook of medical microbiology eighth edition –BY SATISH GUPTE
• Medical microbiology and parasitology preparation manual for undergraduates third edition- BS NAGOBA and ASHA PICHARE
• Textbook of Microbiology fourth edition – BY DR. ARORA BRIJ BALAARORA
• https://www.ncbi.nlm.nih.gov/books/NBK539714/
• https://pubmed.ncbi.nlm.nih.gov/30969536/
• https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5762448/
• https://emedicine.medscape.com/article/2103786-overview#a1
• https://medlineplus.gov/lab-tests/antibiotic-sensitivity-test/
• https://www.webmd.com/a-to-z-guides/what-to-know-about-antibiotic-sensitivity-testing
04-2-2023 26
15-03-2023
