1. PROCESSING LARGE-SCALE GRAPHS WITH GOOGLE(TM) PREGEL
MICHAEL HACKSTEIN
FRONT END AND GRAPH SPECIALIST ARANGODB

2. Processing large-scale graphs
with GoogleTMPregel
November 17th
Michael Hackstein
@mchacki
www.arangodb.com

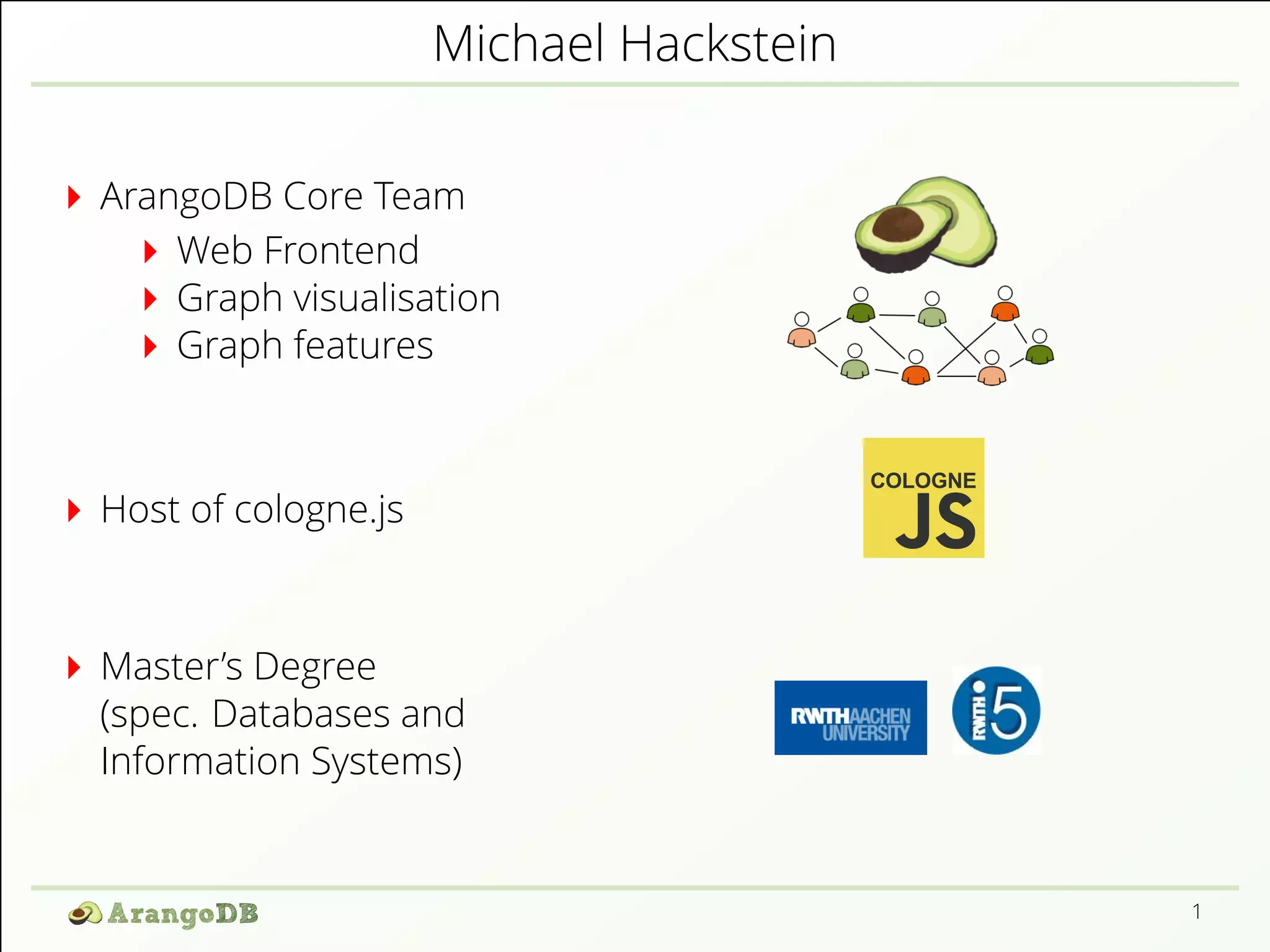

3. Michael Hackstein
ArangoDB Core Team
Web Frontend
Graph visualisation
Graph features
Host of cologne.js
Master’s Degree
(spec. Databases and
Information Systems)
1

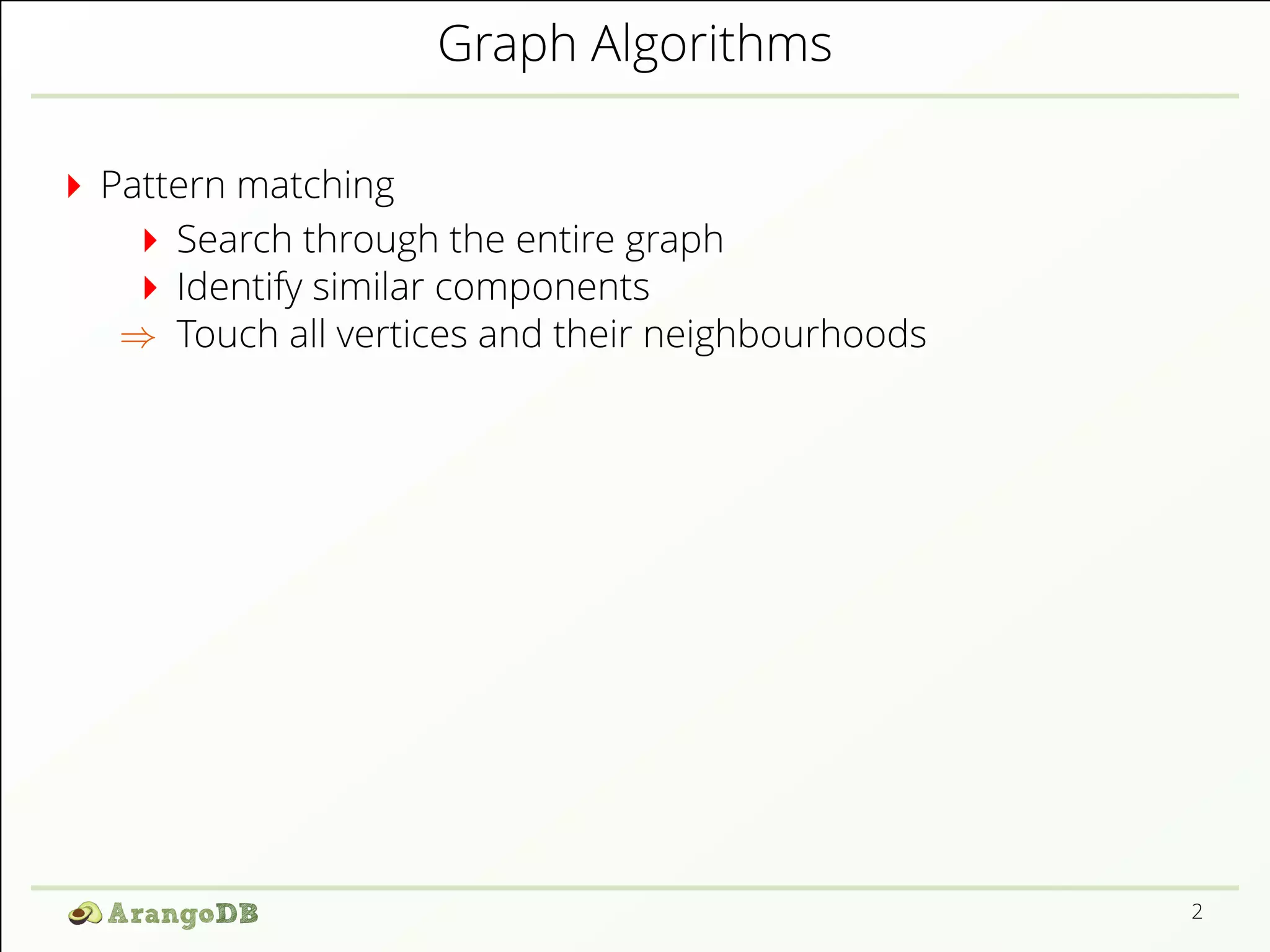

4. Graph Algorithms
Pattern matching
Search through the entire graph
Identify similar components
) Touch all vertices and their neighbourhoods
2

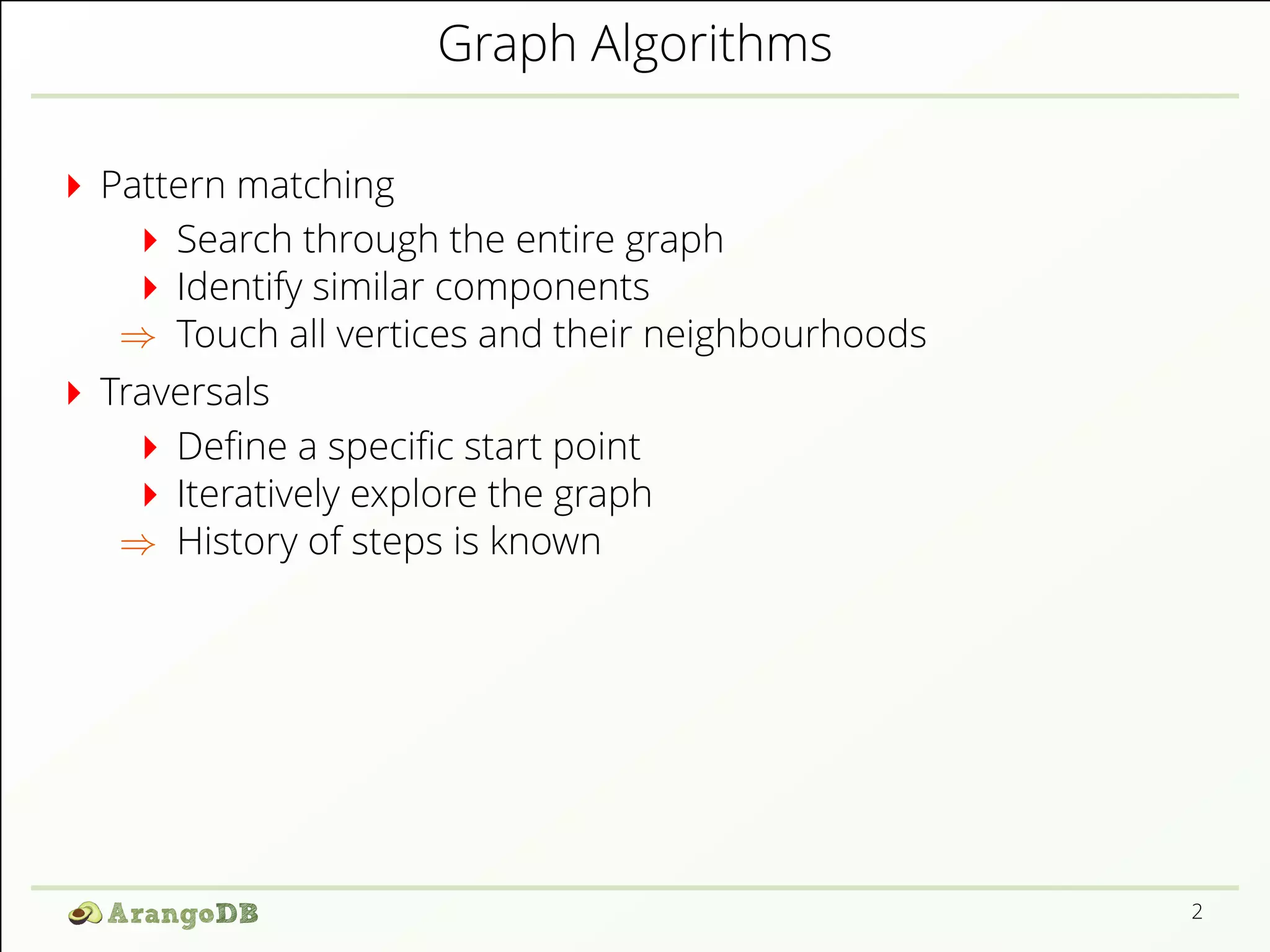

5. Graph Algorithms
Pattern matching
Search through the entire graph
Identify similar components
) Touch all vertices and their neighbourhoods
Traversals
De1ne a speci1c start point
Iteratively explore the graph
) History of steps is known
2

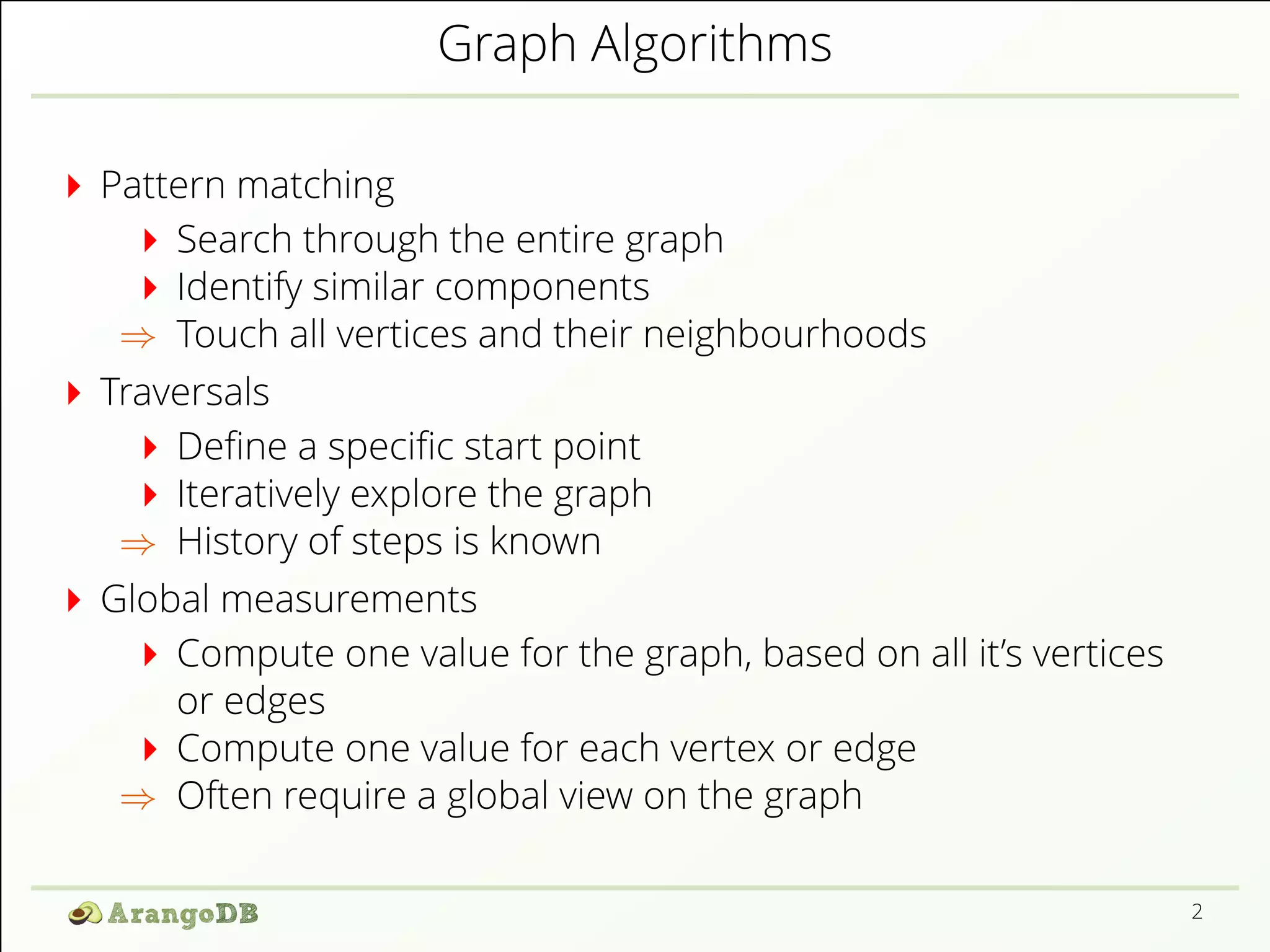

6. Graph Algorithms
Pattern matching
Search through the entire graph
Identify similar components
) Touch all vertices and their neighbourhoods
Traversals
De1ne a speci1c start point
Iteratively explore the graph
) History of steps is known
Global measurements
Compute one value for the graph, based on all it’s vertices
or edges
Compute one value for each vertex or edge
) Often require a global view on the graph
2

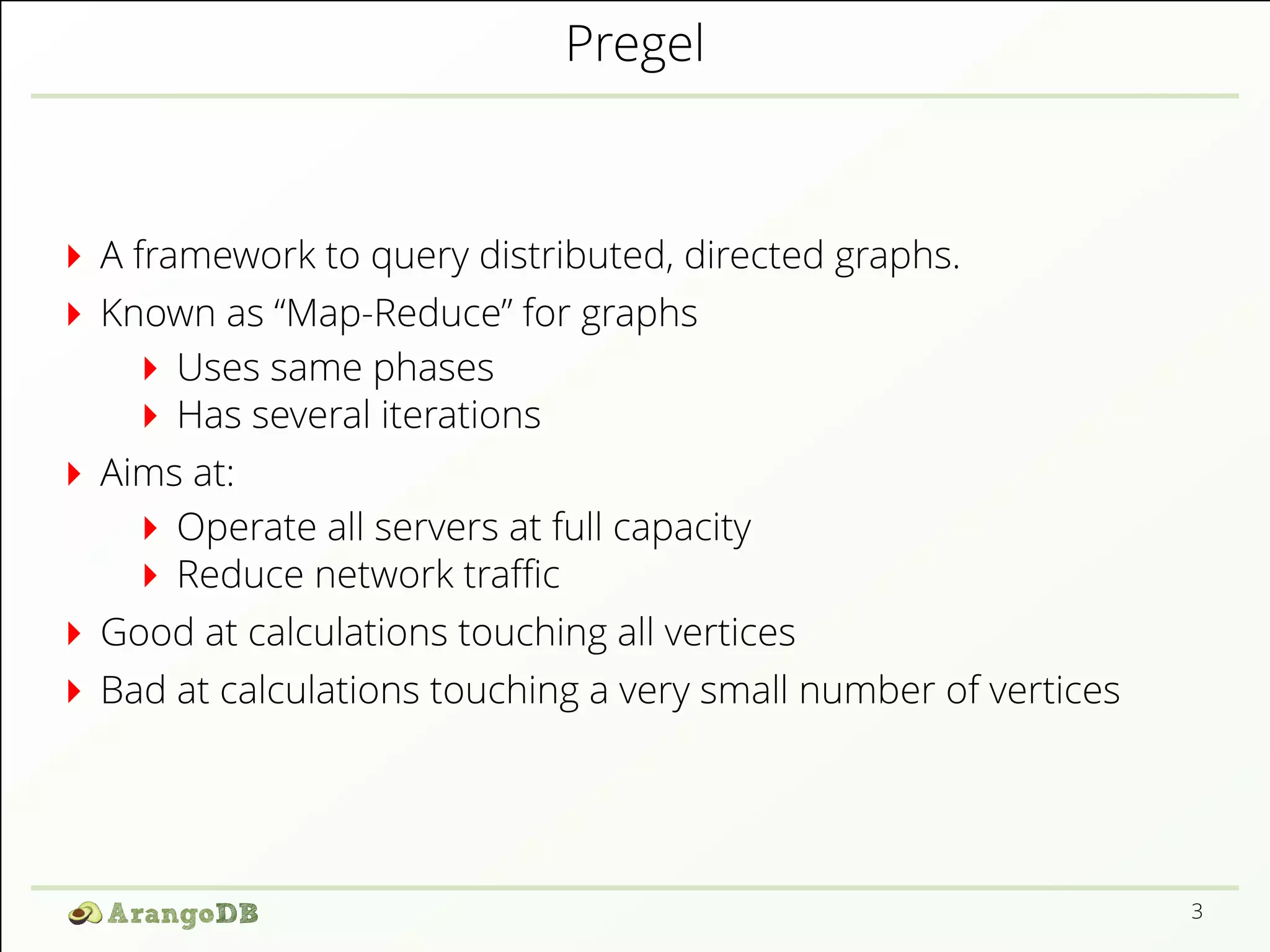

7. Pregel
A framework to query distributed, directed graphs.
Known as “Map-Reduce” for graphs
Uses same phases
Has several iterations
Aims at:
Operate all servers at full capacity
Reduce network traZc
Good at calculations touching all vertices
Bad at calculations touching a very small number of vertices
3

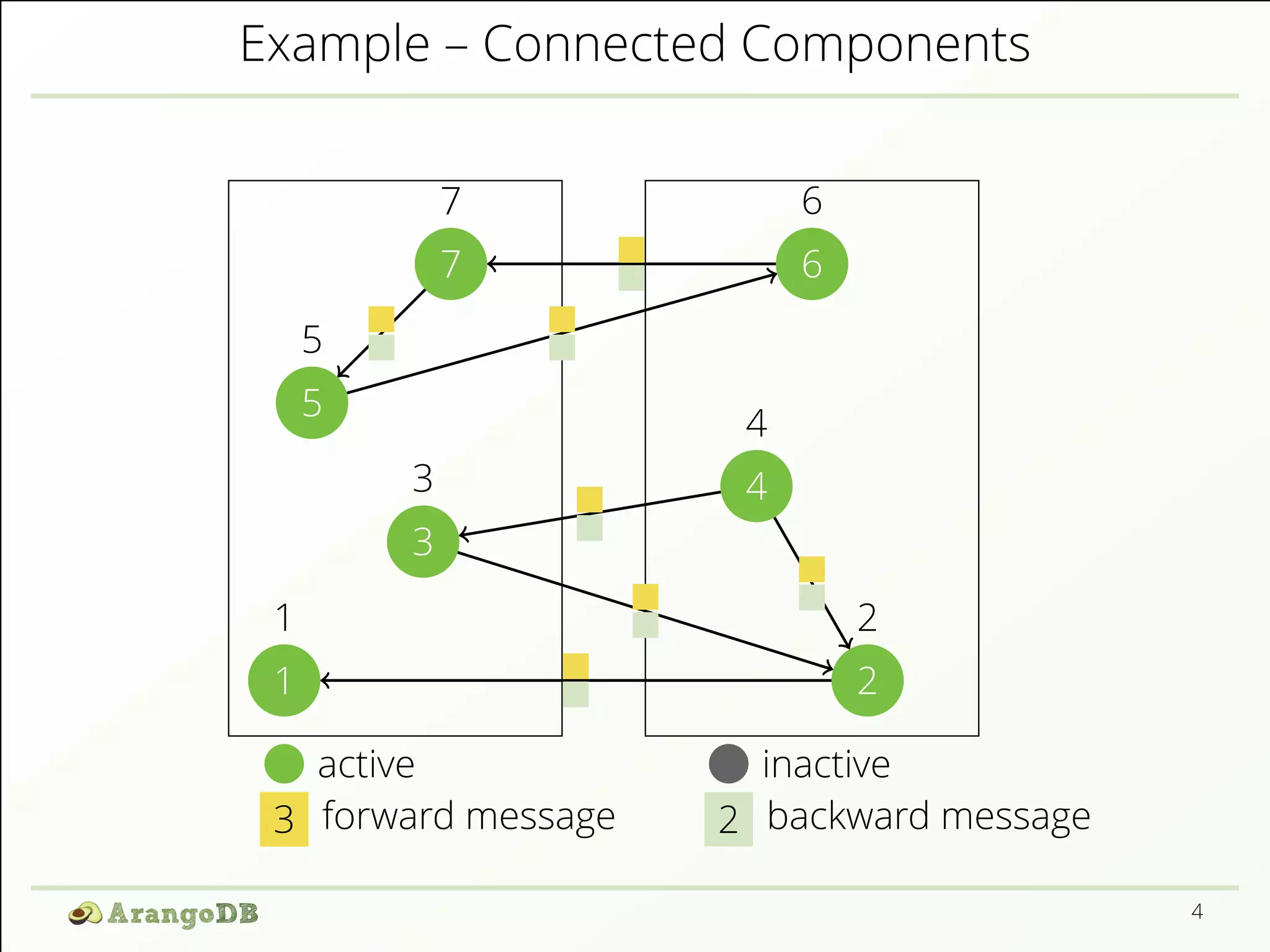

8. Example – Connected Components
1
1
2
2
5
7
7
5 4
3 4
3
6
6
active inactive
3 forward message 2 backward message
4

9. Example – Connected Components
1
1
2
2
5
7
7
5
6
7
5 4
3 4
3
6
6
4
2
3
4
active inactive
3 forward message 2 backward message
4

10. Example – Connected Components
1
1
2
2
5
7
7
5
6
7
5 4
3 4
3
6
6
4
2
3
4
active inactive
3 forward message 2 backward message
4

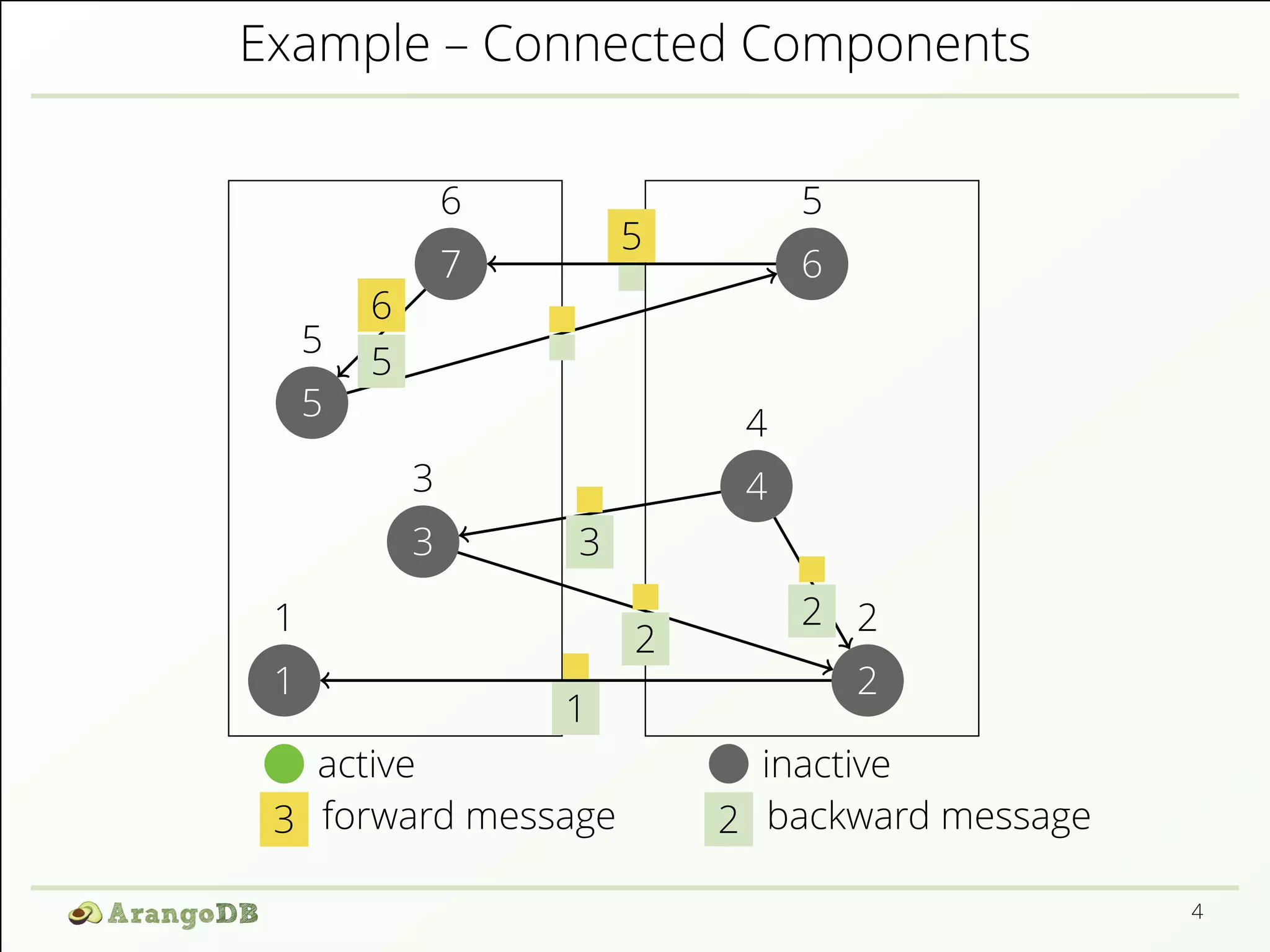

11. Example – Connected Components
1
1
2
2
5
6
7
5
6
5
5 4
3 4
3
5
6
3
1
2
2
active inactive
3 forward message 2 backward message
4

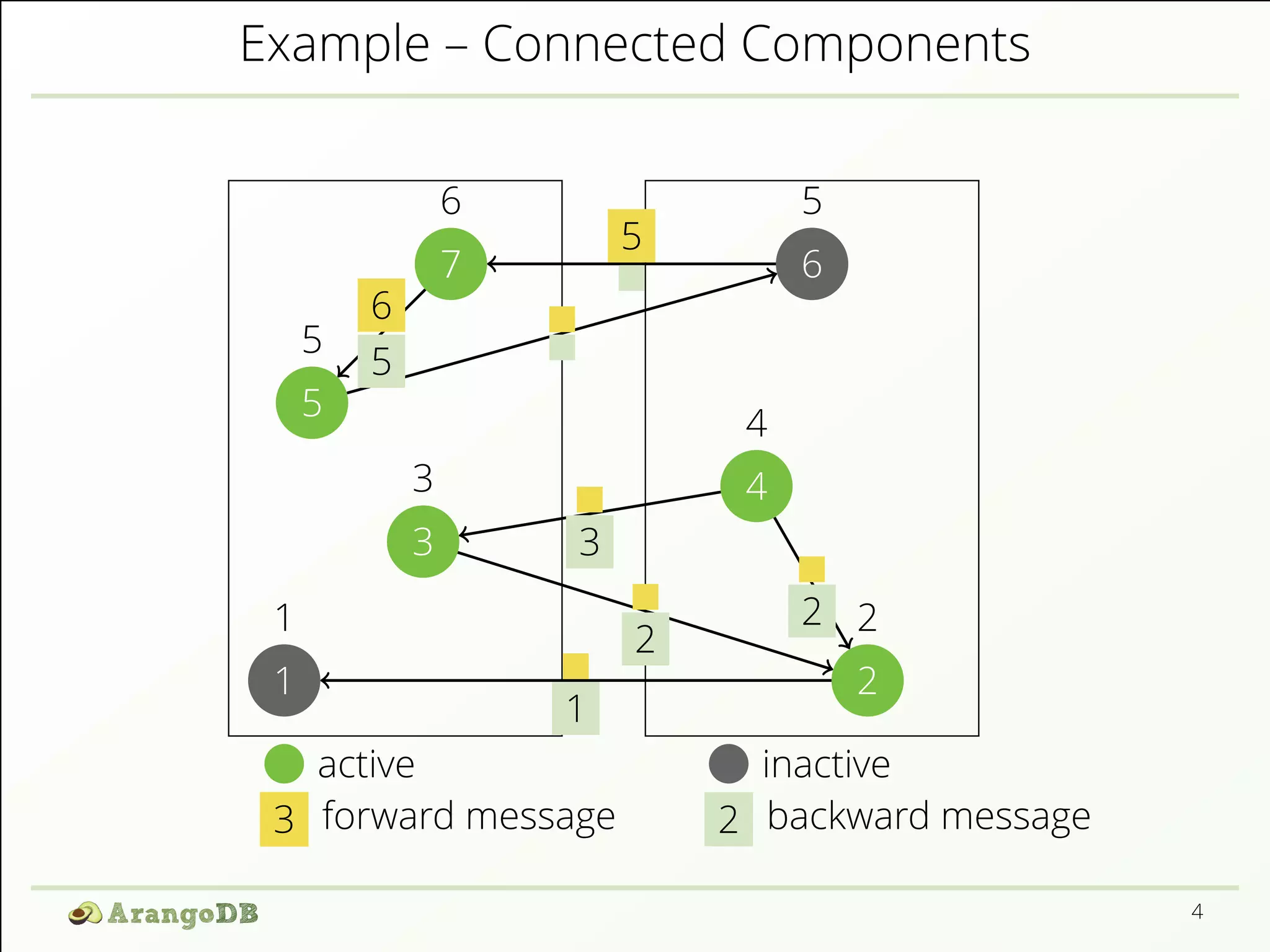

12. Example – Connected Components
1
1
2
2
5
6
7
5
6
5
5 4
3 4
3
5
6
3
1
2
2
active inactive
3 forward message 2 backward message
4

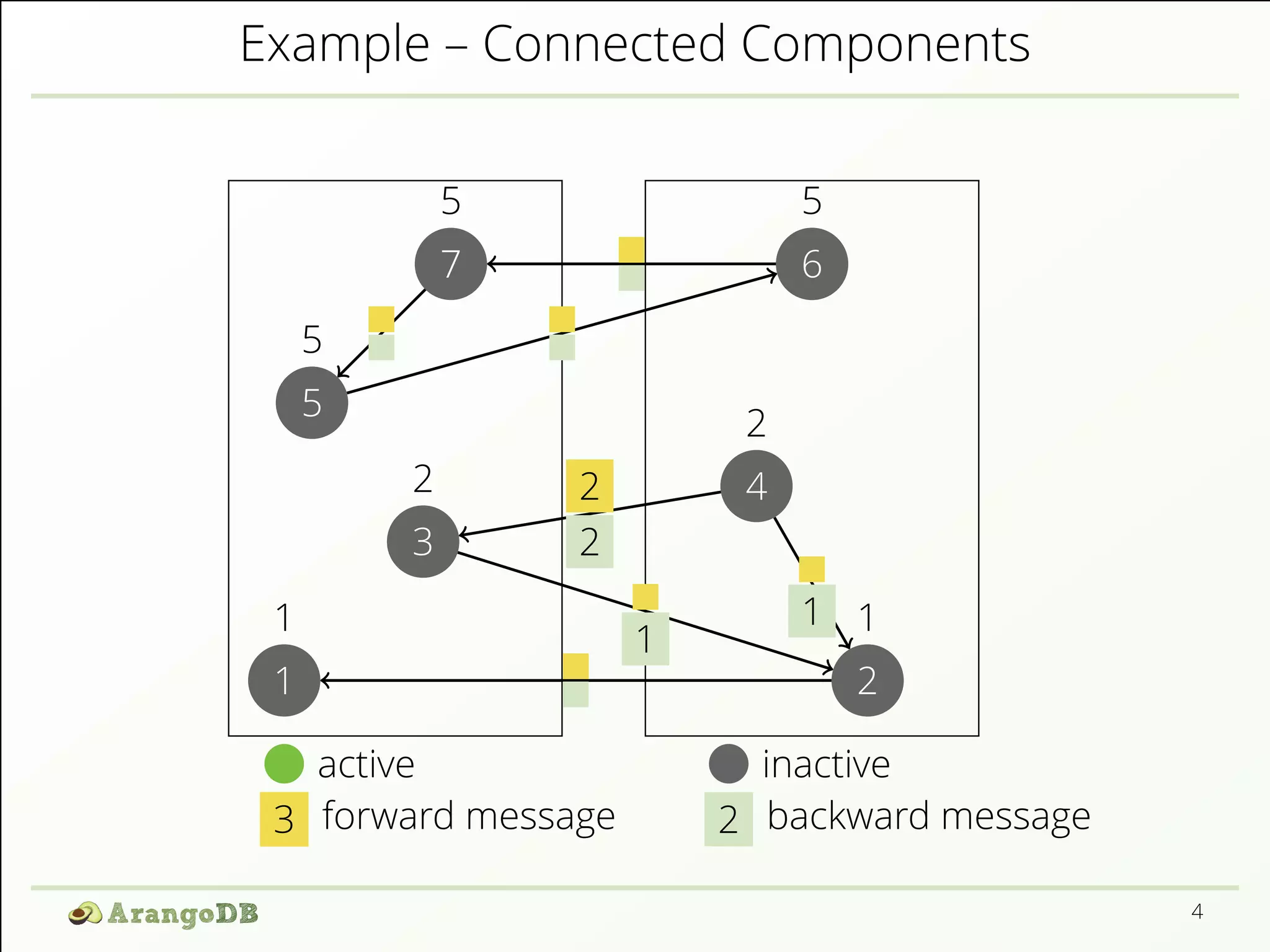

13. Example – Connected Components
1
1
1
2
5
5
7
5 2
2 4
3
5
6
1
1
2
2
active inactive
3 forward message 2 backward message
4

14. Example – Connected Components
1
1
1
2
5
5
7
5 2
2 4
3
5
6
1
1
2
2
active inactive
3 forward message 2 backward message
4

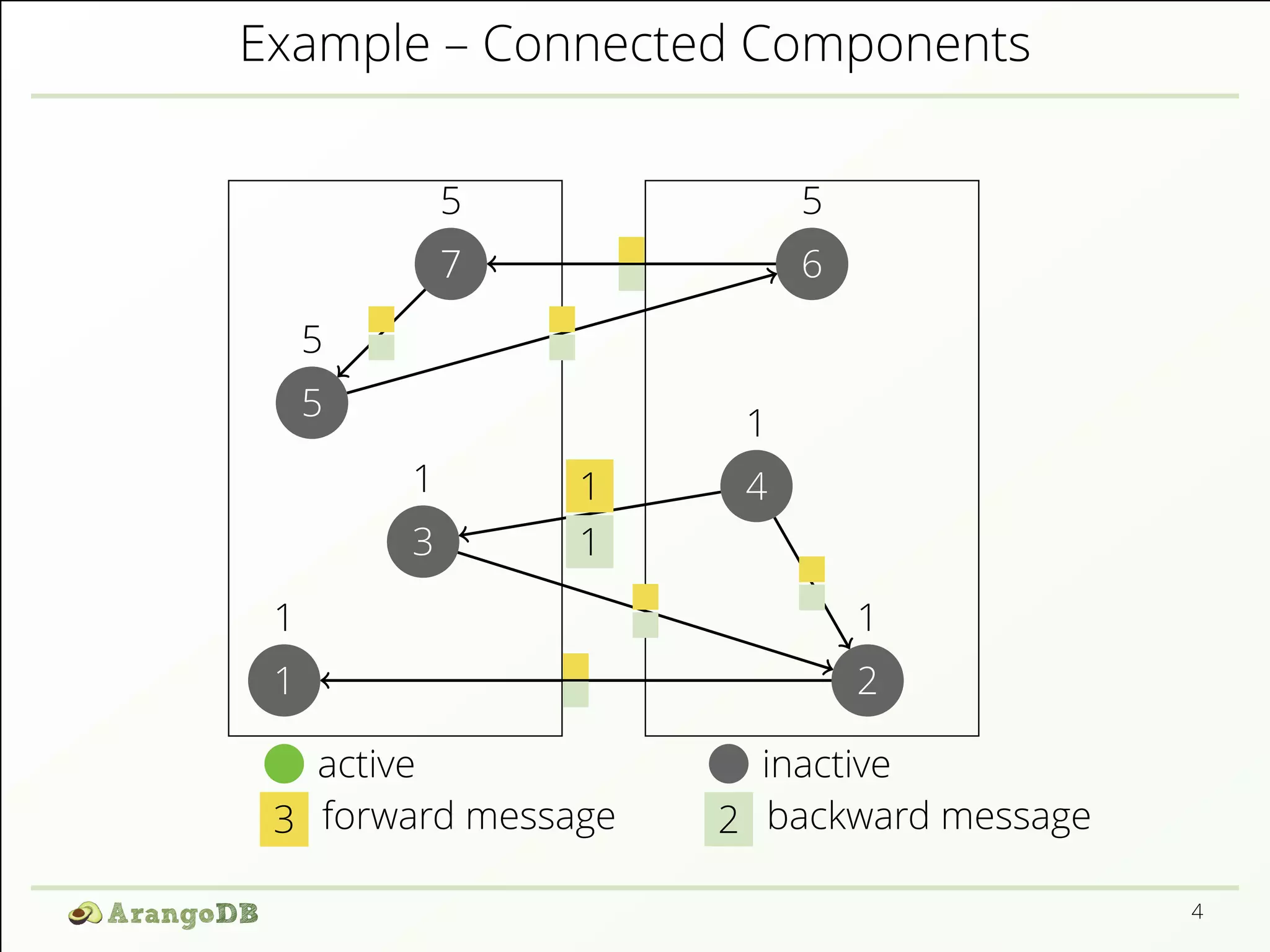

15. Example – Connected Components
1
1
1
2
5
5
7
5 1
1 4
3
5
6
1
1
active inactive
3 forward message 2 backward message
4

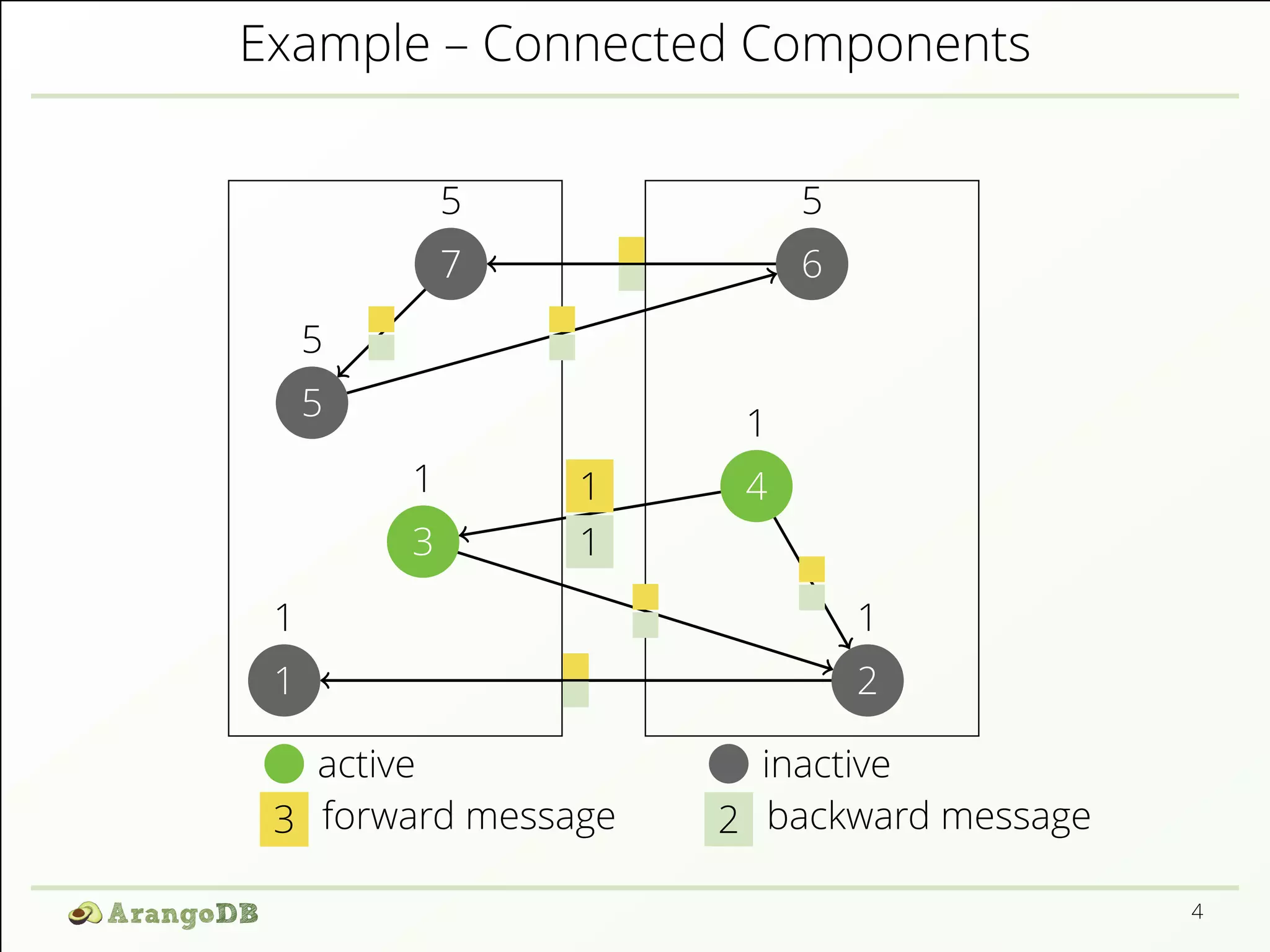

16. Example – Connected Components
1
1
1
2
5
5
7
5 1
1 4
3
5
6
1
1
active inactive
3 forward message 2 backward message
4

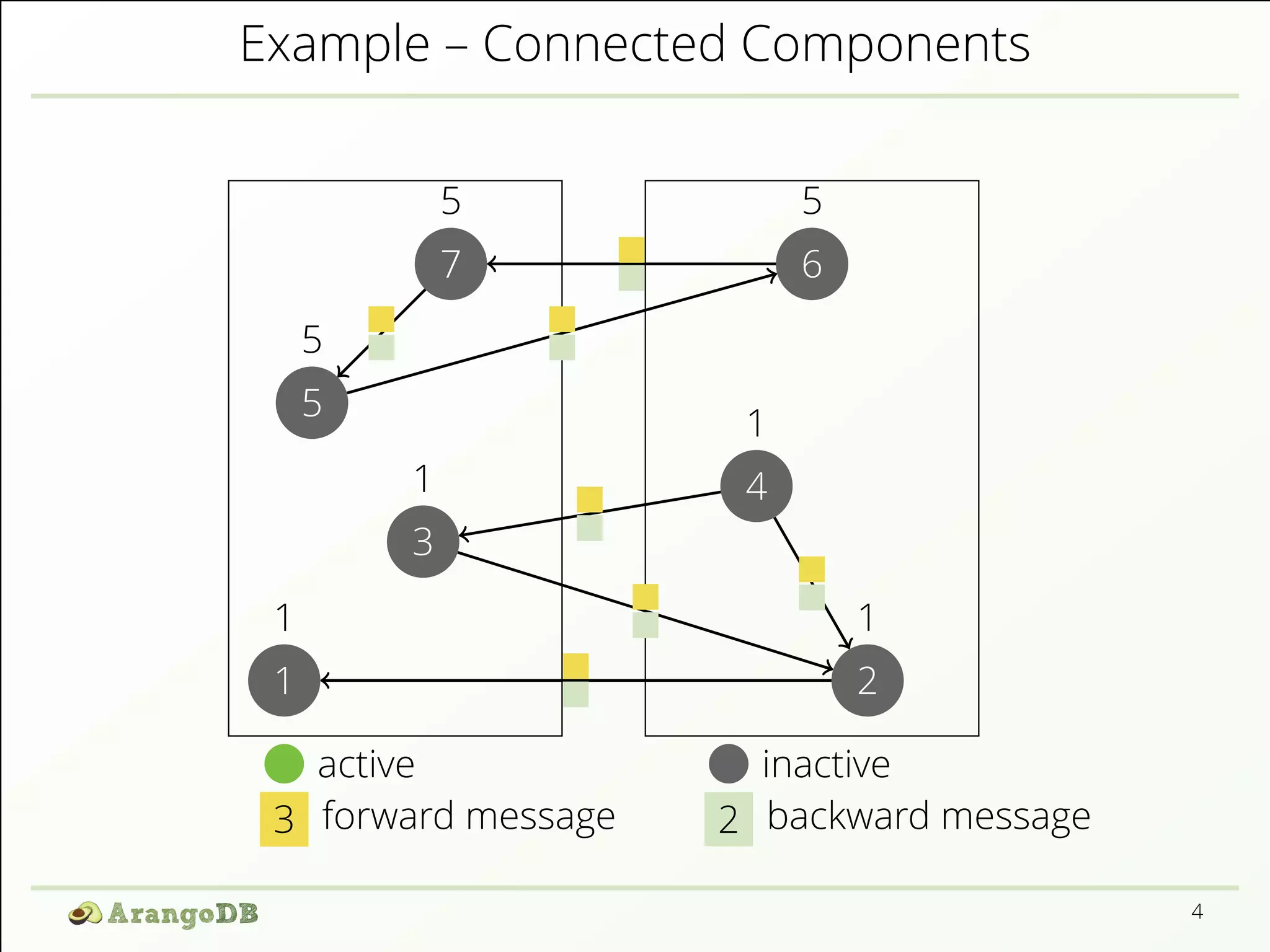

17. Example – Connected Components
1
1
1
2
5
5
7
5 1
1 4
3
5
6
active inactive
3 forward message 2 backward message
4

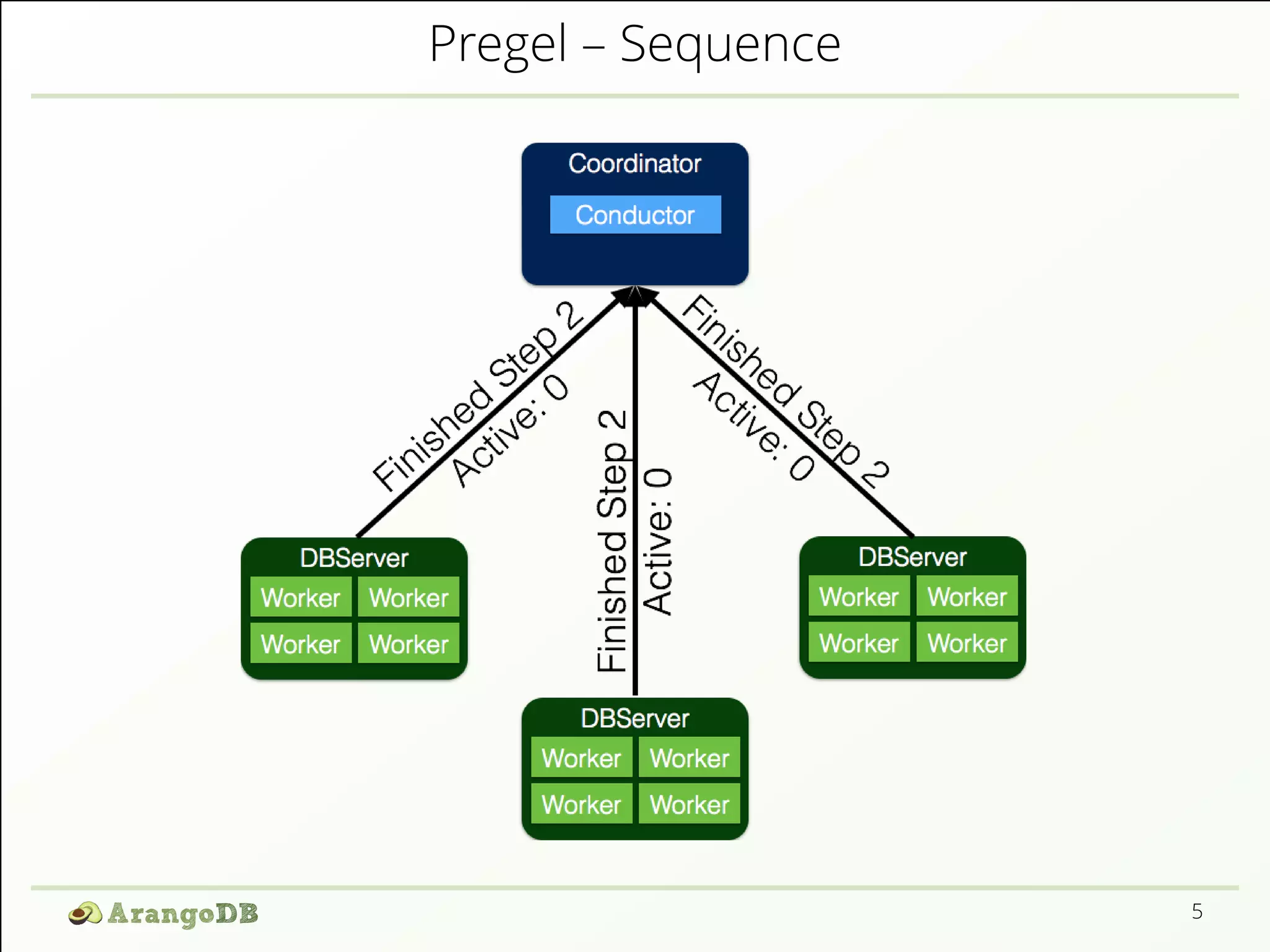

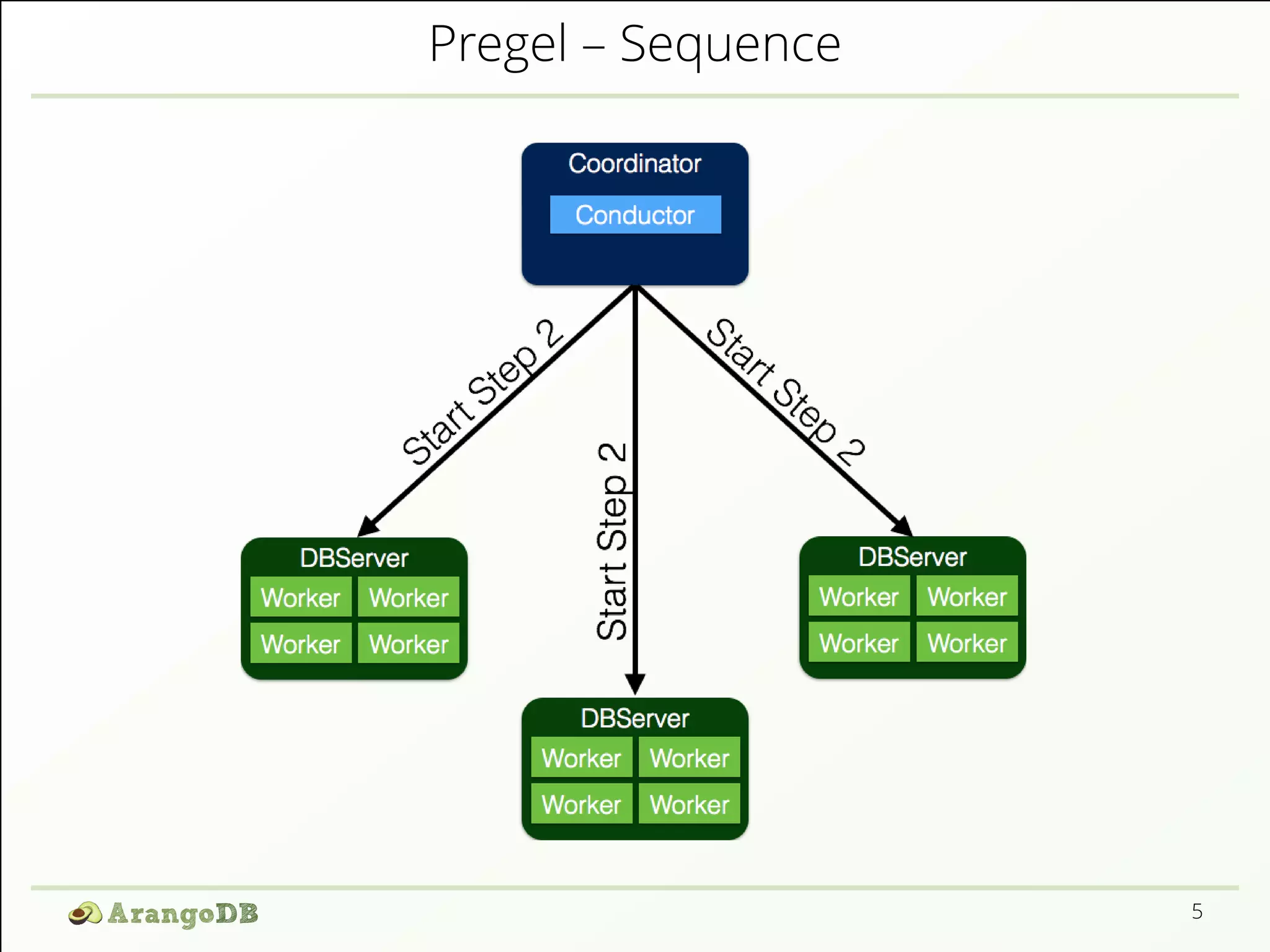

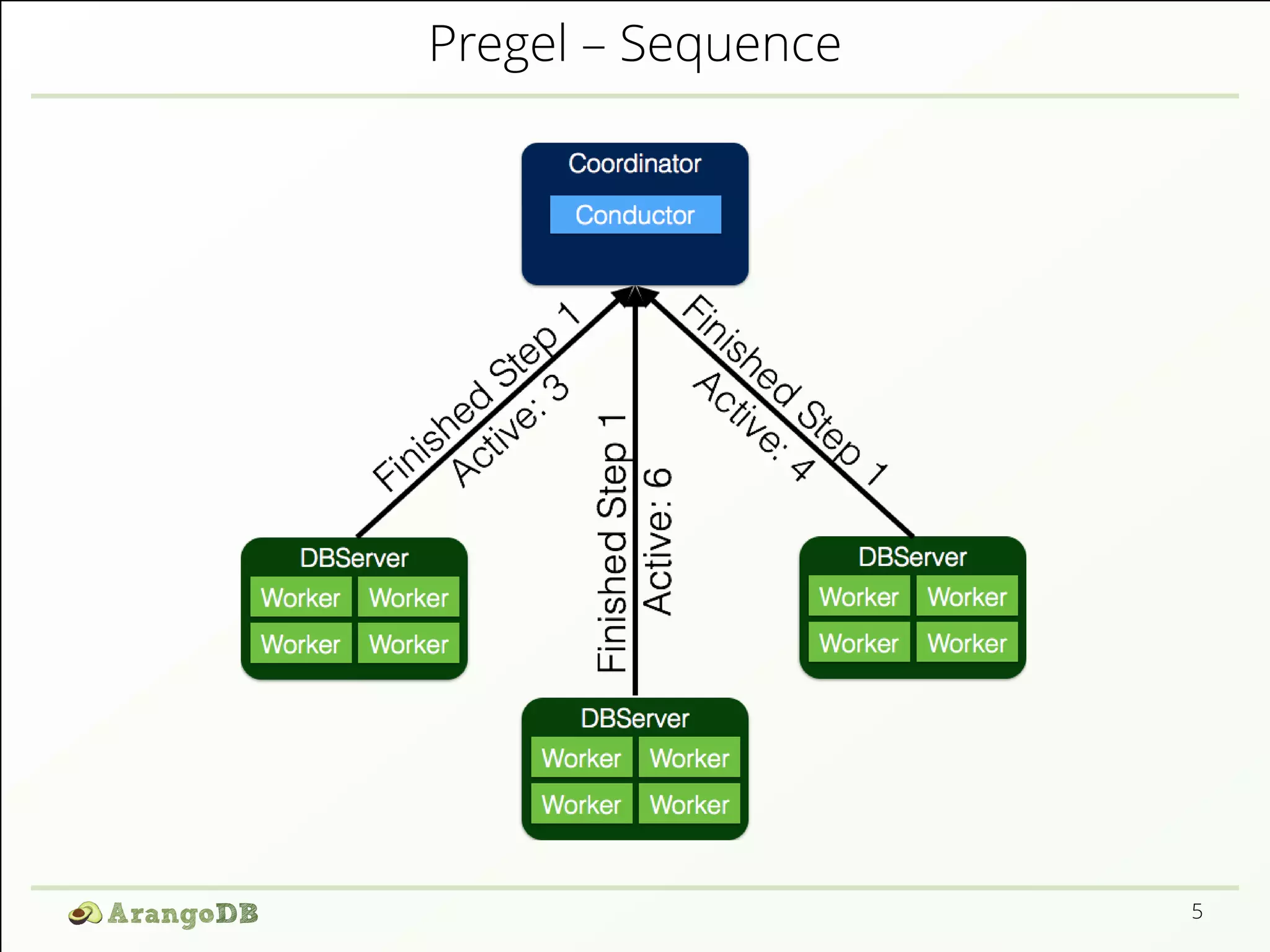

18. Pregel – Sequence
5

19. Pregel – Sequence
5

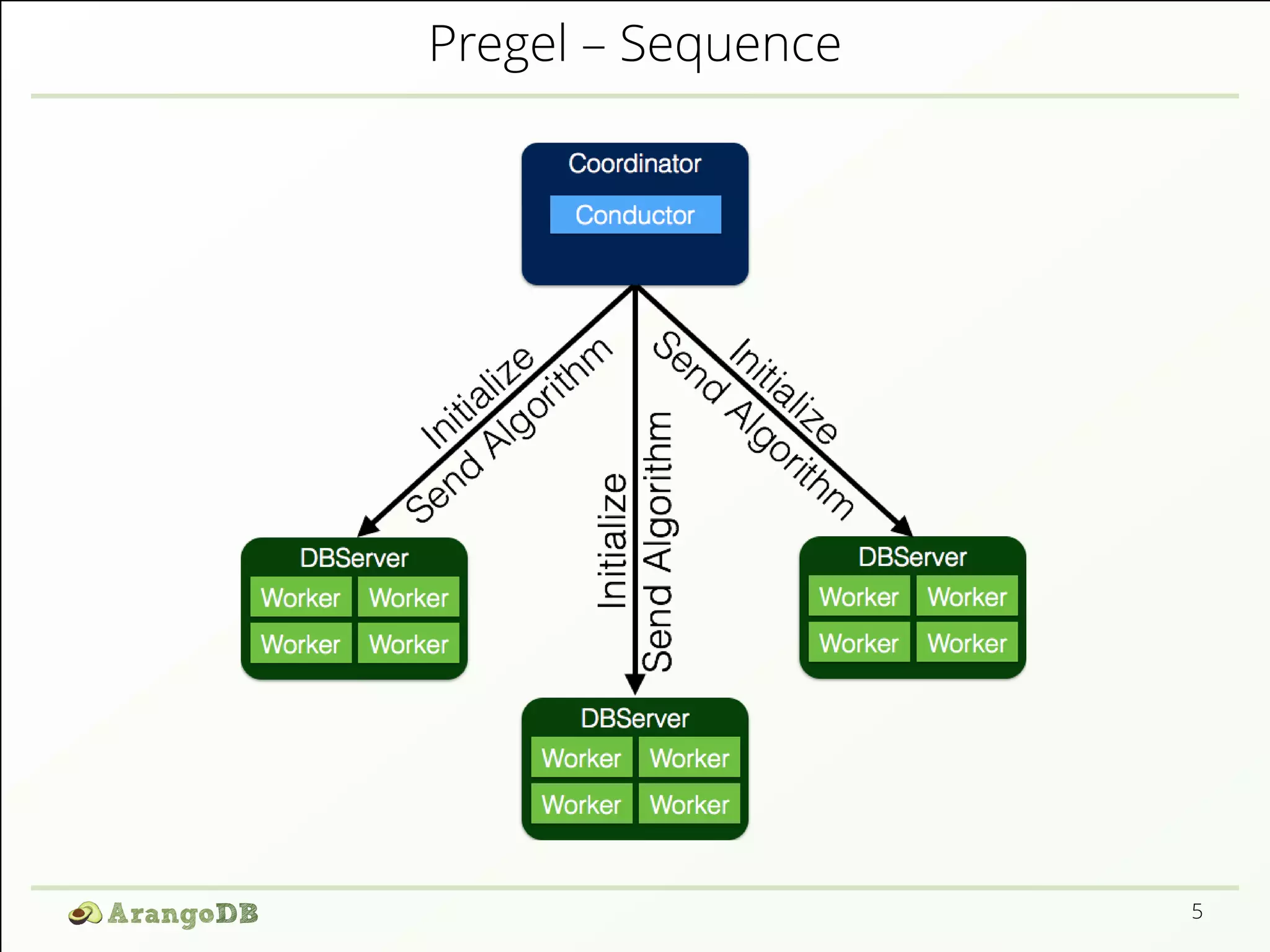

20. Pregel – Sequence
5

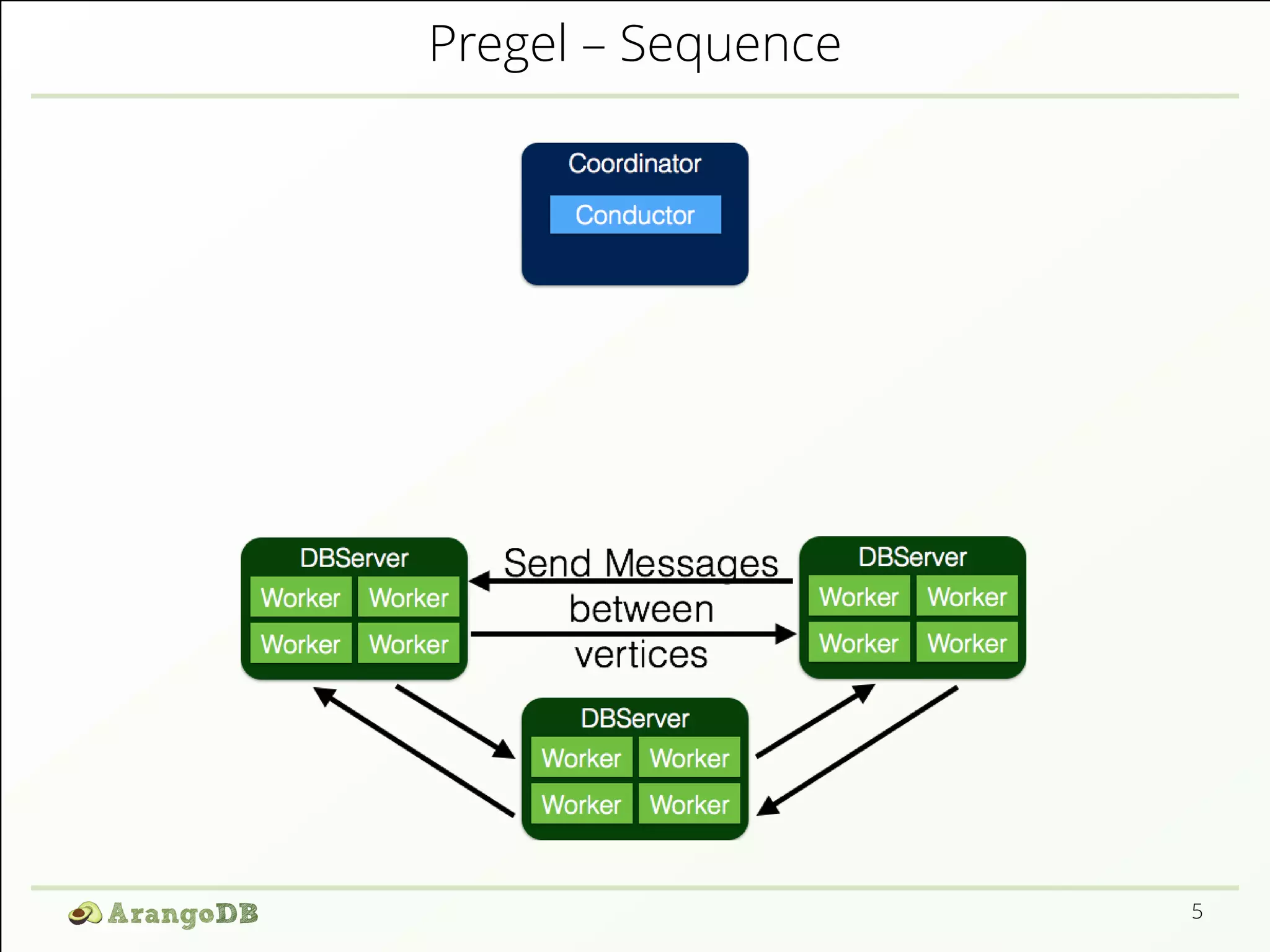

21. Pregel – Sequence
5

22. Pregel – Sequence
5

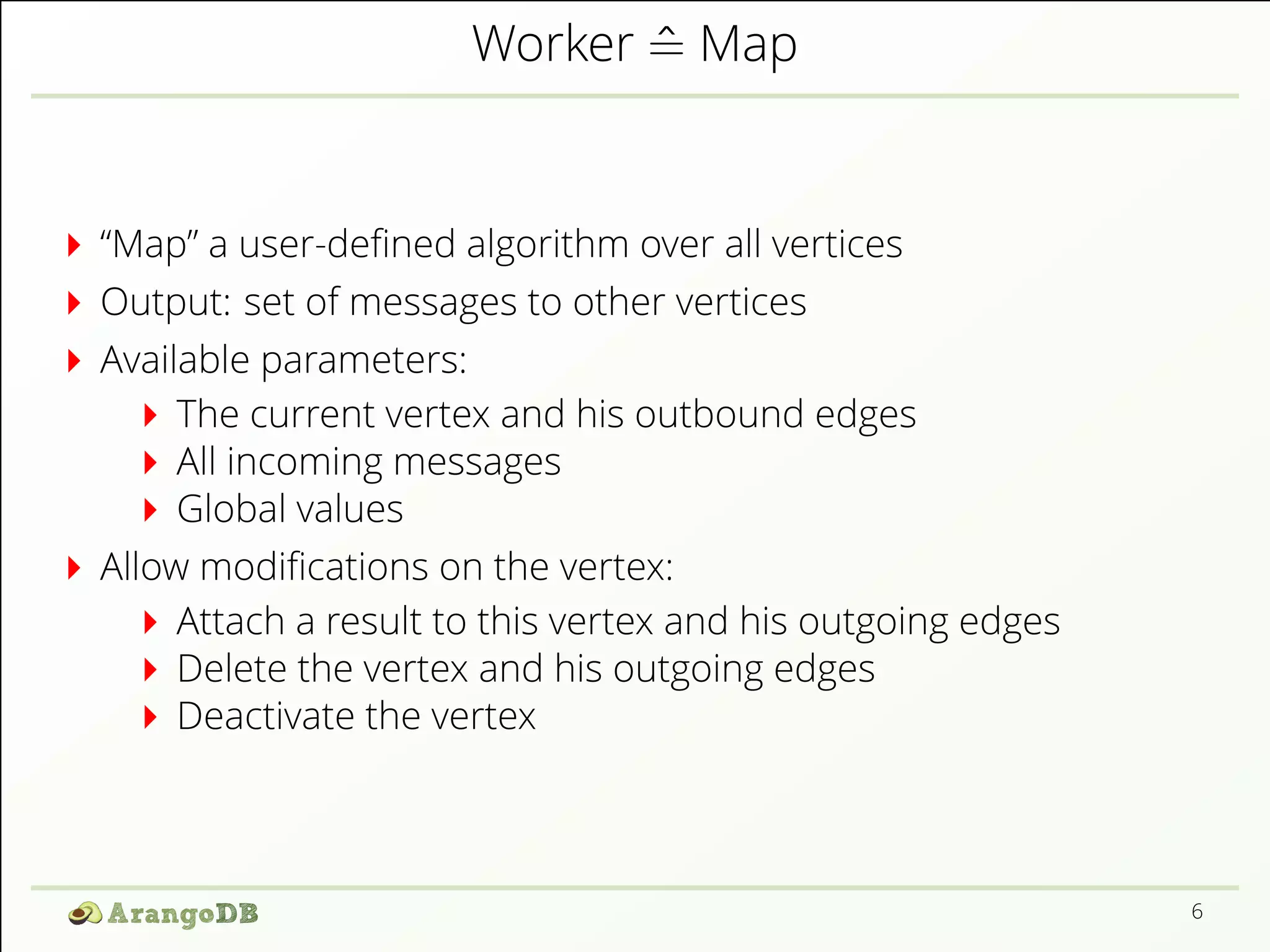

23. Worker ^= Map
“Map” a user-de1ned algorithm over all vertices
Output: set of messages to other vertices
Available parameters:
The current vertex and his outbound edges
All incoming messages
Global values
Allow modi1cations on the vertex:
Attach a result to this vertex and his outgoing edges
Delete the vertex and his outgoing edges
Deactivate the vertex
6

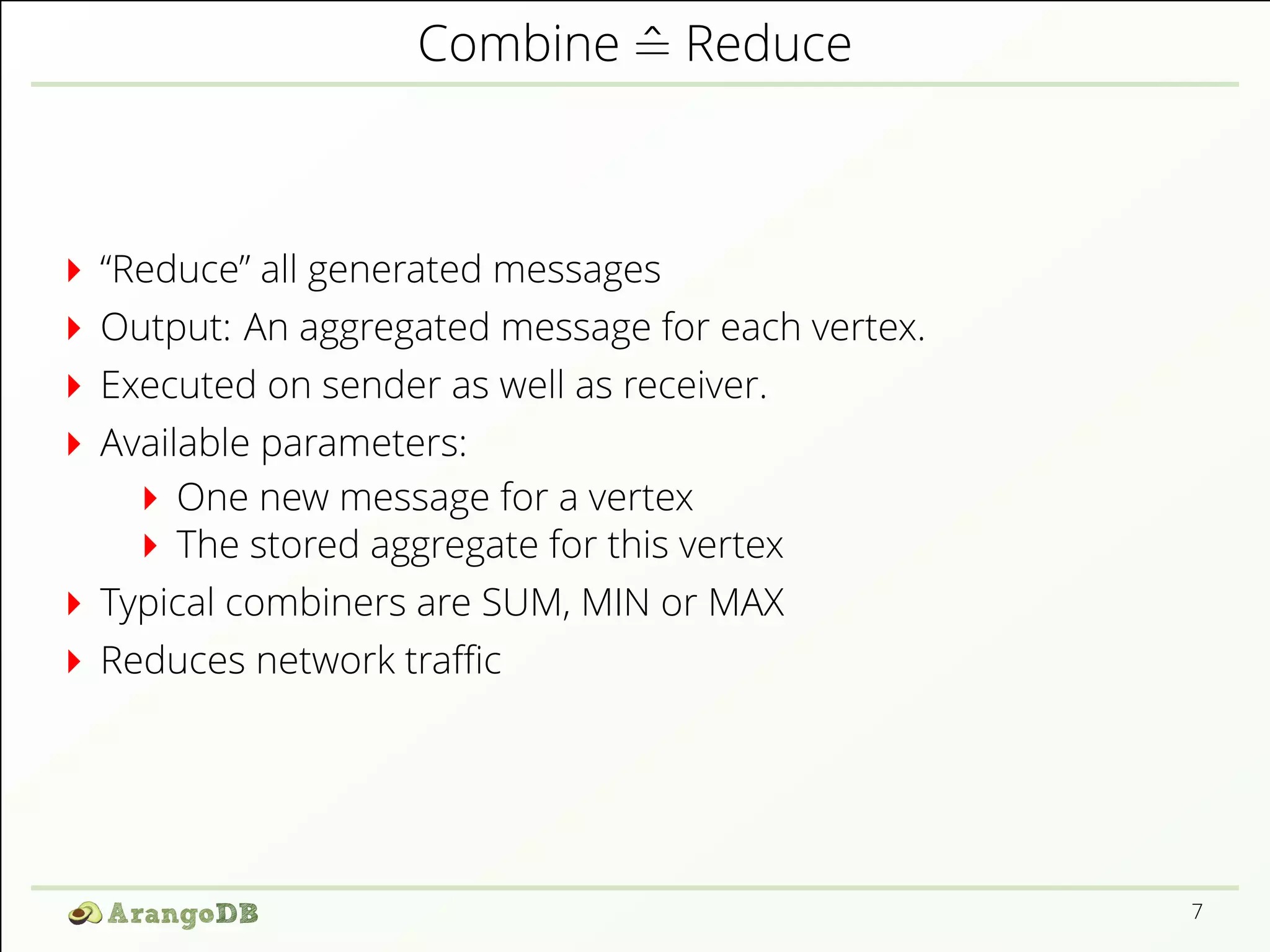

24. Combine ^= Reduce
“Reduce” all generated messages
Output: An aggregated message for each vertex.
Executed on sender as well as receiver.
Available parameters:
One new message for a vertex
The stored aggregate for this vertex
Typical combiners are SUM, MIN or MAX
Reduces network traZc
7

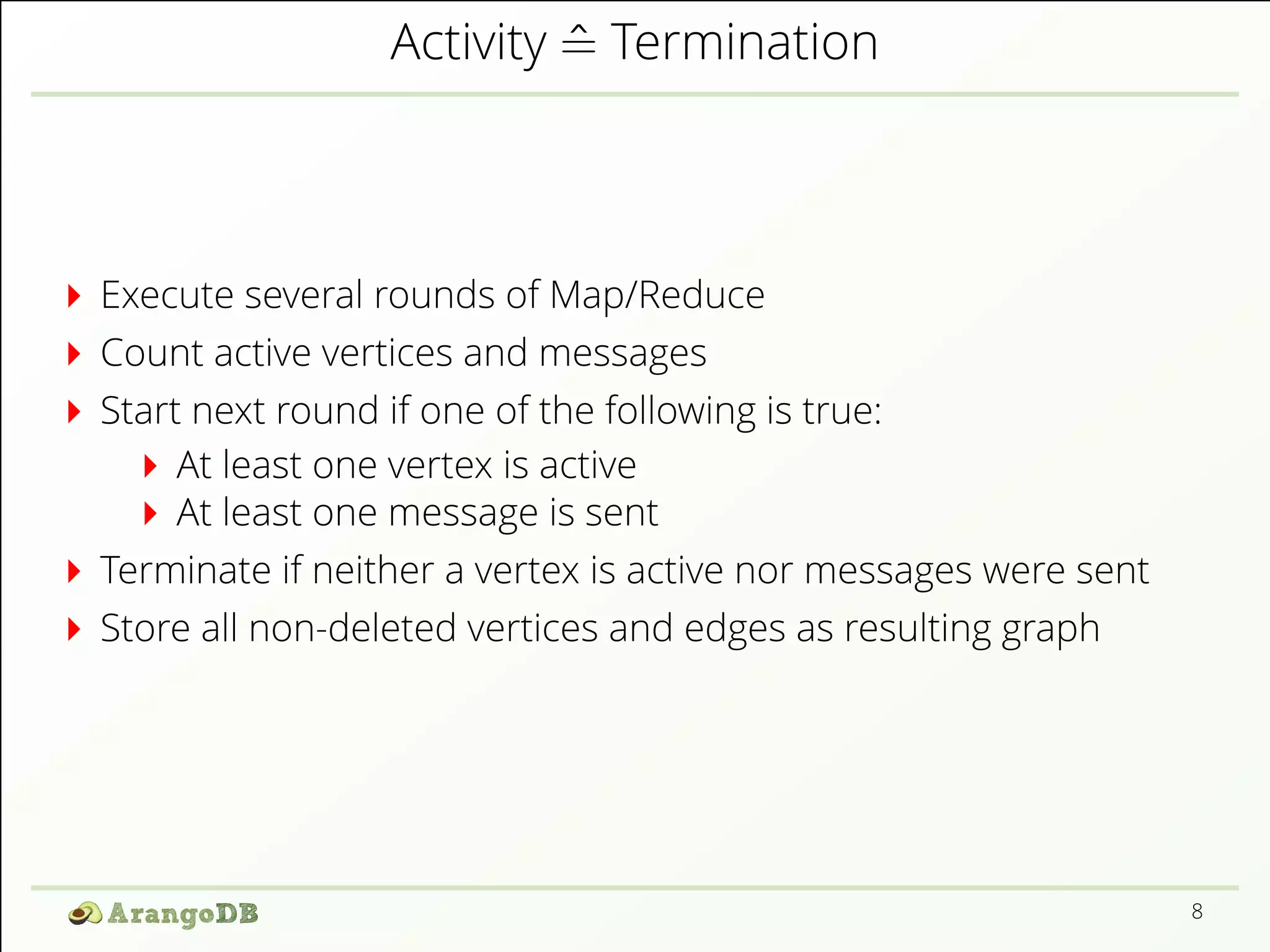

25. Activity ^= Termination
Execute several rounds of Map/Reduce
Count active vertices and messages
Start next round if one of the following is true:
At least one vertex is active
At least one message is sent
Terminate if neither a vertex is active nor messages were sent
Store all non-deleted vertices and edges as resulting graph
8

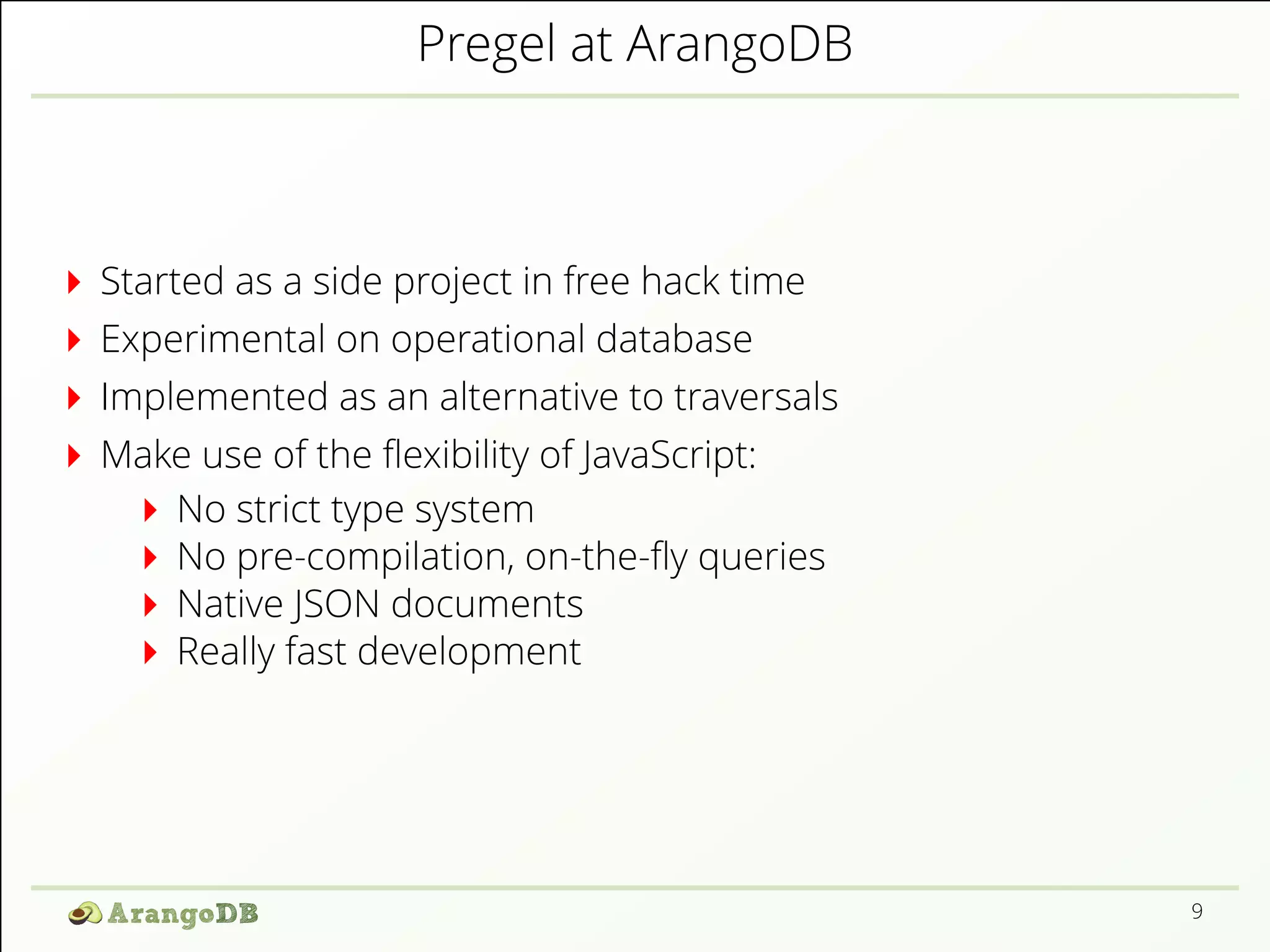

26. Pregel at ArangoDB
Started as a side project in free hack time
Experimental on operational database
Implemented as an alternative to traversals
Make use of the 2exibility of JavaScript:
No strict type system
No pre-compilation, on-the-2y queries
Native JSON documents
Really fast development
9

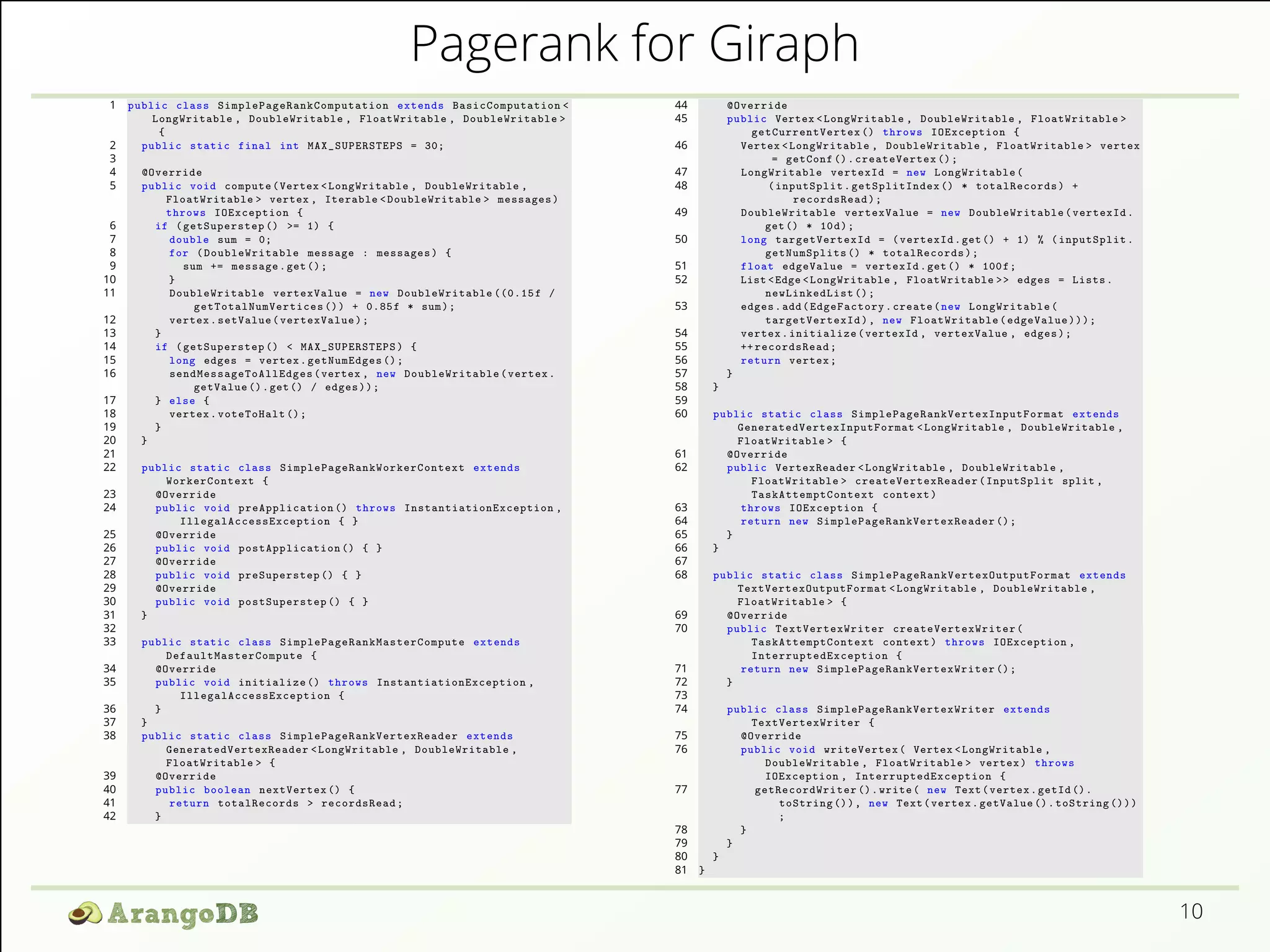

27. Pagerank for Giraph
10
1 public class SimplePageRankComputation extends BasicComputation <
LongWritable , DoubleWritable , FloatWritable , DoubleWritable >
{
2 public static final int MAX_SUPERSTEPS = 30;
34
@Override
5 public void compute ( Vertex < LongWritable , DoubleWritable ,
FloatWritable > vertex , Iterable < DoubleWritable > messages )
throws IOException {
6 if ( getSuperstep () >= 1) {
7 double sum = 0;
8 for ( DoubleWritable message : messages ) {
9 sum += message .get ();
10 }
11 DoubleWritable vertexValue = new DoubleWritable ((0.15 f /
getTotalNumVertices ()) + 0.85 f * sum );
12 vertex . setValue ( vertexValue );
13 }
14 if ( getSuperstep () < MAX_SUPERSTEPS ) {
15 long edges = vertex . getNumEdges ();
16 sendMessageToAllEdges (vertex , new DoubleWritable ( vertex .
getValue ().get () / edges ));
17 } else {
18 vertex . voteToHalt ();
19 }
20 }
21
22 public static class SimplePageRankWorkerContext extends
WorkerContext {
23 @Override
24 public void preApplication () throws InstantiationException ,
IllegalAccessException { }
25 @Override
26 public void postApplication () { }
27 @Override
28 public void preSuperstep () { }
29 @Override
30 public void postSuperstep () { }
31 }
32
33 public static class SimplePageRankMasterCompute extends
DefaultMasterCompute {
34 @Override
35 public void initialize () throws InstantiationException ,
IllegalAccessException {
36 }
37 }
38 public static class SimplePageRankVertexReader extends
GeneratedVertexReader < LongWritable , DoubleWritable ,
FloatWritable > {
39 @Override
40 public boolean nextVertex () {
41 return totalRecords > recordsRead ;
42 }
44 @Override
45 public Vertex < LongWritable , DoubleWritable , FloatWritable >
getCurrentVertex () throws IOException {
46 Vertex < LongWritable , DoubleWritable , FloatWritable > vertex
= getConf (). createVertex ();
47 LongWritable vertexId = new LongWritable (
48 ( inputSplit . getSplitIndex () * totalRecords ) +
recordsRead );
49 DoubleWritable vertexValue = new DoubleWritable ( vertexId .
get () * 10d);
50 long targetVertexId = ( vertexId .get () + 1) % ( inputSplit .
getNumSplits () * totalRecords );
51 float edgeValue = vertexId . get () * 100 f;
52 List <Edge < LongWritable , FloatWritable >> edges = Lists .
newLinkedList ();
53 edges .add ( EdgeFactory . create (new LongWritable (
targetVertexId ), new FloatWritable ( edgeValue )));
54 vertex . initialize ( vertexId , vertexValue , edges );
55 ++ recordsRead ;
56 return vertex ;
57 }
58 }
59
60 public static class SimplePageRankVertexInputFormat extends
GeneratedVertexInputFormat < LongWritable , DoubleWritable ,
FloatWritable > {
61 @Override
62 public VertexReader < LongWritable , DoubleWritable ,
FloatWritable > createVertexReader ( InputSplit split ,
TaskAttemptContext context )
63 throws IOException {
64 return new SimplePageRankVertexReader ();
65 }
66 }
67
68 public static class SimplePageRankVertexOutputFormat extends
TextVertexOutputFormat < LongWritable , DoubleWritable ,
FloatWritable > {
69 @Override
70 public TextVertexWriter createVertexWriter (
TaskAttemptContext context ) throws IOException ,
InterruptedException {
71 return new SimplePageRankVertexWriter ();
72 }
73
74 public class SimplePageRankVertexWriter extends
TextVertexWriter {
75 @Override
76 public void writeVertex ( Vertex < LongWritable ,
DoubleWritable , FloatWritable > vertex ) throws
IOException , InterruptedException {
77 getRecordWriter (). write ( new Text ( vertex . getId ().
toString ()), new Text ( vertex . getValue (). toString ()))
;
78 }
79 }
80 }
81 }

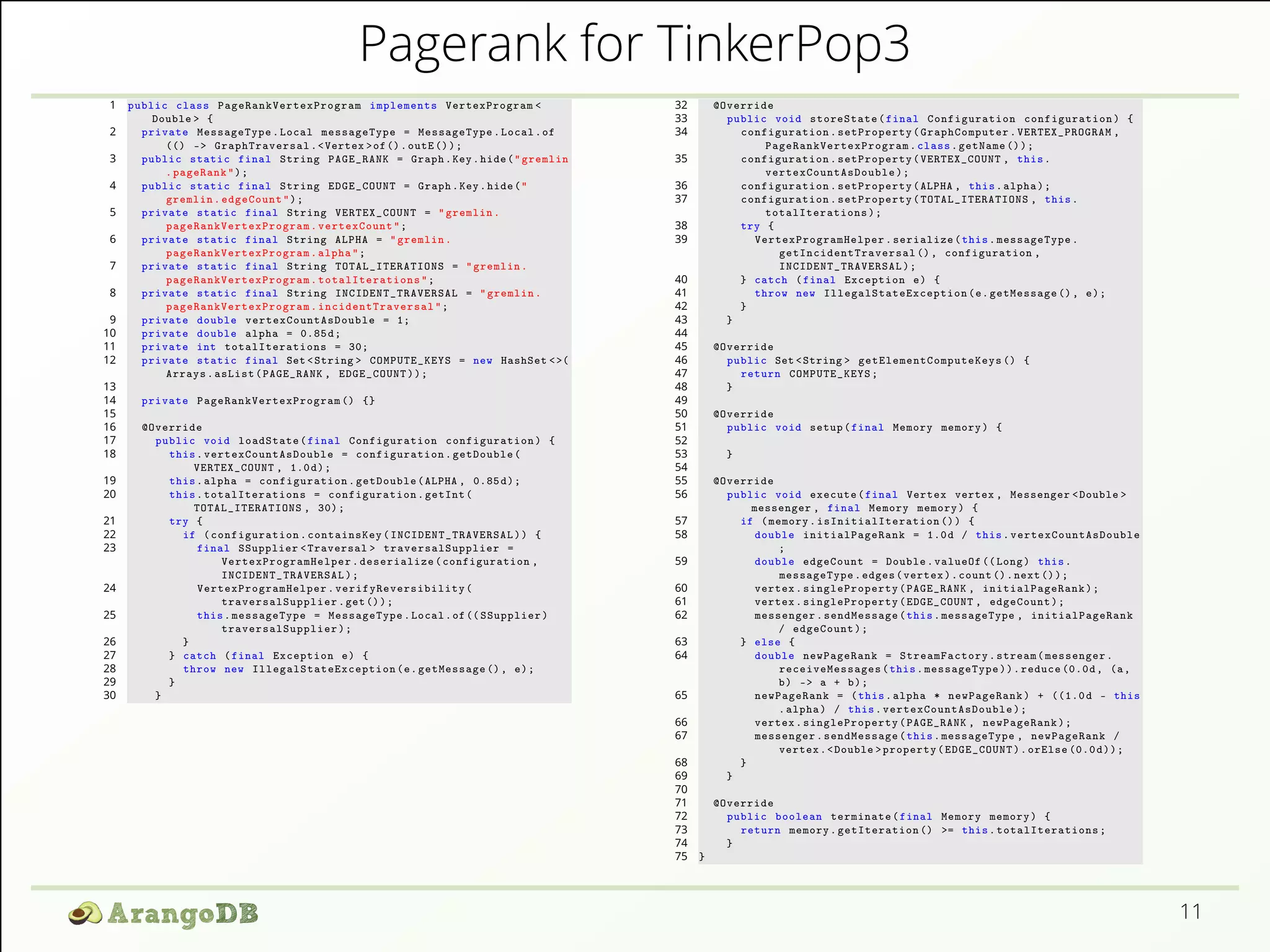

28. Pagerank for TinkerPop3
11
1 public class PageRankVertexProgram implements VertexProgram <
Double > {
2 private MessageType . Local messageType = MessageType . Local .of
(() -> GraphTraversal .< Vertex >of (). outE ());
3 public static final String PAGE_RANK = Graph .Key . hide (" gremlin
. pageRank ");
4 public static final String EDGE_COUNT = Graph .Key . hide ("
gremlin . edgeCount ");
5 private static final String VERTEX_COUNT = " gremlin .
pageRankVertexProgram . vertexCount ";
6 private static final String ALPHA = " gremlin .
pageRankVertexProgram . alpha ";
7 private static final String TOTAL_ITERATIONS = " gremlin .
pageRankVertexProgram . totalIterations ";
8 private static final String INCIDENT_TRAVERSAL = " gremlin .
pageRankVertexProgram . incidentTraversal ";
9 private double vertexCountAsDouble = 1;
10 private double alpha = 0.85 d;
11 private int totalIterations = 30;
12 private static final Set <String > COMPUTE_KEYS = new HashSet <>(
Arrays . asList ( PAGE_RANK , EDGE_COUNT ));
13
14 private PageRankVertexProgram () {}
15
16 @Override
17 public void loadState ( final Configuration configuration ) {
18 this . vertexCountAsDouble = configuration . getDouble (
VERTEX_COUNT , 1.0 d);
19 this . alpha = configuration . getDouble (ALPHA , 0.85 d);
20 this . totalIterations = configuration . getInt (
TOTAL_ITERATIONS , 30);
21 try {
22 if ( configuration . containsKey ( INCIDENT_TRAVERSAL )) {
23 final SSupplier < Traversal > traversalSupplier =
VertexProgramHelper . deserialize ( configuration ,
INCIDENT_TRAVERSAL );
24 VertexProgramHelper . verifyReversibility (
traversalSupplier .get ());
25 this . messageType = MessageType . Local .of (( SSupplier )
traversalSupplier );
26 }
27 } catch ( final Exception e) {
28 throw new IllegalStateException (e. getMessage () , e);
29 }
30 }
32 @Override
33 public void storeState ( final Configuration configuration ) {
34 configuration . setProperty ( GraphComputer . VERTEX_PROGRAM ,
PageRankVertexProgram . class . getName ());
35 configuration . setProperty ( VERTEX_COUNT , this .
vertexCountAsDouble );
36 configuration . setProperty (ALPHA , this . alpha );
37 configuration . setProperty ( TOTAL_ITERATIONS , this .
totalIterations );
38 try {
39 VertexProgramHelper . serialize ( this . messageType .
getIncidentTraversal () , configuration ,
INCIDENT_TRAVERSAL );
40 } catch ( final Exception e) {
41 throw new IllegalStateException (e. getMessage () , e);
42 }
43 }
44
45 @Override
46 public Set <String > getElementComputeKeys () {
47 return COMPUTE_KEYS ;
48 }
49
50 @Override
51 public void setup ( final Memory memory ) {
52
53 }
54
55 @Override
56 public void execute ( final Vertex vertex , Messenger <Double >
messenger , final Memory memory ) {
57 if ( memory . isInitialIteration ()) {
58 double initialPageRank = 1.0d / this . vertexCountAsDouble
;
59 double edgeCount = Double . valueOf (( Long ) this .
messageType . edges ( vertex ). count (). next ());
60 vertex . singleProperty ( PAGE_RANK , initialPageRank );
61 vertex . singleProperty ( EDGE_COUNT , edgeCount );
62 messenger . sendMessage ( this . messageType , initialPageRank
/ edgeCount );
63 } else {
64 double newPageRank = StreamFactory . stream ( messenger .
receiveMessages ( this . messageType )). reduce (0.0d, (a,
b) -> a + b);
65 newPageRank = ( this . alpha * newPageRank ) + ((1.0 d - this
. alpha ) / this . vertexCountAsDouble );
66 vertex . singleProperty ( PAGE_RANK , newPageRank );
67 messenger . sendMessage ( this . messageType , newPageRank /
vertex .<Double > property ( EDGE_COUNT ). orElse (0.0 d));
68 }
69 }
70
71 @Override
72 public boolean terminate ( final Memory memory ) {
73 return memory . getIteration () >= this . totalIterations ;
74 }
75 }

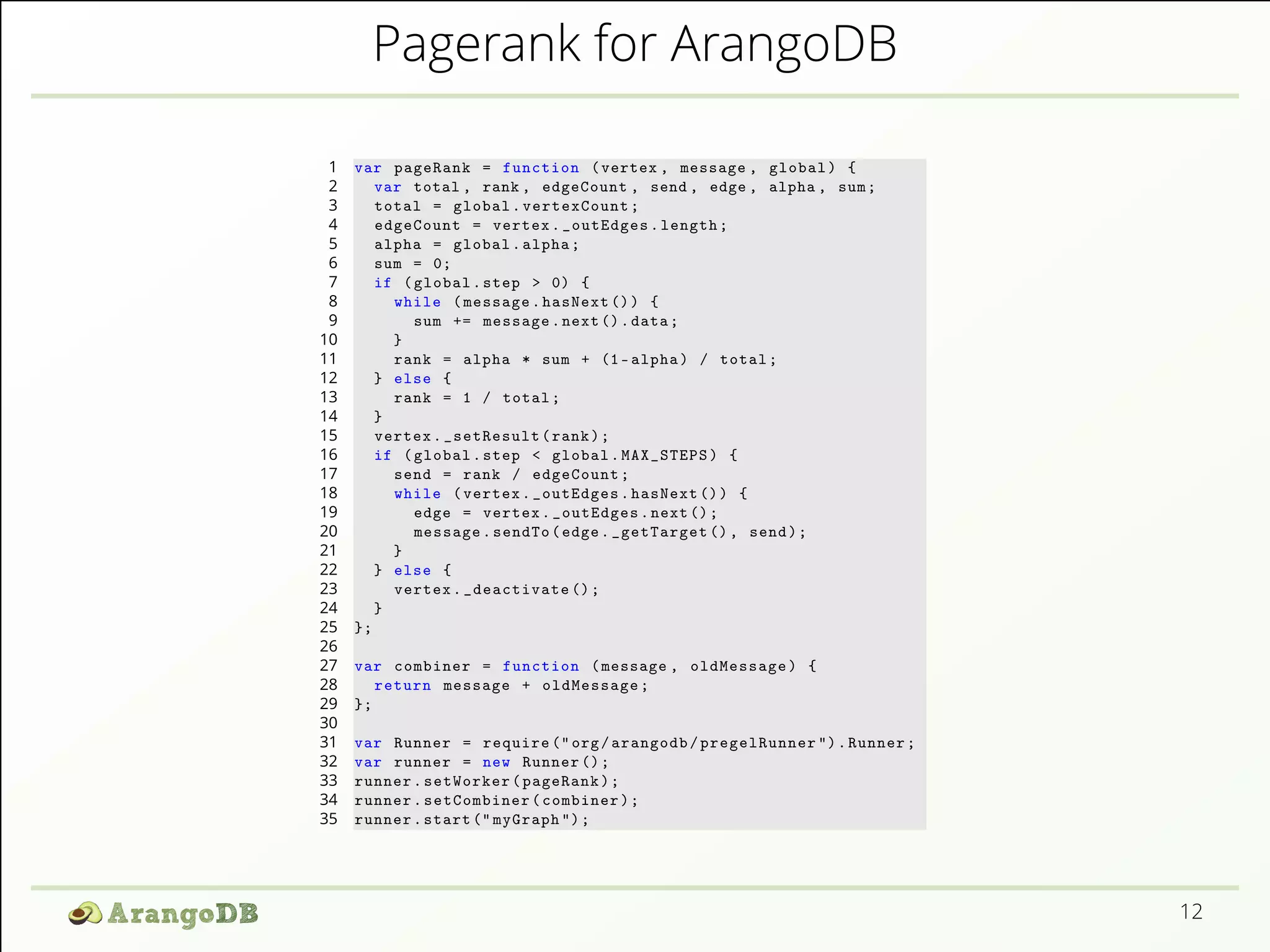

29. Pagerank for ArangoDB
1 var pageRank = function (vertex , message , global ) {
2 var total , rank , edgeCount , send , edge , alpha , sum ;
3 total = global . vertexCount ;
4 edgeCount = vertex . _outEdges . length ;
5 alpha = global . alpha ;
6 sum = 0;
7 if ( global . step > 0) {
8 while ( message . hasNext ()) {
9 sum += message . next (). data ;
10 }
11 rank = alpha * sum + (1- alpha ) / total ;
12 } else {
13 rank = 1 / total ;
14 }
15 vertex . _setResult ( rank );
16 if ( global . step < global . MAX_STEPS ) {
17 send = rank / edgeCount ;
18 while ( vertex . _outEdges . hasNext ()) {
19 edge = vertex . _outEdges . next ();
20 message . sendTo ( edge . _getTarget () , send );
21 }
22 } else {
23 vertex . _deactivate ();
24 }
25 };
26
27 var combiner = function ( message , oldMessage ) {
28 return message + oldMessage ;
29 };
30
31 var Runner = require (" org/ arangodb / pregelRunner "). Runner ;
32 var runner = new Runner ();
33 runner . setWorker ( pageRank );
34 runner . setCombiner ( combiner );
35 runner . start (" myGraph ");
12

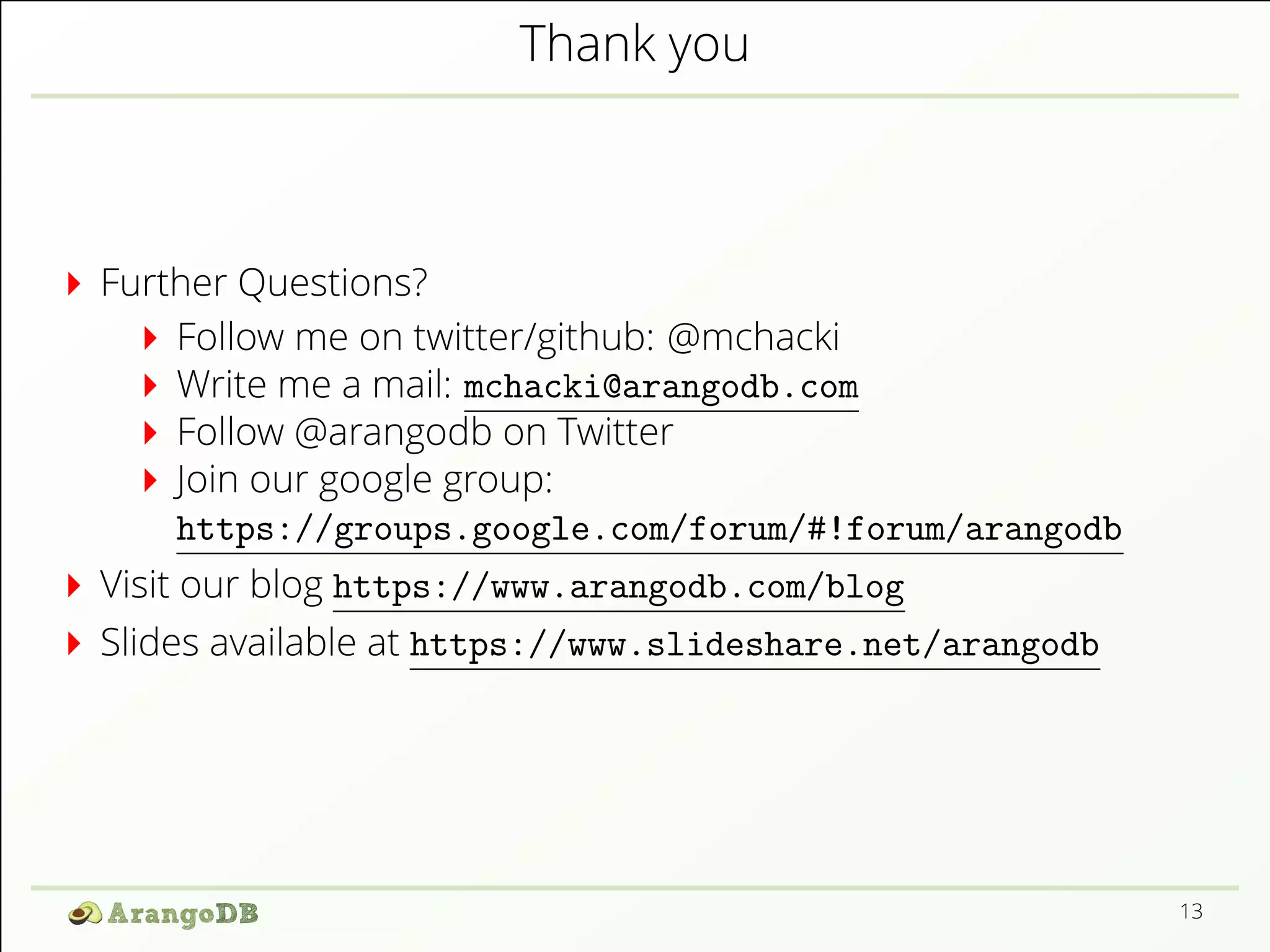

30. Thank you
Further Questions?
Follow me on twitter/github: @mchacki
Write me a mail: mchacki@arangodb.com
Follow @arangodb on Twitter
Join our google group:
https://groups.google.com/forum/#!forum/arangodb
Visit our blog https://www.arangodb.com/blog
Slides available at https://www.slideshare.net/arangodb
13

31. 17TH ~ 18th NOV 2014
MADRID (SPAIN)
