The memristor is a two-terminal electronic device that relates magnetic flux and electric charge. It was first theorized in 1971 by Leon Chua but was not physically realized until 2008 by HP scientists led by R. Stanley Williams. Memristors are expected to revolutionize computing and data storage by enabling non-volatile memory, booting computers without memory, new approaches to logic and computing, and even artificial neural networks that mimic the human brain. While research is still ongoing, memristors promise to have as large an impact as the transistor but will require further engineering development and standardization before seeing widespread adoption.

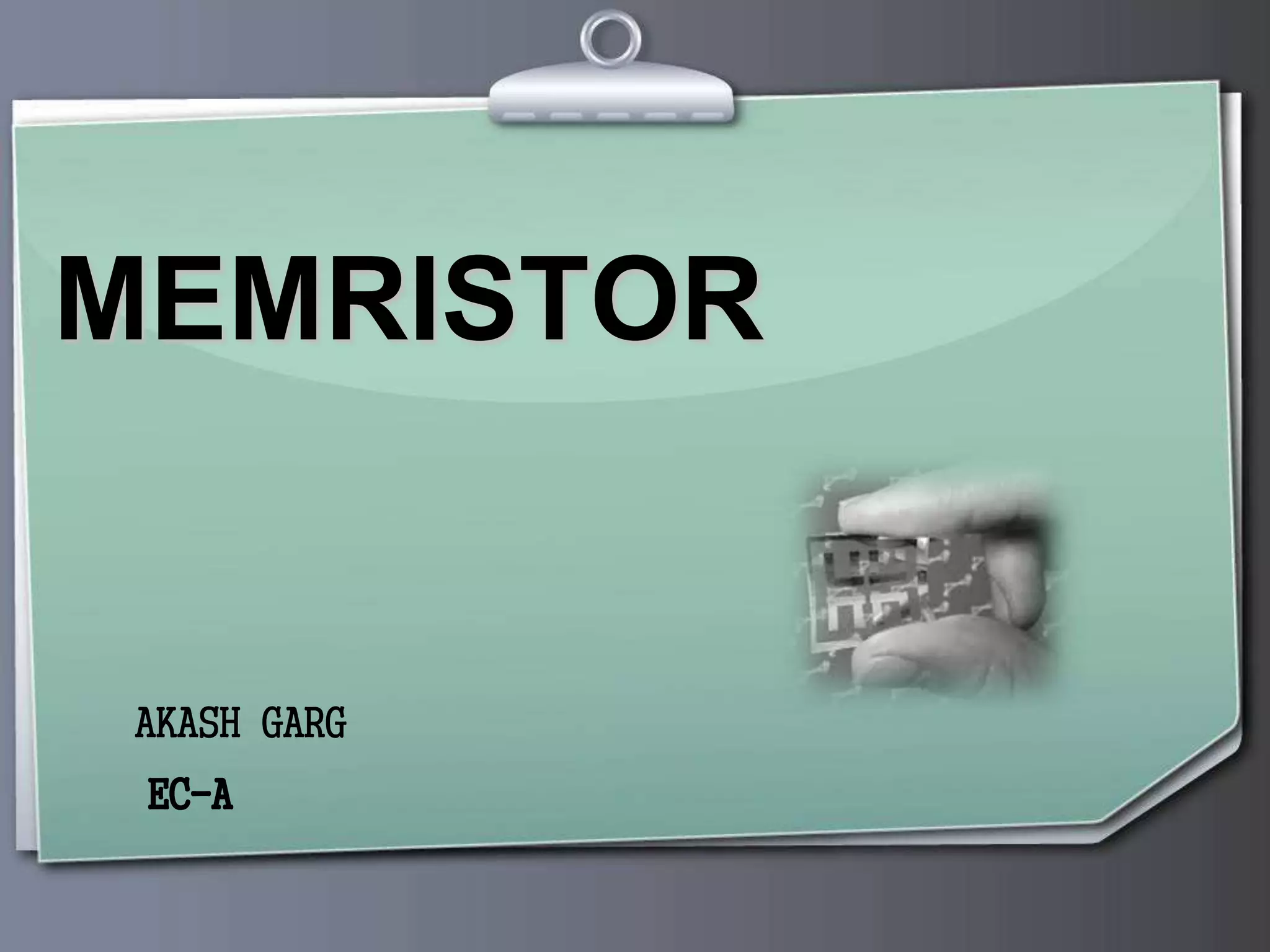

1. MEMRISTOR
AKASH GARG
EC-A

2. The idea…..
What is Memristor
Inside Memristors
Why Memristor
Big Guns involved
FUTURE
To conclude

3. The term Memristor was first proposed by
Leon Chaua in 1971 when he was a rising
professor at
The University of California
Berkeley
LEON.O.CHUA

5.  Charge
 Voltage
 Current
 Flux
..and Time
….a clock variable

6. Voltage
(V)
Current
(i)
Charge
(q)
Flux
(Φ)
Φ = L.i Inductor
No Relation , No device
?
Capacitor q = C.v
Resistor
v = i.R

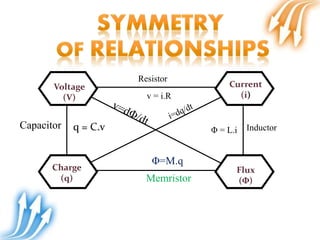

7. Voltage
(V)
Current
(i)
Charge
(q)
Flux
(Φ)
Φ = L.i Inductor
Memristor
Φ=M.q
Capacitor q = C.v
Resistor
v = i.R

8. What is memristor ?

9. Memristor is really aMEMory ResISTOR
Memristor can be defined as a two
terminal device which shows the
relation between magnetic flux
and charge
memristor symbol

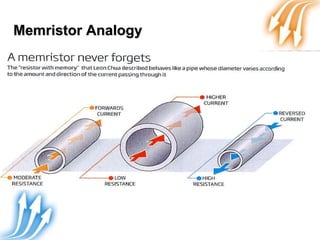

11. Memristor Analogy

13. In may of 2008, 37 year old
Waiting for Leon Chua blossomed,
when scientists under the
leadership of
R . Stanley Williams
created the first memristor at
HP labs
The Memristor was created out
of TiO2 and TiO 2 -x

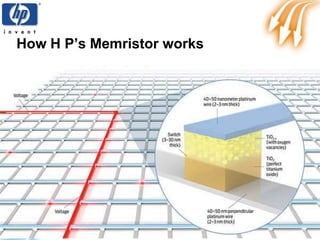

14. How H P’s Memristor works

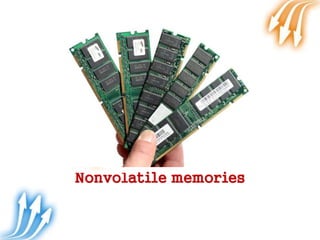

17. Nonvolatile memories

18. Booting free computers

19. Logic/computing

20. Artificial Brain

22. Big Guns involved

24. Future

25. Memcapacitor
and
Meminductor

26. Still In Research Phase.
Needs more precise engineering.
No design standards.
Not Perfect Yet !

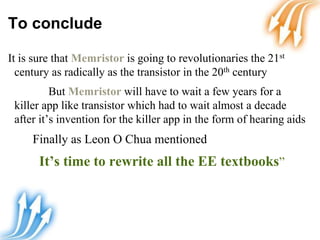

27. To conclude
It is sure that Memristor is going to revolutionaries the 21st
century as radically as the transistor in the 20th century
But Memristor will have to wait a few years for a
killer app like transistor which had to wait almost a decade
after it’s invention for the killer app in the form of hearing aids
Finally as Leon O Chua mentioned
It’s time to rewrite all the EE textbooks”
