3. Ventilation “CO2 wash out”
To wash out CO2 in a mechanical ventilated patient I will
adjust the:
A. FiO2 and RR
B. Vt, PEEP and RR
C. RR, PEEP and FiO2
D. Vt and RR
11/19/2008 ©2008 Alraiyes 3

4. Oxygenation
To increase SpO2 in a mechanical ventilated patient I will
adjust the:
A. FiO2 and RR
B. PEEP and FiO2
C. RR, PEEP and FiO2
D. Vt and RR
11/19/2008 ©2008 Alraiyes 4

5. Plateau Pressure?
A
B
P
C
D
V
11/19/2008 ©2008 Alraiyes 5

6. Compliance?
Transthoracic Compliance =
A. C = Vt x RR / PEEP
B. C = Pplt / VT
C. C = Vt / Pplt - PEEP
D. C = Vt / Pk - Pplt
11/19/2008 ©2008 Alraiyes 6

7. FiO2
FiO2 at the mount of Everest =
A. 25%
B. 15%
C. 21%
D. 12%
11/19/2008 ©2008 Alraiyes 7

8. What are the functions of any type of
mechanical ventilation?
11/19/2008 ©2008 Alraiyes 8

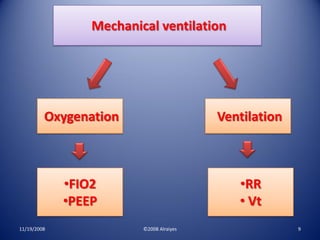

9. Mechanical ventilation
Oxygenation Ventilation
•FIO2 •RR
•PEEP • Vt
11/19/2008 ©2008 Alraiyes 9

10. P
•Shunting and dead space.
•Decrease CO and Renal output.
•Nosocomial pneumonia.
•Increased ICP.
V
11/19/2008 ©2008 Alraiyes 10

11. R=P/Q
Air way
C=V/P
11/19/2008 ©2008 Alraiyes 11

12. P
V
11/19/2008 ©2008 Alraiyes 12

13. VILI •Barotrauma.
•Oxygen toxicity .
•Volutrauma.
•Atelectrauma.
•Biotrauma.
•Translocation of the cells.
P
V
11/19/2008 ©2008 Alraiyes 13

14. P
V
11/19/2008 ©2008 Alraiyes 14

15. Peak
Plateau
Air way
11/19/2008 ©2008 Alraiyes 15

16. P
11/19/2008 ©2008 Alraiyes 16

17. Plateau
P
V
11/19/2008 ©2008 Alraiyes 17

18. WAVES
11/19/2008 ©2008 Alraiyes 18

19. Pressure wave
Ppeak 20
21
0
cmH2O
11/19/2008 ©2008 Alraiyes 19

20. Flow wave
F
60
L/Min
11/19/2008 ©2008 Alraiyes 20

21. Volume wave
Vt
451
mL
11/19/2008 ©2008 Alraiyes 21

22. Modes of ventilation
11/19/2008 ©2008 Alraiyes 22

23. CPAP
11/19/2008 ©2008 Alraiyes 23

24. PS
11/19/2008 ©2008 Alraiyes 24

25. CMV
11/19/2008 ©2008 Alraiyes 25

26. CMV
11/19/2008 ©2008 Alraiyes 26

27. SIMV
11/19/2008 ©2008 Alraiyes 27

28. SIMV + PS
11/19/2008 ©2008 Alraiyes 28
