MEASUREMENT OF POWER, FLOW, AND TEMPERATURE

•Download as PPTX, PDF•

0 likes•214 views

This document discusses various methods for measuring power, flow, temperature, and torque. It describes common flow measurement devices like venturi meters, orifice meters, and rotameters. It also lists methods for temperature measurement such as bimetallic strips, thermocouples, and resistance temperature detectors. Finally, it outlines techniques for torque measurement including Prony brake arrangements and different types of dynamometers.

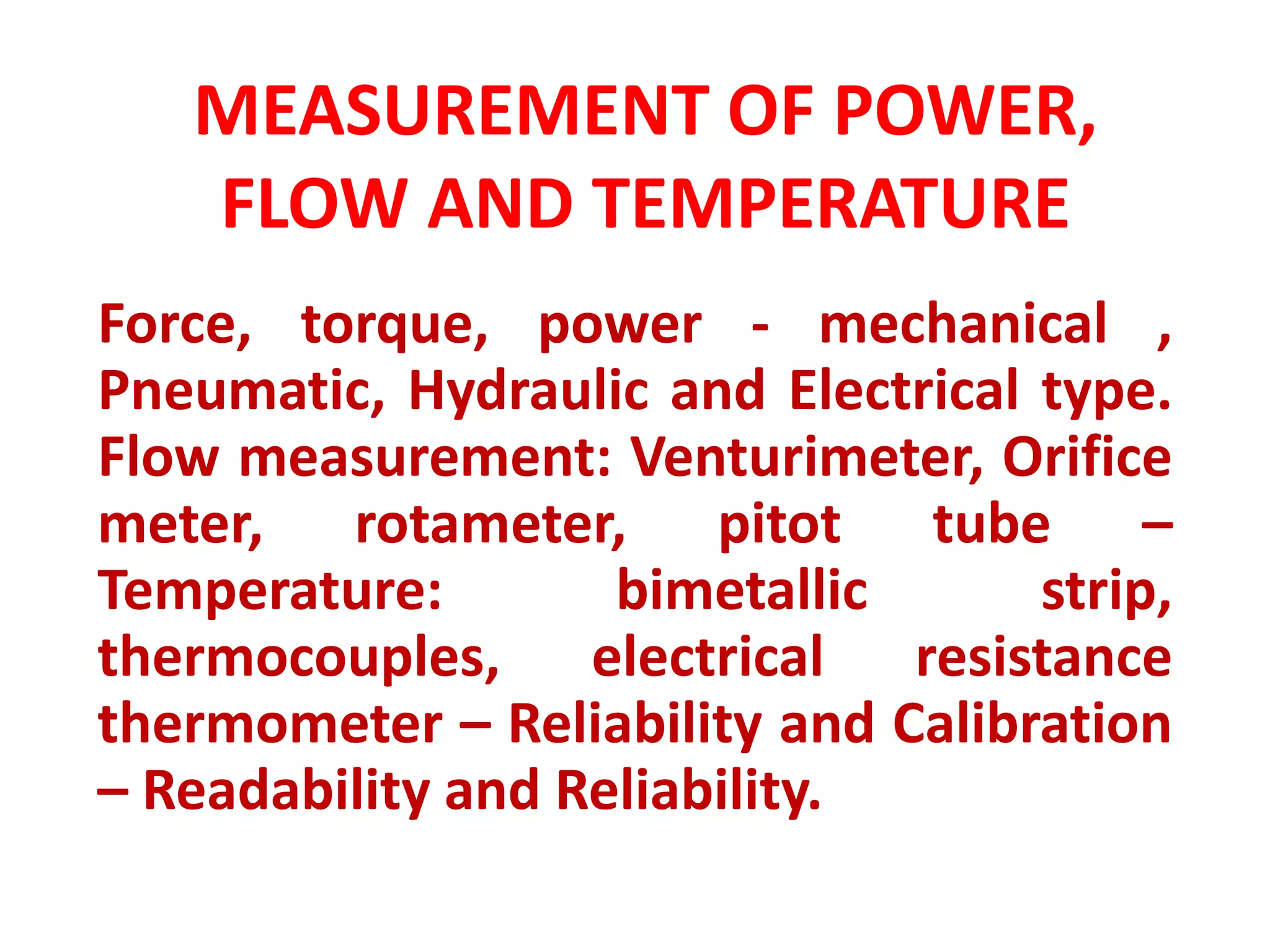

MEASUREMENT OF POWER,
FLOW AND TEMPERATURE

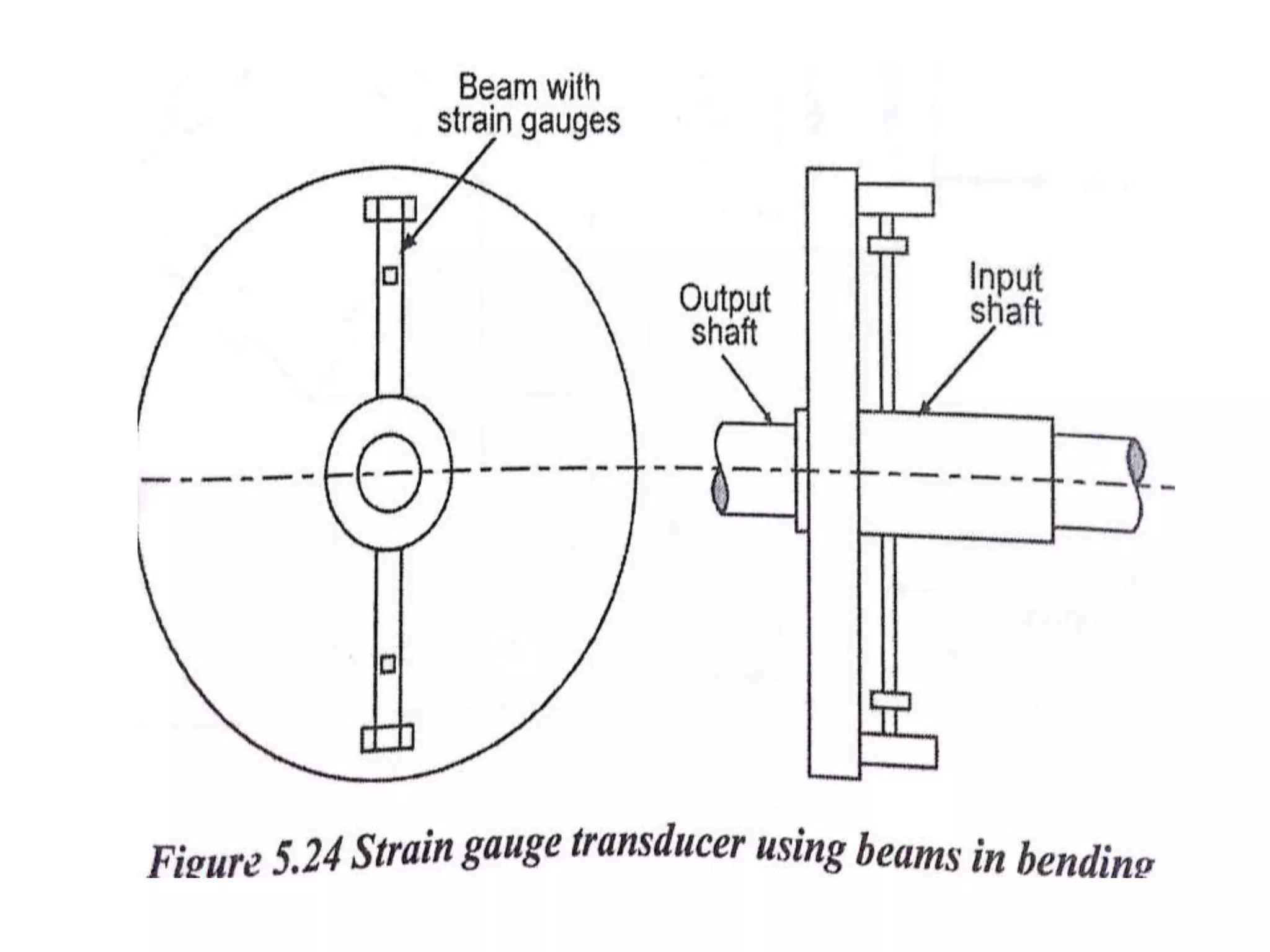

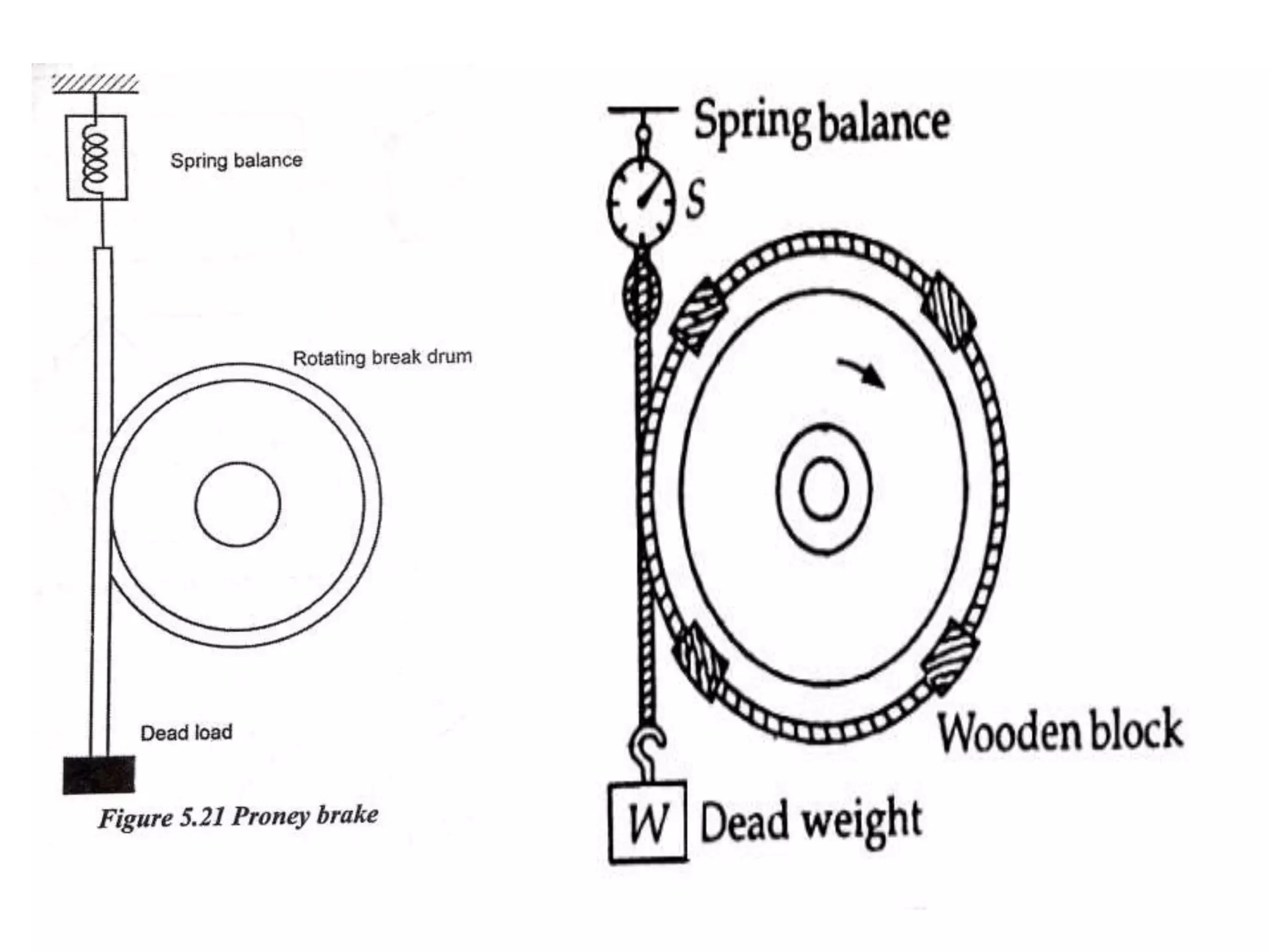

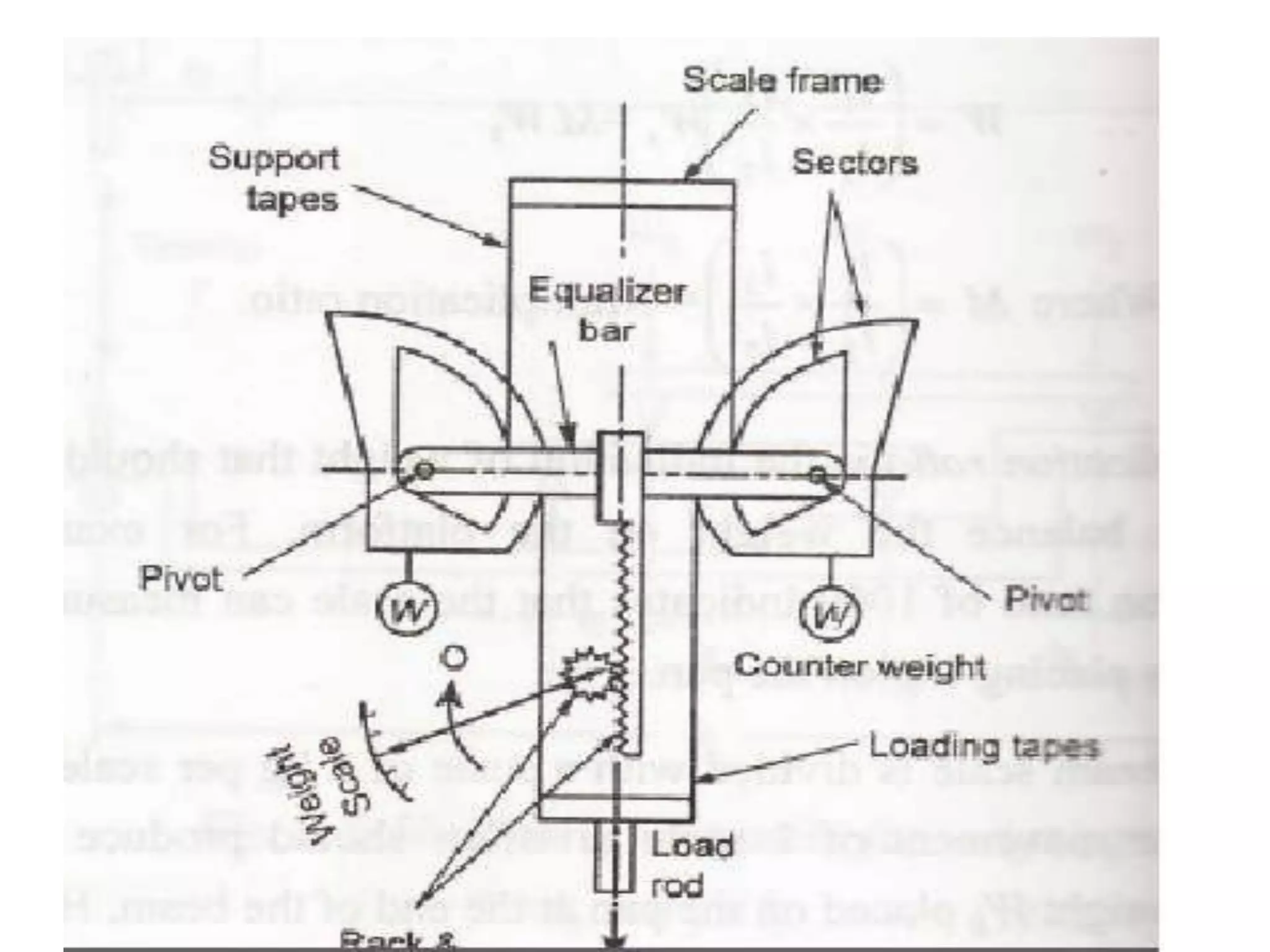

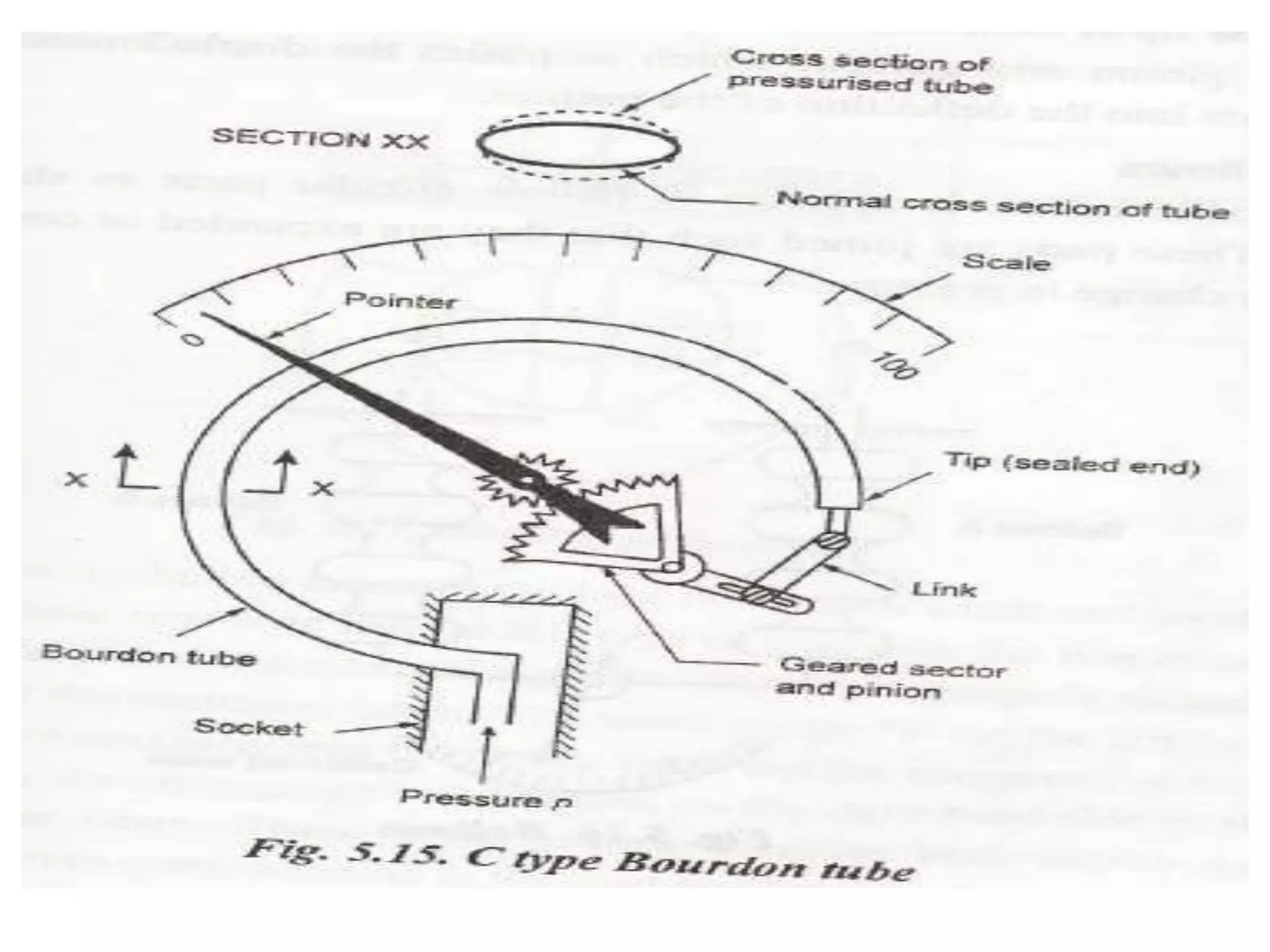

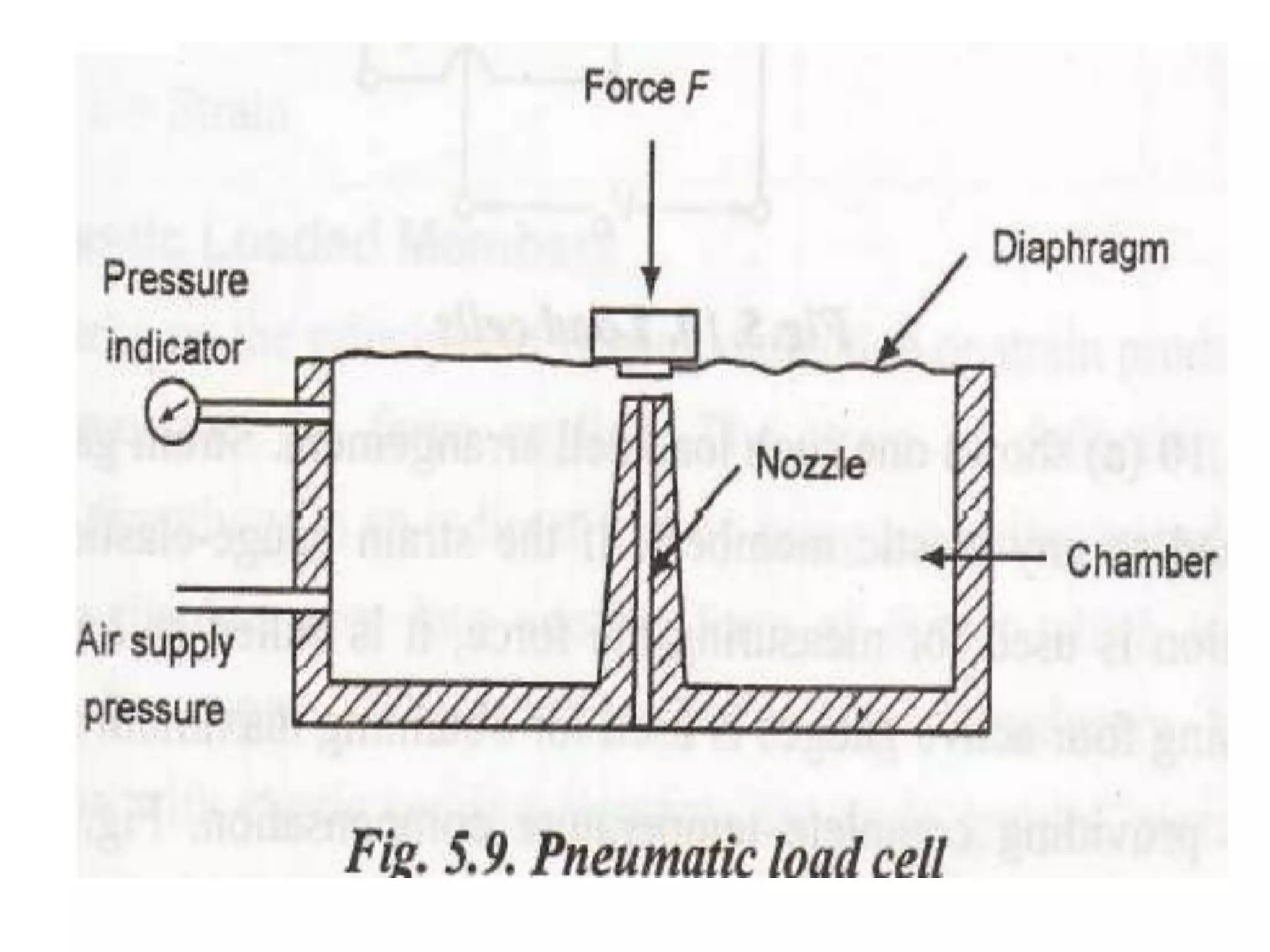

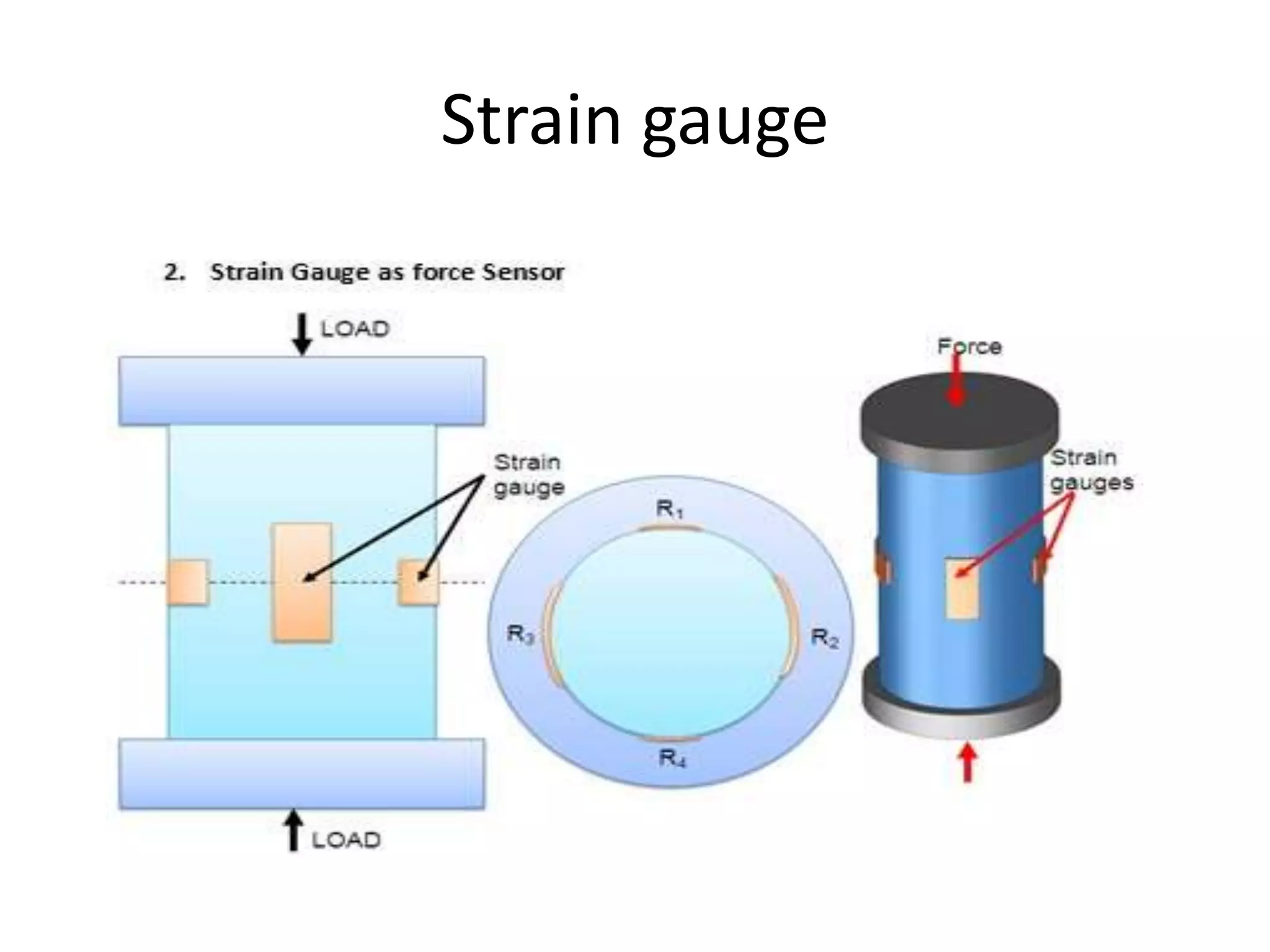

Force, torque, power - mechanical ,
Pneumatic, Hydraulic and Electrical type.

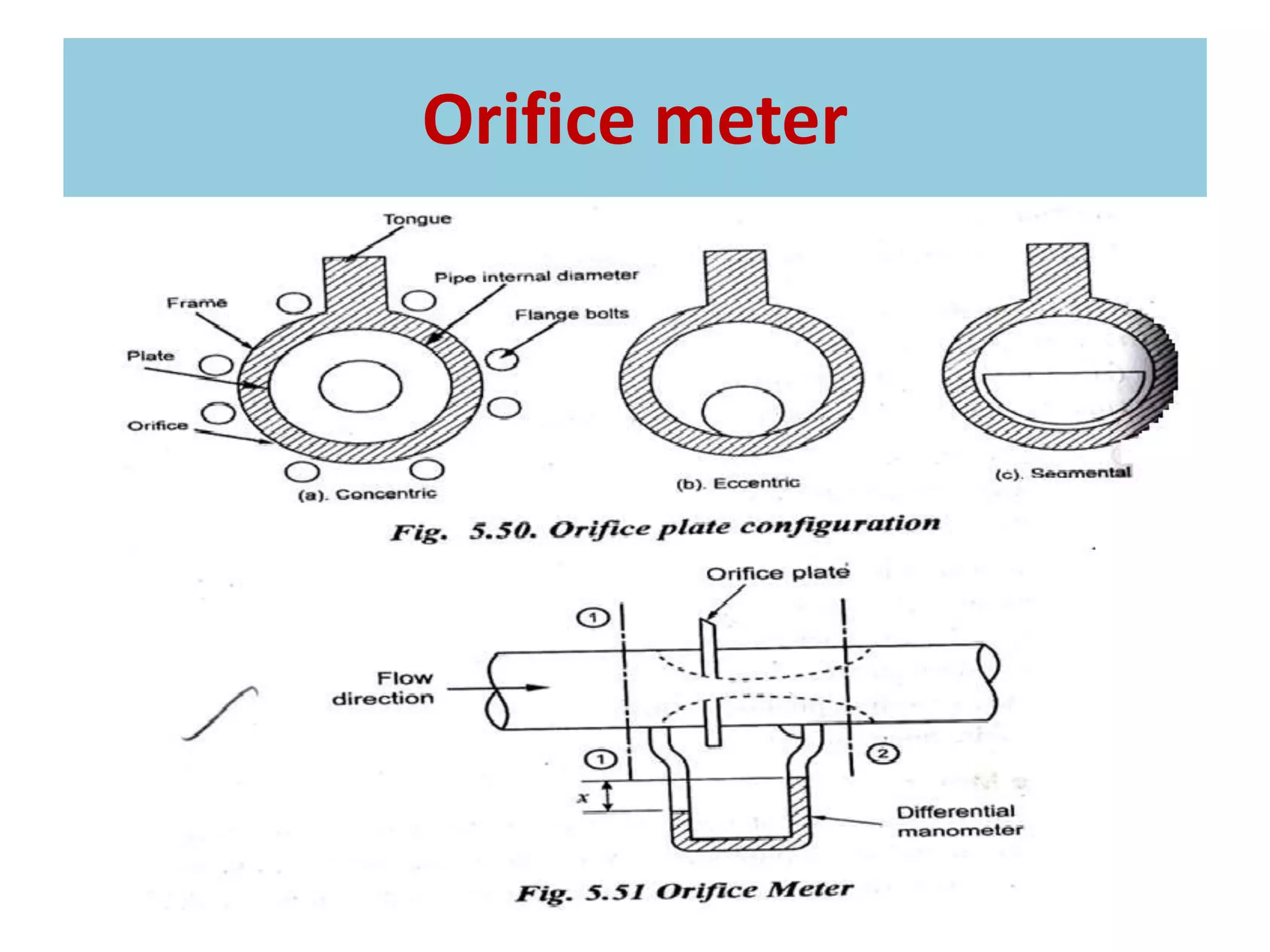

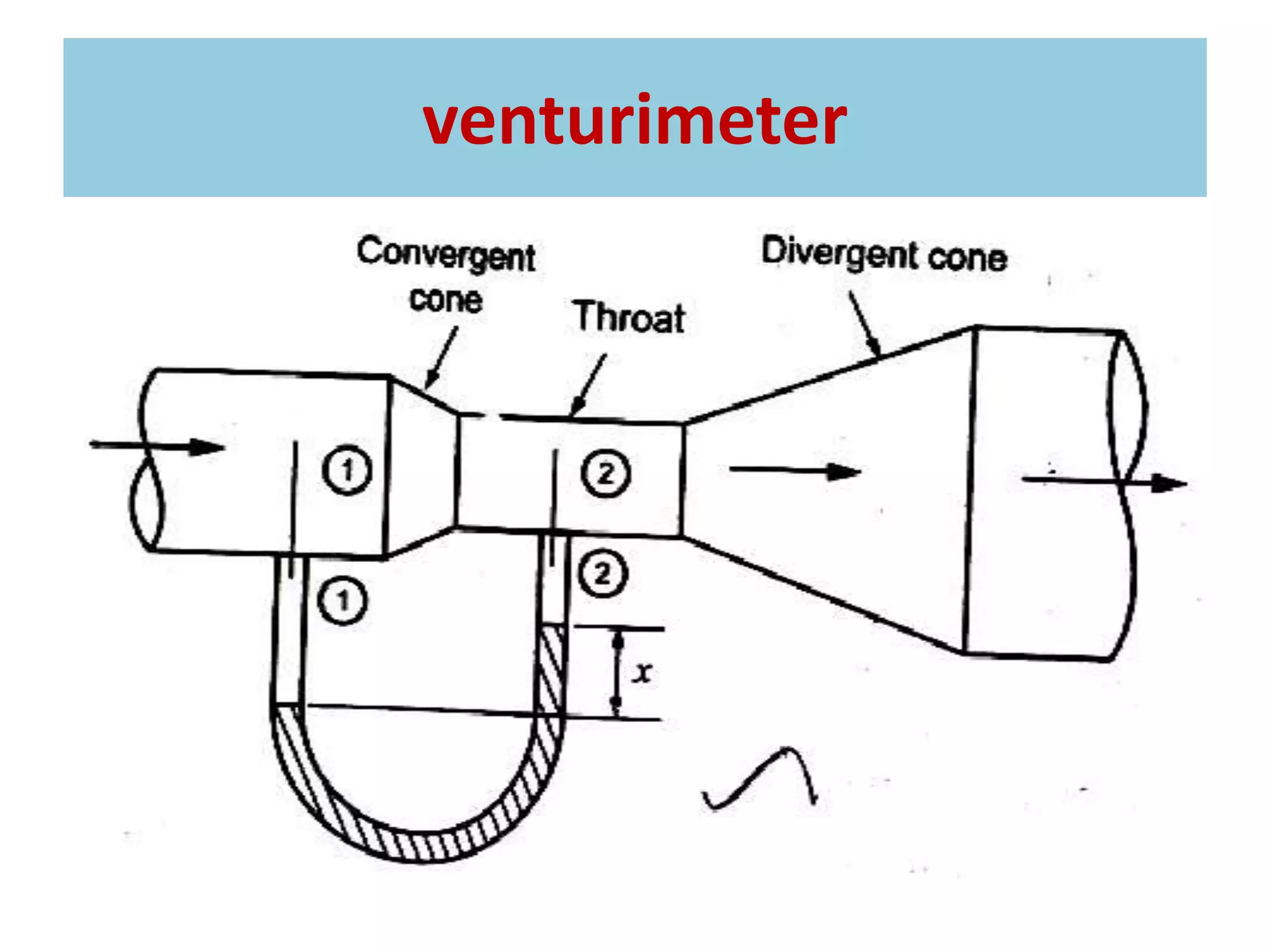

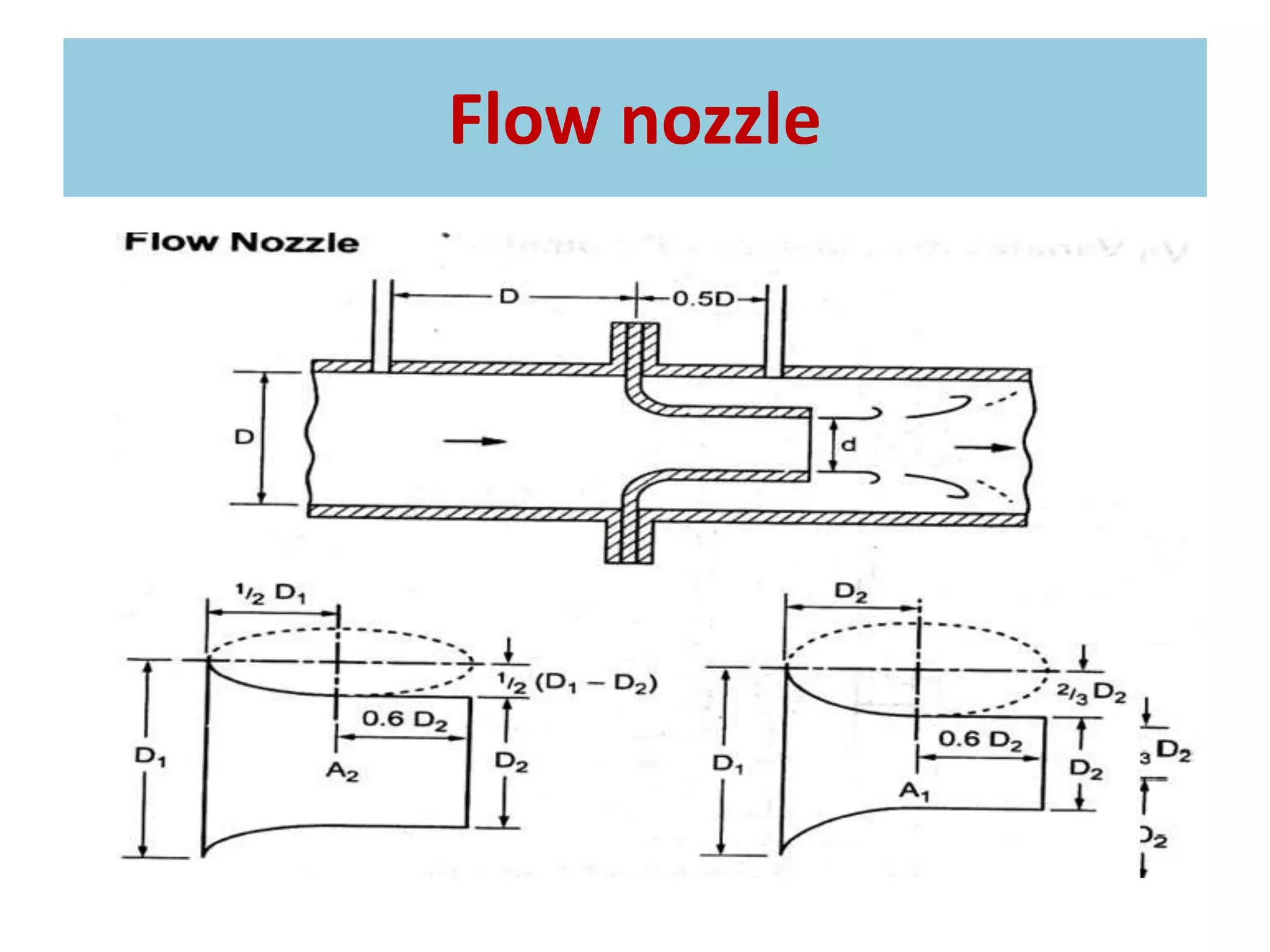

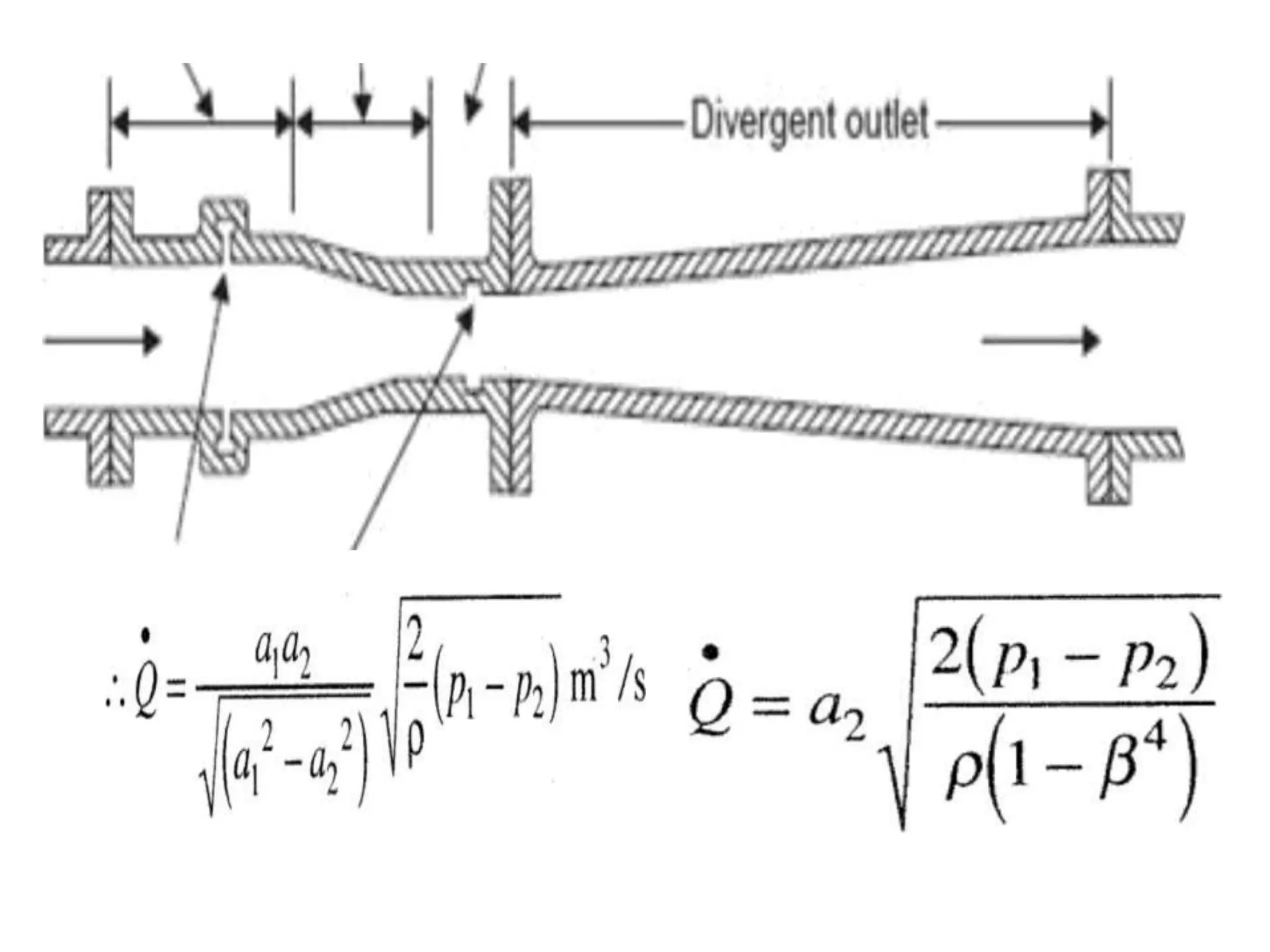

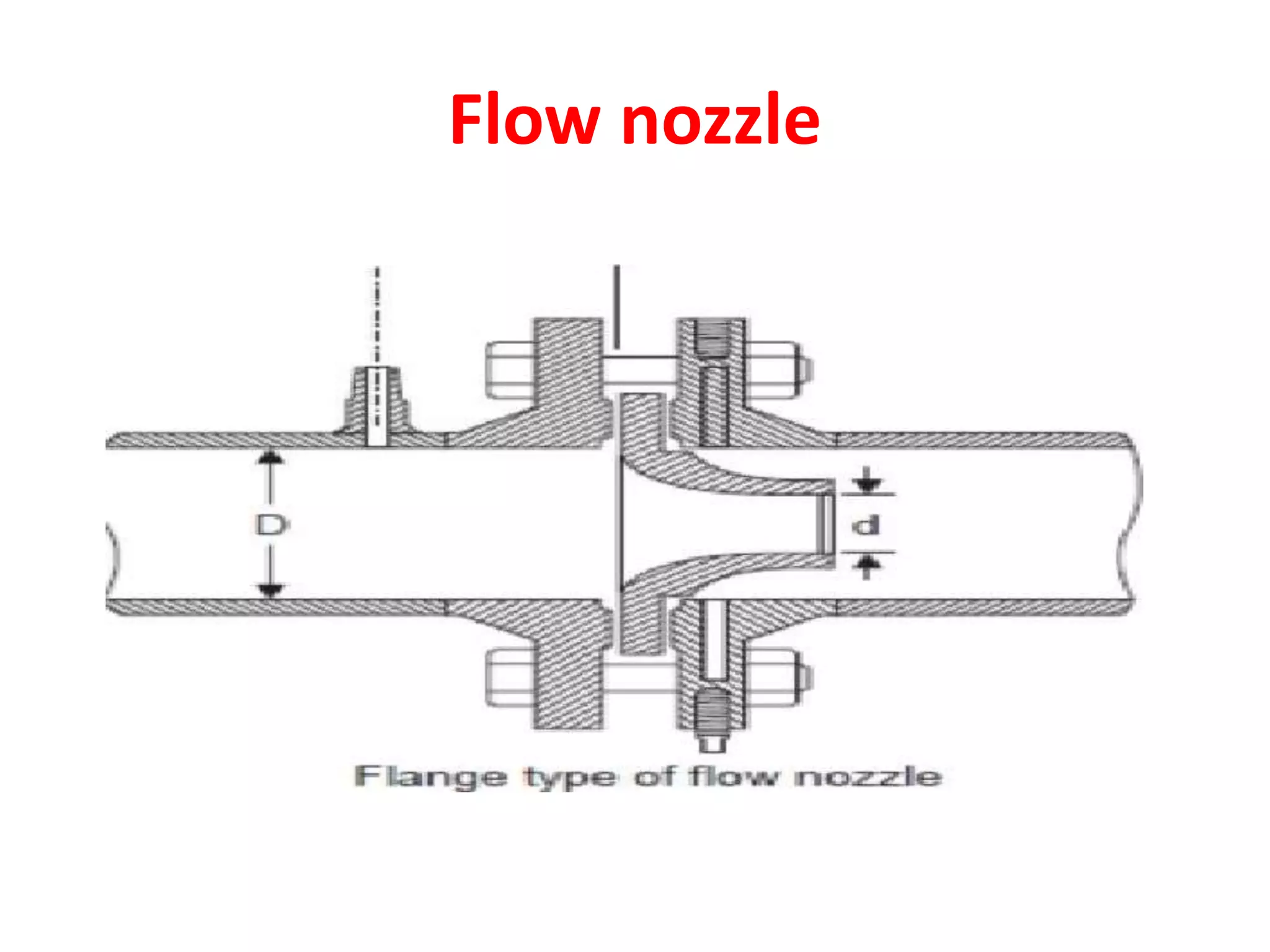

Flow measurement: Venturimeter, Orifice

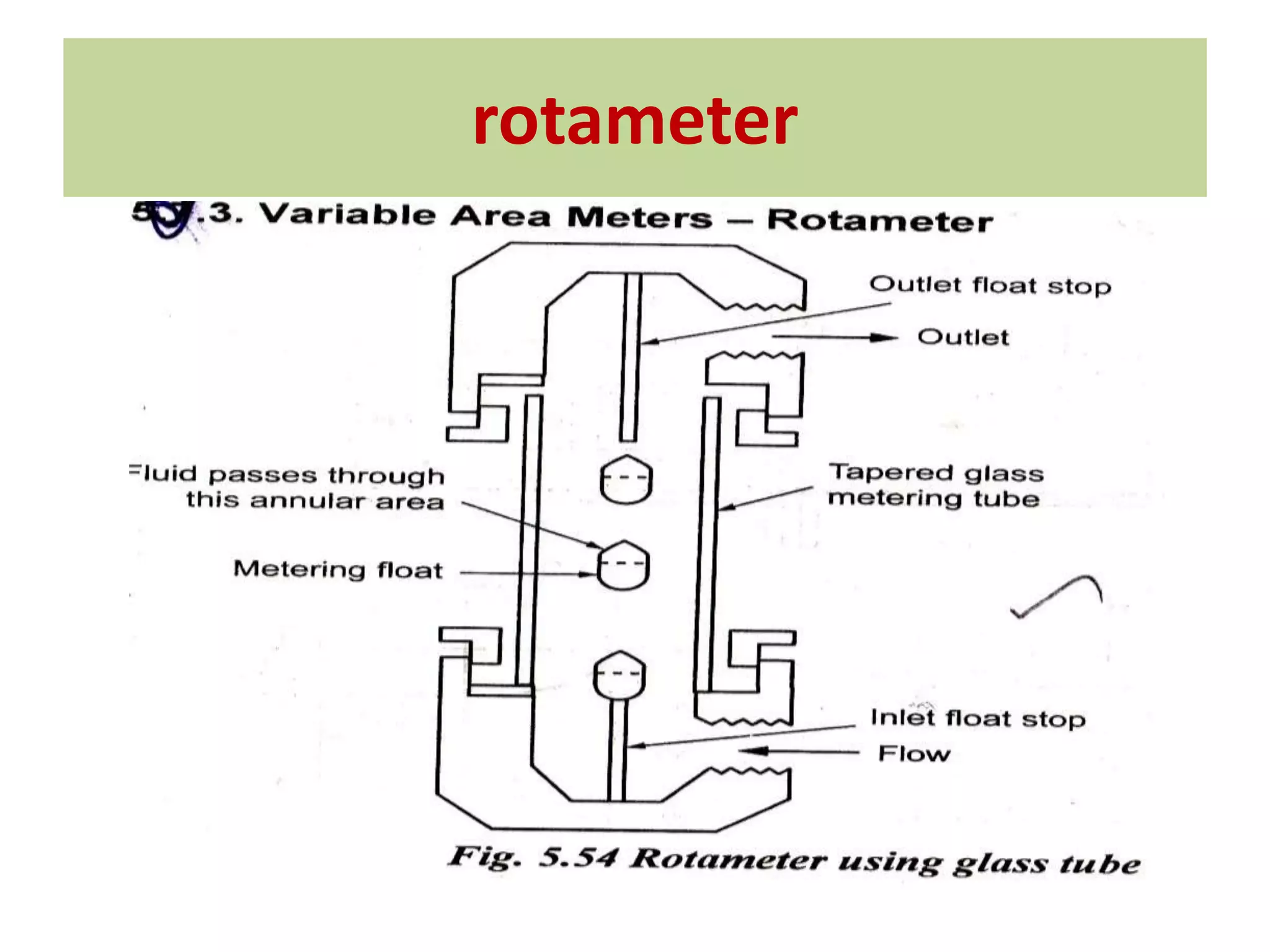

meter, rotameter, pitot tube –
Temperature: bimetallic strip,
thermocouples, electrical resistance

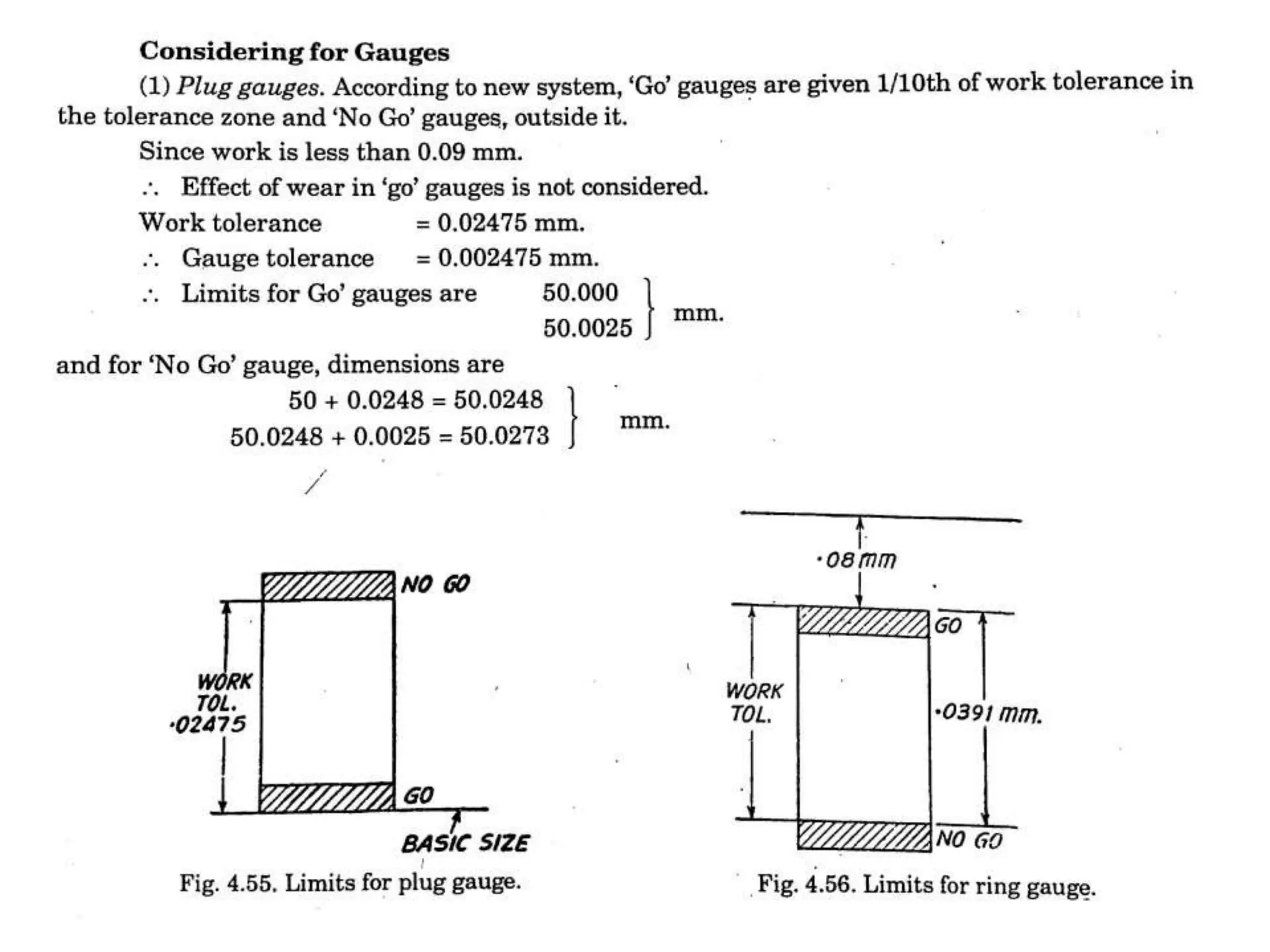

thermometer – Reliability and Calibration
– Readability and Reliability.

TEMPERATURE MEASUREMENT

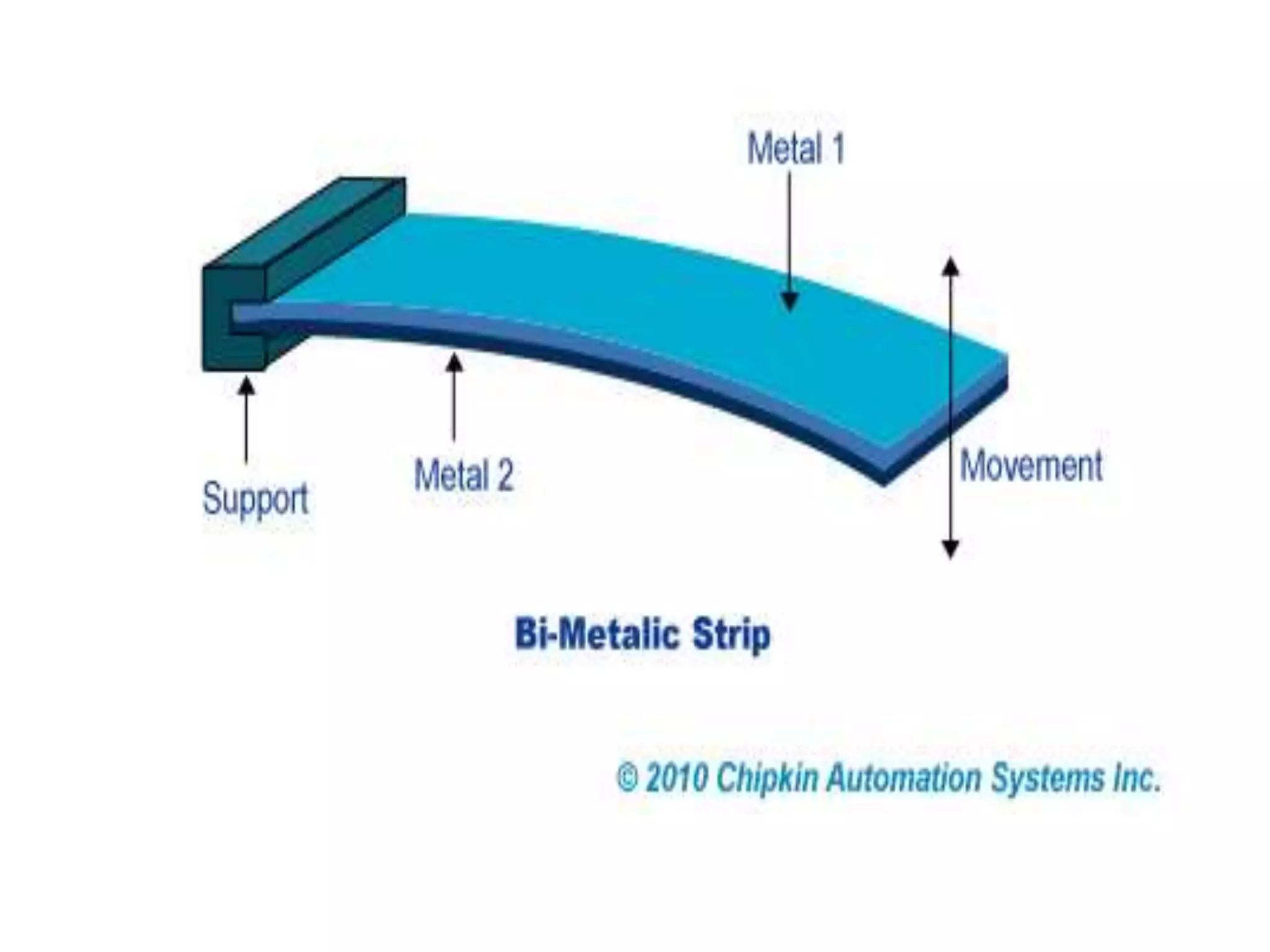

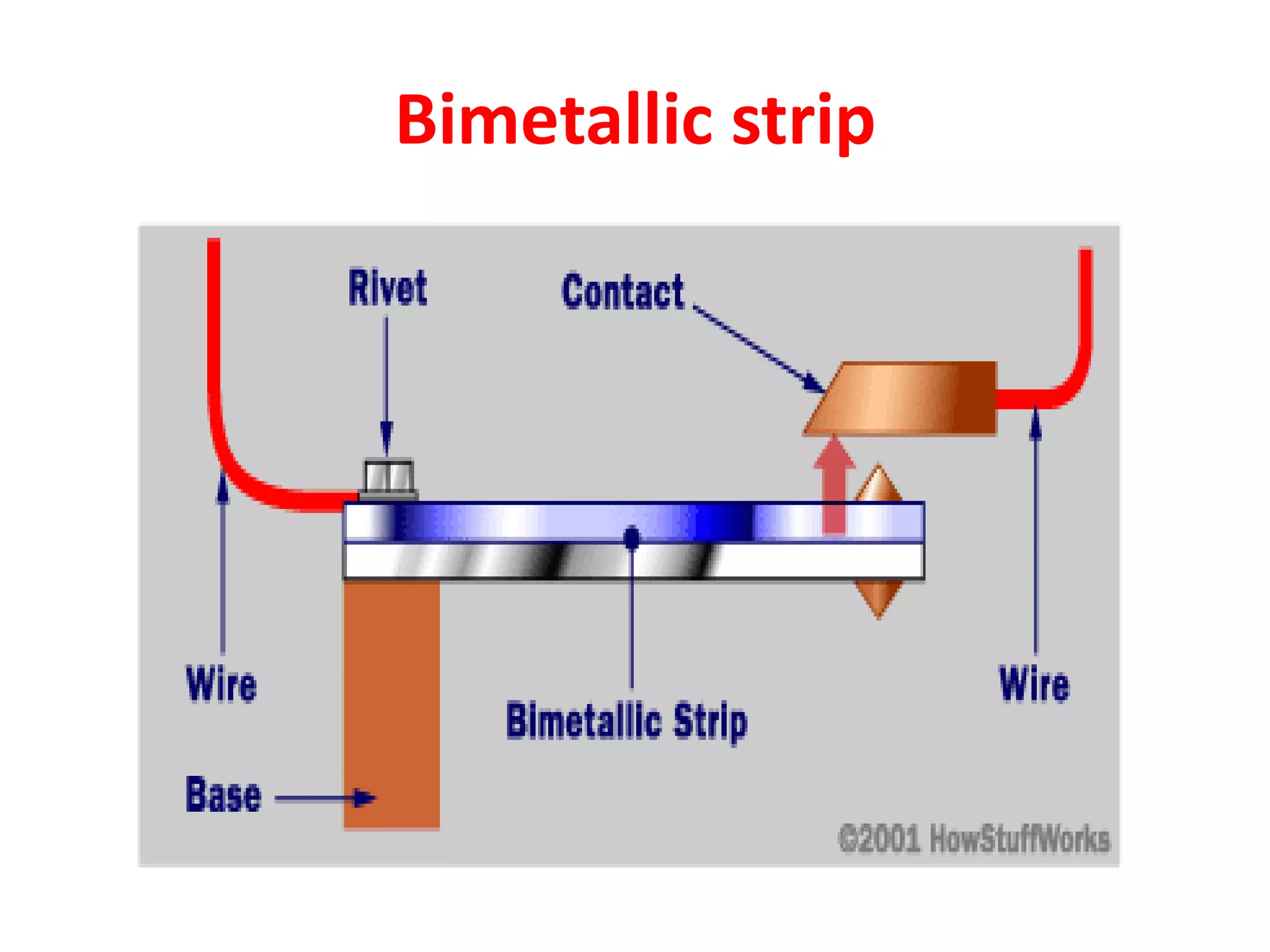

• Bimetallic strip thermometer

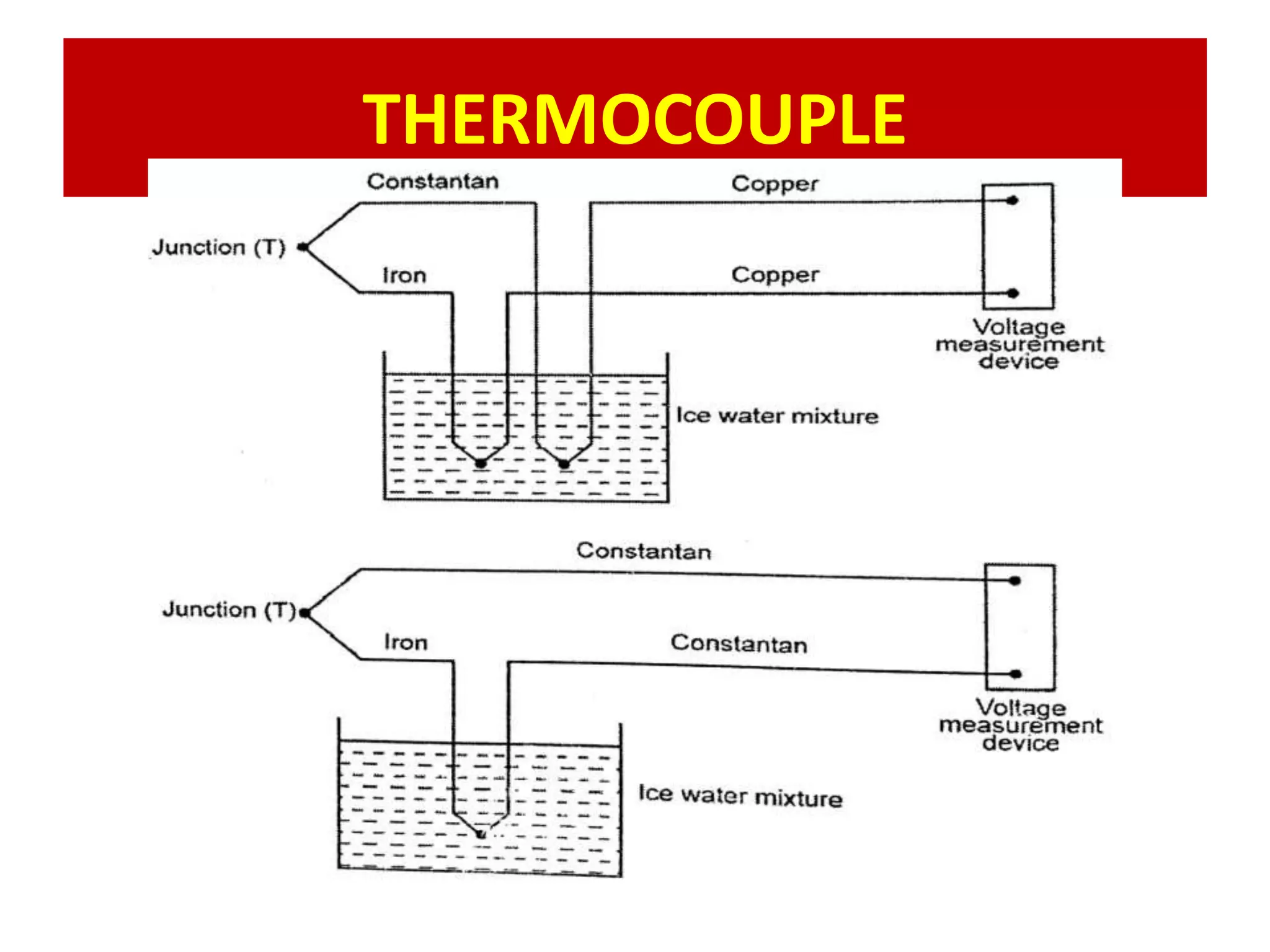

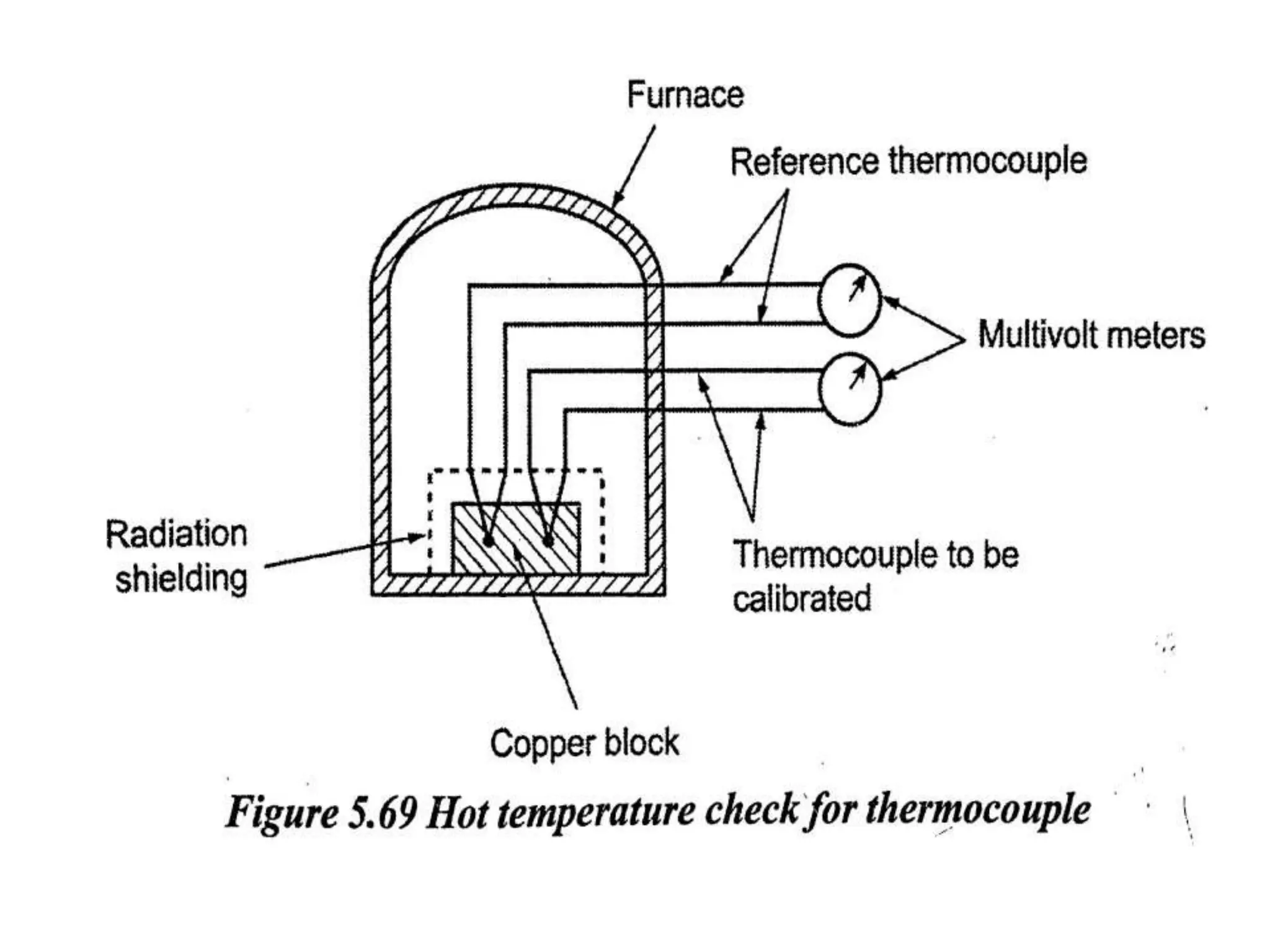

• Thermocuples
• Thermometers
• Thermister

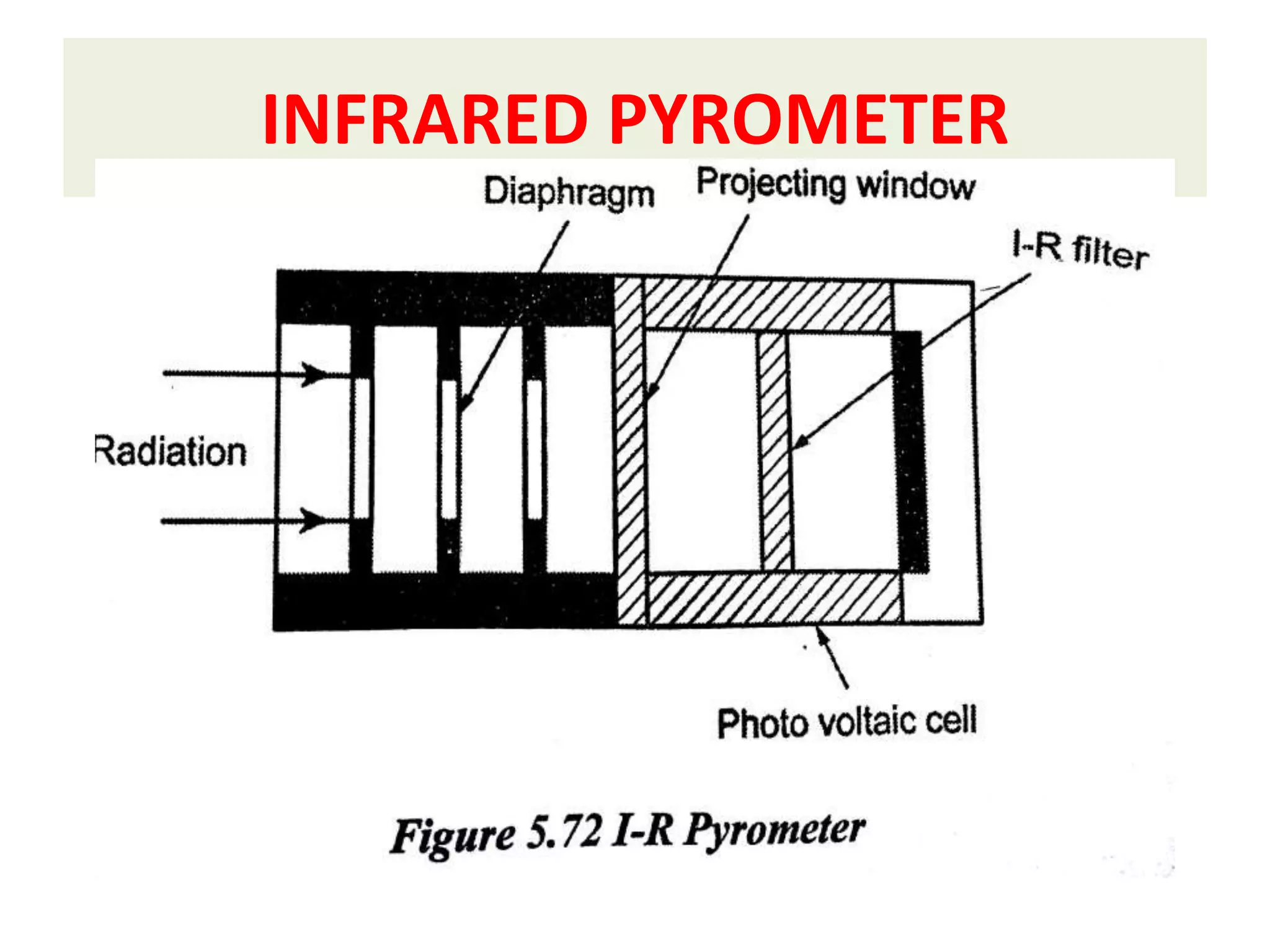

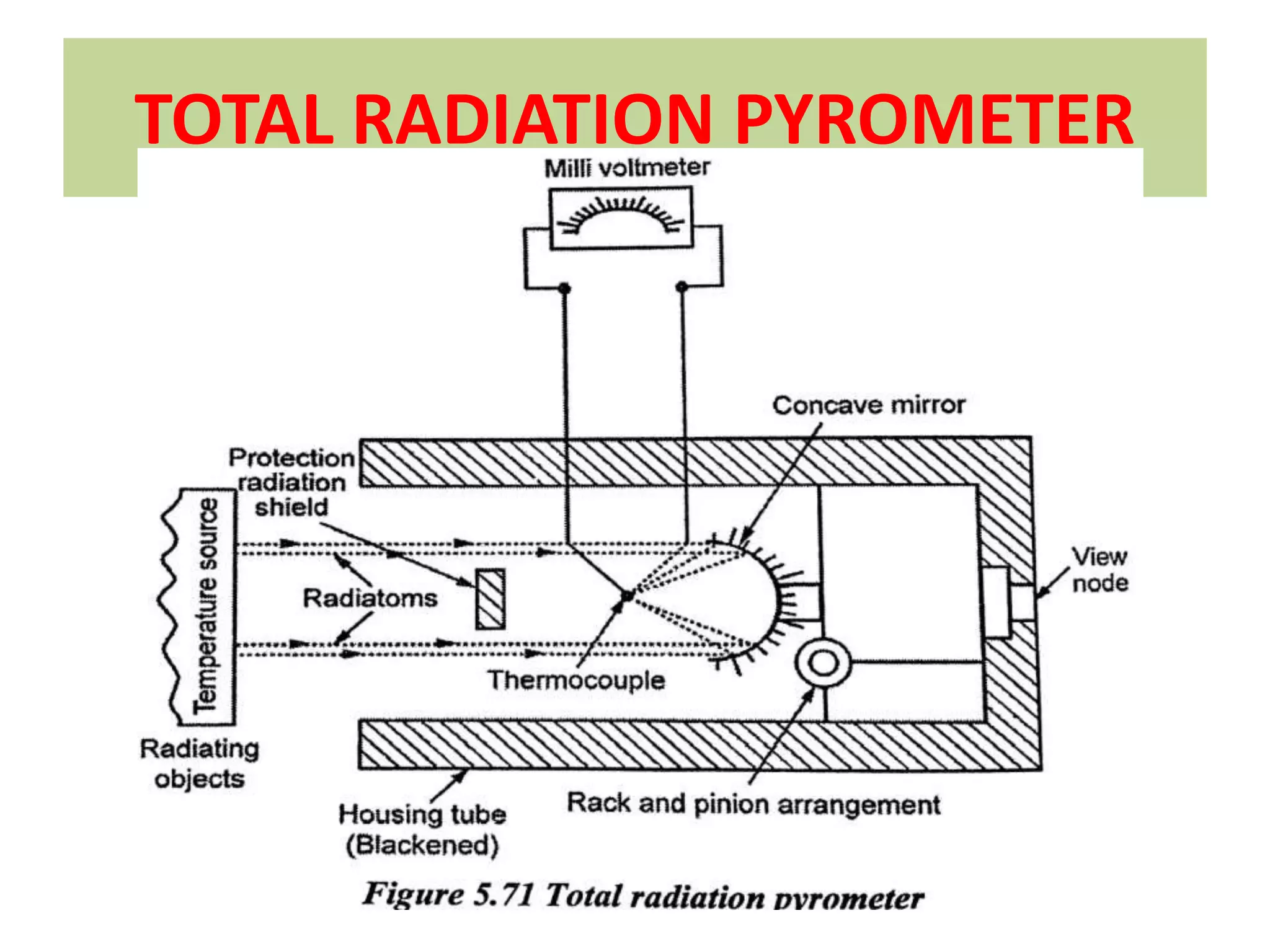

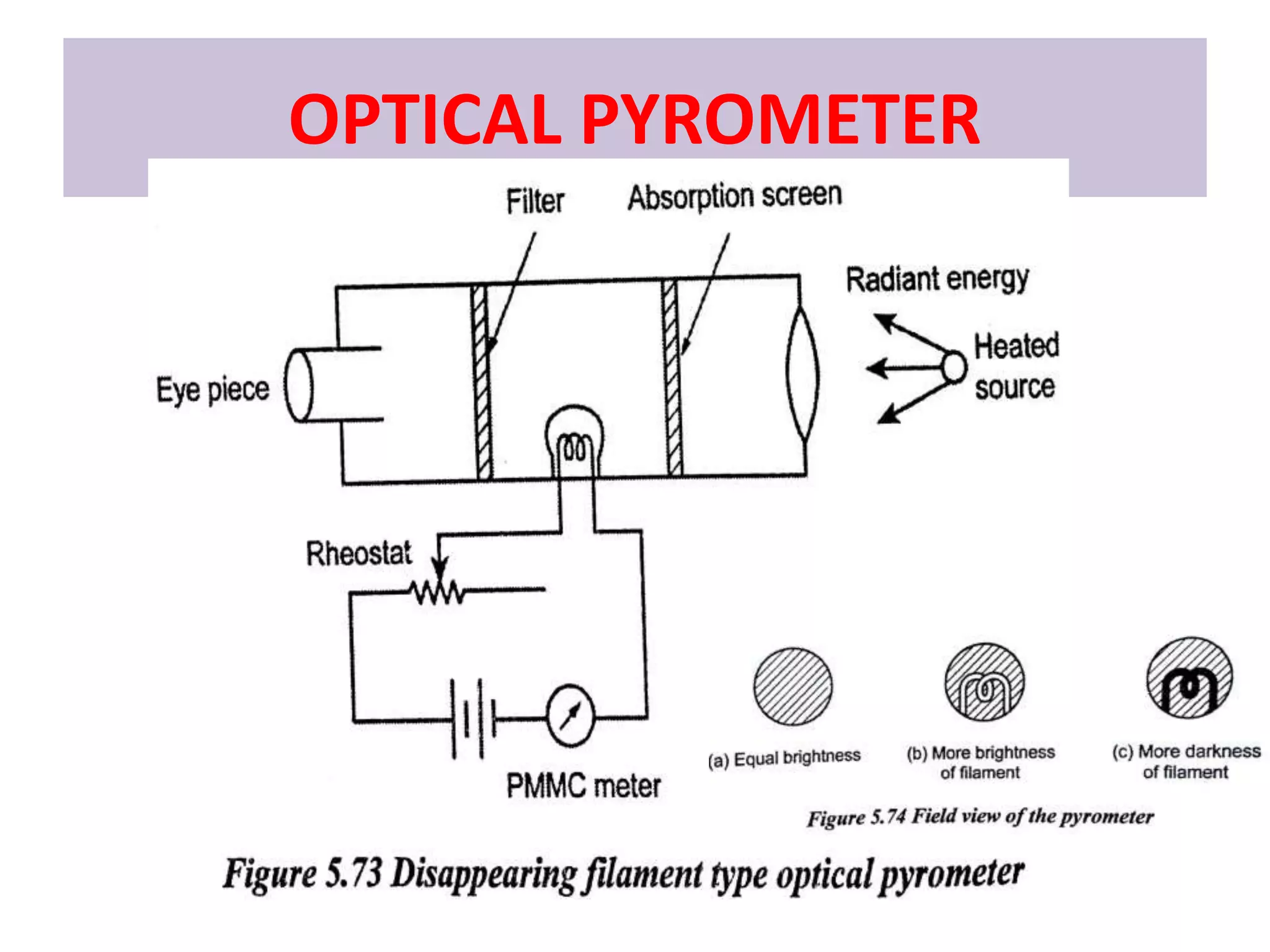

• Pyrometers
• Resistance temperature detectors

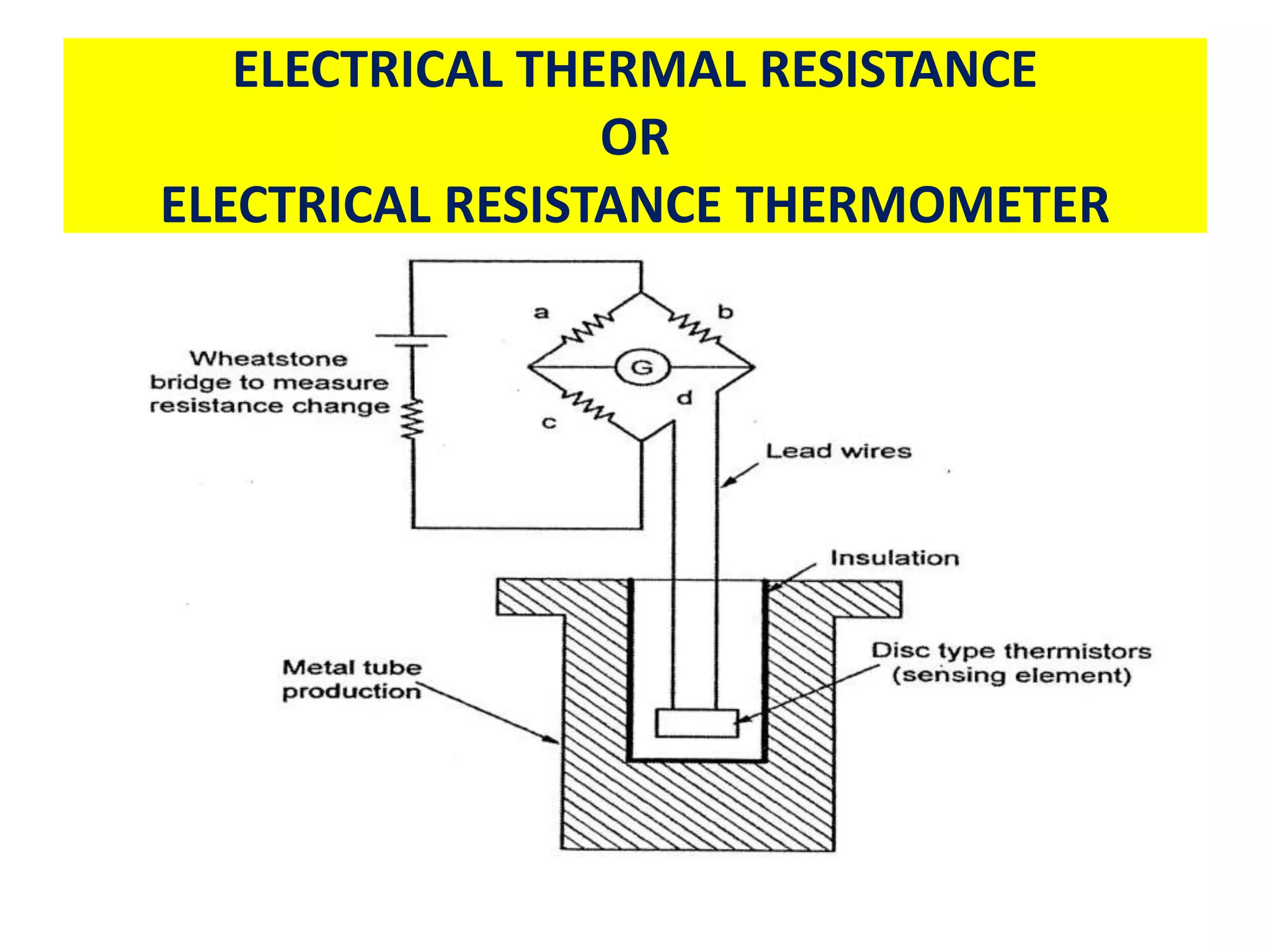

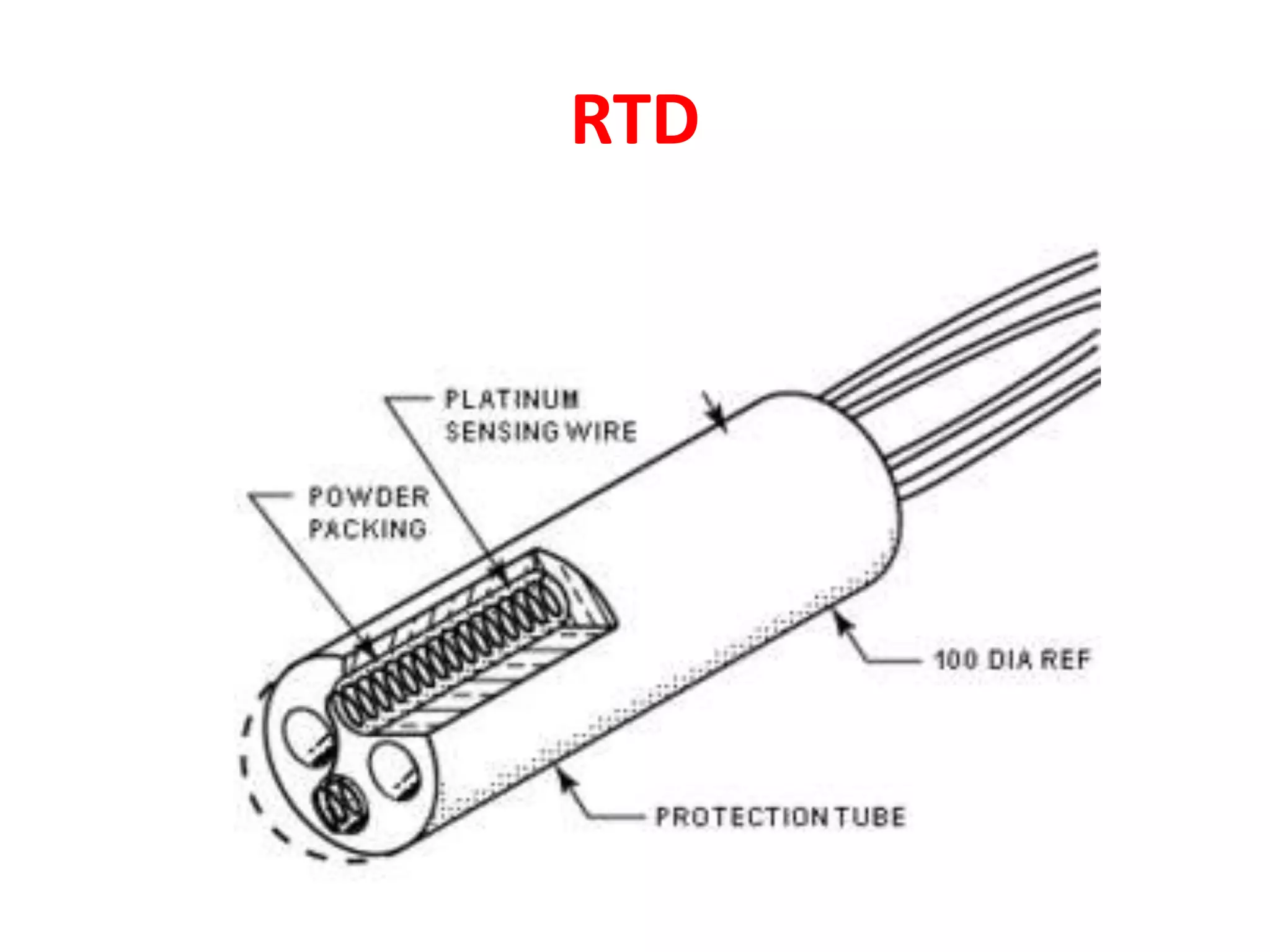

ELECTRICAL THERMAL RESISTANCE
OR
ELECTRICAL RESISTANCE THERMOMETER

MEASUREMENT OF POWER, FLOW, AND TEMPERATURE

What's hot

Temperature measurments

Prem Baboo

EXPERIMENTAL AND MEASUREMENT METHODS FINAL WORKShaho Mohamedali

Circuit labthermistors (1)guru nanak institute of technology

M.m.m

Joy Kanabar

Temparature measurement presentation

AVISHEK KUMAR

Riferibilità delle misure in termoflussimetria e campioni di energia termica

TogetherToSolve

Seminar report on Temperature Measuring Devices

Ambrish Rai

Temperature sensor advantagesvishnurangasami

Heat flux measurements

CIPET | Central Institute of Petrochemicals Engineering & Technology

Automobile - Thermocouple

hitechtransducers

Pressure Thermometer

Deepak Kumar

Temprature sensorHaider Alkaisy

Temperature Sensors

guest94f9a4

Temperature Measuring Seonsors

Zaeem Naqvi

Thermometer

Inamul Hossain Imran

Temperature Sensors

semihdogan

Temperature measurement

rudepirate

Zeroth law of thermodynamics

MohdAreebQureshi

TemperatureJillian Estrellado

What's hot (19)

Temperature measurments

EXPERIMENTAL AND MEASUREMENT METHODS FINAL WORK

Circuit labthermistors (1)

M.m.m

Temparature measurement presentation

Riferibilità delle misure in termoflussimetria e campioni di energia termica

Seminar report on Temperature Measuring Devices

Temperature sensor advantages

Heat flux measurements

Automobile - Thermocouple

Pressure Thermometer

Temprature sensor

Temperature Sensors

Temperature Measuring Seonsors

Thermometer

Temperature Sensors

Temperature measurement

Zeroth law of thermodynamics

Temperature

Similar to MEASUREMENT OF POWER, FLOW, AND TEMPERATURE

UNIT-IV.pptx

Unit V

UNIT V

MM-UNIT-IV.pptx

Unit v measure of power. flow, temp (1)

dinesh babu

Instrumentation in oil refinery

Bhavesh Solanki

product-line-cardMichael Seacord

An introduction to temperature controlWest Control Solutions

Catalogo veris_PDF

miguel angel rifo ruiz

Centro line card 2018

Michael Gallagher

Instrumentation measurement principles

Mehrdad Bokaeian

Tempearture and Flow Instrumentation

Abhijeet Nagle

Marine electrical system integrityOladokun Sulaiman Olanrewaju

Transducer.pdf

Robin8015873726

FINAL PPT.pptx

ShikharSaxena37

instrumentation measurement actvitvities

chilinks4all1

Measuring INSTRUMENTS

SACHINNikam39

Shah Electronics & Electricals, Mumbai, Industrial Thermocouples & RTD's

IndiaMART InterMESH Limited

Established in the year 1960. we offer an extensive range of brass electrical components & electronic accessories, test Leads & patch cords and thermocouples to our clients with different technical specifications. Also, these are fabricated with the assistance of our experts and designers who are well versed with latest market trends and technology. Our products are well known for its quality & long service life, high efficiency and also they require less maintenance. Further, easy modes of payments and transparent dealing enable us to gain total customer satisfaction.

Hile Controls of Alabama Industrial Line Card

Hile Controls of Alabama, Inc.

Similar to MEASUREMENT OF POWER, FLOW, AND TEMPERATURE (20)

UNIT-IV.pptx

Unit V

UNIT V

MM-UNIT-IV.pptx

Unit v measure of power. flow, temp (1)

Instrumentation in oil refinery

product-line-card

An introduction to temperature control

Catalogo veris_PDF

Centro line card 2018

Instrumentation measurement principles

Tempearture and Flow Instrumentation

Marine electrical system integrity

Transducer.pdf

FINAL PPT.pptx

instrumentation measurement actvitvities

Measuring INSTRUMENTS

Shah Electronics & Electricals, Mumbai, Industrial Thermocouples & RTD's

Hile Controls of Alabama Industrial Line Card

Recently uploaded

Gen AI Study Jams _ For the GDSC Leads in India.pdf

gdsczhcet

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理

bakpo1

SFU毕业证原版定制【微信：176555708】【西蒙菲莎大学毕业证成绩单-学位证】【微信：176555708】（留信学历认证永久存档查询）采用学校原版纸张、特殊工艺完全按照原版一比一制作（包括：隐形水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠，文字图案浮雕，激光镭射，紫外荧光，温感，复印防伪）行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备，十五年致力于帮助留学生解决难题，业务范围有加拿大、英国、澳洲、韩国、美国、新加坡，新西兰等学历材料，包您满意。 ◆◆◆◆◆ — — — — — — — — 【留学教育】留学归国服务中心 — — — — — -◆◆◆◆◆ 【主营项目】一.毕业证【微信：176555708】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！二.真实使馆公证(即留学回国人员证明,不成功不收费) 三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度) 如果您处于以下几种情况： ◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【微信：176555708】 ◇面对父母的压力，希望尽快拿到； ◇不清楚认证流程以及材料该如何准备； ◇回国时间很长，忘记办理； ◇回国马上就要找工作，办给用人单位看； ◇企事业单位必须要求办理的 ◇需要报考公务员、购买免税车、落转户口 ◇申请留学生创业基金留信网认证的作用: 1:该专业认证可证明留学生真实身份 2:同时对留学生所学专业登记给予评定 3:国家专业人才认证中心颁发入库证书 4:这个认证书并且可以归档倒地方 5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息 6:个人职称评审加20分 7:个人信誉贷款加10分→ 【关于价格问题（保证一手价格）我们所定的价格是非常合理的，而且我们现在做得单子大多数都是代理和回头客户介绍的所以一般现在有新的单子我给客户的都是第一手的代理价格，因为我想坦诚对待大家不想跟大家在价格方面浪费时间对于老客户或者被老客户介绍过来的朋友，我们都会适当给一些优惠。 8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才选择实体注册公司办理，更放心，更安全！我们的承诺：可来公司面谈，可签订合同，会陪同客户一起到教育部认证窗口递交认证材料，客户在教育部官方认证查询网站查询到认证通过结果后付款，不成功不收费！学历顾问：微信：176555708

Cosmetic shop management system project report.pdf

Kamal Acharya

Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry. Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks. Data file handling has been effectively used in the program. The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.

The role of big data in decision making.

ankuprajapati0525

Hierarchical Digital Twin of a Naval Power System

Kerry Sado

A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.

MCQ Soil mechanics questions (Soil shear strength).pdf

Osamah Alsalih

Final project report on grocery store management system..pdf

Kamal Acharya

In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services. Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options. In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website. This document will discuss each of the underlying technologies to create and implement an e- commerce website.

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf

SamSarthak3

一比一原版(UofT毕业证)多伦多大学毕业证成绩单如何办理

ydteq

UofT毕业证原版定制【微信：176555708】【多伦多大学毕业证成绩单-学位证】【微信：176555708】（留信学历认证永久存档查询）采用学校原版纸张、特殊工艺完全按照原版一比一制作（包括：隐形水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠，文字图案浮雕，激光镭射，紫外荧光，温感，复印防伪）行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备，十五年致力于帮助留学生解决难题，业务范围有加拿大、英国、澳洲、韩国、美国、新加坡，新西兰等学历材料，包您满意。 ◆◆◆◆◆ — — — — — — — — 【留学教育】留学归国服务中心 — — — — — -◆◆◆◆◆ 【主营项目】一.毕业证【微信：176555708】成绩单、使馆认证、教育部认证、雅思托福成绩单、学生卡等！二.真实使馆公证(即留学回国人员证明,不成功不收费) 三.真实教育部学历学位认证（教育部存档！教育部留服网站永久可查）四.办理各国各大学文凭(一对一专业服务,可全程监控跟踪进度) 如果您处于以下几种情况： ◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证【微信：176555708】 ◇面对父母的压力，希望尽快拿到； ◇不清楚认证流程以及材料该如何准备； ◇回国时间很长，忘记办理； ◇回国马上就要找工作，办给用人单位看； ◇企事业单位必须要求办理的 ◇需要报考公务员、购买免税车、落转户口 ◇申请留学生创业基金留信网认证的作用: 1:该专业认证可证明留学生真实身份 2:同时对留学生所学专业登记给予评定 3:国家专业人才认证中心颁发入库证书 4:这个认证书并且可以归档倒地方 5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息 6:个人职称评审加20分 7:个人信誉贷款加10分→ 【关于价格问题（保证一手价格）我们所定的价格是非常合理的，而且我们现在做得单子大多数都是代理和回头客户介绍的所以一般现在有新的单子我给客户的都是第一手的代理价格，因为我想坦诚对待大家不想跟大家在价格方面浪费时间对于老客户或者被老客户介绍过来的朋友，我们都会适当给一些优惠。 8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才选择实体注册公司办理，更放心，更安全！我们的承诺：可来公司面谈，可签订合同，会陪同客户一起到教育部认证窗口递交认证材料，客户在教育部官方认证查询网站查询到认证通过结果后付款，不成功不收费！学历顾问：微信：176555708

The Benefits and Techniques of Trenchless Pipe Repair.pdf

Pipe Restoration Solutions

Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry. Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems. Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.

Water Industry Process Automation and Control Monthly - May 2024.pdf

Water Industry Process Automation & Control

Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control. In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.

ethical hacking in wireless-hacking1.ppt

Jayaprasanna4

CME397 Surface Engineering- Professional Elective

karthi keyan

space technology lecture notes on satellite

ongomchris

DESIGN A COTTON SEED SEPARATION MACHINE.docx

FluxPrime1

Standard Reomte Control Interface - Neometrix

Neometrix_Engineering_Pvt_Ltd

About Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol. • Remote control: Parallel or serial interface. • Compatible with MAFI CCR system. • Compatible with IDM8000 CCR. • Compatible with Backplane mount serial communication. • Compatible with commercial and Defence aviation CCR system. • Remote control system for accessing CCR and allied system over serial or TCP. • Indigenized local Support/presence in India. • Easy in configuration using DIP switches. Technical Specifications Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol. Key Features Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol. • Remote control: Parallel or serial interface • Compatible with MAFI CCR system • Copatiable with IDM8000 CCR • Compatible with Backplane mount serial communication. • Compatible with commercial and Defence aviation CCR system. • Remote control system for accessing CCR and allied system over serial or TCP. • Indigenized local Support/presence in India. Application • Remote control: Parallel or serial interface. • Compatible with MAFI CCR system. • Compatible with IDM8000 CCR. • Compatible with Backplane mount serial communication. • Compatible with commercial and Defence aviation CCR system. • Remote control system for accessing CCR and allied system over serial or TCP. • Indigenized local Support/presence in India. • Easy in configuration using DIP switches.

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

thanhdowork

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf

Teleport Manpower Consultant

weather web application report.pdf

Pratik Pawar

Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)

MdTanvirMahtab2

Recently uploaded (20)

Gen AI Study Jams _ For the GDSC Leads in India.pdf

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理

Cosmetic shop management system project report.pdf

The role of big data in decision making.

Hierarchical Digital Twin of a Naval Power System

MCQ Soil mechanics questions (Soil shear strength).pdf

Final project report on grocery store management system..pdf

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf

一比一原版(UofT毕业证)多伦多大学毕业证成绩单如何办理

The Benefits and Techniques of Trenchless Pipe Repair.pdf

Water Industry Process Automation and Control Monthly - May 2024.pdf

ethical hacking in wireless-hacking1.ppt

CME397 Surface Engineering- Professional Elective

space technology lecture notes on satellite

DESIGN A COTTON SEED SEPARATION MACHINE.docx

Standard Reomte Control Interface - Neometrix

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf

weather web application report.pdf

Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)

MEASUREMENT OF POWER, FLOW, AND TEMPERATURE

1. MEASUREMENT OF POWER, FLOW AND TEMPERATURE Force, torque, power - mechanical , Pneumatic, Hydraulic and Electrical type. Flow measurement: Venturimeter, Orifice meter, rotameter, pitot tube – Temperature: bimetallic strip, thermocouples, electrical resistance thermometer – Reliability and Calibration – Readability and Reliability.

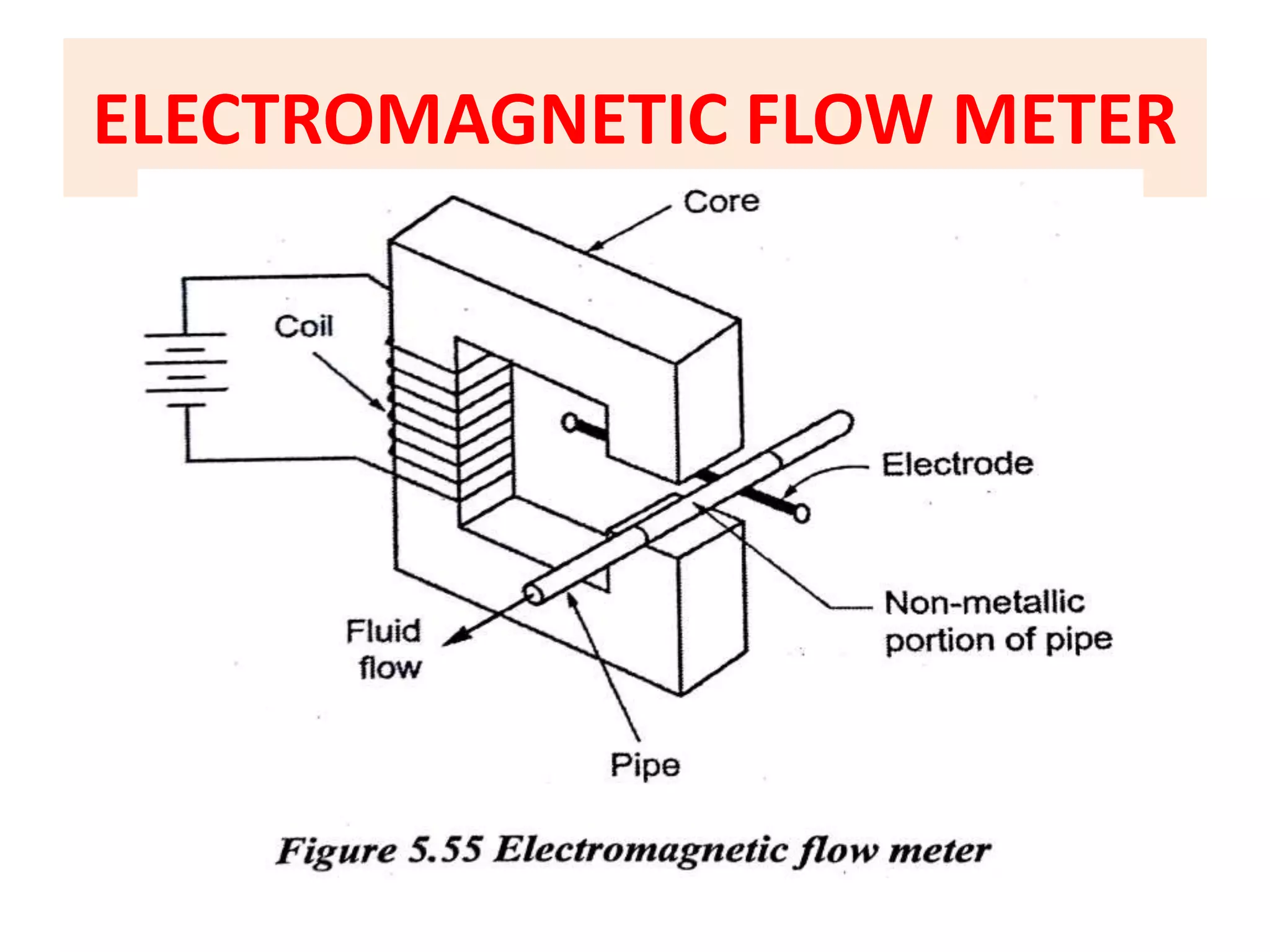

9. ELECTROMAGNETIC FLOW METER

10. PITOT TUBE

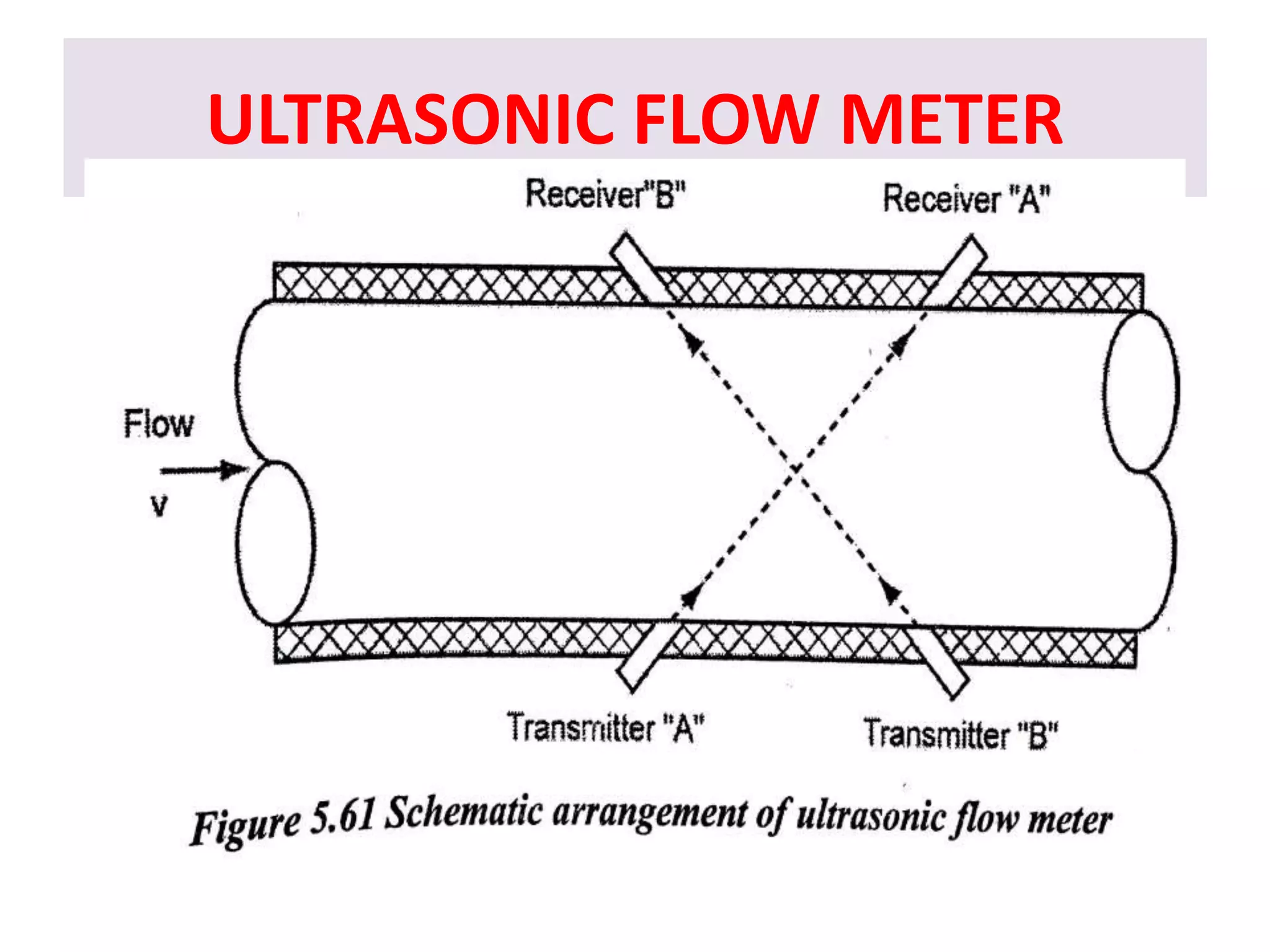

11. ULTRASONIC FLOW METER

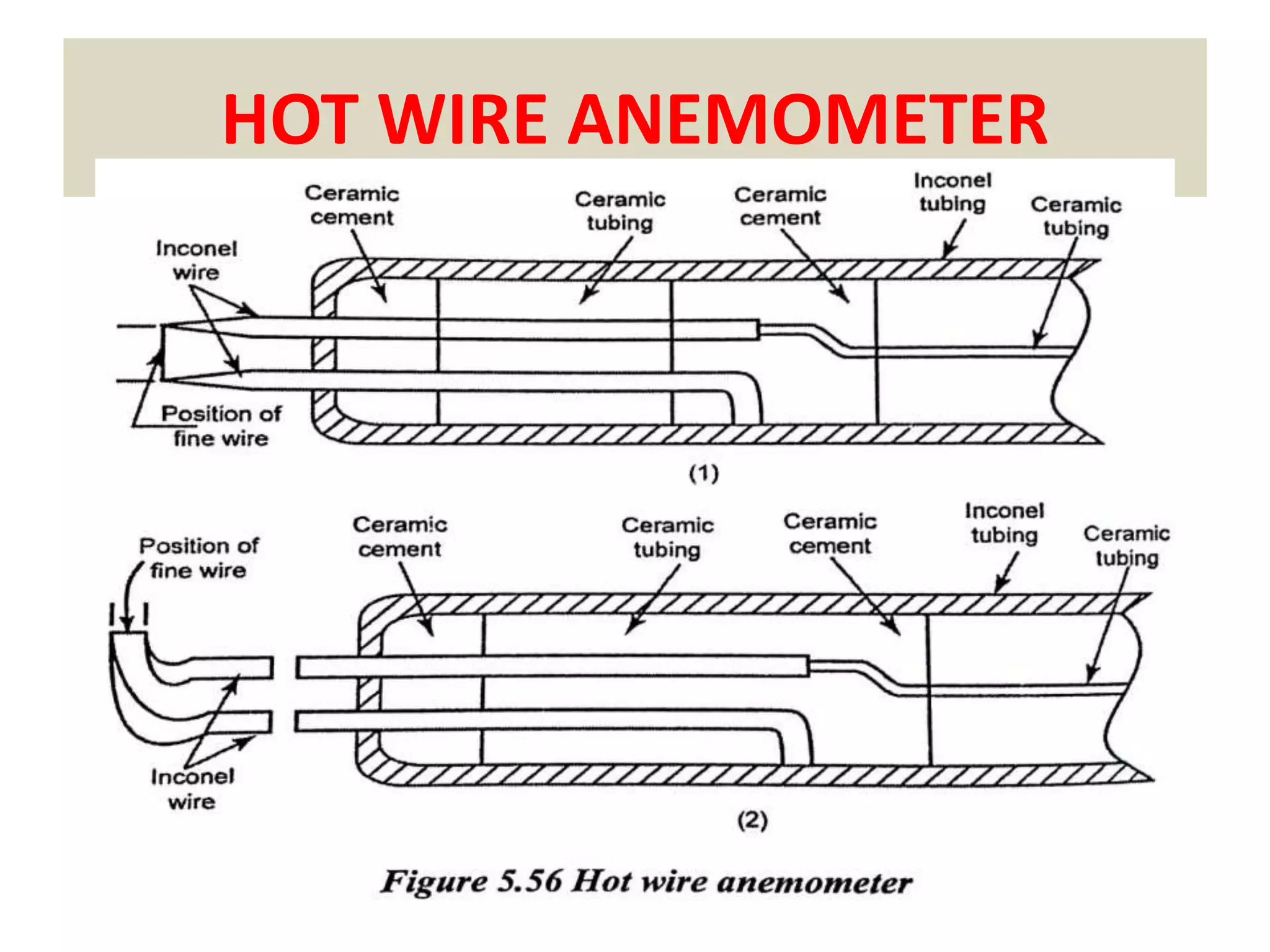

12. HOT WIRE ANEMOMETER

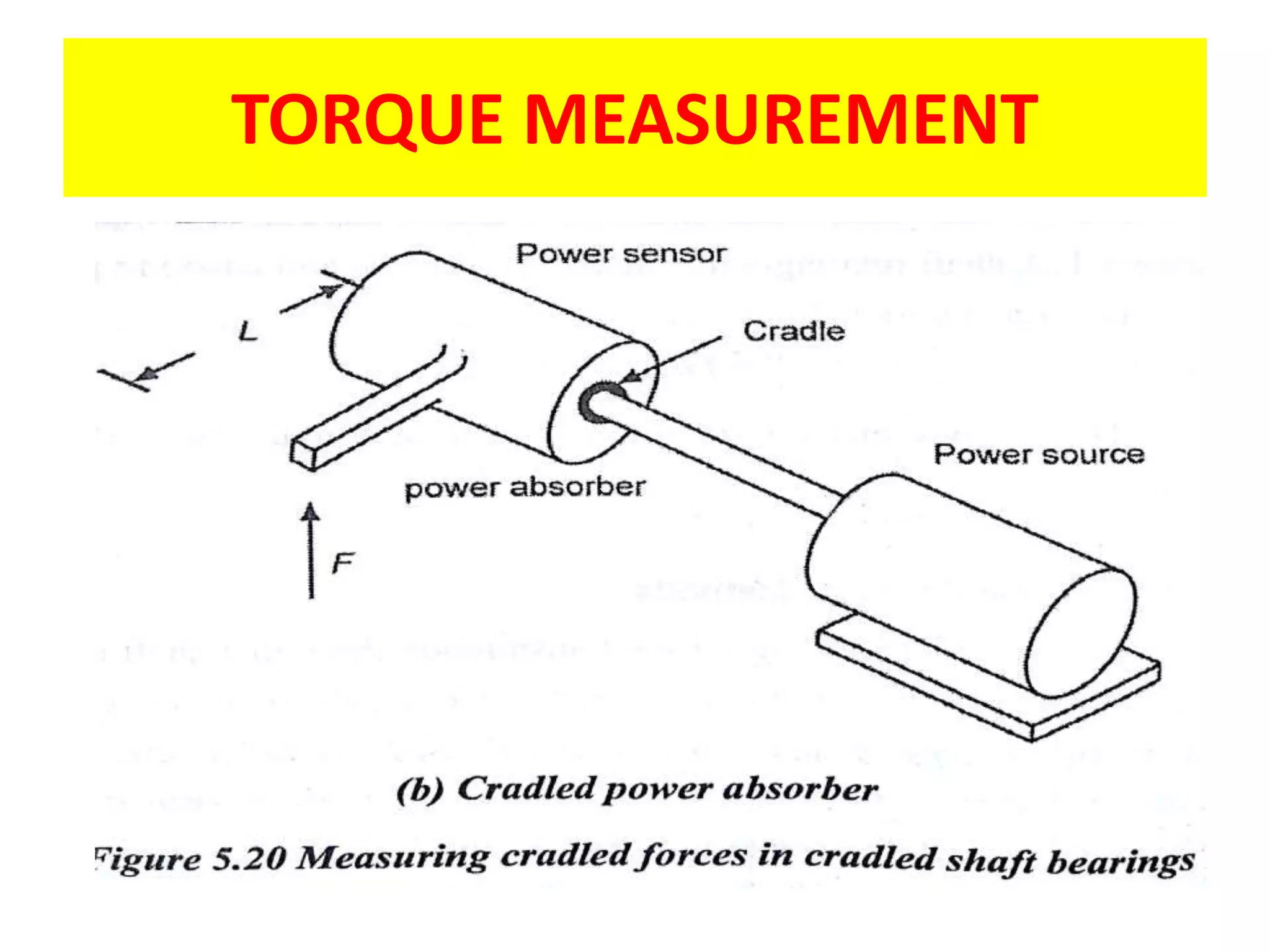

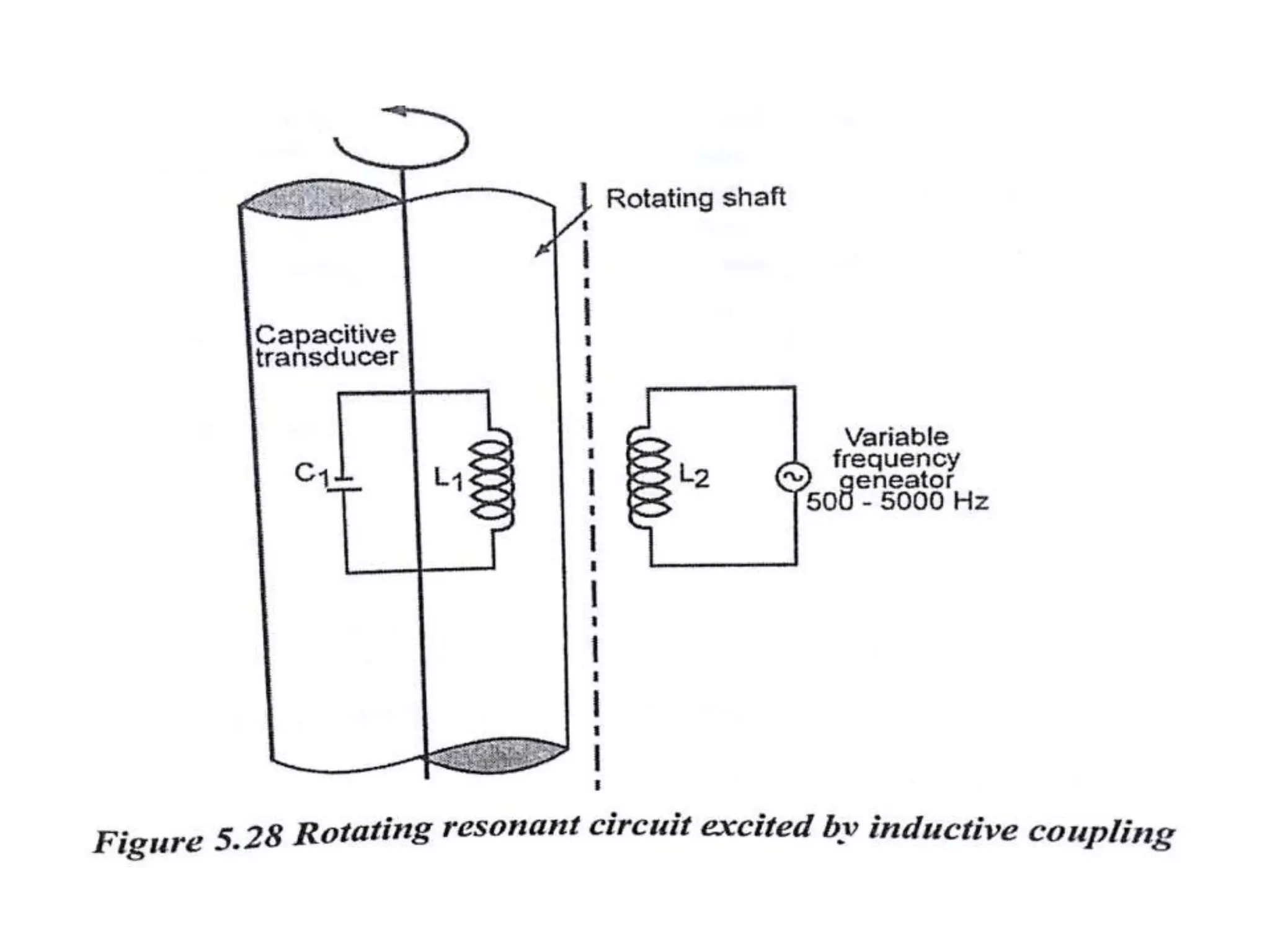

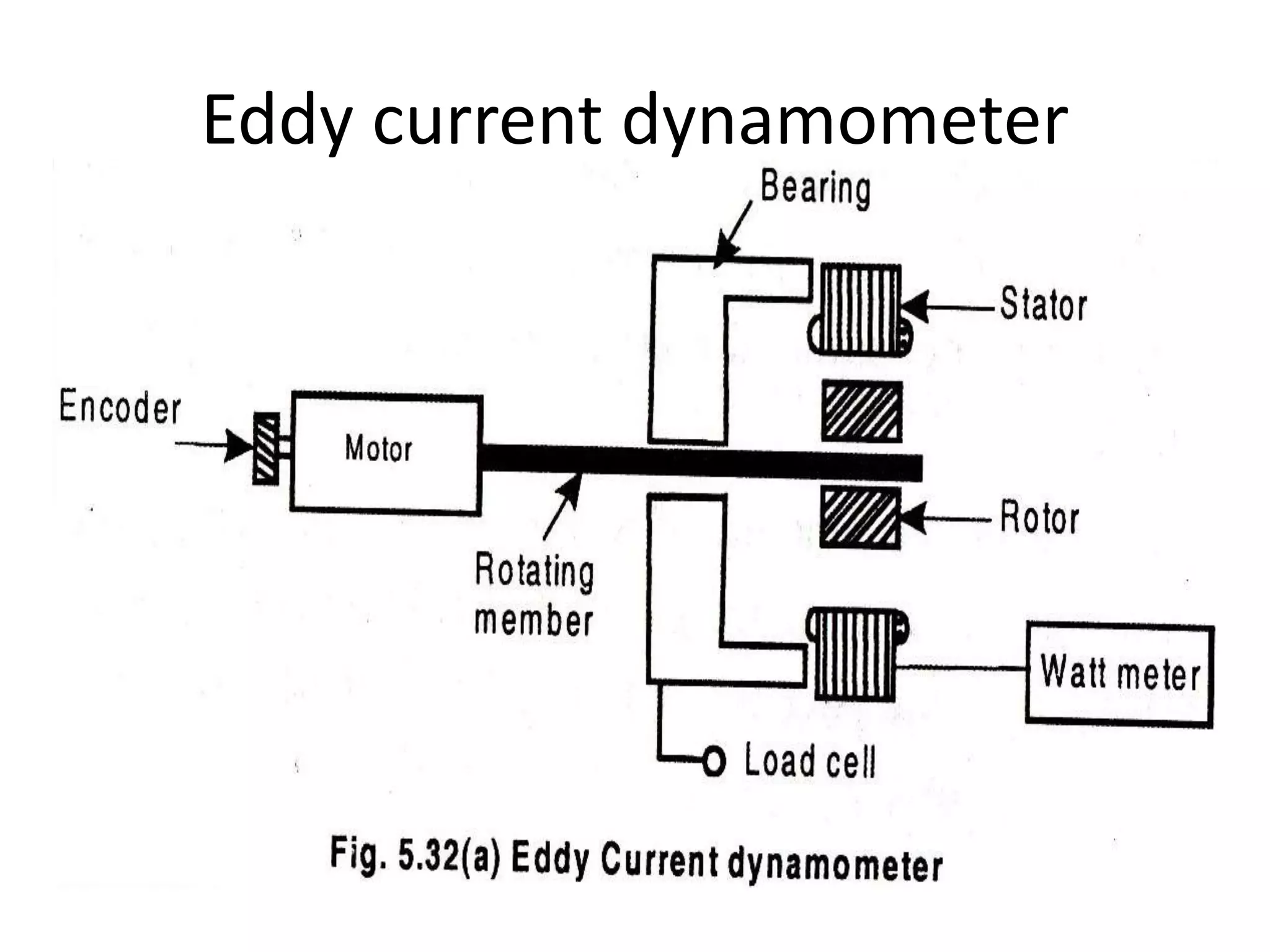

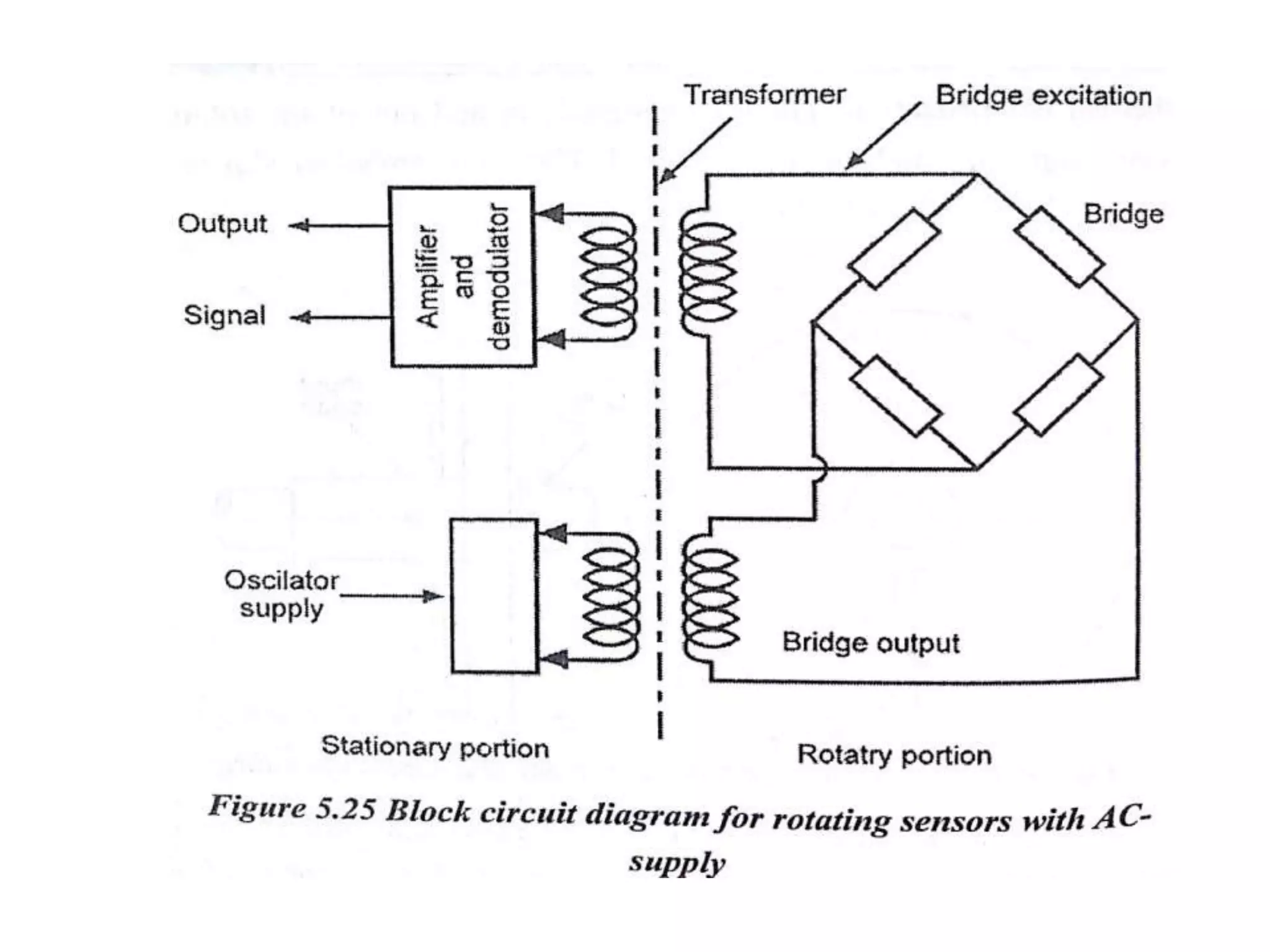

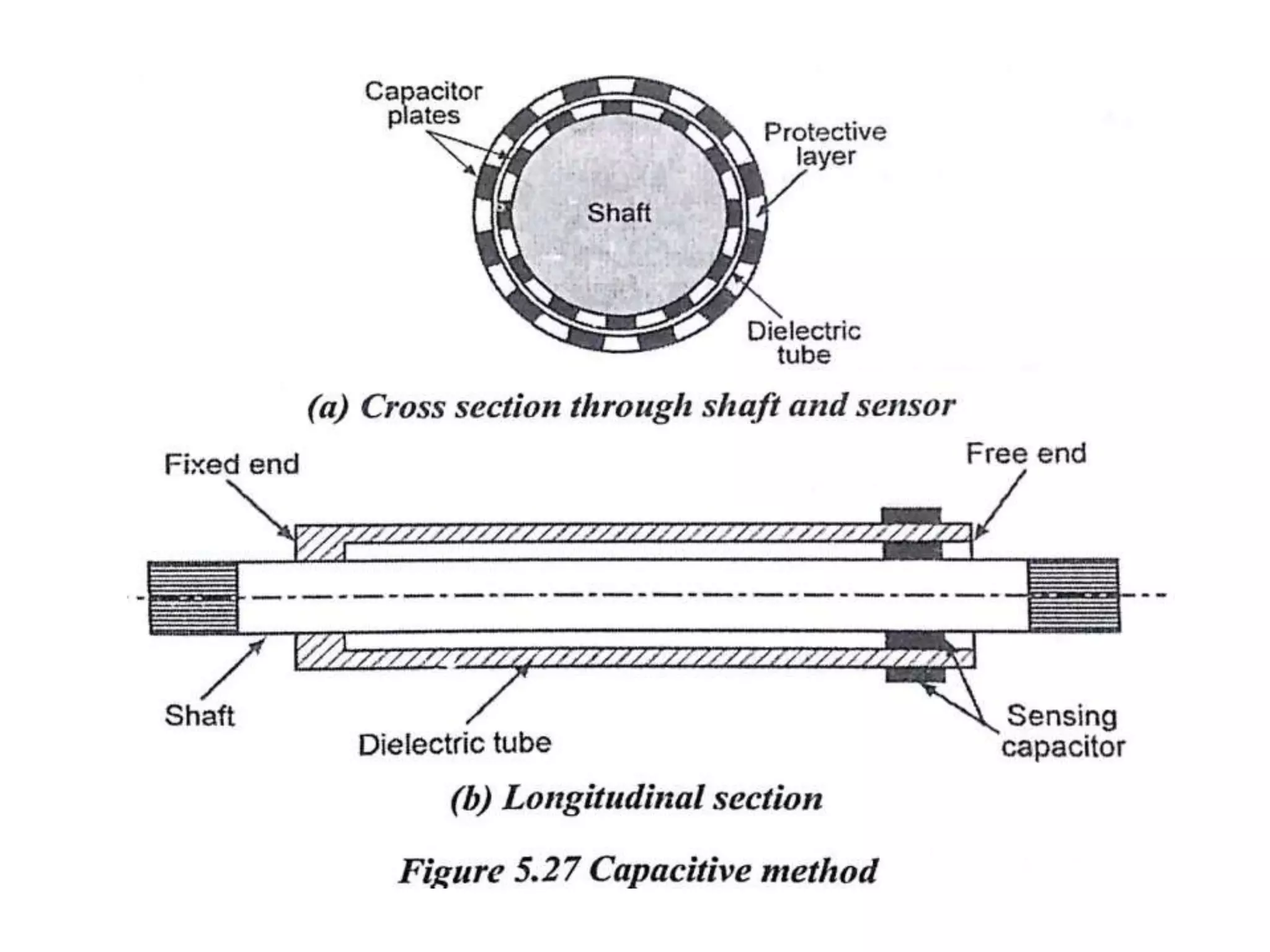

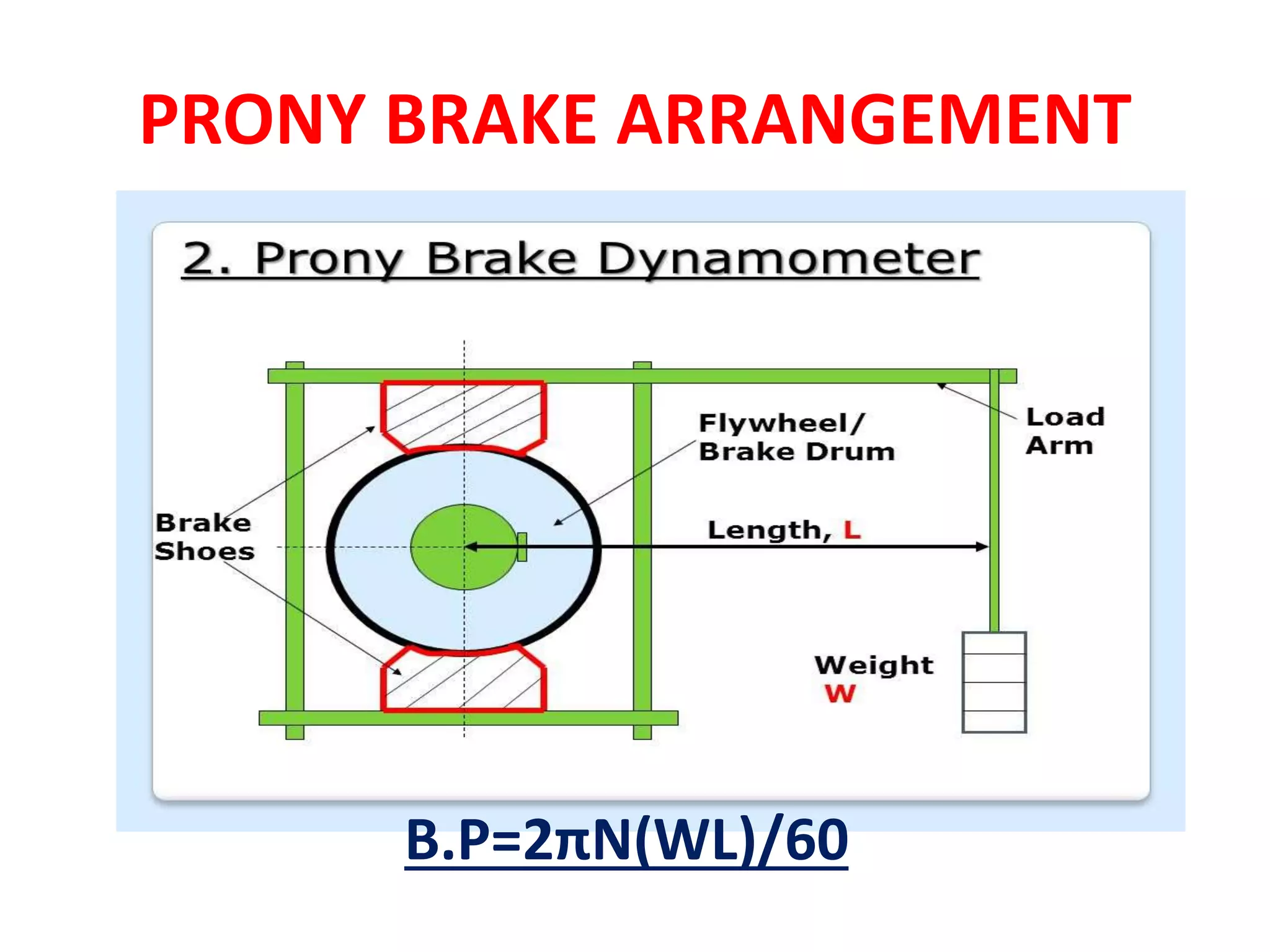

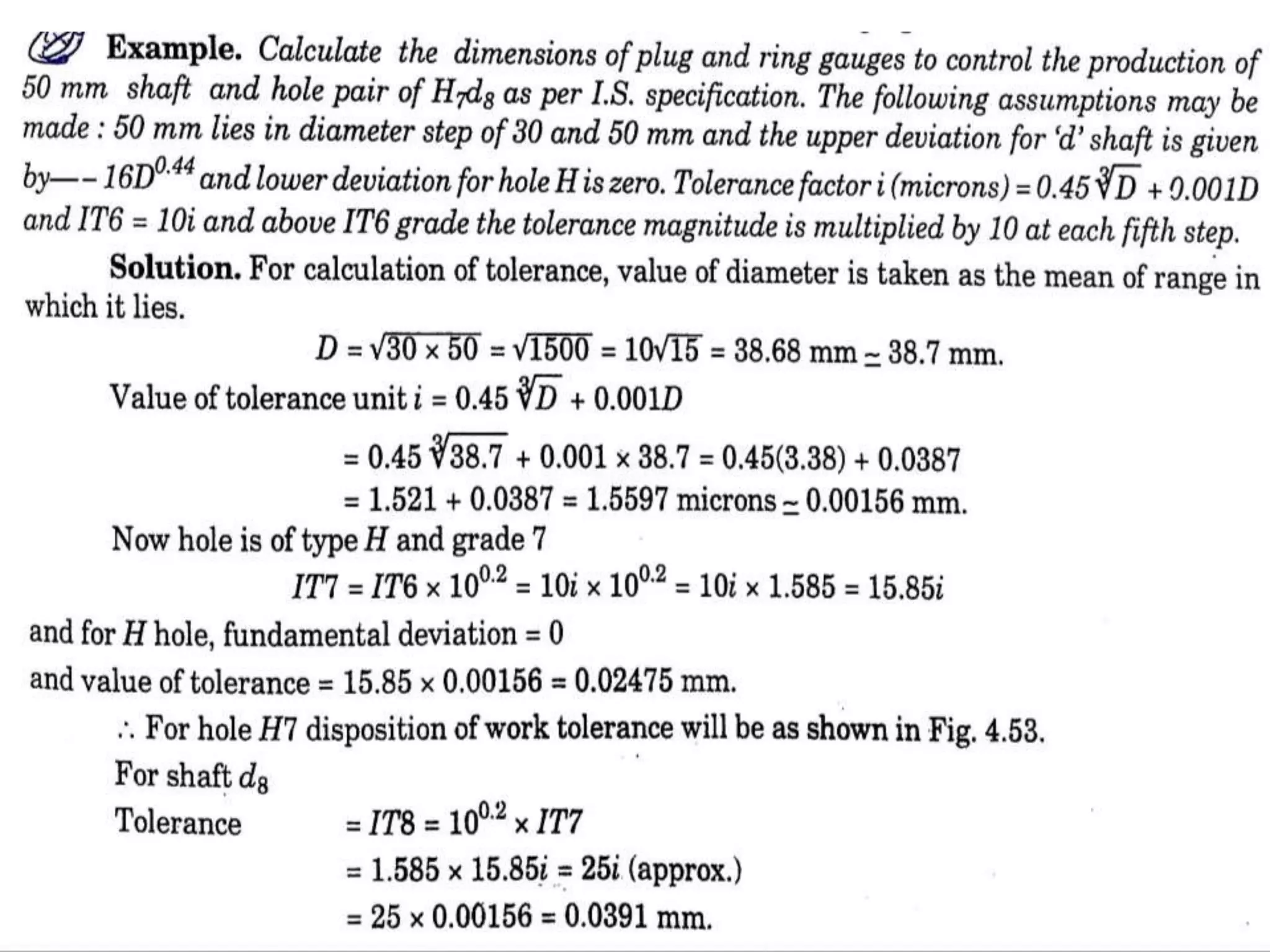

13. TORQUE MEASUREMENT
