Power8 sales exam prep
This document provides information about IBM Power Systems models, including their specifications and features. It discusses both scale-out models like the S814 and S824 that support Linux, AIX, and IBM i, as well as enterprise models like the E870 that support large clustered configurations. It covers technologies like PowerVM, PowerVC, Active Memory Expansion, and ChipKill memory error correction. Overall, the document is a technical reference for IBM Power Systems servers and their capabilities.
More Related Content
Power8 sales exam prep
- 1. Power Systems Sales Certifications C4040-252 IBMCertified Technical Sales Specialist - Power Systems with POWER8 Enterprise V1 C4040-251 IBM Certified Technical Sales Specialist - Power Systems with POWER8 Scale-out V1 C4040-250 IBM Certified Sales Specialist - Power Systems with POWER8 V1

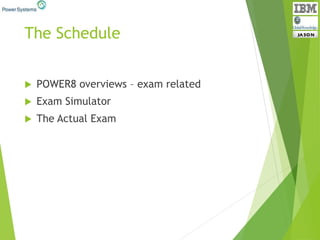

- 2. The Schedule POWER8overviews – exam related Exam Simulator The Actual Exam
- 3. Scale-out Models S812L S814 S822 S822L S824 S824L
- 4. Enterprise Models E870 E880 E850

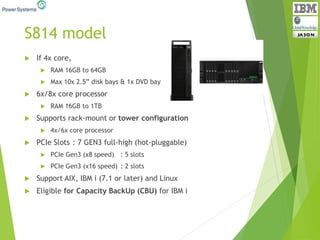

- 5. S814 model If4x core, RAM 16GB to 64GB Max 10x 2.5” disk bays & 1x DVD bay 6x/8x core processor RAM 16GB to 1TB Supports rack-mount or tower configuration 4x/6x core processor PCIe Slots : 7 GEN3 full-high (hot-pluggable) PCIe Gen3 (x8 speed) : 5 slots PCIe Gen3 (x16 speed) : 2 slots Support AIX, IBM i (7.1 or later) and Linux Eligible for Capacity BackUp (CBU) for IBM i

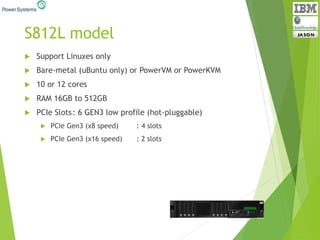

- 6. S812L model SupportLinuxes only Bare-metal (uBuntu only) or PowerVM or PowerKVM 10 or 12 cores RAM 16GB to 512GB PCIe Slots: 6 GEN3 low profile (hot-pluggable) PCIe Gen3 (x8 speed) : 4 slots PCIe Gen3 (x16 speed) : 2 slots

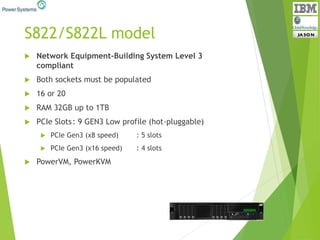

- 7. S822/S822L model NetworkEquipment-Building System Level 3 compliant Both sockets must be populated 16 or 20 RAM 32GB up to 1TB PCIe Slots: 9 GEN3 Low profile (hot-pluggable) PCIe Gen3 (x8 speed) : 5 slots PCIe Gen3 (x16 speed) : 4 slots PowerVM, PowerKVM

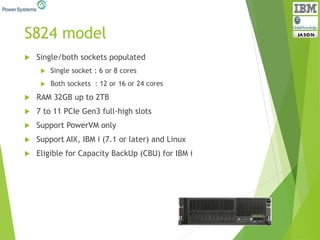

- 8. S824 model Single/bothsockets populated Single socket : 6 or 8 cores Both sockets : 12 or 16 or 24 cores RAM 32GB up to 2TB 7 to 11 PCIe Gen3 full-high slots Support PowerVM only Support AIX, IBM i (7.1 or later) and Linux Eligible for Capacity BackUp (CBU) for IBM i
- 9. S824L model Twodifferent configuration – Apr 2015 update With NVIDIA GPU (available thru 2 sockets) Without NVIDIA GPU (1 or 2 sockets) Supported Linux OS : Ubuntu (with GPU), RHES, SuSE One or Two sockets, 4U Maximum of 16 DDR3 CDIMMs slots: 2TB system memories Virtualization : PowerVM (non-GPU configuration), PowerKVM not supported Bare-metal mode : Ubuntu Linux operating system

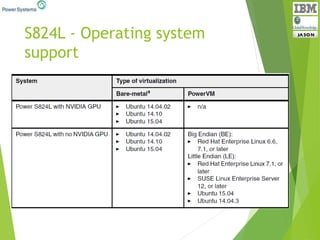

- 10. S824L - Operatingsystem support

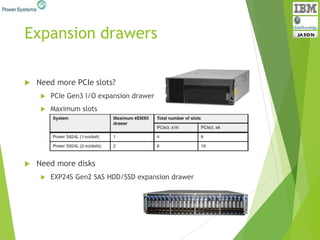

- 11. Expansion drawers Needmore PCIe slots? PCIe Gen3 I/O expansion drawer Maximum slots Need more disks EXP24S Gen2 SAS HDD/SSD expansion drawer

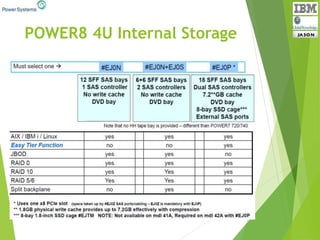

- 12. POWER8 4U InternalStorage

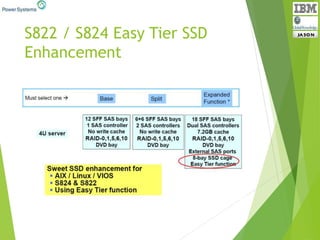

- 13. S822 / S824Easy Tier SSD Enhancement

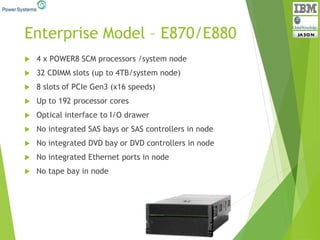

- 14. Enterprise Model –E870/E880 4 x POWER8 SCM processors /system node 32 CDIMM slots (up to 4TB/system node) 8 slots of PCIe Gen3 (x16 speeds) Up to 192 processor cores Optical interface to I/O drawer No integrated SAS bays or SAS controllers in node No integrated DVD bay or DVD controllers in node No integrated Ethernet ports in node No tape bay in node

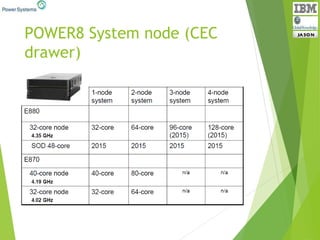

- 15. POWER8 System node(CEC drawer)

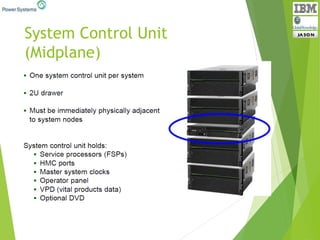

- 16.

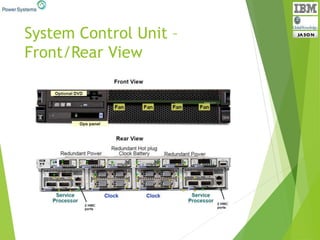

- 17. System Control Unit– Front/Rear View

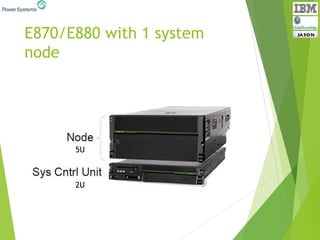

- 18. E870/E880 with 1system node 5U 2U

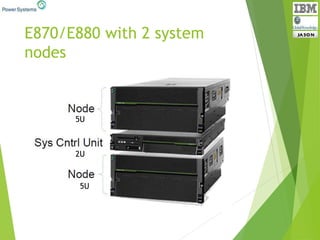

- 19. E870/E880 with 2system nodes 5U 2U 5U

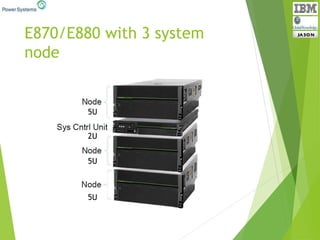

- 20. E870/E880 with 3system node 5U 2U 5U 5U

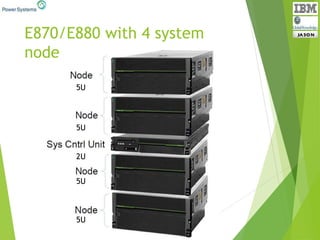

- 21. E870/E880 with 4system node 2U 5U 5U 5U 5U
- 22.
- 23.

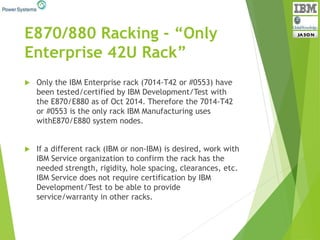

- 24. E870/880 Racking -“Only Enterprise 42U Rack” Only the IBM Enterprise rack (7014-T42 or #0553) have been tested/certified by IBM Development/Test with the E870/E880 as of Oct 2014. Therefore the 7014-T42 or #0553 is the only rack IBM Manufacturing uses withE870/E880 system nodes. If a different rack (IBM or non-IBM) is desired, work with IBM Service organization to confirm the rack has the needed strength, rigidity, hole spacing, clearances, etc. IBM Service does not require certification by IBM Development/Test to be able to provide service/warranty in other racks.

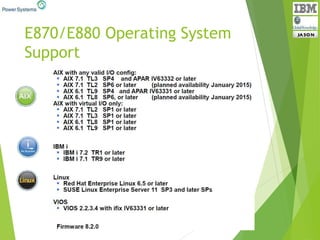

- 25.

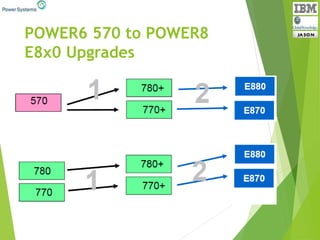

- 26. POWER6 570 toPOWER8 E8x0 Upgrades

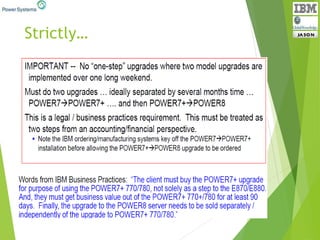

- 27.

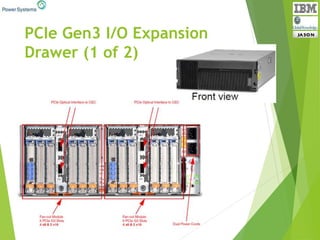

- 28. PCIe Gen3 I/OExpansion Drawer (1 of 2)

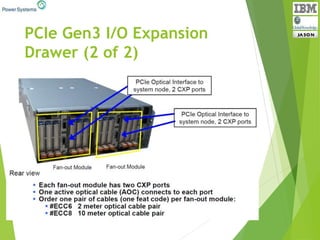

- 29. PCIe Gen3 I/OExpansion Drawer (2 of 2)

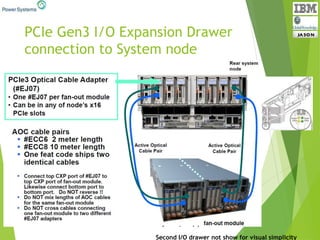

- 30. PCIe Gen3 I/OExpansion Drawer connection to System node Second I/O drawer not show for visual simplicity

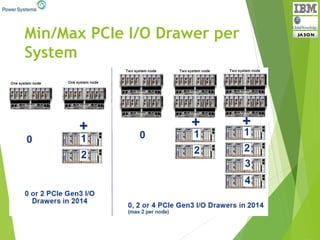

- 31. Min/Max PCIe I/ODrawer per System

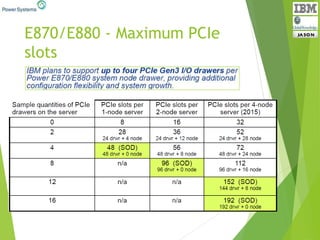

- 32. E870/E880 - MaximumPCIe slots

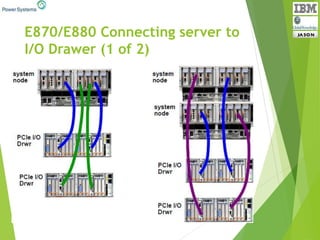

- 33. E870/E880 Connecting serverto I/O Drawer (1 of 2)

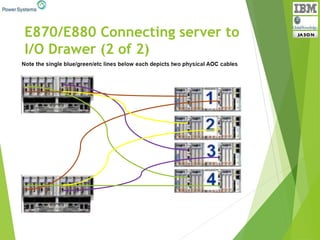

- 34. E870/E880 Connecting serverto I/O Drawer (2 of 2)

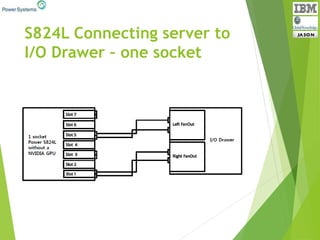

- 35. S824L Connecting serverto I/O Drawer – one socket

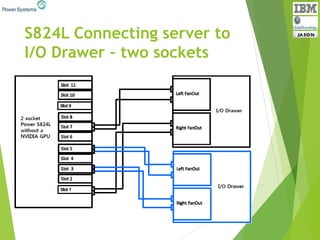

- 36. S824L Connecting serverto I/O Drawer – two sockets
- 37. Unsupported PCIe I/O DrawerCabling Examples

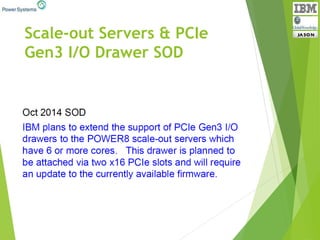

- 38. Scale-out Servers &PCIe Gen3 I/O Drawer SOD

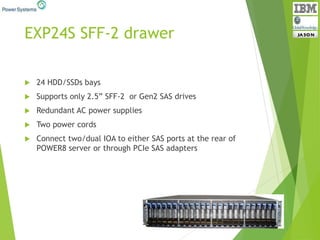

- 39. EXP24S SFF-2 drawer 24 HDD/SSDs bays Supports only 2.5” SFF-2 or Gen2 SAS drives Redundant AC power supplies Two power cords Connect two/dual IOA to either SAS ports at the rear of POWER8 server or through PCIe SAS adapters

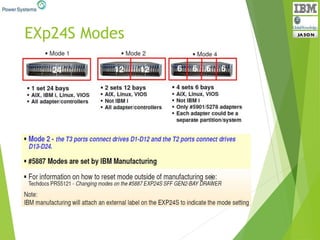

- 40.

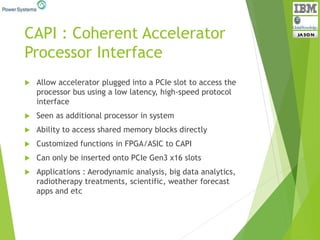

- 41. CAPI : CoherentAccelerator Processor Interface Allow accelerator plugged into a PCIe slot to access the processor bus using a low latency, high-speed protocol interface Seen as additional processor in system Ability to access shared memory blocks directly Customized functions in FPGA/ASIC to CAPI Can only be inserted onto PCIe Gen3 x16 slots Applications : Aerodynamic analysis, big data analytics, radiotherapy treatments, scientific, weather forecast apps and etc

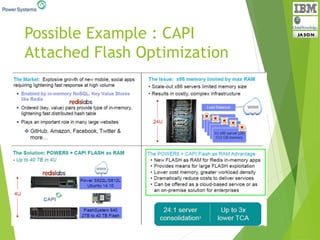

- 42. Possible Example :CAPI Attached Flash Optimization

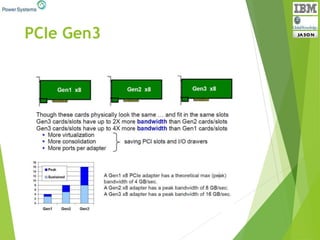

- 43.

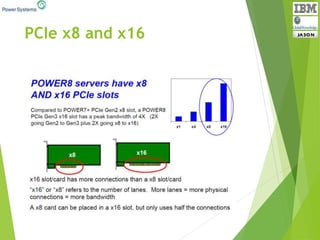

- 44. PCIe x8 andx16

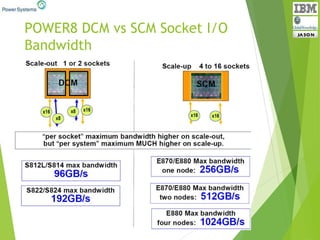

- 45. POWER8 DCM vsSCM Socket I/O Bandwidth

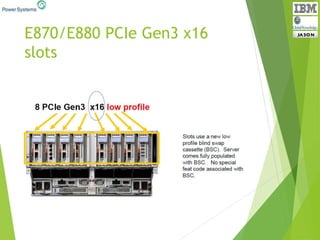

- 46. E870/E880 PCIe Gen3x16 slots

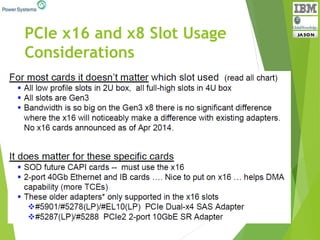

- 47. PCIe x16 andx8 Slot Usage Considerations

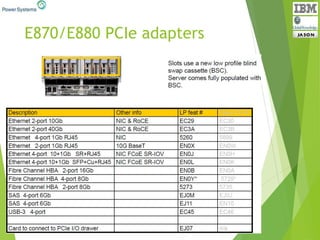

- 48.

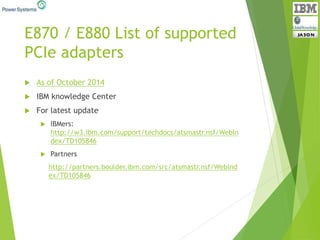

- 49. E870 / E880List of supported PCIe adapters As of October 2014 IBM knowledge Center For latest update IBMers: http://w3.ibm.com/support/techdocs/atsmastr.nsf/WebIn dex/TD105846 Partners http://partners.boulder.ibm.com/src/atsmastr.nsf/WebInd ex/TD105846

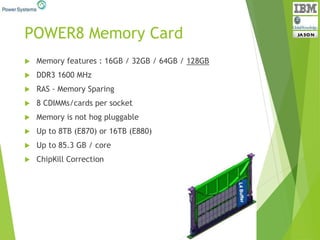

- 50. POWER8 Memory Card Memory features : 16GB / 32GB / 64GB / 128GB DDR3 1600 MHz RAS - Memory Sparing 8 CDIMMs/cards per socket Memory is not hog pluggable Up to 8TB (E870) or 16TB (E880) Up to 85.3 GB / core ChipKill Correction

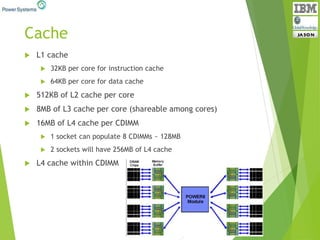

- 51. Cache L1 cache 32KB per core for instruction cache 64KB per core for data cache 512KB of L2 cache per core 8MB of L3 cache per core (shareable among cores) 16MB of L4 cache per CDIMM 1 socket can populate 8 CDIMMs ~ 128MB 2 sockets will have 256MB of L4 cache L4 cache within CDIMM

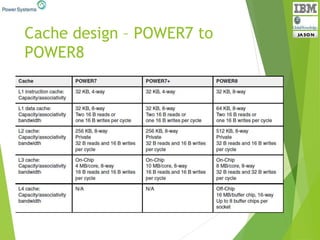

- 52. Cache design –POWER7 to POWER8

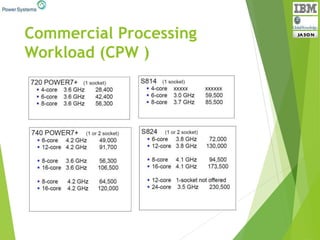

- 53.

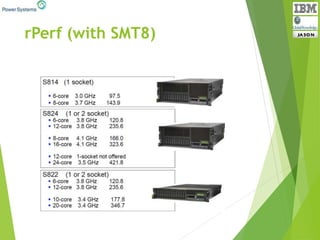

- 54.

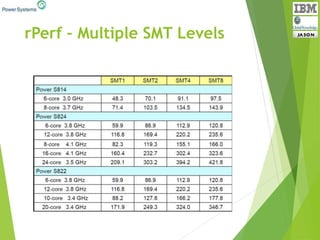

- 55. rPerf – MultipleSMT Levels

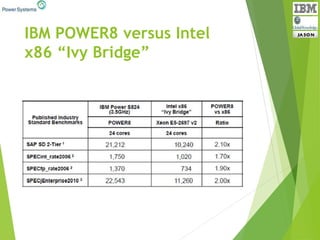

- 56. IBM POWER8 versusIntel x86 “Ivy Bridge”

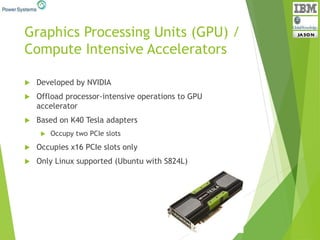

- 57. Graphics Processing Units(GPU) / Compute Intensive Accelerators Developed by NVIDIA Offload processor-intensive operations to GPU accelerator Based on K40 Tesla adapters Occupy two PCIe slots Occupies x16 PCIe slots only Only Linux supported (Ubuntu with S824L)

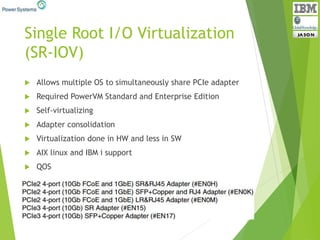

- 58. Single Root I/OVirtualization (SR-IOV) Allows multiple OS to simultaneously share PCIe adapter Required PowerVM Standard and Enterprise Edition Self-virtualizing Adapter consolidation Virtualization done in HW and less in SW AIX linux and IBM i support QOS

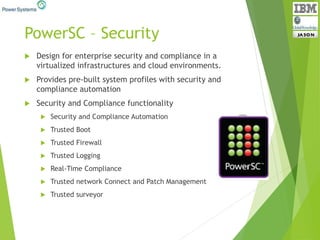

- 59. PowerSC – Security Design for enterprise security and compliance in a virtualized infrastructures and cloud environments. Provides pre-built system profiles with security and compliance automation Security and Compliance functionality Security and Compliance Automation Trusted Boot Trusted Firewall Trusted Logging Real-Time Compliance Trusted network Connect and Patch Management Trusted surveyor

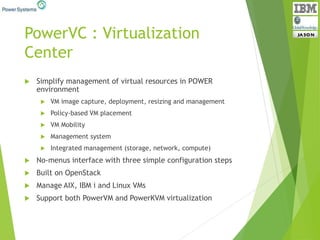

- 60. PowerVC : Virtualization Center Simplify management of virtual resources in POWER environment VM image capture, deployment, resizing and management Policy-based VM placement VM Mobility Management system Integrated management (storage, network, compute) No-menus interface with three simple configuration steps Built on OpenStack Manage AIX, IBM i and Linux VMs Support both PowerVM and PowerKVM virtualization

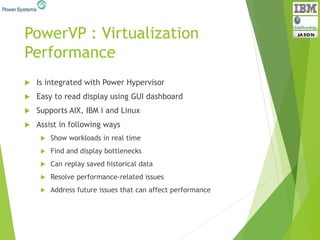

- 61. PowerVP : Virtualization Performance Is integrated with Power Hypervisor Easy to read display using GUI dashboard Supports AIX, IBM i and Linux Assist in following ways Show workloads in real time Find and display bottlenecks Can replay saved historical data Resolve performance-related issues Address future issues that can affect performance

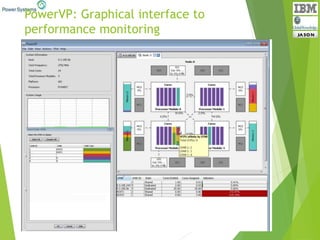

- 62. PowerVP: Graphical interfaceto performance monitoring

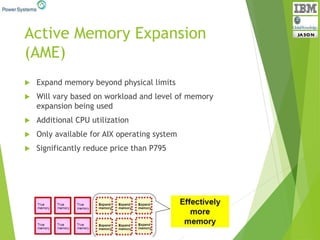

- 63. Active Memory Expansion (AME) Expand memory beyond physical limits Will vary based on workload and level of memory expansion being used Additional CPU utilization Only available for AIX operating system Significantly reduce price than P795
- 64.

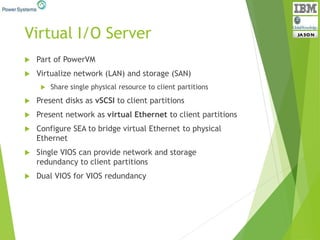

- 65. Virtual I/O Server Part of PowerVM Virtualize network (LAN) and storage (SAN) Share single physical resource to client partitions Present disks as vSCSI to client partitions Present network as virtual Ethernet to client partitions Configure SEA to bridge virtual Ethernet to physical Ethernet Single VIOS can provide network and storage redundancy to client partitions Dual VIOS for VIOS redundancy

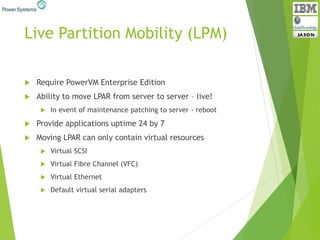

- 66. Live Partition Mobility(LPM) Require PowerVM Enterprise Edition Ability to move LPAR from server to server – live! In event of maintenance patching to server - reboot Provide applications uptime 24 by 7 Moving LPAR can only contain virtual resources Virtual SCSI Virtual Fibre Channel (VFC) Virtual Ethernet Default virtual serial adapters

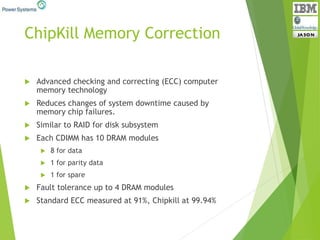

- 67. ChipKill Memory Correction Advanced checking and correcting (ECC) computer memory technology Reduces changes of system downtime caused by memory chip failures. Similar to RAID for disk subsystem Each CDIMM has 10 DRAM modules 8 for data 1 for parity data 1 for spare Fault tolerance up to 4 DRAM modules Standard ECC measured at 91%, Chipkill at 99.94%

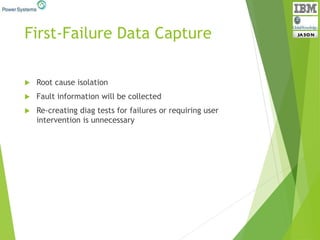

- 68. First-Failure Data Capture Root cause isolation Fault information will be collected Re-creating diag tests for failures or requiring user intervention is unnecessary

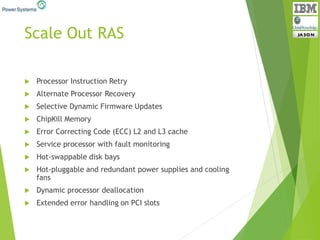

- 69. Scale Out RAS Processor Instruction Retry Alternate Processor Recovery Selective Dynamic Firmware Updates ChipKill Memory Error Correcting Code (ECC) L2 and L3 cache Service processor with fault monitoring Hot-swappable disk bays Hot-pluggable and redundant power supplies and cooling fans Dynamic processor deallocation Extended error handling on PCI slots

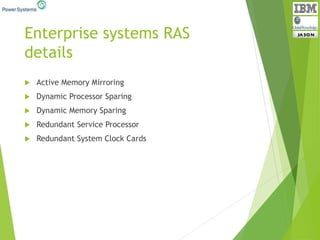

- 70. Enterprise systems RAS details Active Memory Mirroring Dynamic Processor Sparing Dynamic Memory Sparing Redundant Service Processor Redundant System Clock Cards

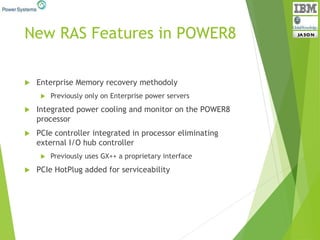

- 71. New RAS Featuresin POWER8 Enterprise Memory recovery methodoly Previously only on Enterprise power servers Integrated power cooling and monitor on the POWER8 processor PCIe controller integrated in processor eliminating external I/O hub controller Previously uses GX++ a proprietary interface PCIe HotPlug added for serviceability

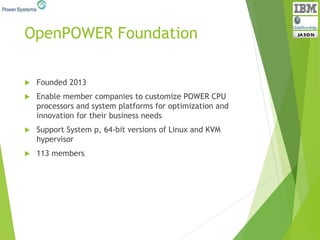

- 72. OpenPOWER Foundation Founded2013 Enable member companies to customize POWER CPU processors and system platforms for optimization and innovation for their business needs Support System p, 64-bit versions of Linux and KVM hypervisor 113 members

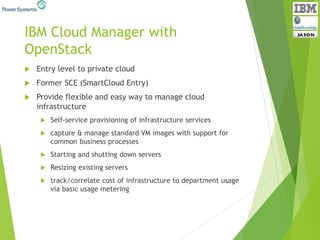

- 73. IBM Cloud Managerwith OpenStack Entry level to private cloud Former SCE (SmartCloud Entry) Provide flexible and easy way to manage cloud infrastructure Self-service provisioning of infrastructure services capture & manage standard VM images with support for common business processes Starting and shutting down servers Resizing existing servers track/correlate cost of infrastructure to department usage via basic usage metering

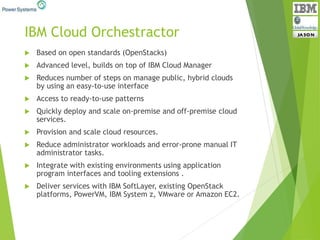

- 74. IBM Cloud Orchestractor Based on open standards (OpenStacks) Advanced level, builds on top of IBM Cloud Manager Reduces number of steps on manage public, hybrid clouds by using an easy-to-use interface Access to ready-to-use patterns Quickly deploy and scale on-premise and off-premise cloud services. Provision and scale cloud resources. Reduce administrator workloads and error-prone manual IT administrator tasks. Integrate with existing environments using application program interfaces and tooling extensions . Deliver services with IBM SoftLayer, existing OpenStack platforms, PowerVM, IBM System z, VMware or Amazon EC2.
- 75.

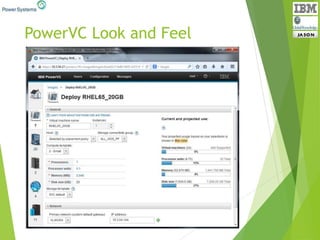

- 76. PowerVC Look andFeel

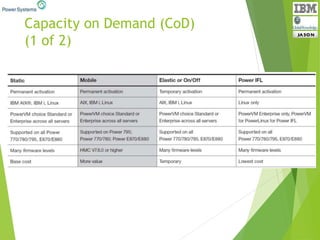

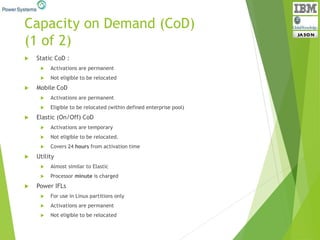

- 77. Capacity on Demand(CoD) (1 of 2) Static CoD : Activations are permanent Not eligible to be relocated Mobile CoD Activations are permanent Eligible to be relocated (within defined enterprise pool) Elastic (On/Off) CoD Activations are temporary Not eligible to be relocated. Covers 24 hours from activation time Utility Almost similar to Elastic Processor minute is charged Power IFLs For use in Linux partitions only Activations are permanent Not eligible to be relocated
- 78. Capacity on Demand(CoD) (1 of 2)
- 79. POWER Enterprise Pool Dynamically move processor and memory activations between systems within a defined pool Require Mobile features of Capacity of Demand (CoD) Supported platform : 770, 780, 795, E870 and E880 Mix processor generation within pool type Applications: LPM : Partition relocation, mobile activations shifted between LPM servers PowerHA : When primary server fails, move mobile activations to backup server Rebalance server capacity: Mobile activation moved between servers to make best use of CPU core and memory resources

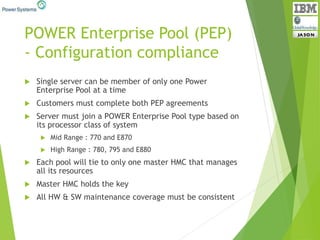

- 80. POWER Enterprise Pool(PEP) - Configuration compliance Single server can be member of only one Power Enterprise Pool at a time Customers must complete both PEP agreements Server must join a POWER Enterprise Pool type based on its processor class of system Mid Range : 770 and E870 High Range : 780, 795 and E880 Each pool will tie to only one master HMC that manages all its resources Master HMC holds the key All HW & SW maintenance coverage must be consistent
- 81. RoCE RDMA overConverged Ethernet First introduced in Z series as memory-to-memory copy network connection Introduced to AIX 7 with PCIe2 10GbE RoCE adapter As remote direct memory access capable device only Provides better performance than an NIC adapter for network-intensive applications. Supported mode and type

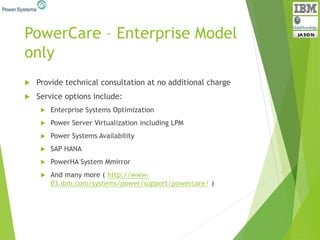

- 82. PowerCare – EnterpriseModel only Provide technical consultation at no additional charge Service options include: Enterprise Systems Optimization Power Server Virtualization including LPM Power Systems Availability SAP HANA PowerHA System Mmirror And many more ( http://www- 03.ibm.com/systems/power/support/powercare/ )
- 83. More Readup ATSblogs and others DeveloperWorks PartnerWorld Services & Nigel Griffiths Redbooks Sales manual Summary of Features & Functions Videos – IBM System Lab
Editor's Notes
- #2 Released March 2015
- #5 E870 SCM E880 SCM E850 DCM ^_^ - May 2015
- #6 Only S814 and S824 supports IBM i 7.1 or later CBU available only on S814 and S824
- #7 Bare metal Ubuntu only on S812L and S824L
- #8 NEBS Level-3 and ETSI capability - applicable to S822/S822L only - designed for client that require hardened infra. - designed for extreme shock, vibration, thermal conditions which exceed normal datacenter standard - usually telco (ibm.com/power/solutions/industry/telco)
- #9 CBU - Its like DR /HA for IBM i - To really help customer on saving cost
- #10 Before Apr 2015, S824L always includes one or two GPU With GPU maximizes performance and efficiency for scientific, engineering, Java, Big Data analytics, and other technical computing workloads If S824L was initially ordered without a GPU, then adding a GPU to server is not updated (Redbooks) S824L support Linux from several distributors Memory features supported : 16GB, 32GB, 64GB and 128GB Additional PCIe Gen3 I.O expansion drawer : if more PCIe slots are required Add the same model PCIe drawer that we can attach to enterprise models Min of 1 and max of 2 . 2 drawers required 2 sockets HMC or IVM can manage S824L If both not being used, S824L can runs in bare-metal mode, means single partition owns all server resoruces and only uBuntu OS can be installed
- #11 The superscript a on bare-metal means some features on PowerVM are not supported , pls refer to redbook to find out more
- #12 More PCIe slots Means more Ethernet ports, FC ports, IF ports and even more CXP adapters to EXP24S which in turn more disks Biggest capacity disks offering for scale out models are following - ESD8 1.1 TB 10 K RPM SAS SFF-3 DIsk Drive (IBM i) 18 IBM i - ESD9 1.2 TB 10 K RPM SAS SFF-3 Disk Drive (AIX/Linux) 18 AIX, Linux
- #13 Split Backplane provides better performance bcos 2 SAS controllers are utilized EJ0P has SSDs, thus ofc again better performance over EJ0N+EJ0S This options also available for Linux model the 2U models Uses different FC #EL3T , #EL3T+EL3V and #EL3U Mdl 41A is the S814 model Mdl 42A is the S824 model
- #14 Available for AIX / Linux / VIOS Only S824 and S822 (2 socket based) Create RAID with ET (using SAS RAID Array Manager)
- #15 4 sockets x 12 cores = 48 cores x 4 sytem nodes= total 192 cores configurable on S880
- #17 Minimum one, two for redundancy

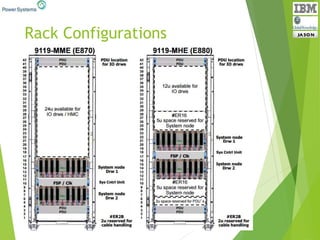

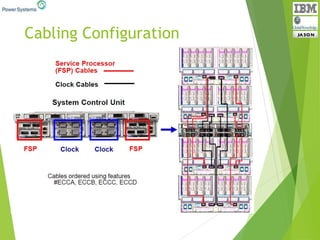

- #23 FSP flexible service processor connection to respective system node Clock to respective system node to provide time synchronization (optical cable)
- #24 Sample configuration by IBM Only 7014-T42 or #0553 rack tested and certified to work with E870/E880 as of Oct 2014 only racks that uses with E870/E880 system nodes 42U rack 19" MES same-serial-number uses # If different rack (IBM or nonIBM) is desired, work with IBM Service organization to confirm rack the needed strength, rigidity hole spacing, clearances and etc Chargeable De-racking feature #ER21 if client doesn’t want the 7014-T42 or #0553 PDU : power distribution unit
- #25 Use “De-racking” feature #ER21 if client doesn’t want the 7014-T42 or #0553 it was built/test in. (priced at zero)
- #26 Ibm i 7.1 onward uBuntu only on S824L
- #28 This applies to POWER6 as well, Upgrade POWER6 to POWER7+ then POWE7+ to POWER*
- #29 Additional 12 PCIe Gen3 slots can be attached to each system node Thru optical cable pair (intra-rack 3.0m or inter-rack 10.0m) On Server must have PCIe optical cable adapters Generally, PCIe optical cable adapter can be in any PCIe adapter slots in the Power Server. However IBM advised to follow slot priorities. For this check on the respective redbooks of the POWER8 model. Example on S824L, use slot priorities 2, 8,4,6,1,7,3,5 4U in size, Its full high PCIe slots Slots are hot pluggable (using cassette type) But modules not hot pluggable
- #30 812 model can hook up to half (one fan out module) of PCIe Gen3 I/O exp drawer Most models - In 2014, 1 fan out module is an invalid configuration - In fact, each system node must connect to two IO drawer, no more or less.
- #32 Either completely without any IO drawer or 2 for each system nodes No single drawer nor 3 drawers If two system nodes, you cant connect to 3 drawers or 4 drawers
- #33 So you wonder after you attached those drawers, how many slots will be available By default, each system node comes with 8 (x16 speed) PCIe Gen3 slots Then we can add drawer to it On single node, if a expansion drawer added, that means we will have 28 PCIe slots . 24 from drawer, 4 from node. Take note why 4 from node, bcos 4 slots will have the CXP adapter with optical ports to connect drawer to system node On two nodes, if a expansion drawer added, then we create redundancy by connecting same drawer from two nodes Thus 36 slots, 24 from drawers, 6 from each node. Bcos now we will use only 2 slots from each node to connect to drawer SOD Statement of direction (like roadmap)
- #34 AOC :CXP 16X Active Optical cables (AOC) Example here Left : single node to 2 drawers Note: Each single blue/green/etc lines each depicts two physical AOC cables to each drawer for redundancy (availability). Right: two nodes to 2 drawers To eliminate single point of failure, two connection must go to each drawer from each system node.
- #35 AOC :CXP 16X Active Optical cables (AOC) Example here Left : single node to 2 drawers Note: Each single blue/green/etc lines each depicts two physical AOC cables to each drawer for redundancy (availability). Right: two nodes to 2 drawers To eliminate single point of failure, two connection must go to each drawer from each system node. Drawers can be in same or different rack as the system nodes. If large numbers ofIO cables are attached to PCIe adapters, its good to have the IO drawers in different rack for cable management ease SCU and HMC not shown for visual clarity
- #36 Additional 12 PCIe Gen3 slots can be attached to each system node Thru optical cable pair (intra-rack 3.0m or inter-rack 10.0m) On Server must have PCIe optical cable adapters Generally, PCIe optical cable adapter can be in any PCIe adapter slots in the Power Server. However IBM advised to follow slot priorities. For this check on the respective redbooks of the POWER8 model. Example on S824L, use slot priorities 2, 8,4,6,1,7,3,5
- #37 With 2 sockets based , will have more PCIe slots Additional 12 PCIe Gen3 slots can be attached to each system node Thru optical cable pair (intra-rack 3.0m or inter-rack 10.0m) On Server must have PCIe optical cable adapters Generally, PCIe optical cable adapter can be in any PCIe adapter slots in the Power Server. However IBM advised to follow slot priorities. For this check on the respective redbooks of the POWER8 model. Example on S824L, use slot priorities 2, 8,4,6,1,7,3,5
- #38 Enterprise models First from left: must have redundant AOC to each drawer Second from left : invalid statement from IBM Third from left : 3 drawers not valid Fourth from left: each system nodes can only connect maximum two drawers In other word, min/max will be two drawers each system node. No less no more 12x PCIe gen3 drawer bandwidth if far better than in POWER7+ 12x attached IO drawers - POWER7+ all 10 or 20 PCIe Gen1 x8 slots share one GX++ bus. Each GX++ has theoretically max of 20GB/s bandwidth. POWER8 each fan-out module has a theoretically max of 32GB/s to share across just 6 PCIe x16 or x8 slots. So on drawer with 2 fan-out modules has max of 64GB/s (220% larger than POWER7 single dedicated GX++ slots)
- #39 In redbooks, already support this. But not sure when
- #40 The SFF bays only support GEN2, thus disk from server of GEN3 do not fit . Don’t try pull out disks from S812 or S24 disks and insert into this drawer or vice versa. It doesn't FIT This units were all along supported in POWER7 and POWER7+ servers IOA – I/O adapter
- #41 C4040-252 test this. Download redbooks - https://www-03.ibm.com/support/techdocs/atsmastr.nsf/5cb5ed706d254a8186256c71006d2e0a/74be24b51525ec07862578cd0059ca5a/$FILE/ATS_EXP24S_Deepdive_R06.pdf With IBM i, EXP24S must be ordered as one set of 24 bays (mode 1)
- #42 Applications who uses this : GPU accelerator cards Heavy duty algorithm applications (aerodynamic analysis, big data analytics, radiotherapy treatments, scientific, weather forecast apps and etc) Lots of flash drives : show next slide Accelerators plugged into a PCIe slot to access the processor bus using low latency , high-speed protocol interface Applications can have customized functions in field programmable gate arrays (FPGA) and enqueue its works on CAPI processor From practical perspective, CAPI seen as additional processor in system. CAPI allows specialized hw to access main system memory and perform coherent communication with other processors in system. ASIC : application-specific integrated circuit
- #43 Connect to a 16x speed PCIe , and CAPP from POWER8 will communicate str8 with this fella CAPI hw CAPP protocol and PSL power service layer PSL on the daughter card chip, CAPP is on POWER8 board S822L plus with CAPI plus FlashSystem IBM solution for Hadoop IBM solution for noSQL
- #44 For those that have questions on different version of PCIe in terms of performance, here is a snippet of that Logically, next generation is always double the bandwidth and speed Physically they all look the same Care ful though, in POWER8 scale out and enterprise, there are two options : full high and low profile
- #45 But when connect to POWER8, the design is slightly different X16 means more lanes compared to x8 Power7+ only uses up to x8 slots
- #46 Enterprise model has only x16 speed PCIe Gen3 slots but off low profile type Where else the scale out model has two speed x8 and x16 and it is in full high type
- #47 See next slide to see what are those LP PCIe adapters
- #48 Use this slide, incase student ask the compatibility issues
- #50 http://www-01.ibm.com/support/knowledgecenter/P8DEA/p8eab/p8eab_87x_88x_supported_pci.htm?lang=en http://www-01.ibm.com/support/knowledgecenter/P8DEA/p8hcd/p8hcd_87x_88x_pcibyfeature.htm?lang=en
- #51 Thus maximum 1S – 8 cards x 128 = 1TB 2S – 16 cards x 128 = 2TB 812 – 1 socket x 8 card x 128 GB = 512GB 814 - 1 socket x 8 cards x 128 GB = 512 GB 822 – 2 socket x 8 cards x 64 GB = 1 TB (this model supports only 16GB/32GB/64GB) memory features only 822L -2 socket x 8 cards x 64 GB = 1 TB (this model supports only 16GB/32GB/64GB) memory features only 824 – 2 socket x 8 cards x 128 GB = 2 TB E870 - 4 socket x 8 cards x 128 GB x 2 nodes = 8TB E880 - 4 socket x 8 cards x 128 GB x 4 nodes = 16TB Almost all models in POWER8 when order memory, it must comes in pairs except 1S models, which minimum is single 16GB DIMM is orderable. Power7/7+ was 1066 MHz DDR2 No CoD or CUoD implemented on memory cDIMMs custom dual inline memory modules Chipkill is RAID of Memory Each CDIMM has 10 dram module/chips 8 of dram module hold data 1 of dram module hold parity 1 of dram module works like spare Time of writing, POWER8 supports only DDR3. SOD on DDR4
- #52 L4 cache within the memory buffer chip that reduces the memory latency for local access to memory behind the buffer chip; the operation of L4 cache is not apparent to applications running on POWER8 processor L4 cache is implemented together with the memory buffer in the CDIMM. Each memory buffer contains 16MB of L4 cache. On Power S824L , you can have up to 256MB of L4 cache On E870 one node will have up to 32 CDIMMs, which means 512MB of L4 cache (32 CDIMMs * 16MB)
- #53 On L4 cache Each core can carry upto 16MB 1 socket has 2 memory controllers Each memory controllers connect to 4 memory channels
- #54 is a relative measure of performance of systems running the IBM i operating system. Performance in client environments may vary. The value is based on maximum configurations.
- #55 s a computer benchmark that evaluates the relative OLTP performance of servers based on IBM POWER microprocessors. It is published by IBM and derived from a model based on specific workloads, plus benchmarks from Transaction Processing Performance Council and SPEC. these are benchmark values AIX commands, maybe Linux has this too. Not sure
- #57 Application benchmark running SAP Source www.spec.org Standard Performance Evaluation Corporation
- #58 Whole idea to offload operation from CPU, and thus increase performance Maximize performance and efficiency for all types of scientific, engineering, Java, big data analytics and other technical computing workloads
- #59 Allows multiple OS to simultaneously share PCIe adapter with little or no runtime involvement from hypervisor or other virtualization intermediary - no need of VIOS Assign a slice of single physical adapter to multiple LPAR through logical ports Almost all oses with the correct SP support this, even IBM i 7.1 TR10 on ward This feature is already avail on Power7+ 770/780 with proper sw/firmware levels with the copper twinaax and SR optical adapters as long as firmware level 780 (POWER7) or SC820_067 for POWER8 - Some redbooks say S814 and S824 support this. - E870/E880 supports this - 770 and 780
- #60 Introduced 2011,
- #61 Policy-based VM placement - to help improve usage vm mobility with placement policies to help reduce burden o IT staff in a simplified GUI Management system That manages existing virtualization deployments Not for cloud definitely .thus different from IBM Cloud Manager nor IBM Orchestactor
- #62 Collect accurate performance information about VMs running on your POWER system. And then uses that information to identify bottlenecks, then if can resolve it . All in this features. Best part , its part of the hypervisor now. Background data collection can be used when GUI is not active Can even drill down and view specific adapter, bus, or CPU usage Find and display bottlenecks Through simple dashboard that shows performance health of the system Show workloads in real time Which highlights possible problems or bottlenecks (overcommitted resourceS) -firmware of 770 or 780 later is prerequisite of PowerVP
- #63 Install and runs on windows 7 workstation to communicate with PowerVM
- #64 Additional CPU consumption when AME is in use AME is enabled on lpar, and a multiply factor value is configured. The OS which is AIX will compress LPAR memory when it is not active, and return idle physical memory to pool. In which later this portion of memory transferred to another LPAR when it needs more memory
- #65 Complete listing of supported OS under PowerVM/PowerKVM on which models https://www-01.ibm.com/support/knowledgecenter/linuxonibm/liaam/liaamvirtoptions.htm On powerlinux machines such as 812L and 822L can runs on either both PowerVM or PowerKVM. Can also runs on bare-metal mode; if install with uBuntu. Means all hardware resources goes under uBuntu control, single partition system S824L purely Ubuntu bare-metal mode But somewhere i read, if system configured without GPU cards, PowerVm is supported (only for RHES and SuSE) Else configured with GPU, must go with uBuntu Other models only support PowerVM Kimchi Newest item on KVM menu Simplified Management tool
- #66 Pls read up on IBM PowerVM Virtualization Introduction and Configuration - Jun 2013.pdf redbook
- #67 Live Partition Mobility.pdf http://www.redbooks.ibm.com/abstracts/sg247460.html?Open For POWER8 systems, IBM i requires IBM i 7.1 TR9 and IBM i 7.2 TR1 (redbook)
- #68 Each CDIMMs come with 2 ports 10 DRAM modules (8 for data, 1 for parity check, 1 for additiona spare By default, depending on how DRAM modules fail, it might be possible to tolerate up to 4 DRAM modules failing on a single DIMM without needing to replace the DIMM. Standard ECC measured at 91%, Chipkill at 99.94% - These measurement collected at IBM development labs over 3 simulated 3 yrs workloads (on P720)
- #69 A good FFDC design mean error checking and coordination of faults so that faults are detected and the root cause of fault is isolated. All these is done without intervention by IBM SSR Necessary Fault information will be collected at time of failure without needing to re-create the problem or run an extended tracing or diagnostic program
- #71 AMM Its really meant to hold the hypervisor operational data. In a failure of CDIMM where the hypervisor data is hosted, the hypervisor can become inoperative AMM will write memory blocks that used by hypervisor in two distinct CDIMMs Hypervisor generally uses from range of 256M to 300GB. Depending on number of lpars and features turn on servers Was available on Power 795 then 770. never on midrange of entry level models. Same goes here RSP - Main component of system, responsible for IPL, setup, monitoring, control and management of system Even on single system node has dual SP on the SCU RSC Responsible to perform time synchronization/clock signals sync for whole system. This is crucial to system operations Is located in SCU, as two redundant system clock cards. Even on single system node has dual SP on the SCU DPS Are CUoD capable. Requires available inactive CUoD processor cores Activate inactive processor in event of processor failure in LPAR. Happens automatically when use with DLPAR DMS Are CUoD capable. Activating inactive memory in even of failed memory.
- #74 Self-service such as end users can re-deploy virtual servers with an easy to use interface Complements IBM Systems Director VMControl
- #78 CoD generally applies on Enterprise models Static CoD Activations are permanent tied to a specific Power server Not eligible to be relocated, Must remain on the specific server they were originally activated on Mobile - Thus Mobile activation must use of enterprise pool to move processor or memory between servers in defined pool - Licenses are price higher than static due to fact mobile activations provide greater flexibility Processor activations are ordered by increment of 1, memory are activate by increment of 100GB Static activations can be converted into mobile through standard upgrade order at any time Elastics are Activations are temporary also tied to specific server. Purchased by usage and billed quarterly IFL. When ordered, 4 processors, 32GB memory and 4 PowerVM for linux is activated at very low cost. Introduced in z system and brought over to p system Whole idea is to provide lower-cost processor core activation for Linux workloads Require functions of HMC enhanced and specific tech preview interface hmc v8.20. Trial CoD. Evaluate use of inactive processor cores, memory of both at no charge . After it is started, trial period is available for 30 power-on days Utility CoD use it when you have unpredictable short workload spikes. Provides additional processor on temporary basis within shared processor pool Use is measured in processor minute increments and is reported at the Utility CoD website Requires PowerVM enterprise Edition Capacity BackUp (CBU) Use with System i only Provide an off-site, DR server using On/Off CoD capabilities
- #80 Once all servers in same pool, then we can move processors or memory (mixed clock speed) oh yea And then we can perform LPM to migrate live running workloads between systems Example :each servers comes with 16 cores Activated only 4 from each, so total i would have 12 mixed processor clock/speed With Mobile CoD, and PEP, i can simply say lets run a workload on the PowerE870 with all 12 cores activated there. So this makes the other 2 servers just as off-site DR machines HMC v7.8
- #81 All HW & SW maintenance coverage must be consistent across pool One pool to one hmc, One hmc can manage multiple pool HMC master Stores the data included in the custeomer XML CoD configuration file which defines servers mobile activation Controls where the activations are assigned, Performs resource movement and is also aware of each server’s static resources Second, redundant backup HMC can be configured for availability. This backup can only view operations If MASTER HMC failed, running of server will not be impacted. Only cant move resources, perform all operations on servers within pool HMC min version 7.8, 2GB of ram.
- #82 # lsdev –Cc adapter | grep –i roce roce0 Available 00-00-00 PCIe2 10GbE RoCE Converged Network Adapter hba0 Available 00-00-00 PCIe2 10GbE RoCE Converged Host Bus Adapter There is no Redbook on RoCE over Power system Mostly all covered in Redbook over z systems or flex systems
- #83 Main thing is FOC
- #84 Google for IBM ATS Goto youtube.com subcribes to Ibm system lab services Nigel griffiths
