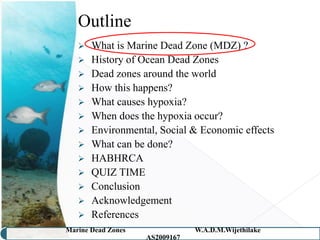

3. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 3
AS2009167

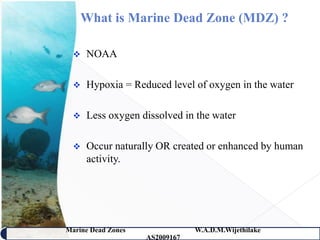

4. What is Marine Dead Zone (MDZ) ?
NOAA
Hypoxia = Reduced level of oxygen in the water
Less oxygen dissolved in the water
Occur naturally OR created or enhanced by human
activity.
Marine Dead Zones W.A.D.M.Wijethilake 4
AS2009167
5. What is Marine Dead Zone (MDZ)? cnt.
Many physical, chemical, and biological factors
combine to create dead zones
Nutrient pollution is the primary cause – Human
encroachment
East Coast, the Gulf of Mexico (U.S) & Great
lakes
Second largest - Northern Gulf of Mexico
A significant portion of the world's population -
nearly half of which lives within 40 miles of a coast
is vulnerable to harmfully over-enriched ecosystems,"
Marine Dead Zones W.A.D.M.Wijethilake 5
AS2009167

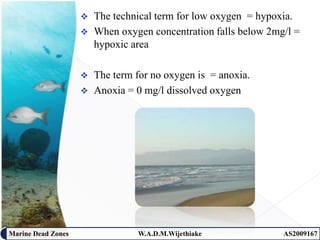

6. The technical term for low oxygen = hypoxia.
When oxygen concentration falls below 2mg/l =
hypoxic area
The term for no oxygen is = anoxia.
Anoxia = 0 mg/l dissolved oxygen
Marine Dead Zones W.A.D.M.Wijethiake 6 AS2009167
7. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 7
AS2009167

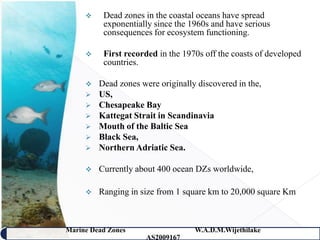

8. Dead zones in the coastal oceans have spread
exponentially since the 1960s and have serious
consequences for ecosystem functioning.
First recorded in the 1970s off the coasts of developed
countries.
Dead zones were originally discovered in the,
US,
Chesapeake Bay
Kattegat Strait in Scandinavia
Mouth of the Baltic Sea
Black Sea,
Northern Adriatic Sea.
Currently about 400 ocean DZs worldwide,
Ranging in size from 1 square km to 20,000 square Km.
Marine Dead Zones W.A.D.M.Wijethilake 8
AS2009167

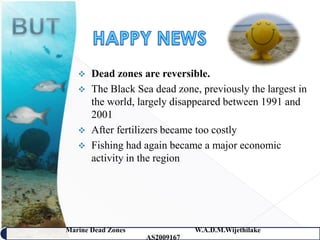

9. Dead zones are reversible.
The Black Sea dead zone, previously the largest in
the world, largely disappeared between 1991 and
2001
After fertilizers became too costly
Fishing had again became a major economic
activity in the region
Marine Dead Zones W.A.D.M.Wijethilake 9
AS2009167

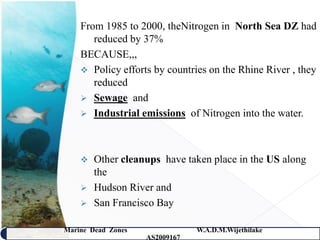

10. From 1985 to 2000, theNitrogen in North Sea DZ had
reduced by 37%
BECAUSE,,,
Policy efforts by countries on the Rhine River , they
reduced
Sewage and
Industrial emissions of Nitrogen into the water.
Other cleanups have taken place in the US along
the
Hudson River and
San Francisco Bay
Marine Dead Zones W.A.D.M.Wijethilake 10
AS2009167

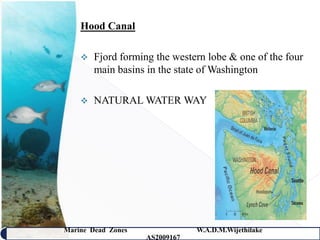

11. Hood Canal
Fjord forming the western lobe & one of the four
main basins in the state of Washington
NATURAL WATER WAY
Marine Dead Zones W.A.D.M.Wijethilake 11
AS2009167

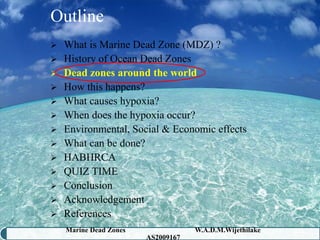

12. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 12
AS2009167

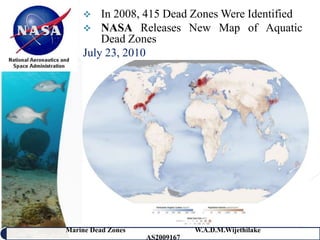

13. In 2008, 415 Dead Zones Were Identified
NASA Releases New Map of Aquatic
Dead Zones
July 23, 2010
Marine Dead Zones W.A.D.M.Wijethilake 13
AS2009167

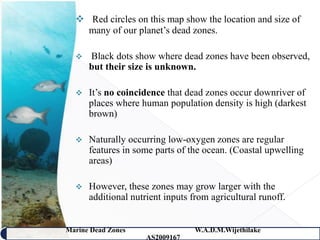

14. Red circles on this map show the location and size of
many of our planet’s dead zones.
Black dots show where dead zones have been observed,
but their size is unknown.
It’s no coincidence that dead zones occur downriver of
places where human population density is high (darkest
brown)
Naturally occurring low-oxygen zones are regular
features in some parts of the ocean. (Coastal upwelling
areas)
However, these zones may grow larger with the
additional nutrient inputs from agricultural runoff.
Marine Dead Zones W.A.D.M.Wijethilake 14
AS2009167

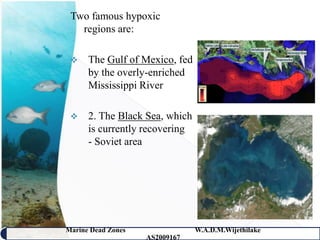

15. Two famous hypoxic
regions are:
The Gulf of Mexico, fed
by the overly-enriched
Mississippi River
2. The Black Sea, which
is currently recovering
- Soviet area
Marine Dead Zones W.A.D.M.Wijethilake 15
AS2009167
16. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 16
AS2009167

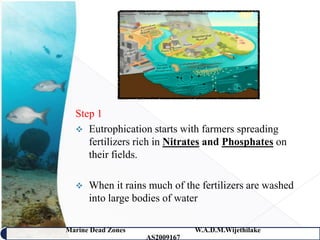

17. Step 1
Eutrophication starts with farmers spreading
fertilizers rich in Nitrates and Phosphates on
their fields.
When it rains much of the fertilizers are washed
into large bodies of water
Marine Dead Zones W.A.D.M.Wijethilake 17
AS2009167

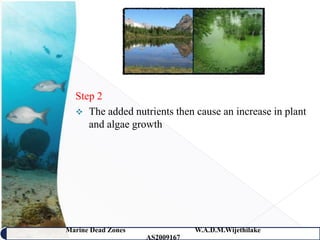

18. Step 2
The added nutrients then cause an increase in plant
and algae growth
Marine Dead Zones W.A.D.M.Wijethilake 18
AS2009167

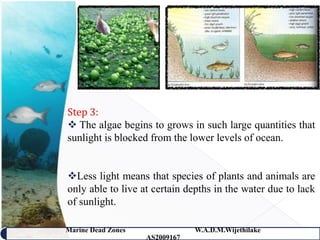

19. Step 3:
The algae begins to grows in such large quantities that
sunlight is blocked from the lower levels of ocean.
Less light means that species of plants and animals are
only able to live at certain depths in the water due to lack
of sunlight.
Marine Dead Zones W.A.D.M.Wijethilake 19
AS2009167

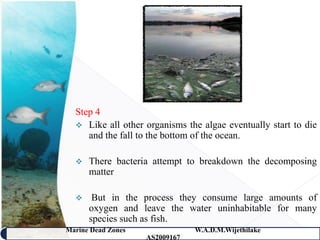

20. Step 4
Like all other organisms the algae eventually start to die
and the fall to the bottom of the ocean.
There bacteria attempt to breakdown the decomposing
matter
But in the process they consume large amounts of
oxygen and leave the water uninhabitable for many
species such as fish.
Marine Dead Zones W.A.D.M.Wijethilake 20
AS2009167

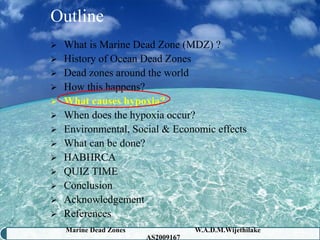

22. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 22
AS2009167

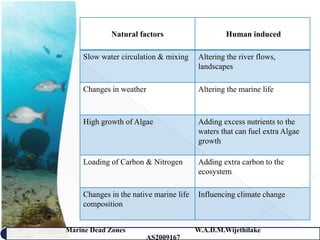

24. Natural factors Human induced
Slow water circulation & mixing Altering the river flows,
landscapes
Changes in weather Altering the marine life
High growth of Algae Adding excess nutrients to the
waters that can fuel extra Algae
growth
Loading of Carbon & Nitrogen Adding extra carbon to the
ecosystem
Changes in the native marine life Influencing climate change
composition
Marine Dead Zones W.A.D.M.Wijethilake 24
AS2009167

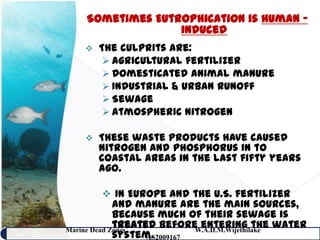

26. Sometimes Eutrophication is human –
induced
The culprits are:
Agricultural fertilizer
Domesticated animal manure
Industrial & urban runoff
Sewage
Atmospheric nitrogen
These waste products have caused
nitrogen and phosphorus in to
coastal areas in the last fifty years
ago.
In Europe and the U.S. fertilizer
and manure are the main sources,
because much of their sewage is
treated before entering the water
Marine Dead Zones W.A.D.M.Wijethilake
system.
AS2009167
26
28. There are several causes of ocean pollution
including oil pollution, marine debris, toxic
materials, and ocean dumping and mining.
Oil pollution is not only caused by large
devastating tanker spills, it is also caused through
runoff from land and industrial wastes & natural
seepage which find their way to the ocean through
drains.
Other causes include intensive farming, septic tank,
pesticide, animal dung, household waste,waste water,
nuclear waste... etc
Marine Dead Zones W.A.D.M.Wijethiake 28 AS2009167
29. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 29
AS2009167

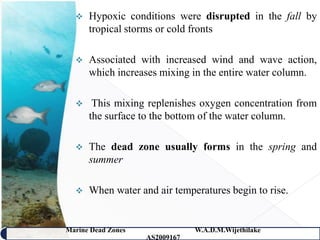

30. Hypoxic conditions were disrupted in the fall by
tropical storms or cold fronts
Associated with increased wind and wave action,
which increases mixing in the entire water column.
This mixing replenishes oxygen concentration from
the surface to the bottom of the water column.
The dead zone usually forms in the spring and
summer
When water and air temperatures begin to rise.
Marine Dead Zones W.A.D.M.Wijethilake 30
AS2009167

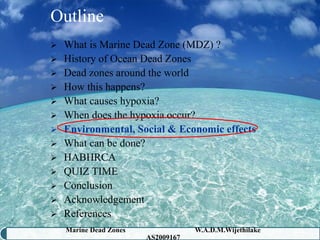

31. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 31
AS2009167

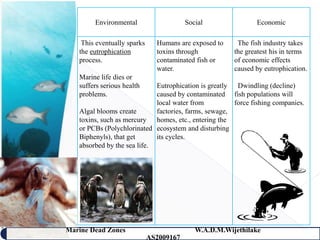

32. Environmental Social Economic
This eventually sparks Humans are exposed to The fish industry takes
the eutrophication toxins through the greatest his in terms
process. contaminated fish or of economic effects
water. caused by eutrophication.
Marine life dies or
suffers serious health Eutrophication is greatly Dwindling (decline)
problems. caused by contaminated fish populations will
local water from force fishing companies.
Algal blooms create factories, farms, sewage,
toxins, such as mercury homes, etc., entering the
or PCBs (Polychlorinated ecosystem and disturbing
Biphenyls), that get its cycles.
absorbed by the sea life.
Marine Dead Zones W.A.D.M.Wijethilake 32
AS2009167

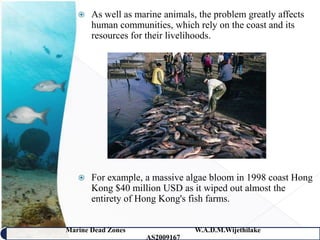

33. As well as marine animals, the problem greatly affects
human communities, which rely on the coast and its
resources for their livelihoods.
For example, a massive algae bloom in 1998 coast Hong
Kong $40 million USD as it wiped out almost the
entirety of Hong Kong's fish farms.
Marine Dead Zones W.A.D.M.Wijethilake 33
AS2009167

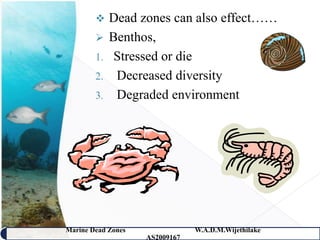

34. Dead zones can also effect……
Benthos,
1. Stressed or die
2. Decreased diversity
3. Degraded environment
Marine Dead Zones W.A.D.M.Wijethilake 34
AS2009167
35. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 35
AS2009167

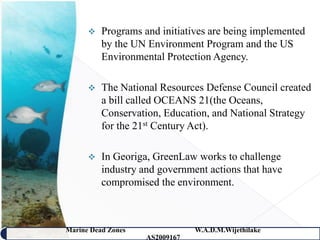

36. Programs and initiatives are being implemented
by the UN Environment Program and the US
Environmental Protection Agency.
The National Resources Defense Council created
a bill called OCEANS 21(the Oceans,
Conservation, Education, and National Strategy
for the 21st Century Act).
In Georiga, GreenLaw works to challenge
industry and government actions that have
compromised the environment.
Marine Dead Zones W.A.D.M.Wijethilake 36
AS2009167

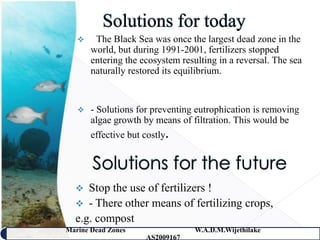

37. - The Black Sea was once the largest dead zone in the
world, but during 1991-2001, fertilizers stopped
entering the ecosystem resulting in a reversal. The sea
naturally restored its equilibrium.
- Solutions for preventing eutrophication is removing
algae growth by means of filtration. This would be
effective but costly.
Stop the use of fertilizers !
- There other means of fertilizing crops,
e.g. compost
Marine Dead Zones W.A.D.M.Wijethilake 37
AS2009167
38. What Can be Done to Remediate the
Problem?
Solutions include:
Using fewer fertilizers and adjusting the timing of
fertilizer applications
Control of animal wastes
Monitoring of septic systems and sewage treatment
facilities to reduce discharge of nutrients to surface
water and groundwater
Careful industrial practices such as limiting the
discharge of nutrients, organic matter, and chemicals
from manufacturing facilities.
Funding efforts to restore wetlands along the coast to
naturally filter the water before it enters the ocean.
Marine Dead Zones W.A.D.M.Wijethilake 38
AS2009167

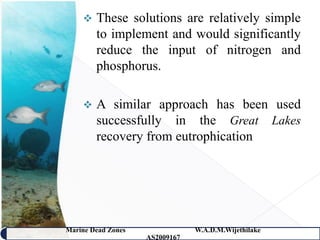

39. These solutions are relatively simple
to implement and would significantly
reduce the input of nitrogen and
phosphorus.
A similar approach has been used
successfully in the Great Lakes
recovery from eutrophication.
Marine Dead Zones W.A.D.M.Wijethilake 39
AS2009167
40. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 40
AS2009167
41. Harmful Algal Bloom and
Hypoxia Research and Control
Act
Marine Dead Zones W.A.D.M.Wijethilake 41
AS2009167

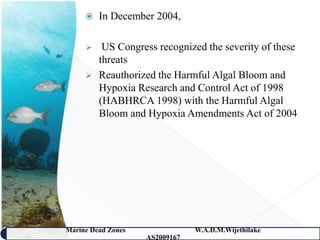

42. In December 2004,
US Congress recognized the severity of these
threats
Reauthorized the Harmful Algal Bloom and
Hypoxia Research and Control Act of 1998
(HABHRCA 1998) with the Harmful Algal
Bloom and Hypoxia Amendments Act of 2004
Marine Dead Zones W.A.D.M.Wijethilake 42
AS2009167
43. Scientific understanding and ability to
detect, monitor, assess, and predict HAB
and hypoxia events.
It authorized funding for existing and
new competitive research programs on
HABs and hypoxia, including a new
program to research methods of
prevention, control, and mitigation of
HABs.
Marine Dead Zones W.A.D.M.Wijethilake 43
AS2009167

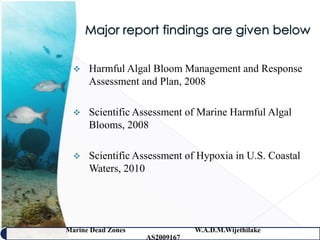

44. Harmful Algal Bloom Management and Response
Assessment and Plan, 2008
Scientific Assessment of Marine Harmful Algal
Blooms, 2008
Scientific Assessment of Hypoxia in U.S. Coastal
Waters, 2010
Marine Dead Zones W.A.D.M.Wijethilake 44
AS2009167
45. Outline
What is Marine Dead Zone (MDZ) ?
History of Ocean Dead Zones
Dead zones around the world
How this happens?
What causes hypoxia?
When does the hypoxia occur?
Environmental, Social & Economic effects
What can be done?
HABHRCA
QUIZ TIME
Conclusion
Acknowledgement
References
Marine Dead Zones W.A.D.M.Wijethilake 45
AS2009167

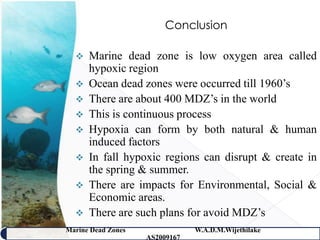

46. Conclusion
Marine dead zone is low oxygen area called
hypoxic region
Ocean dead zones were occurred till 1960’s
There are about 400 MDZ’s in the world
This is continuous process
Hypoxia can form by both natural & human
induced factors
In fall hypoxic regions can disrupt & create in
the spring & summer.
There are impacts for Environmental, Social &
Economic areas.
There are such plans for avoid MDZ’s
Marine Dead Zones W.A.D.M.Wijethilake 46
AS2009167
47. My heartiest thanks goes to
Dr.RRMKP Ranatunga for his vital
encouragement.
Persons in Zoology & main library in
University of Sri Jayawardenepura.
Mrs.Sunethra Kariyawasam in NARA.
For all are who helped me
Marine Dead Zones W.A.D.M.Wijethilake 47
AS2009167

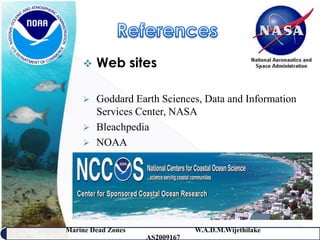

48. Web sites
Goddard Earth Sciences, Data and Information
Services Center, NASA
Bleachpedia
NOAA
Marine Dead Zones W.A.D.M.Wijethilake 48
AS2009167
Editor's Notes
The dead zone usually forms in the spring and summer when water and air temperatures begin to rise. At this time the discharge of the Mississippi River also increases. Freshwater from the river overlies saltier, denser water in the Gulf, forming a stratified layer. The layering is intensified by warming from the sun. The freshwater brings nutrients, which are primarily from agricultural runoff. The additional nutrients stimulate high production or blooms of microscopic algae (phytoplankton). When phytoplankton die, they sink to the bottom. Some phytoplankton are consumed by zooplankton. Dead zooplankton and their fecal pellets also sink to the bottom where organic matter accumulates. This organic matter is decomposed by bacteria in the lower reaches of the water column and on the bottom. The decomposition process uses up oxygen there. These low oxygen levels persist throughout the spring and summer until a cold front or tropical storm stirs up the water column and replenishes oxygen.
The environment is effected by polluted water from fertilizers carried by the rain.
Benthos is the food base for many fishes.Under hypoxic conditions: Bottom dwellers become stressed and will die if oxygen levels remain low for long periods.Shrimp, crabs, snails and starfish emerge from the protection of the sediment and their burrows seeking O2 and become easy prey or eventually die. — Immobile bottom dwellers cannot escape. — Diversity is decreased.These changes and decreases in diversity indicate a degrading environment.
