Geographic, GPS,And Datum FundamentalsA brief review of revolutionary ideas and technologies

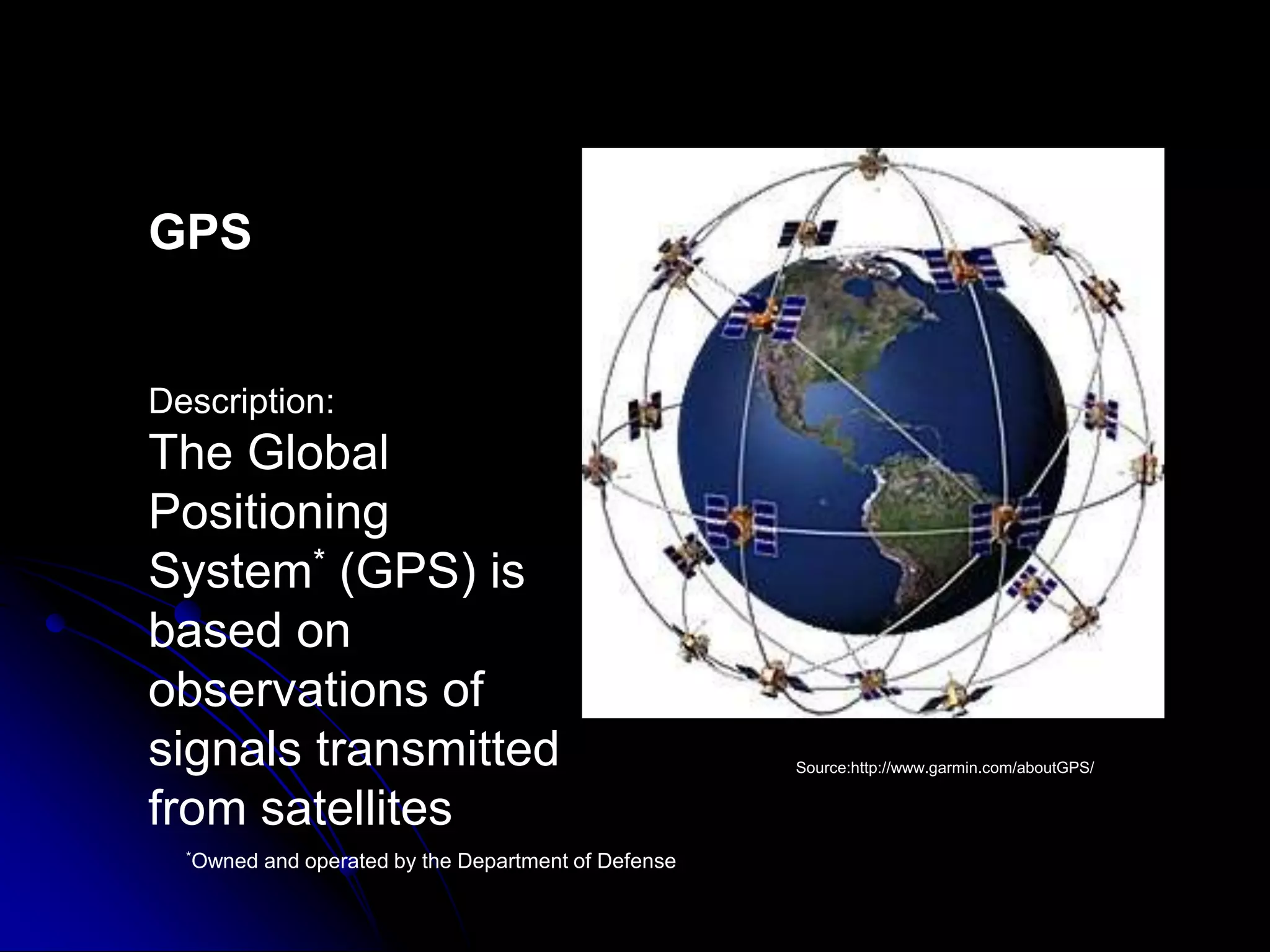

GPS Description:The Global Positioning System* (GPS) is based on observations of signals transmitted from satellitesSource:http://www.garmin.com/aboutGPS/ *Owned and operated by the Department of Defense

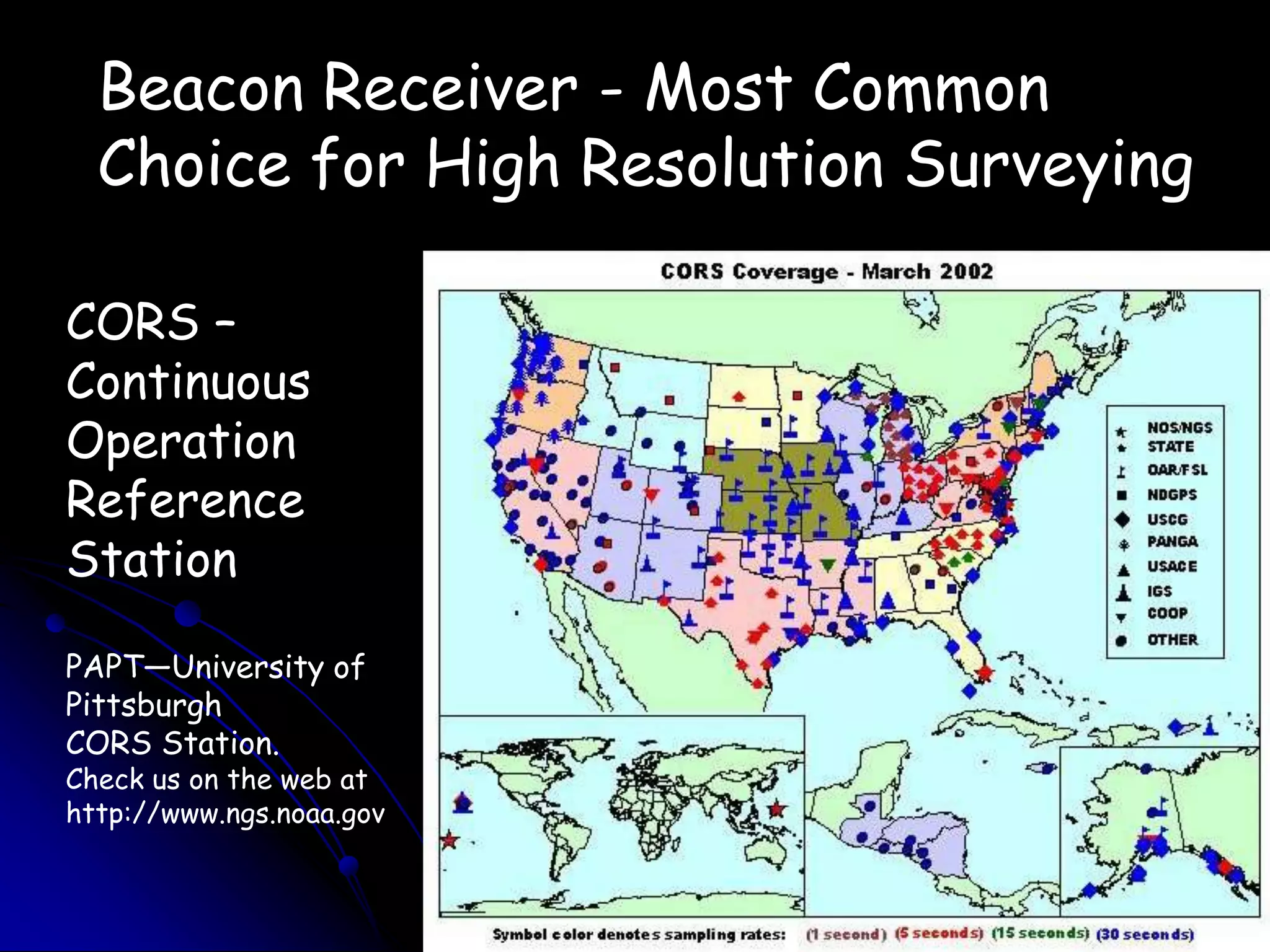

Beacon Receiver - Most CommonChoice for High Resolution SurveyingCORS –ContinuousOperationReferenceStationPAPT—University of PittsburghCORS Station.Check us on the web athttp://www.ngs.noaa.gov

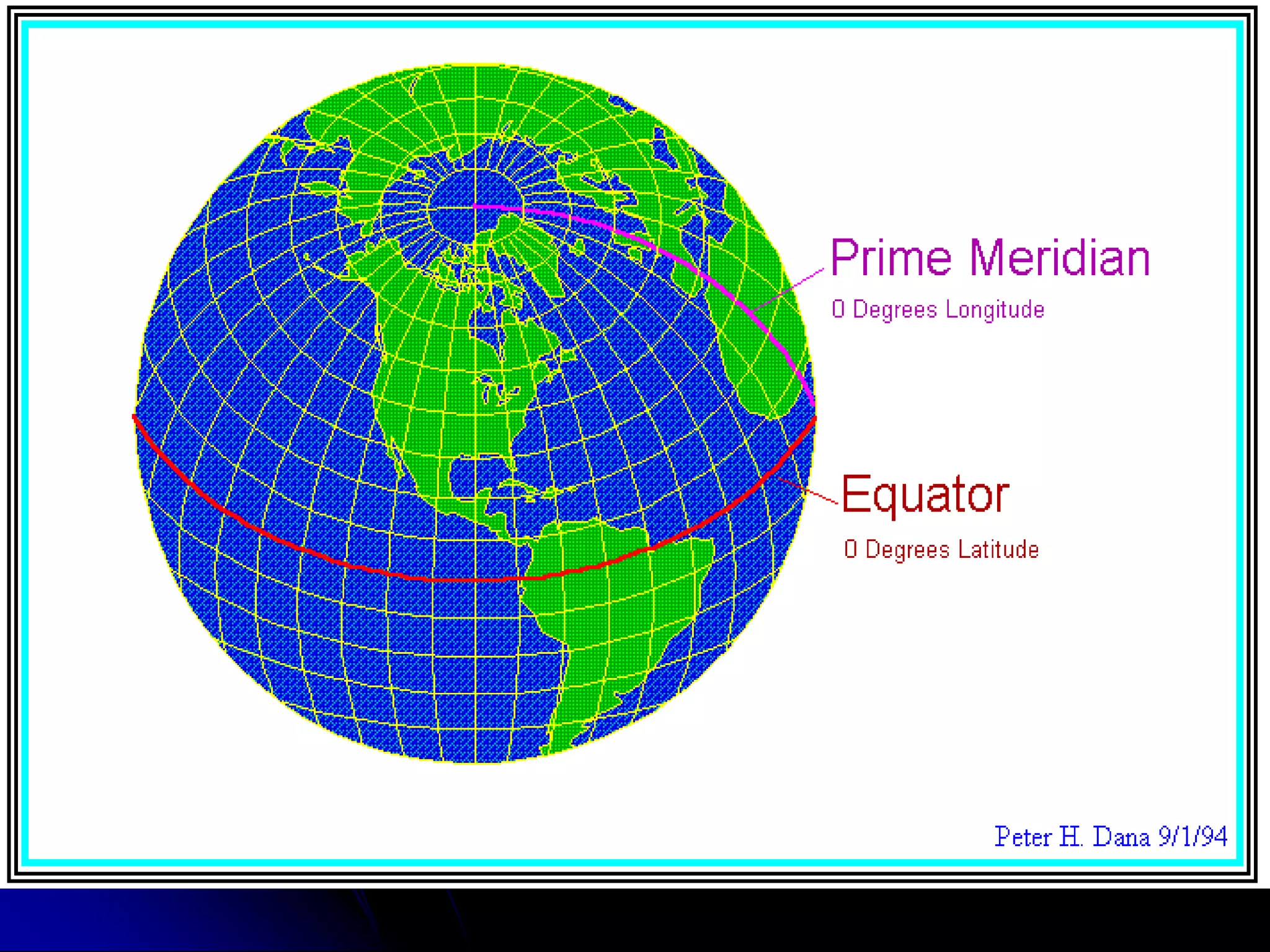

Geographic CoordinatesOrigin atGreenwichObservatoryandEquator

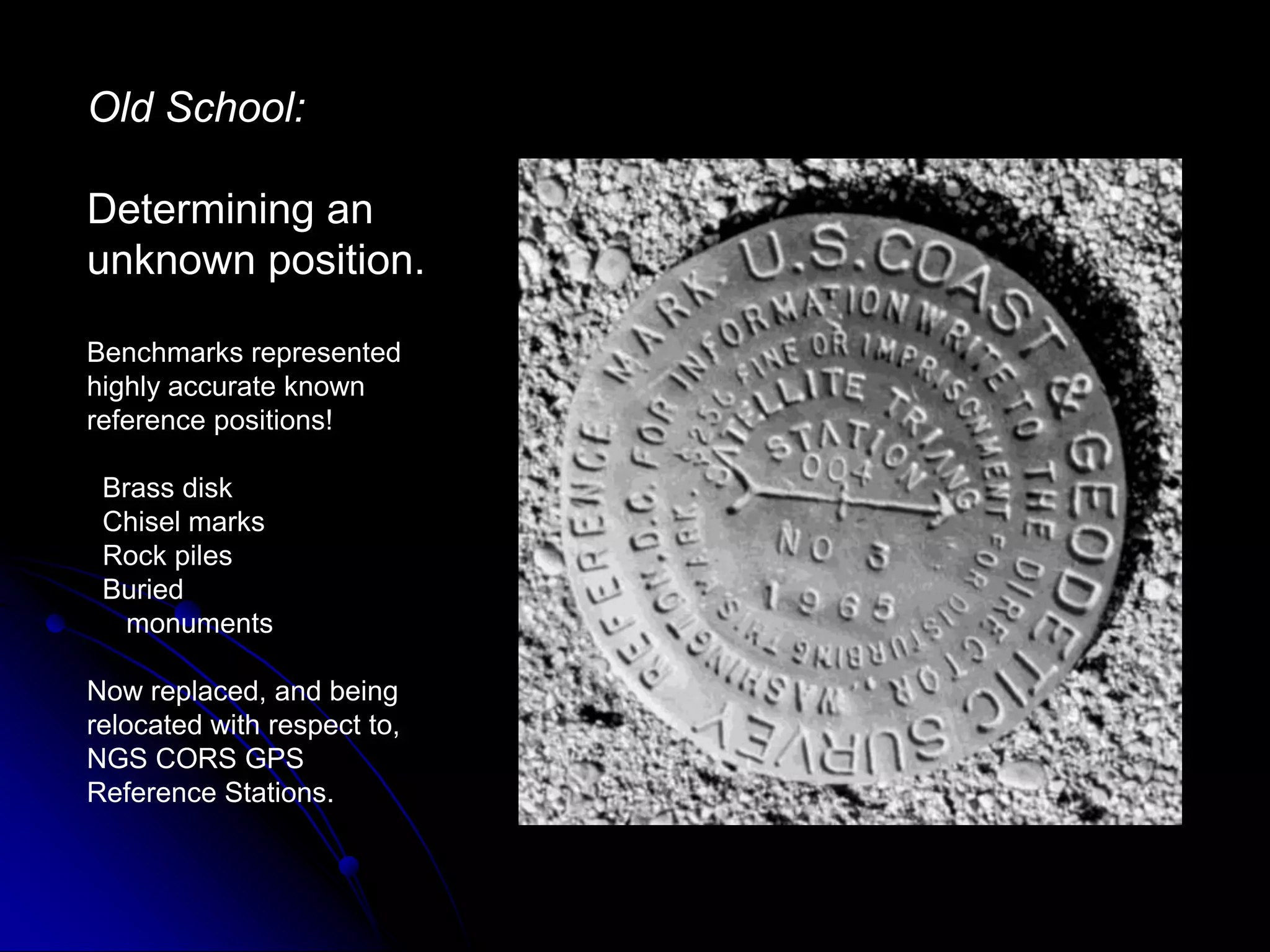

Old School:Determining an unknown position.Benchmarks represented highly accurate known reference positions! Brass disk Chisel marks Rock piles Buried monumentsNow replaced, and being relocated with respect to, NGS CORS GPS Reference Stations.

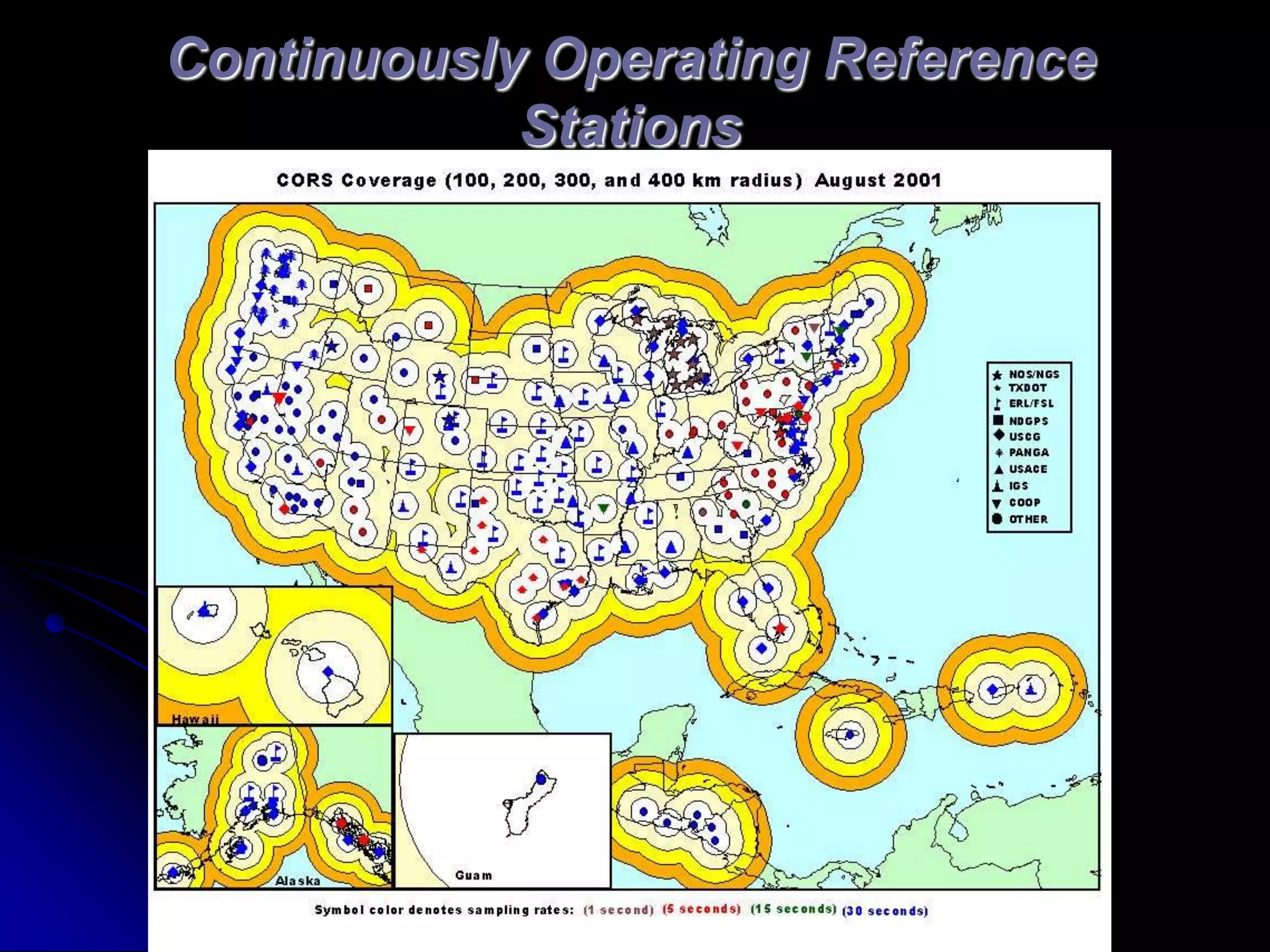

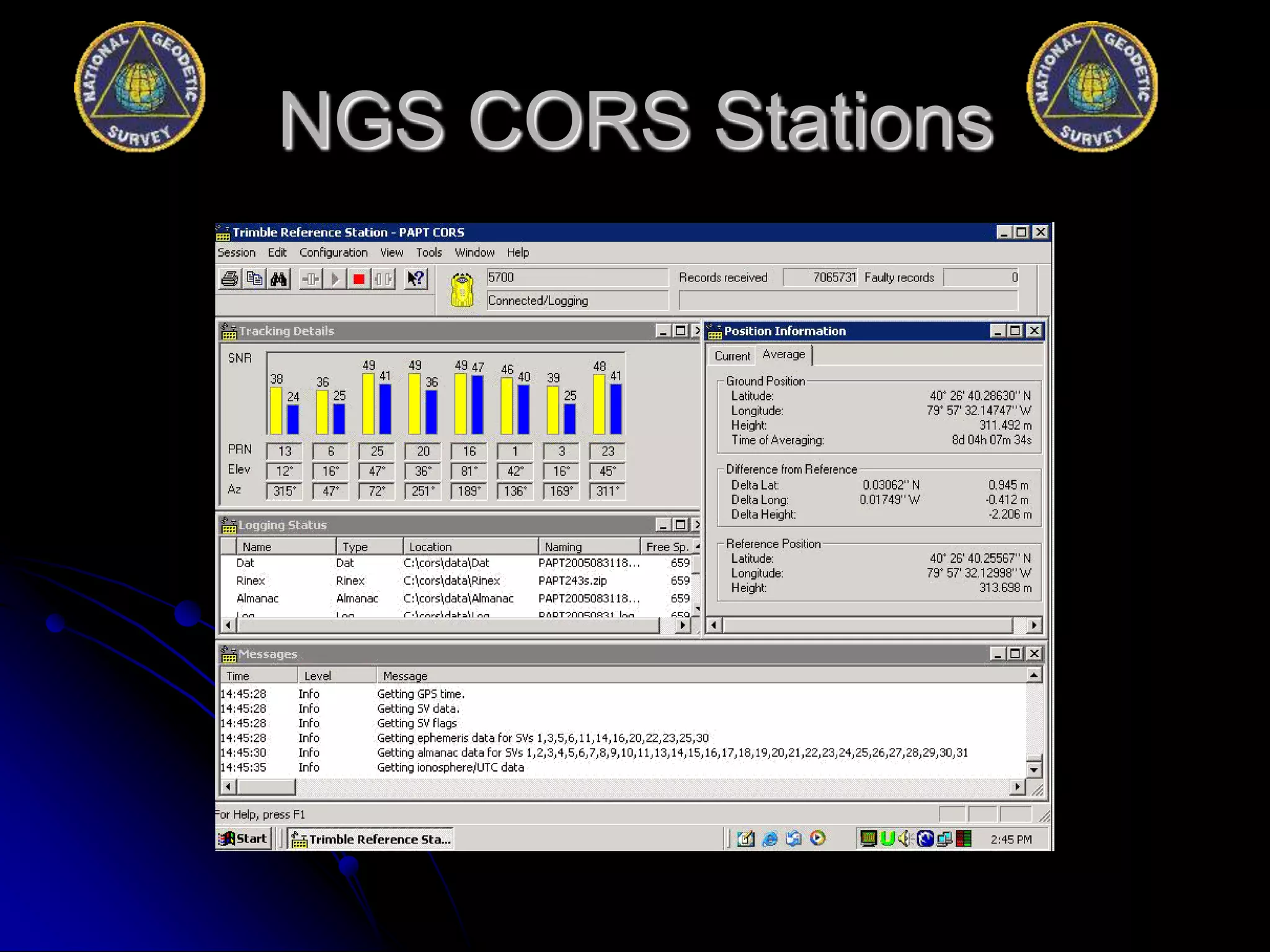

Continuously Operating Reference Stations

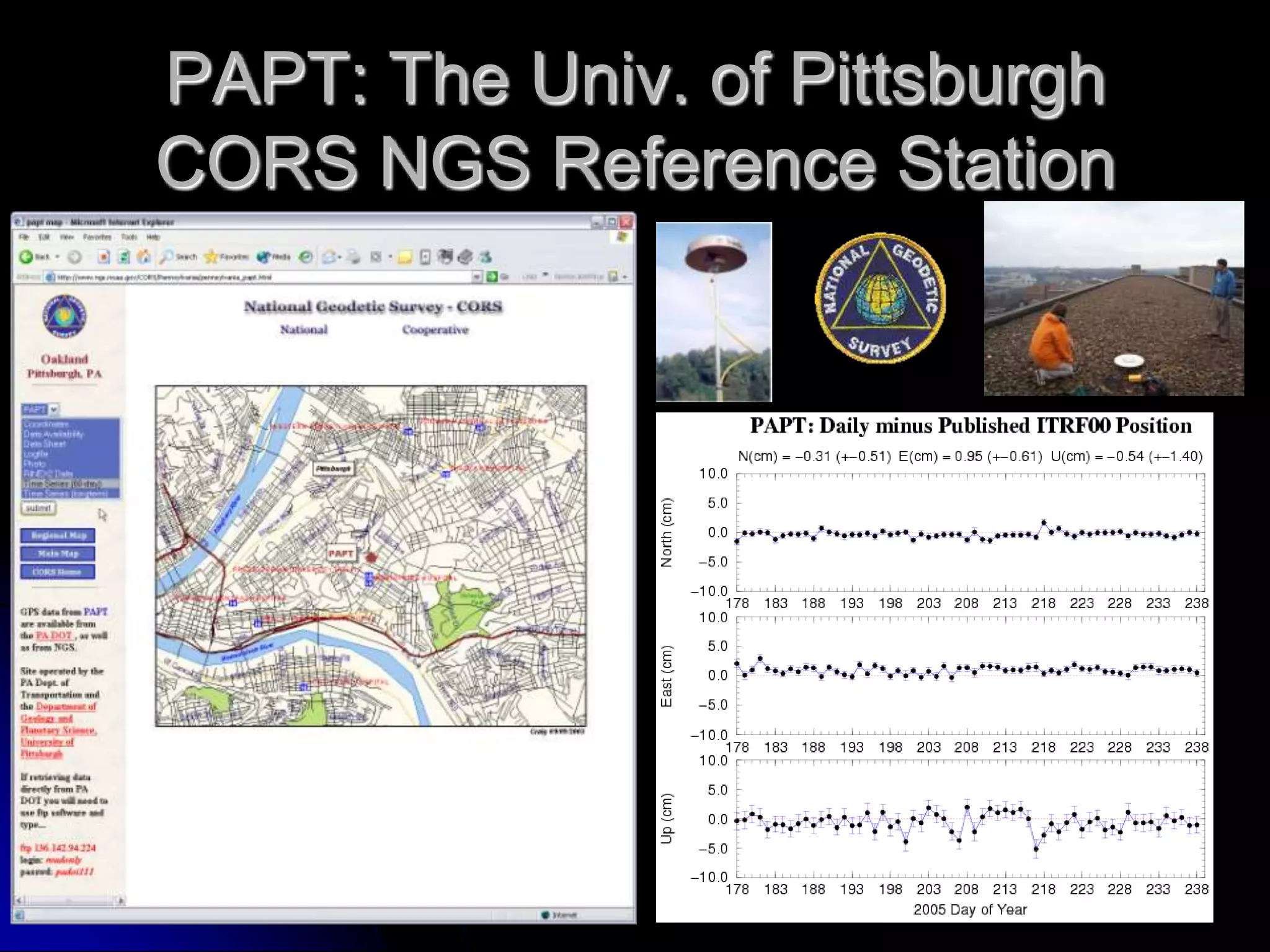

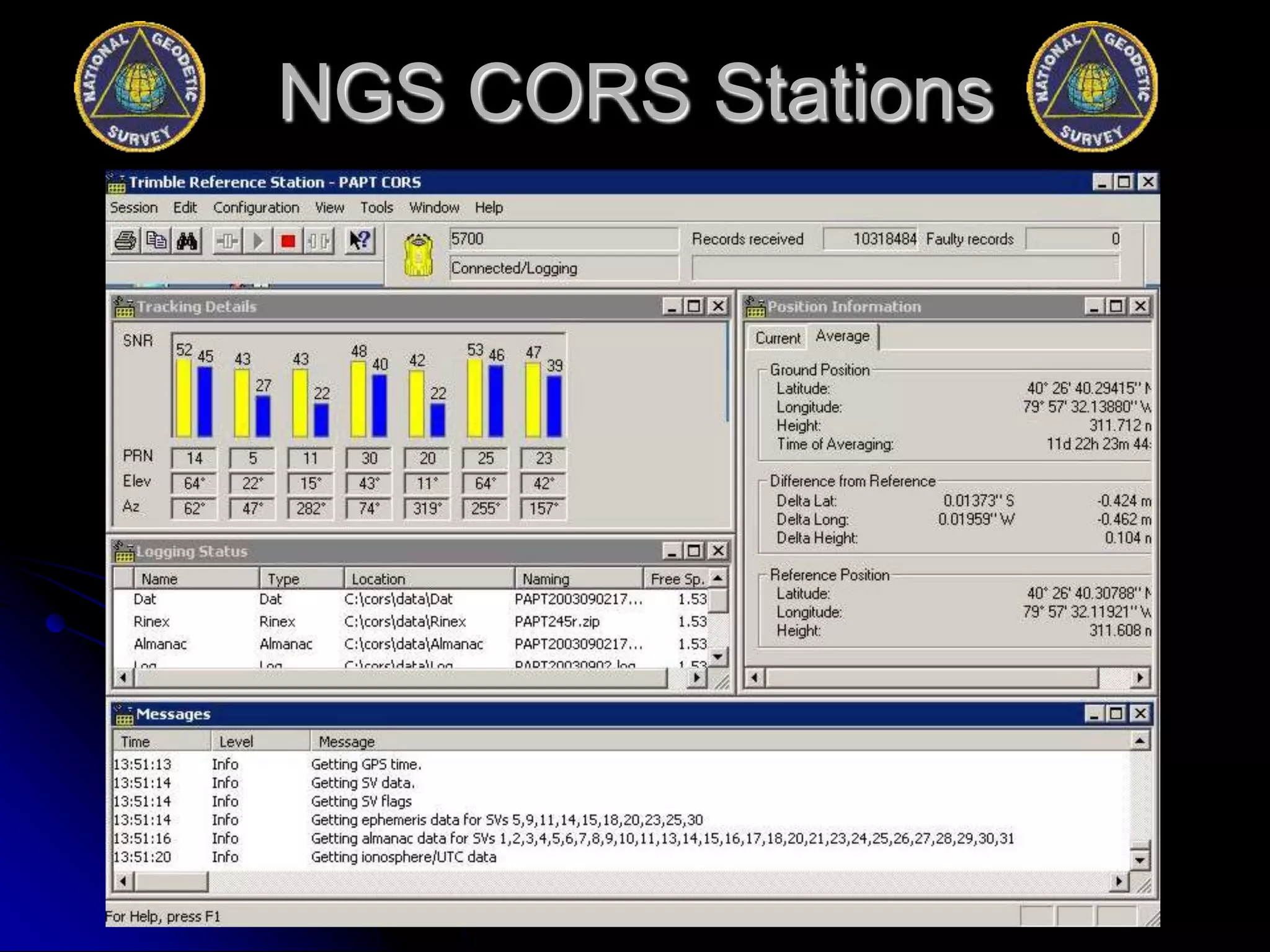

PAPT: The Univ. of Pittsburgh CORS NGS Reference Station

Specifying an unknown PositionMeasure unknown position with respect to known features.Involved triangulation of known features to determine an unknown point.National networks established.

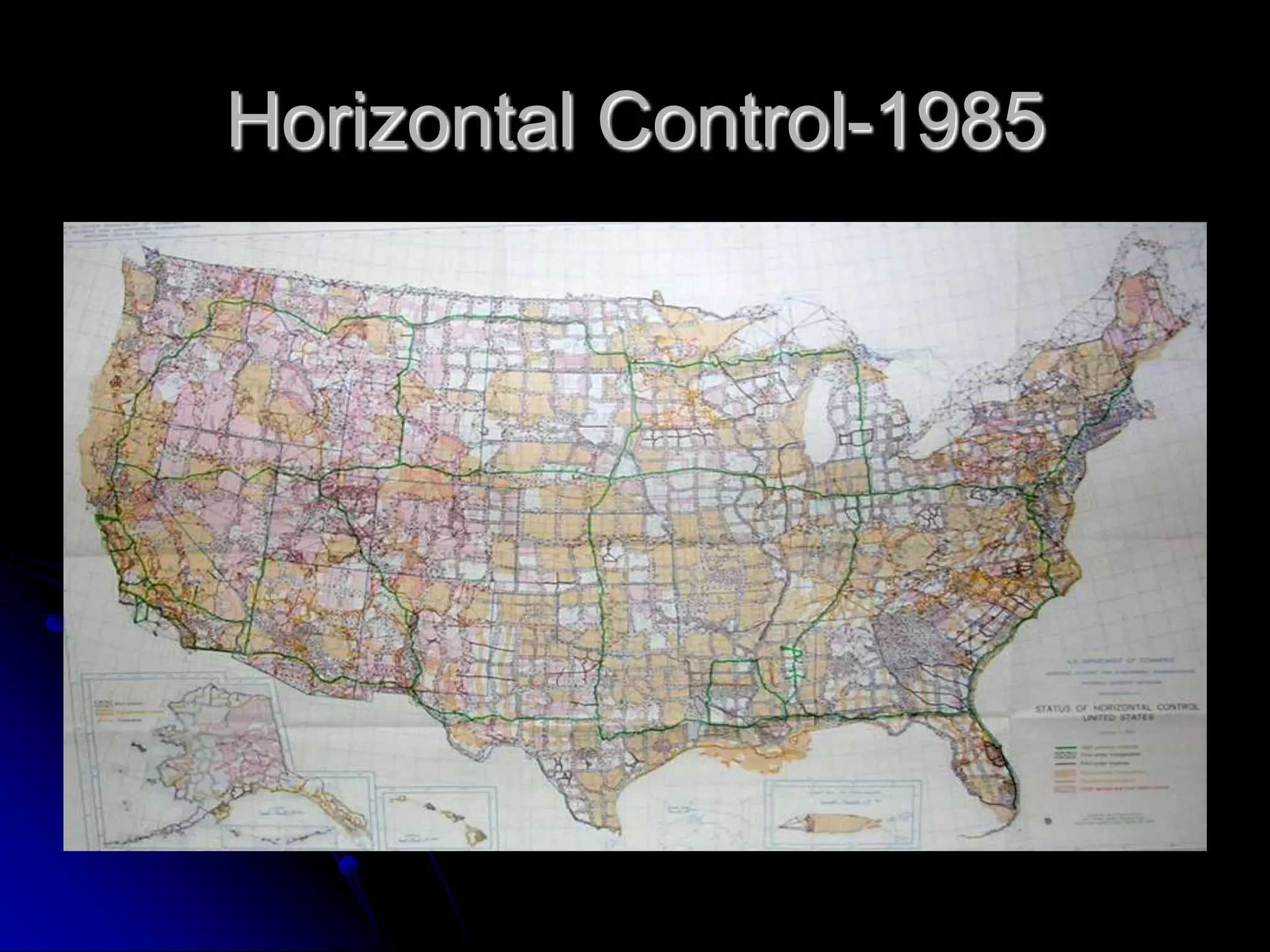

Datum, Survey NetworkHistorically:Triangulation NetworkAstronomical observationInitial, intermittent, and ending baselinesMultiple, redundant angle measurementsWhy these technologies?Easy to measure anglesDifficult to measure distance accuratelyTime consuming to measure point position accurately

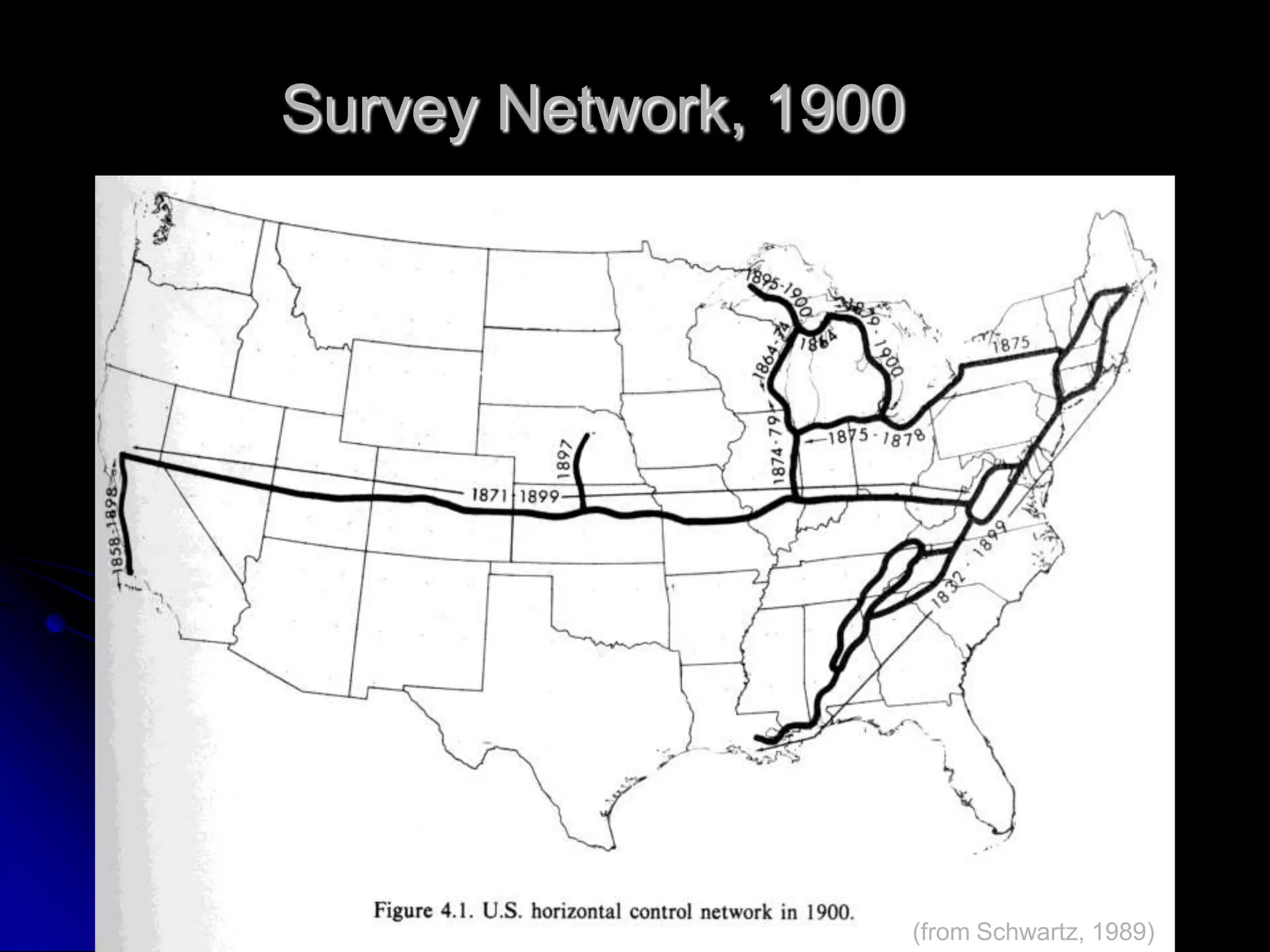

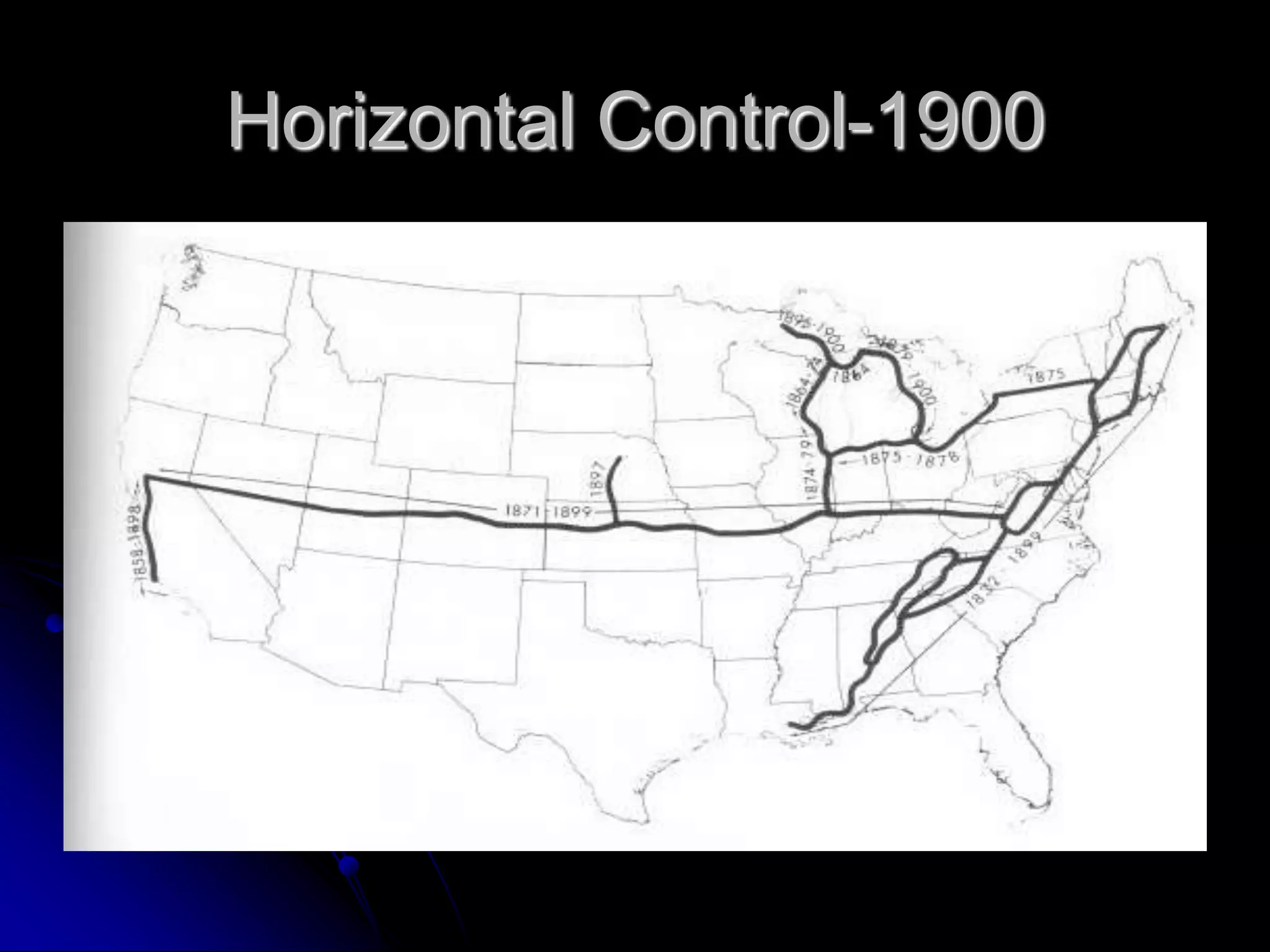

Survey Network, 1900(from Schwartz, 1989)

Space based measurementsThe advent of the Earth orbiting satellites starting in 1955, and the development of radio astronomy (Jansky, 1932) started to bring about a revolution in geodetic accuracy.Activity started after WWII using technology developed during the war and in response to cold war.New methods removed the need for line-of-sight

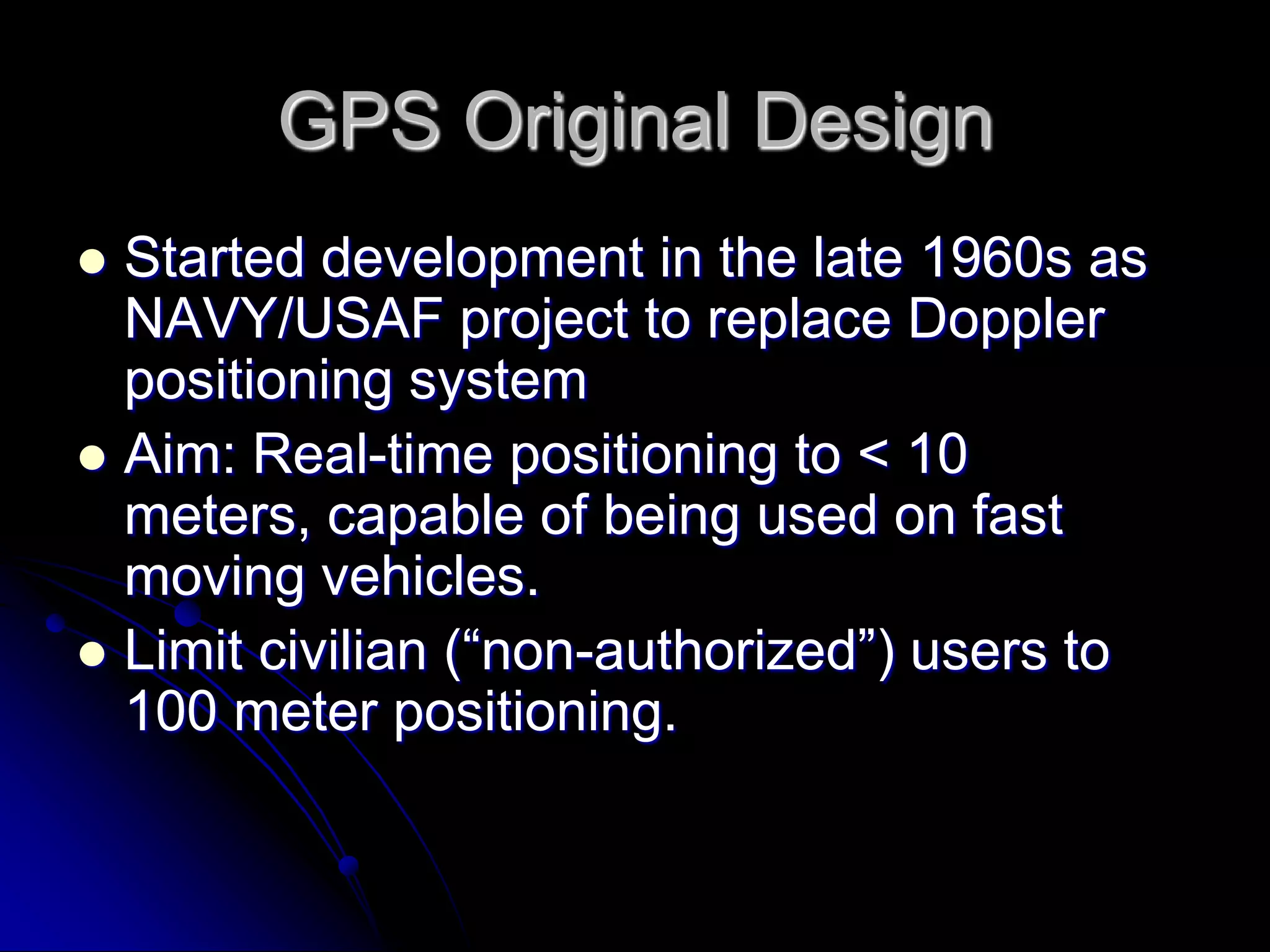

GPS Original DesignStarted development in the late 1960s as NAVY/USAF project to replace Doppler positioning systemAim: Real-time positioning to < 10 meters, capable of being used on fast moving vehicles.Limit civilian (“non-authorized”) users to 100 meter positioning.

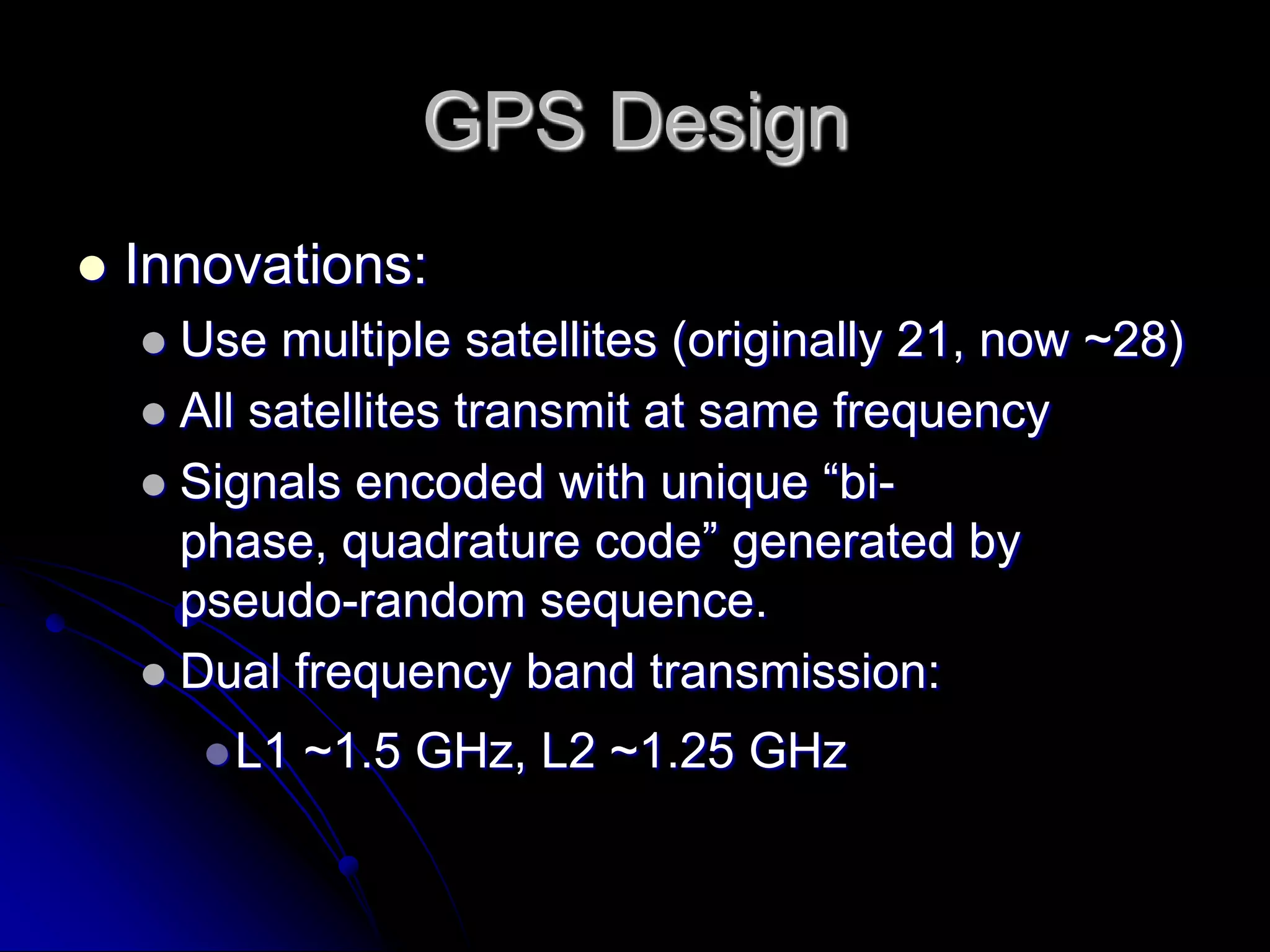

GPS DesignInnovations:Use multiple satellites (originally 21, now ~28)All satellites transmit at same frequencySignals encoded with unique “bi-phase, quadrature code” generated by pseudo-random sequence.Dual frequency band transmission:L1 ~1.5 GHz, L2 ~1.25 GHz

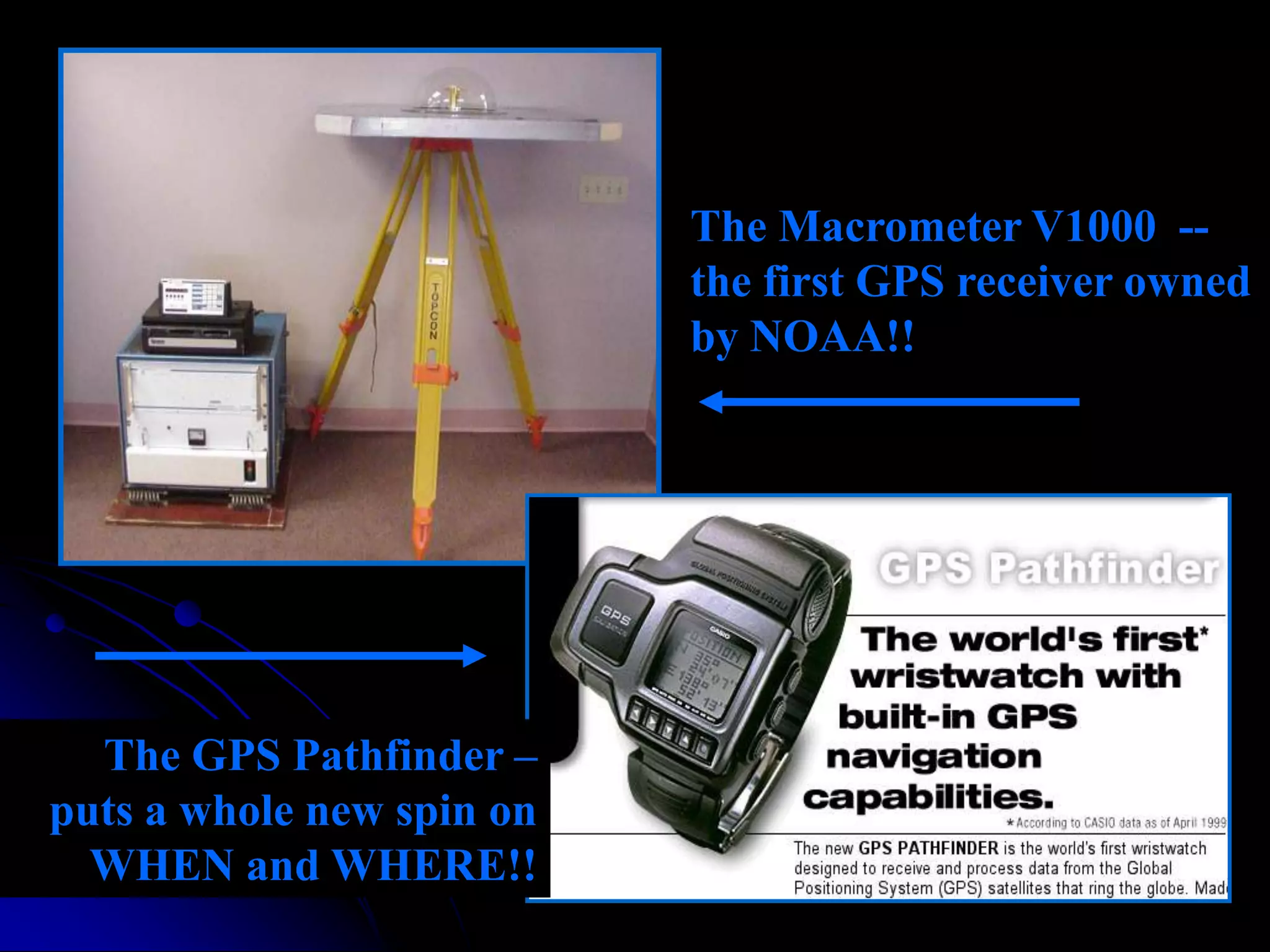

The Macrometer V1000 -- the first GPS receiver owned by NOAA!!The GPS Pathfinder – puts a whole new spin on WHEN and WHERE!!

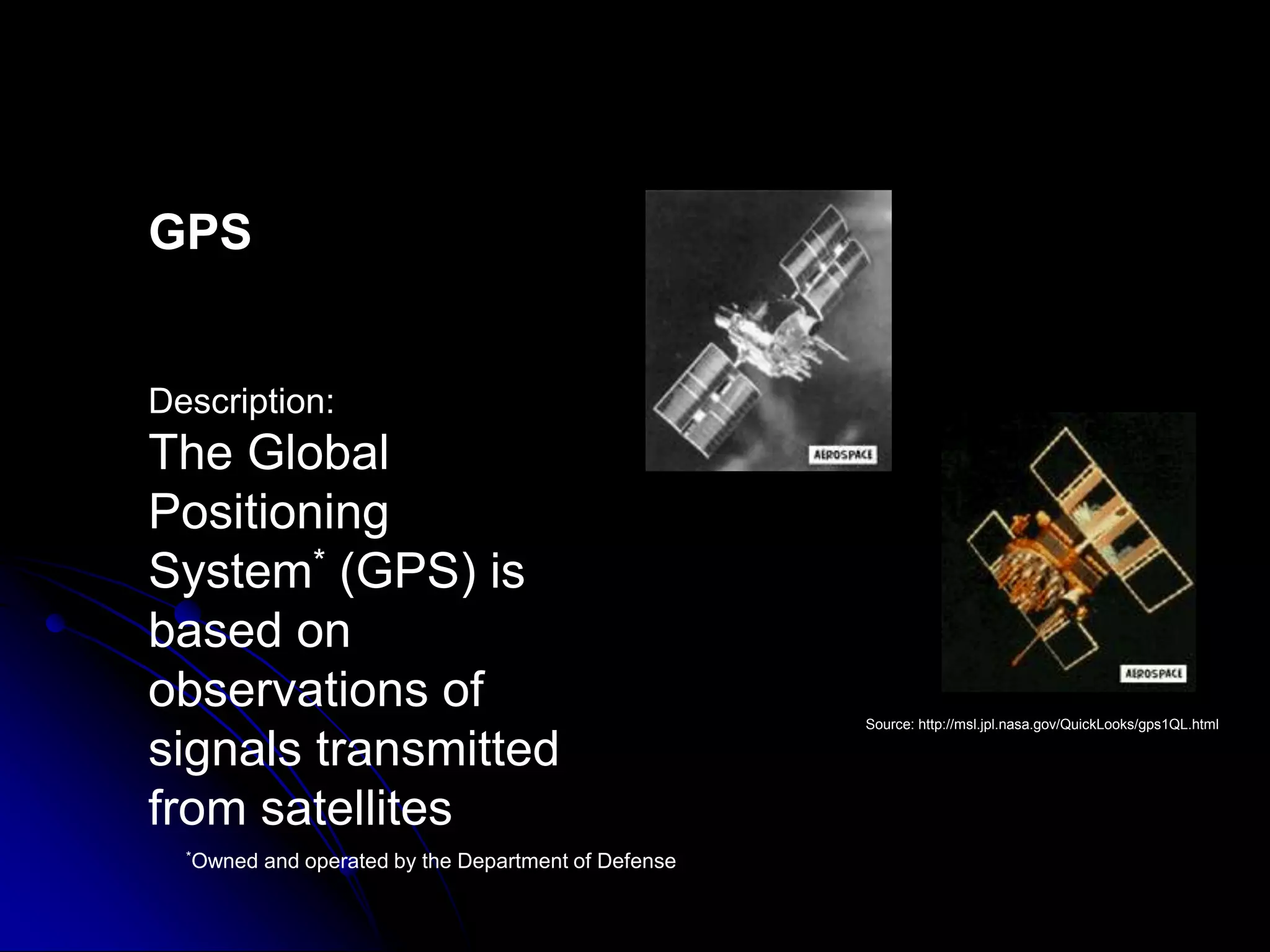

GPS Description:The Global Positioning System* (GPS) is based on observations of signals transmitted from satellitesSource: http://msl.jpl.nasa.gov/QuickLooks/gps1QL.html *Owned and operated by the Department of Defense

MeasurementsMeasurements: Time difference between signal transmission from satellite and its arrival at ground station (called “pseudo-range”, precise to 0.1–10 m)Carrier phase difference between transmitter and receiver (precise to a few millimeters)All measurements relative to “clocks” in ground receiver and satellites (potentially poses problems).

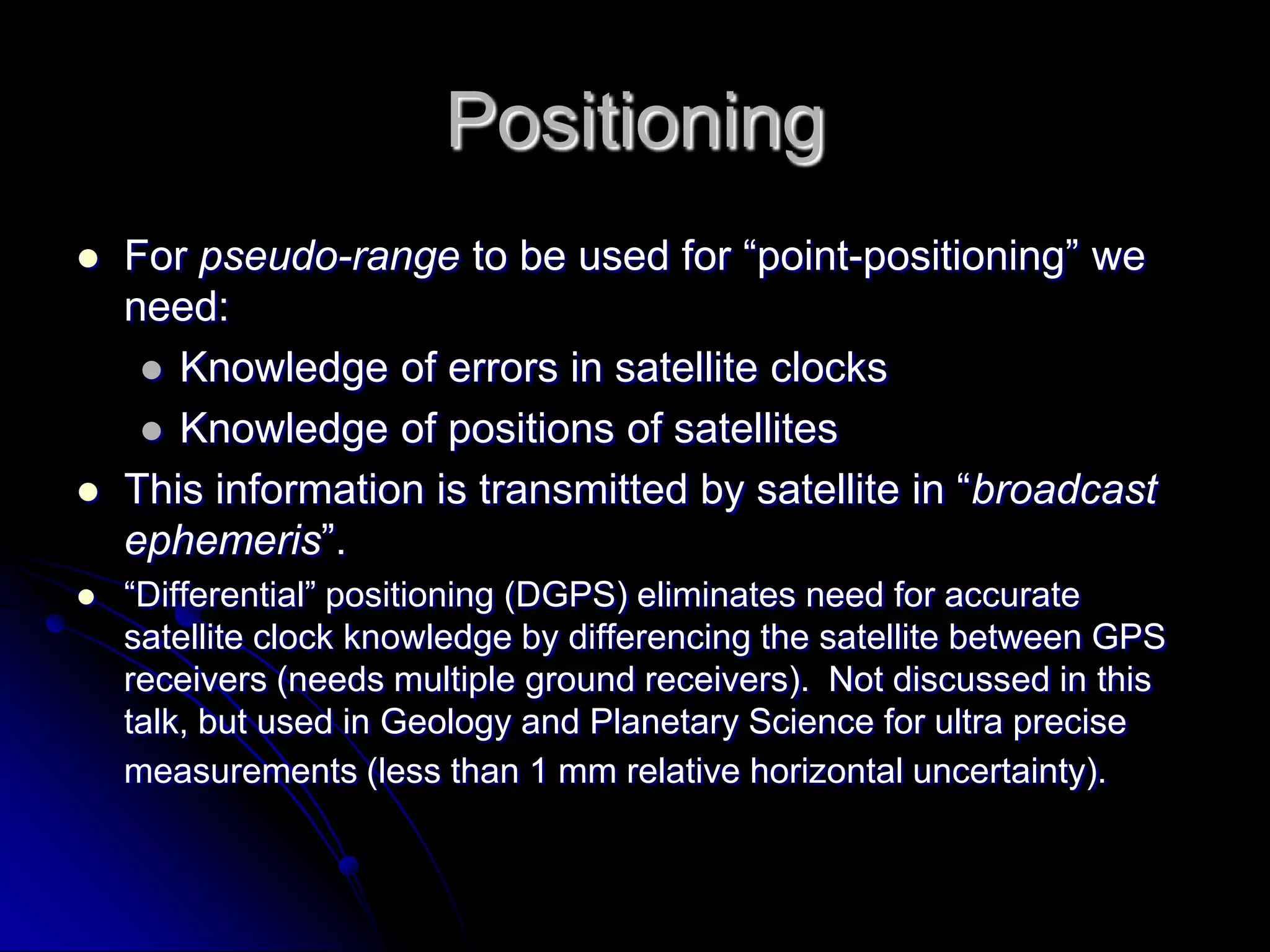

PositioningFor pseudo-range to be used for “point-positioning” we need:Knowledge of errors in satellite clocksKnowledge of positions of satellitesThis information is transmitted by satellite in “broadcast ephemeris”. “Differential” positioning (DGPS) eliminates need for accurate satellite clock knowledge by differencing the satellite between GPS receivers (needs multiple ground receivers). Not discussed in this talk, but used in Geology and Planetary Science for ultra precise measurements (less than 1 mm relative horizontal uncertainty).

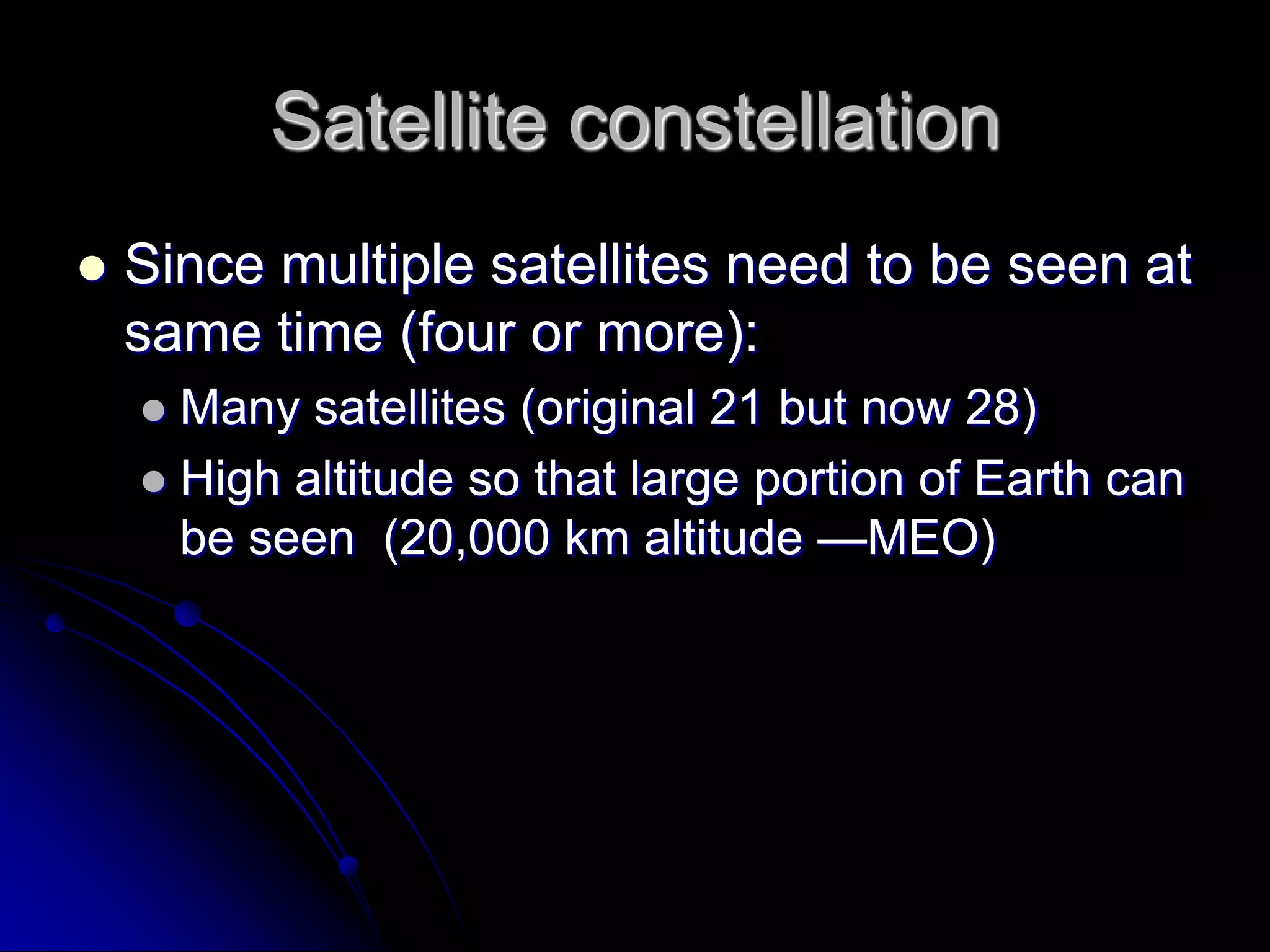

Satellite constellationSince multiple satellites need to be seen at same time (four or more):Many satellites (original 21 but now 28)High altitude so that large portion of Earth can be seen (20,000 km altitude —MEO)

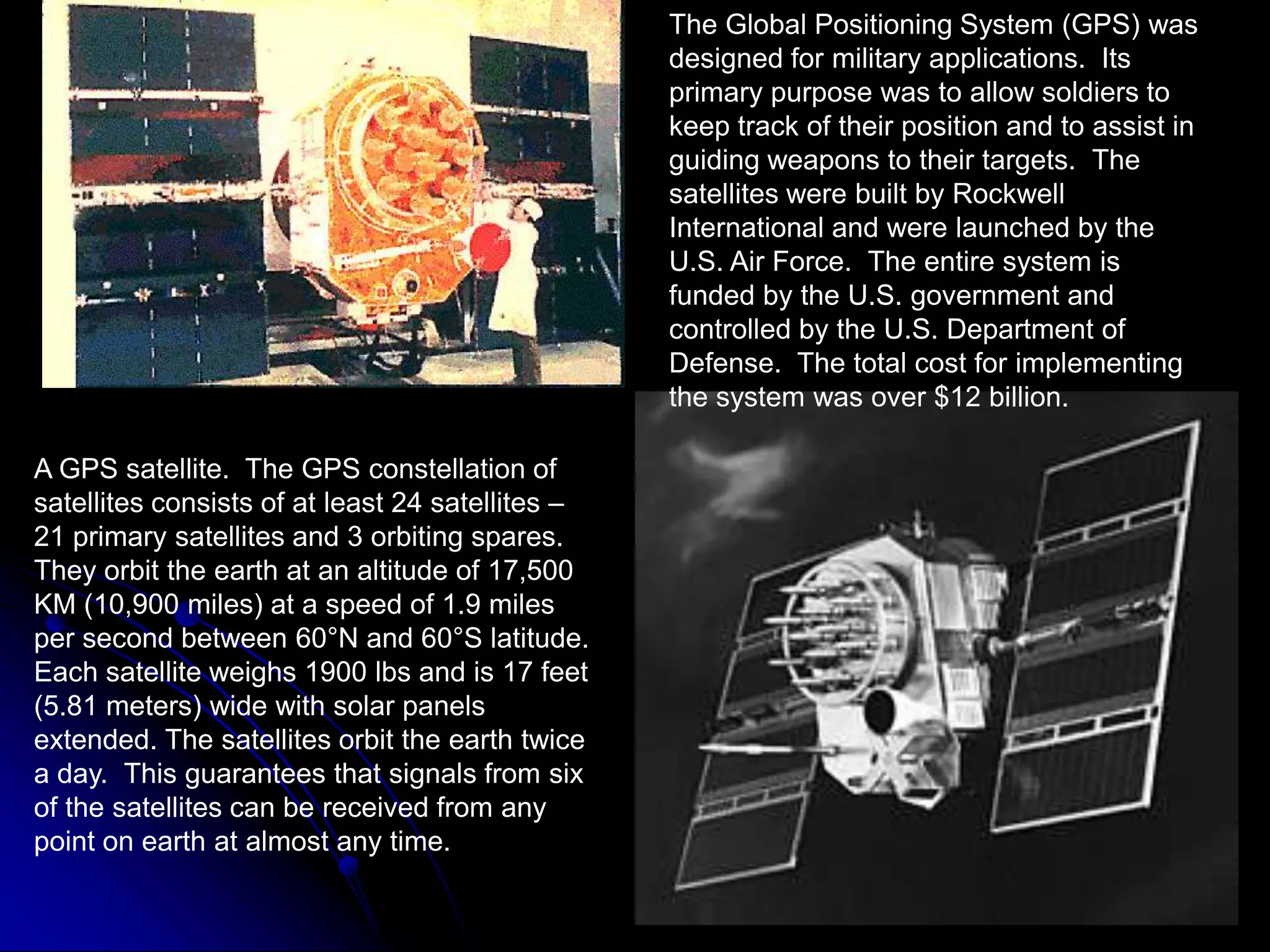

The Global Positioning System (GPS) was designed for military applications. Its primary purpose was to allow soldiers to keep track of their position and to assist in guiding weapons to their targets. The satellites were built by Rockwell International and were launched by the U.S. Air Force. The entire system is funded by the U.S. government and controlled by the U.S. Department of Defense. The total cost for implementing the system was over $12 billion.A GPS satellite. The GPS constellation of satellites consists of at least 24 satellites – 21 primary satellites and 3 orbiting spares. They orbit the earth at an altitude of 17,500 KM (10,900 miles) at a speed of 1.9 miles per second between 60°N and 60°S latitude. Each satellite weighs 1900 lbs and is 17 feet (5.81 meters) wide with solar panels extended. The satellites orbit the earth twice a day. This guarantees that signals from six of the satellites can be received from any point on earth at almost any time.

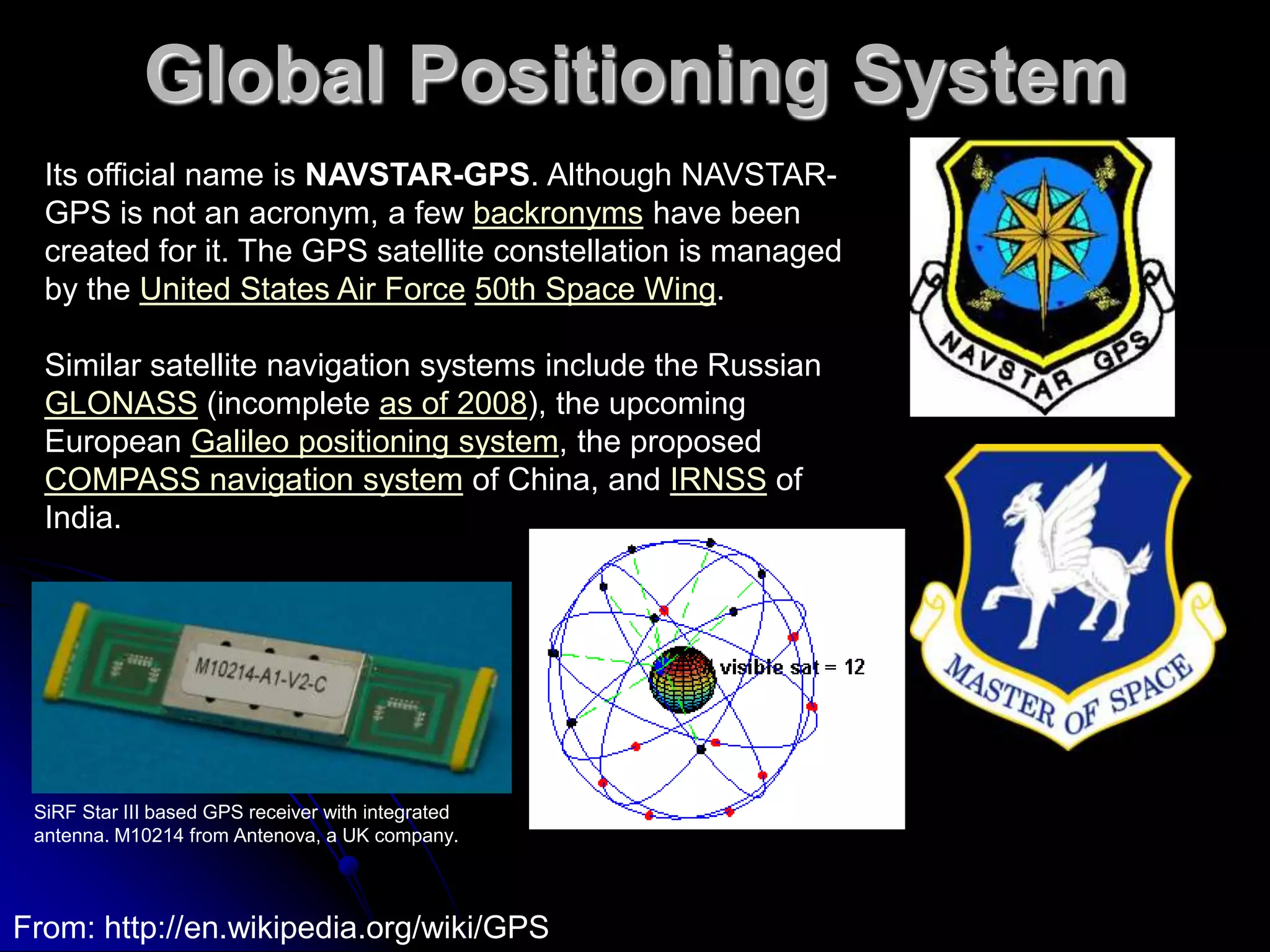

Global Positioning SystemIts official name is NAVSTAR-GPS. Although NAVSTAR-GPS is not an acronym, a few backronyms have been created for it. The GPS satellite constellation is managed by the United States Air Force50th Space Wing.Similar satellite navigation systems include the Russian GLONASS (incomplete as of 2008), the upcoming European Galileo positioning system, the proposed COMPASS navigation system of China, and IRNSS of India.SiRF Star III based GPS receiver with integrated antenna. M10214 from Antenova, a UK company.From: http://en.wikipedia.org/wiki/GPS

THEGLOBAL POSITIONING SYSTEM PARTNERSHIP COUNCIL 2008 05 18 Partnership Council Welcome Slides

Hosting Organizations – Senior RepresentativeBRIGADIER GENERAL JOHN E. HYTENBrig Gen John E. Hyten is the Director of Requirements, Headquarters Air Force Space Command, Peterson Air Force Base, CO. As Director, he is responsible for ensuring future space and missile systems meet the operational needs of our joint forces into the 21st century.COLONEL DAVID W. MADDENColonel David W. Madden is Commander, Global Positioning Systems Wing (GPSW), Space and Missile Systems Center, LA AFB, CA. He is responsible for the multi-service, multi-national Systems Wing which conducts development, acquisition, fielding and sustainment of all GPS space segment, satellite command and control (ground) segment, and GPS military user equipment. 2008 05 18 Partnership Council Welcome Slides

Dr. Bradford W. ParkinsonDr. Bradford Parkinson (then USAF Colonel) was the original Program Director for Navstar GPS during the programs first six critical years (1972-1978). He and his team championed the effort to define the GPS system, sell the concept, develop the system architecture and perform the first test for DoD. Their first attempt for program approval failed in August 1973. It was packaged as the Air Force’s 621B system. It was determined that a more broadly based program, embracing the views and requirements of all US military services be developed. In response, Dr. Parkinson assembled about a dozen members of the JPO, on the fifth floor of the Pentagon. He directed the development of a new design that employed the best of all available concepts and technology. The result was a synthesis of the Air Force and Navy’s prior systems: Air Force’s 621B, Navy’s Timation, and Navy/Applied Physics Lab’s Transit program, as well as new ideas. The GPS design of today is essentially unchanged from the concept approved in December 1973. Dr. Parkinson’s continual focus on the future has assured his place in the history of navigation. 2008 05 18 Partnership Council Welcome Slides

Dr. A.J. Van DierendonckDr. A.J. Van Dierendonck, as an employee of AVAND Systems Engineering (his own company), has performed as a Consultant or Contract Engineer to eight major aerospace companies, all involved with the GPS program since 1977. He performed systems engineering tasks on GPS Monitor Station receivers, Position Reference System receivers, the GPSPAC Spaceborne Navigation Set, the X-set, the Y-set and the M-set. In addition, Dr. Van Dierendonck consulted on a significant portion of a FAA contract for an assessment of GPS applied to Civil Aviation Navigation requirements and on the development of a GPS user receiver simulation to be used in conjunction with their Inertial Navigation Systems simulations. Prior to March 1977, Dr. Van Dierendonck was the GPS Technical Manager at General Dynamics Electronics Division, responsible for the Phase I GPS Control Segment system designs requirements, system interfaces and algorithm development. The GPS program is indebted to Dr. A.J. Van Dierendonck for his tireless efforts. 2008 05 18 Partnership Council Welcome Slides

Dr. James J. Spilker, Jr.For over thirty years, Dr. Spilker has made repeated and lasting contributions to the technical, architectural and programmatic definition of GPS. In the 1970’s, he was a key creator of, and advocate for, the navigation signal structure now used by millions of civil and military users around the world. In the 1980’s, he founded and led Stanford Telecom as it developed a wide range of electronic products and services for diverse customers. In the 1990’s he continued to be a strong advocate to the National leadership for modernization of the GPS system. His leadership has made GPS the success it is today. 2008 05 18 Partnership Council Welcome Slides

Mr. Gaylord B. GreenColonel (ret) Green has made significant contributions in the civil, military, and scientific development and use of GPS. In the early 1970’s, he served an integral role in the development of GPS Block I satellites. In the 1980’s, he led the Guidance and Control Division of the Ballistic Missile Office where he integrated GPS receivers on two flights of Minuteman ICBMs. His government service culminated in his return to the JPO as the System Program Director. Upon entering the commercial sector in the late 1980’s, he continued to support GPS as President of the Institute of Navigation and President of Navastro Company, Inc., where he oversaw the application of high-precision GPS-based orbit determination to test Einstein’s General Theory of Relativity. Mr. Green’s distinguished service has contributed immeasurability to the success of GPS. 2008 05 18 Partnership Council Welcome Slides

Mr. Thomas A. Stansell, Jr.Mr. Thomas A. Stansell, Jr. has made repeated and lasting contributions to the technical, architectural and programmatic definition as well as regulatory protection of GPS over the past twenty years. In the 1980’s, he was a key creator of, and advocate for, all-digital GPS receiver technology now use by million of civil and military users around the world. In the 1990’s, he brought forward the concept of the GPS L5 data-less channel, which has now been fully developed. In the 2000s, he led the technical development of GPS L2C signal and improved the antijam performance of M-Code. He has been a continuing advocate to the National leadership for GPS modernization, as well as fighting for regulatory protection of modernized civil and military signals. Mr. Stansell has been recognized repeatedly for his contributions. He has been a Technical and a General Chair for two GPS ION Conferences and is a Fellow of ION. He won the ION Capt P.V.H. Weems award in 1995 and the IEEE PLANS most prestigious honor, the Kershner award, in 2000. Mr. Stansell’s leadership has helped make GPS the success it is today. 2008 05 18 Partnership Council Welcome Slides

Mr. Charles (Charlie) CahnDr. Charles Cahn was one of the primary architects of both the 621B program that preceded GPS and of the current GPS navigation signals. Dr. Cahn pioneered many advanced GPS receiver concepts during and after GPS Phases I and II, including novel signal tracking concepts to improve acquisition an “all digital” receiver architecture, and more recently, notch filtering, specialized interference cancellation, and other high antijam techniques. He also has advanced the state of the art of GPS multipath mitigation techniques. In recent years, Dr. Cahn has been a major contributor to GPS Signal modernization. He initially proposed Manchester modulation for what became the BOC (10, 5) M-Code, influenced Selection of convolutional coding for M-Code data, invented the M-Code Frequency Hopping acquisition method, provided the analysis which justified splitting all modernized GPS Signals into data and data-less components, including L5, L2C, and M-Code, and developed a code generator not based on Gold codes, which will be used for L2C. Dr. Cahn’s ongoing contributions span more than 30 years and continue unabated today2008 05 18 Partnership Council Welcome Slides

30th Anniversary of 1st GPS Launch,22 Feb 78Navstar 1 launched at Vandenberg AFB, 22 February 1978Block I’s launched from 22 February 1978 - 9 October 1985Block I contract (F04701-74-C-0527) signed August 1974 1st satellite launch (Navstar 1) was 42 months later 1st four satellites were launched within a year--all in 1978Rockwell International made a special "first day of issue" card for each Block I launchVandenberg AFB Post Office stamped them with the date of the launch. Color scan of the memento on next slideInside GNSS recapped the 30th anniversary of 1st GPS launch at: insidegnss.com/node/5222008 05 18 Partnership Council Welcome Slides

Block I “First Day of Issue” Card Vandenberg AFBPost Office February 22, 19782008 05 18 Partnership Council Welcome Slides

Current constellation• Relative sizes correct (inertial space view)• “Fuzzy” lines not due to orbit perturbations, but due to satellites being in 6-planes at 55o inclination.

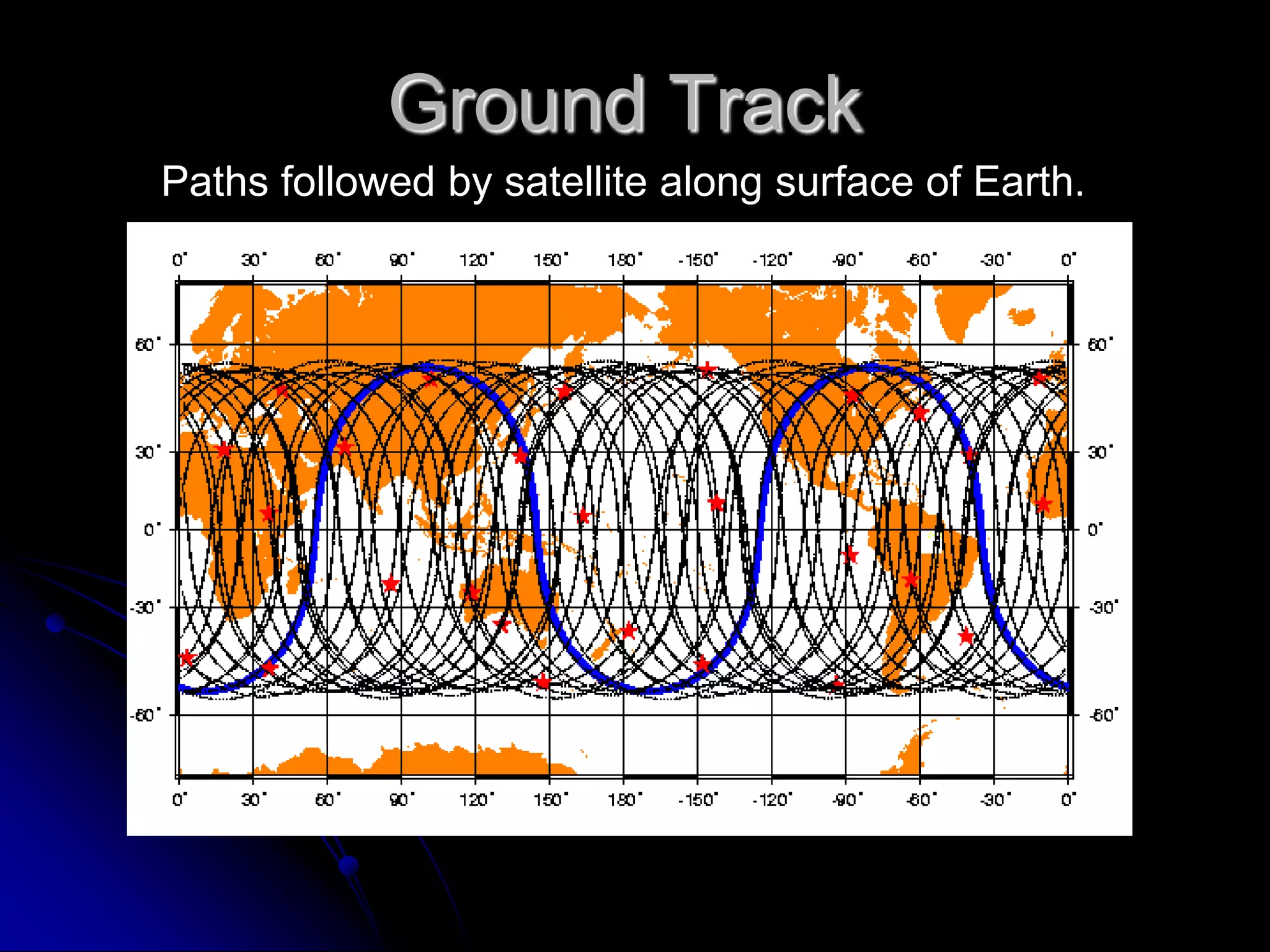

Ground Track Paths followed by satellite along surface of Earth.

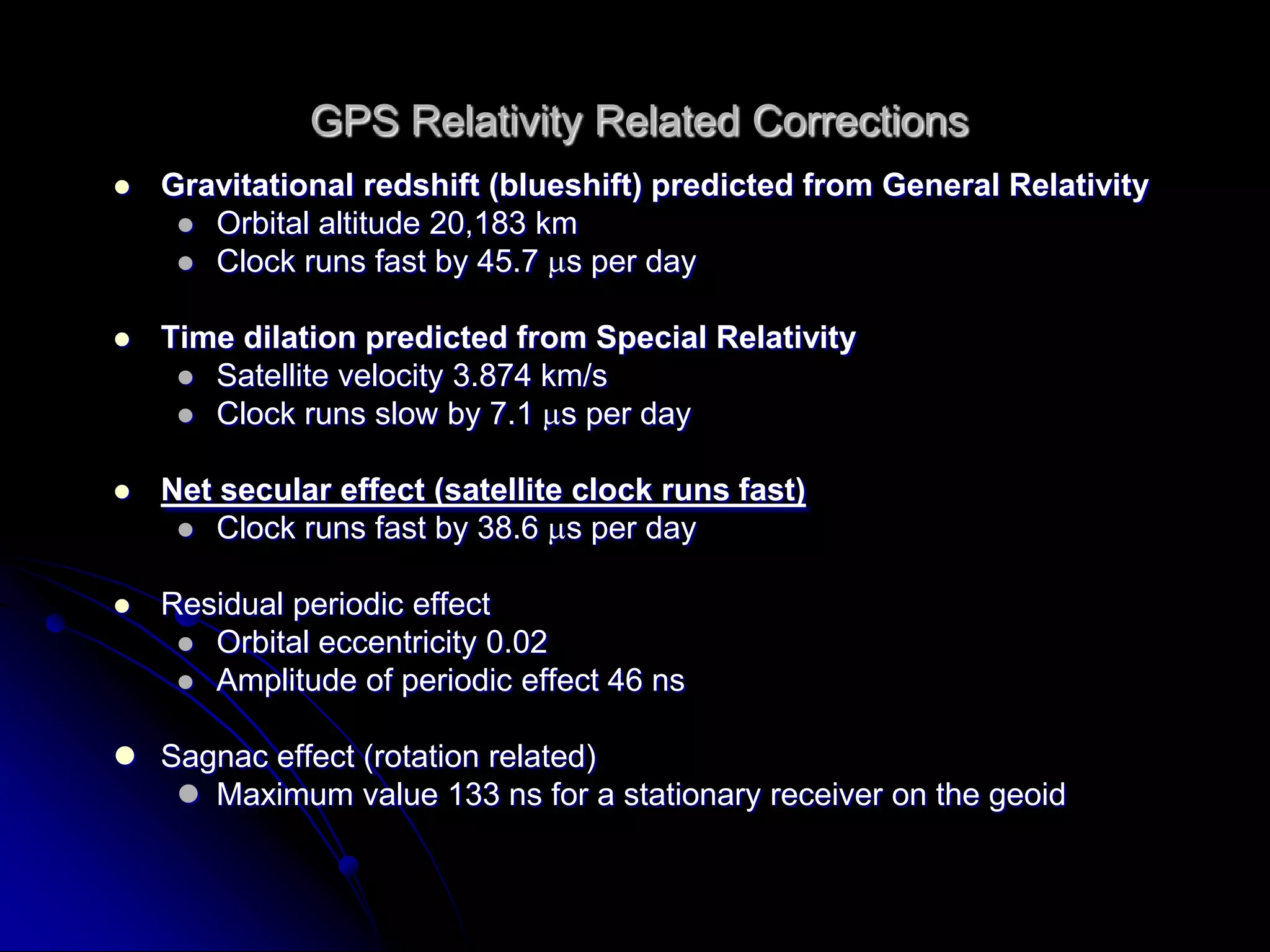

GPS Relativity Related CorrectionsGravitational redshift (blueshift) predicted from General RelativityOrbital altitude 20,183 kmClock runs fast by 45.7 s per dayTime dilation predicted from Special RelativitySatellite velocity 3.874 km/sClock runs slow by 7.1 s per dayNet secular effect (satellite clock runs fast)Clock runs fast by 38.6 s per dayResidual periodic effectOrbital eccentricity 0.02Amplitude of periodic effect 46 nsSagnaceffect (rotation related)Maximum value 133 ns for a stationary receiver on the geoid

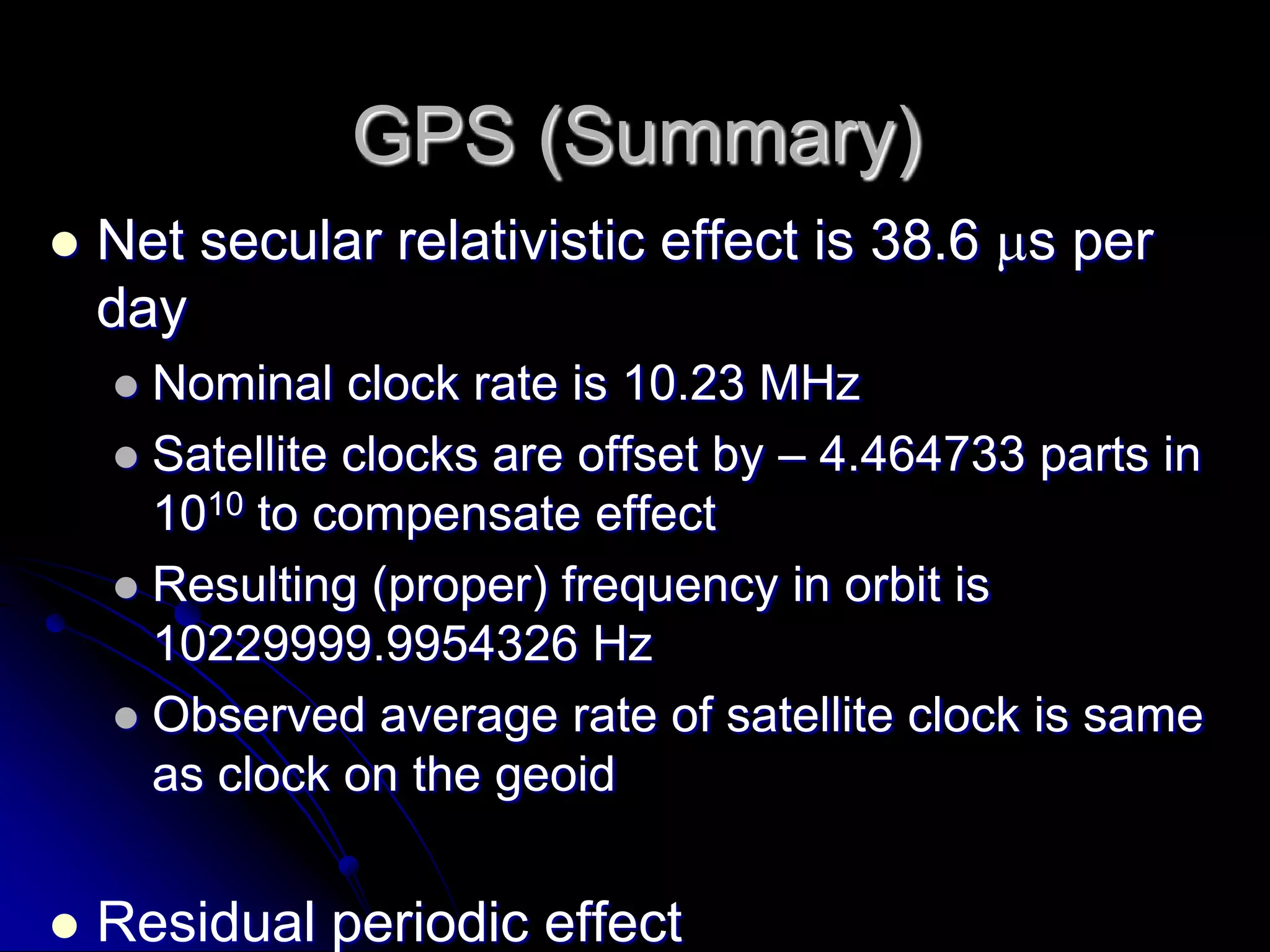

GPS (Summary)Net secular relativistic effect is 38.6 s per dayNominal clock rate is 10.23 MHzSatellite clocks are offset by – 4.464733 parts in 1010 to compensate effectResulting (proper) frequency in orbit is 10229999.9954326 HzObserved average rate of satellite clock is same as clock on the geoidResidual periodic effectMaximum amplitude 46 nsCorrection applied in receiverSagnac effectMaximum value 133 nsCorrection applied in receiver

Pseudo-range accuracyOriginal intent was to position using pseudo-range: Accuracy better than planned.C/A code (open to all users) 10 cm-10 meters. Used by most hikers and low cost GPS units to determine position. P(Y) code (restricted access since 1992) 5 cm-5 meters

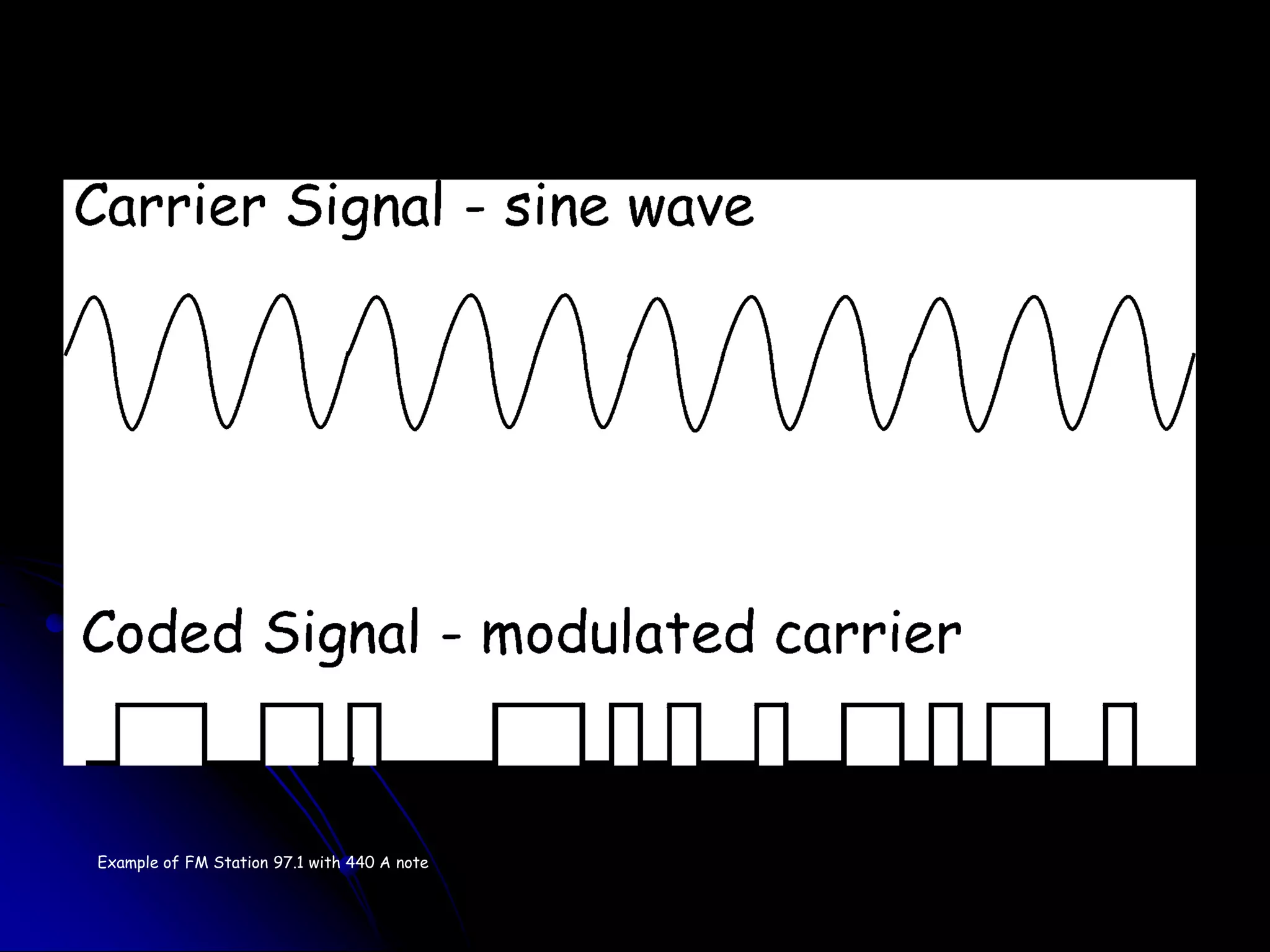

Example of FM Station 97.1 with 440 A note

Determining an unknown location today. Use GPSRange = speed of light x travel timeRange = c(t1 – t2)(c =299,792,458 meters per second)

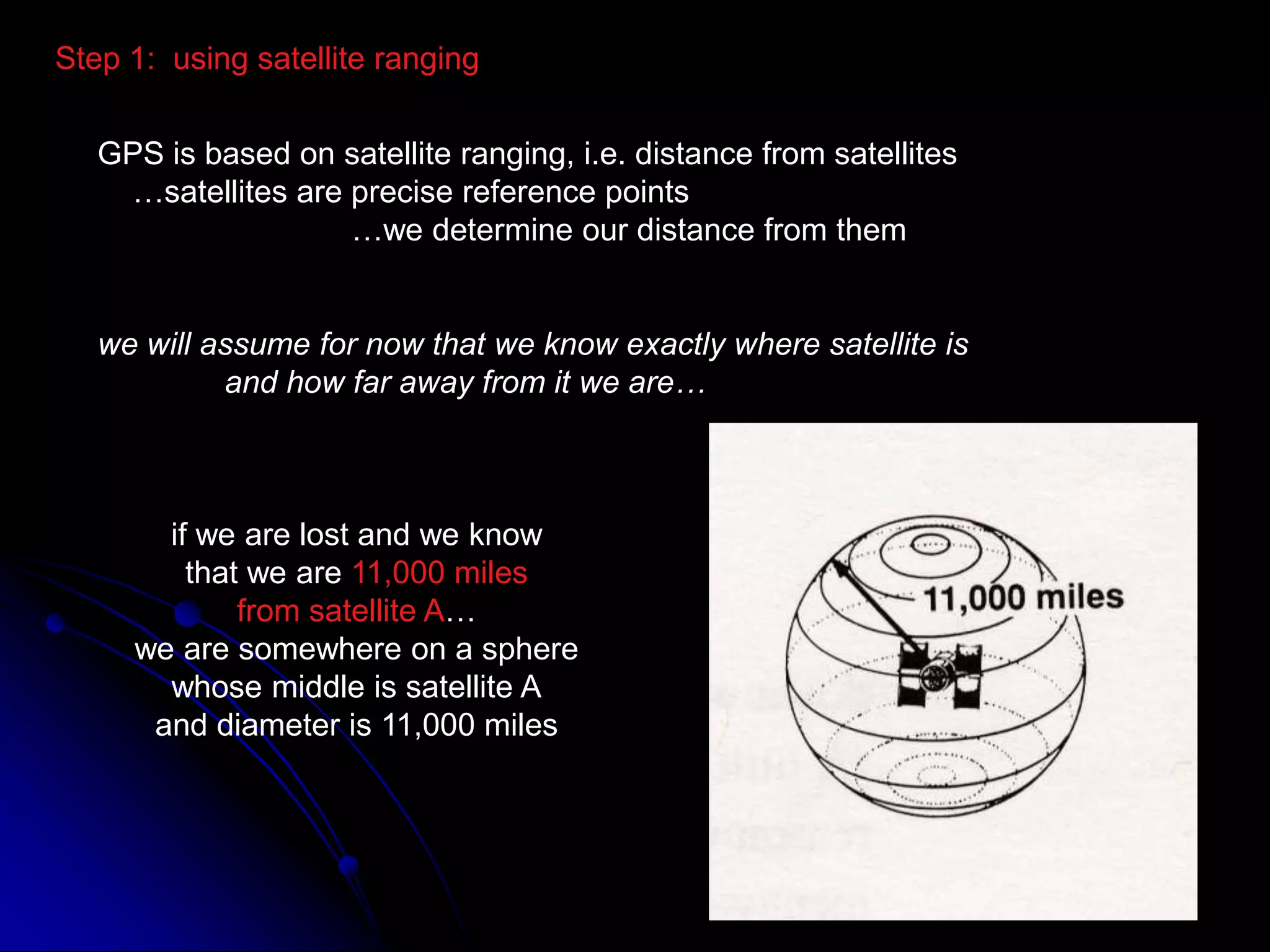

Step 1: using satellite rangingGPS is based on satellite ranging, i.e. distance from satellites …satellites are precise reference points …we determine our distance from themwe will assume for now that we know exactly where satellite is and how far away from it we are…if we are lost and we knowthat we are 11,000 milesfrom satellite A…we are somewhere on a spherewhose middle is satellite Aand diameter is 11,000 miles

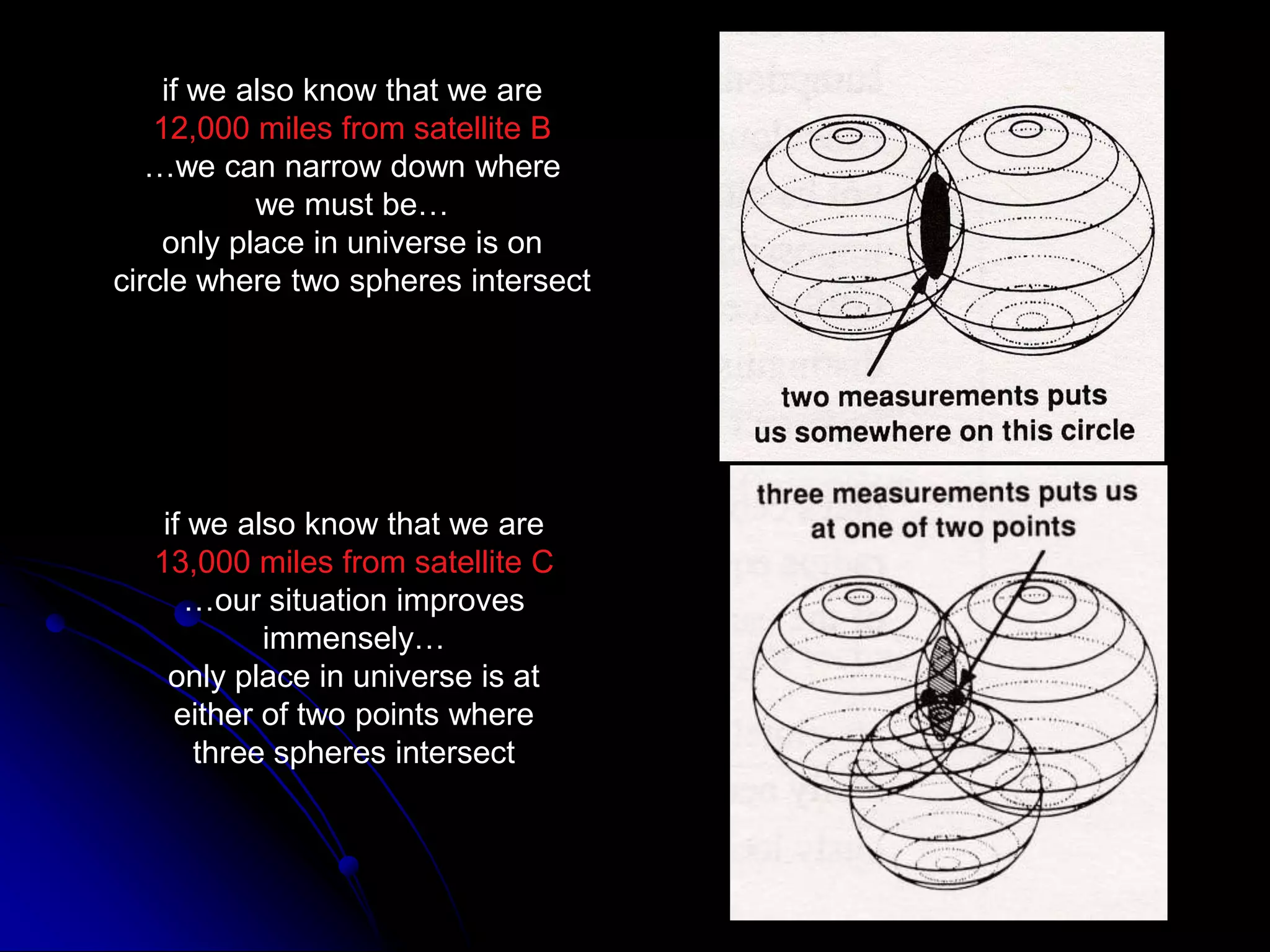

if we also know that we are12,000 miles from satellite B…we can narrow down wherewe must be…only place in universe is oncircle where two spheres intersectif we also know that we are13,000 miles from satellite C…our situation improvesimmensely…only place in universe is ateither of two points wherethree spheres intersect

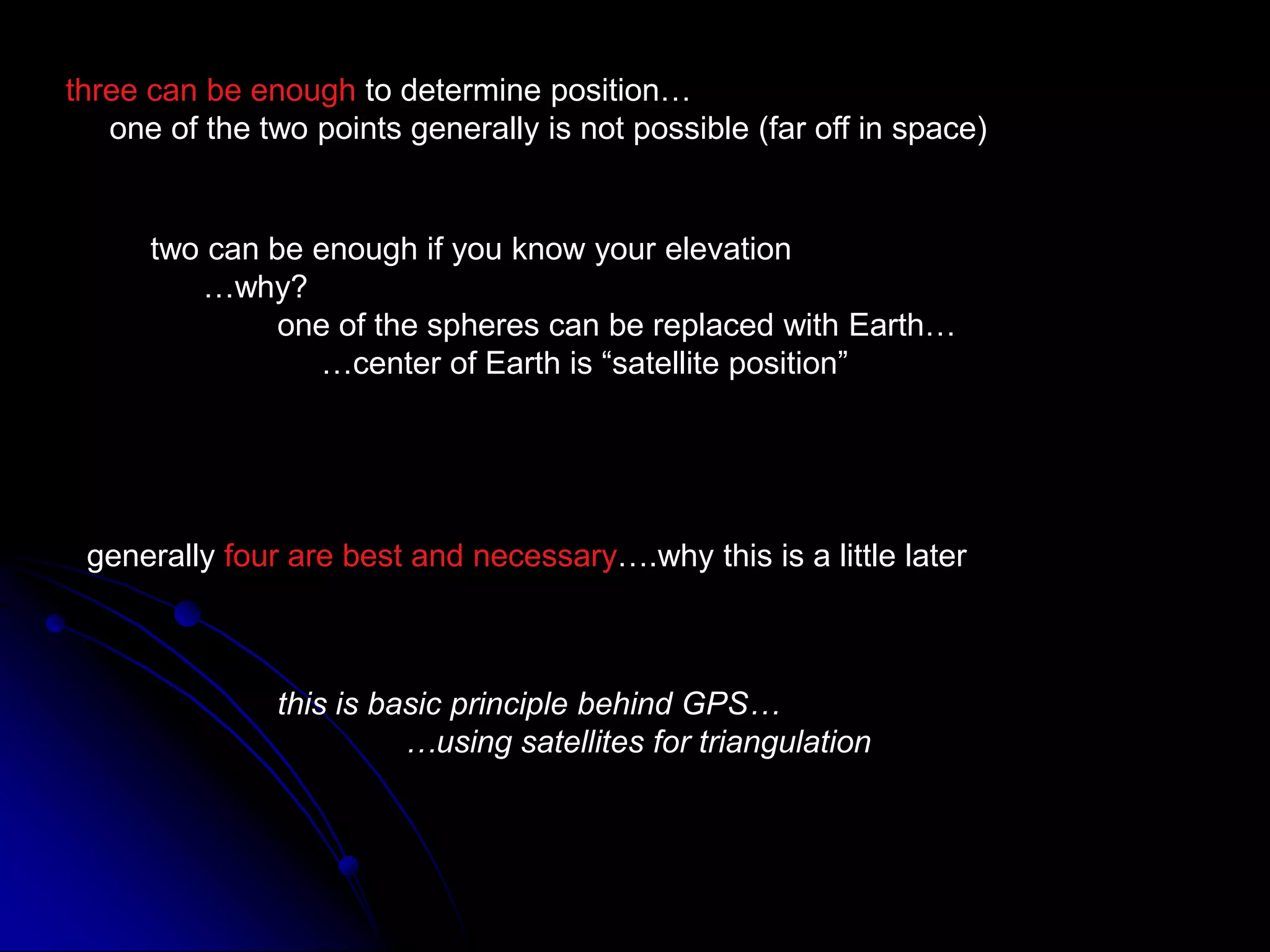

three can be enough to determine position… one of the two points generally is not possible (far off in space)two can be enough if you know your elevation …why? one of the spheres can be replaced with Earth… …center of Earth is “satellite position”generally four are best and necessary….why this is a little laterthis is basic principle behind GPS… …using satellites for triangulation

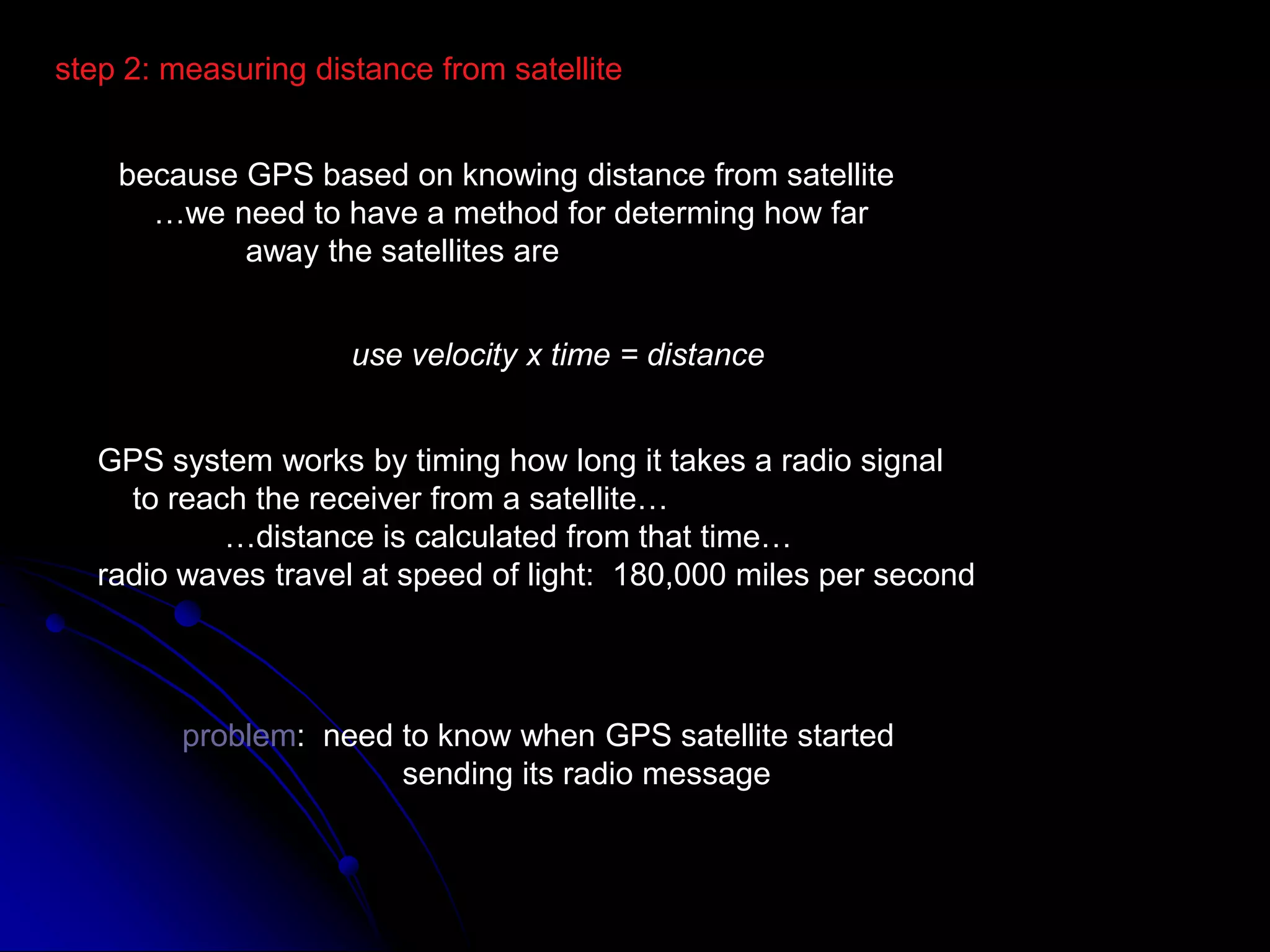

step 2: measuring distance from satellitebecause GPS based on knowing distance from satellite …we need to have a method for determing how far away the satellites areuse velocity x time = distanceGPS system works by timing how long it takes a radio signal to reach the receiver from a satellite… …distance is calculated from that time…radio waves travel at speed of light: 180,000 miles per secondproblem: need to know when GPS satellite started sending its radio message

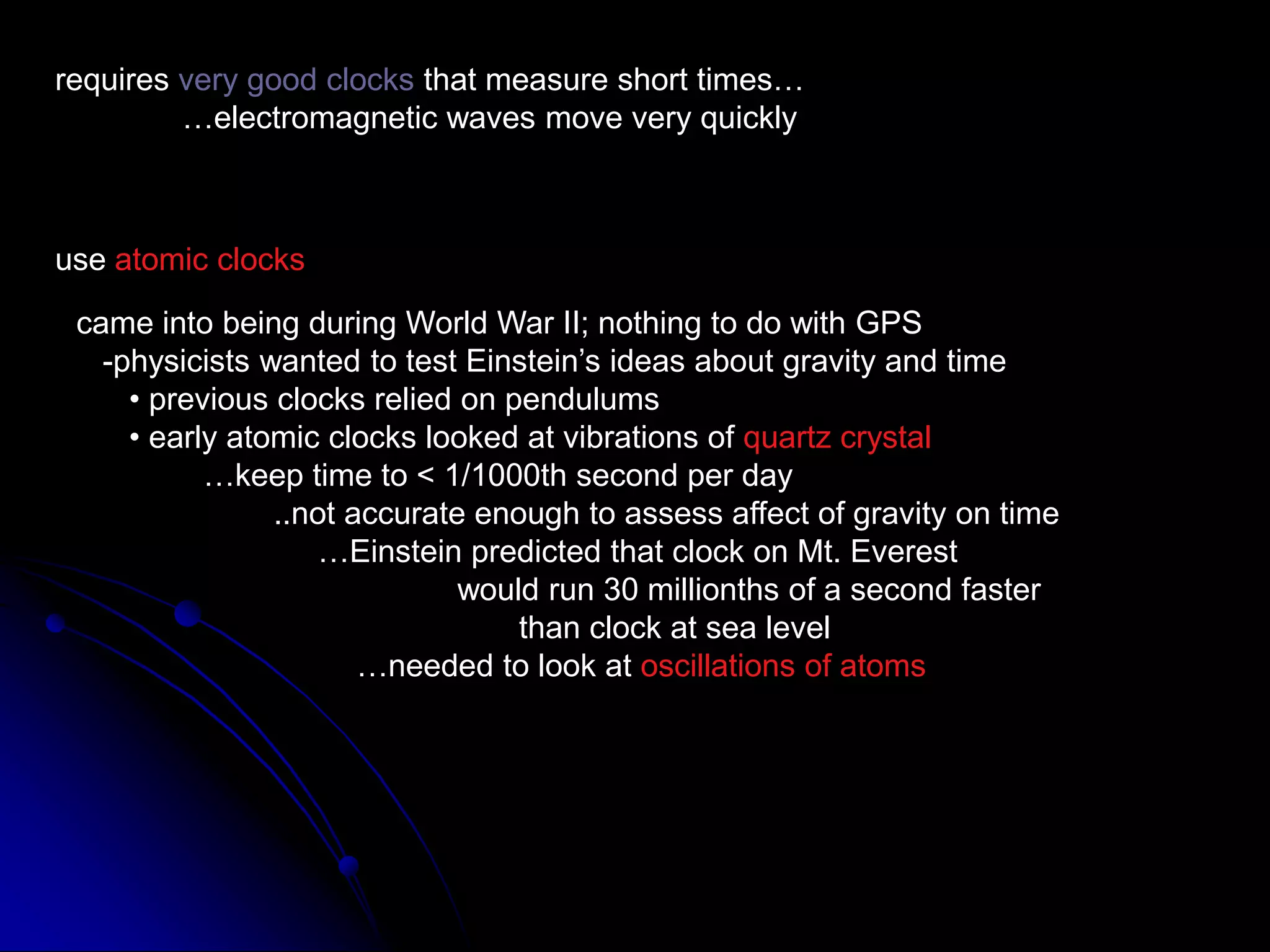

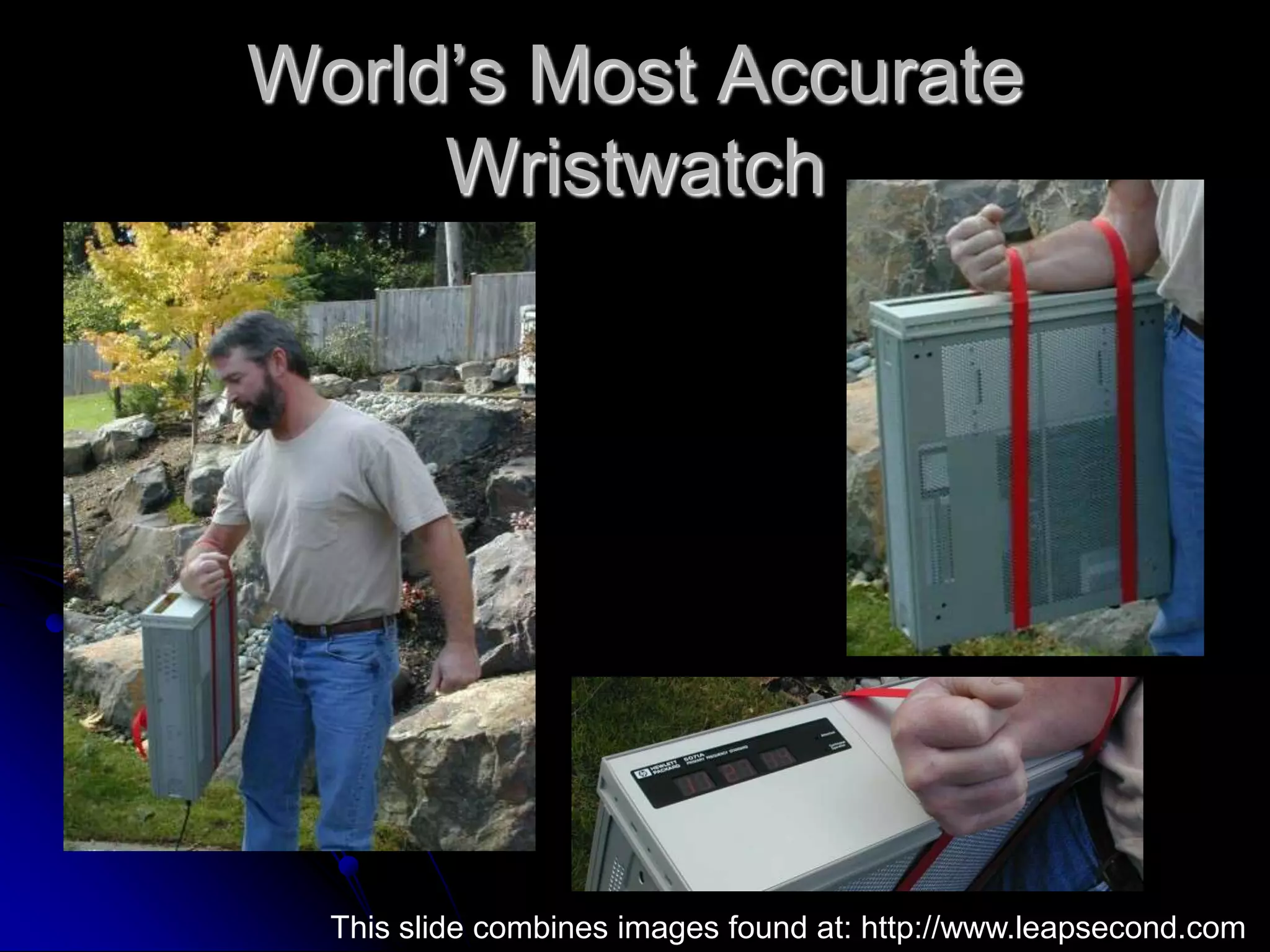

requires very good clocks that measure short times… …electromagnetic waves move very quicklyuse atomic clockscame into being during World War II; nothing to do with GPS -physicists wanted to test Einstein’s ideas about gravity and time • previous clocks relied on pendulums • early atomic clocks looked at vibrations of quartz crystal …keep time to < 1/1000th second per day ..not accurate enough to assess affect of gravity on time …Einstein predicted that clock on Mt. Everest would run 30 millionths of a second faster than clock at sea level …needed to look at oscillations of atoms

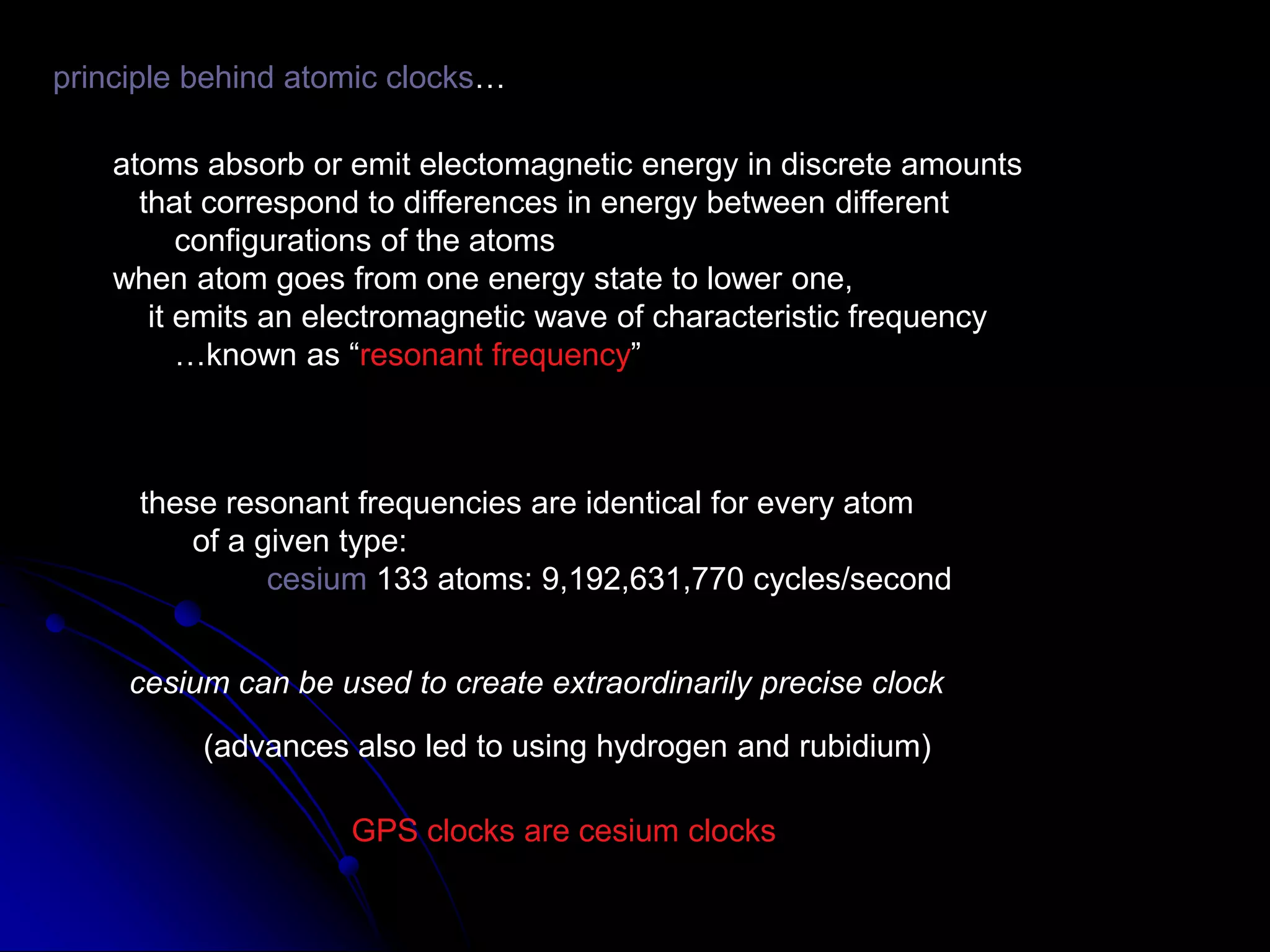

principle behind atomic clocks…atoms absorb or emit electomagnetic energy in discrete amounts that correspond to differences in energy between different configurations of the atomswhen atom goes from one energy state to lower one, it emits an electromagnetic wave of characteristic frequency …known as “resonant frequency”these resonant frequencies are identical for every atom of a given type:cesium 133 atoms: 9,192,631,770 cycles/secondcesium can be used to create extraordinarily precise clock(advances also led to using hydrogen and rubidium)GPS clocks are cesium clocks

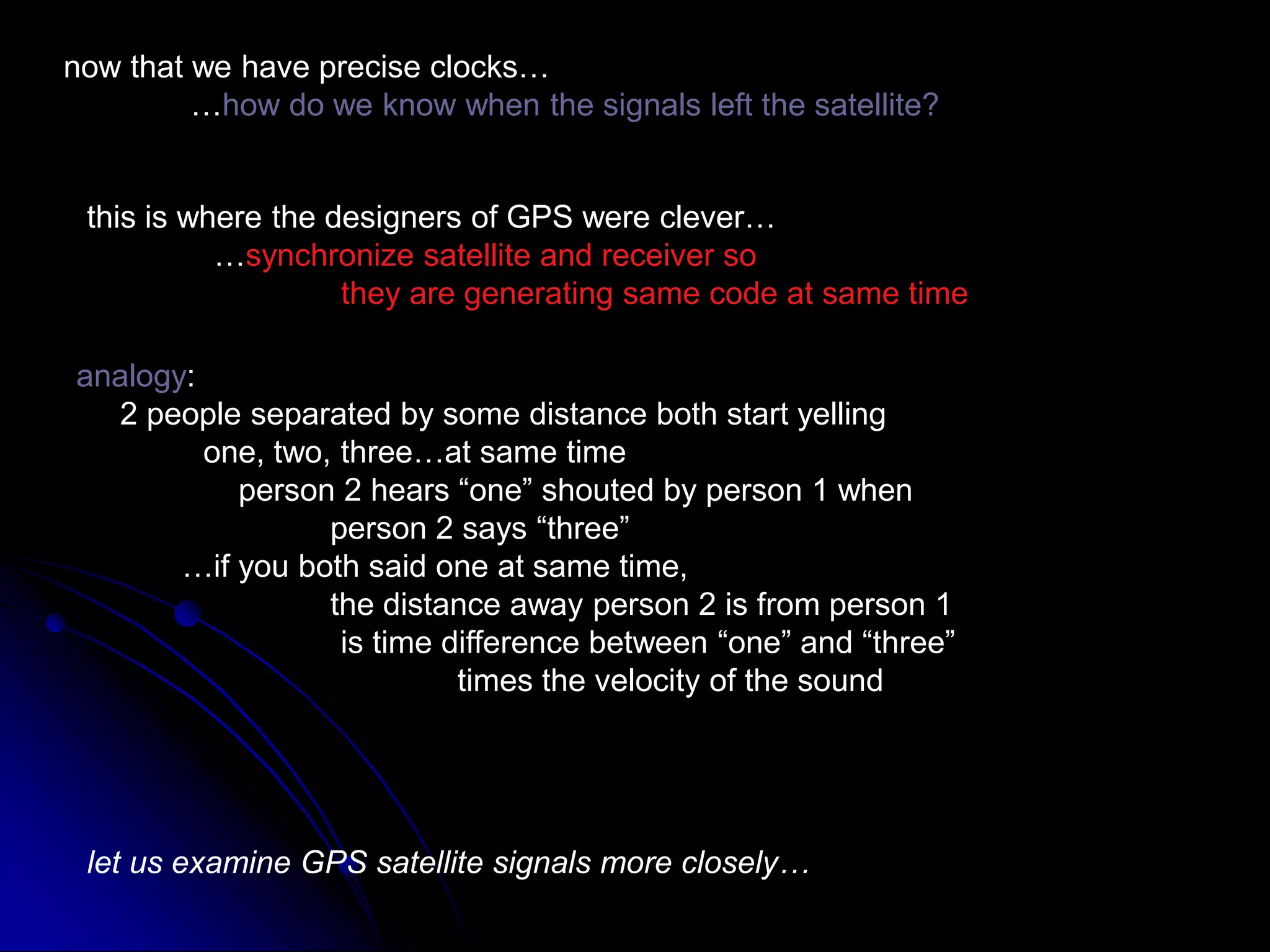

now that we have precise clocks… …how do we know when the signals left the satellite?this is where the designers of GPS were clever… …synchronize satellite and receiver so they are generating same code at same timeanalogy: 2 people separated by some distance both start yelling one, two, three…at same time person 2 hears “one” shouted by person 1 when person 2 says “three” …if you both said one at same time, the distance away person 2 is from person 1 is time difference between “one” and “three” times the velocity of the soundlet us examine GPS satellite signals more closely…

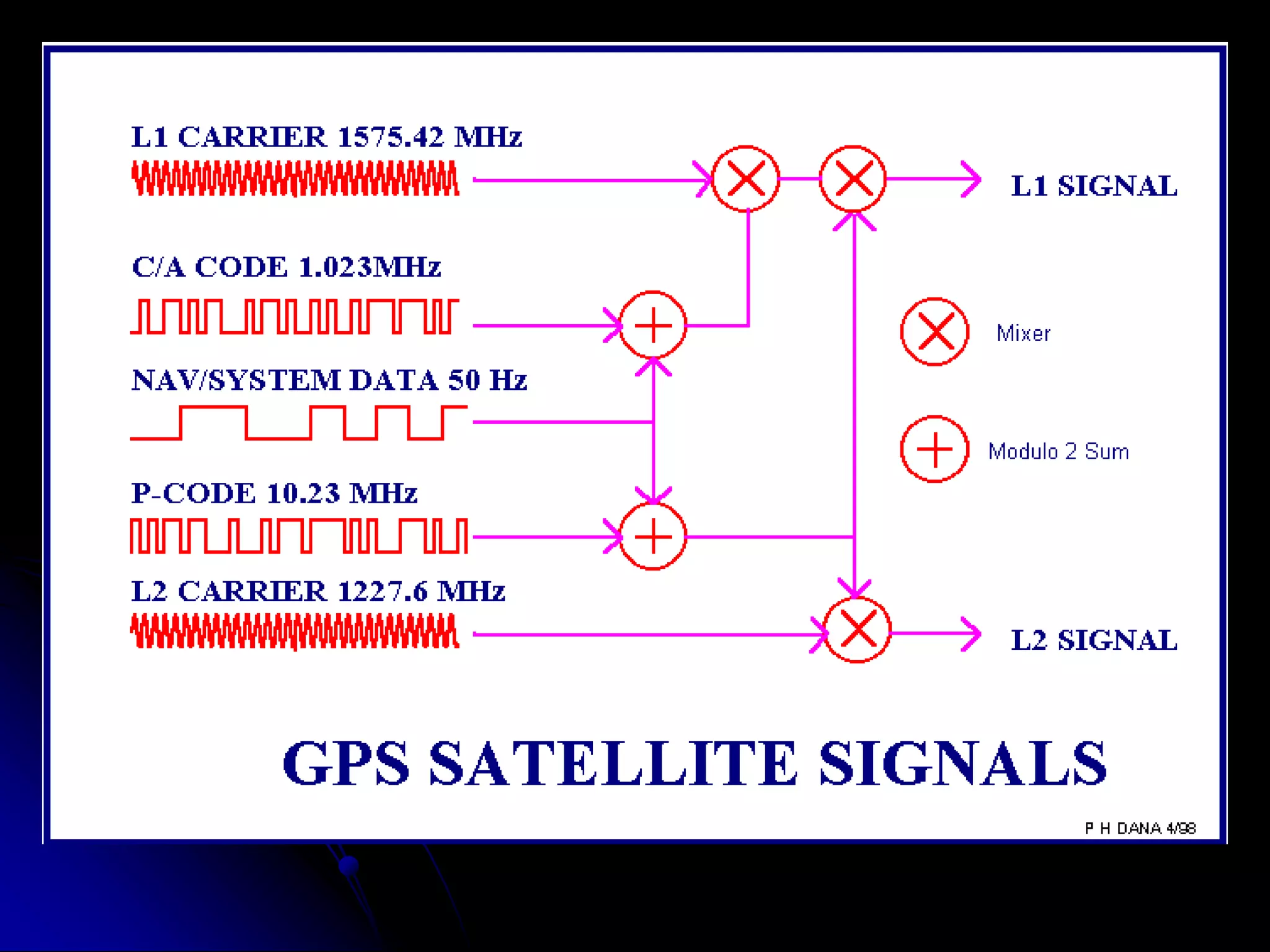

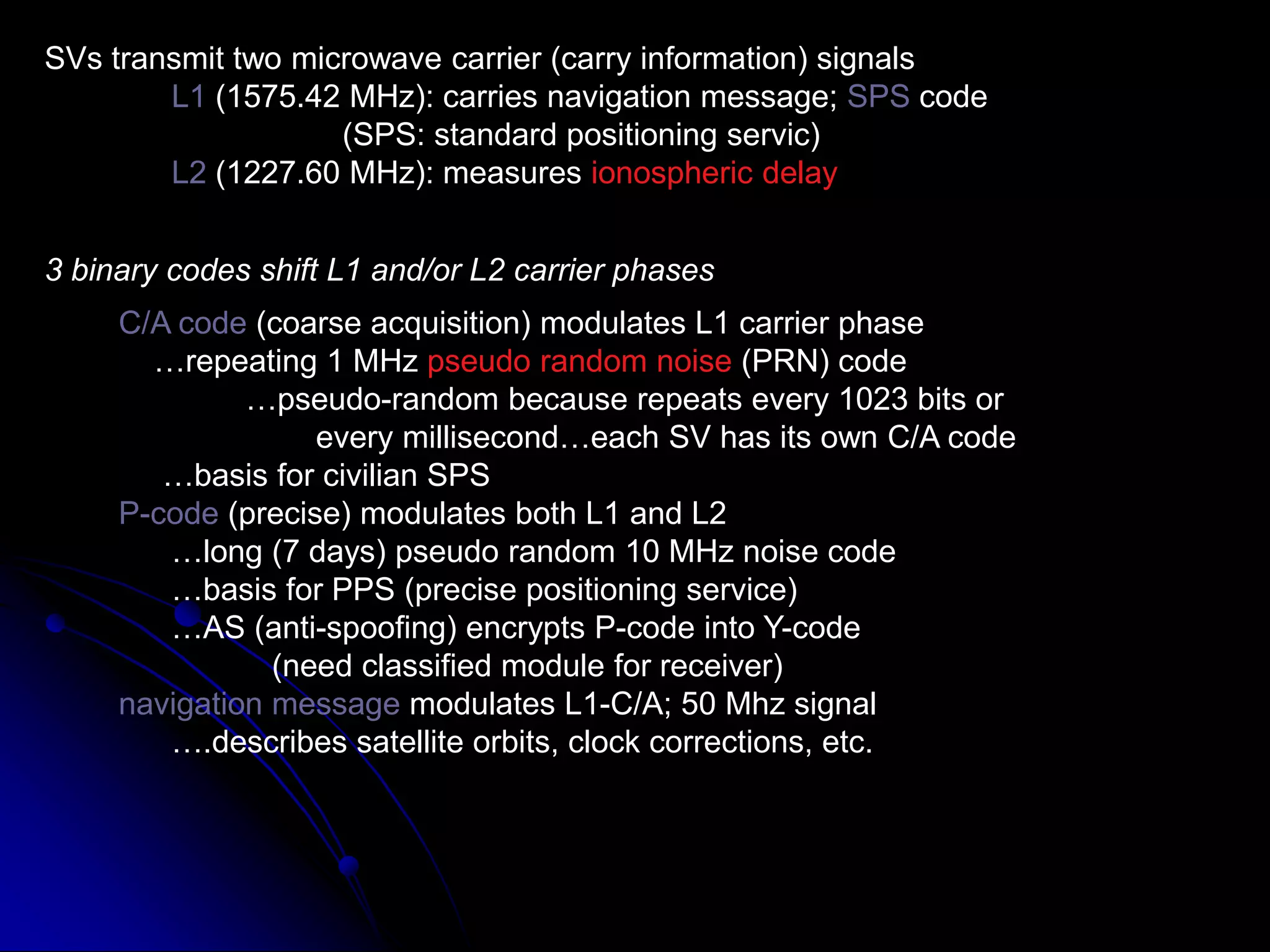

SVs transmit two microwave carrier (carry information) signalsL1 (1575.42 MHz): carries navigation message; SPS code (SPS: standard positioning servic)L2 (1227.60 MHz): measures ionospheric delay3 binary codes shift L1 and/or L2 carrier phasesC/A code (coarse acquisition) modulates L1 carrier phase …repeating 1 MHz pseudo random noise (PRN) code …pseudo-random because repeats every 1023 bits or every millisecond…each SV has its own C/A code …basis for civilian SPSP-code (precise) modulates both L1 and L2 …long (7 days) pseudo random 10 MHz noise code …basis for PPS (precise positioning service) …AS (anti-spoofing) encrypts P-code into Y-code (need classified module for receiver)navigation message modulates L1-C/A; 50 Mhz signal ….describes satellite orbits, clock corrections, etc.

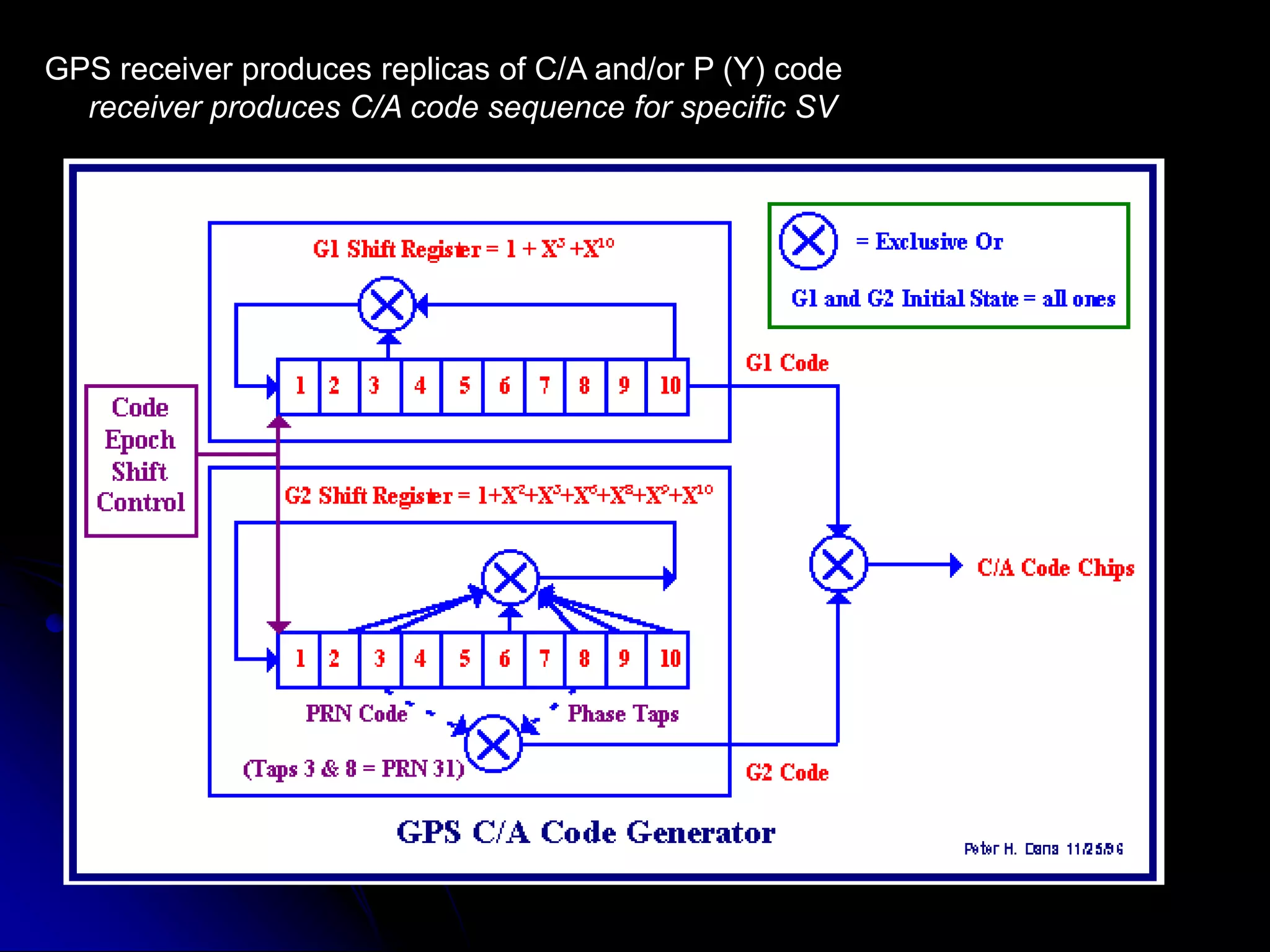

GPS receiver produces replicas of C/A and/or P (Y) codereceiver produces C/A code sequence for specific SV

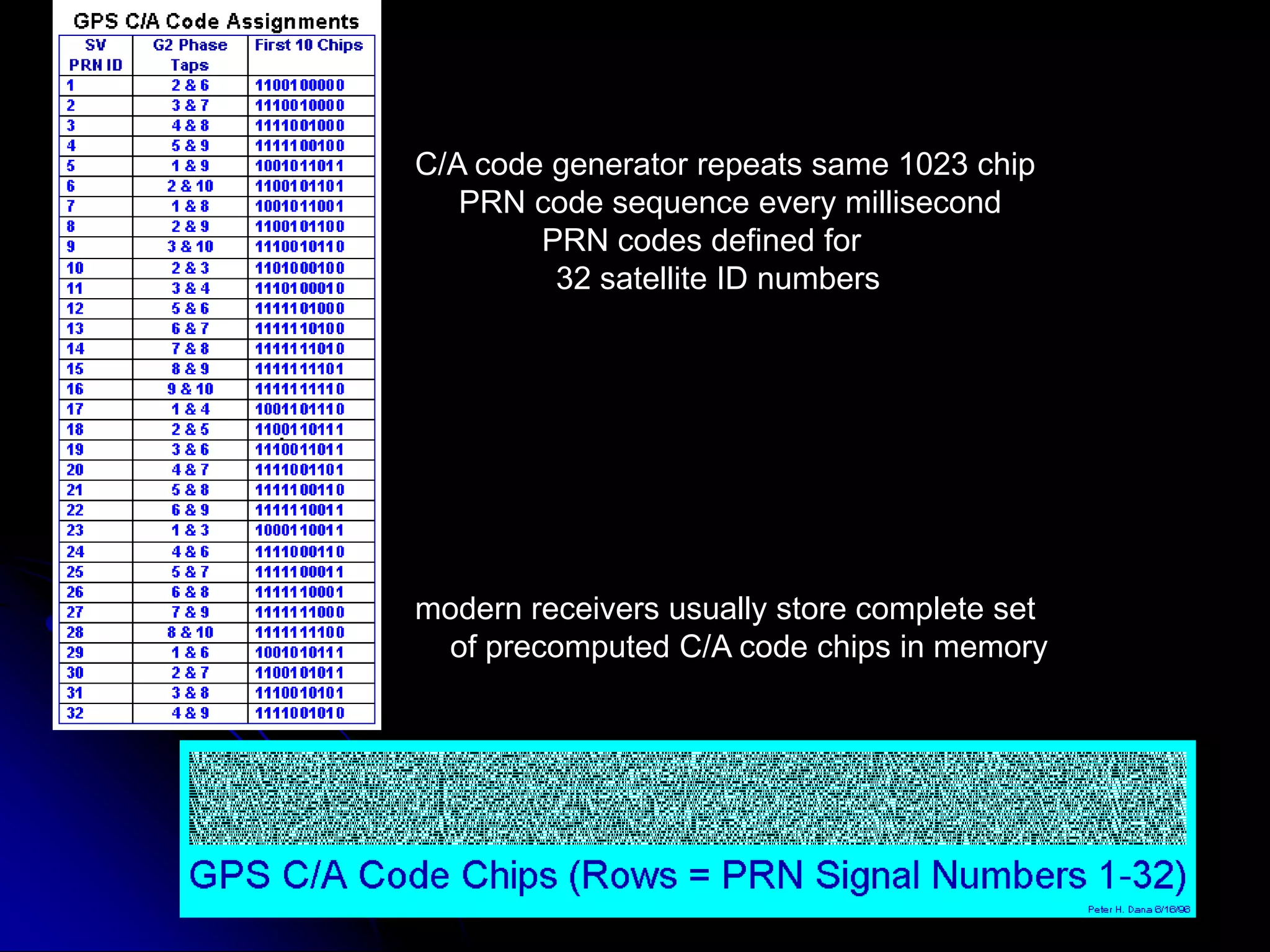

C/A code generator repeats same 1023 chip PRN code sequence every millisecond PRN codes defined for 32 satellite ID numbersmodern receivers usually store complete set of precomputed C/A code chips in memory

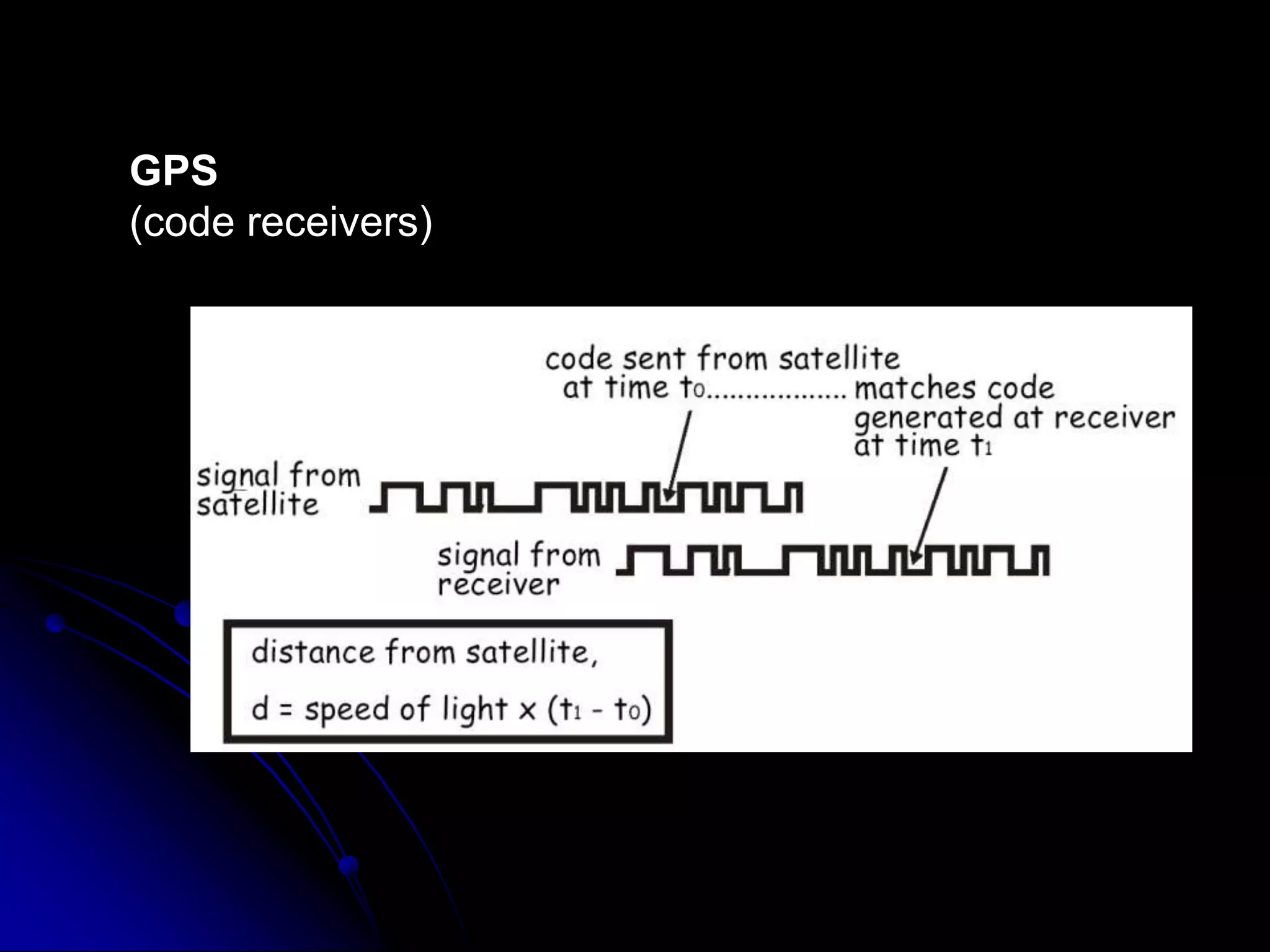

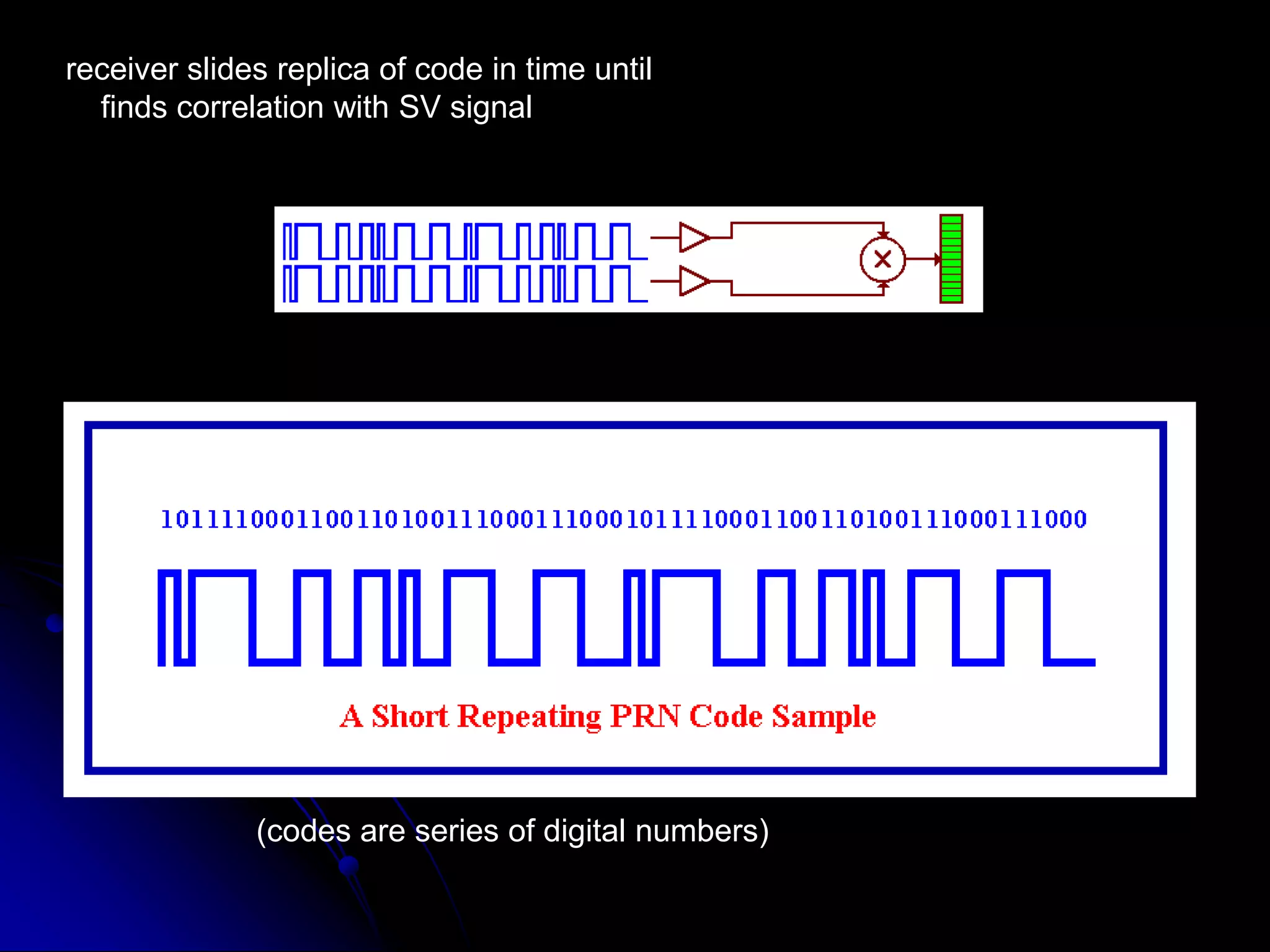

receiver slides replica of code in time until finds correlation with SV signal(codes are series of digital numbers)

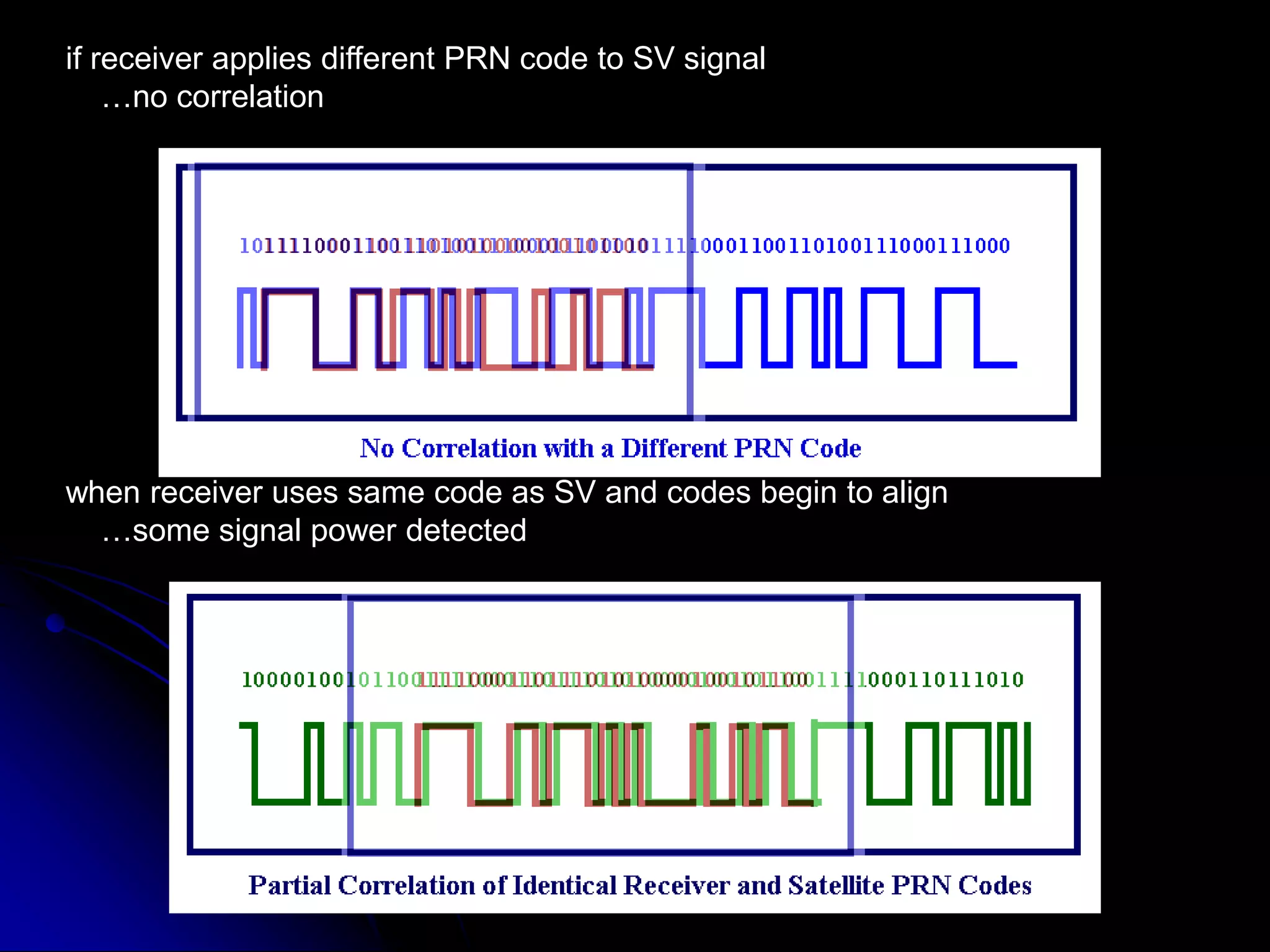

if receiver applies different PRN code to SV signal …no correlationwhen receiver uses same code as SV and codes begin to align …some signal power detected

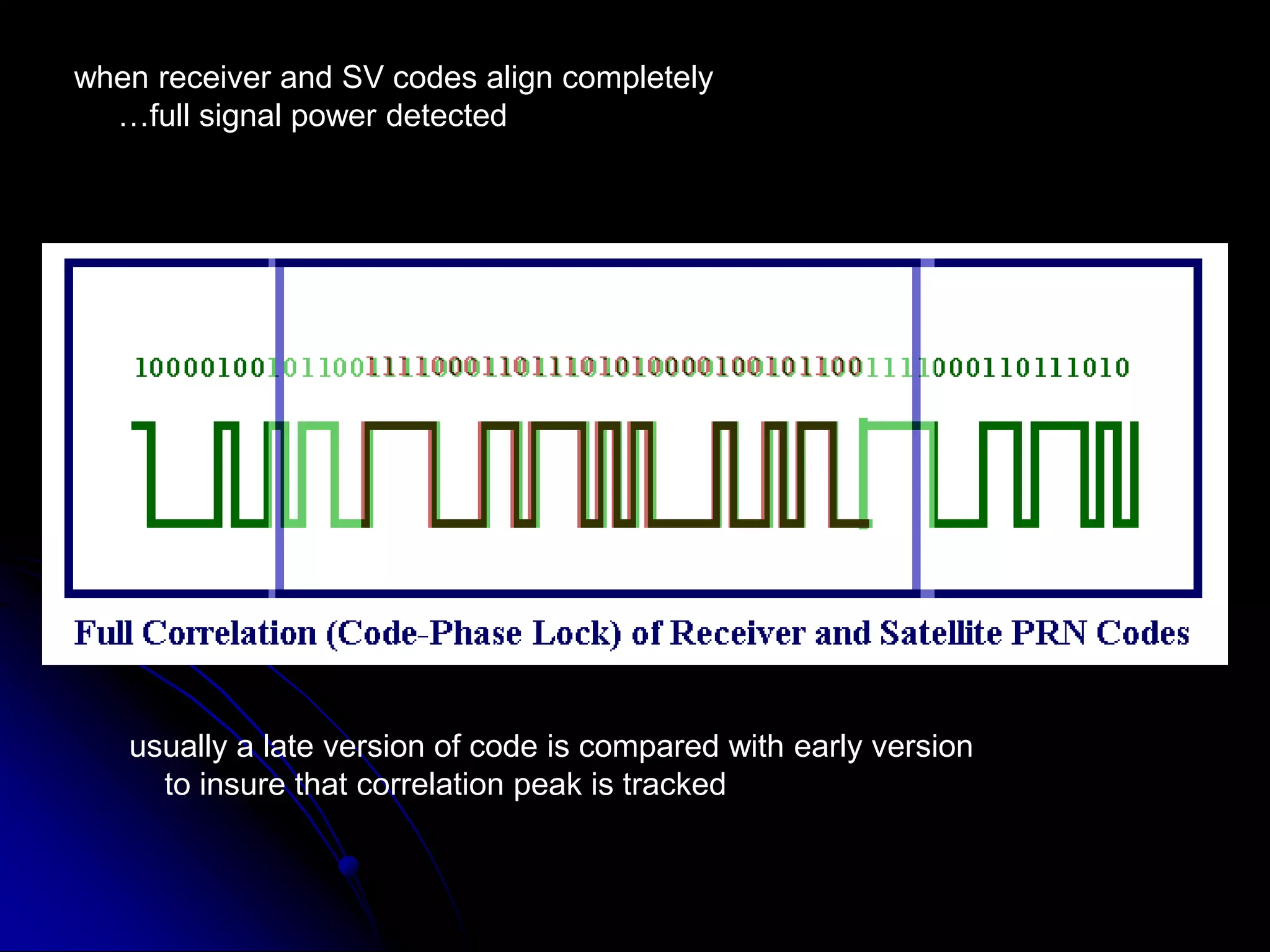

when receiver and SV codes align completely …full signal power detectedusually a late version of code is compared with early version to insure that correlation peak is tracked

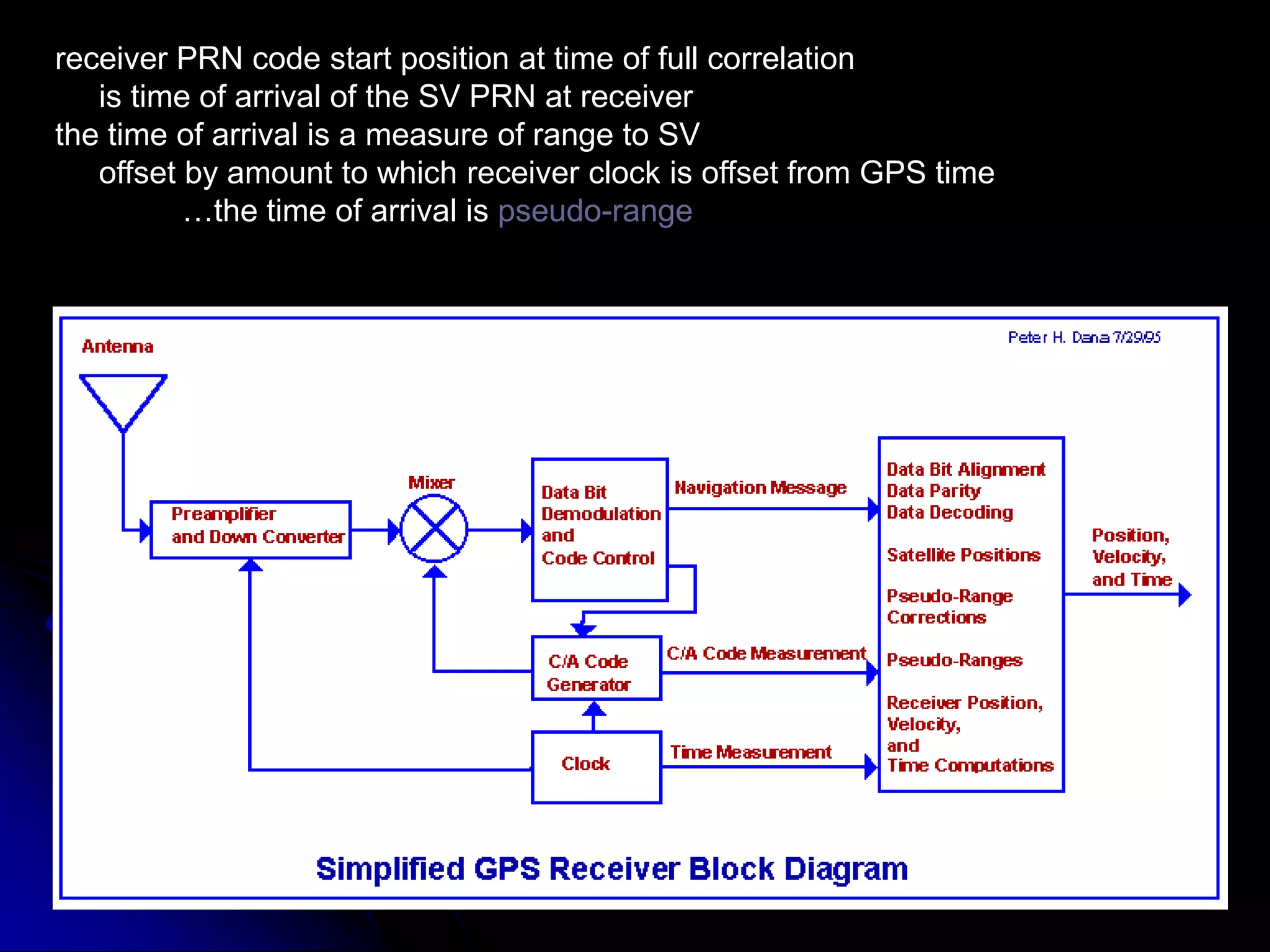

receiver PRN code start position at time of full correlation is time of arrival of the SV PRN at receiverthe time of arrival is a measure of range to SV offset by amount to which receiver clock is offset from GPS time …the time of arrival is pseudo-range

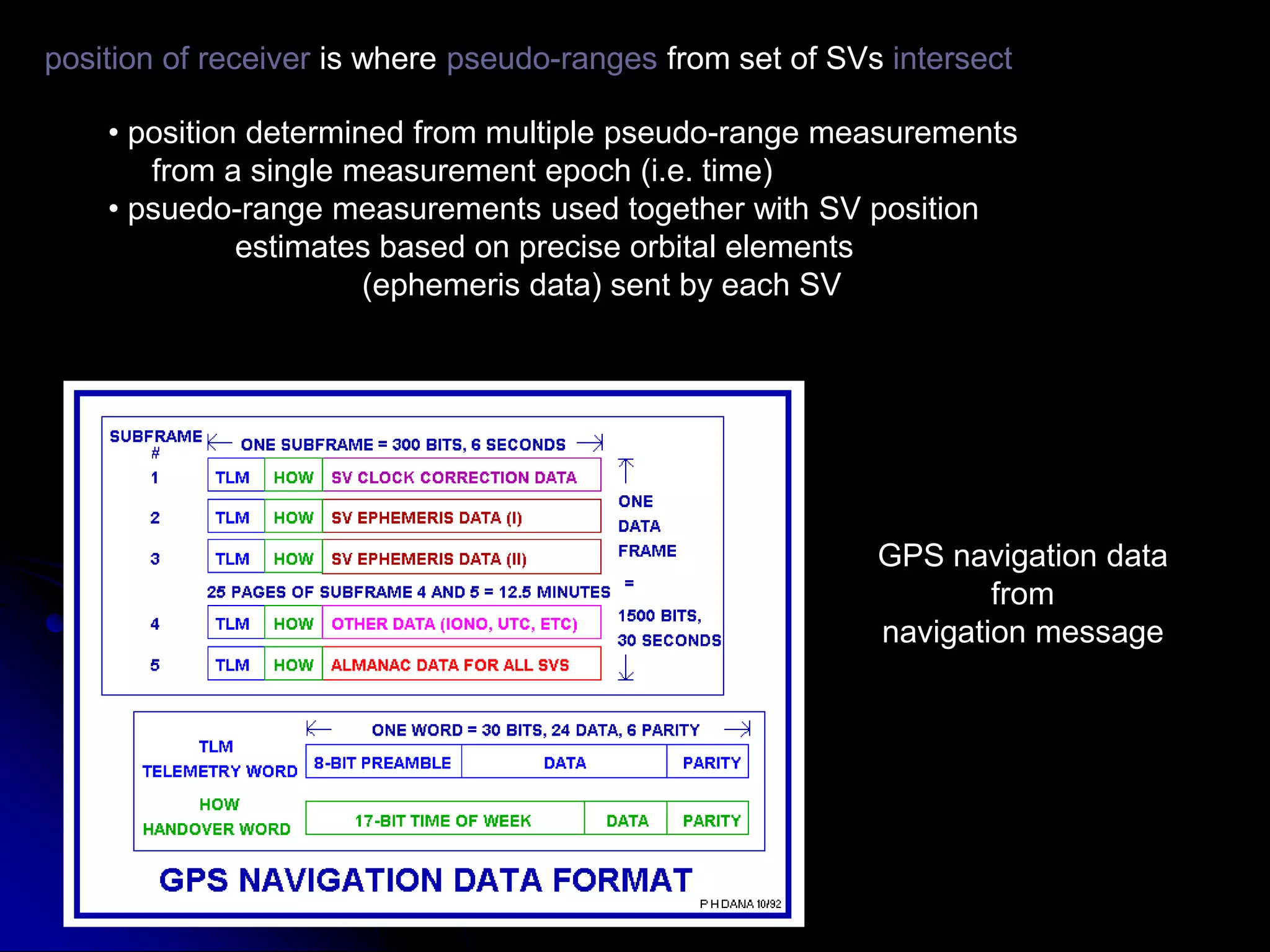

position of receiver is where pseudo-ranges from set of SVs intersect• position determined from multiple pseudo-range measurements from a single measurement epoch (i.e. time)• psuedo-range measurements used together with SV position estimates based on precise orbital elements (ephemeris data) sent by each SVGPS navigation datafromnavigation message

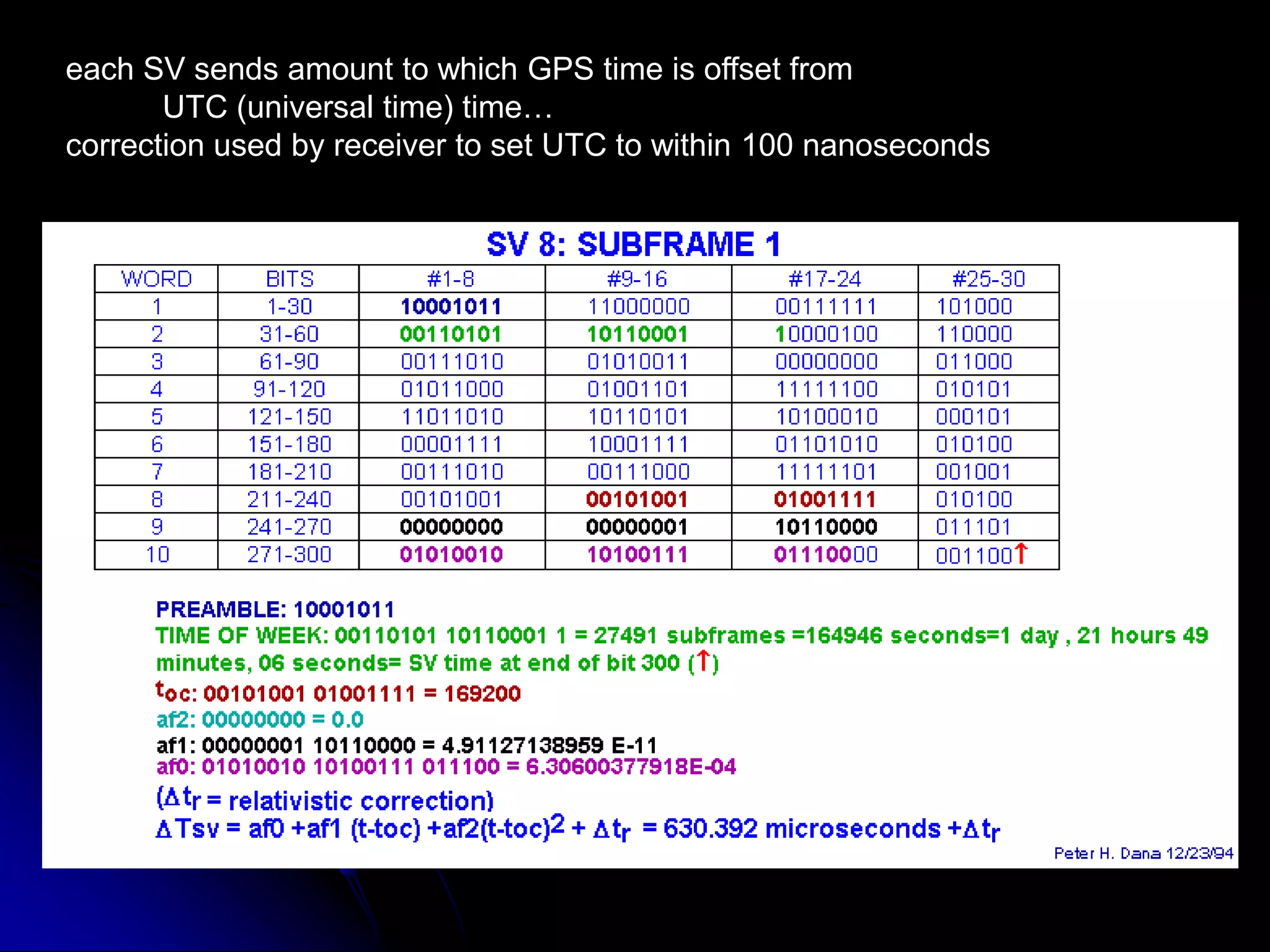

each SV sends amount to which GPS time is offset from UTC (universal time) time…correction used by receiver to set UTC to within 100 nanoseconds

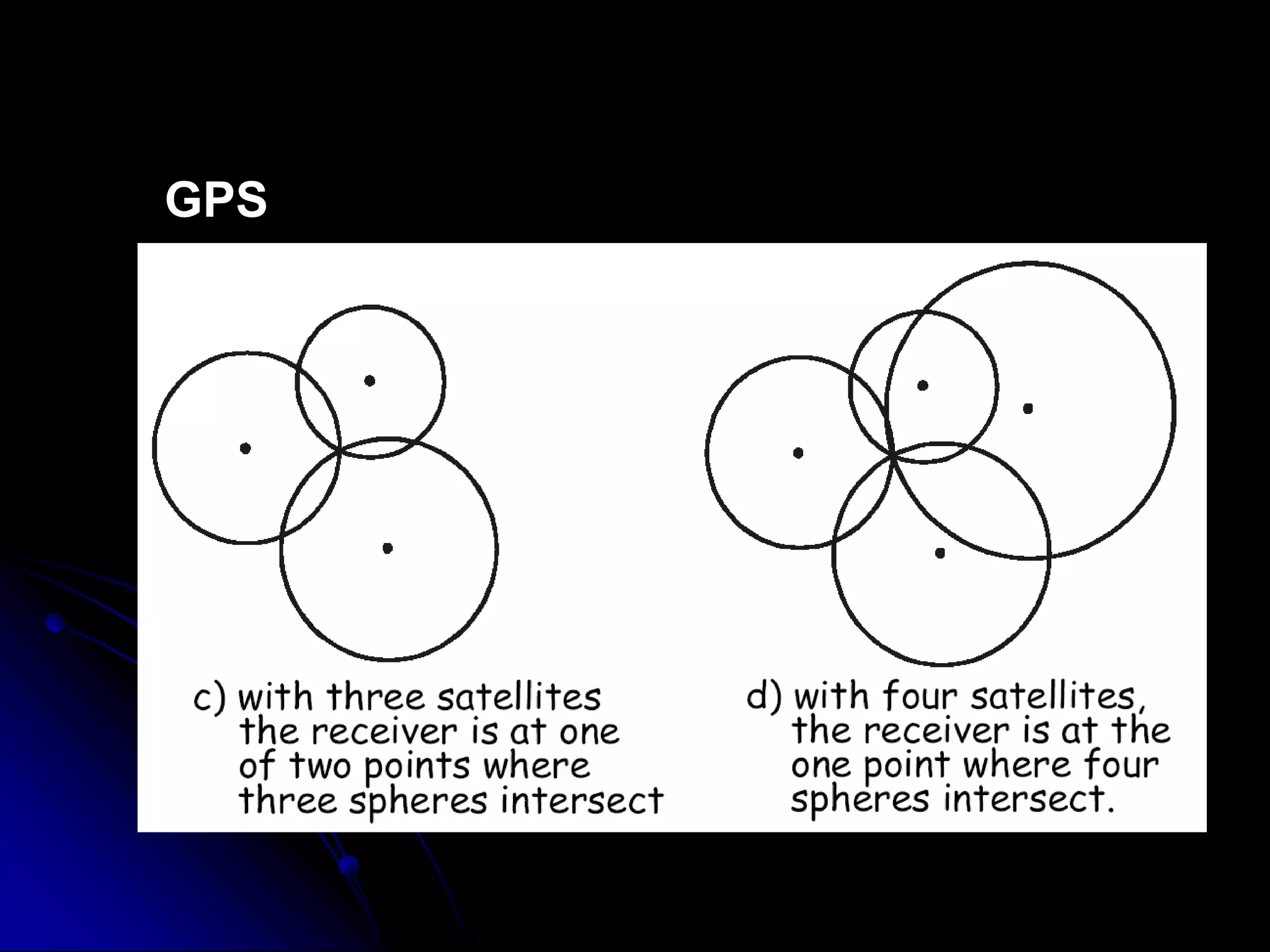

GPSWith three satellites we have three observations and four unknowns (our X, Y, Z, and clock bias).We must either assume we know Z (e.g. at sea level or from map), or track extra satellite. Generally we track extra satellites.We need at least three satellites for 2-D, four satellites for 3-D positioning.

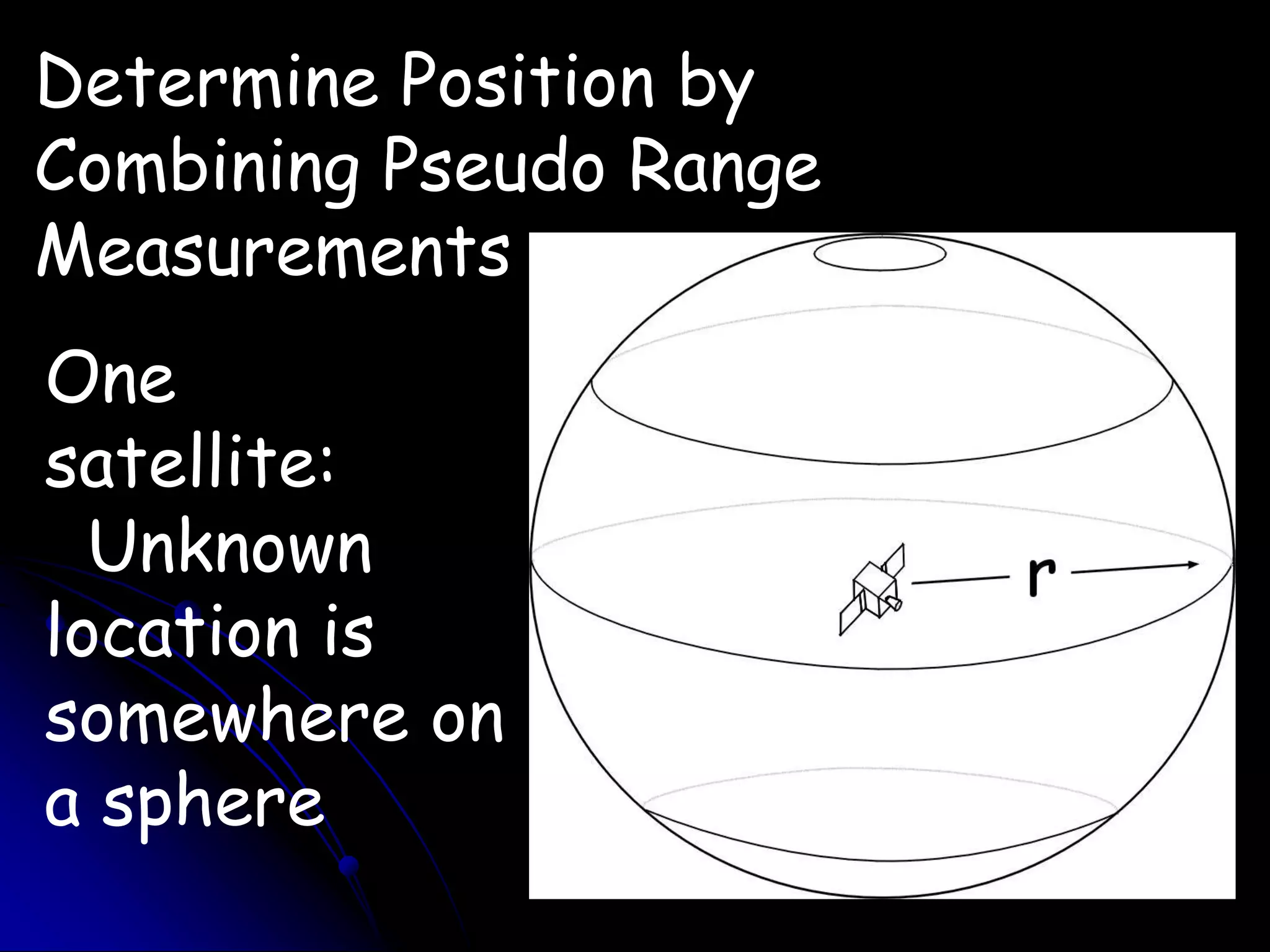

Determine Position by Combining Pseudo RangeMeasurementsOnesatellite: Unknown location is somewhere on a sphere

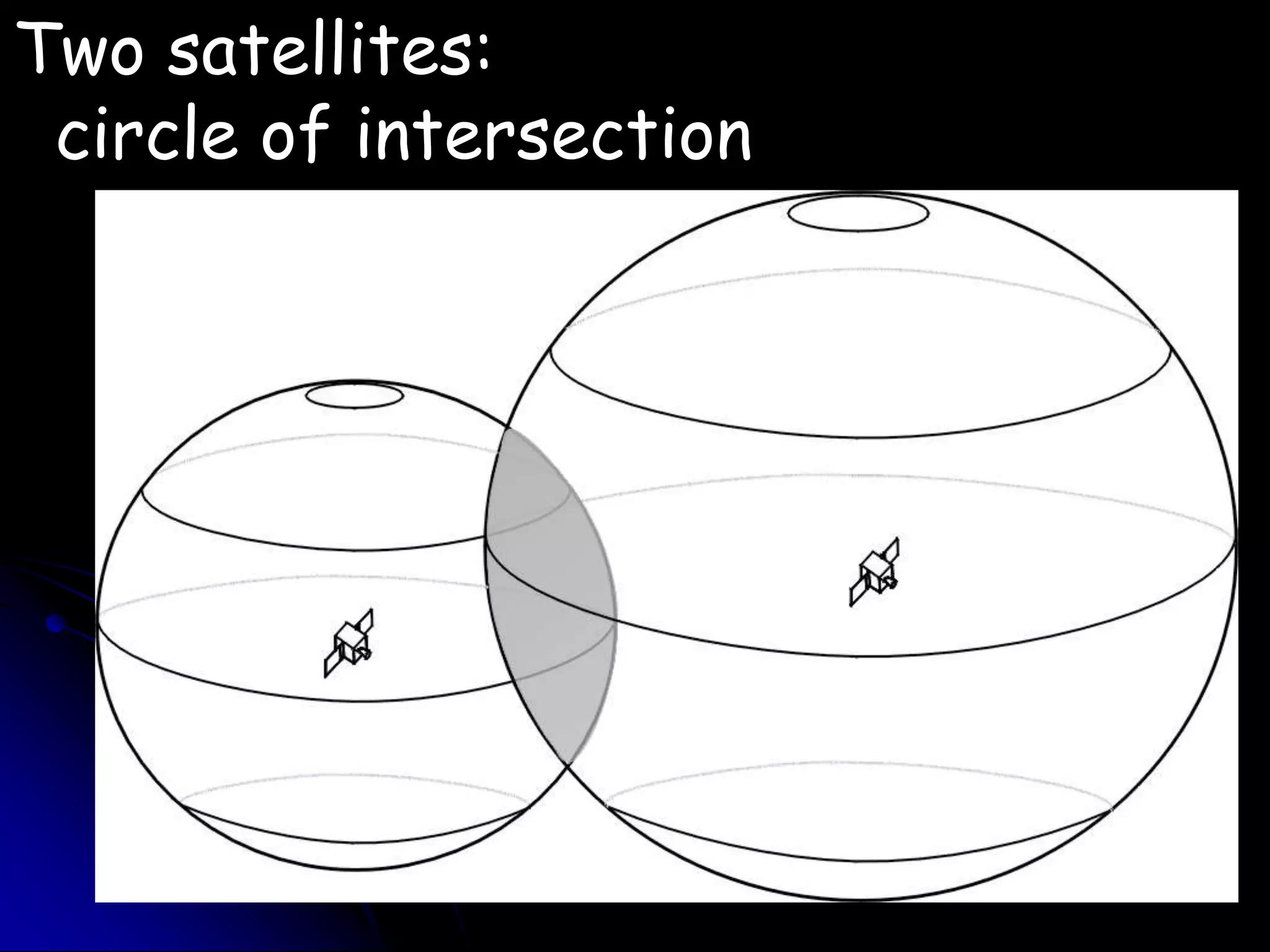

Two satellites: circle of intersection

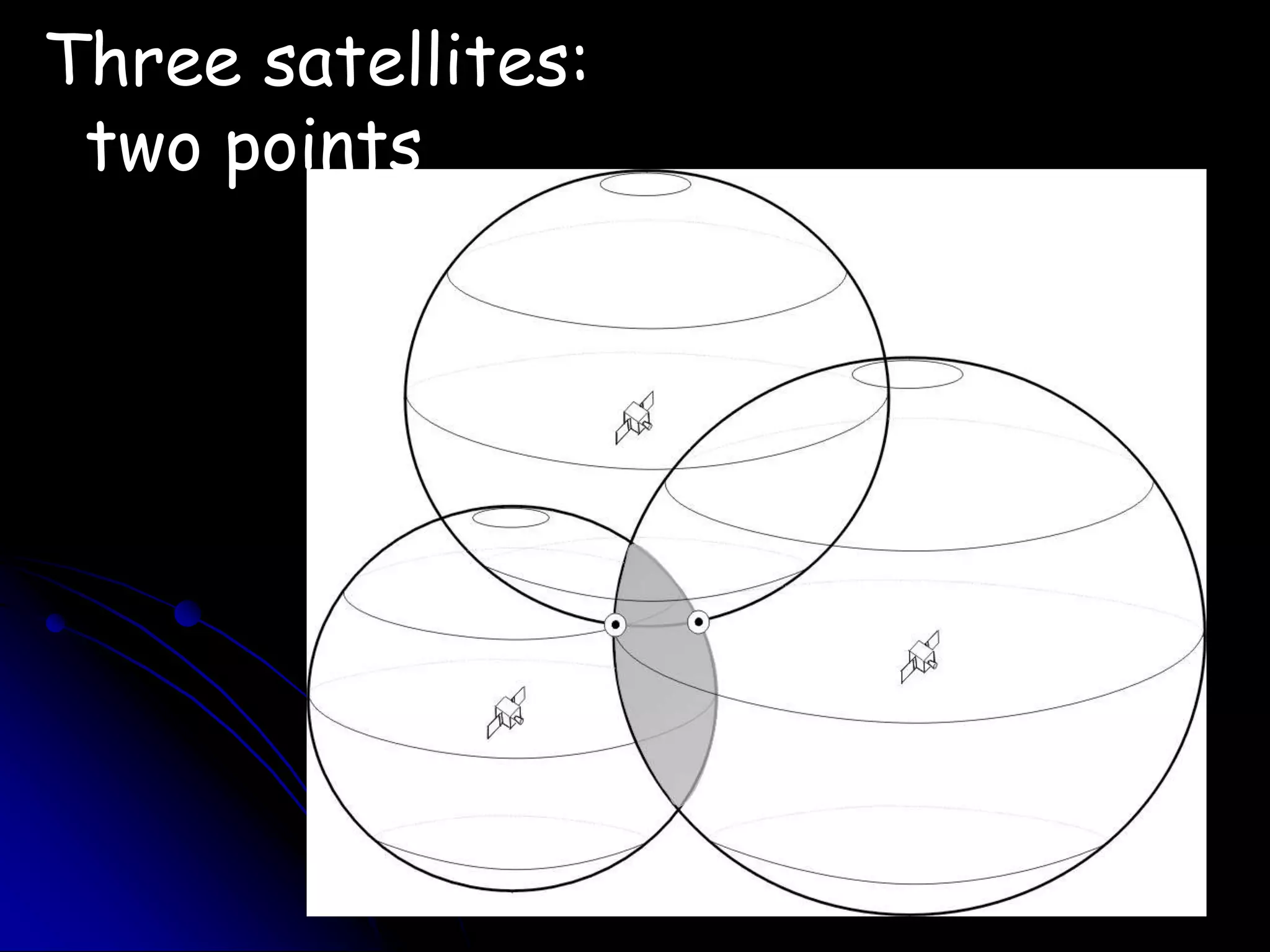

Three satellites: two points

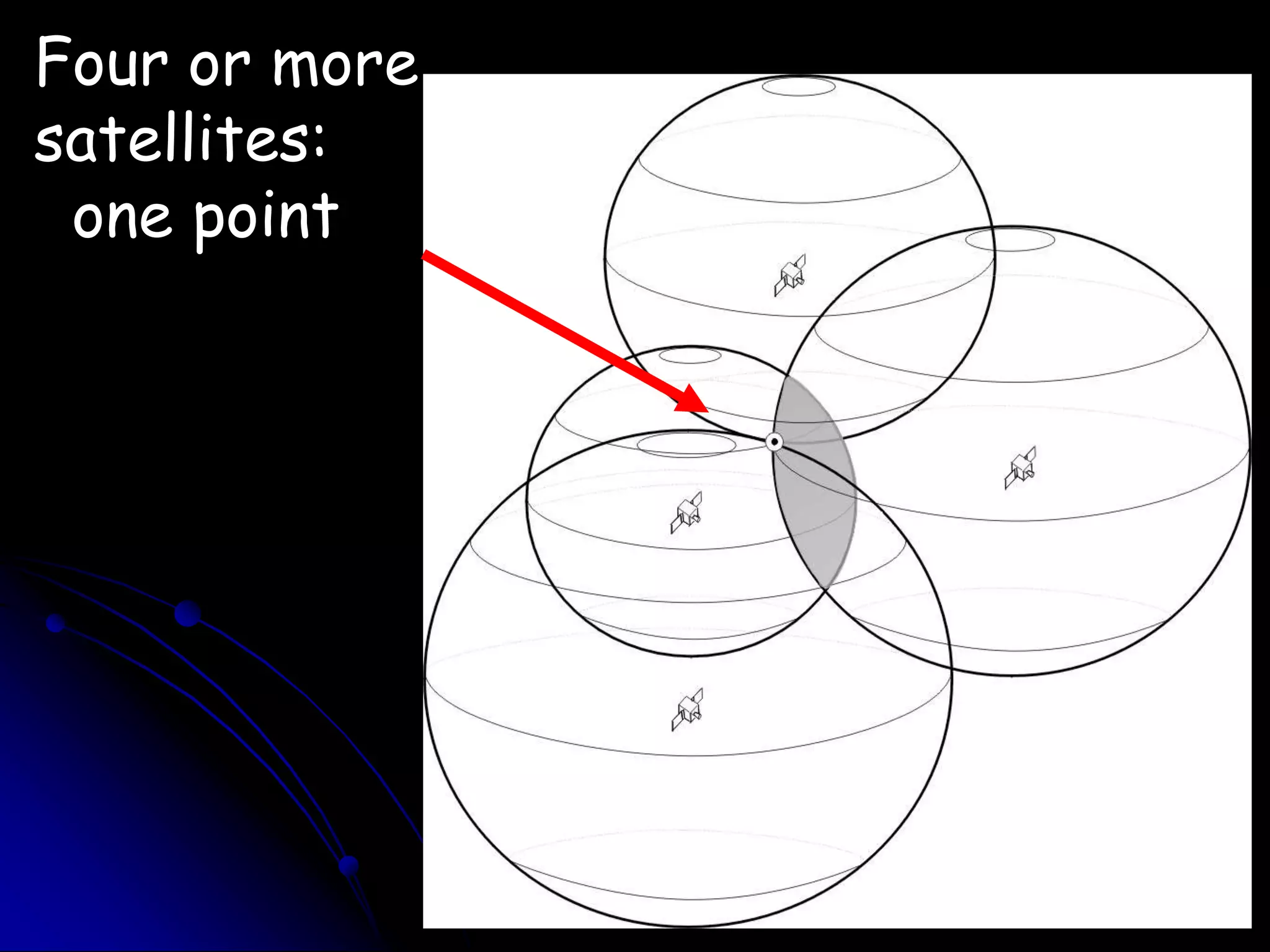

Four or moresatellites: one point

RMS versus Time Carrier-Phase (North)

RMS versus TimeCarrier-Phase (East)

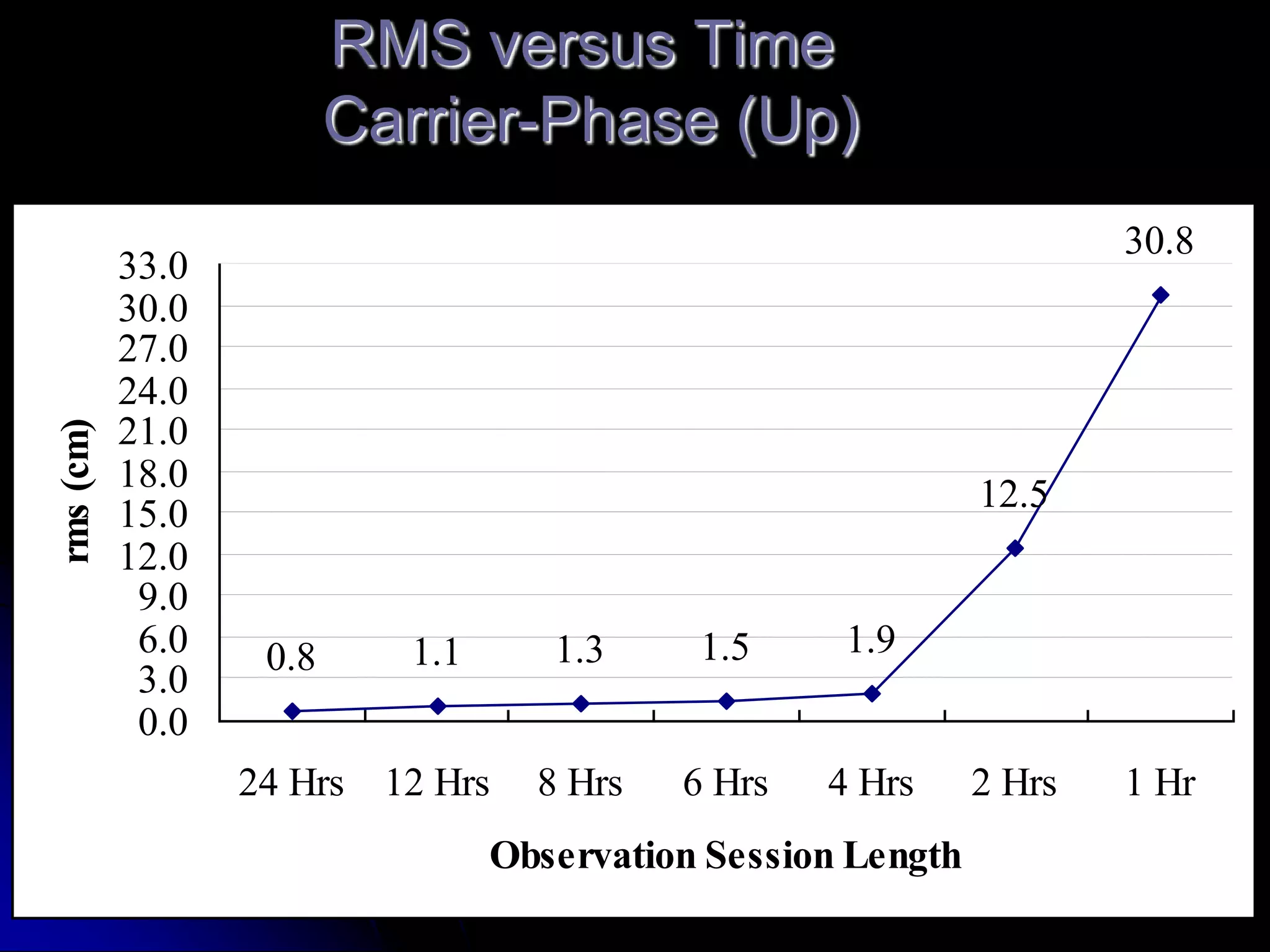

RMS versus Time Carrier-Phase (Up)

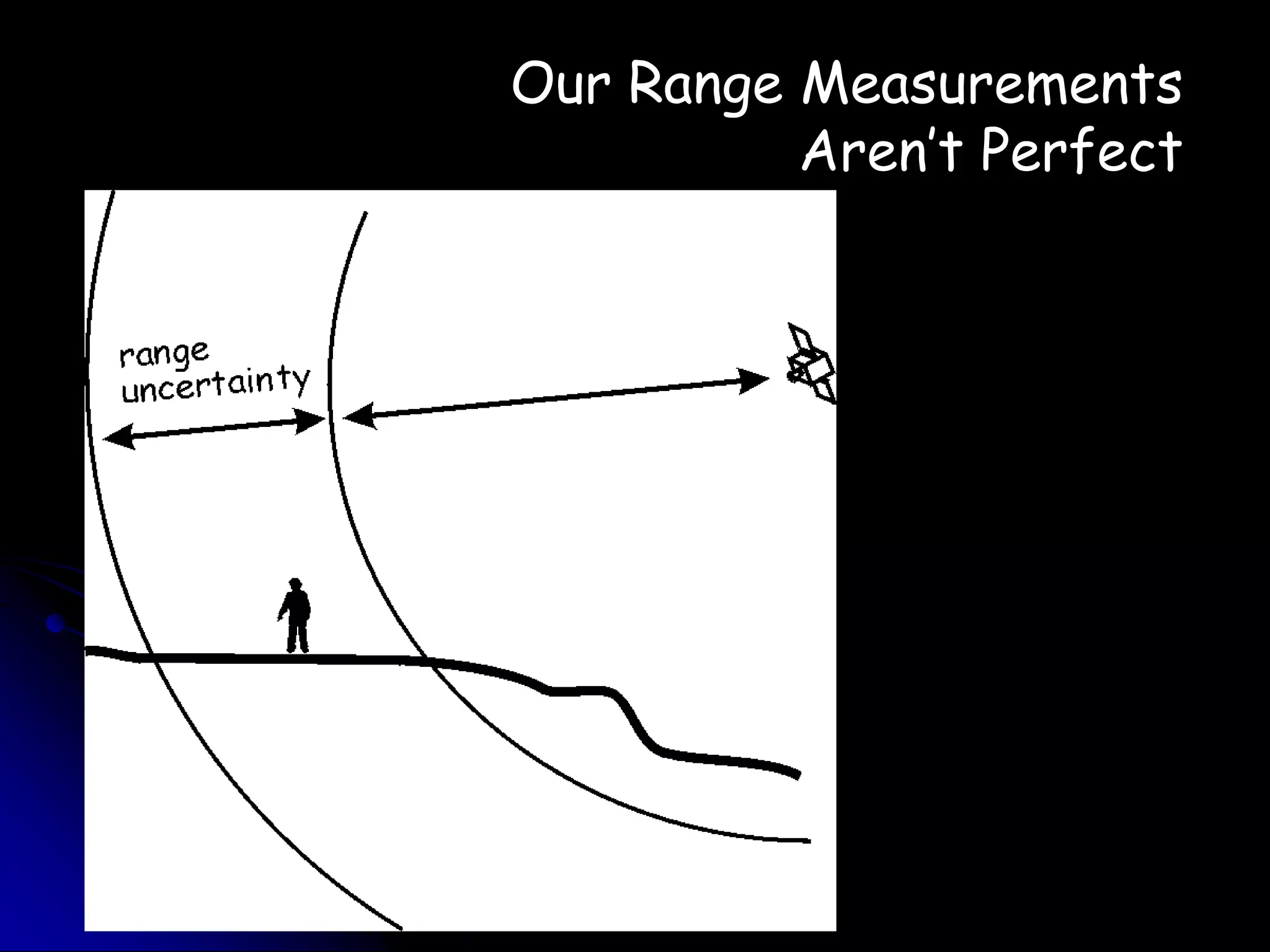

Our Range MeasurementsAren’t Perfect

Standalone Positioning: Since May 1, 20006-11 mC/A Code on L1No Selective Availability

Standalone Positioning: By 2011Better resistance to interference1-3 mC/A Code on L1C/A Code on L2New Code on L5

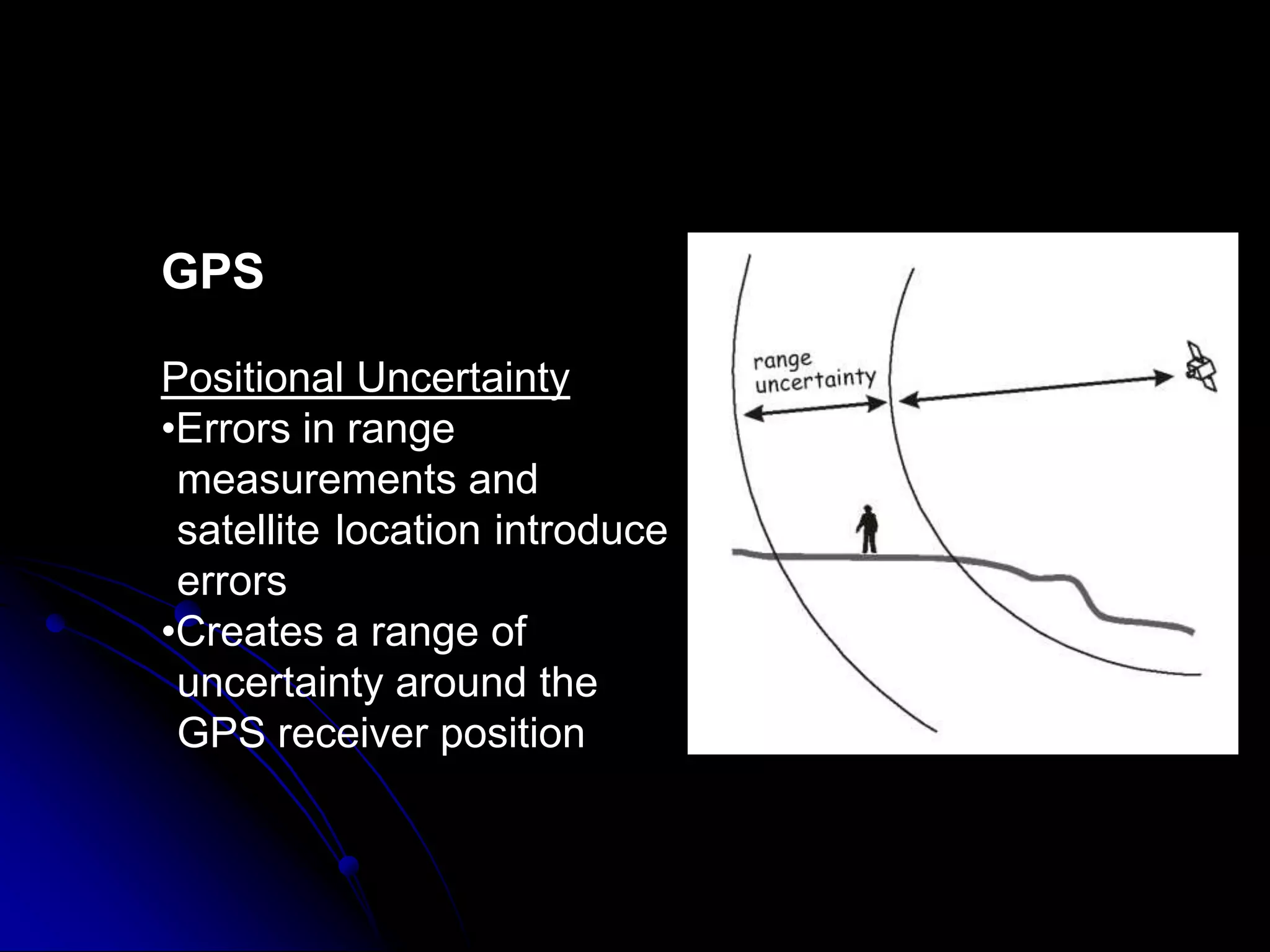

GPSPositional UncertaintyErrors in range measurements and satellite location introduce errors

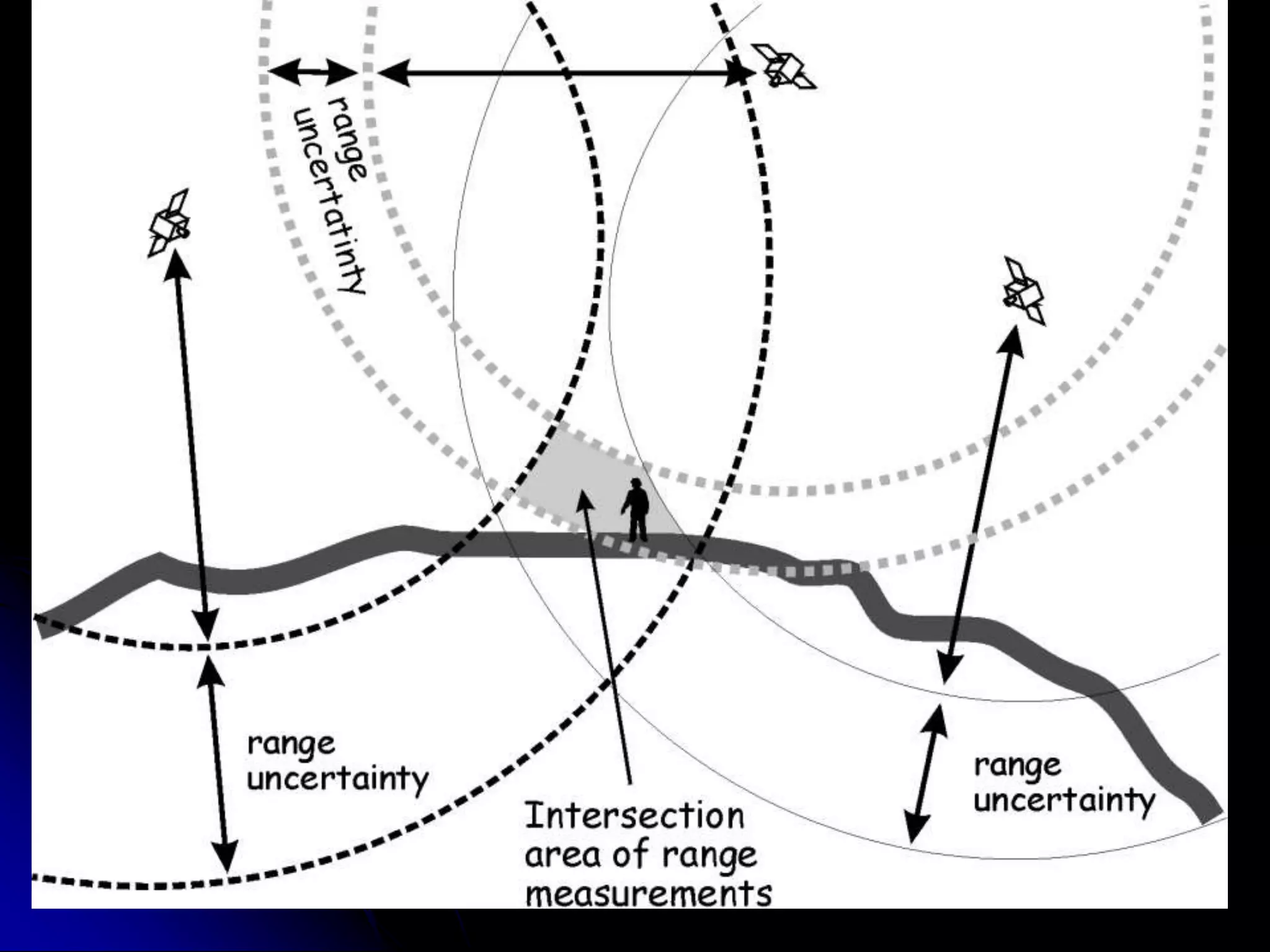

Creates a range of uncertainty around the GPS receiver position

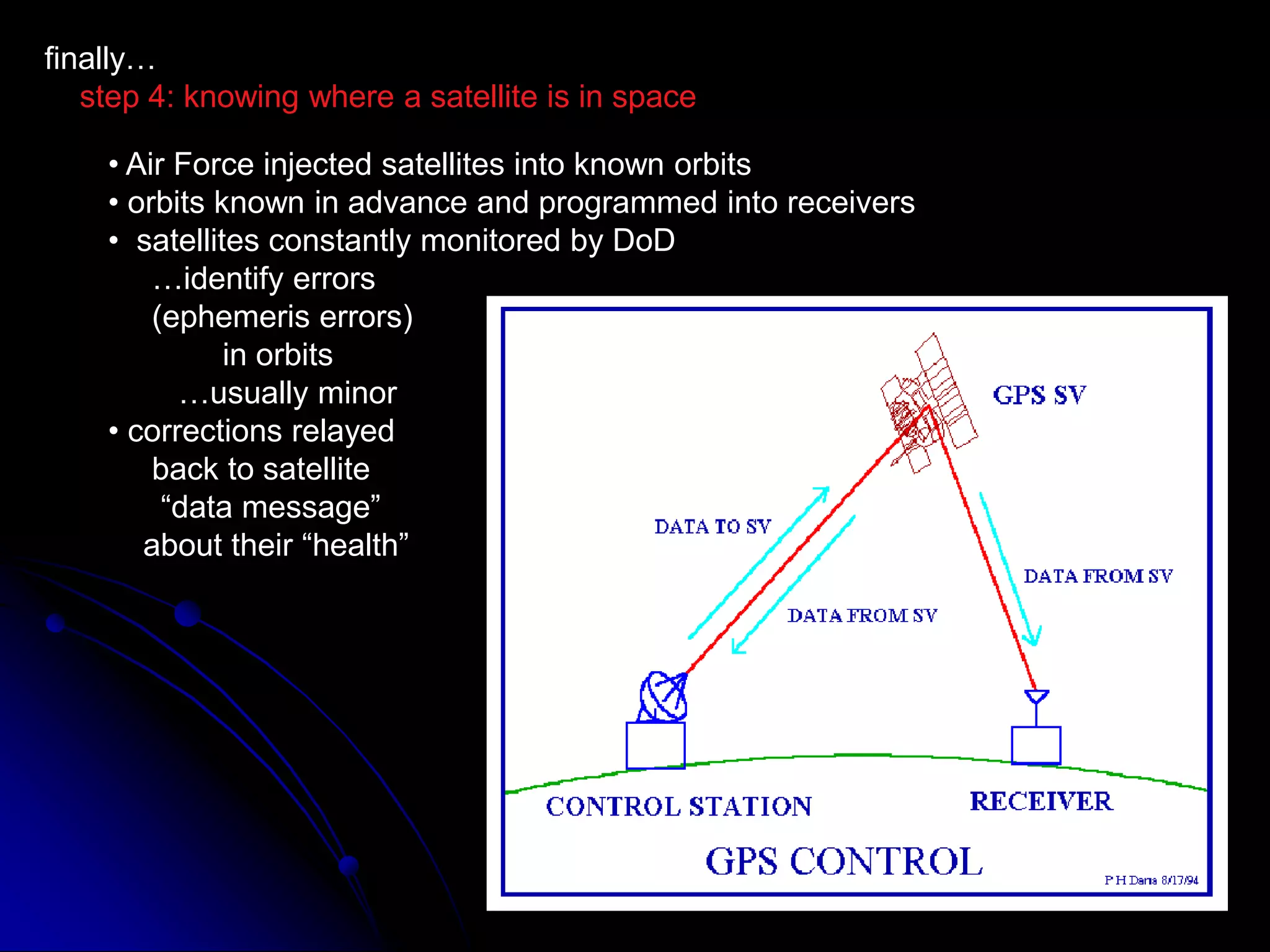

finally… step 4: knowing where a satellite is in space• Air Force injected satellites into known orbits• orbits known in advance and programmed into receivers• satellites constantly monitored by DoD …identify errors (ephemeris errors) in orbits …usually minor• corrections relayed back to satellite “data message” about their “health”

sites have co-located: • VLBI (very long baseline interferometry); • lunar laser-ranging (from instrument left by Apollo astronauts) …primarily for length of day considerations • satellite laser-ranging

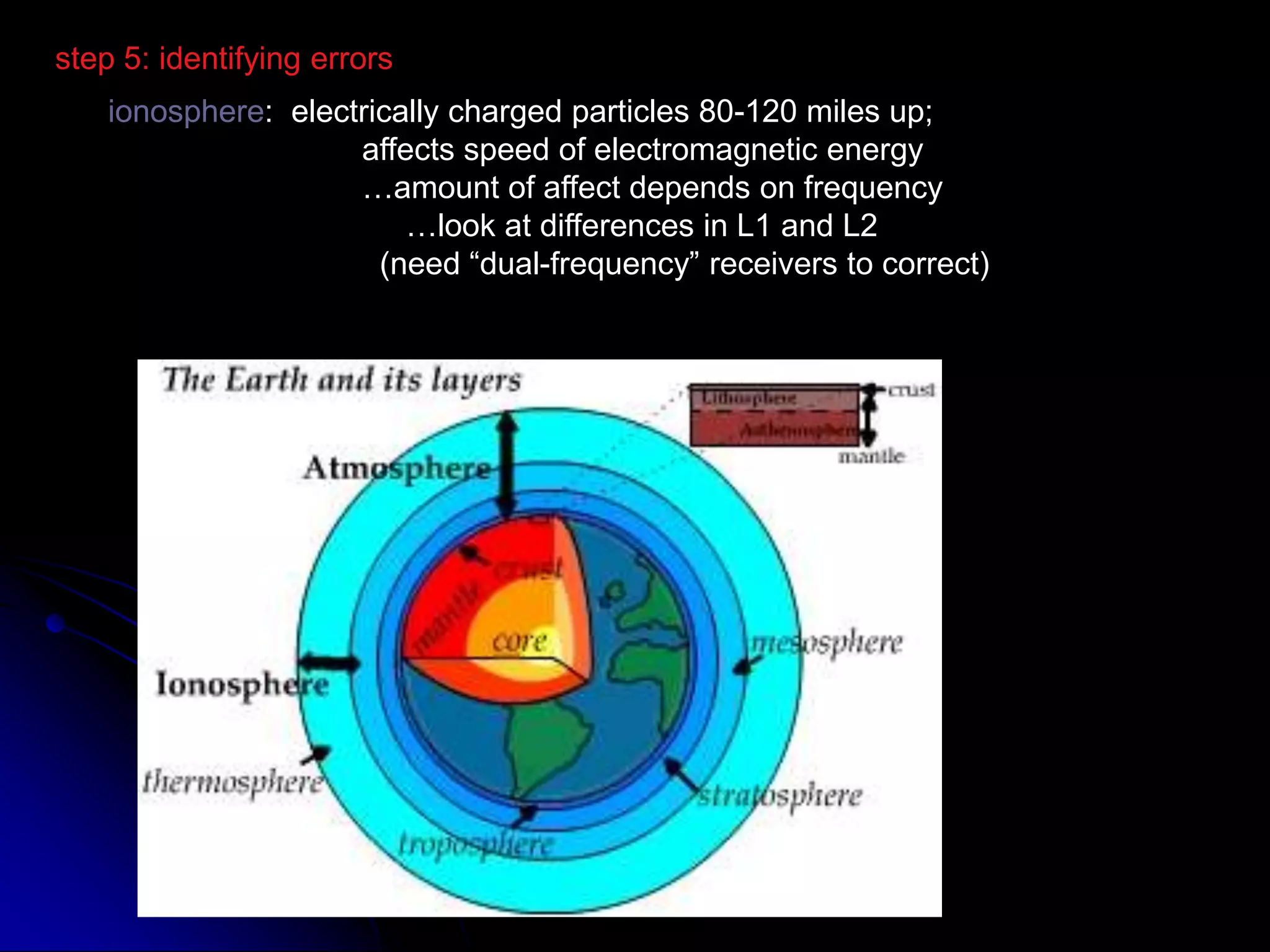

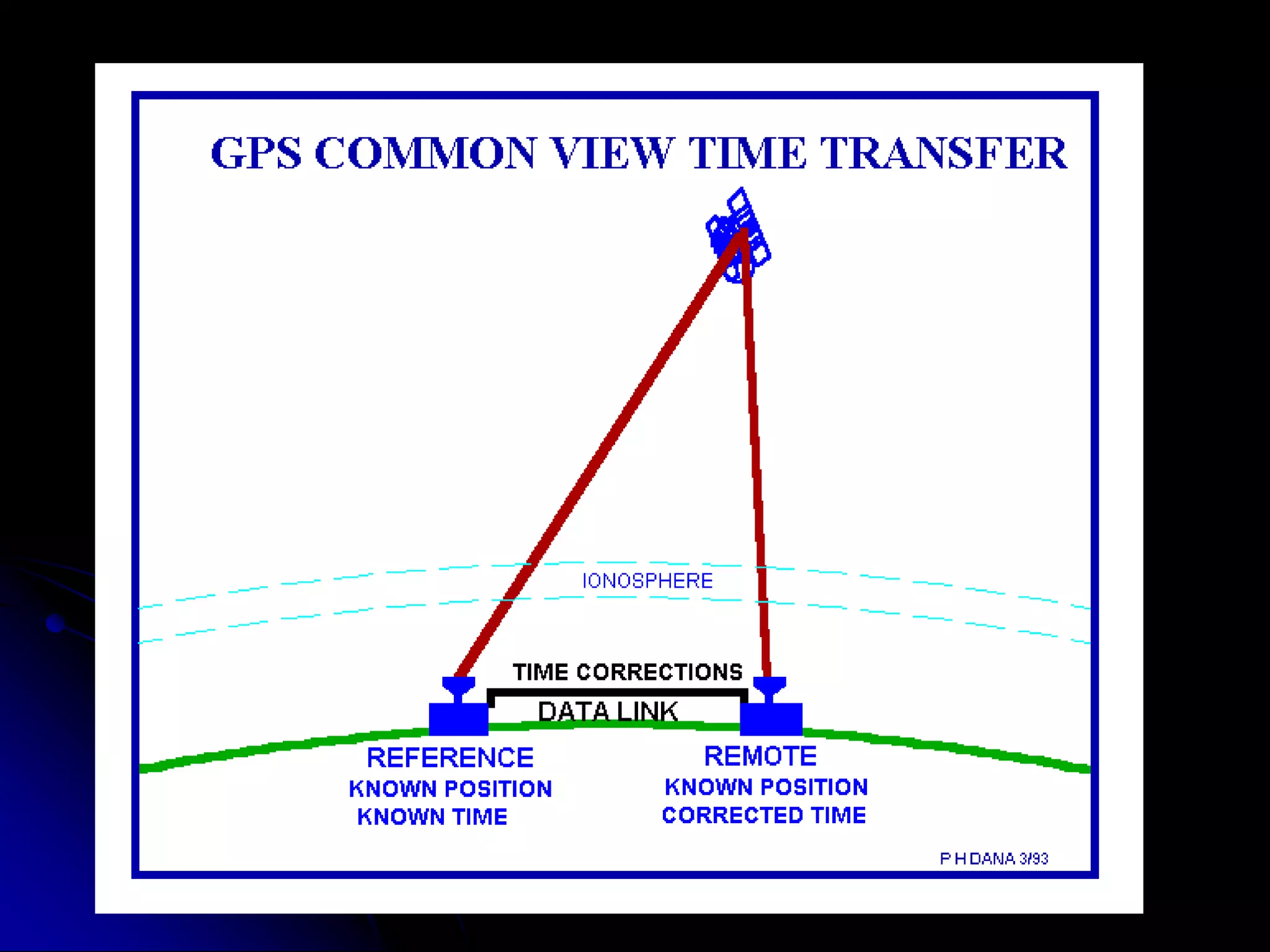

step 5: identifying errorsionosphere: electrically charged particles 80-120 miles up; affects speed of electromagnetic energy …amount of affect depends on frequency …look at differences in L1 and L2 (need “dual-frequency” receivers to correct)

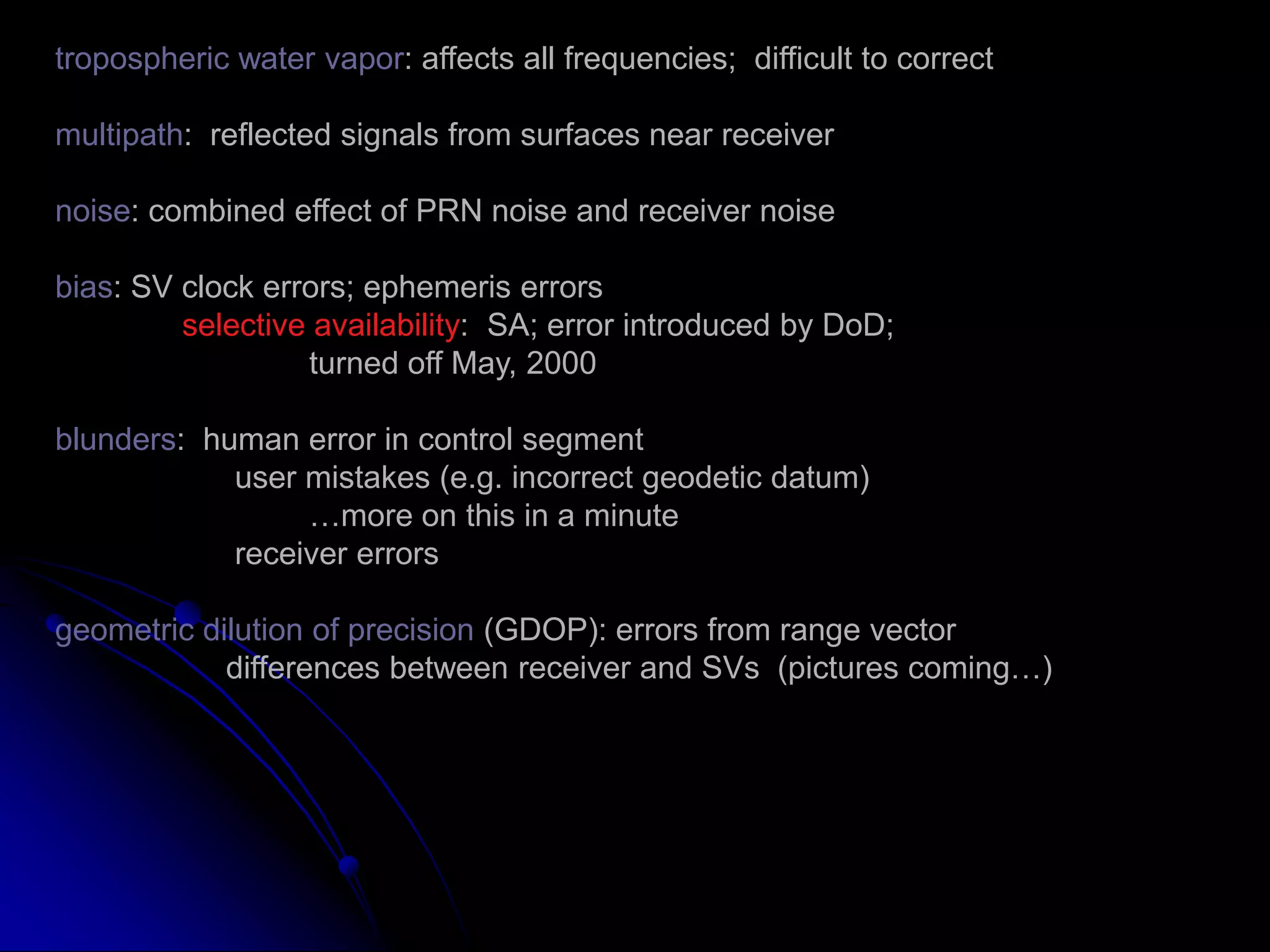

tropospheric water vapor: affects all frequencies; difficult to correctmultipath: reflected signals from surfaces near receivernoise: combined effect of PRN noise and receiver noisebias: SV clock errors; ephemeris errorsselective availability: SA; error introduced by DoD; turned off May, 2000blunders: human error in control segment user mistakes (e.g. incorrect geodetic datum) …more on this in a minute receiver errorsgeometric dilution of precision (GDOP): errors from range vector differences between receiver and SVs (pictures coming…)

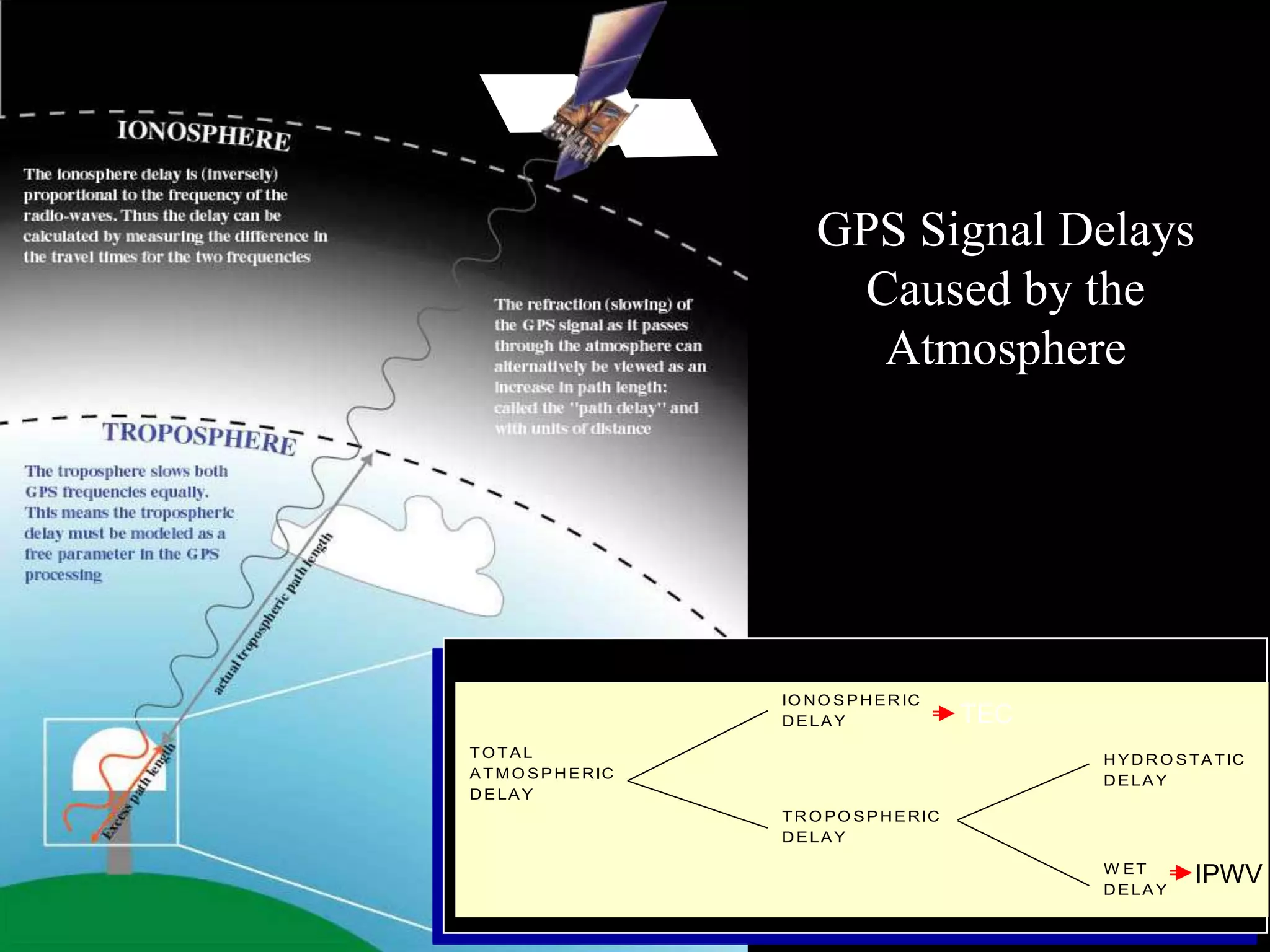

GPS Signal Delays Caused by the AtmosphereTEC IPWV

On July 2nd, a summer lightning storm rolled in beneath a curtain of Northern Lights over Manitoba, Canada. "This is only the second time I've seen a scene like this," says veteran aurora photographer Chris Gray, who used a D100 Nikon camera set at f2.8 and ISO 1000 to capture this 30-second exposure.http://www.spaceweather.com/

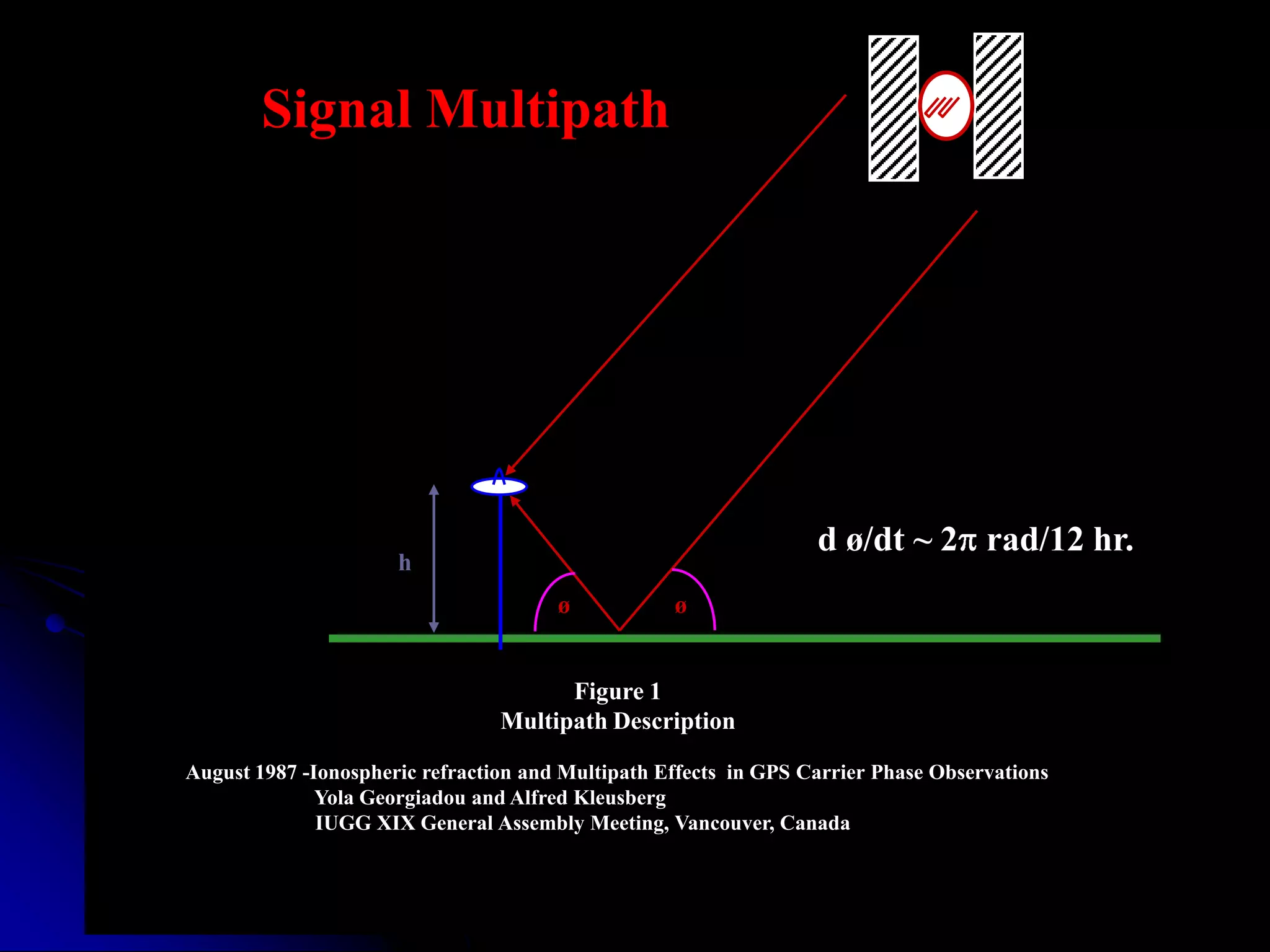

.............Signal Multipathd ø/dt ~ 2 rad/12 hr.høøFigure 1Multipath DescriptionAugust 1987 -Ionospheric refraction and Multipath Effects in GPS Carrier Phase ObservationsYola Georgiadou and Alfred Kleusberg IUGG XIX General Assembly Meeting, Vancouver, Canada

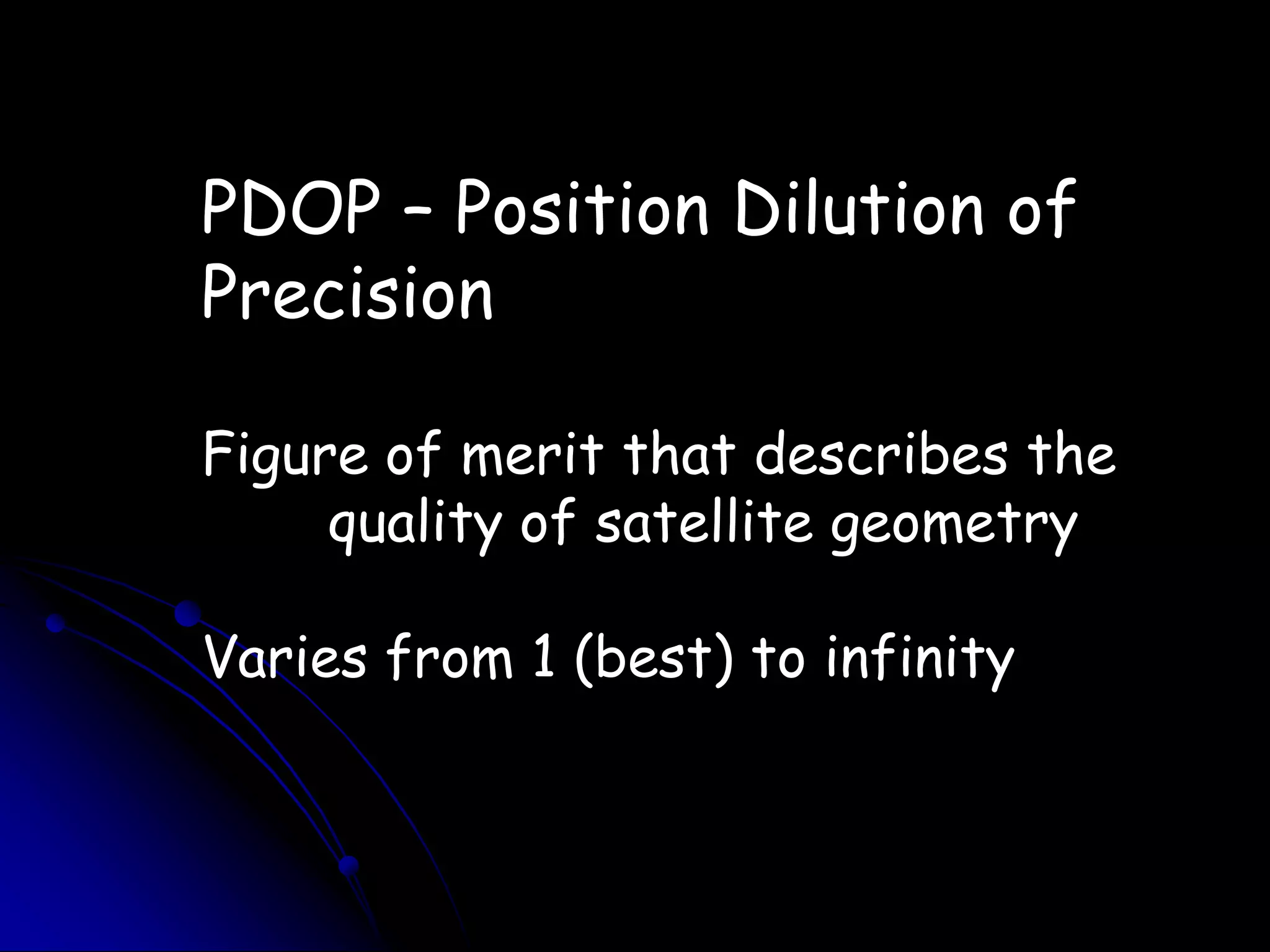

PDOP – Position Dilution of PrecisionFigure of merit that describes the quality of satellite geometryVaries from 1 (best) to infinity

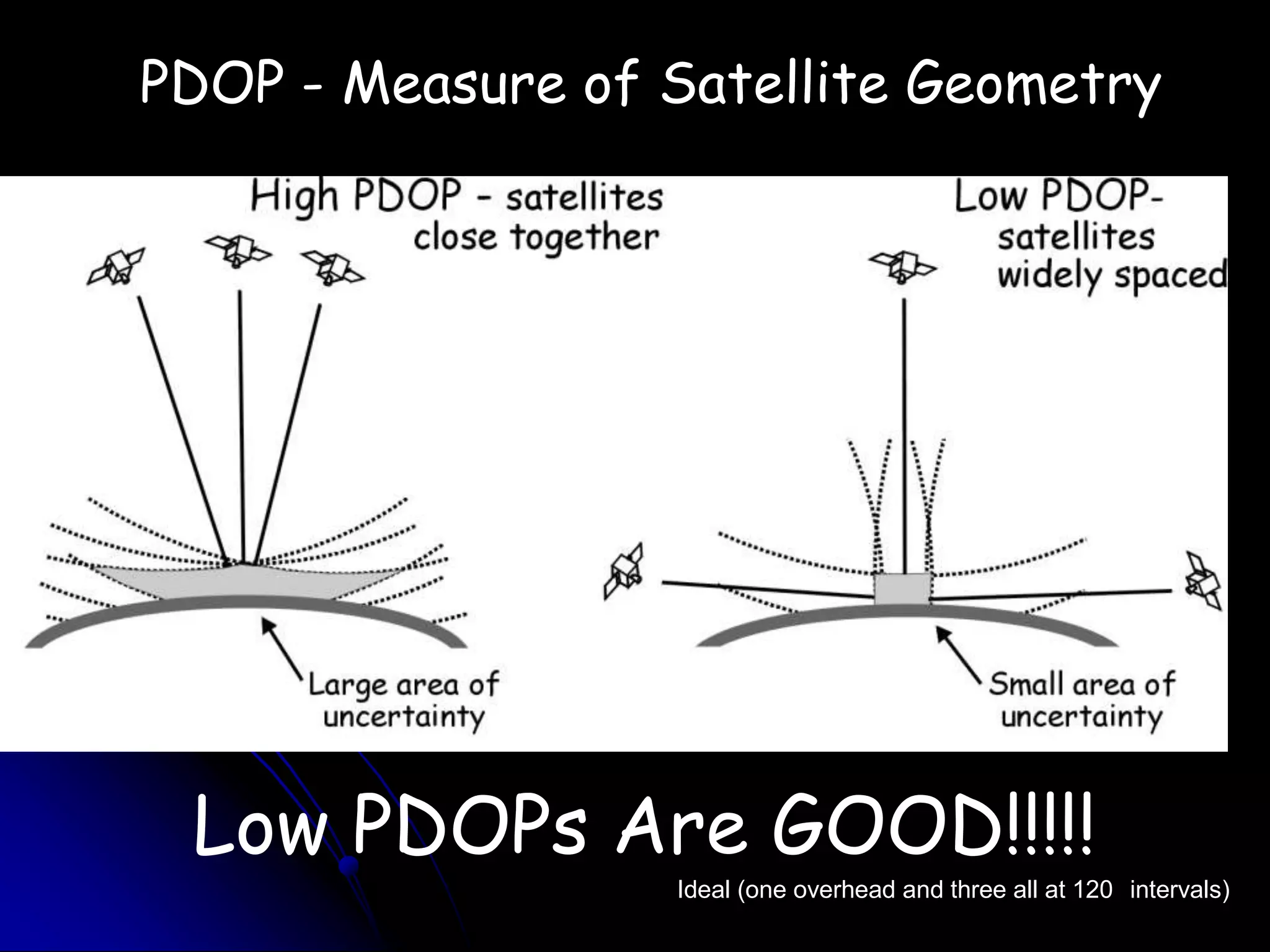

PDOP - Measure of Satellite GeometryLow PDOPs Are GOOD!!!!!Ideal (one overhead and three all at 120° intervals)

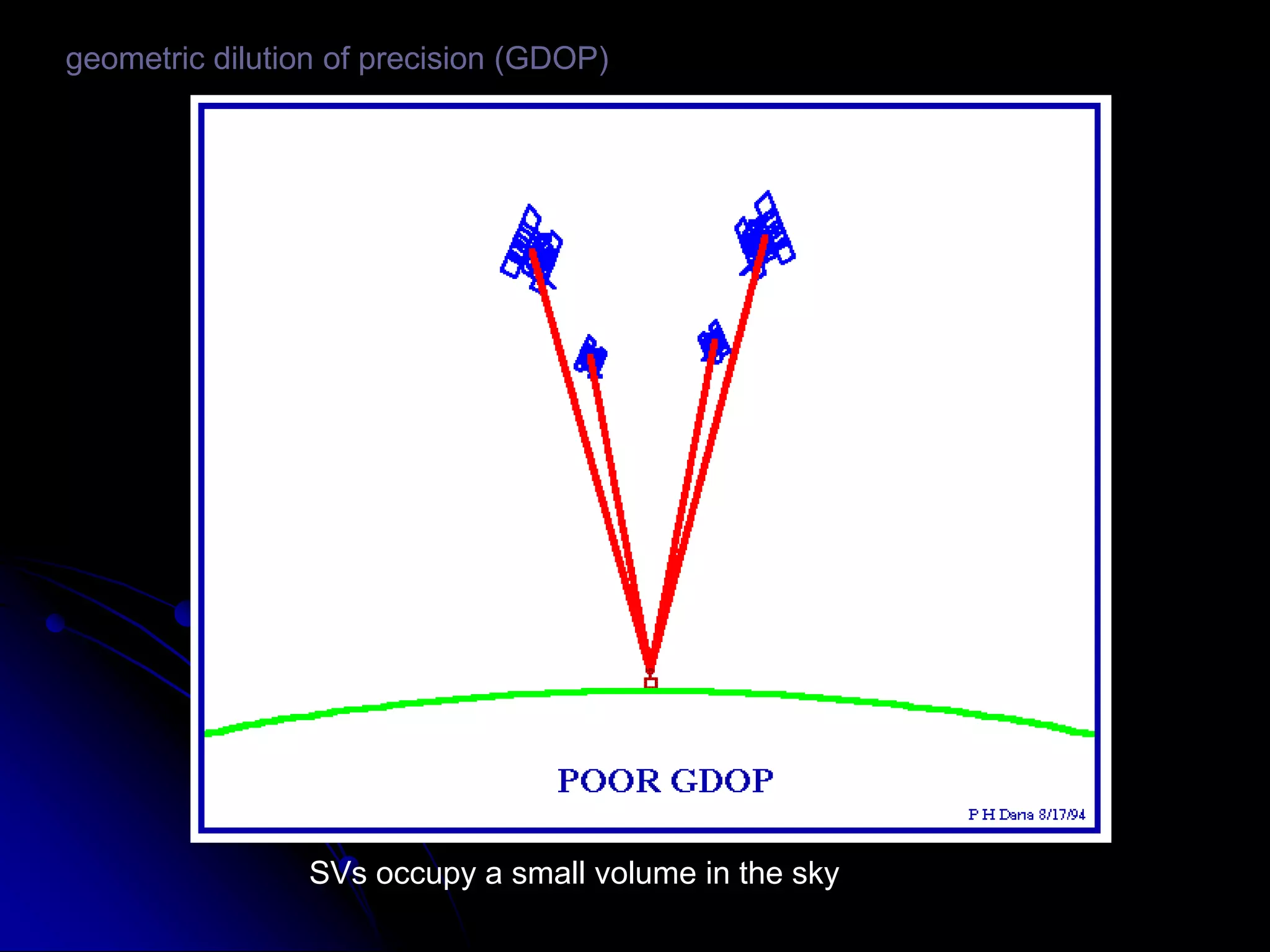

geometric dilution of precision (GDOP)SVs occupy a small volume in the sky

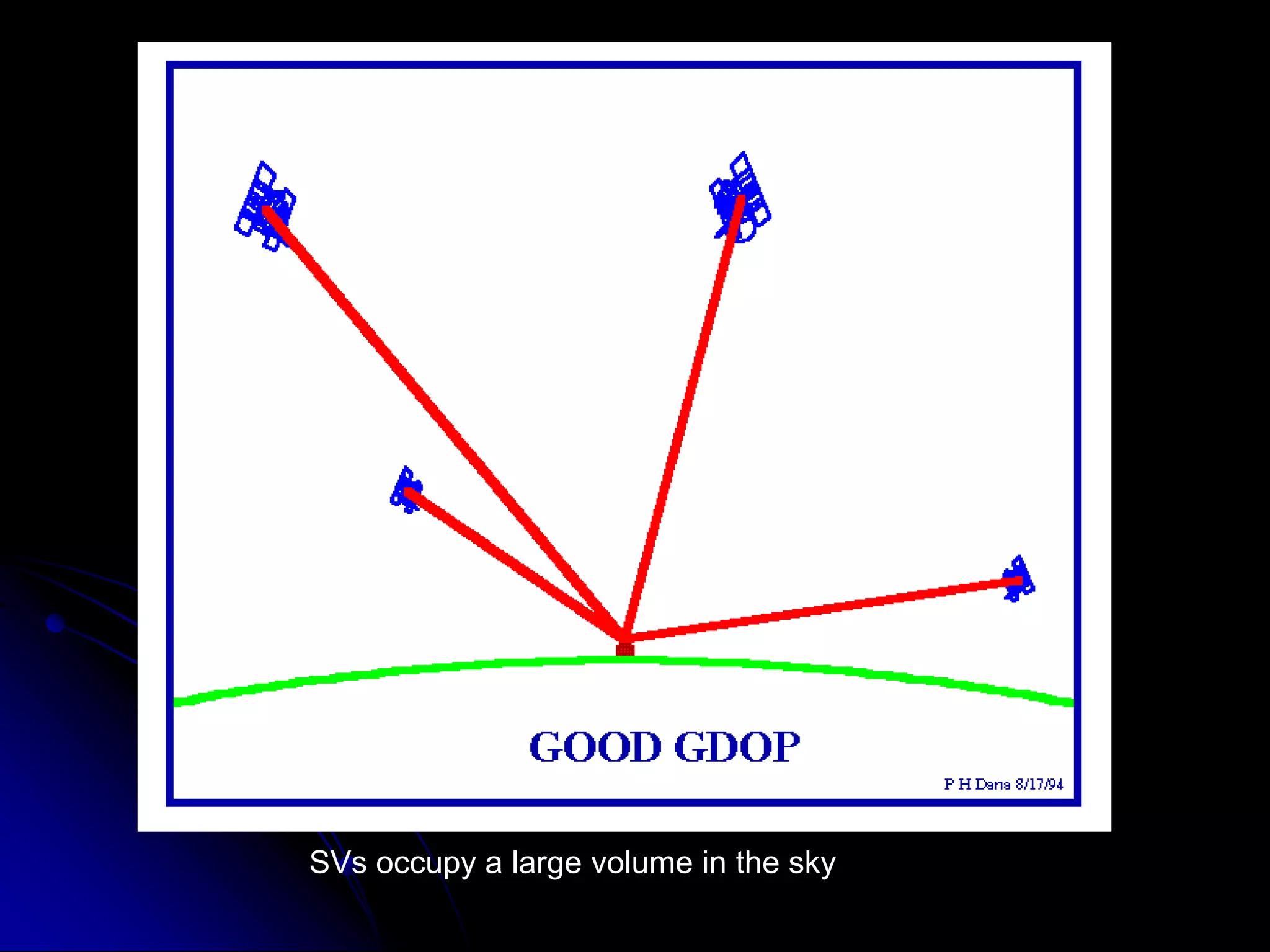

SVs occupy a large volume in the sky

when measuring must have good GDOP and good visibility …may not always be possible

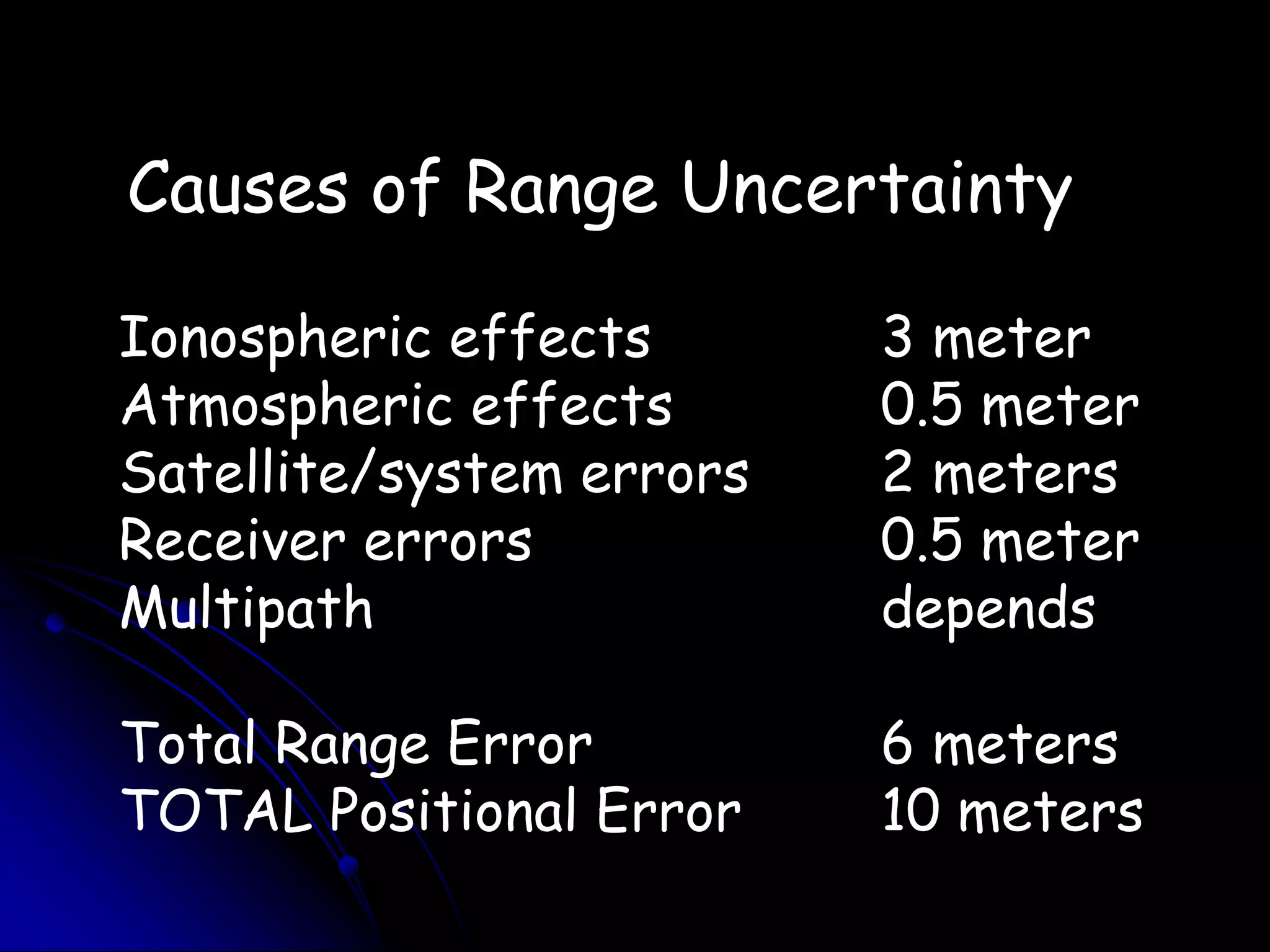

Causes of Range UncertaintyIonospheric effects 3 meterAtmospheric effects 0.5 meterSatellite/system errors 2 metersReceiver errors 0.5 meterMultipath dependsTotal Range Error 6 metersTOTAL Positional Error 10 meters

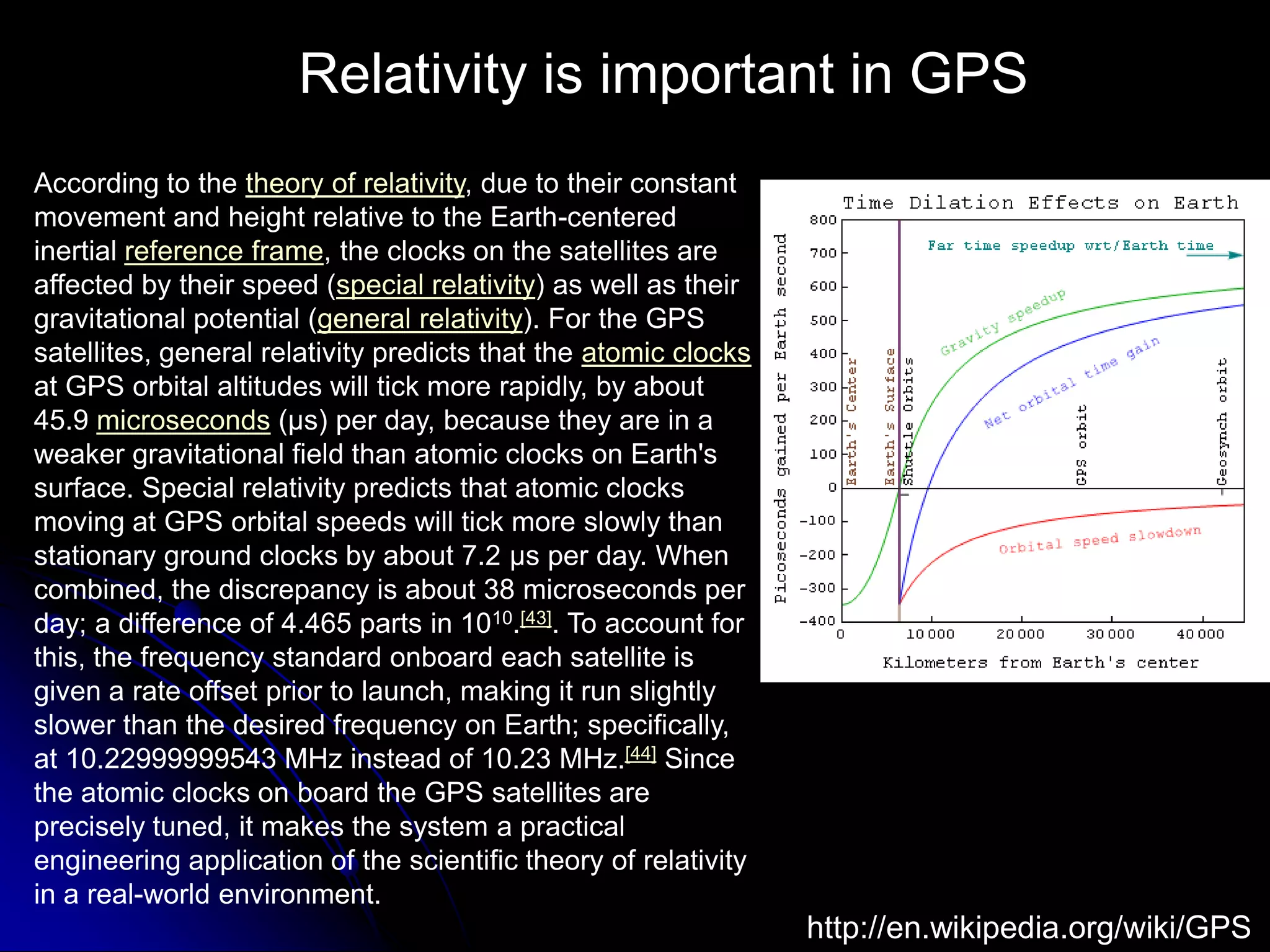

Relativity is important in GPSAccording to the theory of relativity, due to their constant movement and height relative to the Earth-centered inertial reference frame, the clocks on the satellites are affected by their speed (special relativity) as well as their gravitational potential (general relativity). For the GPS satellites, general relativity predicts that the atomic clocks at GPS orbital altitudes will tick more rapidly, by about 45.9 microseconds (μs) per day, because they are in a weaker gravitational field than atomic clocks on Earth's surface. Special relativity predicts that atomic clocks moving at GPS orbital speeds will tick more slowly than stationary ground clocks by about 7.2 μs per day. When combined, the discrepancy is about 38 microseconds per day; a difference of 4.465 parts in 1010.[43]. To account for this, the frequency standard onboard each satellite is given a rate offset prior to launch, making it run slightly slower than the desired frequency on Earth; specifically, at 10.22999999543 MHz instead of 10.23 MHz.[44] Since the atomic clocks on board the GPS satellites are precisely tuned, it makes the system a practical engineering application of the scientific theory of relativity in a real-world environment.http://en.wikipedia.org/wiki/GPS

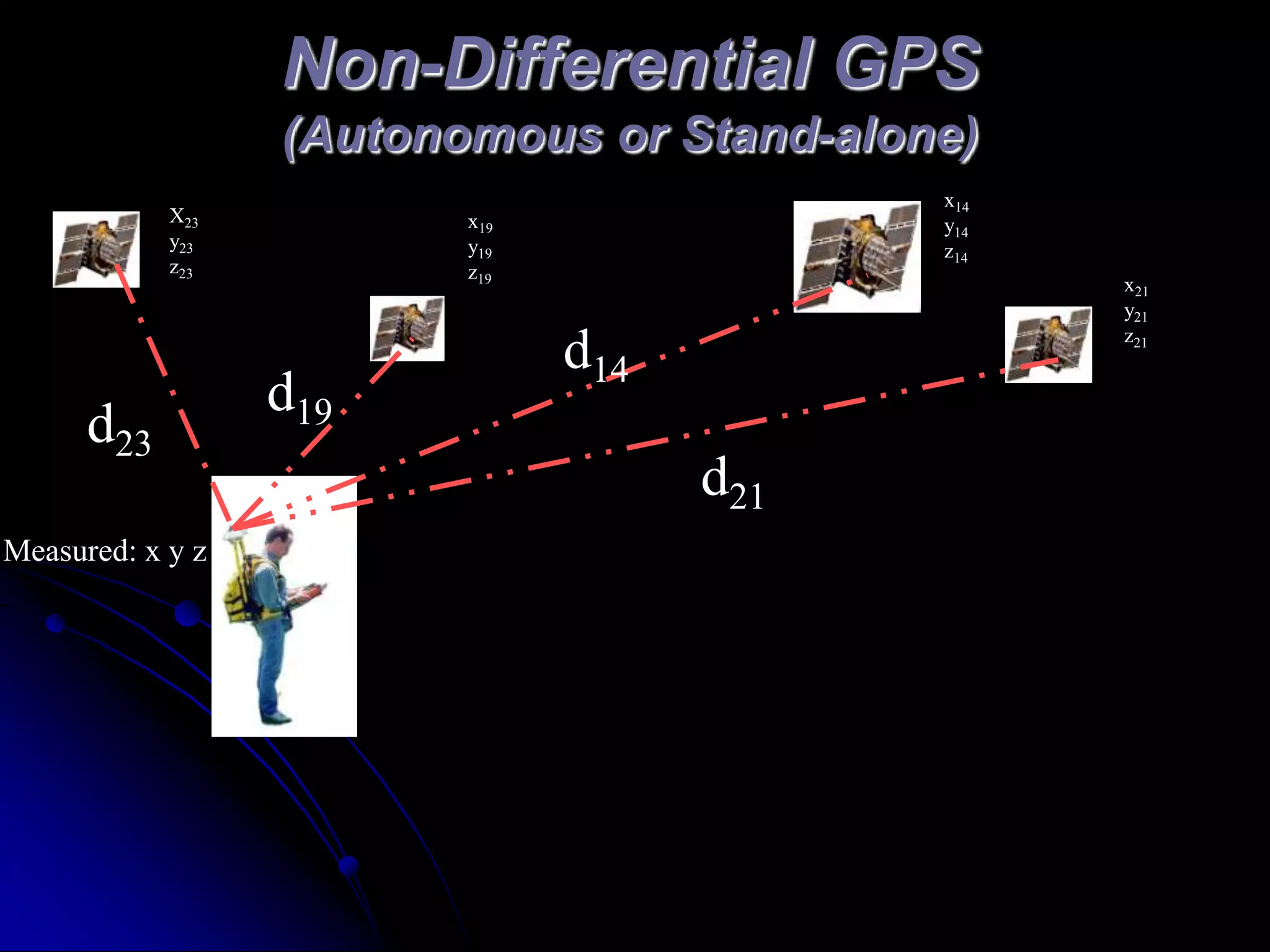

Non-Differential GPS(Autonomous or Stand-alone)x14y14z14X23y23z23x19y19z19x21y21z21d14d19d23d21Measured: x y z

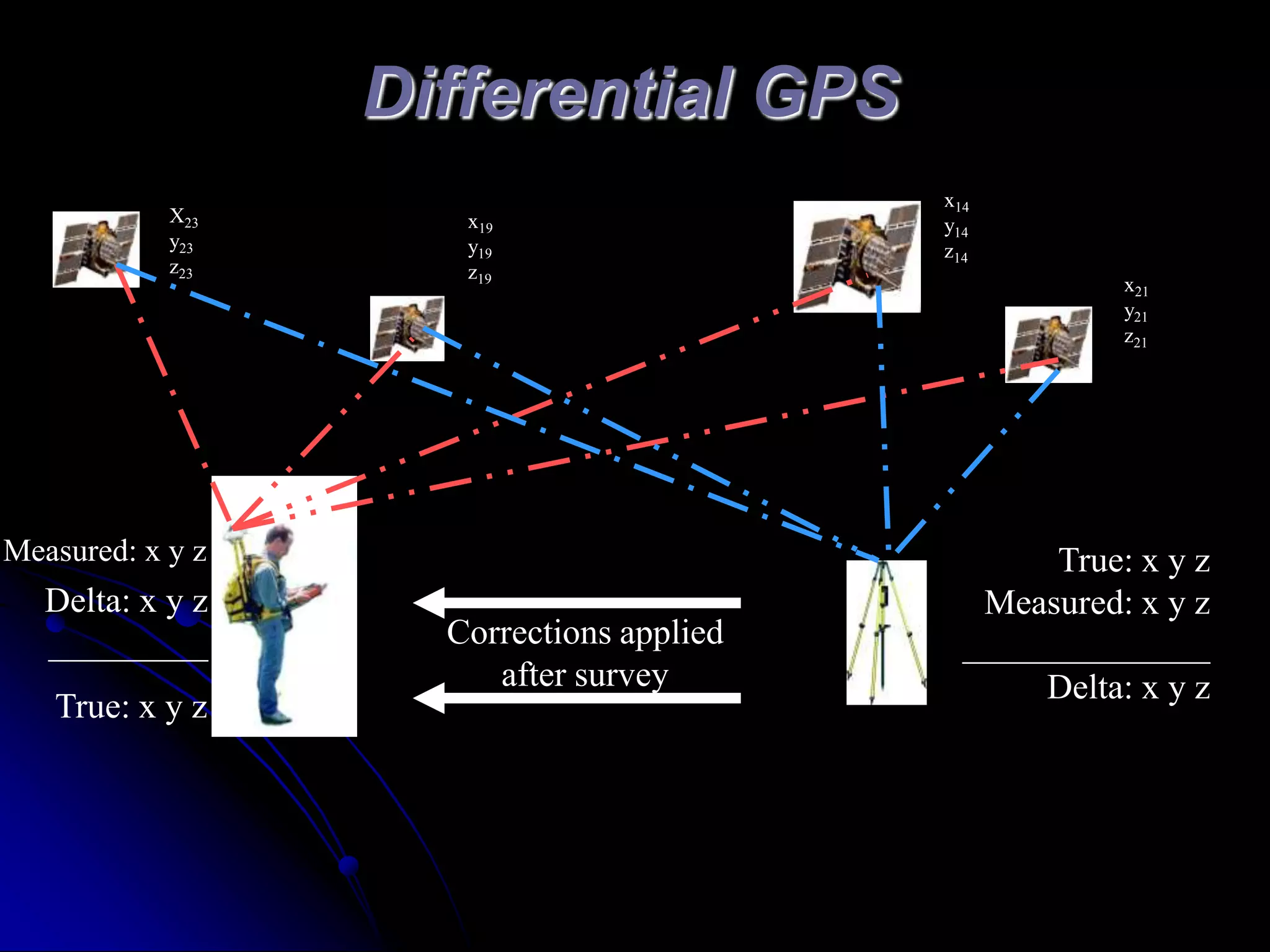

Differential GPSx14y14z14X23y23z23x19y19z19x21y21z21Measured: x y zTrue: x y zMeasured: x y z______________Delta: x y zDelta: x y z_________Corrections appliedafter surveyTrue: x y z

Real-Time Differential GPSx14y14z14X23y23z23x19y19z19x21y21z21Measured: x y zDelta: x y z_________Corrections appliedduring the surveyTrue: x y zTrue: x y zMeasured: x y z______________Delta: x y z

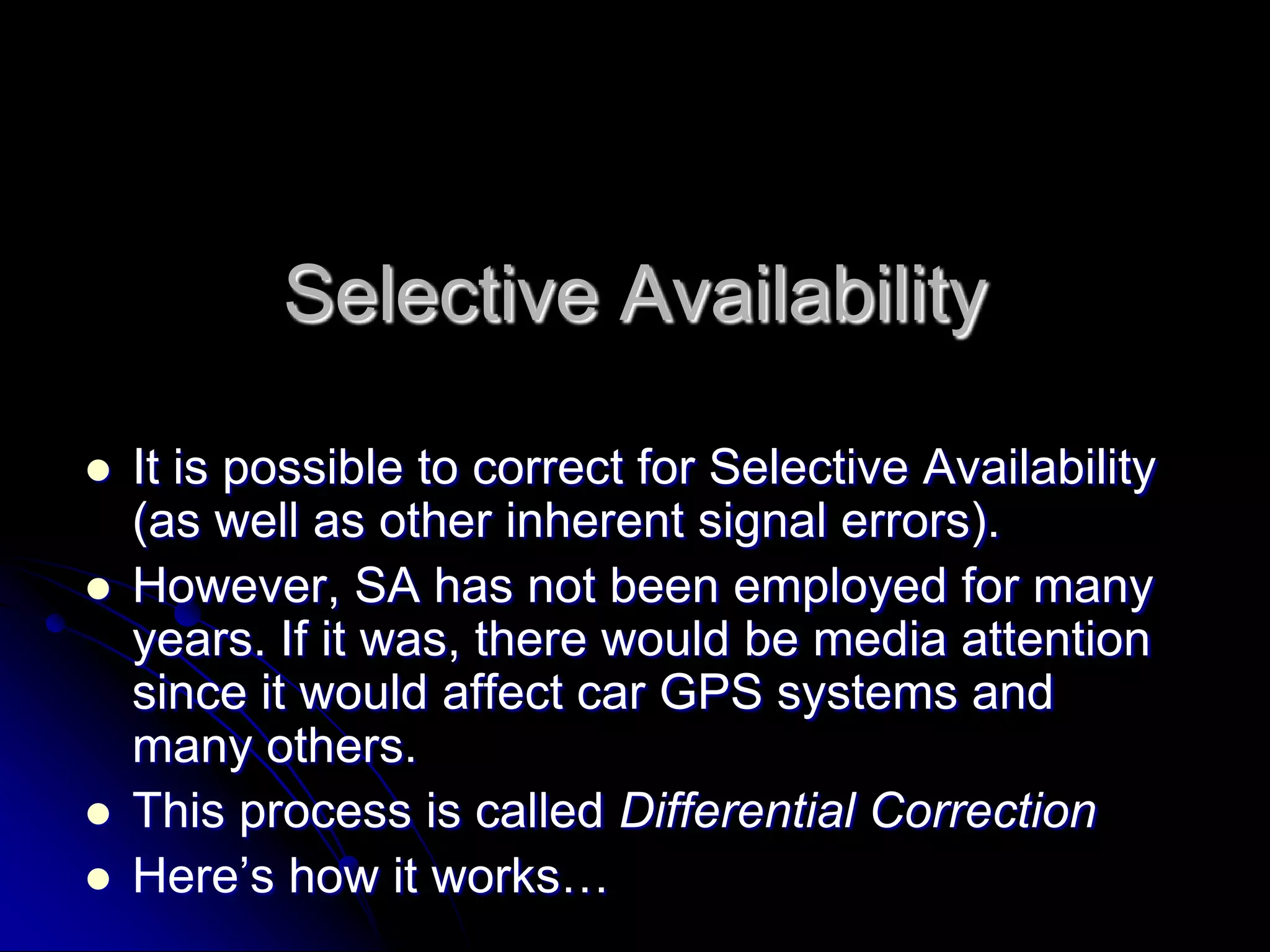

Selective AvailabilityIt is possible to correct for Selective Availability (as well as other inherent signal errors).However, SA has not been employed for many years. If it was, there would be media attention since it would affect car GPS systems and many others. This process is called Differential CorrectionHere’s how it works…

Differential CorrectionThere are already established base stations established around the U.S.Surveyors have determined the precise location of these base stations already.Each base station has a GPS receiver, which collects incoming (scrambled) signals.The true (surveyed) location is then compared to the GPS coordinates.The correction values are then sent to other GPS receivers in the field.

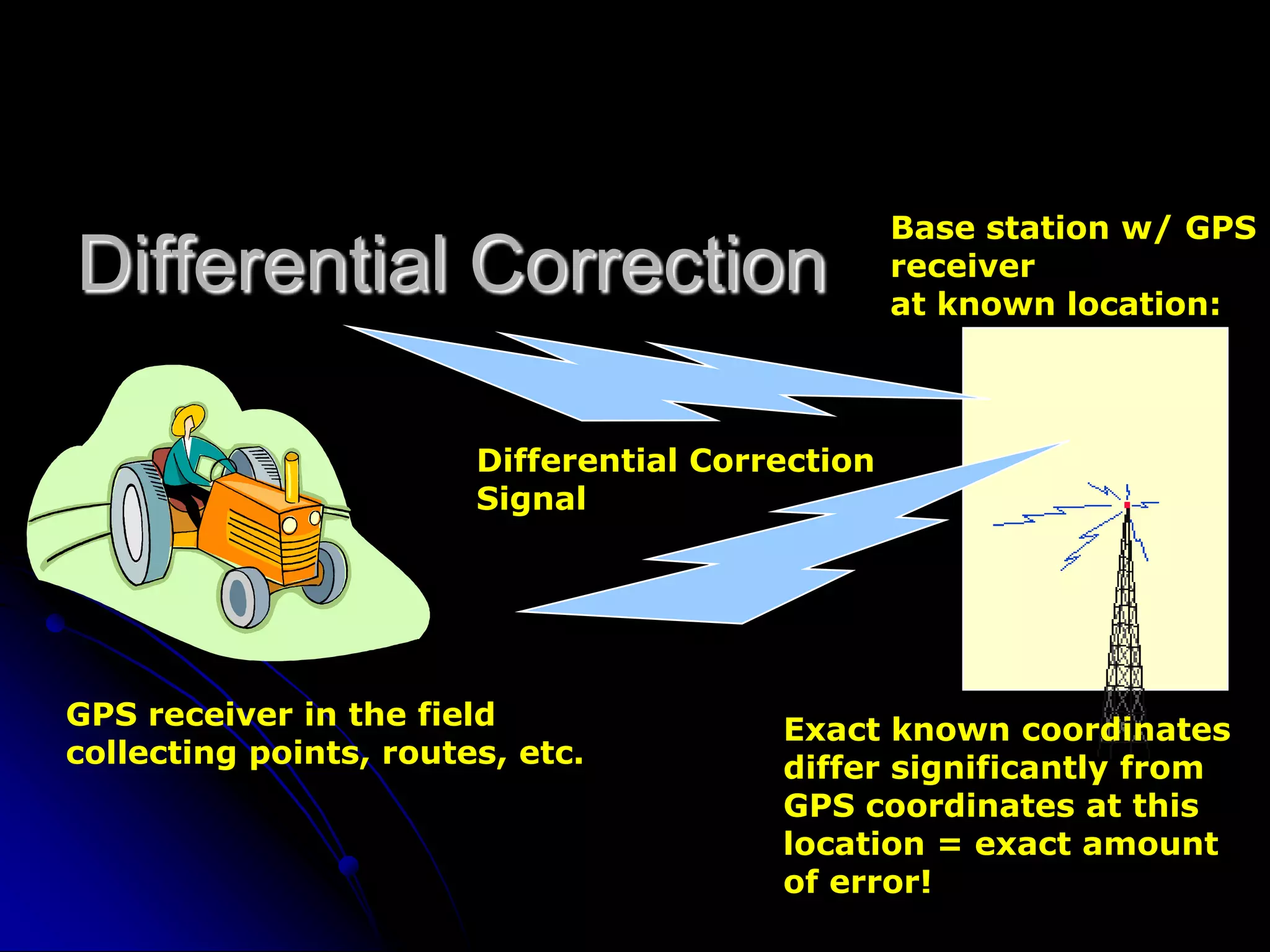

Differential CorrectionBase station w/ GPS receiver at known location:Differential Correction SignalGPS receiver in the fieldcollecting points, routes, etc.Exact known coordinates differ significantly from GPS coordinates at this location = exact amount of error!

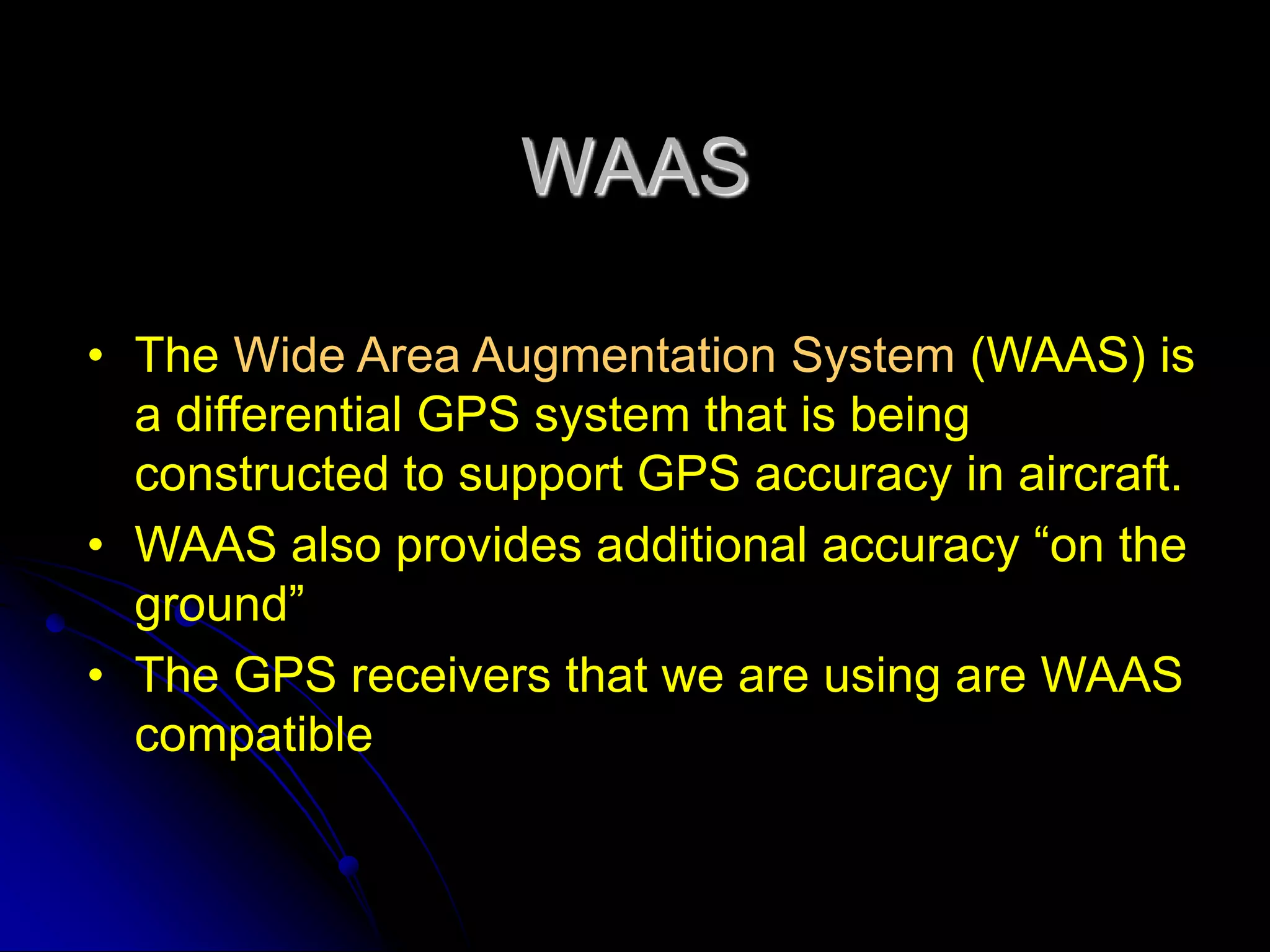

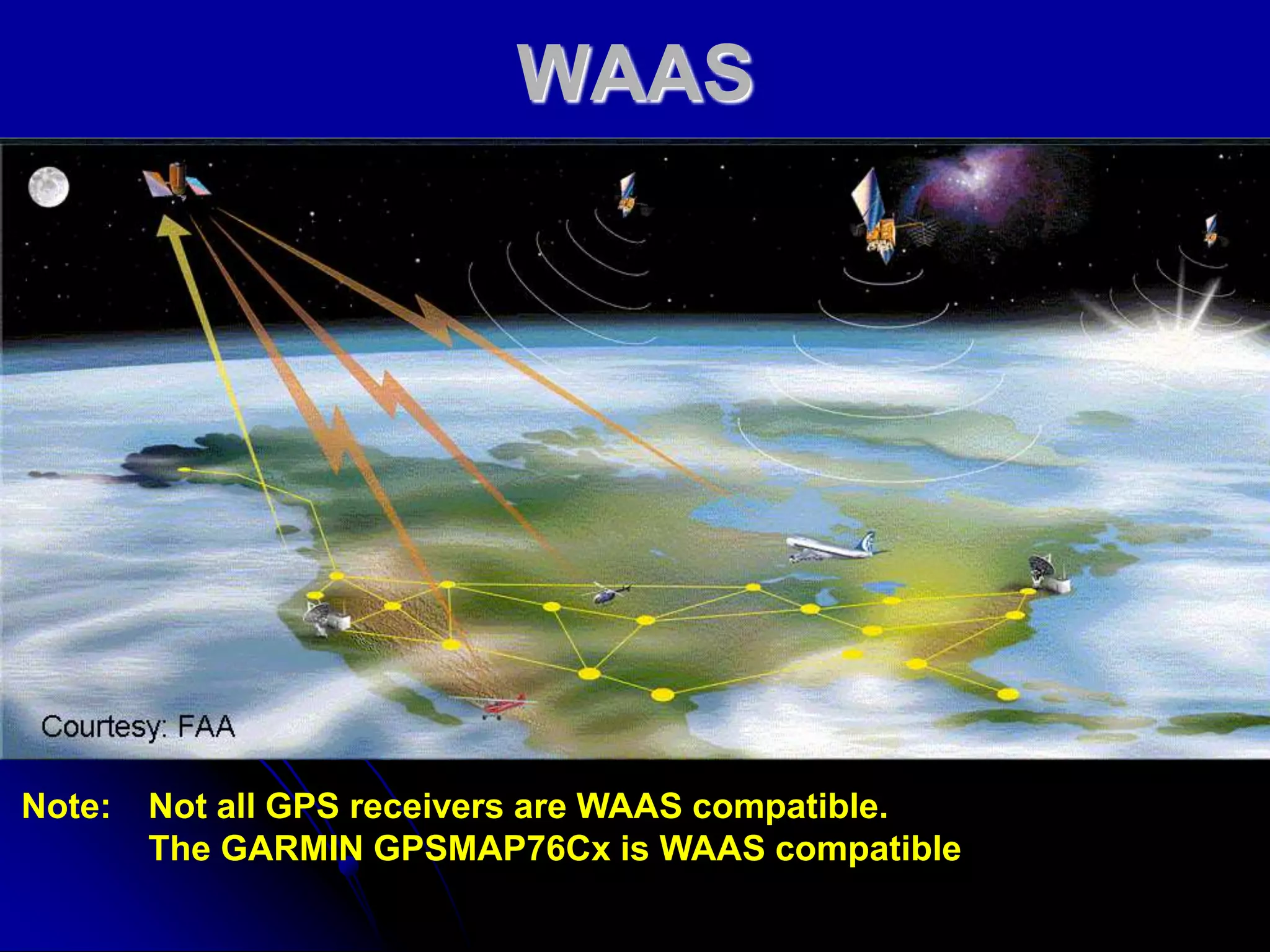

WAASThe Wide Area Augmentation System (WAAS) is a differential GPS system that is being constructed to support GPS accuracy in aircraft.

WAAS also provides additional accuracy “on the ground”

The GPS receivers that we are using are WAAS compatibleWAASNote: Not all GPS receivers are WAAS compatible. The GARMIN GPSMAP76Cx is WAAS compatible

WAAS SatellitesHistorically, some areas have had trouble acquiring the WAAS satellites because only two. A new WAAS satellite will be launched in the Fall 2006 (October…)Better coverage for Mid-Atlantic and higher accuracy levels

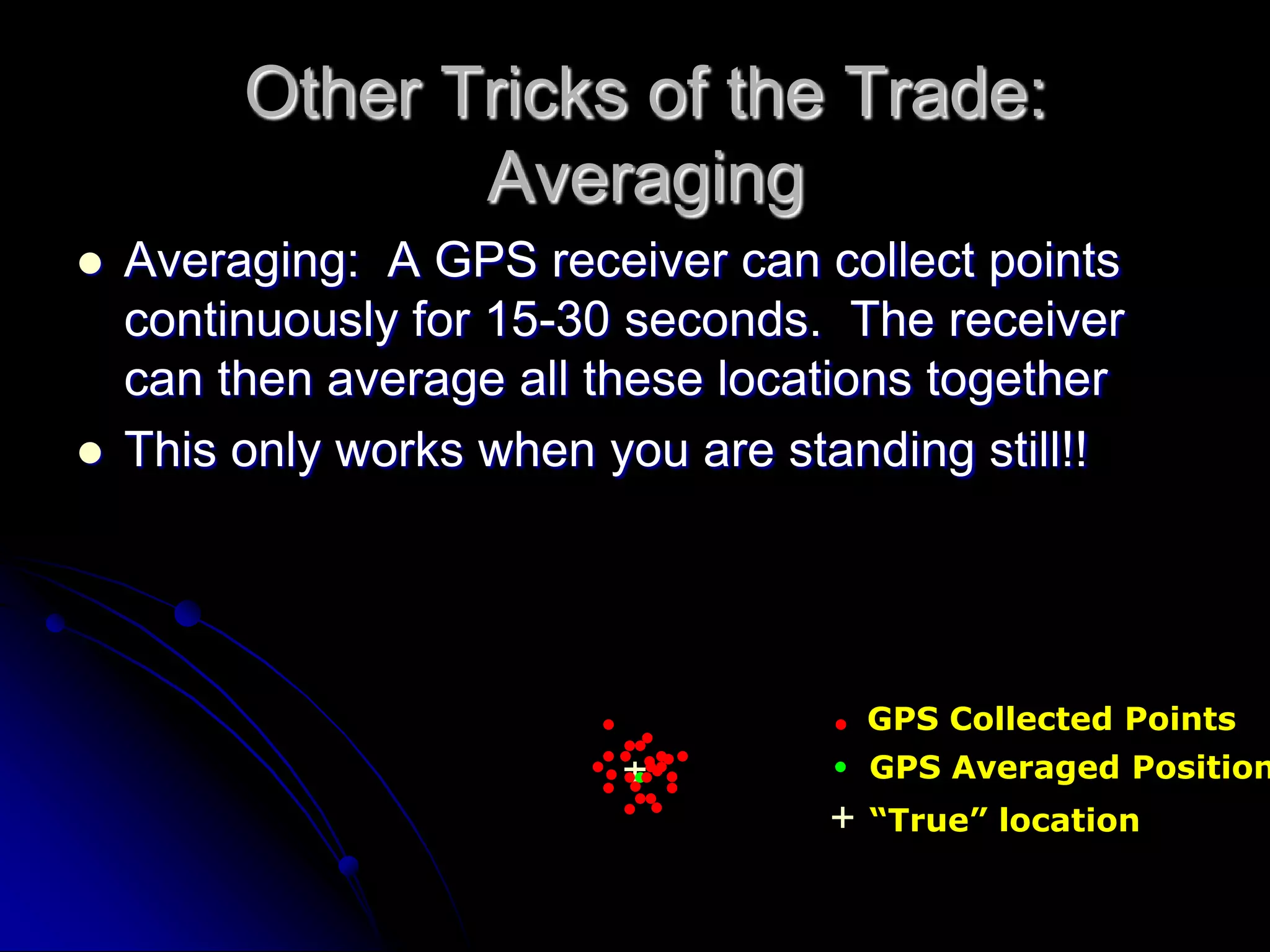

Other Tricks of the Trade:AveragingAveraging: A GPS receiver can collect points continuously for 15-30 seconds. The receiver can then average all these locations togetherThis only works when you are standing still!!GPS Collected PointsGPS Averaged Position“True” location

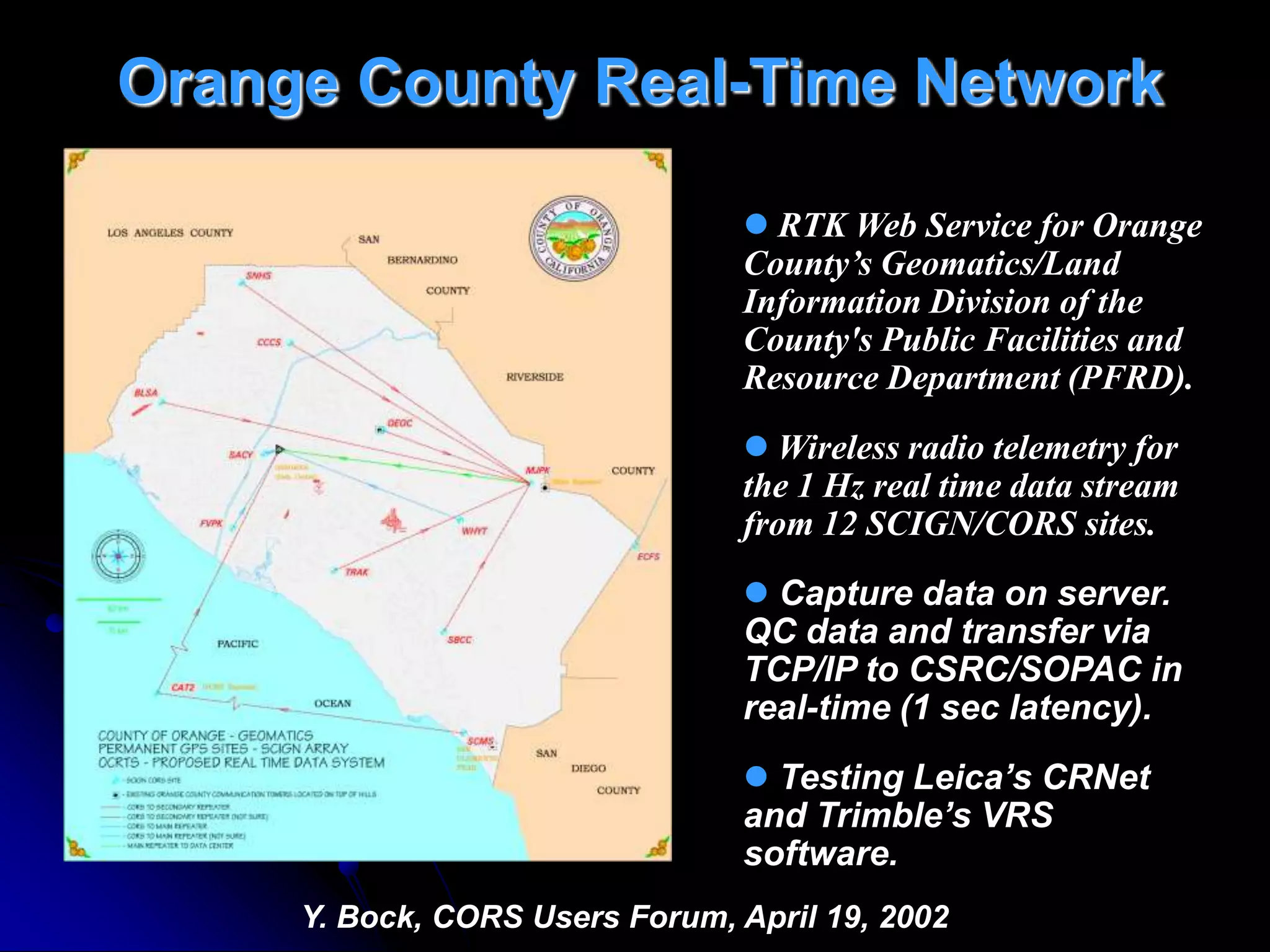

Orange County Real-Time Network RTK Web Service for Orange County’s Geomatics/Land Information Division of the County's Public Facilities and Resource Department (PFRD).

Wireless radio telemetry for the 1 Hz real time data stream from 12 SCIGN/CORS sites.

Capture data on server. QC data and transfer via TCP/IP to CSRC/SOPAC in real-time (1 sec latency).

Testing Leica’s CRNet and Trimble’s VRS software.Y. Bock, CORS Users Forum, April 19, 2002

GPS Antennas (for precise positioning)Nearly all antennas are patch antennas (conducting patch mounted in insulating ceramic).• Rings are called choke-rings (used to suppress multi-path)

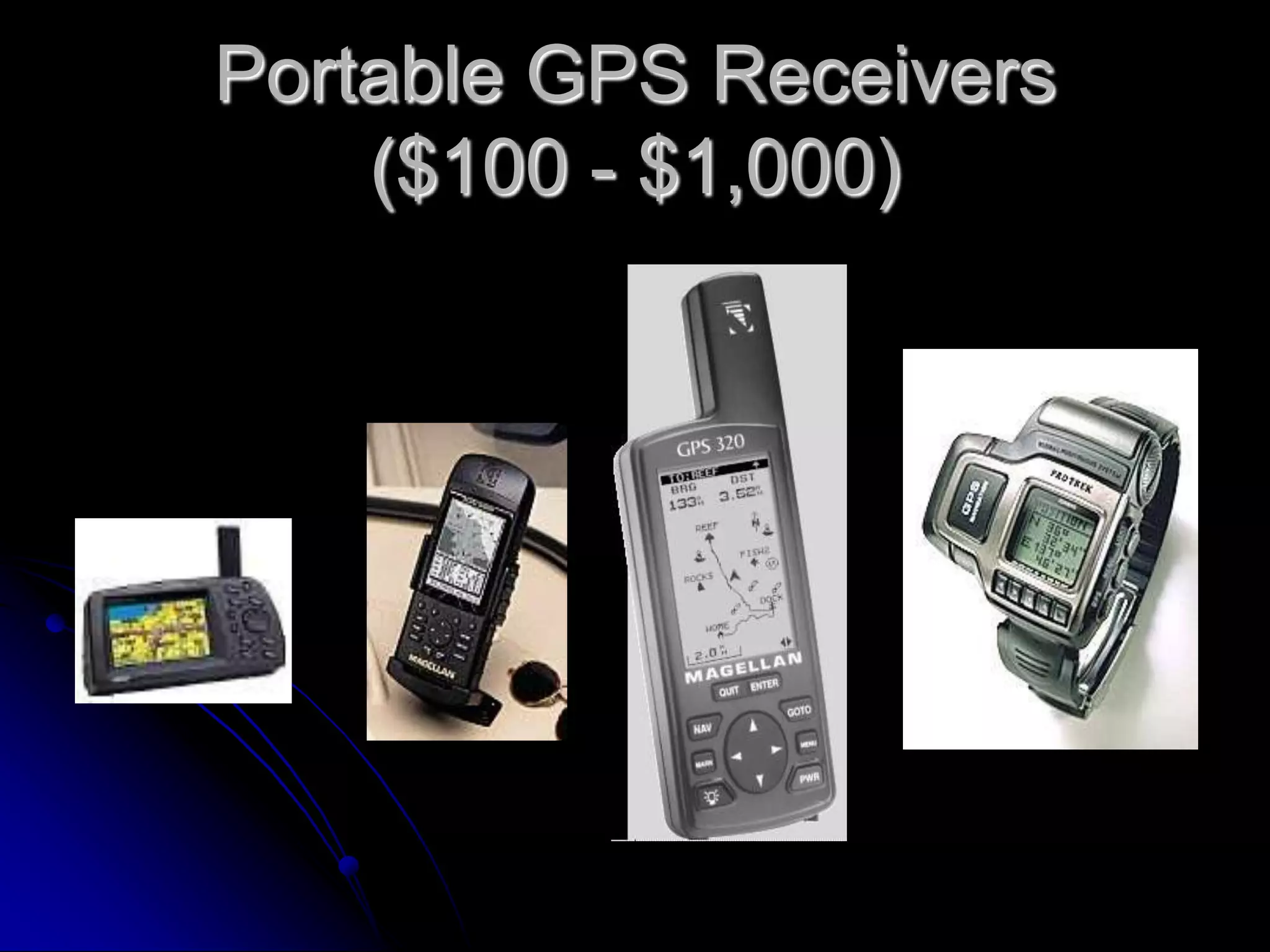

Portable GPS Receivers ($100 - $1,000)

GPS:Users with a device that records data transmitted by each satellite and processes this data to obtain three dimensional coordinatesSource:http://www.trimble.com/geoexplorer3.html

Satellite StatusShown:Sky position of GPS satelliteSignal Strength of each satelliteBattery Life

Hiking and Driving with a GPSHeading - direction of travel, Bearing - direction to a waypointUsing a compass, compass rose on GPS ( motion is required for accurate heading indicationNavigation towards trail heads and trail crossingsHorizontal accuracy - 100 ft or less.GPS is not a substitute for having accurate maps, compass and the ten essentials on every trip. Common sense is always useful. Know the Map Projection and Earth Shape Model or Datum being used by your GPS device

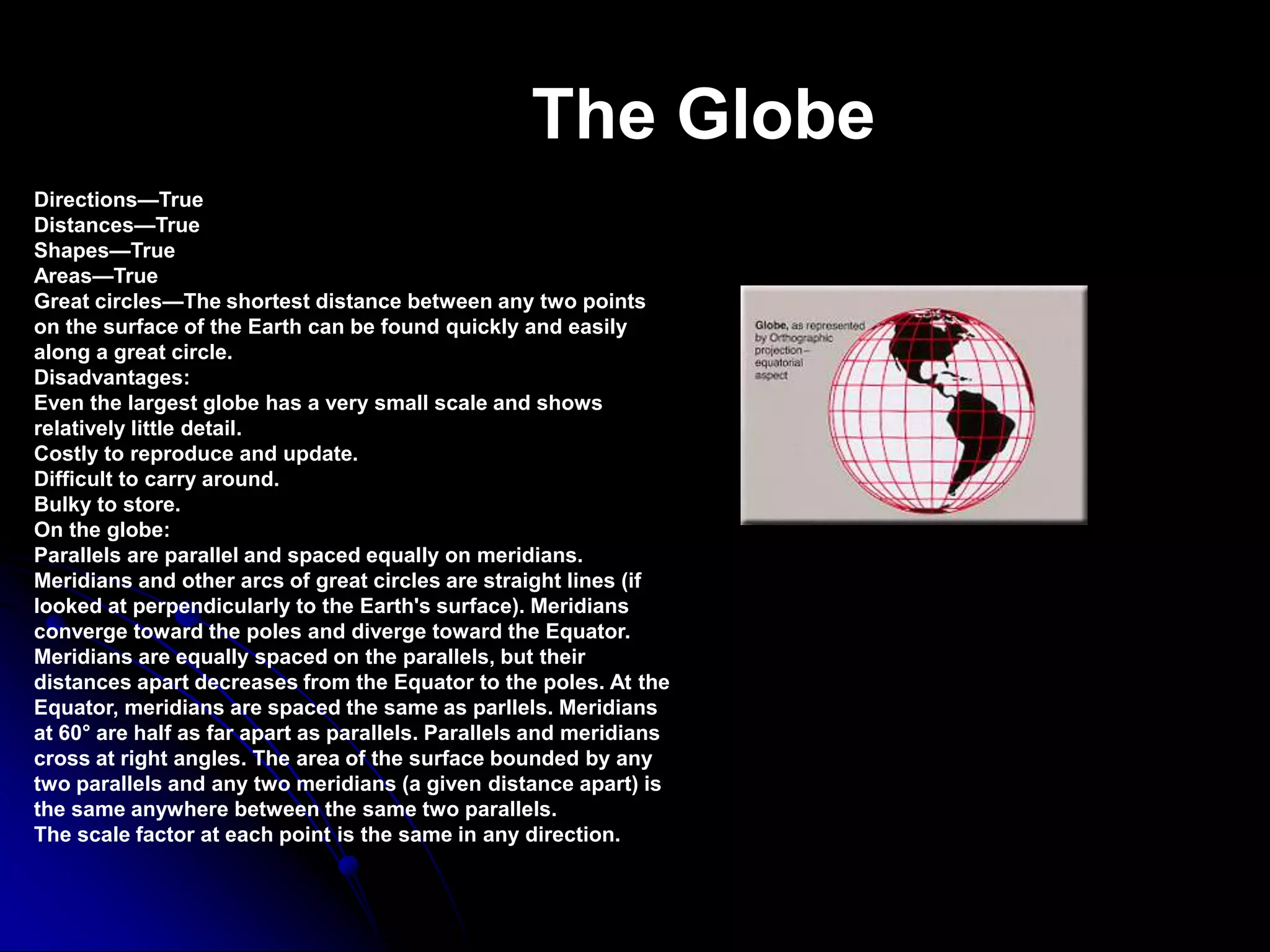

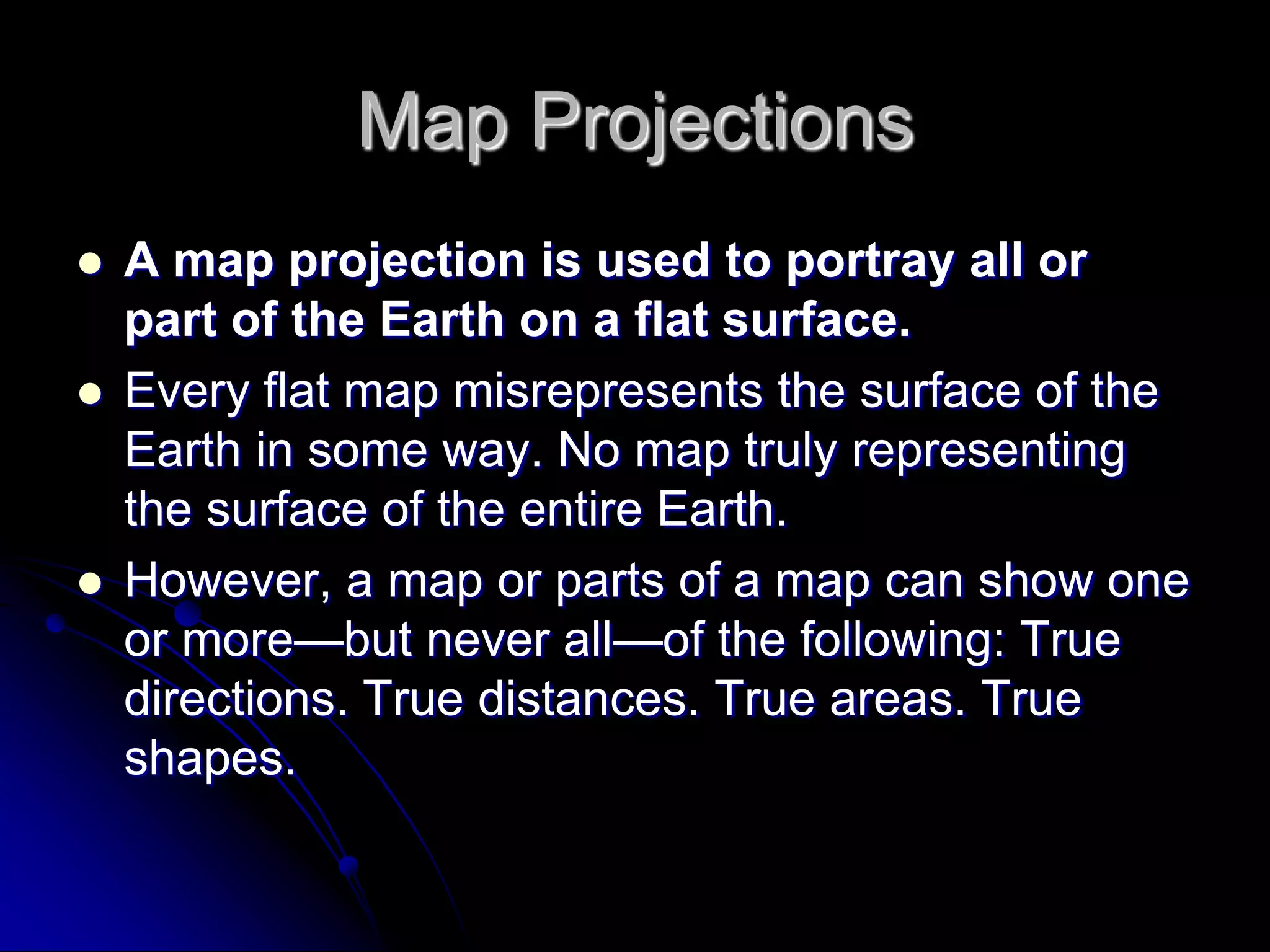

Map ProjectionsA map projection is used to portray all or part of the Earth on a flat surface.Every flat map misrepresents the surface of the Earth in some way. No map truly representing the surface of the entire Earth. However, a map or parts of a map can show one or more—but never all—of the following: True directions. True distances. True areas. True shapes.

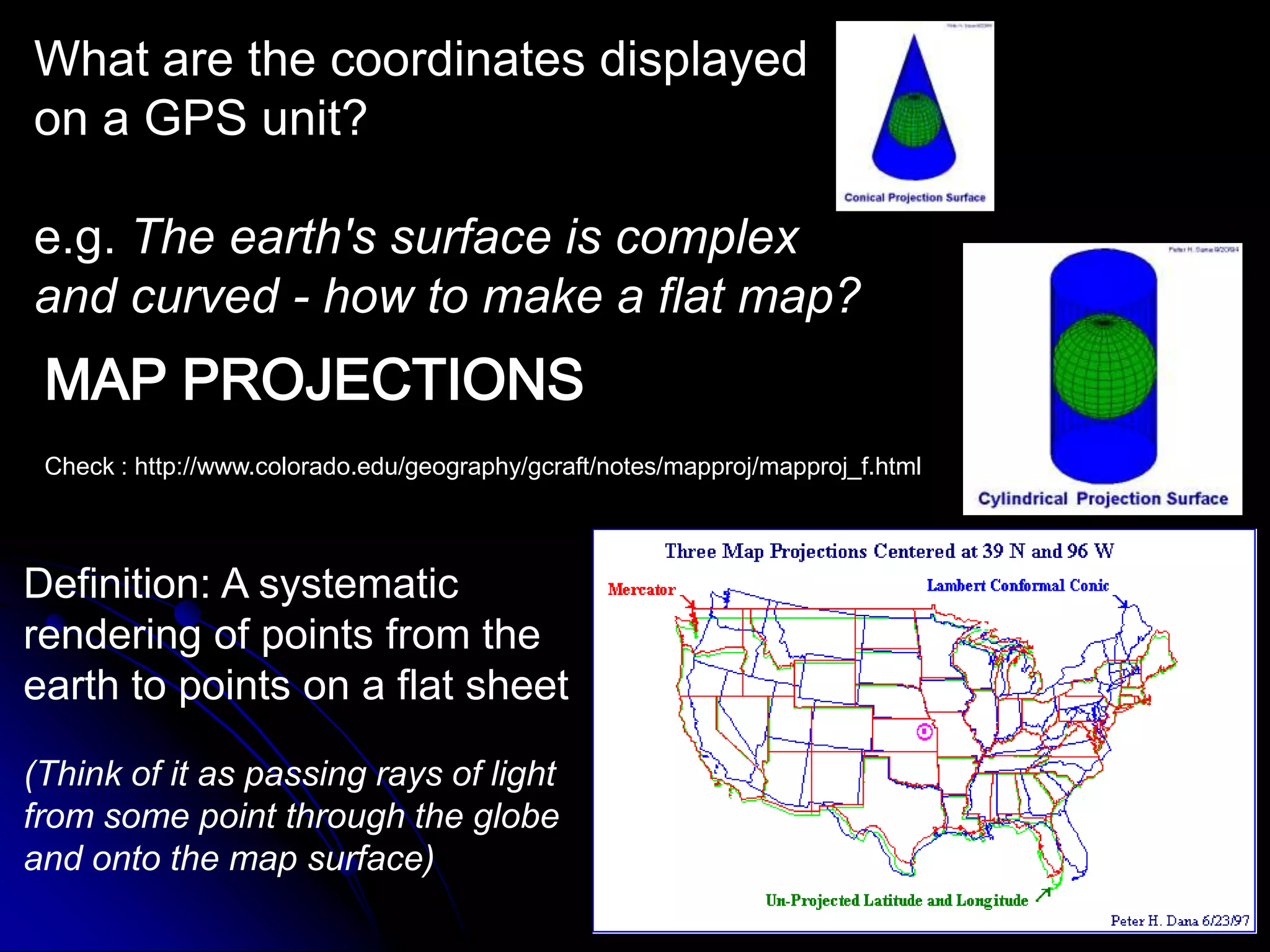

What are the coordinates displayed on a GPS unit? e.g. The earth's surface is complex and curved - how to make a flat map?MAP PROJECTIONSCheck : http://www.colorado.edu/geography/gcraft/notes/mapproj/mapproj_f.htmlDefinition: A systematic rendering of points from the earth to points on a flat sheet (Think of it as passing rays of light from some point through the globe and onto the map surface)

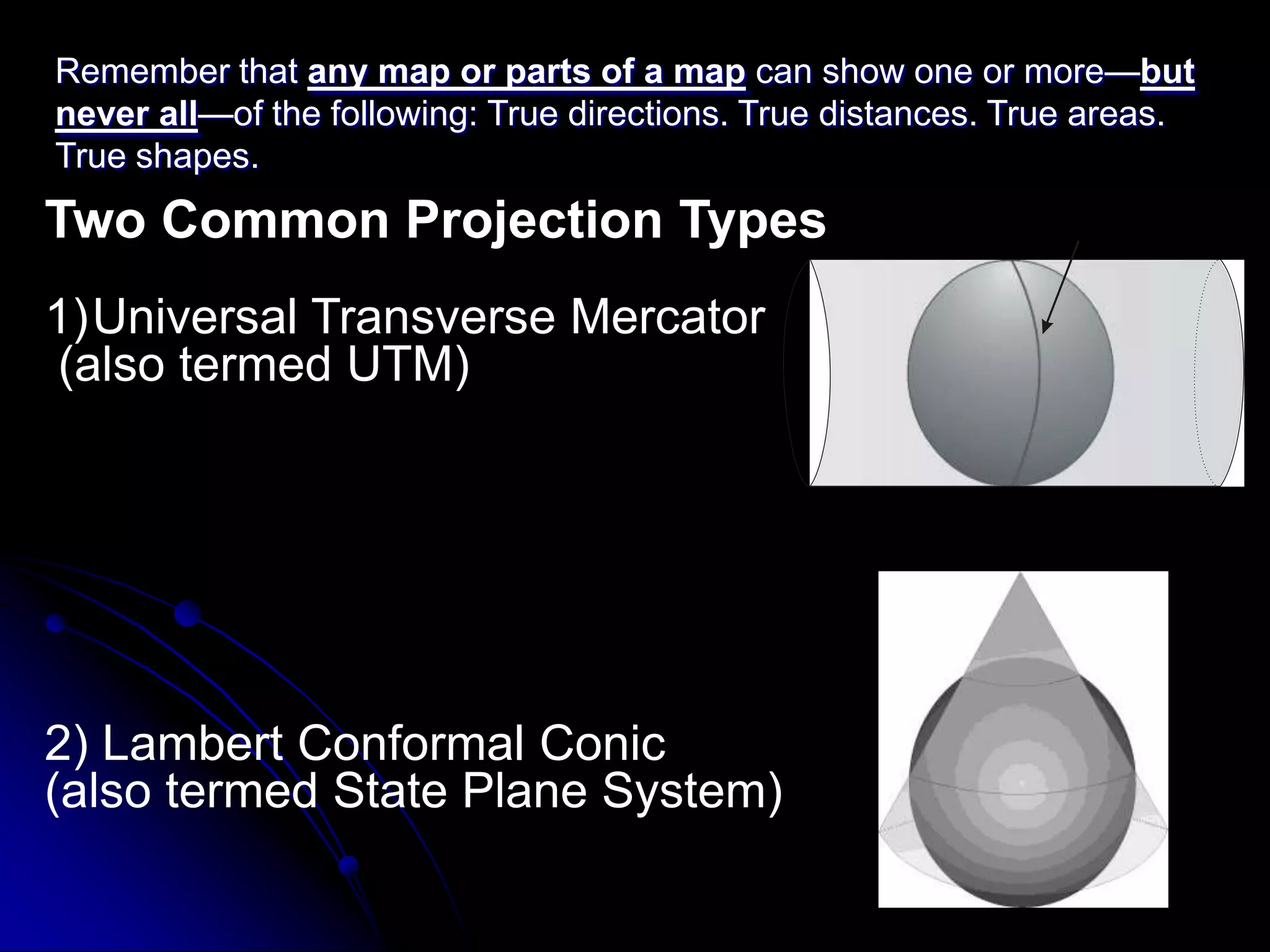

Remember that any map or parts of a map can show one or more—but never all—of the following: True directions. True distances. True areas. True shapes.Two Common Projection TypesUniversal Transverse Mercator (also termed UTM) 2) Lambert Conformal Conic(also termed State Plane System)

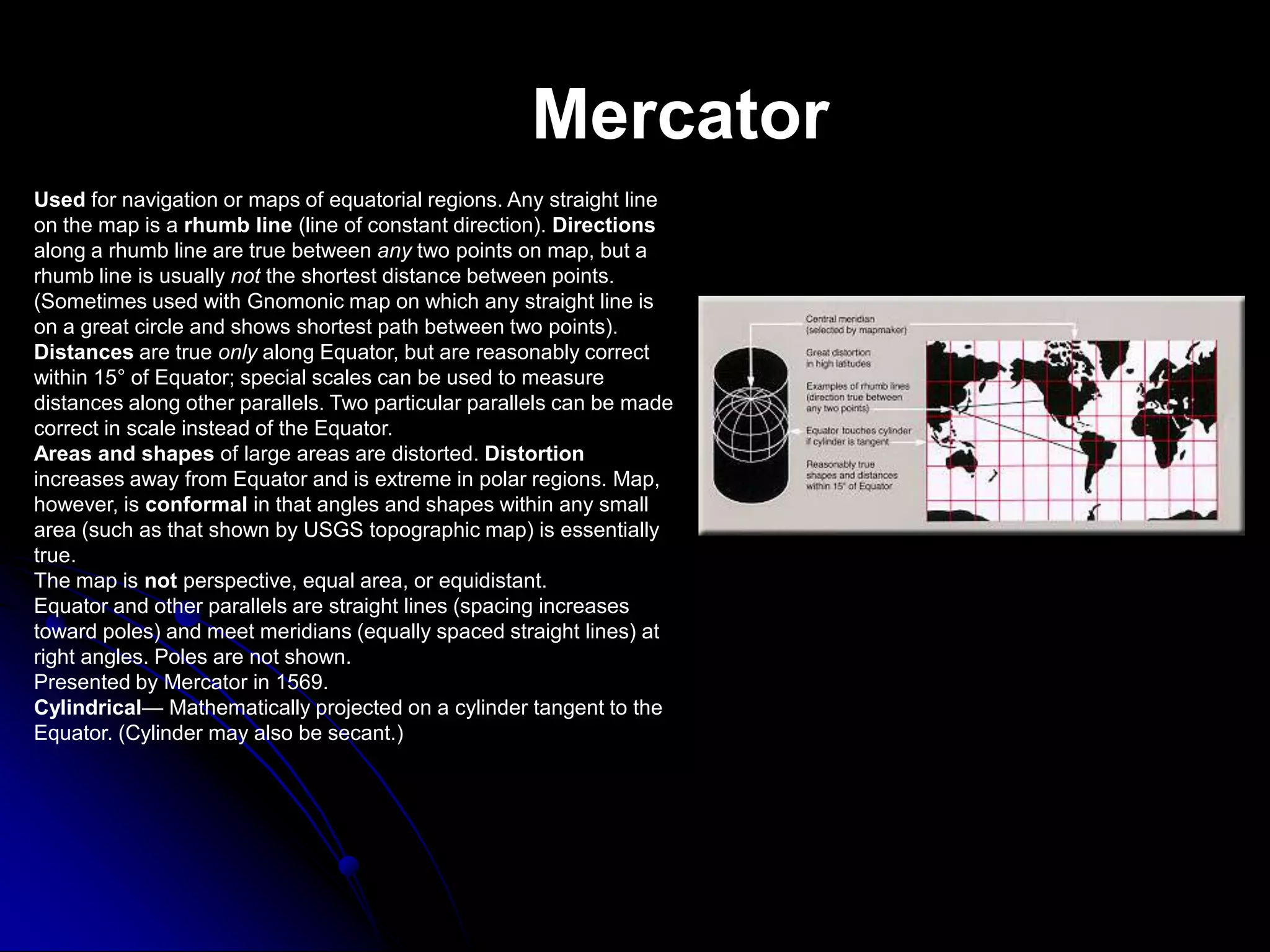

Map ProjectionsMap ProjectionsMap ProjectionsA map projection is used to portray all or part of the round Earth on a flat surface. This cannot be done without some distortion.Every projection has its own set of advantages and disadvantages. There is no "best" projection.The mapmaker must select the one best suited to the needs, reducing distortion of the most important features.Mapmakers and mathematicians have devised almost limitless ways to project the image of the globe onto paper. Scientists at the U. S. Geological Survey have designed projections for their specific needs—such as the Space Oblique Mercator, which allows mapping from satellites with little or no distortion.These slides gives the key properties, characteristics, and preferred uses of several historically important projections and of those frequently used by mapmakers today.Gerardus Mercator (1512-1594). Frontispiece to Mercator's Atlas sive Cosmographicae, 1585-1595. Courtesy of the Library of Congress, Rare Book Division, Which ones best suit your needs?Every flat map misrepresents the surface of the Earth in some way. No map can rival a globe in truly representing the surface of the entire Earth. However, a map or parts of a map can show one or more—but never all—of the following: True directions. True distances. True areas. True shapes.For example, the basic Mercator projection is unique; it yields the only map on which a straight line drawn anywhere within its bounds shows a particular type of direction, but distances and areas are grossly distorted near the map's polar regions.On an equidistant map, distances are true only along particular lines such as those radiating from a single point selected as the center of the projection. Shapes are more or less distorted on every equal-area map. Sizes of areas are distorted on conformal maps even though shapes of small areas are shown correctly. The degree and kinds of distortion vary with the projection used in making a map of a particular area. Some projections are suited for mapping large areas that are mainly north-south in extent, others for large areas that are mainly east-west in extent, and still others for large areas that are oblique to the Equator.The scale of a map on any projection is always important and often crucial to the map's usefulness for a given purpose. For example, the almost grotesque distortion that is obvious at high latitudes on a small-scale Mercator map of the world disappears almost completely on a properly oriented large-scale Transverse Mercator map of a small area in the same high latitudes. A large-scale (1:24,000) 7.5-minute USGS Topographic Map based on the Transverse Mercator projection is nearly correct in every respect. A basic knowledge of the properties of commonly used projections helps in selecting a map that comes closest to fulfilling a specific need.

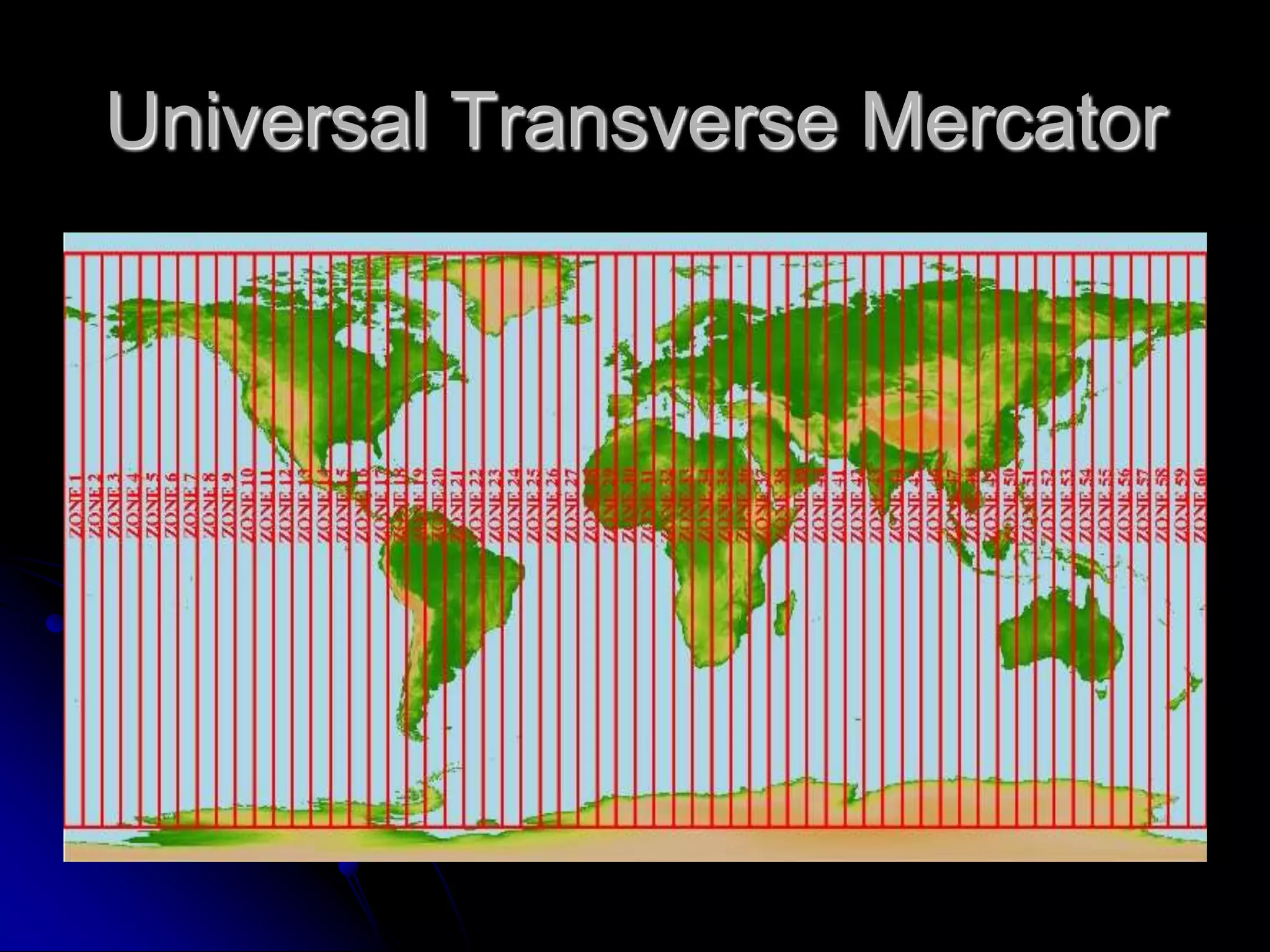

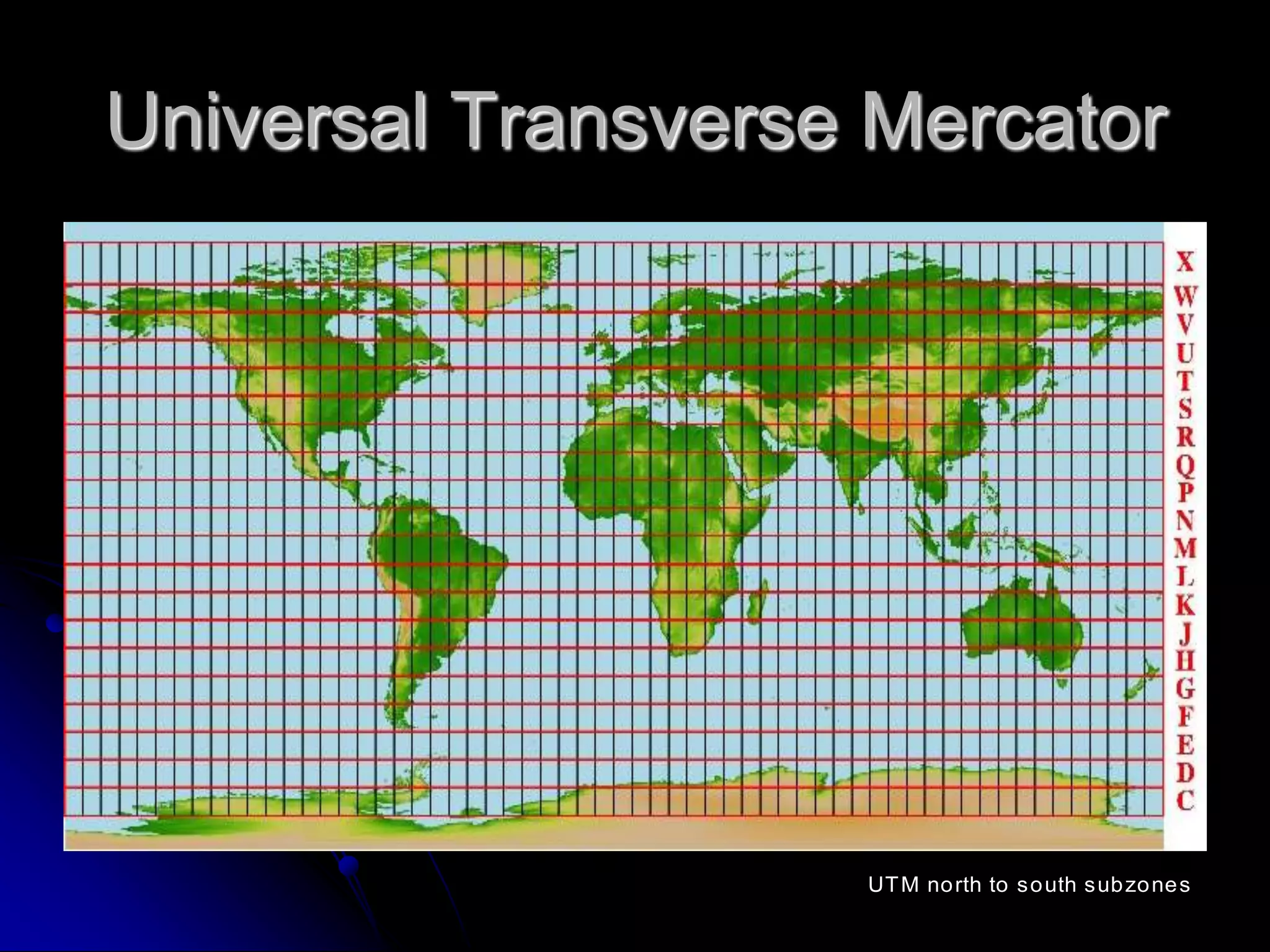

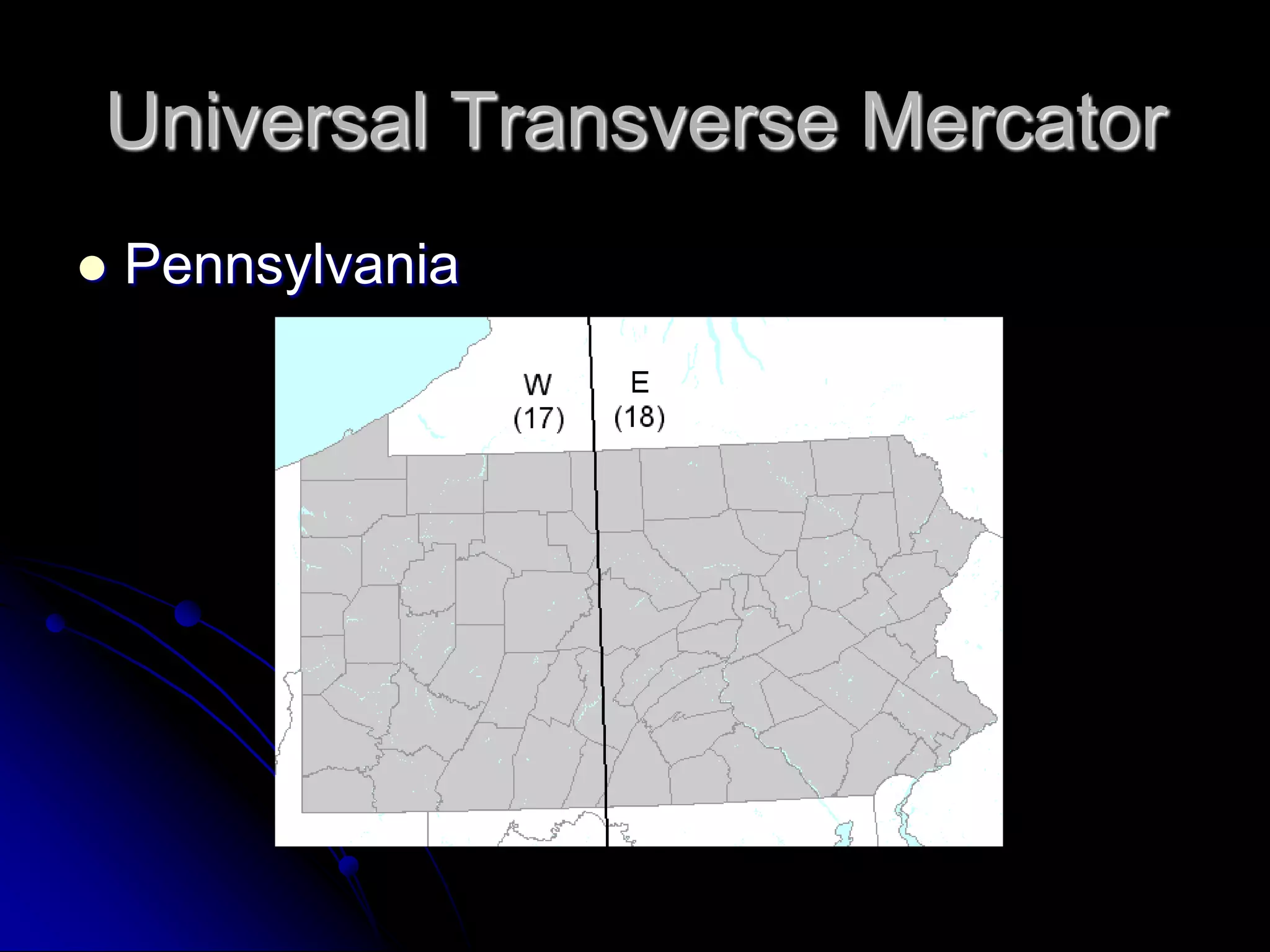

Universal Transverse MercatorPennsylvaniaLambert Conformal Conic

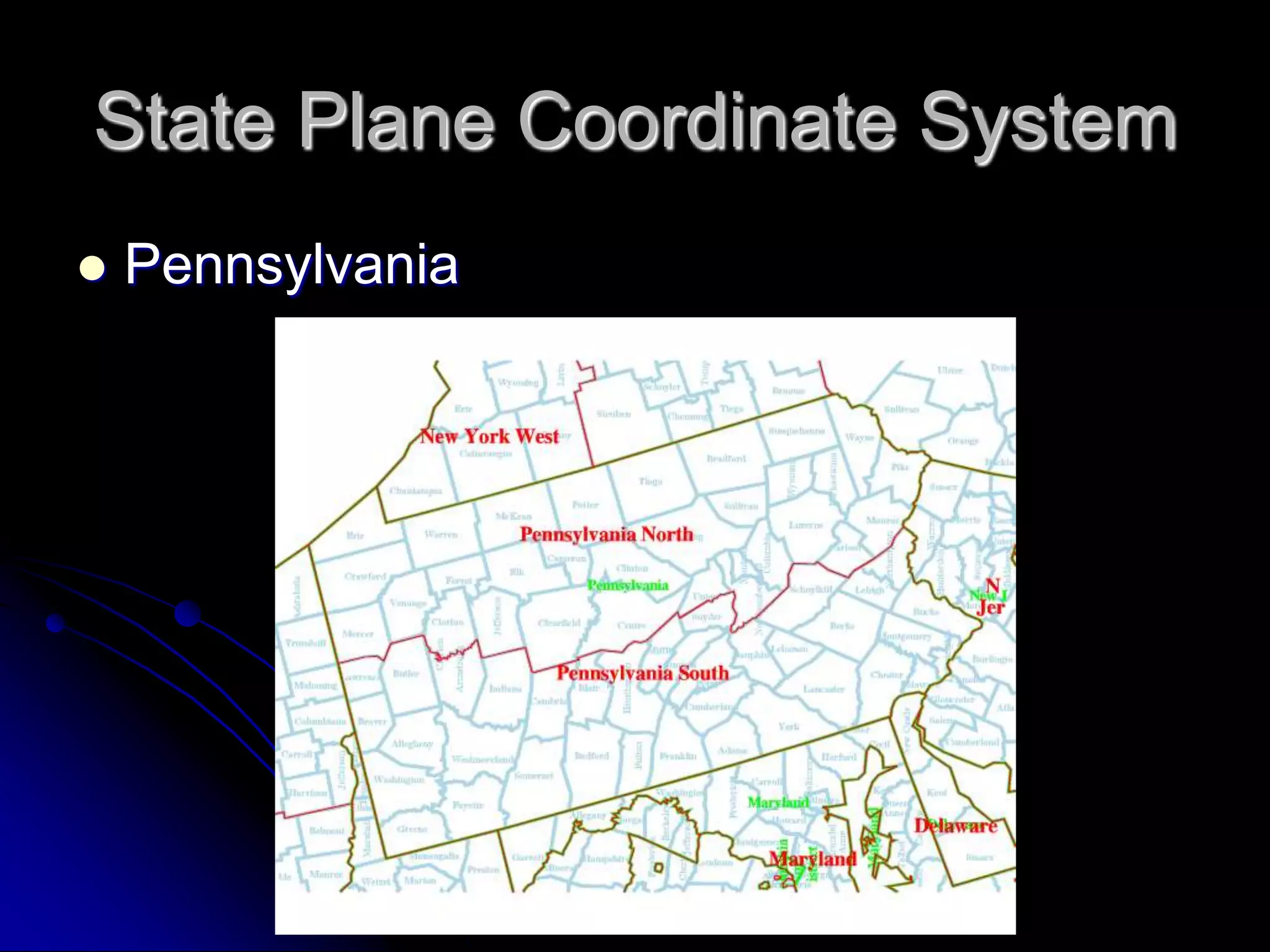

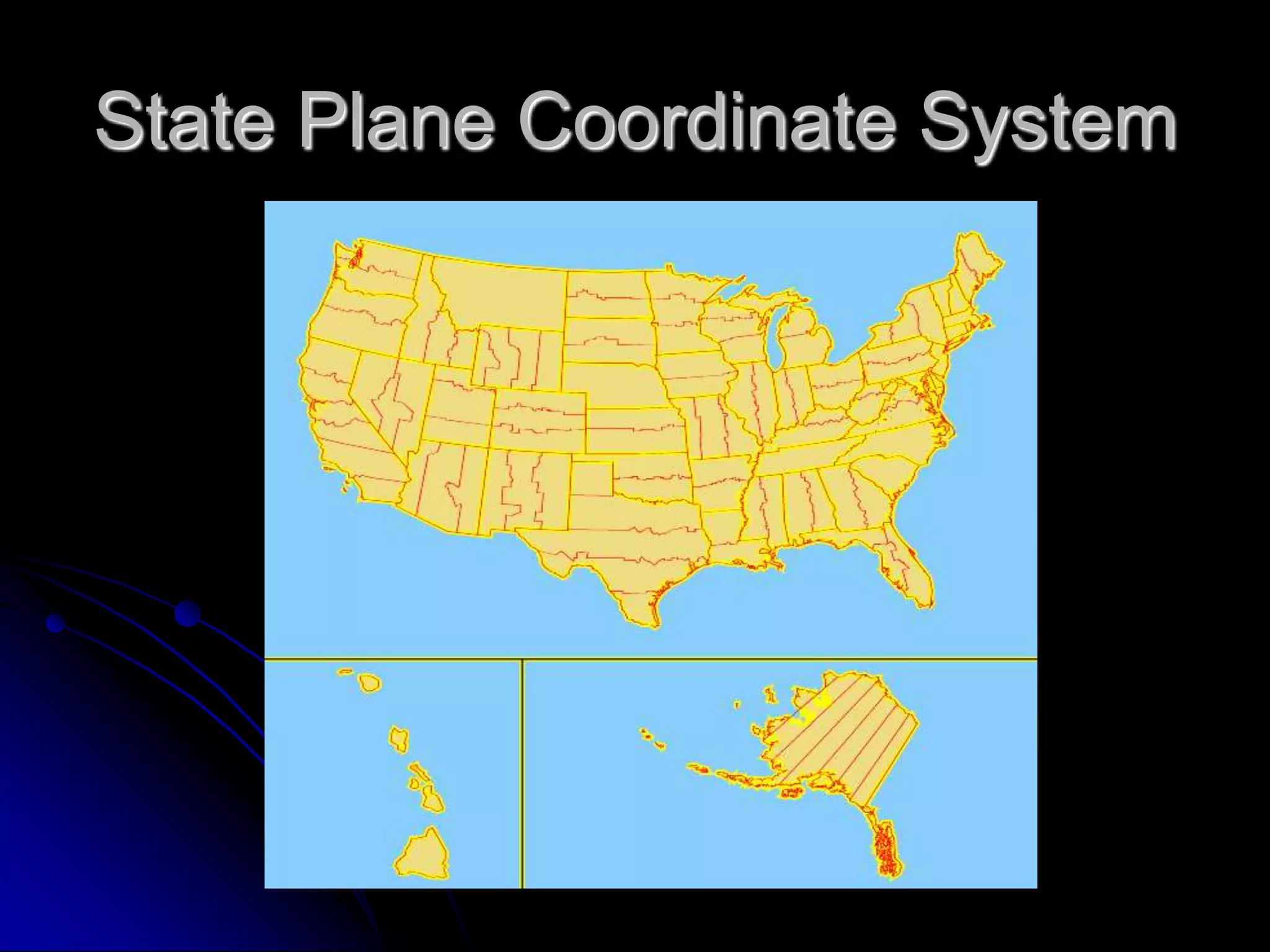

State Plane Coordinate SystemPennsylvania

USGS topographic maps have different map projection specific coordinates to compare with your GPS location:

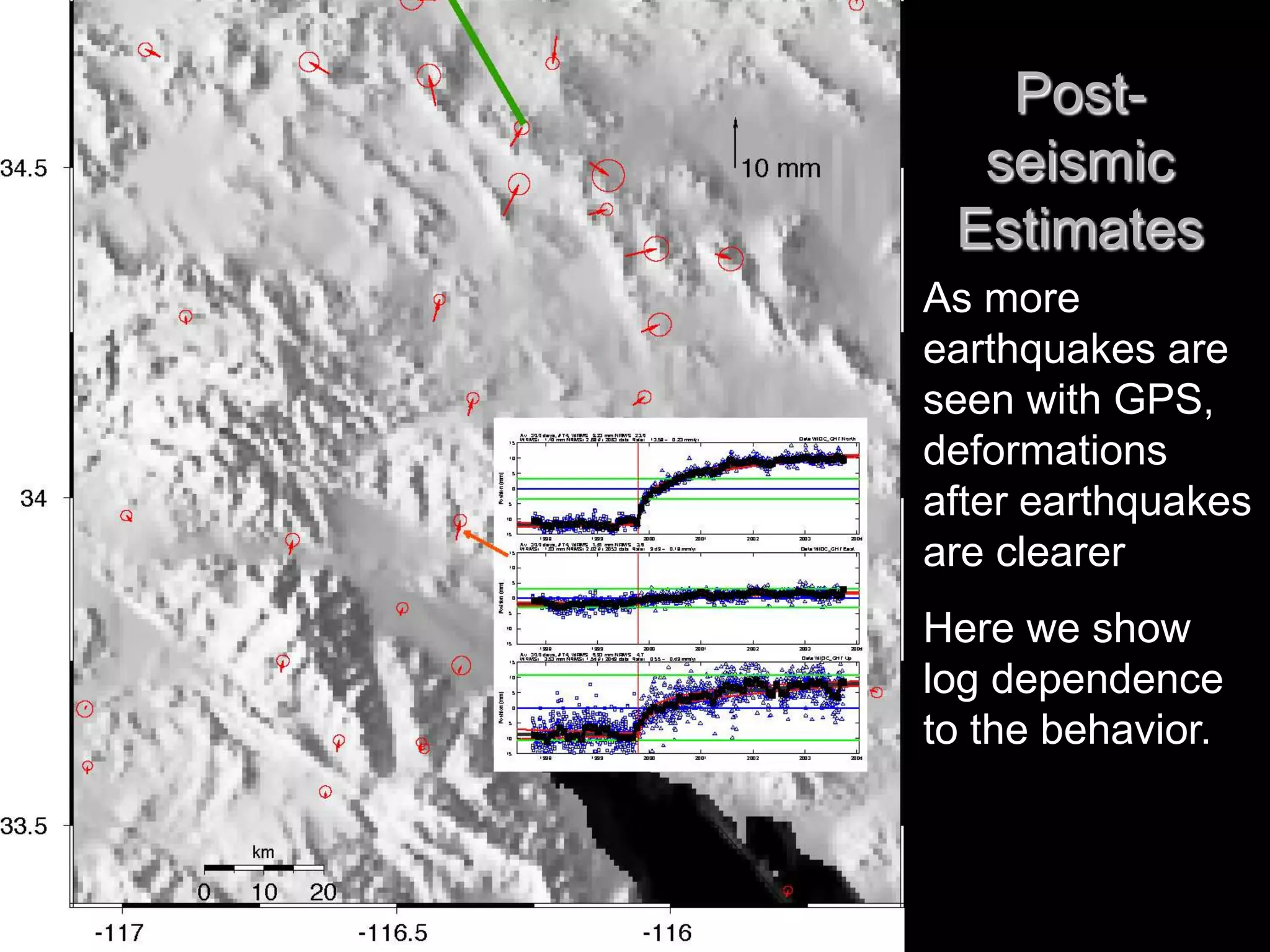

Post-seismic EstimatesAs more earthquakes are seen with GPS, deformations after earthquakes are clearerHere we show log dependence to the behavior.

WIDC (74 km from epicenter)Coseismic offset removedN 51.5±0.8 mmE 15.7±0.6 mmU 4.3±1.8 mmLog amplitudeN 4.5 ± 0.3 mmE 0.7 ± 0.2 mmU 3.3 ± 0.7 mm

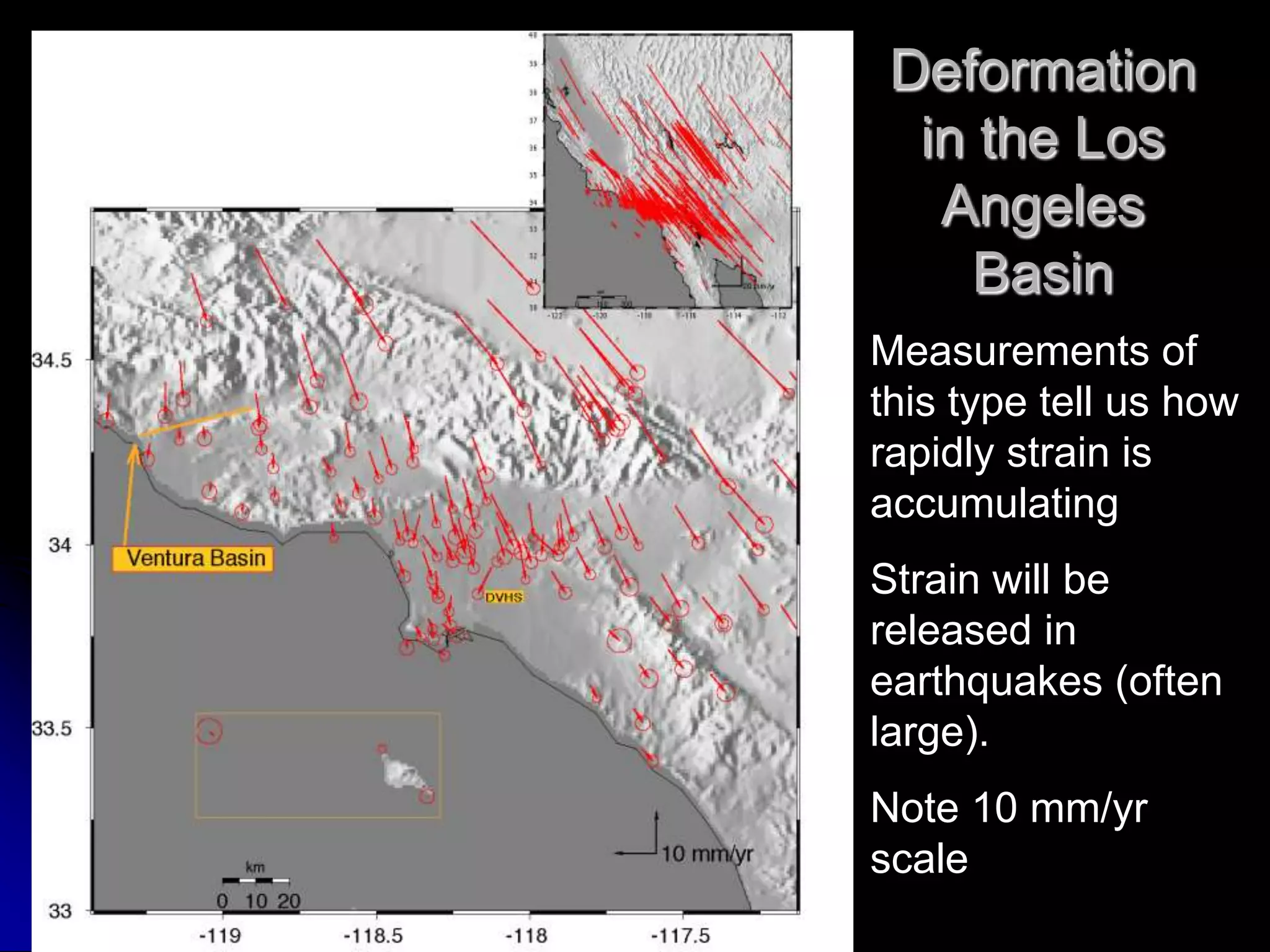

Deformation in the Los Angeles BasinMeasurements of this type tell us how rapidly strain is accumulatingStrain will be released in earthquakes (often large).Note 10 mm/yr scale

GPS Measured propagating seismic wavesData from 2002 Denali earthquake

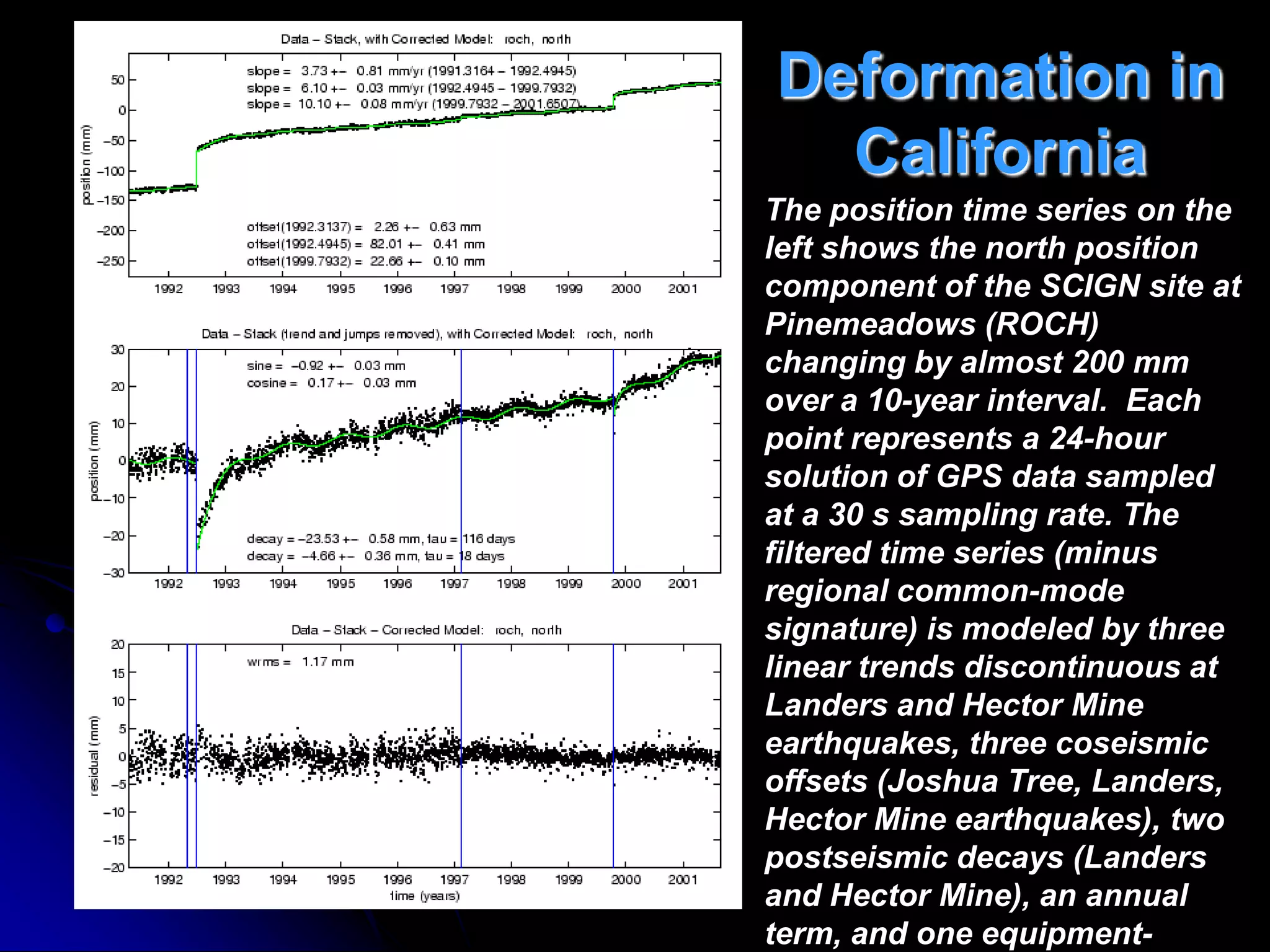

Deformation in CaliforniaThe position time series on the left shows the north position component of the SCIGN site at Pinemeadows (ROCH) changing by almost 200 mm over a 10-year interval. Each point represents a 24-hour solution of GPS data sampled at a 30 s sampling rate. The filtered time series (minus regional common-mode signature) is modeled by three linear trends discontinuous at Landers and Hector Mine earthquakes, three coseismic offsets (Joshua Tree, Landers, Hector Mine earthquakes), two postseismic decays (Landers and Hector Mine), an annual term, and one equipment-change offset. The weighted rms is only 1.2 mm.

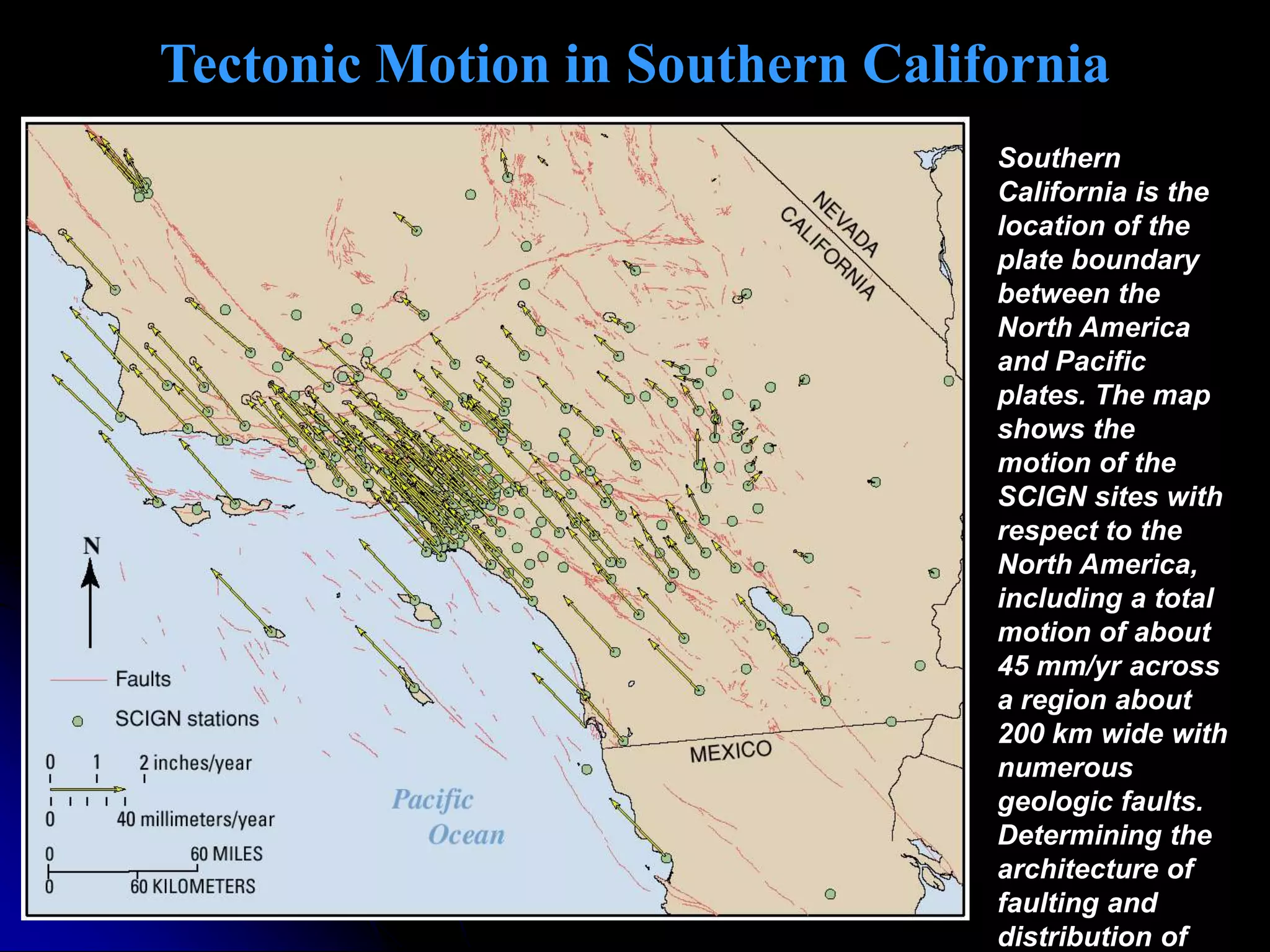

Tectonic Motion in Southern CaliforniaSouthern California is the location of the plate boundary between the North America and Pacific plates. The map shows the motion of the SCIGN sites with respect to the North America, including a total motion of about 45 mm/yr across a region about 200 km wide with numerous geologic faults. Determining the architecture of faulting and distribution of strain is critical for earthquake studies.

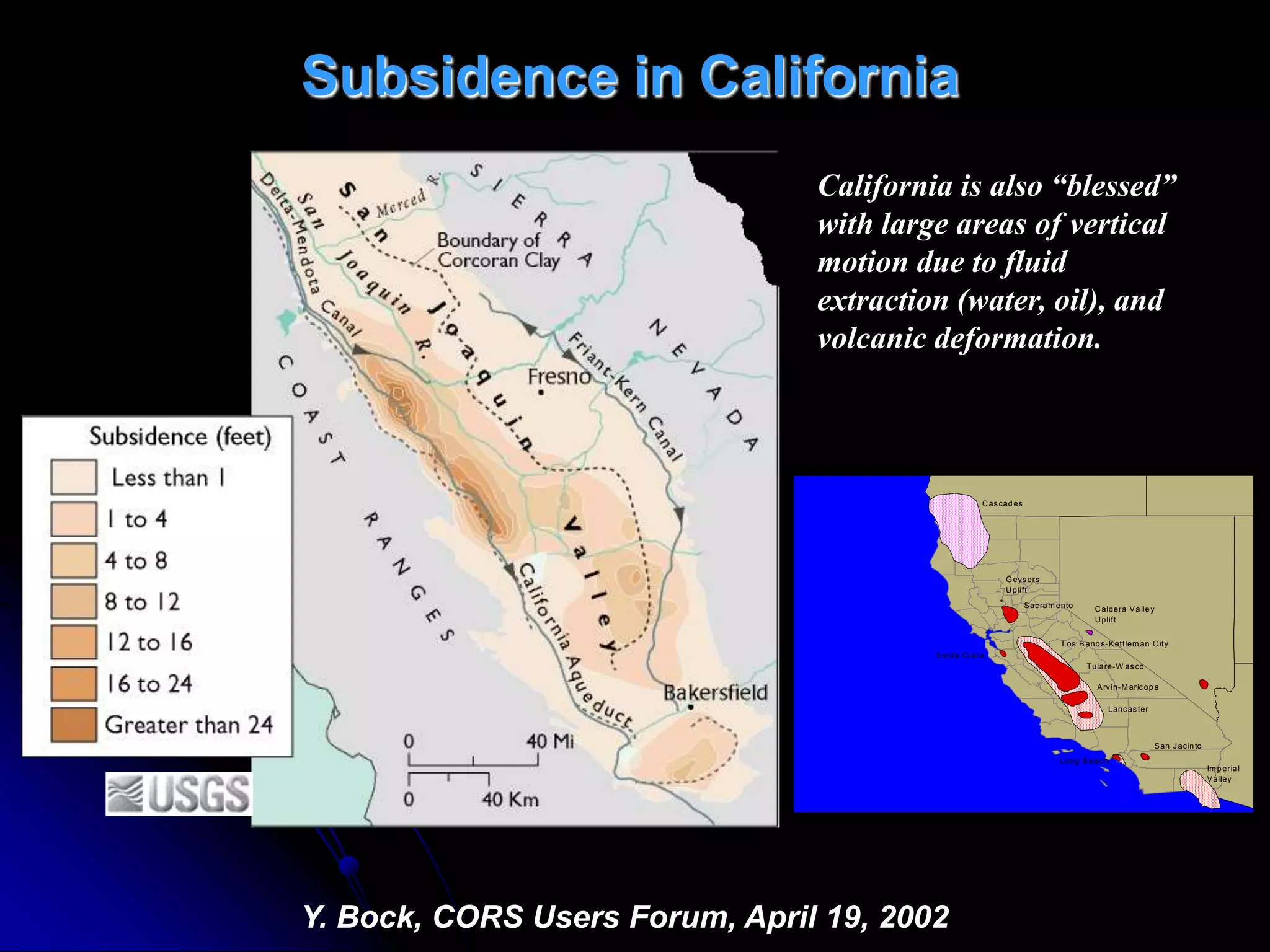

Subsidence in CaliforniaCalifornia is also “blessed” with large areas of vertical motion due to fluid extraction (water, oil), and volcanic deformation.Y. Bock, CORS Users Forum, April 19, 2002

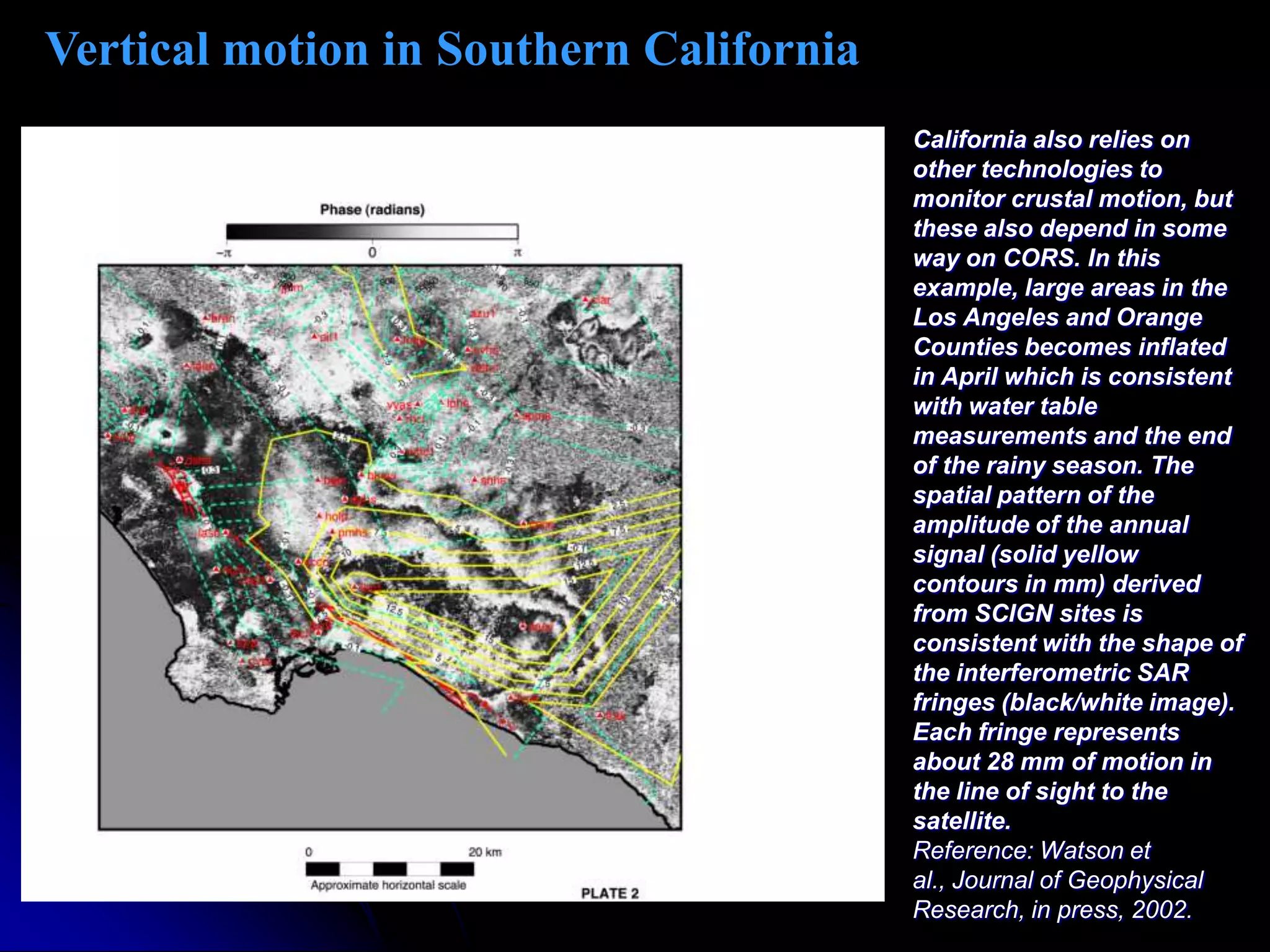

Vertical motion in Southern CaliforniaCalifornia also relies on other technologies to monitor crustal motion, but these also depend in some way on CORS. In this example, large areas in the Los Angeles and Orange Counties becomes inflated in April which is consistent with water table measurements and the end of the rainy season. The spatial pattern of the amplitude of the annual signal (solid yellow contours in mm) derived from SCIGN sites is consistent with the shape of the interferometric SAR fringes (black/white image). Each fringe represents about 28 mm of motion in the line of sight to the satellite.Reference: Watson et al., Journal of Geophysical Research, in press, 2002.

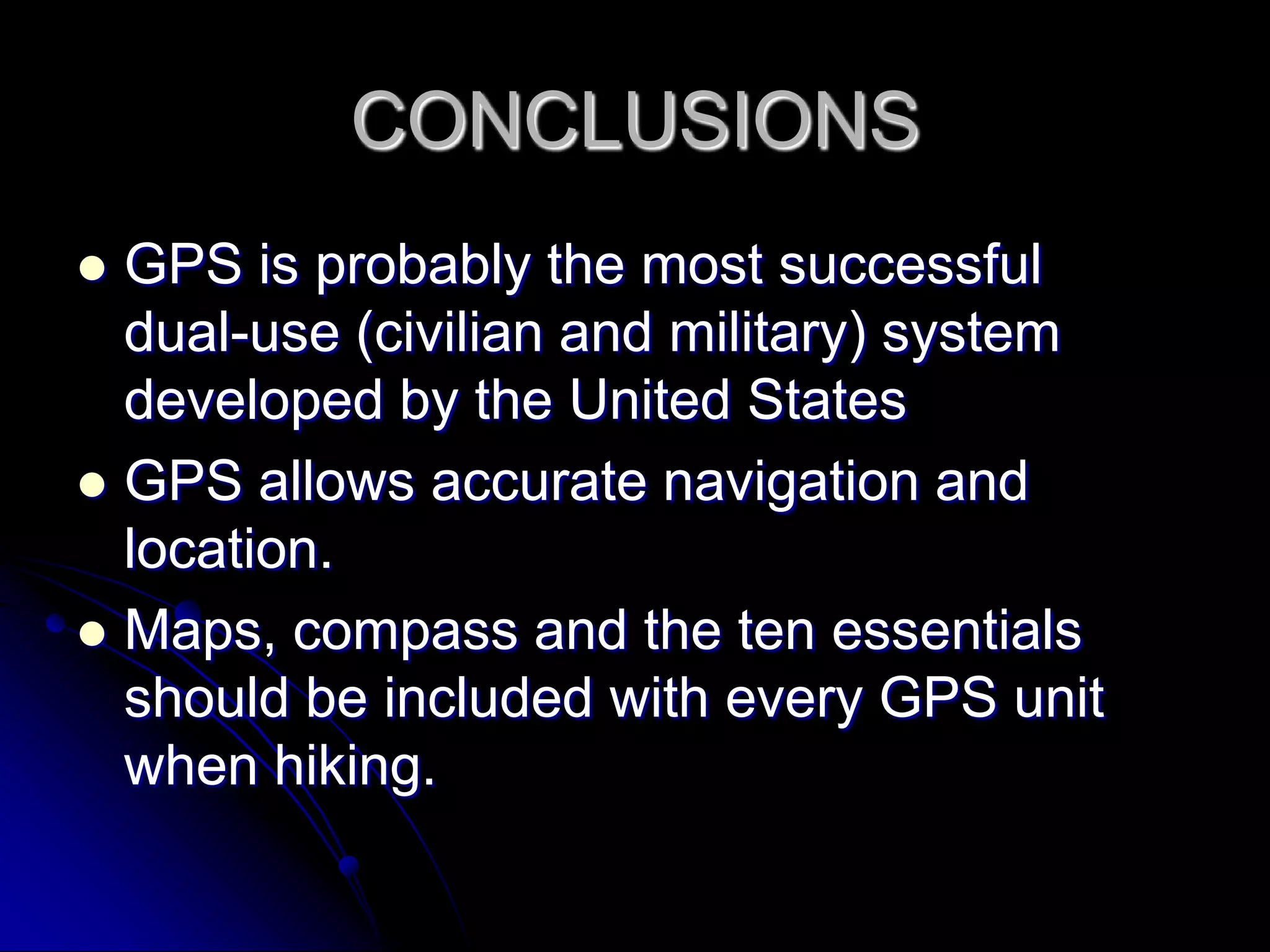

CONCLUSIONSGPS is probably the most successful dual-use (civilian and military) system developed by the United StatesGPS allows accurate navigation and location.Maps, compass and the ten essentials should be included with every GPS unit when hiking.

DATUMSKindly made availble for student use and prepared entirely by John Hamilton, CEO Terrasurv Inc.

COORDINATEOne of an ordered set of N numbers which designates the location of a point in a space of N dimensionsIn surveying and mapping, 1≤N≤3A coordinate is AN ESTIMATE OF THE POSITIONof a pointAs more data is collected, the position is refined, coordinate changes

DATUM“Any quantity or set of such quantities that may serve as a reference or basis for calculation of other quantities”Geodetic Datum-”A set of constants specifying the coordinate system used for geodetic control, i.e., for calculating coordinates of points on the Earth”

ACRONYMS USRNAD 27ITRF 00GRS 80WGS 84HARNEGM 96HPGNNGVD 29NAVD 88NAD 83

Defining a Datum5 parameter-horizontal location (2), azimuth, and size of ellipsoid (2)Used for older datums before geocentric datums were possible8 parameter-spatial location (3), spatial orientation (3), and size of ellipsoid (2)Used for modern datumsOther possibilities

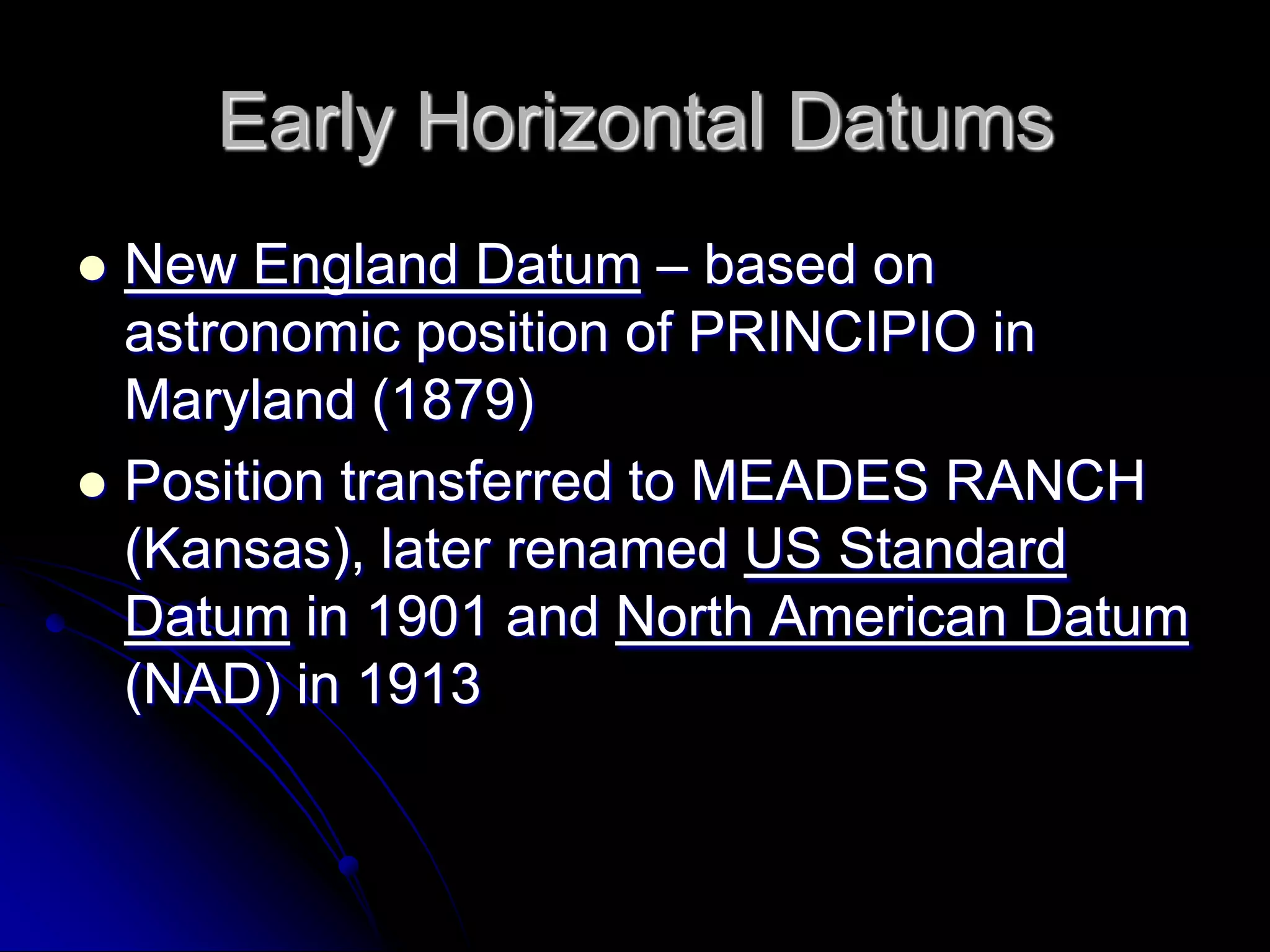

Early Horizontal DatumsNew England Datum – based on astronomic position of PRINCIPIO in Maryland (1879)Position transferred to MEADES RANCH (Kansas), later renamed US Standard Datum in 1901 and North American Datum (NAD) in 1913

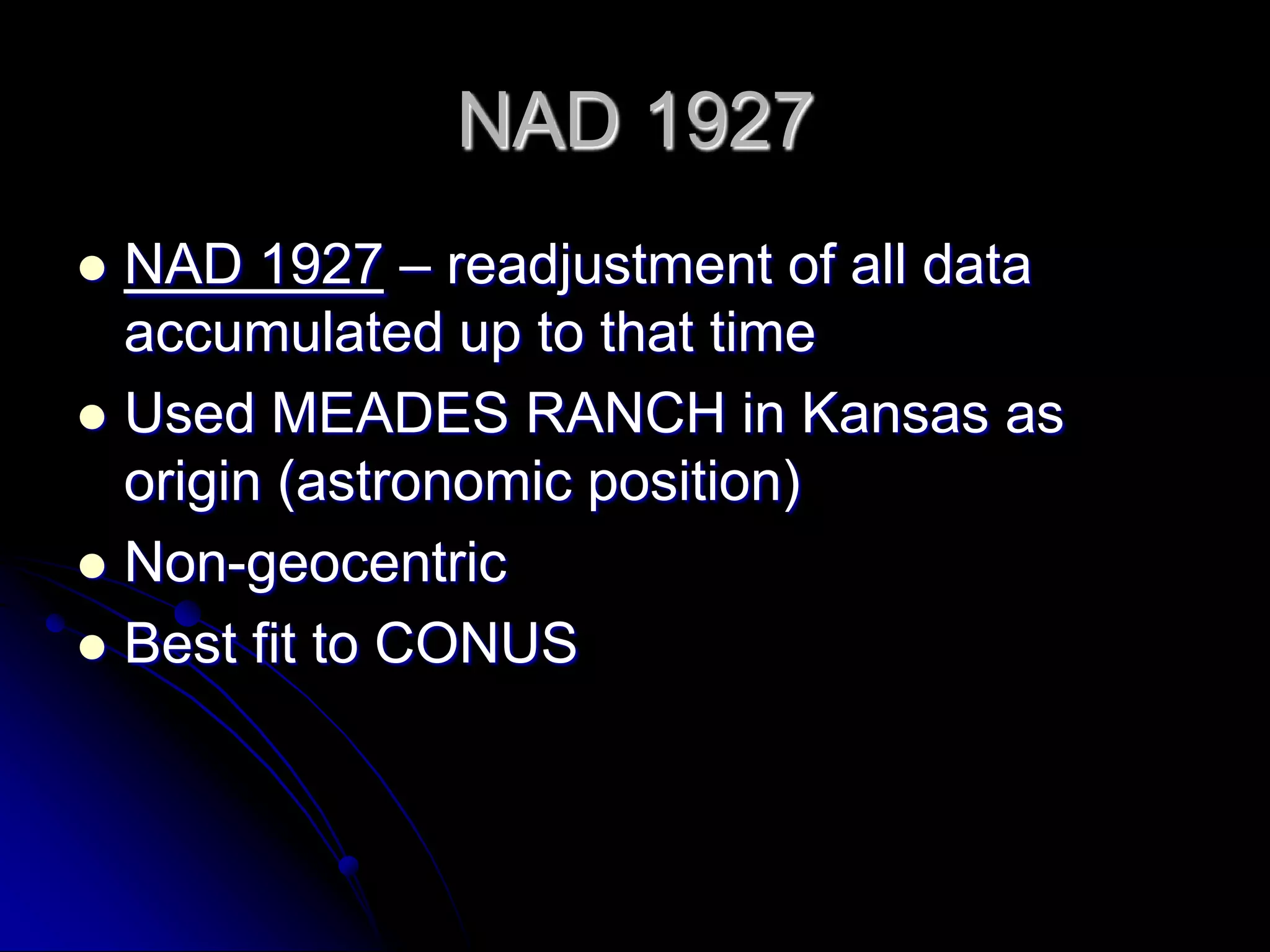

NAD 1927NAD 1927 – readjustment of all data accumulated up to that timeUsed MEADES RANCH in Kansas as origin (astronomic position)Non-geocentricBest fit to CONUS

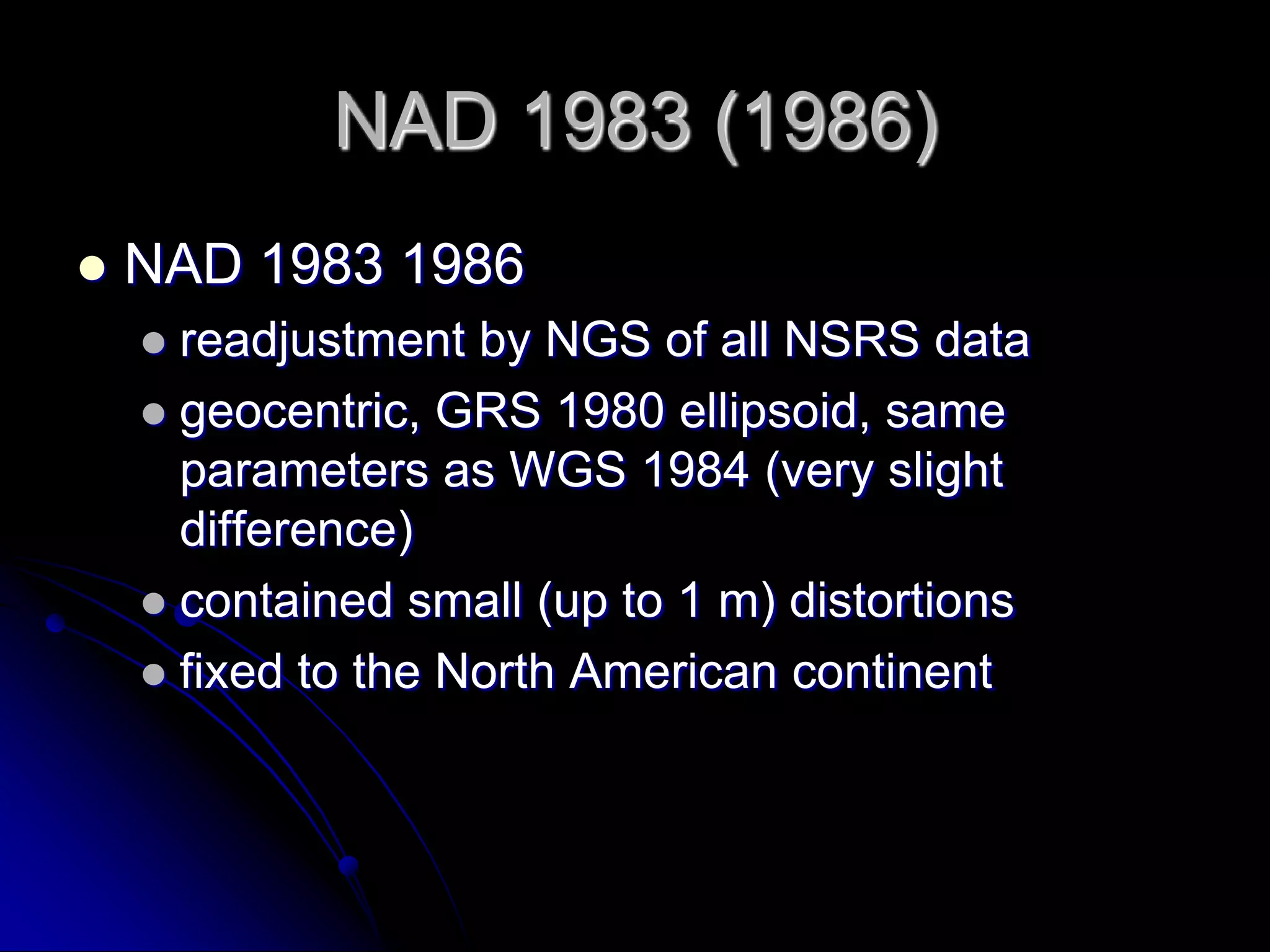

NAD 1983 (1986)NAD 1983 1986readjustment by NGS of all NSRS data geocentric, GRS 1980 ellipsoid, same parameters as WGS 1984 (very slight difference)contained small (up to 1 m) distortionsfixed to the North American continent

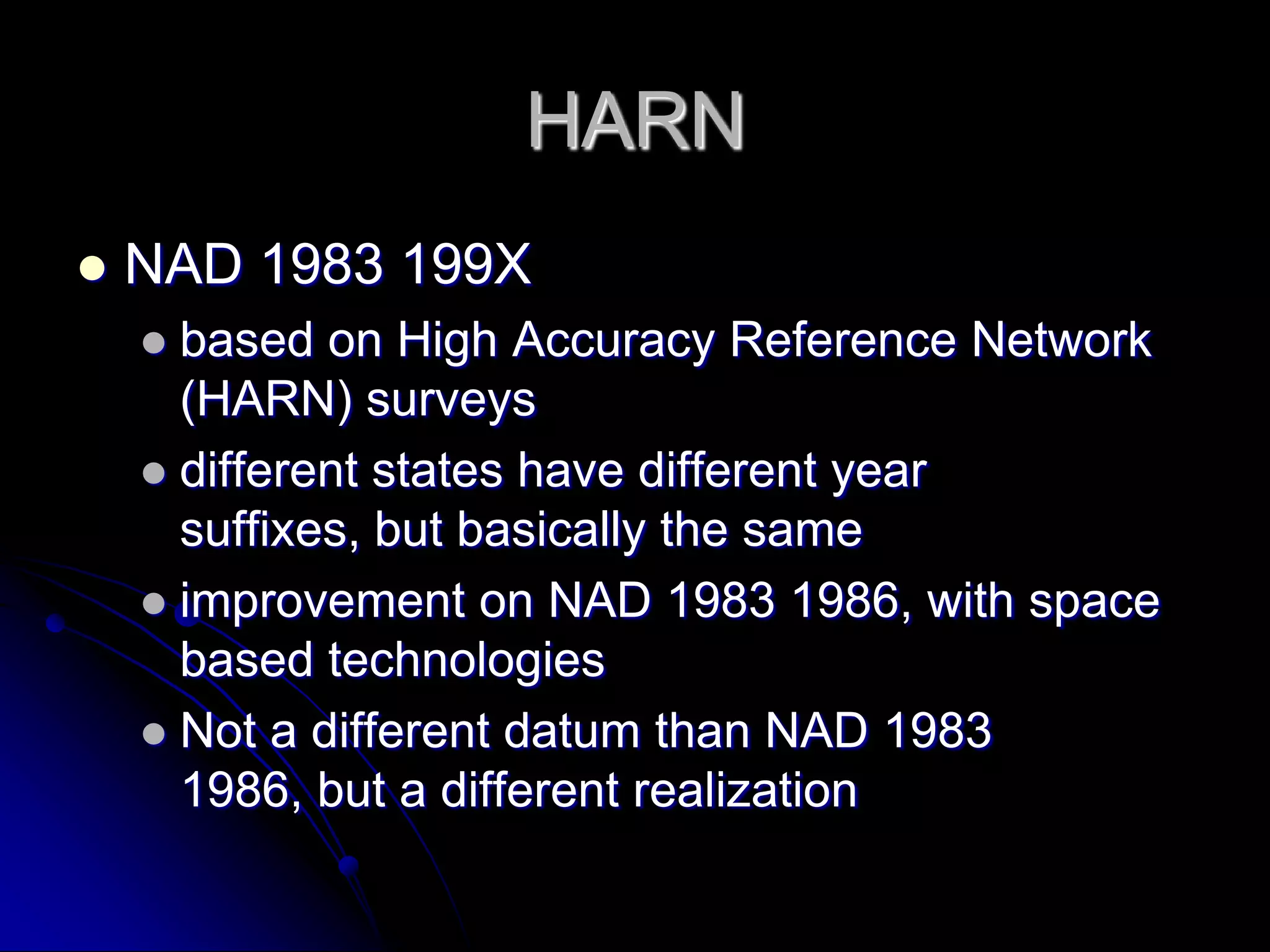

HARNNAD 1983 199Xbased on High Accuracy Reference Network (HARN) surveysdifferent states have different year suffixes, but basically the sameimprovement on NAD 1983 1986, with space based technologiesNot a different datum than NAD 1983 1986, but a different realization

NEW ADJUSTMENTNAD 1983 (NSRS)February 2007 completionGPS observations onlyHold CORS fixedAccurate to a couple of cmChanges in existing coordinates up to 10 cm, usually less than 5 cmSame parameters as NAD 1983, more accurate realization

ITRF XXInternational Terrestrial Reference Frame, where XX is the epoch of the system, for example ITRF 96most accurate system in useworldwide, not fixed to any continental plateNAD 1983 coordinates have velocity component in ITRF

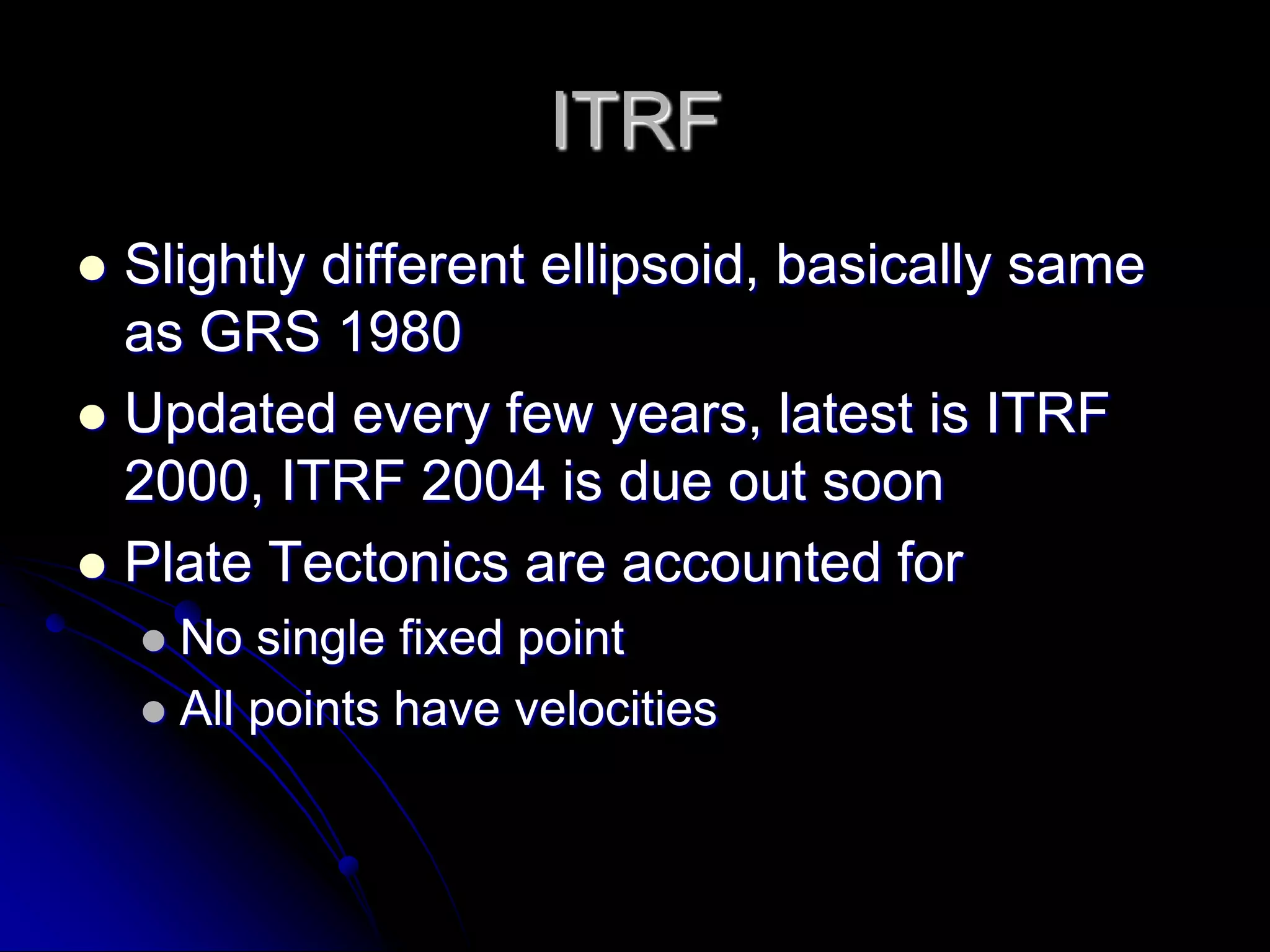

ITRFSlightly different ellipsoid, basically same as GRS 1980Updated every few years, latest is ITRF 2000, ITRF 2004 is due out soonPlate Tectonics are accounted forNo single fixed pointAll points have velocities

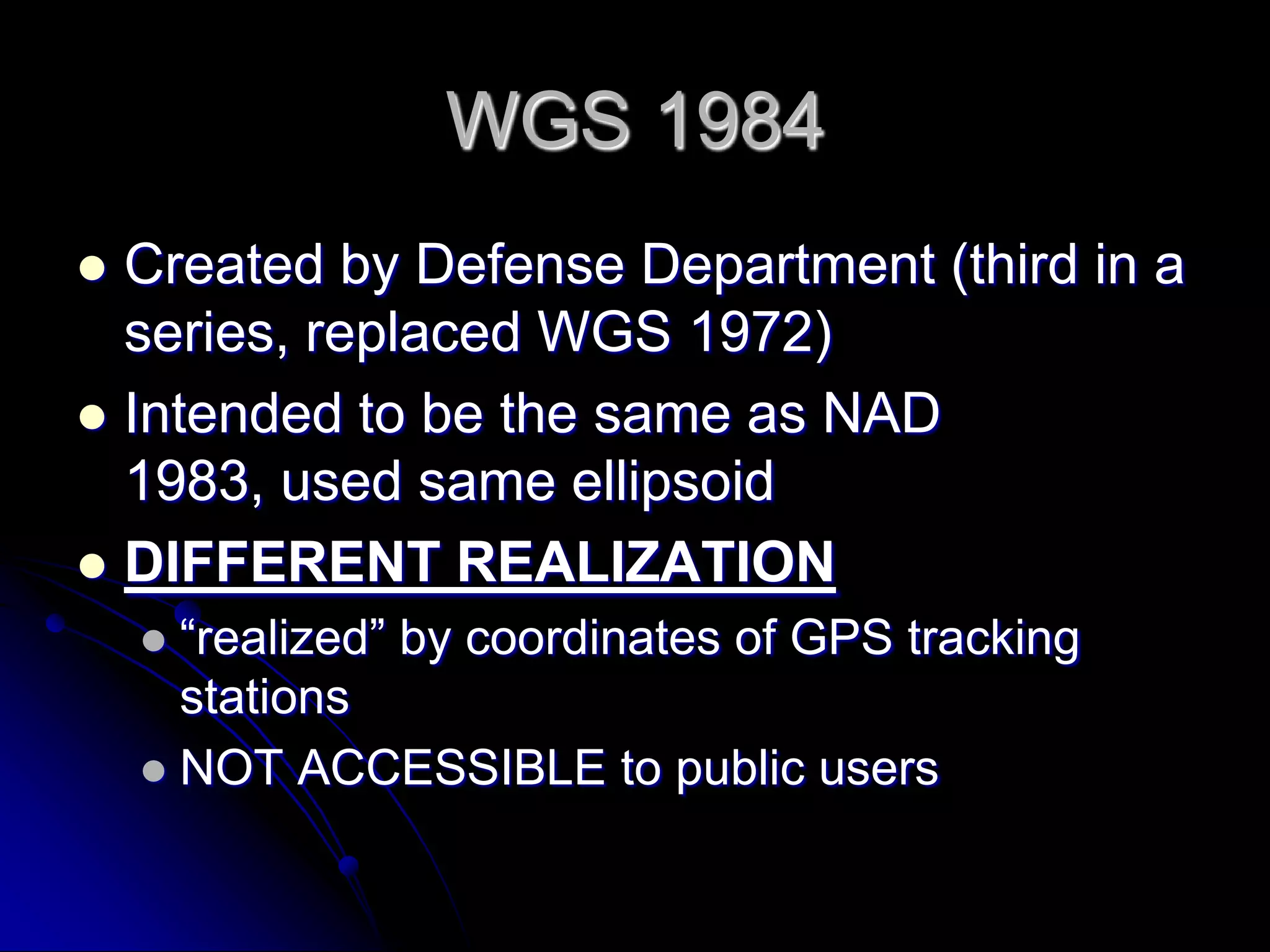

WGS 1984Created by Defense Department (third in a series, replaced WGS 1972)Intended to be the same as NAD 1983, used same ellipsoidDIFFERENT REALIZATION“realized” by coordinates of GPS tracking stationsNOT ACCESSIBLE to public users

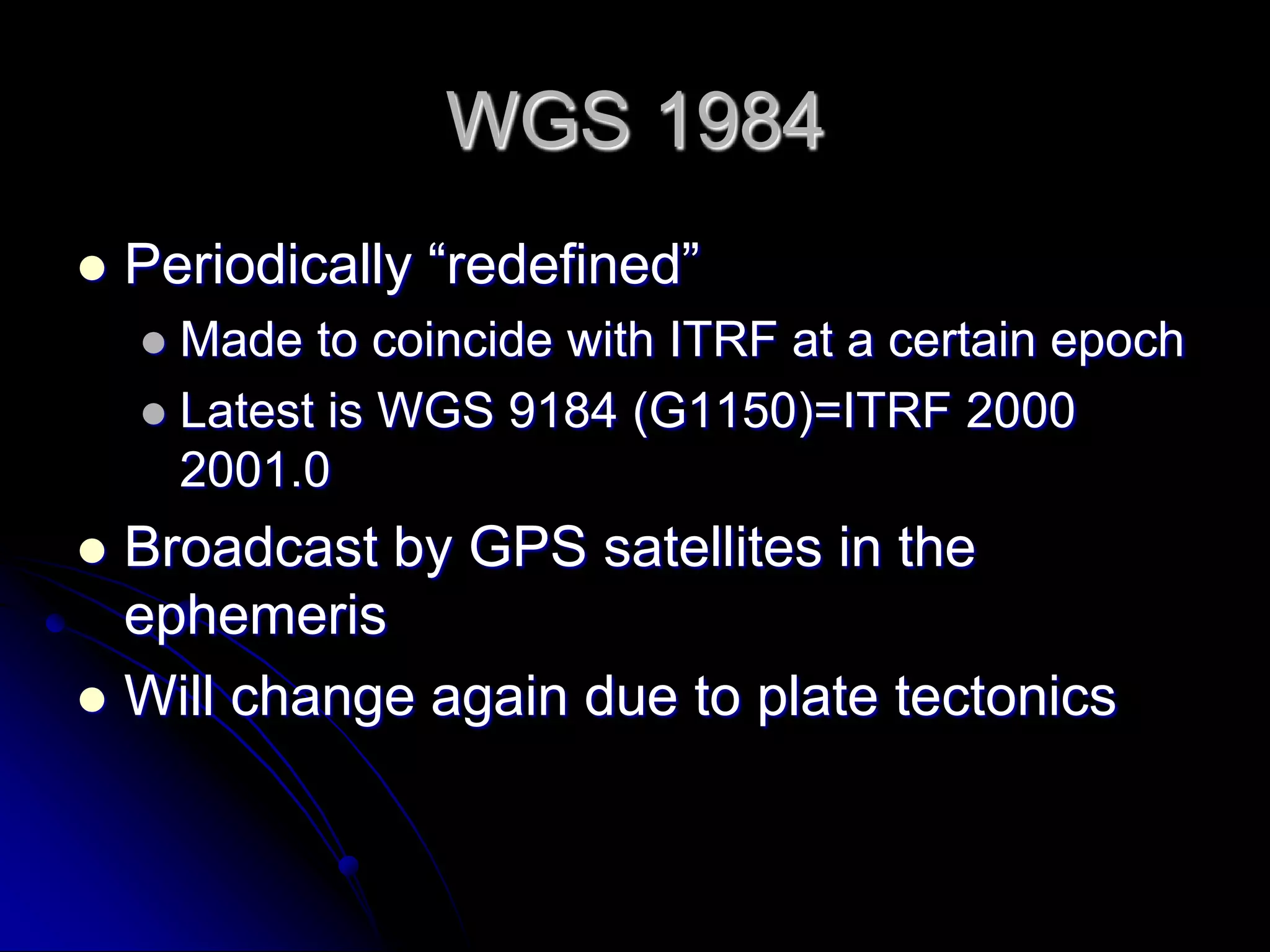

WGS 1984Periodically “redefined”Made to coincide with ITRF at a certain epochLatest is WGS 9184 (G1150)=ITRF 2000 2001.0Broadcast by GPS satellites in the ephemerisWill change again due to plate tectonics

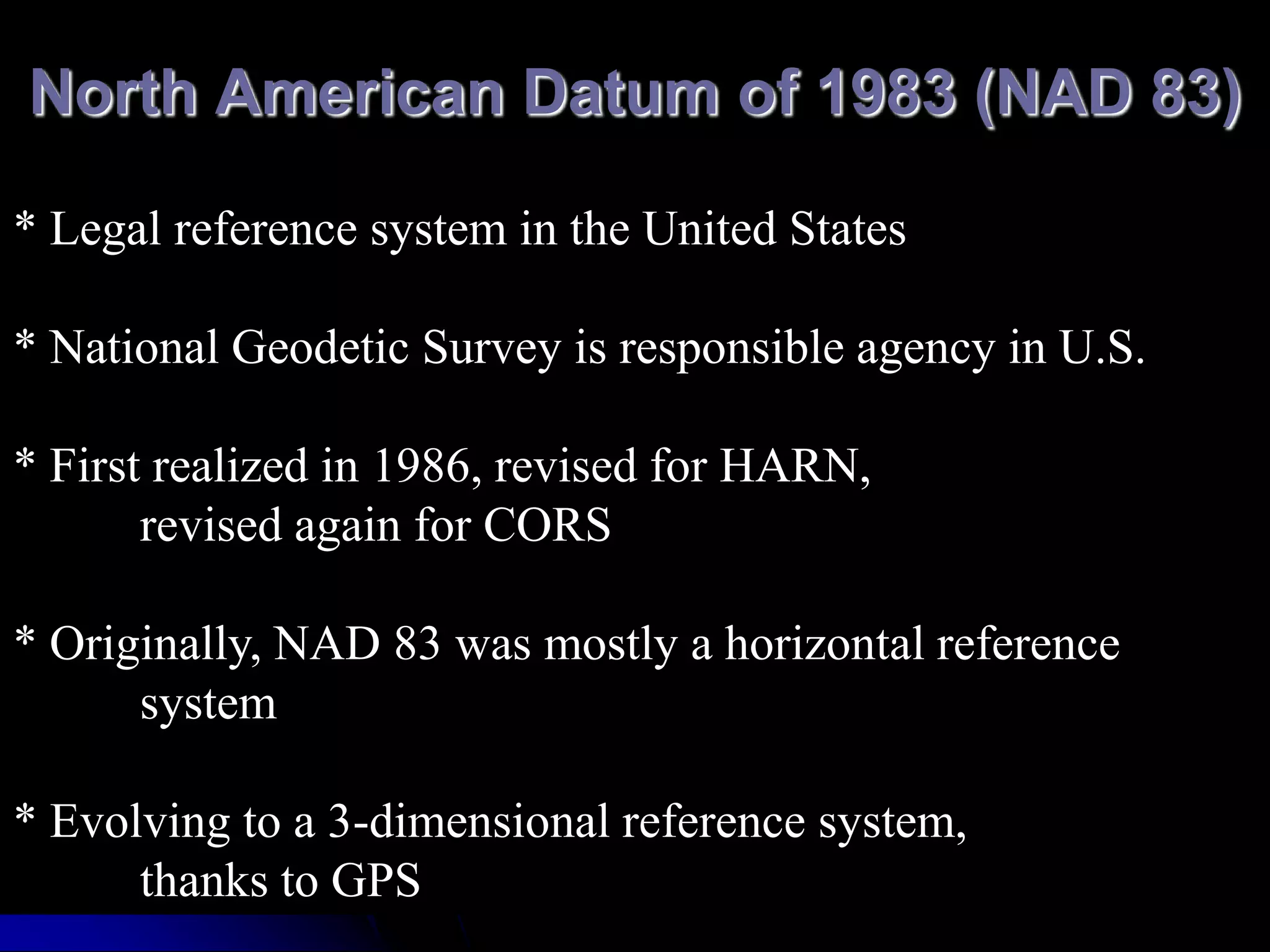

North American Datum of 1983 (NAD 83)* Legal reference system in the United States* National Geodetic Survey is responsible agency in U.S.* First realized in 1986, revised for HARN, revised again for CORS* Originally, NAD 83 was mostly a horizontal reference system* Evolving to a 3-dimensional reference system, thanks to GPS

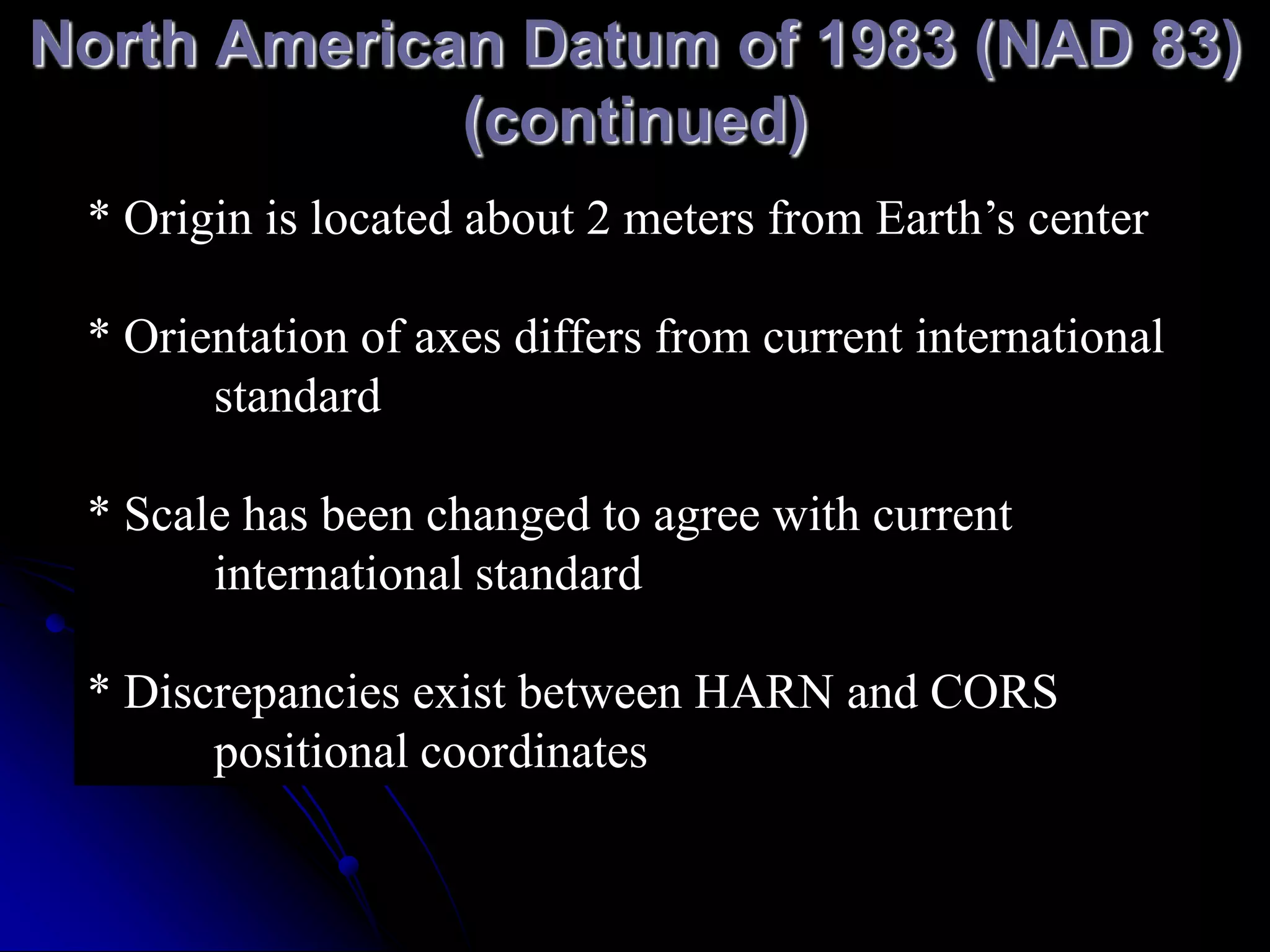

North American Datum of 1983 (NAD 83) (continued)* Origin is located about 2 meters from Earth’s center* Orientation of axes differs from current international standard* Scale has been changed to agree with current international standard* Discrepancies exist between HARN and CORS positional coordinates

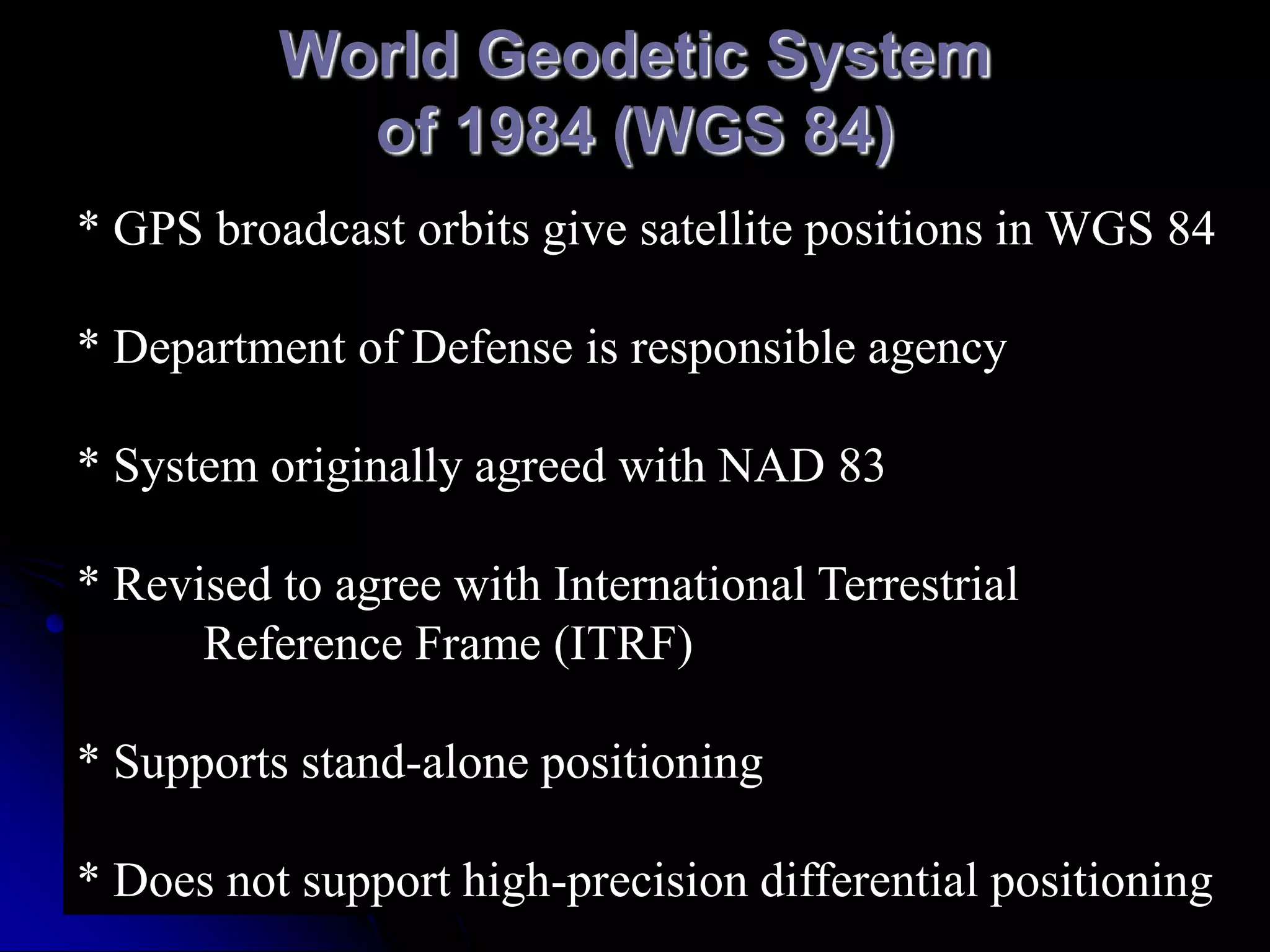

World Geodetic System of 1984 (WGS 84)* GPS broadcast orbits give satellite positions in WGS 84* Department of Defense is responsible agency* System originally agreed with NAD 83* Revised to agree with International Terrestrial Reference Frame (ITRF)* Supports stand-alone positioning* Does not support high-precision differential positioning

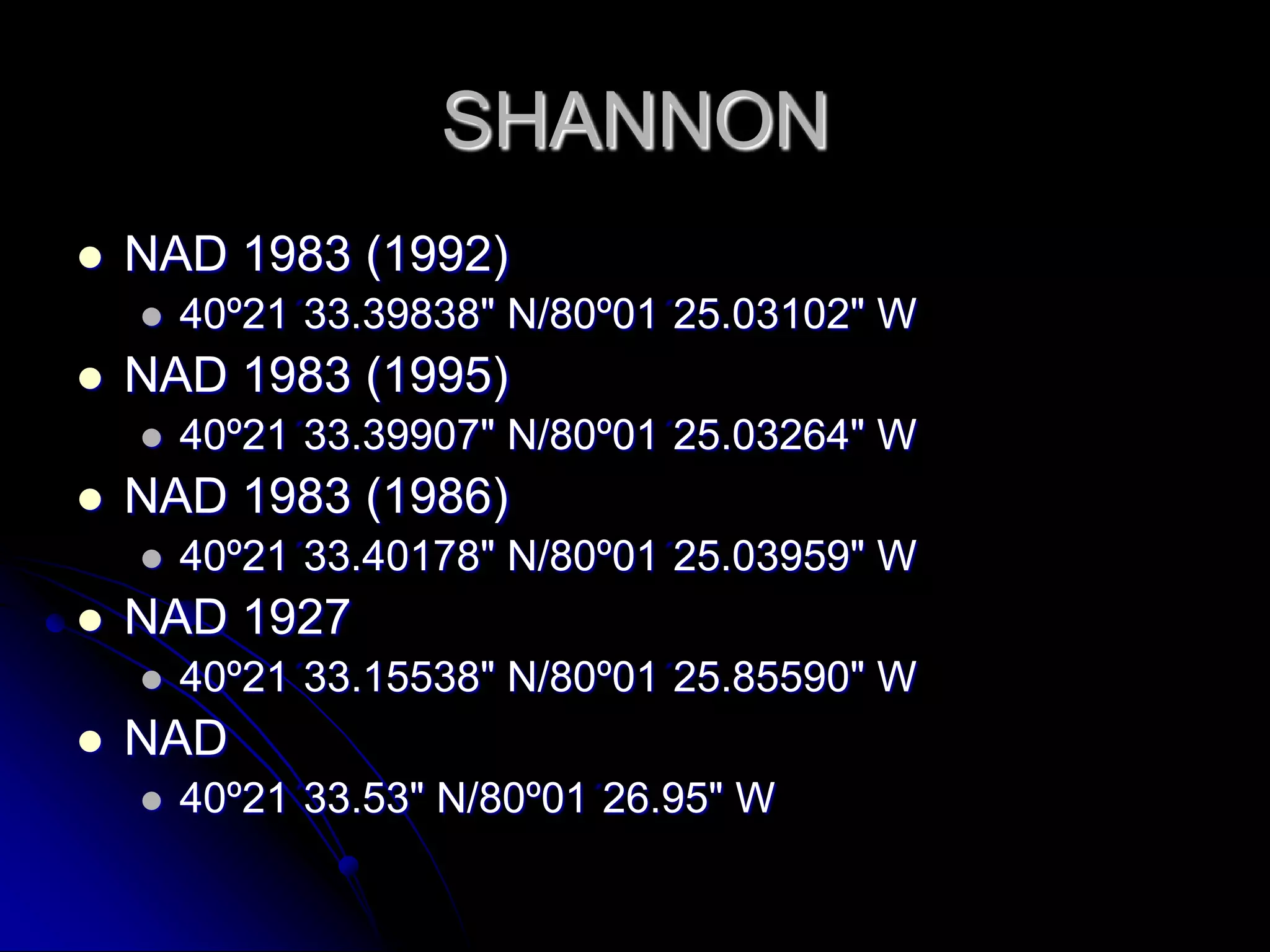

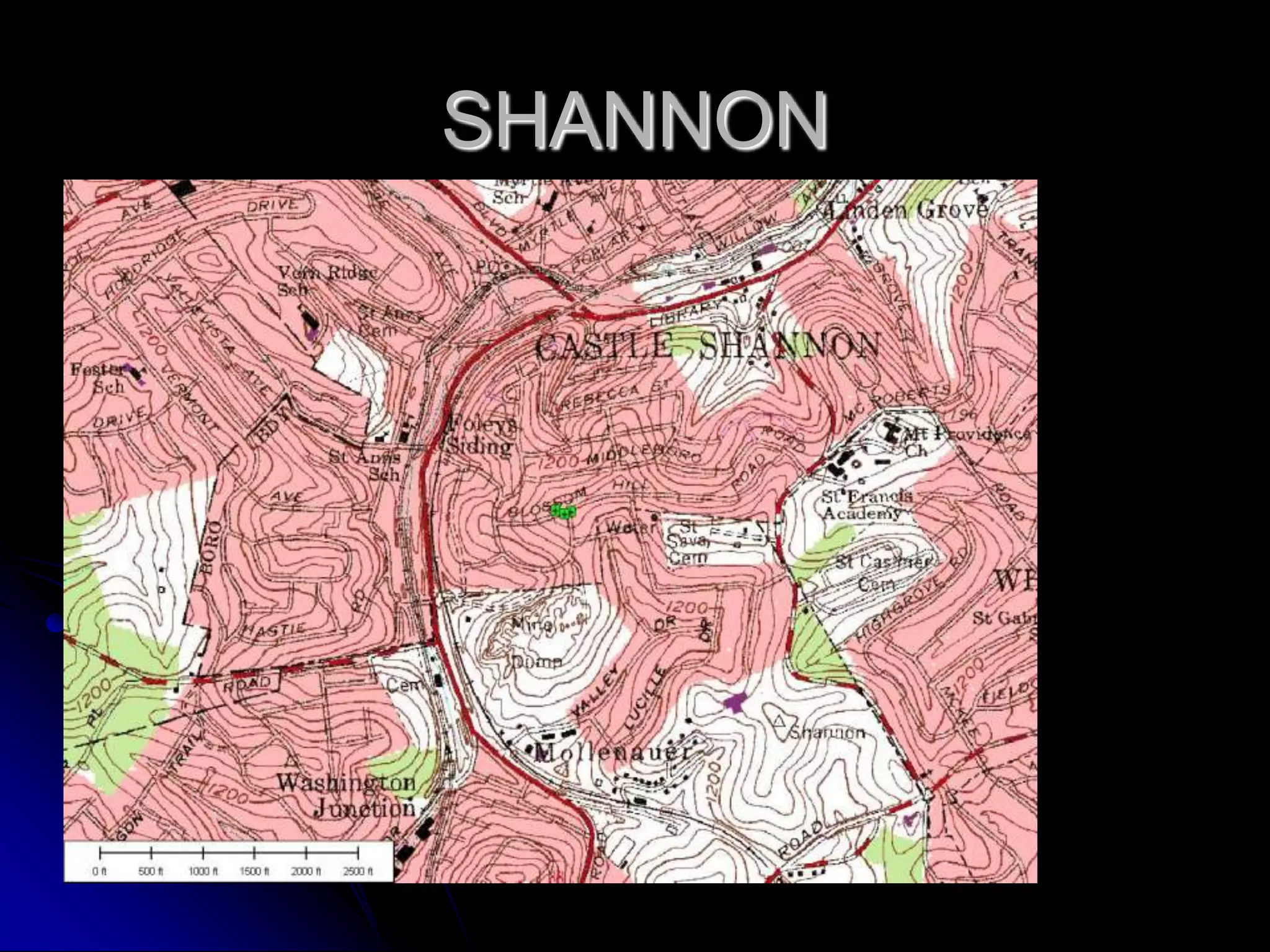

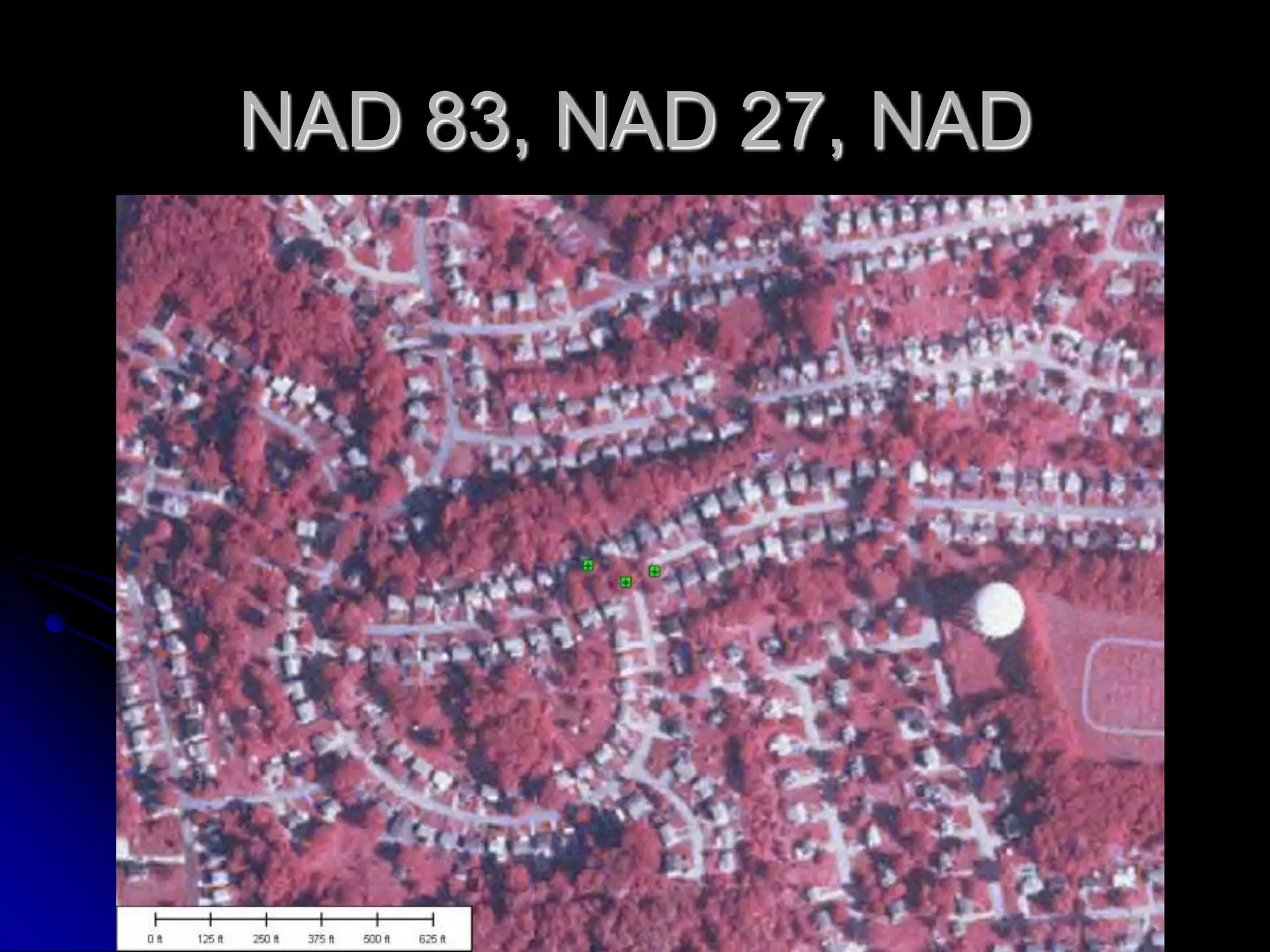

SHANNONNAD 1983 (1992)40º21´33.39838" N/80º01´25.03102" WNAD 1983 (1995)40º21´33.39907" N/80º01´25.03264" WNAD 1983 (1986)40º21´33.40178" N/80º01´25.03959" WNAD 1927 40º21´33.15538" N/80º01´25.85590" WNAD 40º21´33.53" N/80º01´26.95" W

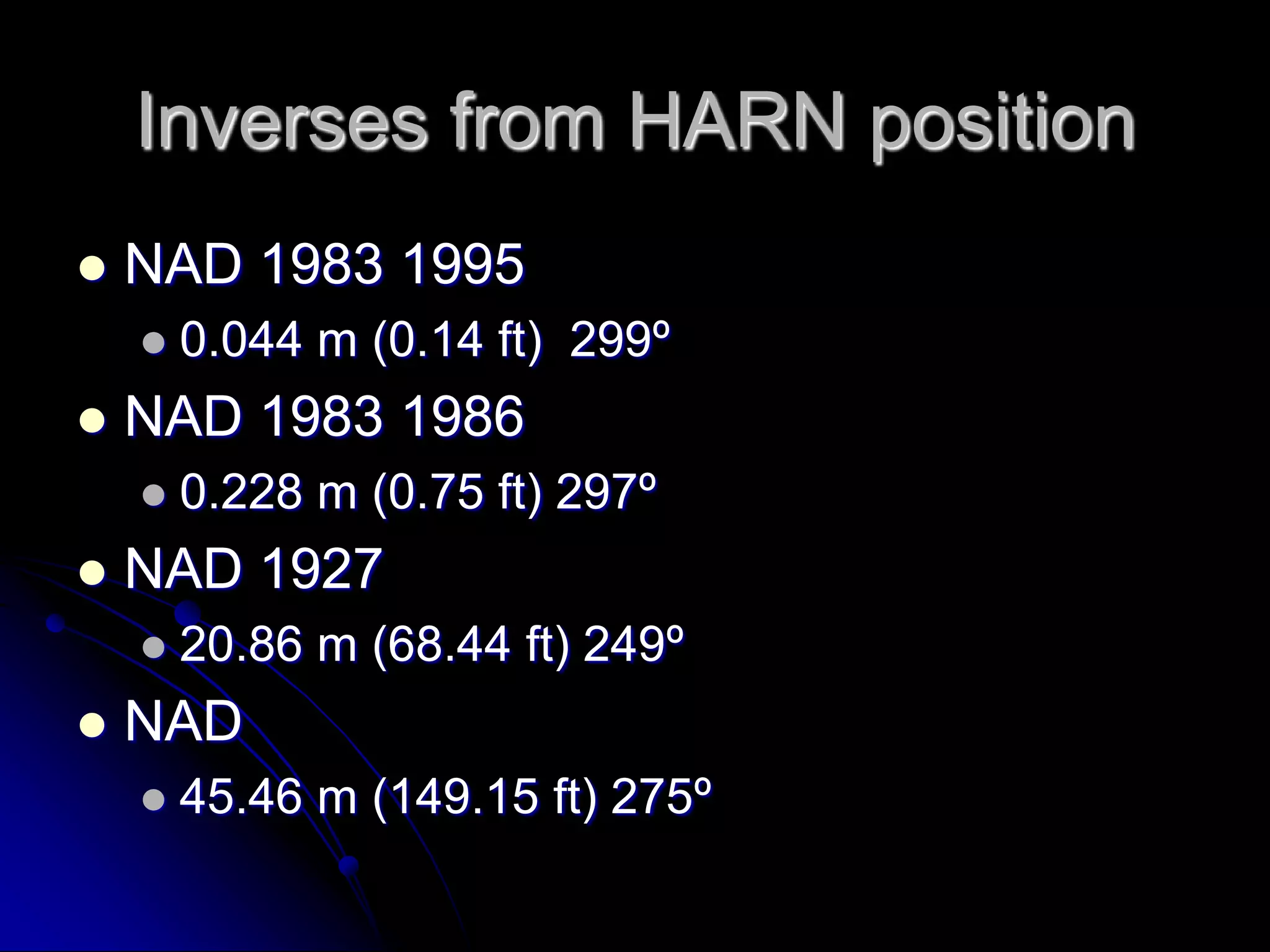

Inverses from HARN positionNAD 1983 19950.044 m (0.14 ft) 299ºNAD 1983 19860.228 m (0.75 ft) 297ºNAD 192720.86 m (68.44 ft) 249ºNAD45.46 m (149.15 ft) 275º

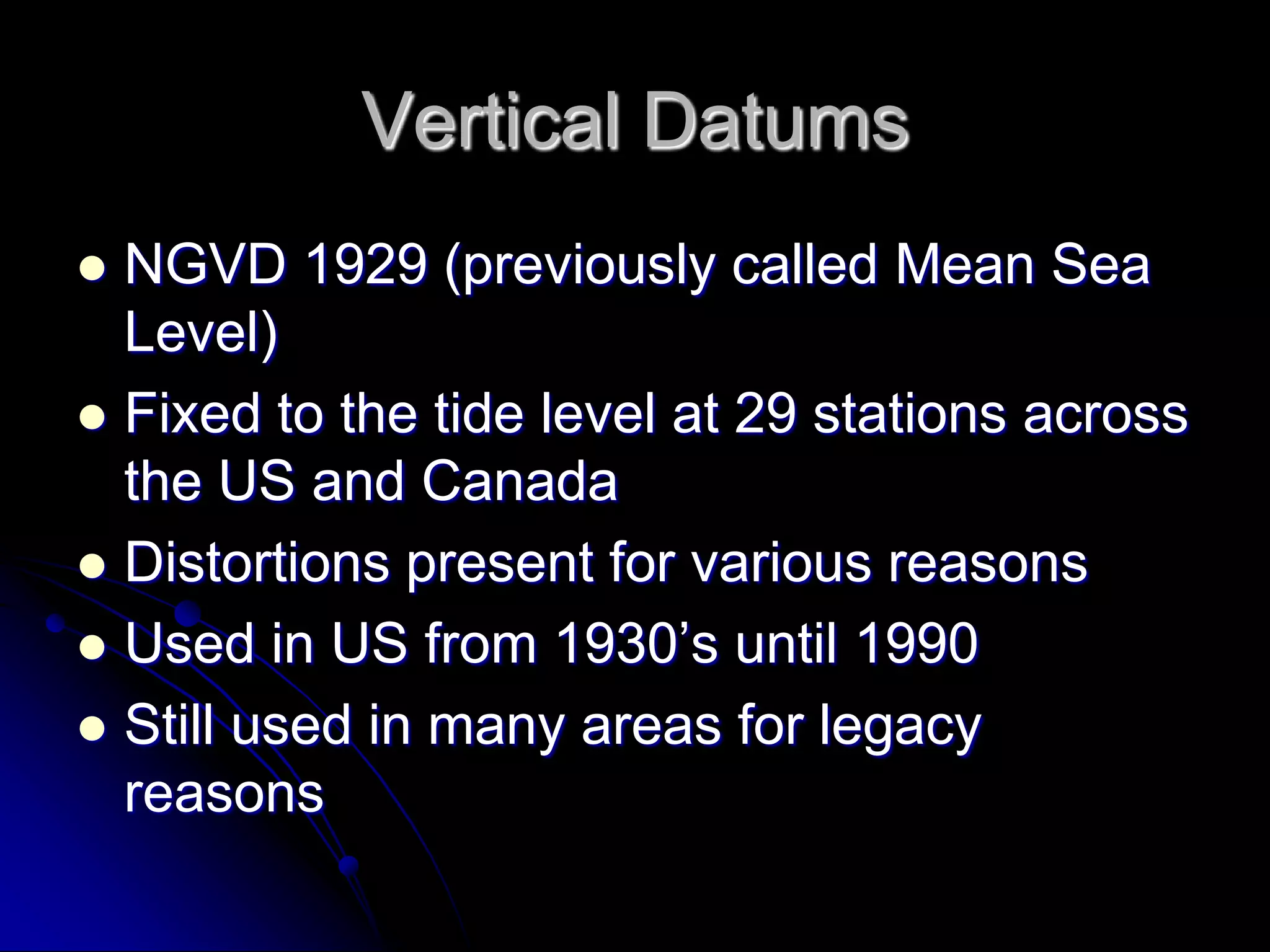

Vertical DatumsNGVD 1929 (previously called Mean Sea Level)Fixed to the tide level at 29 stations across the US and CanadaDistortions present for various reasonsUsed in US from 1930’s until 1990Still used in many areas for legacy reasons

Vertical DatumsNAVD 1988Legislated in the Federal Register, Feds often try to force states to use itMore accurate, more consistentDifference in western PA between NGVD 1929 and NAVD 1988 is about ½ foot. Can convert using VERTCON or CORPSCONApproximate, good for mapping, not accurate enough for survey purposes

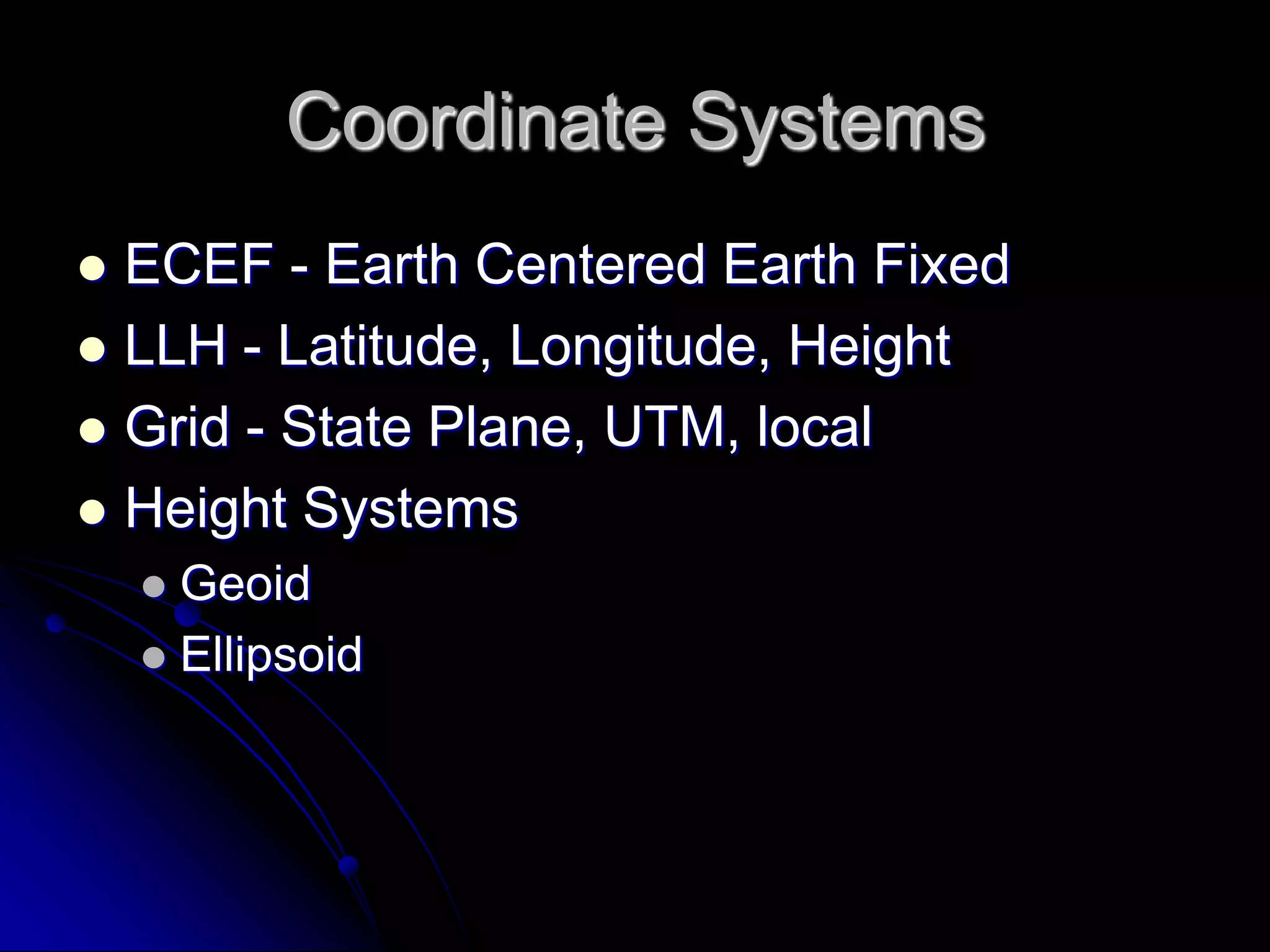

Coordinate SystemsECEF - Earth Centered Earth FixedLLH - Latitude, Longitude, HeightGrid - State Plane, UTM, localHeight SystemsGeoidEllipsoid

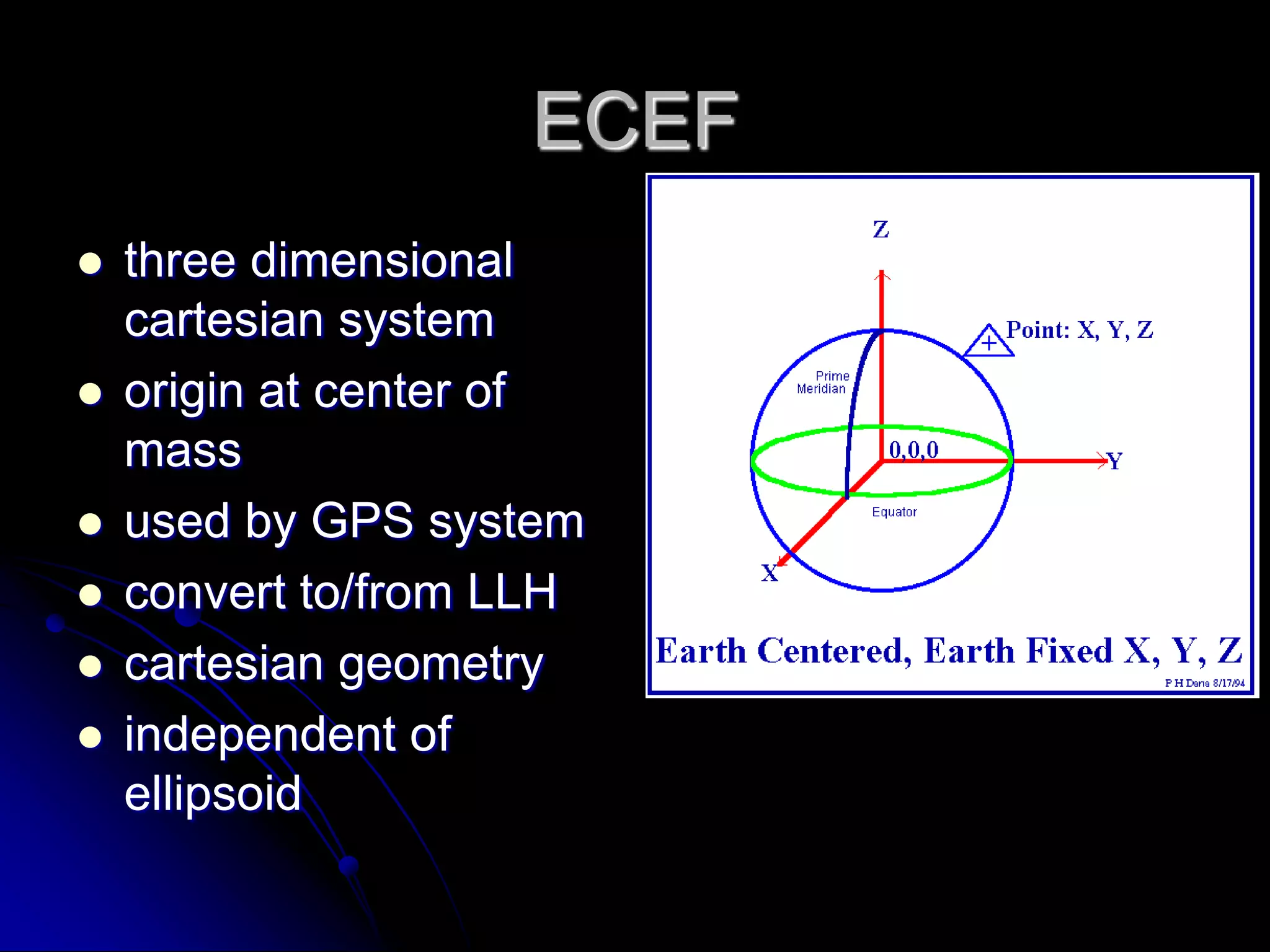

ECEFthree dimensional cartesian systemorigin at center of massused by GPS systemconvert to/from LLHcartesian geometryindependent of ellipsoid

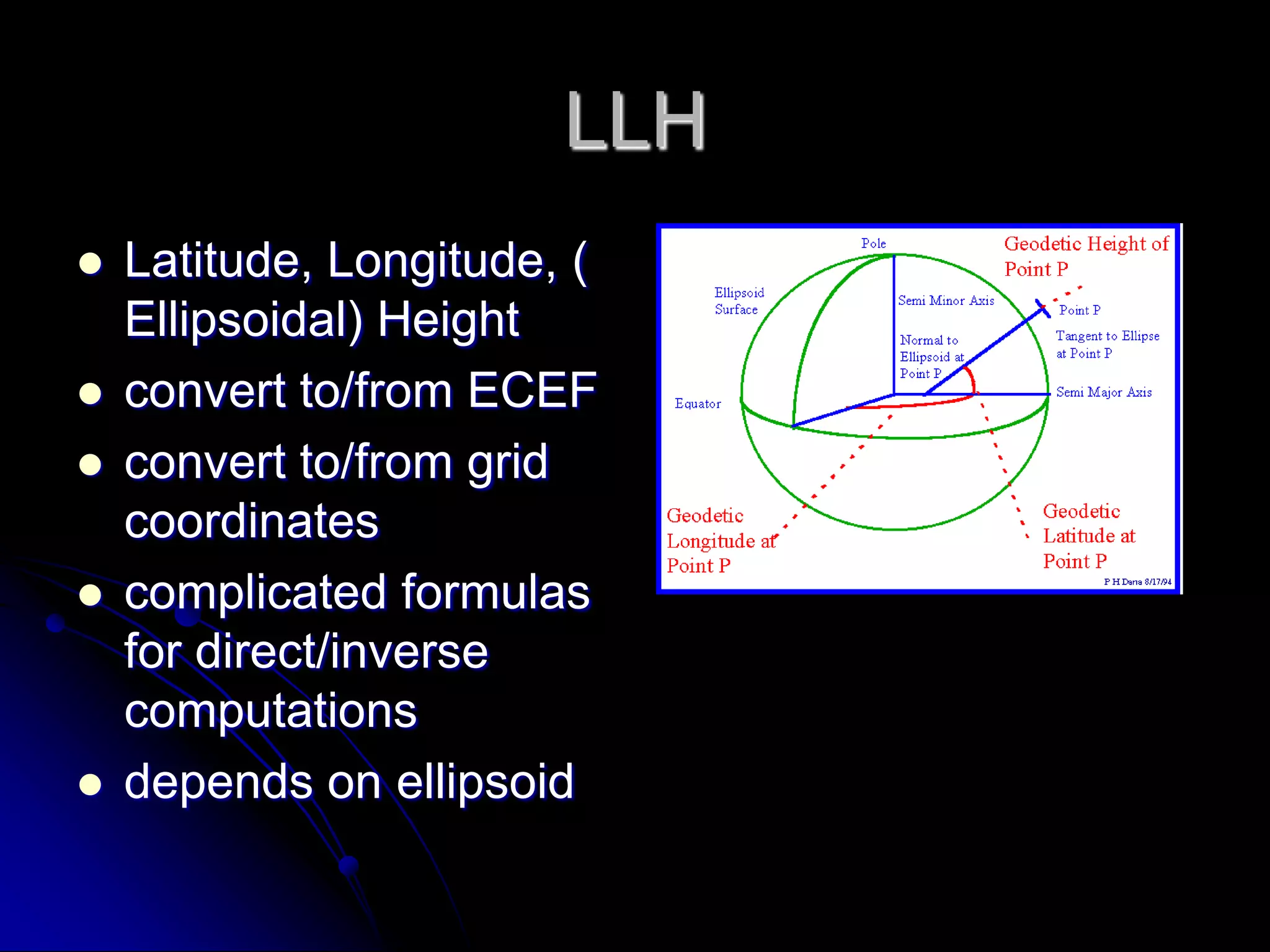

LLHLatitude, Longitude, (Ellipsoidal) Heightconvert to/from ECEFconvert to/from grid coordinatescomplicated formulas for direct/inverse computationsdepends on ellipsoid

Grid Coordinatestwo dimensional - Y and X or N and Erelated to LLH, can convert back and fortheasy computationsmost systems distort distances vary in extentplane, Transverse Mercator, LambertUTM, State Plane, Local

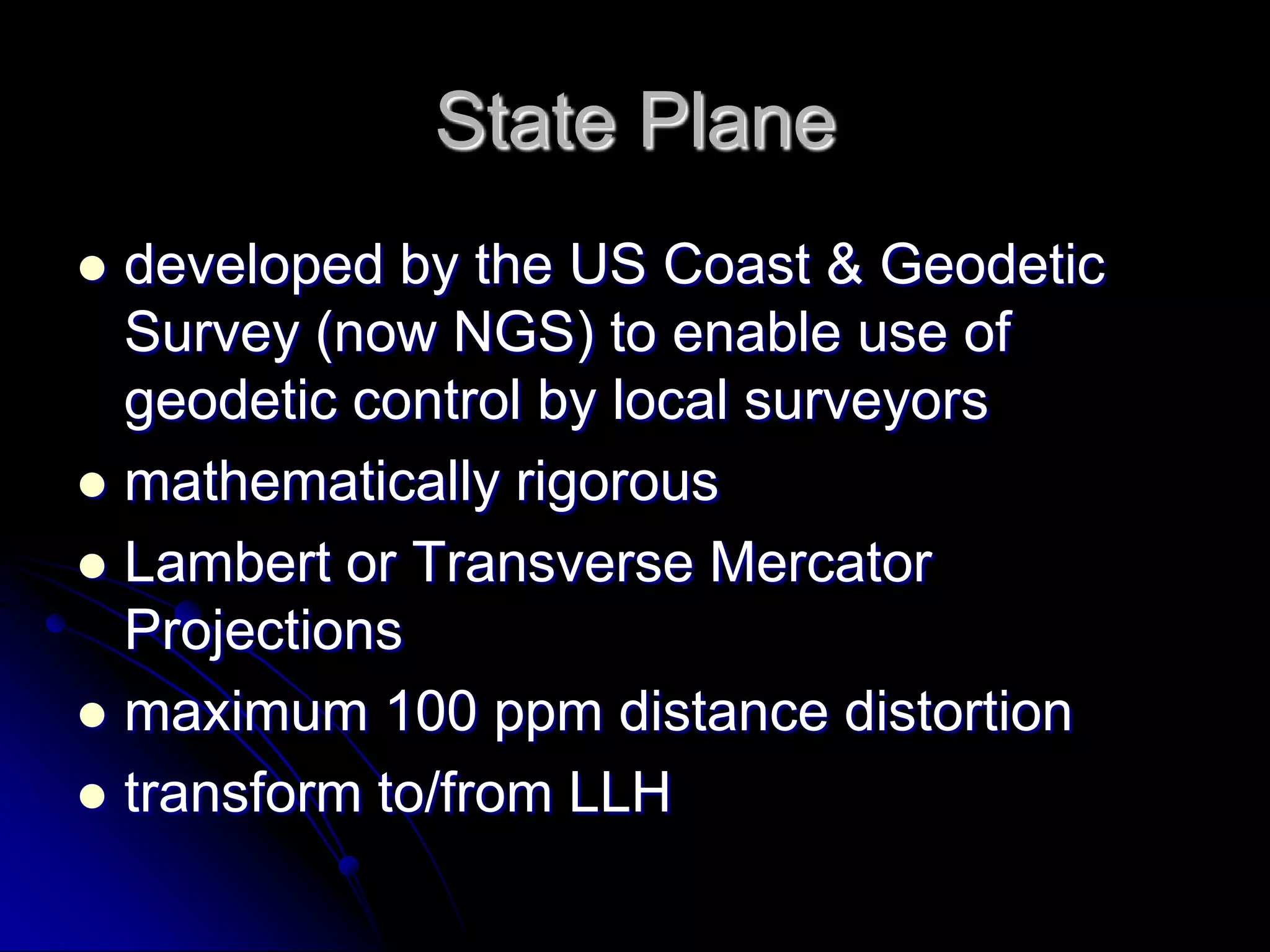

State Planedeveloped by the US Coast & Geodetic Survey (now NGS) to enable use of geodetic control by local surveyorsmathematically rigorousLambert or Transverse Mercator Projectionsmaximum 100 ppm distance distortiontransform to/from LLH

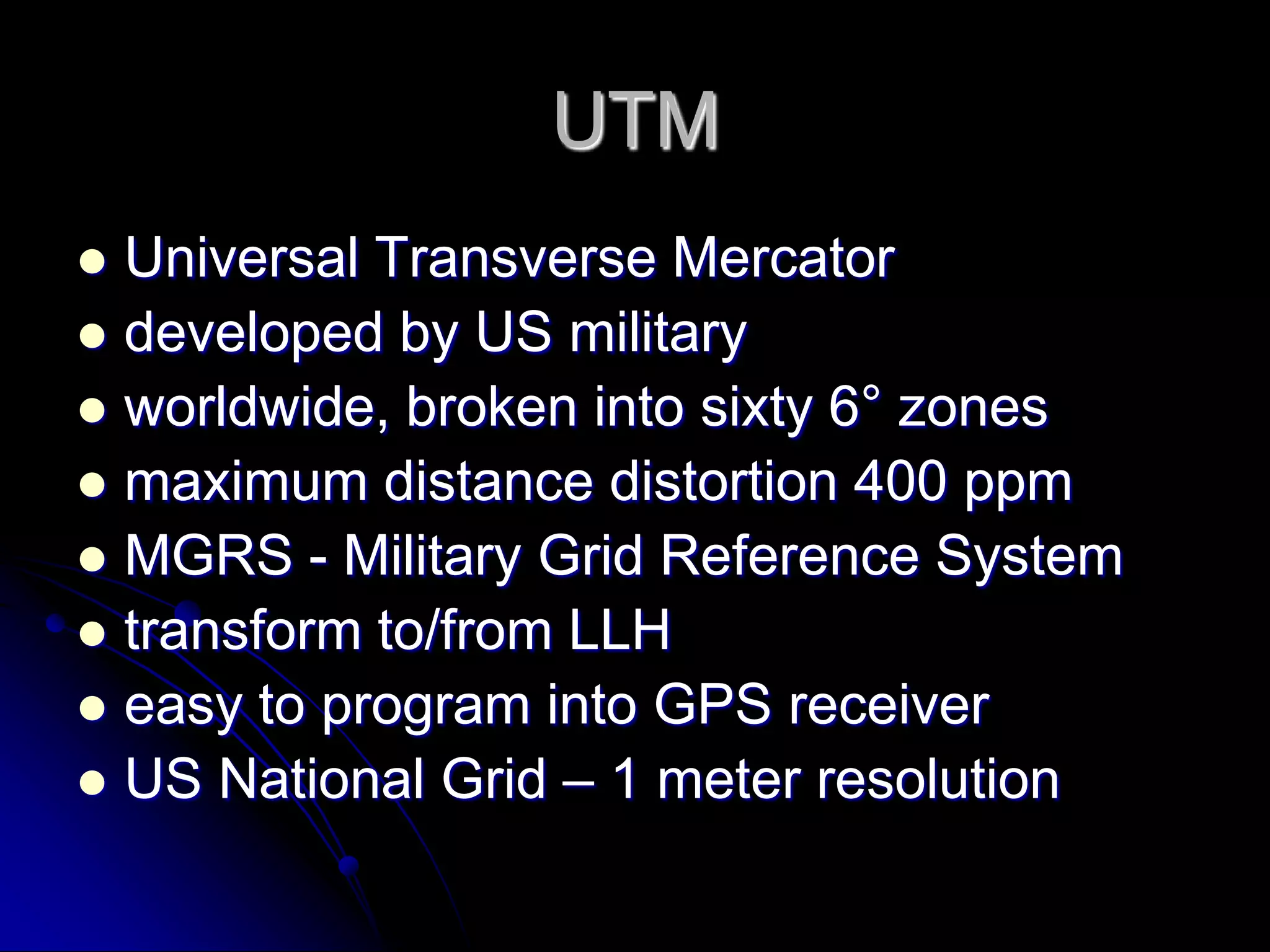

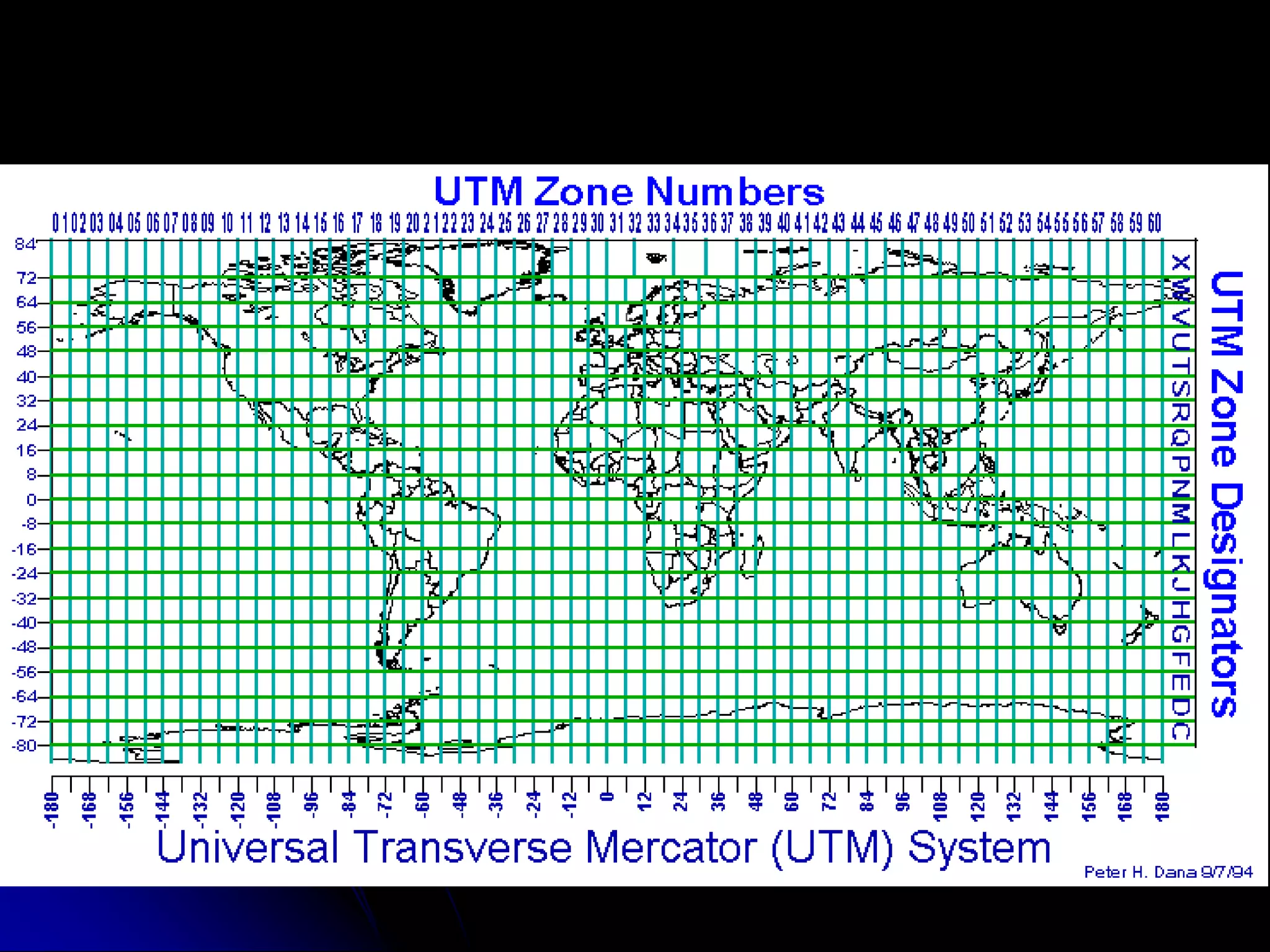

UTMUniversal Transverse Mercatordeveloped by US militaryworldwide, broken into sixty 6° zonesmaximum distance distortion 400 ppmMGRS - Military Grid Reference Systemtransform to/from LLHeasy to program into GPS receiverUS National Grid – 1 meter resolution

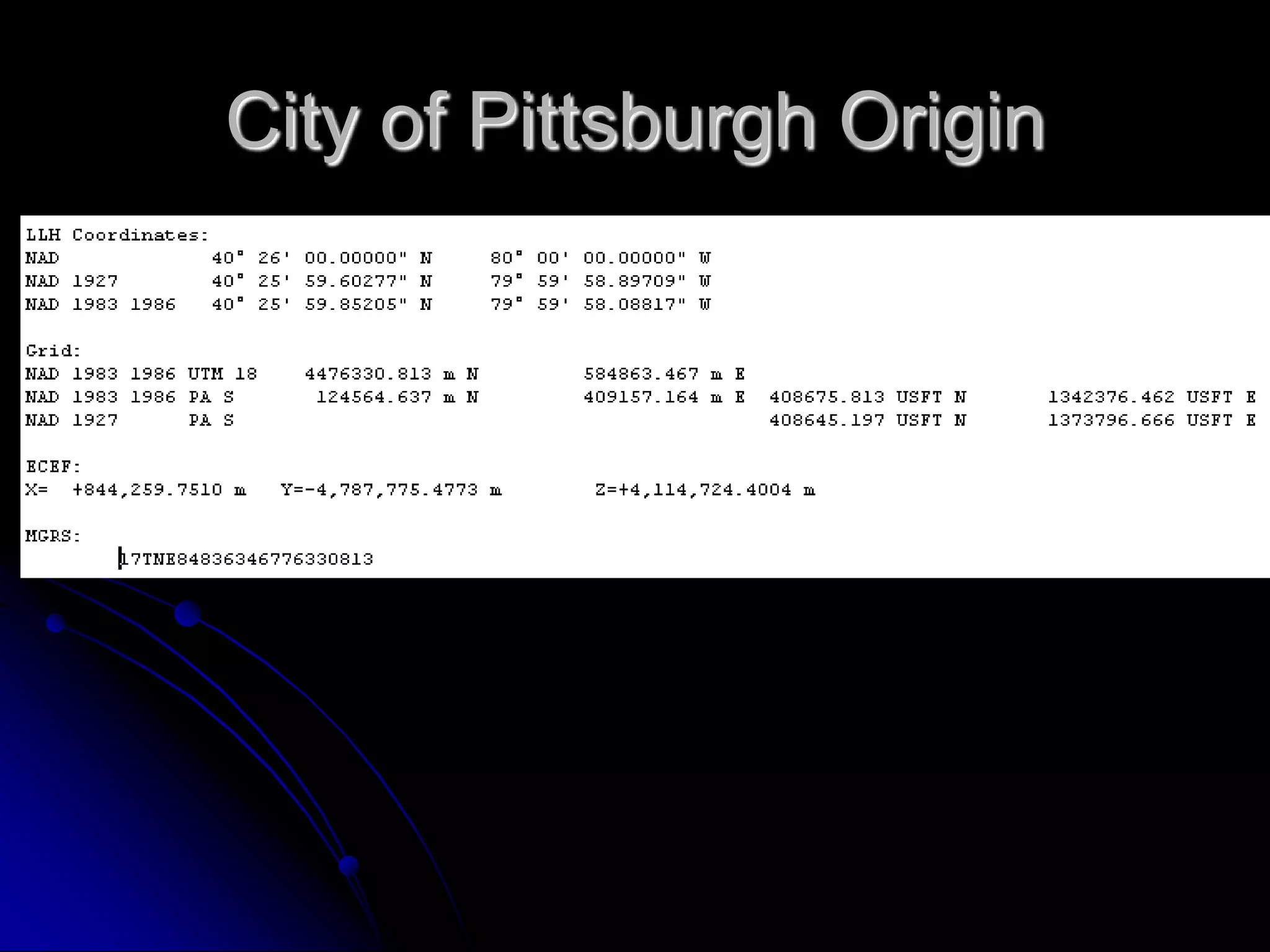

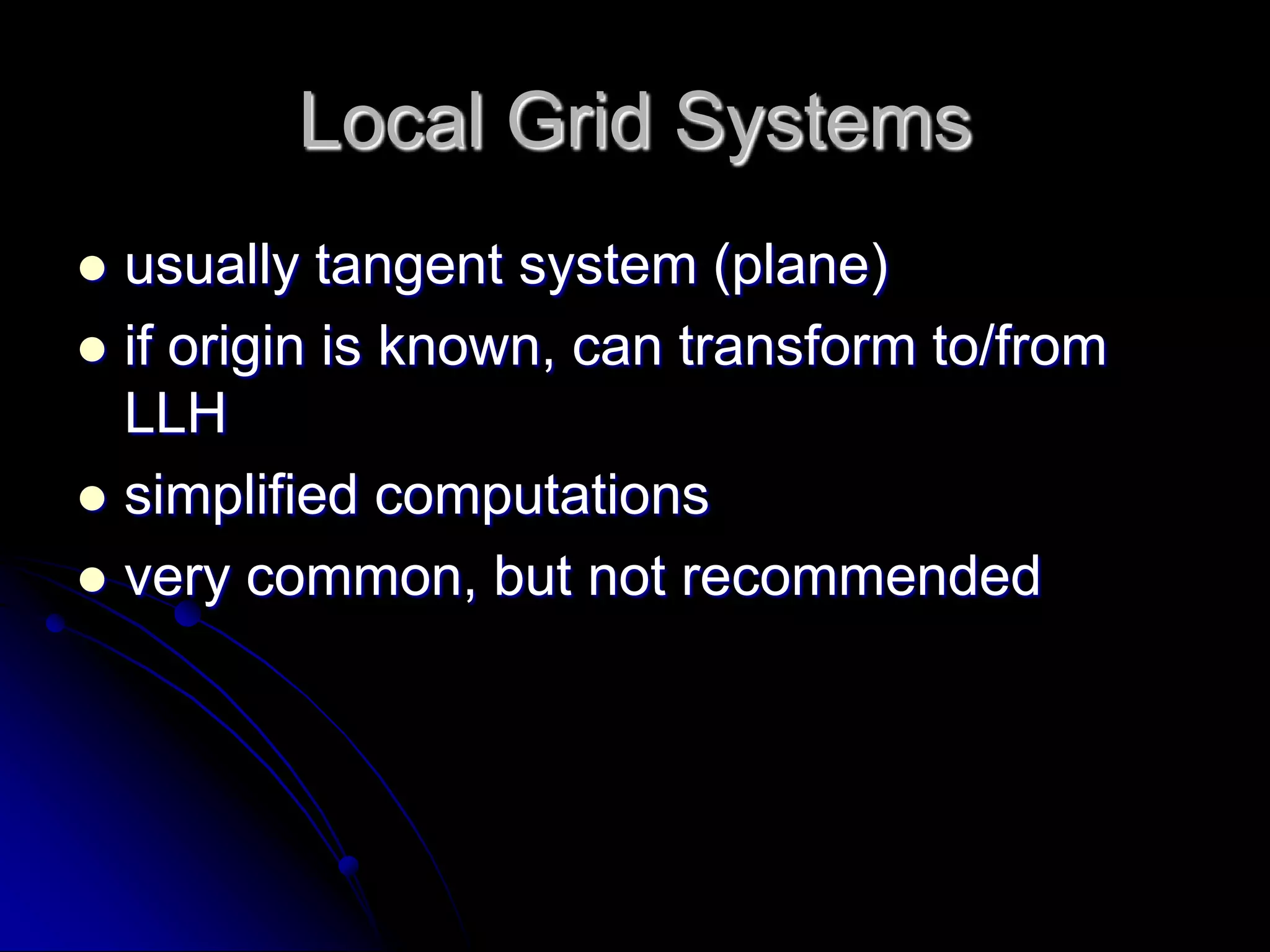

Local Grid Systemsusually tangent system (plane)if origin is known, can transform to/from LLHsimplified computationsvery common, but not recommended

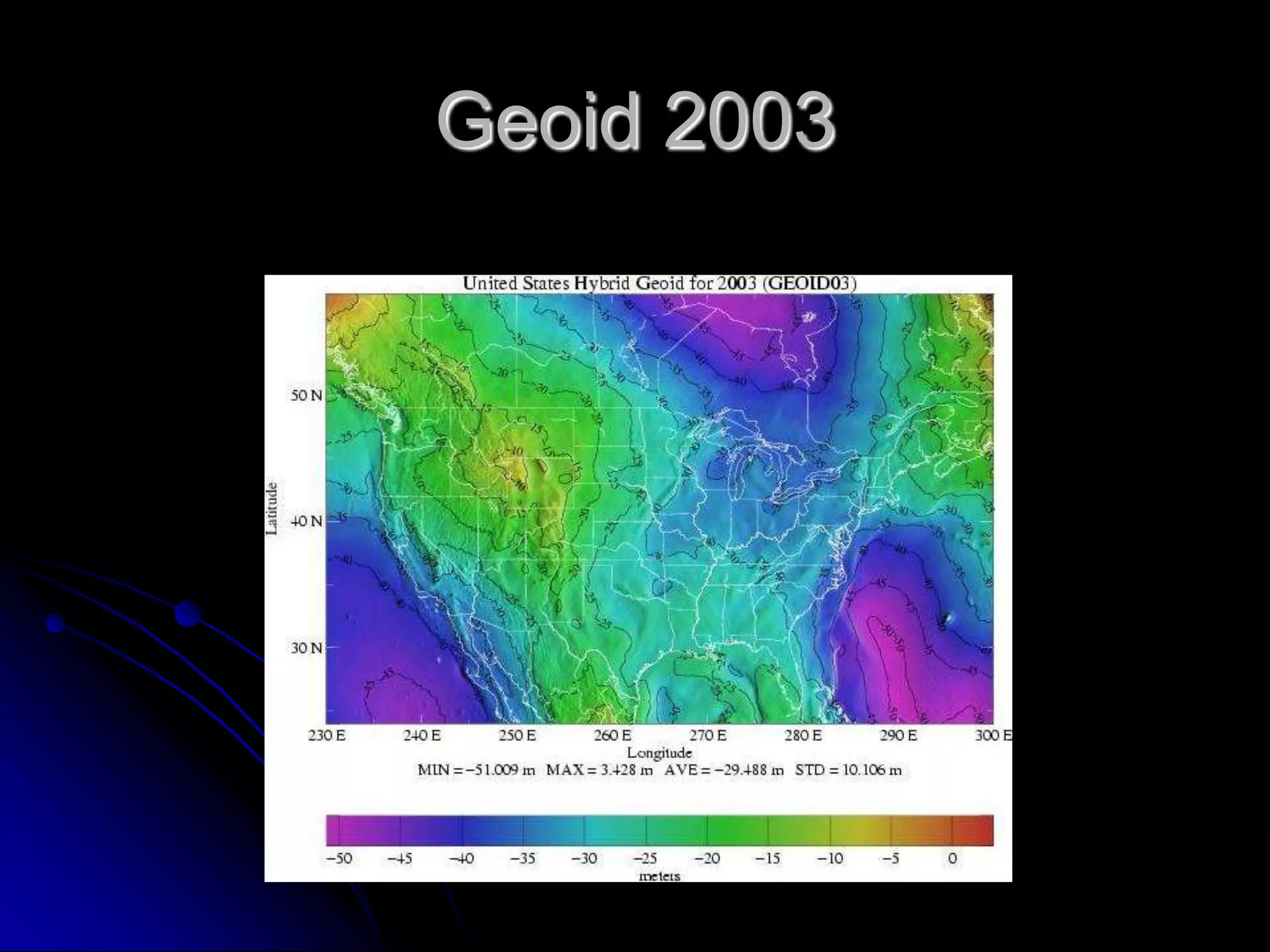

Geoidlevel surface of the gravity field which best fits mean sea levelnot a smooth mathematical surfaceaffected by gravity anomalies, such as mountains reference surface for orthometric heights

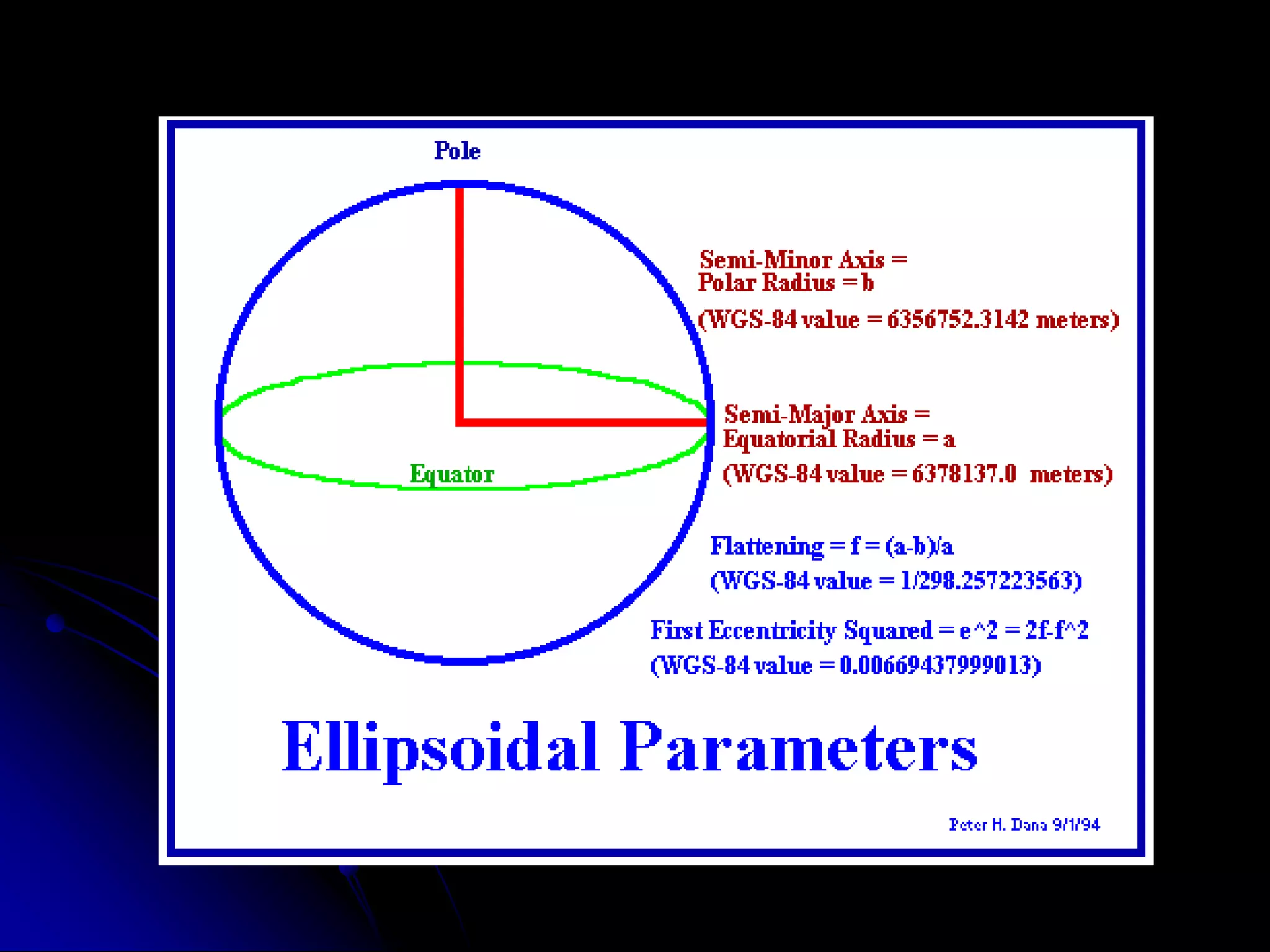

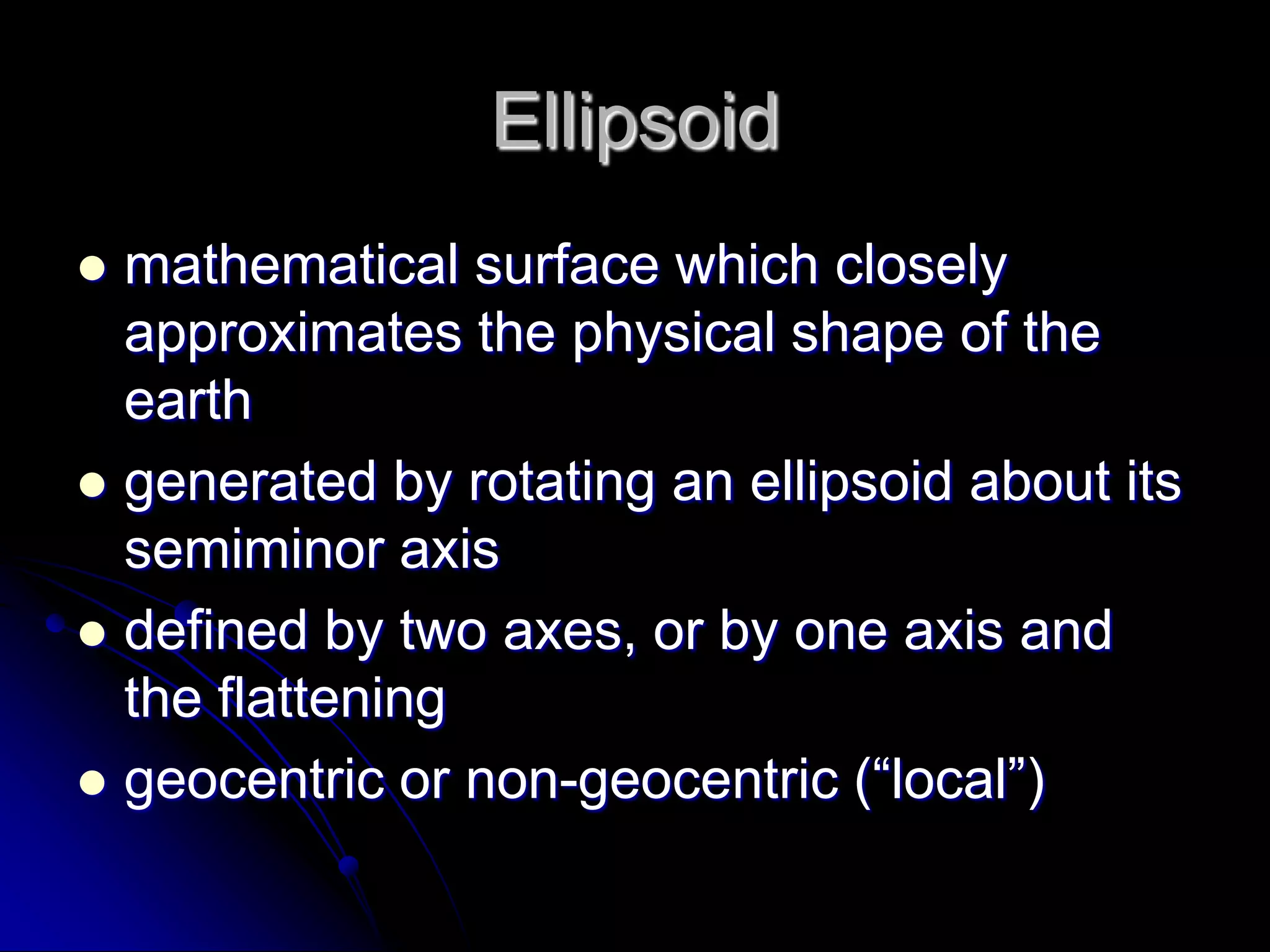

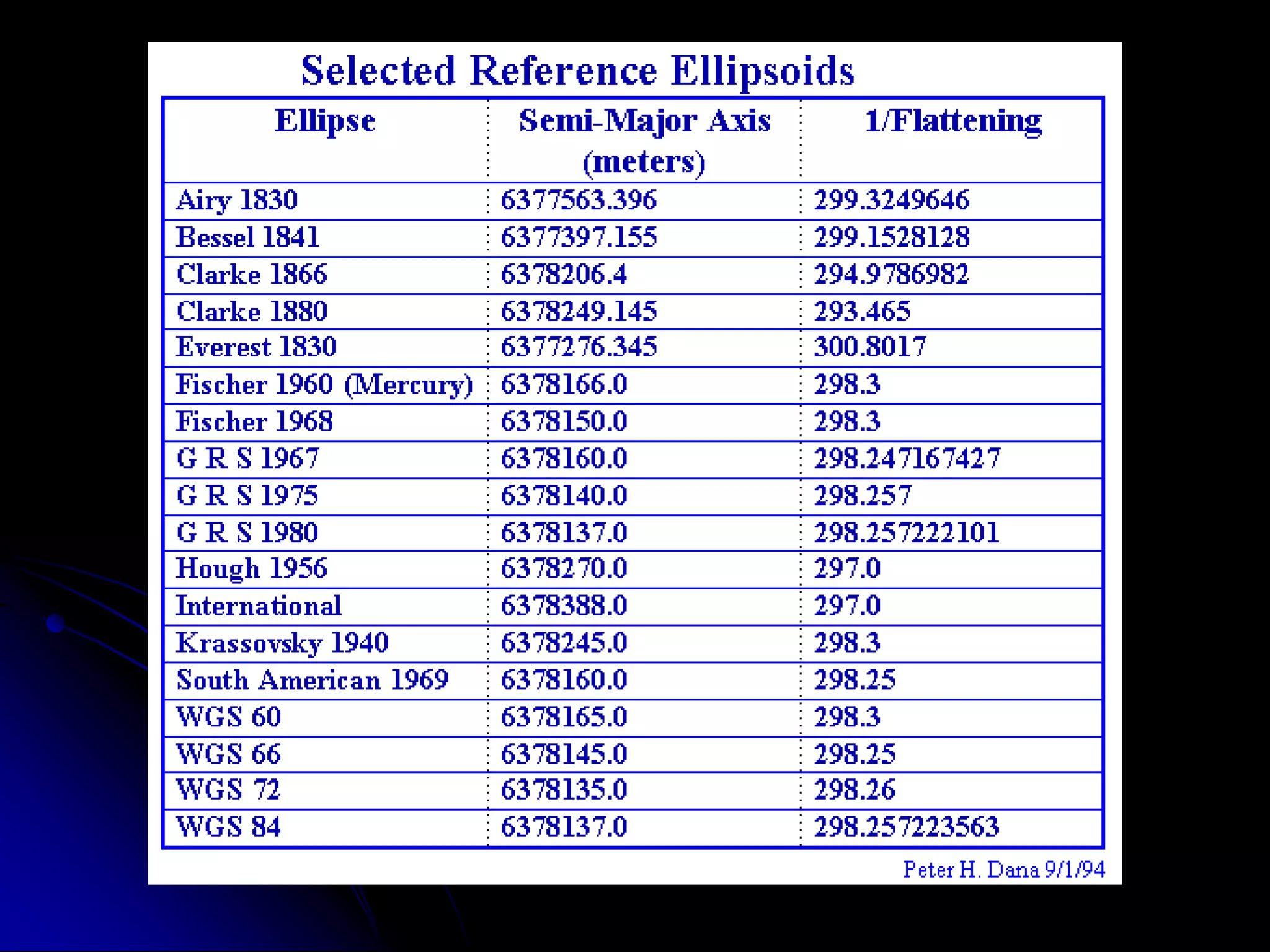

Ellipsoidmathematical surface which closely approximates the physical shape of the earthgenerated by rotating an ellipsoid about its semiminor axisdefined by two axes, or by one axis and the flatteninggeocentric or non-geocentric (“local”)

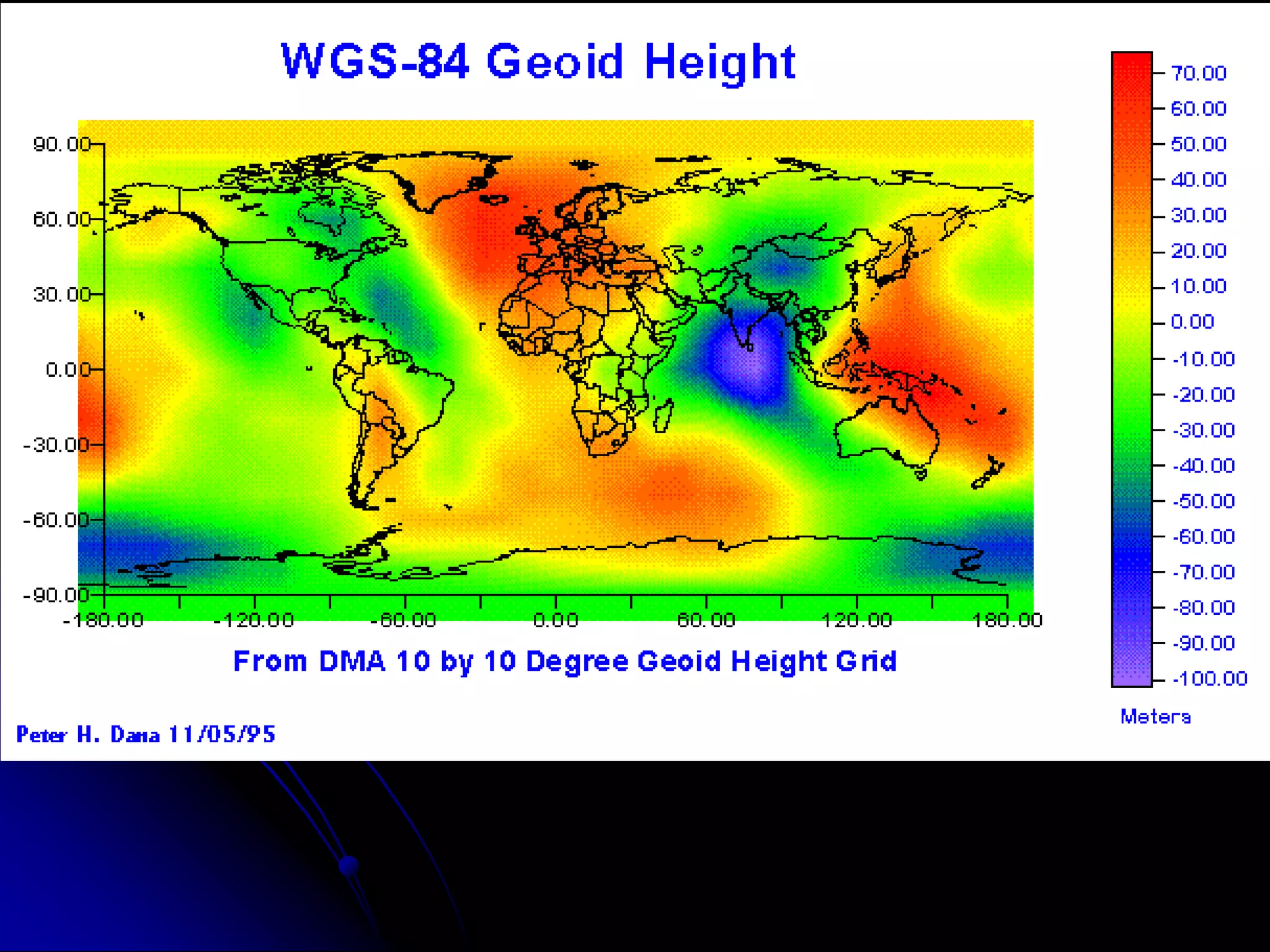

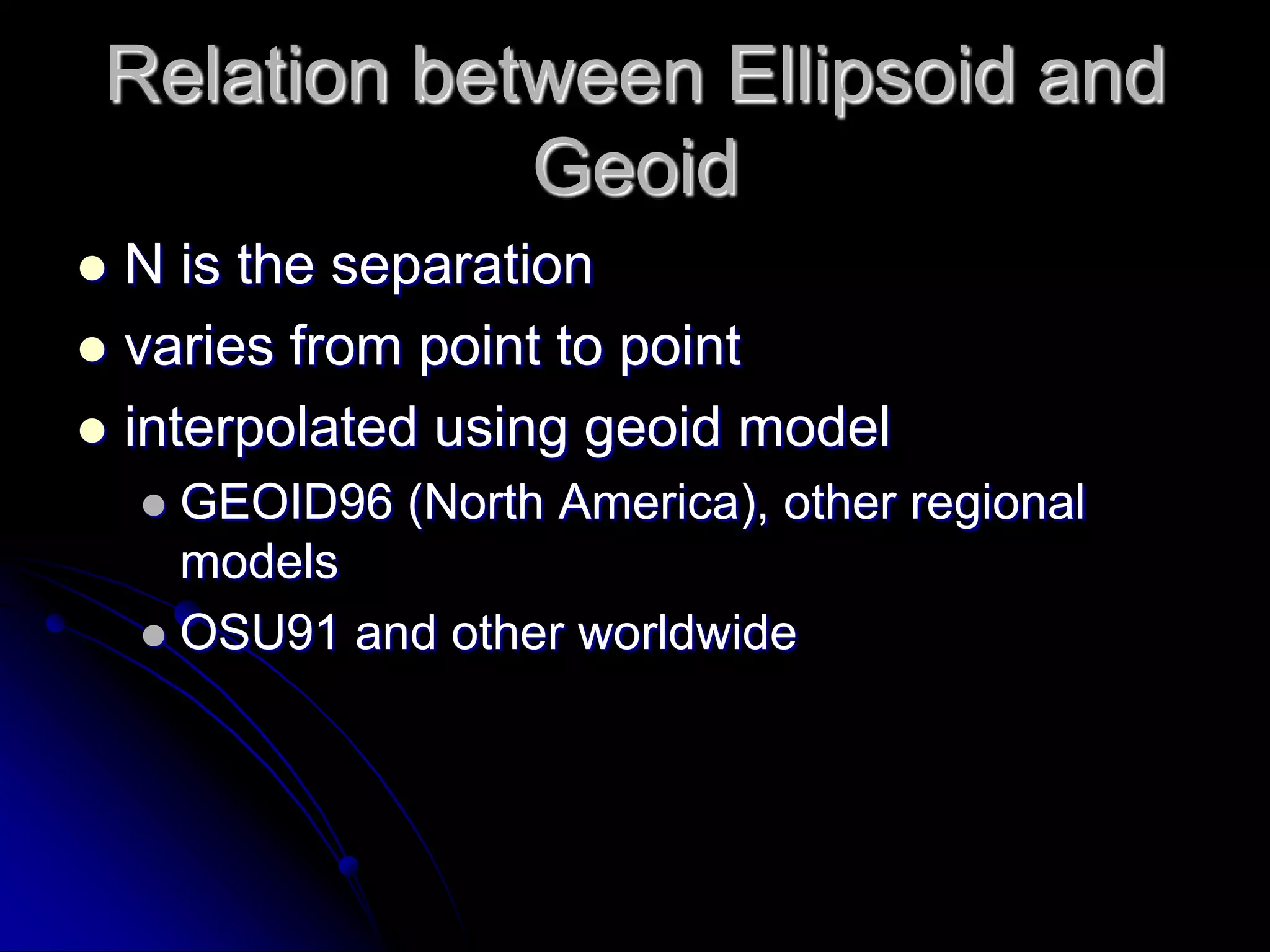

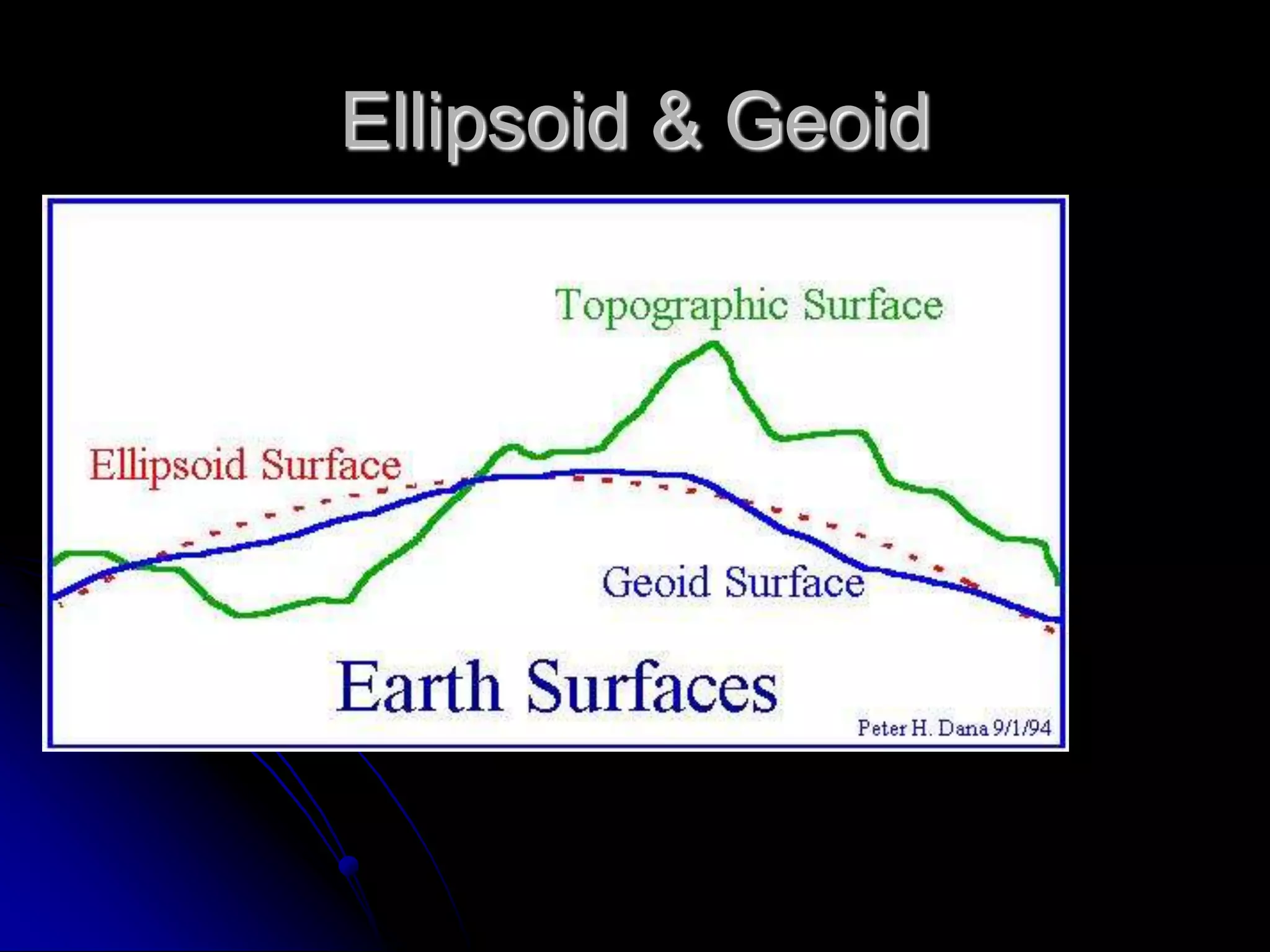

Relation between Ellipsoid and GeoidN is the separation varies from point to pointinterpolated using geoid model GEOID96 (North America), other regional modelsOSU91 and other worldwide

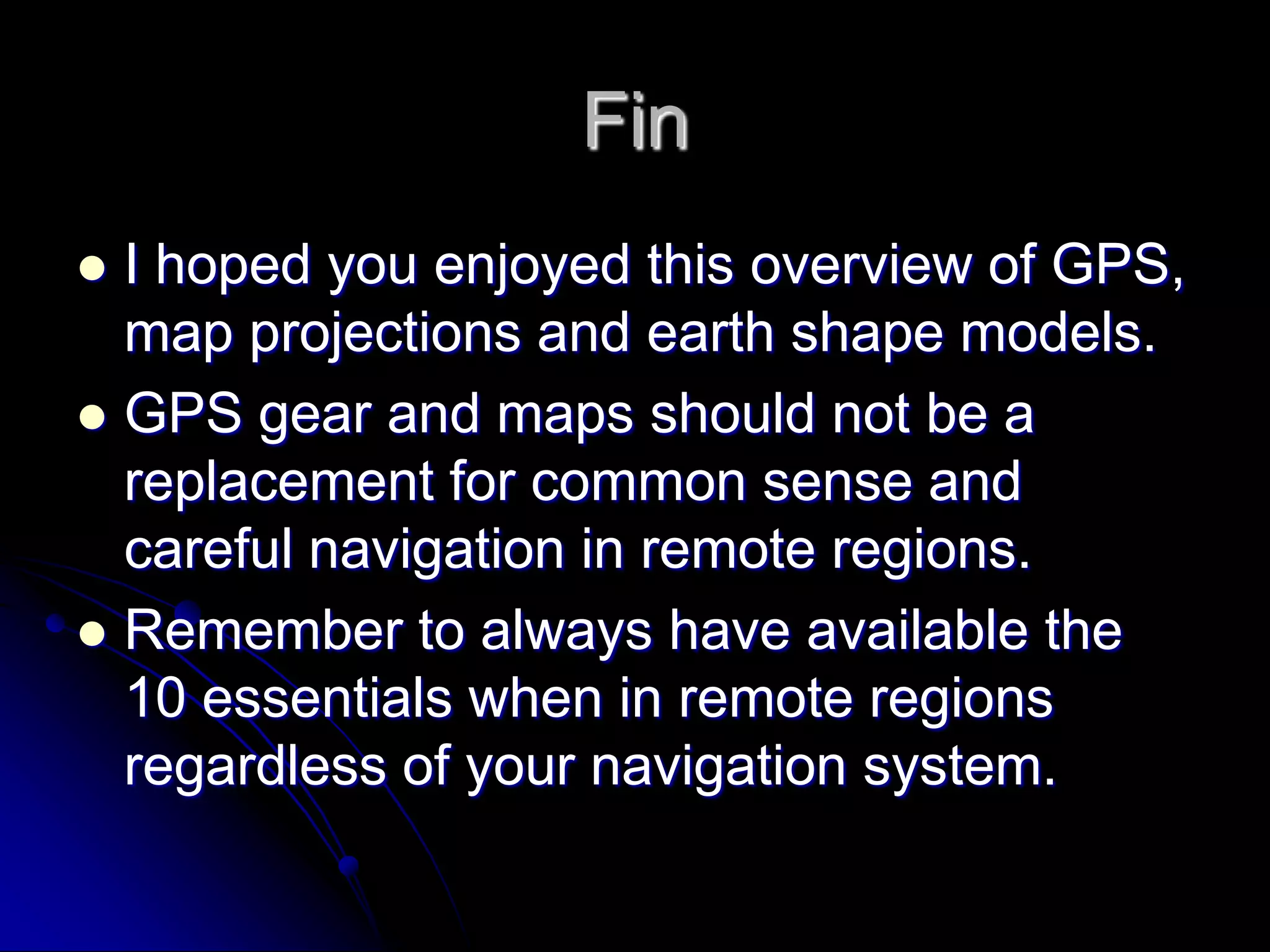

FinI hoped you enjoyed this overview of GPS, map projections and earth shape models. GPS gear and maps should not be a replacement for common sense and careful navigation in remote regions.Remember to always have available the 10 essentials when in remote regions regardless of your navigation system.

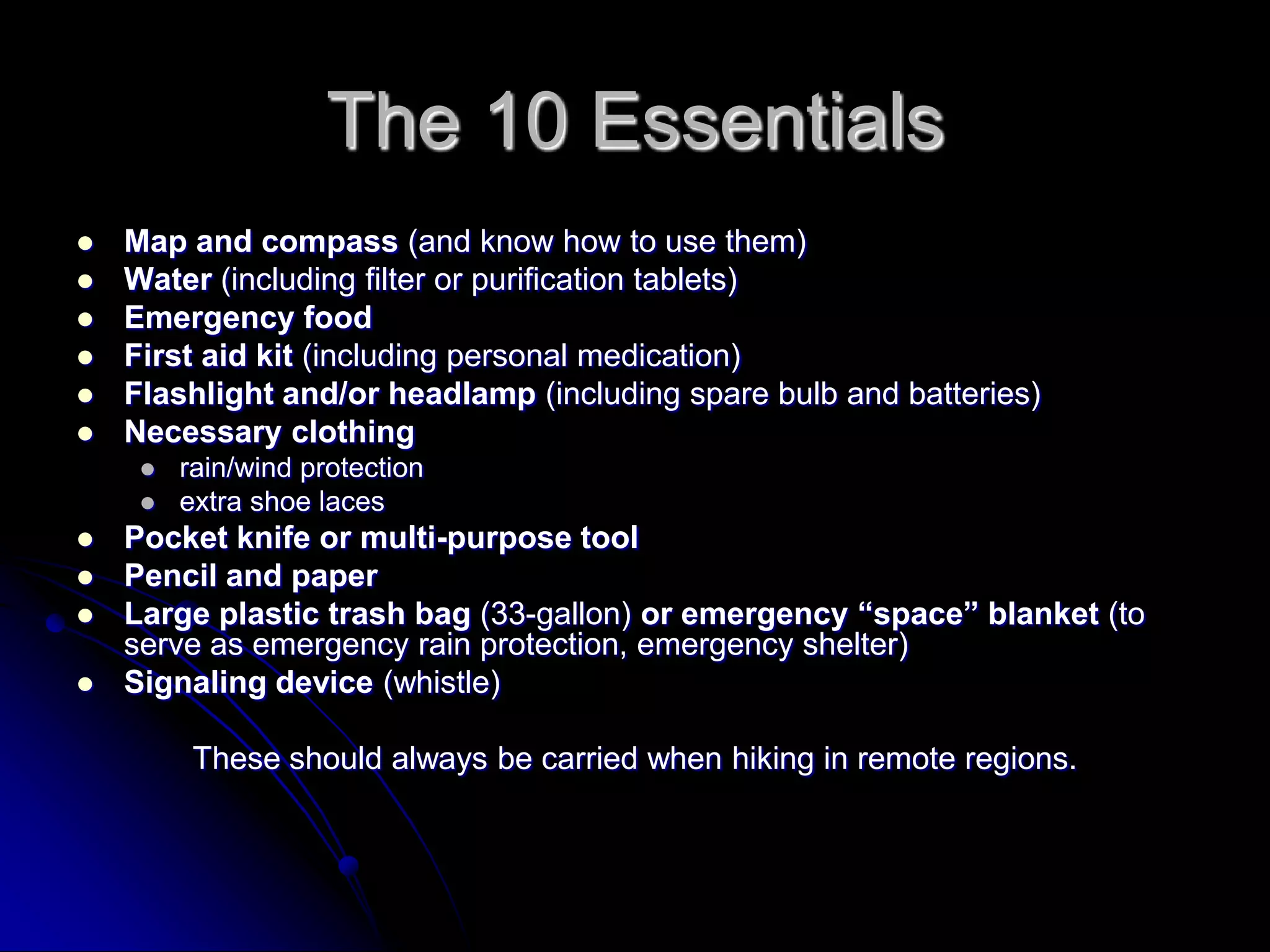

The 10 EssentialsMap and compass (and know how to use them) Water (including filter or purification tablets) Emergency foodFirst aid kit (including personal medication) Flashlight and/or headlamp (including spare bulb and batteries) Necessary clothingrain/wind protection extra shoe laces Pocket knife or multi-purpose toolPencil and paperLarge plastic trash bag (33-gallon) or emergency “space” blanket (to serve as emergency rain protection, emergency shelter) Signaling device (whistle) These should always be carried when hiking in remote regions.

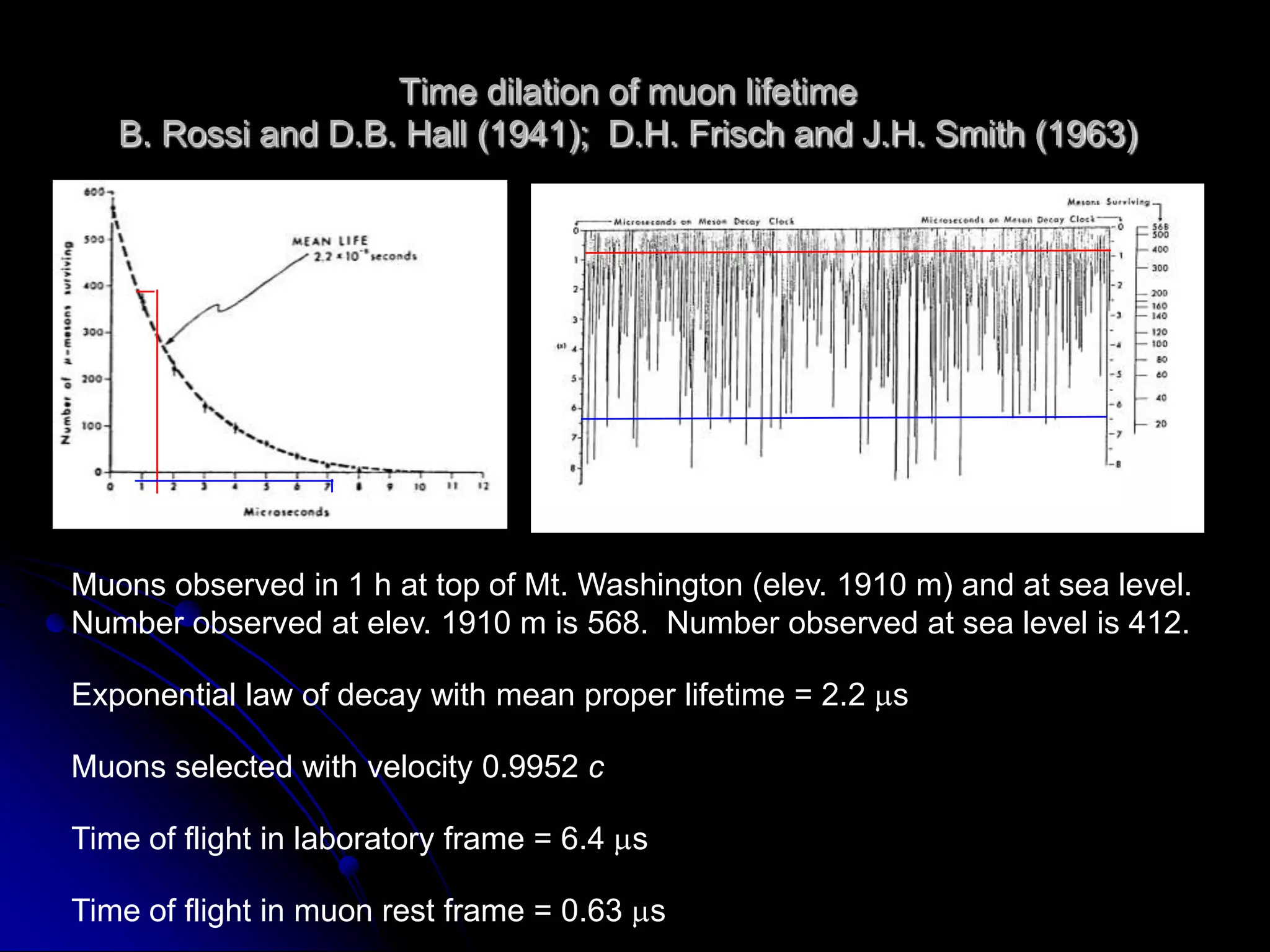

Time dilation of muon lifetimeB. Rossi and D.B. Hall (1941); D.H. Frisch and J.H. Smith (1963)Muons observed in 1 h at top of Mt. Washington (elev. 1910 m) and at sea level.Number observed at elev. 1910 m is 568. Number observed at sea level is 412.Exponential law of decay with mean proper lifetime = 2.2 sMuons selected with velocity 0.9952 cTime of flight in laboratory frame = 6.4 sTime of flight in muon rest frame = 0.63 s

Around the world atomic clock experiment(J.C. Hafele and R.E. Keating (1971)

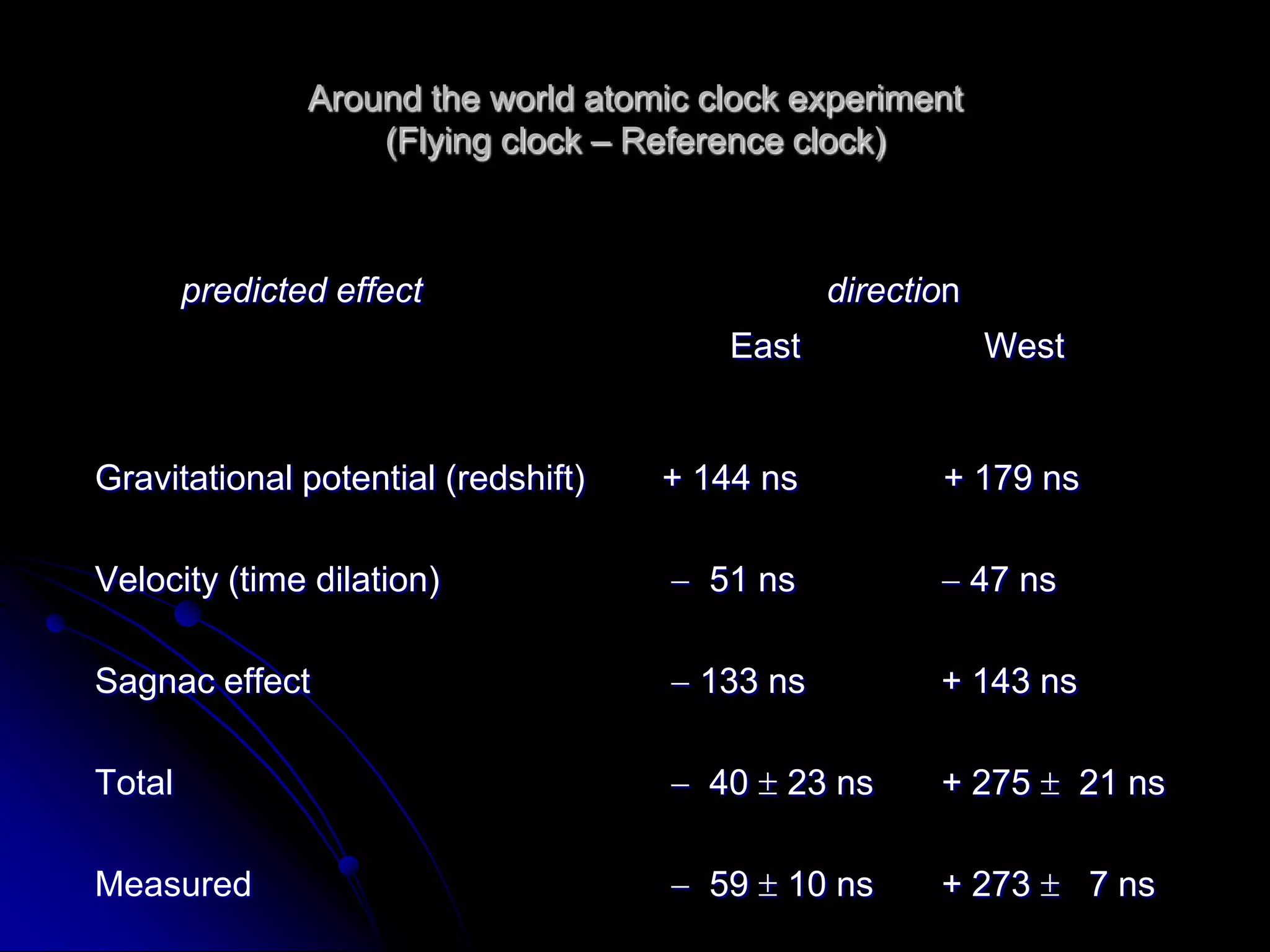

Around the world atomic clock experiment(Flying clock – Reference clock)predicted effectdirection East WestGravitational potential (redshift) + 144 ns + 179 nsVelocity (time dilation)  51 ns  47 nsSagnac effect  133 ns + 143 nsTotal  40  23 ns + 275  21 nsMeasured  59  10 ns + 273  7 ns

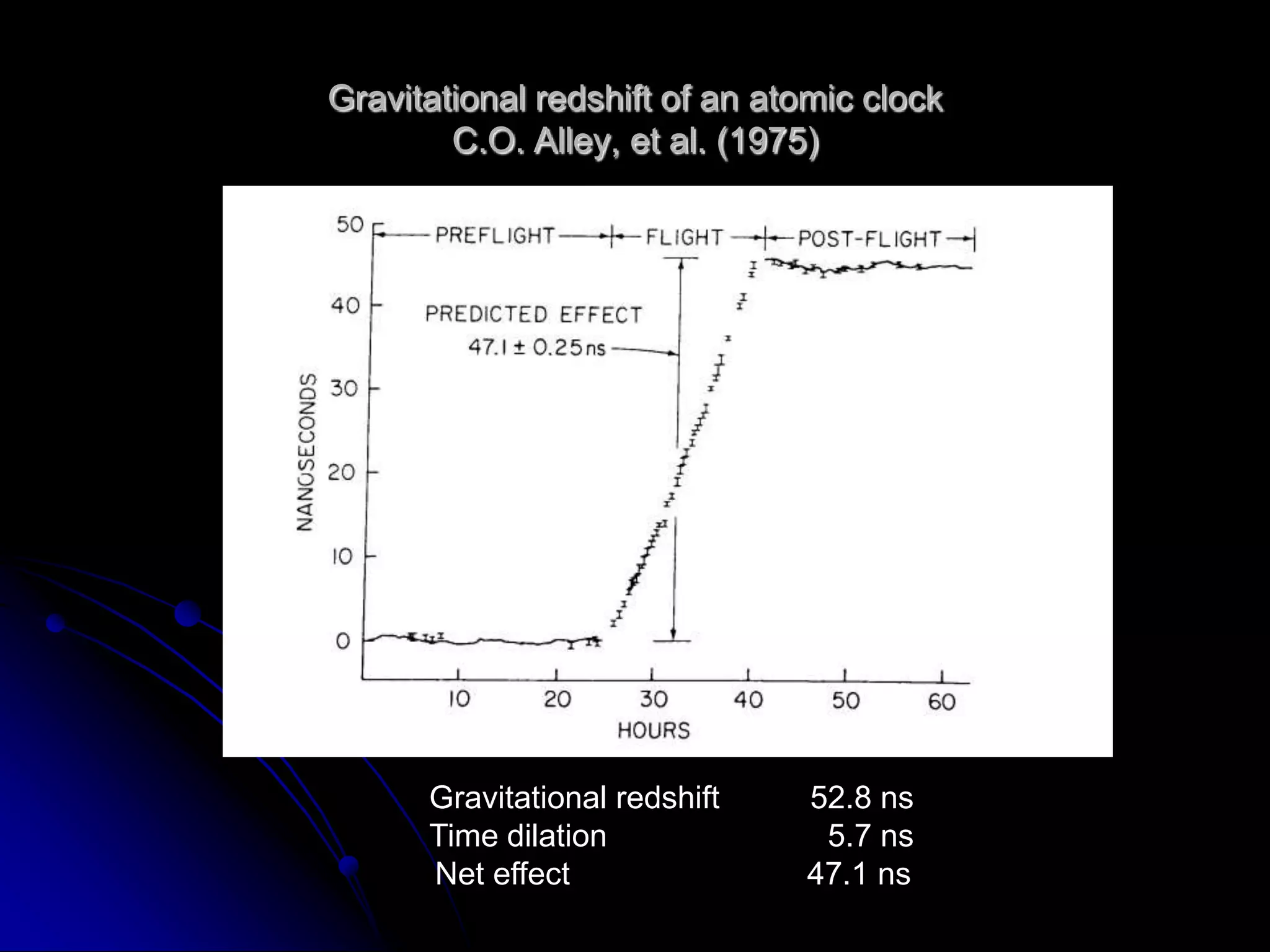

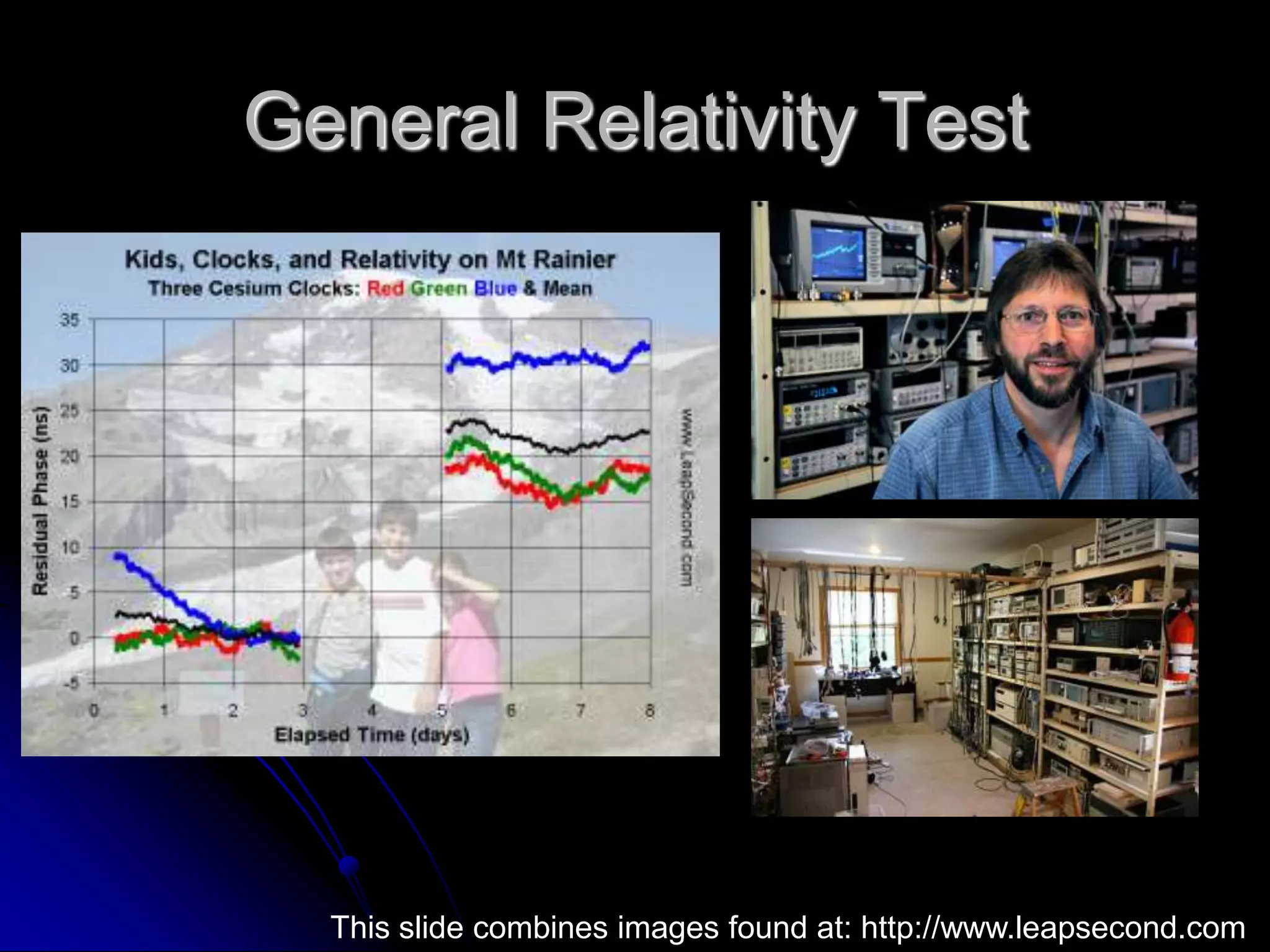

Gravitational redshift of an atomic clockC.O. Alley, et al. (1975)Gravitational redshift 52.8 nsTime dilation 5.7 ns Net effect 47.1 ns

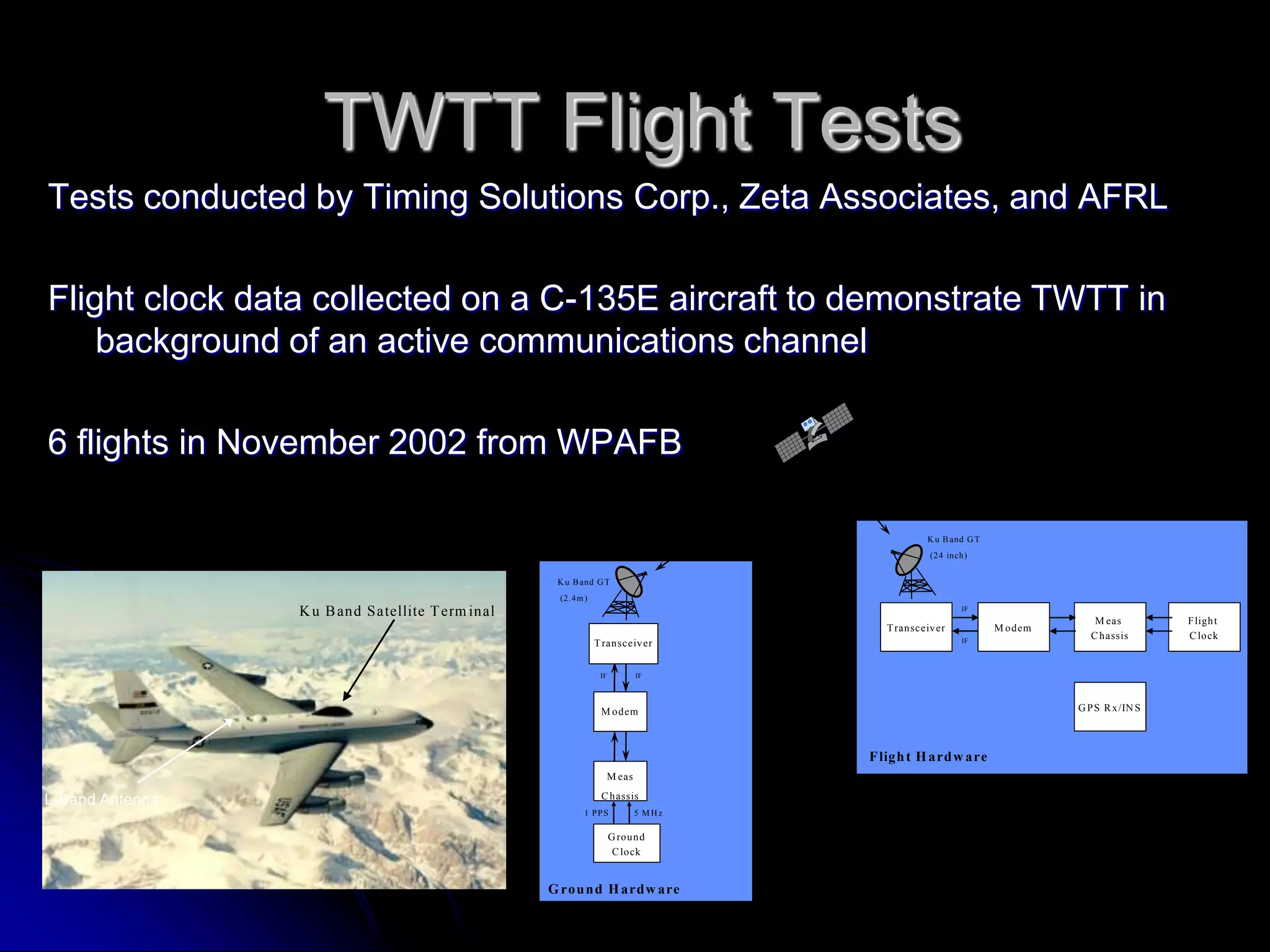

TWTT Flight TestsTests conducted by Timing Solutions Corp., Zeta Associates, and AFRLFlight clock data collected on a C-135E aircraft to demonstrate TWTT in background of an active communications channel6 flights in November 2002 from WPAFBL-Band Antenna
