1) MAGO3D is a new open source 3D geo-platform that allows for indoor and outdoor space integration in a single web browser, as well as management of various GIS data types. 2) It includes features like real-time processing and visualization of massive data streams from sensors and IoT devices. 3) The platform has capabilities like rapid processing of drone imagery into map tiles within 5 minutes for real-time visualization, and aims to support more data types and analysis functions going forward.

1. A Brand-New Live 3D Geo-Platform
26th April 2017
Sanghee Shin(shshin@gaia3d.com)
UN(United Nations) mini-UAV Technical Workshop

2. MAGO
Goddess of earth
in Korean old myth

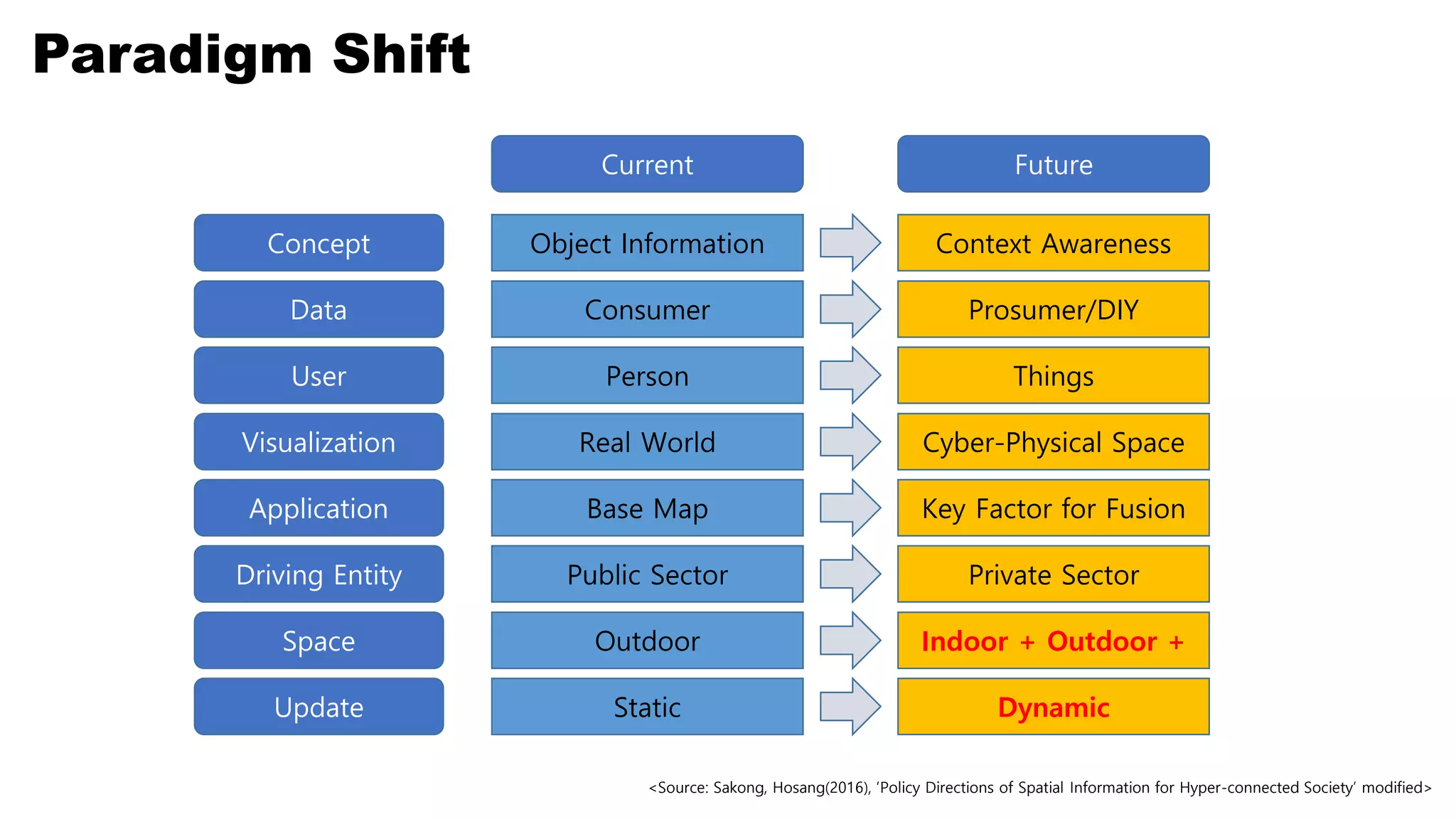

3. Paradigm Shift
Current Future
Concept Object Information Context Awareness
Data Consumer Prosumer/DIY
User Person Things
Visualization Real World Cyber-Physical Space
Application Base Map Key Factor for Fusion
Driving Entity Public Sector Private Sector
Space Outdoor Indoor + Outdoor +
Update Static Dynamic
<Source: Sakong, Hosang(2016), ‘Policy Directions of Spatial Information for Hyper-connected Society’ modified>

4. Bottle Neck! Point
Cloud
Drone
Image IoT
BIM
Live
Data
AEC Self-Driving
Cars

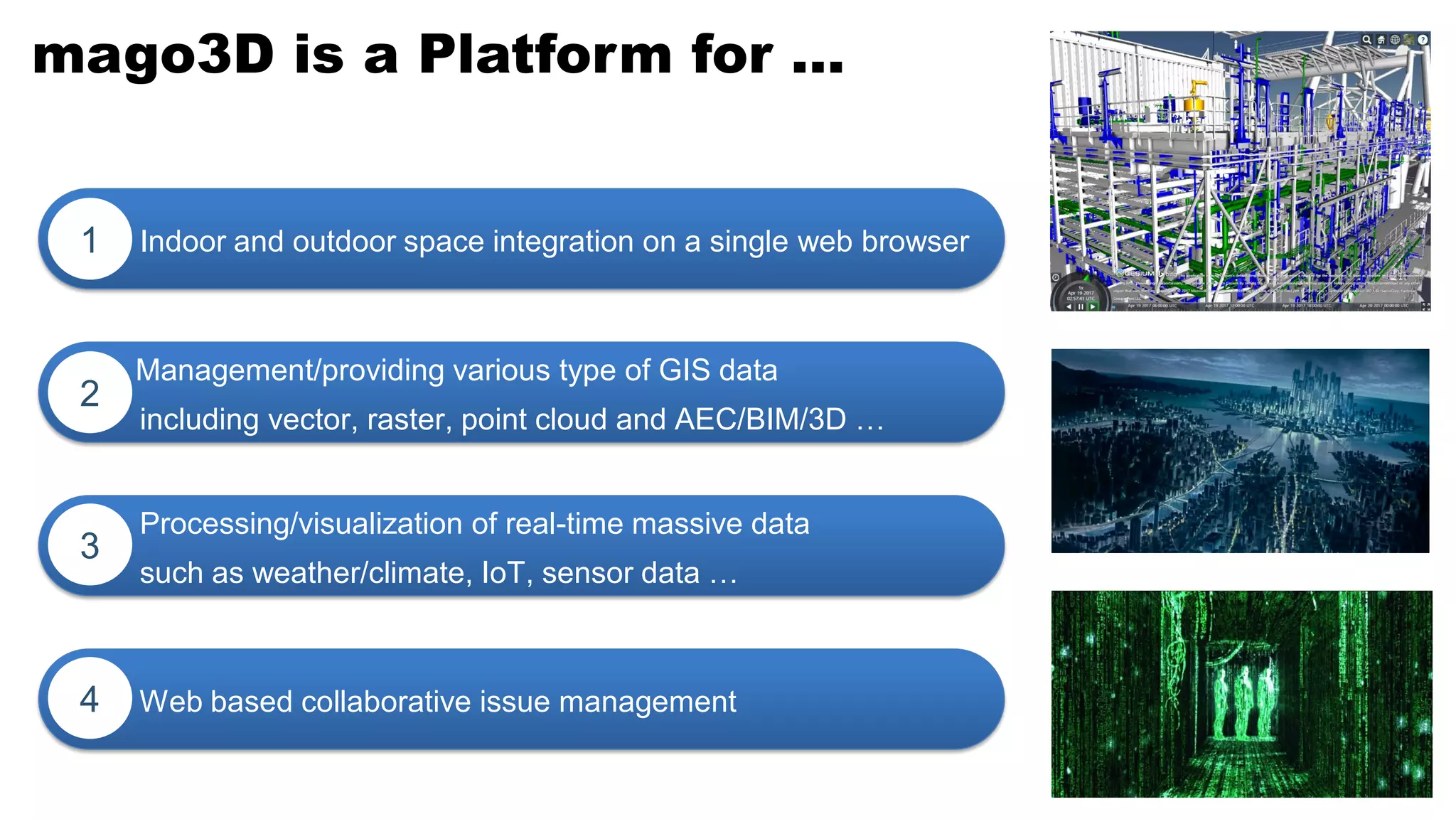

5. mago3D is a Platform for …
Indoor and outdoor space integration on a single web browser1
Management/providing various type of GIS data
including vector, raster, point cloud and AEC/BIM/3D …
2
Web based collaborative issue management4
Processing/visualization of real-time massive data
such as weather/climate, IoT, sensor data …
3

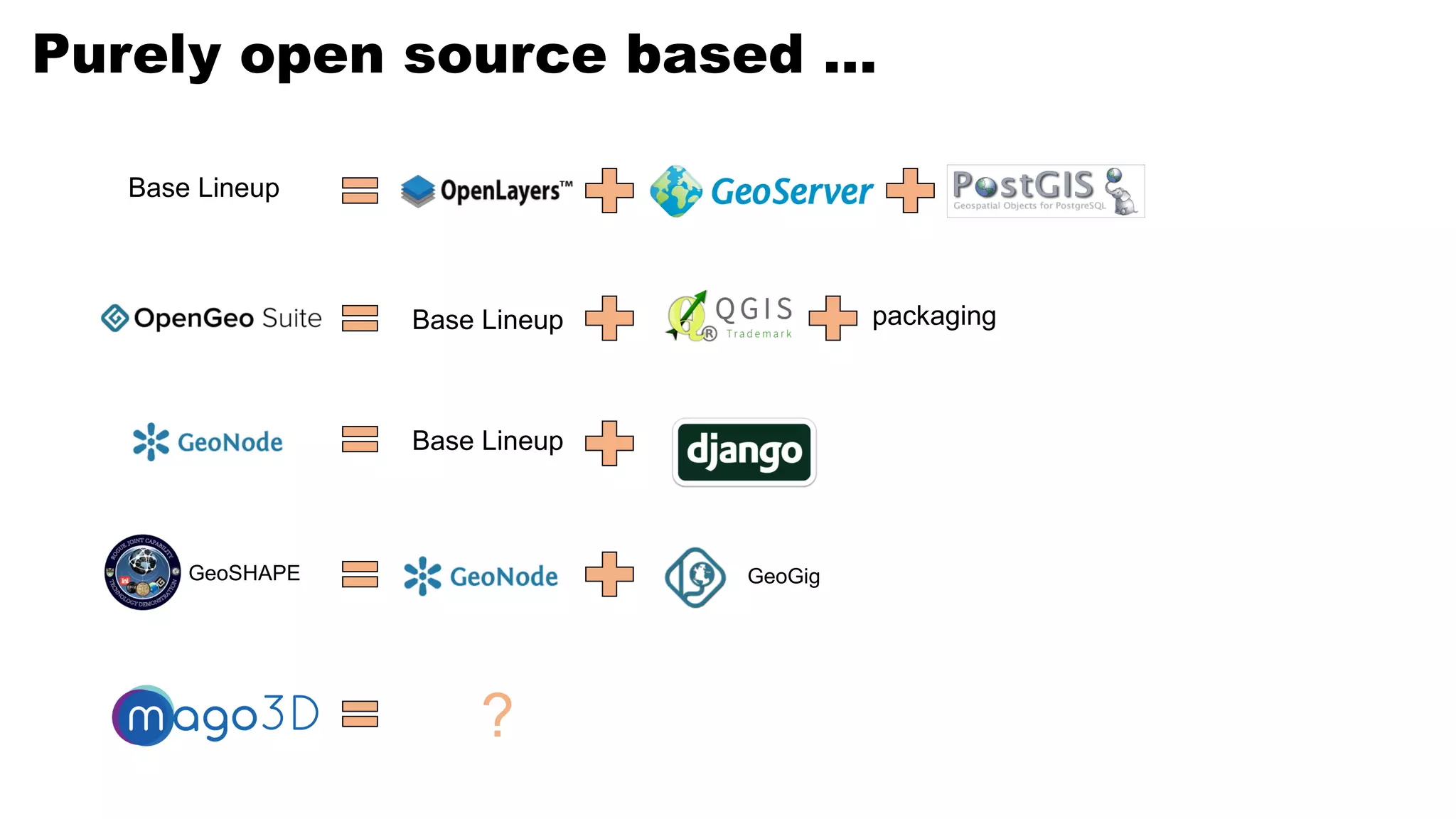

6. Purely open source based …
Base Lineup
Base Lineup packaging
Base Lineup
GeoSHAPE GeoGig
?

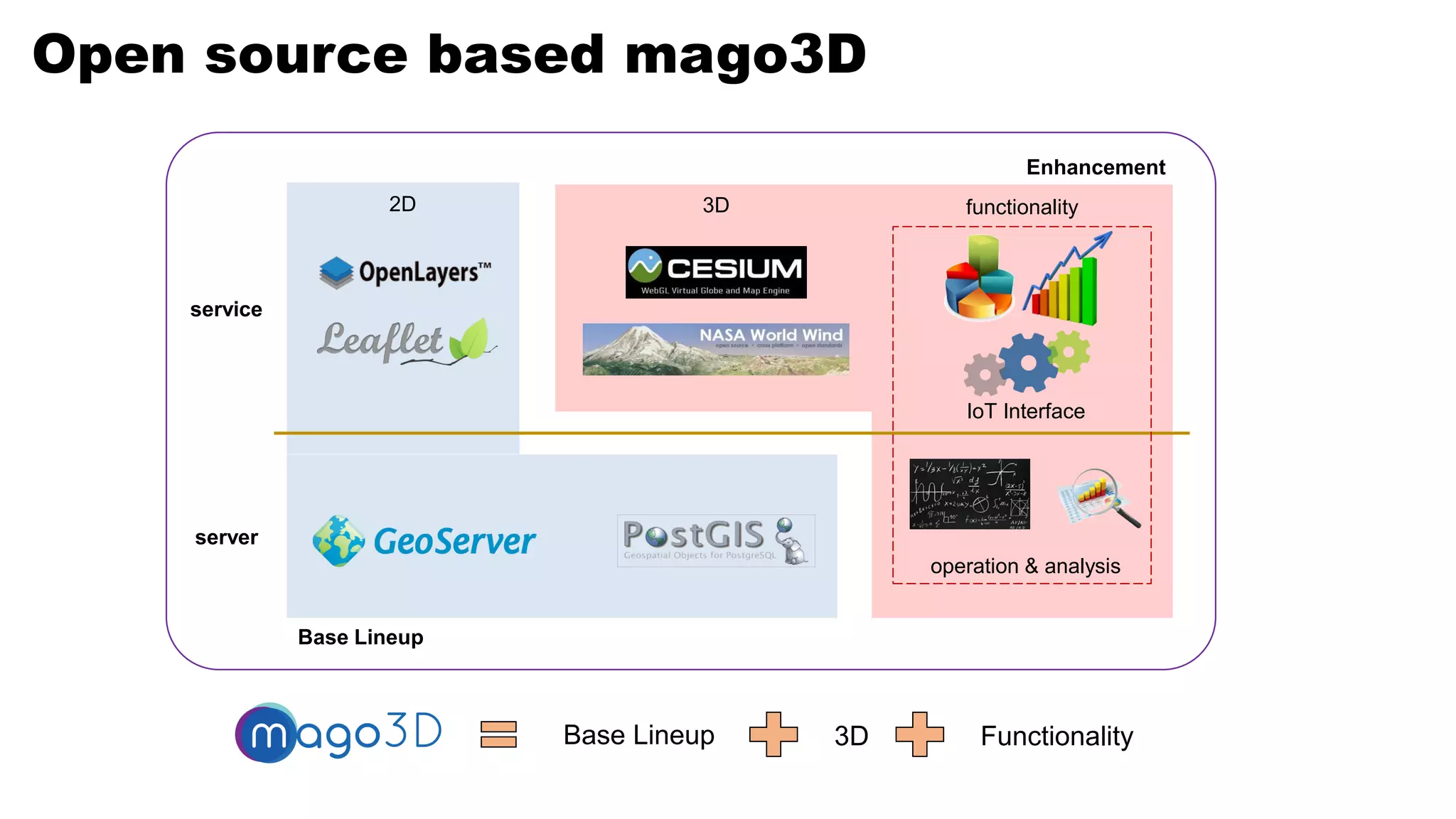

7. Open source based mago3D
3D2D
operation & analysis
IoT Interface
Base Lineup
Enhancement
server
service
functionality
Base Lineup 3D Functionality

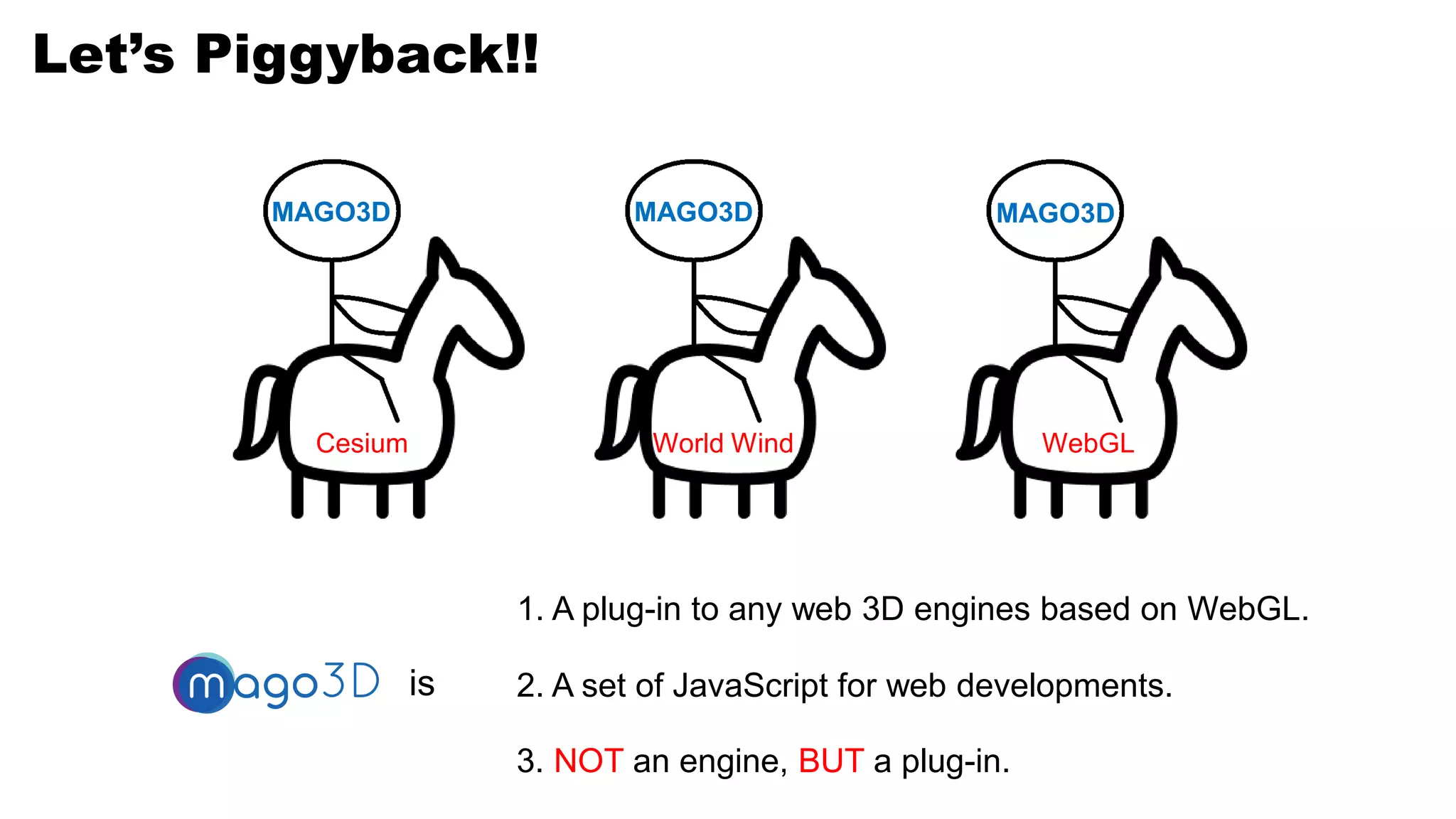

8. Let’s Piggyback!!
Cesium
MAGO3D
World Wind
MAGO3D
WebGL
MAGO3D
1. A plug-in to any web 3D engines based on WebGL.
2. A set of JavaScript for web developments.
3. NOT an engine, BUT a plug-in.
is

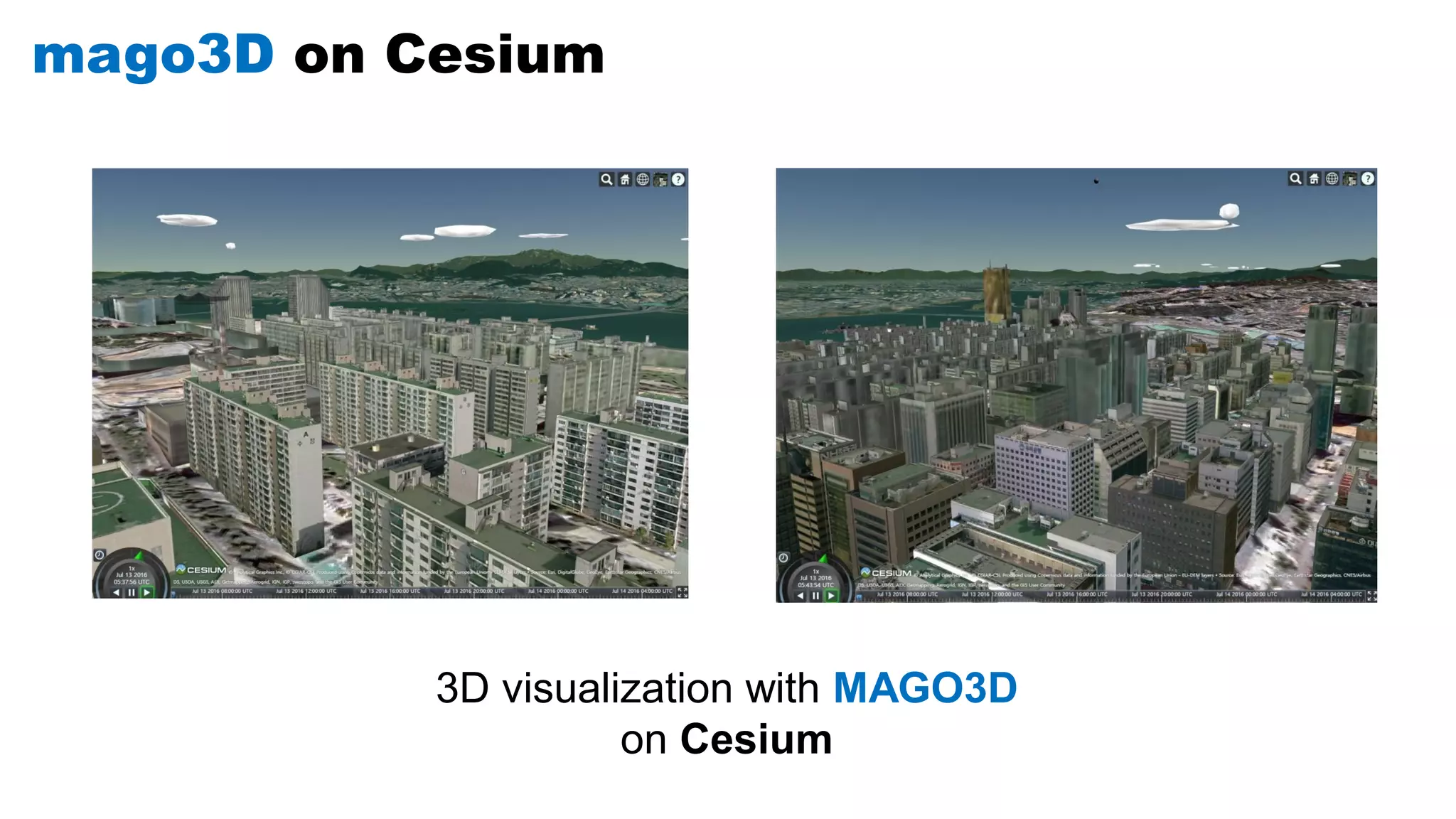

9. mago3D on Cesium
3D visualization with MAGO3D
on Cesium

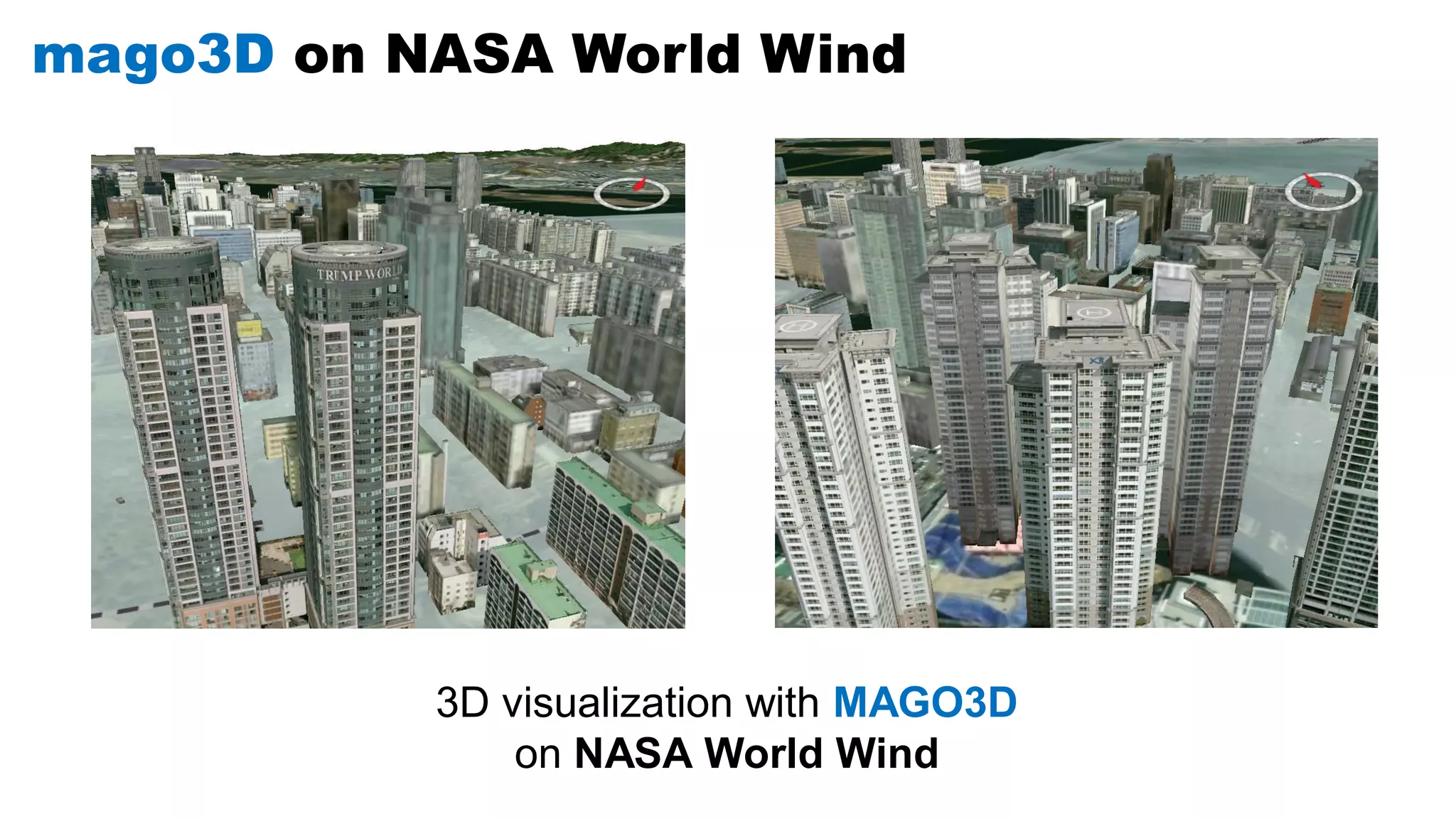

10. mago3D on NASA World Wind
3D visualization with MAGO3D
on NASA World Wind

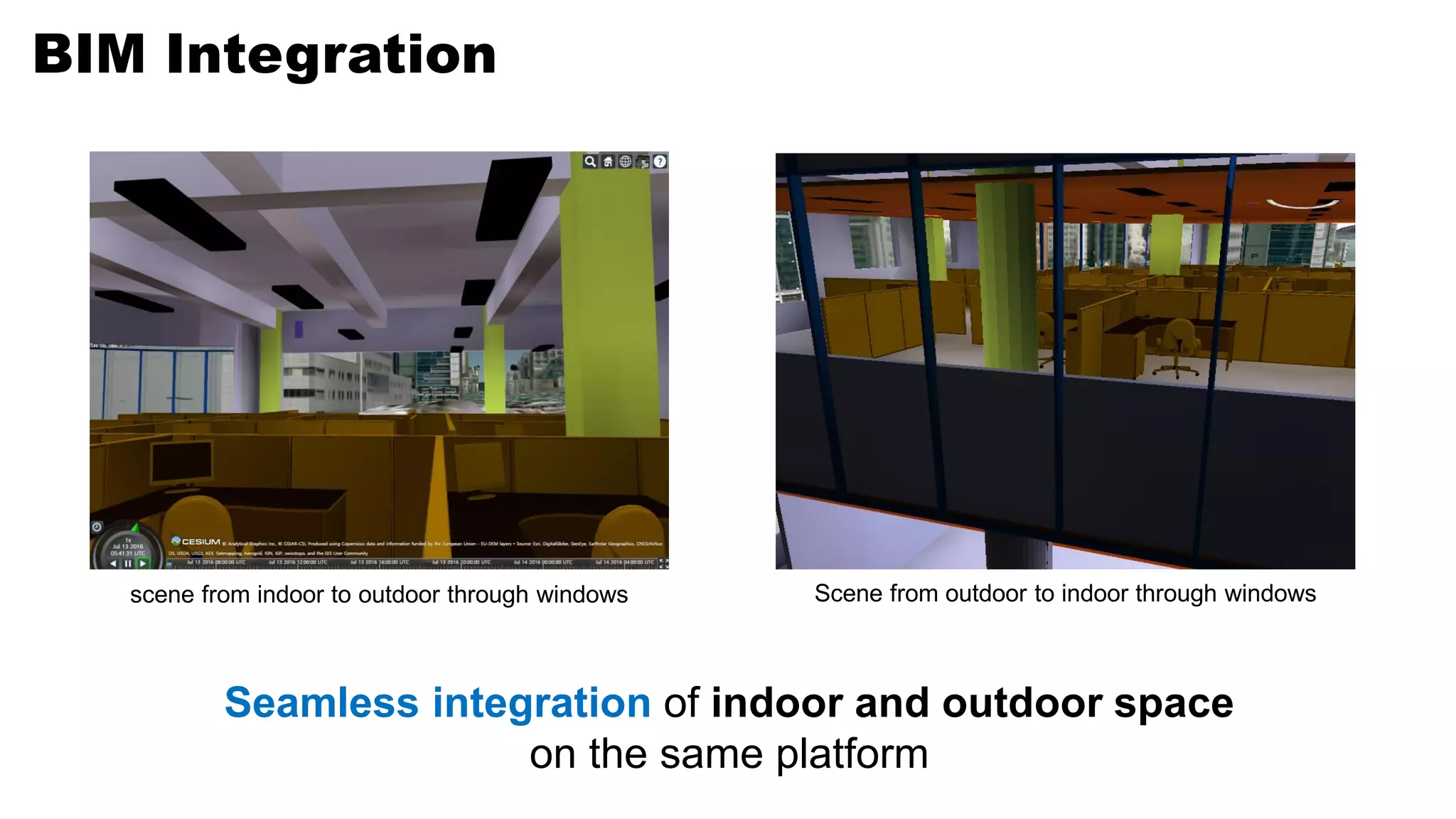

11. BIM Integration
Seamless integration of indoor and outdoor space
on the same platform
scene from indoor to outdoor through windows Scene from outdoor to indoor through windows

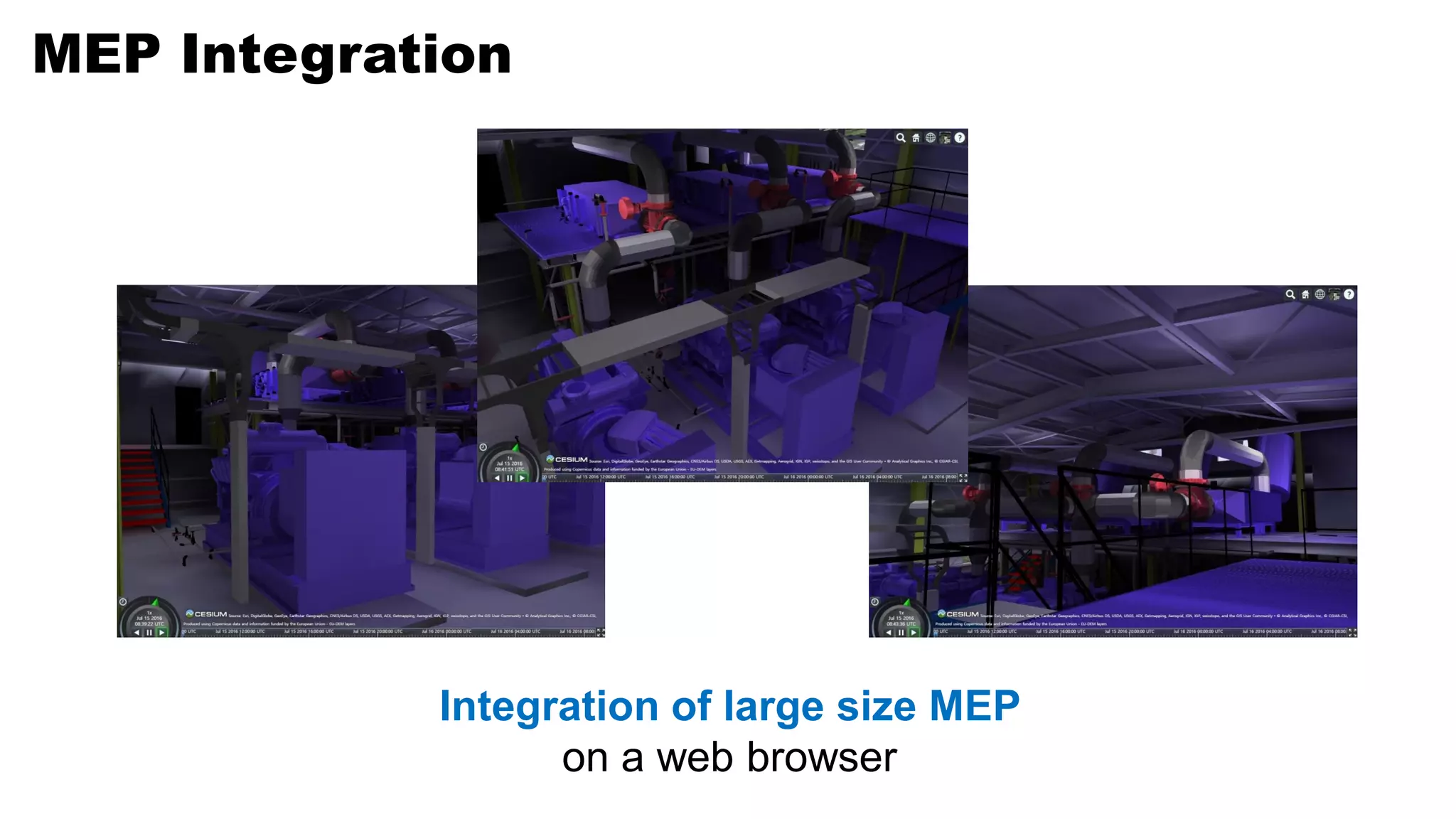

12. MEP Integration
Integration of large size MEP
on a web browser

13. LiveDroneMap
mosaic pluginFTP server
Image process with GDAL
- Null value trimming
- Format conversion (to GeoTiff)
- SRS conversion
- Building tile pyramid
WMS
tiled=true,
format=image/png
Less than 5 minutes has been taken to process &
visualize 41 drone-captured images on mago3D.
Geo-Image
LTE/
WiFi
Monitoring
python
Realtime Drone Image Service on mago3D

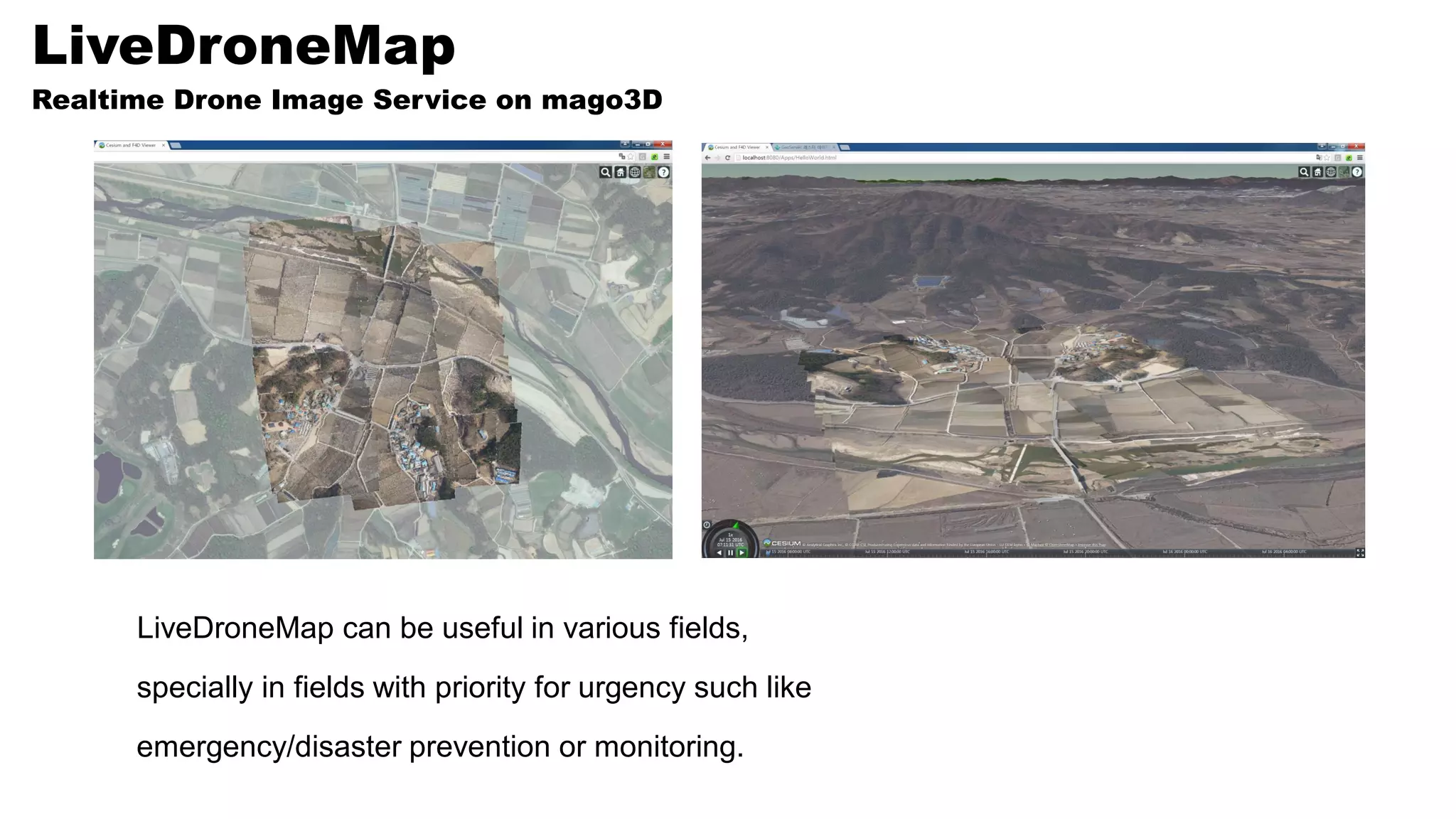

14. LiveDroneMap can be useful in various fields,
specially in fields with priority for urgency such like
emergency/disaster prevention or monitoring.
LiveDroneMap
Realtime Drone Image Service on mago3D

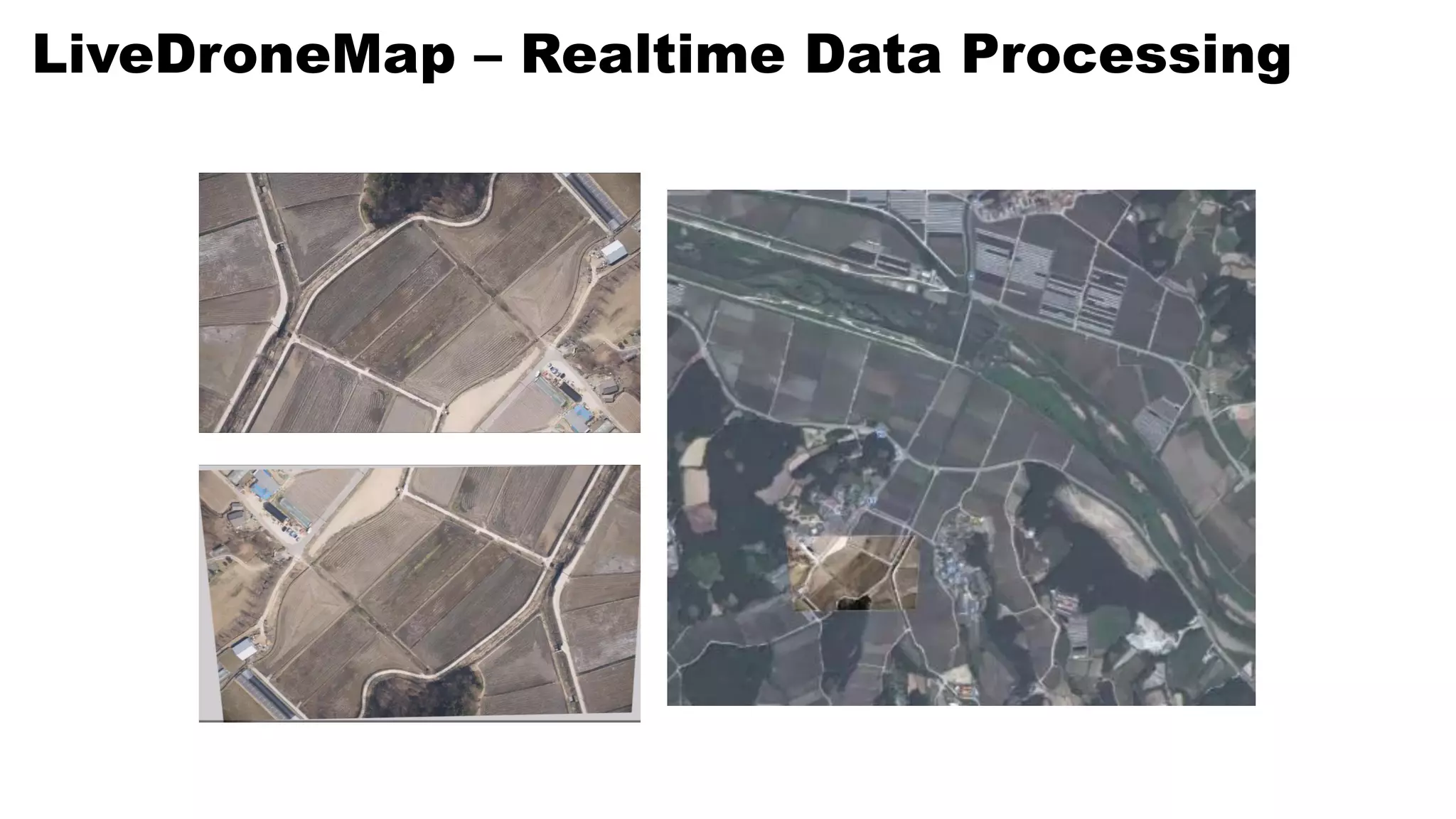

15. LiveDroneMap – Realtime Data Processing

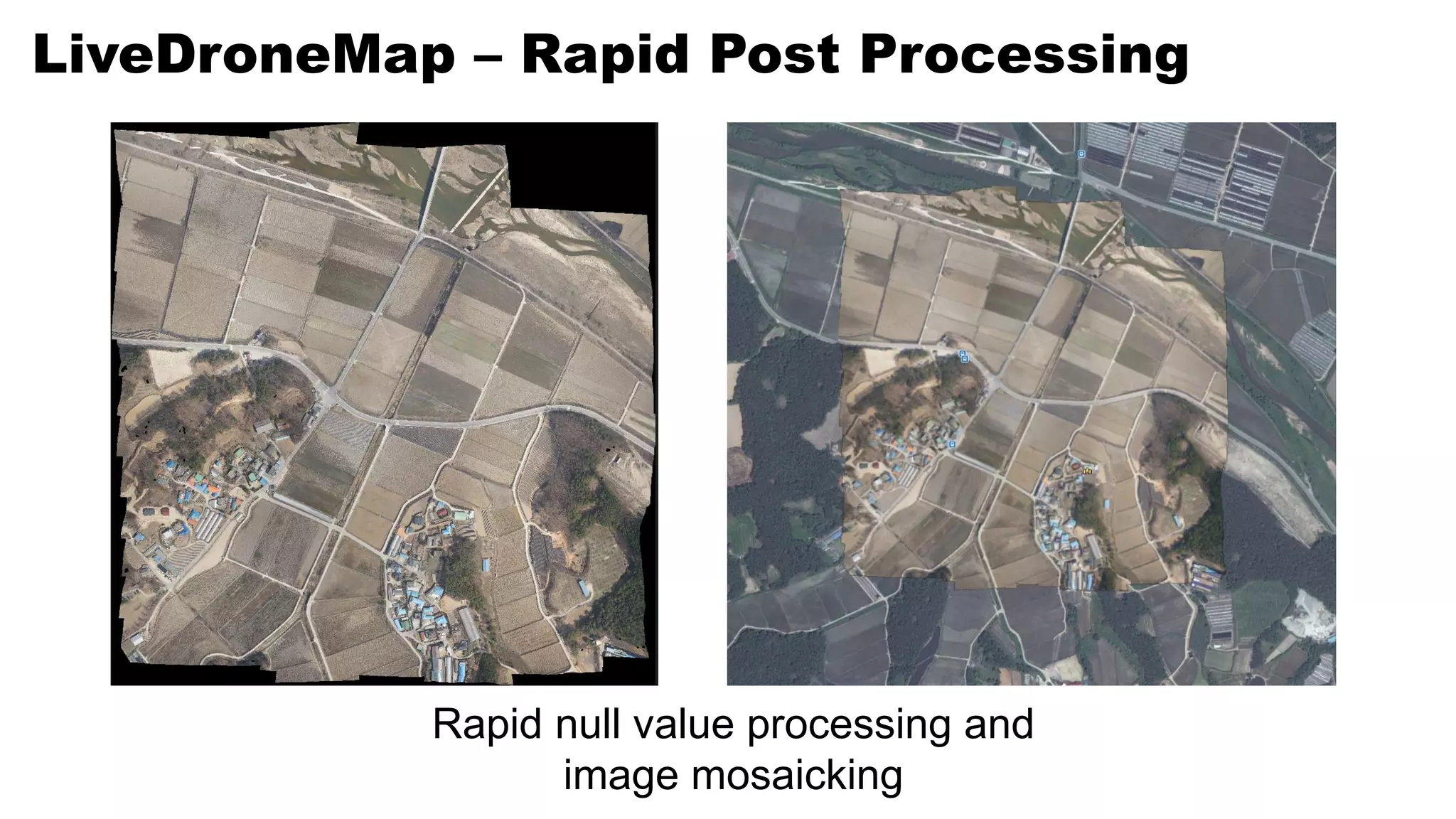

16. LiveDroneMap – Rapid Post Processing
Rapid null value processing and
image mosaicking

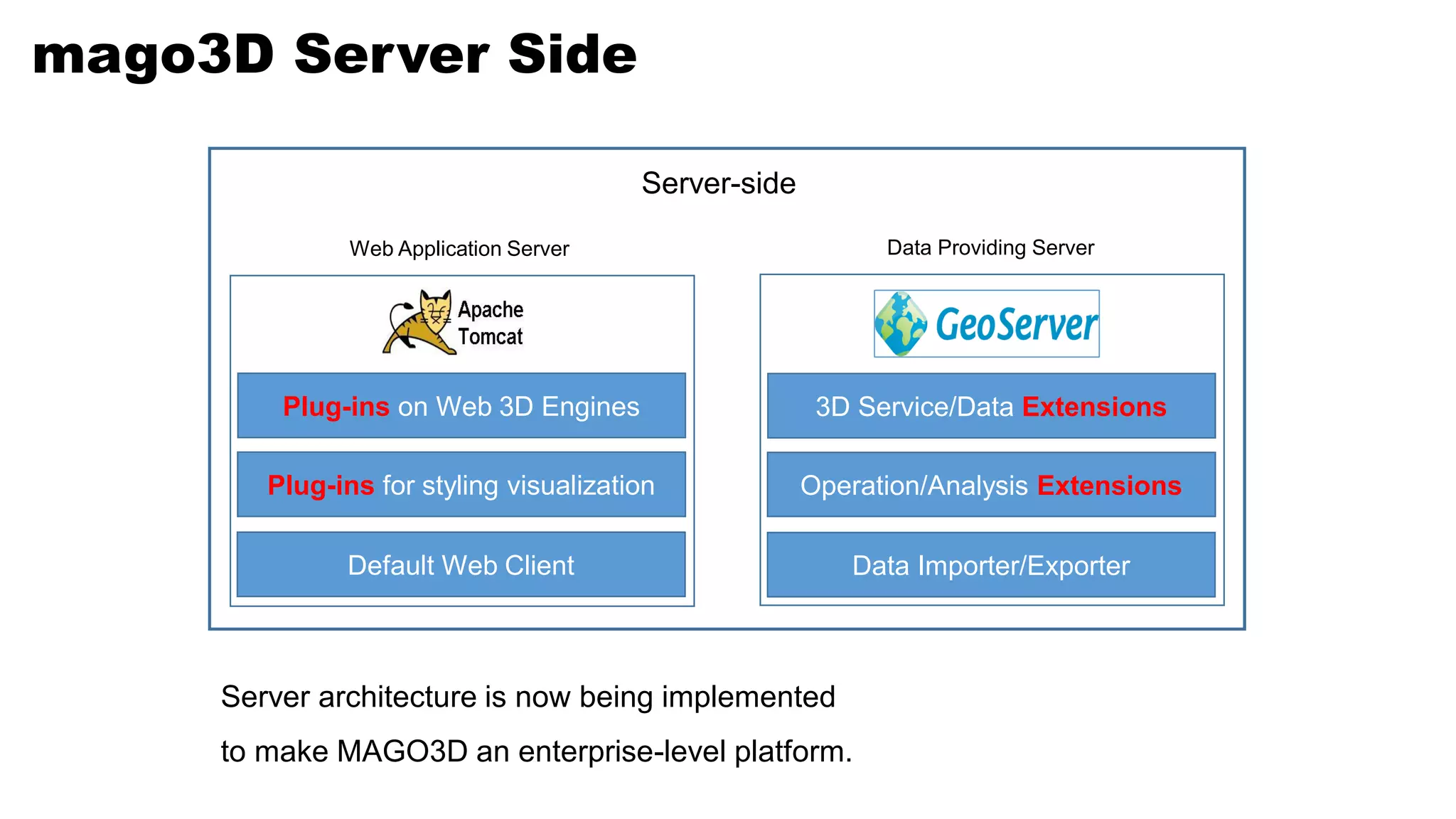

17. mago3D Server Side
Server architecture is now being implemented
to make MAGO3D an enterprise-level platform.
3D Service/Data Extensions
Operation/Analysis Extensions
Data Importer/Exporter
Data Providing Server
Plug-ins on Web 3D Engines
Plug-ins for styling visualization
Default Web Client
Web Application Server
Server-side

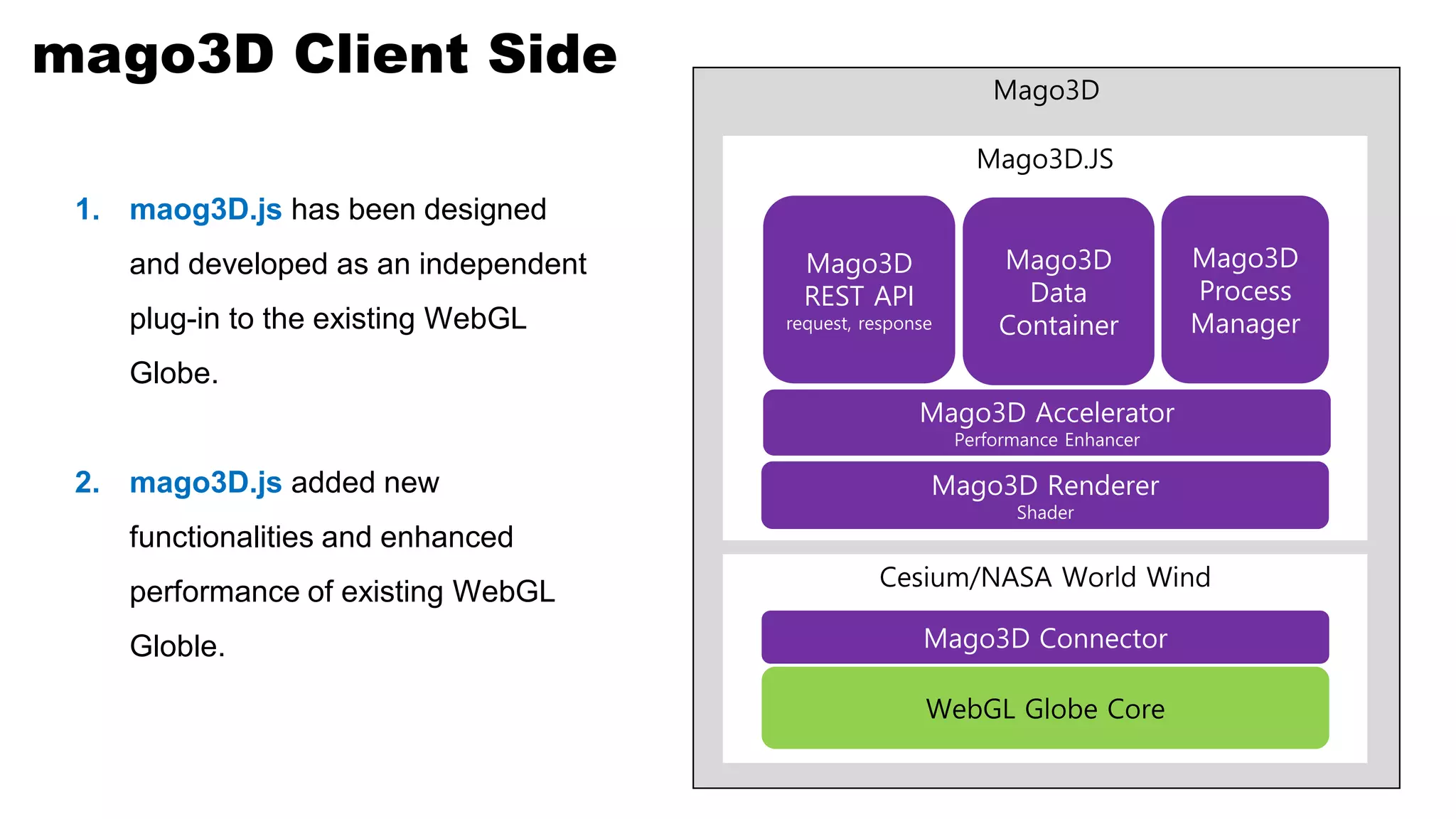

18. mago3D Client Side
1. maog3D.js has been designed
and developed as an independent
plug-in to the existing WebGL
Globe.
2. mago3D.js added new
functionalities and enhanced
performance of existing WebGL
Globle.
Mago3D
Cesium/NASA World Wind
WebGL Globe Core
Mago3D Connector
Mago3D.JS
Mago3D Renderer
Shader
Mago3D Accelerator
Performance Enhancer
Mago3D
REST API
request, response
Mago3D
Process
Manager
Mago3D
Data
Container

19. Future Plan – Support New Data Type
meteorological/weather data
real-time data
(IOT, sensor/observation data)
point cloud
MAGO3D will be capable of
handling more types of data.

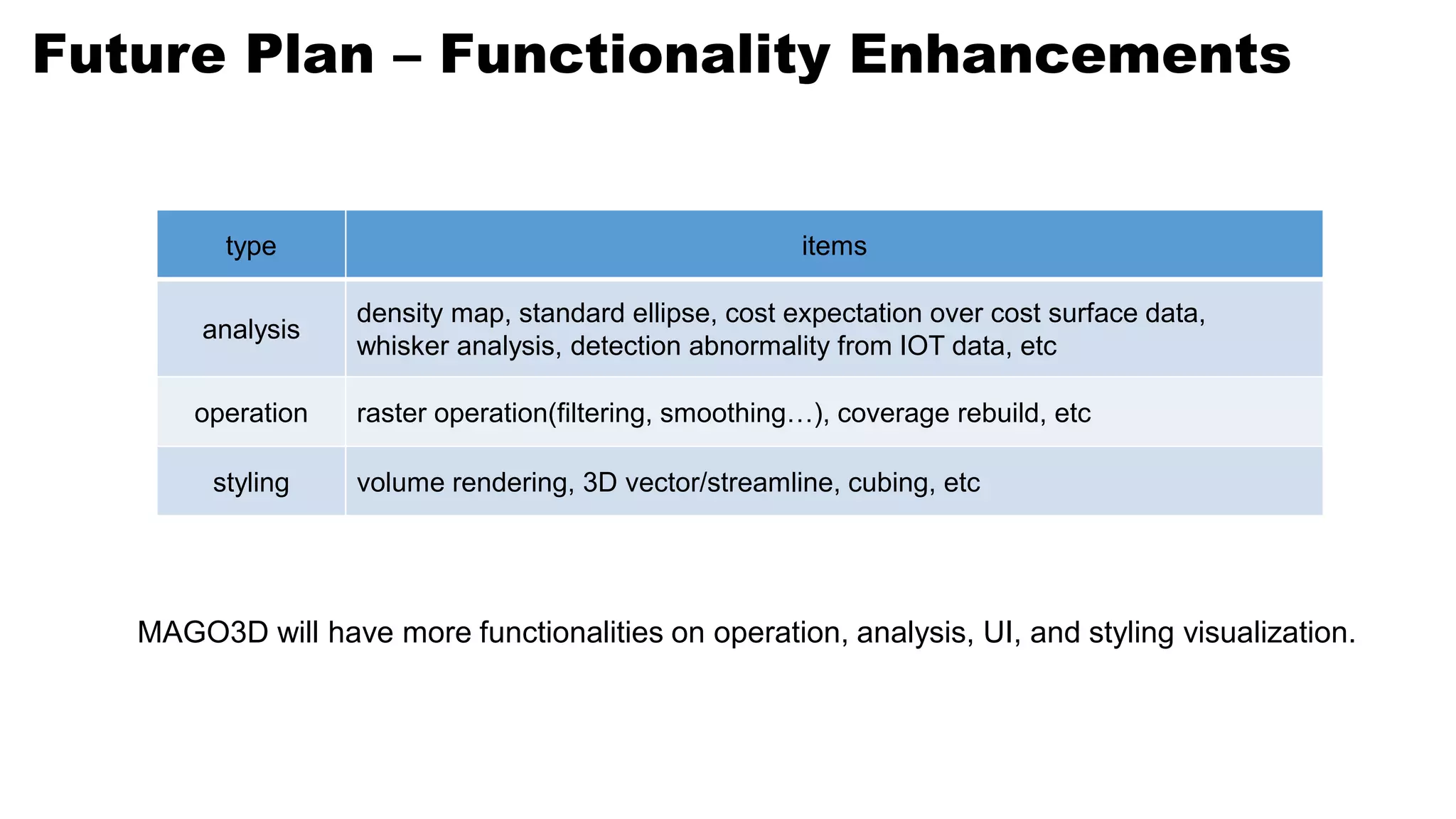

20. Future Plan – Functionality Enhancements
MAGO3D will have more functionalities on operation, analysis, UI, and styling visualization.
type items
analysis
density map, standard ellipse, cost expectation over cost surface data,
whisker analysis, detection abnormality from IOT data, etc
operation raster operation(filtering, smoothing…), coverage rebuild, etc
styling volume rendering, 3D vector/streamline, cubing, etc

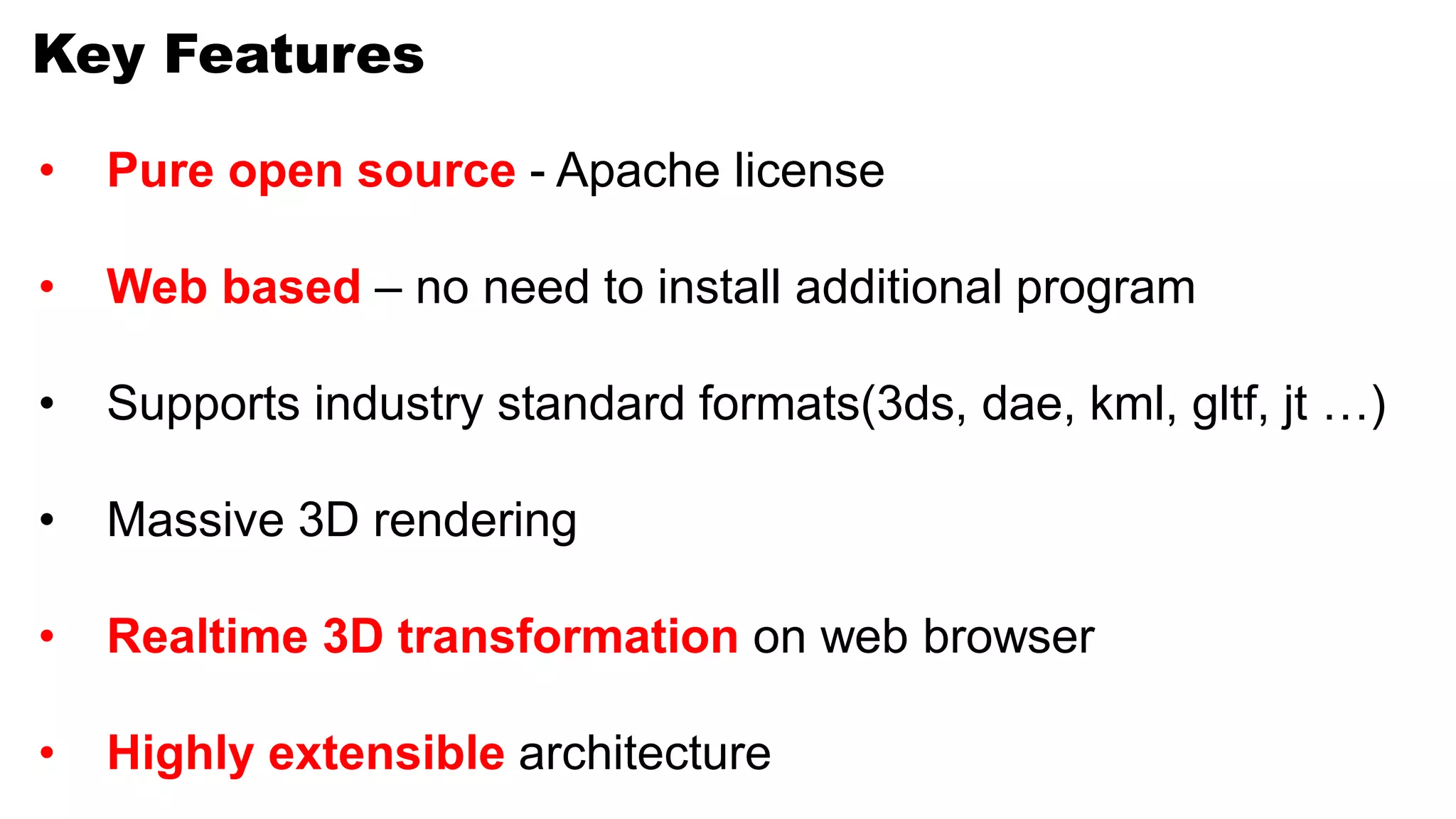

21. Key Features
• Pure open source - Apache license
• Web based – no need to install additional program
• Supports industry standard formats(3ds, dae, kml, gltf, jt …)
• Massive 3D rendering
• Realtime 3D transformation on web browser
• Highly extensible architecture

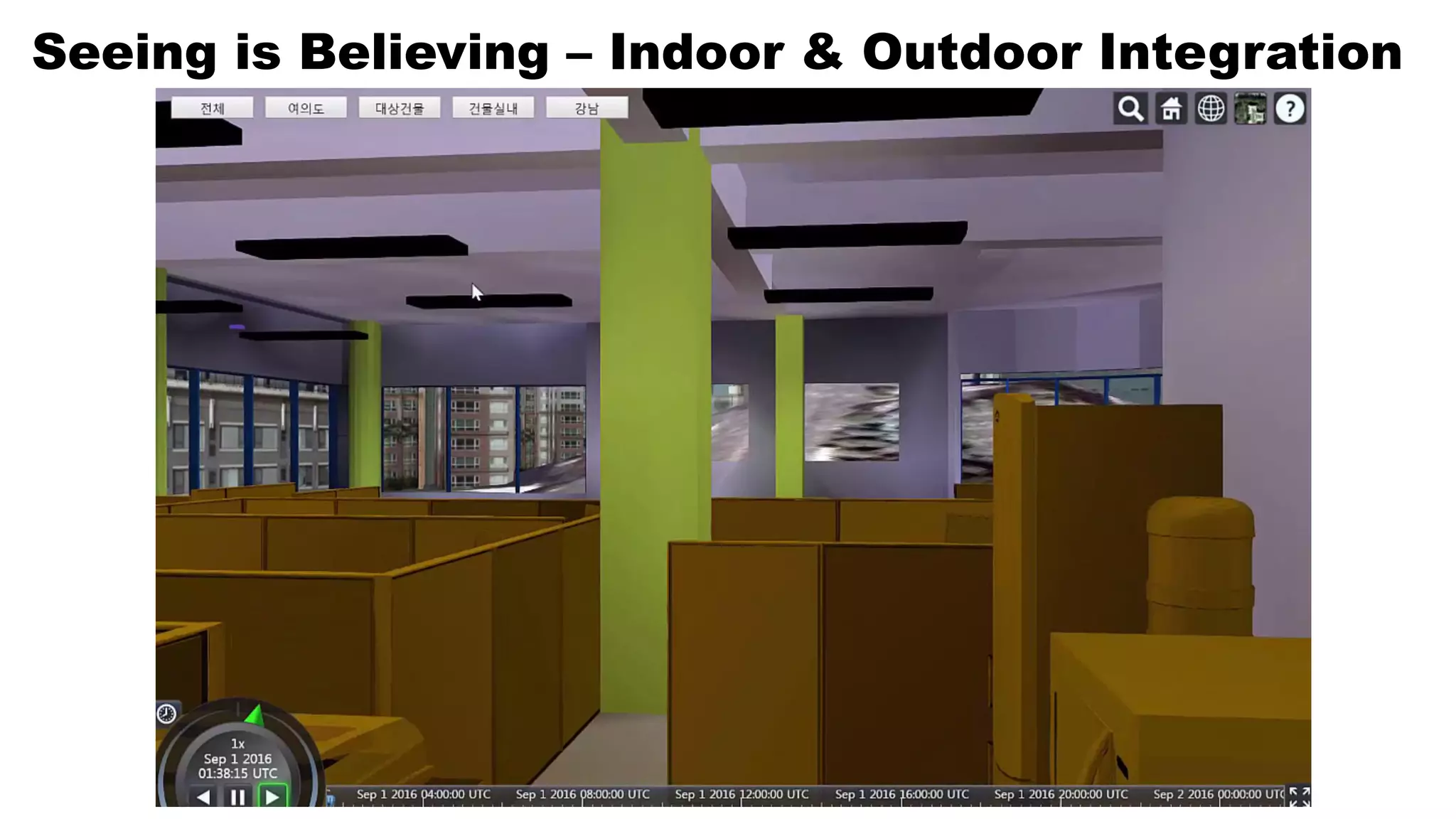

22. Seeing is Believing – Indoor & Outdoor Integration

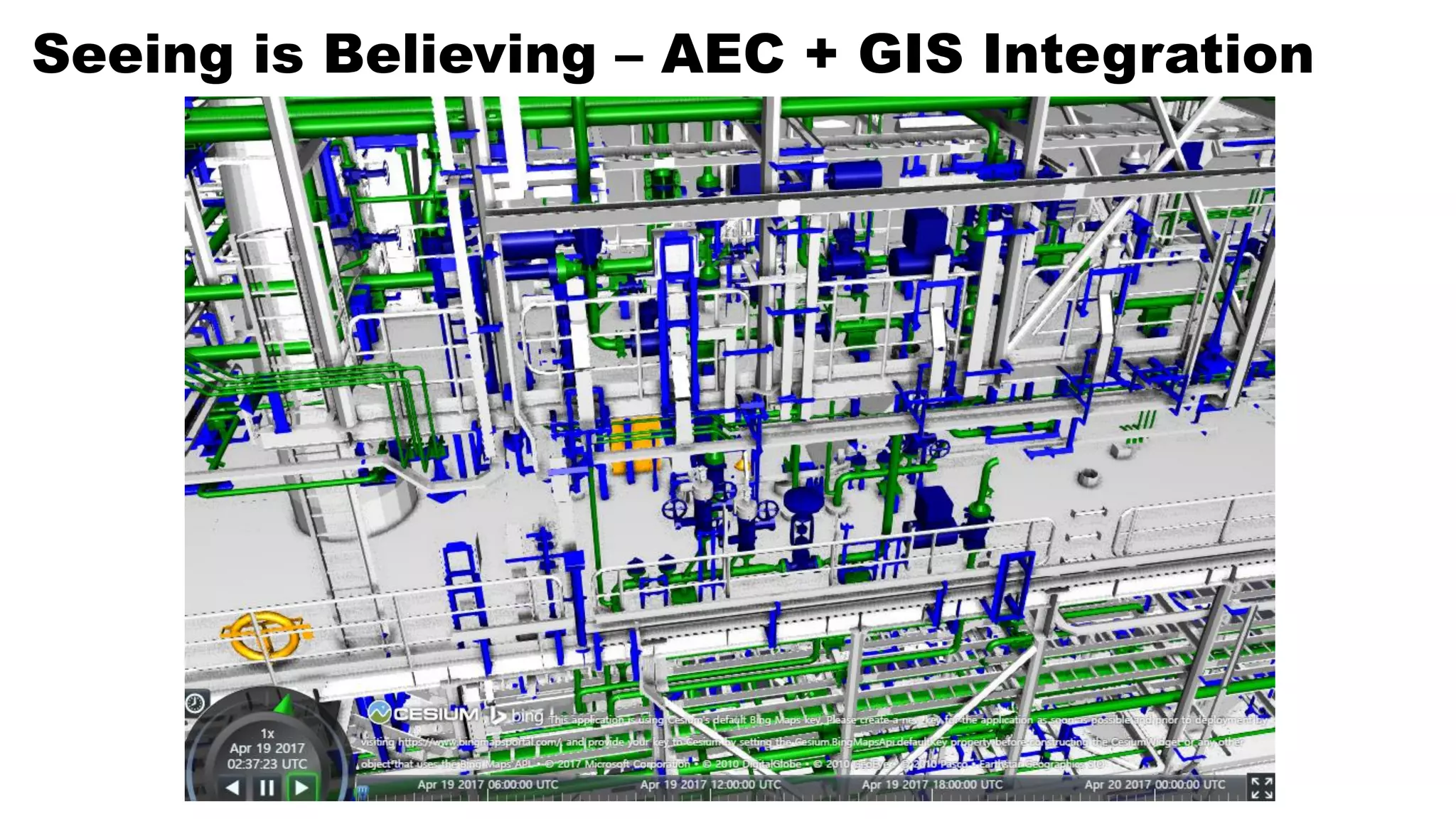

23. Seeing is Believing – AEC + GIS Integration

24. All source codes are available at https://github.com/gaia3d
Thank you!
