1. Let’s Integrate BIM and 3D GIS
on top of FOSS4G!
Sanghee Shin(shshin@gaia3d.com)
Seongdo Son(sdson@gaia3d.com)
Hakjoon Kim(hjkim@gaia3d.com)
Jengdae Cheon(jdcheon@gaia3d.com)
BJ Jang(bjjang@gaia3d.com)

2. MAGO
Goddess of earth
in Korean old myth

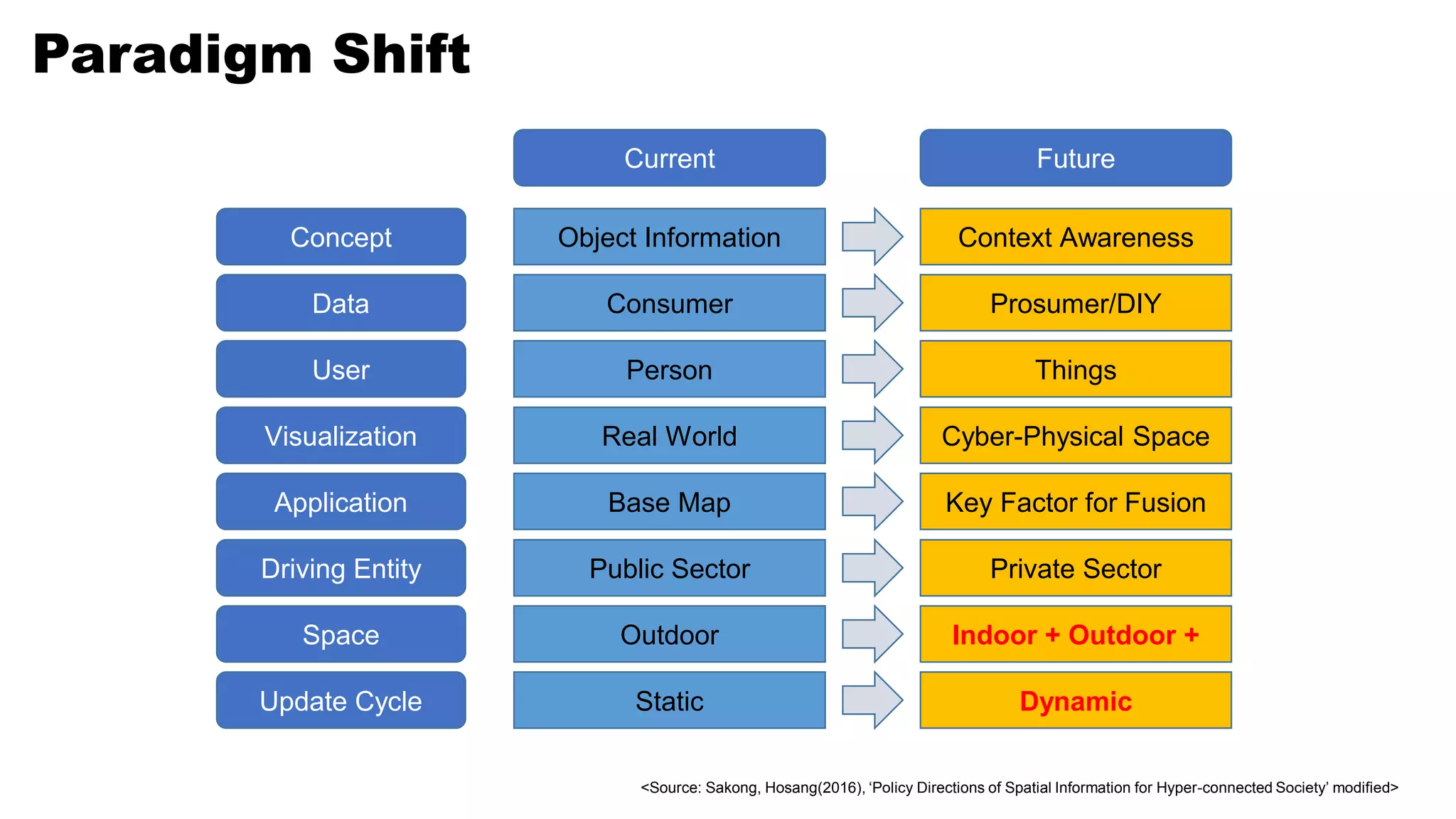

3. Paradigm Shift
Current Future
Concept Object Information Context Awareness
Data Consumer Prosumer/DIY
User Person Things
Visualization Real World Cyber-Physical Space
Application Base Map Key Factor for Fusion
Driving Entity Public Sector Private Sector
Space Outdoor Indoor + Outdoor +
Update Cycle Static Dynamic
<Source: Sakong, Hosang(2016), ‘Policy Directions of Spatial Information for Hyper-connected Society’ modified>

4. Bottle Neck! Point
Cloud
Drone
Image IoT
BIM
Live
Data
AEC Self-Driving
Cars

5. mago3D is a platform for …
Indoor and outdoor space integration on a single web browser1
Management/providing various type of GIS data
including vector, raster, point cloud and AEC/BIM/3D …
2
Web based collaborative issue management4
Processing/visualization of real-time massive data
such as weather/climate, IoT, sensor data …
3

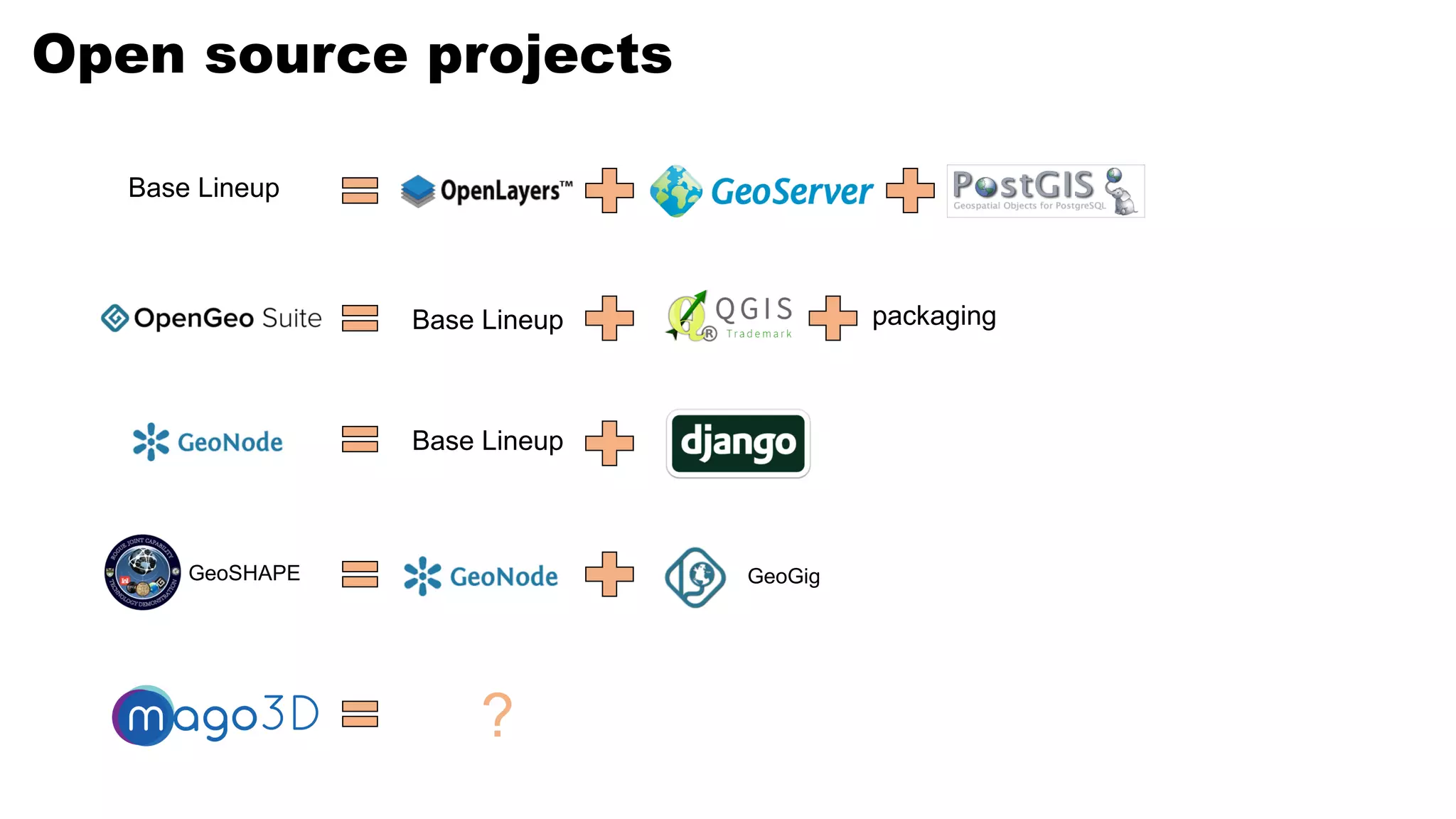

6. Open source projects
Base Lineup
Base Lineup packaging
Base Lineup
GeoSHAPE GeoGig
?

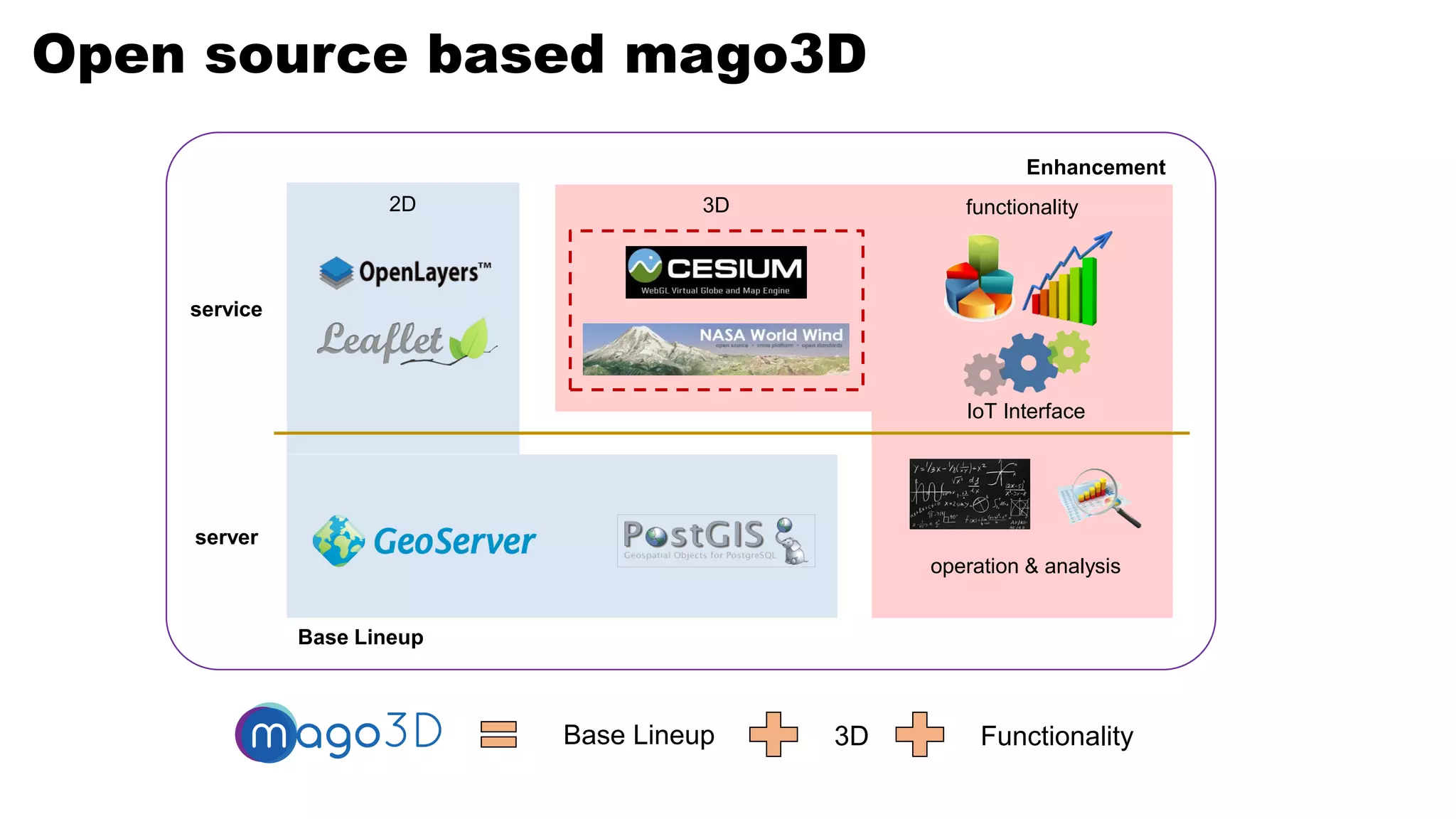

7. Open source based mago3D
3D2D
operation & analysis
IoT Interface
Base Lineup
Enhancement
server
service
functionality
Base Lineup 3D Functionality

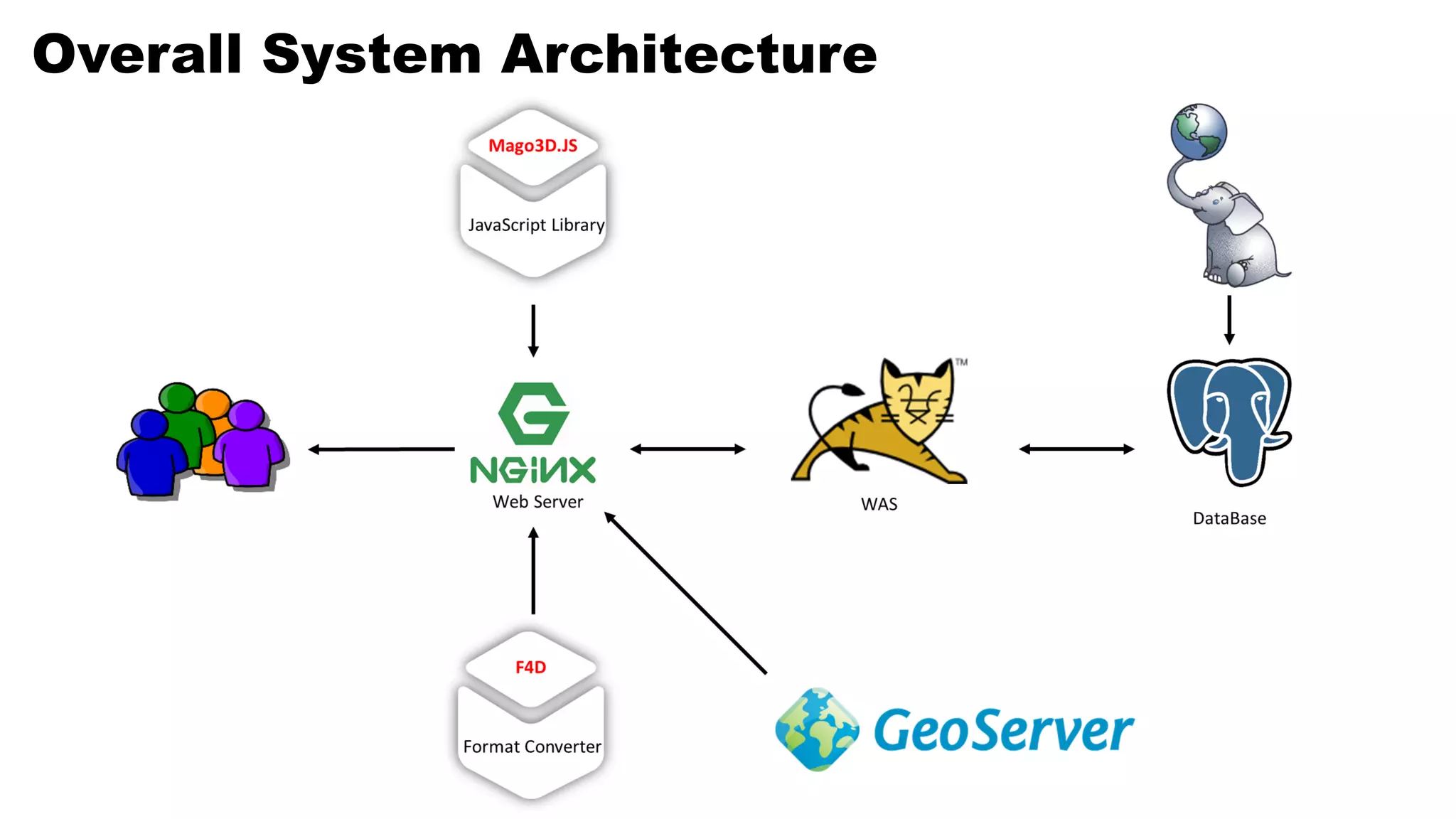

8. Overall System Architecture

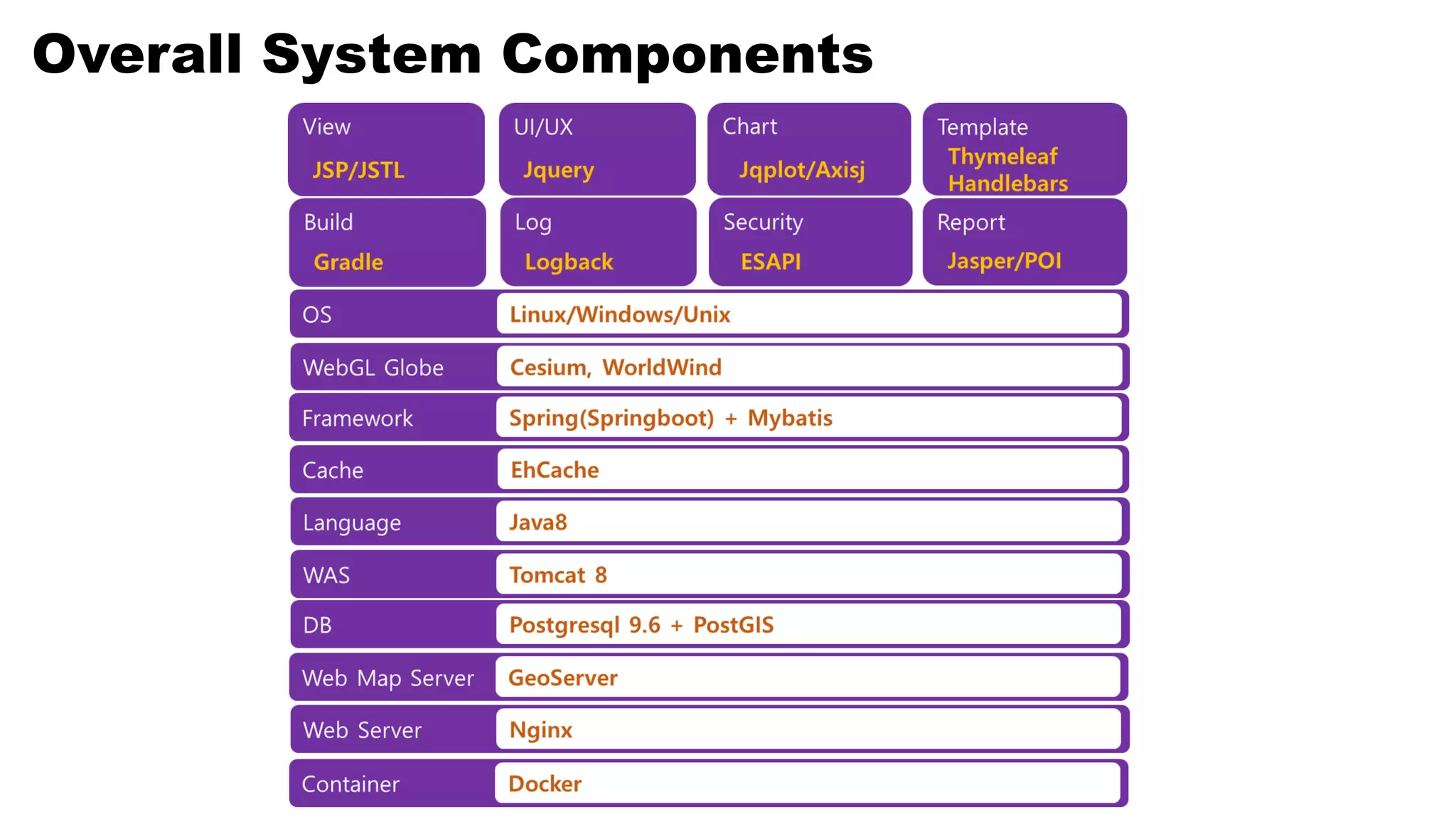

9. Overall System Components

10. And then,
What’s been newly
developed?

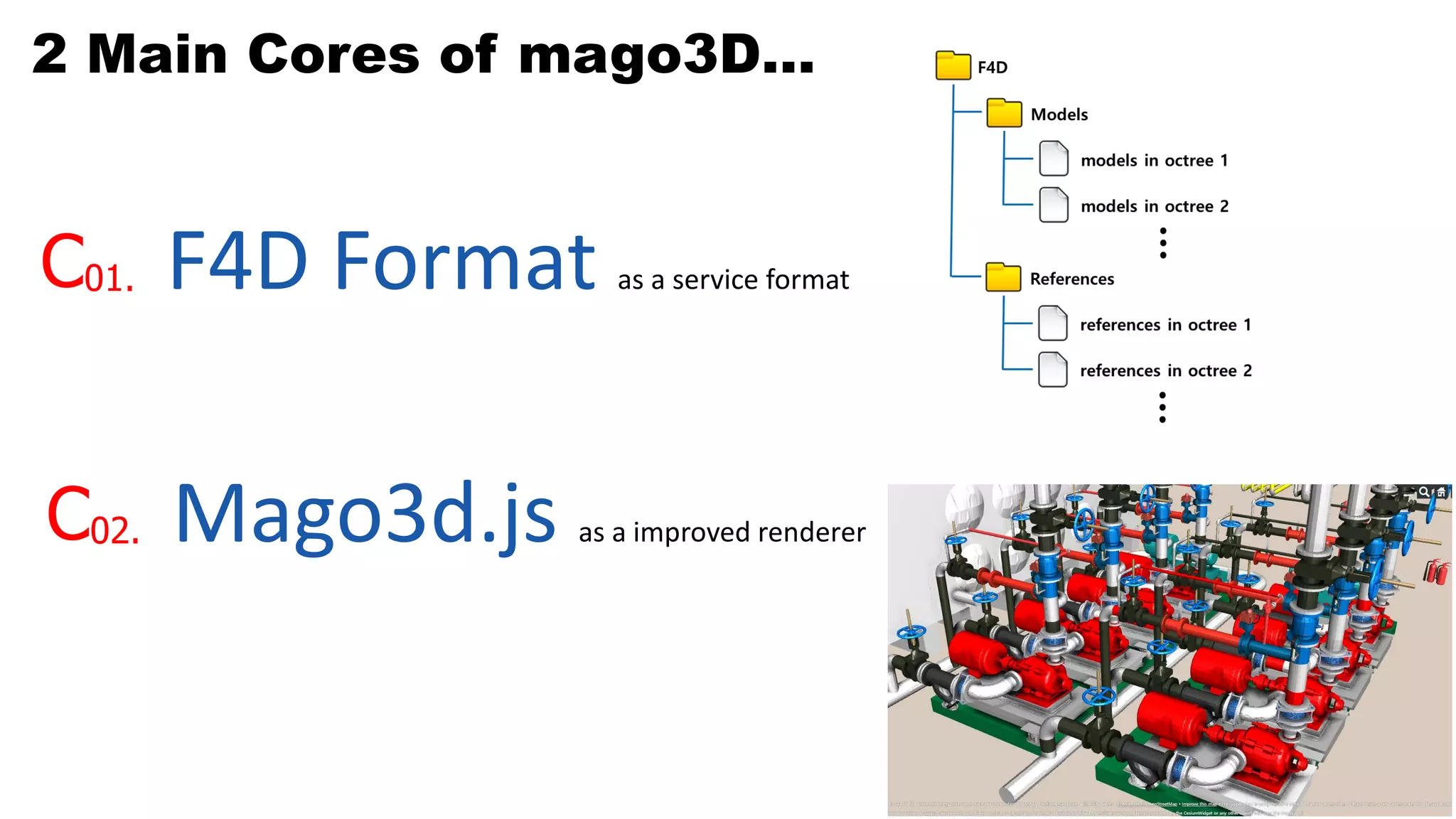

11. 2 Main Cores of mago3D…
F4D Format as a service formatC01.
Mago3d.js as a improved rendererC02.

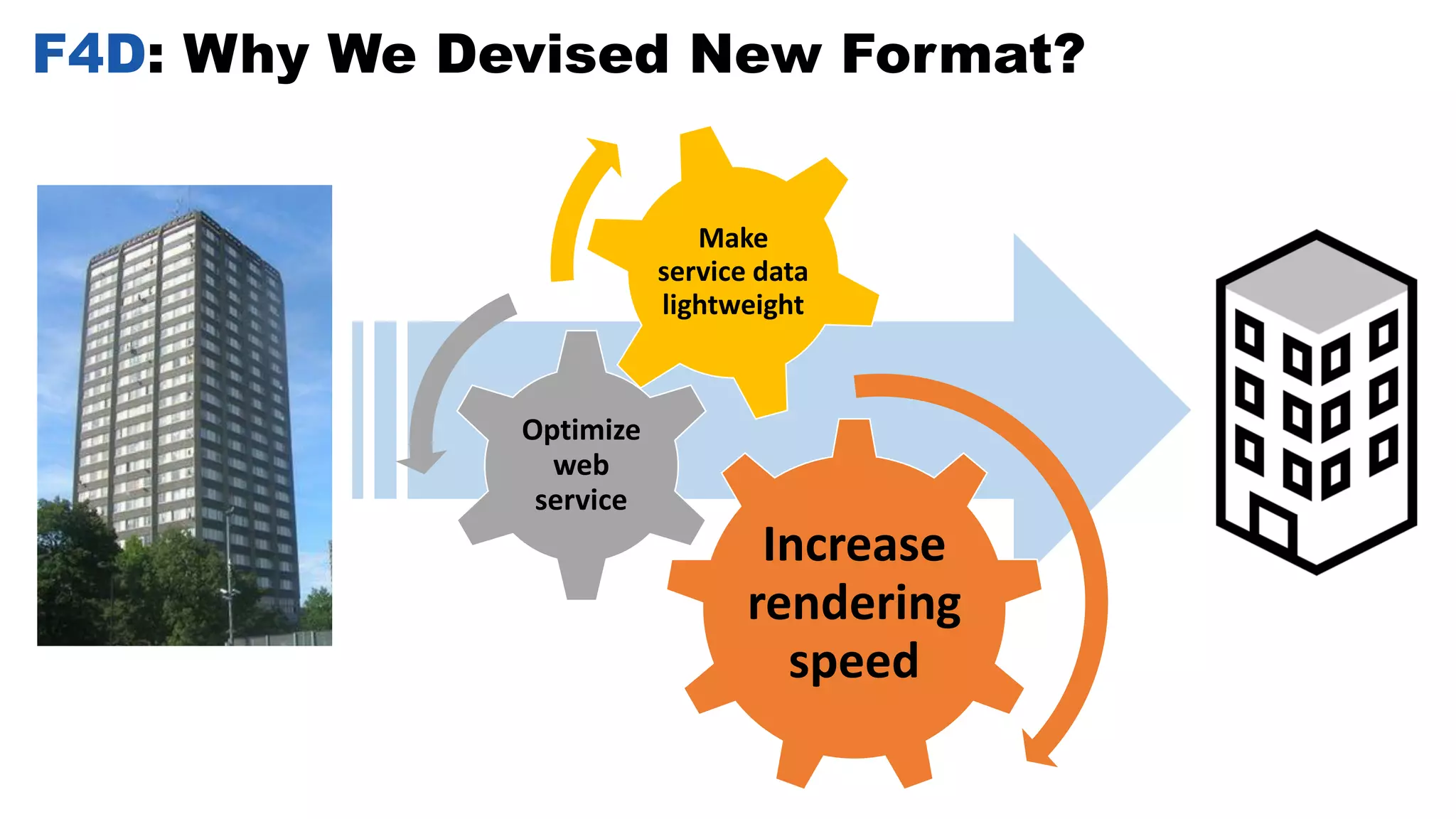

12. F4D: Why We Devised New Format?
Increase
rendering
speed
Optimize
web
service
Make
service data
lightweight

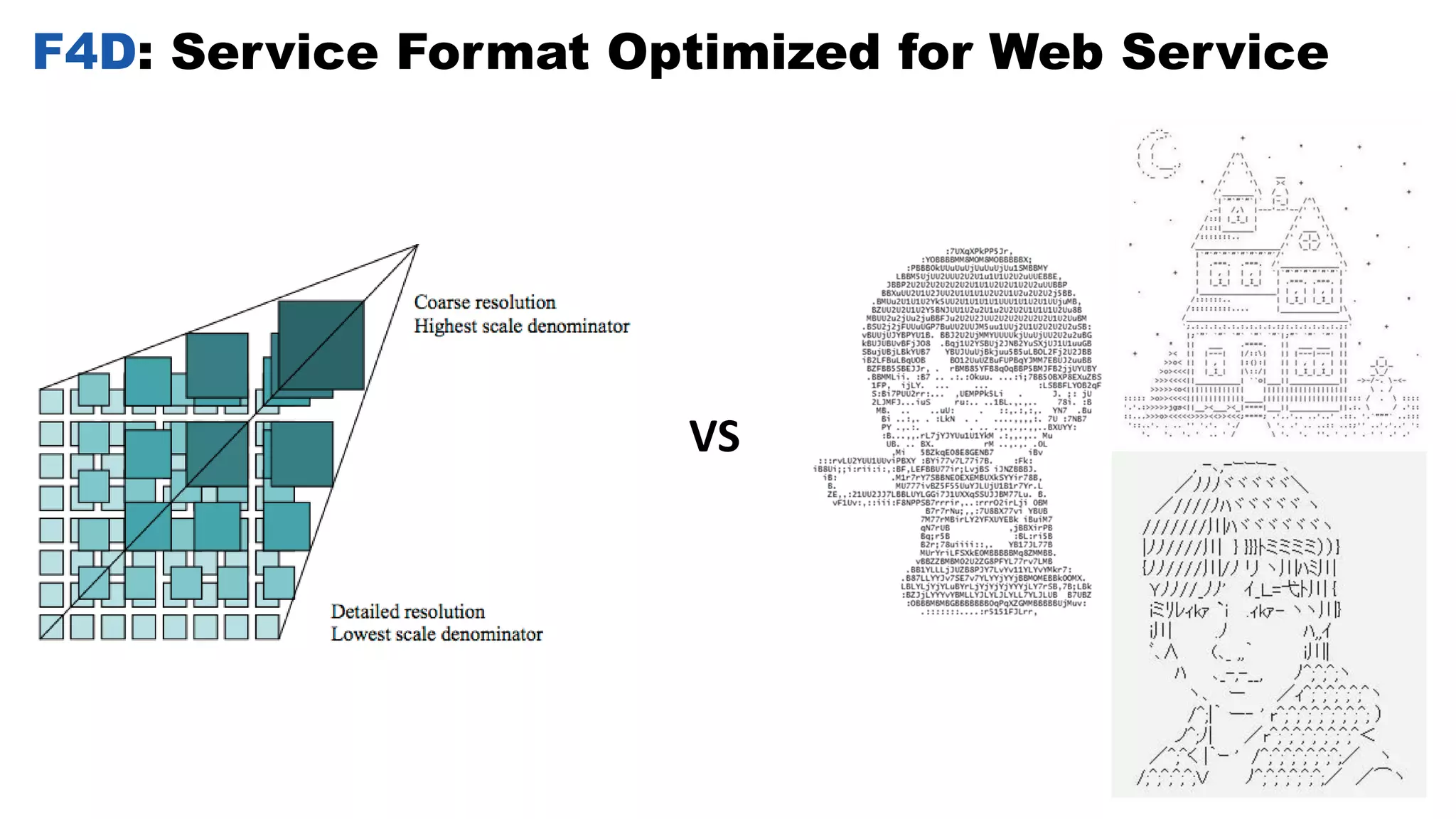

13. F4D: Service Format Optimized for Web Service
VS

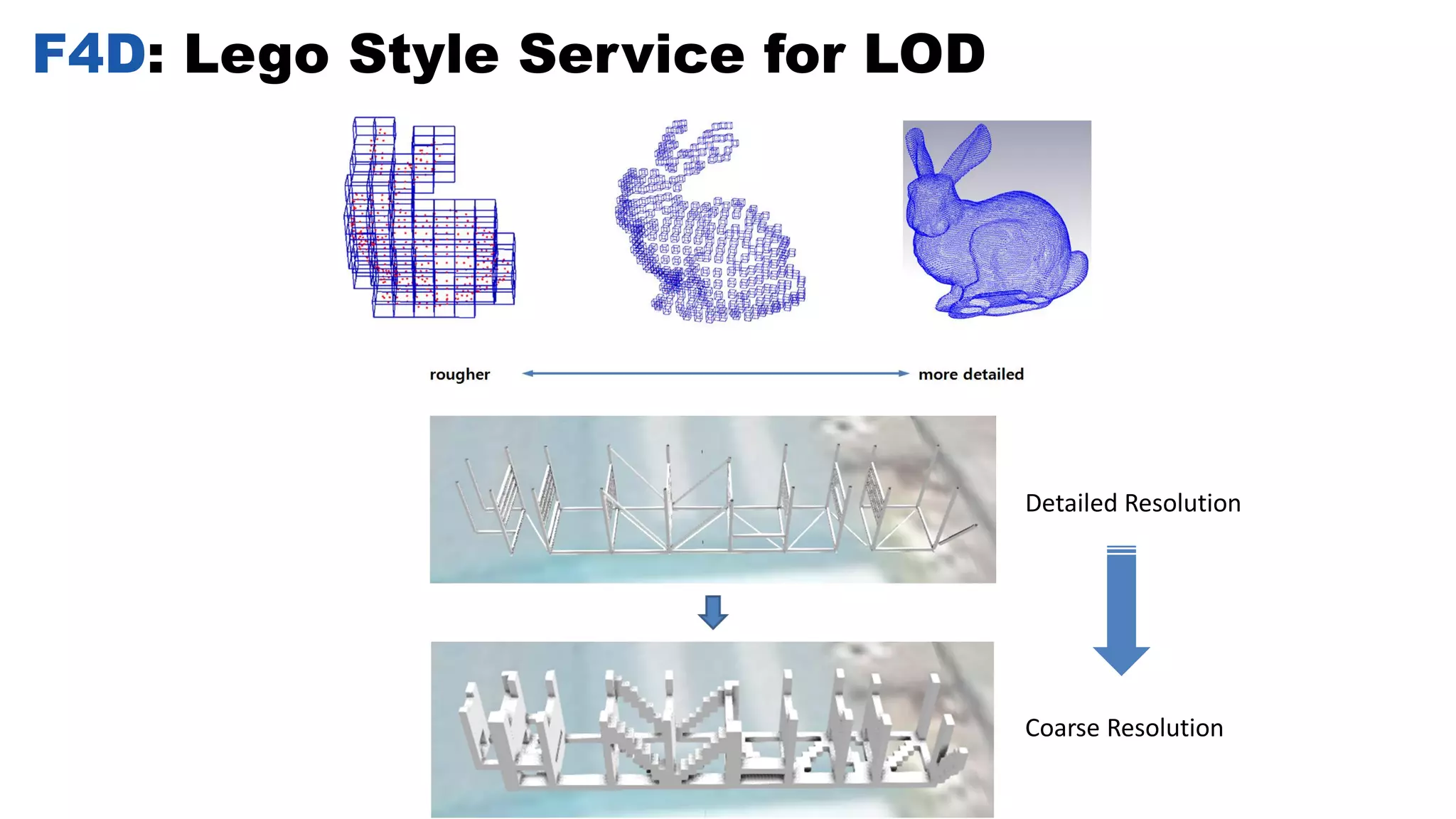

14. F4D: Lego Style Service for LOD
Detailed Resolution
Coarse Resolution

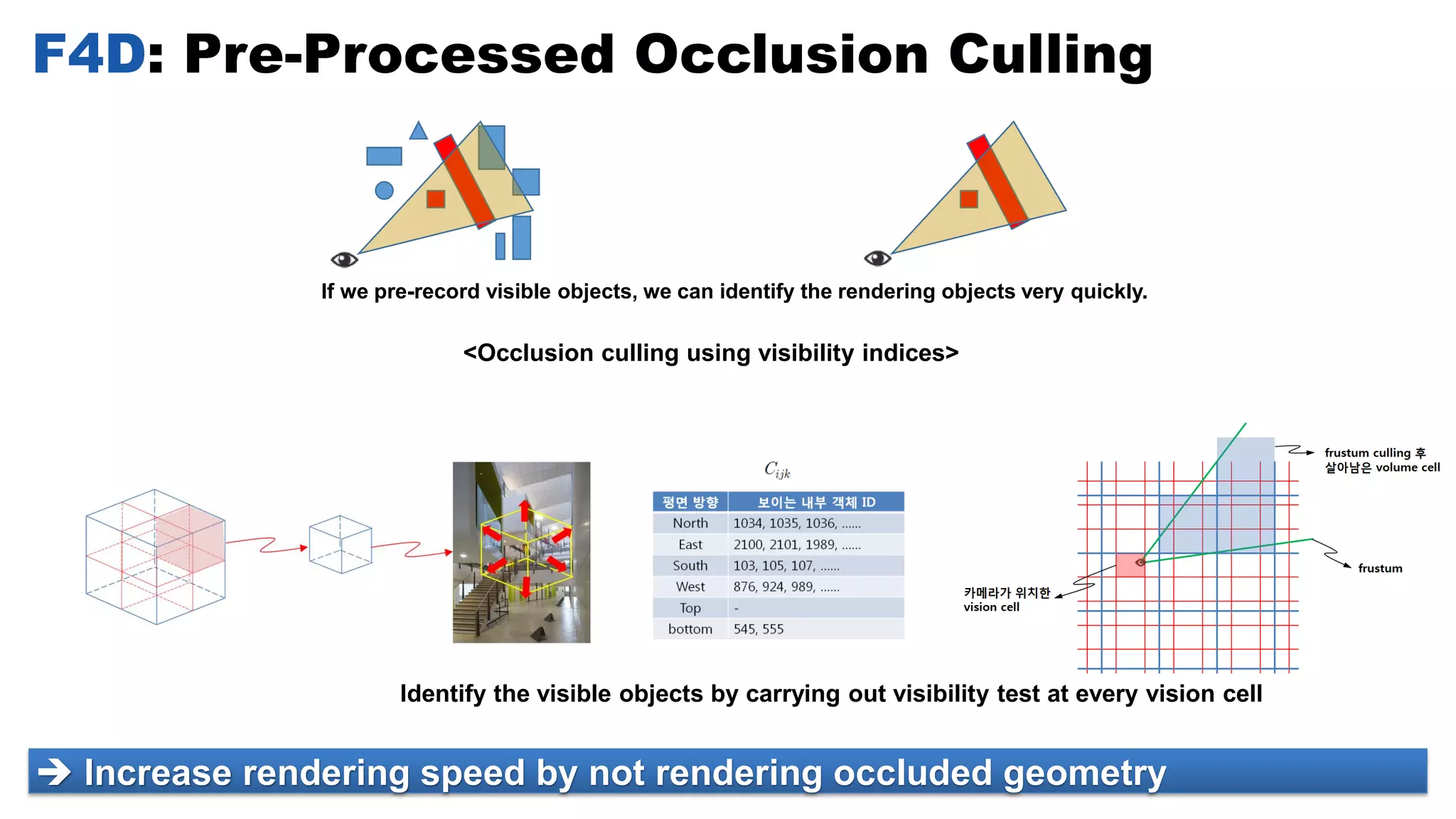

15. F4D: Pre-Processed Occlusion Culling
 Increase rendering speed by not rendering occluded geometry
If we pre-record visible objects, we can identify the rendering objects very quickly.
<Occlusion culling using visibility indices>
Identify the visible objects by carrying out visibility test at every vision cell

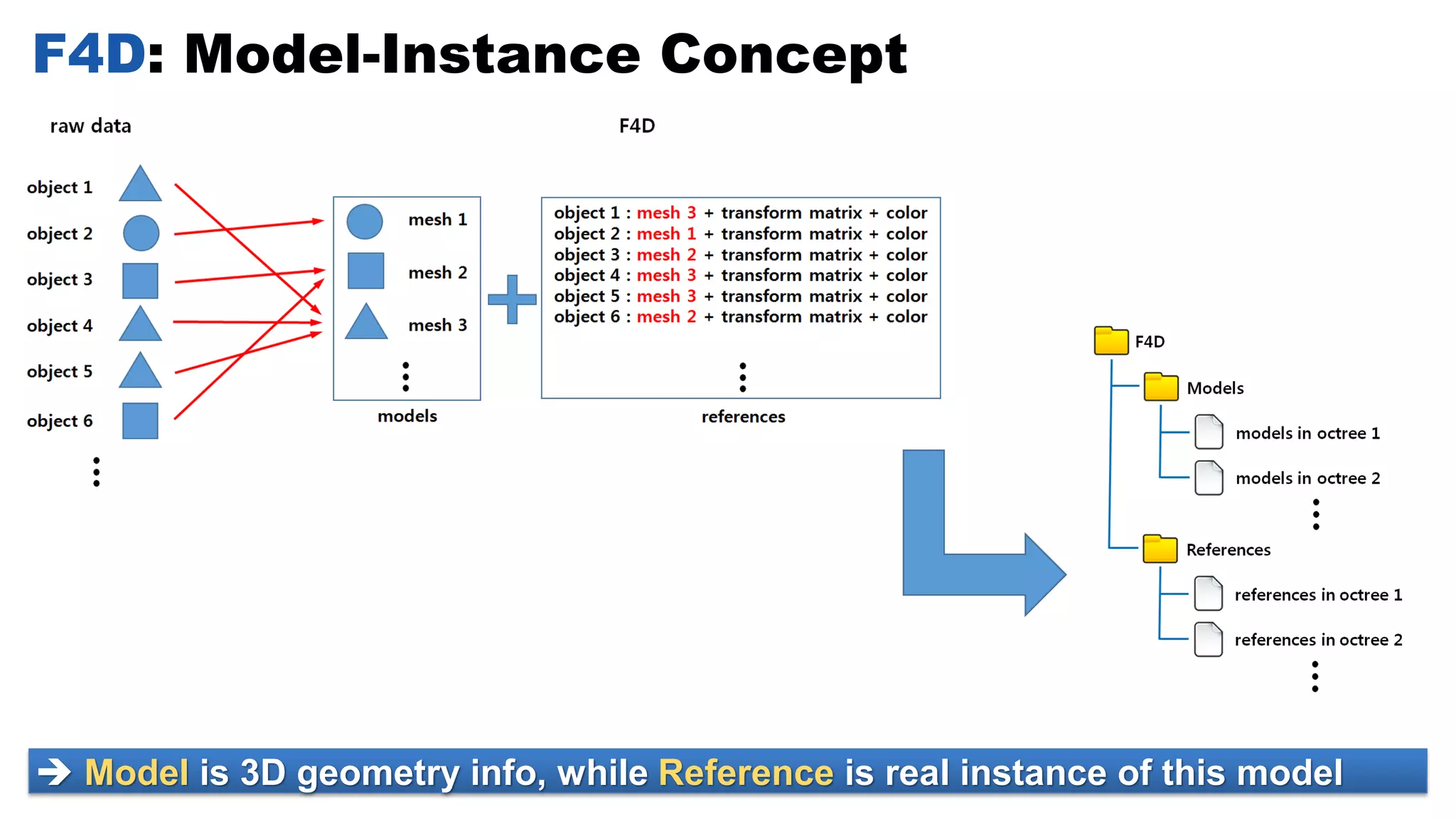

16. F4D: Model-Instance Concept
 Model is 3D geometry info, while Reference is real instance of this model

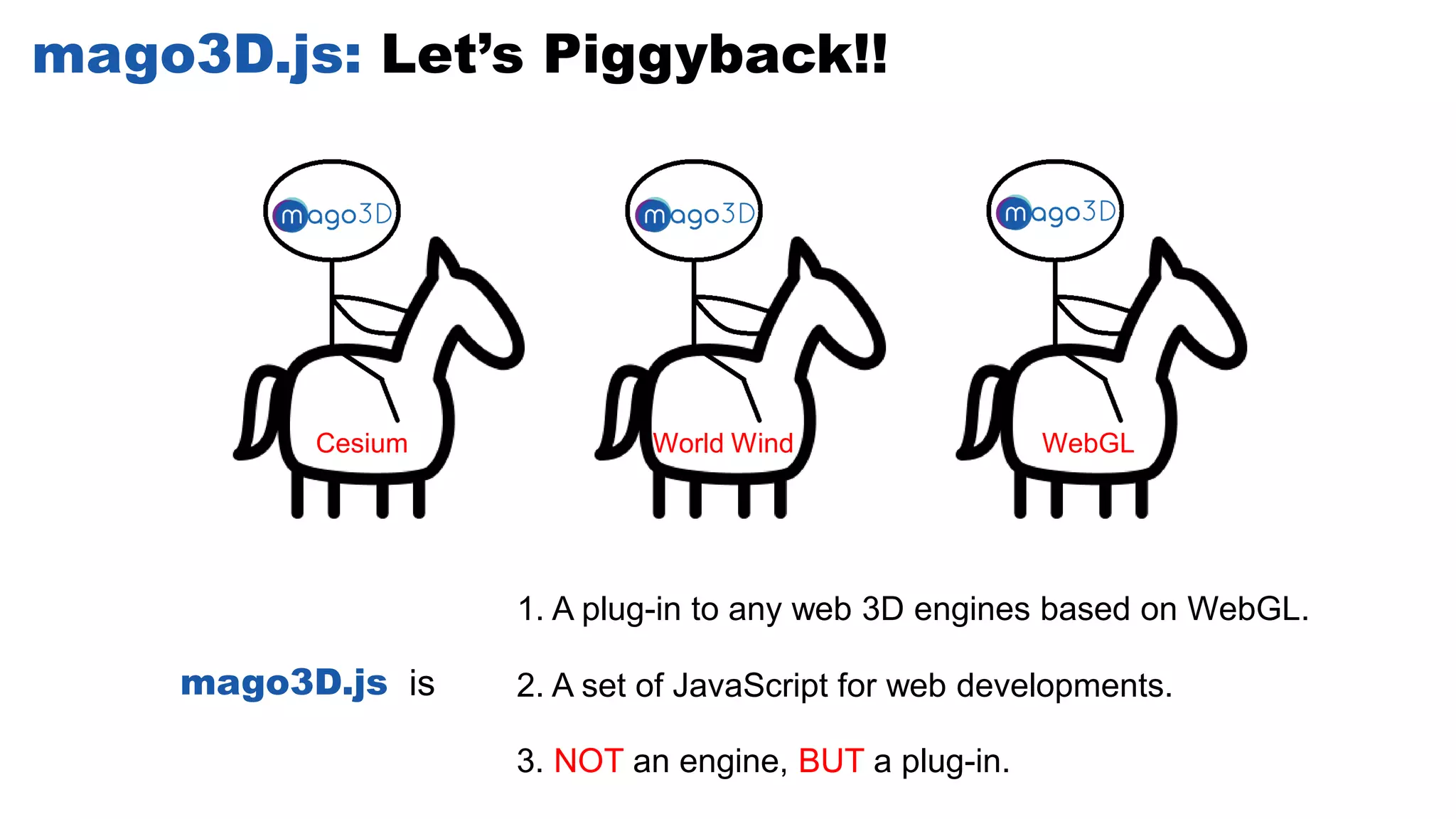

17. mago3D.js: Let’s Piggyback!!
Cesium World Wind WebGL
1. A plug-in to any web 3D engines based on WebGL.
2. A set of JavaScript for web developments.
3. NOT an engine, BUT a plug-in.
ismago3D.js

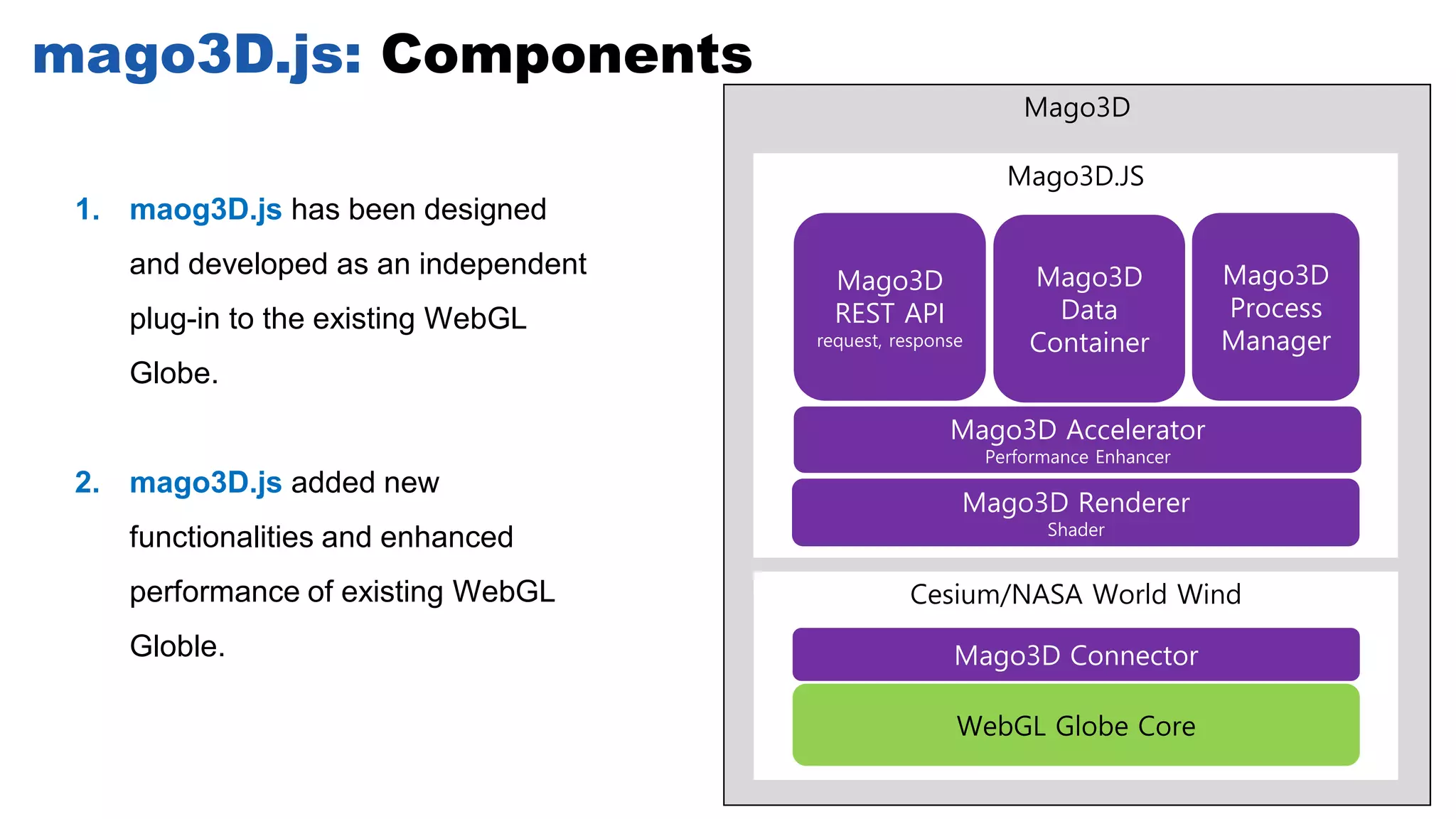

18. mago3D.js: Components
1. maog3D.js has been designed
and developed as an independent
plug-in to the existing WebGL
Globe.
2. mago3D.js added new
functionalities and enhanced
performance of existing WebGL
Globle.
Mago3D
Cesium/NASA World Wind
WebGL Globe Core
Mago3D Connector
Mago3D.JS
Mago3D Renderer
Shader
Mago3D Accelerator
Performance Enhancer
Mago3D
REST API
request, response
Mago3D
Process
Manager
Mago3D
Data
Container

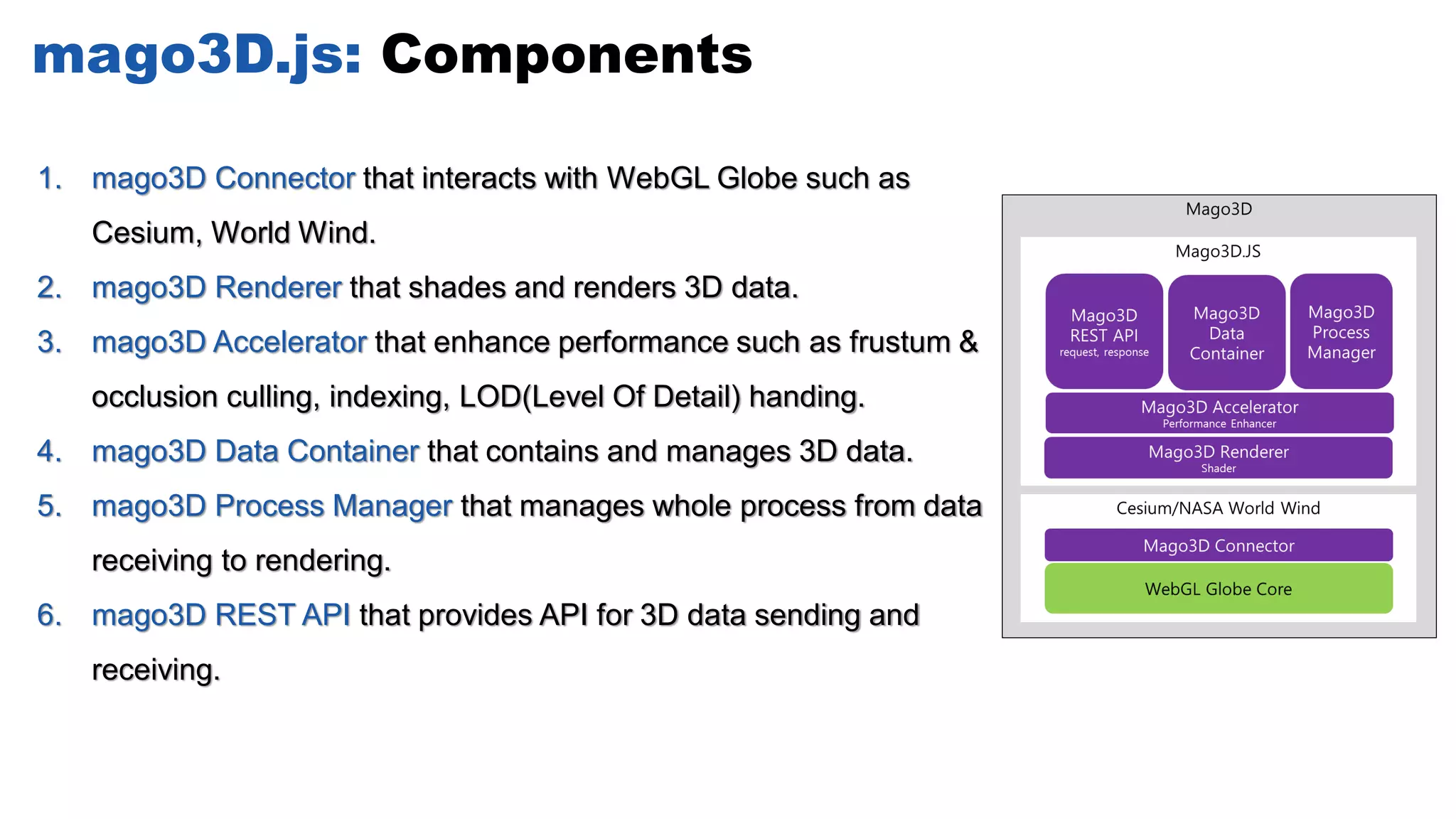

19. mago3D.js: Components
1. mago3D Connector that interacts with WebGL Globe such as
Cesium, World Wind.
2. mago3D Renderer that shades and renders 3D data.
3. mago3D Accelerator that enhance performance such as frustum &
occlusion culling, indexing, LOD(Level Of Detail) handing.
4. mago3D Data Container that contains and manages 3D data.
5. mago3D Process Manager that manages whole process from data
receiving to rendering.
6. mago3D REST API that provides API for 3D data sending and
receiving.

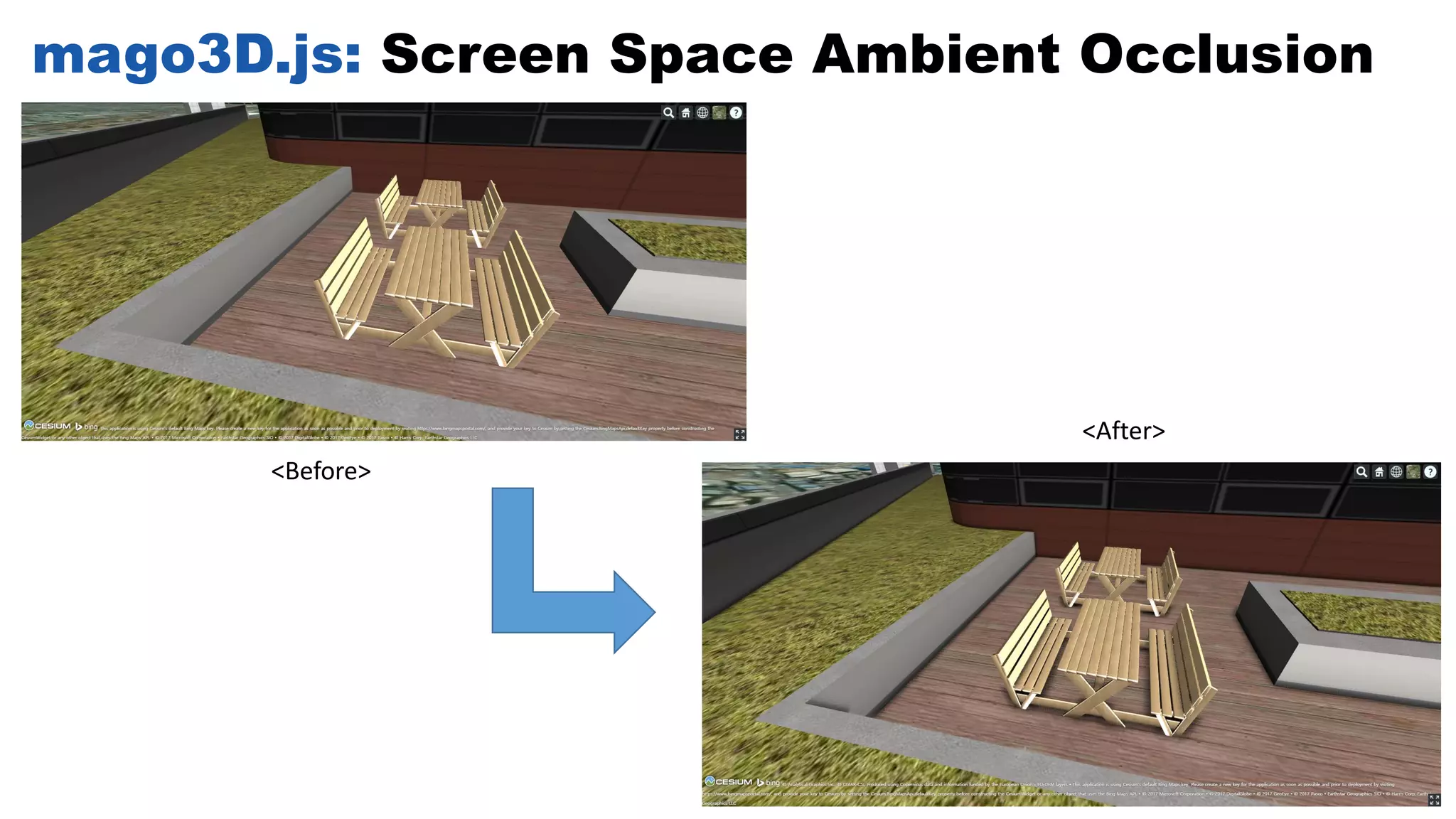

20. mago3D.js: Screen Space Ambient Occlusion
<Before>
<After>

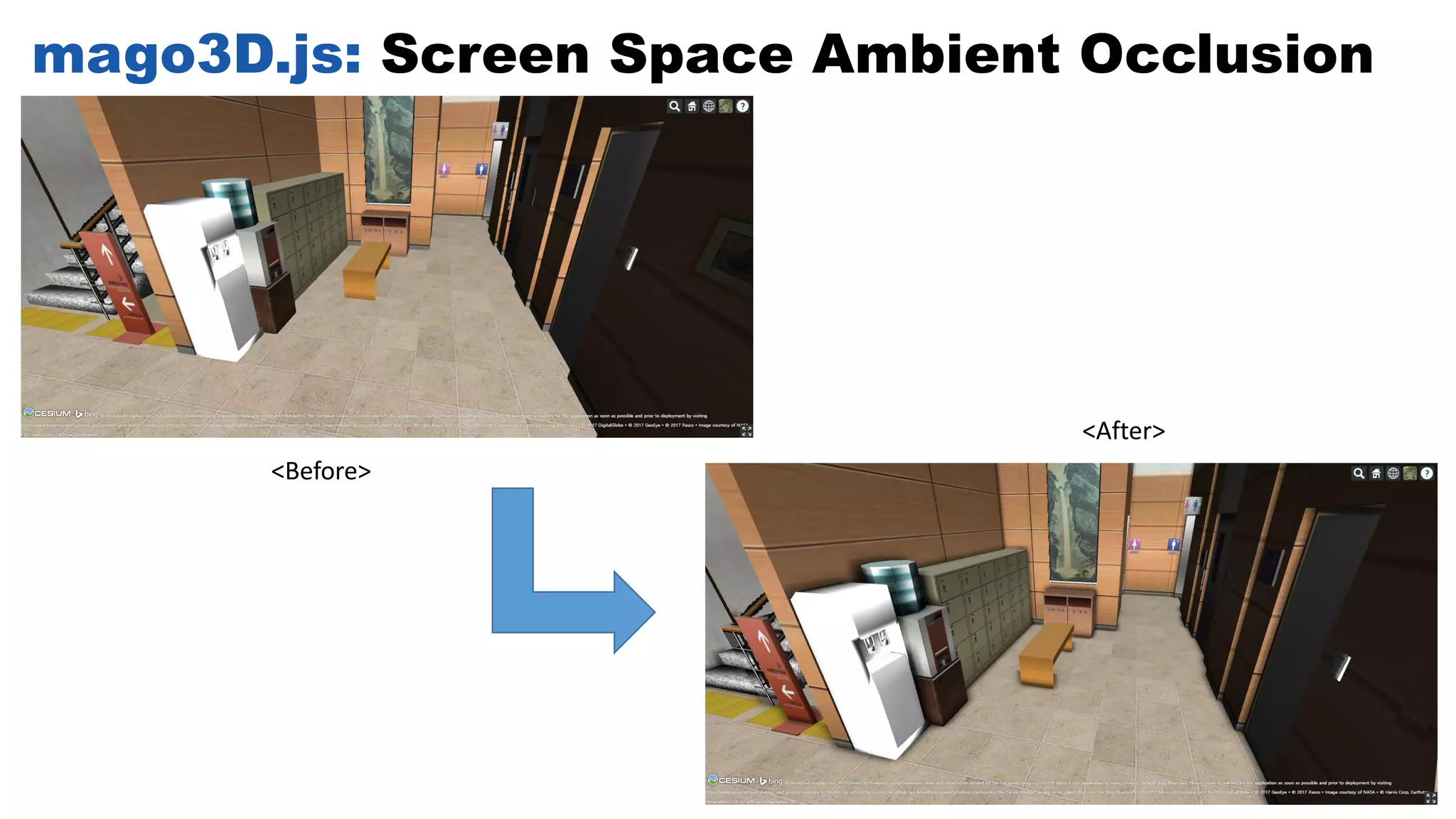

21. mago3D.js: Screen Space Ambient Occlusion
<Before>
<After>

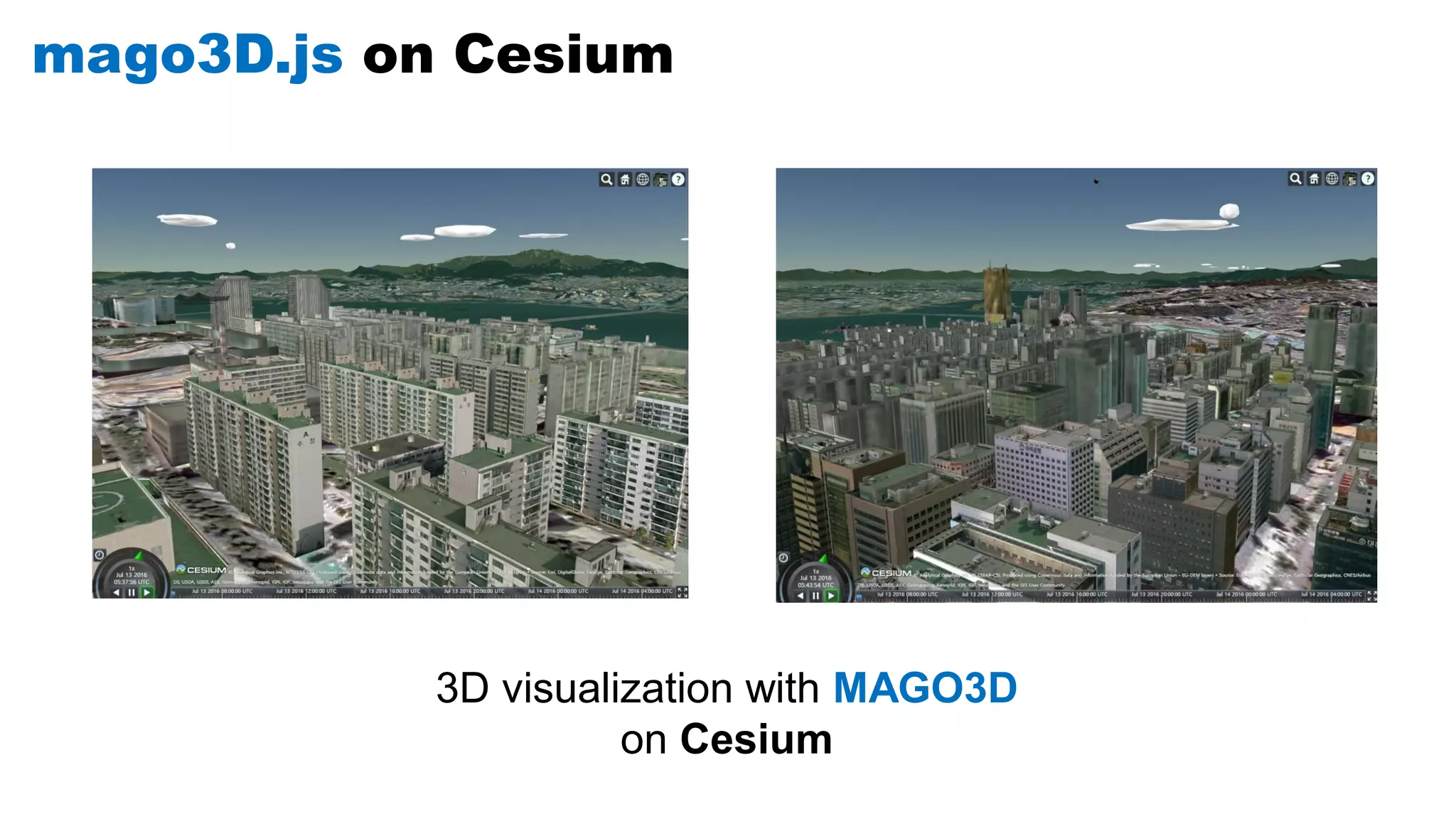

22. mago3D.js on Cesium
3D visualization with MAGO3D
on Cesium

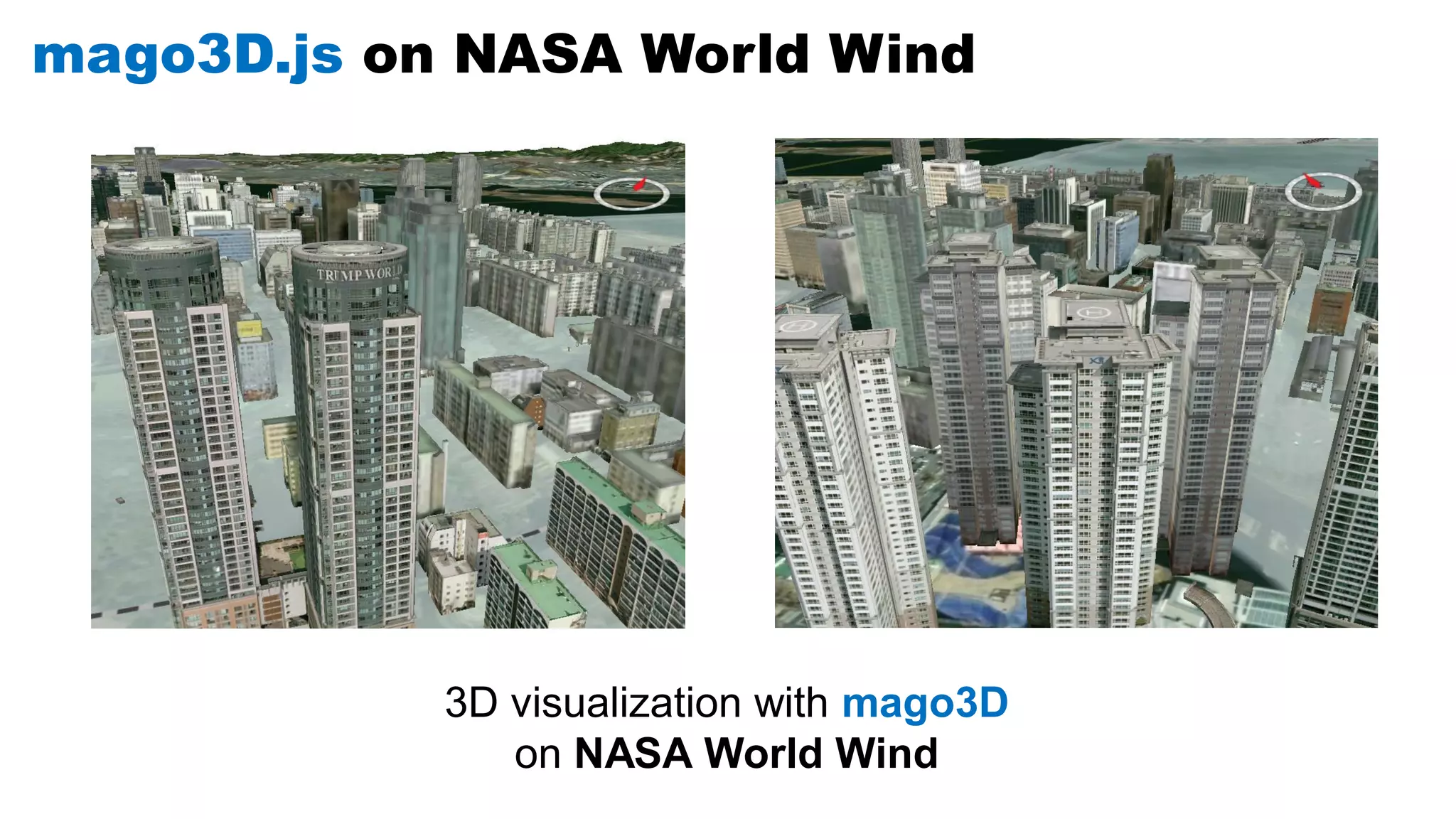

23. mago3D.js on NASA World Wind
3D visualization with mago3D
on NASA World Wind

24. BIM Integration
Seamless integration of indoor and outdoor space
on the same platform
scene from indoor to outdoor through windows Scene from outdoor to indoor through windows

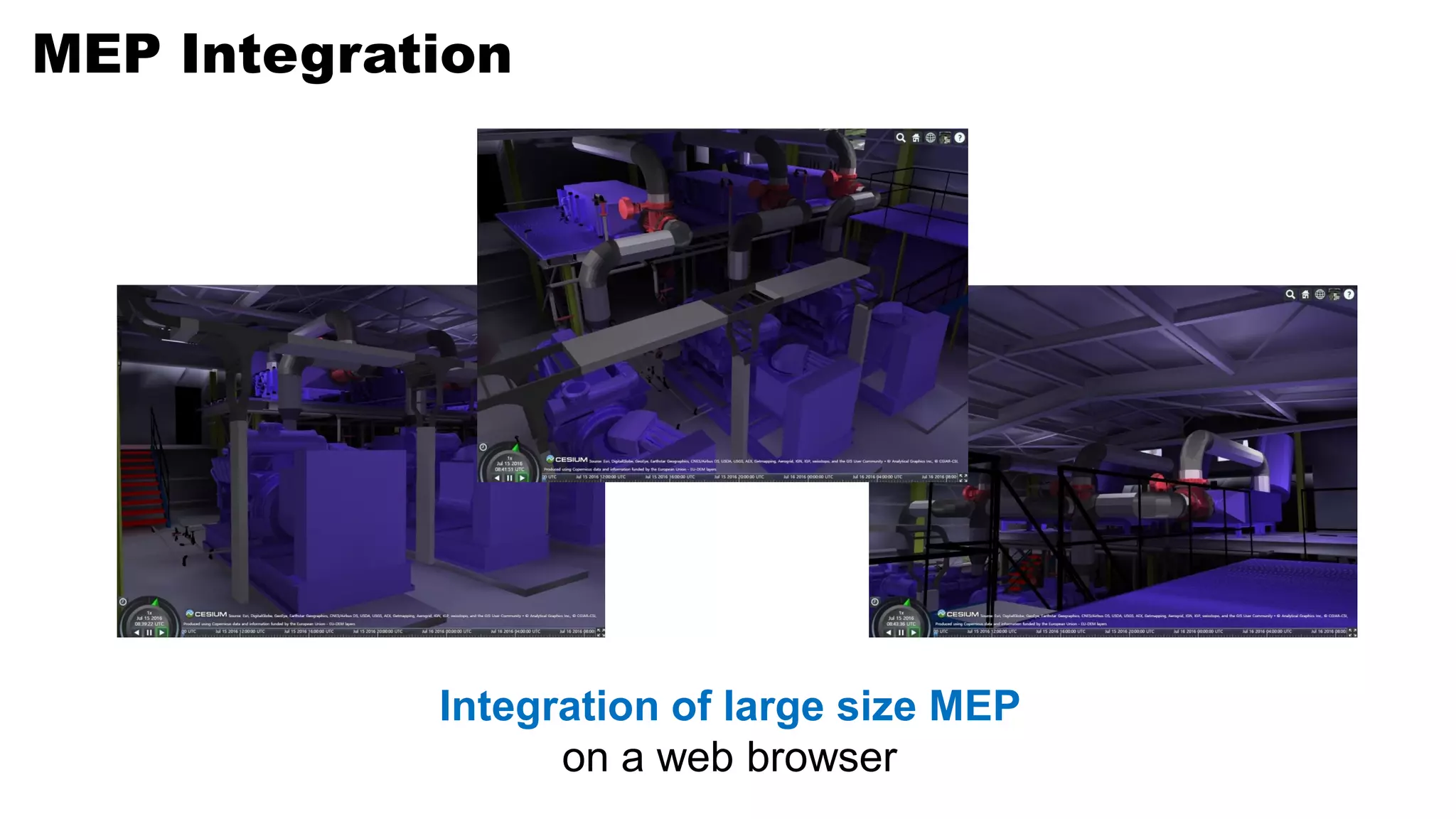

25. MEP Integration
Integration of large size MEP
on a web browser

26. Future Plan – Support New Data Types
meteorological/weather data
real-time data
(IOT, sensor/observation data)
point cloud
 mago3D will be capable of handling more types of data in near future!

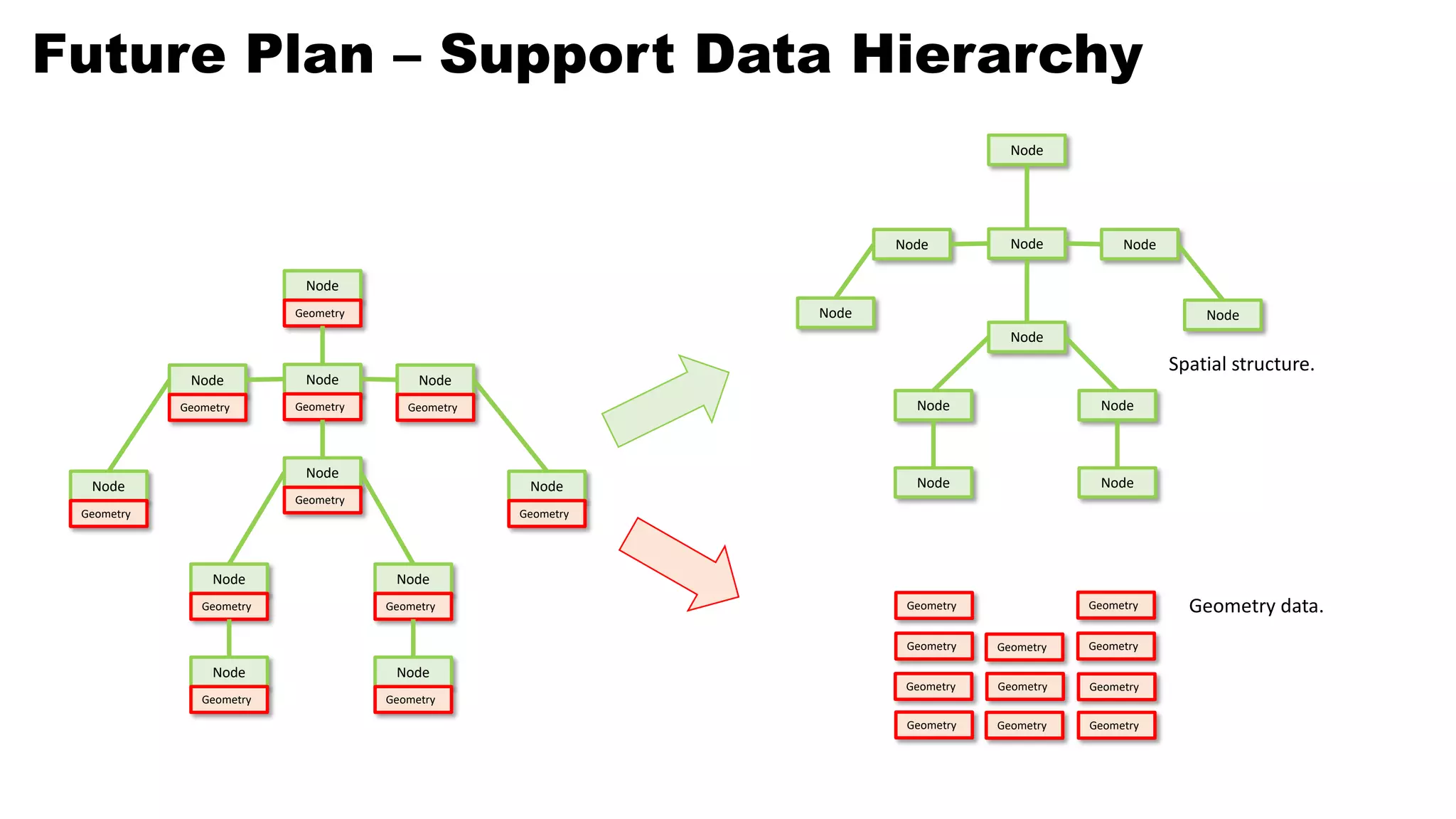

27. Future Plan – Support Data Hierarchy
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Node
Geometry
Spatial structure.
Geometry data.

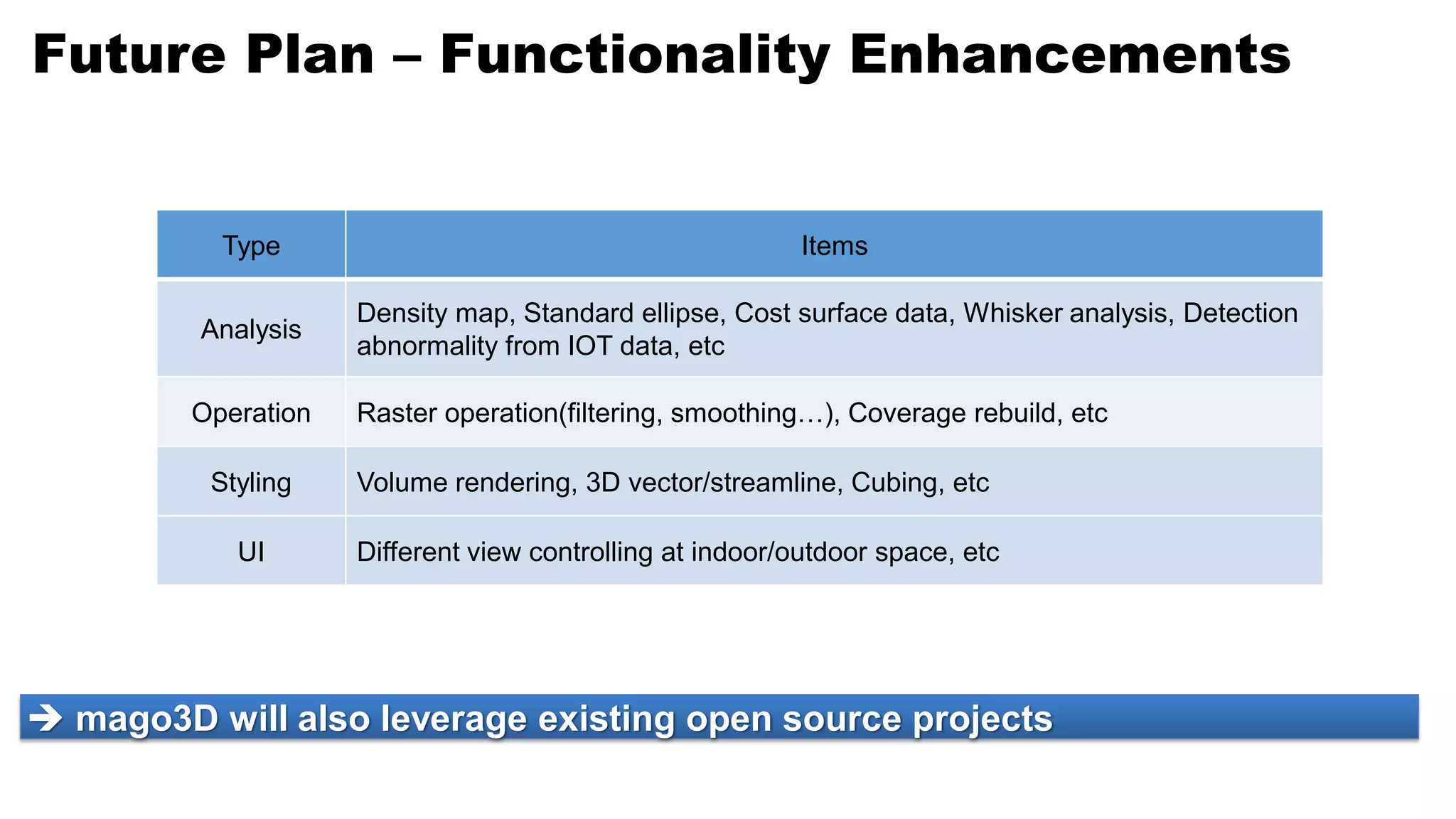

28. Future Plan – Functionality Enhancements
Type Items
Analysis
Density map, Standard ellipse, Cost surface data, Whisker analysis, Detection
abnormality from IOT data, etc
Operation Raster operation(filtering, smoothing…), Coverage rebuild, etc
Styling Volume rendering, 3D vector/streamline, Cubing, etc
UI Different view controlling at indoor/outdoor space, etc
 mago3D will also leverage existing open source projects

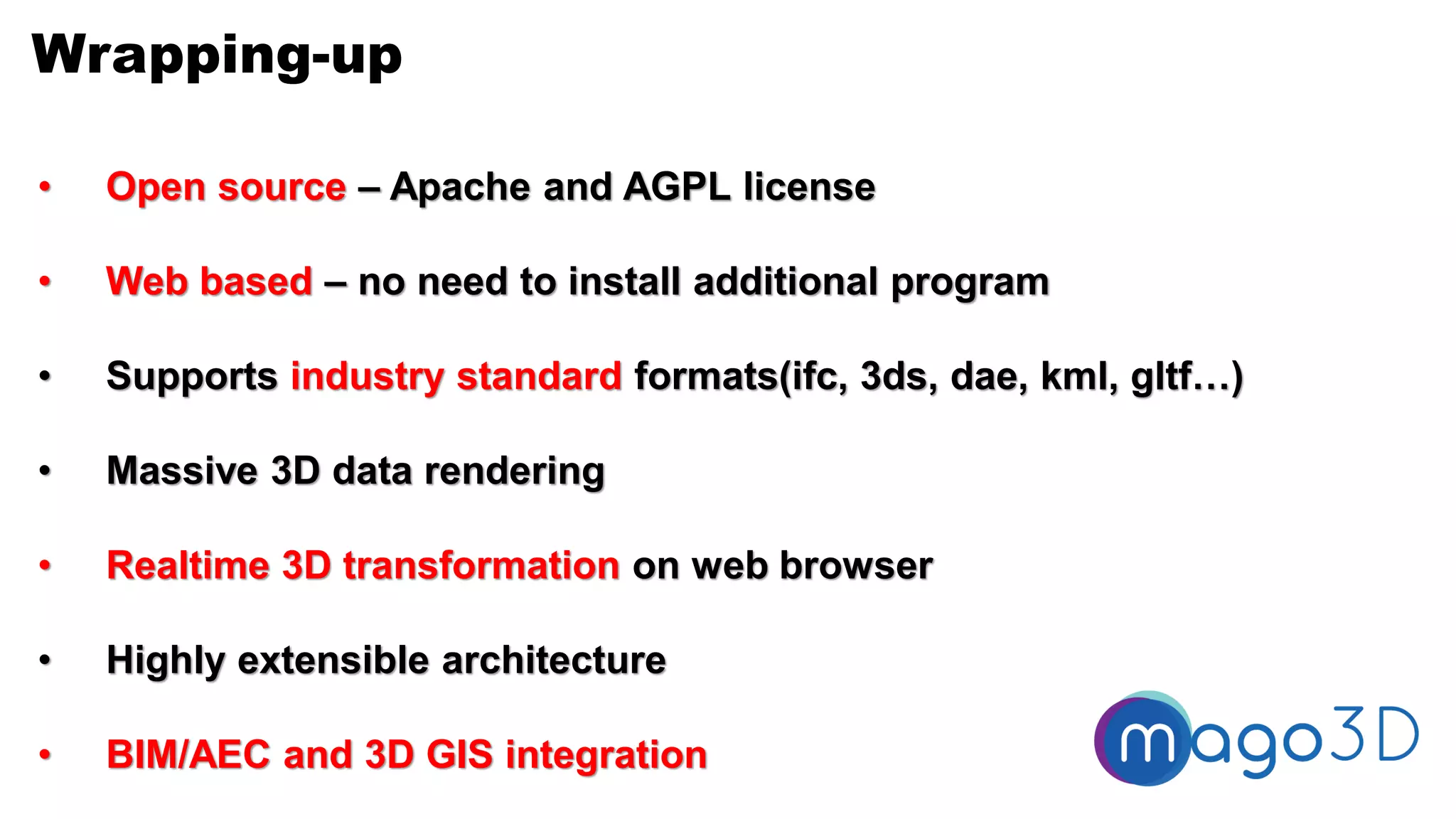

29. Wrapping-up
• Open source – Apache and AGPL license
• Web based – no need to install additional program
• Supports industry standard formats(ifc, 3ds, dae, kml, gltf…)
• Massive 3D data rendering
• Realtime 3D transformation on web browser
• Highly extensible architecture
• BIM/AEC and 3D GIS integration

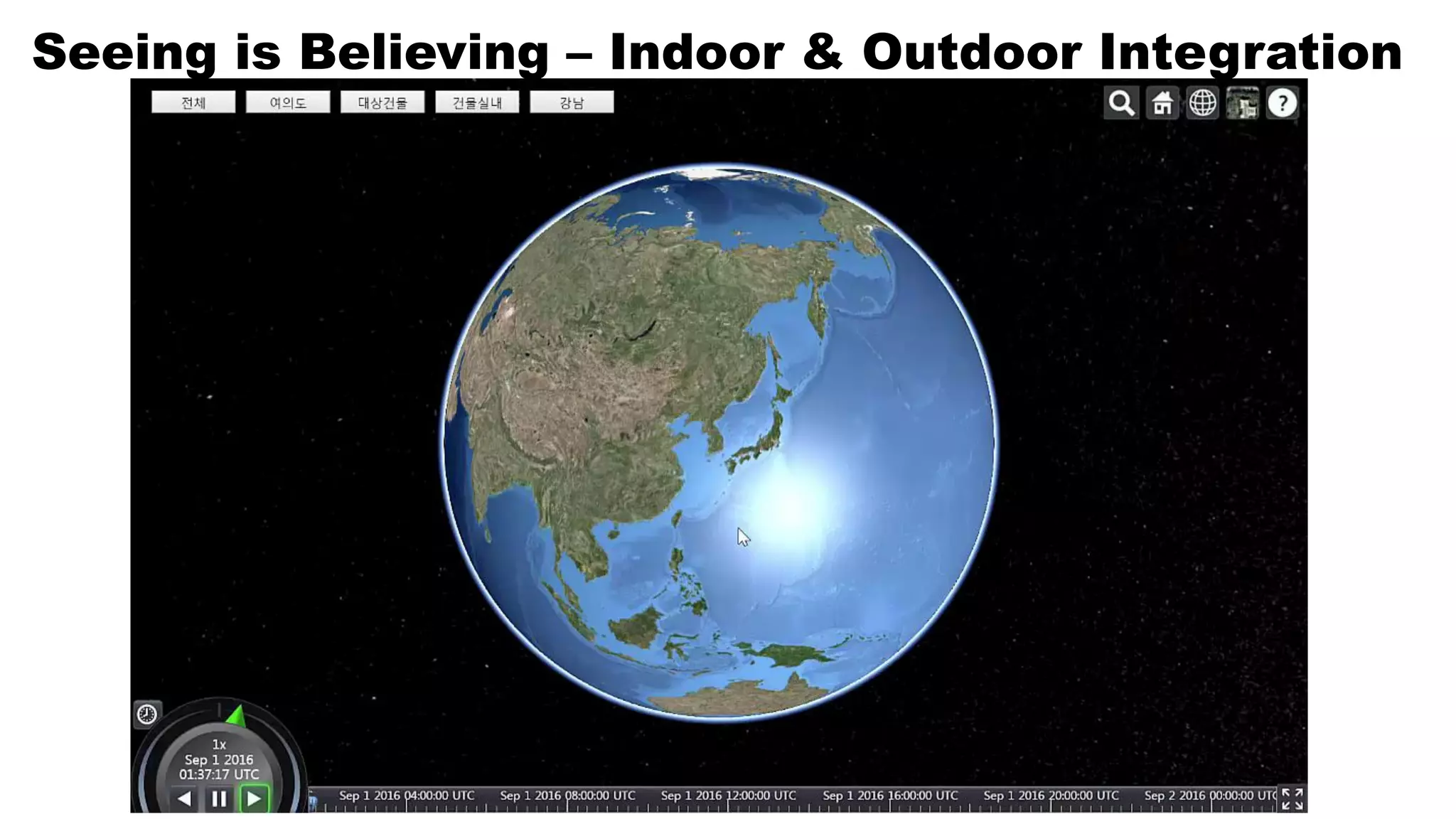

30. Seeing is Believing – Indoor & Outdoor Integration

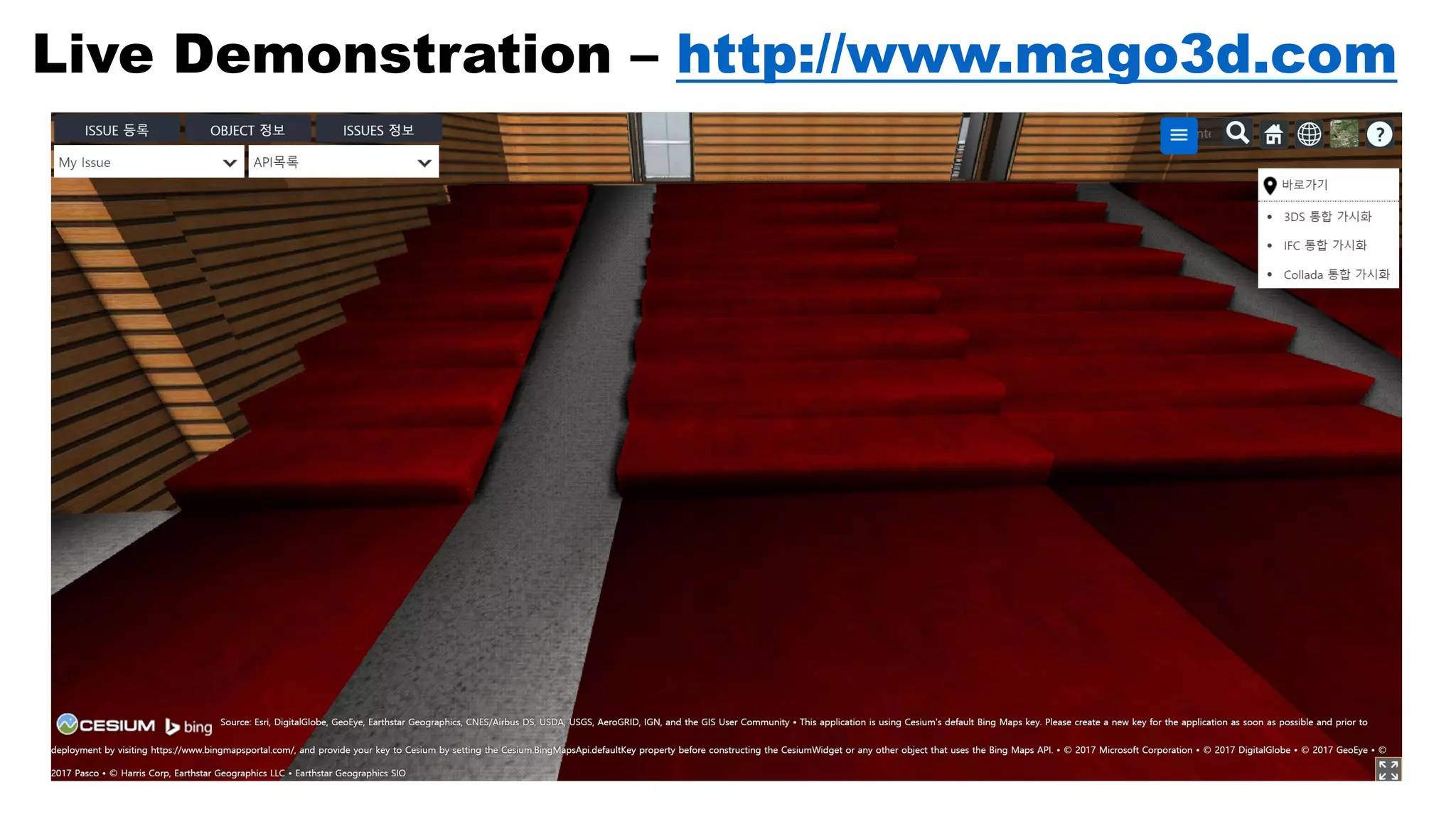

31. Live Demonstration – http://www.mago3d.com

32. Let’s look into it technically

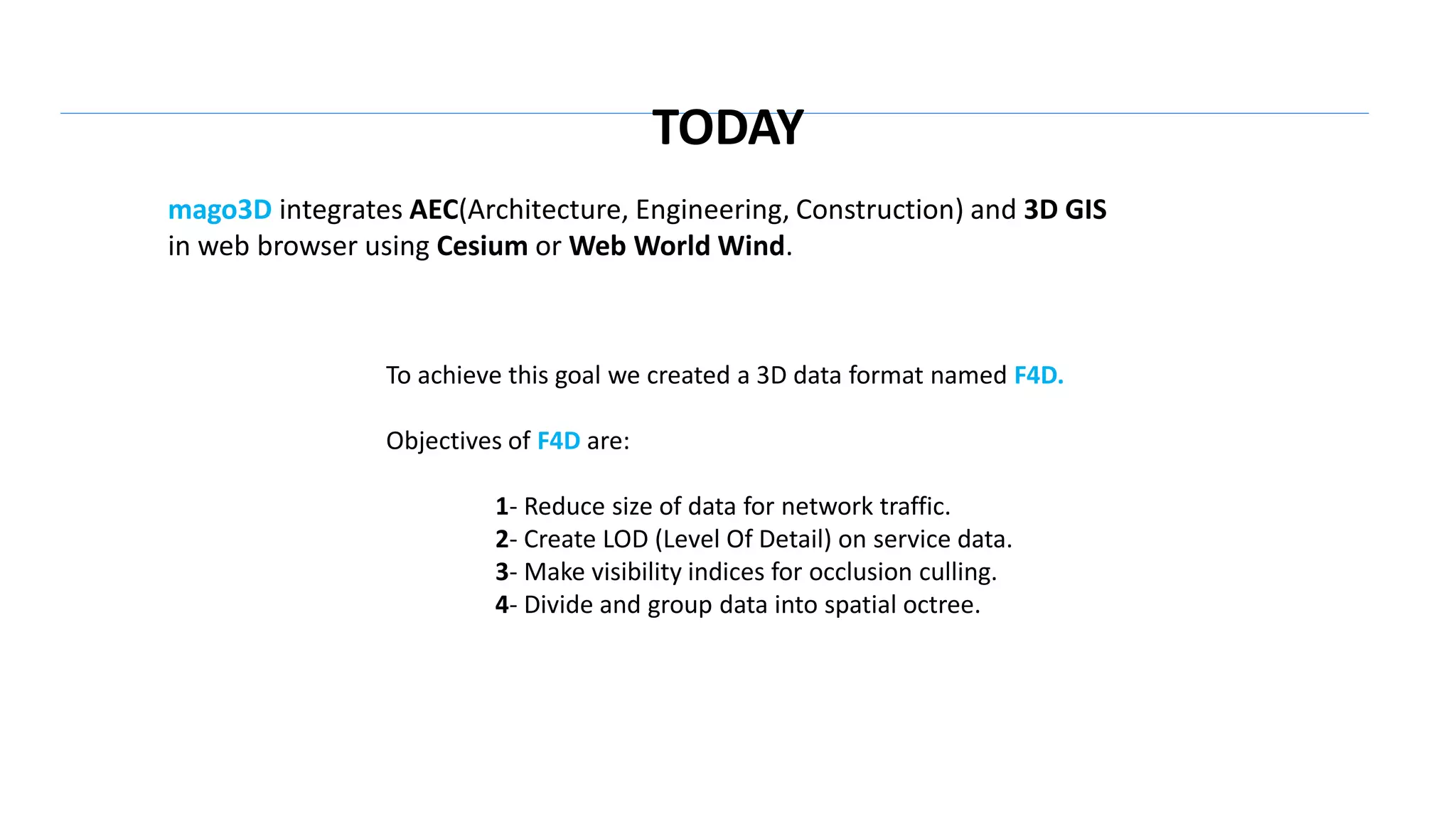

33. mago3D integrates AEC(Architecture, Engineering, Construction) and 3D GIS
in web browser using Cesium or Web World Wind.
To achieve this goal we created a 3D data format named F4D.
Objectives of F4D are:
1- Reduce size of data for network traffic.
2- Create LOD (Level Of Detail) on service data.
3- Make visibility indices for occlusion culling.
4- Divide and group data into spatial octree.
TODAY

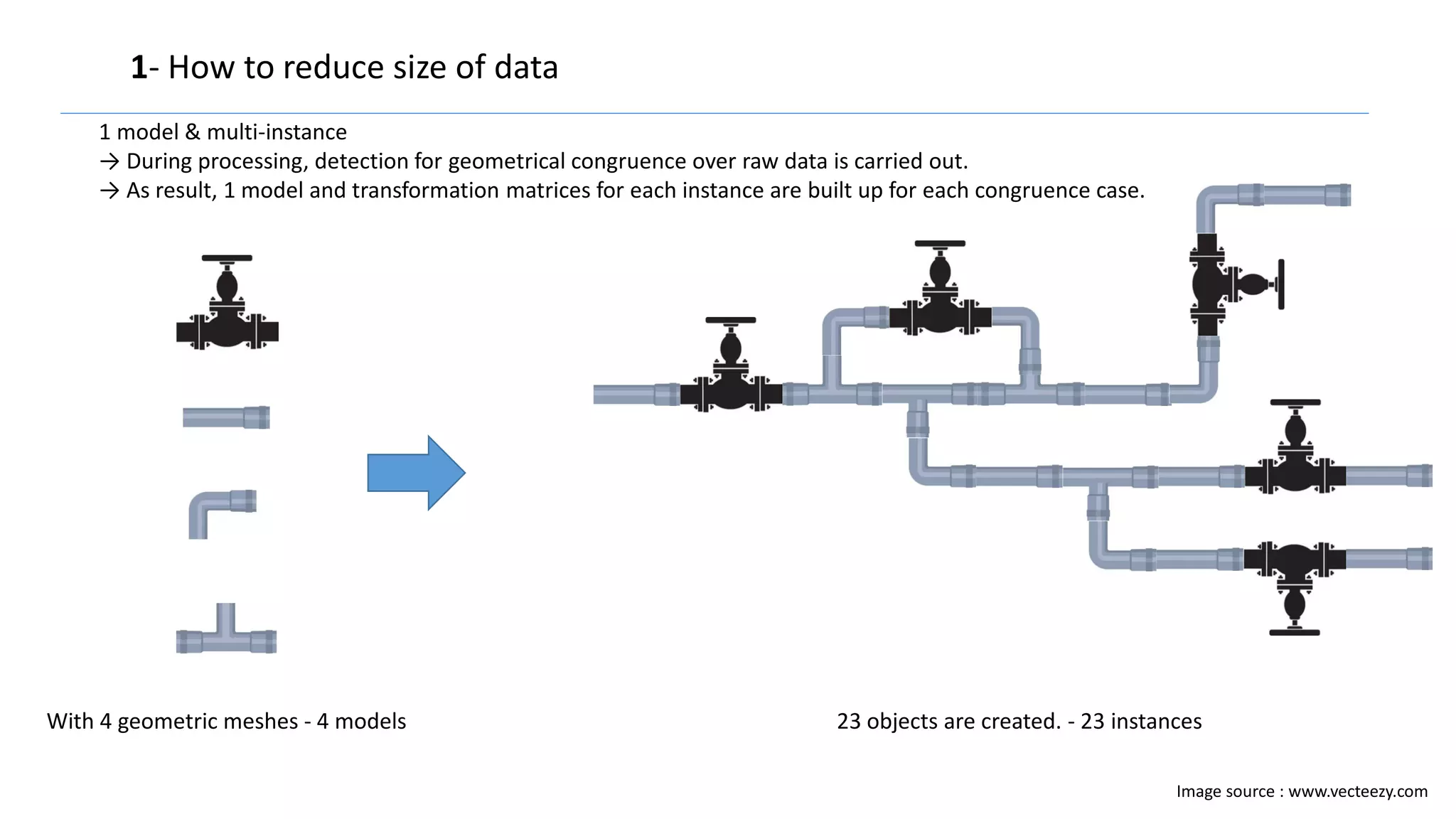

34. 1- How to reduce size of data
1 model & multi-instance
→ During processing, detection for geometrical congruence over raw data is carried out.
→ As result, 1 model and transformation matrices for each instance are built up for each congruence case.
With 4 geometric meshes - 4 models 23 objects are created. - 23 instances
Image source : www.vecteezy.com

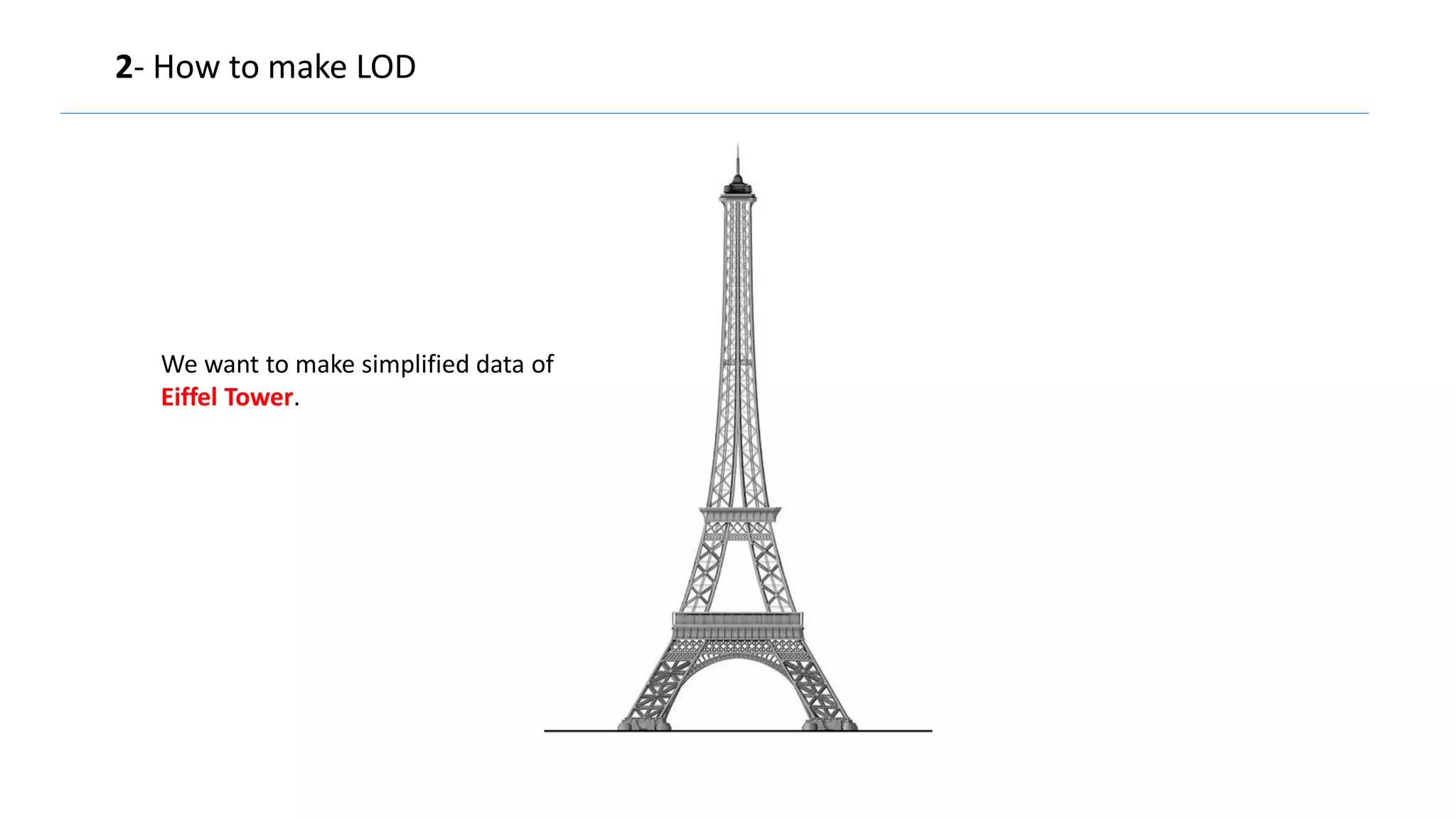

35. 2- How to make LOD
We want to make simplified data of
Eiffel Tower.

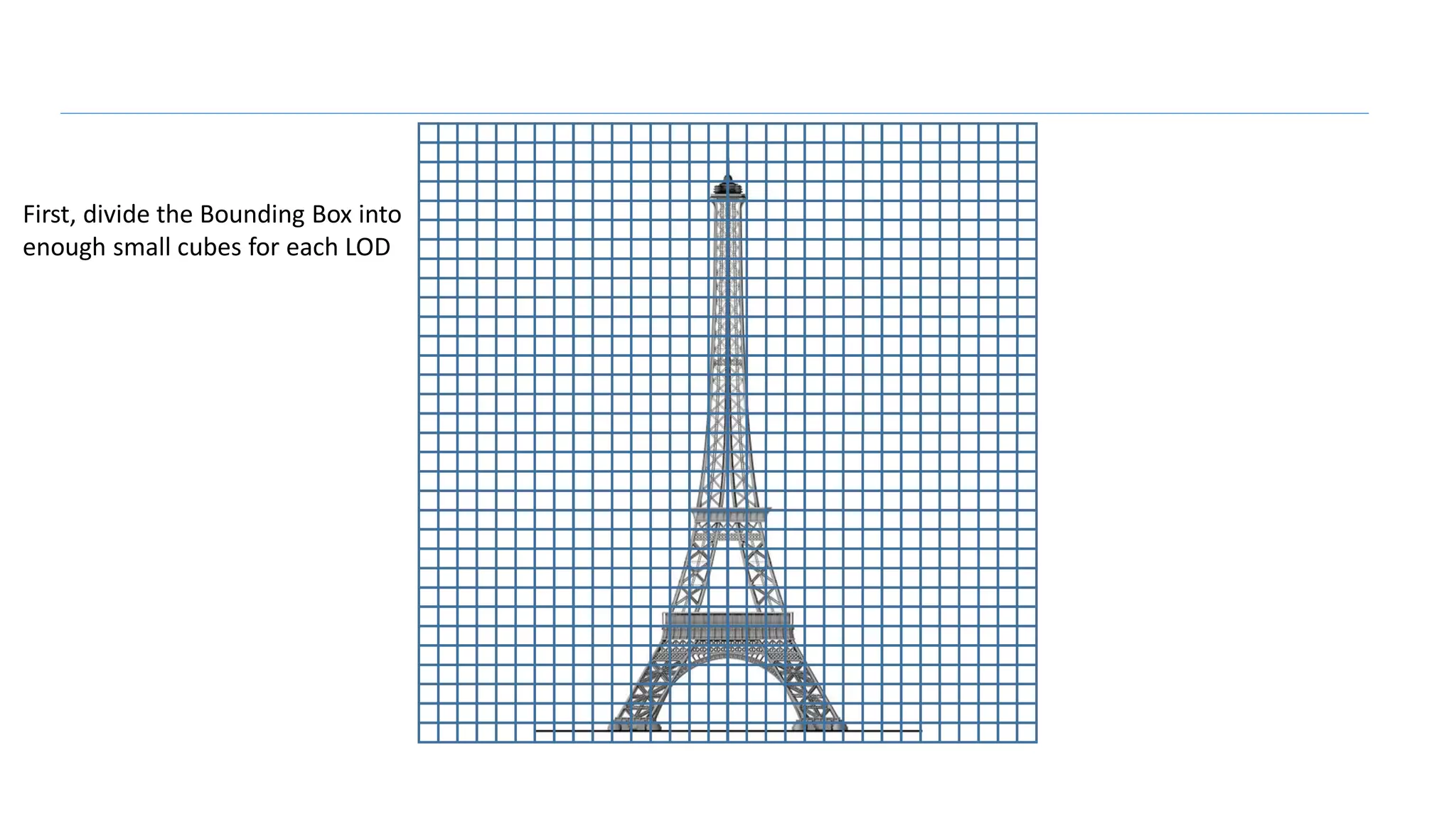

36. First, divide the Bounding Box into
enough small cubes for each LOD

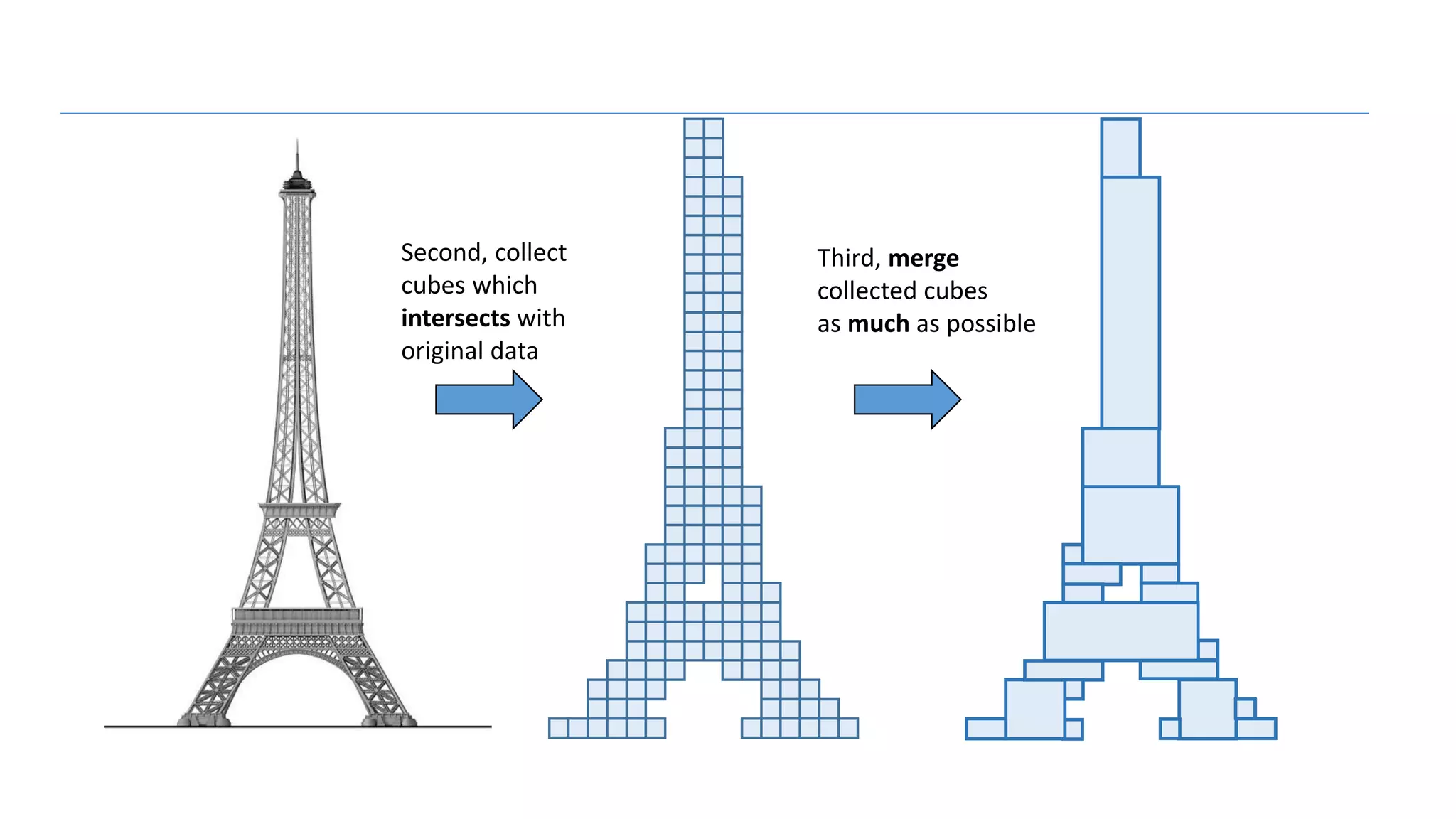

37. Third, merge
collected cubes
as much as possible
Second, collect
cubes which
intersects with
original data

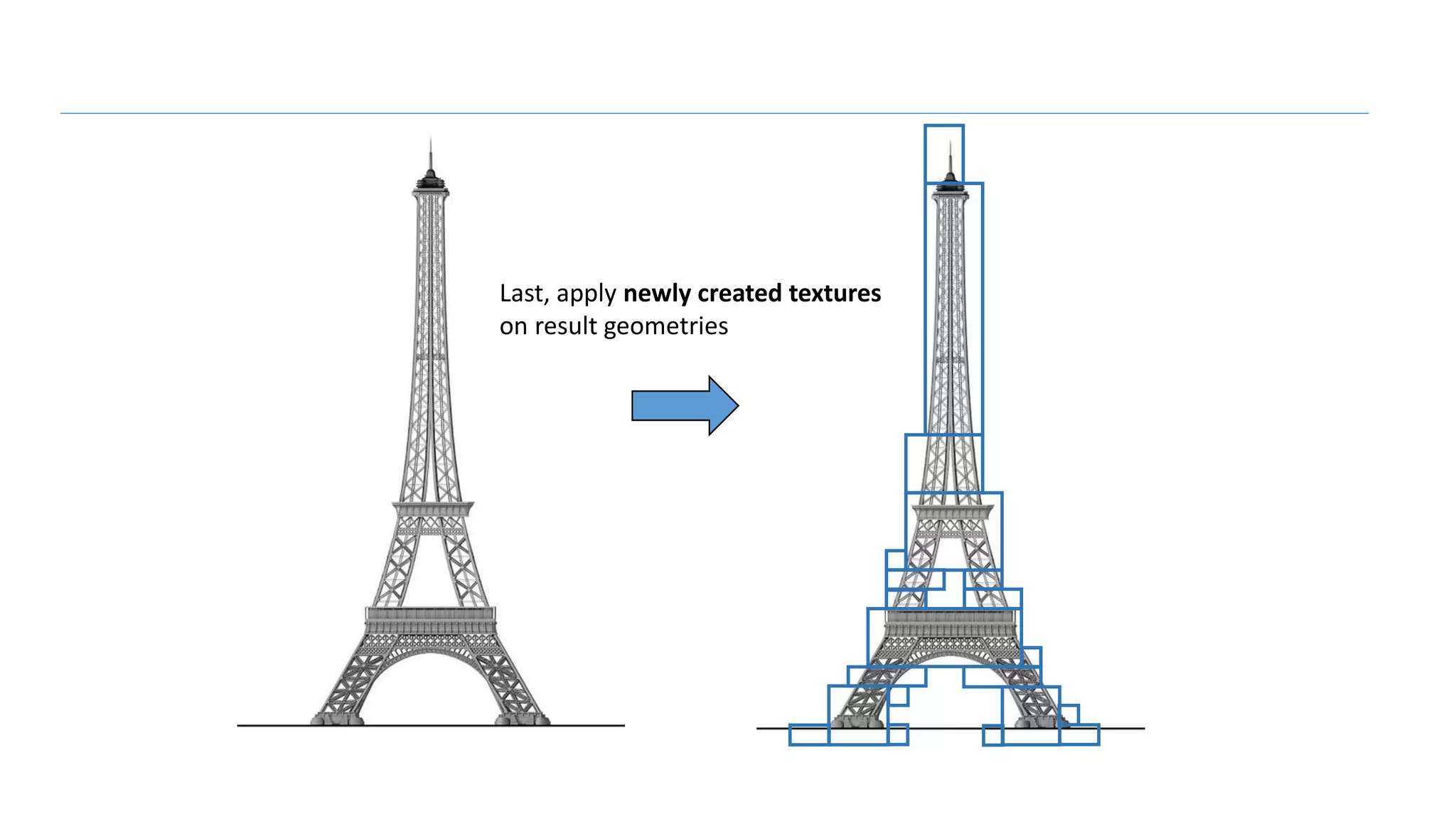

38. Last, apply newly created textures
on result geometries

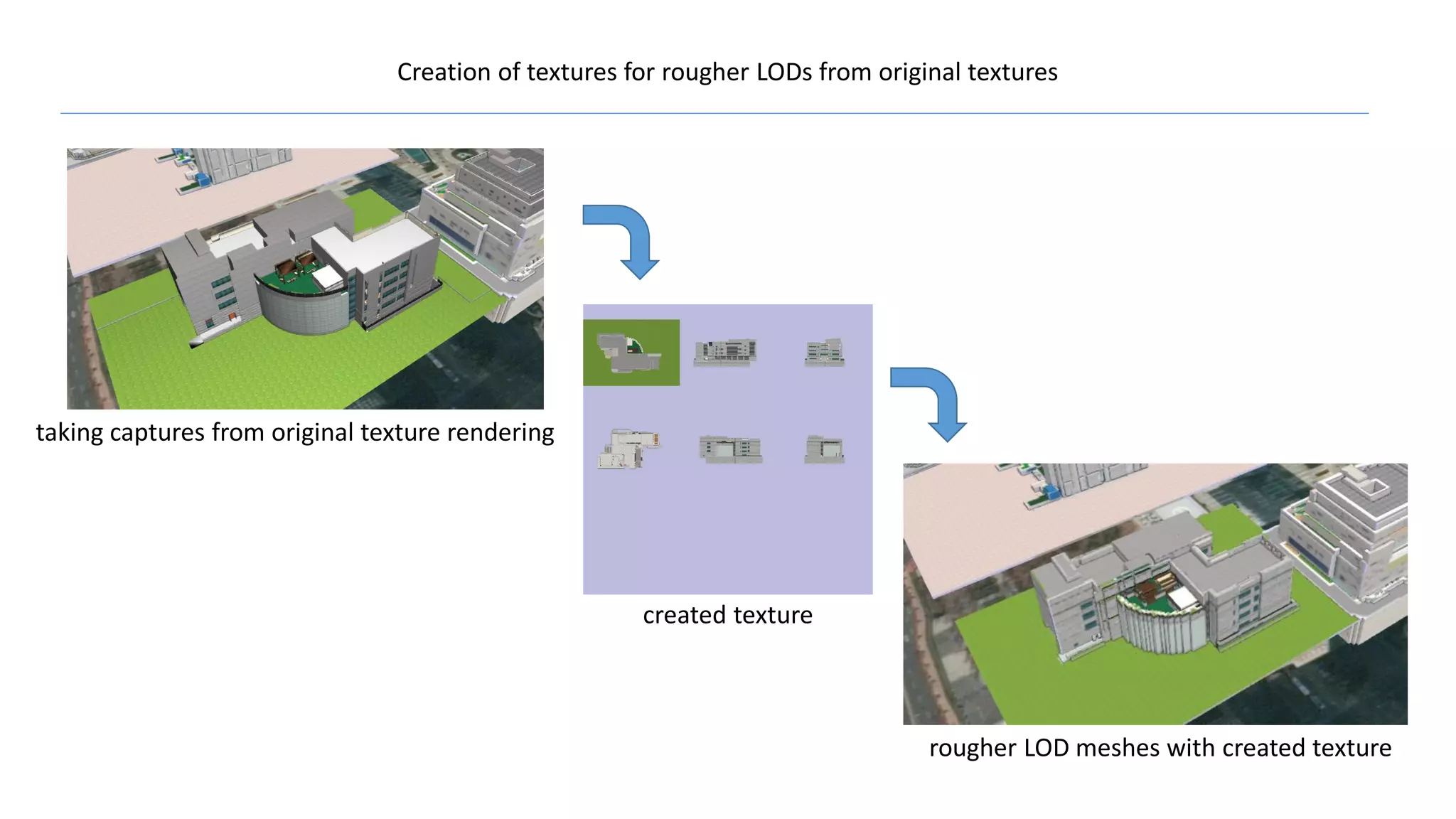

39. Creation of textures for rougher LODs from original textures
taking captures from original texture rendering
rougher LOD meshes with created texture
created texture

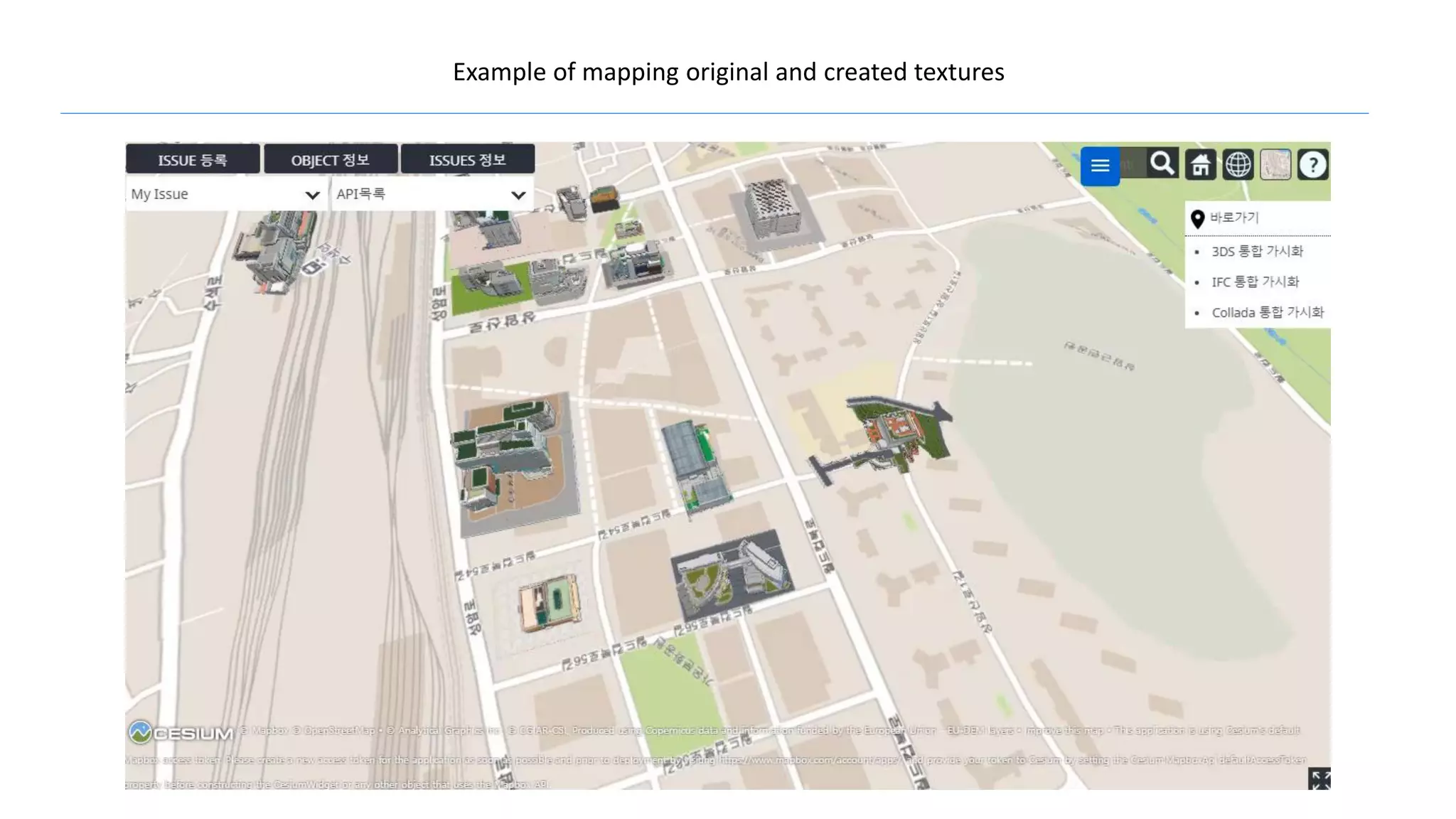

40. Example of mapping original and created textures

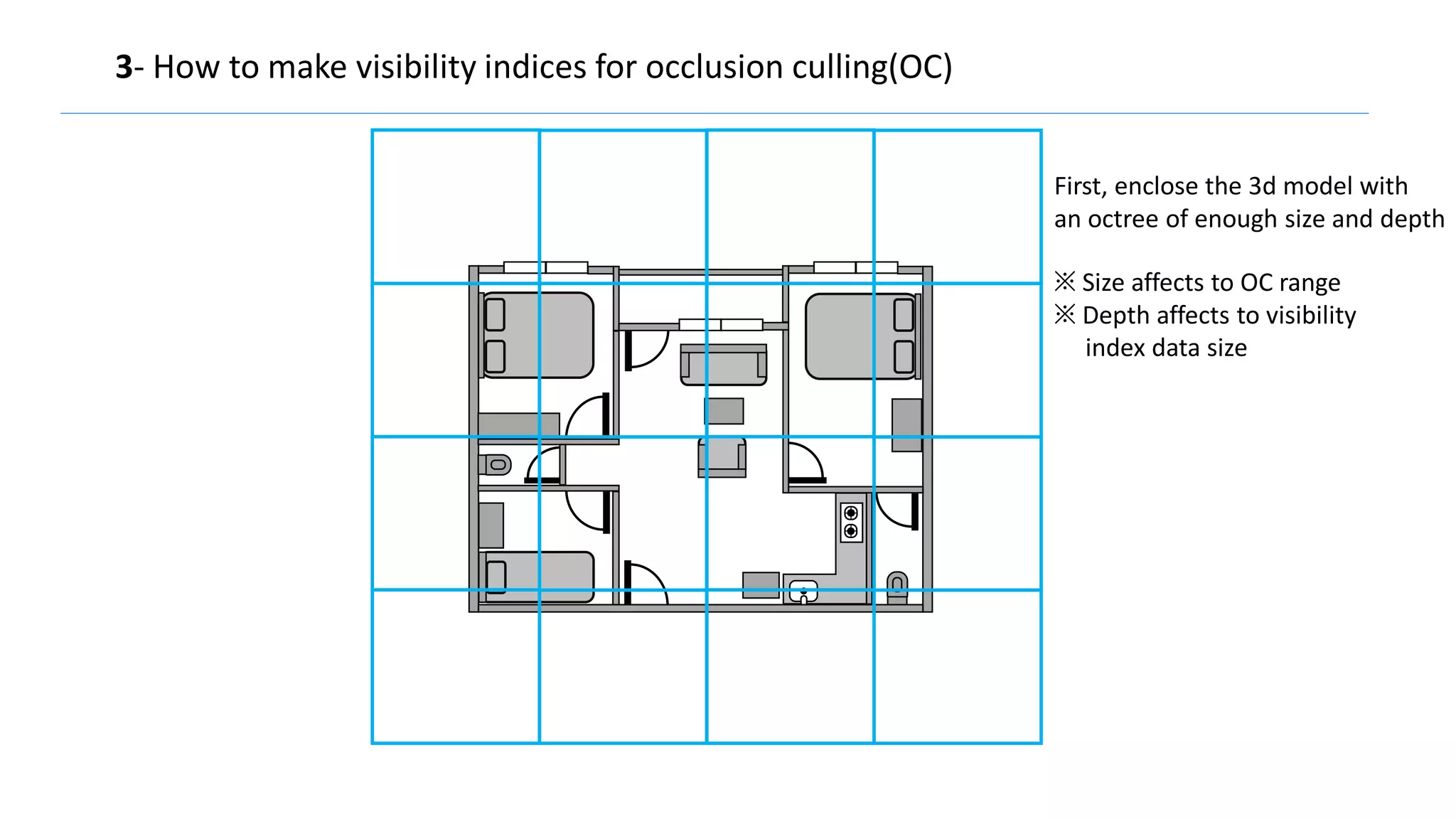

41. 3- How to make visibility indices for occlusion culling(OC)
First, enclose the 3d model with
an octree of enough size and depth
※ Size affects to OC range
※ Depth affects to visibility
index data size

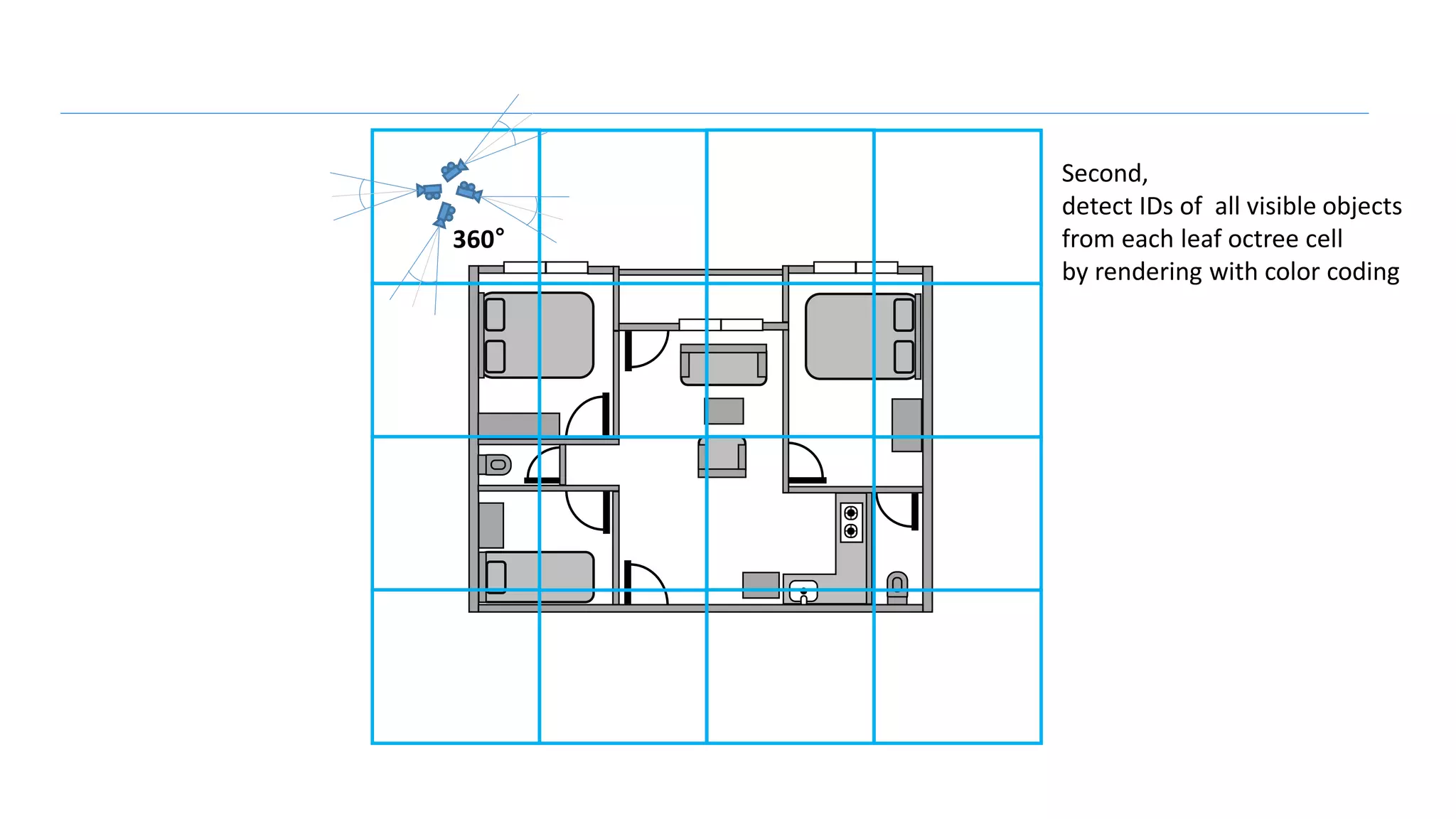

42. 360°
Second,
detect IDs of all visible objects
from each leaf octree cell
by rendering with color coding

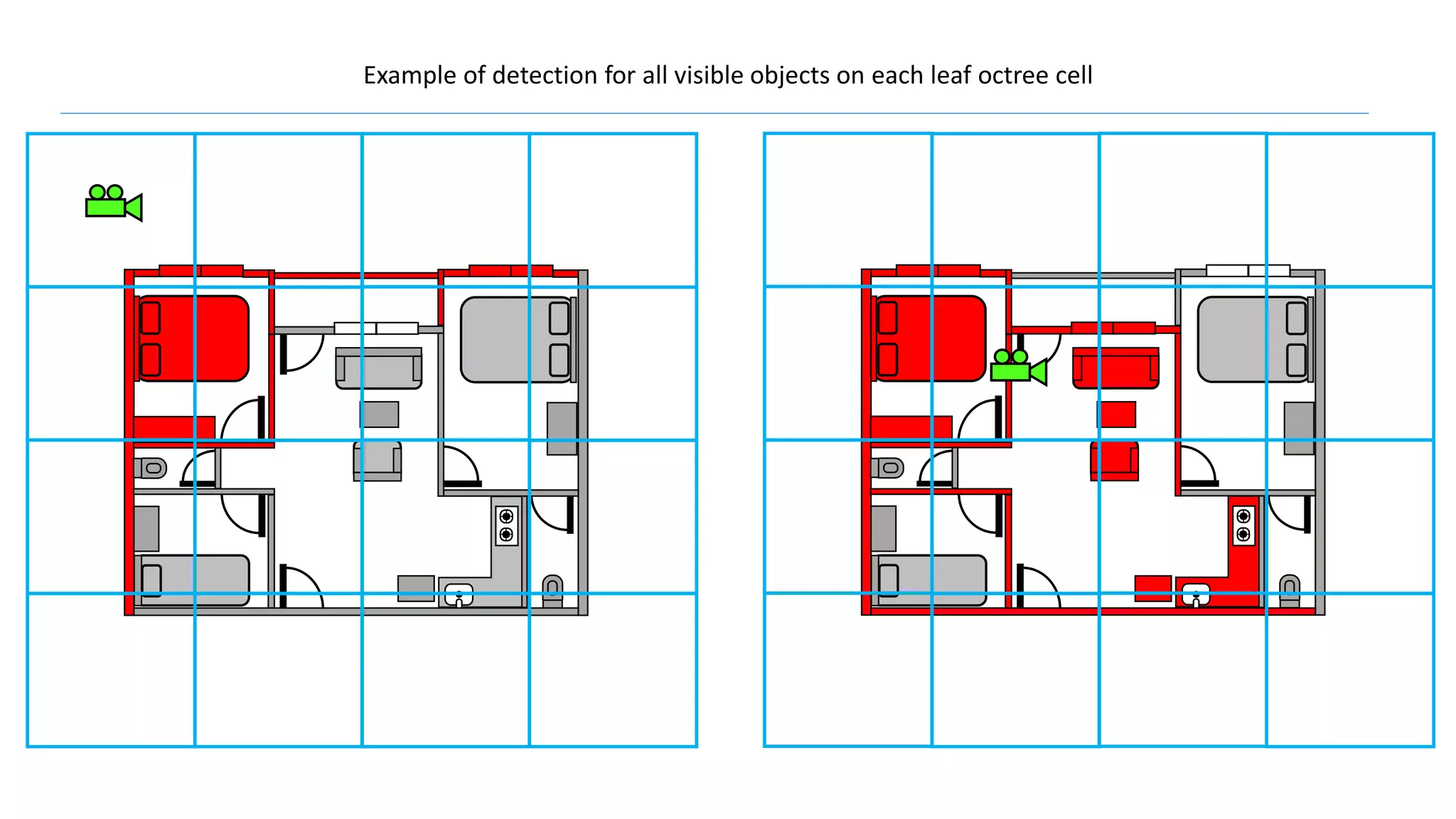

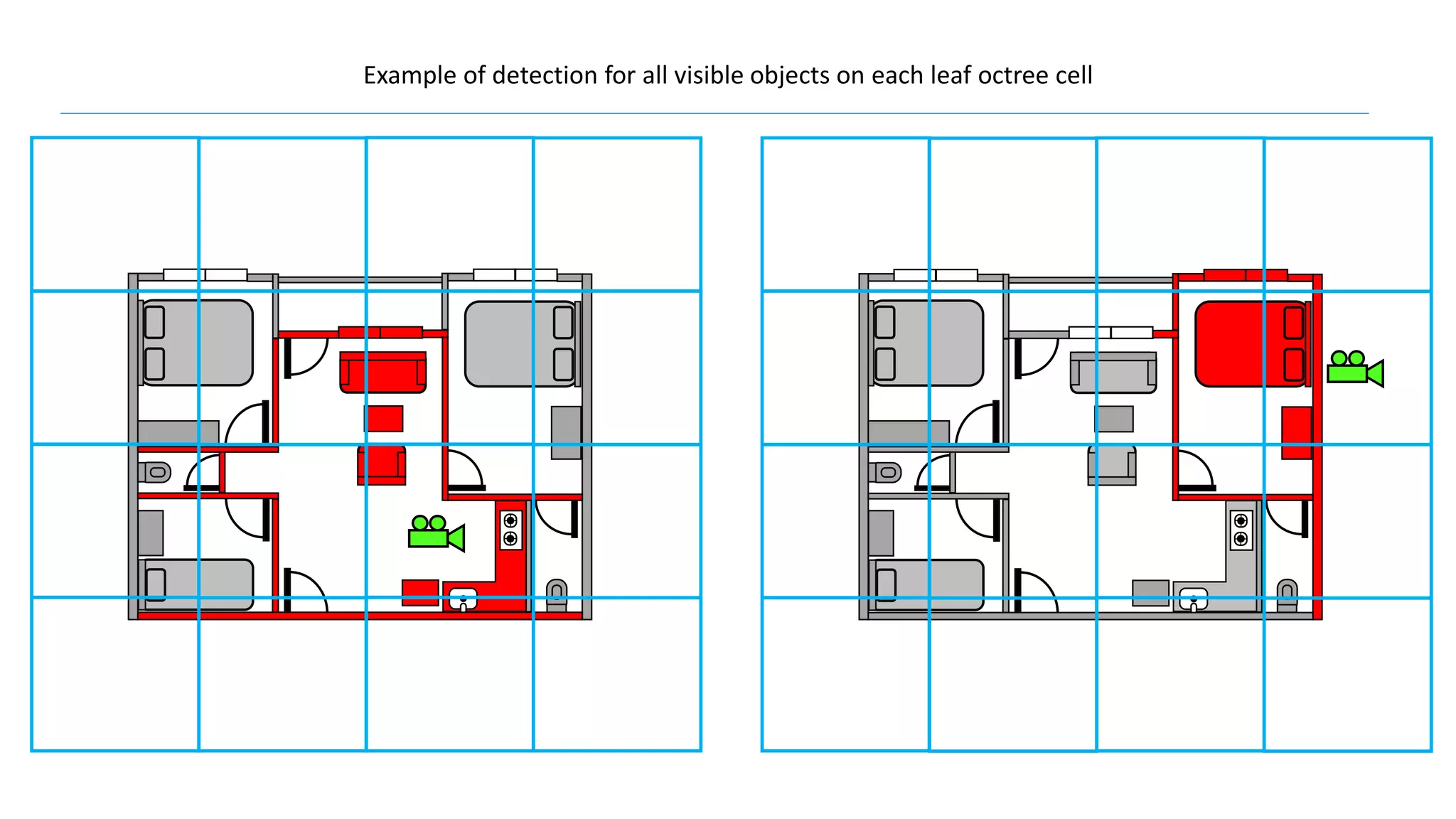

43. Example of detection for all visible objects on each leaf octree cell

44. Example of detection for all visible objects on each leaf octree cell

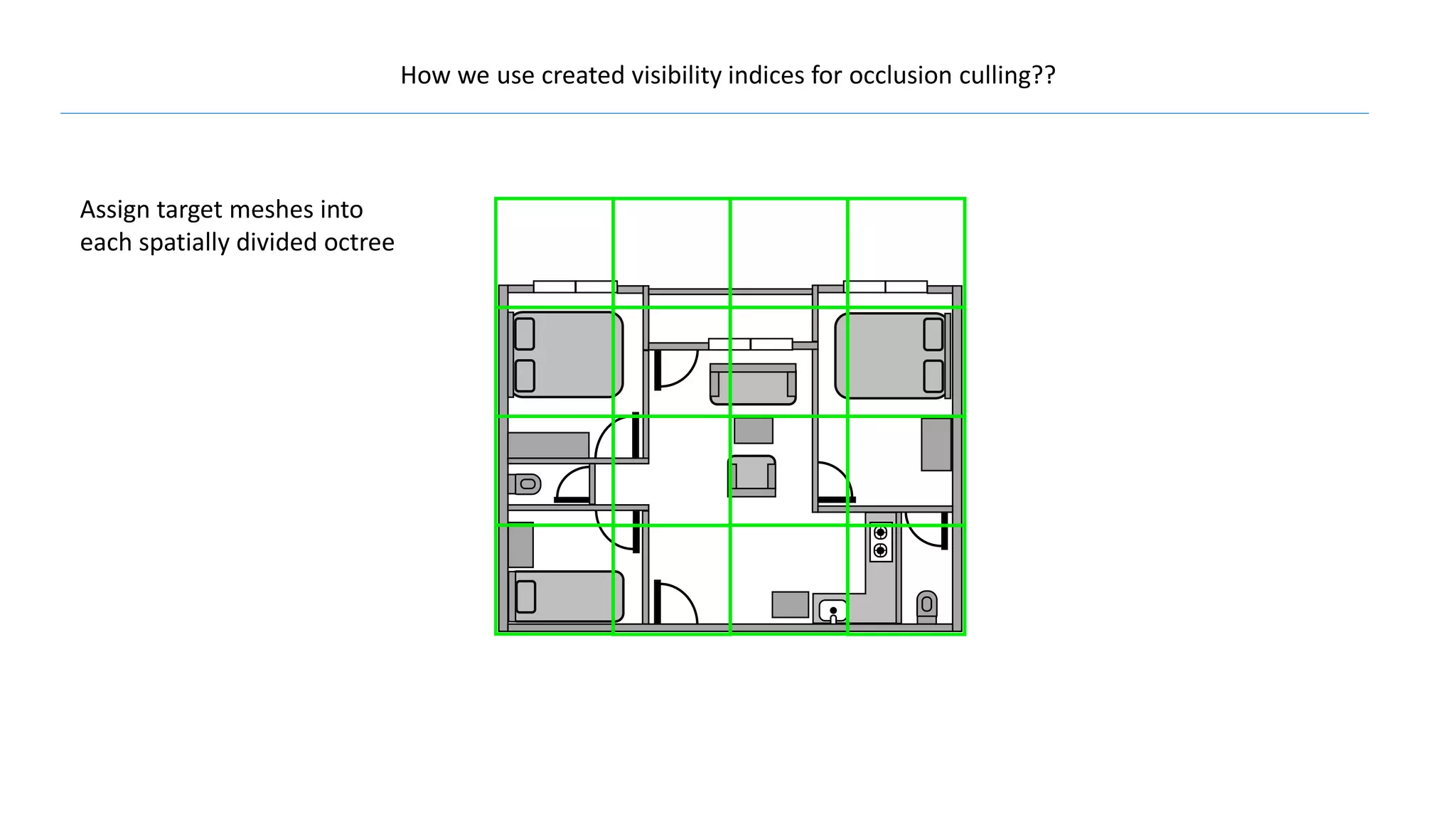

45. Assign target meshes into
each spatially divided octree
How we use created visibility indices for occlusion culling??

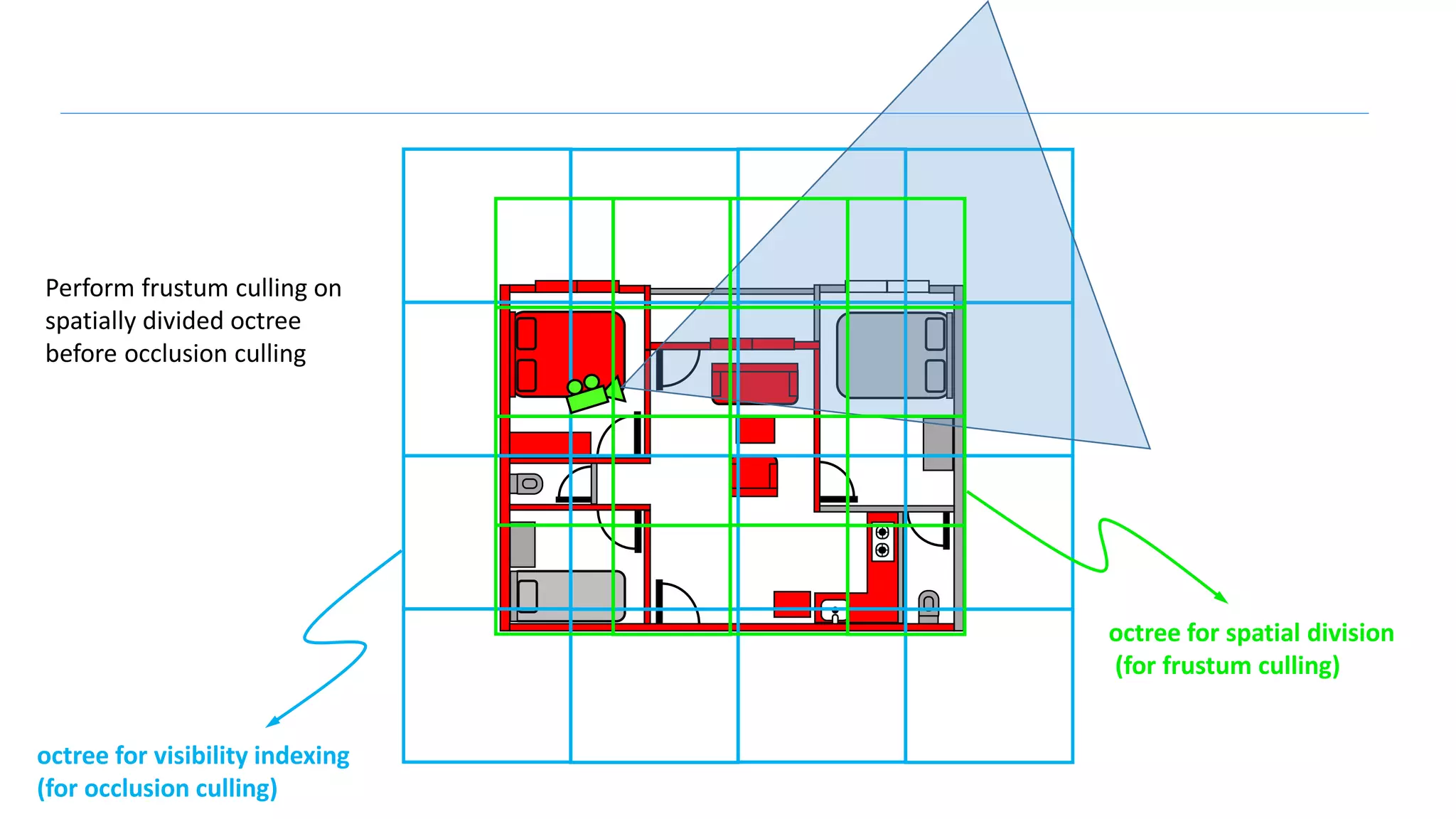

46. Perform frustum culling on
spatially divided octree
before occlusion culling
octree for visibility indexing
(for occlusion culling)
octree for spatial division
(for frustum culling)

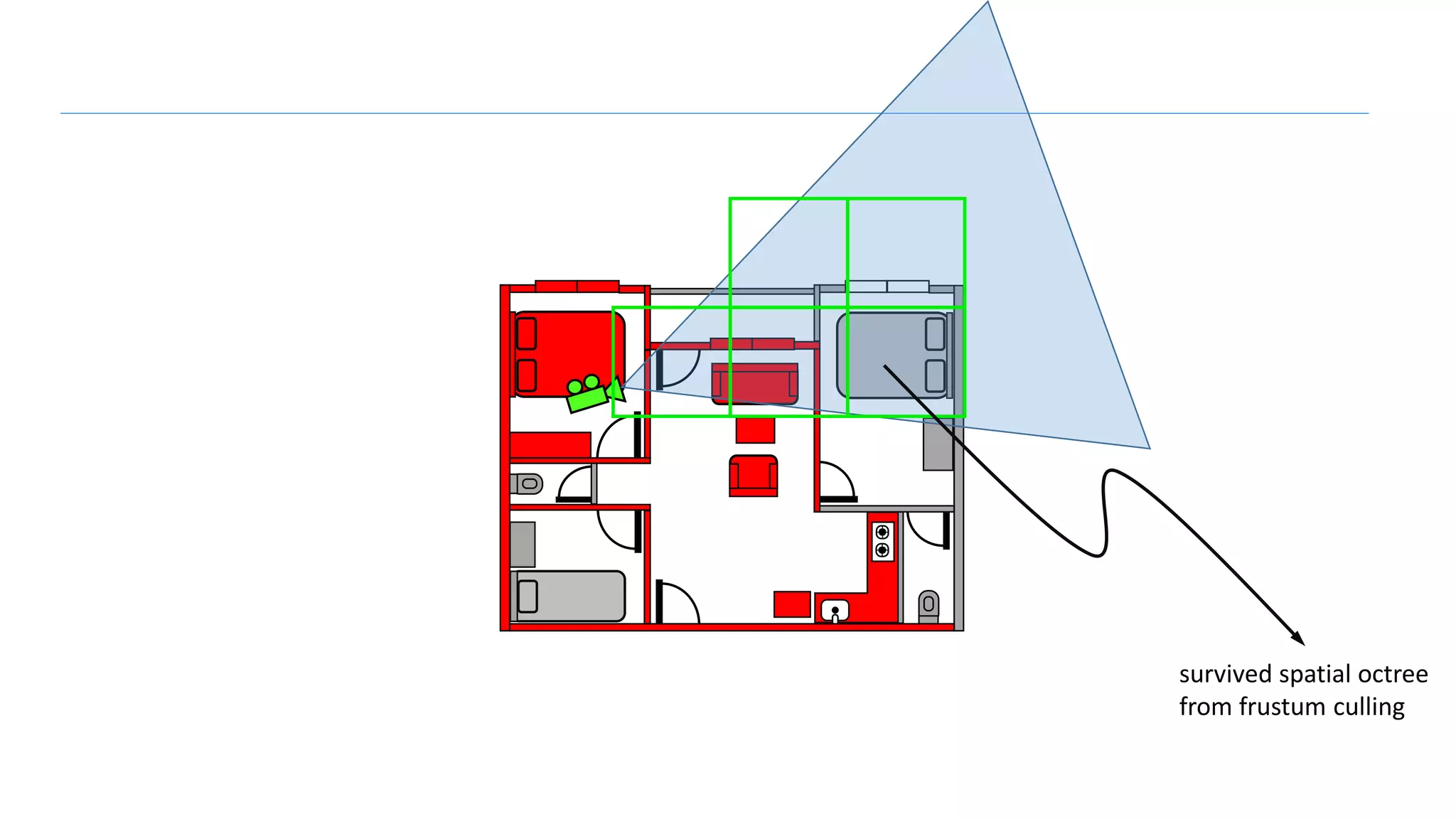

47. survived spatial octree
from frustum culling

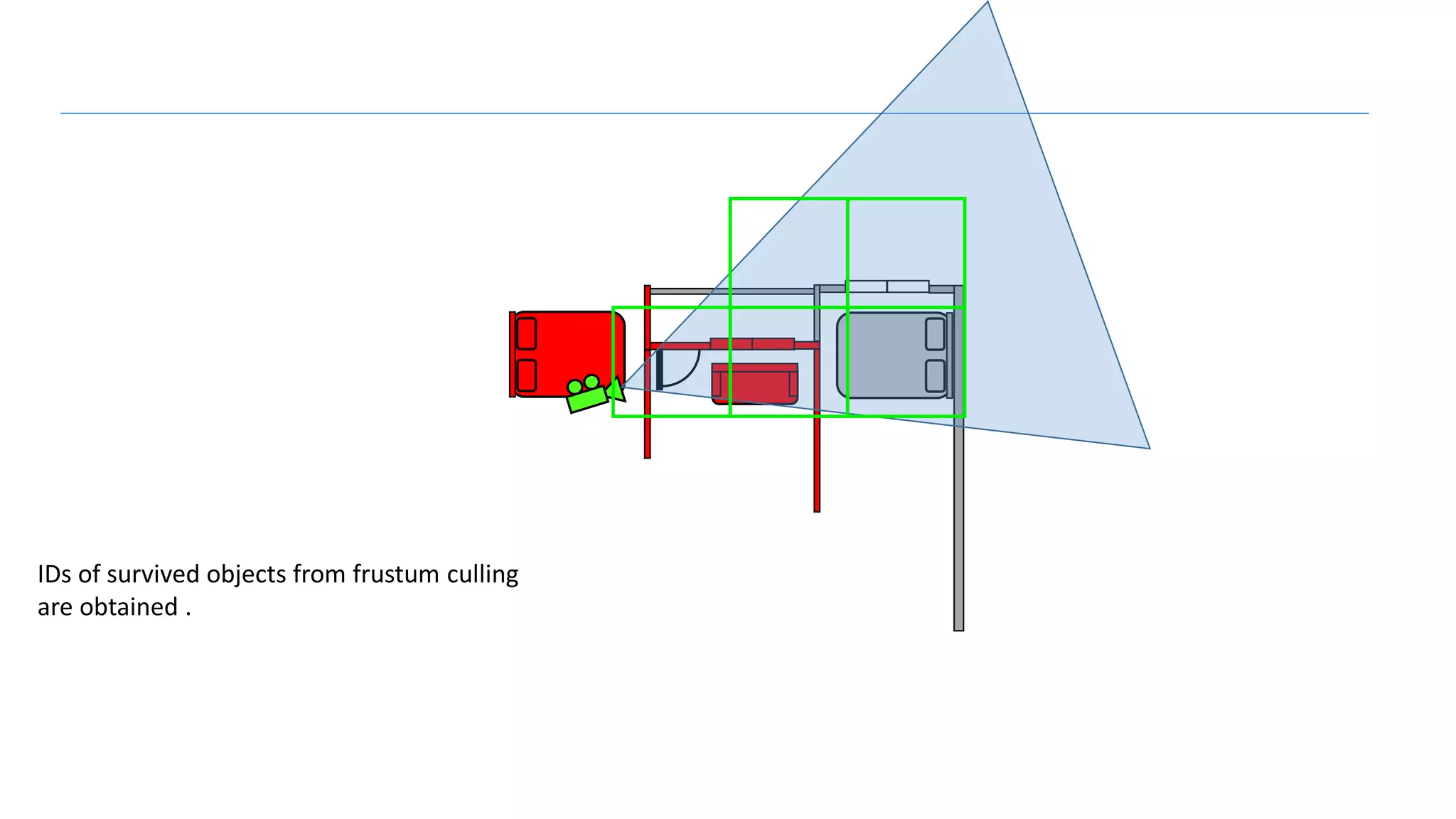

48. IDs of survived objects from frustum culling
are obtained .

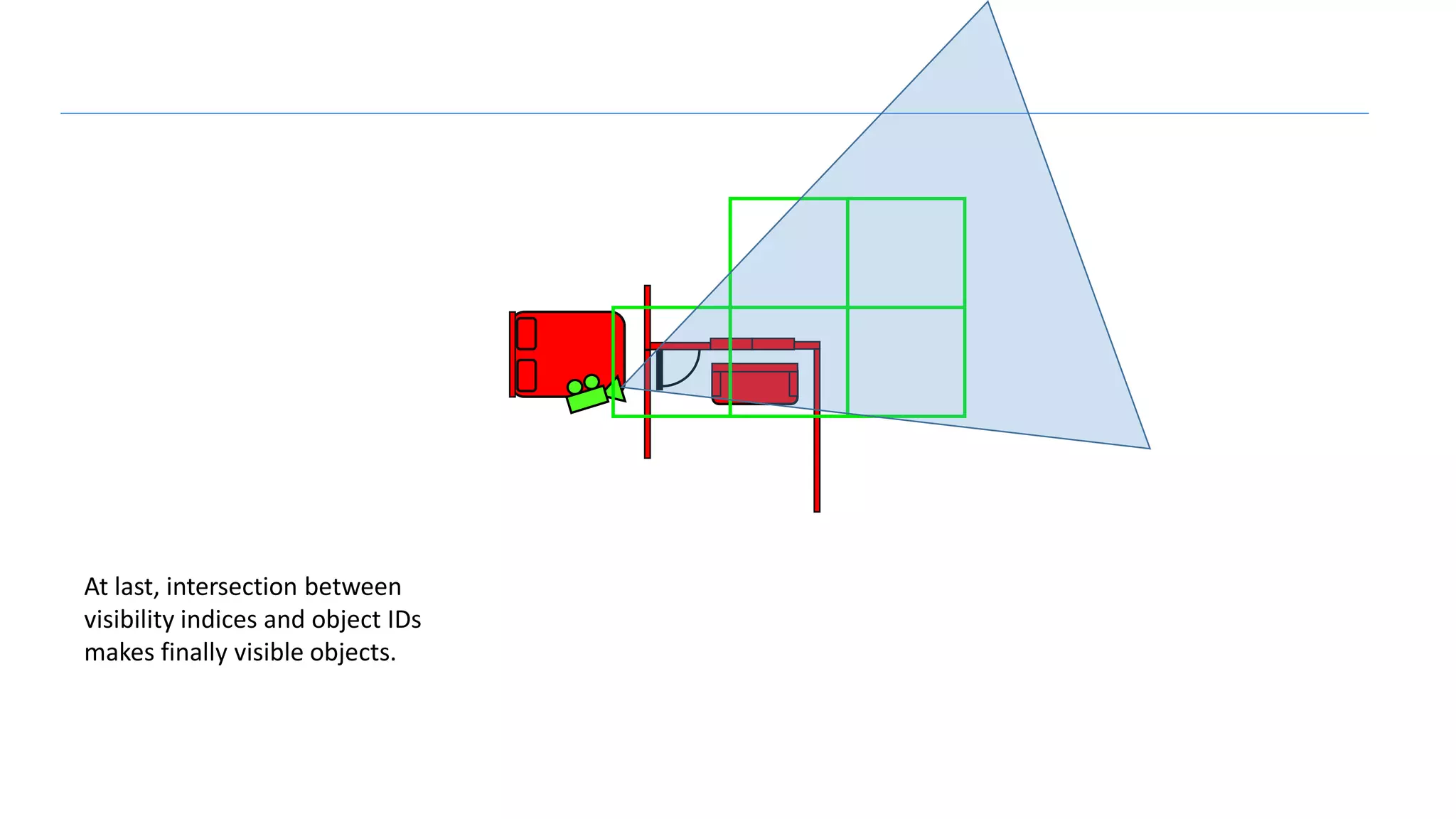

49. At last, intersection between
visibility indices and object IDs
makes finally visible objects.

50. How occlusion culling and frustum culling are performed in mago3d.

51. For more information, please visit http://www.mago3d.com
Thank you!
Acknowledgement : This project is funded by Ministry of Land, Transport and Maritime Affairs, Korea, through R&D project(number:16NSIP-B080778-04)
