This talk was given at the Geospatial World Forum 2018.
This slides introduce a brand new live 3D geo-platform called mago3D that can integrate BIM/AEC(Architecture, Engineering, Construction) and 3D GIS in a web browser. mago3D can manage and visualize millions of 3D objects from different sources in a web browser without installing any plugin or ActiveX. 2 main cores of mago3D are mago3D.js and F4D format. mago3D.js is a set of JavaScript that expands existing WebGL Globe's functionality and usability. mago3D.js increases rendering quality and speed. mago3D.js runs on top of AGI's Cesium.js and NASA Web World Wind at the moment. One of big hurdle to integrate AEC and 3D GIS simultaneously is handling and visualizing the massive 3D objects. To overcome this hurdle, new format called F4D has been devised. F4D is a sort of 3D service format that contains LOD, pre-processed occlusion culling information, and visibility indexes. Currently industry standard IFC(Industry Foundation Classes), JT(Jupiter Tessellation), and popular 3D formats such as OBJ, 3DS, COLLADA DAE can be converted to F4D format. mago3D has been successfully used in several industries including ship building, FM(Facility Management), constructions so far. Real success story of mago3D will be presented during the talk.

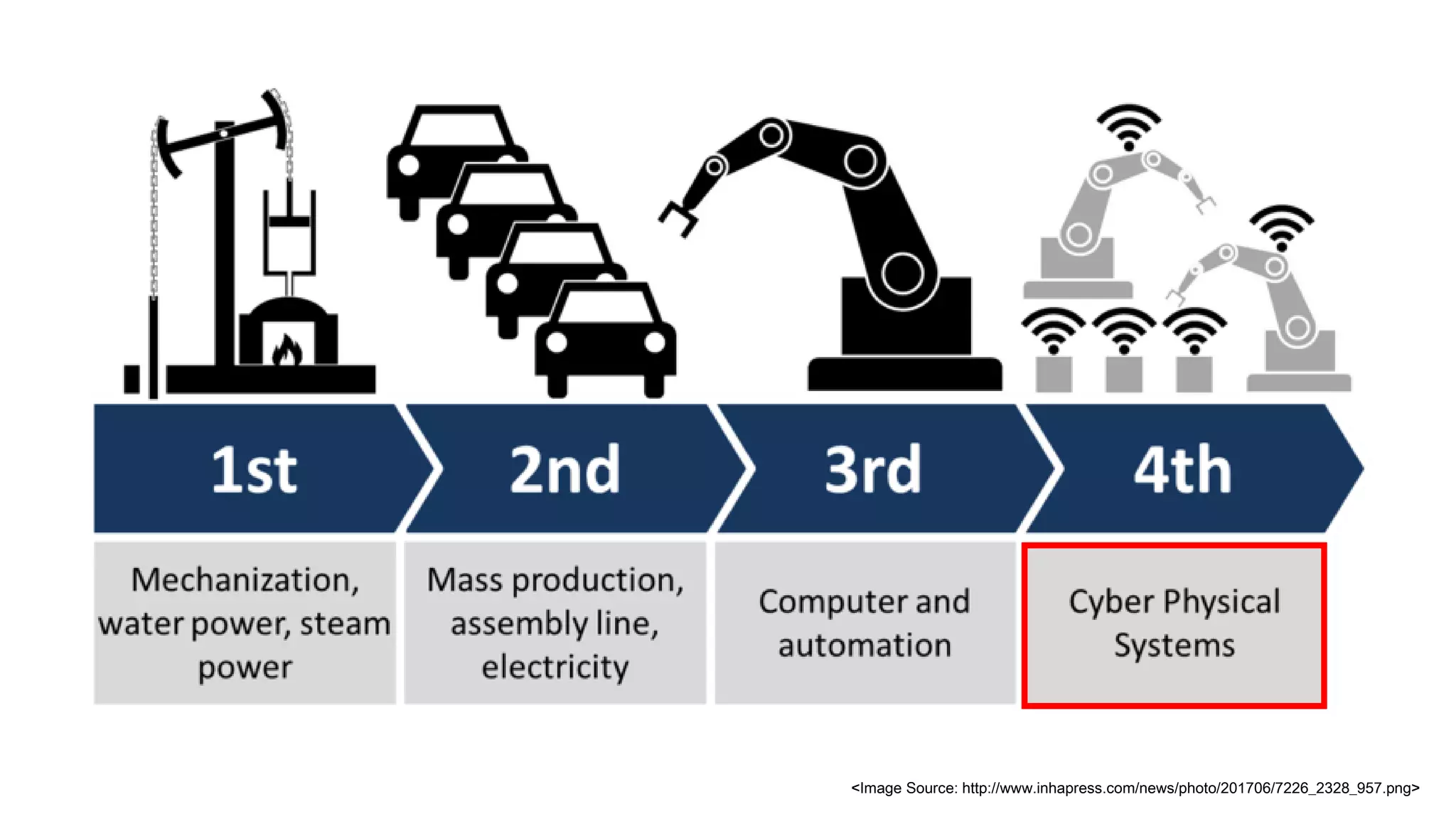

3. Geospatial Paradigm Shift
Current Future
Concept Object Information Context Awareness
Data Consumer Prosumer/DIY
User Person Things
Visualization Real World Digital Twins
Application Base Map Key Factor for Fusion
Driving Entity Public Sector Private Sector
Space Outdoor Indoor + Outdoor +
Update Cycle Static Dynamic
<Source: Hosang Sagong(2016), ‘Policy Directions of Spatial Information for Hyper-connected Society’ modified>
4. 3D GIS
A system designed for acquisition,
storing, processing, analysis,
management, or publishing of geo-
spatial data in 3D environment
5. <Image Source: http://geospatial.net >
BIM/AEC
A digitalized design data of construction,
infrastructure, or large-sized facilities/machineries
under CAD(Computer Aided Design) environment
13. mago3D is a platform for …
Visualizing massive and complex 3D objects including BIM
on a web browser
1
Seamless integration of BIM/AEC and 3D GIS in a single space2
Web based collaborative issue/process management4
‘Digital Twin’ that can create parallel worlds in a virtual reality
with numerous IoT, sensor data
3
15. 2 Main Cores of mago3D…
F4D Converter mago3D.js
mago3D.js
3D GIS Engines
Cesium.js
WebWorldWind.js
API
API
service html
F4D Converter
F4D
.ifc
.3ds
.obj
.dae
F4D Converter converts 3D formats(IFC, 3DS, OBJ, DAE, JT)
to 3D internet service format F4D. It carries out data size
reducing and pre-processing for fast rendering.
JavaScript that expands existing WebGL Globe’s features to
support BIM and indoor space.
16.
17. BIM Integration
Seamless integration of BIM and 3D GIS
on the same platform
Scene from indoor to outdoor through windows Scene from outdoor to indoor through windows
21. 6 currently – Visualization of large-sized and highly detailed AEC data
Tunnel, Department store, Bridge,
Overpass offered by CUG(Civil
User Group) in Japan
Tunnel, Bridge in Japan
22. 6 currently – Various API supported
APIs are supported for
developing application
systems(currently 29 APIs) moving/rotating
a full building
moving objects &
viewing attributes
registration/monitoring/search of issues
OpenAPIs
28. In Summary
• mago3D is a web based 3D objects visualization and management platform that can int
egrate BIM/AEC and GIS.
• It can visualize massive and complex 3D objects including BIM on a web browser witho
ut installing additional program or plugins.
• It utilizes open source WebGL Globe - Cesium, World Wind or others to expand those fe
atures and functions to indoor level.
• mago3D itself is a open source project with Apache and AGPL licenses.
• It supports many industry standard formats such as ifc, 3ds, obj, dae, kml, gltf...
29. For more information, please visit http://mago3d.com
All the source codes are available at https://github.com/gaia3d
Thank you!
Acknowledgement : This project is funded by Ministry of Land, Infrastructure and Transportation, Korea, through R&D number:18NSIP-B080778-04
