LTE Sales Training for CPE Device
- 1.

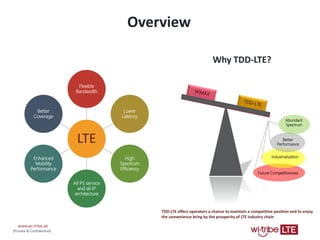

- 2. 2 www.wi-tribe.pk (Private & Confidential) LTE Flexible Bandwidth Lower Latency High Spectrum Efficiency AllPS service and all IP architecture Enhanced Mobility Performance Better Coverage Future Competitiveness Abundant Spectrum Better Performance Industrialization Why TDD-LTE? Overview TDD-LTE offers operators a chance to maintain a competitive position and to enjoy the convenience bring by the prosperity of LTE industry chain

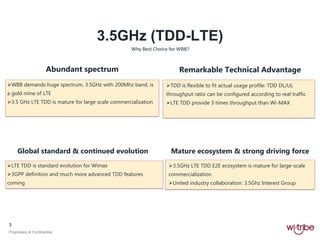

- 3. 3 Proprietary & Confidential TDDis flexible to fit actual usage profile: TDD DL/UL throughput ratio can be configured according to real traffic LTE TDD provide 3 times throughput than Wi-MAX Remarkable Technical Advantage WBB demands huge spectrum, 3.5GHz with 200Mhz band, is a gold mine of LTE 3.5 GHz LTE TDD is mature for large scale commercialization Abundant spectrum LTE TDD is standard evolution for Wimax 3GPP definition and much more advanced TDD features coming Global standard & continued evolution 3.5GHz LTE TDD E2E ecosystem is mature for large-scale commercialization United industry collaboration: 3.5Ghz Interest Group Mature ecosystem & strong driving force 3.5GHz (TDD-LTE) Why Best Choice for WBB?

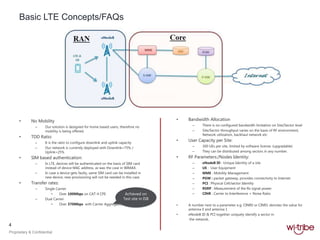

- 4. 4 Proprietary & Confidential BasicLTE Concepts/FAQs • No Mobility – Our solution is designed for home based users, therefore no mobility is being offered. • TDD Ratio: – It is the ratio to configure downlink and uplink capacity – Our network is currently deployed with Downlink=75% / Uplink=25% • SIM based authentication: – In LTE, devices will be authenticated on the basis of SIM card instead of device MAC address, as was the case in WIMAX. – In case a device gets faulty, same SIM card can be installed in new device, new provisioning will not be needed in this case. • Transfer rates: – Single Carrier • Over 100Mbps on CAT-4 CPE – Dual Carrier • Over 370Mbps with Carrier Aggregation • Bandwidth Allocation – There is no configured bandwidth limitation on Site/Sector level – Site/Sector throughput varies on the basis of RF environment, Network utilization, backhaul network etc • User Capacity per Site: – 300 UEs per site, limited by software license. (upgradable) – They can be distributed among sectors in any number. • RF Parameters:/Nodes Identity: – eNodeB ID : Unique Identity of a site – UE : User Equipment – MME : Mobility Management – PGW : packet gateway, provides connectivity to Internet – PCI : Physical Cell/sector Identity – RSRP : Measurement of the Rx signal power. – CINR : Carrier to Interference + Noise Ratio • A number next to a parameter e.g. CINR0 or CINR1 denotes the value for antenna 0 and antenna 1 • eNodeB ID & PCI together uniquely identify a sector in the network. Achieved on Test site in ISB
- 5. 5 Proprietary & Confidential CPEDevices CAT 4 Speed up to 150 Mbps 2 x 2 MIMO No Carrier Aggregation CAT 6 Speed up to 300 Mbps 4 x 4 MIMO Carrier Aggregation Supported CAT 12 4 x 4 MIMO Carrier Aggregation Supported Carrier size can be varied up to 20 MHz

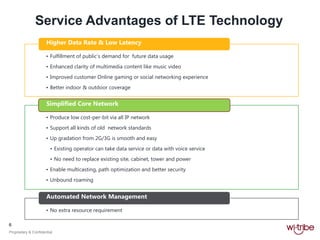

- 6. 6 Proprietary & Confidential ServiceAdvantages of LTE Technology • Fulfillment of public’s demand for future data usage • Enhanced clarity of multimedia content like music video • Improved customer Online gaming or social networking experience • Better indoor & outdoor coverage Higher Data Rate & Low Latency • Produce low cost-per-bit via all IP network • Support all kinds of old network standards • Up gradation from 2G/3G is smooth and easy • Existing operator can take data service or data with voice service • No need to replace existing site, cabinet, tower and power • Enable multicasting, path optimization and better security • Unbound roaming Simplified Core Network • No extra resource requirement Automated Network Management

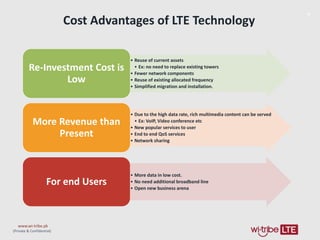

- 7. 7 www.wi-tribe.pk (Private & Confidential) CostAdvantages of LTE Technology • Reuse of current assets • Ex: no need to replace existing towers • Fewer network components • Reuse of existing allocated frequency • Simplified migration and installation. Re-Investment Cost is Low • Due to the high data rate, rich multimedia content can be served • Ex: VoIP, Video conference etc • New popular services to user • End to end QoS services • Network sharing More Revenue than Present • More data in low cost. • No need additional broadband line • Open new business arena For end Users
- 8. 8 www.wi-tribe.pk (Private & Confidential) FastDeployment Fiber-class speed Reduce Total Cost of Ownership Fast Return of Investment Good Management Rich Services vEPC • Cloud Based EPC • Advanced platform and enhanced capability • Reduces the number of cabinets needed MME SGW/PG W HSS PCRF SAE U2000 PRS SingleEPC Single OSS OSS • Unified Hardware Platform for All Operating System Software Products eRAN • Single electronic radio access network SingleRAN BBU3910 8T8R RRU Delivery • Accelerated delivery quick response nationwide • Abundant local resources and channels Terminal • USB Dongle, CPE • MiFi Router • Outdoor indoor CPE Abundant Terminal Strong Delivery Ability 4T4R 8T8R 2T2R M-MIMO More Antenna Better Performance Huawei Solution for Wi-tribe

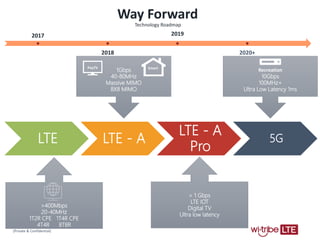

- 9. 9 www.wi-tribe.pk (Private & Confidential) LTELTE - A LTE - A Pro 5G 2017 2018 2019 2020+ >400Mbps 20-40MHz 1T2R CPE 1T4R CPE 4T4R 8T8R 1Gbps 40-80MHz Massive MIMO 8X8 MIMO Way Forward Technology Roadmap PayTV Smart Recreation CenterRecreation 10Gbps 100MHz+ Ultra Low Latency 1ms > 1 Gbps LTE IOT Digital TV Ultra low latency
- 10.
Editor's Notes
- #4 Wimax has given greenfield operators the opportunity to launch wireless broadband services in countless markets in emerging and developed countries, in urban and rural environments, as fixed broadband service or as a mobile service. Meanwhile, many longer-established WiMAX operators have decided to transition to Long Term Evolution (LTE) because of the wide support for the new technology and especially for its time-division LTE (TDD-LTE) version, a radio access technology (RAT) very similar to WiMAX and the advantages of converging to a single technology. With the exception of some vertical niche markets, most WiMAX operators will migrate to LTE, but the pace and modalities of the shift will vary greatly depending on geography, service focus, spectrum availability, and funding. Some operators want to move to LTE as quickly as possible, as this will open new markets and business opportunities to them. This is the case at Yota. The Russian operator has announced plans for a quick transition to LTE that will enable it to become a wholesale operator providing other operators access to its network. Some operators are moving to LTE at a more relaxed pace by adopting slow migration strategy.
