This report summarizes the results of a single site verification test for a Wi tribe LTE TDD project. Key findings include: 1) Throughput testing achieved the target values for all three sectors at near points and exceeded targets for some sectors at far points. 2) Latency was below targets for most tests. 3) Coverage maps show the three sectors together maximize the area covered by the site with some null areas.

1. Wi tribe LTE TDD Project
Single Site Verification Test Report
Site ID
KHI 078

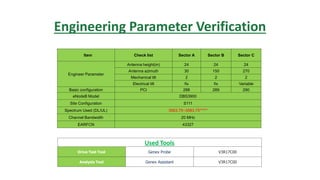

2. Engineering Parameter Verification
Used Tools
Drive Test Tool Genex Probe V3R17C00
Analysis Tool Genex Assistant V3R17C00
Item Check list Sector A Sector B Sector C
Engineer Parameter
Antenna height(m) 24 24 24
Antenna azimuth 30 150 270
Mechanical tilt 2 2 2
Electrical tilt fix fix Variable
Basic configuration PCI 288 289 290
eNodeB Model DBS3900
Site Configuration S111
Spectrum Used (DL/UL) 3563.75~3583.75*****
Channel Bandwidth 20 MHz
EARFCN 43327

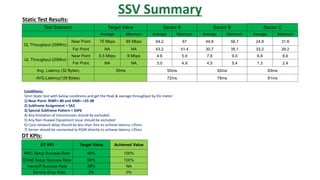

3. SSV Summary
Test Scenario Target Value Sector A Sector B Sector C
Average Maximum Average Maximum Average Maximum Average Maximum
DL Throughput (20MHz)
Near Point 75 Mbps 85 Mbps 54.2 67 44.8 56.7 24.8 31.6
Far Point NA NA 43.2 51.4 30.7 35.1 33.2 39.2
UL Throughput (20Mhz)
Near Point 6.5 Mbps 9 Mbps 4.6 5.9 7.8 9.0 6.9 8.6
Far Point NA NA 3.0 4.9 4.5 5.4 1.3 2.4
Avg. Latency (32 Bytes) 35ms 50ms 92ms 83ms
AVG.Latency(128 Bytes) 72ms 78ms 81ms
Static Test Results:
DT KPIs:
DT KPI Target Value Achieved Value
RRC Setup Success Rate 98% 100%
ERAB Setup Success Rate 98% 100%
Handoff Success Rate 98% NA
Service Drop Rate 2% 0%
Conditions:
5min Static test with below conditions and get the Peak & average throughput by DU meter:
1) Near Point: RSRP>-80 and SINR= >25 dB
2) Subframe Assignment = SA2
3) Special Subframe Pattern = SSP6
4) Any limitation of transmission should be excluded.
5) Any Non Huawei Equipment issue should be excluded
6) Core network delay should be less than 3ms to achieve latency <35ms
7) Server should be connected to PGW directly to achieve latency <35ms

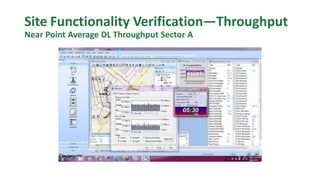

4. Site Functionality Verification—Throughput
Near Point Average DL Throughput Sector A

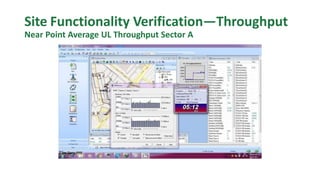

5. Site Functionality Verification—Throughput
Near Point Average UL Throughput Sector A

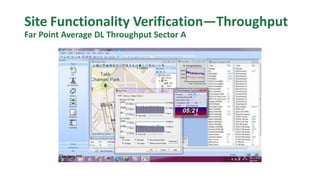

6. Site Functionality Verification—Throughput
Far Point Average DL Throughput Sector A

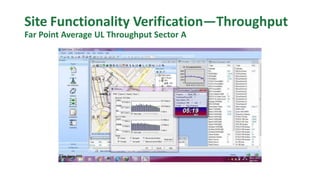

7. Site Functionality Verification—Throughput
Far Point Average UL Throughput Sector A

8. Site Functionality Verification—Throughput

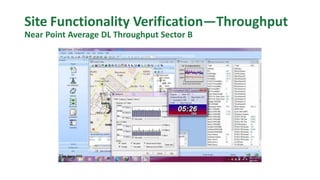

Near Point Average DL Throughput Sector B

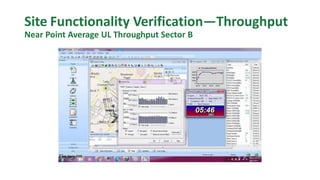

9. Site Functionality Verification—Throughput
Near Point Average UL Throughput Sector B

10. Site Functionality Verification—Throughput
Far Point Average DL Throughput Sector B

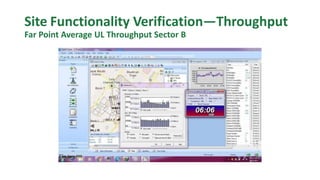

11. Site Functionality Verification—Throughput
Far Point Average UL Throughput Sector B

12. Site Functionality Verification—Throughput

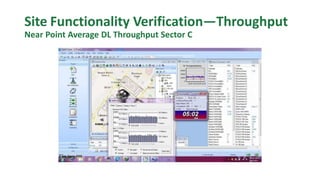

Near Point Average DL Throughput Sector C

13. Site Functionality Verification—Throughput

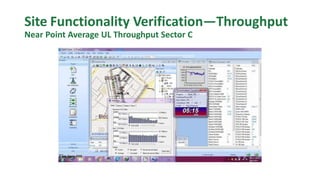

Near Point Average UL Throughput Sector C

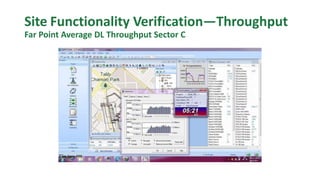

14. Site Functionality Verification—Throughput
Far Point Average DL Throughput Sector C

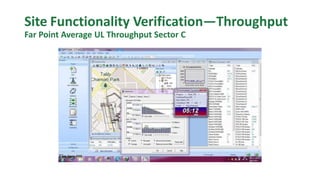

15. Site Functionality Verification—Throughput
Far Point Average UL Throughput Sector C

16. Site Functionality Verification—Latency Test

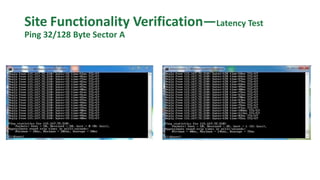

Ping 32/128 Byte Sector A

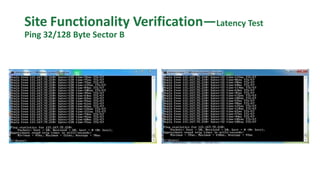

17. Site Functionality Verification—Latency Test
Ping 32/128 Byte Sector B

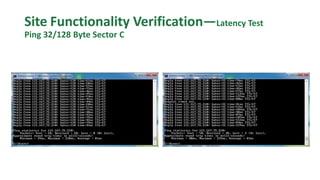

18. Site Functionality Verification—Latency Test
Ping 32/128 Byte Sector C

19. DT Route Map

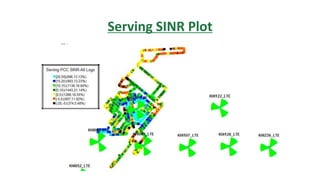

20. Serving SINR Plot

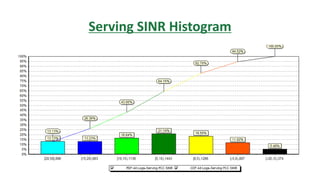

21. Serving SINR Histogram

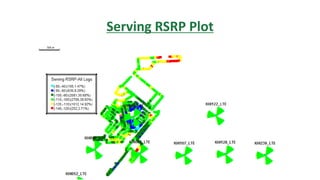

22. Serving RSRP Plot

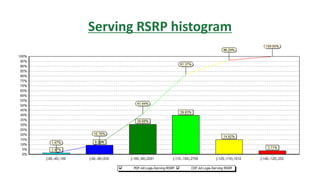

23. Serving RSRP histogram

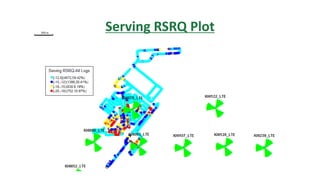

24. Serving RSRQ Plot

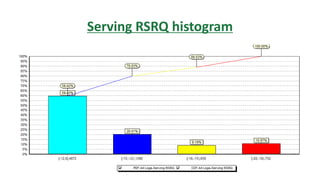

25. Serving RSRQ histogram

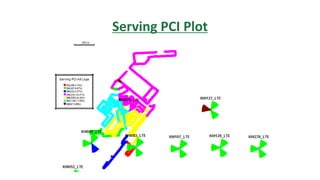

26. Serving PCI Plot

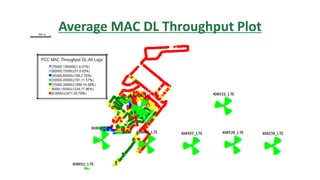

27. Average MAC DL Throughput Plot

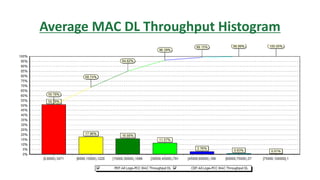

28. Average MAC DL Throughput Histogram

29. Average MAC UL Throughput Plot

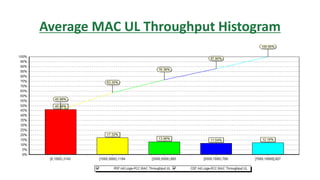

30. Average MAC UL Throughput Histogram

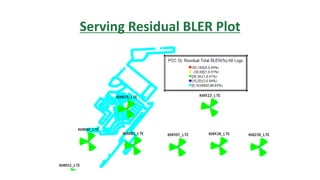

31. Serving Residual BLER Plot

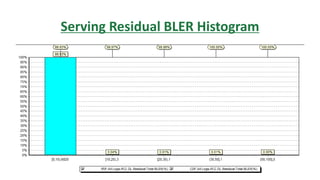

32. Serving Residual BLER Histogram

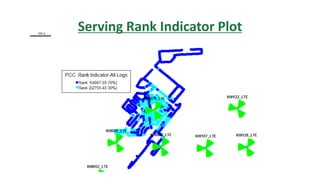

33. Serving Rank Indicator Plot

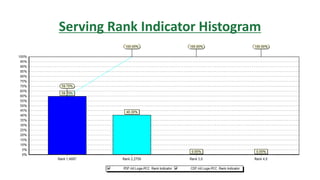

34. Serving Rank Indicator Histogram

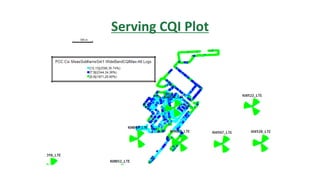

35. Serving CQI Plot

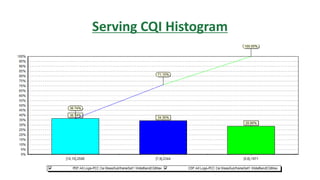

36. Serving CQI Histogram

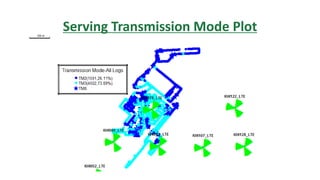

37. Serving Transmission Mode Plot

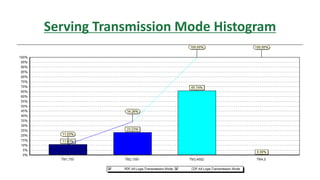

38. Serving Transmission Mode Histogram

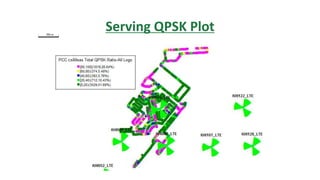

39. Serving QPSK Plot

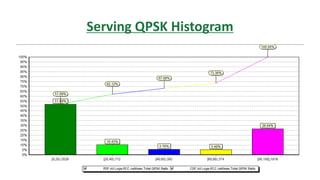

40. Serving QPSK Histogram

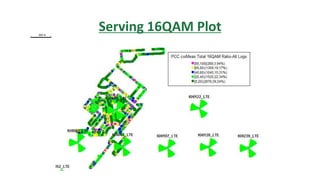

41. Serving 16QAM Plot

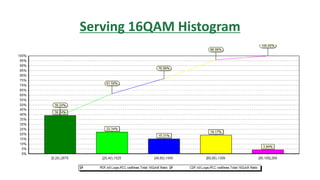

42. Serving 16QAM Histogram

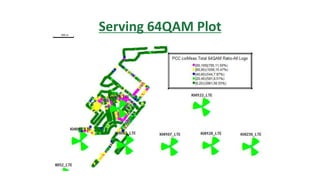

43. Serving 64QAM Plot

44. Serving 64QAM Histogram

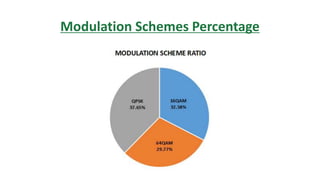

45. Modulation Schemes Percentage

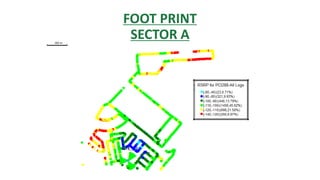

46. FOOT PRINT
SECTOR A

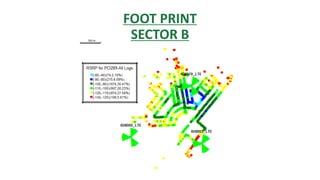

47. FOOT PRINT
SECTOR B

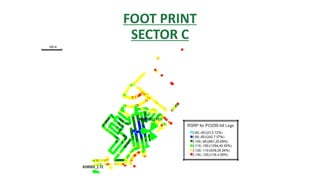

48. FOOT PRINT
SECTOR C

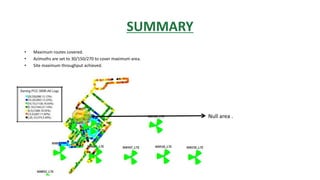

49. SUMMARY
• Maximum routes covered.
• Azimuths are set to 30/150/270 to cover maximum area.
• Site maximum throughput achieved.
Null area .

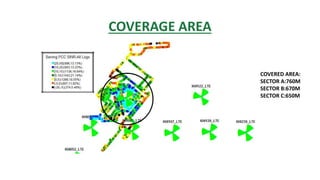

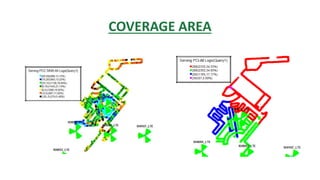

50. COVERAGE AREA
COVERED AREA:
SECTOR A:760M
SECTOR B:670M
SECTOR C:650M

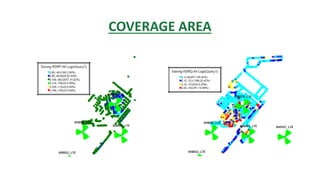

51. COVERAGE AREA

52. COVERAGE AREA

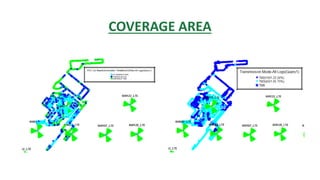

53. COVERAGE AREA
