Khi 087 revised dt report
- 1. Wi tribe LTETDD Project Single Site Verification Test Report Site ID KHI 087

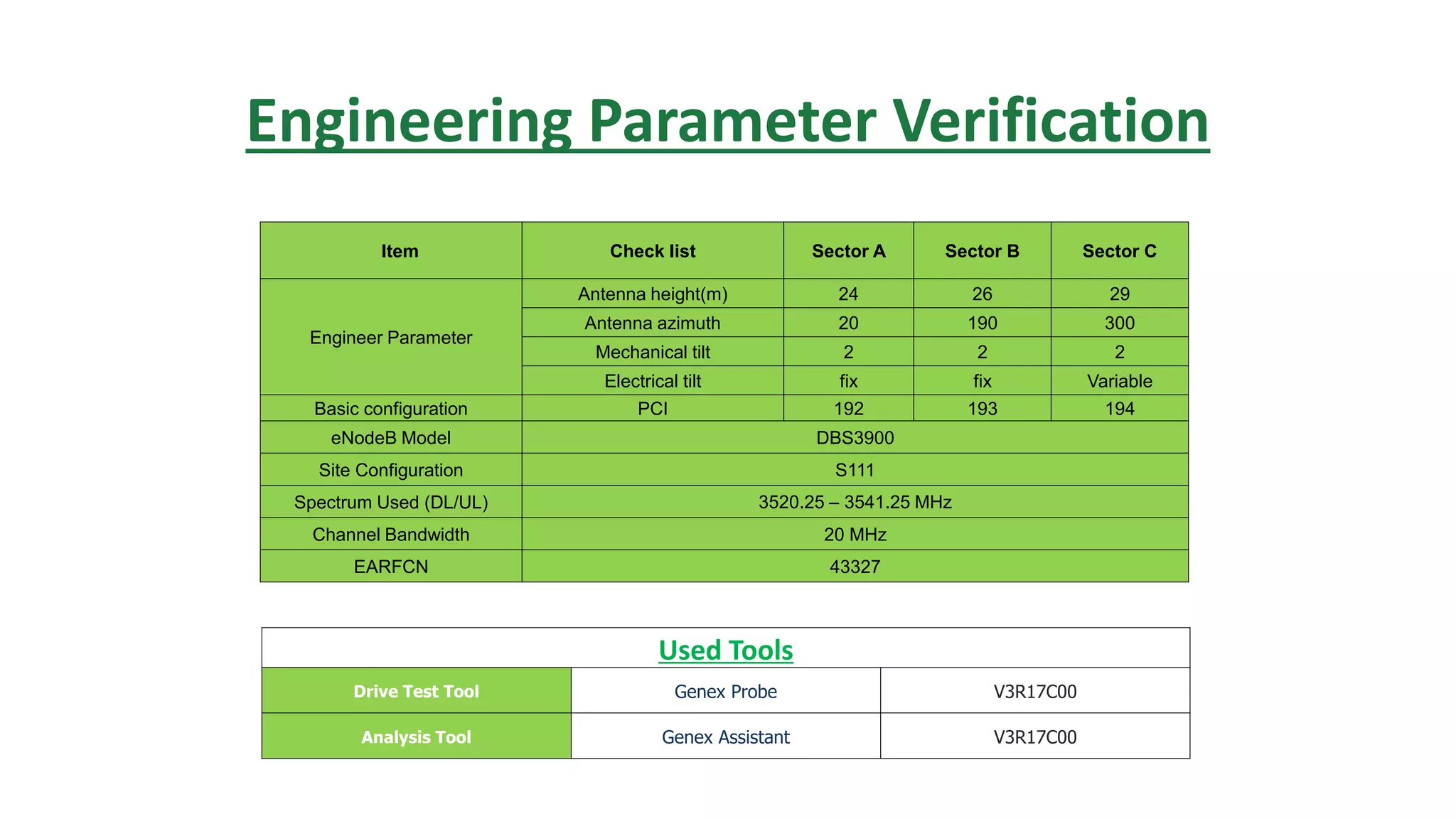

- 2. Engineering Parameter Verification UsedTools Drive Test Tool Genex Probe V3R17C00 Analysis Tool Genex Assistant V3R17C00 Item Check list Sector A Sector B Sector C Engineer Parameter Antenna height(m) 24 26 29 Antenna azimuth 20 190 300 Mechanical tilt 2 2 2 Electrical tilt fix fix Variable Basic configuration PCI 192 193 194 eNodeB Model DBS3900 Site Configuration S111 Spectrum Used (DL/UL) 3520.25 – 3541.25 MHz Channel Bandwidth 20 MHz EARFCN 43327

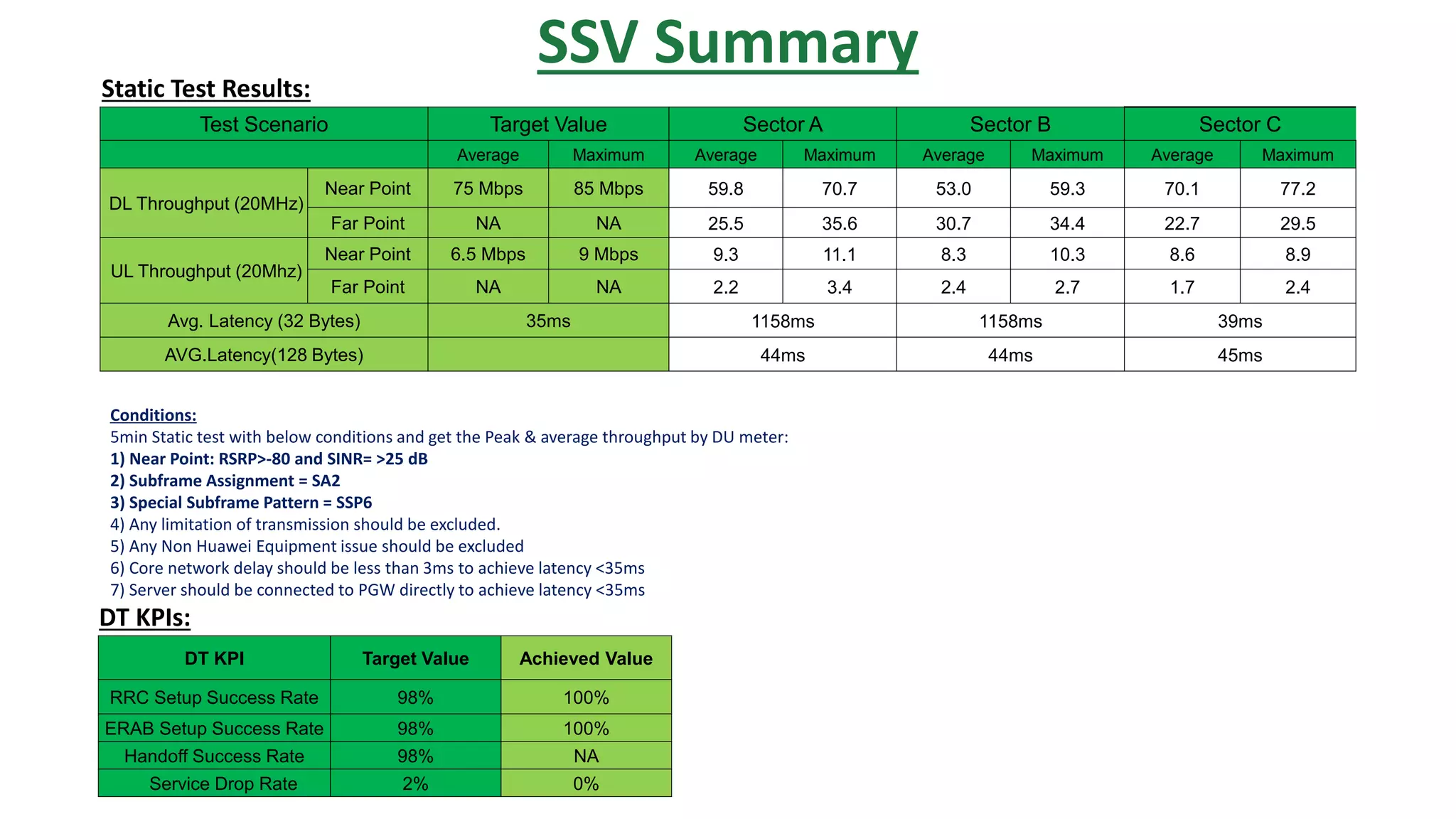

- 3. SSV Summary Test ScenarioTarget Value Sector A Sector B Sector C Average Maximum Average Maximum Average Maximum Average Maximum DL Throughput (20MHz) Near Point 75 Mbps 85 Mbps 59.8 70.7 53.0 59.3 70.1 77.2 Far Point NA NA 25.5 35.6 30.7 34.4 22.7 29.5 UL Throughput (20Mhz) Near Point 6.5 Mbps 9 Mbps 9.3 11.1 8.3 10.3 8.6 8.9 Far Point NA NA 2.2 3.4 2.4 2.7 1.7 2.4 Avg. Latency (32 Bytes) 35ms 1158ms 1158ms 39ms AVG.Latency(128 Bytes) 44ms 44ms 45ms Static Test Results: DT KPIs: DT KPI Target Value Achieved Value RRC Setup Success Rate 98% 100% ERAB Setup Success Rate 98% 100% Handoff Success Rate 98% NA Service Drop Rate 2% 0% Conditions: 5min Static test with below conditions and get the Peak & average throughput by DU meter: 1) Near Point: RSRP>-80 and SINR= >25 dB 2) Subframe Assignment = SA2 3) Special Subframe Pattern = SSP6 4) Any limitation of transmission should be excluded. 5) Any Non Huawei Equipment issue should be excluded 6) Core network delay should be less than 3ms to achieve latency <35ms 7) Server should be connected to PGW directly to achieve latency <35ms

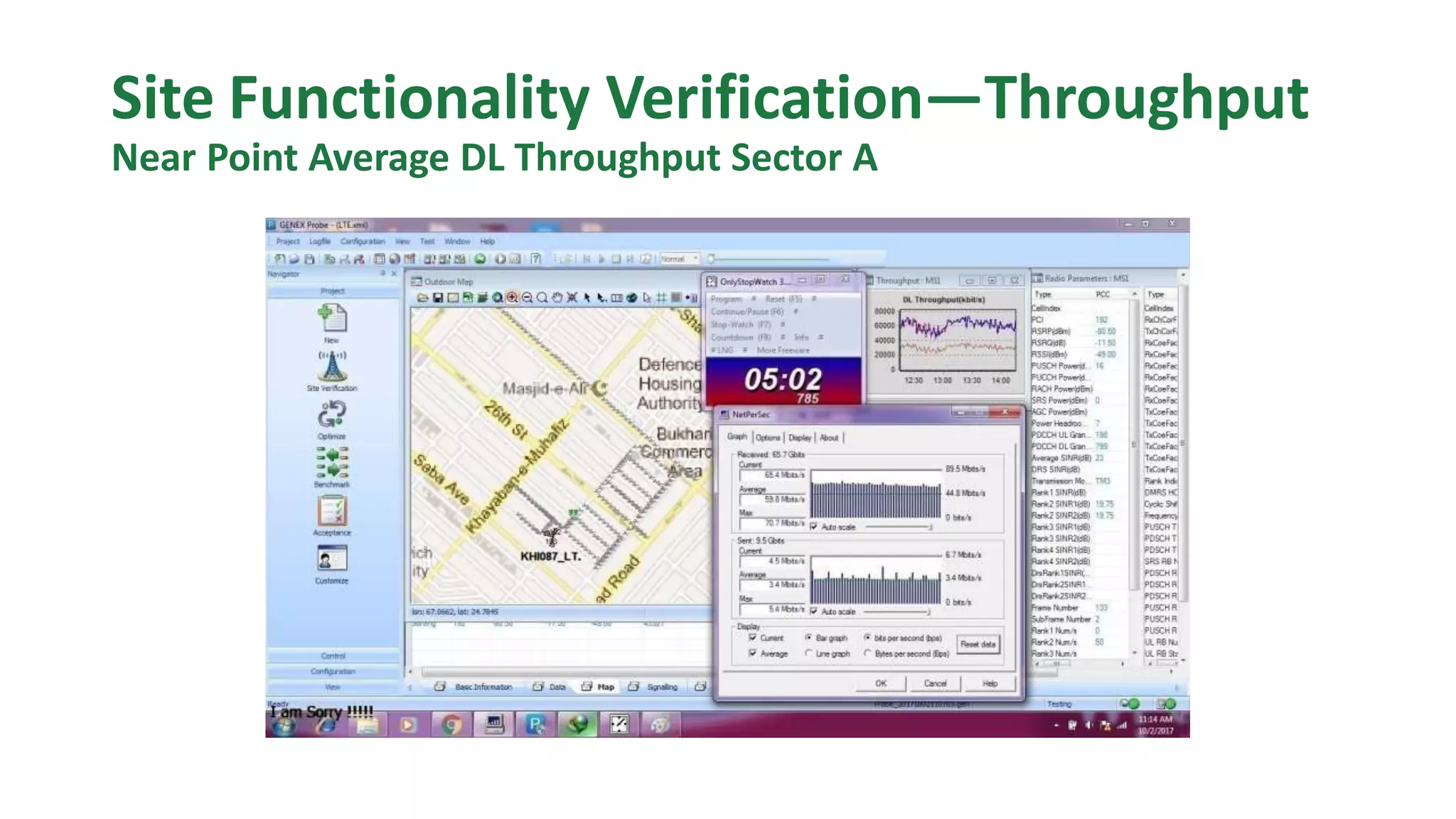

- 4. Site Functionality Verification—Throughput NearPoint Average DL Throughput Sector A

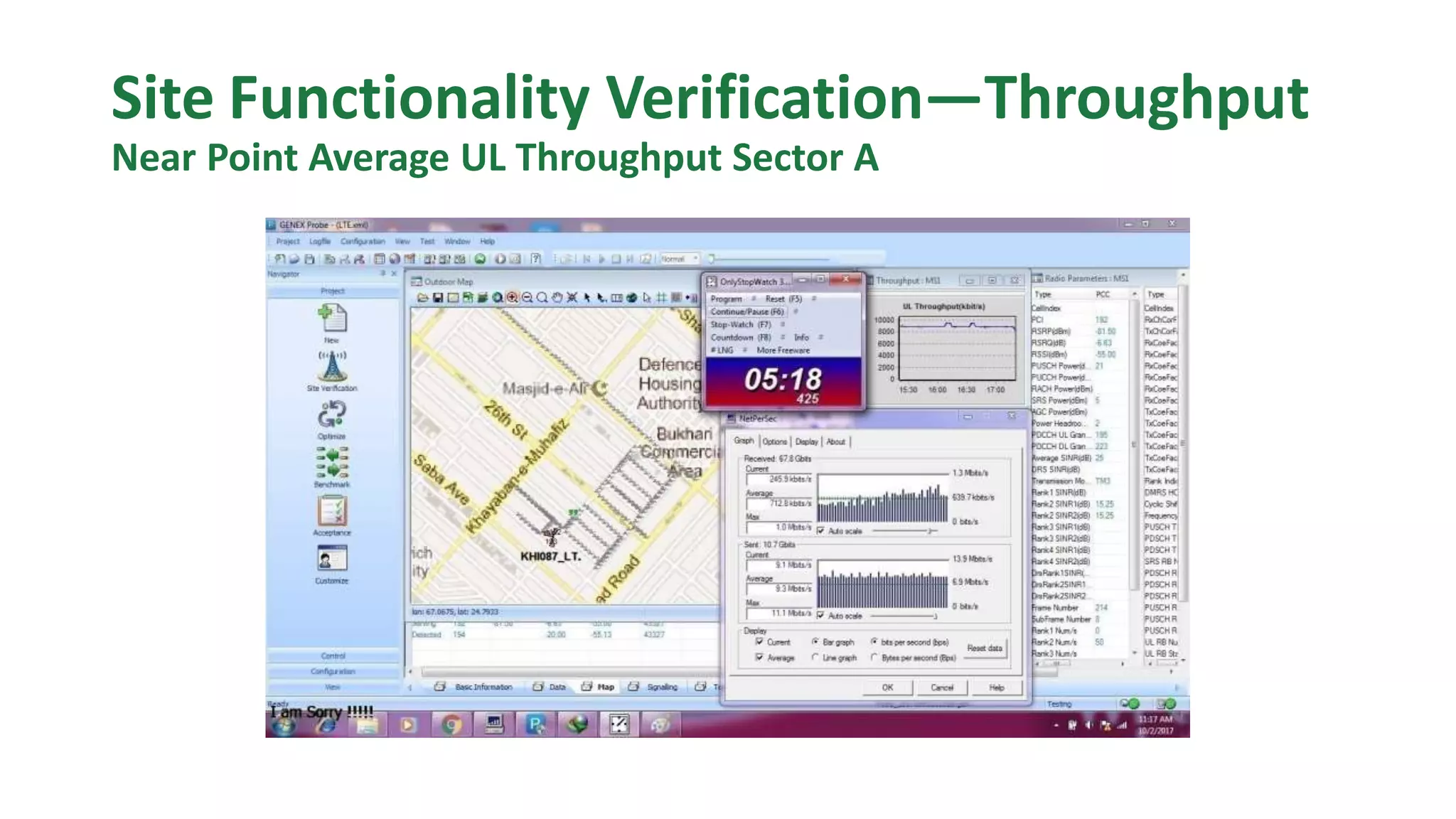

- 5. Site Functionality Verification—Throughput NearPoint Average UL Throughput Sector A

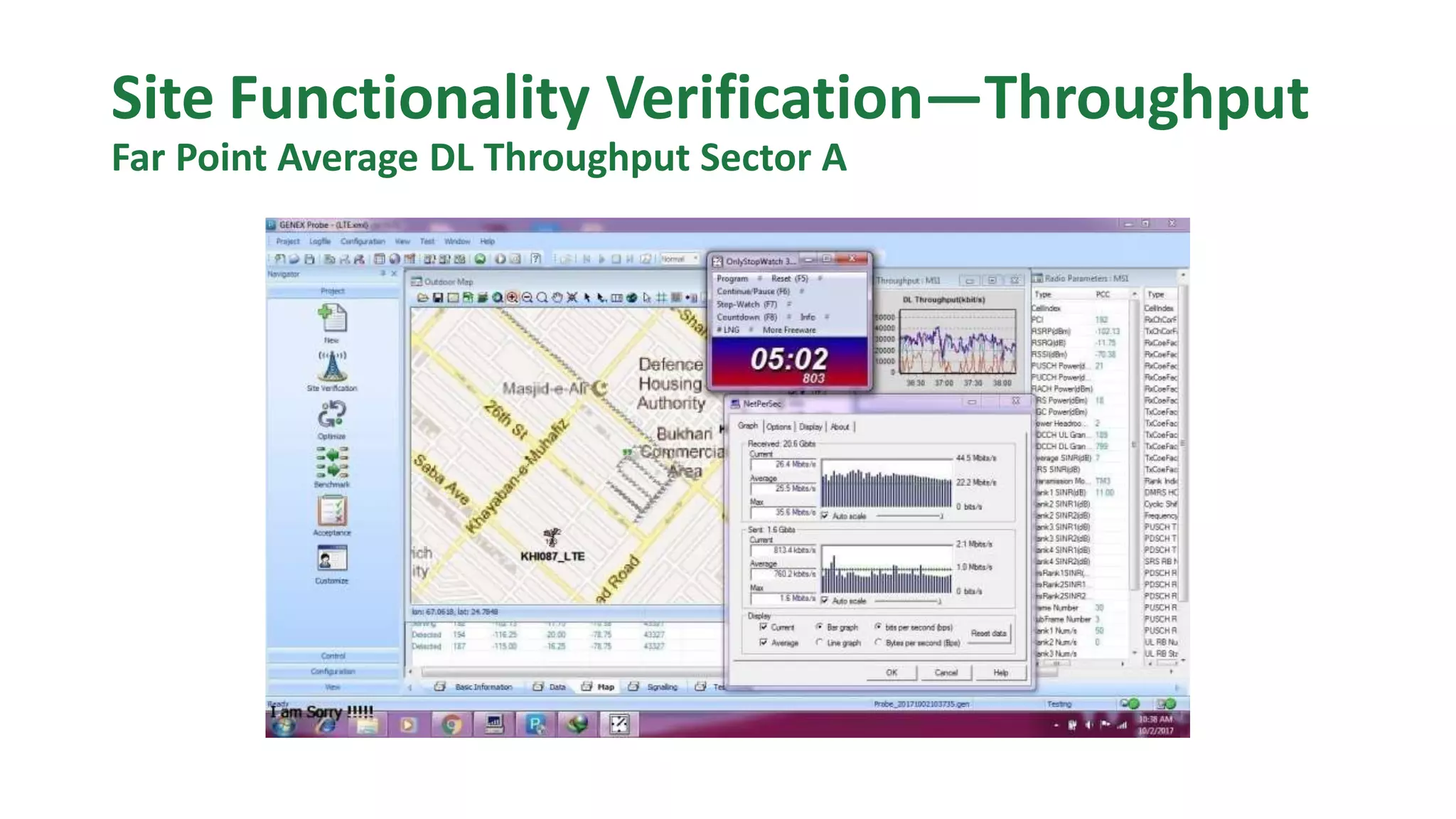

- 6. Site Functionality Verification—Throughput FarPoint Average DL Throughput Sector A
- 7. Site Functionality Verification—Throughput FarPoint Average UL Throughput Sector A
- 8. Site Functionality Verification—Throughput NearPoint Average DL Throughput Sector B
- 9. Site Functionality Verification—Throughput NearPoint Average UL Throughput Sector B

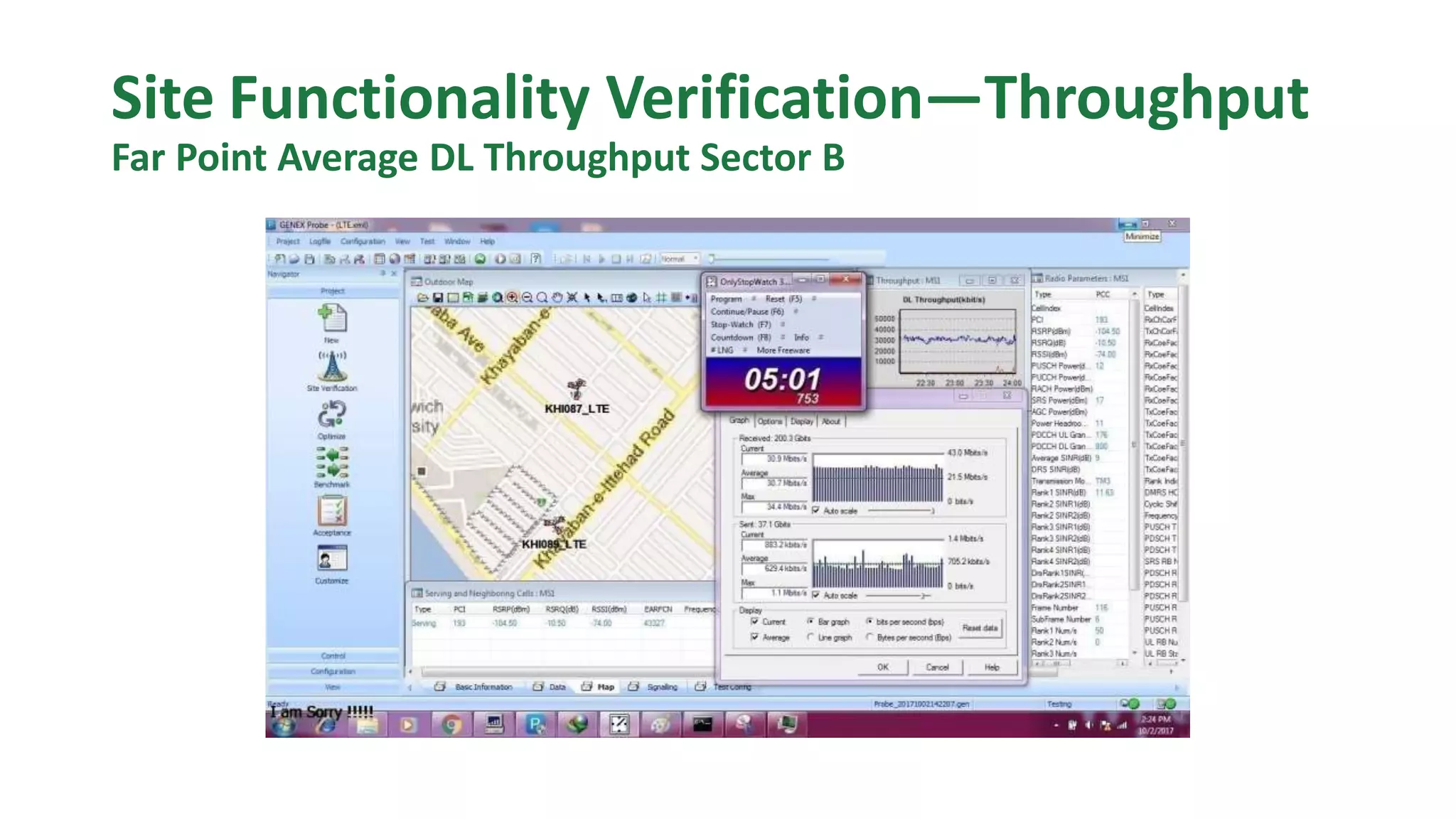

- 10. Site Functionality Verification—Throughput FarPoint Average DL Throughput Sector B
- 11. Site Functionality Verification—Throughput FarPoint Average UL Throughput Sector B
- 12. Site Functionality Verification—Throughput NearPoint Average DL Throughput Sector C

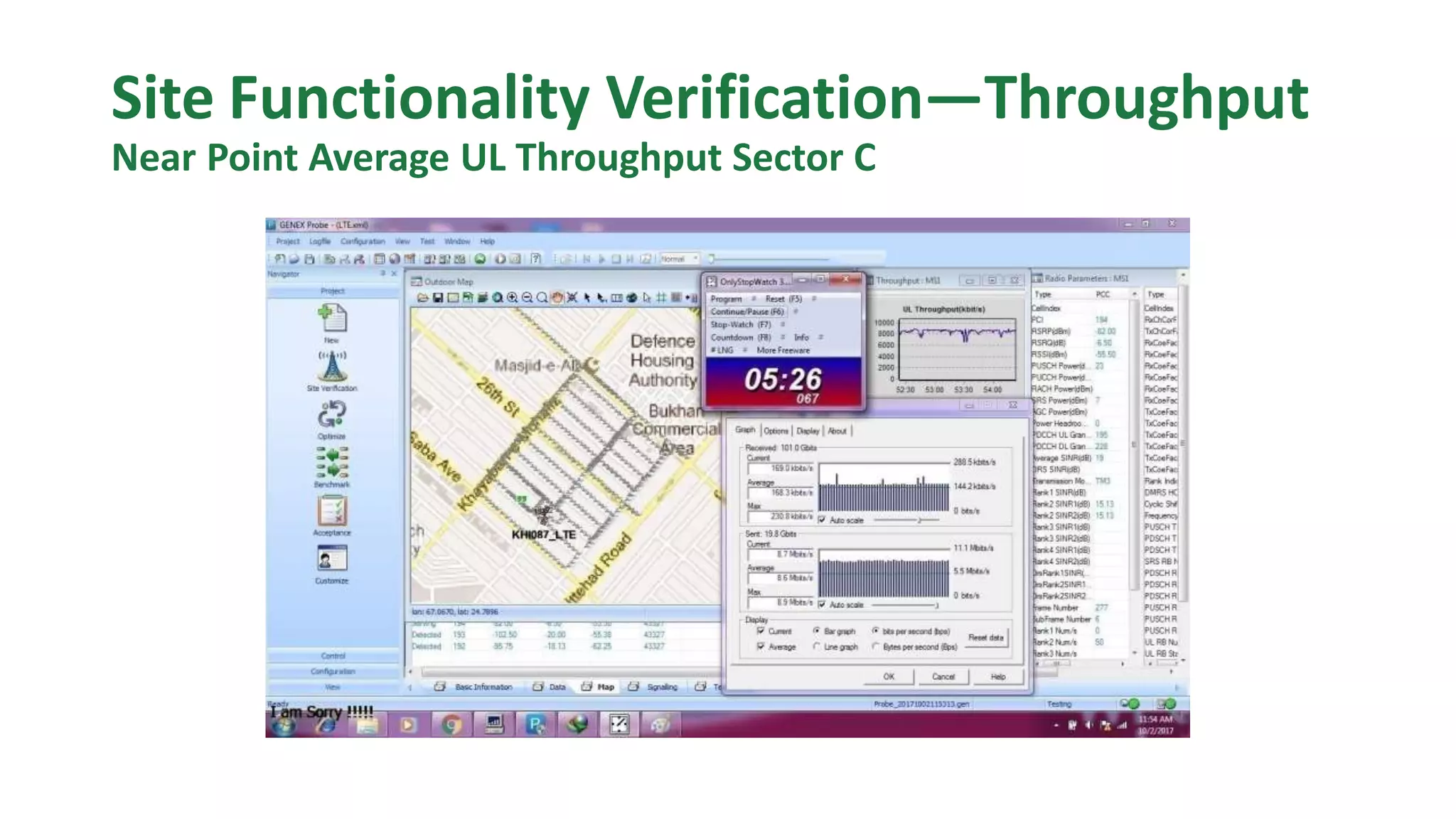

- 13. Site Functionality Verification—Throughput NearPoint Average UL Throughput Sector C

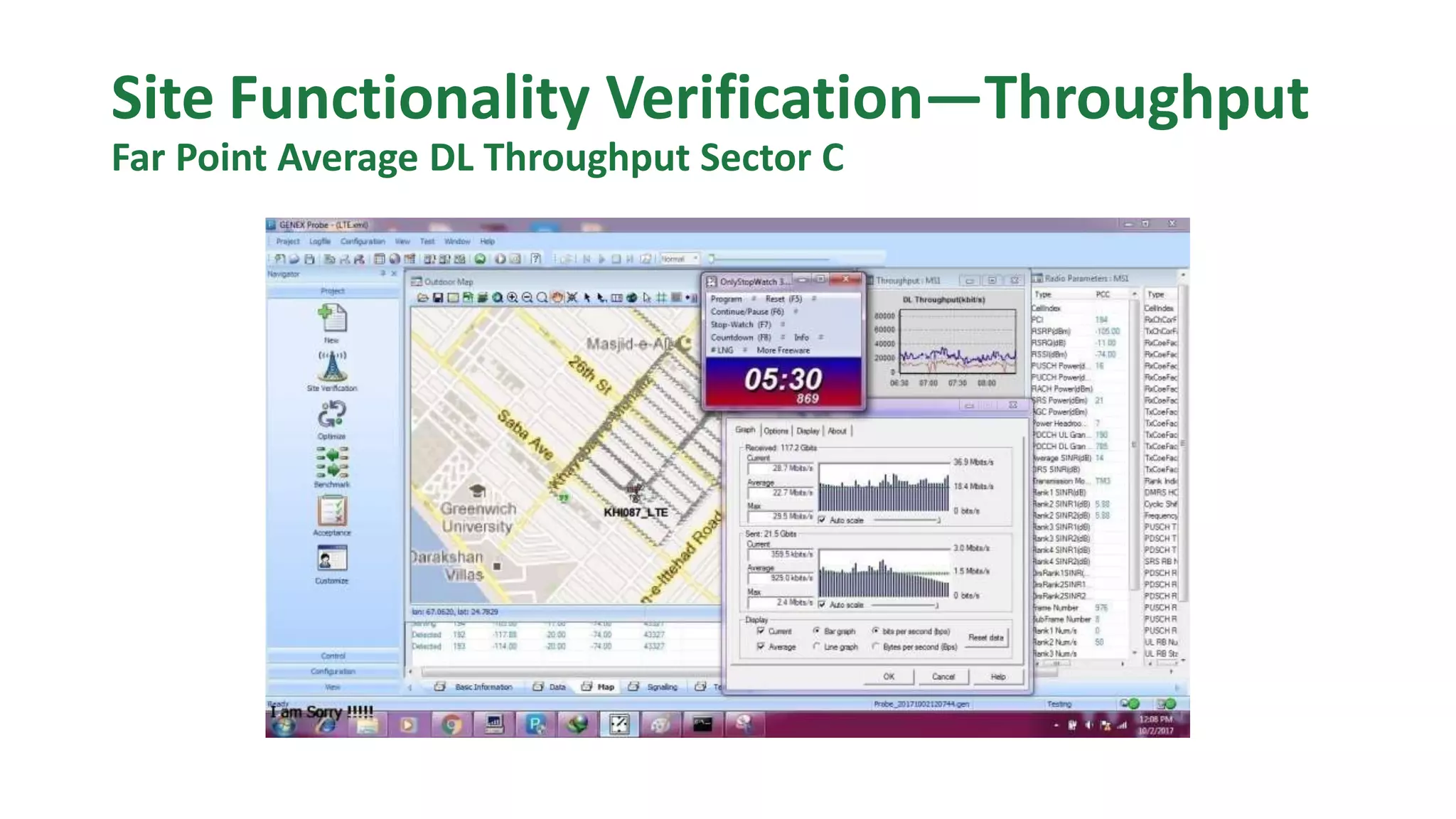

- 14. Site Functionality Verification—Throughput FarPoint Average DL Throughput Sector C

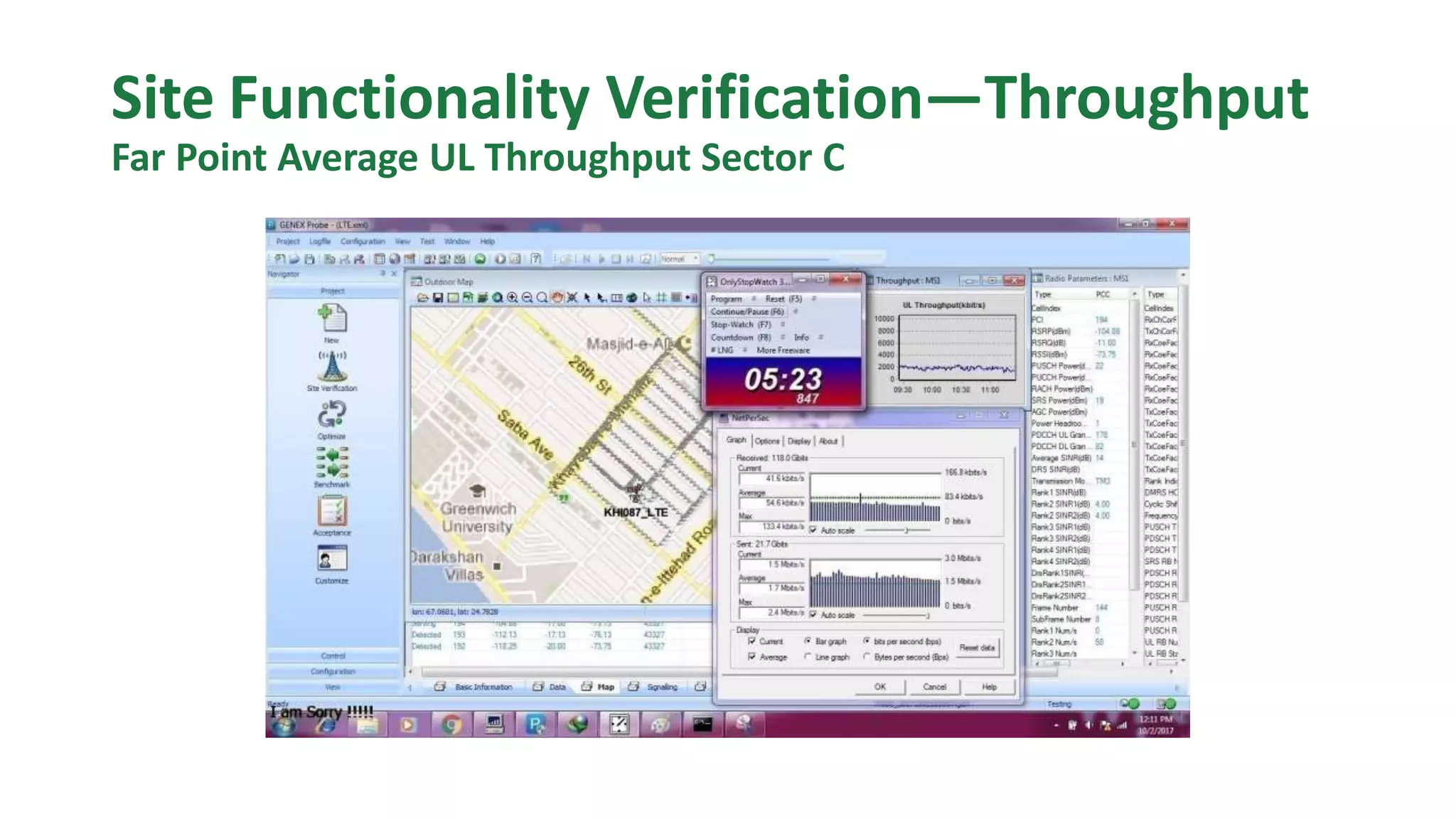

- 15. Site Functionality Verification—Throughput FarPoint Average UL Throughput Sector C

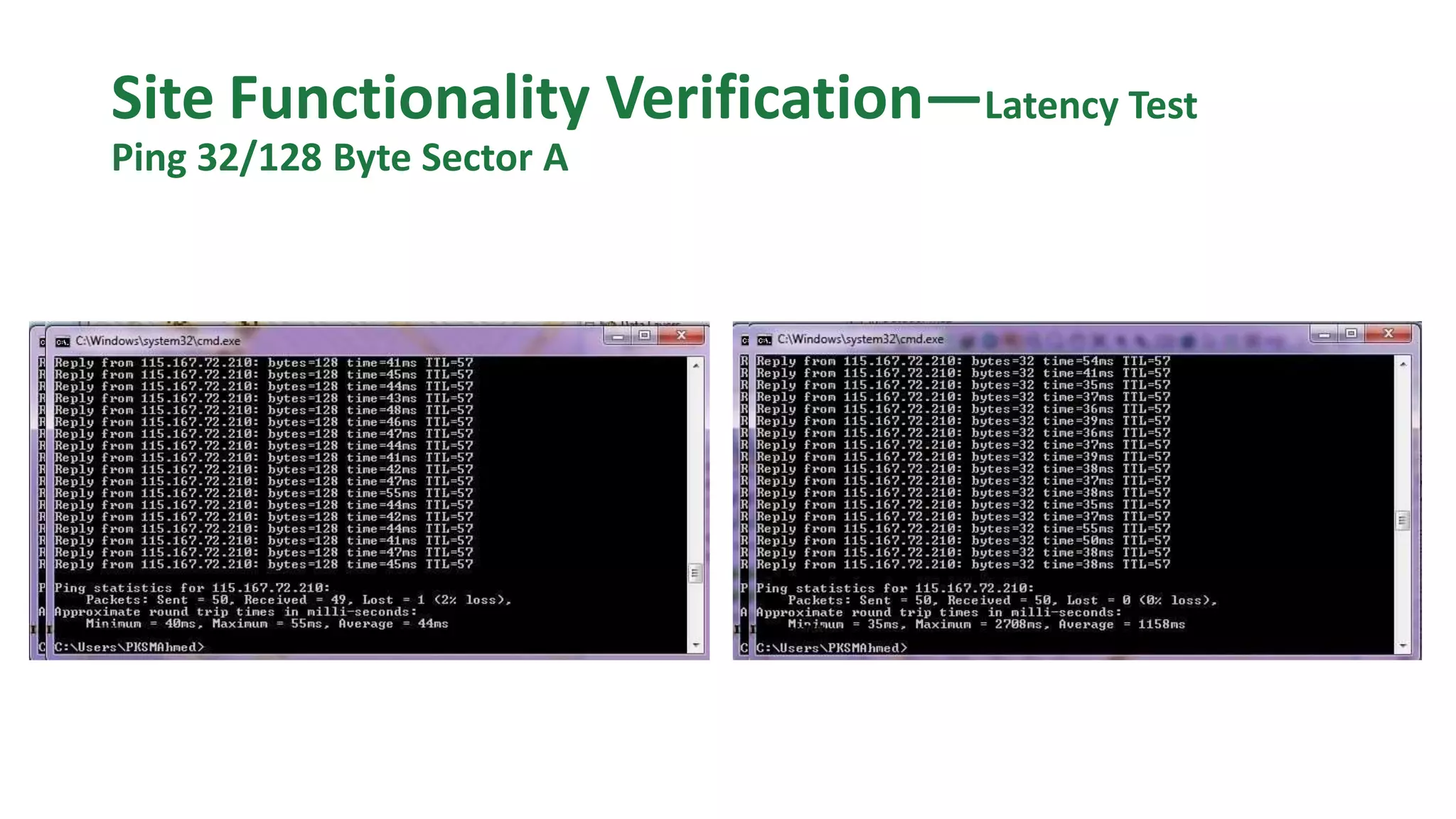

- 16. Site Functionality Verification—LatencyTest Ping 32/128 Byte Sector A

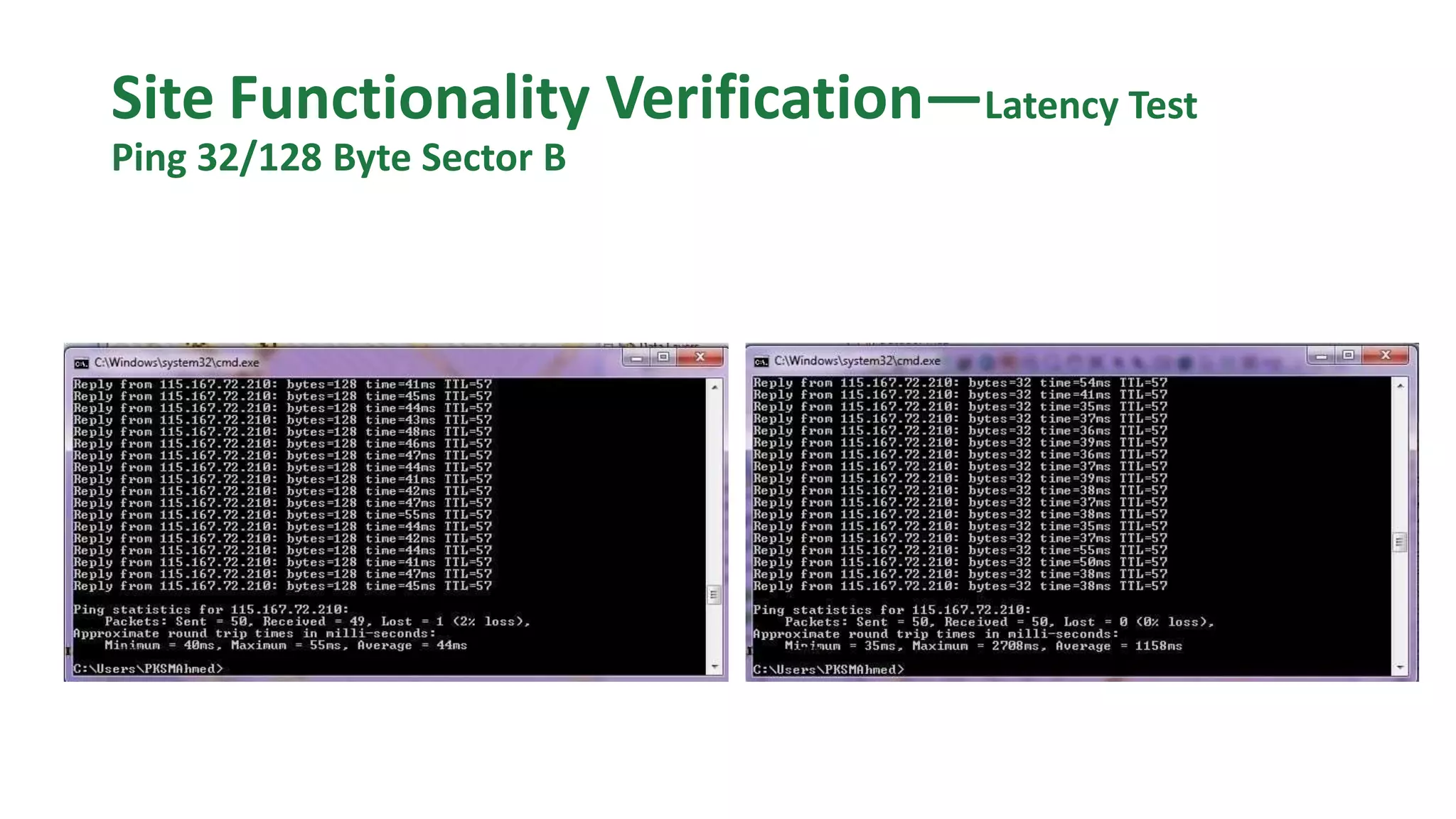

- 17. Site Functionality Verification—LatencyTest Ping 32/128 Byte Sector B

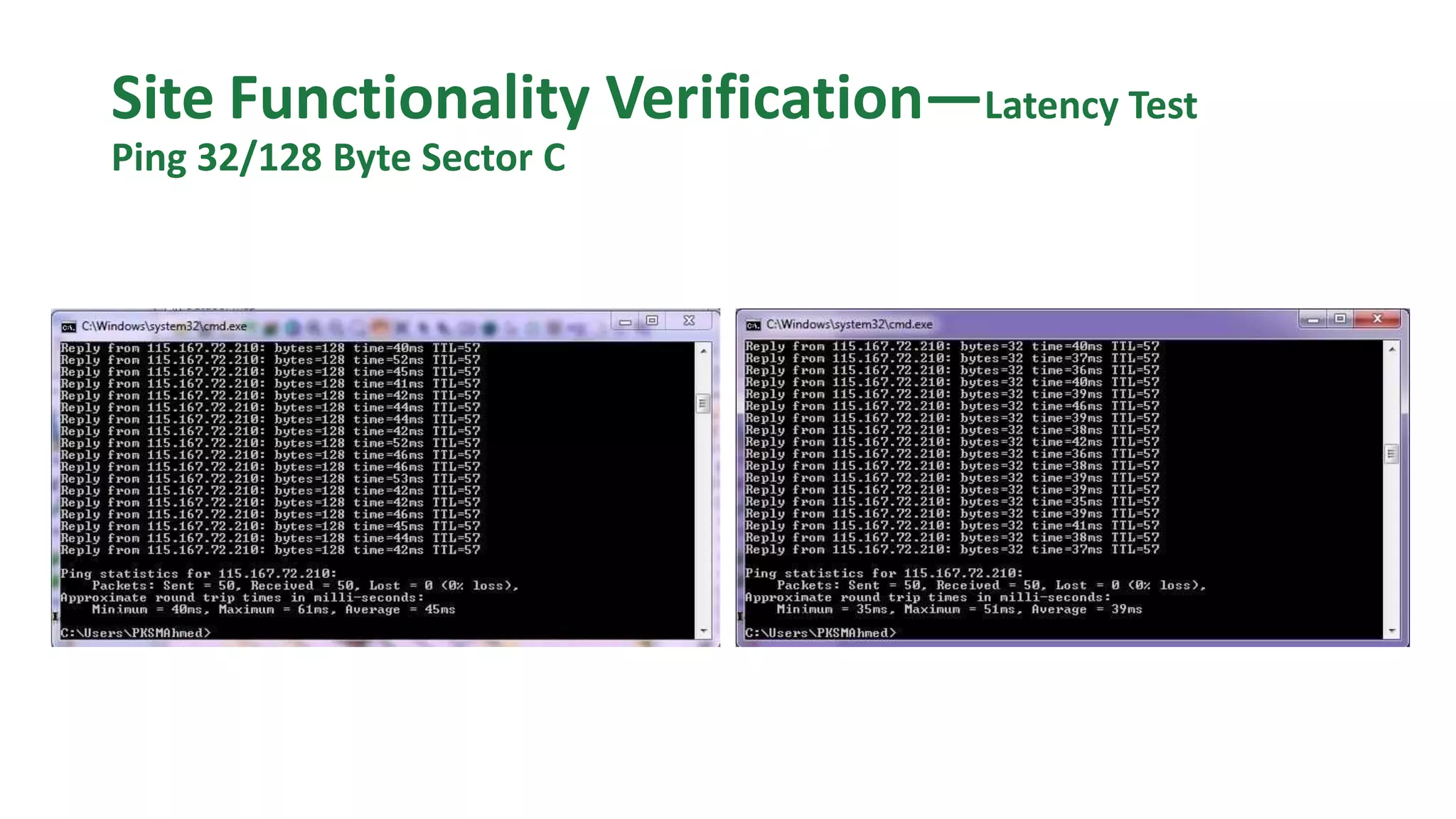

- 18. Site Functionality Verification—LatencyTest Ping 32/128 Byte Sector C

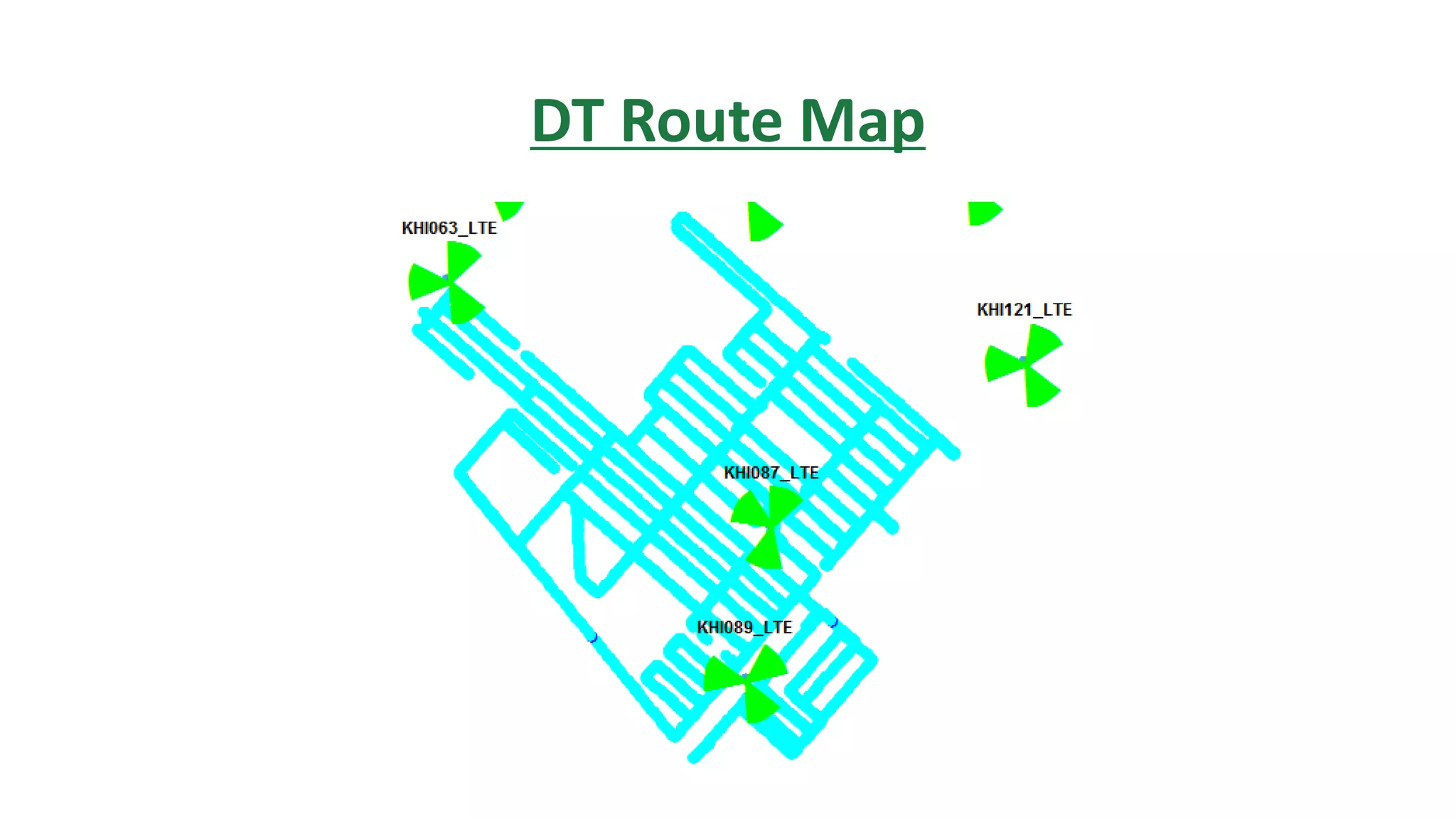

- 19.

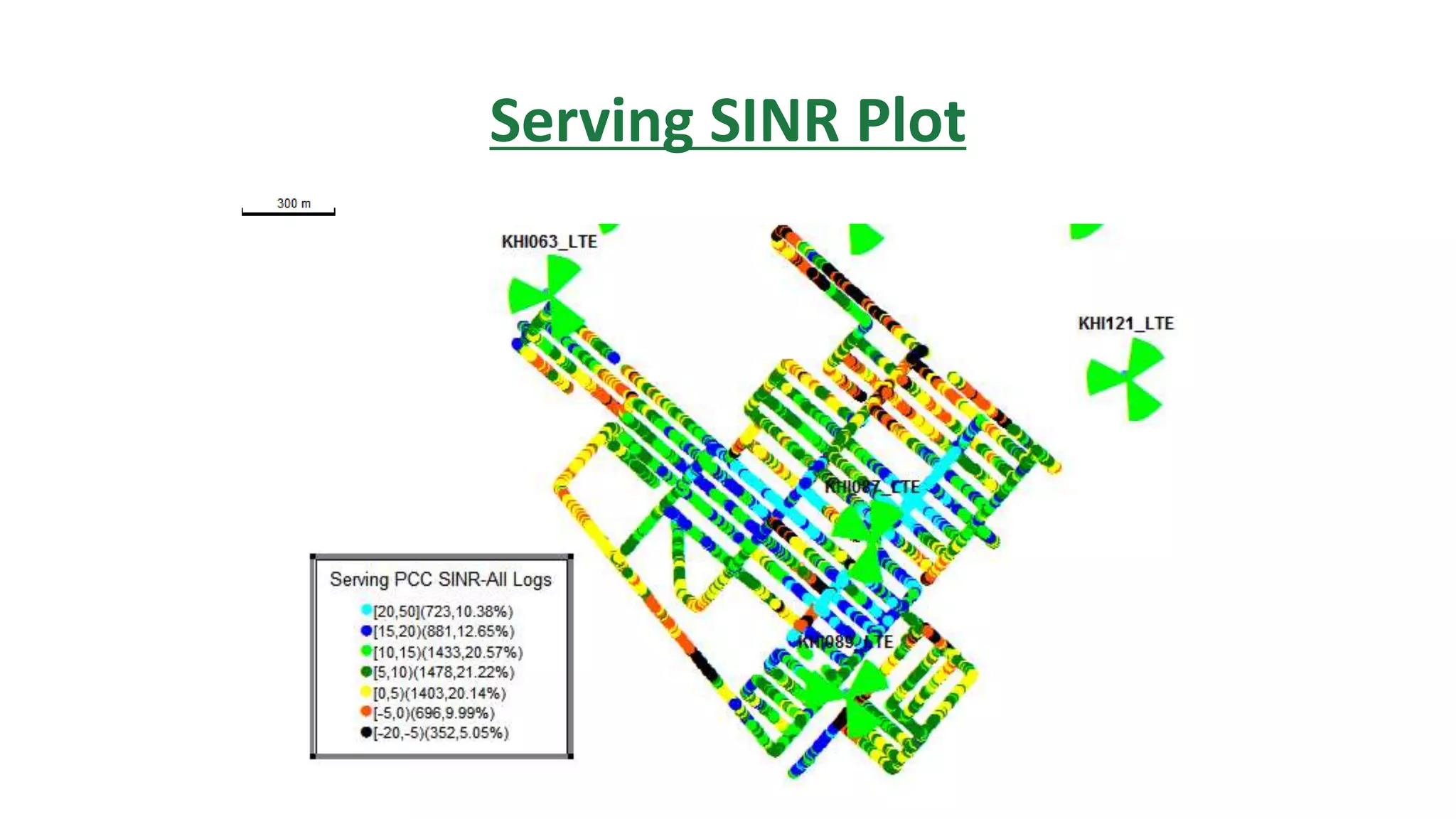

- 20.

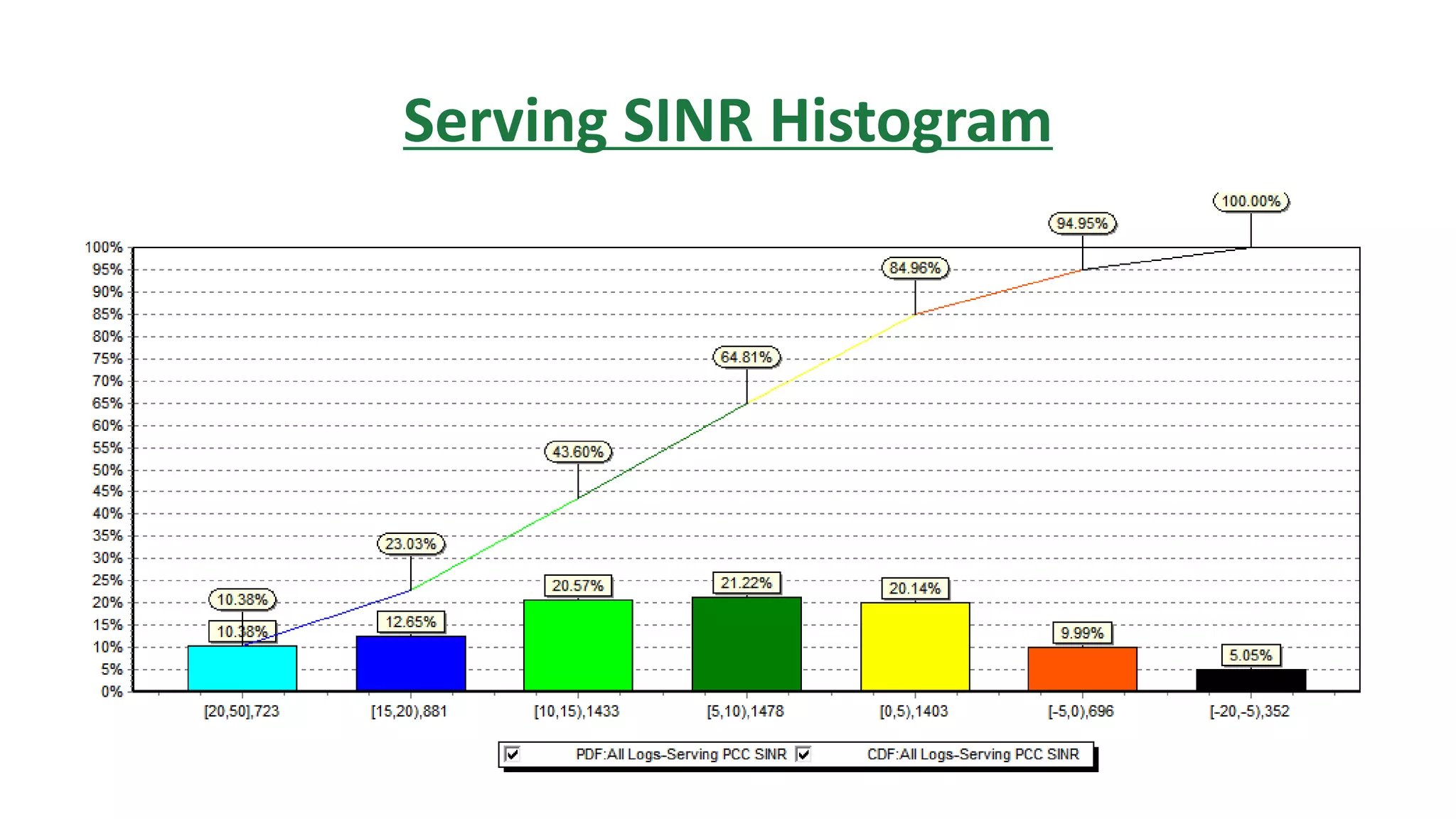

- 21.

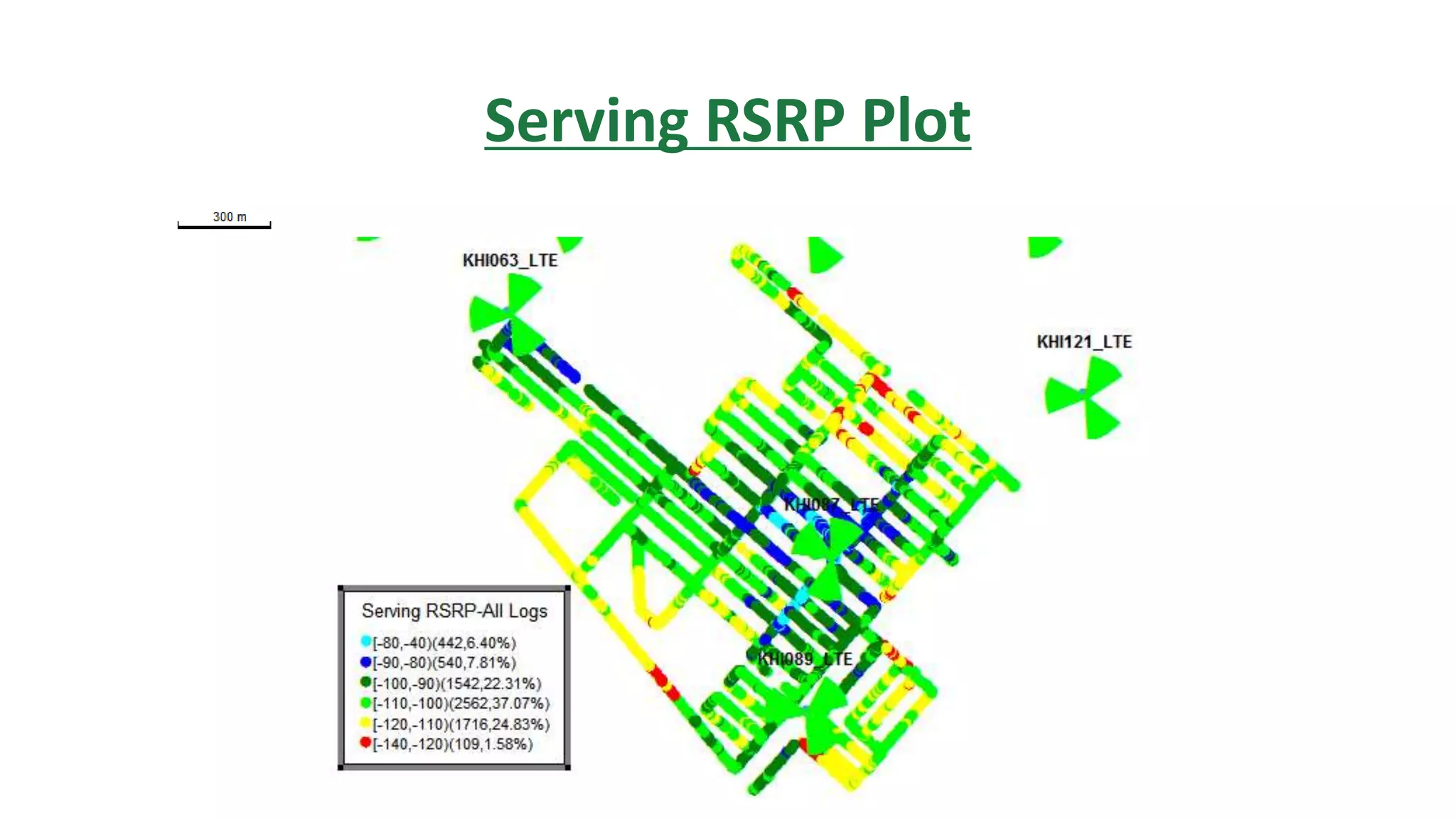

- 22.

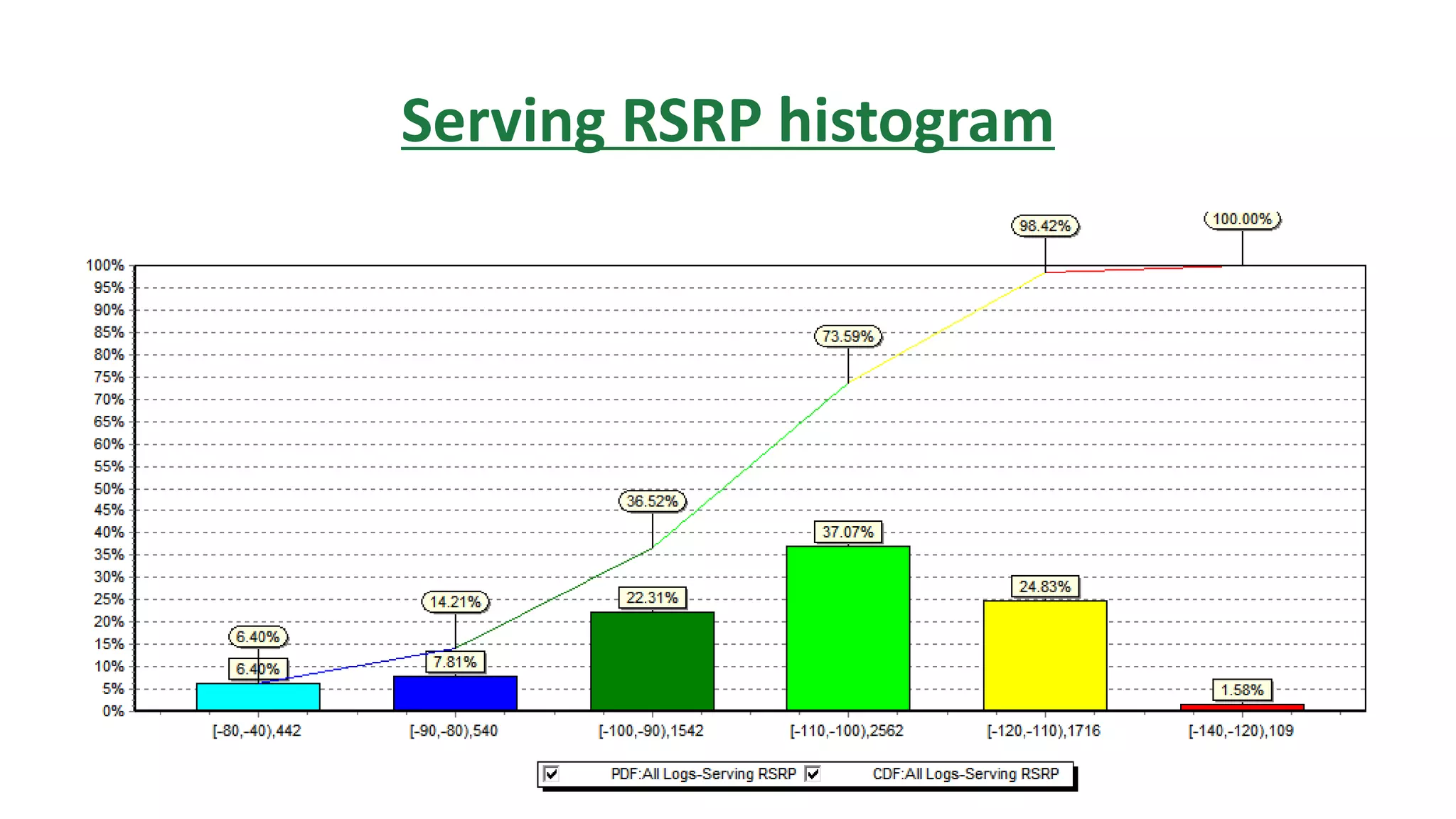

- 23.

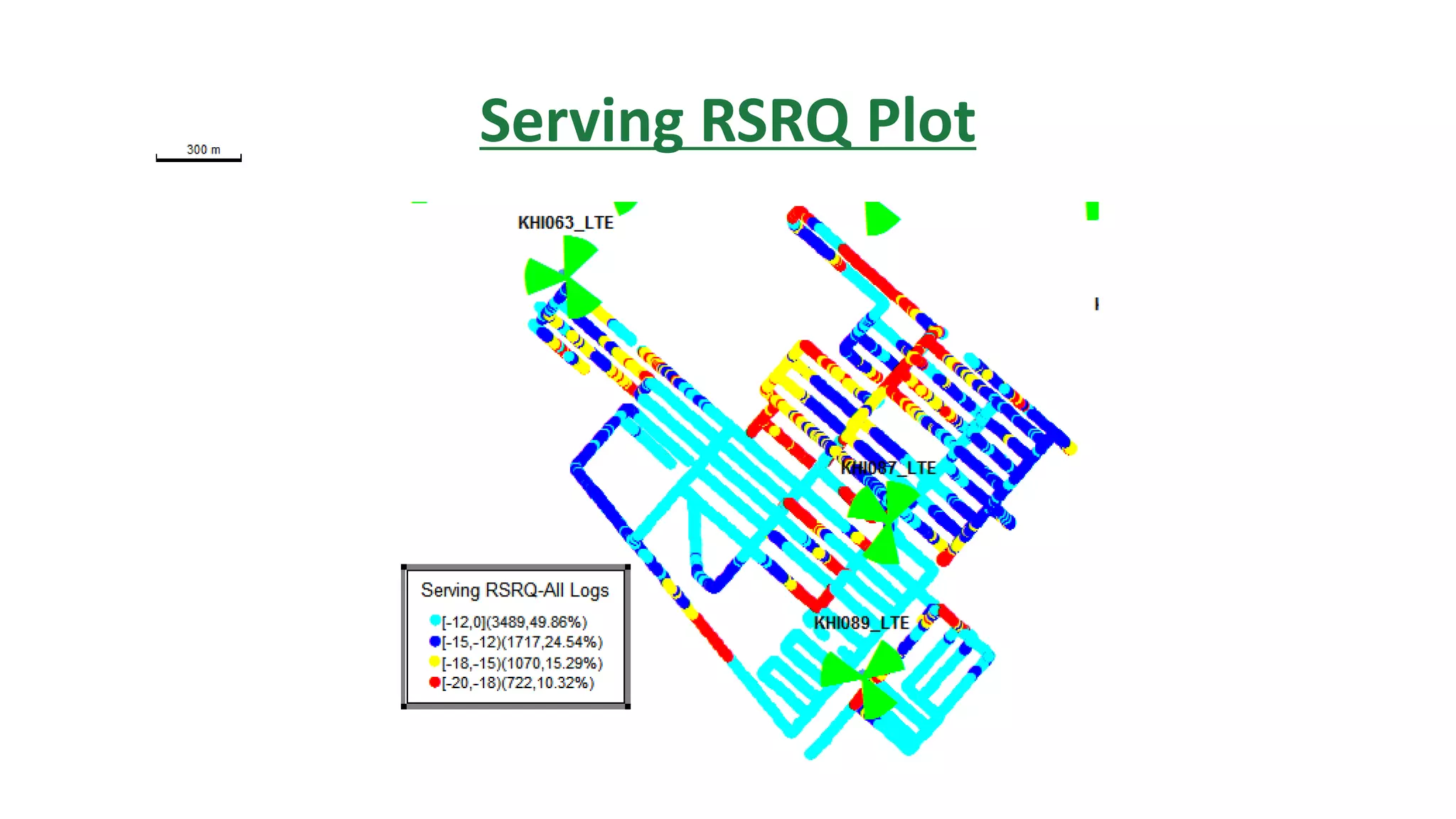

- 24.

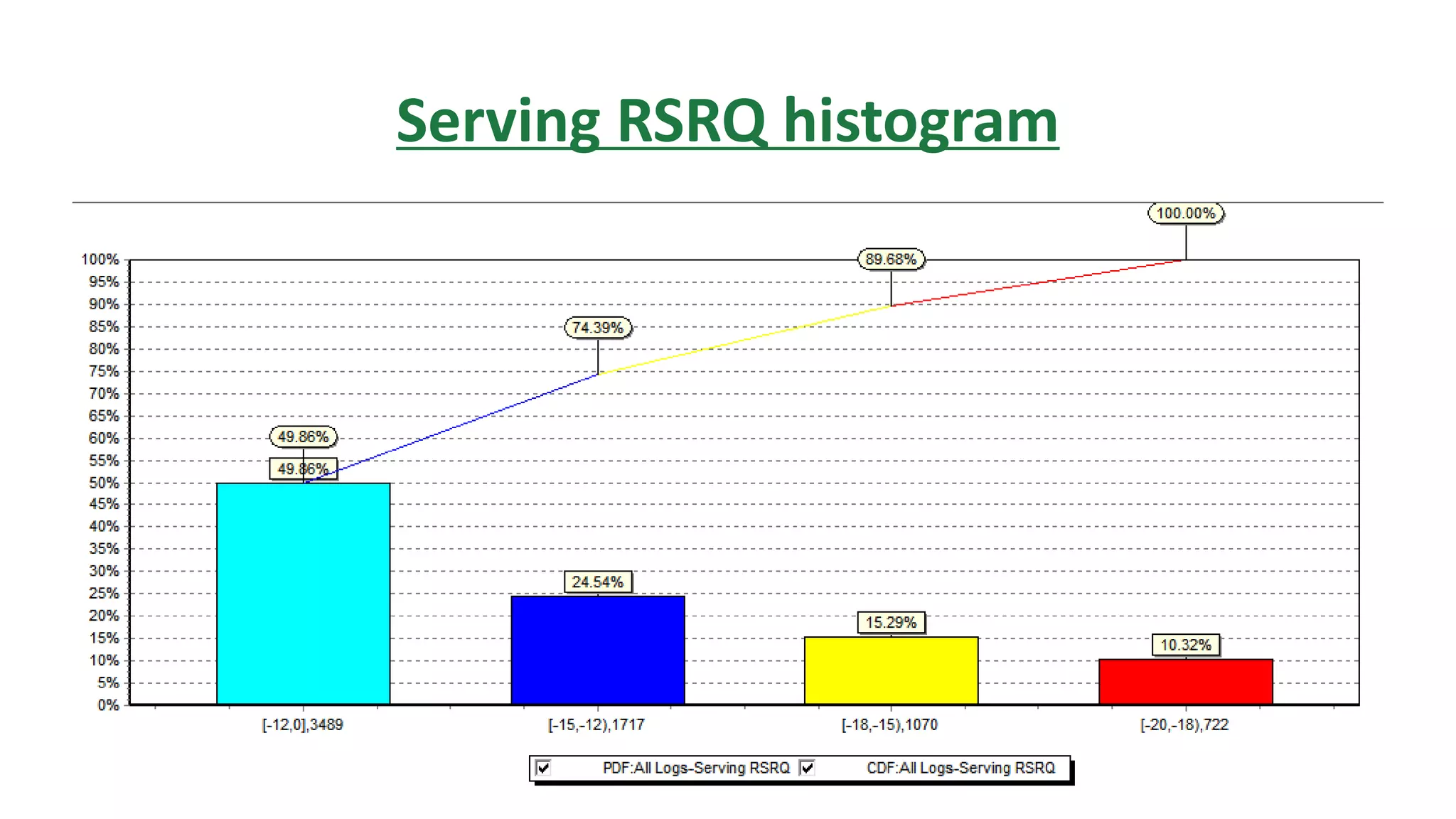

- 25.

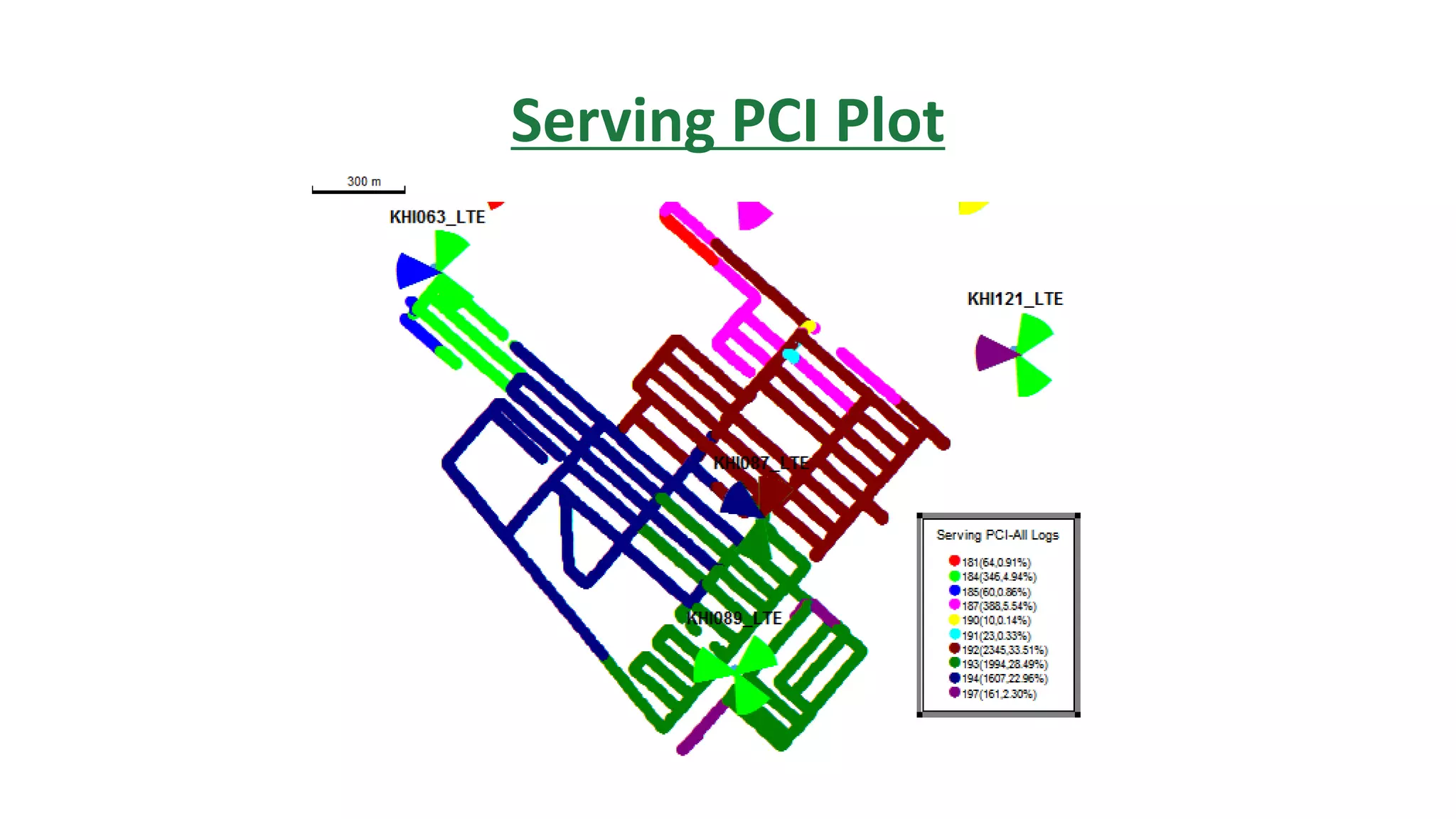

- 26.

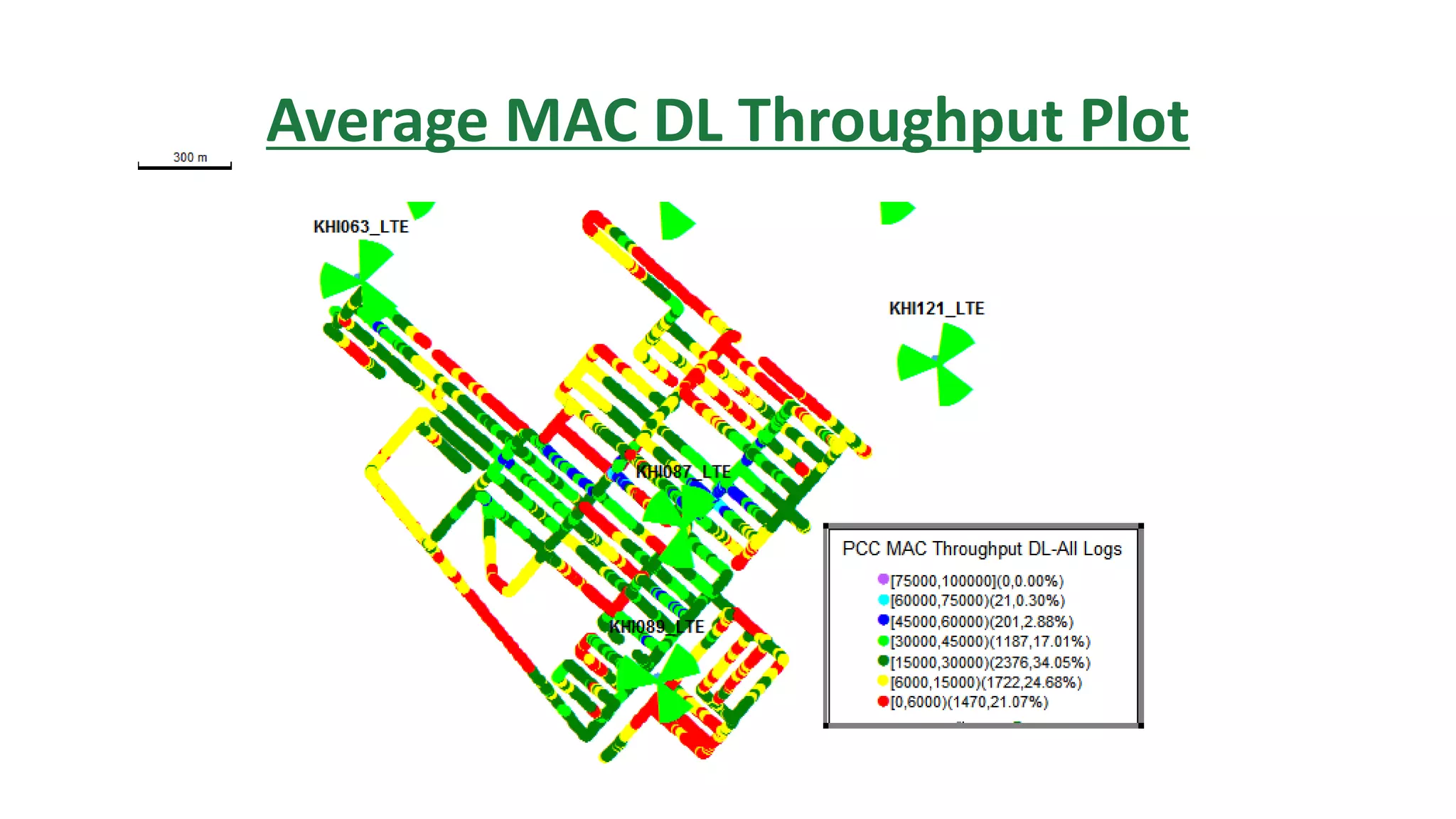

- 27. Average MAC DLThroughput Plot

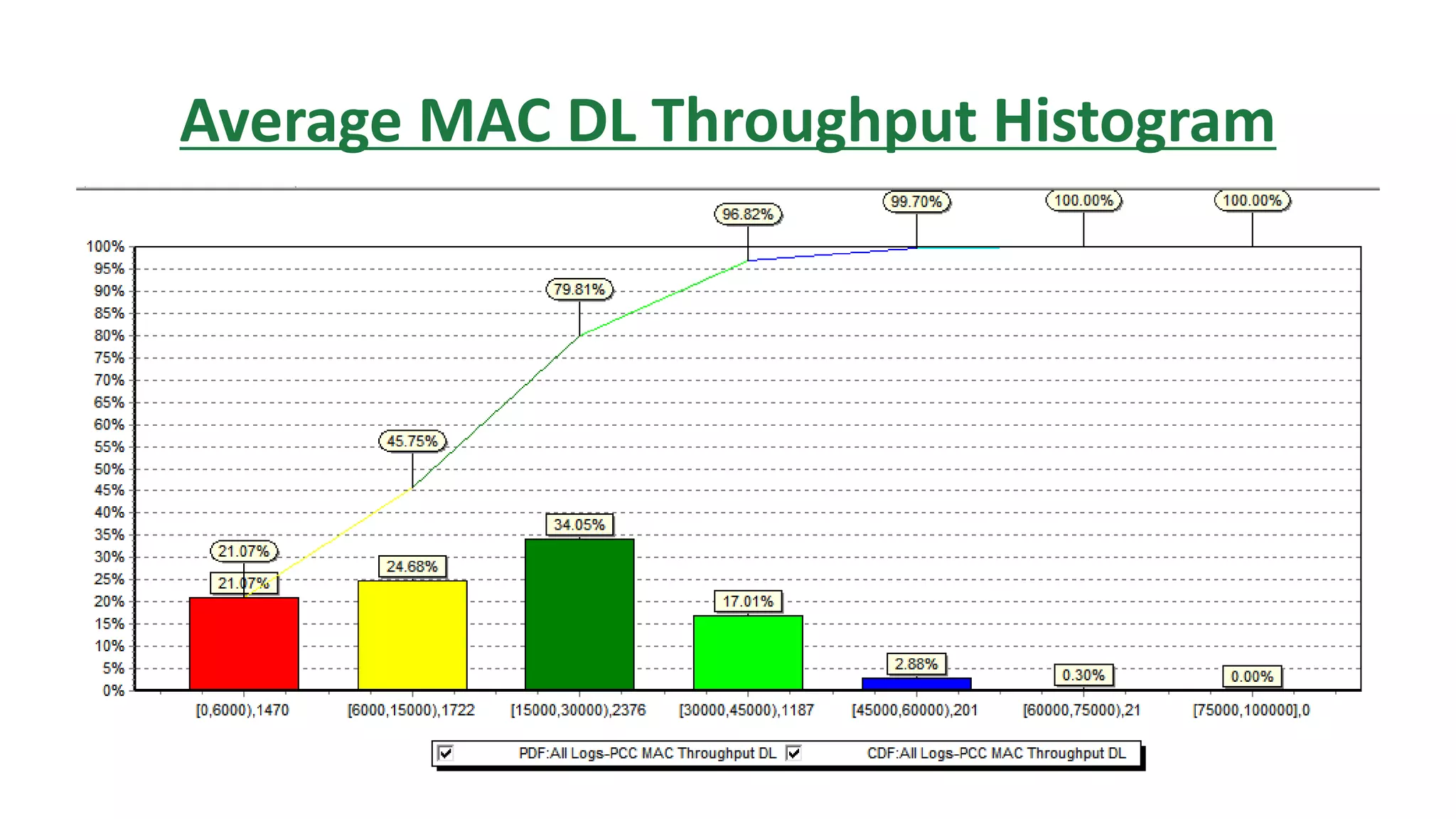

- 28. Average MAC DLThroughput Histogram

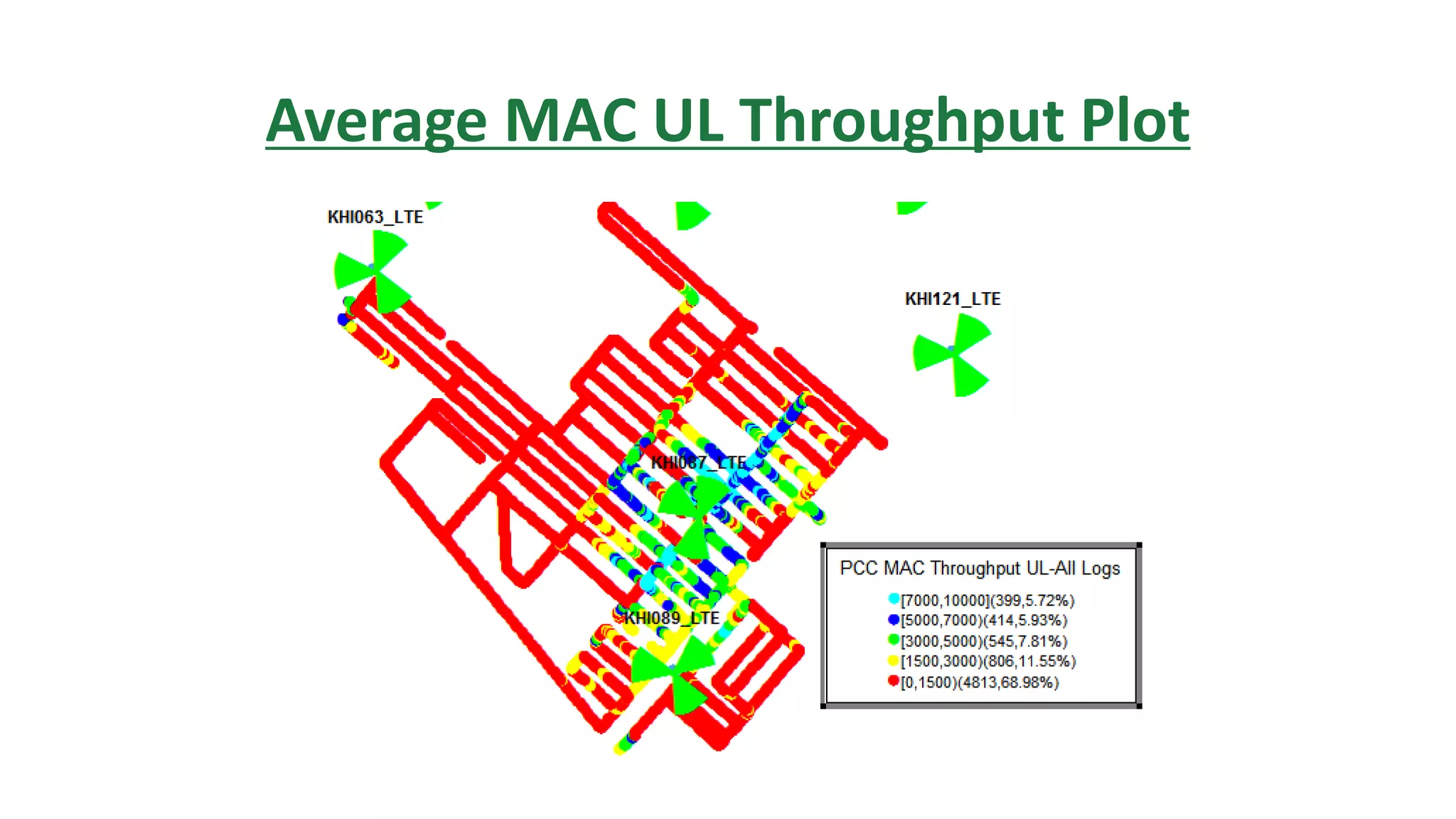

- 29. Average MAC ULThroughput Plot

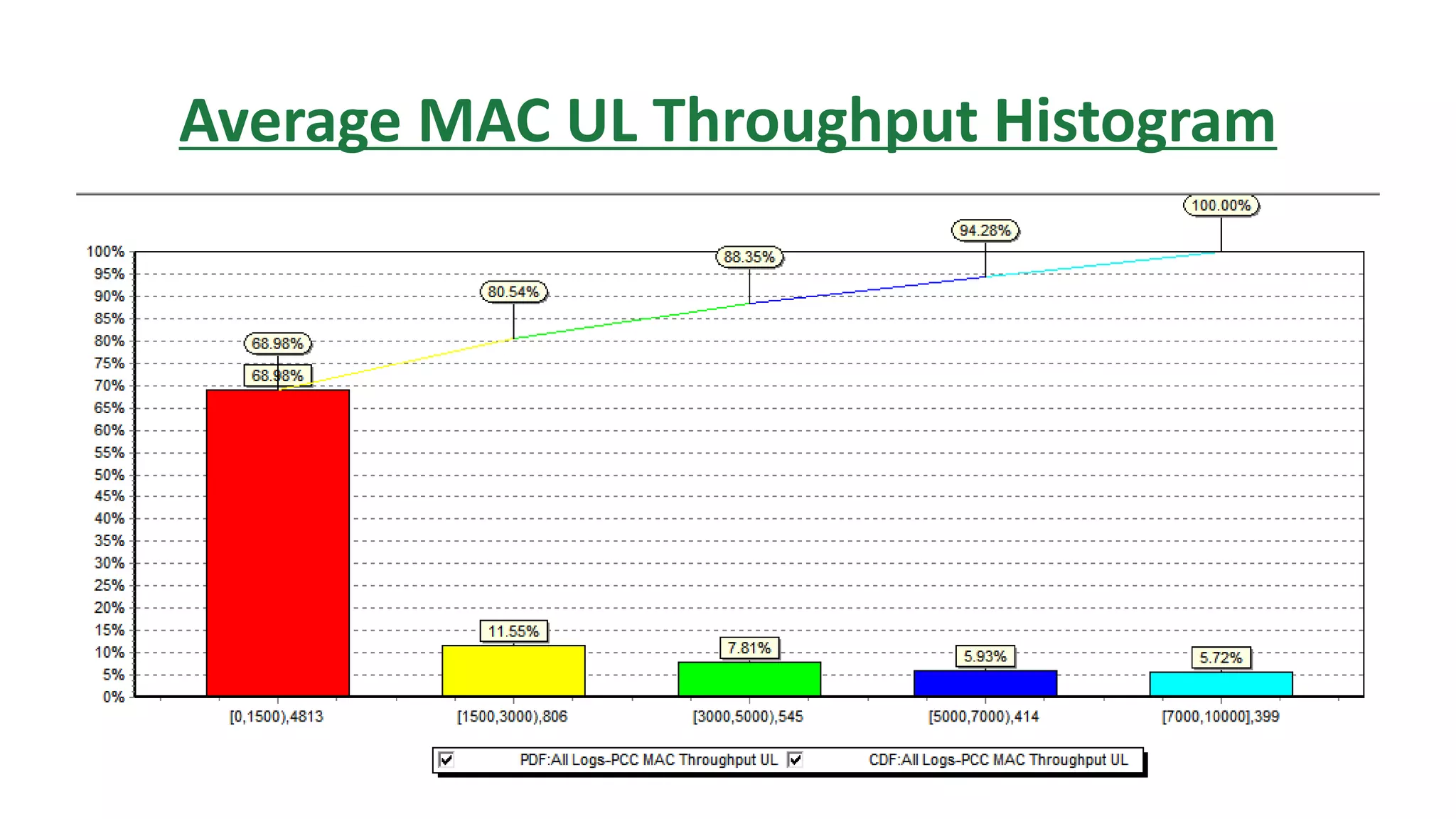

- 30. Average MAC ULThroughput Histogram

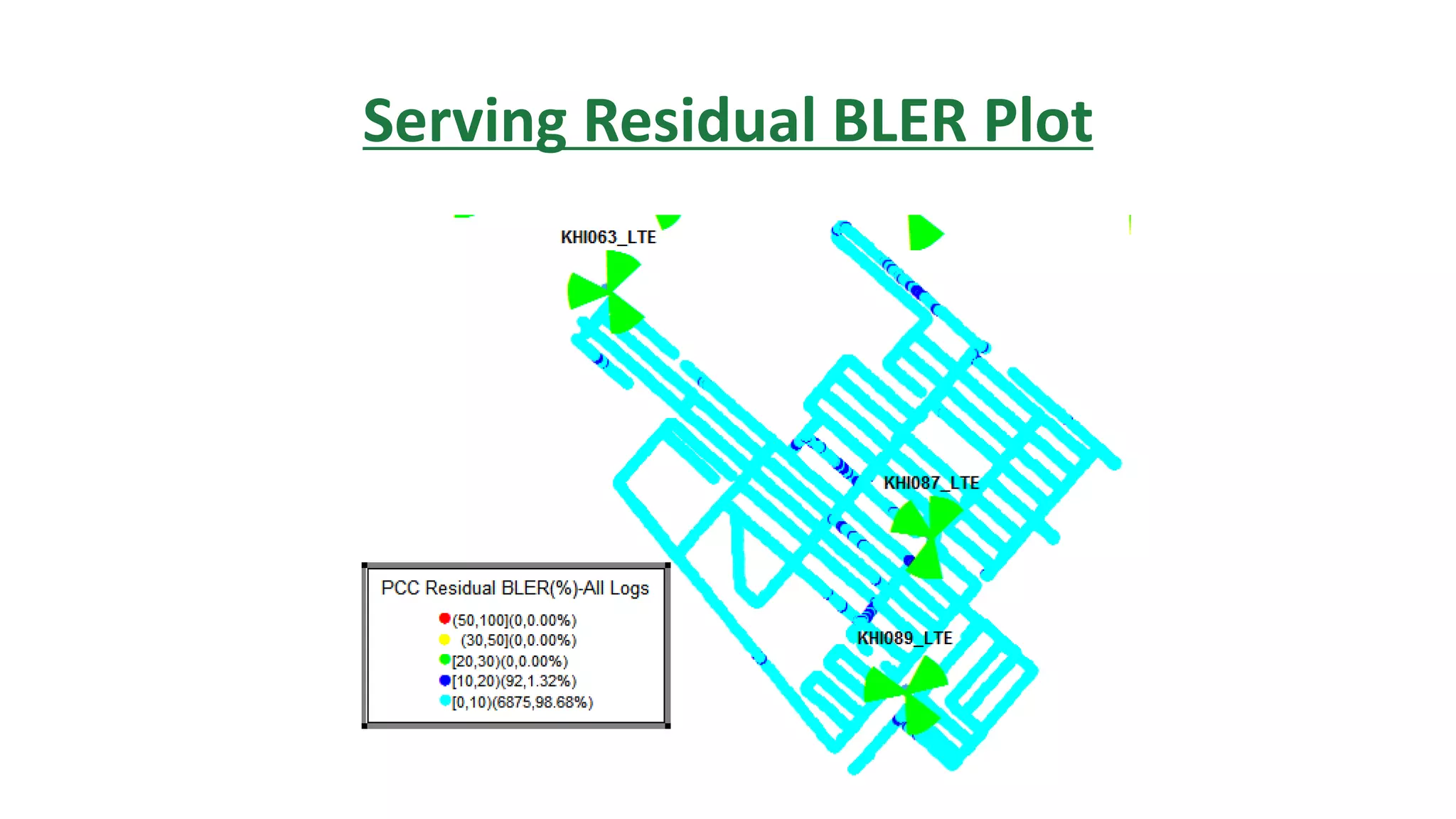

- 31.

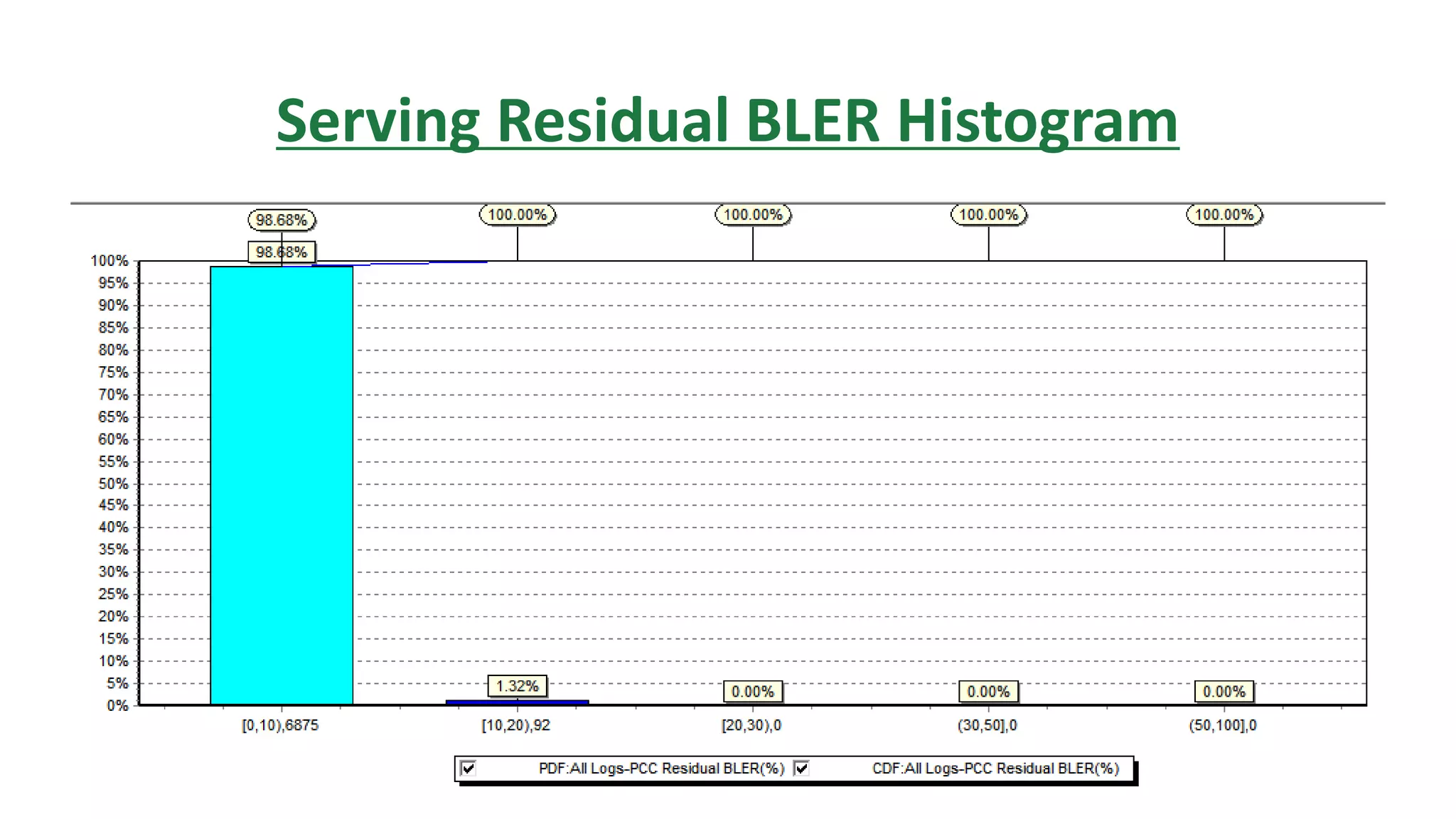

- 32. Serving Residual BLERHistogram

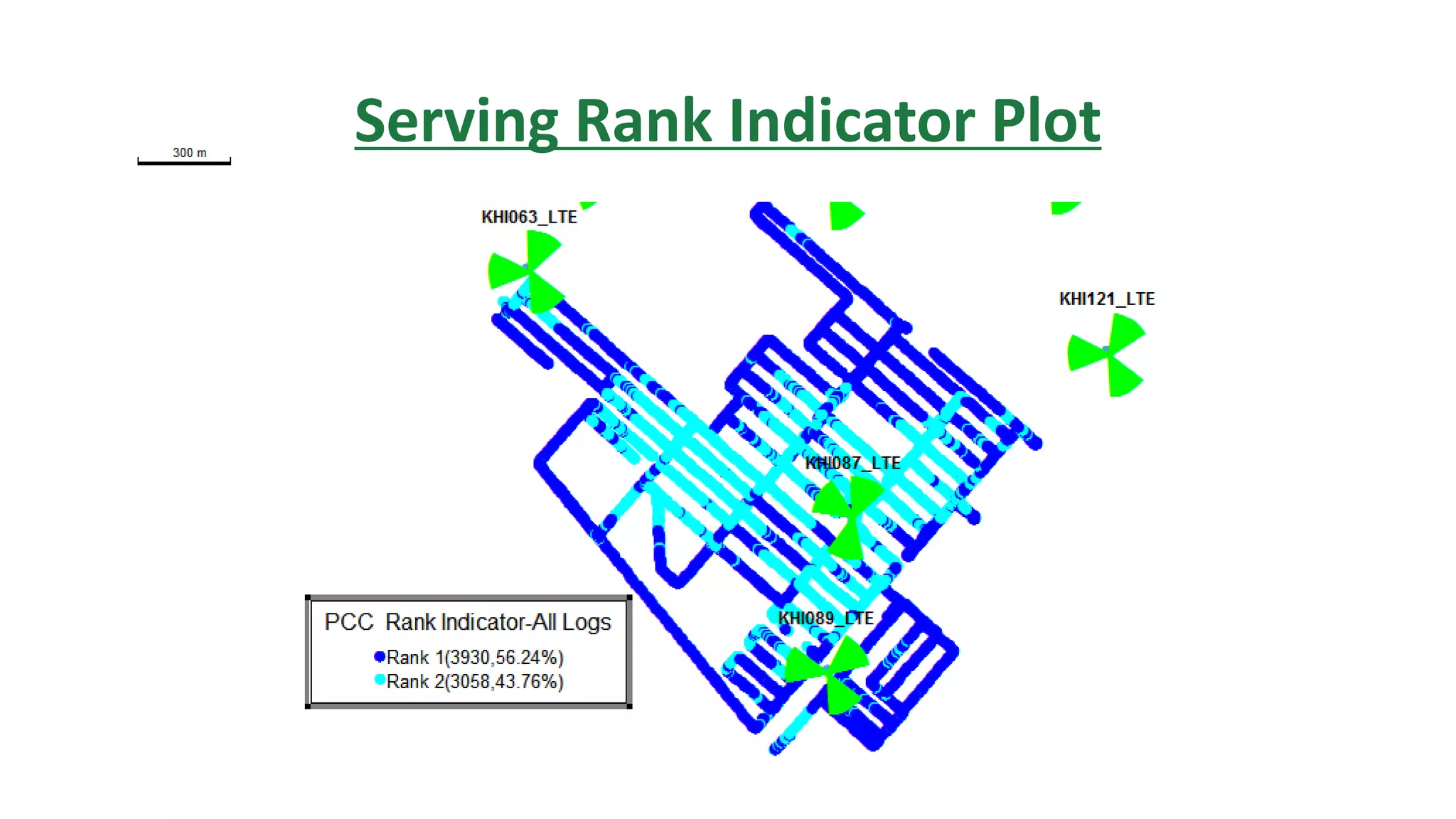

- 33.

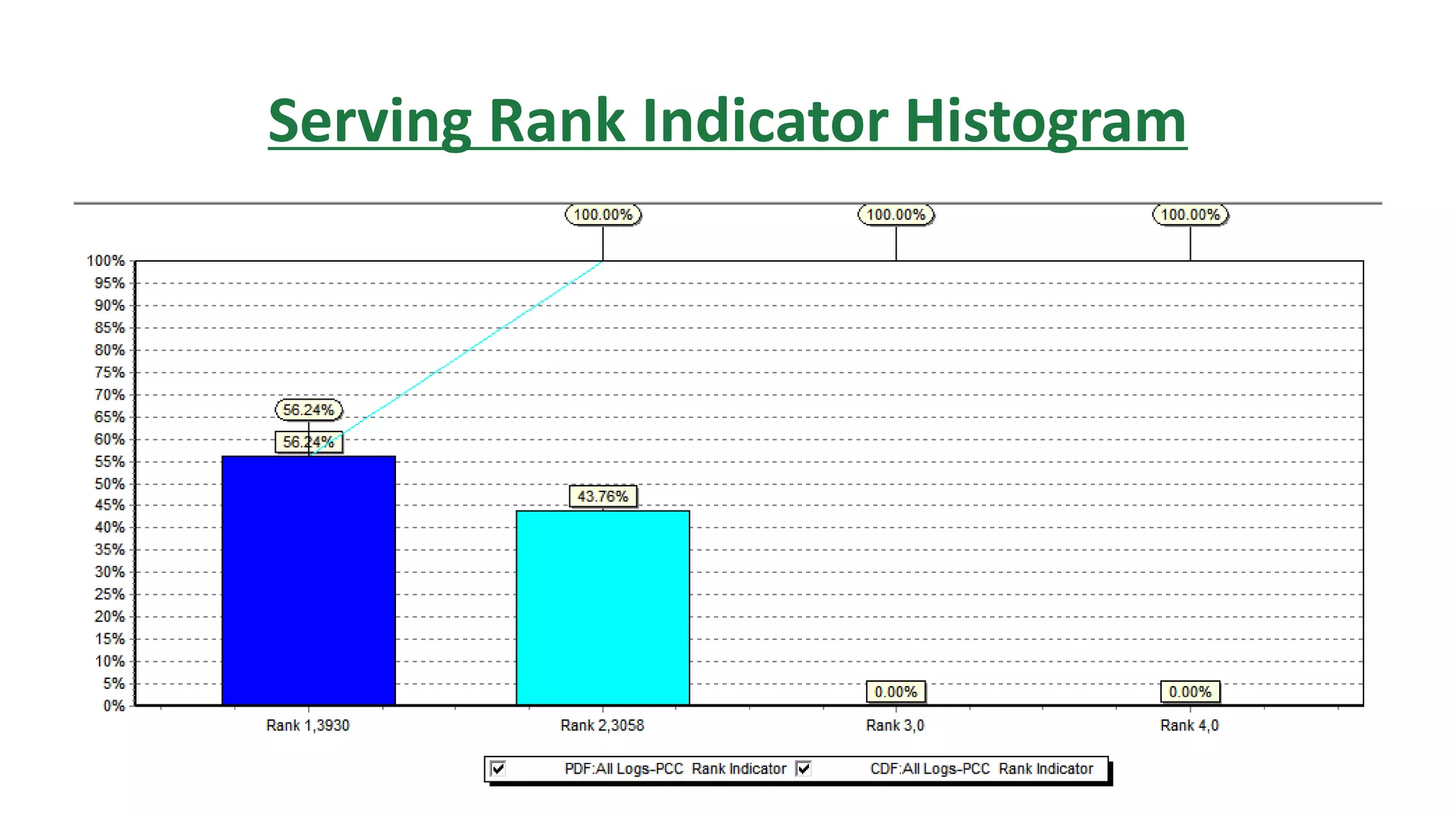

- 34. Serving Rank IndicatorHistogram
- 35.

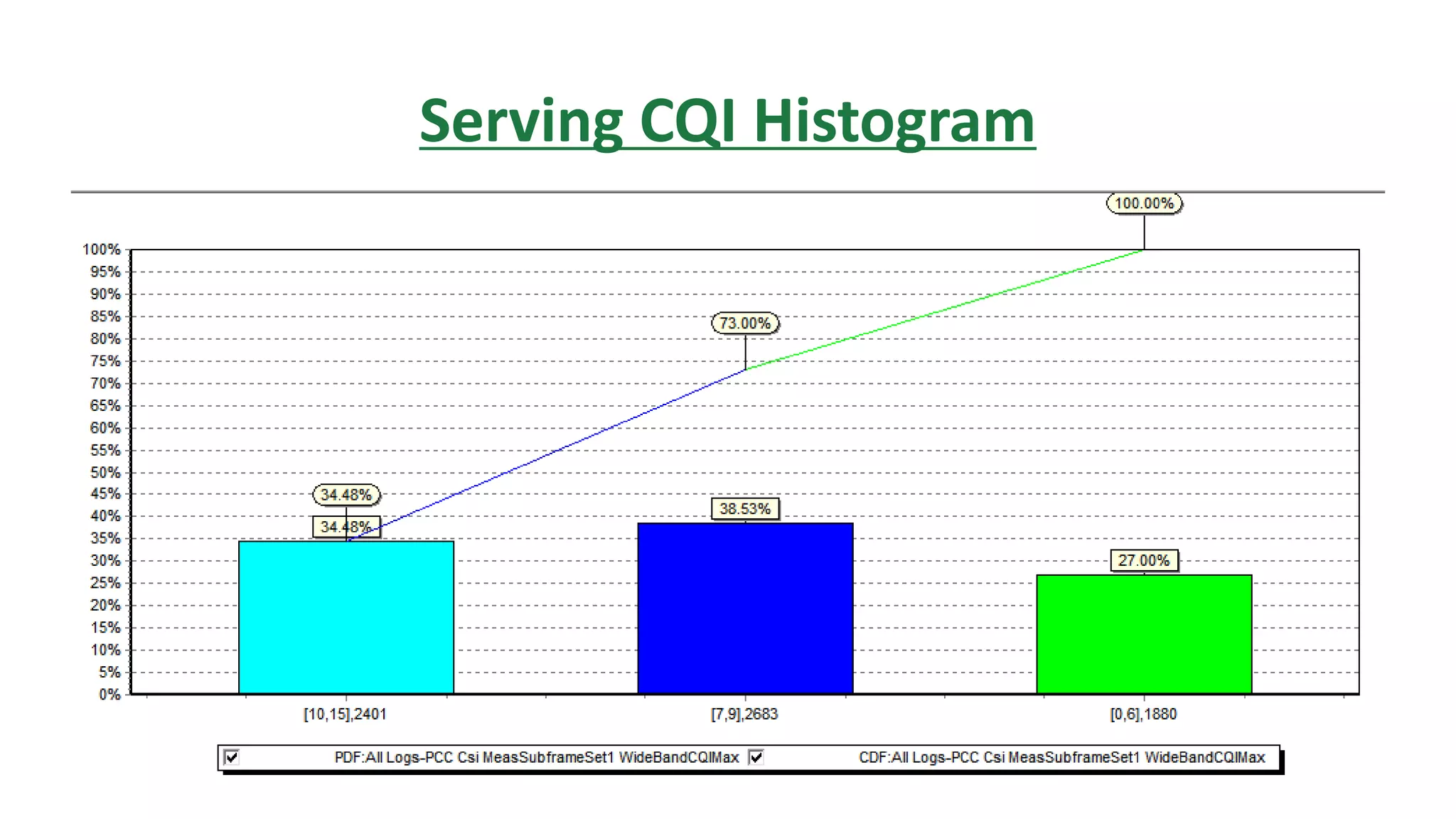

- 36.

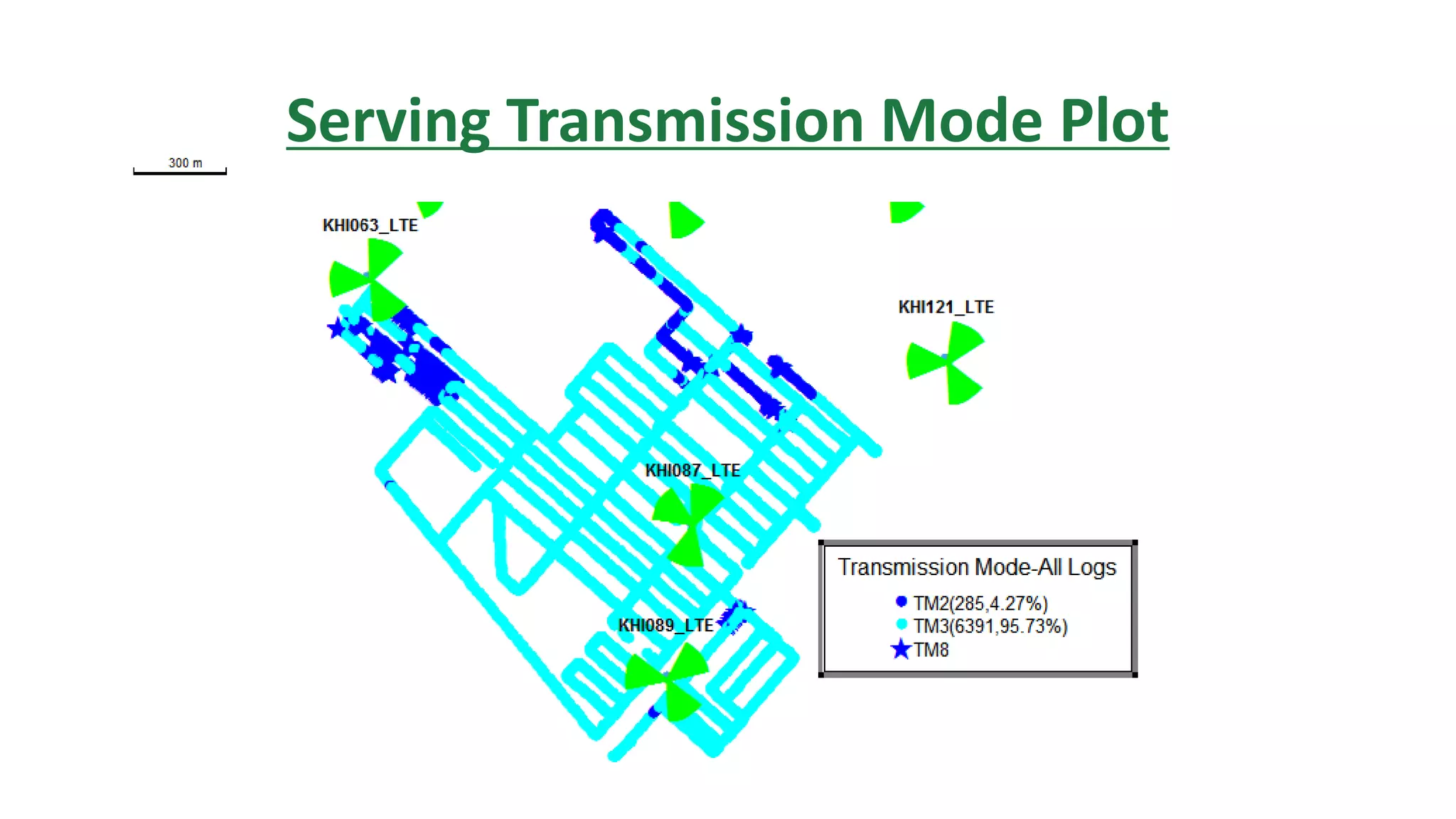

- 37.

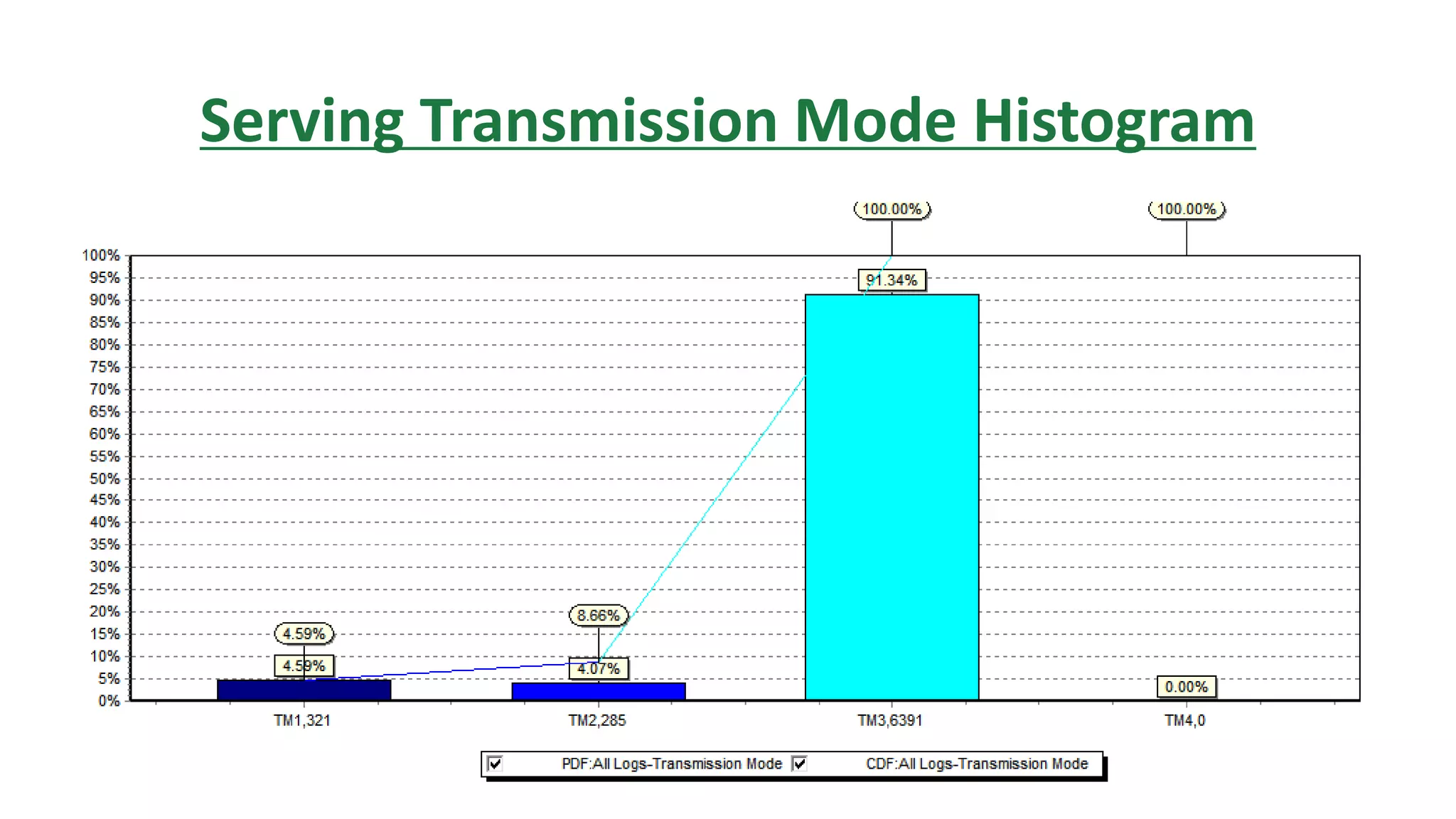

- 38. Serving Transmission ModeHistogram

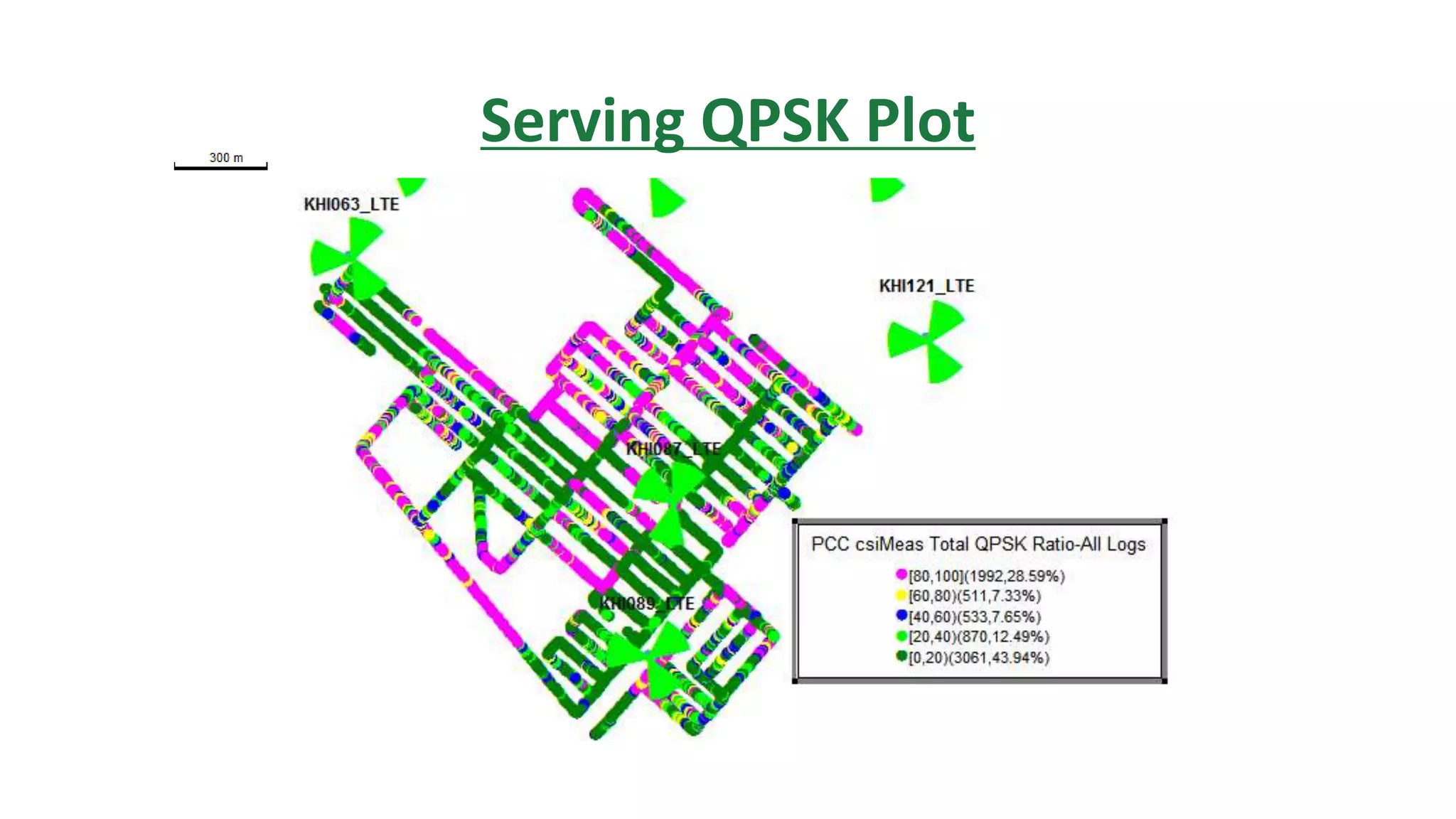

- 39.

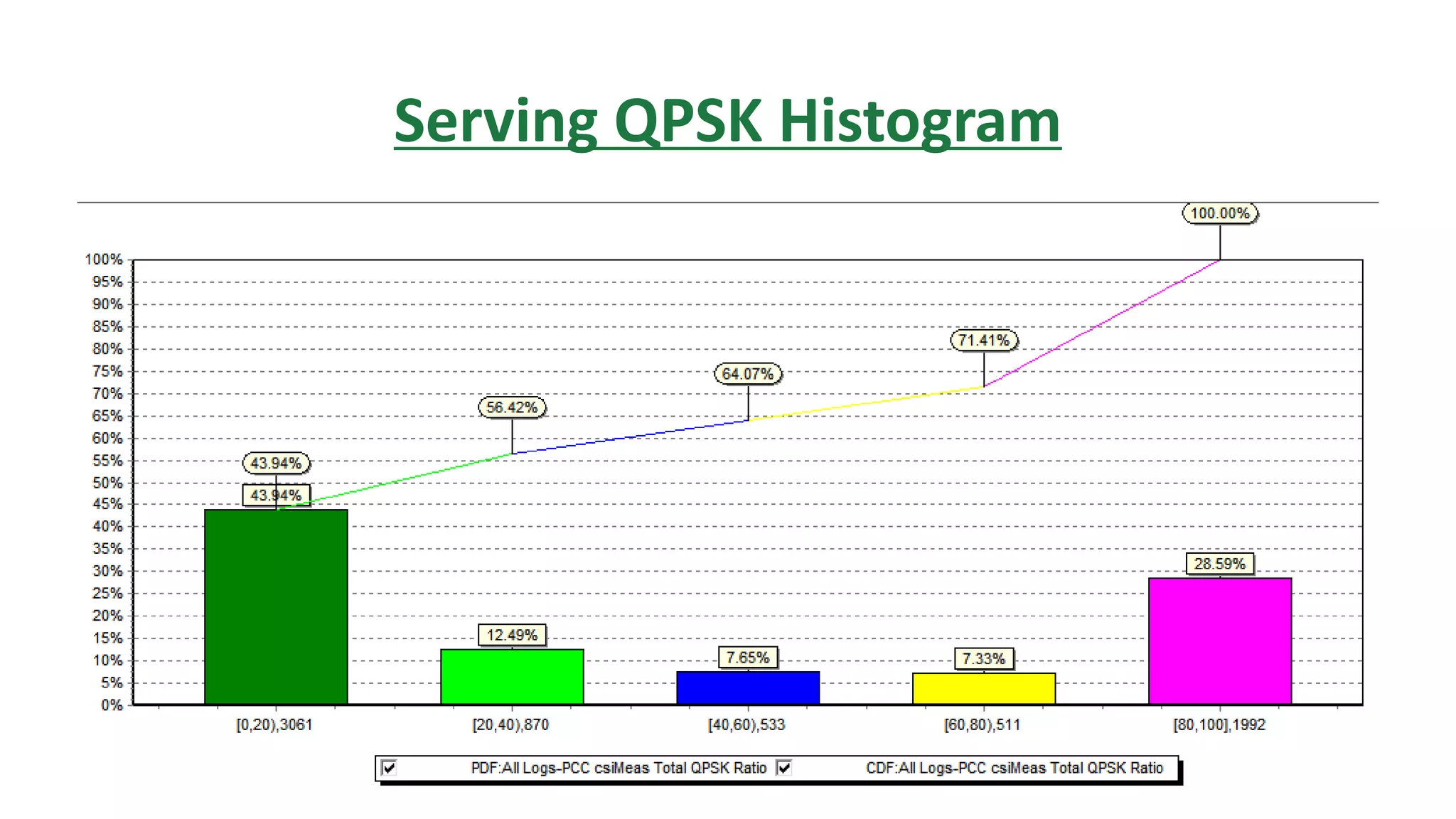

- 40.

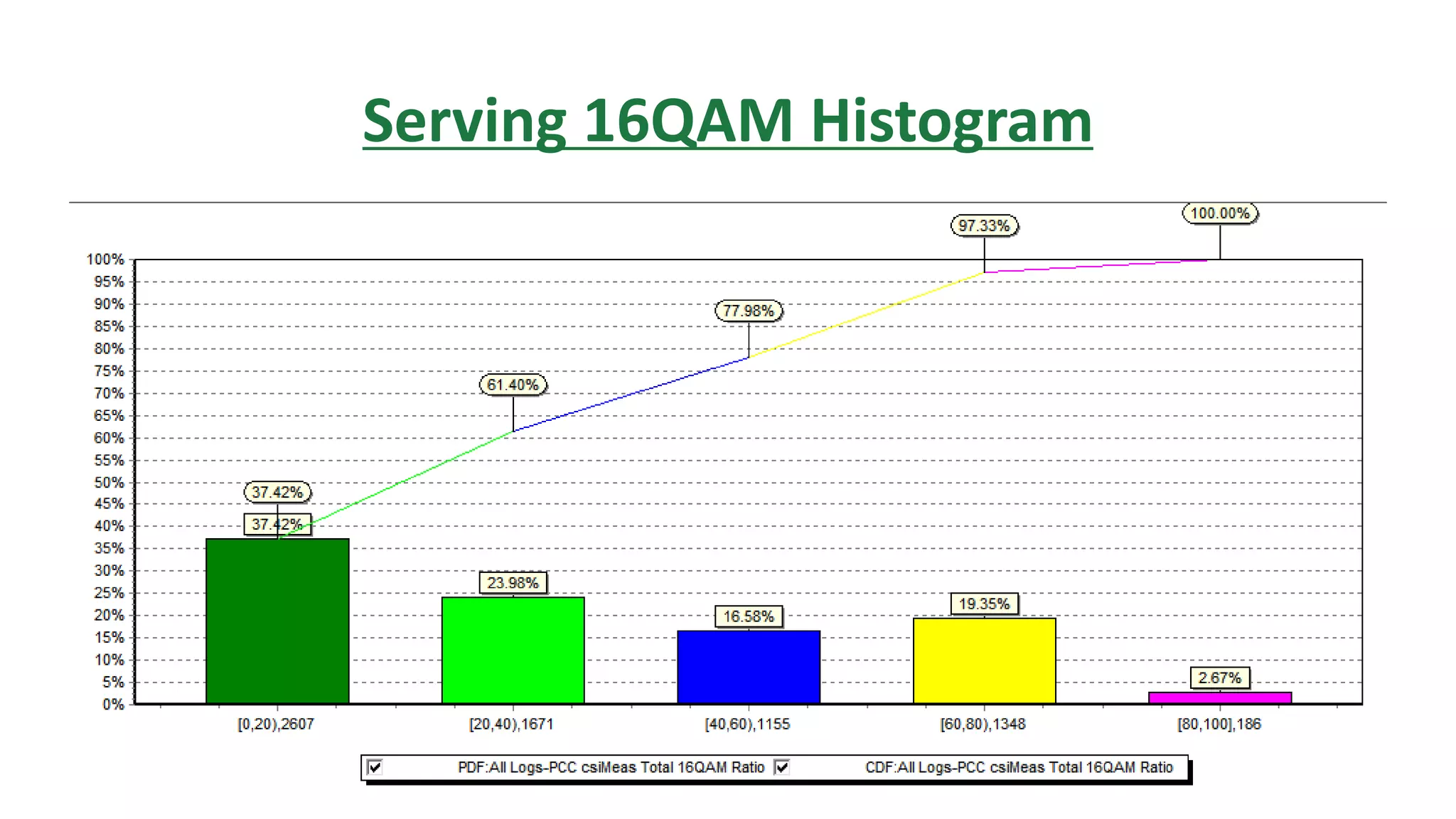

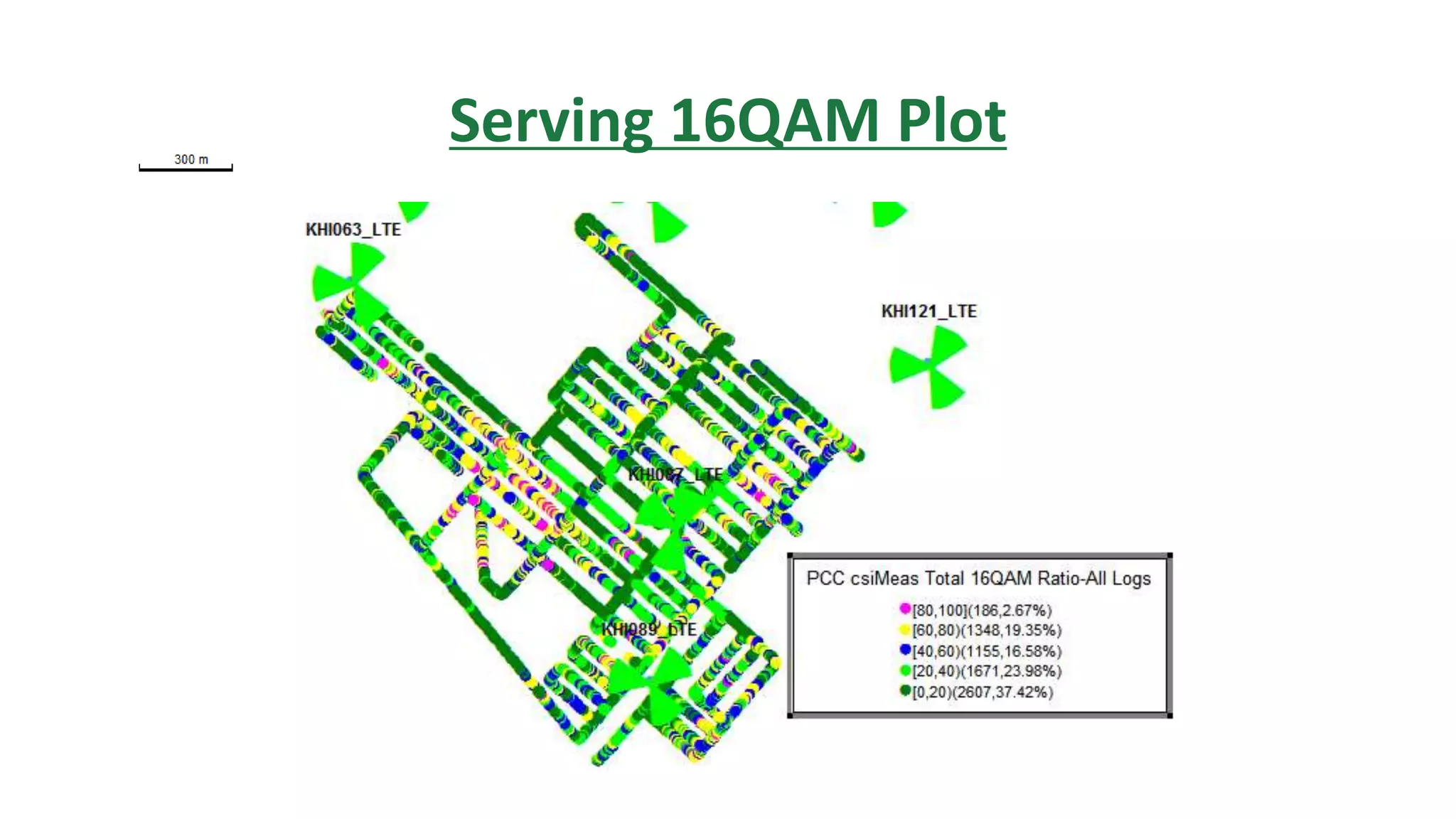

- 41.
- 42.

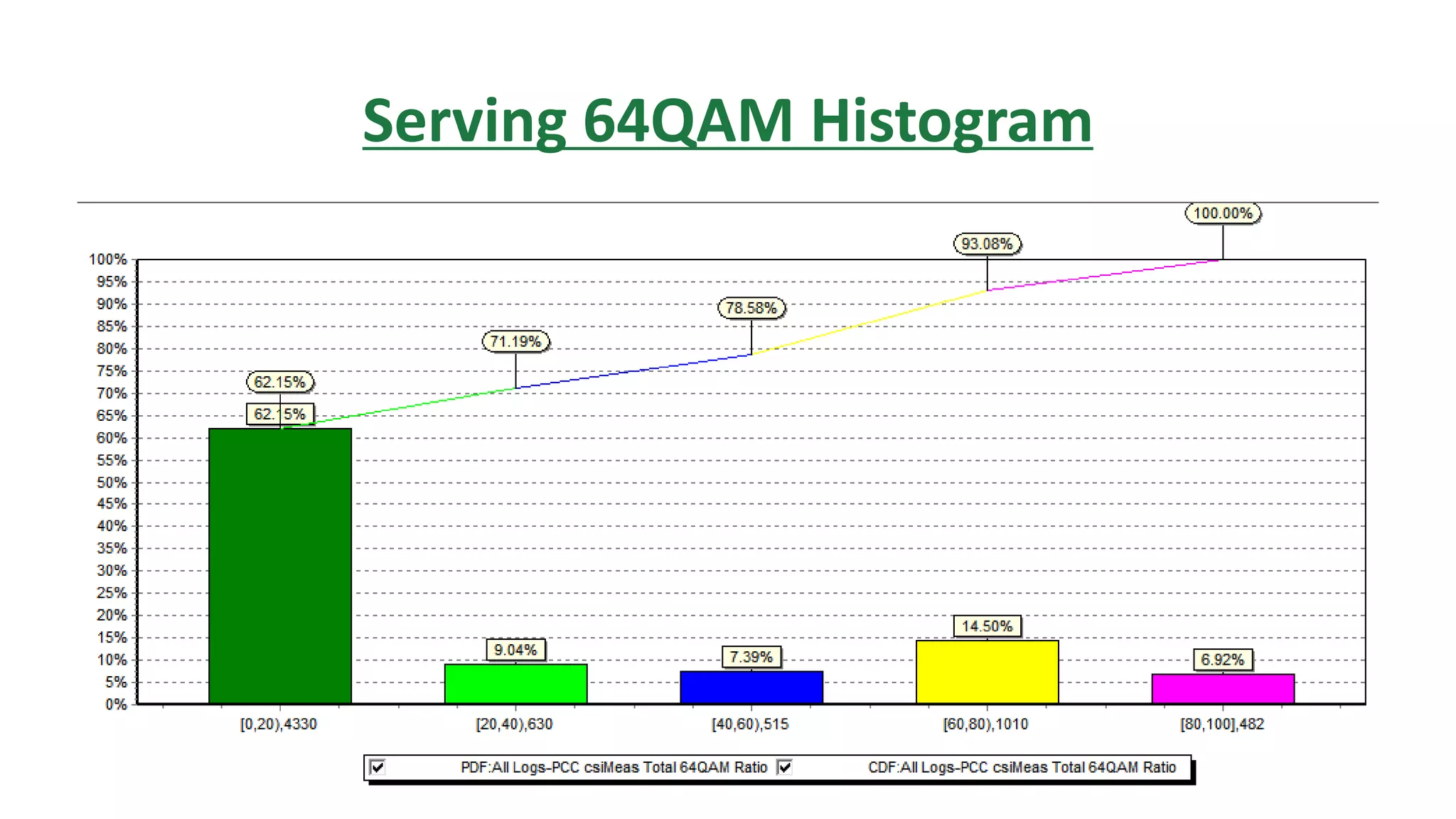

- 43.
- 44.

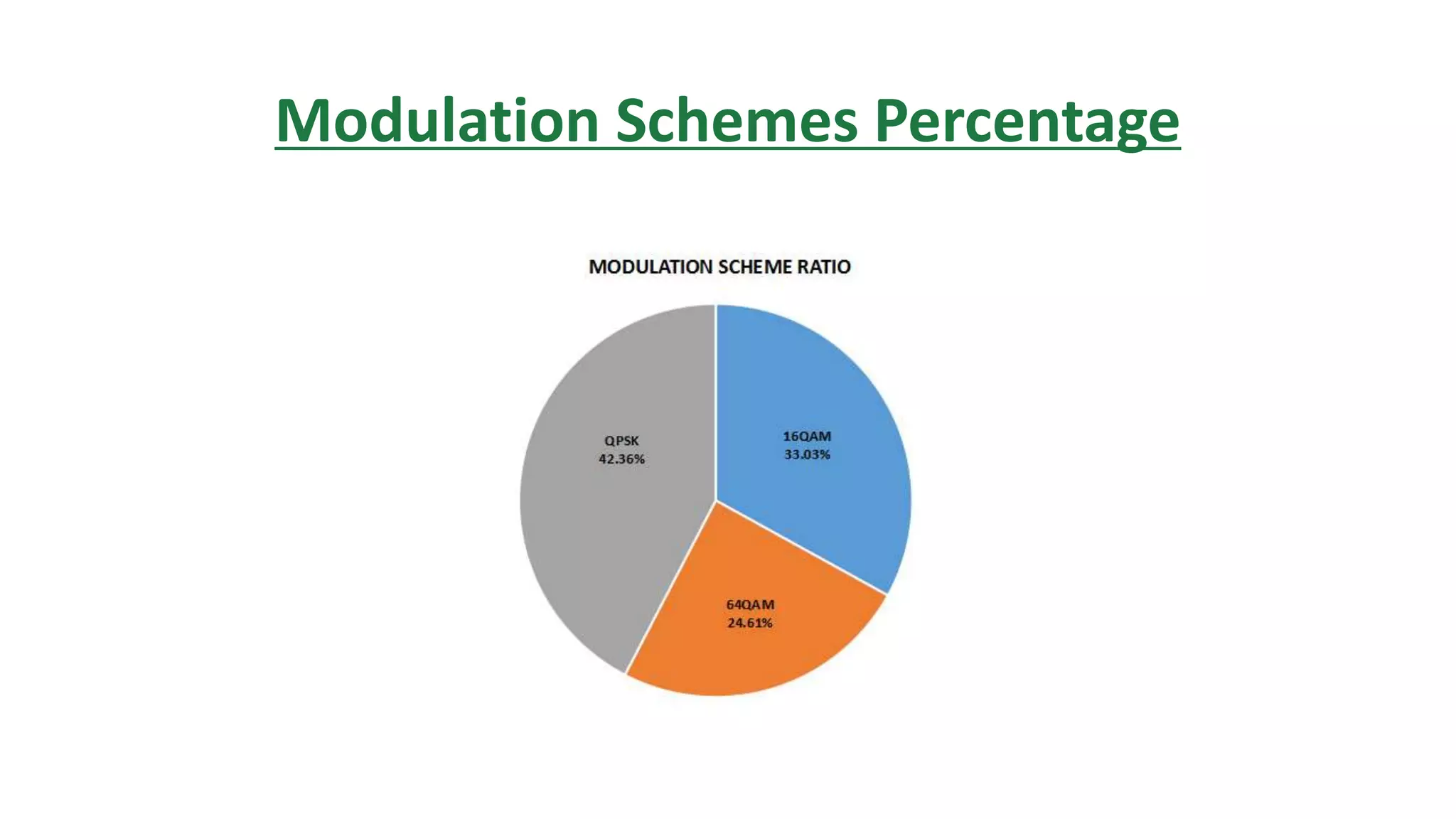

- 45.
- 46.

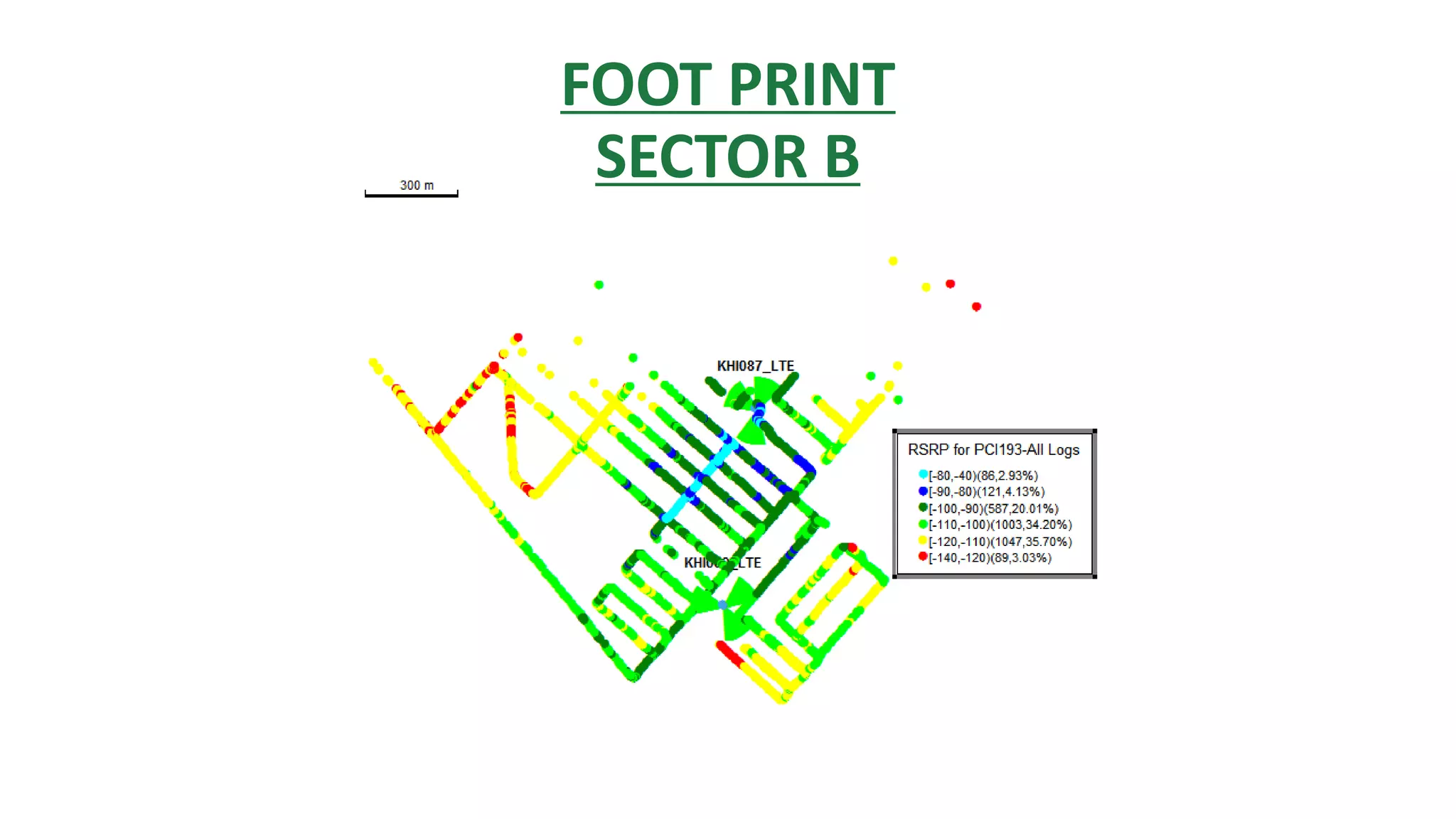

- 47.

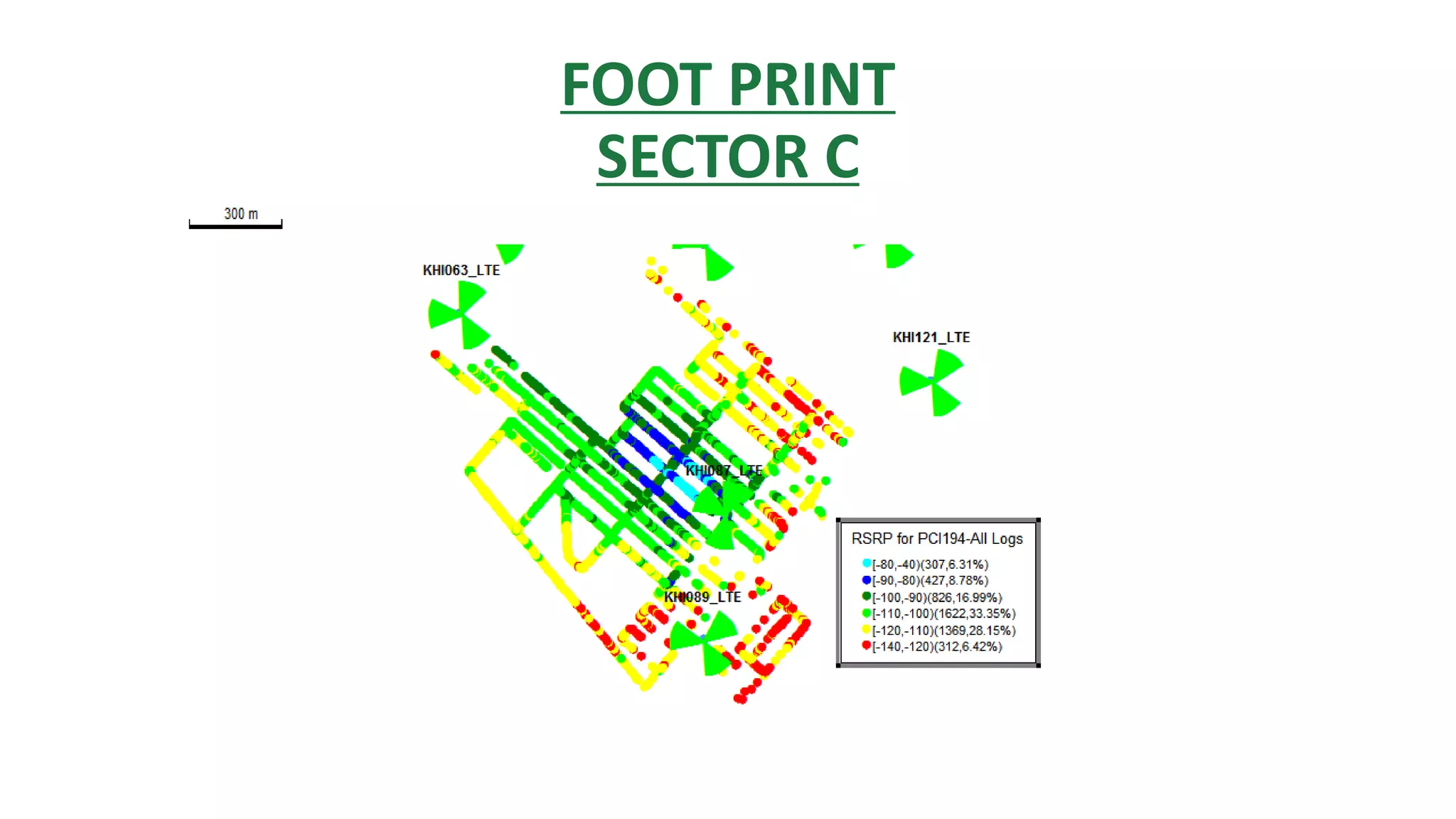

- 48.

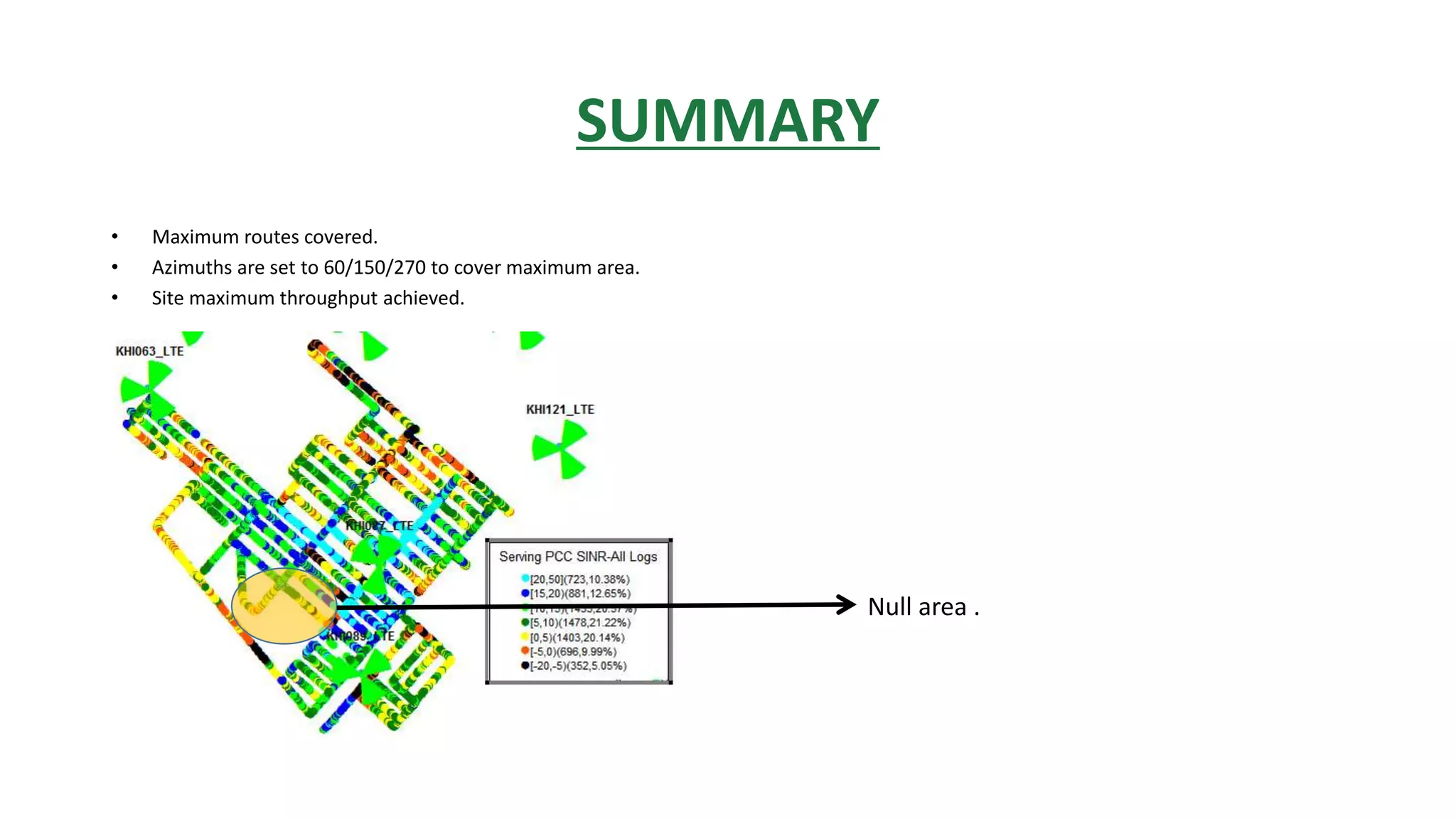

- 49. SUMMARY • Maximum routescovered. • Azimuths are set to 60/150/270 to cover maximum area. • Site maximum throughput achieved. Null area .

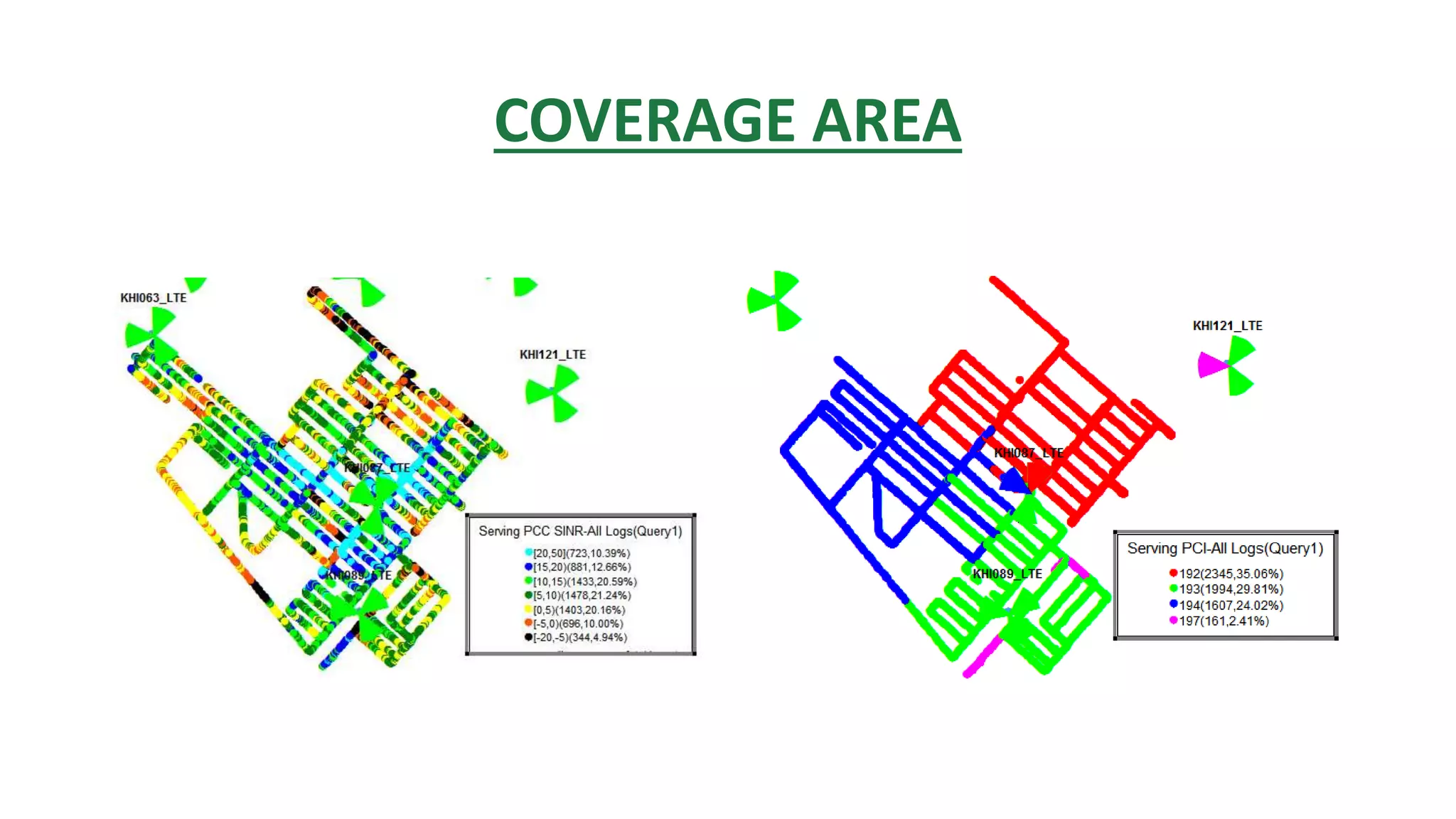

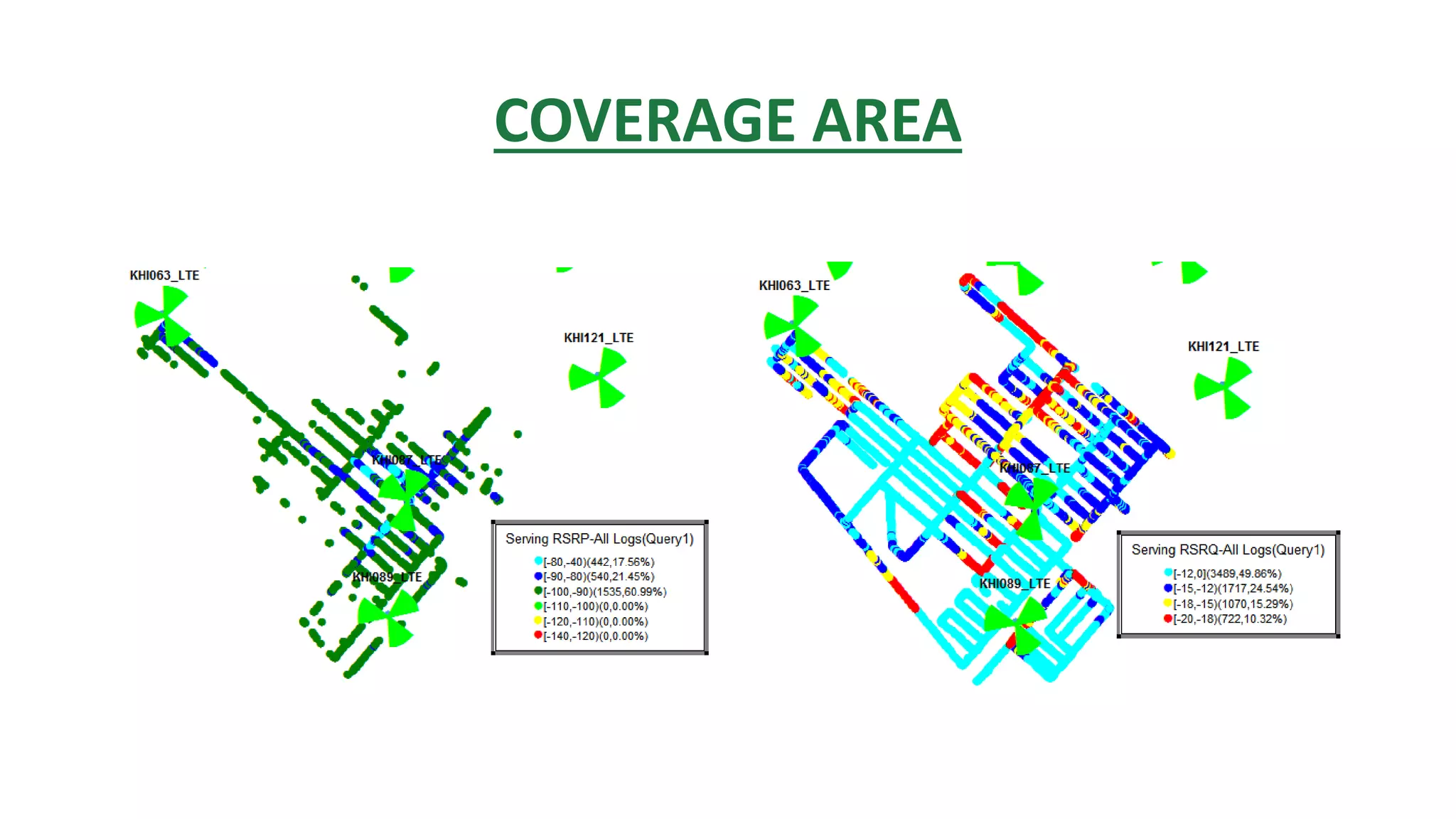

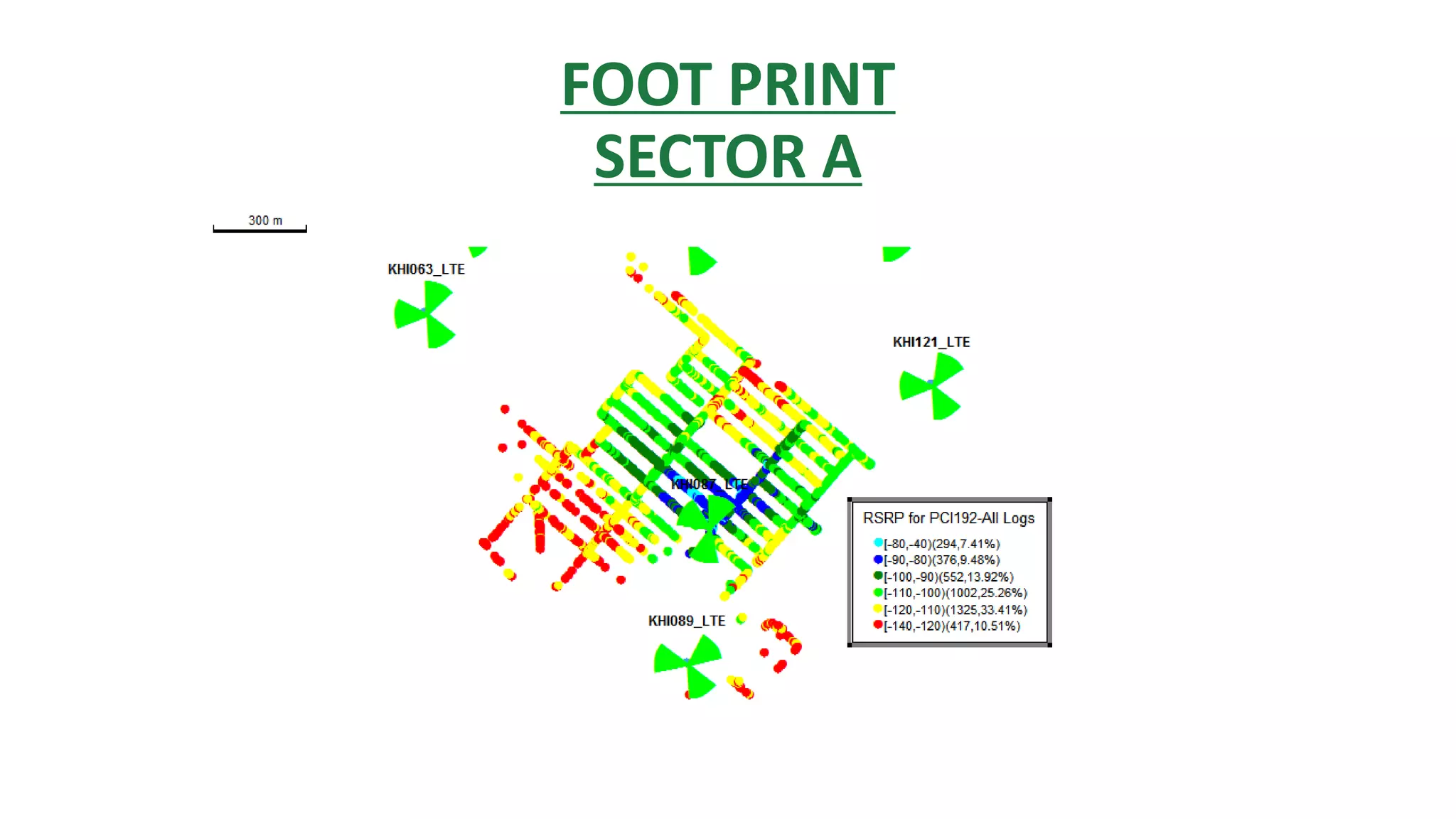

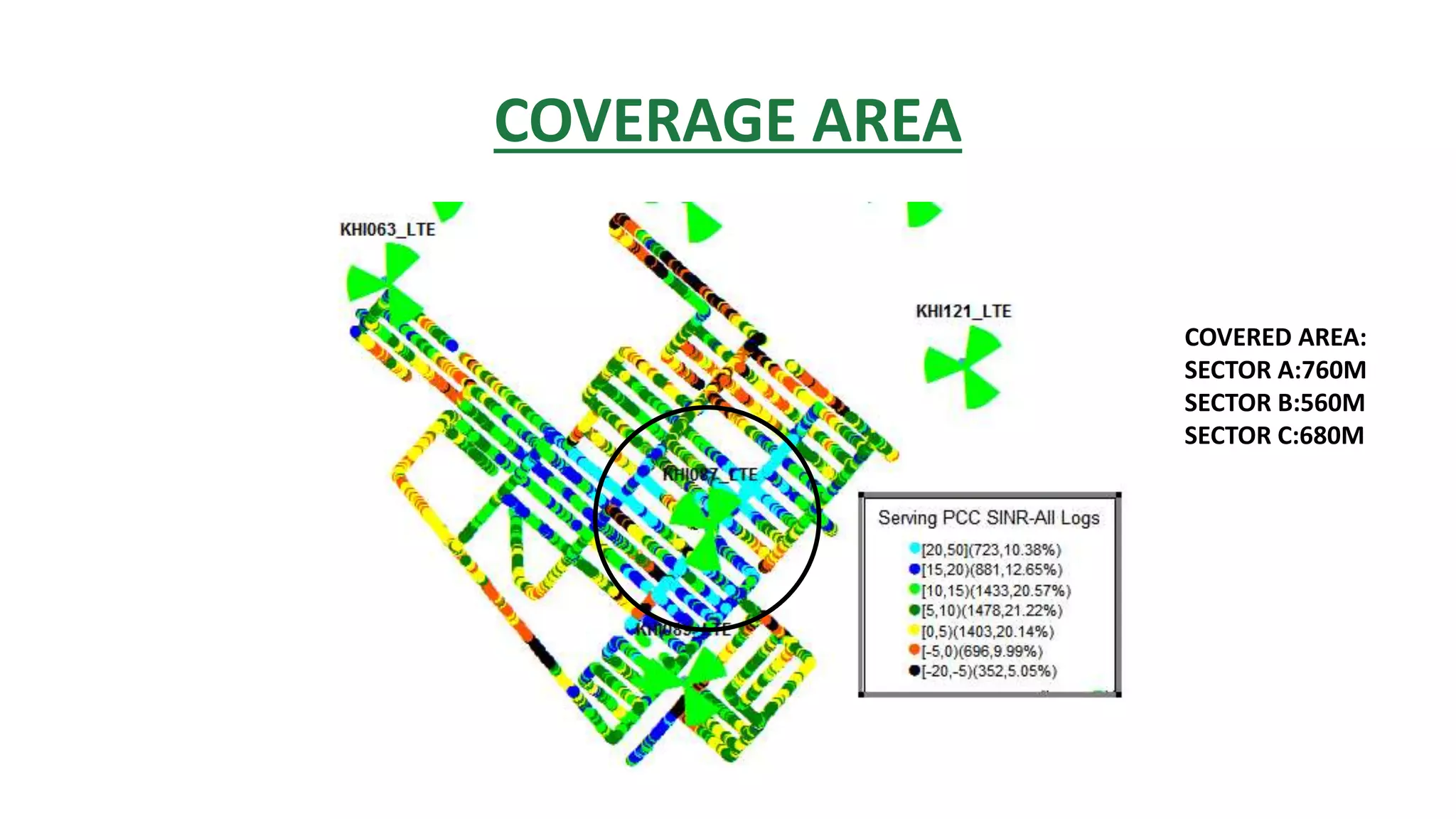

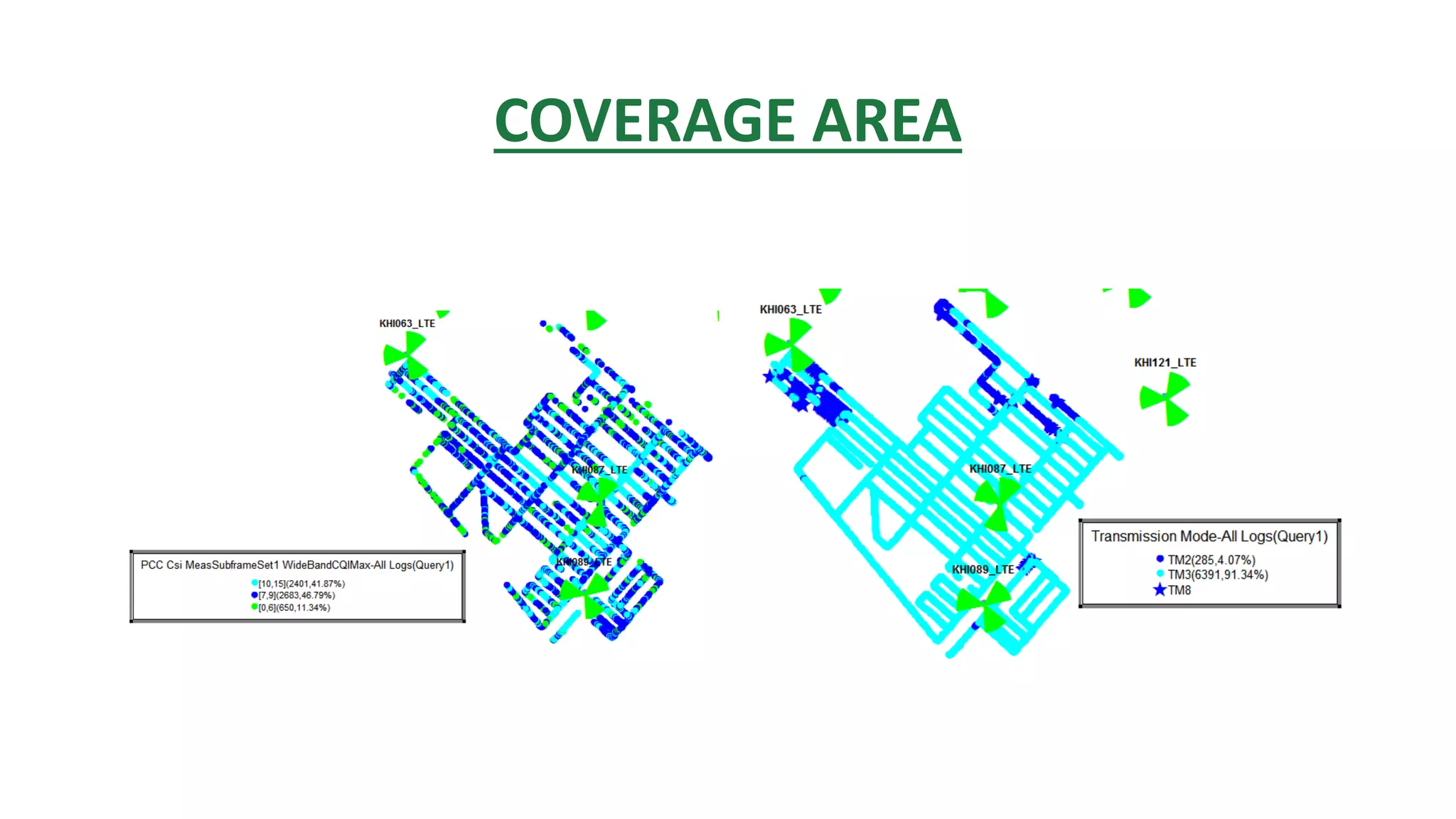

- 50. COVERAGE AREA COVERED AREA: SECTORA:760M SECTOR B:560M SECTOR C:680M
- 51.
- 52.
- 53.
