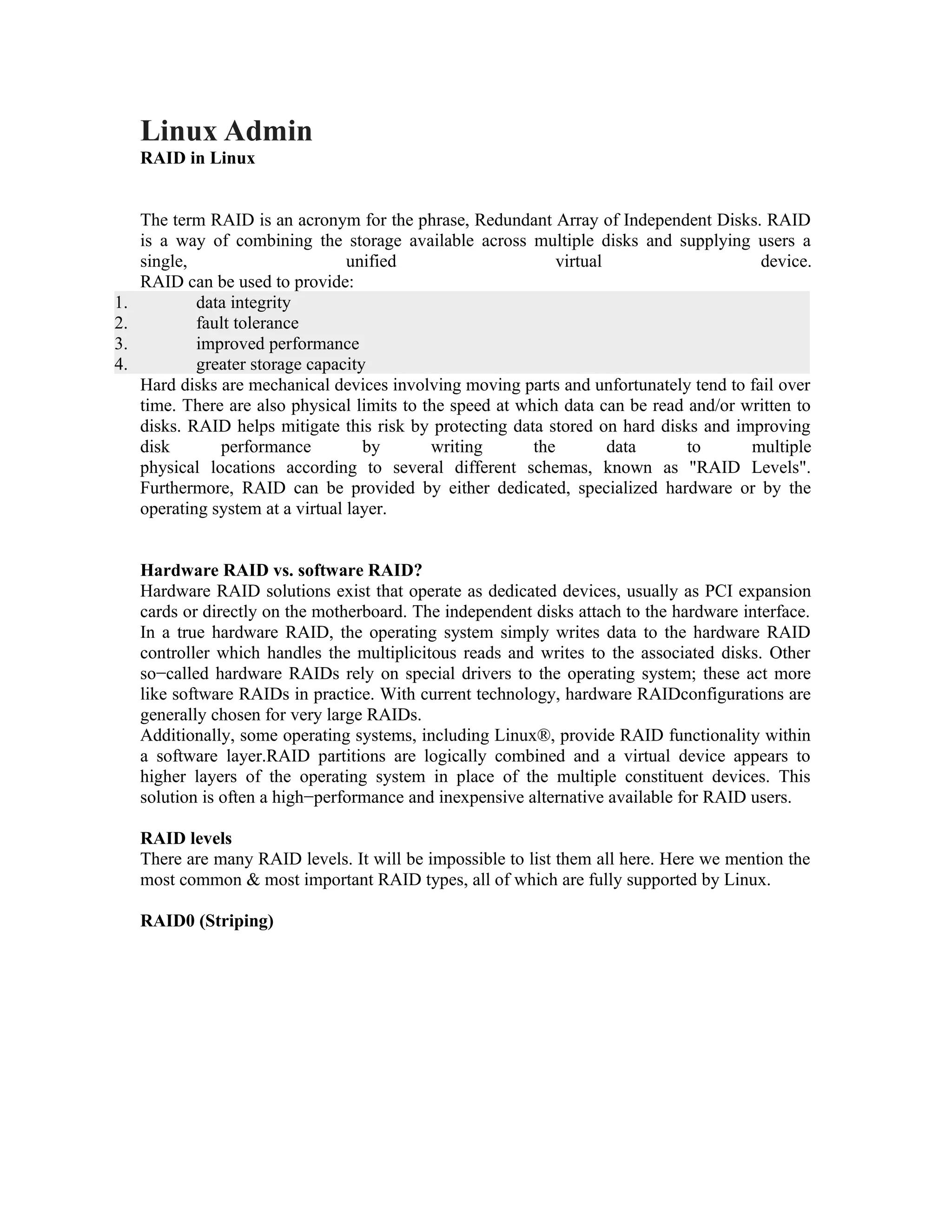

Linux Admin
RAID in Linux

The term RAID is an acronym for the phrase, Redundant Array of Independent Disks. RAID
is a way of combining the storage available across multiple disks and supplying users a
single, unified virtual device.
RAID can be used to provide:
1. data integrity
2. fault tolerance
3. improved performance
4. greater storage capacity
Hard disks are mechanical devices involving moving parts and unfortunately tend to fail over
time. There are also physical limits to the speed at which data can be read and/or written to
disks. RAID helps mitigate this risk by protecting data stored on hard disks and improving
disk performance by writing the data to multiple
physical locations according to several different schemas, known as "RAID Levels".
Furthermore, RAID can be provided by either dedicated, specialized hardware or by the
operating system at a virtual layer.

Hardware RAID vs. software RAID?
Hardware RAID solutions exist that operate as dedicated devices, usually as PCI expansion
cards or directly on the motherboard. The independent disks attach to the hardware interface.
In a true hardware RAID, the operating system simply writes data to the hardware RAID
controller which handles the multiplicitous reads and writes to the associated disks. Other
so−called hardware RAIDs rely on special drivers to the operating system; these act more
like software RAIDs in practice. With current technology, hardware RAIDconfigurations are
generally chosen for very large RAIDs.
Additionally, some operating systems, including Linux®, provide RAID functionality within
a software layer.RAID partitions are logically combined and a virtual device appears to
higher layers of the operating system in place of the multiple constituent devices. This
solution is often a high−performance and inexpensive alternative available for RAID users.

RAID levels
There are many RAID levels. It will be impossible to list them all here. Here we mention the
most common & most important RAID types, all of which are fully supported by Linux.

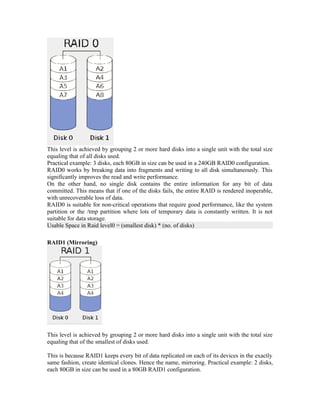

RAID0 (Striping)

This level is achieved by grouping 2 or more hard disks into a single unit with the total size
equaling that of all disks used.
Practical example: 3 disks, each 80GB in size can be used in a 240GB RAID0 configuration.
RAID0 works by breaking data into fragments and writing to all disk simultaneously. This
significantly improves the read and write performance.
On the other hand, no single disk contains the entire information for any bit of data
committed. This means that if one of the disks fails, the entire RAID is rendered inoperable,
with unrecoverable loss of data.
RAID0 is suitable for non-critical operations that require good performance, like the system
partition or the /tmp partition where lots of temporary data is constantly written. It is not
suitable for data storage.
Usable Space in Raid level0 = (smallest disk) * (no. of disks)

RAID1 (Mirroring)

This level is achieved by grouping 2 or more hard disks into a single unit with the total size
equaling that of the smallest of disks used.

This is because RAID1 keeps every bit of data replicated on each of its devices in the exactly
same fashion, create identical clones. Hence the name, mirroring. Practical example: 2 disks,
each 80GB in size can be used in a 80GB RAID1 configuration.

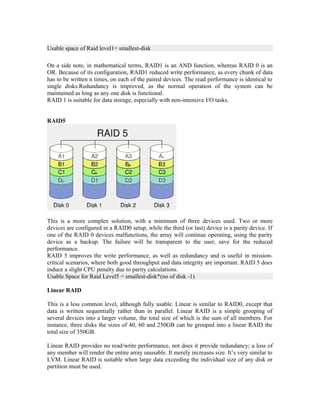

Usable space of Raid level1= smallest-disk

On a side note, in mathematical terms, RAID1 is an AND function, whereas RAID 0 is an
OR. Because of its configuration, RAID1 reduced write performance, as every chunk of data
has to be written n times, on each of the paired devices. The read performance is identical to
single disks.Redundancy is improved, as the normal operation of the system can be
maintained as long as any one disk is functional.
RAID 1 is suitable for data storage, especially with non-intensive I/O tasks.

RAID5

This is a more complex solution, with a minimum of three devices used. Two or more
devices are configured in a RAID0 setup, while the third (or last) device is a parity device. If
one of the RAID 0 devices malfunctions, the array will continue operating, using the parity
device as a backup. The failure will be transparent to the user, save for the reduced
performance.
RAID 5 improves the write performance, as well as redundancy and is useful in mission-
critical scenarios, where both good throughput and data integrity are important. RAID 5 does
induce a slight CPU penalty due to parity calculations.
Usable Space for Raid Level5 = smallest-disk*(no of disk -1)

Linear RAID

This is a less common level, although fully usable. Linear is similar to RAID0, except that
data is written sequentially rather than in parallel. Linear RAID is a simple grouping of
several devices into a larger volume, the total size of which is the sum of all members. For
instance, three disks the sizes of 40, 60 and 250GB can be grouped into a linear RAID the
total size of 350GB.

Linear RAID provides no read/write performance, not does it provide redundancy; a loss of
any member will render the entire array unusable. It merely increases size. It’s very similar to
LVM. Linear RAID is suitable when large data exceeding the individual size of any disk or
partition must be used.

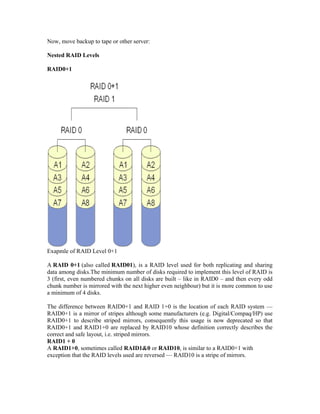

Now, move backup to tape or other server:

Nested RAID Levels

RAID0+1

Exapmle of RAID Level 0+1

A RAID 0+1 (also called RAID01), is a RAID level used for both replicating and sharing
data among disks.The minimum number of disks required to implement this level of RAID is
3 (first, even numbered chunks on all disks are built – like in RAID0 – and then every odd
chunk number is mirrored with the next higher even neighbour) but it is more common to use
a minimum of 4 disks.

The difference between RAID0+1 and RAID 1+0 is the location of each RAID system —
RAID0+1 is a mirror of stripes although some manufacturers (e.g. Digital/Compaq/HP) use
RAID0+1 to describe striped mirrors, consequently this usage is now deprecated so that
RAID0+1 and RAID1+0 are replaced by RAID10 whose definition correctly describes the
correct and safe layout, i.e. striped mirrors.

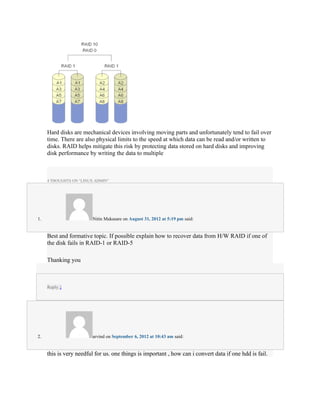

RAID1 + 0
A RAID1+0, sometimes called RAID1&0 or RAID10, is similar to a RAID0+1 with
exception that the RAID levels used are reversed — RAID10 is a stripe of mirrors.

Hard disks are mechanical devices involving moving parts and unfortunately tend to fail over
time. There are also physical limits to the speed at which data can be read and/or written to
disks. RAID helps mitigate this risk by protecting data stored on hard disks and improving
disk performance by writing the data to multiple

4 THOUGHTS ON “LINUX ADMIN”

1. Nitin Makasare on August 31, 2012 at 5:19 pm said:

Best and formative topic. If possible explain how to recover data from H/W RAID if one of
the disk fails in RAID-1 or RAID-5

Thanking you

Reply ↓

2. arvind on September 6, 2012 at 10:43 am said:

this is very needful for us. one things is important , how can i convert data if one hdd is fail.

Reply ↓

3. Praveen on September 11, 2012 at 1:28 pm said:

Very helpful…. Thank you for sharing this….

Reply ↓

4. baskar on September 13, 2012 at 7:48 am said:

Hi, is it possible to create software RAID10 in linux?if so, how to do it? Regards Boss

How To Install and Configure a File and Print Server in Windows Server 2003

You can create a Windows Server 2003 file server and print server manually, or you
can use the wizards that are provided in the Configure Your Server Wizard
administrative tool.

How to Install a File Server on Windows Server 2003 by Using the Configure Your
Server Wizard
 Click Start, point to Administrative Tools, and then click Configure Your Server
Wizard.
 Click Next.
 Click Next.
 Click File server in the Server role box, and then click Next.

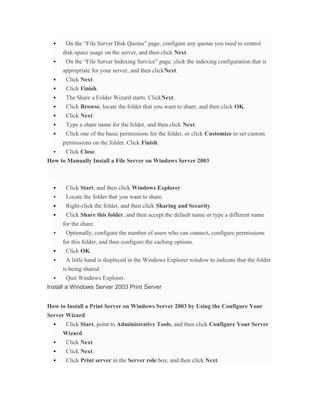

 On the “File Server Disk Quotas” page, configure any quotas you need to control
disk-space usage on the server, and then click Next.
 On the “File Server Indexing Service” page, click the indexing configuration that is
appropriate for your server, and then clickNext.
 Click Next.
 Click Finish.
 The Share a Folder Wizard starts. ClickNext.
 Click Browse, locate the folder that you want to share, and then click OK.
 Click Next.
 Type a share name for the folder, and then click Next.
 Click one of the basic permissions for the folder, or click Customize to set custom
permissions on the folder. Click Finish.
 Click Close.
How to Manually Install a File Server on Windows Server 2003

 Click Start, and then click Windows Explorer.
 Locate the folder that you want to share.
 Right-click the folder, and then click Sharing and Security.
 Click Share this folder, and then accept the default name or type a different name
for the share.
 Optionally, configure the number of users who can connect, configure permissions
for this folder, and then configure the caching options.
 Click OK.
 A little hand is displayed in the Windows Explorer window to indicate that the folder
is being shared.
 Quit Windows Explorer.
Install a Windows Server 2003 Print Server

How to Install a Print Server on Windows Server 2003 by Using the Configure Your
Server Wizard
 Click Start, point to Administrative Tools, and then click Configure Your Server
Wizard.
 Click Next.
 Click Next.
 Click Print server in the Server role box, and then click Next.

 On the “Printers and Printer Drivers” page, click the types of Windows clients that
your print server will support, and then clickNext.
 Click Next.
 On the “Add Printer Wizard Welcome” page, click Next.
 Click Local printer attached to this computer, click to clear theAutomatically
detect and install my Plug and Play printer check box, and then click Next.
 Click the port for your printer, and then click Next.
 Click the printer make and model or provide the drivers from the printer
manufacturer media, and then click Next.NOTE: If you are prompted to keep or not
keep your existing printer driver, either keep the existing driver or replace the existing
driver. If you replace the driver, you must provide the manufacturer driver for this
printer. Click Next to continue

Linux Admin
How To Add New Disk To The Hardware Raid Controller Without Rebooting The Server In
Linux

First find out your RAID hardware as we will need appropriate OS utility to manage the same
from the same vendor. In our case it was lsi which can be managed via Megacli utility.

[root@server 8.02.21_Linux_MegaCLI]# lspci | grep -i raid
07:00.0 RAID bus controller: LSI Logic / Symbios Logic MegaRAID SAS 2108 [Liberator]
(rev 05)
Lets first install the utilty :
To do this we need to install the Megacli utility on our server Centos 6.2.
Step:1. Install the below two packages.
(downlaod from http://www.lsi.com/downloads/Public/MegaRAID%20Common
%20Files/8.02.21_MegaCLI.zip) .

#rpm -ivh Lib_Utils-1.00-09.noarch.rpm
#rpm -ivh MegaCli-8.02.21-1.noarch.rpm

Step:2. By default the utility is placed at location as below..
[root@server 8.02.21_Linux_MegaCLI]# cd /opt/MegaRAID/MegaCli/
[root@server MegaCli]# ls
install.log MegaCli64 MegaSAS.log

Step:3. Run the below command before adding the brand new disk drive.
[root@server MegaCli]# /opt/MegaRAID/MegaCli/MegaCli64 -PDList -aAll | grep -e
“Enclosure Device ID” -e Slot
Enclosure Device ID: 252
Slot Number: 0

Slot Number: 1

Step:4. Run the command again after injecting the new HDD in drive slot.
[root@server MegaCli]# /opt/MegaRAID/MegaCli/MegaCli64 -PDList -aAll | grep -e
“Enclosure Device ID” -e Slot
Slot Number: 0
Slot Number: 1
Slot Number: 3

Step:5. Now you have the following information the Enclosure Device ID: 252 and Slot
Number: 3 for the newly added drive.

Step:6. Once added the new drive will be in foreign state. Give the below command to
clear the foreign status.
[root@server MegaCli]#/opt/MegaRAID/MegaCli/MegaCli64 -CfgForeign -Clear -aALL

Step:7. Add the new drive to the desired RAID level by running below command.
#/opt/MegaRAID/MegaCli/MegaCli64 -CfgLdAdd -r0 [252:3] -a0

Options:
-r1 = RAID1
252 = Enclosure Device ID
2 and 3 = Slot Number
-a0 = Adapter
In our case :
-r0 = RAID0
252 = Enclosure Device ID
3 = Slot Number
-a0 = Adapter

Step:8. tail the /var/log/messages for the new disk
sd 0:2:1:0: [sdb] Mode Sense: 1f 00 00 08
sd 0:2:1:0: [sdb] Write cache: enabled, read cache: enabled, doesn’t support DPO or FUA
sdb: sdb1 sdb2
sd 0:2:1:0: [sdb] Attached SCSI disk

Now you can use the new disk as any other normal drive.

5 THOUGHTS ON “LINUX ADMIN”

1. pradeep on July 21, 2012 at 11:22 am said:

You are right

mind blowing topic , it helped me a lot !!!!!!!!!!!

Reply ↓

2. Sanjay Negi on August 1, 2012 at 4:59 pm said:

Thanks for sharing this information…..
It is of great help to me……

Reply ↓


Thank you for sharing this very usefull information. It will enhance my knowledge of
Linux….

Reply ↓

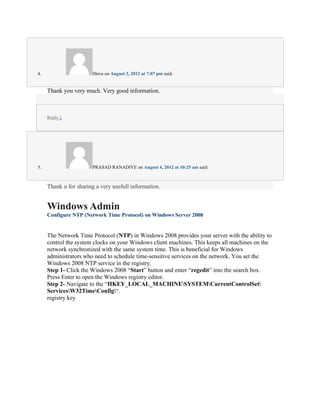

4. Shiva on August 2, 2012 at 7:07 pm said:

Thank you very much. Very good information.

Reply ↓

5. PRASAD RANADIVE on August 4, 2012 at 10:25 am said:

Thank u for sharing a very usefull information.

Windows Admin
Configure NTP (Network Time Protocol) on Windows Server 2008

The Network Time Protocol (NTP) in Windows 2008 provides your server with the ability to
control the system clocks on your Windows client machines. This keeps all machines on the
network synchronized with the same system time. This is beneficial for Windows
administrators who need to schedule time-sensitive services on the network. You set the
Windows 2008 NTP service in the registry.
Step 1- Click the Windows 2008 “Start” button and enter “regedit” into the search box.
Press Enter to open the Windows registry editor.
Step 2- Navigate to the “HKEY_LOCAL_MACHINESYSTEMCurrentControlSet
ServicesW32TimeConfig“.
registry key

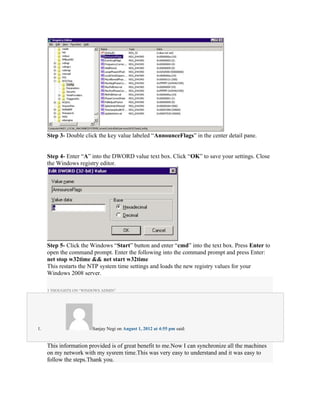

Step 3- Double click the key value labeled “AnnounceFlags” in the center detail pane.

Step 4- Enter “A” into the DWORD value text box. Click “OK” to save your settings. Close
the Windows registry editor.

Step 5- Click the Windows “Start” button and enter “cmd” into the text box. Press Enter to
open the command prompt. Enter the following into the command prompt and press Enter:
net stop w32time && net start w32time
This restarts the NTP system time settings and loads the new registry values for your
Windows 2008 server.

3 THOUGHTS ON “WINDOWS ADMIN”


This information provided is of great benefit to me.Now I can synchronize all the machines
on my network with my sysrem time.This was very easy to understand and it was easy to
follow the steps.Thank you.

Reply ↓

2. santhosh on August 23, 2012 at 9:24 am said:

this is very silmple and easy to learn

Reply ↓

3. Nitin Makasare on August 31, 2012 at 5:32 pm said:

Nice and very easy steps to configure NTP Server. Thanks.

Network Admin
How to get netbios name in linux
NetBios stands for Network Basic Input/Output System. It provides services related to the
session layer of the OSI model allowing applications on separate computers to communicate
over a local area network.NetBIOS provides three distinct services:

1. Name service for name registration and resolution.
2. Session service for connection-oriented communication.
3. Datagram distribution service for connectionless communication.

Enabling NetBIOS over TCP/IP
We can enable NetBT for computers running Windows Server 2003 or Windows XP by
opening Network Connections, right-clicking a connection, clicking the Internet Protocol
(TCP/IP) component, clicking Properties, clicking Advanced, clicking the WINS tab, and

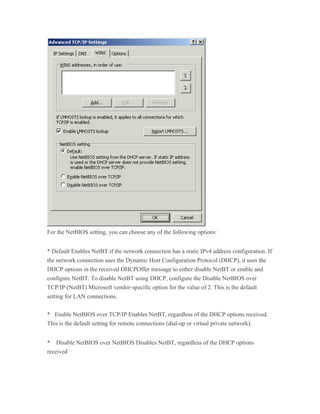

clicking the appropriate option in NetBIOS setting. Below Figure shows the WINS tab.

For the NetBIOS setting, you can choose any of the following options:

* Default Enables NetBT if the network connection has a static IPv4 address configuration. If
the network connection uses the Dynamic Host Configuration Protocol (DHCP), it uses the
DHCP options in the received DHCPOffer message to either disable NetBT or enable and
configure NetBT. To disable NetBT using DHCP, configure the Disable NetBIOS over
TCP/IP (NetBT) Microsoft vendor-specific option for the value of 2. This is the default
setting for LAN connections.

* Enable NetBIOS over TCP/IP Enables NetBT, regardless of the DHCP options received.
This is the default setting for remote connections (dial-up or virtual private network).

* Disable NetBIOS over NetBIOS Disables NetBT, regardless of the DHCP options
received

If We are using linux and want to administer a network full of windows machine, there is a
tool called nbtscan to easily scan through the network and list all machines with their netbios
name.

To install nbtscan in linux(Centos):

# yum install nbtscan

To use it on single machine(let’s say the machine’s ip is 10.0.0.100):

# nbtscan 10.0.0.100

To scan the whole class C and list netbios names:

# nbtscan 10.0.0.0/24

To scan ip range:

# nbtscan 10.0.0.10-100

To get all options to use nbtscan:

# nbtscan -h

Database Admin
How To take backup and restore mysql databases in Linux

To backup(dump) single mysql database to a file , first we need to open the terminal and use
the below syntax

# mysqldump -u <username> -p <databasename> > backup.sql

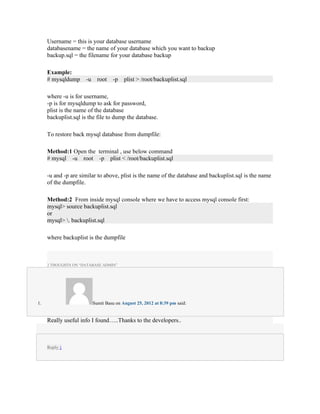

Username = this is your database username
databasename = the name of your database which you want to backup
backup.sql = the filename for your database backup

Example:
# mysqldump -u root -p plist > /root/backuplist.sql

where -u is for username,
-p is for mysqldump to ask for password,
plist is the name of the database
backuplist.sql is the file to dump the database.

To restore back mysql database from dumpfile:

Method:1 Open the terminal , use below command
# mysql -u root -p plist < /root/backuplist.sql

-u and -p are similar to above, plist is the name of the database and backuplist.sql is the name
of the dumpfile.

Method:2 From inside mysql console where we have to access mysql console first:
mysql> source backuplist.sql
or
mysql> . backuplist.sql

where backuplist is the dumpfile

2 THOUGHTS ON “DATABASE ADMIN”

1. Sumit Basu on August 25, 2012 at 8:39 pm said:

Really useful info I found…..Thanks to the developers..

Reply ↓

2. Sachin Chavan on September 15, 2012 at 5:52 pm said:

really nice in4mation…!!!

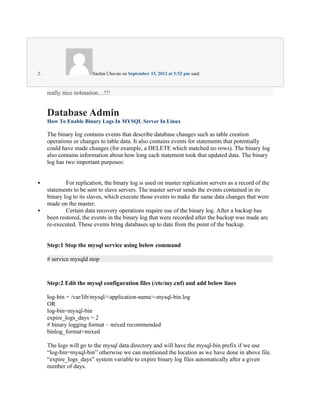

Database Admin
How To Enable Binary Logs In MYSQL Server In Linux

The binary log contains events that describe database changes such as table creation
operations or changes to table data. It also contains events for statements that potentially
could have made changes (for example, a DELETE which matched no rows). The binary log
also contains information about how long each statement took that updated data. The binary
log has two important purposes:

 For replication, the binary log is used on master replication servers as a record of the
statements to be sent to slave servers. The master server sends the events contained in its
binary log to its slaves, which execute those events to make the same data changes that were
made on the master.
 Certain data recovery operations require use of the binary log. After a backup has
been restored, the events in the binary log that were recorded after the backup was made are
re-executed. These events bring databases up to date from the point of the backup.

Step:1 Stop the mysql service using below command

# service mysqld stop

Step:2 Edit the mysql configuration files (/etc/my.cnf) and add below lines

log-bin = /var/lib/mysql/<application-name>-mysql-bin.log
OR
log-bin=mysql-bin
expire_logs_days = 2
# binary logging format – mixed recommended
binlog_format=mixed

The logs will go to the mysql data directory and will have the mysql-bin prefix if we use
“log-bin=mysql-bin” otherwise we can mentioned the location as we have done in above file.
“expire_logs_days” system variable to expire binary log files automatically after a given
number of days.

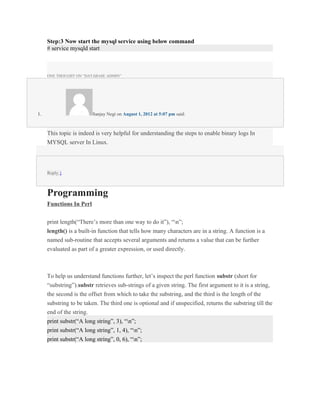

Step:3 Now start the mysql service using below command
# service mysqld start

ONE THOUGHT ON “DATABASE ADMIN”


This topic is indeed is very helpful for understanding the steps to enable binary logs In
MYSQL server In Linux.

Reply ↓

Programming
Functions In Perl

print length(“There’s more than one way to do it”), “n”;
length() is a built-in function that tells how many characters are in a string. A function is a
named sub-routine that accepts several arguments and returns a value that can be further
evaluated as part of a greater expression, or used directly.

To help us understand functions further, let’s inspect the perl function substr (short for
“substring”).substr retrieves sub-strings of a given string. The first argument to it is a string,
the second is the offset from which to take the substring, and the third is the length of the
substring to be taken. The third one is optional and if unspecified, returns the substring till the
end of the string.
print substr(“A long string”, 3), “n”;
print substr(“A long string”, 1, 4), “n”;
print substr(“A long string”, 0, 6), “n”;

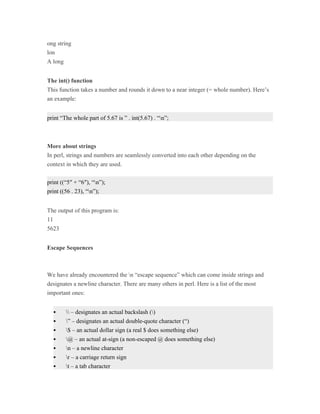

ong string
lon
A long

The int() function
This function takes a number and rounds it down to a near integer (= whole number). Here’s
an example:

print “The whole part of 5.67 is ” . int(5.67) . “n”;

More about strings
In perl, strings and numbers are seamlessly converted into each other depending on the
context in which they are used.

print ((“5″ + “6″), “n”);
print ((56 . 23), “n”);

The output of this program is:
11
5623

Escape Sequences

We have already encountered the n “escape sequence” which can come inside strings and
designates a newline character. There are many others in perl. Here is a list of the most
important ones:

 – designates an actual backslash ()
 ” – designates an actual double-quote character (“)
 $ – an actual dollar sign (a real $ does something else)
 @ – an actual at-sign (a non-escaped @ does something else)
 n – a newline character
 r – a carriage return sign
 t – a tab character

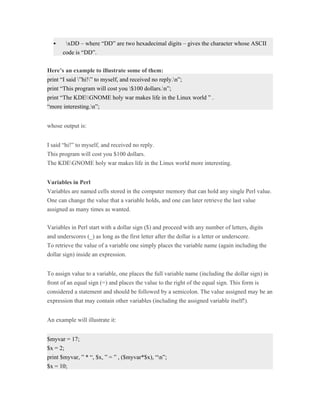

 xDD – where “DD” are two hexadecimal digits – gives the character whose ASCII
code is “DD”.

Here’s an example to illustrate some of them:
print “I said ”hi!” to myself, and received no reply.n”;
print “This program will cost you $100 dollars.n”;
print “The KDEGNOME holy war makes life in the Linux world ” .
“more interesting.n”;

whose output is:

I said “hi!” to myself, and received no reply.
This program will cost you $100 dollars.
The KDEGNOME holy war makes life in the Linux world more interesting.

Variables in Perl
Variables are named cells stored in the computer memory that can hold any single Perl value.
One can change the value that a variable holds, and one can later retrieve the last value
assigned as many times as wanted.

Variables in Perl start with a dollar sign ($) and proceed with any number of letters, digits
and underscores (_) as long as the first letter after the dollar is a letter or underscore.
To retrieve the value of a variable one simply places the variable name (again including the
dollar sign) inside an expression.

To assign value to a variable, one places the full variable name (including the dollar sign) in
front of an equal sign (=) and places the value to the right of the equal sign. This form is
considered a statement and should be followed by a semicolon. The value assigned may be an
expression that may contain other variables (including the assigned variable itself!).

An example will illustrate it:

$myvar = 17;
$x = 2;
print $myvar, ” * “, $x, ” = ” , ($myvar*$x), “n”;
$x = 10;

$x = 75;
$x = 24;

The output of this program is:

17 * 2 = 34
17 * 10 = 170
17 * 75 = 1275
17 * 24 = 408

Several things can be noticed:

 The value of $x changes throughout the program. It’s perfectly fine, and usually even
necessary to modify the value of a variable.
 By using $myvar we can ensure, that assuming we wish to change its value, we will
only have to change it in one place, not in every place it appears.
“+=” and friends
Perl provides a shortcut for writing “$myvar = $myvar + $value”, or “$myvar = $myvar /
$value” and similar operations. Here’s an example:
$x = 1;
$y = 0;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y += 1;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y += 1;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y += 1;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y += 1;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y += 1;
print “2^”, $y, “=”, $x, “n”;

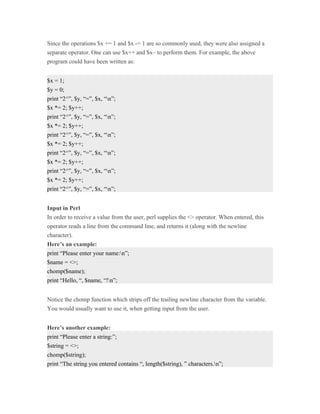

Since the operations $x += 1 and $x -= 1 are so commonly used, they were also assigned a
separate operator. One can use $x++ and $x– to perform them. For example, the above
program could have been written as:

$x = 1;
$y = 0;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y++;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y++;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y++;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y++;
print “2^”, $y, “=”, $x, “n”;
$x *= 2; $y++;
print “2^”, $y, “=”, $x, “n”;

Input in Perl
In order to receive a value from the user, perl supplies the <> operator. When entered, this
operator reads a line from the command line, and returns it (along with the newline
character).
Here’s an example:
print “Please enter your name:n”;
$name = <>;
chomp($name);
print “Hello, “, $name, “!n”;

Notice the chomp function which strips off the trailing newline character from the variable.
You would usually want to use it, when getting input from the user.

Here’s another example:
print “Please enter a string:”;
$string = <>;
chomp($string);
print “The string you entered contains “, length($string), ” characters.n”;

The For Loop
The for loop enables us to iterate over a sequence of numbers and repeat the same set of
operations for each number.
For example, the following program prints all the numbers from 1 to 100:

for $i (1..100)
{
print $i, “n”;
}

Some explanations about the syntax:

 $i is the iteration variable. It receives the value 1, then the value 2, then 3 and so forth
until it is equal to 100, afterwards the loop terminates.
 The curly brackets ({ … }) encapsulate the loop block. The loop block is executed
once for each value $i accepts. Within that block, called the loop body, you can use $i
and you’ll get its current value.
We can nest loops, so for example the following program prints the multiplication board:

for $y (1 .. 10)
{

for $x
(1 .. 10)
{
$product = $y*$x;
# Add as much whitespace as needed so the number will occupy
# exactly 4 characters.
for $whitespace (1 .. (4-length($product)))
{
print ” “;
}
print $product;
}
# Move to the next line
print “n”;
}

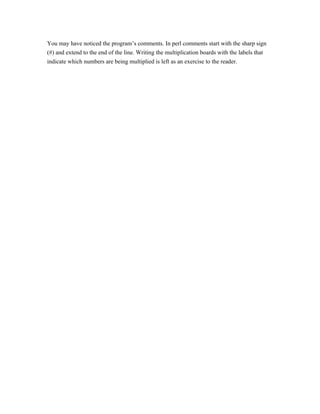

You may have noticed the program’s comments. In perl comments start with the sharp sign
(#) and extend to the end of the line. Writing the multiplication boards with the labels that
indicate which numbers are being multiplied is left as an exercise to the reader.

Linux admin

More Related Content

What's hot

Viewers also liked

Similar to Linux admin

Linux admin
