Libor Mořkovský - Recognizing Malware

•

0 likes•414 views

This document discusses techniques for recognizing malware files. It describes how each file is represented as a feature vector that captures static and dynamic attributes. A distance function is used to measure the similarity between vectors and identify nearest neighbors for classification. Files are classified using an instance-based classifier and optimized with techniques like a VP-tree and distance-bounded search. Classifications are deployed in a system that collects file fingerprints from users and shares threats and updates between components. A rule generator also aims to detect malware variants by learning rules based on conditions in files.

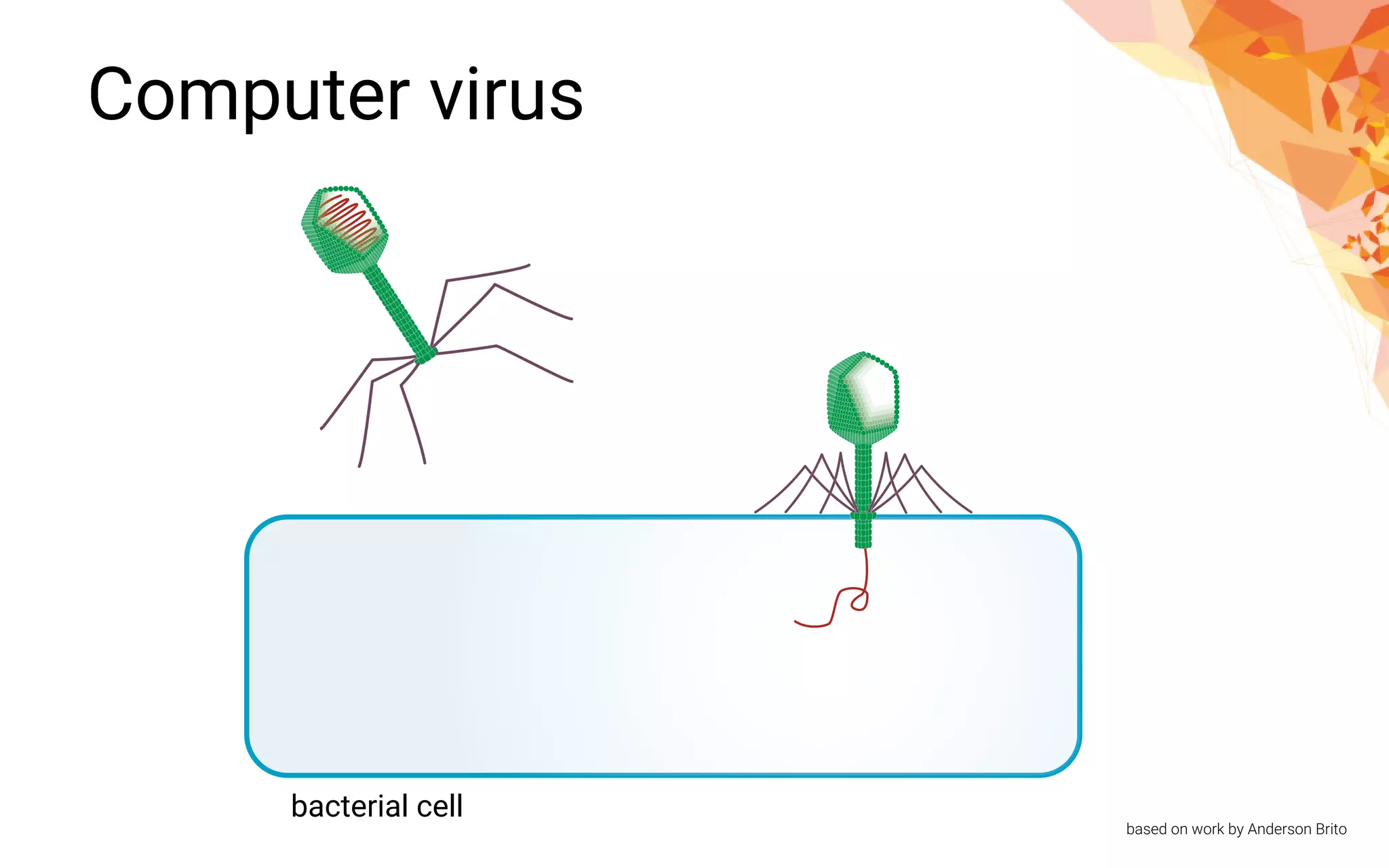

Computer virus
bacterial cell
based on work by Anderson Brito

Computer virus
executable file
entry point

Computer virus
Inserting code into files is never “good”.
executable file
entry point

image courtesy of
Looking Glass Studios
Malware
How do you recognize a thief?

image courtesy of
Looking Glass Studios
Twentieth Century Fox
Malware
How do you recognize a thief?

Malware
How do you recognize a thief?
image courtesy of
Looking Glass Studios
Twentieth Century Fox
Paramount Pictures

Malware
completely different behaviors are considered “bad”
we need a judge to decide who crossed the line
•
•

Malware | Many faces
unlike real thieves, malware can be duplicated
not only duplicated, but also modified
all this is done by machines
too much work to judge each one manually
•
•
•
•

Finding similar files
oooooooooooo
o
oo
o
oo
oooo
ooooo
oooo
o
oo
o
oo
o
ooooooooo
o
o
MDS1
MDS2
class
oo
oo
oo
oo
CLEAN
MALWARE
QUERY
UNKNOWN

Finding similar files
need a file representation
need a distance function
•
•

Finding similar files | File vector
each executable file is represented by a feature vector
the PE format is complex, so we keep exactly one
version of the extractor code (C++)
the vector comprises static and dynamic features, the
exact content is proprietary
•
•
•
Database record
• One record = constant vector of over 100 attributes
• the “file fingerprint”
• Each attribute has a data type and semantic
Attribute Data Type Semantic
sha256 32 byte array CHECKSUM
pe_sect_cnt uint16_t VALUE
pe_sect_rawoff_entry uint32_t OFFSET
• The complete contents of the vector are kept secret
• static and dynamic features of PE executables

Finding similar files | Distance
sum of partial distances
each distance operator assigned manually
weights assigned manually to equalize contribution
•
•
•
Nearest neighbor query
• Compound distance function
• Data type and semantic determine partial dist. func.
Data Type Semantic Partial distance function
32 byte array CHECKSUM RETURN_ZERO
uint16_t VALUE EQUAL_RET32
uint32_t OFFSET LOG
• Each partial distance function = one kernel function
• Over 100 kernels for every NN query
• Intermediate results kept in the “Scratchpad”

Finding similar files | Data
~60 M data points
sparse and well separated
(in many cases)
•
•

Finding similar files | Implementation
we started with GPUs
their high memory throughput allows “naive”
implementation and rapid prototyping
column-oriented database
•
•
•

Classification | Requirements
find easily what is responsible for
a mistake – transparency
fix the problem quickly – tractability
•
•

Classification | Algorithm
Instance based classifier.

Classification | Optimizations
scaling and HW problems with GPUs
we invested in algorithmic optimizations:
VP-tree, distance bounded search
hand optimized distance function (assembly)
CPU version is ~100x faster
•
•
•
•

Classification | Deployment
→
FileSHAandu
ser id →
←Fileprevale
nce ←
←
Fileclass
ification ←
→
Filefinger
print →
← Generic detections ←
↑ File classifications and
Evo-gen detections
→ Threats →
Set updates ↓
Medusa
Scavenger
Avast users
FileRep

Rule generator
detect more variants in the wild
(our) rule is a conjunction of several conditions
known as Win32:Evo-Gen
completely different optimization problem than
classification - still uses the GPU
•
•
•
•
