Basic Malware Analysis
This document introduces tools and techniques for preliminary malware analysis. It discusses examining malware behavior through static analysis, behavioral tracing, and sandboxing. Specific tools are presented for observing malware snapshots, tracing its behavior, and containing it in a sandbox. Process-based and stealthy malware are discussed, along with vulnerabilities of rootkits and tools for rootkit detection. The goal is to present a model for beginning reverse engineering of malware through observation and experimentation in a contained environment.
In this document
Powered by AI
Introduces the goals of basic malware analysis and sets the stage for preliminary techniques.
Defines key terms related to malware, including virus, worm, trojan, backdoor, rootkit, and spyware.
Discusses black-box examination techniques including snapshot observation and its pros and cons.
Presents various tools for static analysis and executable examination, detailing their functionalities.
Explains behavioral tracing methods and tools for monitoring system calls and network traffic.
Describes the concept of sandboxing for malware containment and tools used for different levels.
Demonstrates practical tools and methods for analyzing a file and understanding malware behavior.
Explains process-based malware, its tricks, and methods for evasion using polymorphism and metamorphism.
Describes stealthy and processless malware, outlining their characteristics and techniques.
Considers vulnerabilities of rootkits and introduces tools for their detection.
Summarizes the approach to malware analysis, recommending static analysis before dynamic execution.
More Related Content
Similar to Basic Malware Analysis
Basic Malware Analysis
- 1. Basic Malware AnalysisAlbertHui, GCFA, CISAalbert.hui@gmail.com
- 2. GoalsPresent tools andtechniques for preliminary malware analysisIntroduce the model and mindset for beginning reverse engineeringDoes NOT cover intermediate/advanced techniques such as hooking, DLL attachment, code injection, detour patching, DKOM, ring-0 debugging, entropy analysis and so onCopyright © 2007 Albert Hui

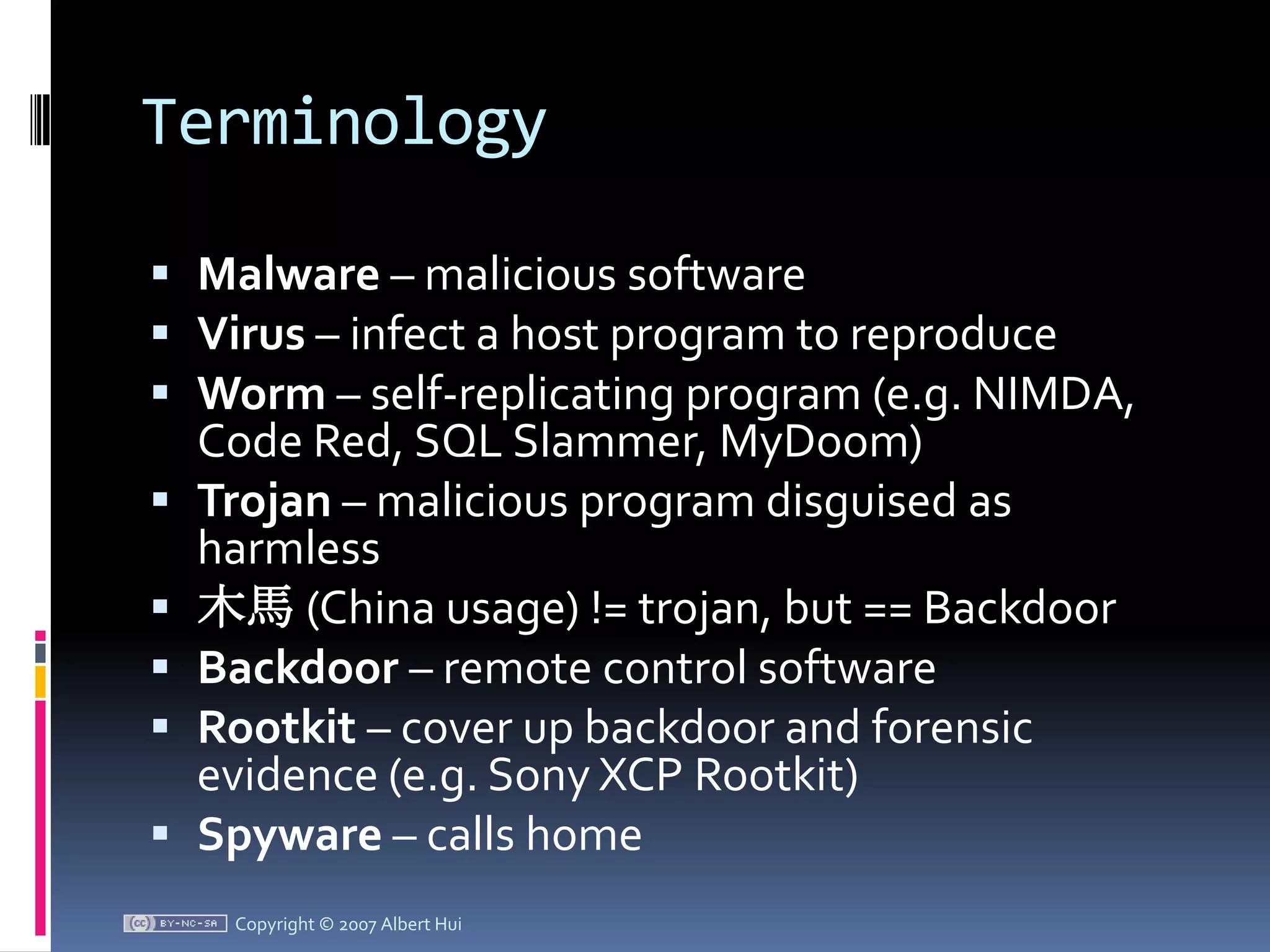

- 3. TerminologyMalware – malicioussoftwareVirus – infect a host program to reproduceWorm – self-replicating program (e.g. NIMDA, Code Red, SQL Slammer, MyDoom)Trojan – malicious program disguised as harmless木馬(China usage) != trojan, but == BackdoorBackdoor – remote control softwareRootkit – cover up backdoor and forensic evidence (e.g. Sony XCP Rootkit)Spyware – calls homeCopyright © 2007 Albert Hui

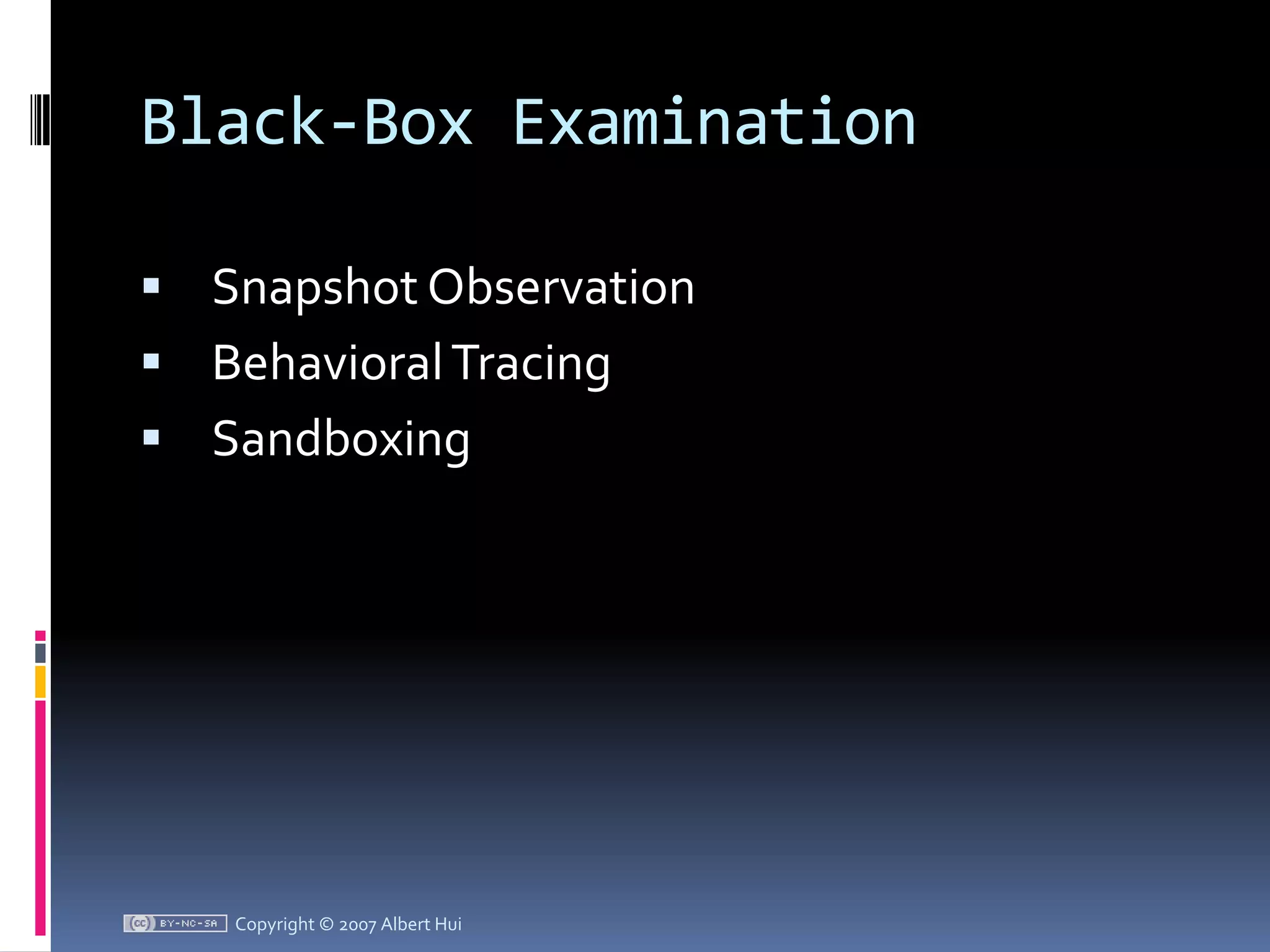

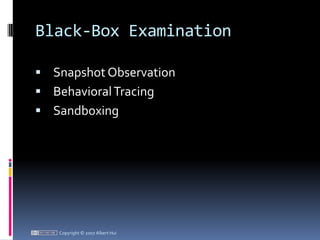

- 4. Black-Box ExaminationSnapshot ObservationBehavioralTracingSandboxingCopyright © 2007 Albert Hui

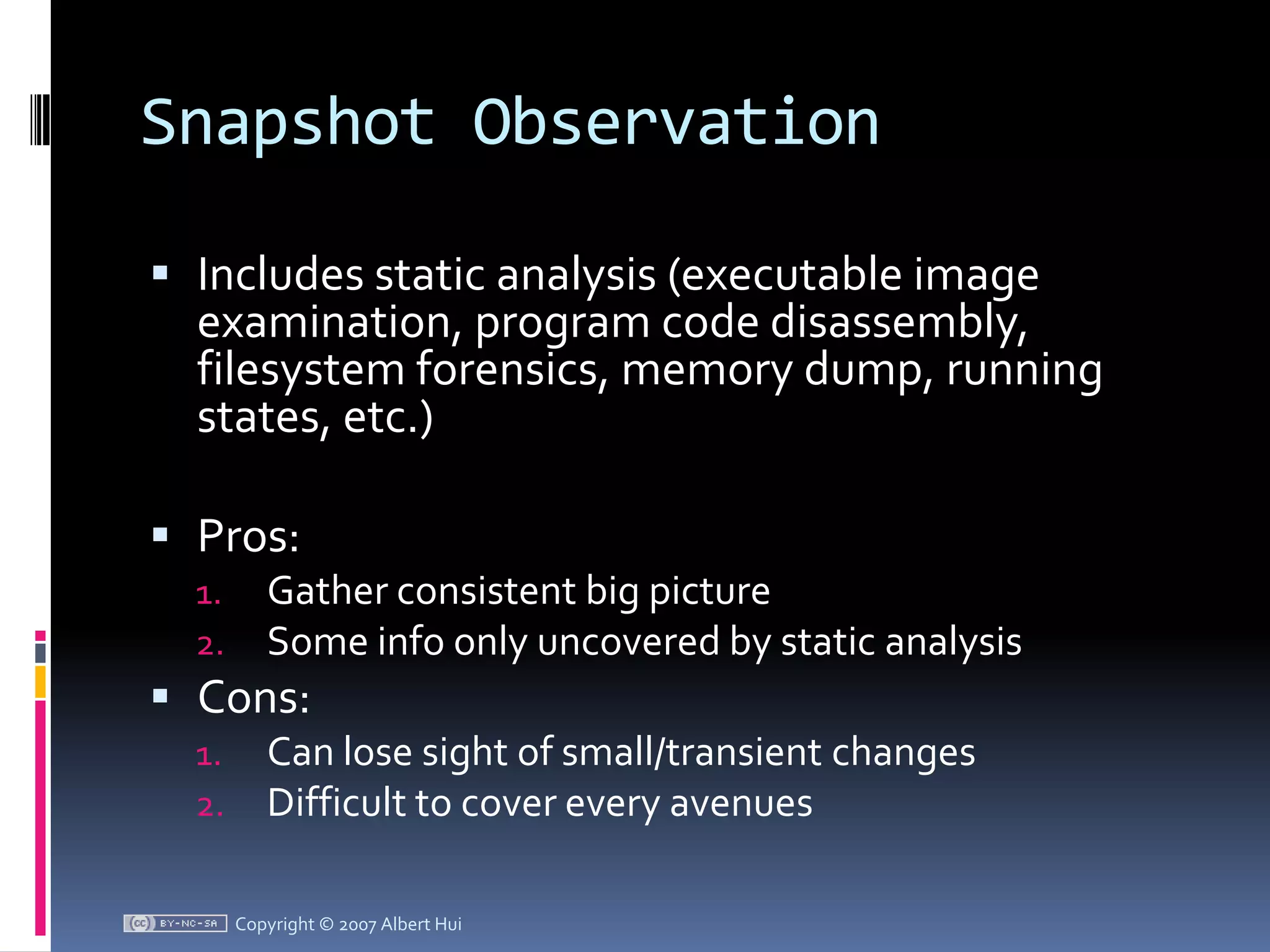

- 5. Snapshot ObservationIncludes staticanalysis (executable image examination, program code disassembly, filesystem forensics, memory dump, running states, etc.)Pros:Gather consistent big pictureSome info only uncovered by static analysisCons:Can lose sight of small/transient changesDifficult to cover every avenues Copyright © 2007 Albert Hui

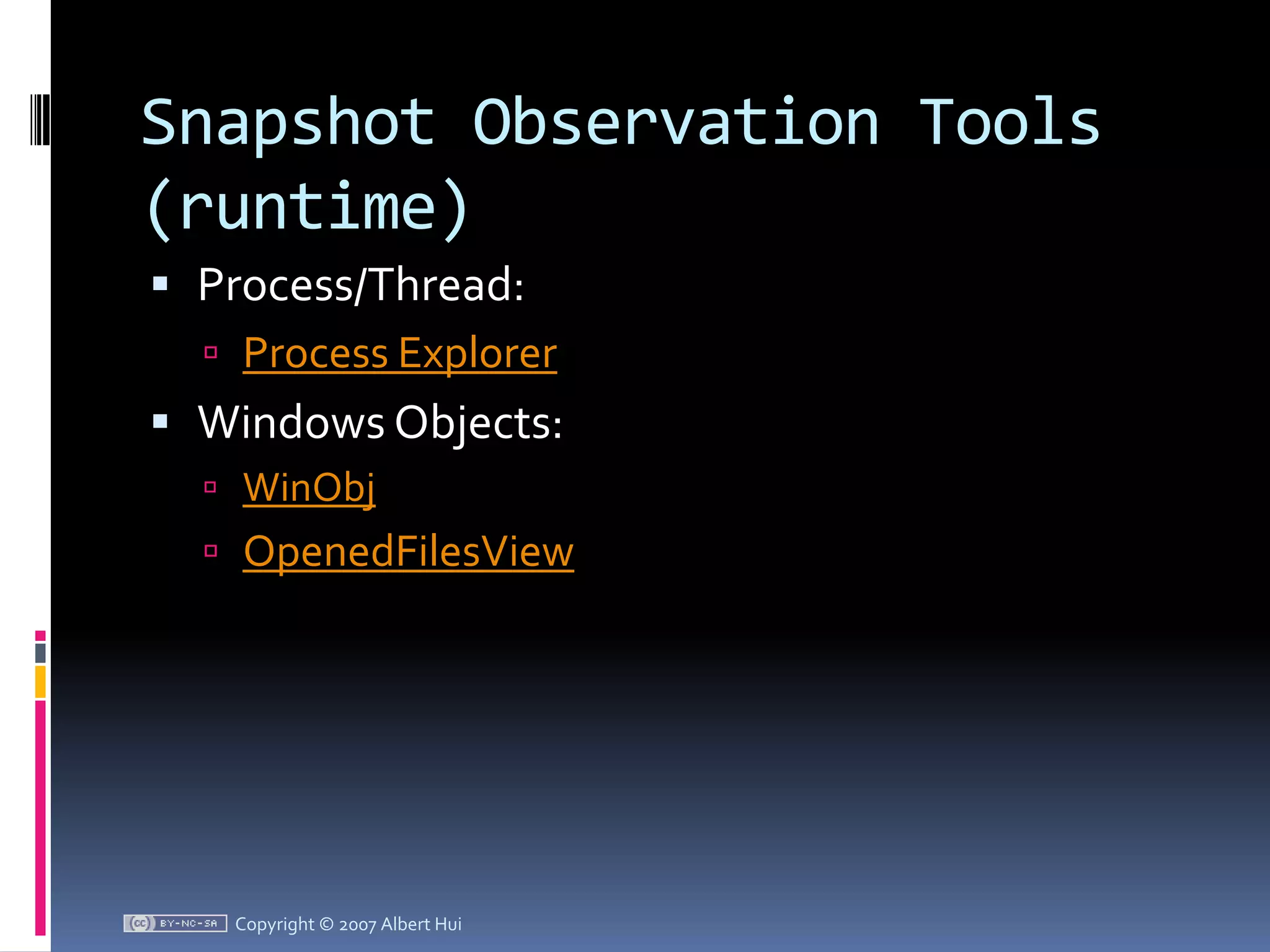

- 6. Snapshot Observation Tools(runtime)Process/Thread:Process ExplorerWindows Objects:WinObjOpenedFilesViewCopyright © 2007 Albert Hui

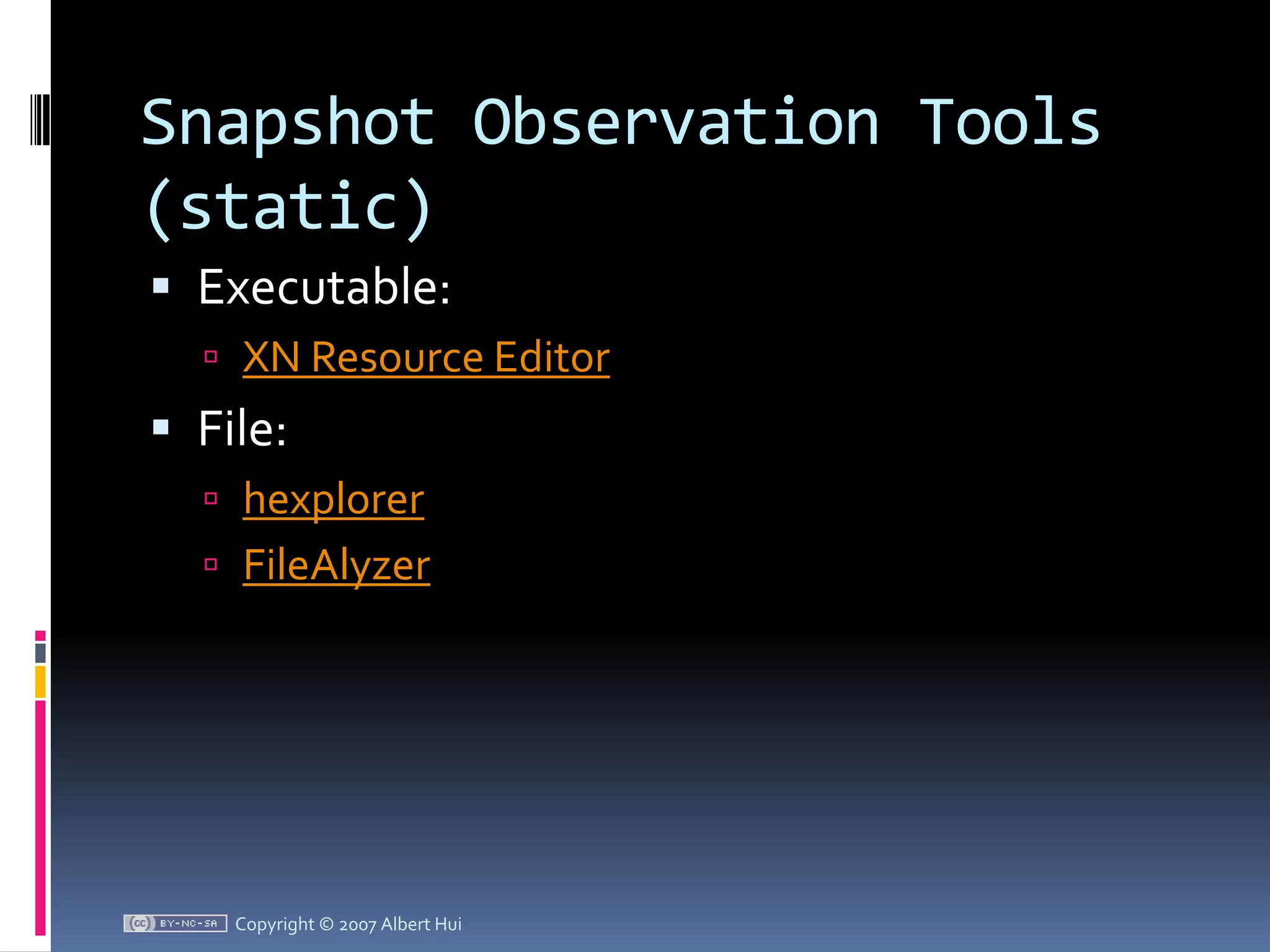

- 7. Snapshot Observation Tools(static)Executable:XN Resource EditorFile:hexplorerFileAlyzerCopyright © 2007 Albert Hui
- 8. Snapshot Observation Tools(executable)PEBrowseDependency WalkerPEiDDumper:LordPEUniversal ExtractorRL!depackerDecompiler/Disassembler:IDA ProOllyDbg/OllyICEJADSpices.DecompilerCopyright © 2007 Albert Hui

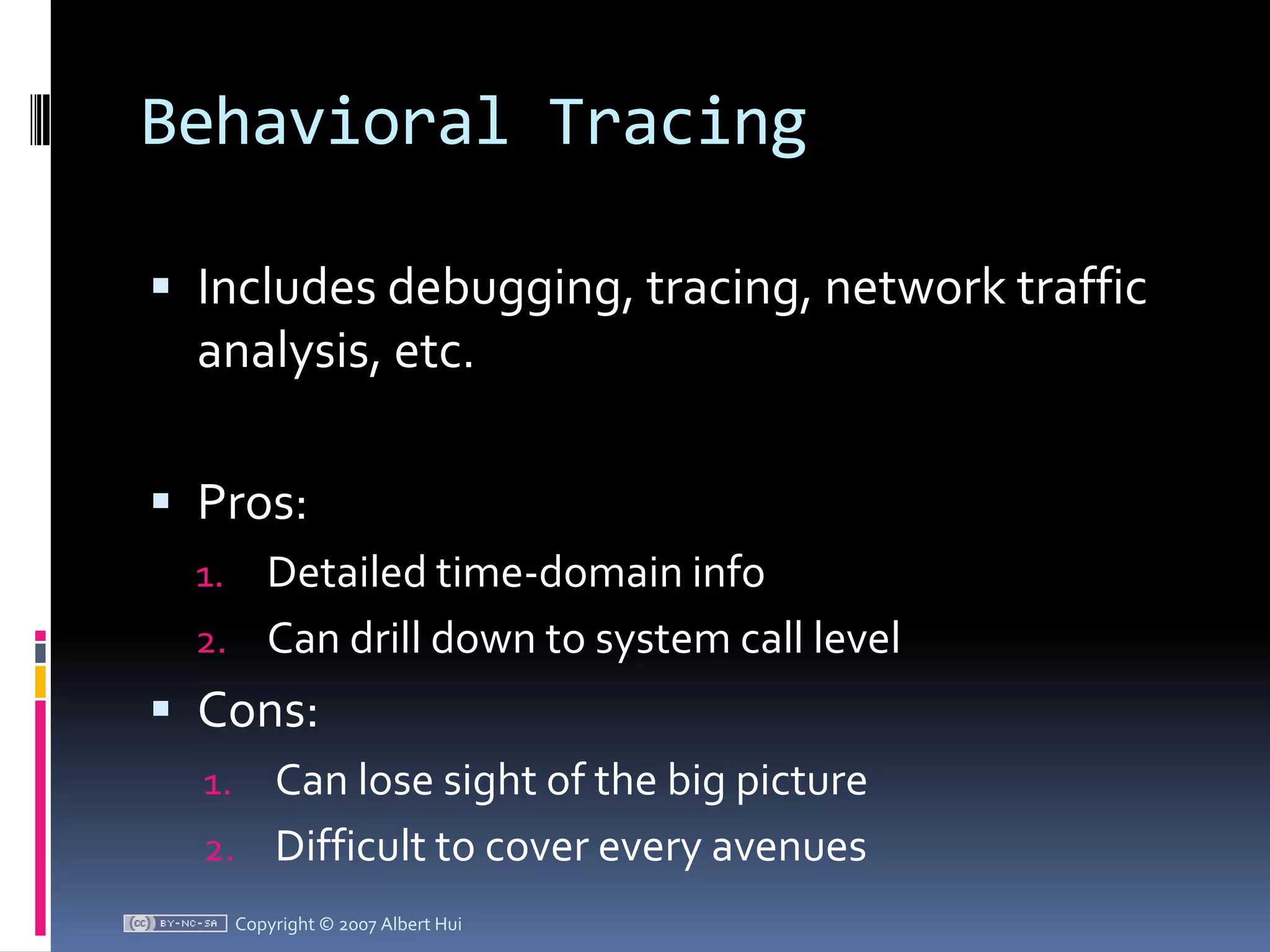

- 9. Behavioral TracingIncludes debugging,tracing, network traffic analysis, etc.Pros:Detailed time-domain infoCan drill down to system call levelCons:Can lose sight of the big pictureDifficult to cover every avenuesCopyright © 2007 Albert Hui

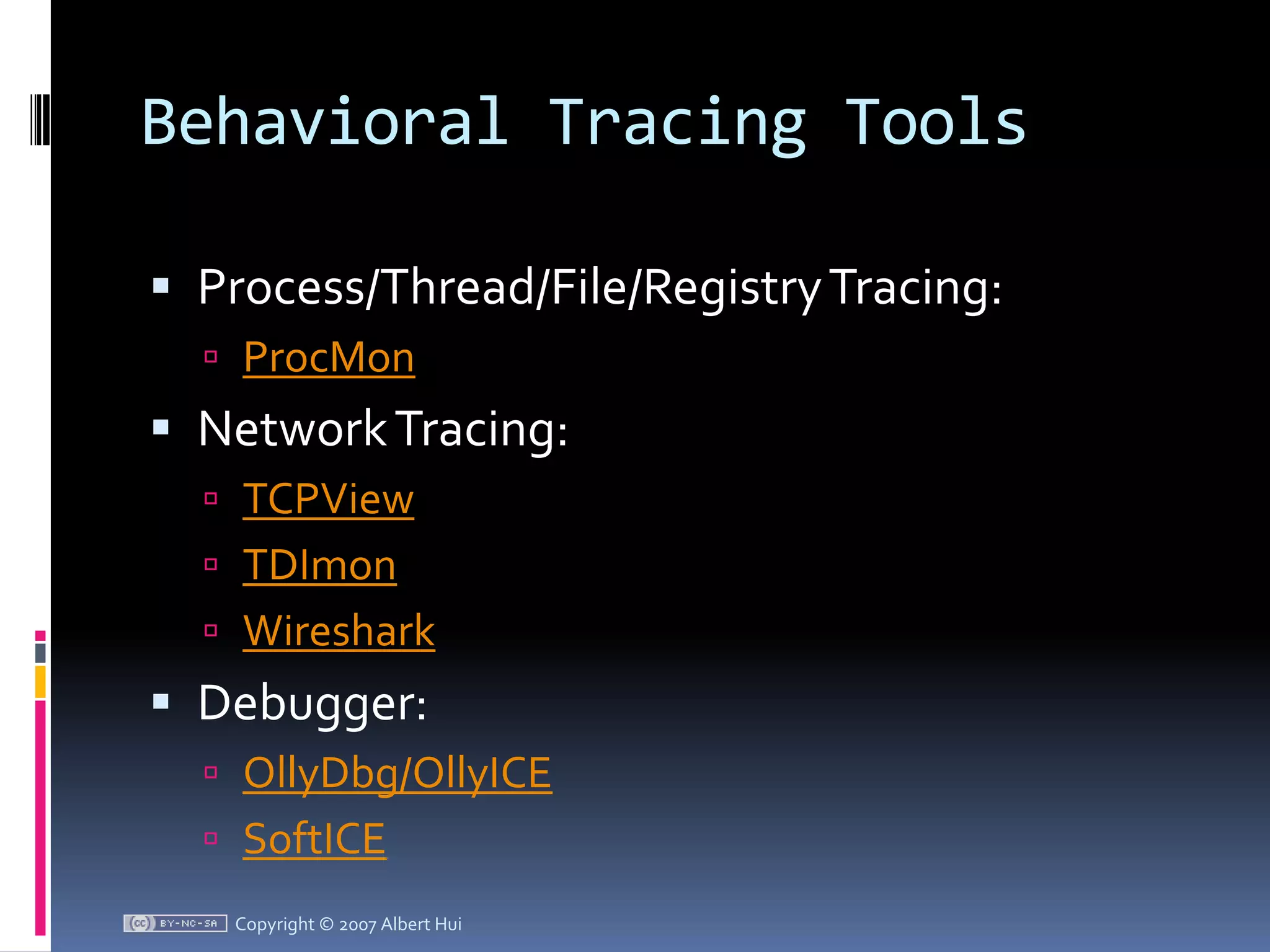

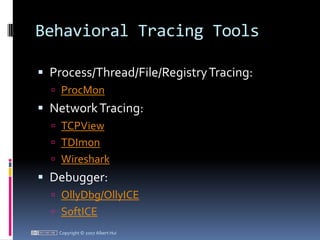

- 10. Behavioral Tracing ToolsProcess/Thread/File/RegistryTracing:ProcMonNetwork Tracing:TCPViewTDImonWiresharkDebugger:OllyDbg/OllyICESoftICECopyright © 2007 Albert Hui

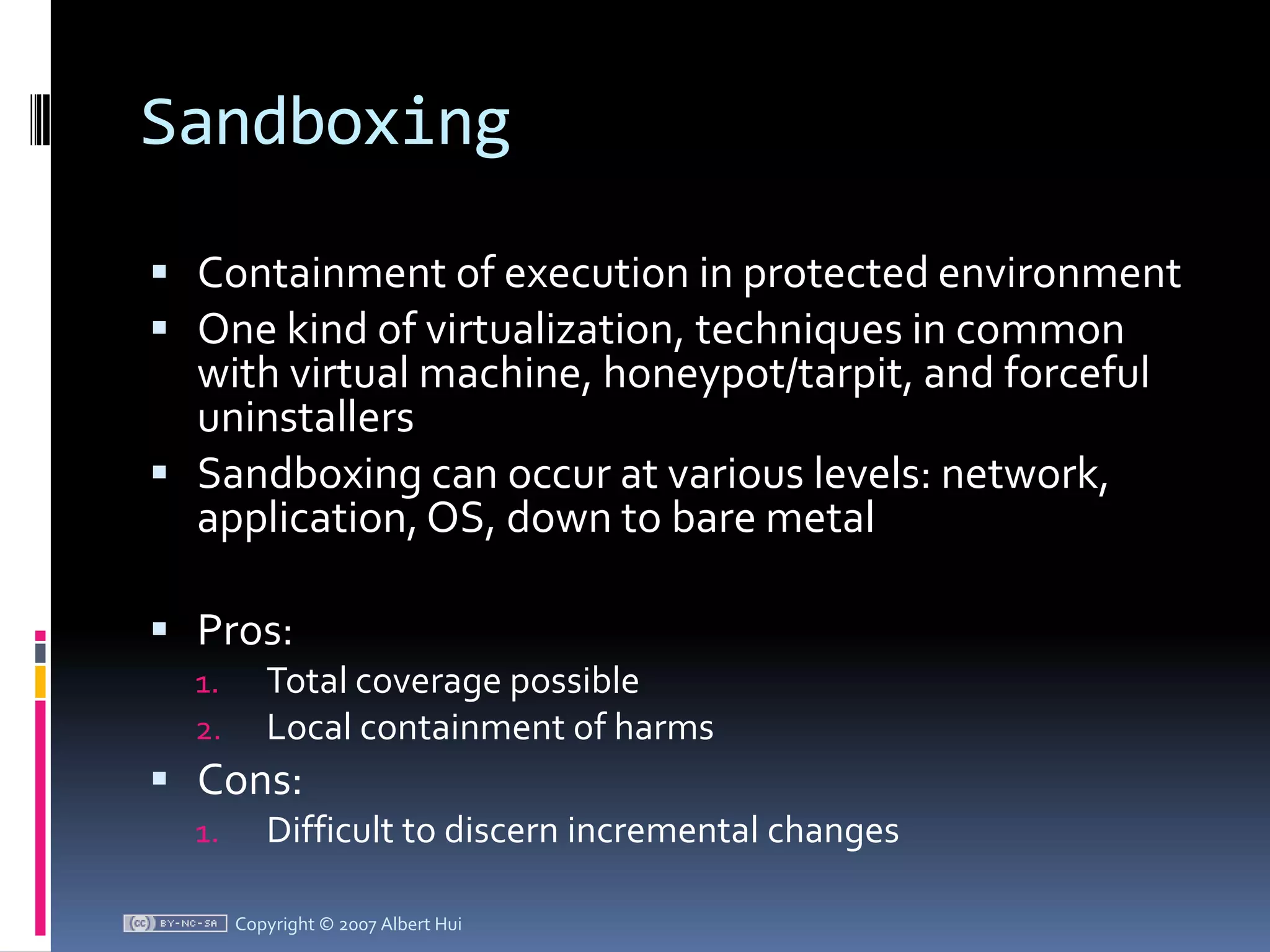

- 11. SandboxingContainment of executionin protected environmentOne kind of virtualization, techniques in common with virtual machine, honeypot/tarpit, and forceful uninstallersSandboxing can occur at various levels: network, application, OS, down to bare metalPros:Total coverage possibleLocal containment of harmsCons:Difficult to discern incremental changesCopyright © 2007 Albert Hui

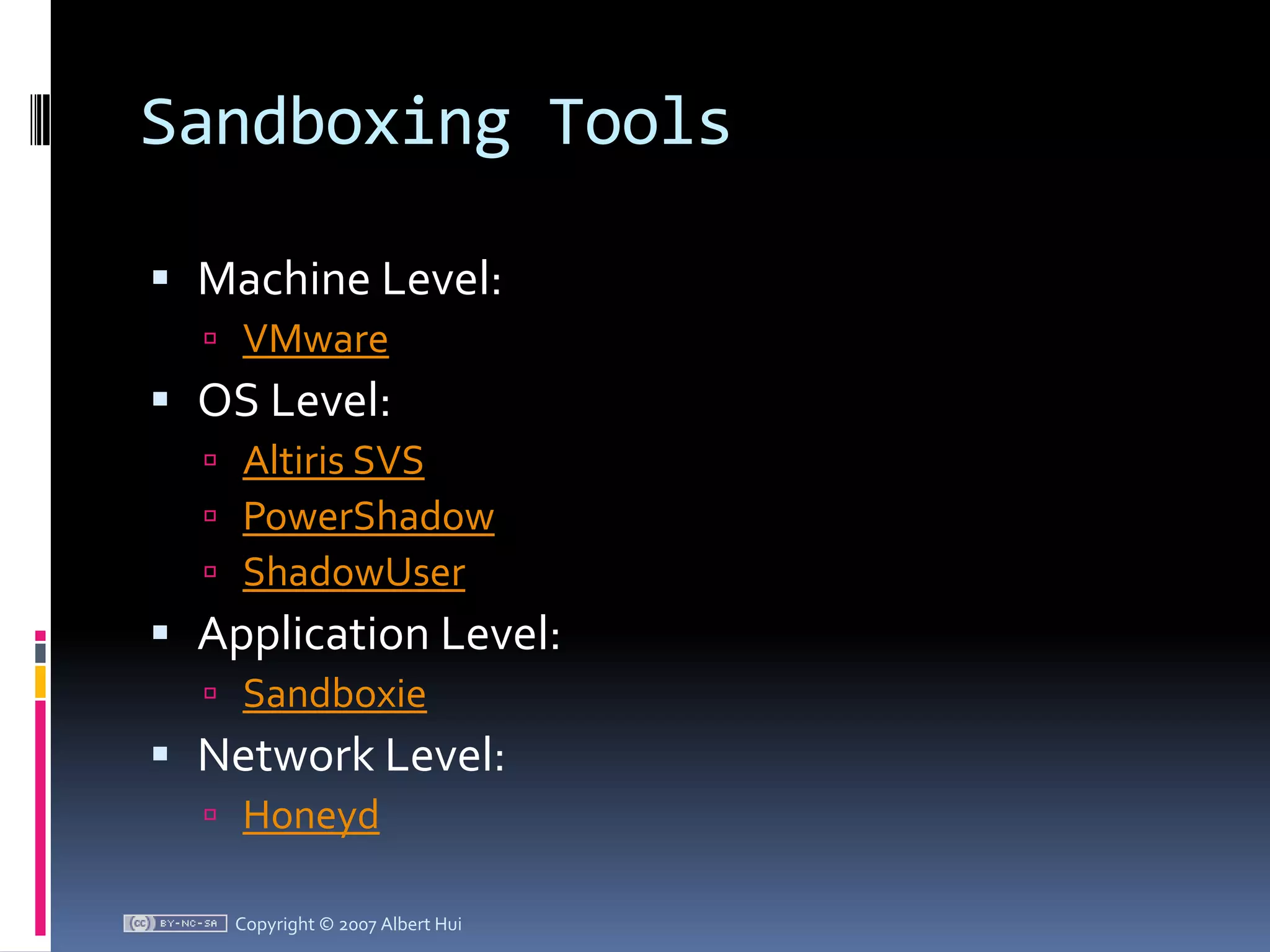

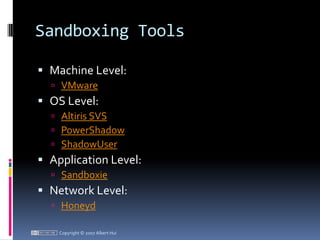

- 12. Sandboxing ToolsMachine Level:VMwareOSLevel:Altiris SVSPowerShadowShadowUserApplication Level:SandboxieNetwork Level:HoneydCopyright © 2007 Albert Hui

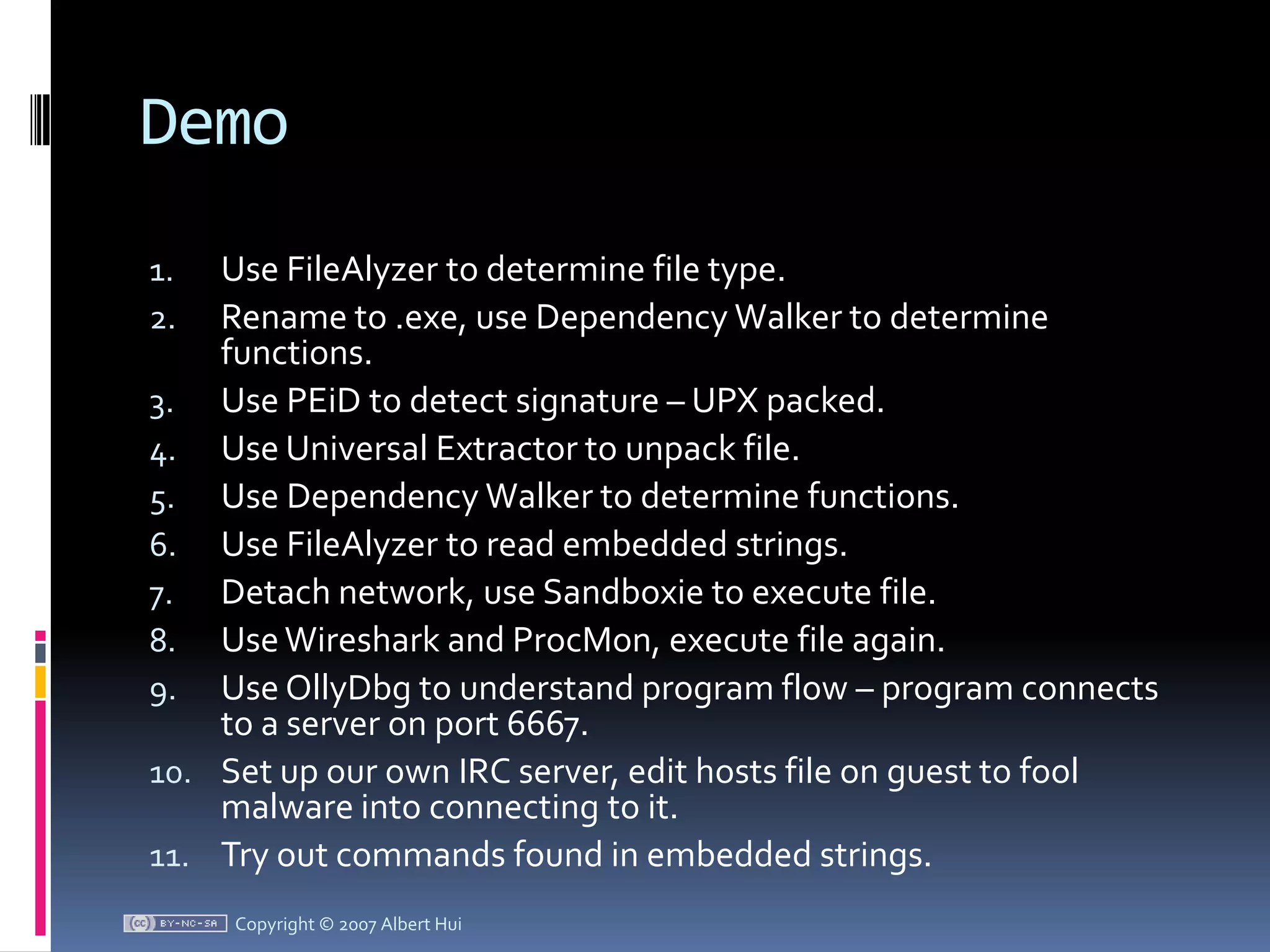

- 13. DemoUse FileAlyzer todetermine file type.Rename to .exe, use Dependency Walker to determine functions.Use PEiD to detect signature – UPX packed.Use Universal Extractor to unpack file.Use Dependency Walker to determine functions.Use FileAlyzer to read embedded strings.Detach network, use Sandboxie to execute file.Use Wireshark and ProcMon, execute file again.Use OllyDbg to understand program flow – program connects to a server on port 6667.Set up our own IRC server, edit hosts file on guest to fool malware into connecting to it.Try out commands found in embedded strings.Copyright © 2007 Albert Hui

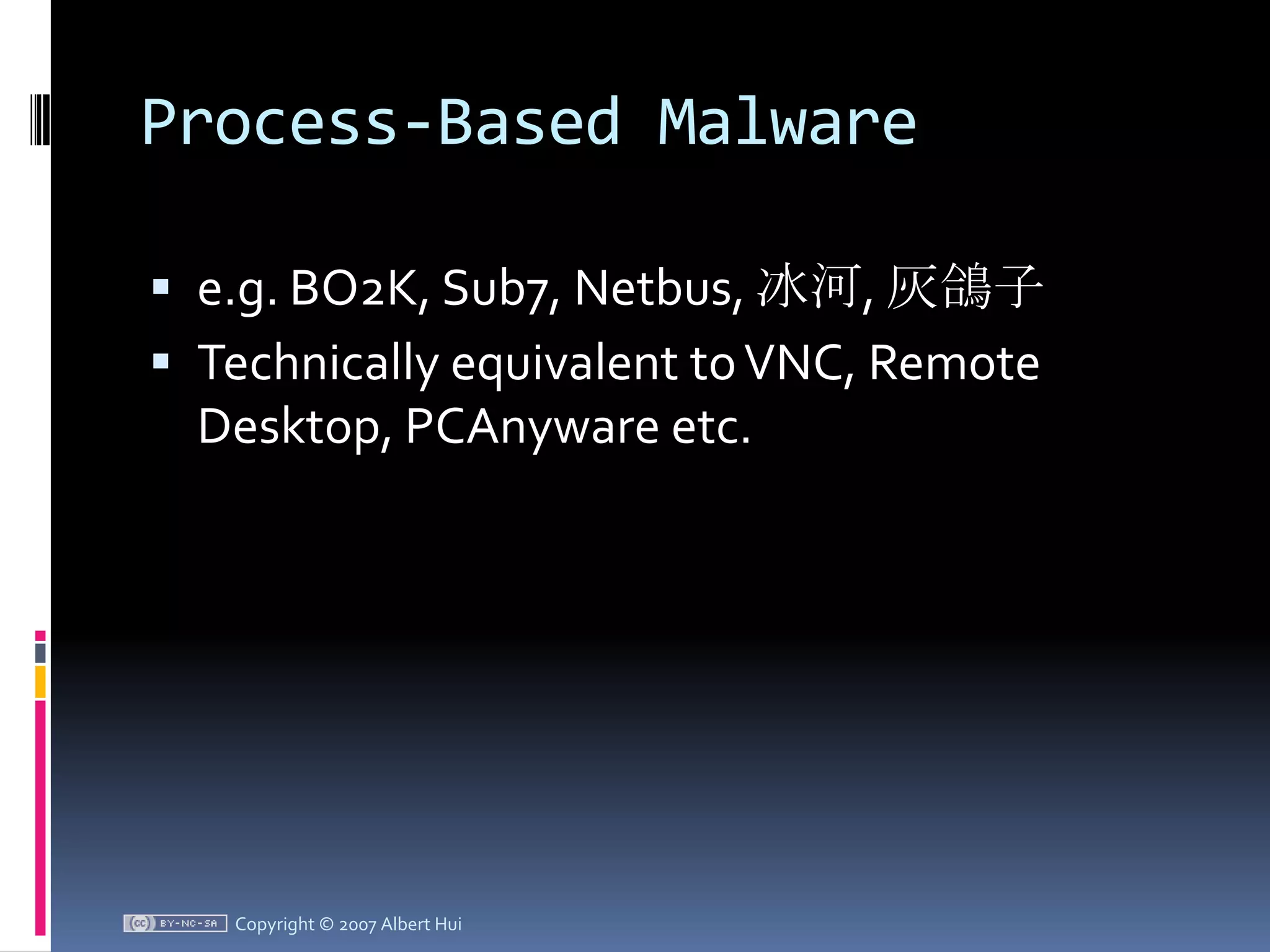

- 14. Process-Based Malwaree.g. BO2K,Sub7, Netbus, 冰河, 灰鴿子Technically equivalent to VNC, Remote Desktop, PCAnyware etc.Copyright © 2007 Albert Hui

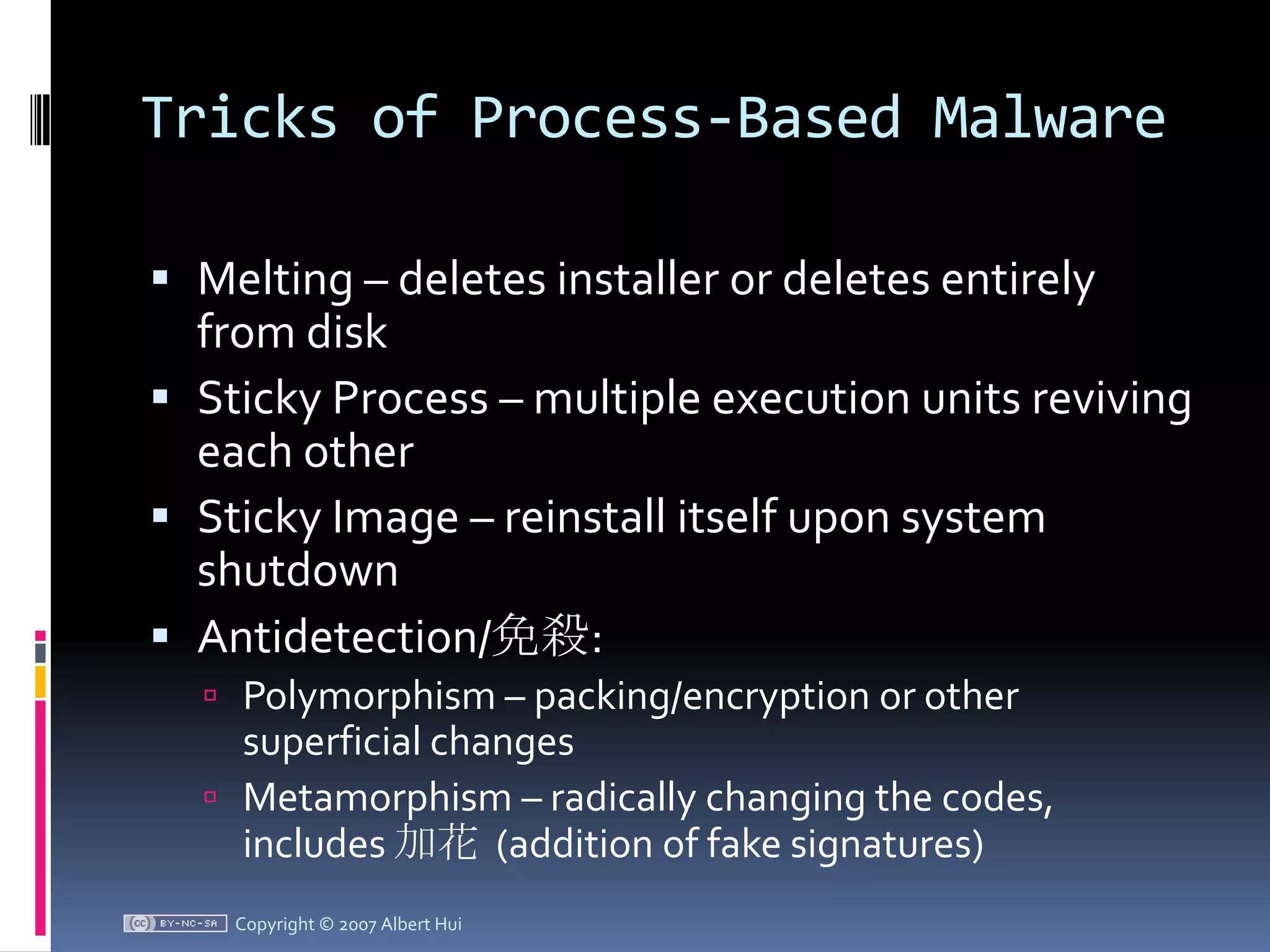

- 15. Tricks of Process-BasedMalwareMelting – deletes installer or deletes entirely from disk Sticky Process – multiple execution units reviving each otherSticky Image – reinstall itself upon system shutdownAntidetection/免殺:Polymorphism – packing/encryption or other superficial changesMetamorphism – radically changing the codes, includes 加花 (addition of fake signatures)Copyright © 2007 Albert Hui

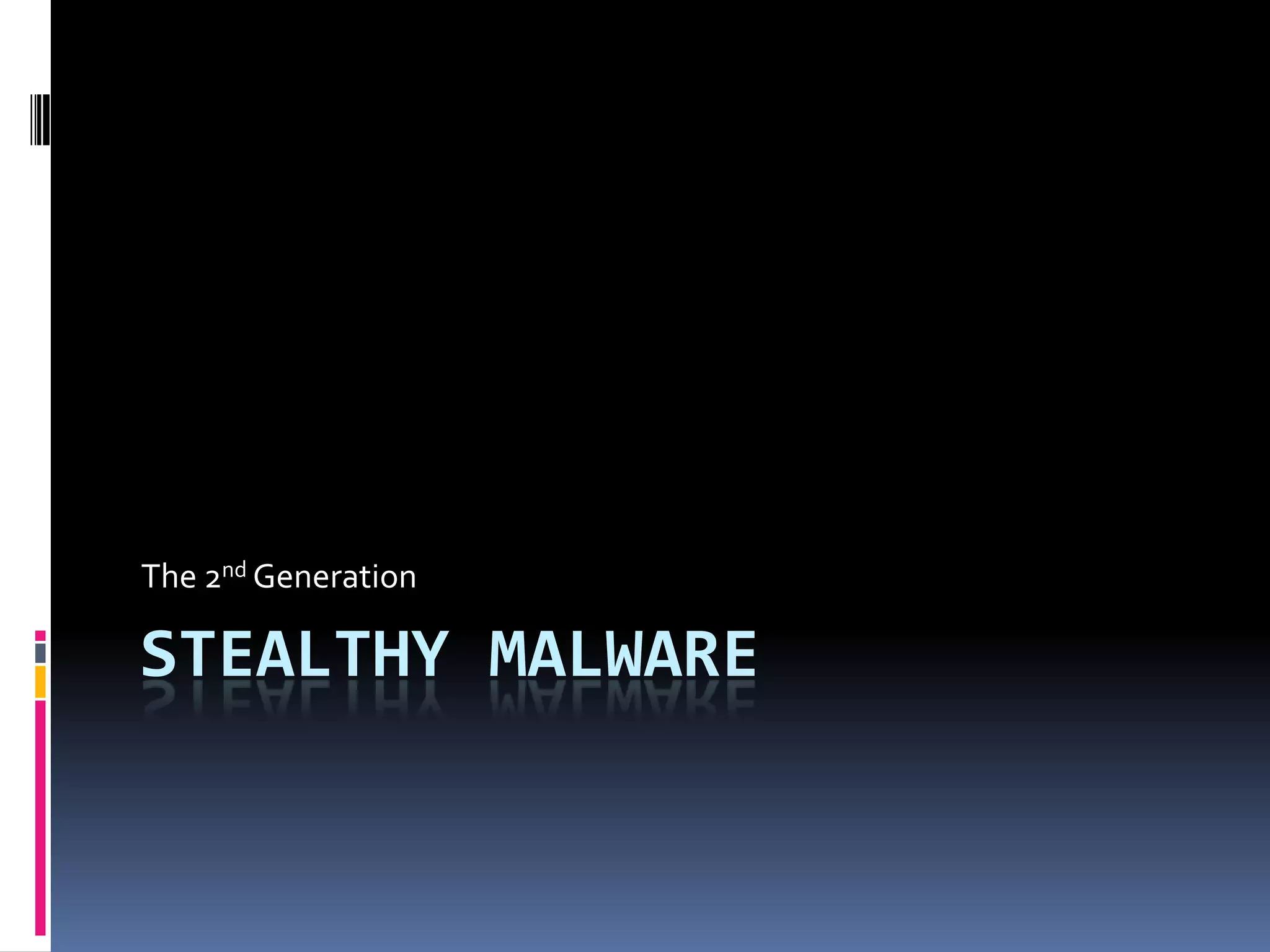

- 16. Stealthy MalwareThe 2ndGeneration

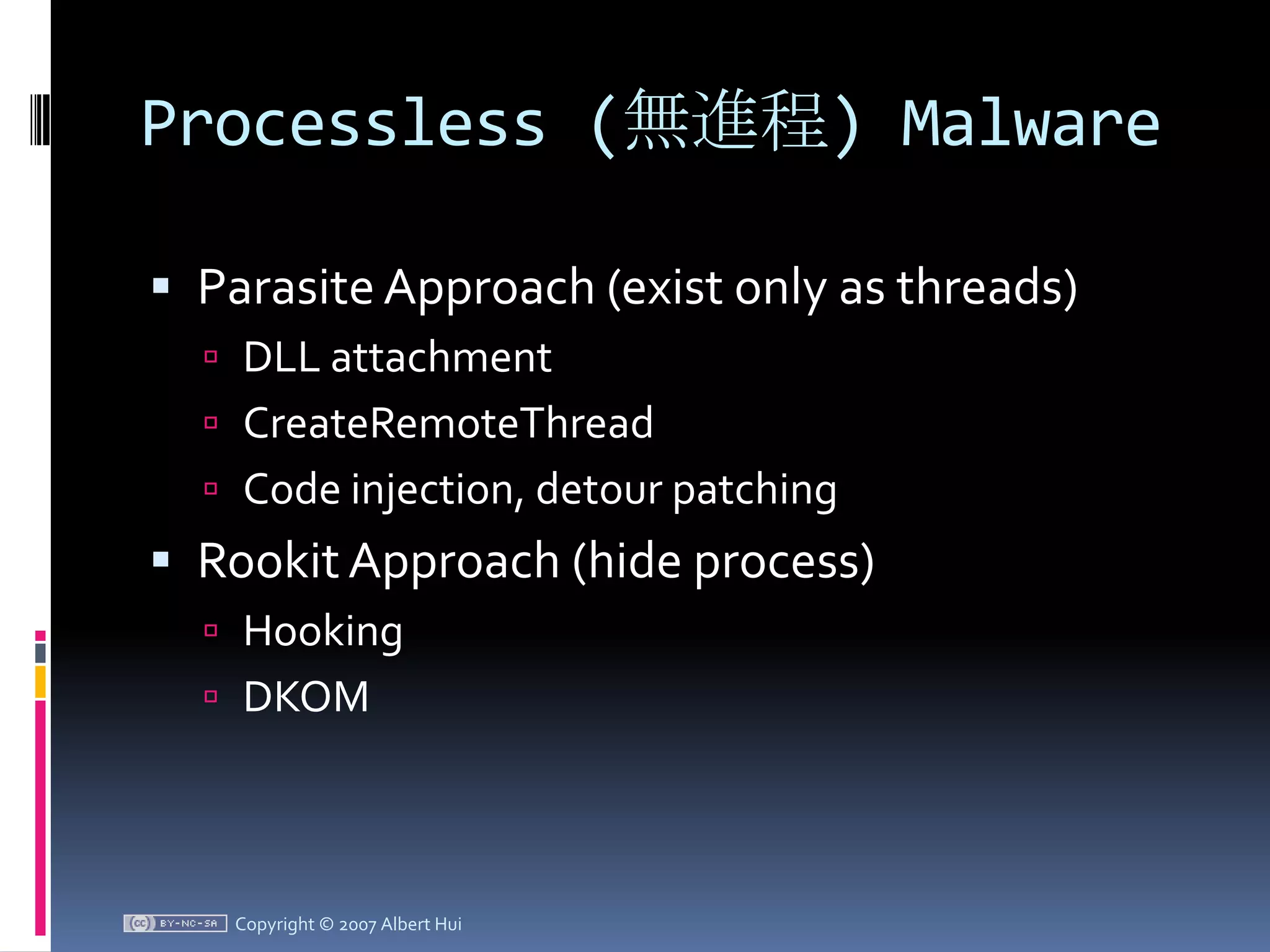

- 17. Processless (無進程) MalwareParasiteApproach (exist only as threads)DLL attachmentCreateRemoteThreadCode injection, detour patchingRookit Approach (hide process)HookingDKOMCopyright © 2007 Albert Hui

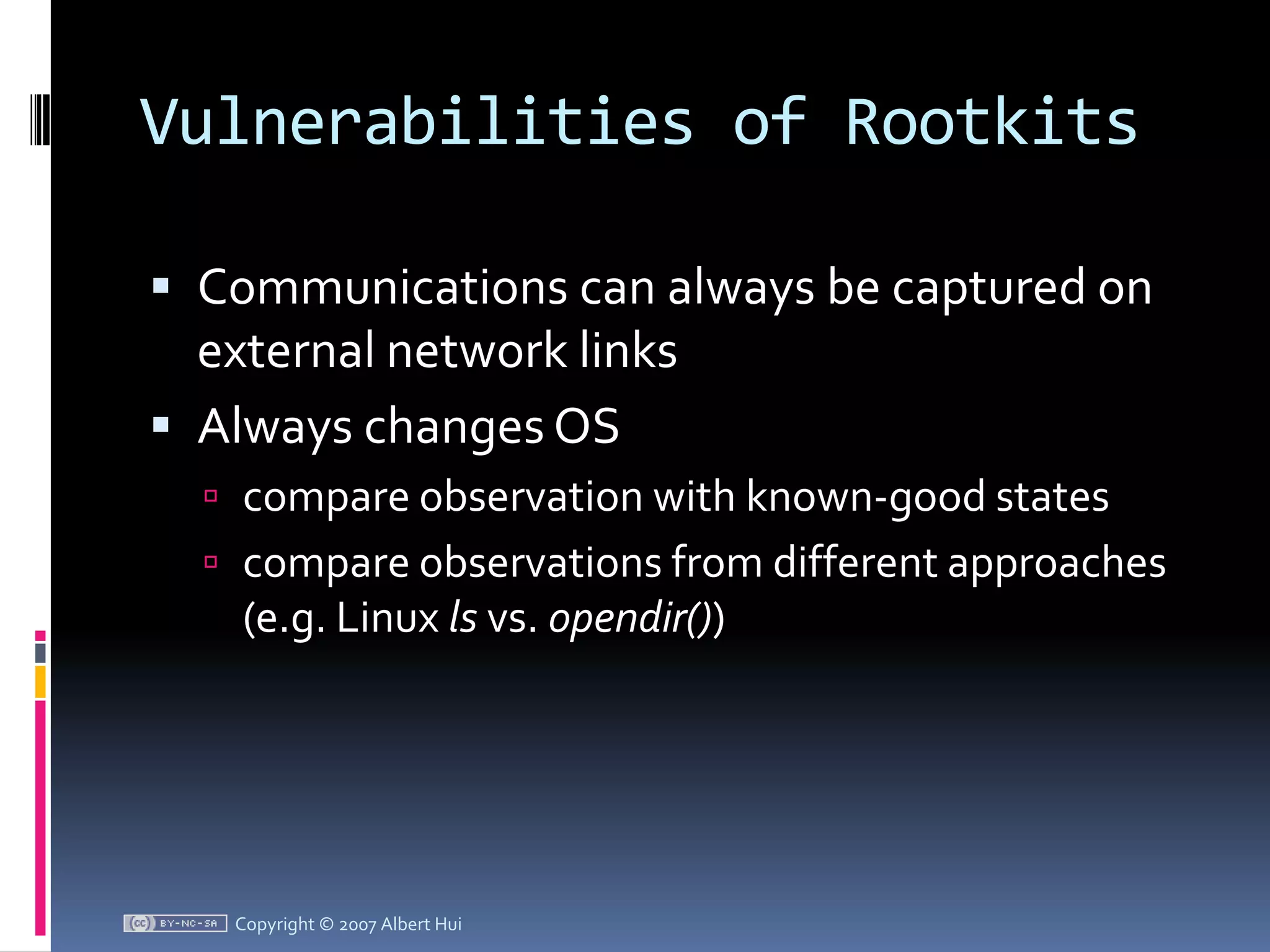

- 18. Vulnerabilities of RootkitsCommunicationscan always be captured on external network linksAlways changes OScompare observation with known-good statescompare observations from different approaches (e.g. Linux ls vs. opendir())Copyright © 2007 Albert Hui

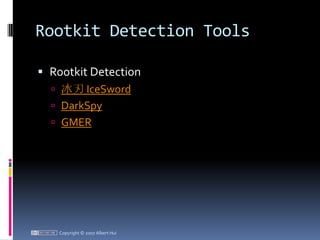

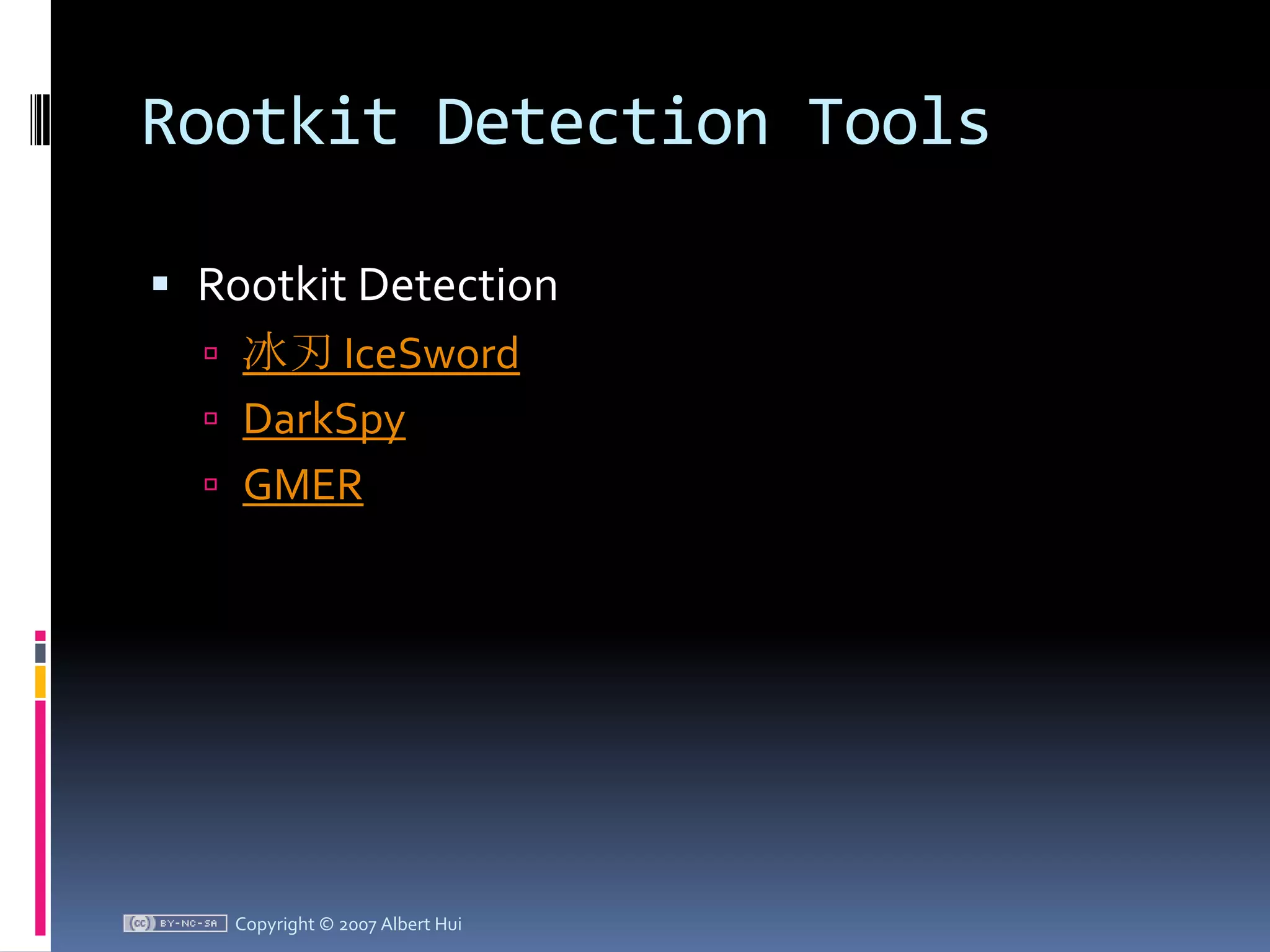

- 19. Rootkit Detection ToolsRootkitDetection冰刃 IceSwordDarkSpyGMERCopyright © 2007 Albert Hui

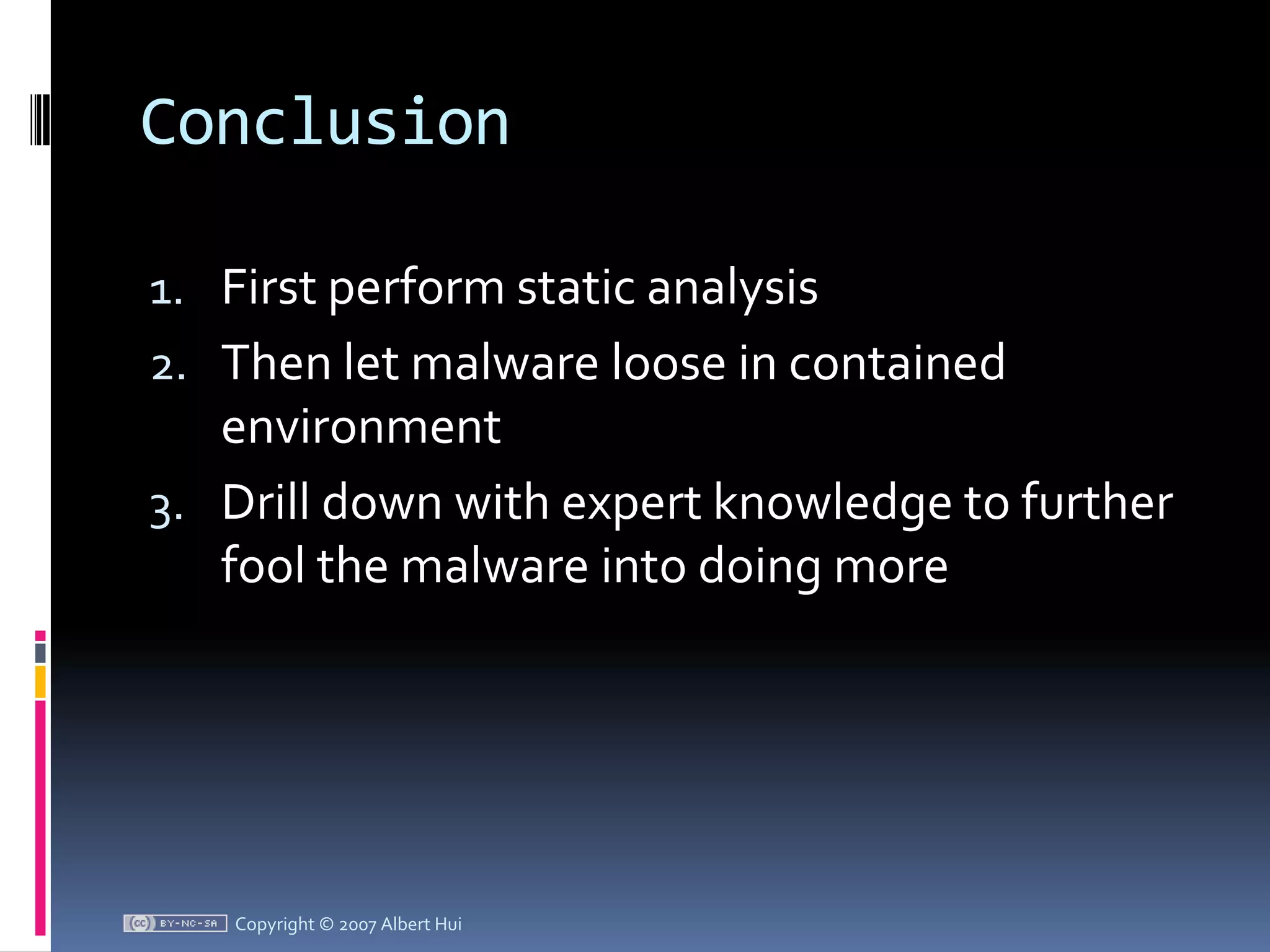

- 20. ConclusionFirst perform staticanalysisThen let malware loose in contained environmentDrill down with expert knowledge to further fool the malware into doing moreCopyright © 2007 Albert Hui
