Lex is a tool that generates lexical analyzers based on regular expressions. It reads a specification file defining patterns and actions, and outputs C code implementing the lexical analyzer. The generated code uses a finite state machine to efficiently scan input and recognize tokens based on the defined patterns. Lex is often used with Yacc, which generates parsers based on context-free grammars to recognize higher-level syntactic structures. Together, Lex and Yacc allow defining the lexical and syntactic rules of a language to build a compiler or interpreter.

1. Lex & Yacc
Dr.R. Suganya

2. Lex
 lex is a program (generator) that generates lexical
analyzers, (widely used on Unix).
 It is mostly used with Yacc parser generator.
 Written by Eric Schmidt and Mike Lesk.
 It reads the input stream (specifying the lexical analyzer )
and outputs source code implementing the lexical analyzer
in the C programming language.
 Lex will read patterns (regular expressions); then produces
C code for a lexical analyzer that scans for identifiers.
2
Hathal & Ahmad

3. Lex
◦ A simple pattern: letter(letter|digit)*
 Regular expressions are translated by lex to a computer program that mimics an
FSA.
 This pattern matches a string of characters that begins with a single letter
followed by zero or more letters or digits.
3
Hathal & Ahmad

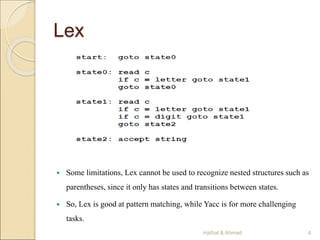

4. Lex
 Some limitations, Lex cannot be used to recognize nested structures such as
parentheses, since it only has states and transitions between states.
 So, Lex is good at pattern matching, while Yacc is for more challenging
tasks.
4
Hathal & Ahmad

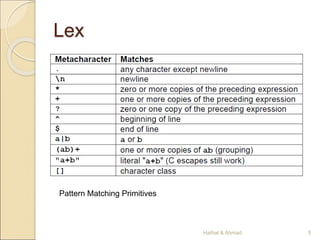

5. Lex
Pattern Matching Primitives
5
Hathal & Ahmad

6. Lex
• Pattern Matching examples.
6
Hathal & Ahmad

7. Lex
……..Definitions section……
%%
……Rules section……..
%%
……….C code section (subroutines)……..
 The input structure to Lex.
•Echo is an action and predefined macro in
lex that writes code matched by the
pattern.
7
Hathal & Ahmad

8. Lex
Lex predefined variables.
8
Hathal & Ahmad

9. Lex
 Whitespace must separate the defining term and the associated expression.
 Code in the definitions section is simply copied as-is to the top of the generated C file and must
be bracketed with “%{“ and “%}” markers.
 substitutions in the rules section are surrounded by braces ({letter}) to distinguish them from
literals.
9
Hathal & Ahmad

10. Yacc
 Theory:
◦ Yacc reads the grammar and generate C code for a parser .
◦ Grammars written in Backus Naur Form (BNF) .
◦ BNF grammar used to express context-free languages .
◦ e.g. to parse an expression , do reverse operation( reducing the
expression)
◦ This known as bottom-up or shift-reduce parsing .
◦ Using stack for storing (LIFO).
10
Hathal & Ahmad

11. Yacc
 Input to yacc is divided into three sections.
... definitions ...
%%
... rules ...
%%
... subroutines ...
11
Hathal & Ahmad

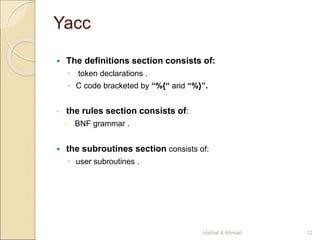

12. Yacc
 The definitions section consists of:
◦ token declarations .
◦ C code bracketed by “%{“ and “%}”.
◦ the rules section consists of:
 BNF grammar .
 the subroutines section consists of:
◦ user subroutines .
12
Hathal & Ahmad

13. yacc& lex in Together
 The grammar:
program -> program expr | ε
expr -> expr + expr | expr - expr | id
 Program and expr are nonterminals.
 Id are terminals (tokens returned by lex) .
 expression may be :
◦ sum of two expressions .
◦ product of two expressions .
◦ Or an identifiers
13
Hathal & Ahmad

14. Lex file
14
Hathal & Ahmad

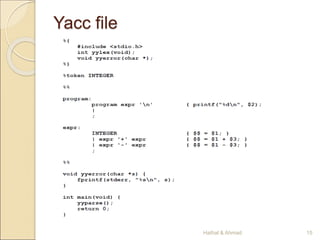

15. Yacc file
15
Hathal & Ahmad

16. Linking lex&yacc
16
Hathal & Ahmad

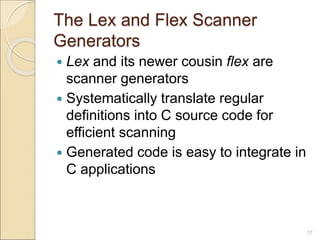

17. 17
The Lex and Flex Scanner
Generators
 Lex and its newer cousin flex are
scanner generators
 Systematically translate regular
definitions into C source code for
efficient scanning
 Generated code is easy to integrate in
C applications

18. 18
Creating a Lexical Analyzer with
Lex and Flex
lex or flex
compiler
lex
source
program
lex.l
lex.yy.c
input
stream
C
compiler
a.out
sequence
of tokens
lex.yy.c
a.out

19. 19
Lex Specification
 A lex specification consists of three parts:
regular definitions, C declarations in %{
%}
%%
translation rules
%%
user-defined auxiliary procedures
 The translation rules are of the form:
p1 { action1 }
p2 { action2 }
…
pn { actionn }

20. 20
Regular Expressions in Lex
x match the character x
. match the character .
“string” match contents of string of characters
. match any character except newline
^ match beginning of a line
$ match the end of a line
[xyz] match one character x, y, or z (use to escape -)
[^xyz]match any character except x, y, and z
[a-z] match one of a to z
r* closure (match zero or more occurrences)
r+ positive closure (match one or more occurrences)
r? optional (match zero or one occurrence)
r1r2 match r1 then r2 (concatenation)
r1|r2 match r1 or r2 (union)
( r ) grouping
r1r2 match r1 when followed by r2
{d} match the regular expression defined by d

21. 21
Example Lex Specification 1
%{
#include <stdio.h>
%}
%%
[0-9]+ { printf(“%sn”, yytext); }
.|n { }
%%
main()
{ yylex();
}
Contains
the matching
lexeme
Invokes
the lexical
analyzer
lex spec.l
gcc lex.yy.c -ll
./a.out < spec.l
Translation
rules

22. 22
Example Lex Specification 2
%{
#include <stdio.h>
int ch = 0, wd = 0, nl = 0;
%}
delim [ t]+
%%
n { ch++; wd++; nl++; }
^{delim} { ch+=yyleng; }
{delim} { ch+=yyleng; wd++; }
. { ch++; }
%%
main()
{ yylex();
printf("%8d%8d%8dn", nl, wd, ch);
}
Regular
definition
Translation
rules

23. 23
Example Lex Specification 3
%{
#include <stdio.h>
%}
digit [0-9]
letter [A-Za-z]
id {letter}({letter}|{digit})*
%%
{digit}+ { printf(“number: %sn”, yytext); }
{id} { printf(“ident: %sn”, yytext); }
. { printf(“other: %sn”, yytext); }
%%
main()
{ yylex();
}
Regular
definitions
Translation
rules

24. 24
Example Lex Specification 4
%{ /* definitions of manifest constants */
#define LT (256)
…
%}
delim [ tn]
ws {delim}+
letter [A-Za-z]
digit [0-9]
id {letter}({letter}|{digit})*
number {digit}+(.{digit}+)?(E[+-]?{digit}+)?
%%
{ws} { }
if {return IF;}
then {return THEN;}
else {return ELSE;}
{id} {yylval = install_id(); return ID;}
{number} {yylval = install_num(); return NUMBER;}
“<“ {yylval = LT; return RELOP;}
“<=“ {yylval = LE; return RELOP;}
“=“ {yylval = EQ; return RELOP;}
“<>“ {yylval = NE; return RELOP;}
“>“ {yylval = GT; return RELOP;}
“>=“ {yylval = GE; return RELOP;}
%%
int install_id()
…
Return
token to
parser
Token
attribute
Install yytext as
identifier in symbol table

25. 25

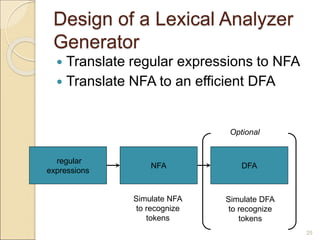

Design of a Lexical Analyzer
Generator
 Translate regular expressions to NFA
 Translate NFA to an efficient DFA
regular
expressions
NFA DFA
Simulate NFA
to recognize
tokens
Simulate DFA
to recognize
tokens
Optional
